Dynabook UPA3297WL 802.11a/b/g Mini-PCI Module User Manual Manual
Toshiba Corporation 802.11a/b/g Mini-PCI Module Manual
Dynabook >
Contents
- 1. User Manual
- 2. OEM instruction and installation manual
- 3. OEM instruction and installation manaul
- 4. PotegeM200 User Manual
- 5. Firebolt PA3297 Manual
OEM instruction and installation manaul
This sheet is for information only. The wireless LAN
card must be installed by
Toshiba or Toshiba OEM dealers.

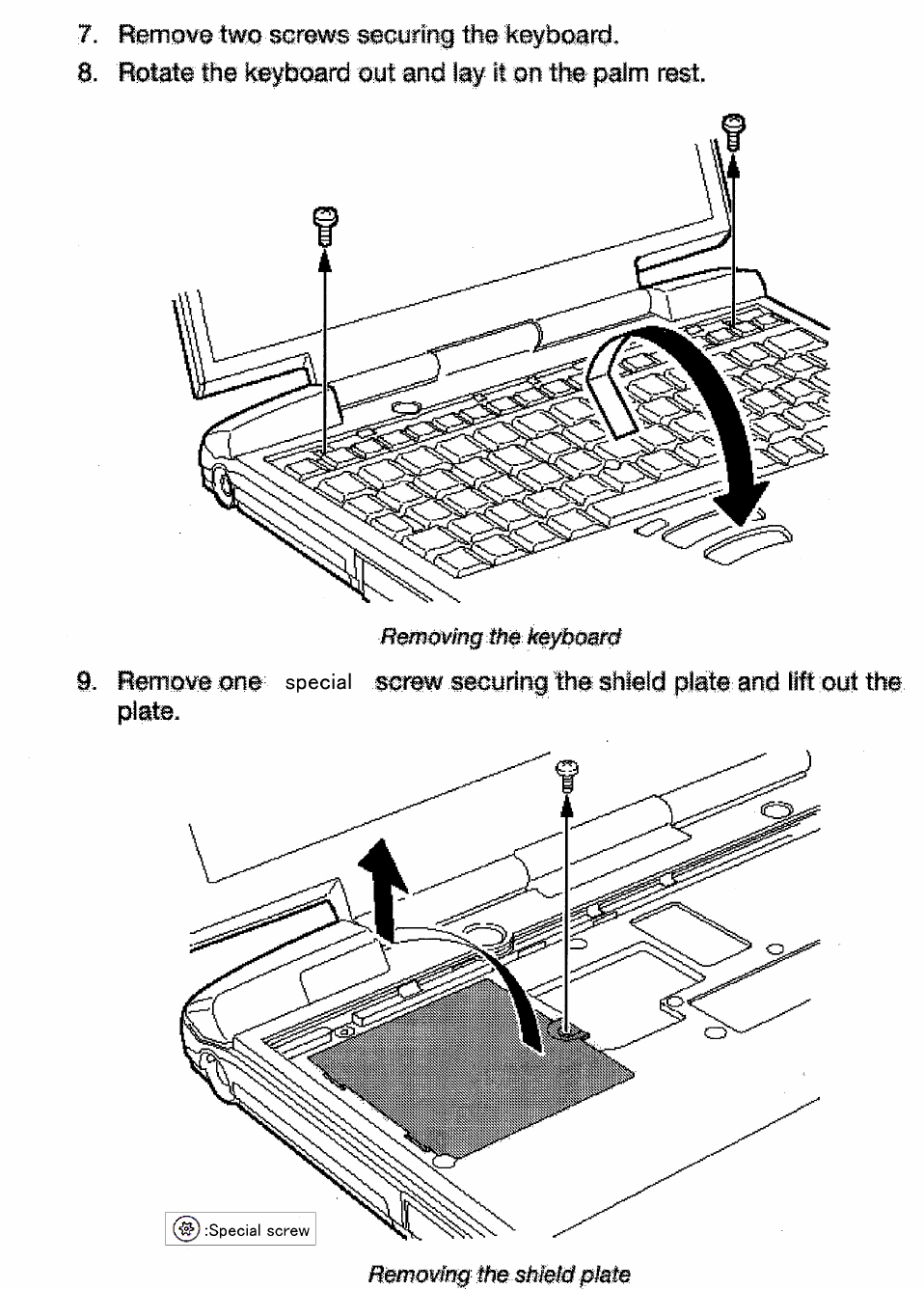

one special screw.
one six-point screw and
one special screw.

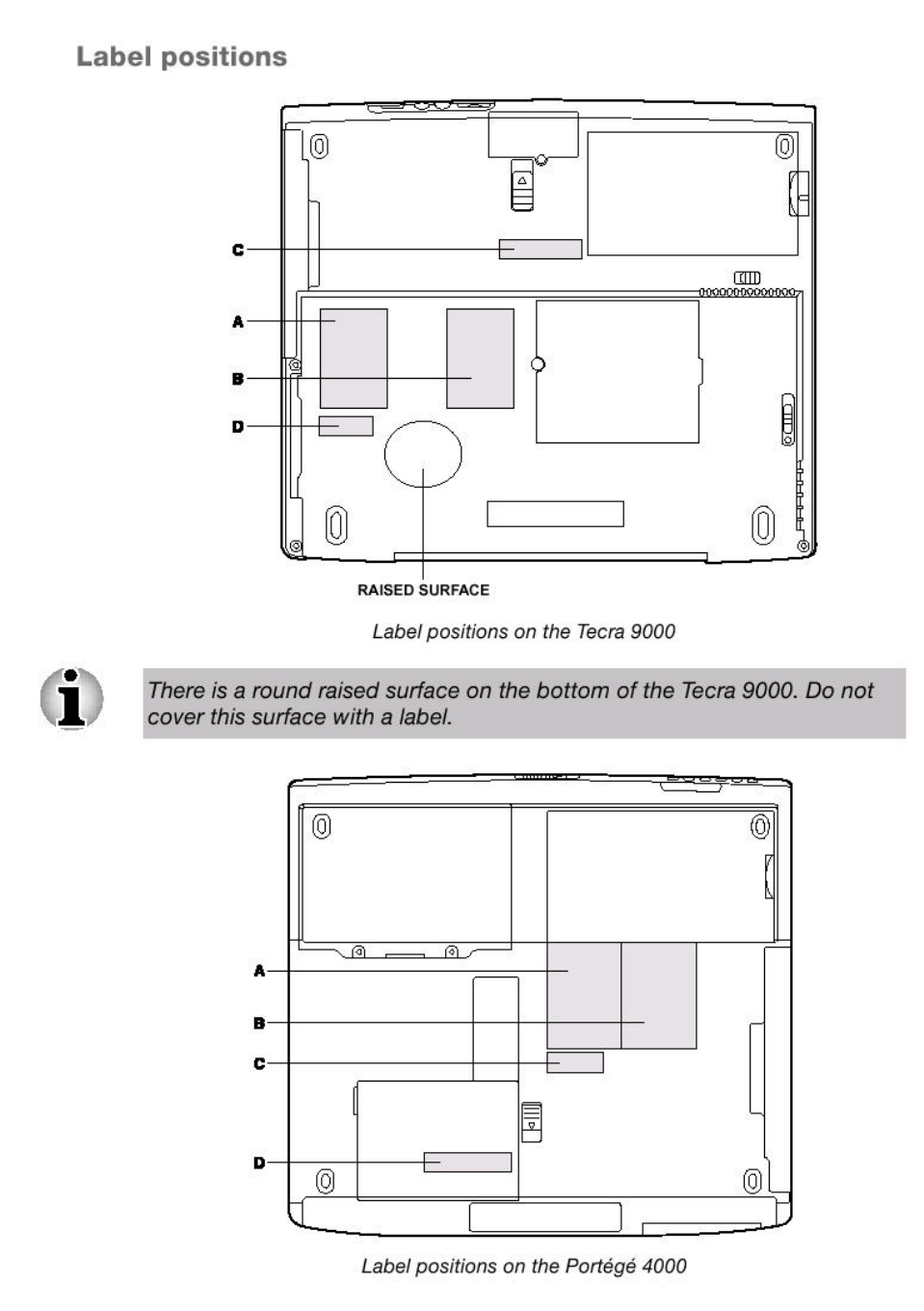

2. Apply to following Wireless LAN label to position C shown in the figure for the
Tecra 9000 or the figure for the Portégé 4000.
Apply this Label
PA3297U-1MPC
Contains radio device PA3297U-1MPC following
certification are applicable
Contains FCC ID:CJ6UPA3297WL
Contains IC:248H-DPA3297W
