Dynamco TX71 Remote Relay (Transmitter) User Manual REM 071 User

Dynamco Pty. Ltd. Remote Relay (Transmitter) REM 071 User

Users Manual

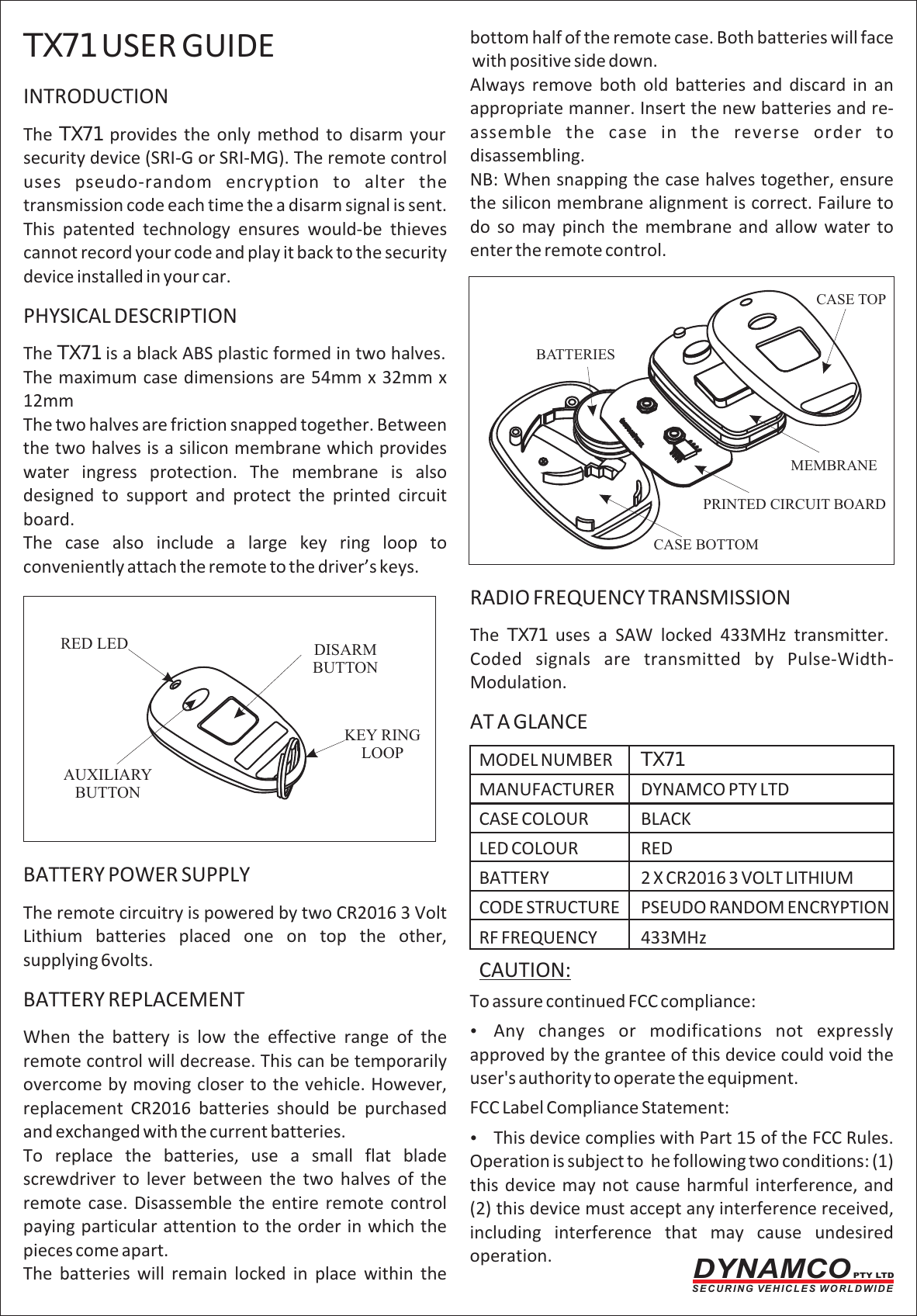

bottom half of the remote case. Both batteries will face TX71 USER GUIDE with positive side down.Always remove both old batteries and discard in an INTRODUCTION appropriate manner. Insert the new batteries and re-assemble the case in the reverse order to The TX71 provides the only method to disarm your disassembling.security device (SRI-G or SRI-MG). The remote control NB: When snapping the case halves together, ensure uses pseudo-random encryption to alter the the silicon membrane alignment is correct. Failure to transmission code each time the a disarm signal is sent. do so may pinch the membrane and allow water to This patented technology ensures would-be thieves enter the remote control.cannot record your code and play it back to the security device installed in your car.PHYSICAL DESCRIPTIONThe TX71 is a black ABS plastic formed in two halves. The maximum case dimensions are 54mm x 32mm x 12mmThe two halves are friction snapped together. Between the two halves is a silicon membrane which provides water ingress protection. The membrane is also designed to support and protect the printed circuit board.The case also include a large key ring loop to conveniently attach the remote to the driver’s keys.RADIO FREQUENCY TRANSMISSIONThe TX71 uses a SAW locked 433MHz transmitter. Coded signals are transmitted by Pulse-Width-Modulation.AT A GLANCEMODEL NUMBER TX71MANUFACTURER DYNAMCO PTY LTDCASE COLOUR BLACKLED COLOUR REDBATTERY POWER SUPPLY BATTERY 2 X CR2016 3 VOLT LITHIUMCODE STRUCTURE PSEUDO RANDOM ENCRYPTIONThe remote circuitry is powered by two CR2016 3 Volt Lithium batteries placed one on top the other, RF FREQUENCY 433MHzsupplying 6volts. CAUTION: BATTERY REPLACEMENT To assure continued FCC compliance: ?Any changes or modifications not expressly When the battery is low the effective range of the approved by the grantee of this device could void the remote control will decrease. This can be temporarily user's authority to operate the equipment.overcome by moving closer to the vehicle. However, replacement CR2016 batteries should be purchased FCC Label Compliance Statement:and exchanged with the current batteries. ?This device complies with Part 15 of the FCC Rules. To replace the batteries, use a small flat blade Operation is subject to he following two conditions: (1) screwdriver to lever between the two halves of the this device may not cause harmful interference, and remote case. Disassemble the entire remote control (2) this device must accept any interference received, paying particular attention to the order in which the including interference that may cause undesired pieces come apart. operation. The batteries will remain locked in place within the RED LEDAUXILIARYBUTTONDISARM BUTTONKEY RINGLOOPTX71(HCS200)MEMBRANEPRINTED CIRCUIT BOARDCASE TOPCASE BOTTOMBATTERIESDYNAMCO PTY LTDS E C U R I N G V E H I C L E S W O R L D W I D E
