Product Overview
In order to make sure you get the best possible results from your
new Speaker Mojo, please thoroughly read and carefully follow all
instructions in this User’s Manual or on the product. Keep this User’s
Manual in a convenient location for future reference.
Package contents:
Speaker Mojo x 1
Power cradle x 1
Power adapter x 1
Micro USB charging cable x 1
Aux cable x 1
User’s Manual x 1
If any of these were missing or damaged, please visit
bemwirelesss.com to obtain replacement.
Compatibility
All devices enabled with Bluetooth technology, including iPhones,
iPads, iPods, smartphones, laptops, tablets and more.
Also compatible with any device that has a standard 3.5mm
earphone jack such as MP3 players, PSP, mobile phones, etc.
Meet the Speaker Mojo
Before learning about your Speaker Mojo, take a moment to look it
over and familiarize yourself with its features.

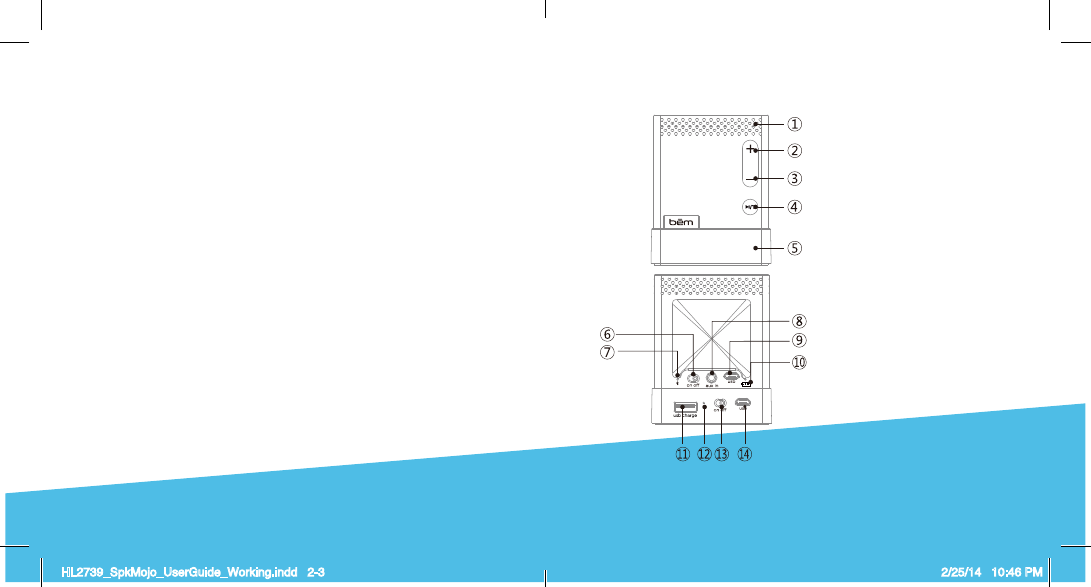

Product Interface
1. Microphone
2. Volume +
3. Volume –
4. Play / Pause
5. Power Cradle
6. On/ Off switch
7. Bluetooth© indicator
8. Aux in
9. Micro USB power port
10. Power indicator
Power Cradle
11. USB port
12. Power Indicator
13. Charging switch
14. Micro USB power port
Speaker Mojo
HL2739_SpkMojo_UserGuide_Working.indd 2-3 2/25/14 10:46 PM
76
Getting Started
We know you are excited to experience your new Speaker Mojo.
These two easy steps will get you up and running quickly.
Step 1: Charge It
Connect your Speaker Mojo to an outlet using the USB charging
cable and power adapter. The red LED light will slowly flash
during charging and turn green when it has reached a complete
charge (Approx. 2 hours).
You can also put your speaker mojo onto the power cradle, and
connect it to an outlet using the USB charging cable and power
adapter to charge them both.
Step 2: Connect it
There are two options for connecting to your Speaker Mojo —
wirelessly by Bluetooth© or wired using the included aux cable.
Connect Wirelessly
Once the Speaker Mojo has entered Bluetooth mode, the
is currently in Bluetooth pairing mode will sound. Go to the
Bluetooth settings on your mobile phone, tablet or computer
Speaker Mojo and connected device will pair automatically.
Holding the Play/Pause button for 5 seconds will disconnect the
connected device and enter pairing mode for pairing a new device.
Operation Details
Power on / Power off
Slide the power switch to “on” to turn on the Speaker Mojo. The
Bluetooth indicator will light up to signify the unit is on and ready
to be paired.
Slide the power switch to “off” to turn off the unit and the
Bluetooth indicator light will go out.
Play modes
• Bluetooth mode: play an audio signal from the connected
Bluetooth device.
• AUX mode: play an audio signal from the connected
“wired” device.
Please note, if an Aux cable is connected to the speaker it will not
play music from Bluetooth© connected devices.
Step 2: Connect it (continued)
Direct Connection
The Speaker Mojo can also be connected to any device that has
a headphone jack or line out using the included aux cable.
Please note the play/pause button only operates when
connected via Bluetooth.
HL2739_SpkMojo_UserGuide_Working.indd 4-5 2/25/14 10:46 PM
98
Operation Details (cont.)
Play modes
Touch the “audio mode” on either side of the speaker or press
“audio mode” button on the remote to shift among following
play modes:
• Bluetooth mode: play an audio signal from the connected
Bluetooth© device.
• AUX mode: play an audio signal from the connected
“wired” device.
Please note, if an Aux cable is connected to the speaker it will
not play music from Bluetooth© connected devices.
• FM mode: play FM radio.
• Nature Song Mode: play 6 built-in songs.
• Press “audio mode” switch to natural sound play mode;
• Use SKIP+/SKIP- to select the sound you want to play, and
the selected icon will flash on the screen;
• The selected music will start playing immediately.
Bluetooth is the default play mode when the speaker is powered
mode and enter this mode automatically when it turns back on.
Speaker Phone
After pairing your mobile phone to Speaker Mojo with Bluetooth,
the speaker phone function can be used.
• Making a call: Call will automatically transfer to the
speakerphone. If not, tap play/pause button;
• Answering a call: Tap play/pause button to answer the
incoming call;
• Ending a call : Tap play/pause button during the call to
end the call;
• Rejecting a call : Hold play/pause button to reject the
incoming call;
• Redial last number: Double tap play/pause button to redial
the last number when it is not in a call.
Both play/pause button on speaker and remote work with
this function.
Power Cradle
The Power cradle is a backup battery pack for Speaker Mojo and
your Bluetooth device.
• The Speaker Mojo can be removed from the power cradle
to be set anywhere you like. Put Speaker Mojo into the
power cradle, it will triple the playing hours immediately.
*(*The playing hours could vary due to different working
environments)
HL2739_SpkMojo_UserGuide_Working.indd 6-7 2/25/14 10:46 PM
1110
• The Power cradle features a standard USB charging port
with 5V, 1A power output to charge your device like iPhones,
iPods and smartphones*. Slide the on/off switch on the Power
cradle to “on” to turn on the charging, to “off” to turn off the
charging.
(*Please reference the instructions of device for details. The
charging cable is not included. ) Charging Your Device
Audio Use
Follow the above connection steps to pair a Bluetooth© device
with the Speaker Mojo. At this point you can send any kind of
audio signal to your speaker (music, video, gaming, etc.). Just
use your device as normal and the audio will play through your
Speaker Mojo.
Controls
Press the Play/Pause button to play or pause the music when
using a music player through your Bluetooth© connected device.
Pressing the + and - buttons will increase or decrease the volume
on the Speaker Mojo. Please note that this will not affect the
volume levels on the connected device.
Connection
Laptop / notebook / PC
As the Bluetooth© versions for these types of devices varies
greatly, the connection methods will differ as well. If you
can not connect with the Speaker Mojo using the previous
method instructed you may need to install a new version of the
Bluetooth© driver.
Please reference the instructions of device for details.
Charging
Connect the standard USB end of the supplied USB cable to a
USB power source (PC, USB power adapter…etc.)
Connect the Micro USB jack to the USB charging port on the
unit or power cradle. The charging indicator will light up while
charging. If you put Speaker Mojo into the power cradle, it will
charge them both at the same time weather you connect the
power to the Speaker Mojo or power cradle.
Please note, the Speaker Mojo LED charging indicator will not
light up when the speaker is charging on the Power Cradle
It will take about 2 hours to fully charge the Speaker Mojo alone,
3 hours to fully charge the power cradle and 5 hours for charging
them at the same time.
Charging Indicator Light Modes
Power indicator on Speaker Mojo
• Red LED / Flashing Fast: Battery is low, charge the unit soon;
• Red LED / Flashing Slow: Speaker Mojo is charging;
• Green LED: Battery is fully charged
Note: if the unit has not been used in the past 7 days please
charge for 10 minutes before using the Speaker Mojo
Indicator on power cradle
• Red LED : Charging, it will goes off when it is fully charged;
• Blue LED : power output is on.
HL2739_SpkMojo_UserGuide_Working.indd 8-9 2/25/14 10:46 PM
1312
Troubleshooting
Issue: Pairing is unsuccessfully after multiple attempts
Solution:
• Check if the Bluetooth indicator light is on. If the indicator
light is off, please press the power button to turn the unit
on. If the Bluetooth indicator light still doesn’t come on after
pressing the power button, please charge the unit.
• Check for other Bluetooth devices around the surroundings
that may interfere with searching and turn devices off.
• Power off and then power on the unit to restart the Bluetooth
Unplug any cables plugged into the AUX IN, restart all devices
and then attempt pairing again.
Issue: Interference or static during playback
Solution:
• Avoid using the device between concrete or other building
structures that may interfere with the signal.
• Please check if the battery level of the unit and the
Bluetooth© device and charge if necessary.
For more troubleshooting help go to http://bemwireless.com
Maintenance
Please follow the instructions below for cleaning your
Speaker Mojo
• Power off the unit and unplug the power adapter from
wall outlet
• Use a soft, dry, lint-free cloth and wipe gently
• Do not use alcohol, benzene, thinners or other chemical
detergents as these can cause the casing to be warped
or discolored
For questions, comments or to purchase more be¯m wireless
products go to bemwireless.com
Storage
• Power off the Speaker Mojo If the unit will not be used for an
extended period of time.
• Do not set the unit in a damp environment, high temperatures
or in direct sunlight.
HL2739_SpkMojo_UserGuide_Working.indd 10-11 2/25/14 10:46 PM
1514
More Info
For questions, comments or to purchase more be¯m wireless
products go to: bemwireless.com
You can also follow us at:
facebook.com/bemwireless
twitter.com/bemwirelessco
youtube.com/bemwireless
For information on your product’s warranty go to:
bemwireless.com/support
FCC Statement
1. This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including
interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for
be¯m wireless
http://bemwireless.com/
be¯m wireless LLC.
1725 Kilkenny Ct.
Woodstock, IL. USA
Made in China
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body.
FCC Statement (cont.)
HL2739_SpkMojo_UserGuide_Working.indd 12-13 2/25/14 10:46 PM
CE2200
1716
Product Name : Speaker Mojo
Model Number : HL2739
Power Supply: 5V,1A
Output Power: 1.5W X 2
USB charging output: 5V,1A x 1
Bluetooth V4.0+EDR , profile Supported: A2DP, AVRCP
Working Range: Approximately 25ft, 8m
Working atmosphere: 0˚C-40˚C / 20%-90%RH
Safety Instructions
This product is specially designed based on the full attention to
safety; in order to make sure the accident-free operation, please
abide the guidelines listed below:
• Always position the unit on a stable and level surface. Unstable surface
can cause the unit to topple and fall, resulting in possible damage or injury
• Do not drop, unpack, open, beat, curve, prink and burn
the unit
• Avoid using the unit nearby basins or sinks where it may come in contact
with water
• Do not place any ware with full water on the top of the unit,
such as vase, glass, pot, and please avoid placing candle on
the speaker surface as well
• Protect the using of the unit from any overheating devices
(such as radiator, heating installation, cooking stove or
other heating devices)
• Regardless of what reasons cause the unit damage, please
ask for the maintenance personnel to repair
• If you want to do the cleaning, please turn off the unit and
unplug the power cable from the outlet first
• Set the volume properly to prevent injury to the unit and your
personal health
Correct Disposal of this product. This marking indicates that this product
should not be disposed with other household wastes throughout the EU. To
prevent possible harm to the environment or human health from uncontrolled
waste disposal, recycle it responsibly to promote the sustainable reuse of
material resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was purchased.
They can take this product for environmental safe recycling.
WARNING:
• The battery (battery or batteries or battery pack) shall not be exposed to
excessive heat such as sunshine, fire or the like.
• No naked flame sources, such as lighted candles, should be placed on the
apparatus.
• CAUTION: Danger of explosion if battery is incorrectly replaced. Replace
only with the same or equivalent type.
Safety Instructions (cont.)
HL2739_SpkMojo_UserGuide_Working.indd 14-15 2/25/14 10:46 PM
IC ID STATEMENT
- English: "
This device complies with Industry Canada licence-exempt RSS
standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference
that may cause undesired operation of the device."
This equipment should be installed and operated with a minumum
distance of 20 cm between the radiator and your body.
- French:"
Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil nedoit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement."
Cet équipement doit être installé et utilisé à une distance
minimale de 20 cm entre le radiateur et votre corps.
1918
be¯m wireless | 1725 Kilkenny Court | Woodstock IL 60098
© 2014 be¯m wireless
TEL: 855-839-8616
