Those are just a few words to describe the 5300 ES Series Mobile Radio from EFJohnson. The
5300 ES Mobile Radio is a very capable and flexible tool designed for the demanding needs of
critical communications. Seamless interoperability with analog and digital, wideband and nar-
rowband, and a wide variety of trunking protocols – all available simultaneously in the same
radio – makes the 5300 ES ideal for migrating critical systems to the latest open standards.
This flexibility helps protect your investment in the future as well as maximizing interoper-
ability among most installed systems. If you need a multi-protocol mobile radio that leads the
industry in feature richness and system interoperability, then the 5300 ES Series Mobile Radio
is the right choice.

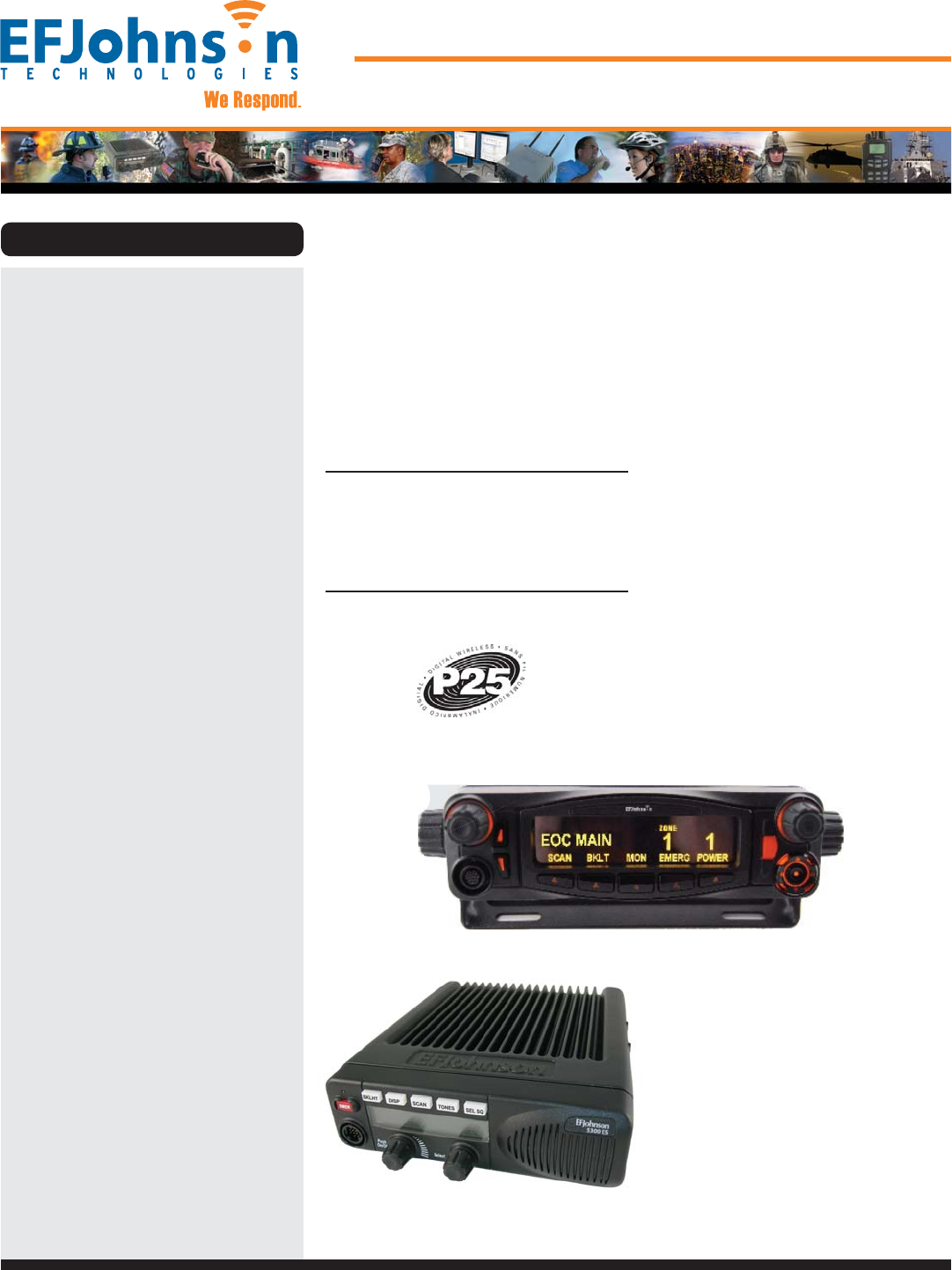

Key Features and Benefi ts
EFJohnson is a leading provider of
Project 25 compliant two-way radios
and communication systems for law
enforcement, fi re fi ghters,
EMS, and military.
5300 ES Series Mobile Radio
700/800 MHz UHF VHF
Robust and Flexible
Up to 864 Channels / Talkgroups
SMARTNET II®/SmartZone® P25 Digital and Analog
All Supported Protocols Available Simultaneously
DES, DES-OFB, & AES Encryption with 64 keys
P25 Conventional & Trunked OTAR
Conventional Vote Scan is Standard
Supports Key Elements of MDC1200 and GE-Star
Compatible with Motorola Astro®
Supports Motorola® System v7.4
Simplifi ed cabling with a single multi-function
accessory connection in the rear
Trunking
SMARTNET II / SmartZone
P25
Data and Control Interfaces
Supports P25 Conventional IP Packet Data
Supports GPS AVL Data
Simplifi ed Feature Updates and Option
Selection
Over the Air Programming (OTAP) option enables
you to program radios without connecting them to
a computer
Easy radio programming and feature updating
using EFJohnson’s PC Confi gure™ software for
portable and mobile radios
Multiple Confi guration Options
Dash Mount
Remote Mount
2 Control Heads
Hand-Held Controller
Internal or External Speaker
Fixed Control Stations
Siren Option
Motorcycle Confi guration
Extensive Accessory Suite
Complete line of accessories including microphones,
speakers, and encryption keyloading devices. Visit our
website for the EFJohnson Subscriber Accessories Catalog!
Project 25 Compliance
Supports Project 25 CAI (Common Air Interface),
Project 25 Trunked and Conventional system
protocols, and Project 25 Over-The-Air
Rekeying (OTAR) functionality.
Enhanced (AMBE+2) P25 Vocoder
Outstanding voice quality and noise reduction.
EFJohnson is the only high tier radio vendor with a
full implementation of this second generation
Enhanced (AMBE+2) P25 preferred vocoder.
Industry’s Only SMARTNET® II /
SmartZone® Licensee
Industry’s only supplier licensed to support both
analog and digital SMARTNET II and SmartZone
trunking protocols.
Numerous Encryption Protocols
Supports industry-standard encryption capabilities
such as AES, DES-OFB and DES. Ask about our free
Single Key DES-OFB encryption for P25.
Rugged…Solid....Reliable.
![](/img.php?id=1067236&img=bg2.png)
DRAFT
ENCRYPTION OPTIONS
Supported Encryption DES, DES-OFB, AES
Algorithms
Encryption Keys/Radio 64 Common Key
Reference (CKR)
64 Physical Identifi er (PID)
Compatible with Motorola
Key Variable Loader
Encryption Frame P25 CAI 360 msec
Re-sync Interval
Encryption Keying External Key Loader, OTAR
Synchronization CFB – Cipher Feedback
OFB – Output Feedback
Vector Generator National Institute of
Standards and Technology
(NIST) approved random
number generator
Encryption Type Digital
Key Erasure Keyboard Command
Code Key Initialization Internal pseudorandom
generator
Standards FIPS 46-3, FIPS 81, FIPS
140-2, FIPS 197
1440 Corporate Drive, Irving, TX 75038-2401
Phone: 972-819-0700, 1-800-328-3911 Fax: 972-819-2307
www.EFJohnsonTechnologies.com
ENVIRONMENTAL SPECIFICATIONS
Typical Performance Specifi cations
5300 ES Series Mobile Radio
700/800 MHz UHF VHF
Environment Mil Spec 810F
M P
Low Pressure 500.4 II
High Temp. 501.4 I, II
Low Temp. 502.4 I, II
Temp. Shock 503.4 I
Solar Radiation 505.4 I
Rain/Blown Rain 506.4 I, III
Humidity 507.4 --
Salt Fog 509.4 --
Dust 510.4 I
Vibration 514.5 I(24), II(5)
Shock 516.5 I, V, VI
M = Method P = Procedure
Also meets equivalent superseded C, D, and E
standards
Form S857 1/09 (Supercedes 10/08) Printed in U.S.A.
Specifi cations subject to change without notice.
© Copyright 2009 EFJohnson. PC Confi gure™
is a trademark of EFJohnson.
SMARTNET®, SmartZone®, ASTRO® and Motorola®
are trademarks of Motorola, Inc.
GENERAL 7/800, 30/35W UHF R1, 40W VHF
Frequency Range (band splits) 762-870 MHz 380-470 MHz 136 - 174 MHz
Channel Spacing
Analog 25kHz, 12.5kHz 25kHz, 12.5kH 25 kHz, 12.5 kHz
P25 Digital 12.5kHz 12.5kHz 12.5 kHz
Maximum Frequency Separation Full Band Split Full Band Split Full Band Split
Display Backlit LCD. 10 alpha-numeric characters plus Zone, Channel and Status. Electronically adjustable viewing angle
Power Supply
Nominal Voltage (negative ground) 13.6 VDC 13.6 VDC 13.6 VDC
Operating Supply Voltage Range 10.9 ~ 16.3 VDC 10.9 ~ 16.3 VDC 10.9 ~ 16.3 VDC
Standby Current (back-light off ) 700 mA 400 mA 400 mA
Receive Current at Rated Audio Power 2.65A 2.65A 2.65A
Current at Max Rated Transmit Power 12.5A 10A 12.5A
Temperature Range
Operating -30°C to +60°C -30°C to +60°C -30°C to +60°C
Storage -40°C to +85°C -40°C to +85°C -40°C to +85°C
Nominal Dimensions (H x W x D) 2.1” x 7.2 “ x 8.3 “ 2.1” x 7.2 “ x 8.3 “ 2.1” x 7.2 “ x 8.3 “
exclusive of mounting, cables, knobs (5.3 cm x 18.2 cm x 21.1 cm) (5.3 cm x 18.2 cm x 21.1 cm) (5.3 cm x 18.2 cm x 21.1 cm)
Nominal Weight 6.5 lbs (2.3 kg) 6.5 lbs (2.3 kg) 6.5 lbs (2.3 kg)
FCC ID ATH2425372 ATH2425333 ATH2425313
Industry Canada IC: 933B-2425372 IC: 933B-2425333 IC: 933B-2425313
TRANSMITTER
RF Output Power (variable) 15 ~ 30 W (762-806MHz) 10W ~ 40 W 15W ~ 55 W
15 ~35 W (806-870MHz)
Transmitter Frequency Range(s) 762~776, 792~806, 380 ~ 470 MHz 136 ~174 MHz
806~825, 851~870 MHz
Maximum Frequency Separation Full Band Split Full Band Split Full Band Split
Frequency Accuracy
(-30°C ~ +80°C, +25°C ref.) ±1.5 ppm ±1.5 ppm ±1.5 ppm
Modulation Limiting
25kHz channels ±5 kHz ±5 kHz ±5 kHz
12.5kHz channels ±2.5 kHz ±2.5 kHz
Modulation Fidelity
(C4FM, 12.5kHz Digital) < 5% < 5% < 5%
Spurious Emissions -75 dBc -75 dBc -75 dBc
Audio
Analog Frequency Response
(TIA 6dB/octive pre-emphasis) +1dB, -3dB +1dB, -3dB +1dB, -3dB
FM Hum and Noise Ratio
(25kHz Analog) 40 dB 45 dB 45 dB
FM Hum and Noise Ratio
(12.5kHz Analog) 34 dB 39 dB 39 dB
Distortion 2% 2% 2%
FCC Emission Designators
8K10FID, 8K10F1E, 11K0F3E, 16K0F3E
8K10FID, 8K10F1E, 11K0F3E, 16K0F3E
RECEIVER
Receiver Frequency Ranges 762~776, 851~870 MHz 380 ~ 470 MHz 136 - 174 MHz
Maximum Frequency Separation Full Band Split Full Band Split Full Band Split
Sensitivity
Analog Mode: 12dB SINAD (25 & 12.5kHz) .25µV (-119 dBm) .35µV (-116 dBm) .35µV (-116 dBm)
Digital Mode: (5% BER) .25µV (-119 dBm) .35µV (-116 dBm) .35µV (-116 dBm)
Selectivity (Adjacent Channel Rejection)
25kHz channels, Analog > 80 dB >75 dB >75 dB
12.5kHz channels > 63 dB > 63 dB > 63 dB
Off set, Digital < 9 dB / kHz < 9 dB / kHz < 9 dB / kHz
Intermodulation -80 dB -75 dB -75 dB
Spurious Response Rejection -83dB -75 dB -75 dB
Audio
Analog Frequency Response
(TIA 6dB/octave pre-emphasis) +1dB, -3dB +1dB, -3dB +1dB, -3dB
Output Power (3Ω load) 12W rms 12W rms 12W rms
Distortion (1kHz, 60% Deviation) < 3% < 3% < 3%
ACCESSORIES
• Antennas
• Keypad Microphones
• Desk Microphones
• Hand-Held Controller
• Remote Control Heads
• External Speakers
• Power Supplies
• Control Station Components
• Tone Remotes
• Encryption Key Management Tools
• Radio Programming Tools
• Mounting Hardware
• Siren Control Kit
