EDMI NC30 Electricity Meter User Manual NC30 V1 0 6
EDMI INTERNATIONAL TRADING (SHANGHAI) CO., LTD Electricity Meter NC30 V1 0 6
EDMI >
User Manual
Single Phase Multi-Tariff ANSI Meter
Content
1. Product Description .................................................................................................................................... 1
2. Total kWh Register ...................................................................................................................................... 2
3. Meter Memory ............................................................................................................................................... 2
4. Event Record ................................................................................................................................................ 2
5. LCD display during power off .................................................................................................................... 2
6. Maxim Demand ............................................................................................................................................. 2
7. Multi-Tariff energy, maximum 4 tariff (TOU) ............................................................................................ 2
8. Programming Password Protected .......................................................................................................... 2
9. LED indicator ................................................................................................................................................ 3
10. LCD display ................................................................................................................................................. 3
10.1.The main symbol explanation: ...................................................................................................... 3
10.2.Normal scroll mode (Table 1) .................................................................................................... 4
10.3. Default Display scroll mode ......................................................................................................... 4
11. Communication Port ................................................................................................................................. 5
12. Dis-connect Relay ...................................................................................................................................... 5
13. Wiring Connect ........................................................................................................................................... 5
14. Component Descriptions ......................................................................................................................... 6
15. Meter Outline Size ...................................................................................................................................... 9
16. Default Parameter Setting ........................................................................................................................ 9
Appendix 1: Specification ............................................................................................................................ 10

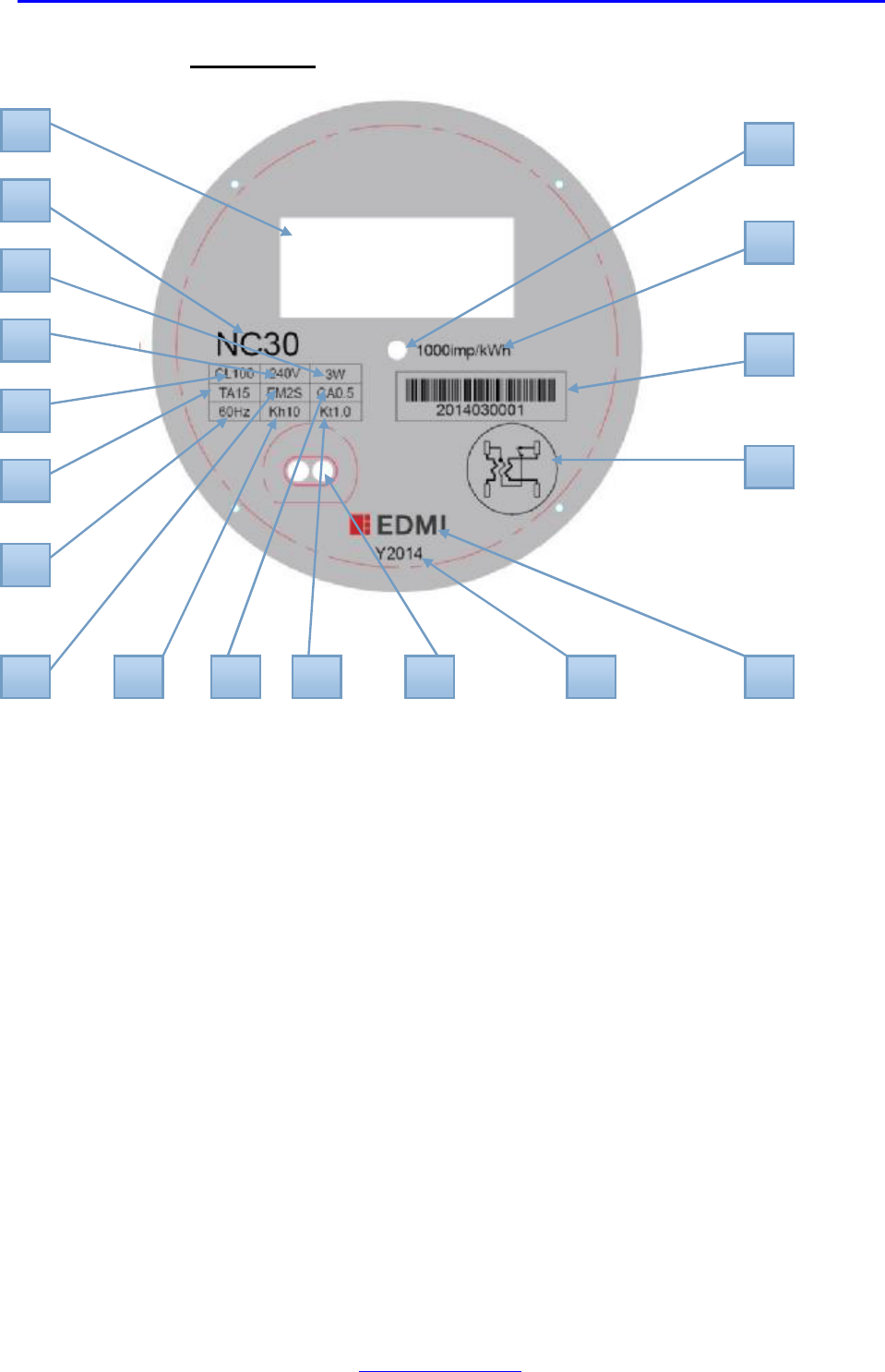

Appendix 2: Faceplate .................................................................................................................................. 13
PDF pdfFactory Pro www.fineprint.cn
Single Phase Multi-Tariff ANSI Meter
1
Single Phase Multi-Tariff ANSI Meter
Version Date Used Description of Revision
1.0.2 2013.01.06
1.0.3 2013.02.21 Add New Details
1.0.4 2013.06.17 Rename
1.0.5 2013.08.20 Add Link optional
1.0.6 2014.03.21 Add maxim demand
1. Product Description
Socket type, Outdoor
Complied with C12.1 C12.10 C12.18 C12.19 C12.20
LCD 6+1 Energy display way, Display instantaneous item:Voltage,Current, Active Power.
Communication port: optical port,RS485,RF,and PLC Optional
Max 4 rates can be set, default T1
Max Demand display
2 levels of password
12 months History metering data and 50 events of power on/off and meter reset
Dis-connect Relay optional

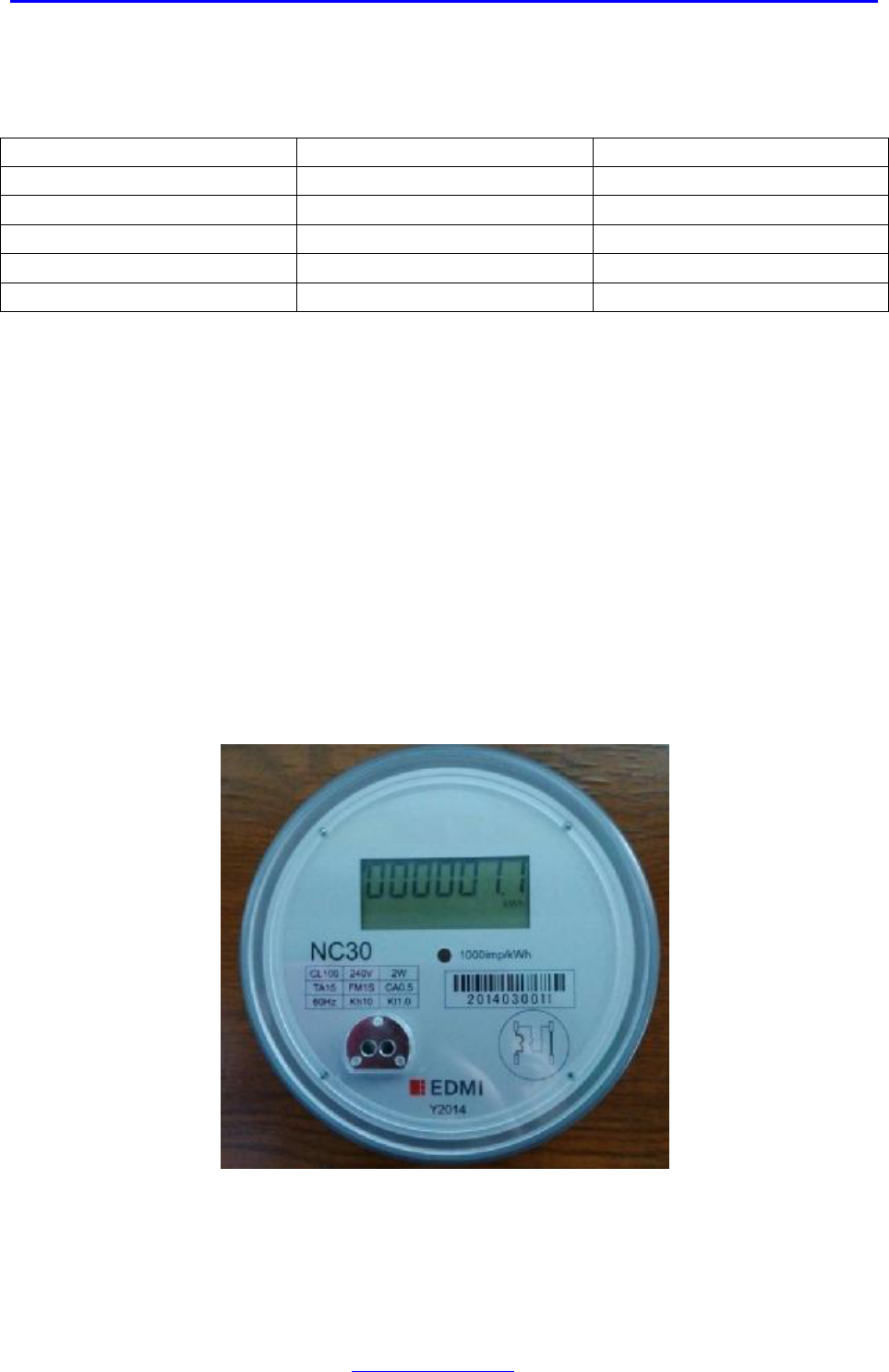

The NC30 meter
Figure 1-1 NC30 Meter
PDF pdfFactory Pro www.fineprint.cn
Single Phase Multi-Tariff ANSI Meter
2
2. Total kWh Register
The total kWh is displayed on the LCD by 6 digits with one decimal.
The total kWh register range is 000000.0-999999.9 kWh.
3. Meter Memory
The history data can store 12 months .
The history data include: Accumulative total and max 4 rates of Wh[abs(Wh+) + abs(Wh-)];
Accumulative total Wh-.
4. Event Record
The energy meter can record below events with time stamp;total 50 events.
Power on.
Power off.
Reset Energy data.
Reset event log.
Reset [energy data+event log].
5. LCD display during power off
Three display modes(can be set):
1. Always display Accumulative Wh[abs(Wh+)+abs(Wh-)].
2. Displaying Accumulative energy for setting time then no display.
3. No Display.
Default LCD display during power off is Mode 1.
6. Maxim Demand
1. Record T1 active (abs(Wh+) + abs(Wh-)）maxim demand ，T2 active maxim demand，T3active maxim
demand，T4 active maxim demand，and the time of the corresponding maxim demand.
2. Use the slip mode, demand cycle / slip time <=15 min; demand cycle <=60 min, sliding time < =
demand cycle.
3. Demand decimal use 4 digits,
4. Save one historical demand data,and clear the demand data when power energy save auto.
7. Multi-Tariff energy, maximum 4 tariff (TOU)
The meter can be up to 4 tariffs per days. And the time interval can be programmed by software.
Default Tariff is Single Tariff, T1.
8. Programming Password Protected
Meter must first through the password confirmation, then do the programming or other special operations.
There are two meter securities.
Level 1, for all permissions. 1122334455;
Level 2, Read only permission, 1111111111.
PDF pdfFactory Pro www.fineprint.cn
Single Phase Multi-Tariff ANSI Meter
3
9. LED indicator
A high light LED is mounted on the front of the meter, it will blink/pulse at a rate proportional to the
measured load if the current through the meter more than starting threshold. The pulse value is identified
on the meters nameplate. The pulse can be used for checking the meter accuracy.
10. LCD display
The meter LCD shows 6+1 digits power consumption in kWh, without backlight. The big size of the digits
(13mm×6mm) and clearly identification of display value make meter reader easily to get the data in
distance.
View direction: 6 o'clock
Polarizer mode: Reflective (long life and UV)
Operating temperature :- 40°C ~ + 80°C
Storage temperature:- 45°C ~ + 85°C

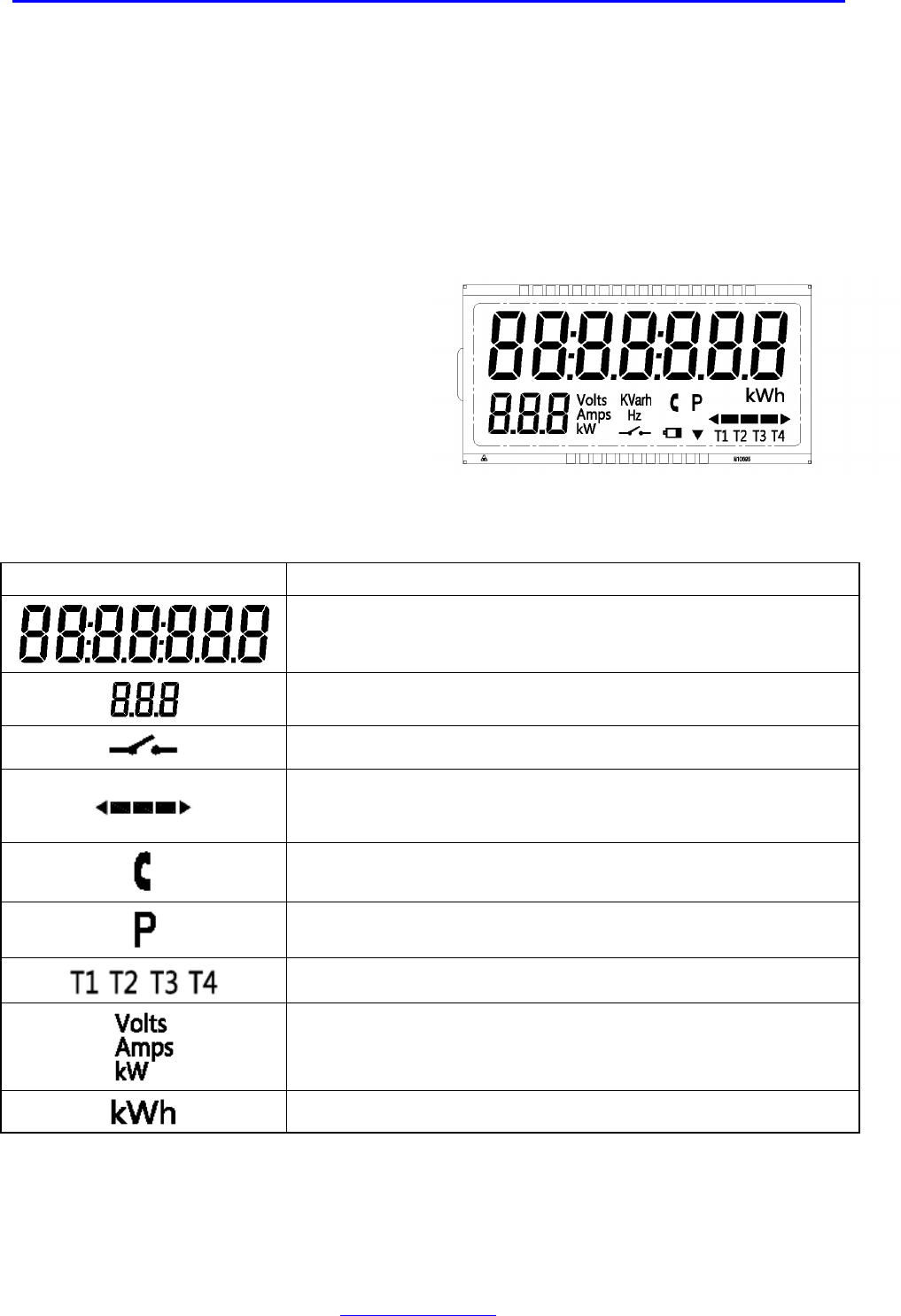

Figure 9-1 LCD symbol
10.1. The main symbol explanation:
Symbol Explanation
LCD display 7 digits;
The energy display as 6+1 digits.(000000.0~999999.9kWh)
Display kWh energy value & date and time.
Mode 1: Display instantaneous item:Voltage,Current, Active Power.
Mode 2: Display data identification(see table 1)
Disconnect Relay Display
Export/import energy symbol;
Simulation and percentage of energy accumulated comparison to Kh
value
Communication symbol (display when comm)
Program symbol
Current running Tariff indication
Unit of Instantaneous Voltage,
Unit of Instantaneous Current,
Unit of Instantaneous Active Power.
Unit of energy
PDF pdfFactory Pro www.fineprint.cn
Single Phase Multi-Tariff ANSI Meter
4
10.2. Normal scroll mode (Table 1)
No.
Data Identification Normal scroll mode
1 0.1.0 Import Energy (Tariff 1+Tariff Display)
2 0.2.0 Import Energy (Tariff 2+Tariff Display)
3 0.3.0 Import Energy (Tariff 3+Tariff Display)
4 0.4.0 Import Energy (Tariff 4+Tariff Display)
5 0.5.0 Import + Export Energy (Tariff 1+Tariff Display)
6 0.6.0 Import + Export Energy (Tariff 2+Tariff Display)
7 0.7.0 Import + Export Energy (Tariff 3+Tariff Display)
8 0.8.0 Import + Export Energy (Tariff 4+Tariff Display)
9 0.9.0 Import Energy (Total) + Voltage
10
1.0.0 Import Energy (Total) + Current(Total)
11 1.1.0 Import Energy (Total) + Current(I1)
12
1.2.0 Import Energy (Total) + Power
13
1.3.0 Import + Export Energy (Total) + Voltage
14
1.4.0 Import + Export Energy (Total) + Current(Total)
15
1.5.0 Import + Export Energy (Total) + Current(I1)
16
1.6.0 Import + Export Energy (Total) + Power
17
1.7.0 Date
18
1.8.0 Time
19
2.0.1 T1 maxim demand
20
2.0.2 T2 maxim demand
21
2.0.3 T3 maxim demand
22
2.0.4 T4 maxim demand
23
2.1.1 T1 maxim demand Date
24
2.1.2 T2 maxim demand Date
25
2.1.3 T3 maxim demand Date
26
2.1.4 T4 maxim demand Date
27
2.2.1 T1 maxim demand Time
28
2.2.2 T2 maxim demand Time
29
2.2.3 T3 maxim demand Time
30
2.2.4 T4 maxim demand Time
10.3. Default Display scroll mode
No
Status Normal scroll mode
1 Power on
Import + Export Energy (Total) + Voltage
Import + Export Energy (Total) + Current (I1)
Import + Export Energy (Total) + Power
2 Power off Import + Export Energy (Total) +Voltage
PDF pdfFactory Pro www.fineprint.cn
Single Phase Multi-Tariff ANSI Meter
5
11. Communication Port
No
explanation
1 Optical port ANSI type 2 with 9600bps
2 RS485 port Baud Rate 9600 BPS (Optional)
3 RF port Optional (RF915MHZ)
4 PLC port Optional
12. Dis-connect Relay
Dis-connect Relay : Optional.

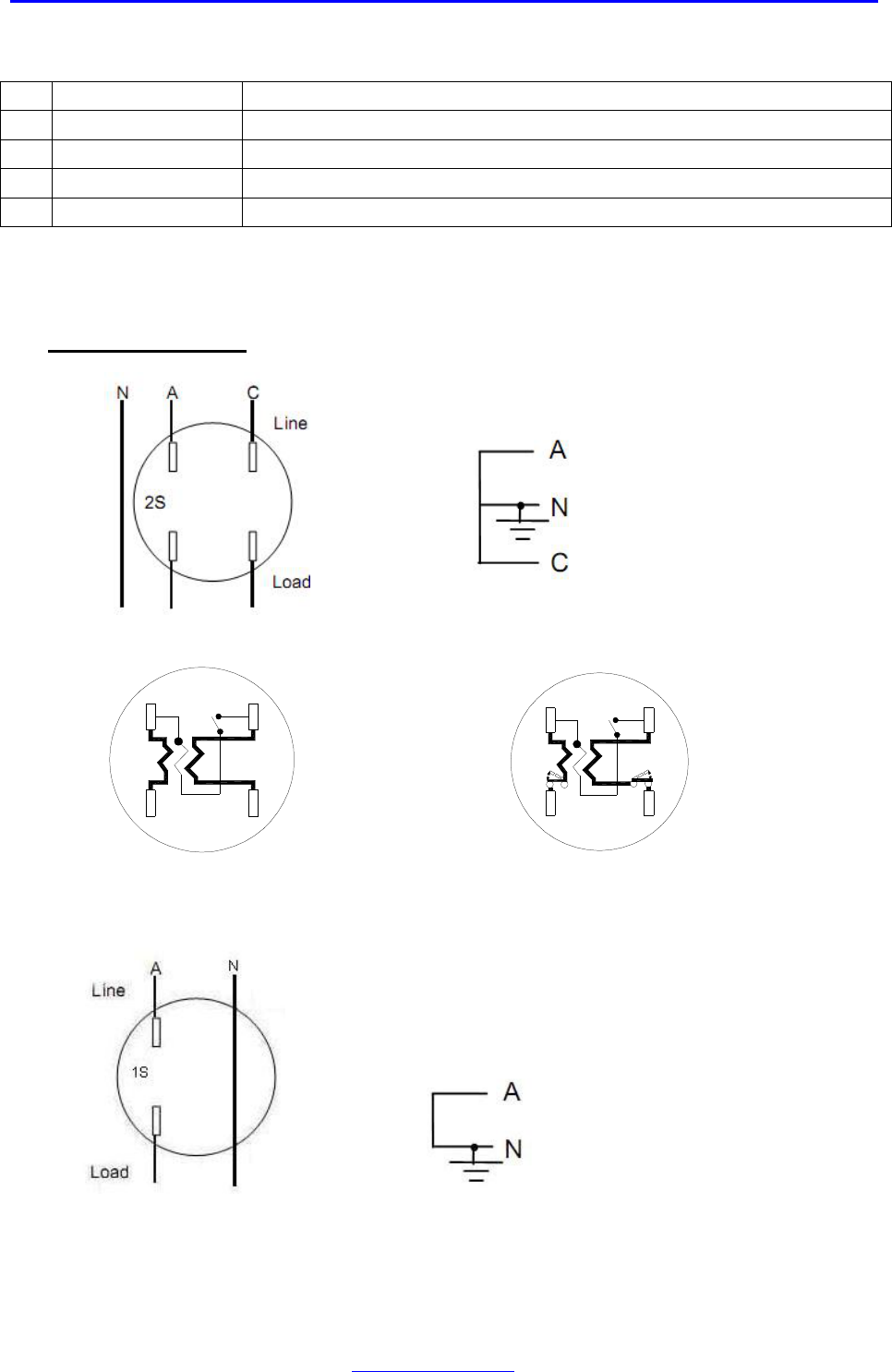

13. Wiring Connect
Figure 12-1 3-wire, 1-phase
Figure12-2 Internal connect Figure12-3 Internal connect
(FM2S without Dis-connect Relay) (FM2S with Dis-connect Relay)
Figure 12-4 2-wire, 1-phase
PDF pdfFactory Pro www.fineprint.cn
Single Phase Multi-Tariff ANSI Meter
6

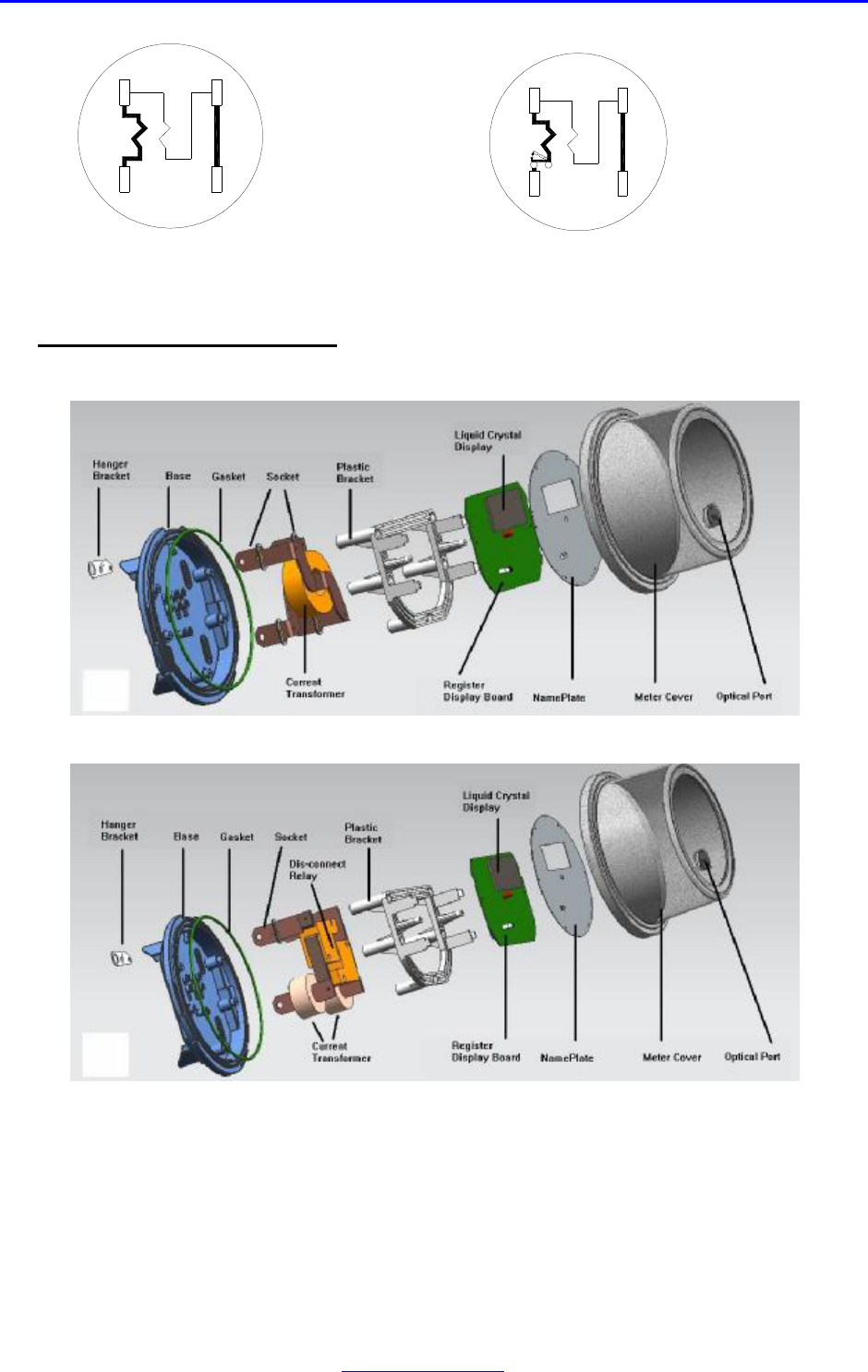

Figure12-5 Internal connect Figure12-6 Internal connect
(FM2S without Dis-connect Relay) (FM1S with Dis-connect Relay)

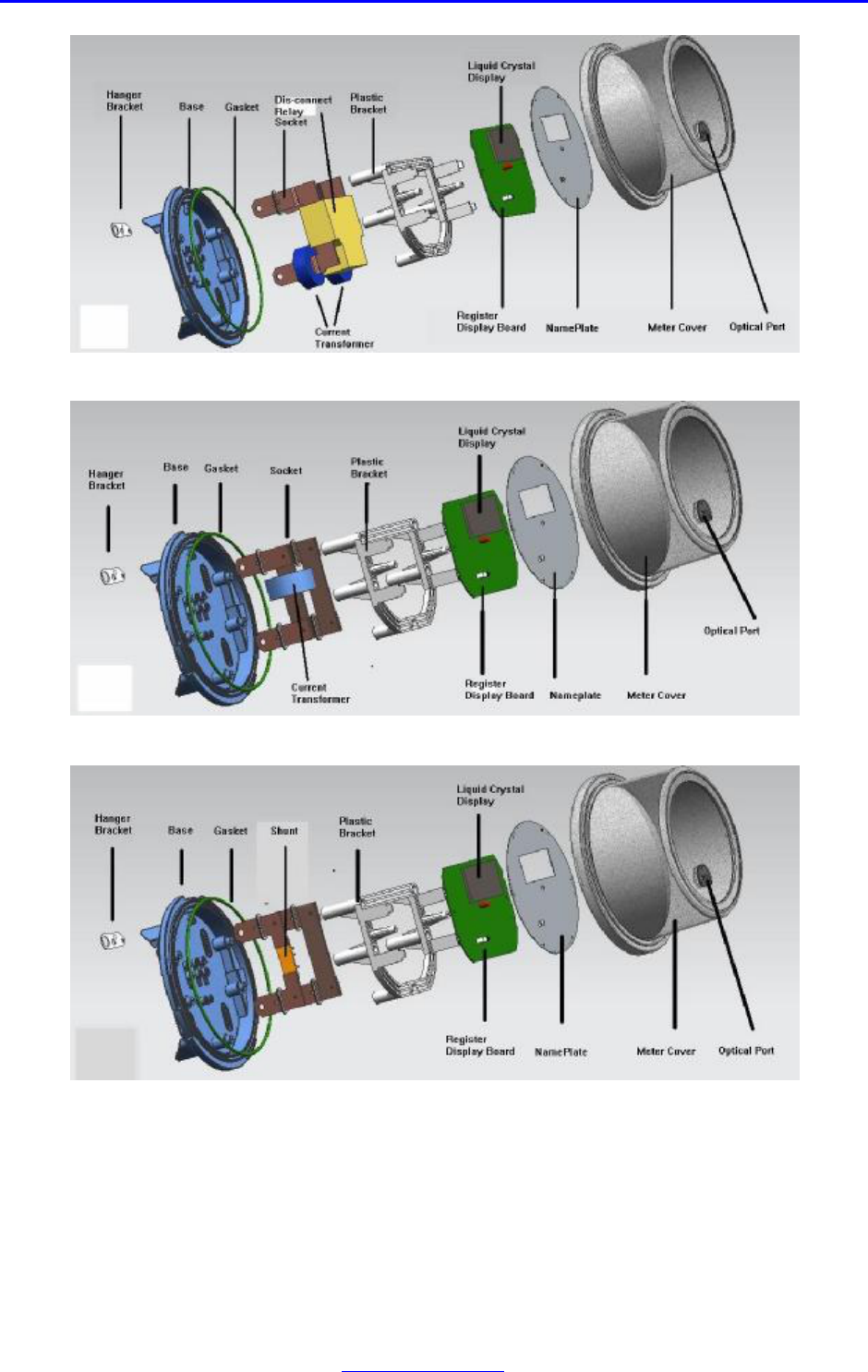

14. Component Descriptions
The components descriptions of the meter are shown in Figure 13-1~Figure 13-8.
Figure 13-1: Basic NC30 Meter Components FM2S
Figure 13-2:Dis-connect Relay NC30(100A) Meter Components FM2S
PDF pdfFactory Pro www.fineprint.cn
Single Phase Multi-Tariff ANSI Meter
8

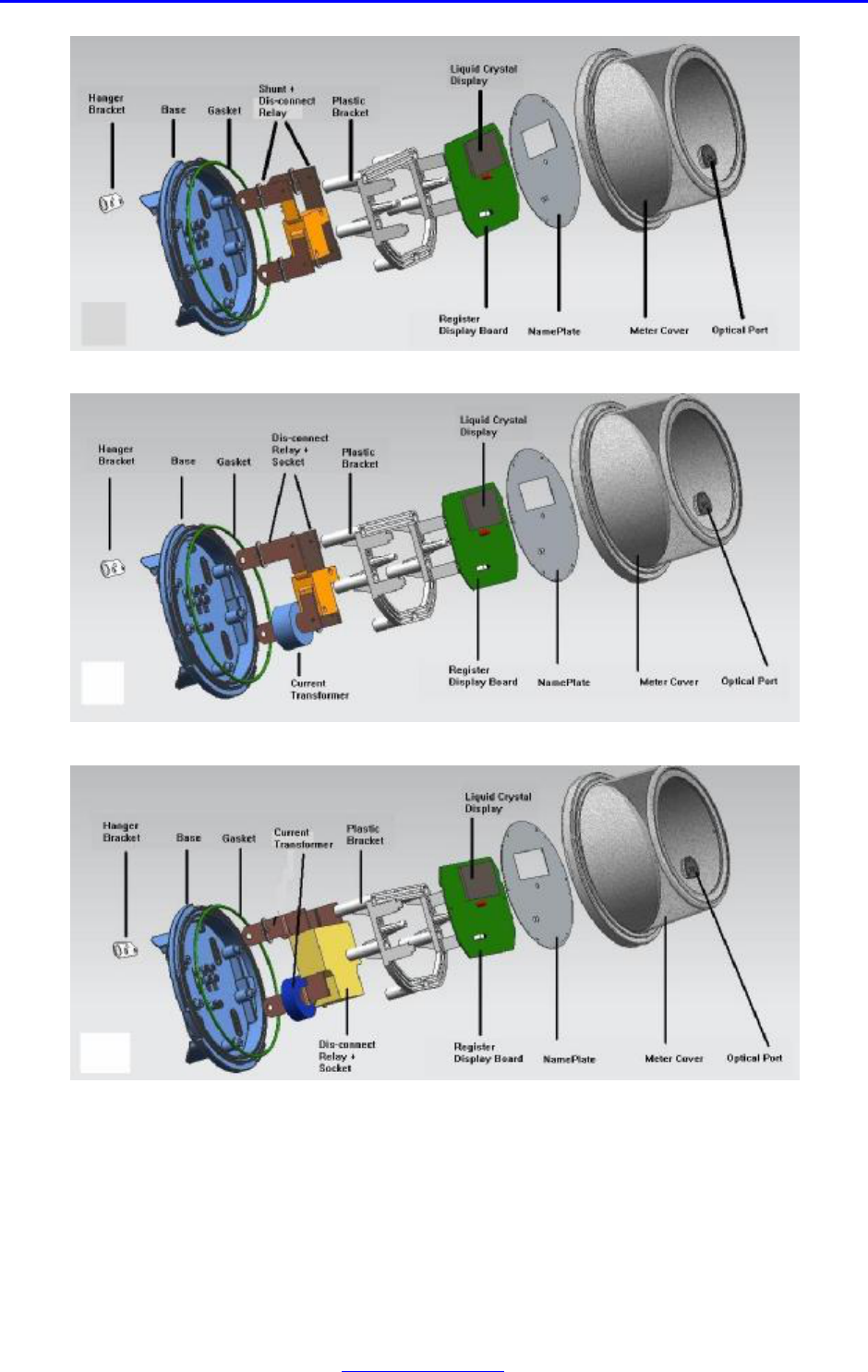

Figure 13-6: Dis-connect Relay NC30(100A,Shunt) Meter Components FM1S
Figure 13-7: Dis-connect Relay NC30(100A,Current Transformer) Meter Components FM1S
Figure 13-8: Dis-connect Relay NC30(200A,Current Transformer) Meter Components FM1S
PDF pdfFactory Pro www.fineprint.cn
Single Phase Multi-Tariff ANSI Meter
9

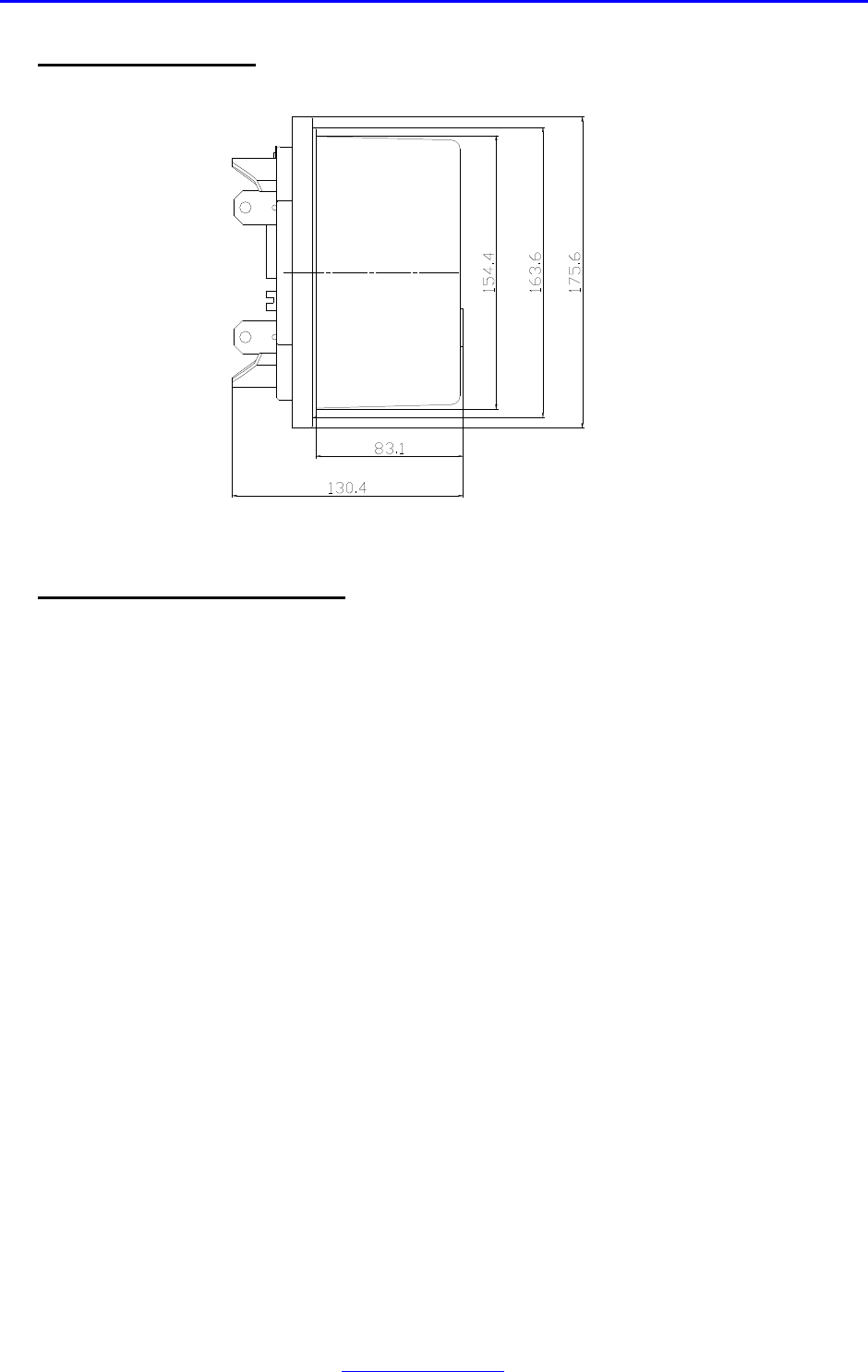

15. Meter Outline Size
Figure 14 Meter Outline Size
16. Default Parameter Setting
l Default Tariff setting: Single rate; T1;
l Display alternation: 5 seconds.
l Default LCD display during power off: Accumulative Wh[abs(Wh+)+abs(Wh-)].
l LCD Display during power on: Accumulative Wh[abs(Wh+)+abs(Wh-)]
+Active power/ Voltage/ Current.
l Security password: Level 1: 1122334455;
Level 2: 1111111111.
l Meter RTC: Philippines Time;
l Communication Port : Optical port
l Dis-connect Relay: NO.
l Meter No.: According to the bar code on the meter.
PDF pdfFactory Pro www.fineprint.cn
Single Phase Multi-Tariff ANSI Meter
10
Appendix 1: Specification
Item Parameter
ANSI standards complied with C12.1 C12.10 C12.18 C12.19 C12.20
Accuracy Meet ANSI C12.10 class 0.5
Mounting Socket type
Meter type, form designation
and current class
FM2S, CL200
FM2S, CL100
FM1S, CL200
FM1S, CL100
Operating Voltage 80%~120%Un (Un=240V/120V)
Current
Test Current(TA) CL200: 30A
CL100: 15A
Current range that guarantees
accuracy
CL200: 0.6~200A (2%TA~Imax)
CL100: 0.3~100A (2%TA~Imax)
Starting Current CL200: 0.030A (30mA)
CL100: 0.015A (15mA)
Frequency 60Hz±5%
Kh 10
Kt 1.0
Power supply type Transformer type
Current sampling mode Current transformer
Power Consumption Voltage circuit: <1W, 5VA
Current circuit: <0.25VA/Each
Test
Confidence
Immunity to impulse voltage Surge >8kV(1.2/50US)
Insulation strength 4kV,60Hz for 1 min
Relative humidity 0%~95% no condensation
Temperature
Operating Temperature - 40°C ~ + 80°C
Storage and Transportation
Temperature - 45°C ~ + 85°C
LCD Operating Temperature - 40°C ~ + 80°C
Clock accuracy < 0.5 s/d, at 23°C
Battery Li-SOCI2, 3.6V,1200mAh for clock and LCD display
during power off.
Communicat
ion Port
Optical port ANSI type 2 with 9600bps
RS485 port Optional
RF port Optional
PLC port Optional
Security Meter security 2 levels of password:
Class 1:All permissions. Default:1122334455
PDF pdfFactory Pro www.fineprint.cn
Single Phase Multi-Tariff ANSI Meter
11
Class 2: Read only permission. Default:1111111111
Demand Maxim demand Maxim demand ;date; time;
Dis-connect
Relay
15(100)A
30(200)A Optional
LCD
LCD layout and characters &
symbols on LCD's meanings (Please see 9. LCD Display)
LCD size 54mm x 34mm
LCD biggest characters' size 13.0mm x6.0mm
LCD biggest characters'
segment width 1.7mm
LCD with backlight No
Number of LCD display digits 7
Energy display way 6 integers + 1 decimal
Voltage,Current & Active Power
Display way 3 digits
LCD display item ID 3 (No ID when display voltage,current,and power )
Display interval 5s
Display data update rate 1s
Sign 'Yes' at 'meter data'
column can be optional
displayed on LCD
Yes
Default LCD display
during power on
Accumulative Wh[abs(Wh+)+abs(Wh-)]+RMS Voltage
Accumulative Wh[abs(Wh+)+abs(Wh-)]+RMS Current
Accumulative Wh[abs(Wh+)+abs(Wh-)]+RMS Power
T1 (Please see 9. LCD Display)
Default LCD display during
power off Accumulative Wh[abs(Wh+)+abs(Wh-)]
LED 1 LED (Active Energy Pulse),1000imp/kWh
Meter data
Accumulative total and 4 rates
of Wh[abs(Wh+)+abs(Wh-)] Yes
Accumulative total and 4 rates
of (Wh+) and (Wh-) Yes
Instantaneous frequency Yes
Instantaneous
Voltage,Current,Active Power Yes
Current date & time Yes
Energy data reset Yes
History metering data 12 months
Event log Record latest 50 events (power on,power off,energy
reset events with time stamp)
Material Single layer of upper cover Transparent flat face cover
Upper cover Full Circle; Color White
PDF pdfFactory Pro www.fineprint.cn
Single Phase Multi-Tariff ANSI Meter
12
Optical port metal plate 430 grade stainless steel,thickness min 1.2 (inner)
Number of sealable position 1
Tariff
Max 4 rates (each rate's period is
programmed by software) Yes
Default rate setup T1 (Single rate)
Faceplate
Faceplate color Color:White
Faceplate layout Refer to Appendix 2
New EDMI logo on faceplate
Serial number to be nominated by EDMI
Bar code to be nominated by EDMI
39 code
MCU NEC 78F0485;
Link Outside, inside optional
PDF pdfFactory Pro www.fineprint.cn
Single Phase Multi-Tariff ANSI Meter
13
Appendix 2: Faceplate
1. Windows
2. Meter type
3. Number of wires for the metered service
4. Nominal Voltage
5. Current Class
6. Test amperes
7. Nominal Frequency
8. ANSI C12.10 Form Number
9. Watthour constant
10. Accuracy class
11. Meter Constant
12. Optical port
13. Month and Two digit year of manufacture
14. EDMI logo / Manufacture of meter
15. Wiring connect
16. Utility information and bar code area /Meter serial number
17. Test constant
18. Meter Pulse
1
2
3
4
5
8
6
7
18
17
16
15
14
11
13
12
10
9
PDF pdfFactory Pro www.fineprint.cn
Single Phase Multi-Tariff ANSI Meter
14
19. FCC Caution.
§ 15.19 Labelling requirements.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
§ 15.21 Information to user.
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
§ 15.105 Information to the user.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
PDF pdfFactory Pro www.fineprint.cn
