User manual

USBWirelessAdapter(RTL8188CUS)Quick
InstallationGuide
Note：ThisManualbasedonWindowsXP&Windows7
1.WindowsXP 

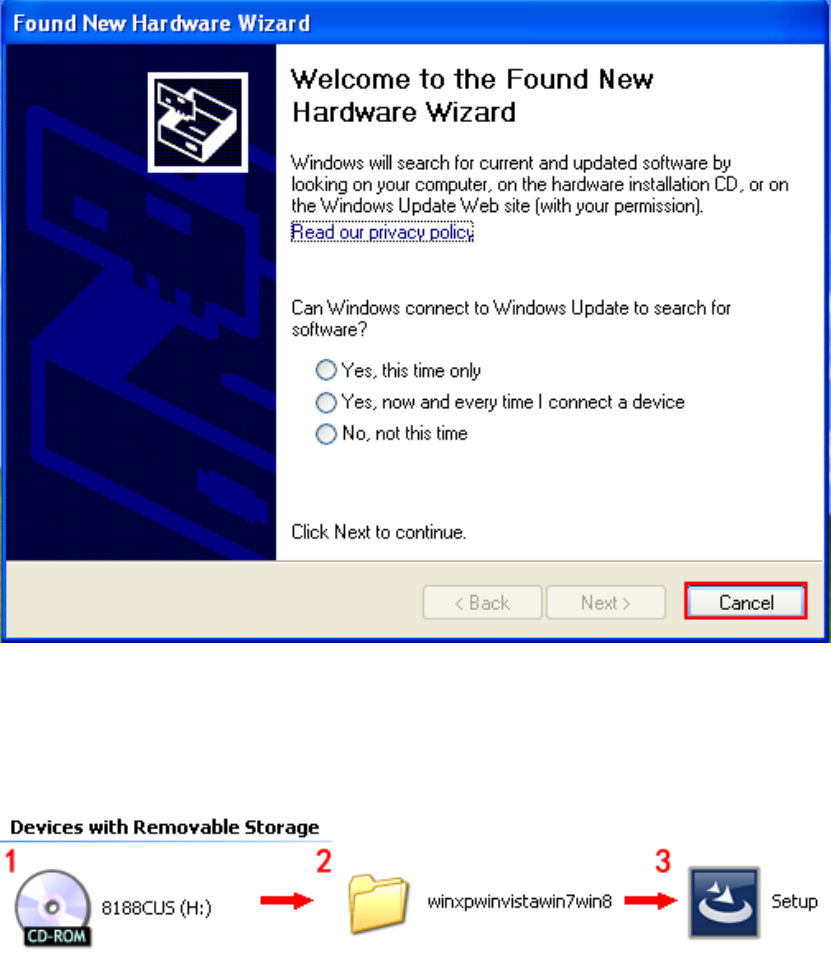

01.OncethewirelessUSBadapterbepluggedintoanUSBport,thefollowingmessagewill
appearonscreen.Click“Cancel”,Asthefollowingpictureshows.(Ifitdoesnotpop‐up,Skip
thisstep)
02. Please insert the disc into your CD‐ROM drive. The disc should auto start, dispaying the
follwingwindow,Ifitdoesnotstartduetothesystemsetting,openthebrowserwindow,findthe
Setup.exefileinyourCD‐ROMfolder,clicktorunit.IfyoudonothaveCD,youcandownloadat
EDUPofficialwebsite:www.szedup.com

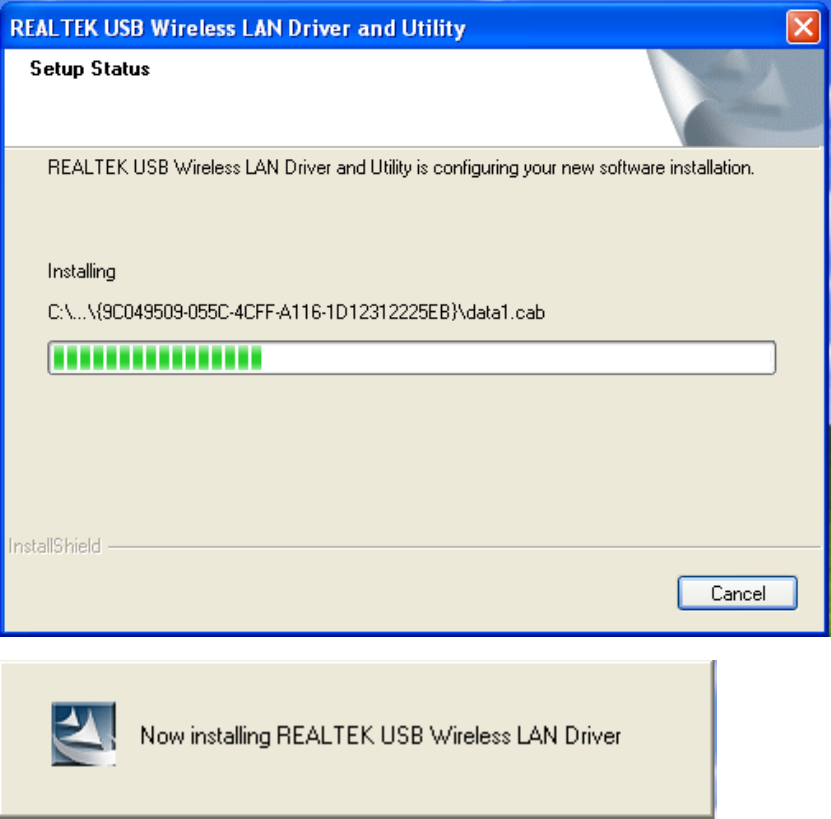

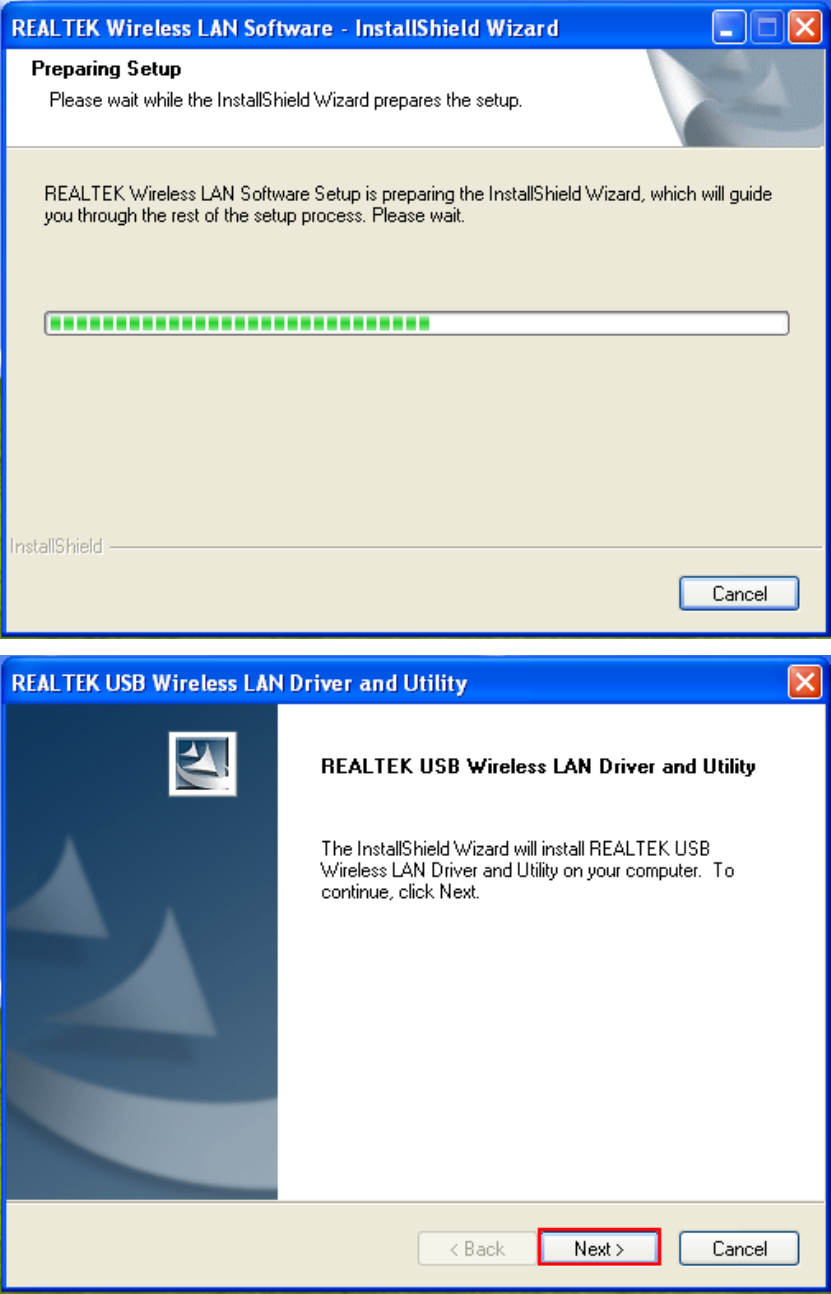

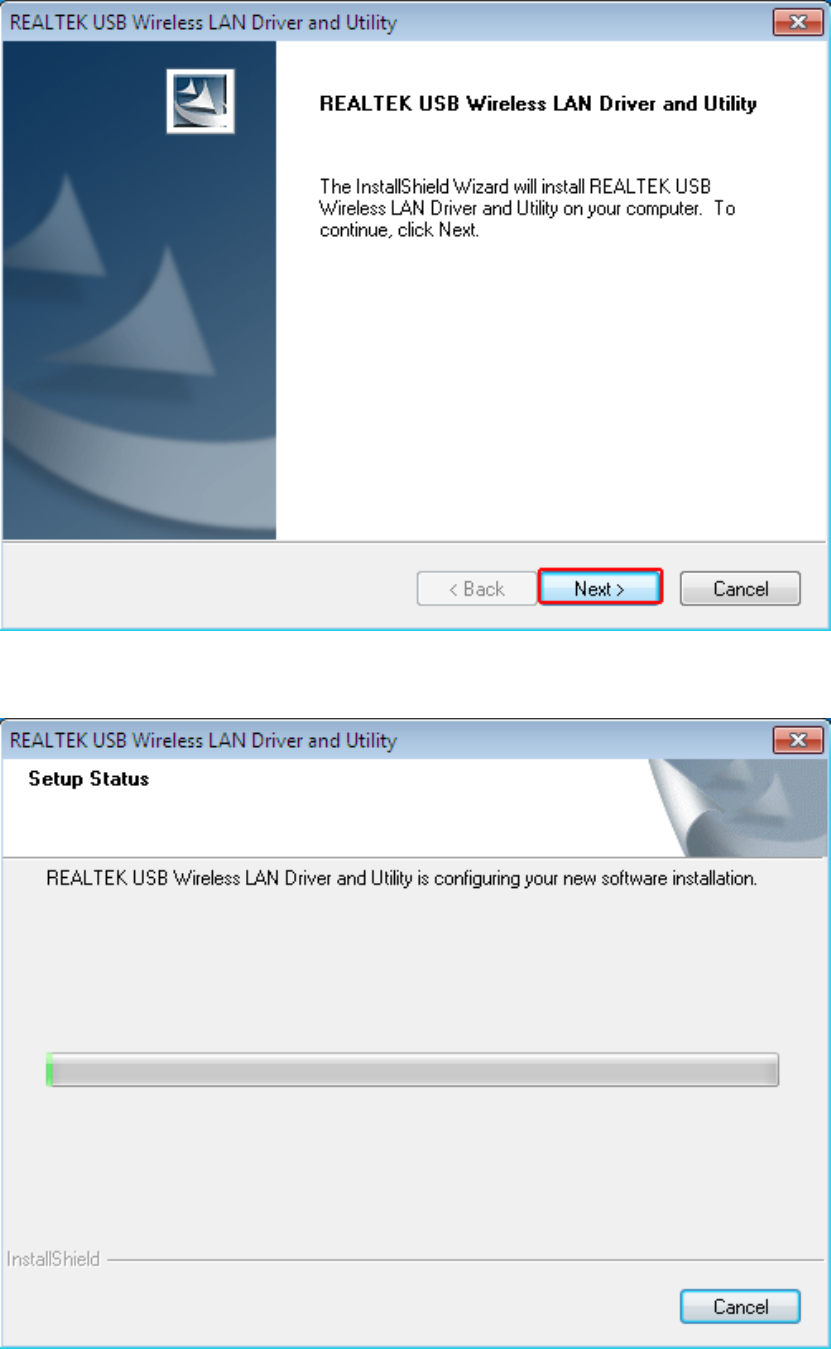

03.DoubleclickSetup.exefile,Softwarebegintoinitialization,thenclickthe“next”.Thereshows
theinstallationprogress.

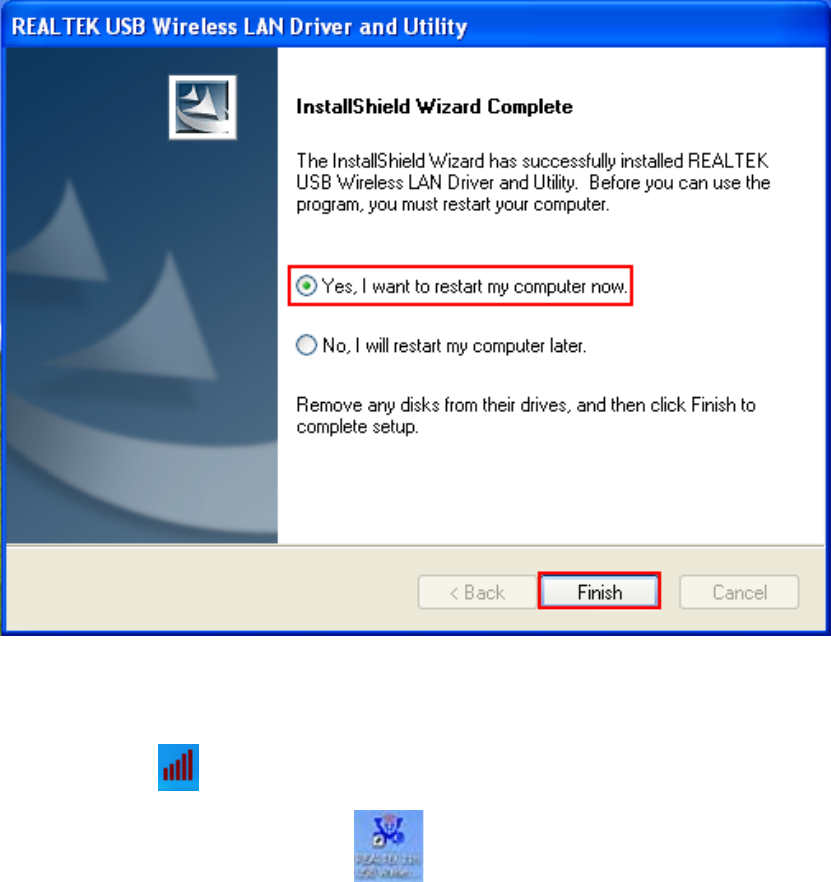

04. Do not interrupt installation , Click “finish” to finish the driver installation.The computer
automaticallyrestart.
Wireless Connection （two ways to realize）
WirelessConnetion1

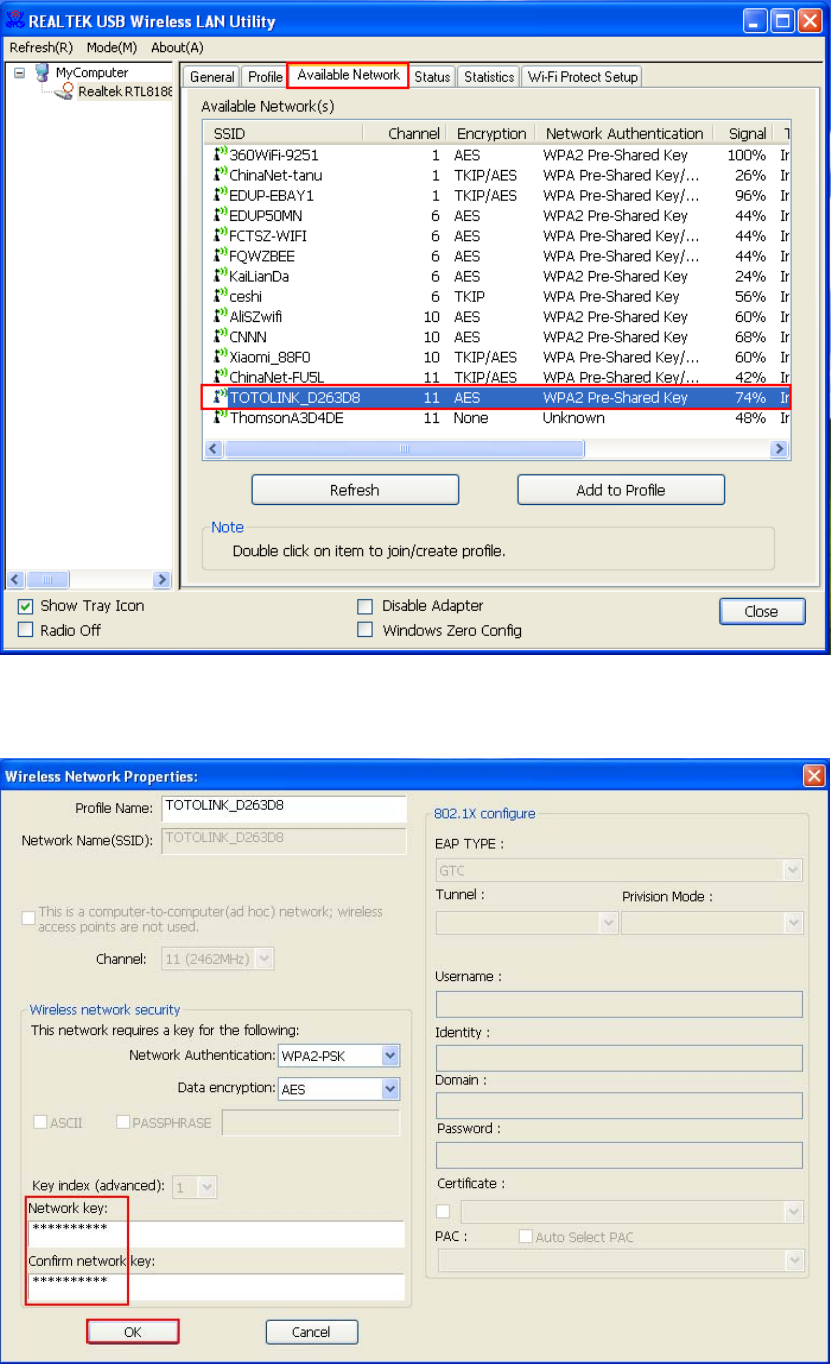

05.05.ClickIcon intheWindowssystemtray,which locatesin thebottom‐rightcorner of
your computer screen or double click , and pops up a message and click”Available
Network” Double‐click the utility icon or right click the icon and then select “View Available
WirelessNetworks”tolaunchtheutility.theWirelessNetworkConnectionwindowappearsand
displaysyourwirelessnetworklistedwiththeSSIDyouchose.

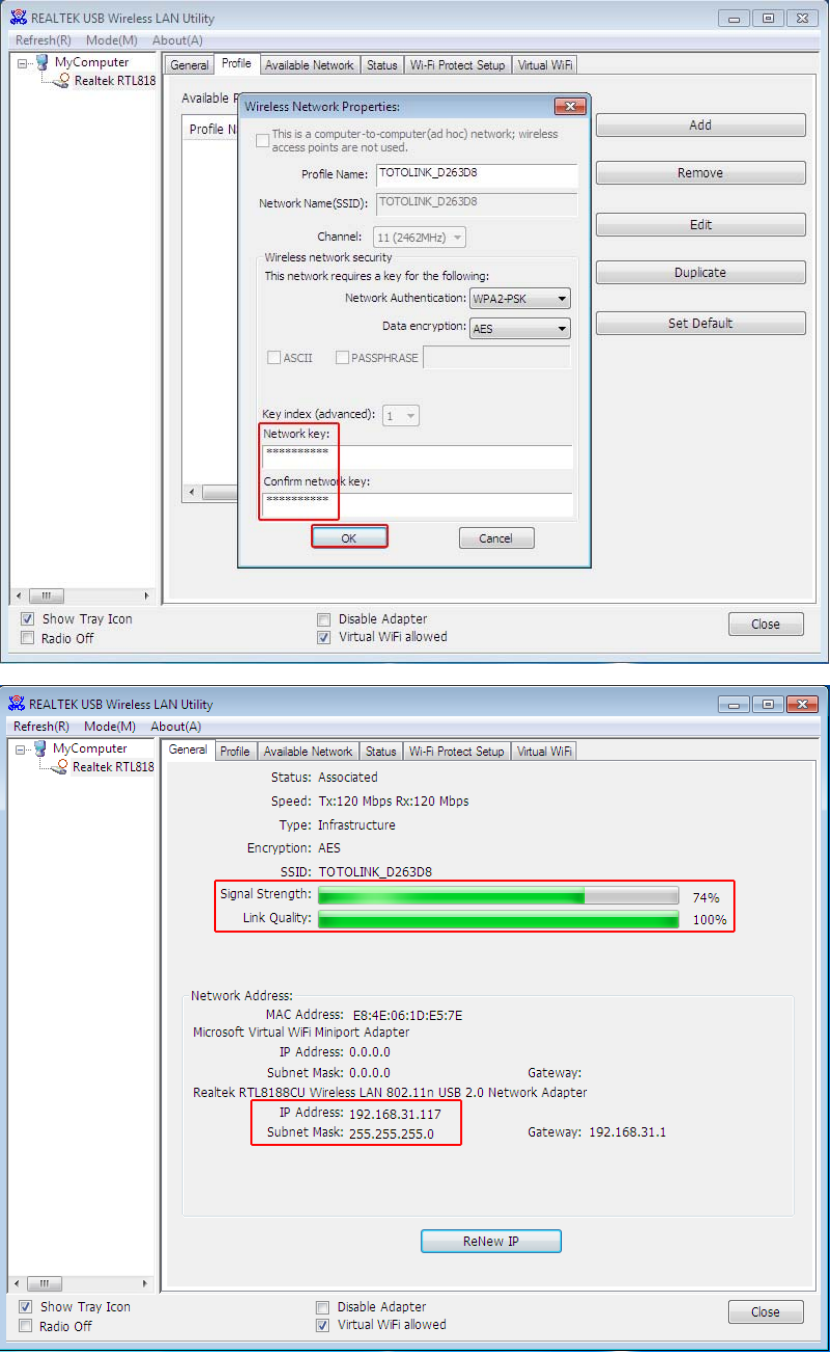

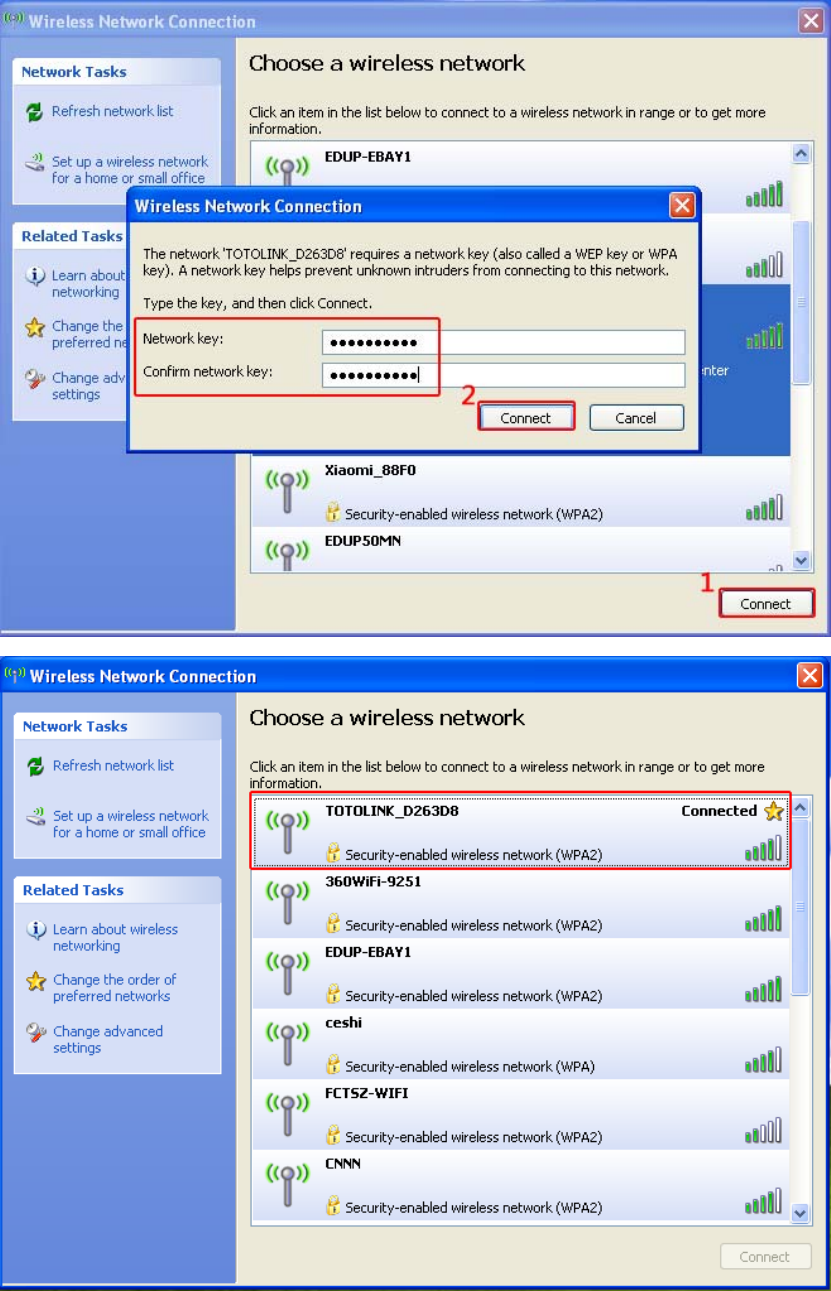

If the network security key hasn’t been inputted before, enter the network’s security key to
access the wanted SSID. Type the encryption key that you wrotedown earlier in both the
NetworkkeyandConfirmnetworkkeyboxes,andthenclick“ok”.
WirelessConnection2

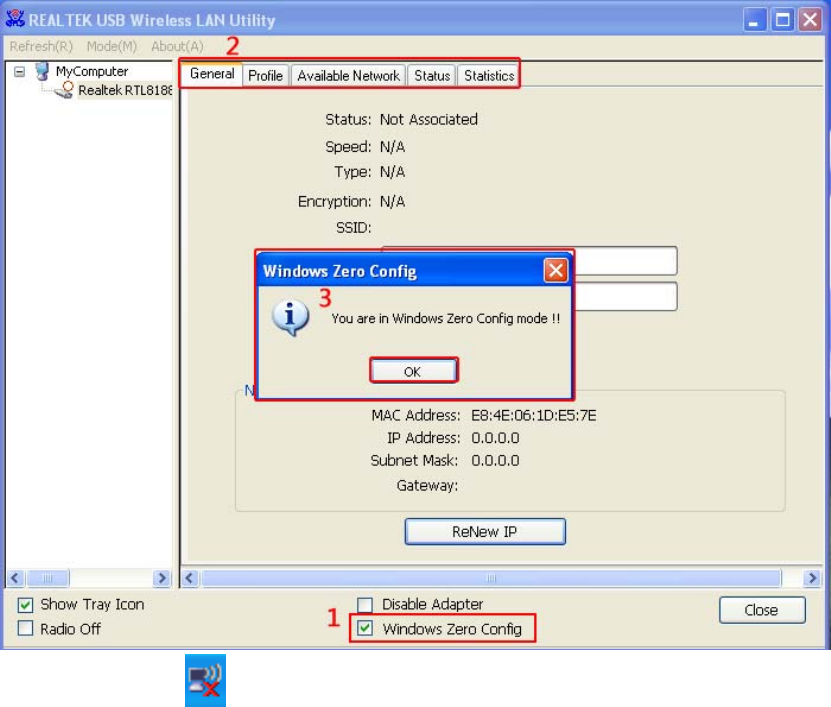

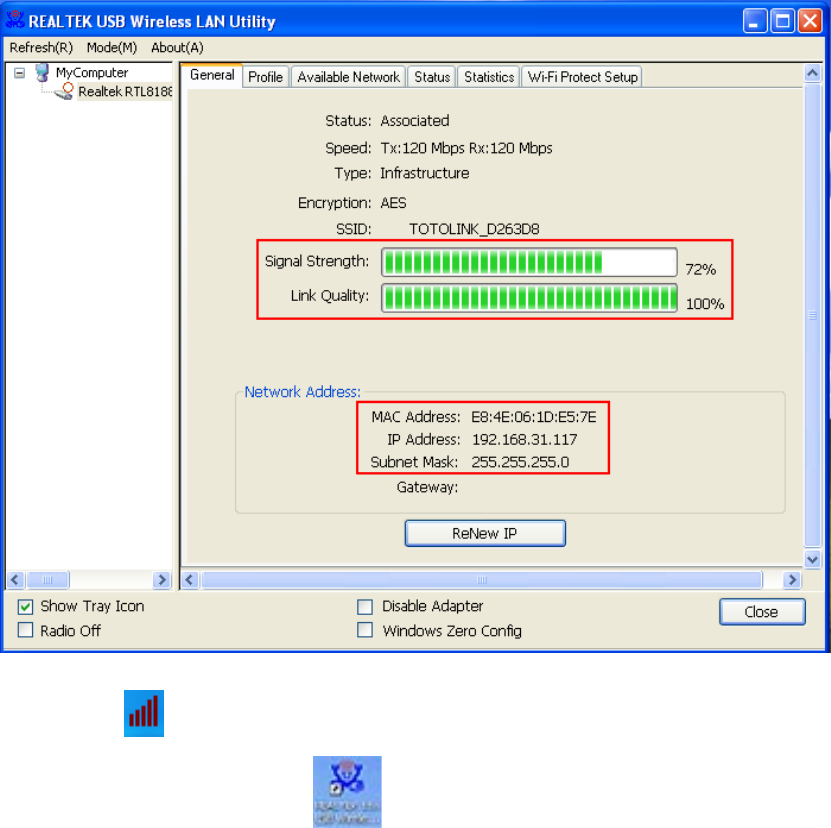

06.ClickIcon intheWindowssystemtray,whichlocatesinthebottom‐rightcornerofyour
computer screen or double click , pops up a message and click”Windows Zero
Config”(Figure1),payattentiontothechangeoffigure2.nadclick“ok”buttononthepopuppage.
07. Double Click Icon and then select the your preferred network, and then Double click,
enter the network’s security key to access the wanted SSID. Type the encryption key and then
click “Connect”.Or choose your wifireless signal and click connect as figure1,and enter the
password and then click”connect. Internet now is available.
2.Windows7
01.OncethewirelessUSBadapterbepluggedintoanUSBport(IfdonothaveCD‐ROM.please
downloadonwww.szedup.com), putin theCD andfindwindowsfile “winxpwinvistawin7win8”
andSetup.exe.
02.DoubleclickSetup.exefile,Softwarebegintoinitialization,thenclickthe“next”.Thereshows
theinstallationprogress.
03. Do not interrupt installation, Click “finish” to finish the driver installation.The computer
automaticallyrestart.
Wirelessconnection(twowaystorealize
Wirelessconnection1：

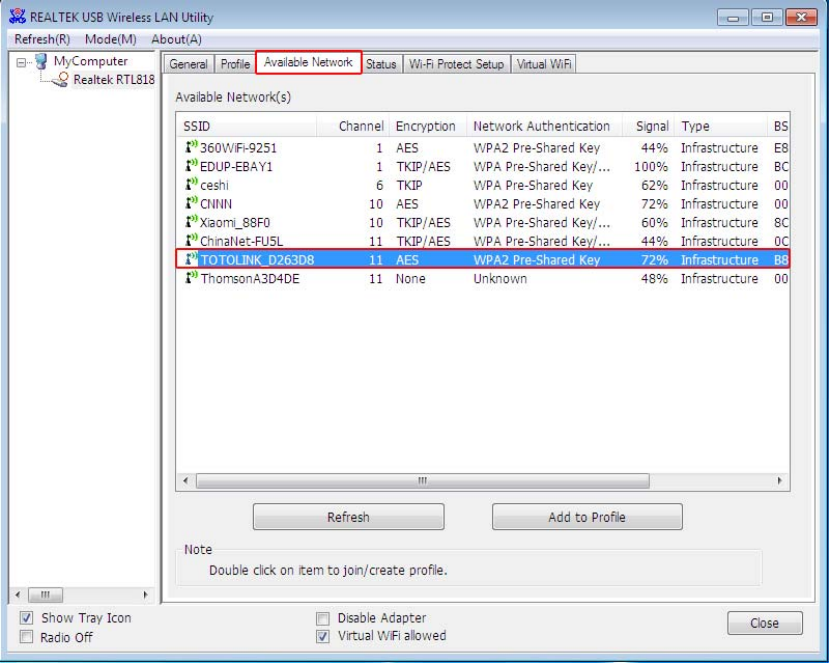

04. Click Icon  intheWindowssystemtray,whichlocatesinthebottom‐rightcorner of
your computer screen or double click , and pops up a message and click”Available
Network” Double‐click the utility icon or right click the icon ,and the Wireless Network
ConnectionwindowappearsthendoubleclicktheSSIDyoupreferred.
TypetheencryptionkeythatyouwrotedownearlierinboththeNetworkkeyandConfirm
networkkeyboxes,andthenclick“ok”.
Note:ifthereisnoicon ,pleasefinditintheonrightbuttom,ithavebeenhideasfollowing
picturesshows: .
WirelessConnection2.

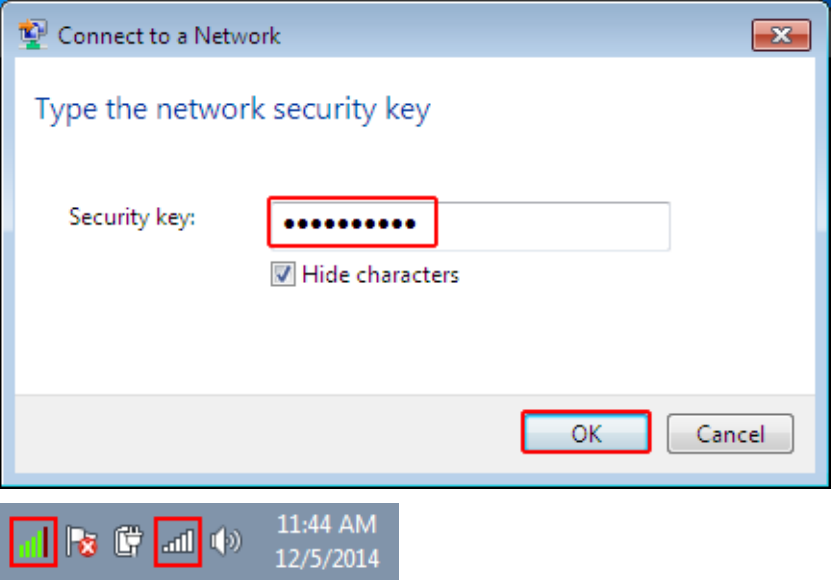

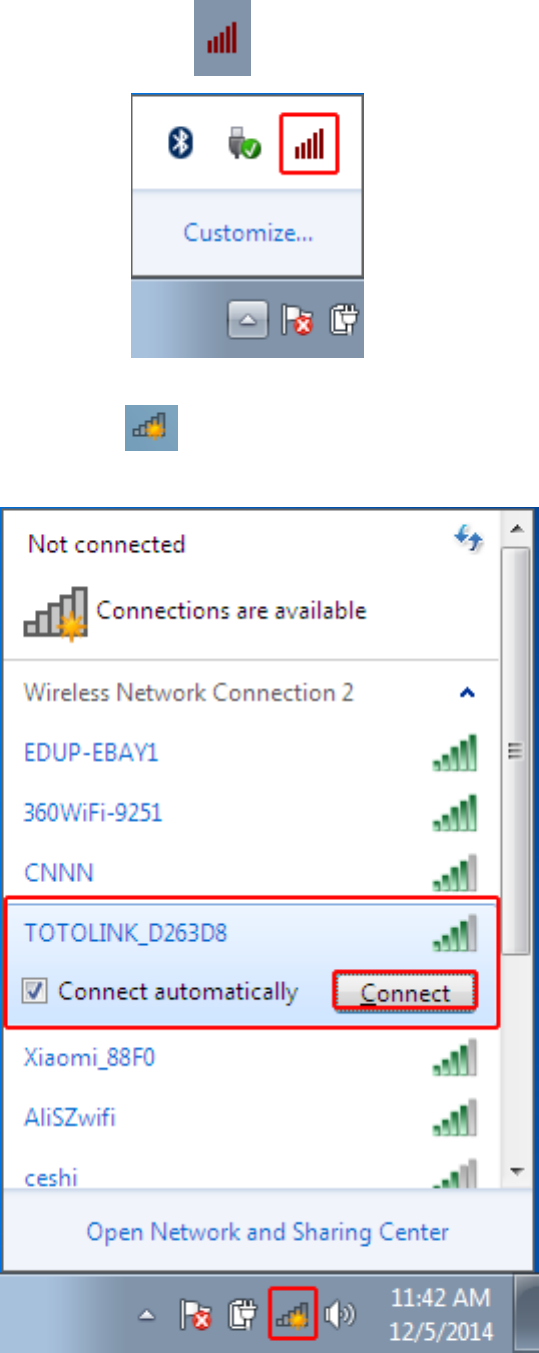

05.Click Icon whichlocatesinthebottom‐rightcornerofyourcomputerscreen,clickthe
wireless network list and choose the SSID you preferred. and double click(Or click “Connect”).
Typetheencryptionkeyandthenclick“ok”.
FCC Caution.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between thee quipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.

FCC RF Exposure Information and Statement
The SAR limit of USA (FCC) is 0.144 W/kg averaged over one gram of tissue. Device types:
EP-N8508GS (FCC ID: 2AHRDEP-N8508GS) has also been tested against this SAR limit. The highest
SAR value reported under this standard during product certification for use at the ear is 0.76W/kg and
when properly worn on the body is 0.60W/kg. This device was tested for typical body-worn operations
with the back of the handset kept 1cm from the body. To maintain compliance with FCC RF exposure
requirements, use accessories that maintain a 1cm separation distance between the user's body and the
back of the handset. The use of belt clips, holsters and similar accessories should not contain metallic
components in its assembly. The use of accessories that do not satisfy these requirements may not
comply with FCC RF exposure requirements, and should be avoided.
Body-worn Operation
This device was tested for typical body-worn operations. To comply with RF exposure requirements, a
minimum separation distance of 1cm must be maintained between the user’s body, including the antenna.
Third-party belt-clips, holsters, and similar accessories used by this device should not contain any
metallic components. Body-worn accessories that do not meet these requirements may not comply with
RF exposure requirements and should be avoided. Use only the supplied or an approved antenna.
