2.4GHz Wireless2.4GHz WirelessBaby Monitor CameraUsers Manual

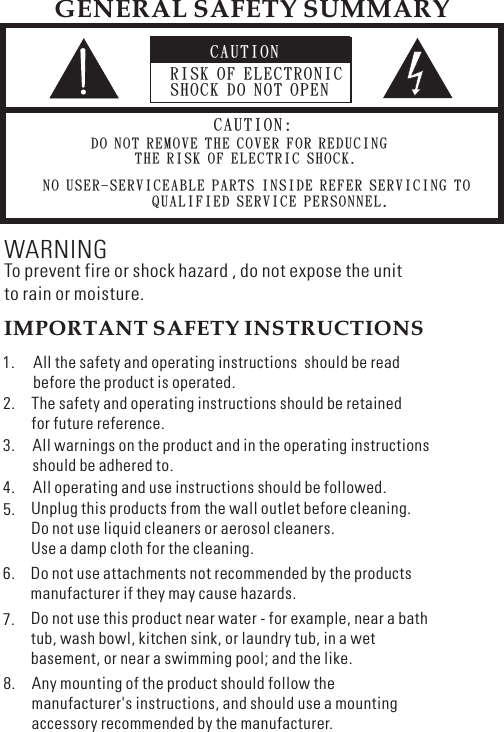

CAUTIONRISK OF ELECTRONICSHOCK DO NOT OPENCAUTION:DO NOT REMOVE THE COVER FOR REDUCINGTHE RISK OF ELECTRIC SHOCK.NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TOQUALIFIED SERVICE PERSONNEL.GENERAL SAFETY SUMMARYWARNINGTo prevent fire or shock hazard , do not expose the unitto rain or moisture.IMPORTANT SAFETY INSTRUCTIONSAll the safety and operating instructions should be readbefore the product is operated.The safety and operating instructions should be retainedfor future reference.All warnings on the product and in the operating instructionsshould be adhered to.All operating and use instructions should be followed.Unplug this products from the wall outlet before cleaning.Do not use liquid cleaners or aerosol cleaners.Use a damp cloth for the cleaning.Do not use attachments not recommended by the productsmanufacturer if they may cause hazards.Do not use this product near water - for example, near a bathtub, wash bowl, kitchen sink, or laundry tub, in a wetbasement, or near a swimming pool; and the like.1.2.5.3.4.6.7.8.Any mounting of the product should follow themanufacturer's instructions, and should use a mountingaccessory recommended by the manufacturer.
For added protection for this product during a lightningstorm, or it is left unattended and unused for long periodsof time, unplug it from the wall outlet and disconnect cablesystem. This will prevent damage to the product due tolightning and powerline surges.11.Never push objects of any kind into this product throughopenings as they may touch dangerous voltage points orshort-out parts that could result in a fire or electronic shock.Never spill liquid of any kind on the product.12.Do not overload wall outlets, extension cords, or integralconvenience receptacles as this can result in a risk of fireor electric shock.13.Unplug this product from the wall outlet and refer servicingto qualified service personnel under the following conditions.When the power- supply cord or plug is damaged.If liquid have been spilled, or objects have fallen intothe products14.If the product does not operate normally by followingthe operating instructions, adjust only those controlsthat are covered by the operating instructions as animproper adjustment of other control may result indamage and will often require extensive work by aqualified technician to restore this product to itsnormal operation.Power supply cord should be routed so that they are notlikely to be walked on or pinched by items placed upon oragainst them, paying particular attention to cords at plugs,or other sources, refer to the operating instructions.10.This product should be operated only from the type ofpower source indicated on the marking label. If you arenot sure of the type or power supply to your home, consultyour product dealer or local Power Company.For products intended to operate from battery power,or other sources, refer to the operating instruction.9.

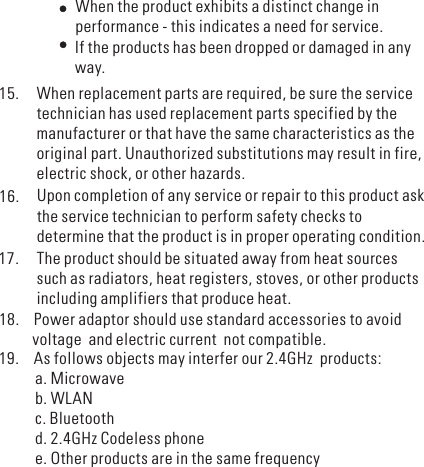

When the product exhibits a distinct change inperformance - this indicates a need for service.If the products has been dropped or damaged in anyway.When replacement parts are required, be sure the servicetechnician has used replacement parts specified by themanufacturer or that have the same characteristics as theoriginal part. Unauthorized substitutions may result in fire,electric shock, or other hazards.15.16. Upon completion of any service or repair to this product askthe service technician to perform safety checks todetermine that the product is in proper operating condition.The product should be situated away from heat sourcessuch as radiators, heat registers, stoves, or other productsincluding amplifiers that produce heat.17.18. Power adaptor should use standard accessories to avoidvoltage and electric current not compatible.19. As follows objects may interfer our 2.4GHz products:a. Microwaveb. WLANc. Bluetoothd. 2.4GHz Codeless phonee. Other products are in the same frequency

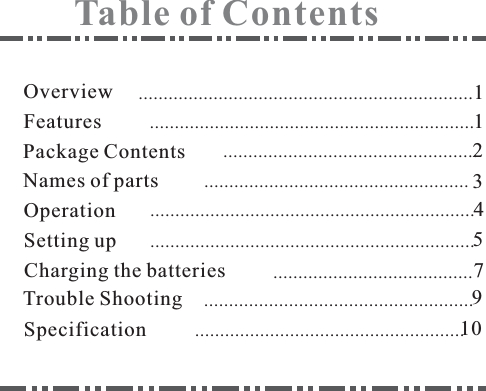

OverviewFeaturesPackage ContentsNames of partsSetting upCharging the batteriesTableofContents112375.....................................................................................................................................................................................................................................................................................................................................................Specification ......................................................Trouble Shooting10......................................................Operation 49.................................................................
The Wireless Surveillance System with CMOSImages and four channels available is just as yourhome and company monitoring. Special designfor home and office surveillance demands withIR LED Illuminator to enhance night vision cansecure your surroundings all day long. 2 AArechargeable batteries adequately supply 4 hourslong working time, power supply and chargingcircuit design help you to charge the battery ormake the camera proper working without interrupt.Easy to install, unequal quality and reliability makeOverviewFeaturesOperating frequency of ISM band 2.4 ~2.4835 GHzWith 8 IR LED IlluminatorPhoto Transistor sensor for lighting detectionBuilt-in Microphone for Audio Monitoring4 channels selectableBoth of Ni-MH/Ni-Cd rechargeable battery andpower adaptor 8V/300mA2xAA rechargeable batteries up to 4 hoursCharging circuit designedTwo direction hinge at the camera base to easilywatch overRange up to 100m (L.O.S.)Charging circuit designyou have delighted and secure life.

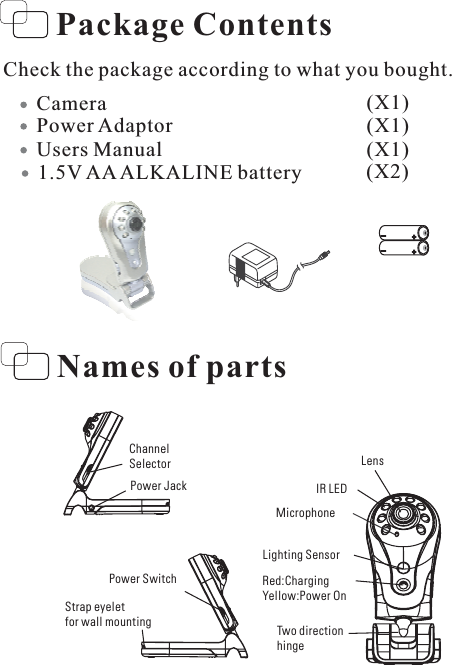

Package ContentsCheck the package according to what you bought.Camera (X1)Power Adaptor (X1)Users Manual (X1)Red:ChargingYellow:Power OnMicrophoneIR LEDLensLighting SensorTwo directionhingeStrap eyeletfor wall mountingChannelSelectorPower SwitchPower JackNames of parts1.5V AAALKALINE battery (X2)+_+_

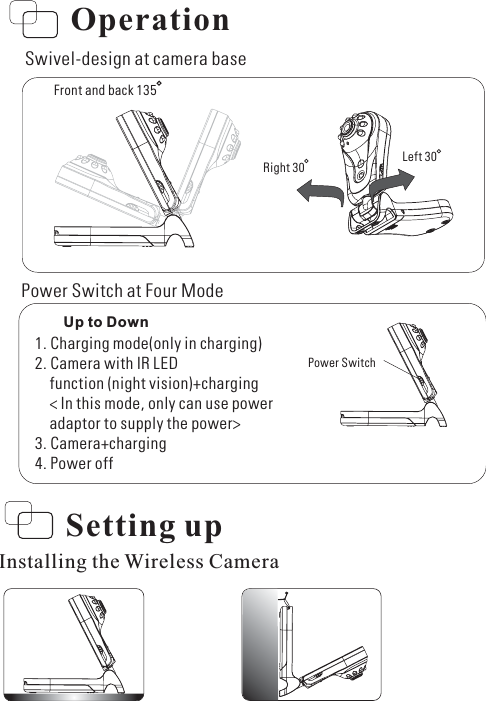

Swivel-design at camera baseRight 30 Left 30Front and back 135Installing the Wireless CameraSetting upPower Switch at Four ModePower SwitchUp to Down1. Charging mode(only in charging)2. Camera with IR LEDfunction (night vision)+charging< In this mode, only can use poweradaptor to supply the power>3. Camera+charging4. Power offOperation

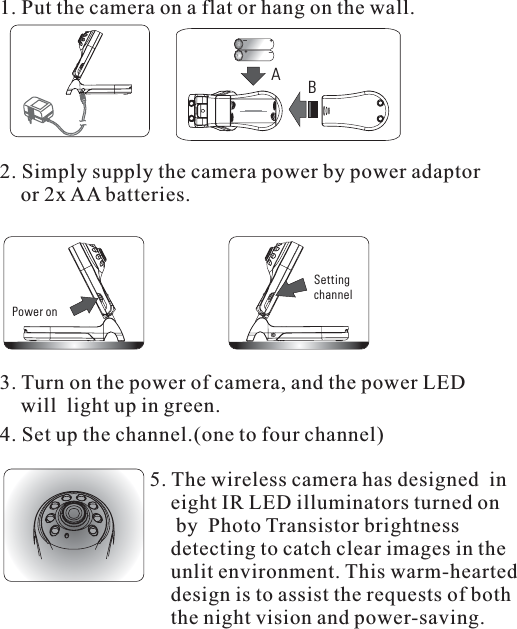

Power onSettingchannel3. Turn on the power of camera, and the power LEDwill light up in green.4. Set up the channel.(one to four channel)5. The wireless camera has designed ineight IR LED illuminators turned onby Photo Transistor brightnessdetecting to catch clear images in theunlit environment. This warm-hearteddesign is to assist the requests of boththe night vision and power-saving.1.Putthecameraonaflatorhangonthewall.AB+_+_2. Simply supply the camera power by power adaptoror 2x AA batteries.

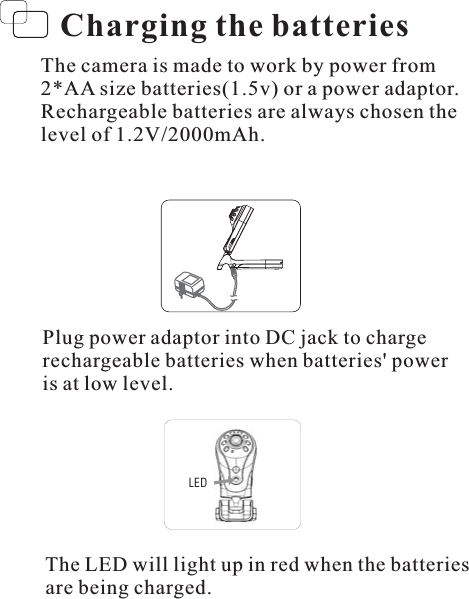

PlugpoweradaptorintoDCjacktochargerechargeable batteries when batteries' poweris at low level.LEDThe LED will light up in red when the batteriesare being charged.Charging the batteriesThe camera is made to work by power from2*AA size batteries(1.5v) or a power adaptor.Rechargeable batteries are always chosen thelevel of 1.2V/2000mAh.

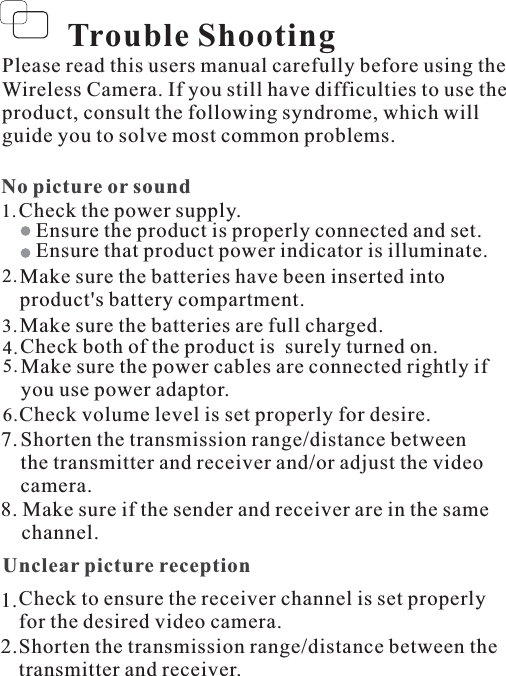

Please read this users manual carefully before using theWireless Camera. If you still have difficulties to use theproduct, consult the following syndrome, which willguide you to solve most common problems.No picture or soundCheck the power supply.1.Ensure the product is properly connected and set.Ensure that product power indicator is illuminate.2.3.4.5.Check volume level is set properly for desire.Make sure the batteries have been inserted intoproduct's battery compartment.Check both of the product is surely turned on.Make sure the power cables are connected rightly ifyou use power adaptor.Make sure the batteries are full charged.6.Trouble ShootingUnclear picture reception1.2.Shorten the transmission range/distance between thetransmitter and receiver.Check to ensure the receiver channel is set properlyfor the desired video camera.Shorten the transmission range/distance betweenthe transmitter and receiver and/or adjust the videocamera.7.8. Make sure if the sender and receiver are in the samechannel.

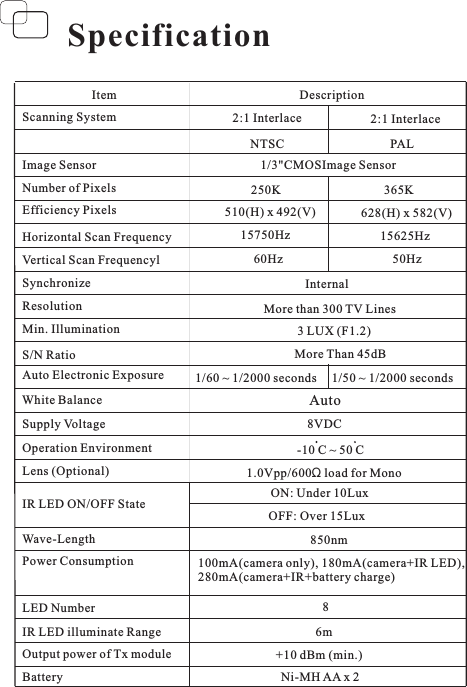

SpecificationItem DescriptionScanning SystemImage SensorNumber of PixelsEfficiency PixelsHorizontal Scan FrequencyVertical Scan FrequencylSynchronizeResolutionMin. IlluminationS/N RatioAuto Electronic ExposureWhite BalanceSupply VoltageOperation EnvironmentLens (Optional)InternalMore than 300 TV Lines2:1 InterlaceMore Than 45dBAutoIR LED ON/OFF StateWave-LengthPower ConsumptionLED NumberIR LED illuminate RangeOutput power of Tx moduleBattery6m+10 dBm (min.)Ni-MHAAx22:1 InterlaceNTSCPAL1/3"CMOSImage Sensor250K365K510(H) x 492(V) 628(H) x 582(V)15750Hz 15625Hz60Hz 50Hz3 LUX (F1.2)1/60 ~ 1/2000 seconds 1/50 ~ 1/2000 seconds1.0Vpp/600 load for MonoΩ8ON: Under 10LuxOFF: Over 15Lux8VDC850nm100mA(camera only), 180mA(camera+IR LED),280mA(camera+IR+battery charge)-10 C ~ 50 C

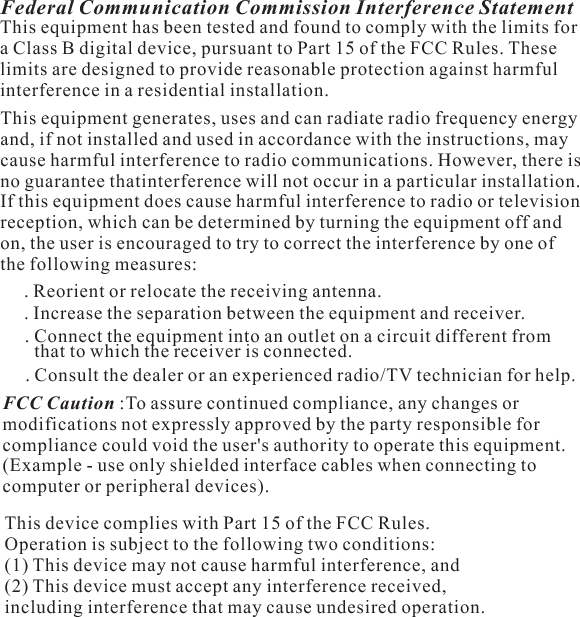

Federal Communication Commission Interference StatementThis equipment has been tested and found to comply with the limits fora Class B digital device, pursuant to Part 15 of the FCC Rules. Theselimits are designed to provide reasonable protection against harmfulinterference in a residential installation.This equipment generates, uses and can radiate radio frequency energyand, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there isno guarantee thatinterference will not occur in a particular installation.If this equipment does cause harmful interference to radio or televisionreception, which can be determined by turning the equipment off andon, the user is encouraged to try to correct the interference by one ofthe following measures:. Reorient or relocate the receiving antenna..Connecttheequipmentintoanoutletonacircuitdifferentfromthat to which the receiver is connected.. Consult the dealer or an experienced radio/TV technician for help.FCC Caution :To assure continued compliance, any changes ormodifications not expressly approved by the party responsible forcompliance could void the user's authority to operate this equipment.(Example - use only shielded interface cables when connecting tocomputer or peripheral devices).This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and(2) This device must accept any interference received,including interference that may cause undesired operation.. Increase the separation between the equipment and receiver.
