USER'S MANUALSURVEILLANCE SYSTEM2.4 G z WIRELESSH. INTRODUCTION1. INTRODUCTION. PACKAGE CONTENTS2. PACKAGE CONTENTS. CONTROLS3. CONTROLS. SYSTEM INSTALLATION4. SYSTEM INSTALLATION. OPERATION5. OPERATION. TROUBLE SHOOTING6. TROUBLE SHOOTING 945681

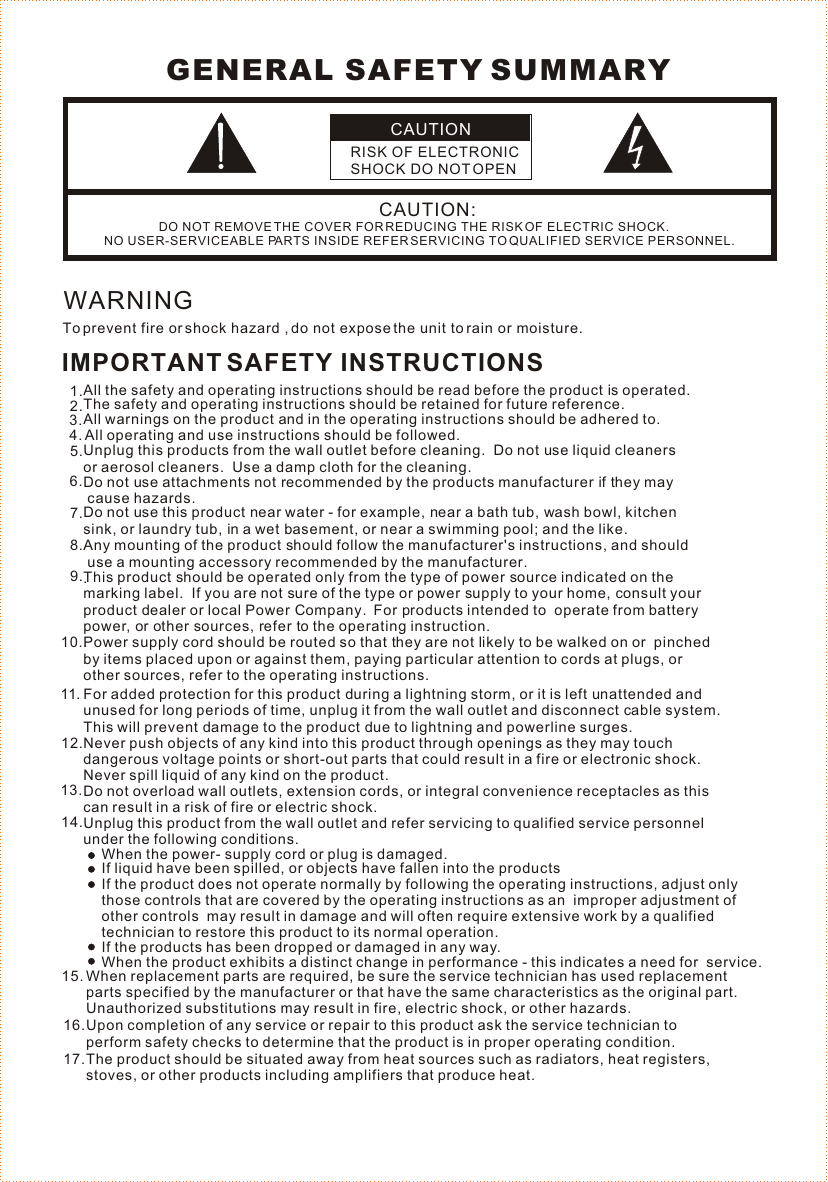

CAUTIONRISK OF ELECTRONIC SHOCK DO NOT OPENCAUTION:DO NOT REMOVE THE COVER FOR REDUCING THE RISK OF ELECTRIC SHOCK.NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. GENERAL SAFETY SUMMARYWARNINGTo prevent fire or shock hazard , do not expose the unit to rain or moisture. IMPORTANT SAFETY INSTRUCTIONSAll the safety and operating instructions should be read before the product is operated. The safety and operating instructions should be retained for future reference. All warnings on the product and in the operating instructions should be adhered to. All operating and use instructions should be followed.Unplug this products from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for the cleaning. Do not use attachments not recommended by the products manufacturer if they may cause hazards. Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool; and the like. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer.. This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type or power supply to your home, consult your product dealer or local Power Company. For products intended to operate from batterypower, or other sources, refer to the operating instruction. . Power supply cord should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, or other sources, refer to the operating instructions. 1.2.5.3.4.6.7.8.9.10.Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions.When the power- supply cord or plug is damaged.If liquid have been spilled, or objects have fallen into the productsNever push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electronic shock. Never spill liquid of any kind on the product. 12.13.14.When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.Upon completion of any service or repair to this product ask the service technician to perform safety checks to determine that the product is in proper operating condition.The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products including amplifiers that produce heat. 15.16.17.If the product does not operate normally by following the operating instructions, adjust onlythose controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore this product to its normal operation. When the product exhibits a distinct change in performance - this indicates a need for service. If the products has been dropped or damaged in any way. For added protection for this product during a lightning storm, or it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect cable system. This will prevent damage to the product due to lightning and powerline surges.11.

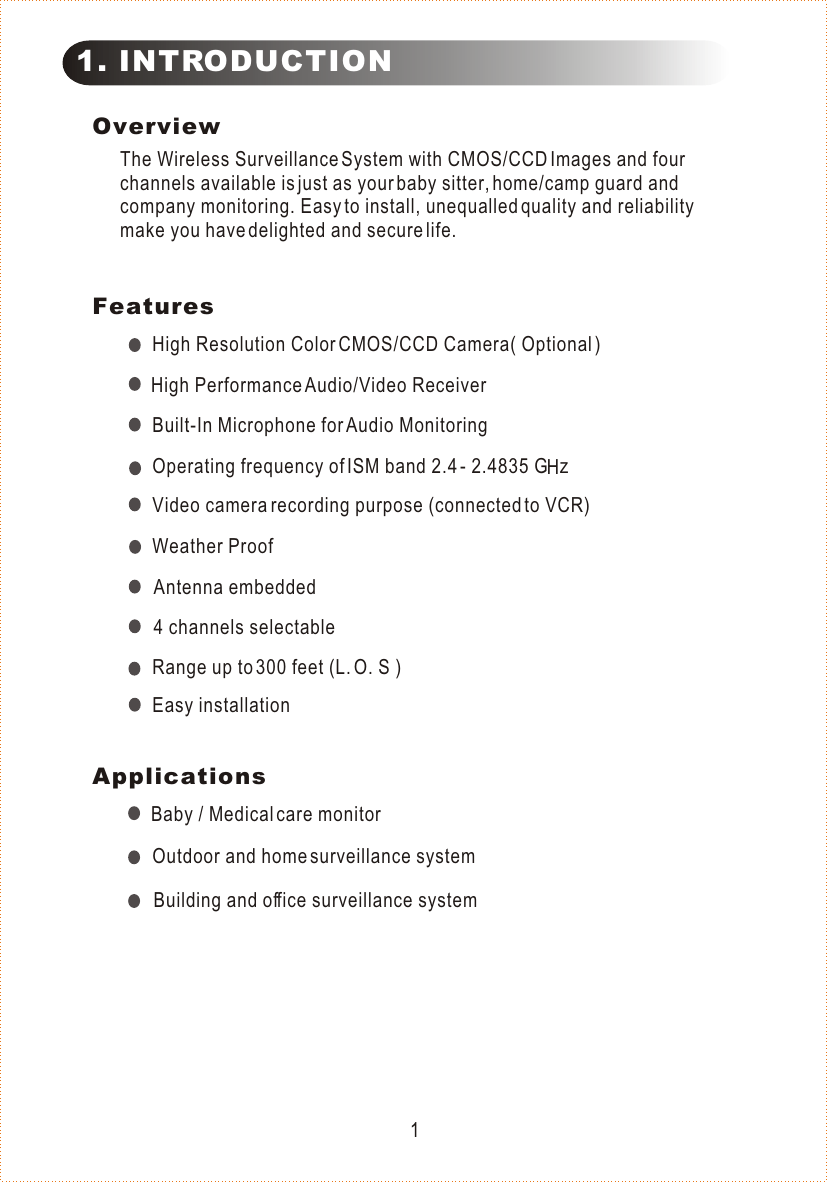

OverviewThe Wireless Surveillance System with CMOS/CCD Images and four channels available is just as your baby sitter, home/camp guard and company monitoring. Easy to install, unequalled quality and reliability make you have delighted and secure life.FeaturesHigh Resolution Color CMOS/CCD Camera( Optional )Range up to 300 feet (L. O. S )Baby / Medical care monitorEasy installation11. INTRODUCTION4 channels selectableWeather ProofBuilt-In Microphone for Audio MonitoringOutdoor and home surveillance systemBuilding and office surveillance systemVideo camera recording purpose (connected to VCR)Operating frequency of ISM band 2.4 - 2.4835 G zHApplicationsHigh Performance Audio/Video ReceiverAntenna embedded
Specifications2 Synchronize Resolution Min. Illumination S/N Ratio Video Input Auto Electronic Exposure Auto White Balance Supply Voltage Power Consumption Operation Environment Lens (Optional) Audio Input Weight Size 2:1 Interlace NTSC 1/3" CMOS Image Sensor 510 (H) X 492 (V) 15750 Hz 60 HzWireless Camera - CMOSSpecification 2:1 Interlace PAL 628 (H) X 582 (V) 15625 Hz 50 Hz Internal More Than 300 TV Lines3 LUX (F1.2) More Than 45 dB (AGC OFF) 1.0 Vpp / 75 composite Video signal Auto 9V 120 mA -15 C ~ + 55 C F3.6 mm, F2.0 (Fix Board Lens) 1.0Vpp / 600 load for Mono Approximate 160g 116 L x 45W x 52.5H (mm) Model Characteristic Scanning System Image Sensor Efficiency Pixels Horizontal Scan Frequency Vertical Scan Frequency 1/60 ~ 1/2000 1/50 ~ 1/2000Sec.Sec. Synchronize Resolution Min. Illumination S/N Ratio Video Input Auto Electronic Exposure Auto White Balance Supply Voltage Power Consumption Operation Environment Lens (Optional) Audio Input Weight Size 2:1 Interlace NTSC 1/4" CCD Image Sensor 512 (H) X 492 (V) 15750 Hz 60 HzWireless Camera - CCDSpecification 2:1 Interlace PAL 512 (H) X 582 (V) 15625 Hz 50 Hz Internal More Than 420TV Lines 0.3 LUX (F1.2) More Than 48 dB (AGC OFF) 1.0 Vpp / 75 composite Video signal Auto 9V 200 mA -15 C ~ + 55 C F3.6 mm, F2.0 (Fix Board Lens) 1.0Vpp / 600 load for Mono Approximate 160g 116 L x 45W x 52.5H (mm) Model Characteristic Scanning System Image Sensor Efficiency Pixels Horizontal Scan Frequency Vertical Scan Frequency1/60 ~ 1/10000 1/50 ~ 1/10000Sec. Sec.

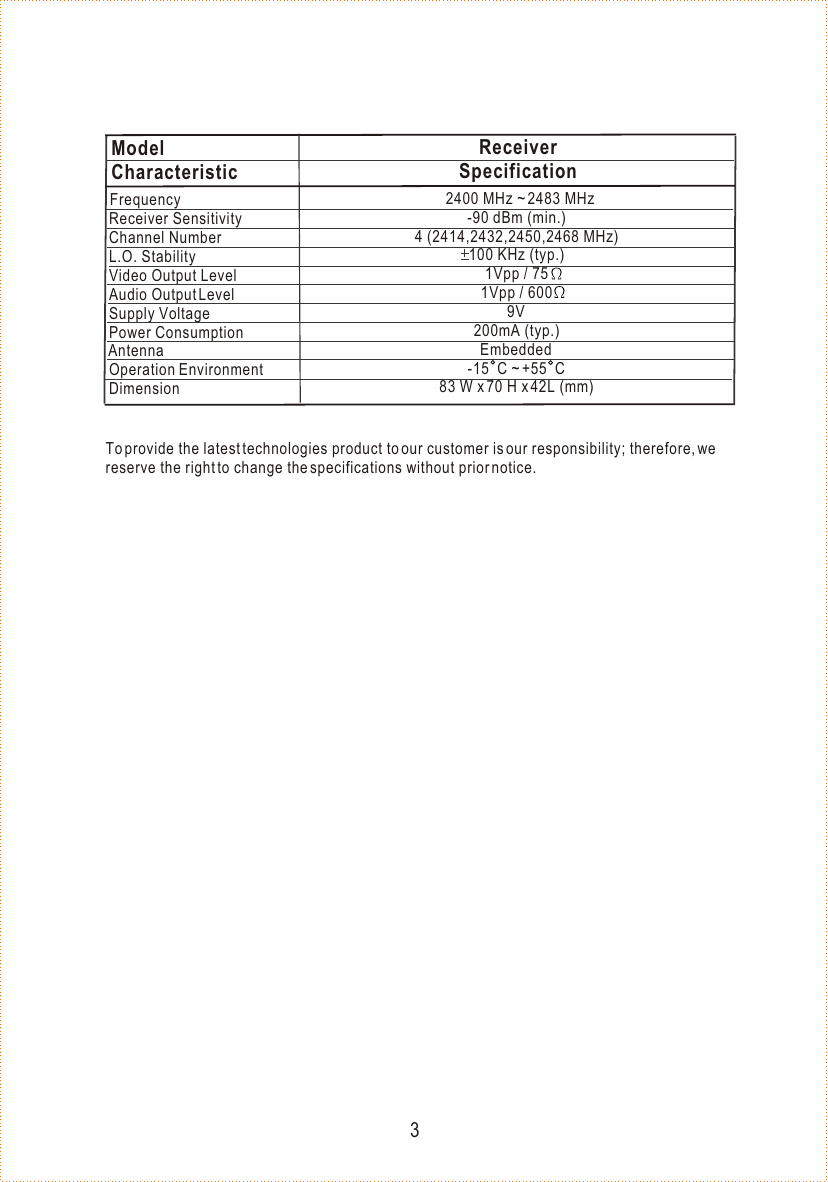

3 To provide the latest technologies product to our customer is our responsibility; therefore, we reserve the right to change the specifications without prior notice. Frequency Receiver Sensitivity Channel Number L.O. Stability Video Output Level Audio Output Level Supply Voltage Power Consumption Antenna Operation DimensionEnvironment 2400 MHz ~ 2483 MHz-90 dBm (min.)4 (2414,2432,2450,2468 MHz)100 KHz (typ.)1Vpp / 751Vpp / 6009V200mA (typ.)Embedded-15 C ~ +55 C83 W x 70 H x 42L (mm)ReceiverSpecification Model Characteristic

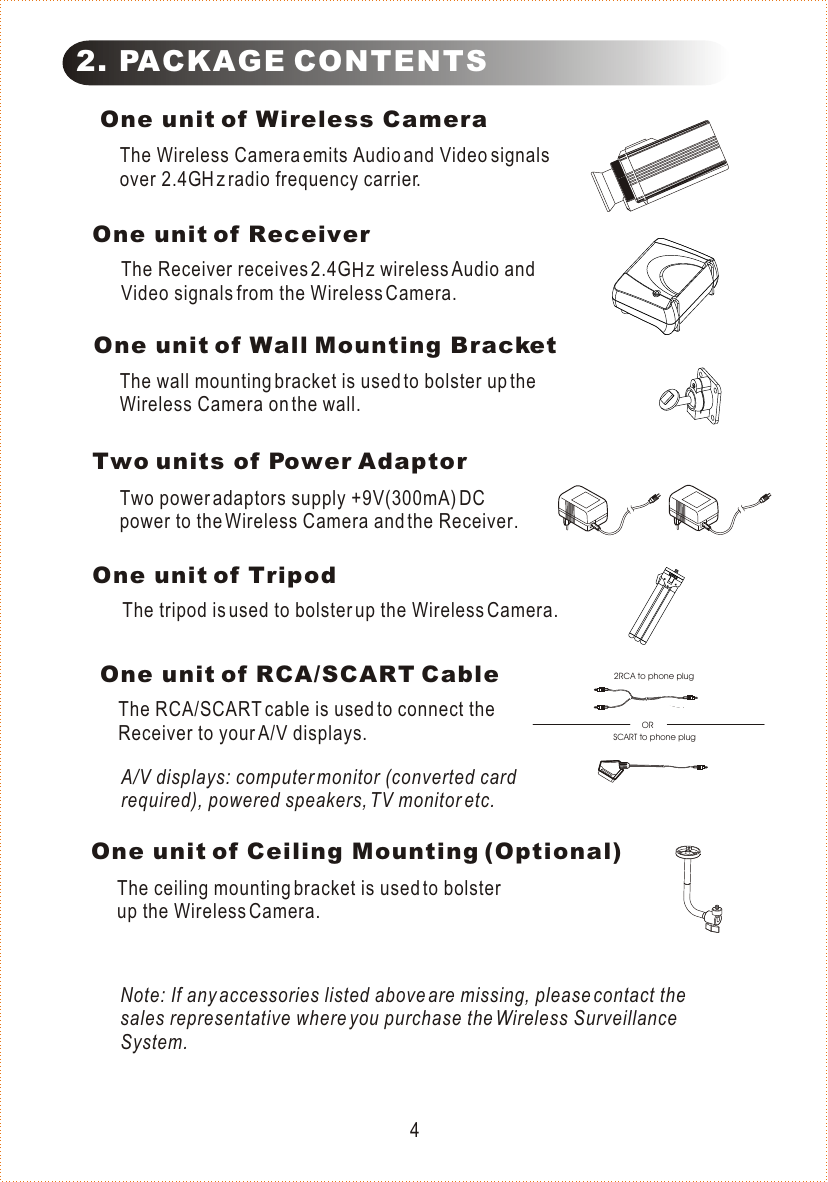

One unit of Wireless CameraThe Wireless Camera emits Audio and Video signals over 2.4G z radio frequency carrier.One unit of ReceiverThe Receiver receives 2.4G z wireless Audio and Video signals from the Wireless Camera.One unit of Wall Mounting BracketThe wall mounting bracket is used to bolster up the Wireless Camera on the wall.2. PACKAGE CONTENTSTwo units of Power AdaptorTwo power adaptors supply +9V(300mA) DC power to the Wireless Camera and the Receiver.One unit of Ceiling Mounting (Optional)The ceiling mounting bracket is used to bolster up the Wireless Camera.One unit of TripodThe tripod is used to bolster up the Wireless Camera. One unit of RCA/SCART CableThe RCA/SCART cable is used to connect the Receiver to your A/V displays.A/V displays: computer monitor (converted card required), powered speakers, TV monitor etc.Note: If any accessories listed above are missing, please contact the sales representative where you purchase the Wireless Surveillance System.4HH2RCA to phone plugORSCART to phone plug

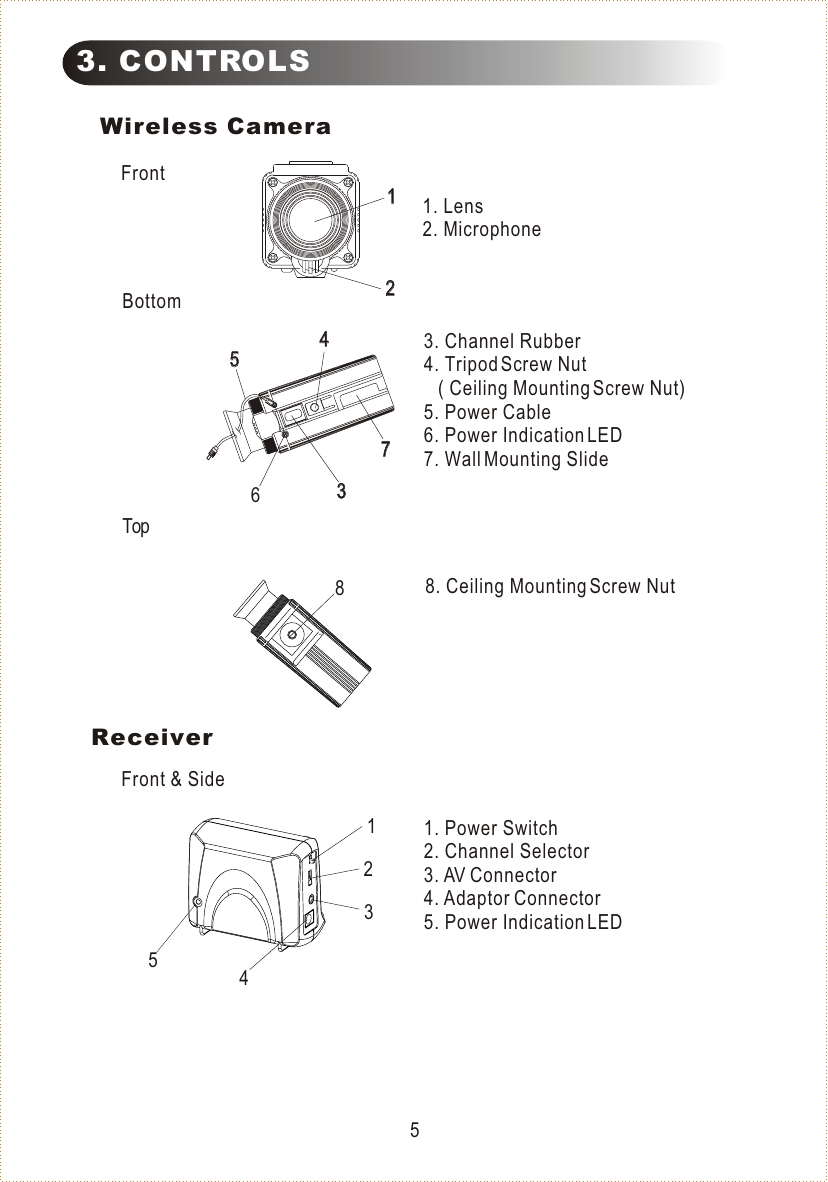

Wireless Camera8. Ceiling Mounting Screw Nut1. Lens2. Microphone3. Channel Rubber4. Tripod Screw Nut ( Ceiling Mounting Screw Nut)5. Power Cable6. Power Indication LED7. Wall Mounting SlideFrontBottomTop3. CONTROLS5ReceiverFront & Side1. Power Switch2. Channel Selector3. AV Connector4. Adaptor Connector5. Power Indication LED6221133445577123458

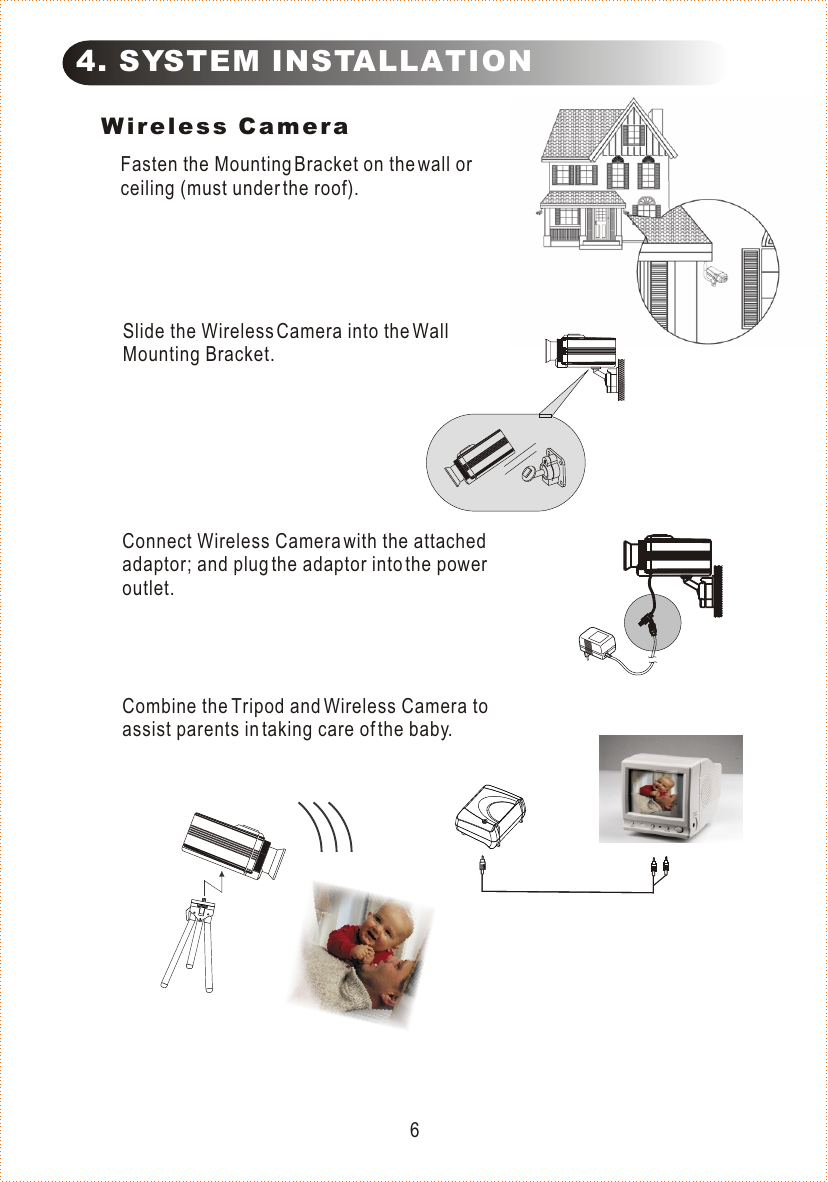

4. SYSTEM INSTALLATION Wireless CameraConnect Wireless Camera with the attached adaptor; and plug the adaptor into the power outlet.Slide the Wireless Camera into the Wall Mounting Bracket.66Fasten the Mounting Bracket on the wall or ceiling (must under the roof).6Combine the Tripod and Wireless Camera to assist parents in taking care of the baby.

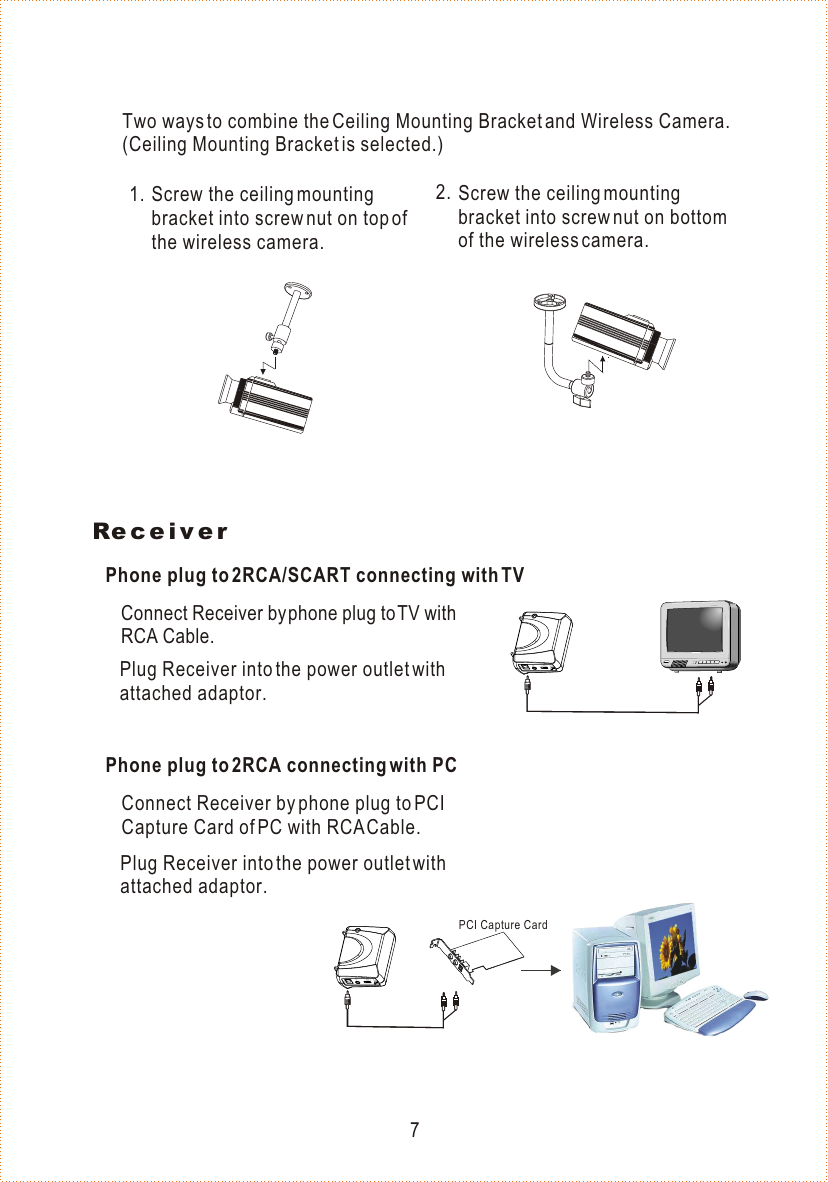

ReceiverConnect Receiver by phone plug to TV with RCA Cable.DC9VA/V1ON234CHOFFConnect Receiver by phone plug to PCI Capture Card of PC with RCA Cable.Plug Receiver into the power outlet with attached adaptor.Plug Receiver into the power outlet with attached adaptor.Phone plug to 2RCA/SCART connecting with TVPhone plug to 2RCA connecting with PCPCI Capture CardDC9VA/V1ON234CHOFFTwo ways to combine the Ceiling Mounting Bracket and Wireless Camera. (Ceiling Mounting Bracket is selected.) Screw the ceiling mounting bracket into screw nut on top of the wireless camera.Screw the ceiling mounting bracket into screw nut on bottom of the wireless camera.1. 2.7
The power indication LED on Wireless Camera and Receiver will light up.Note: The operation temperature is from -15 C ~ +55 C.5. OPERATION82.3.1. Turn on the Wireless Camera and Receiver.Turn on A/V display.4.Wireless Surveillance System watches wherever you want.5.CH1 - CH1CH2 - CH2CH3 - CH3CH4 - CH4**Check the channel of Receiver to be same as Camera. ( Camera set up to channel 1 originally. )Switch the Receiver's Channel Selector to Ch1. Image will show on A/V display if the channel of Wireless Camera and Receiver is at the same one. If no images or sound on A/V display, switch the Receiver's Channel Selector to Ch2, 3 or 4; and check the images again.If switching the channel of Wireless Camera is necessary, please refer to page 10 - How to adjust the Channel Selector of Wireless Camera.
No Pictures or SoundPower ON/OFF switch in right position.Check all the cables well and rightly connected.9Receiver can not work properly when connecting with PCCheck PCI capture card and software / driver installed correctly. Make sure the surveillance system work properly if connecting with TV.Check all the cables well and rightly connected when connecting with PC.Check the channels of wireless camera and receiver at the same one.Check the DC adaptors rightly connected.6. TROUBLE SHOOTINGPlease read this user's manual carefully before using the Wireless Surveillance System. If you still have difficulties to use the Wireless Surveillance System consult the following syndrome, which will guide you to solve most common problems.Interference in the Image and SoundMove your Wireless Camera or Receiver slowly to find a best reception position.Shorten the distance between your Camera and Receiver.Check if there is any interference radio frequency source near your Receiver source such as microwave oven or others 2.4 G z electronic products.Switch channels of both Camera and Receiver to another channel; e.g. from C 1 to CH3.HH

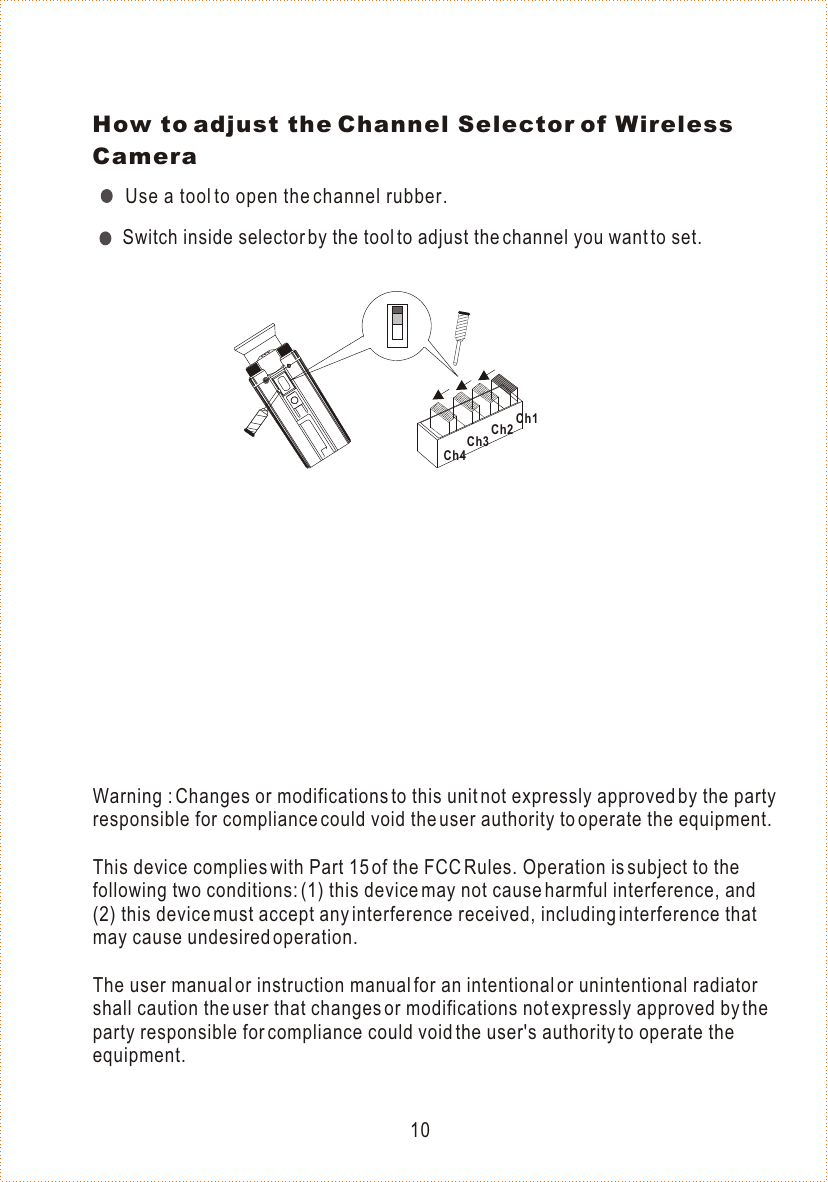

Warning : Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.The user manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.How to adjust the Channel Selector of Wireless CameraCh1Ch2Ch3Ch4Use a tool to open the channel rubber.Switch inside selector by the tool to adjust the channel you want to set.10
