ELDAT NZ80248 Hand Transmitter for Lock Control User Manual 15 TR44 UserMan

ELDAT GmbH Hand Transmitter for Lock Control 15 TR44 UserMan

15_TR44 UserMan

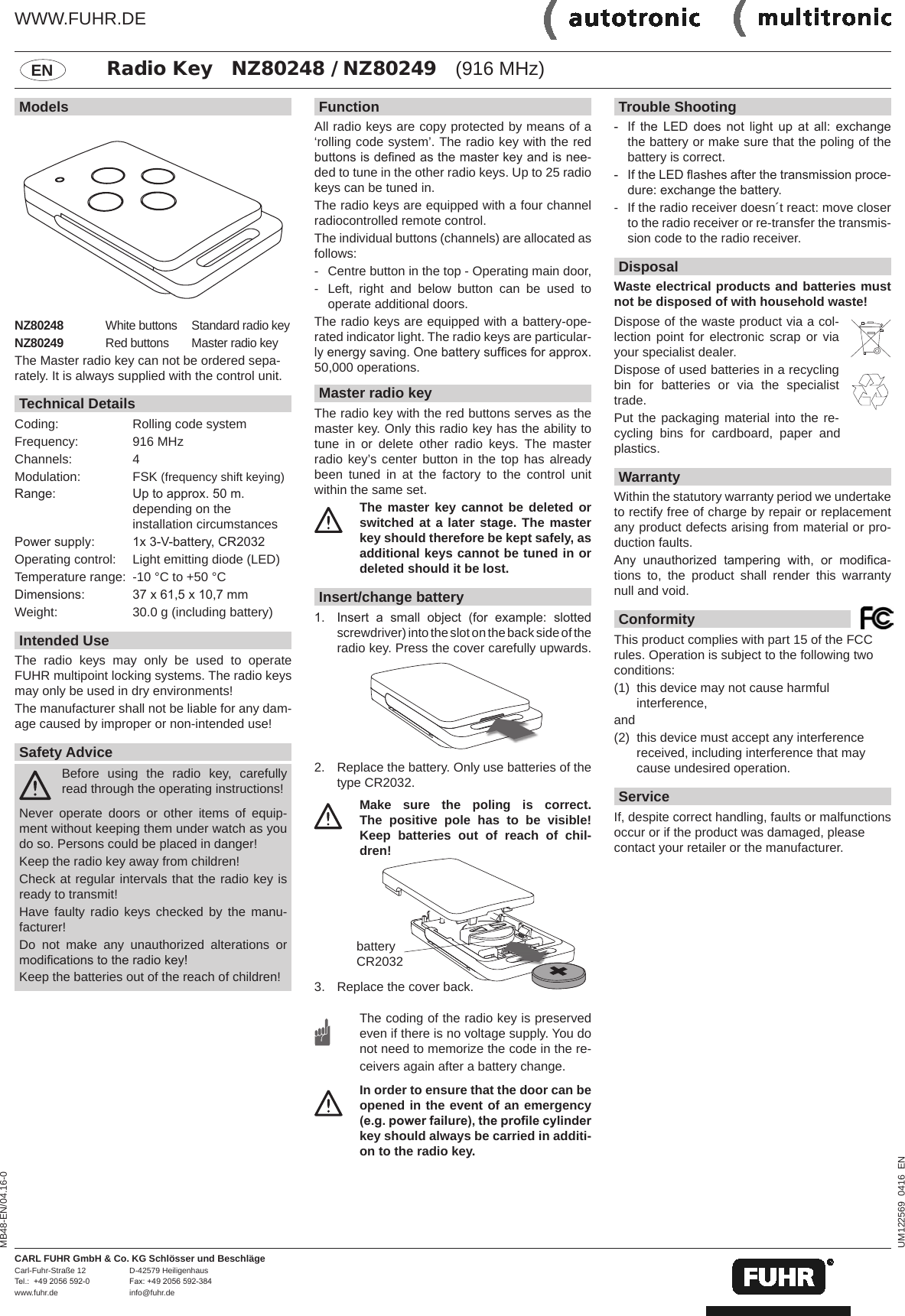

FunctionAll radio keys are copy protected by means of a ‘rolling code system’. The radio key with the red buttons is dened as the master key and is nee-ded to tune in the other radio keys. Up to 25 radio keys can be tuned in. The radio keys are equipped with a four channel radiocontrolled remote control. The individual buttons (channels) are allocated as follows:- Centre button in the top - Operating main door,- Left, right and below button can be used to operate additional doors.The radio keys are equipped with a battery-ope-rated indicator light. The radio keys are particular-ly energy saving. One battery sufces for approx. 50,000 operations.Master radio keyThe radio key with the red buttons serves as the master key. Only this radio key has the ability to tune in or delete other radio keys. The master radio key’s center button in the top has already been tuned in at the factory to the control unit within the same set. The master key cannot be deleted or switched at a later stage. The master key should therefore be kept safely, as additional keys cannot be tuned in or deleted should it be lost.Insert/change battery1. Insert a small object (for example: slotted screwdriver) into the slot on the back side of the radio key. Press the cover carefully upwards. 2. Replace the battery. Only use batteries of the type CR2032. Make sure the poling is correct. The positive pole has to be visible! Keep batteries out of reach of chil-dren!3. Replace the cover back. The coding of the radio key is preserved even if there is no voltage supply. You do not need to memorize the code in the re-ceivers again after a battery change. In order to ensure that the door can be opened in the event of an emergency (e.g. power failure), the prole cylinder key should always be carried in additi-on to the radio key.ModelsNZ80248 White buttons Standard radio key NZ80249 Red buttons Master radio key The Master radio key can not be ordered sepa-rately. It is always supplied with the control unit.Technical DetailsCoding: Rolling code system Frequency: 916 MHzChannels: 4Modulation: FSK (frequency shift keying)Range: Up to approx. 50 m. depending on the installation circumstancesPower supply: 1x 3-V-battery, CR2032Operating control: Light emitting diode (LED)Temperature range: -10 °C to +50 °CDimensions: 37 x 61,5 x 10,7 mmWeight: 30.0 g (including battery)Intended UseThe radio keys may only be used to operate FUHR multipoint locking systems. The radio keys may only be used in dry environments!The manufacturer shall not be liable for any dam-age caused by improper or non-intended use!Safety Advice Before using the radio key, carefully read through the operating instructions!Never operate doors or other items of equip-ment without keeping them under watch as you do so. Persons could be placed in danger!Keep the radio key away from children!Check at regular intervals that the radio key is ready to transmit!Have faulty radio keys checked by the manu-facturer!Do not make any unauthorized alterations or modications to the radio key!Keep the batteries out of the reach of children!ENTrouble Shooting- If the LED does not light up at all: exchange the battery or make sure that the poling of the battery is correct.- If the LED ashes after the transmission proce-dure: exchange the battery.- If the radio receiver doesn´t react: move closer to the radio receiver or re-transfer the transmis-sion code to the radio receiver.DisposalWaste electrical products and batteries must not be disposed of with household waste!Dispose of the waste product via a col-lection point for electronic scrap or via your specialist dealer.Dispose of used batteries in a recycling bin for batteries or via the specialist trade.Put the packaging material into the re-cycling bins for cardboard, paper and plastics.WarrantyWithin the statutory warranty period we undertake to rectify free of charge by repair or replacement any product defects arising from material or pro-duction faults.Any unauthorized tampering with, or modica-tions to, the product shall render this warranty null and void.ConformityThis product complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.ServiceIf, despite correct handling, faults or malfunctions occur or if the product was damaged, please contact your retailer or the manufacturer.UM122569 0416 ENMB48-EN/04.16-0battery CR2032 CARL FUHR GmbH & Co. KG Schlösser und BeschlägeCarl-Fuhr-Straße 12 D-42579 Heiligenhaus Tel.: +49 2056 592-0 Fax: +49 2056 592-384www.fuhr.de info@fuhr.deRadio Key NZ80248 / NZ80249 (916 MHz)WWW.FUHR.DE
