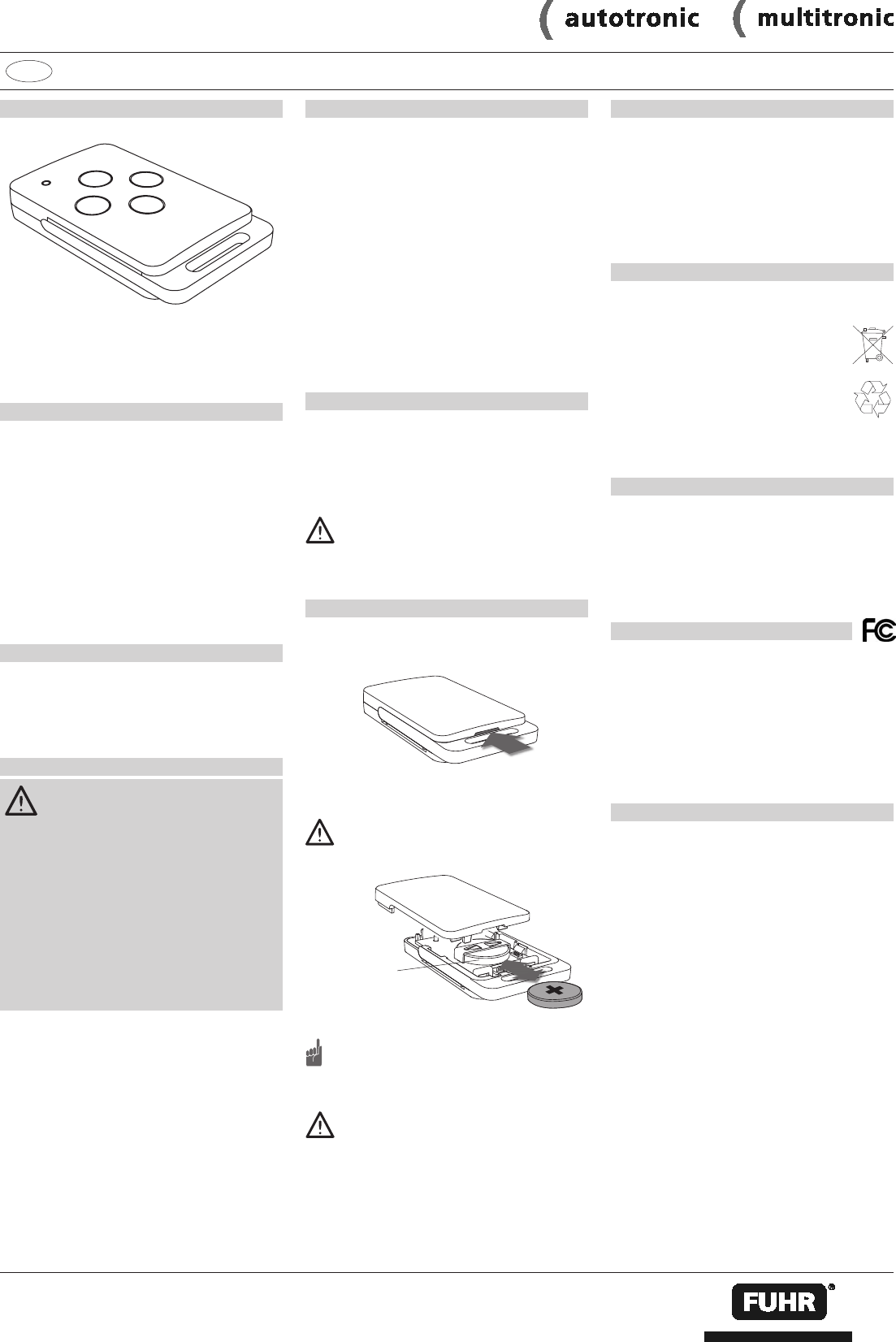

Function
All radio keys are copy protected by means of a
‘rolling code system’. The radio key with the red
buttons is dened as the master key and is nee-
ded to tune in the other radio keys. Up to 25 radio
keys can be tuned in.
The radio keys are equipped with a four channel
radiocontrolled remote control.
The individual buttons (channels) are allocated as
follows:
- Centre button in the top - Operating main door,
- Left, right and below button can be used to
operate additional doors.
The radio keys are equipped with a battery-ope-
rated indicator light. The radio keys are particular-
ly energy saving. One battery sufces for approx.
50,000 operations.
Master radio key
The radio key with the red buttons serves as the
master key. Only this radio key has the ability to
tune in or delete other radio keys. The master
radio key’s center button in the top has already
been tuned in at the factory to the control unit
within the same set.
The master key cannot be deleted or
switched at a later stage. The master
key should therefore be kept safely, as
additional keys cannot be tuned in or
deleted should it be lost.
Insert/change battery
1. Insert a small object (for example: slotted
screwdriver) into the slot on the back side of the
radio key. Press the cover carefully upwards.
2. Replace the battery. Only use batteries of the
type CR2032.
Make sure the poling is correct.
The positive pole has to be visible!
Keep batteries out of reach of chil-
dren!
3. Replace the cover back.
The coding of the radio key is preserved
even if there is no voltage supply. You do
not need to memorize the code in the re-
ceivers again after a battery change.
In order to ensure that the door can be
opened in the event of an emergency
(e.g. power failure), the prole cylinder
key should always be carried in additi-
on to the radio key.
Models
NZ80248 White buttons Standard radio key
NZ80249 Red buttons Master radio key
The Master radio key can not be ordered sepa-
rately. It is always supplied with the control unit.
Technical Details
Coding: Rolling code system
Frequency: 916 MHz
Channels: 4
Modulation: FSK (frequency shift keying)
Range: Up to approx. 50 m.
depending on the
installation circumstances
Power supply: 1x 3-V-battery, CR2032
Operating control: Light emitting diode (LED)
Temperature range: -10 °C to +50 °C
Dimensions: 37 x 61,5 x 10,7 mm
Weight: 30.0 g (including battery)
Intended Use
The radio keys may only be used to operate
FUHR multipoint locking systems. The radio keys
may only be used in dry environments!
The manufacturer shall not be liable for any dam-
age caused by improper or non-intended use!
Safety Advice
Before using the radio key, carefully
read through the operating instructions!
Never operate doors or other items of equip-
ment without keeping them under watch as you
do so. Persons could be placed in danger!
Keep the radio key away from children!
Check at regular intervals that the radio key is
ready to transmit!
Have faulty radio keys checked by the manu-
facturer!
Do not make any unauthorized alterations or
modications to the radio key!
Keep the batteries out of the reach of children!
EN
Trouble Shooting
- If the LED does not light up at all: exchange
the battery or make sure that the poling of the
battery is correct.
- If the LED ashes after the transmission proce-
dure: exchange the battery.
- If the radio receiver doesn´t react: move closer
to the radio receiver or re-transfer the transmis-
sion code to the radio receiver.
Disposal
Waste electrical products and batteries must
not be disposed of with household waste!
Dispose of the waste product via a col-
lection point for electronic scrap or via
your specialist dealer.
Dispose of used batteries in a recycling
bin for batteries or via the specialist
trade.
Put the packaging material into the re-
cycling bins for cardboard, paper and
plastics.
Warranty
Within the statutory warranty period we undertake
to rectify free of charge by repair or replacement
any product defects arising from material or pro-
duction faults.
Any unauthorized tampering with, or modica-
tions to, the product shall render this warranty
null and void.
Conformity
This product complies with part 15 of the FCC
rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful
interference,
and
(2) this device must accept any interference
received, including interference that may
cause undesired operation.
Service
If, despite correct handling, faults or malfunctions
occur or if the product was damaged, please
contact your retailer or the manufacturer.
UM122569 0416 EN
MB48-EN/04.16-0
battery
CR2032
CARL FUHR GmbH & Co. KG Schlösser und Beschläge
Carl-Fuhr-Straße 12 D-42579 Heiligenhaus
Tel.: +49 2056 592-0 Fax: +49 2056 592-384
www.fuhr.de info@fuhr.de
Radio Key NZ80248 / NZ80249 (916 MHz)
