Users Manual
1
HARDWARE
USER MANUAL
GWS-CSCG
Logistics Monitoring Gateway
2
Copyright
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Suspendisse laoreet dui
at ante tincidunt, vel porttitor mauris lobortis. Fusce risus lorem, euismod id
dapibus a, interdum eget lectus. Vivamus lorem lorem, rhoncus non faucibus vel,
imperdiet vitae elit. Nam accumsan est neque. In velit nibh, tempor eget felis id,
tincidunt efficitur quam. Cras vel varius turpis, a dapibus magna. Suspendisse
potenti. Maecenas at odio sit amet lorem varius hendrerit quis sit amet neque.
Aliquam gravida, risus eu congue feugiat, nulla purus ultricies neque, vitae
pulvinar neque mauris non diam. Integer bibendum rhoncus lacus quis dignissim.
Cras condimentum dolor ex, elementum viverra lacus consectetur non.
Acknowledgements
Lorem ipsum dolor sit amet, consectetur adipiscing elit.
Lorem ipsum dolor sit amet, consectetur adipiscing elit.
Lorem ipsum dolor sit amet, consectetur adipiscing elit.
Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
o Reorient or relocate the receiving antenna
o Increase the separation between the equipment and the receiver
o Connect the equipment onto an outlet on a circuit different from that to
which the receiver is connected
o Consult the dealer or an experienced radio technician for help
Shielded interconnect cables and a shielded AC power cable must be
employed with this equipment to ensure compliance with the pertinent RF
emission limits governing this device. Changes or modifications not expressly
approved by the system’s manufacturer could void the user’s authority to
operate the equipment.
3
FCC Label Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
ollowing two conditions:
(1) This device may not cause harmful interference
(2) This device must accept any interference received, including
interference that
may cause undesired operation.
RF Exposure Information (SAR)
This device meets the government’s requirements for exposure to radio waves.
This device is designed and manufactured not to exceed the emission limits for
exposure to radio frequency (RF) energy set by the Federal Communications
Commission of the U.S. Government.
The exposure standard employs a unit of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit set by the FCC is 4.0 W/kg. Tests for SAR
are conducted using standard operating positions accepted by the FCC with
the EUT transmitting at the specified power level in different channels.
The FCC has granted an Equipment Authorization for this device with all
reported SAR levels evaluated as in compliance with the FCC RF exposure
guidelines. SAR information on this device is on file with the FCC and can be
found under the Display Grant section of www.fcc.gov/eot/ea/fccid after
searching on FCC ID: WL6GWS-CSCG
Canada, Industry Canada (IC) Notices
This device complies with Industry Canada’s license-exempt RSSs. Operation is
subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that
may cause undesired operation of the device.
Canada, avis d’Industry Canada (IC)
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux
appareils radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes :
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique
subi,
mê me si le brouillage est susceptible d’en compromettre le
fonctionnement.
4
Radio Frequency (RF) Exposure Information
The radiated output power of the Wireless Device is below the Industry Canada
(IC) radio frequency exposure limits. The Wireless Device should be used in such
a manner such that the potential for human contact during normal operation is
minimized. This device has been evaluated for and shown compliant with the IC
Specific Absorption Rate (“SAR”)limits when operated in portable exposure
conditions.
Informations concernant l’exposition aux fréquences
radio (RF)
La puissance de sortie émise par l’appareil de sans fil est inférieure à la
d’exposition aux fréquences radio d’Industry Canada (IC). Utilisez l’appareil de
sans fil de faç on à minimiser les contacts humains lors du fonctionnement
normal. Ce dispositif a é té é valué pour et dé montré conforme à la Taux IC
d’absorption spécifique (“SAR”) des limites lorsqu’il est utilisé dans des conditions
d’exposition portatifs. Ce dispositif a été évalué pour et démontré conforme à la
Taux IC d’absorption spécifique (“SAR”) des limites lorsqu’il est utilisé dans des
conditions d’exposition portatifs.
o compliance to ALL applicable EU standards to support CE mark.
o compliance to FCC 47 CFR Part 15 Subpart B & ICES-003 Issue 6-2016
o compliance to EU Radio Equipment Directive
o compliance to FCC 47 CFR Part 15 Subpart
5
Packing List
Before setting up the system, check that the items listed below are included and
in good condition. If any items are missing, please contact your dealer
immediately.
Lorem ipsum dolor sit amet, consectetur adipiscing elit.
Lorem ipsum dolor sit amet, consectetur adipiscing elit.
Safety Instruction
Your system is designed and tested to meet the latest standards of safety for
information technology equipment. However, to ensure your safety, it is
important that you read the following safety instructions.
Setting Up Your System
o Read and follow all instructions in the documentation before you operate
your system.
o Do not use this product near water or a heated source such as a radiator.
o Set up the system on a stable surface.
o Openings on the chassis are for ventilation. Do not block or cover these
openings. Make sure you leave plenty of space around the system for
ventilation.
o Never insert objects of any kind into the ventilation openings.
o If you use an extension cord, make sure that the total ampere rating of
the devices plugged into the extension cord does not exceed its ampere
rating.
Attention During Use
If you encounter the following technical problems with the product, unplug the
power cord and contact a qualified service technician or your retailer.
o The power cord or plug is damaged.
o Liquid has been spilled into the system.
o The system does not function properly even if you follow the operating
instructions.
o The system was dropped or the cabinet is damaged.
o The system performance changes
The warranty does not apply to products that have been
disassembled by users.
IMPORTANT:
This product is intended to be supplied by an UL certified DC source
rated 5Vdc; 3A. Tma 60 degree C minimum and output meets SELV,
6
Non-hazardous energy level, if need further assistance, please
contact ECS (or Intel® ) for further information.
Safety Notice and Warnings
IMPORTANT: Product disposal notice
In the European Union, this symbol indicates that this product
including battery must not be disposed of with household waste. It is
your responsibility to hand it over to a designated collection point
for the recycling of waste electrical and electronic equipment. For
more information, please contact your local waste collection
center or the point of purchase of this product.
CAUTION:
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
Nordic Lithium Safety Notice (for lithium-ion batteries)
Safety Notice:
Danger of explosion if battery is incorrectly replace only with the
same or equivalent type recommended by the manufacturer.
Dispose of used batteries according to the manufacturer’s
instructions.
7
Attention during use
o Do not place this product underneath heavy loads or in an
unstable position.
o Do not use or expose this product around magnetic fields
as magnetic interference may affect the performance of the
product.
o Do not storage this product to high levels of direct sunlight, high-
humidity or wet conditions.
o Do not carry the product on the body (or pockets).
CE marketing
FCC marketing
8
Contents
Table of Contents
General Information ............................................. 9
1.1 Brief Introduction .............................................................................. 10
1.2 Cleaning/Disinfecting ...................................................................... 10
1.3 Specifications .................................................................................... 11
Device Setup and Use ......................................... 12
2.1 Gateway Device .............................................................................. 13
2.2 Tag ...................................................................................................... 14
2.3 Prep Items .......................................................................................... 15

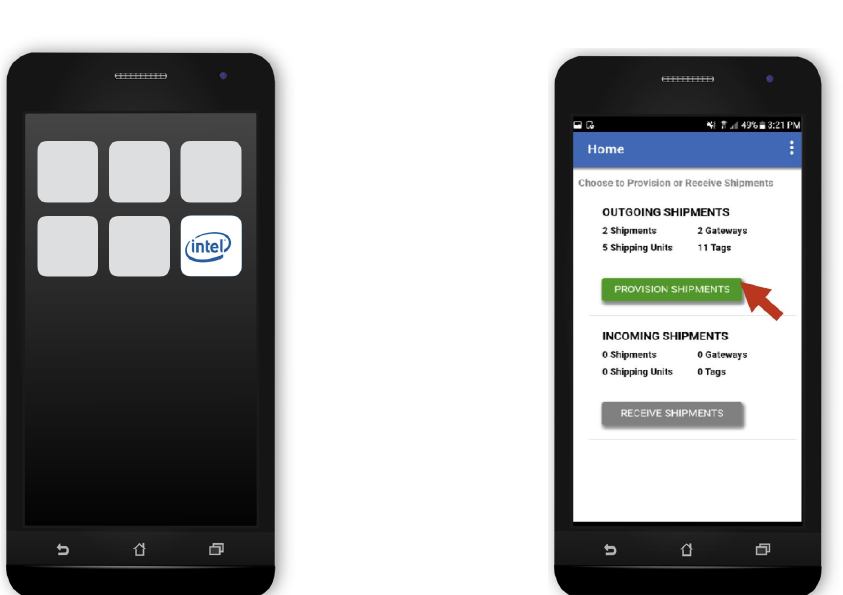

2.4 Setting up the Mobile Device (OBD) ............................................. 17
2.5 Set up the GWS-CSCG and Tags .................................................. 19
2.6 Place Tags and Labels on Shipment ............................................ 20
2.7 Associate Mobile Device with GWS-CSCG & Tags ..................... 21
2.8 Review and Load ............................................................................ 23
Chapter 1
Chapter 2
9
Chapter 1
General information
10
1.1 Brief Introduction

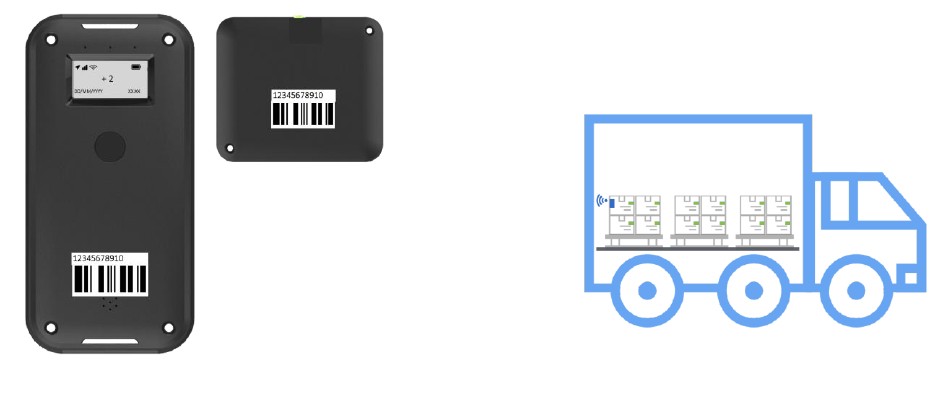

The Connected Logistics Platform is a hardware and software solution that
was designed to help 3PLs / Carriers collect real-time data on their
package health while they’re in transit. The solution consists of a Gateway,
Sensor Tags, and mobile device with shipment app. Carriers can then set
up sensing parameters such as temperature, shock, tilt and geofences for
the tags that are attached to individual boxes and pallets. These tags
then communicate with at gateway device attached to one of the
pallets that transmits the tag data to the cloud. This enables the 3PLs to
monitor real-time tag data to ensure shipment health and security.
1.2 Cleaning/Disinfecting
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Suspendisse
laoreet dui at ante tincidunt, vel porttitor mauris lobortis. Fusce risus lorem,
euismod id dapibus a, interdum eget lectus. Vivamus lorem lorem,
rhoncus non faucibus vel, imperdiet vitae elit. Nam accumsan est neque.
1. Lorem ipsum dolor sit amet, consectetur adipiscing elit.
2. Lorem ipsum dolor sit amet, consectetur adipiscing elit.
3. Lorem ipsum dolor sit amet, consectetur adipiscing elit.
11
1.3 Specifications
Item
Spec Description
Processor
Intel Atom X3 Telit HE922
Cache:16Kbytes L1
Memory: eMMC interface 8GB
RAM: 8Gb LDDR3
External IO Port
Charging Port (Extension Battery/ CST)
Charging Port (Micro USB output5V3A/ input 110V~240V
Micro USB Debug
Buzzer
Buzzer
LED
LED(CPU /Device Status)
Display
OLED 54.6*32mm / 128*64 pixd
Key/Button
Power / NFC
Reset
Expansion
SIM Slot
Connectivity
3G
WiFi
GPS / GNSS
Zigbee
NFC
Sensor
Ambient
Temp/Humidity
G-Sensor
Air Pressure
Proximity
Battery
3930mAH Li-Polymer(Typical)
Battery Life
10 days
Operating Temperature
-10°C ~ 60°C
Dimensions (h/w/l)
22.5*82*178.5mm
IP Level
IPXO for safety standard
Power Consumption
Hi: 4.4V / Normal: 4.2V / Low 3.75V
12
Chapter 2
Device Use
13
2.1 Gateway Device
Port for in-line power
and manual data
port
3-color LED display
Speaker for audio
feedback
Power button /
NFC Button
Unique barcode
and gateway ID
Mount for external
battery
Holes for screws to
mount external battery
Reset
button
Micro SIM
Micro USB debug
Micro USB power
14
2.2 Tag
15
2.3 Review Shipment Provisioning in Mobile Device
(OBT)
Step 1: Open the Shipment App on
the mobile device.
Step 2: Select ‘Provision Shipments’
16
Step 3: Select ‘Details’ to view shipment
provisioning information.
Step 4: Review shipment, Tag, and Gateway
requirements and cross-reference that
information with shipment paperwork.
17
2.4 Prep Items
Step 5: Gather materials
1. Quantity of Gateways and Tags listed on the shipment document
2. Mobile Device (OBT)
3. Tag and Gateway shipping sleeves
Gateway Device
Mobile Device
Shipping Sleeves
Tags
18
2.5 Set up the GWS-CSCG and Tags
Step 6: Power On Gateway
To Power On: Press the power button for 1 second until the boot screen appears. Until the
Gateway LED displays green light, and a positive audio tone is heard.
Note: To power off, long press the power button for 3
seconds. Shutdown icon will show on screen, LED will
display red light, and a short audio tone is heard.
Note: User will not be able to power down device if the
shipment is still active
19
Step 7: Check the Gateway Battery is
Fully Charged
Step 8: Check the WIFI status.
20
Step 9: Select Shipment to provision.
Step 10: Link Shipment With Gateway
Hold down the NFC button on the Gateway
and press the back of the Gateway to the back
of the OBT .
21
Successfully Paired
o Tag and Gateway
LED display is green
o Gateway beeps
positive tone
o The number of
paired tags
increases by 1
Not Paired or Bad Tag
o Tag and Gateway
LED display is red
o Gateway beeps
negative tone.
o The number of paired
tags stays the same
Step 12: Pair Tags with Gateway
Hold down the NFC button on a powered on Gateway and press the Gateway against the Tag.
Step 11: Power on Tags
Pull battery tab to power on Tag.
22
2.6 Link Packages With Tags Using Mobile Device
Step 13: Confirm the number of tags
paired with the Gateway
Step 14: Scan the package barcode
Step 15: Scan the Tag barcode to link the package with that Tag.
23
2.6 Place Labels, Tags and Gateway on Shipment
STEP 16: Apply shipping labels and tags to
package.
Apply shipping label to package
Place tag in tag shipping sleeve
Follow OBT instructions on where to
apply the tag to the package.
Steps 11-14 will repeat in the OBT until all
packages and tags are linked and all tags are
applied to packages.
STEP 17: Apply Gateway to package on
shipment.
Place gateway in gateway shipping
sleeve
Apply to the package that will be loaded
onto the truck last on the side that will
face the door.
24
2.7 Review Shipment Provisioning Summary and
Complete Shipment
STEP 18: Review shipment details and
provisioning summary.
Step 19: Approve shipment details and complete
shipment provisioning.
25
2.8 Load Shipment
Gateway and Tag Calibration and Reporting
Once shipment provisioning is confirmed in the
OBT, the Gateway and Tags will calibrate to their
sensing parameters, and start reporting sensor data.
STEP 20: Load shipment so the Gateway
is closest to the truck door to maximize
cellular connectivity.
