ELITEGROUP COMPUTER SYSTEMS CO., LTD Wireless Motherboard

User Manual

TL10IE2
Motherboard Guide
1
FEDERAL COMMUNICATIONS COMMISSION
INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/ TV technician for
help.
Operations in the 5.15-5.25GHz band are restricted to indoor
usage only.
CAUTION:
Any changes or modifications not expressly approved by the
grantee of this device could void the user's authority to operate the
equipment.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
2
undesired operation.
3
RF Exposure Information
This device meets the government’s requirements for exposure to
radio waves. This device is designed and manufactured not to
exceed the emission limits for exposure to radio frequency (RF)
energy set by the Federal Communications Commission of the
U.S. Government.
.
End Product Labeling
This transmitter module is authorized only for use in device where
the antenna may be installed such that 20cm may be maintained
between the antenna and users. The final end product must be
labeled in a visible area with the following: "Contains FCC ID:
WL6-TLBC1IE1”
Information for the OEMs and Integrators
The following statement must be included with all versions of this
document supplied to an
OEM or integrator, but should not be distributed to the end user.
1) This device is intended for OEM integrators only.
2) Please see the full Grant of Equipment document for other
restrictions.
This radio transmitter FCC ID: WL6-TLBC1IE1 has been approved
by FCC to operate with the antenna types listed below with the
maximum permissible gain and required antenna impedance for
each antenna type indicated. Antenna types not included in this list,
having a gain greater than the maximum gain indicated for that
type, are strictly prohibited for use with this device.
Antenna List
4
No.
Manufacturer
Part No.
Antenna
Type
1
JEM_WLAN
MAIN
13B130-JU
9072
PIFA
Antenna
2.
JEM_WLAN
AUX
13B130-JU
9073
PIFA
Antenna
3
WGT_WLAN
MAIN
13B130-JU
9050
PIFA
Antenna
4
WGT_WLAN
AUX
13B130-JU
9051
PIFA
Antenna
5
JEM_WLAN
MAIN for 3G
SKU
13B130-JU
9074
PIFA
Antenna
6
WGT_WLAN
MAIN for 3G
SKU
13B130-JU
9052
PIFA
Antenna
Note: The antenna connector is I-PEX type.
5

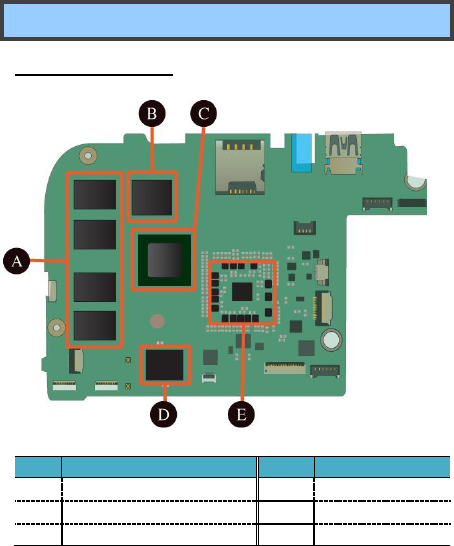

Motherboard layout
Main components
No.
Name
No.
Name
A
DDR
D
RF chip
B
EMMC
E
PMIC
C
CPU
6

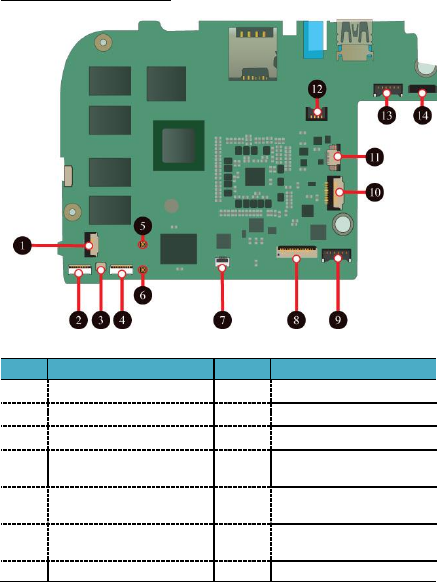

System connectors
No.
Name
No.
Name
1
Pen charger CONN
8
LCD Connector
2
5MP camera
9
Battery CONN
3
Lens led
10
NFC CONN
4
1.26MP camera
11
Touch controller
board CONN
5
WiFi Aux Antenna
Connector
12
Speaker CONN
6
WiFi Main Antenna
Connector
13
Dock power
Connector
7
Sar sensor
14
Dock signal
7

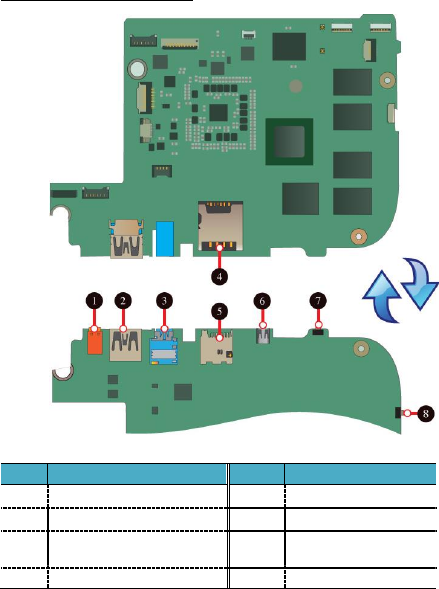

I/O Ports and Buttons
No.
Name
No.
Name
1
Power port
5
3G SIM card slot
2
USB port
6
Mini HDMI port
3
Headphone plug
7
Screen rotation
lock button
4
Micro SD card slot
8
Power button
8
Features
Processor
Intel Bay Trail‐T
2.4 GHz Quad-core
Memory
DDR3L-RS, 1333MT/s
2GB only
Storage
Single eMMC v4.51
Wireless
Wi-Fi 802.11 a/b/g/n
Bluetooth 4.0
NFC support
Display
Resolution: 1366(H) × 3 (RGB) ×
768(V) pixels
Support 10-points multi-touch
Cameras
Front camera: 1.26 M
MIPI-CSI
Rear camera: 5.0 M
MIPI-CSI
Normal non-mirror mode
Input/Output
1 x USB 3.0 (Type A)
1 x Mic/head phone jack combo
1 x micro-HDMI port
1 x micro-SD card slot
1 x DC-in jack
3G SIM card support
Speaker
Build-in Speaker x 2
