User Guide
User's Guide
Student Response System
CRV-CK-1
Read this User's Guide carefully before using the CRA-1 and
CRV-CK-1.
Store this User's Guide in a safe place in case you need it again.
2

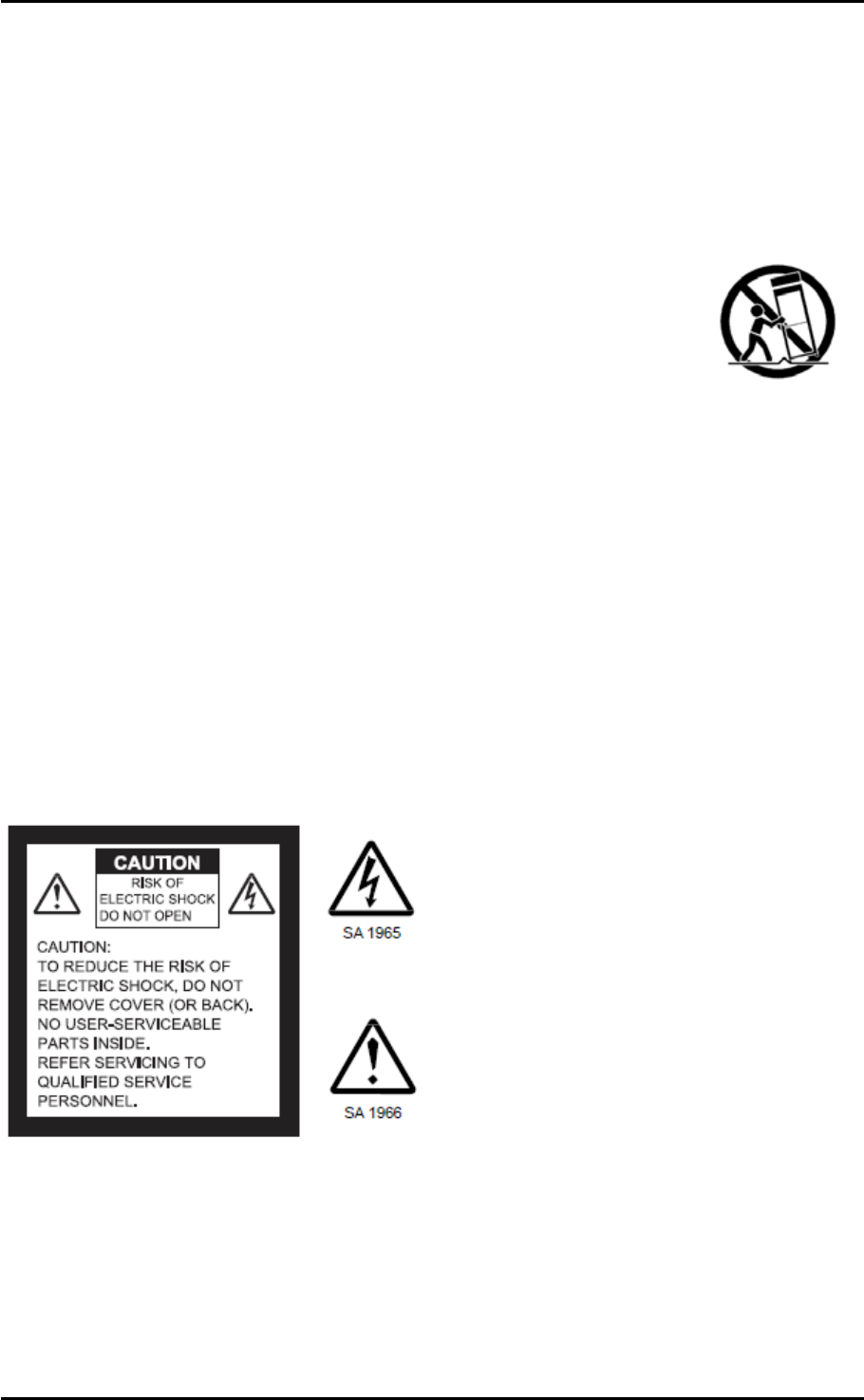

IMPORTANT SAFETY INSTRUCTIONS
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings,
Install in accordance with the
manufacturer’s instructions.
8) Do not install near any heat sources
such as radiators, heat registers, stoves,
or other apparatus (including amplifiers)
that produce heat.
9) Do not defeat the safety purpose of the
polarized or grounding-type plug. A
polarized plug has two blades with one
wider than the other. A grounding type
plug has two blades and a third grounding
prong. The wide blade or the third prong
are provided for your safety.
If the provided plug does not fit into your
outlet, consult an electrician for
replacement of the obsolete outlet.
10) Protect the power cord from being
walked on or pinched particularly at
plugs, convenience receptacles, and the
point where they exit from the apparatus.
11) Only use attachments/accessories
specified by the manufacturer.
12) Use only with the cart, stand, tripod,
bracket, or table
specified by the
manufacturer, or sold
with the apparatus.
When a cart is used,
use caution when moving the
cart/apparatus combination to avoid
injury from tip-over.
13) Unplug this apparatus during lighting
storms or when unused for long periods
of time.
14) Refer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus,
the apparatus has been exposed to rain
or moisture, does not operate normally,
or has been dropped.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
"dangerous voltage" within the product's
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
This marking is located at the bottom of
product.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the product.
3
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
WARNING: Handling the cord on this product or cords associated with accessories sold with this product, will
expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm.
Wash hands after handling.
NOTICE:
This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation
is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
Changes or modifications made to this equipment not expressly approved by (manufacturer name)
may void the FCC authorization to operate this equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Radiofrequency radiation exposure Information:
The radiated output power of the device is far below the FCC radio frequency exposure limits.
Nevertheless, the device shall be used in such a manner that the potential for human contact
during normal operation is minimized.
4
Contents
Before Use ...........................................................................................................................5
Main Functions ..................................................................................................................6
Supplied Items...................................................................................................................7
Part Names .......................................................................................................................9
Preparations ....................................................................................................................10
Inserting and Charging the Battery Pack.......................................................................10
Inserting the Battery into the Pen ..................................................................................12

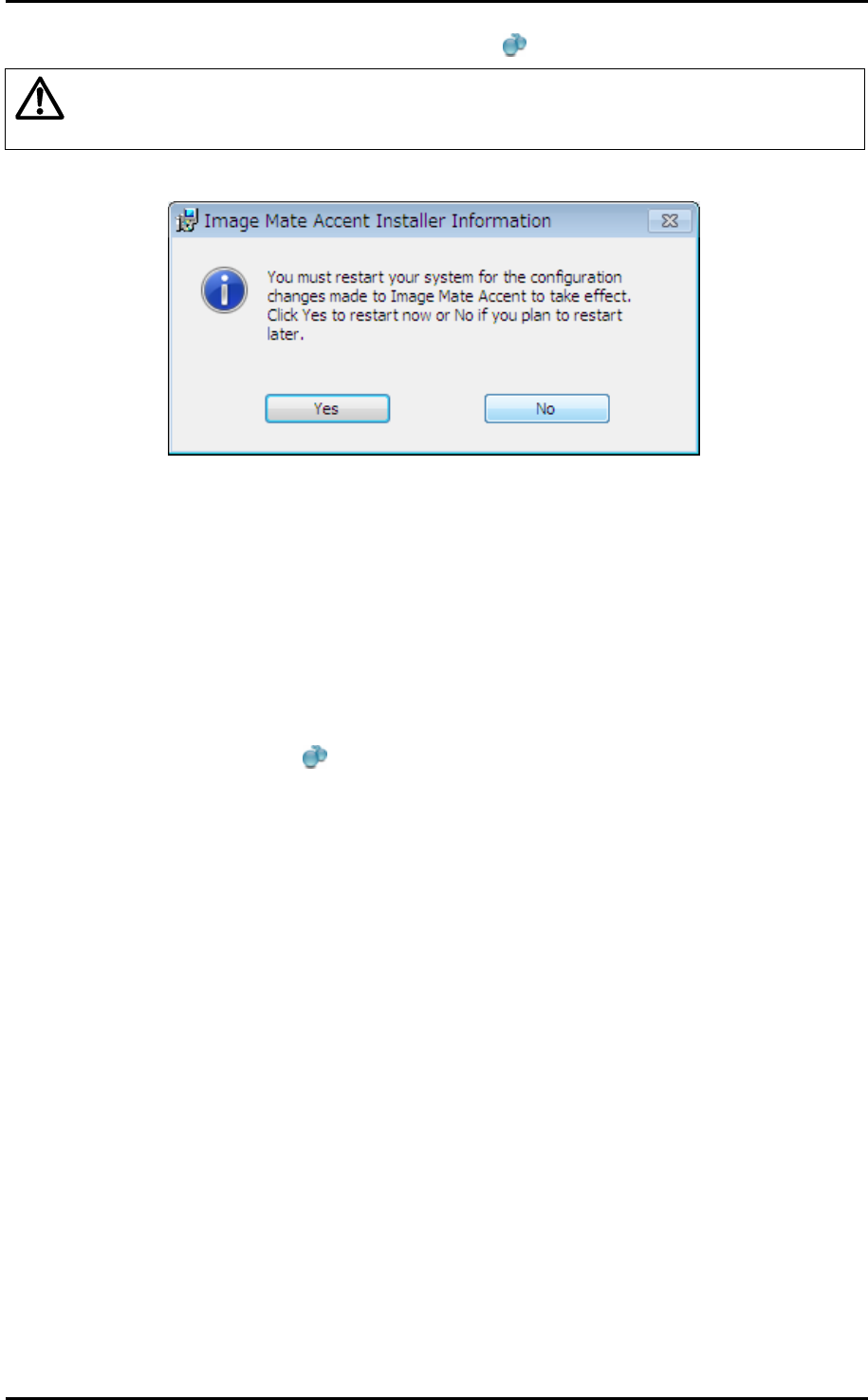

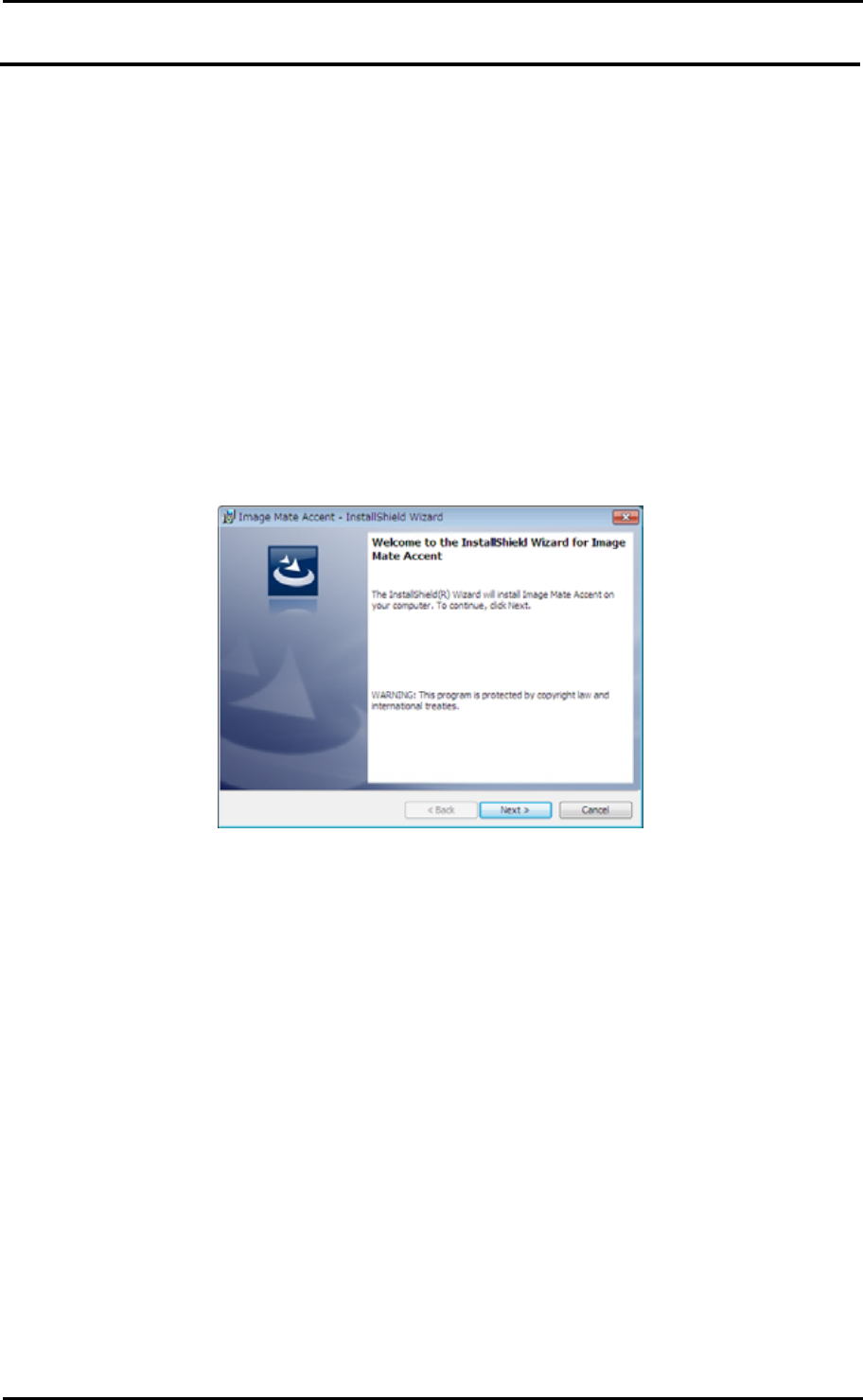

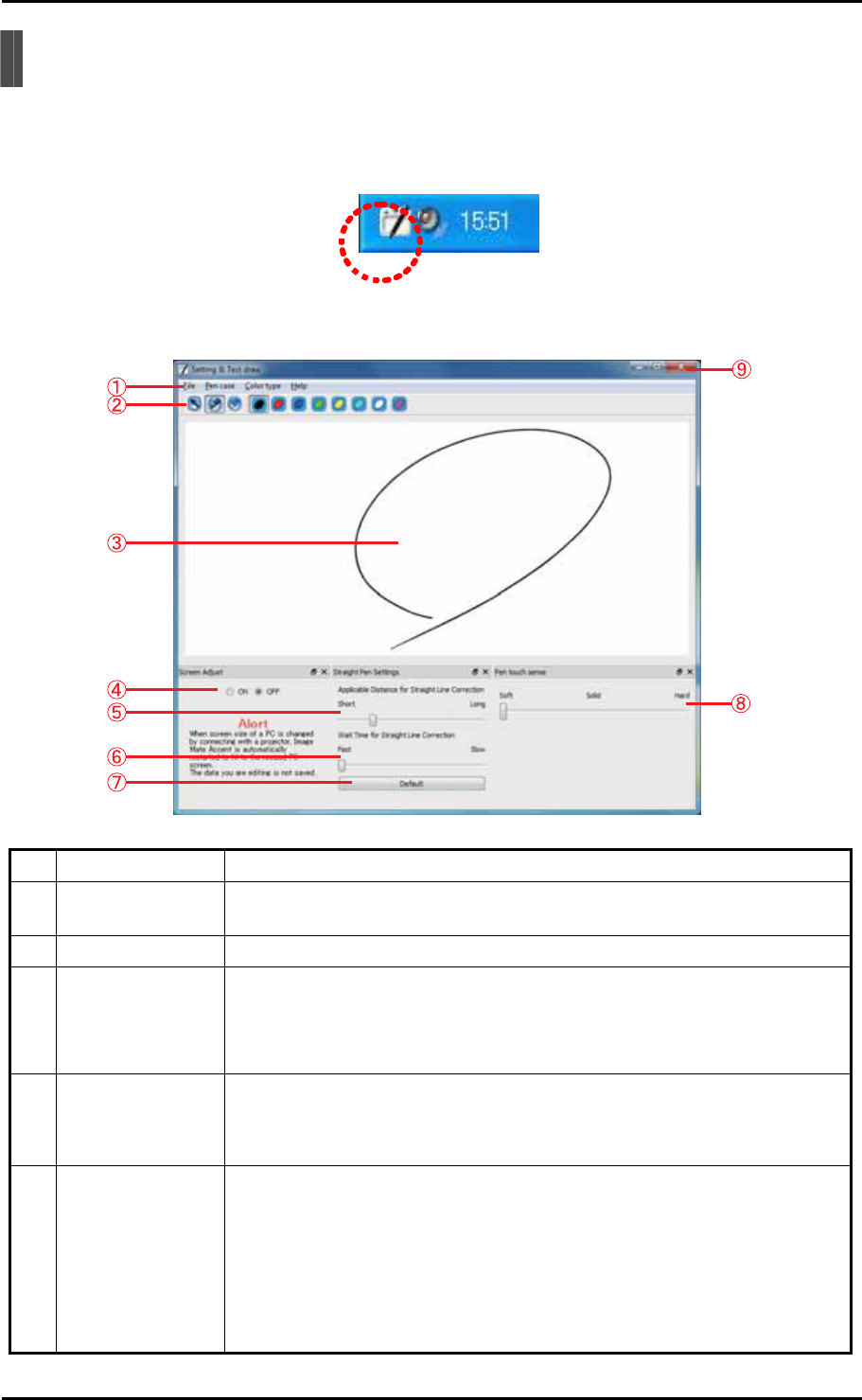

Installing the Tablet and SRS Software (Image Mate Accent) .......................................13
Basic Tablet Operations...................................................................................................15

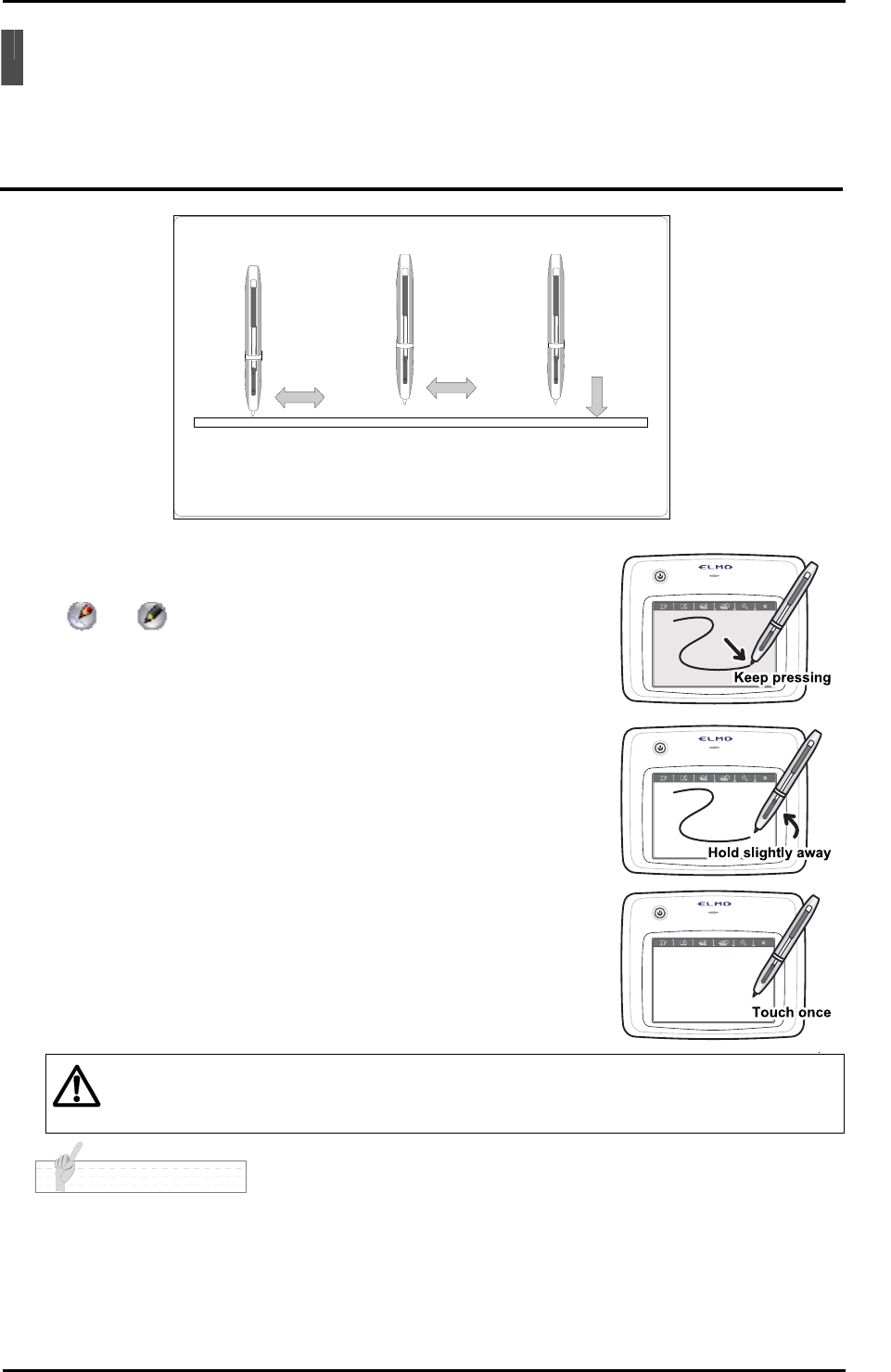

Basic Pen Operations ...................................................................................................15

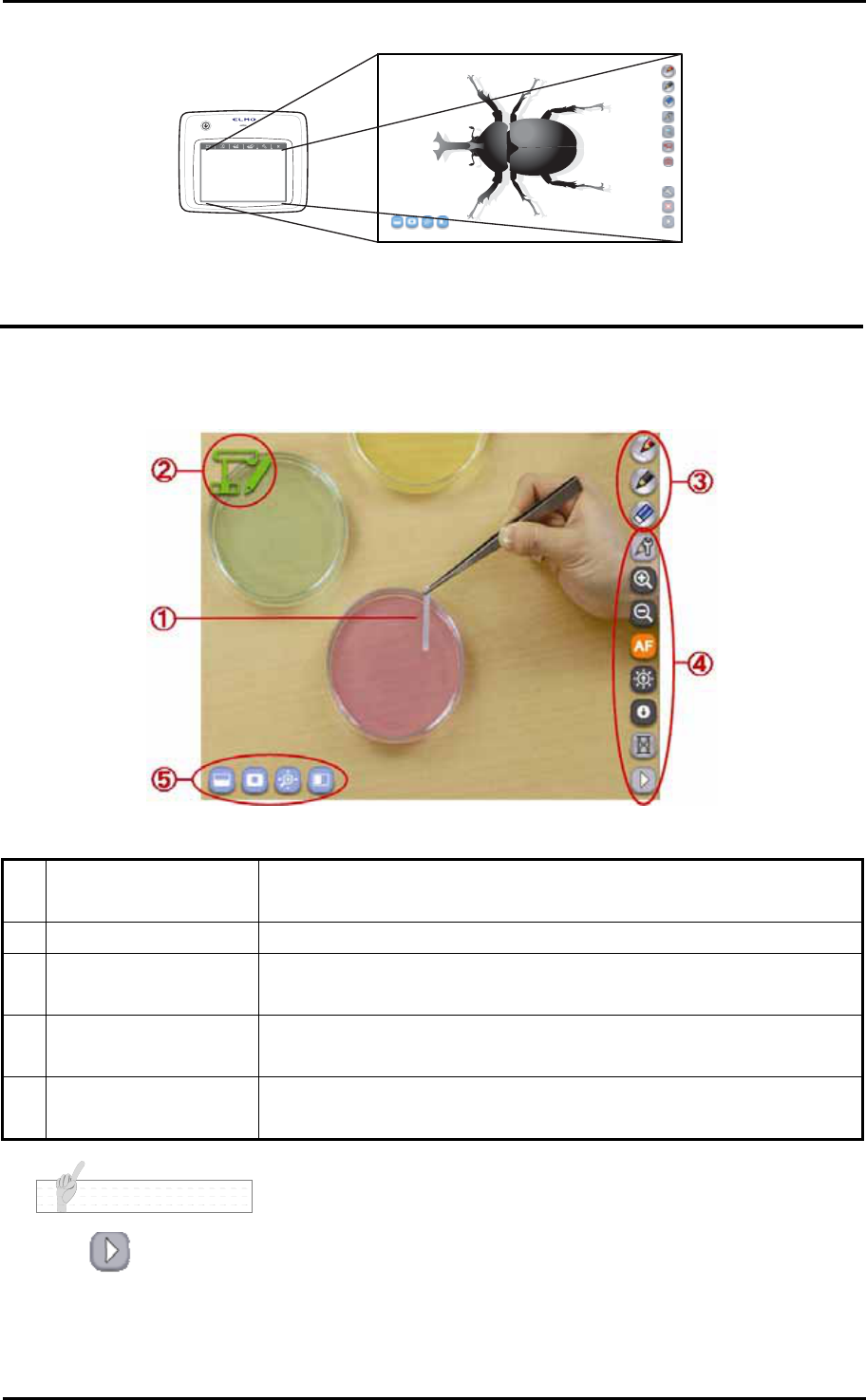

Basic Screen Configuration...........................................................................................16

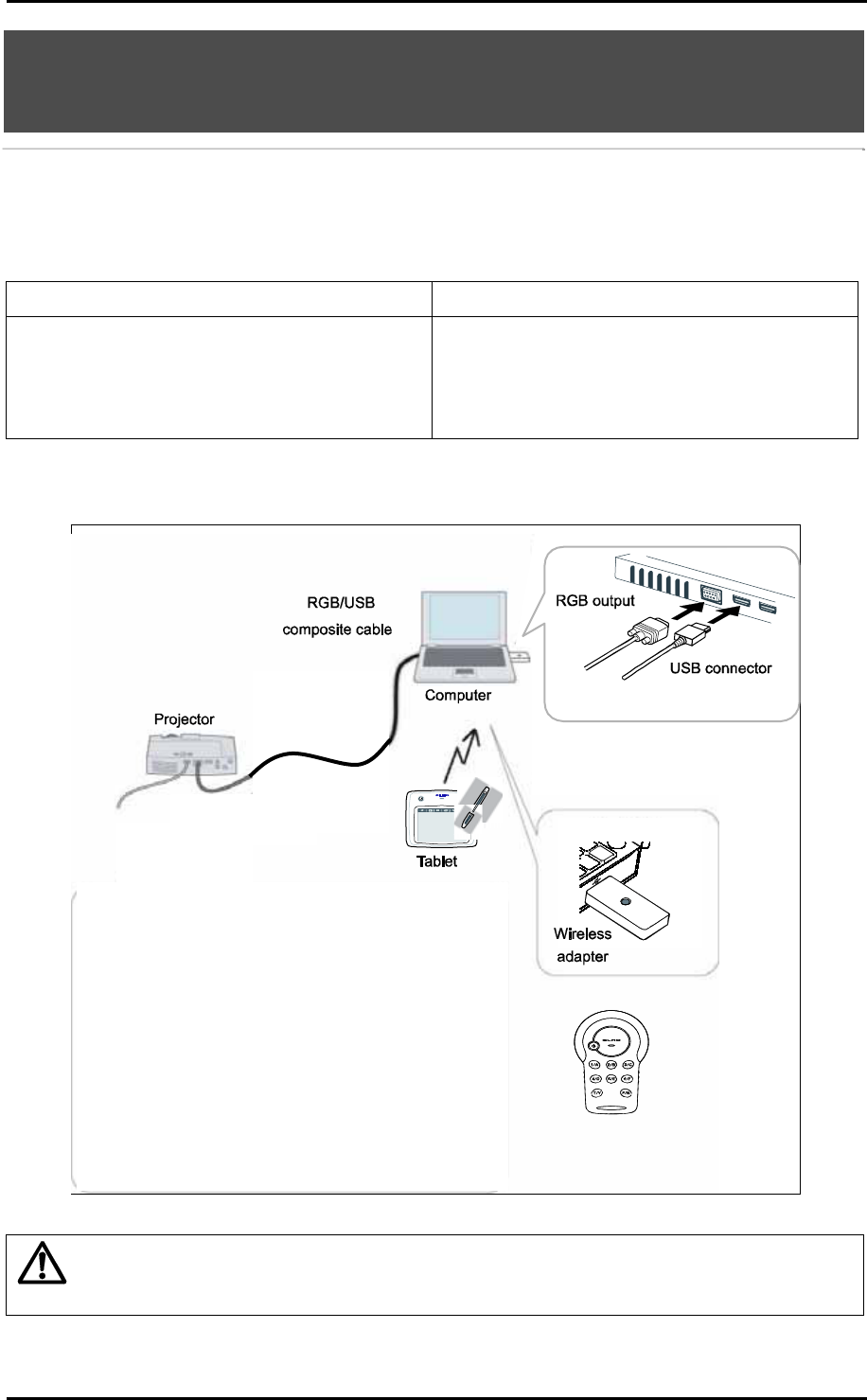

Connections.......................................................................................................................17

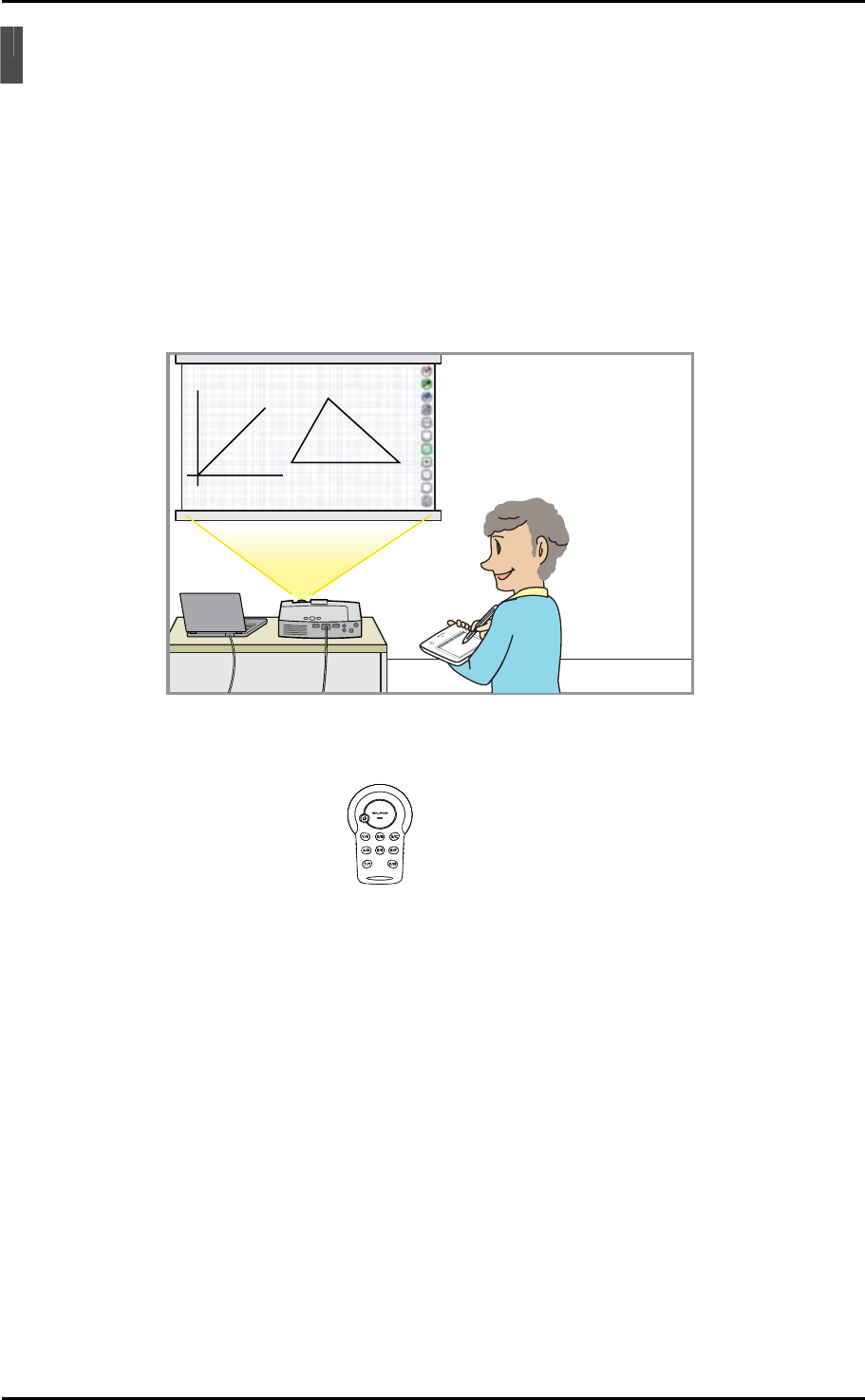

Using in a Lesson..............................................................................................................18

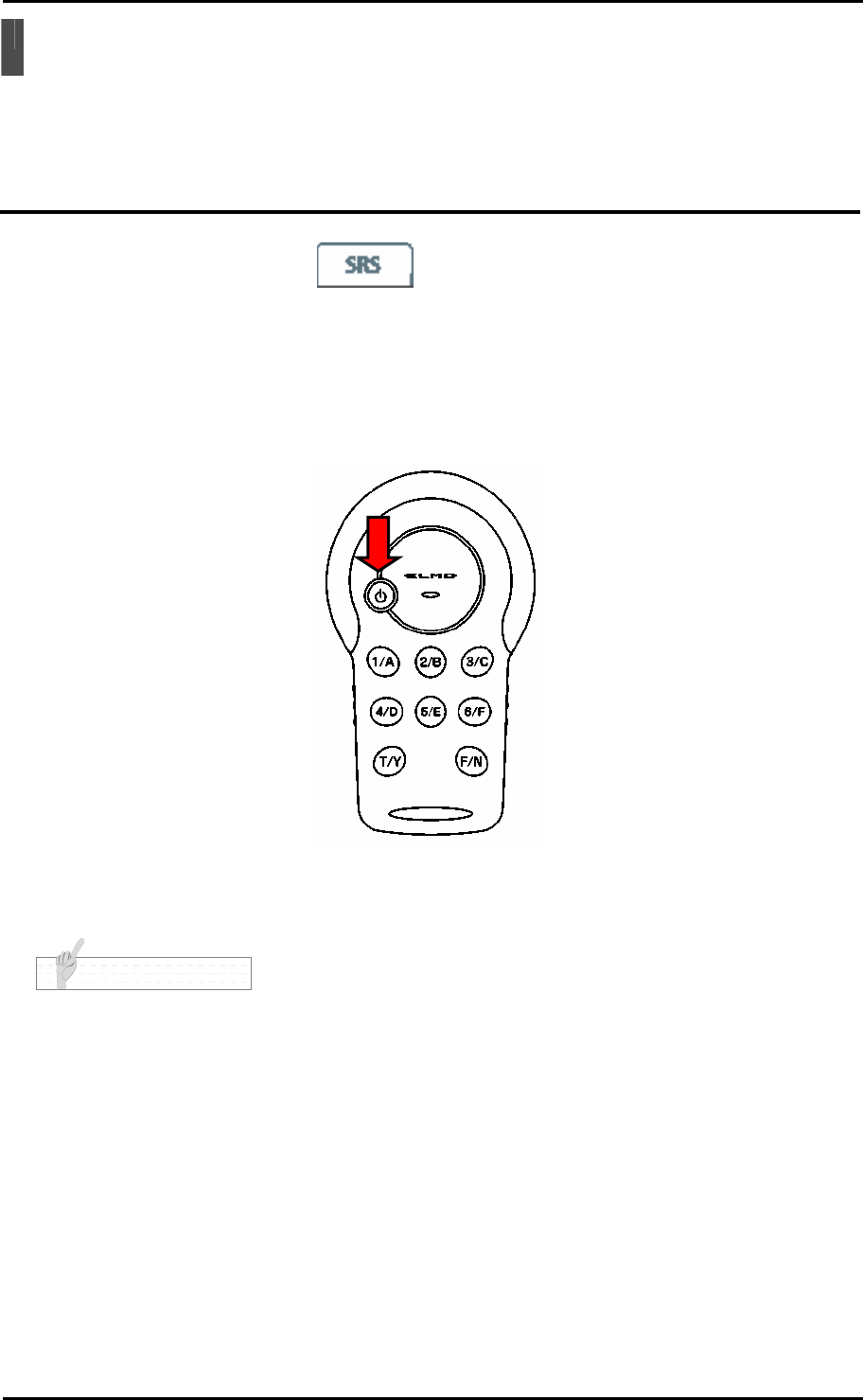

SRS Mode ....................................................................................................................19
Operation ......................................................................................................................19
Tablet functions .............................................................................................................23
Clicker functions............................................................................................................24
Various Settings ................................................................................................................25
Setting Mode ...................................................................................................................26
Tablet Status Display.....................................................................................................27
Setting the Pen..............................................................................................................28
Other Functions.................................................................................................................29
Replacing the Pen Tip .....................................................................................................29
Storing the Wireless Adapter and Pen.............................................................................29
About the LEDs of Tablet.................................................................................................30
Setting the Pen Writing Style ...........................................................................................31

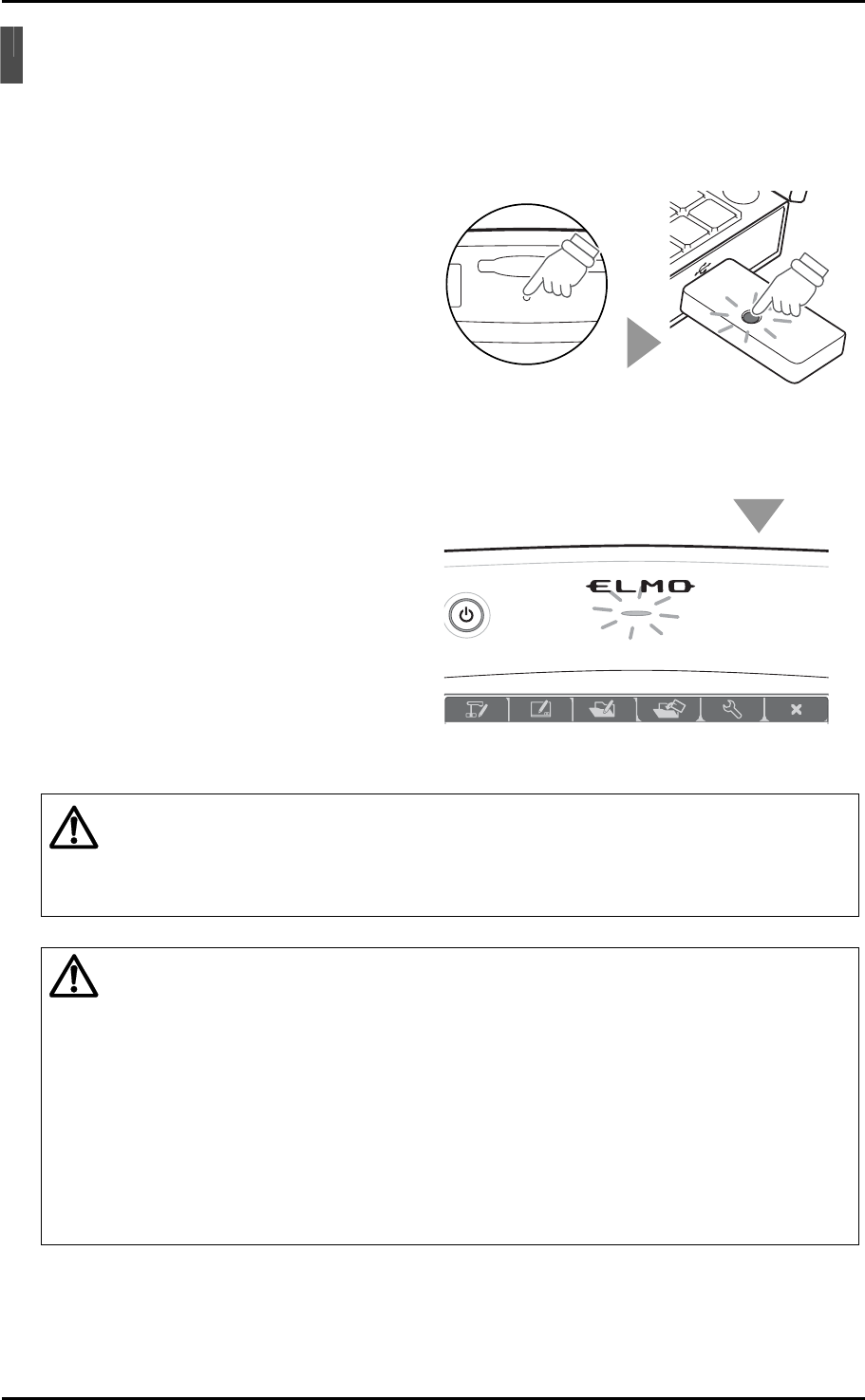

Wireless Communication Settings for the Tablet .............................................................34
Troubleshooting ................................................................................................................35
Product Specifications .....................................................................................................38
Product Specifications .....................................................................................................38
System Requirements .....................................................................................................40
About the Separately Sold Accessories...........................................................................41
Usage Precautions ..........................................................................................................41
Disclaimer........................................................................................................................43
About Trademarks ...........................................................................................................43
About the Warranty..........................................................................................................44
5
Caution
Before Use
Thank you very much for purchasing this product.
Please read this manual carefully to make suitable use of the SRS. Also, please
be sure to refer to any supplemental information included with this product.
Please note that screens and figures used in this manual may differ from the actual
views.
6

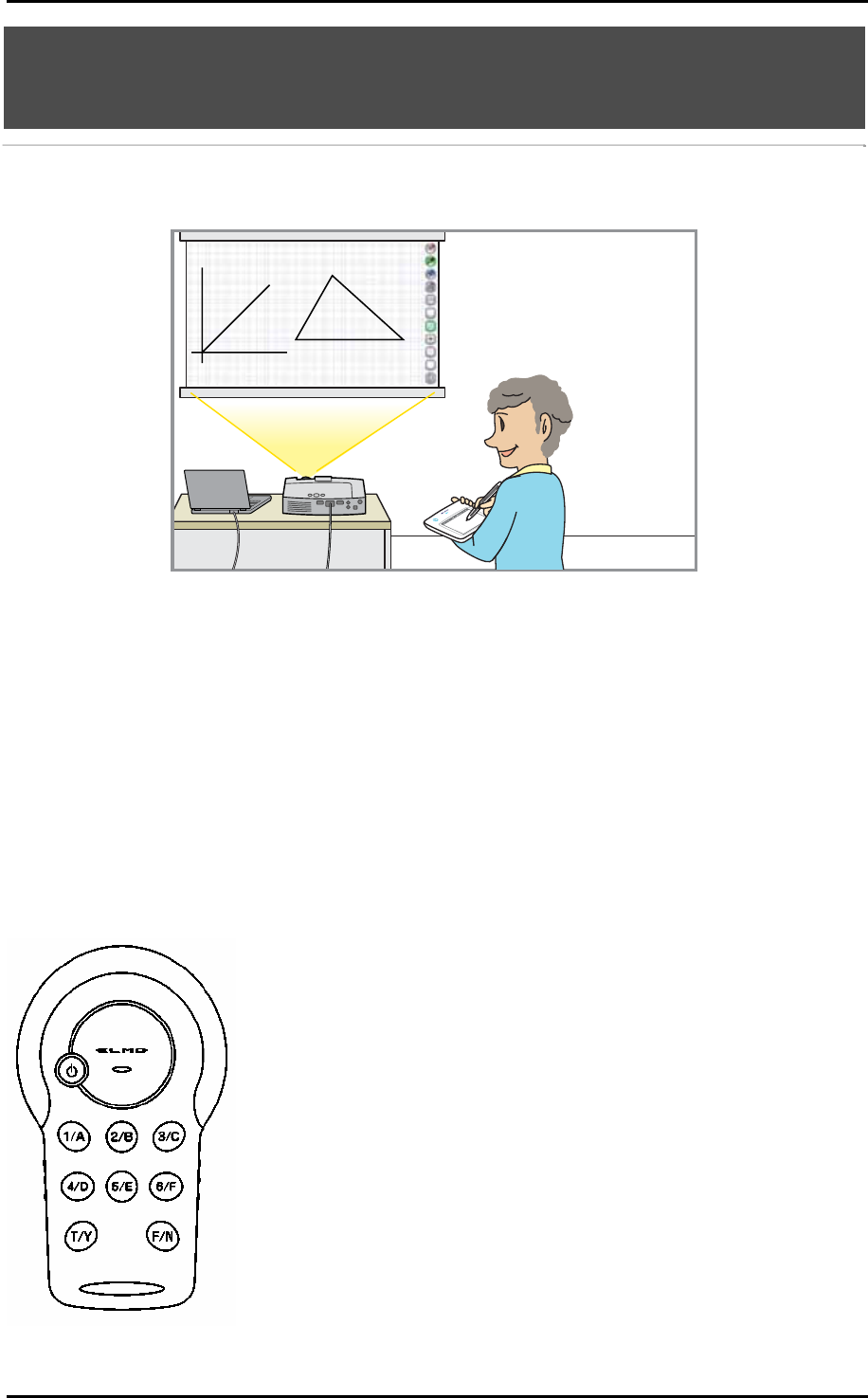

Main Functions
This product (SRS･･･Student Response System) is an educational tool that makes lessons
using ELMO's tablet and clickers more enjoyable and easier to understand.
The SRS has several key features for teaching more effective lessons.
■ Know an understanding level of the class
Students respond to questions and quizzes using their clicker with the results automatically
tallied, summarized and visually displayed in a pie chart or bar graph
7

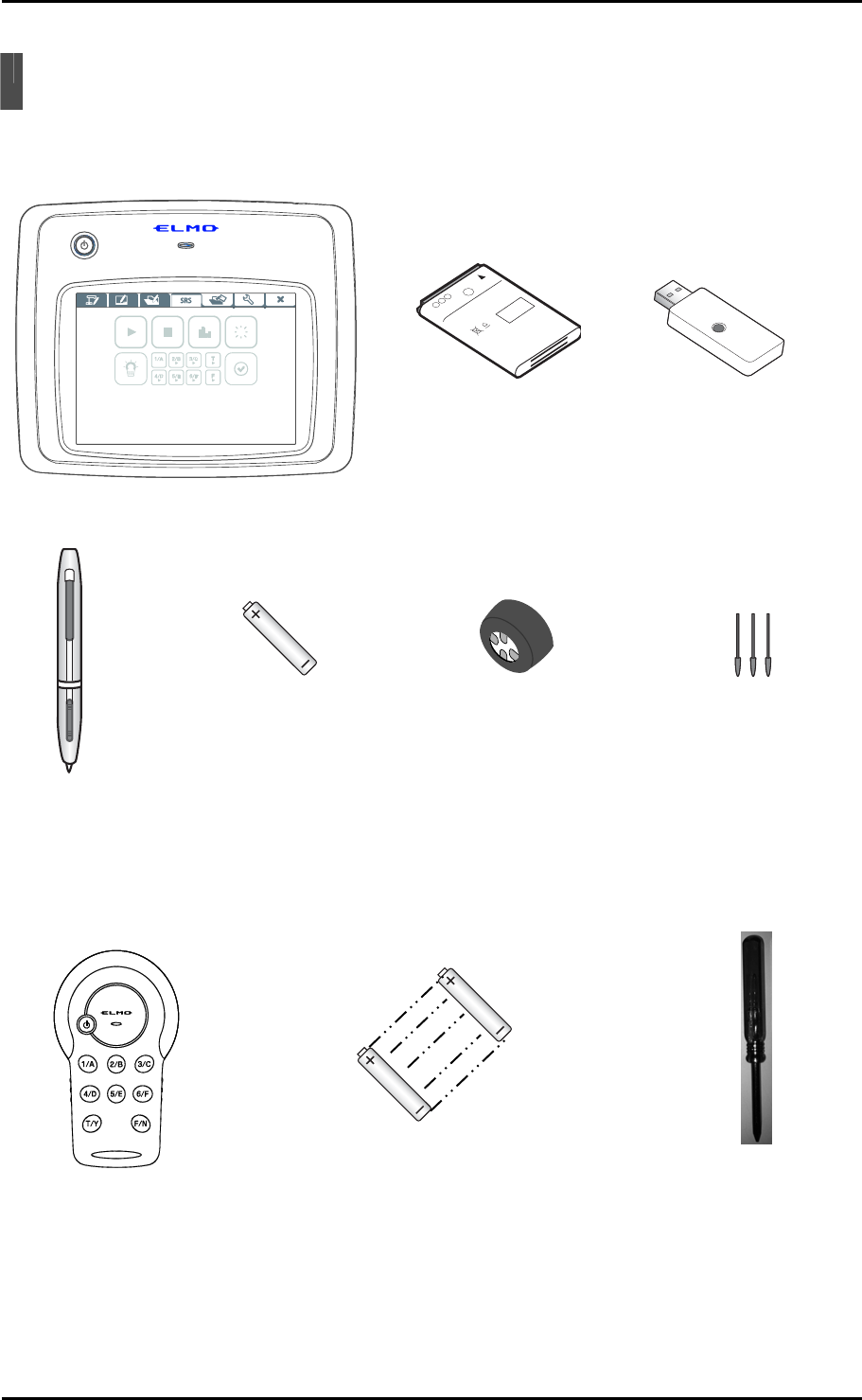

Supplied Items
The package of this product contains the following items. Contact your dealer if any of the
following items are not included in the package you purchased.
Tablet
Tweezers for
replacing a core
(For the pen)
Wireless
adapter
Pen
Battery pack
for the tablet
(Lithium-ion battery)
(For the tablet)
Extra core ×3
(For the pen)
Dry cell AAA
battery
(For the pen)
CRV-CK-1
AAA battery
Screw driver
(For clicker’s rear cover)
8

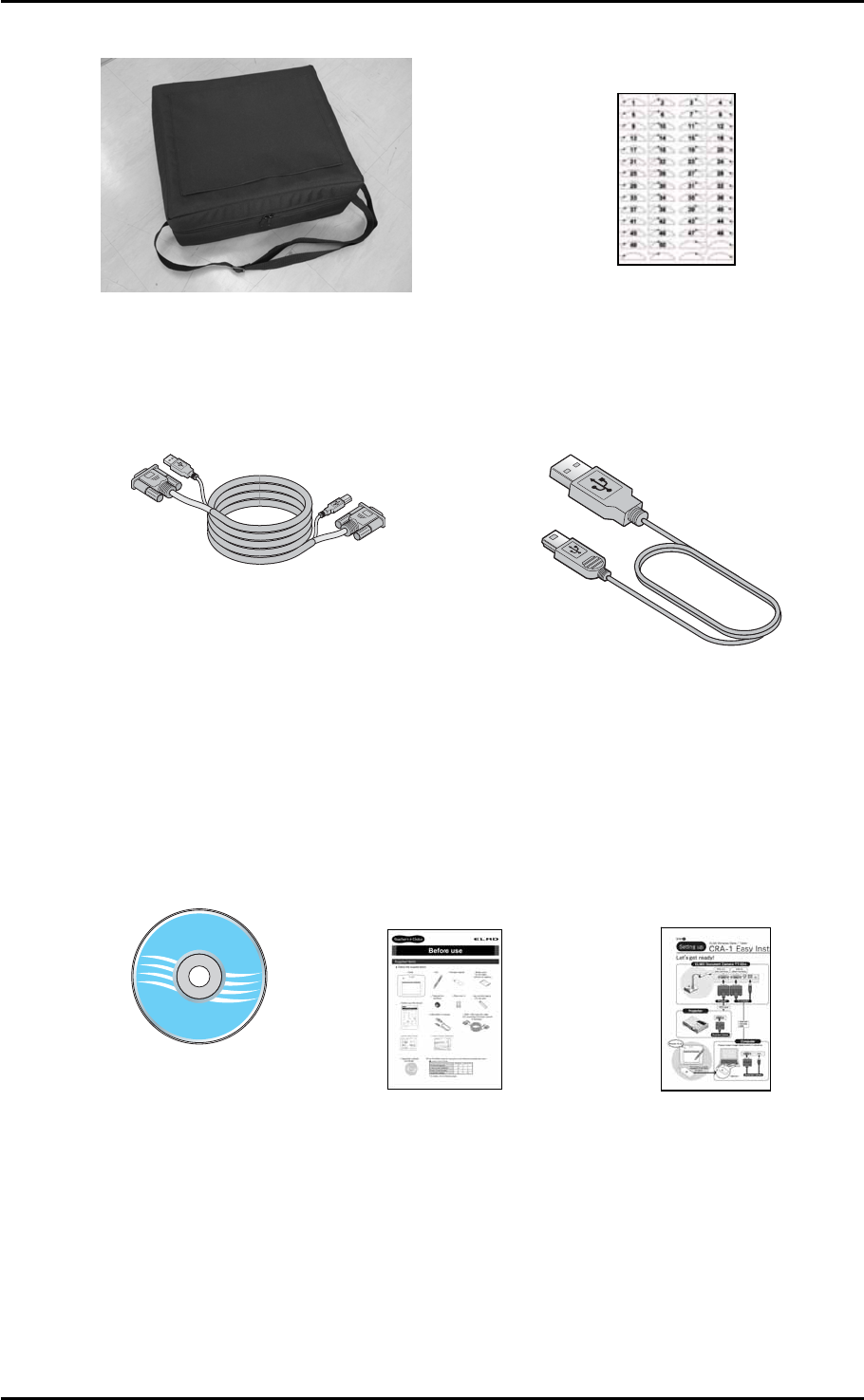

Before use
USB cable
for charging
RGB / USB composite cable
(For connecting Document Camera
to computer)
Application software
(CD-ROM)
Seal clicker no.
Carrying case
Quick start guide
9
Caution

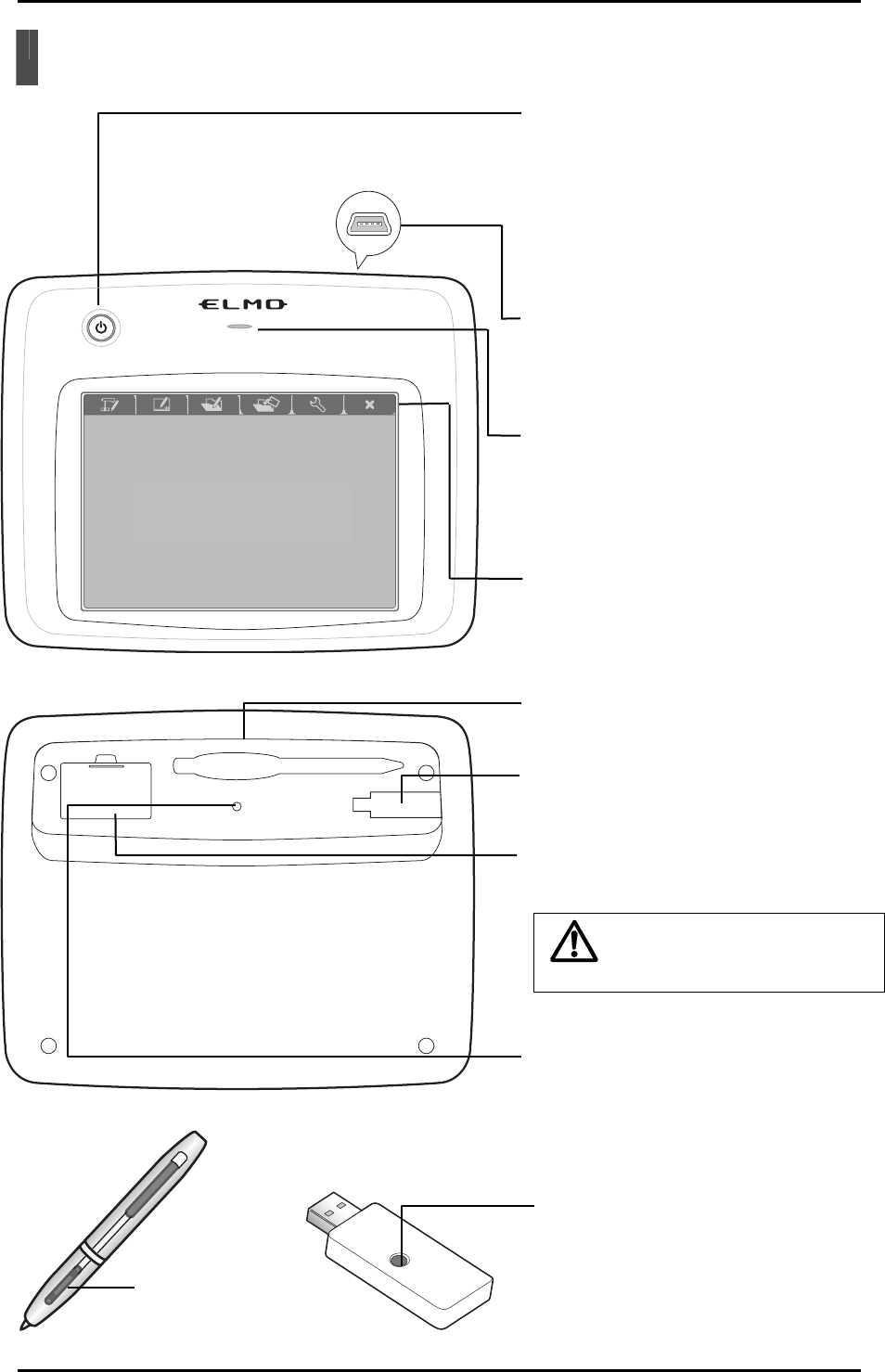

Part Names
Status LED
Indicate the status of wireless and
battery level.
<See “About the LEDs”>
Power button
Turn the Tablet ON or OFF.
Press the button for 3 seconds or
more to turn OFF.
When the power is ON, it is lit blue.
When the battery level is low, it
flashes.
Function keys
Select the Tablet operations. See the
corresponding sections for more details.
Pen slot
Store the pen.
Wireless settings button
Used when setting communication
with the wireless adapter.
<See “Wireless Communication
Settings for the Tablet”>
Tablet
Tablet underside
Wireless adapter storage slot
Store the wireless adapter.
<See “Storing the Wireless Adapter and Pen”>
Battery box
Install the supplied battery pack.
<See “Inserting and Charging the Battery Pack”>
Only open when necessary.
Wireless adapter
Pen
Eraser button
Wireless settings button (LED)
Used when setting communication
with the tablet.
<See “Wireless Communication
Settings for the Tablet”>
USB connector
Connect to your computer when charging
the Tablet.
<See “Inserting and Charging the Battery Pack”>
Operating area
10
Caution
Preparations

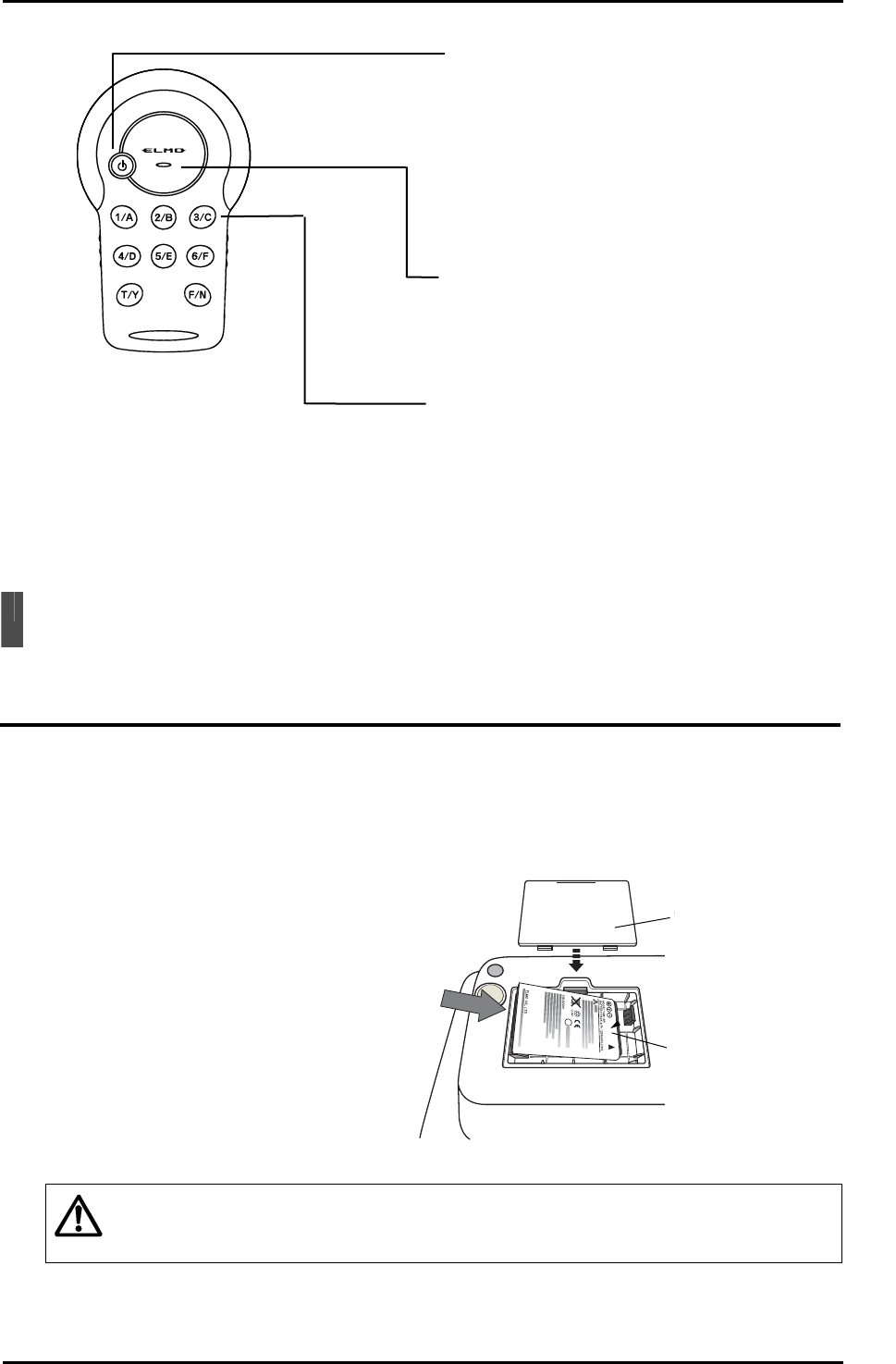

Inserting and Charging the Battery Pack
Before use, insert the battery pack and check whether it is charged.
➊
Insert the battery pack in the tablet.
Insert the supplied battery pack in
the battery box on the underside of
the tablet.
・Insert the battery pack in the correct direction.
・Only open the battery box when necessary.
Battery box lid
Battery pack
Tablet underside

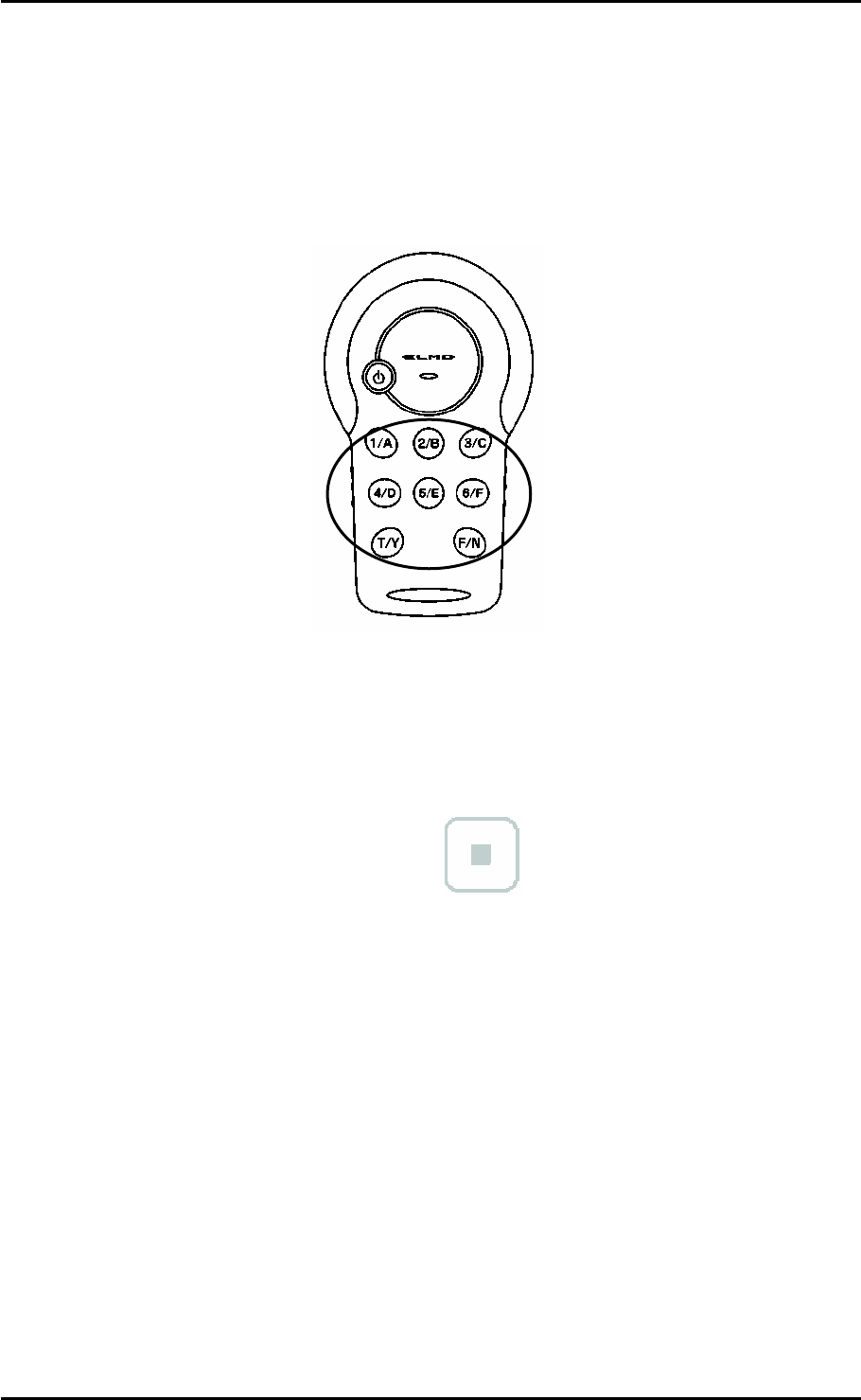

CRV-CK-1

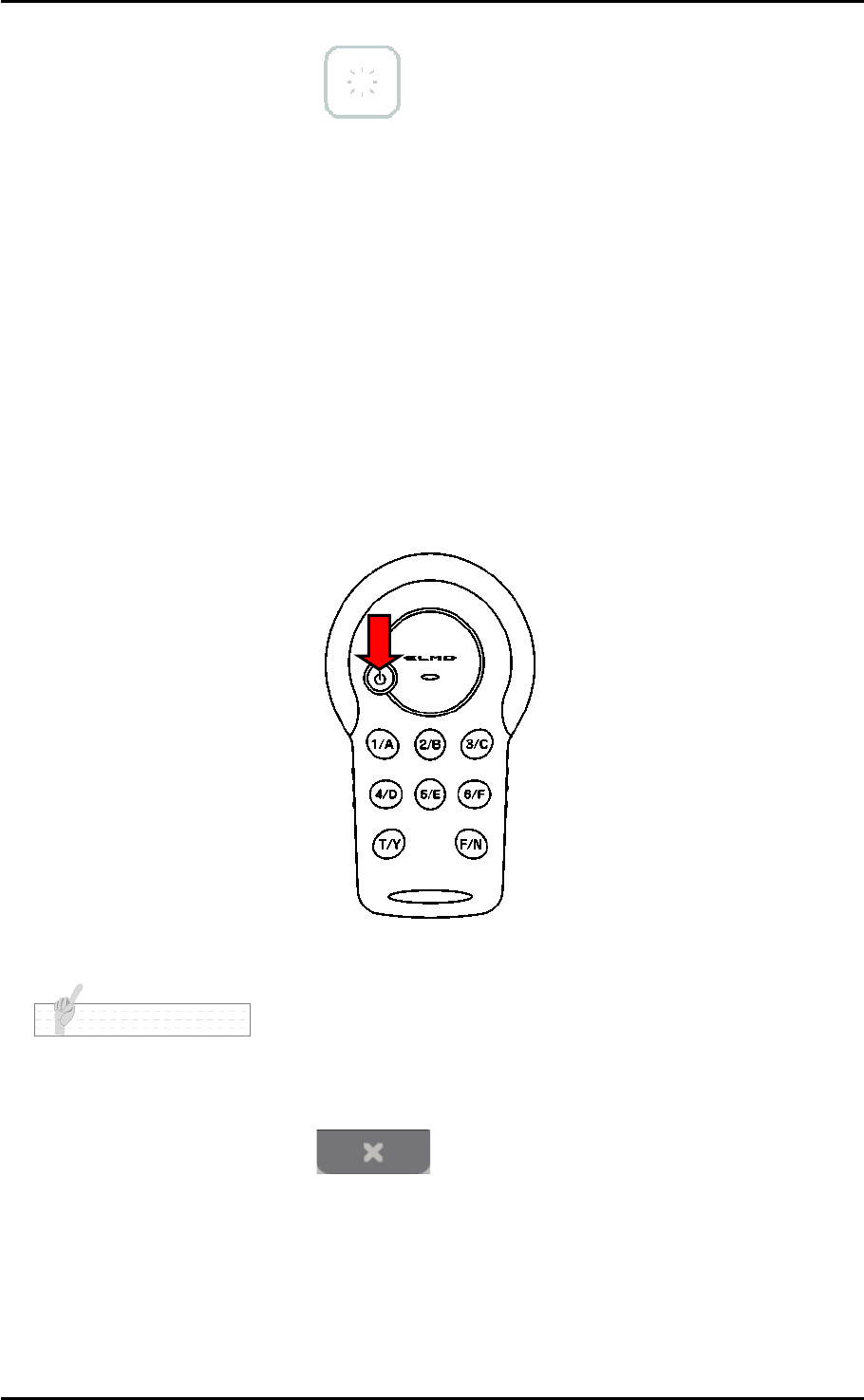

Power button
Turn the Clicker
ON or OFF.
Press the button for 3 seconds or
more to turn OFF.
When the power is ON, it is lit blue.
When the battery level is low, it
flashes.
Status LED
Indicate the status of wireless and
battery level.
Answer Buttons
Select the answer.
11
Caution
➋

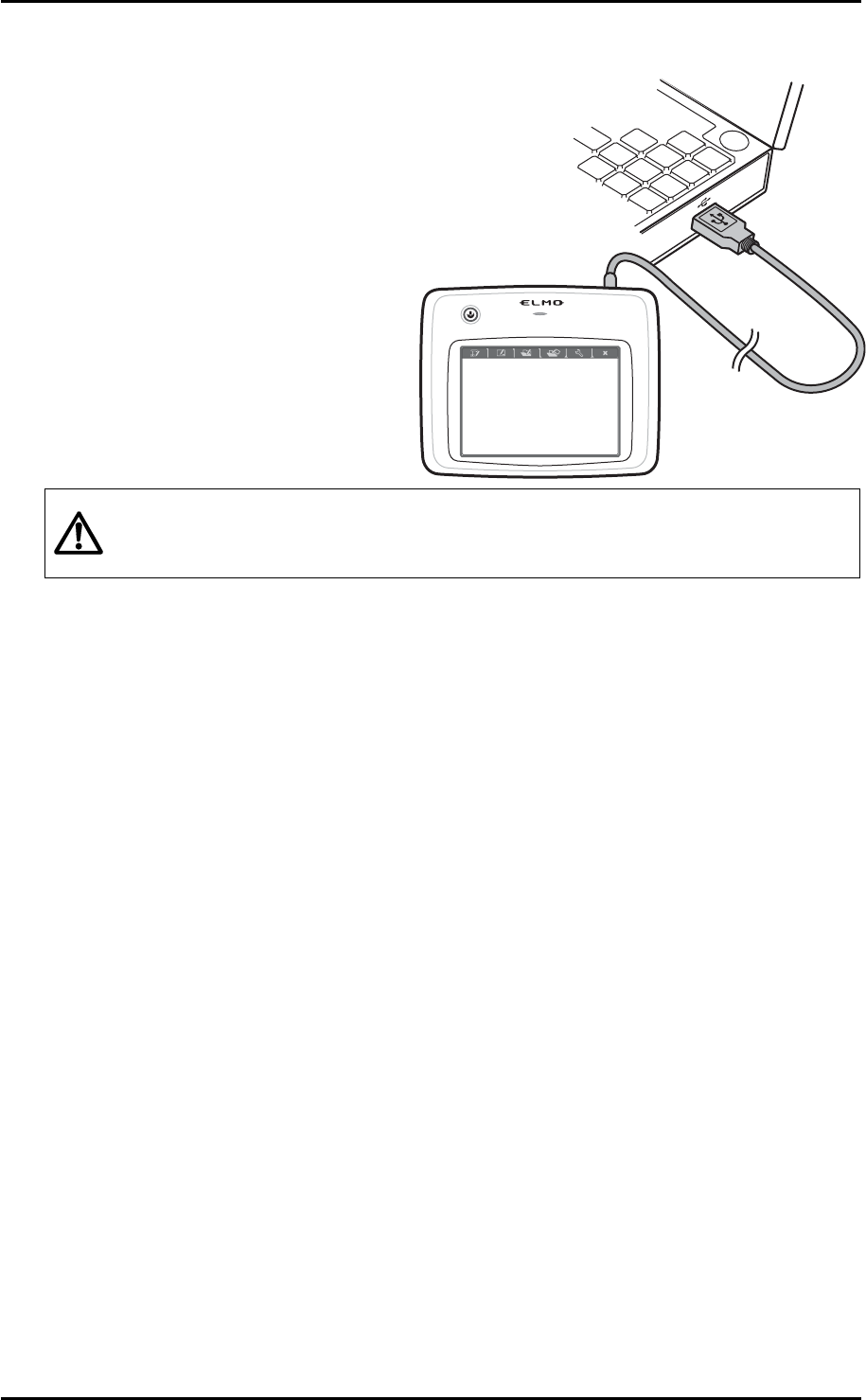

Connect the computer and the tablet with the USB cable for charging.
When charging starts, the "Status
LED" in the center of the tablet is lit.
When charging is complete, the
"Status LED" turns off.
Charging time: Approx. 4 hours
・Disconnect the USB cable from the tablet when charging is complete.
・When using the Tablet, make sure that the USB cable is removed.
12
Caution
Caution

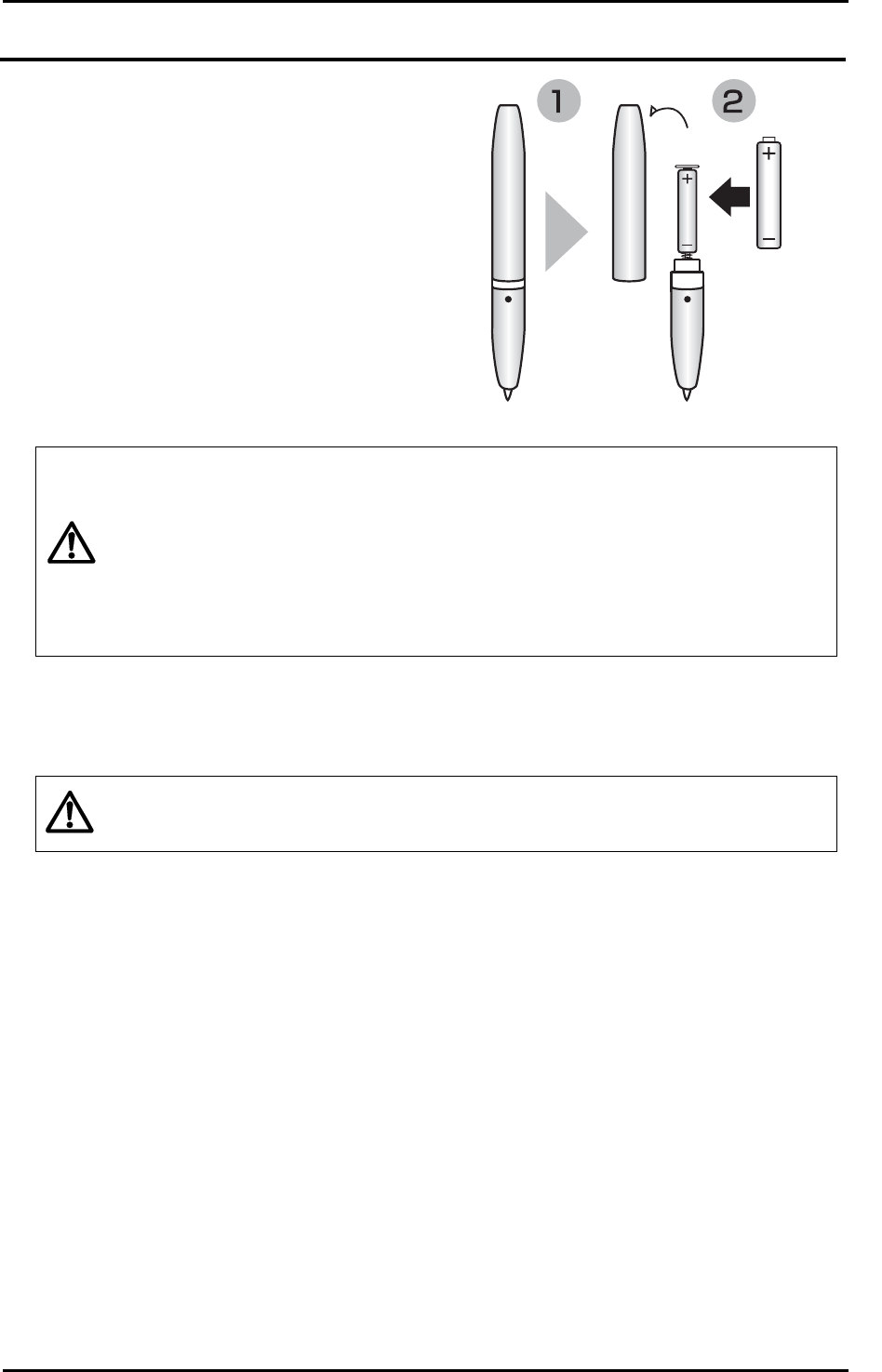

Inserting the Battery into the Pen
Insert the dry cell battery in the pen before
use.
・Make sure that the polarity (+/-) of the dry cell battery is correct.
・Remove the dry cell battery if the pen will not be used for a long time.
・Do not recharge or short-circuit the dry cell battery.
・Use an AAA alkali dry cell battery. Do not use a rechargeable battery (such as
Ni-Cd).
・The supplied dry cell battery is for an initial operation check. Its operating life
is not guaranteed.
<Battery replacement period>
When the dry cell battery level is low, the operability may deteriorate.
・Be careful when you remove the pen cap. The dry cell battery may pop out.
・Replace the dry cell battery at least once a year.
Dry cell
AAA battery
13
Installing the Tablet and SRS Software (Image Mate Accent)
The Tablet and SRS software (Image Mate Accent) is used to perform operations such as the
basic drawing operations and need to be installed before you use the Tablet and SRS.
Install the Tablet and SRS software (Image Mate Accent) by following the procedure
described below.
The installation is required only one time for each computer when it is used with the Tablet
and SRS for the first time. (This procedure is not required every time you use the Tablet and
SRS.)
■ Installation
① Click IMAccSRS_setup_1.04.2335_release.exe
② Select "English" from the menu.
③ Follow the on-screen instructions to install.
14
Caution
When installation is complete, the "SRS DEMO" icon is displayed on the desktop.
Depending on your computer, restart computer message may appear.
If the restart computer message is displayed, press the "Yes" button to restart the computer.
When the computer restarts, the "Image Mate Accent" icon is displayed on the desktop.
④ UnZip IMAccSRS_1.04.2335_release_diff.zip
⑤ Drag and Drop the 3 files from “IMAccSRS_1.04.2335_release_diff “ folder into the
“C:¥Program Files¥ELMO¥Image Mate accent “ folder to update below files,
･Image_Mate_Accent.exe
･SrsDaemon.exe
･SRSManager.dll
⑥ Click the "SRS DEMO" icon is displayed on the desktop to start.
■ Uninstallation
To remove the Tablet software (Image Mate Accent) from your computer, use your operating
system's uninstallation function.
15
Caution
Basic Tablet Operations
This section describes the basic Tablet operations, and the operation names.
Basic Pen Operations
■Dragging (To draw or delete)
Move the pen while touching the tablet.
When or is selected, a line is drawn according to the
pen movement.
■ Cursor movement (To move the cursor)
Move the pen while holding it slightly away from the tablet.
The cursor on the screen moves according to the pen movement.
■ Touching (To select a menu button)
Move the cursor while holding the pen slightly away from the
tablet, and touch the tablet within the operating area.
Do not apply excessive strength when touching the tablet with the pen.
• If the pen is used at an acute angle, the pen position may not be recognized correctly. Use the pen
at a perpendicular angle as much as possible.
• If the pen is not used for a while, it automatically enters the power-saving mode. To reactivate the
pen, touch the pen tip once.
N o t e
1. Draw 2. Move the cursor
Move while
touching the
tablet.
Move while holding
slightly away from
the tablet.
3. Select a menu button
Touch a menu button.
16
The tablet's operating area corresponds to the entire screen.
Basic Screen Configuration
This section describes the basic configuration of the screen that is displayed when using the
Tablet.
Startup screen of the Tablet software (Image Mate Accent)
①
Drawing area This area is for displaying the Document Camera image and
drawing. The entire monitor is the drawing area.
②
Status display area The current operation is indicated with an icon.
③
Drawing menu area You can select the pen to use for drawing, or delete all
drawings.
④
Menu area These buttons are for configuration or operation of the
Document Camera.
⑤
Sub menu area These buttons are for using various expanded functions.
These buttons vary according to the mode that is used.
Touch in the menu area to go to the next menu.
N o t e
17
Caution
Connections
This section shows an example of the connection of the Tablet with other
devices.
■ Items to prepare
Tablet, and supplied items Items sold separately
● Tablet(CRA-1)
● Clicker(CRV-CK-1)
● Wireless adapter(CRA-1R)
● RGB/USB composite cable
● Computer
● Projector
● RGB cable
➊
Connect the devices as shown in the figure.
For more details about the installation and the operation of the separately sold items
such as a projector ,refer to the User's Guide of each device.
18
Using in a Lesson
This section shows how to use the Tablet and Clicker in an actual lesson.
19
SRS Mode
In SRS mode, you can answer the questions or vote by the clicker, You can display the result
of Answer or vote.
Operation
➊ Touch the function key on the tablet.
➋ Turn on the clicker.
When a PC and the communication of the clicker establish it, the status LED of the clicker turns off,
and the number of the current clickers is displayed by a PC.
N o t e
20

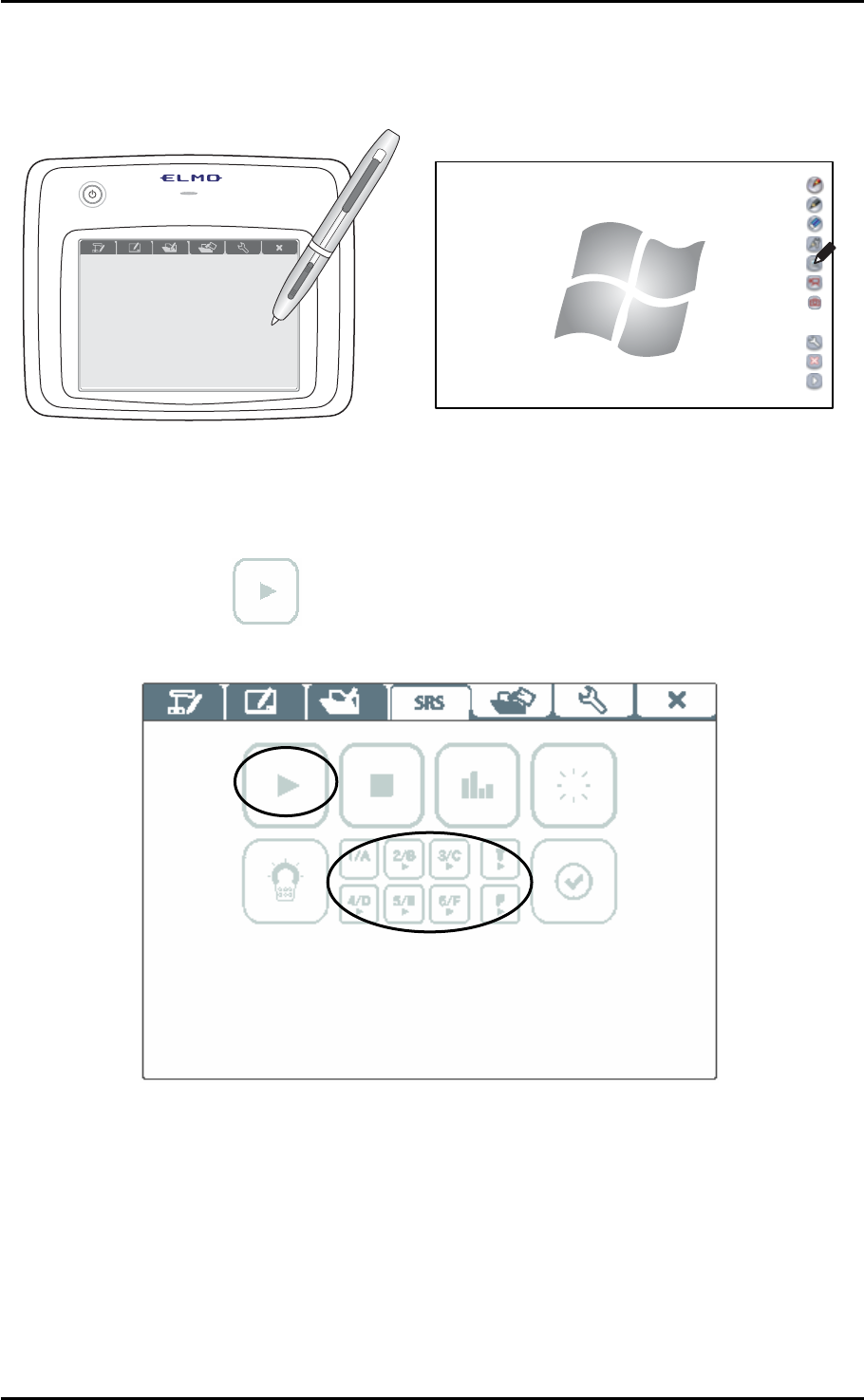

■ Ask a question
➊ Display the question to a screen.
➋ Start the answer acceptance from a clicker.
The question starts with button.
21
➌ Reply the answer with the button of the clicker.
Select from 1 to 4 button and push. The button which was chosen light in orange.
➍ Stop the answer acceptance with button on tablet
The button light in green.
22
➎
Finish a question with button.
The indication of a screen and the clicker is erased and can ask a new question.
■ Finish SRS mode
➊ Press the POWER button for 3 seconds or more to turn OFF.
It is turned off the light power supply LED when cut off.
➋ Touch the function key on the tablet
N o t e
23

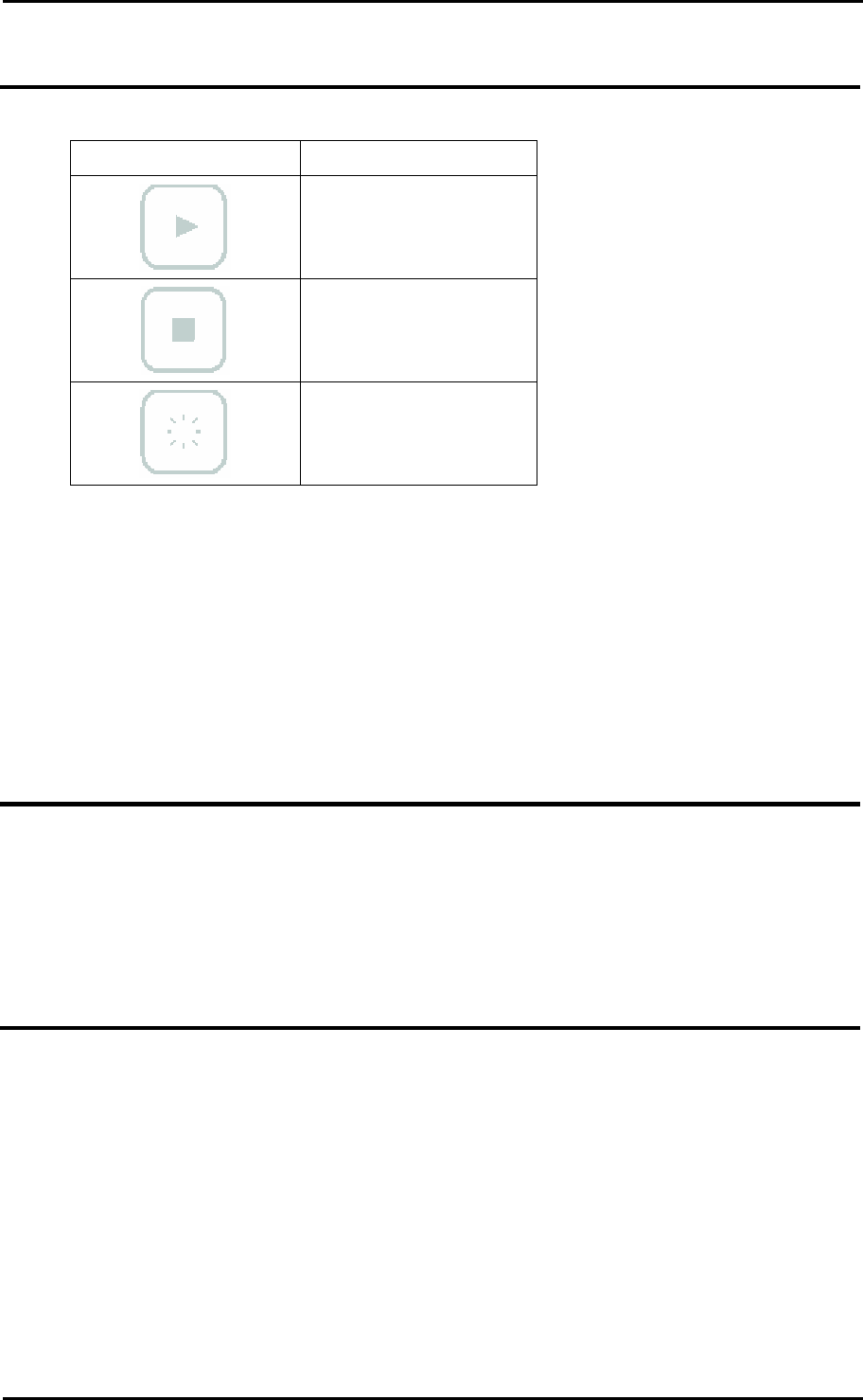

Tablet functions
Button
An answer receptionist
start
The end of an answer
and the vote
Clear
24
Clicker functions
Answer and vote with the button
Button Name
Power Button
Power LED
Turn the Clicker
ON or OFF.
Press the button for 3 seconds or
more to turn OFF.
When the power is ON, it is lit
blue. When the battery level is low,
it flashes.
Status LED Show the communication state
1/A ∼6/F answer
button
Choose an answer
T/F,Y/N answer button Choose an answer
25
Various Settings
This section describes how to configure the settings for Tablet operations.
26
This section describes the setting mode.
Mode Function key Description
Setting mode
To configure the settings for Tablet
operations.
You can also display the version or
status of connected devices.
Quit
Quit the Tablet software (Image
Mate Accent).

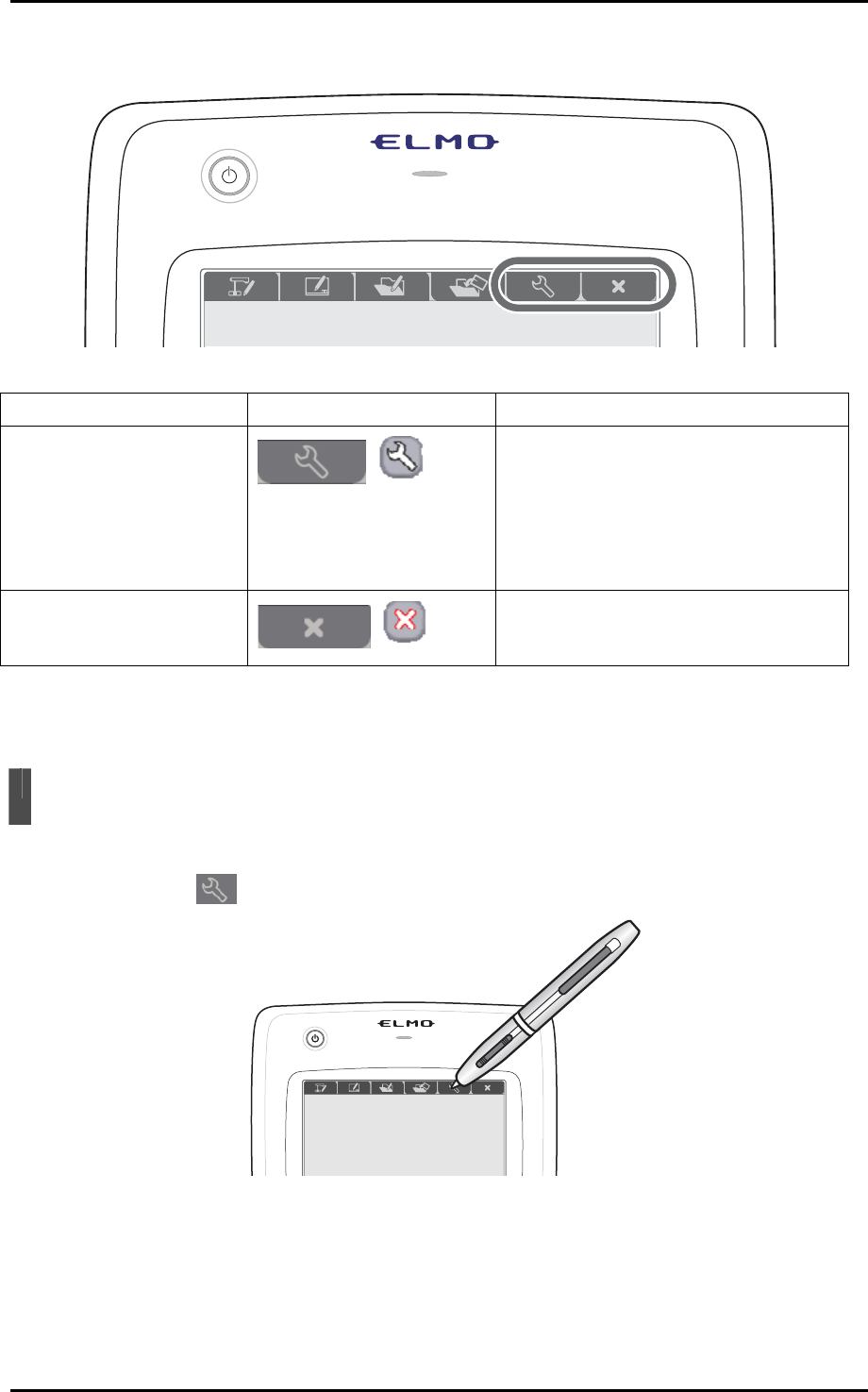

Setting Mode
In setting mode, you can configure the settings for Tablet operations.
Touch the function key on the tablet.
27
Tablet Status Display
Version display
To display the version of the Tablet software (Image
Mate Accent), the version of the Tablet, and the version
of the wireless adapter.
Electric wave strength
To display the electric wave strength of the Tablet and
wireless adapter. When the electric wave strength is
low, correct operation may not be possible.
Battery level To display the battery level of the battery pack. When the
battery level is low, charge it.
Pen settings
To display the settings for pen 1 and pen 2.
See "Setting the Pen" for more details.
Hide menus
To hide the menus and sub menus that are normally
displayed. Select this check box when you want to use a
larger area on the screen.
Expert mode
When expert mode is selected, the number of items
displayed in the menu increases, and the highlighted
area in the highlight function can be changed.
Select this check box to enter expert mode.
28
Setting the Pen
➊
Touch to display the pen settings.
/ Pen 1/pen 2 To select the pen that you want to configure .
/ / /
Pencil/marker/fountain pen/
straight line pen
To select a type for the selected pen.
Pencil Draw lines with the set thickness regardless of
the pen pressure.
Marker Draw lines with the set thickness regardless of
the pen pressure.
The colors are displayed semi-transparently.
Automatically converts a handwritten line into a
straight line. (Straight line correction function)
Fountain pen Change the thickness according to the pen
pressure.
Straight line
pen
Draw lines with the set thickness regardless of
the pen pressure.
Automatically converts a handwritten line into a
straight line. (Straight line correction function)
Color button
To configure the color for the selected pen.
/ / Thickness To configure the thickness for the selected pen.
➋
Select the pen type, color and pen thickness for pen 1 or pen 2, and then
touch OK.
29
Caution
Caution
Other Functions
This section describes various functions related to the Tablet.
Replacing the Pen Tip
When the pen tip becomes round, replace it
with the supplied extra core.
Use the supplied extra core replacement
tweezers when replacing the pen tip.
When replacing the pen tip, be sure
to replace it with an extra core that
was supplied with the product.
Make sure that children do not put
small parts into their mouths.
Storing the Wireless Adapter and Pen
You can store the pen and wireless
adapter in the tablet.
Store the wireless adapter with the
wireless settings button on the tablet
side.
The falling prevention lock is applied.
When storing the wireless adapter, make sure it is securely stored in the tablet,
and be careful not to drop it while carrying it around.
Tablet underside
30
About the LEDs of Tablet
The power button LED and status LED on the tablet and the wireless settings button LED on
the wireless adapter indicate the status of the devices.
■ Power LED
LED status Operation
Off Power is OFF.
Press the power button to turn the power ON.
Lit Power is ON.
Press the power button for 3 seconds to turn the power OFF.
Flashing The battery level of the battery pack is too low.
Charge the battery.
■ Status LED
■ Wireless settings button (LED)
LED status Operation
Off When the power is ON, communication with the wireless adapter is
being performed correctly.
High-speed flashing
(Turns ON and OFF
every 0.5 seconds)
The wireless settings button is pressed.
Flashing
(Turns ON and OFF
every 1 second)
Cannot communicate with the wireless adapter.
See "Wireless Communication Settings for the Tablet".
Lit Charging.
LED status Operation
Off
The computer is not turned ON.
Or when the power is ON, communication with the Tablet is being performed
correctly.
High-speed
flashing The wireless settings button for the wireless adapter is pressed.
Flashing Cannot communicate with the Tablet.
See "Wireless Communication Settings for the Tablet".
31
Setting the Pen Writing Style
➊
Double-click the "Image Mate Accent Driver" icon that is displayed on the
taskbar.
Select "Settings and Test Drawing" in the menu.
➋
The Image Mate Accent Driver settings and test drawing screen is
displayed.
① Menu To configure settings for drawings or perform operations.
② Drawing settings Use the eraser button to delete the entire drawing area.
Use the color buttons to change the color of the pen.
③ Drawing area This is a test drawing area for checking the pen touch sensitivity.
④ Screen adjust
To configure whether or not to forcibly restart the Tablet software (Image Mate
Accent) when the size of the computer screen is changed.
When ON is set, the Tablet software is restarted when the size of the computer
screen is changed; for example, when connecting to a projector.
⑤
Applicable
distance for direct
line correction
To configure the line length at which to perform straight line correction.
When the line length reaches the set value or longer, straight line correction is
performed.
⑥
Waiting time for
direct line
correction
To configure the time until converting to a straight line.
When the elapsed time after drawing reaches the set value or longer, straight line
correction is performed.
If you start to draw again within the set time, straight line correction is not
performed.
If straight line correction is performed while you are writing text, make this setting
longer.
32
Caution
⑦ Default To return "⑥ Applicable distance for direct line correction" and "⑦ Waiting time
for direct line correction" to their initial values.
⑧ Pen touch
sensitivity
To configure the pen pressure sensitivity on the tablet.
The firmer you set this setting, the more pressure you will have to apply on the
surface of the tablet to draw a line.
Configure this setting firmer if the cursor movements cause unintentional drawing
or operations..
After changing the pen touch sensitivity, move the pen away
from the tablet and wait for about one second.
⑨ Close button To close the settings and test drawing screen.
• The pen touch sensitivity is only displayed when the Tablet are connected.
N o t e
33
34
Caution
Caution
Wireless Communication Settings for the Tablet
If the "Status LED" flashes and communication is not performed when you press the power
button, use the "Wireless settings buttons" on the tablet underside and wireless adapter to
perform the wireless settings.
Turn ON the tablet's power, and
press the "Wireless settings button"
on the underside.
↓
The "Status LED" flashes at high
speed.
↓
Press the "Wireless settings button"
on the wireless adapter.
↓
The "Status LED" on the tablet turns
off for a few seconds.
When the "Status LED" turns off, the
Tablet and wireless adapter can
communicate, and the Tablet can be
used.
Perform the wireless setting within 30 seconds of pressing the "Wireless
settings button" on the underside of the tablet.
Press the "Wireless settings button" while supporting the body of the wireless
adapter.
Communication with the wireless adapter may become unstable if the Tablet is
used as follows.
・There is an obstruction between the Tablet and wireless adapter.
・The Tablet is placed on top of a computer.
・A wireless device or electronic equipment is being used nearby.
・The Tablet is moved quickly while being used.
Also, due to the inherent characteristics of wireless communication, the
communication may become unstable depending on the position of the Tablet
and the wireless adapter.
Wireless adapter
Tablet underside
35
Caution
Troubleshooting
If trouble occurs or you have any queries, first check this section.
If the problem persists, check your warranty and contact the dealer where you purchased the
product.
Tablet power does not turn ON
Is the battery pack inserted? Check that the battery pack is inserted correctly.
Is the battery pack charged? Refer to "Inserting and Charging the Battery Pack" and
then charge the battery.
Cannot use the Tablet / The cursor does not move
Is the wireless adapter
connected to the computer?
Check that the wireless adapter is connected to the
computer being used.
Connect the wireless adapter directly to the
USB port on the computer. It may not
operate correctly if a USB hub is used.
Is the Status LED on the tablet or
the LED on the wireless adapter
flashing?
There is no communication between the Tablet and
wireless adapter. See "Wireless Communication
Settings for the Tablet".
Communication is not possible.
If a wireless device or electronic equipment is used near
the product, communication between the Tablet and
wireless adapter may be unstable due to interference
from electric waves.
Do not use equipment that causes interference near the
Tablet.
Is the pen's dry cell battery
running low?
Replace with a new dry cell battery.
See "Inserting the Battery into the Pen".
Is Image Mate Accent Driver
operating correctly?
The software may not have been installed correctly.
Refer to "Installing the Tablet and SRS Software (Image
Mate Accent)", uninstall the software, and then
install it again.
Are the Image Mate Accent
Driver settings suitable?
The tablet may not respond if the pressure sensitivity is
too low or the touch sensitivity is too high.
Perform the appropriate settings.
36
Communication between the Tablet and wireless adapter is unstable
Is third-party Tablet software
installed?
If third-party Tablet software is running, it may conflict with the
operations of this ELMO Tablet.
Do not operate third-party Tablet software while using this
Tablet.
Are the Tablet and wireless
adapter in the proper condition?
Communication may become unstable because of an
obstruction between the Tablet and wireless adapter, due to the
inherent characteristics of wireless communication, or because
of the installation angles of each part.
Remove the obstruction or change the installation location.
Is a wireless device or electronic
equipment being used nearby?
A wireless device or electronic equipment may interfere with the
communication between the Tablet and wireless adapter.
Refer to "Wireless Communication Settings for the Tablet" and
then perform the wireless settings.
If the condition persists, stop using the wireless device or
electronic equipment, or move to a location with no
interference.
Document Camera is not displayed correctly with the Tablet software (Image Mate
Accent)
Are the output video settings of the
Document Camera suitable?
Use the Document Camera while the video setting of the
Document Camera is set to [PC] (RGB IN).
Is the resolution ratio of the
Document Camera image suitable?
The Tablet software (Image Mate Accent) stores the
resolution ratio of the Document Camera image.
A suitable display can be obtained by matching the resolution
ratio of the computer screen with the resolution ratio of the
Document Camera image.
See the User's Guide of your Document Camera for more
details about the Document Camera settings.
Teaching materials are not displayed correctly with the Tablet software (Image Mate
Accent)
Have you deleted the video or
picture that was being used as the
background?
If a teaching material is displayed that used a video or picture
that has since been deleted, the background cannot be
displayed.
Be very careful before deleting videos or pictures.
Cannot find the storage location of teaching materials created with the Tablet
software (Image Mate Accent) or captured images.
The storage location is described on
the right. My Document → My Pictures → Image Mate Accent → rec
37
Caution
Cannot play the audio of a teaching material with the Tablet software (Image Mate
Accent)
Is the video a lesson recording
video?
The video types are lesson recording, normal recording,
intermittent recording and frame recording. Of these,
audio is recorded only with lesson recording. Audio is
not recorded with the other video types.
Are the audio settings suitable?
If the input volume was low during video recording or
the playback volume is low, it may be difficult to hear the
audio.
Set the volume to a suitable level.
Is the sound device of the
computer set to a suitable level?
Audio recording and audio playback is not possible in a
computer environment in which a sound device is not
installed.
Operation is not guaranteed for all
computer environments.
38
Product Specifications
Product Specifications
■Tablet
Model Name CRA-1
Operating Temperature 0 to 40 ºC
Reading Range 8.0 x 5.0 inches
(203.2 x 127.0 mm)
Reading Resolution 0.0127 mm
Reading Accuracy 0.42 mm
Reading Speed 120 rps
Pen Pressure Level 1024 level
Wireless Band Used 2.4 GHz
Communication Range Approx. 15 m (differs depending on the usage conditions)
Power Supply Battery pack (lithium-ion battery)
Continuous Operation
Time
Approx. 22 hours (differs depending on the usage conditions)
Auto Power Off Time Approx. 30 minutes
Full Charging Time Approx. 4 hours
Consumption Current When using USB 5 V 500 mA
When using the battery pack 3.7 V 60 mA
Computer Models
IBM compatible computer equipped with a standard USB port
and CD-ROM drive
(Operation is not guaranteed for all computer environments.)
Compatible OS Windows 7 / Vista SP1 / XP SP2
External Dimensions W315 x D257 x H23 (mm)
Weight 670 g (including the tablet, wireless adapter, pen, dry cell AAA
battery (for the pen), Tablet battery pack)
■Clicker
Model Name CRV-CK-1
Operating Temperature 0 to 40 ºC
Wireless Band Used 2.4 GHz
Communication Range Approx. 15 m (differs depending on the usage conditions)
Power Supply Two dry cells (Type LR03, AAA)
Continuous Operation
Time
Approx. 150 hours (differs depending on the usage conditions)
Auto Power Off Time Approx. 30 minutes
Consumption Current MAX. 3.0V 60 mA
External Dimensions L110 x W64 x H26 (mm)
39
Weight 90 g (including two dry cells)
40
Caution
System Requirements
The Tablet can be used in the following computer environments.
Computer model IBM PC/AT compatible
Operating system
(OS)
Microsoft Windows XP Home Edition / Professional SP2
Microsoft Windows Vista Home Basic / Home Premium /
Business / Enterprise / Ultimate SP1
Microsoft Windows 7 Starter / Home Premium /
Professional / Ultimate
CPU Intel Core 2 Duo 2 GHz equivalent or higher
Memory 2 GB or higher
Video board Board compatible with Microsoft DirectX 9.0c
Hard disk 1 GB or higher
Screen resolution 1024×768 pixels or higher
32-bit or higher
USB USB 2.0 HI-SPEED
Compatible Document
Cameras
· L-1ex
· L-1zero
· L-1zero r
· TT-02RX
· TT-02s
· L-1n
· P10S
· P30S
· P10
· P100
· P100N
· HV-110u
· FF-1
· CO-10 (i-Pochette)
· L-12
· TT-12
・If a sound device cannot be used, some of the functions may not operate.
・Operation is not guaranteed for all computer environments.
41
About the Separately Sold Accessories
The following products are sold separately as accessories. (However, please understand that
some products have a limited manufacturing cycle.)
・ Dedicated Tablet pen Tablet Pen for CRA-1
・ Battery pack Battery Pack for CRA-1
Consult your local dealer about purchasing accessories.
Usage Precautions
■ About electric waves used by the Tablet and Cliker
The Tablet uses electric waves in the 2.4 GHz band. When using the Tablet and Clicker,
a radio station license is not necessary. However, please note the following
precautions.
Do not use near the following:
・Microwave ovens/industrial, scientific or medical equipment, such as pacemakers
・In-factory radio stations for mobile unit identification systems (radio stations that
require a license) used in production lines of factories
・Specified low power radio stations (radio stations that do not require a license)
・IEEE802.11g/b wireless LAN units
When the Tablet is used near any of the equipment mentioned above, electric wave
interference may occur, making the Tablet difficult to use.
■ About wireless equipment used in the 2.4 GHz band
This frequency bandwidth is the same as for industrial, scientific, and medical
equipment such as microwave ovens, mobile unit identification systems (radio stations
that require a license) used in factory production lines, and specified low-power radio
stations (radio stations that do not require a license).
・Before using this product, check that there are no radio stations for mobile unit
identification systems or specified low-power radio stations nearby.
・If this product emits electric waves which interfere with in-factory radio stations for mobile
unit identification systems, cease use immediately and stop generating the electric
waves. For information on countermeasures, etc. (for example, erecting partitions),
contact one of our sales departments whose details are provided at the end of this
manual.
・If this product emits electric waves which interfere with specified low-power radio
stations used for mobile unit identification systems, or causes similar problems,
contact one of our sales departments whose details are provided at the end of this
manual.
42
■ About the use of this product
This product can only be used in countries or regions where it complies with wireless
regulations, such as laws related to electric waves.
Contact your dealer before using this product outside the country or region of purchase.
■ About the battery pack
The battery pack used in the Tablet is a rechargeable lithium-ion battery. As it can easily
be affected by temperature and humidity, store the battery pack in a dry location
between 15 and 25°C.
During charging, after charging, and during use, the battery pack becomes warm.
Remove the battery pack from the tablet if it will not be used for a long time.
When using the battery pack, check that the outside and terminals of the battery pack
are not deformed in any way. A deformed battery pack can be very dangerous and
should not be used under any circumstances.
The battery pack's service life is reduced if frequent top-up charging is performed.
For an unneeded battery pack, cover the metallic sections with insulating tape such as
Scotch Tape, and recycle it in accordance with your local regulations, or take it to one of our
sales departments whose details are provided at the end of this manual.
■ Replacing the battery pack
If the product can only be used for an extremely short time or the power does not come
on, the battery pack has reached the end of its service life.
Please purchase a new battery pack from one of our sales departments whose details
are provided at the end of this manual.
Please note that the battery pack is considered to be a consumable item and therefore a
fee is charged even if replacement is required within our warranty period.
■ About the operating environment and storage
・The Tablet is for indoor use only. It cannot be used outdoors.
・Do not place the product in a damp or dusty location, in a location exposed to the sea
breeze, or in an area exposed to high vibration.
The operating environment conditions are as follows.
Temperature: 0 to 40°C
Humidity: 30 to 90% (no condensation)
・Do not store in a location exposed to direct sunlight or near to heating equipment.
Discoloration, deformation or malfunctions could result.
43
■ Cleaning
When cleaning the Tablet, remove the connected cables and the battery pack, and
perform in a location that is not subject to humidity or moisture.
・Remove any dirt from the Tablet with a soft, dry cloth.
・To remove stubborn dirt, dilute some detergent in water, dip a soft cloth in the water,
and then wring it out before using it to wipe away the dirt. Do not use any volatile
solvents such as thinner or benzene.
Disclaimer
The contents of this manual and Image Mate Accent may be changed in the future without
prior notice.
The software installed on your computer or your peripheral devices may inhibit the operation
of ELMO software.
ELMO accepts no responsibility whatsoever for any losses, direct or indirect, that result from
the use of ELMO software.
About Trademarks
The following trademarks and registered trademarks are used in this manual.
and Image Mate are registered trademarks of ELMO Co., Ltd.
is a trademark of ELMO Co., Ltd.
The full title for Windows® XP is the Microsoft® Windows® XP operating system.
The shortened form of the OS name is used in the text.
The full title for Windows® VISTA is the Microsoft® Windows® VISTA operating system.
The shortened form of the OS name is used in the text.
The full title for Windows® 7 is the Microsoft® Windows® 7 operating system.
The shortened form of the OS name is used in the text.
Microsoft and Windows are registered trademarks of the Microsoft Corporation in the U.S.
and other countries.
All other company/product names described in this manual are trademarks or registered
trademarks of their respective companies.
44
About the Warranty
The warranty for this product is described below.
■ About the warranty certificate
Your dealer will give you the warranty certificate.
Be sure to check the details on the certificate, such as the dealer name and date of
purchase.
Read the contents of the warranty carefully and store it in a safe place.
Warranty period: 1 year from purchase
■ To order a repair during the warranty period, contact the dealer where you
purchased the product.
The dealer will perform the repair in accordance with the conditions in the warranty
certificate.
■ About maintenance parts
ELMO will stock maintenance parts for this product
(the parts required for maintaining the function of the product) for 8 years after the end of
production. Repair will be possible until the end of this parts storage period.
■ Please provide the following information when ordering repair.
・Your name, address and telephone number
・Product name and model name
・Date of purchase (see your warranty certificate)
・Malfunction description
・Status of the abnormality (as much detail as possible)
■ To order a repair after the warranty period has elapsed, consult the dealer
where you purchased the product.
If a repair that will maintain the product's function is possible, we can perform it for a fee.
■ If you have any questions about after-sales service, such as repairs during
the warranty period, contact the dealer where you purchased the product.
Loving
inspection
・Please have your products inspected
after using them for a long time!
Products can deteriorate or break down due to the
effects of heat, humidity or dust, or their usage
conditions. Sometimes this may impair safety,
resulting in an accident.
45
6X1CRVAC2 R0-Xdx
