Service Manual
HUHF800-40SERIES
850-875MHz AMPS
FCCCertificationID#
M7G-HUHF800-40
TableofContents
PRODUCTDESCRIPTION............................
GENERALSPECIFICATIONS.........................
CIRCUITDESCRIPTIONS.............................

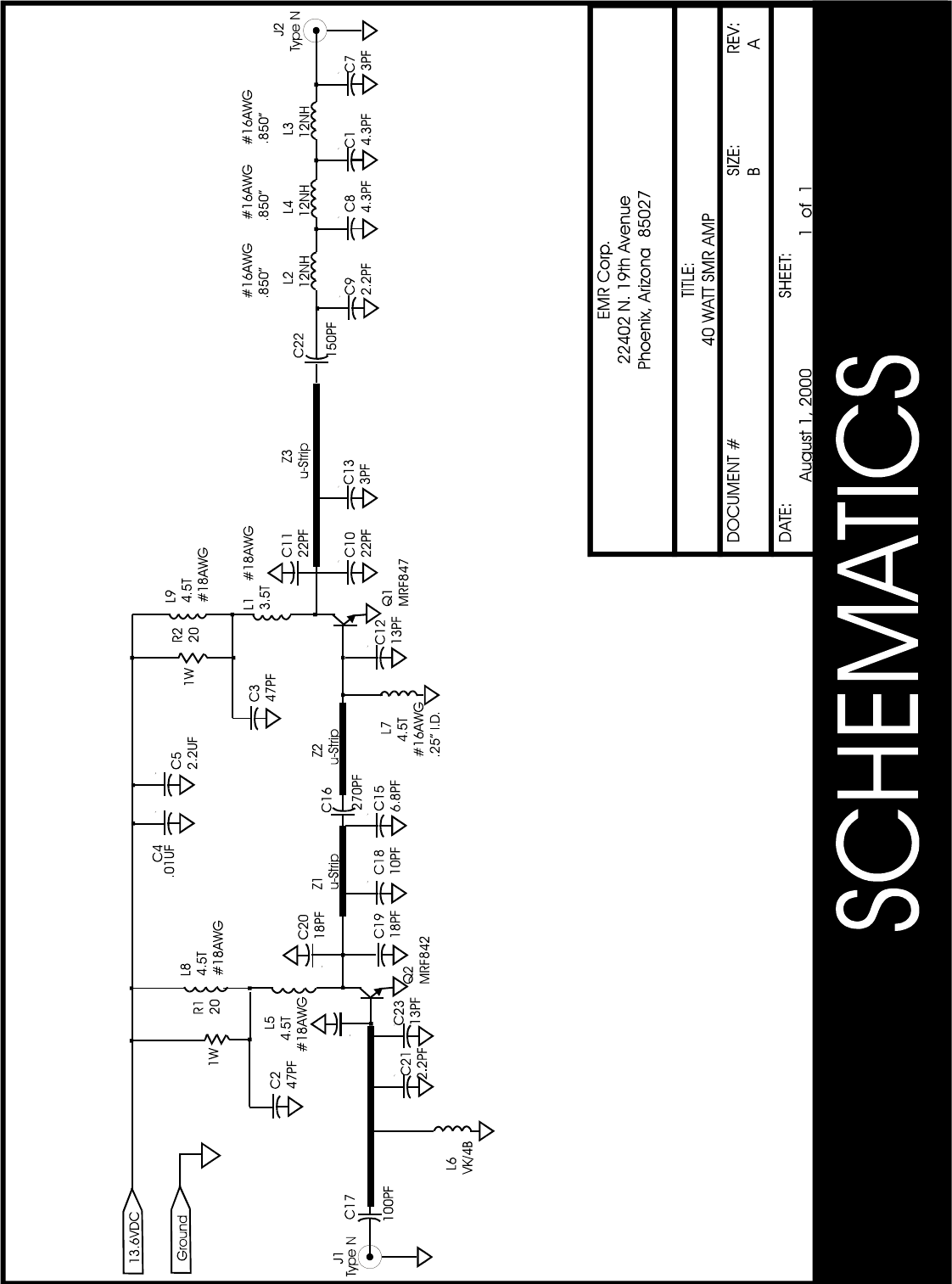

SCHEMATICS.............................................
PARTSLIST................................................
WARRANTYINFORMATION.........................
TheHUHF800-40SeriesofEMRamplifiersare
intendedforuseincommercialcommunications
systems.Applicationsincludecellular,SMRtrunking
anddatasystems.Theywillcoverthefrequency
rangeextendingfrom850MHzto875MHz.

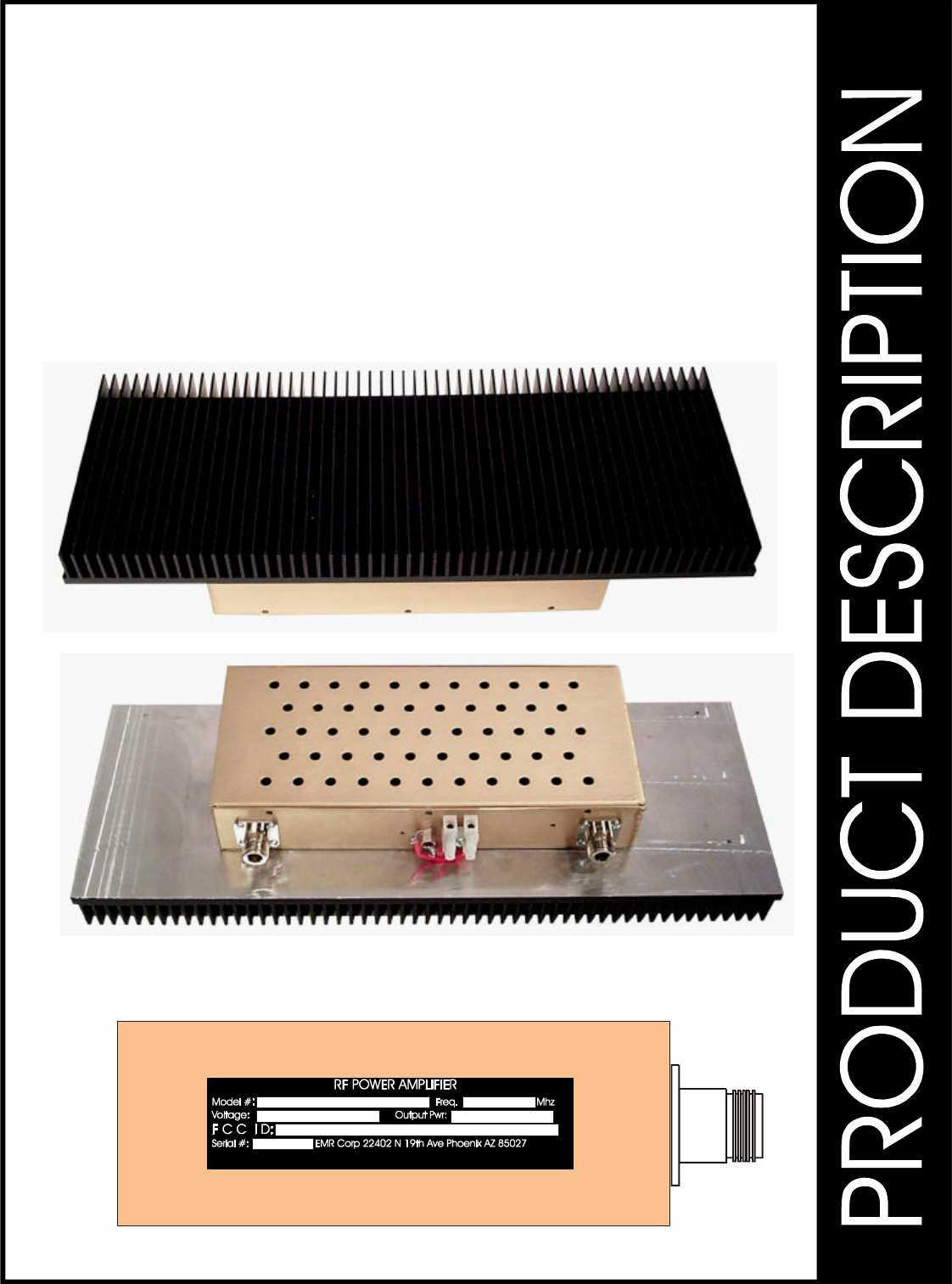

Foroperatorconvenience,viewsofthe
Amplifierarepresentedhere..
FCCCertification
LabelPlacement
850-875
13.6 40watts
M7G-HUHF800-40
HUHF800-40
FREQUENCYRANGE:850-875MHz
OPERATINGMODE:FM
USAGE:SingleChannelSystems
MODEL#:HUHF800-40
OUTPUTPOWER:40WATTS
OPERATING
TEMPERATURERANGE:-20to+60Deg.C
OPERATINGVOLTAGE:+13.6VDC/8amps
DUTYCYCLE:100%
HARMONICMeetsFCC
ATTENUATION:Certification
OPTIONS:EMRAmplifiersareavailable
Withseveralmechanical
mountingoptionsandin
Variousconfigurations.
(Specifiedattimeoforder.)
FCC
Certification
LABEL
850-875
13.6 40watts
M7G-HUHF800-40
HUHF800-40
TheHUHF800-40Seriespoweramplifierisaself-
containedrackmountableunitcapableofupto40
wattsofclasscoutputpower,withbuiltincooling
circuitryandpowerreductioncapability.Theinput
signalisamplifiedbyapowermodulecapableof
producing14watts.Itisthensplitandamplifiedby
theoutputamplifiersandrecombinedwitha
Wilkinsoncombiner.Finally,itisfilteredbyaseven
elementlowpassfilter.
40WATTSMRAMP
BillofMaterialsAug.1,2000
ITEMQUANTITYREFERENCEPART
___________________________________________________
12C1,C84.3PF
22C2,C347PF
31C4.01UF
41C52.2UF
53C6,C12,C2313PF
62C7,C133PF
72C9,C212.2PF
82C10,C1122PF
91C1415PF
101C156.8PF
111C16270PF
121C17100PF
131C1810PF
142C19,C2018PF
151C22150PF
162J1,J2TYPEN
171L13.5T
183L2,L3,L412NH
194L5,L7,L8,L94.5T
201L6VK/4B
211Q1MRF847
221Q2MRF842
232R1,R220
244Z1,Z2,Z3,Z4u-STRIP
Forserviceonthisamplifier,contact:
EMRCorporation
EMRCorporation,hereinaftercalledEMR,warrants
thatallequipmentofitsmanufactureshallbefreefromdefects
indesign,materialsandworkmanshipforaperiodof12months
fromdateofshipmentsunlessotherwisecoveredbyspecial
warranty.Ifanysuchproduct,entirelyorinpart,failstoproduce
theperformancesetforthinthebrochures,quotationsor
literatureprovidedbyEMR,suchproductwillbereplacedor
repairedatEMR’sexpenseprovidedthatthefailurewasnotthe
resultofalteration,misuse,tampering,misapplication,shipping
damageorvandalism.Ifaproductfailureisfoundtobethe
faultofEMR,costsoftransportationtotheEMRfactoryand
returnwillbebornbyEMR.ShouldEMRsupplycomponentsnot
ofitsownmanufacture,butspecifiedbyacustomer,the
warrantyshallreflecttheoriginalmanufactureswarranty,only.
ItisunderstoodthatthisstatementconstitutesEMR’sentire
andonlywarranty,therebeingnootherwarranteesexpressedor
impliedinlaworinfact,includingimpliedwarranteesoffitness.
InnoeventshallEMRbeliablefordamageseitherdirector
consequential,thatmaybeoccasionedbyanydefectin
materials,workmanshiporproductsupport.
22402N.19thAvenue
Phoenix,Arizona85021
Tel:623/581/2875800/796/2875
E-mail:info@emrcorp.com
http://www.emrcorp.com
FAX:623/582/9499
