Manual part2
![](/img.php?id=2844465&img=bg1.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-71
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29

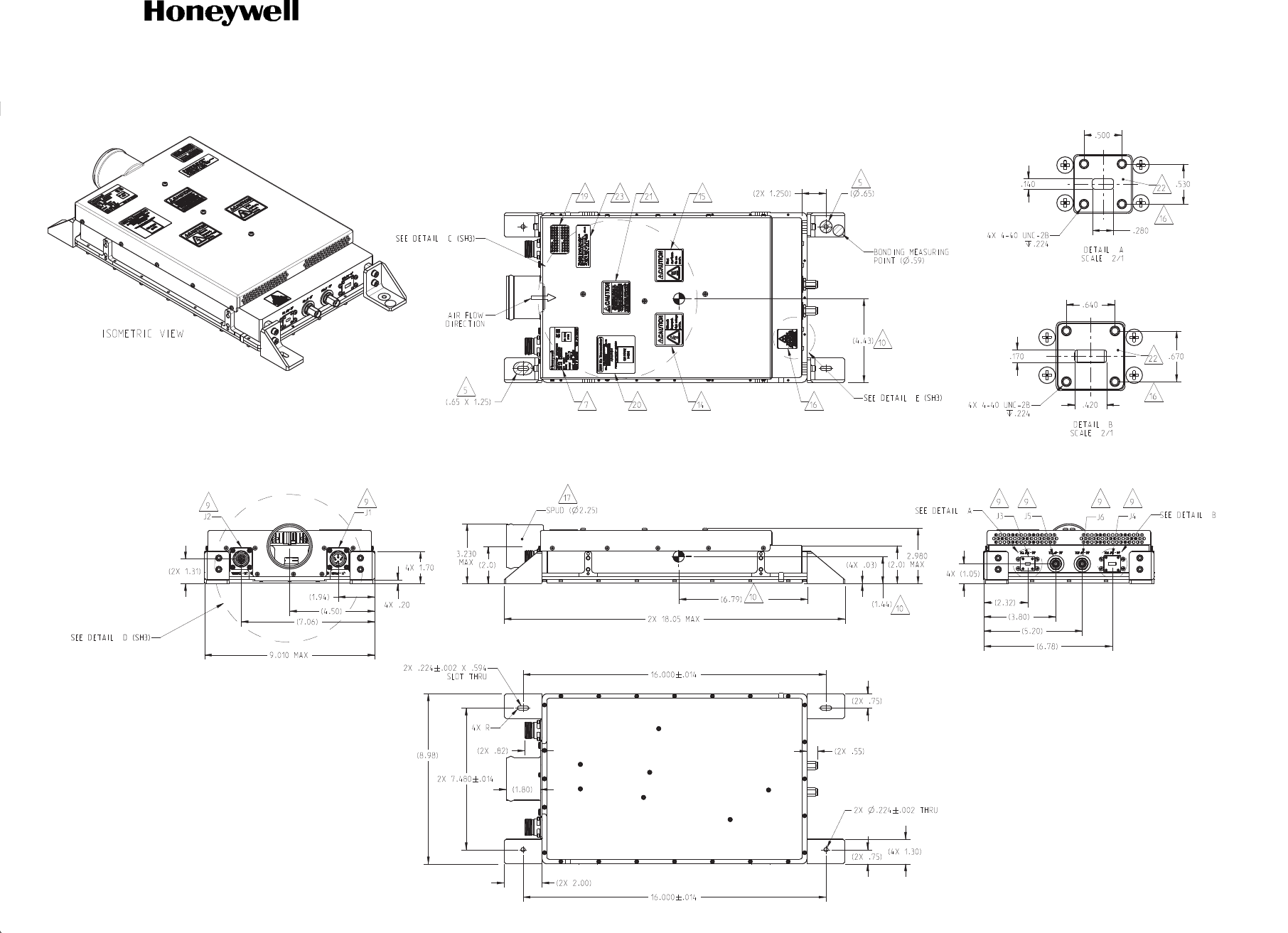

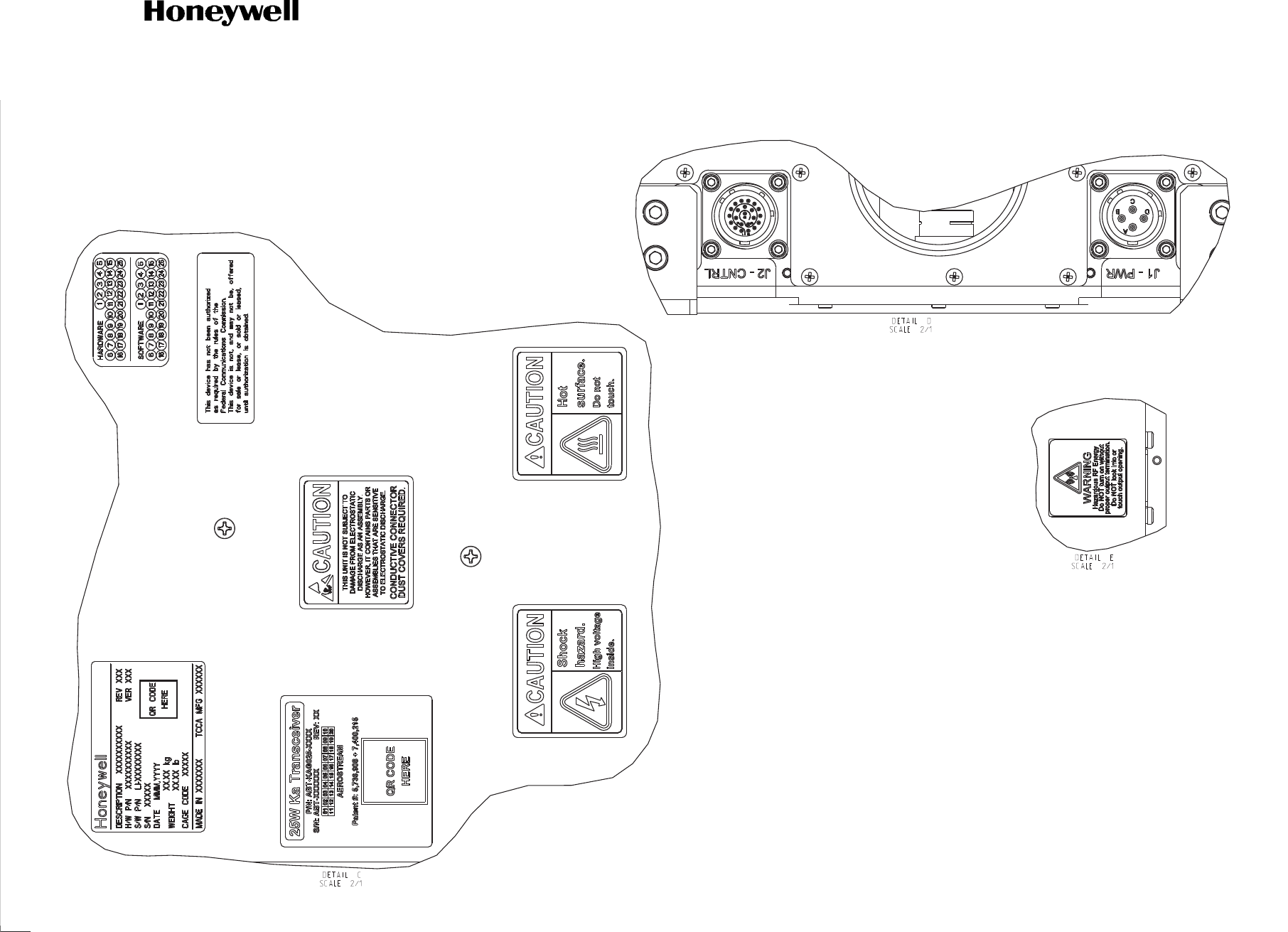

Figure 2-29. KRFU, Forced Air Cooled, Outline and Installation Drawing (Sheet 1 of 3)
PRODUCTION - Release - 14 Aug 2014 12:42:49 MST - Printed on 26 Aug 2014
E90401571-1-
A
![](/img.php?id=2844465&img=bg2.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-72
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Blank Page
![](/img.php?id=2844465&img=bg3.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-73
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29

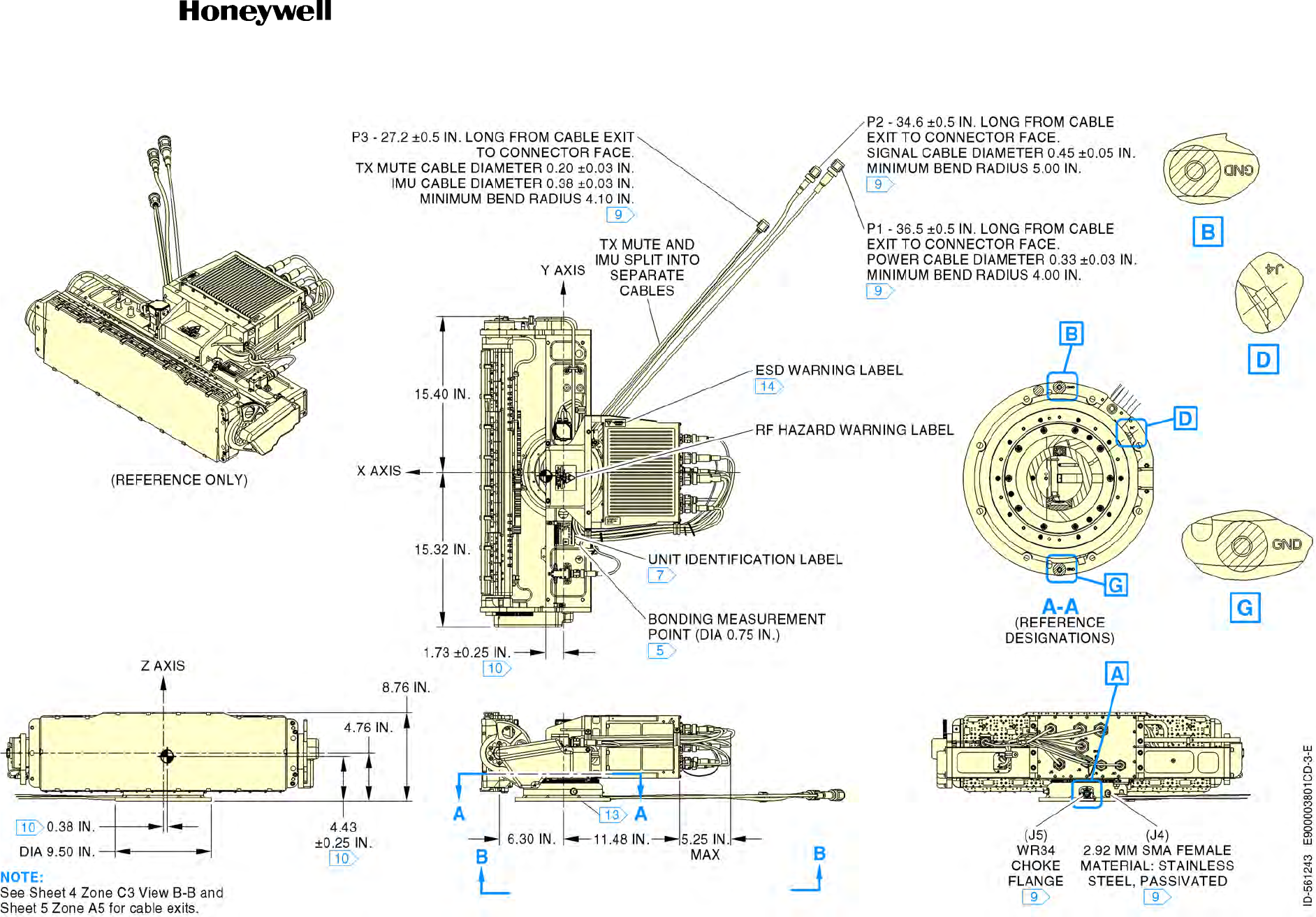

Figure 2-29. KRFU, Forced Air Cooled, Outline and Installation Drawing (Sheet 2 of 3)
E90401571-2-
A
![](/img.php?id=2844465&img=bg4.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-74
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Blank Page
![](/img.php?id=2844465&img=bg5.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-75
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29

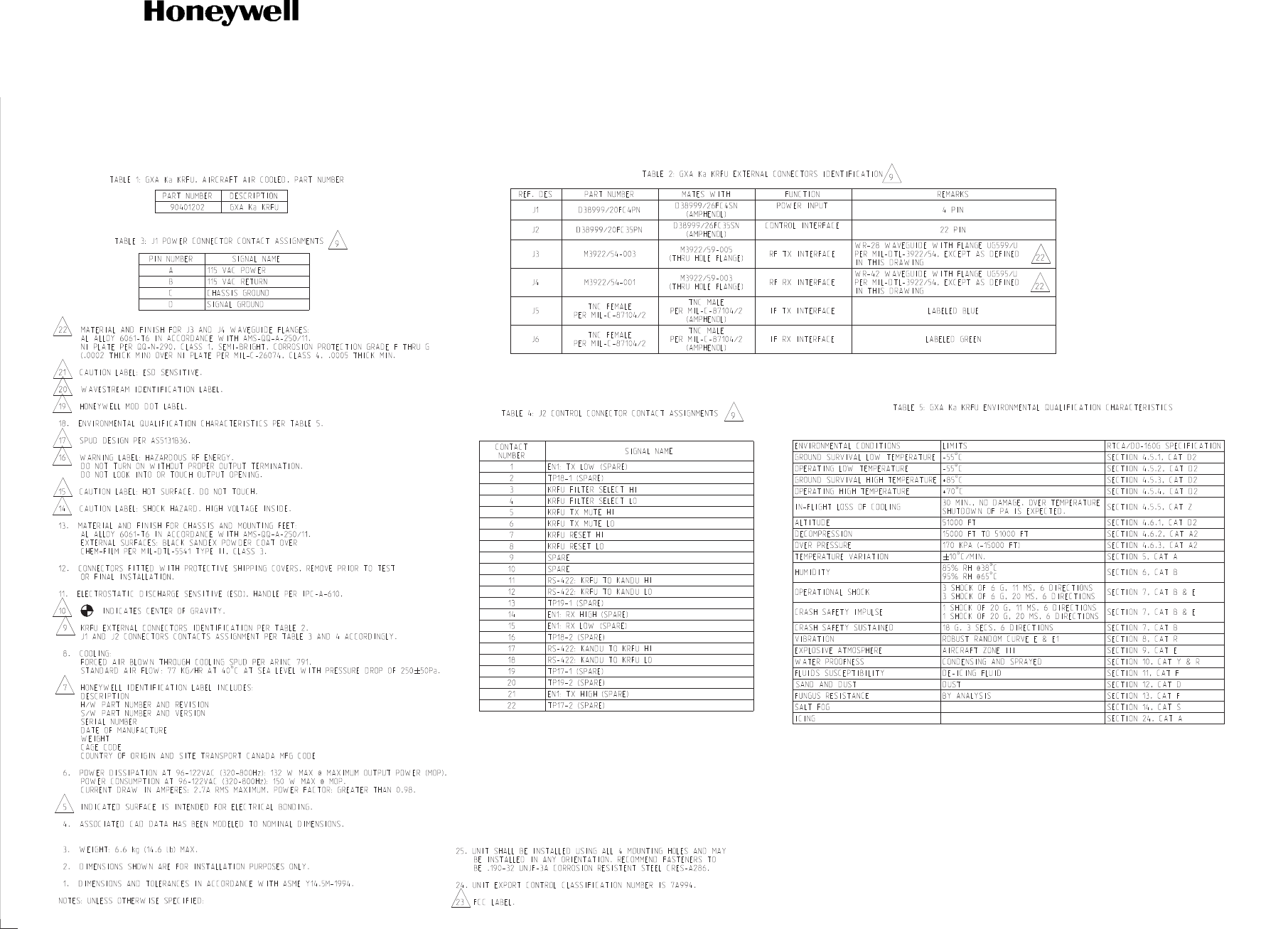

Figure 2-29. KRFU, Forced Air Cooled, Outline and Installation Drawing (Sheet 3 of 3)
E90401571-3-
A
![](/img.php?id=2844465&img=bg6.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-76
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Blank Page
![](/img.php?id=2844465&img=bg7.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-77
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29

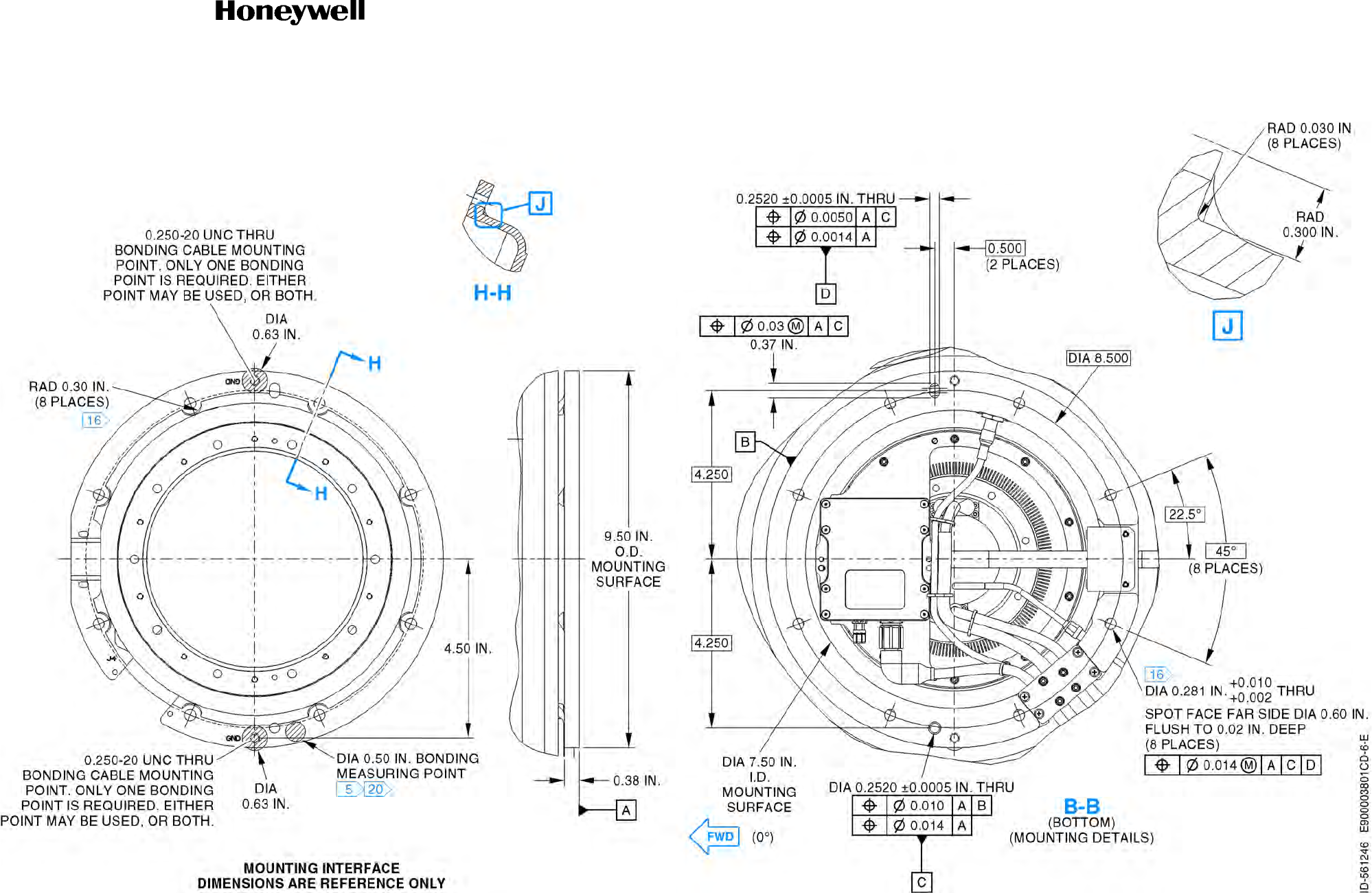

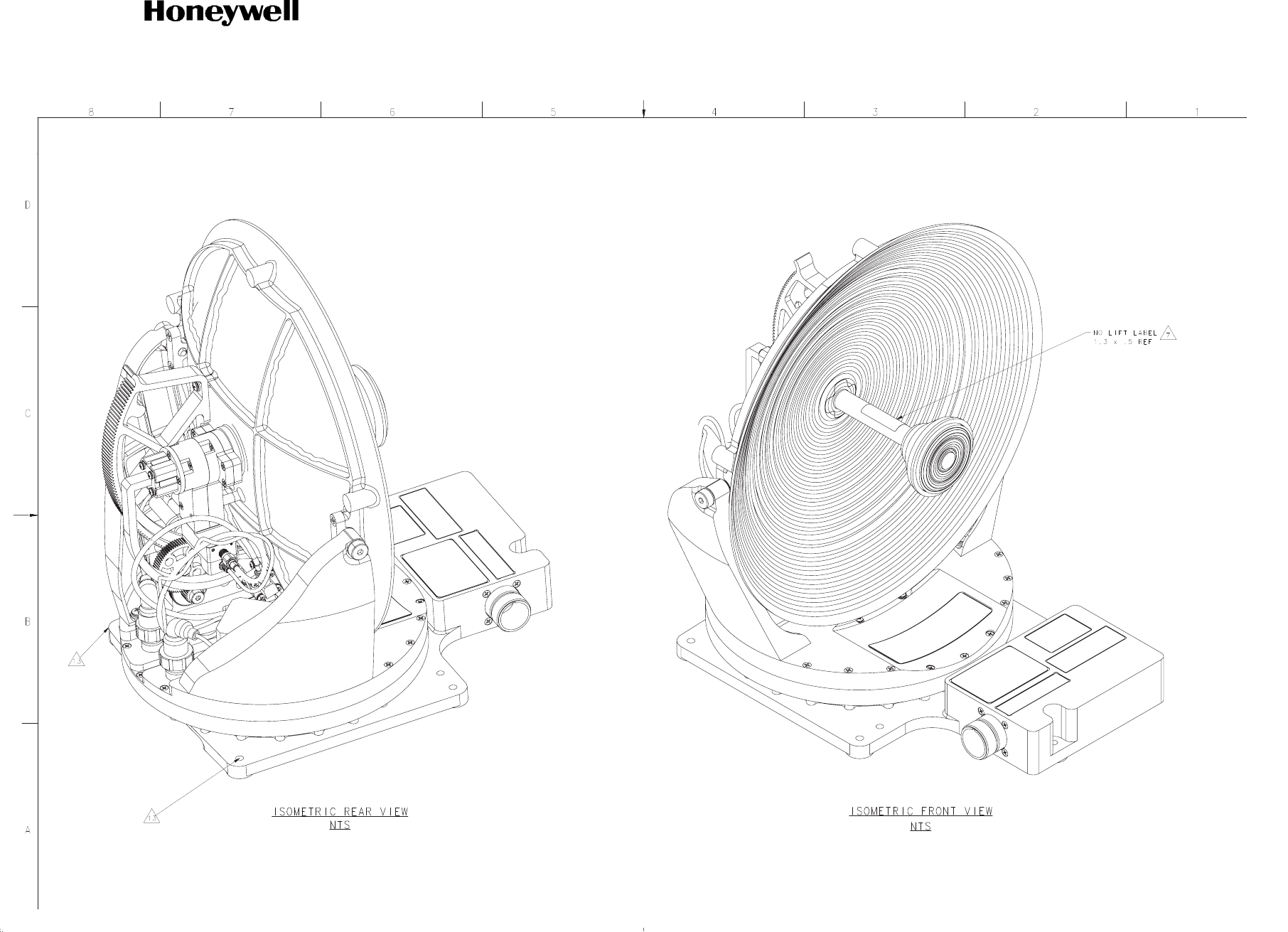

Figure 2-30. TMA Outline and Installation Drawing (Sheet 1 of 4)
E90401428-1-C
![](/img.php?id=2844465&img=bg8.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-78
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Blank Page
![](/img.php?id=2844465&img=bg9.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-79
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29

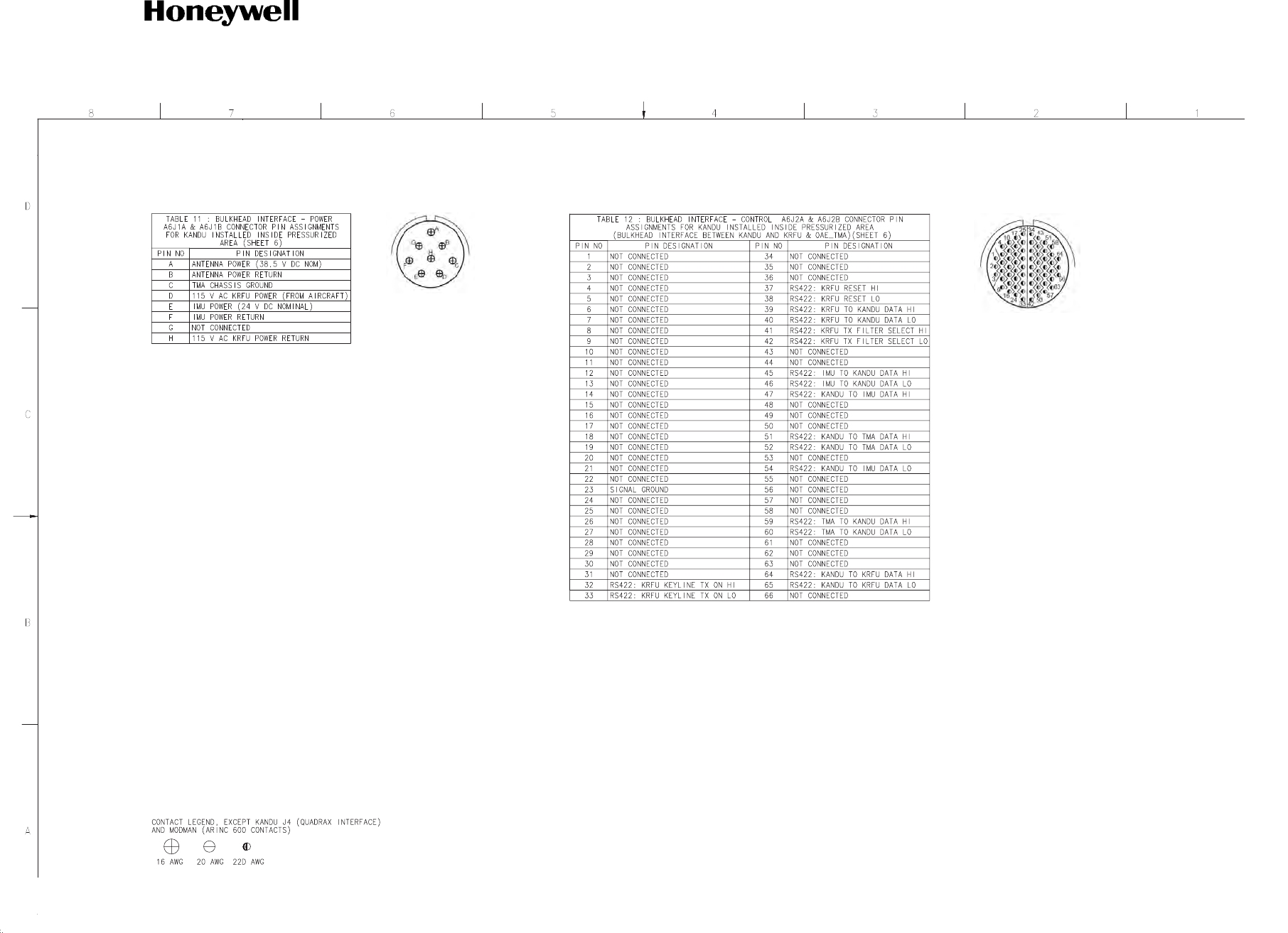

Figure 2-30. TMA Outline and Installation Drawing (Sheet 2 of 4)
E90401428-2-C
![](/img.php?id=2844465&img=bga.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-80
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Blank Page
![](/img.php?id=2844465&img=bgb.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-81
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29

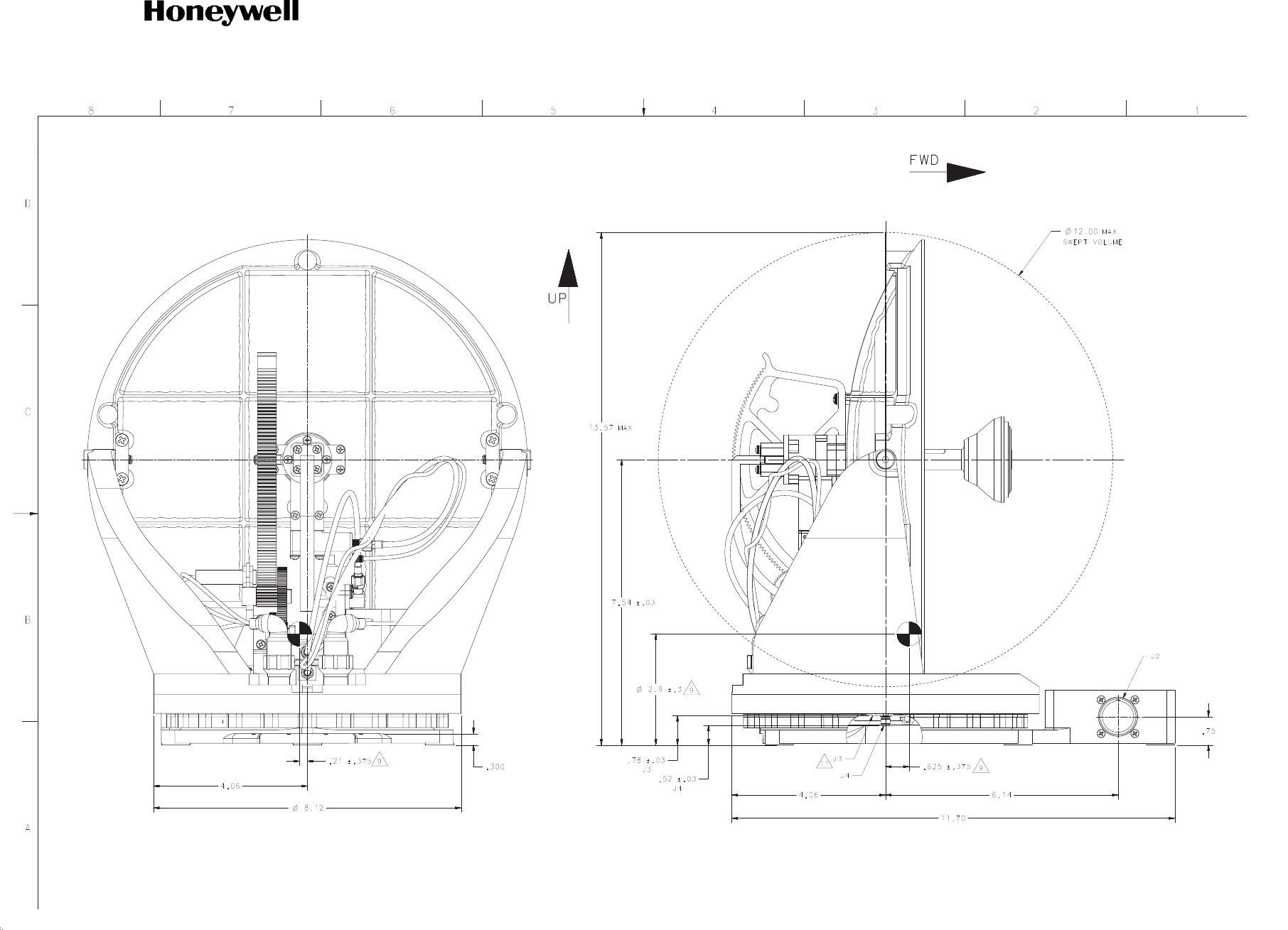

Figure 2-30. TMA Outline and Installation Drawing (Sheet 3 of 4)
E90401428-3-C
![](/img.php?id=2844465&img=bgc.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-82
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Blank Page
![](/img.php?id=2844465&img=bgd.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-83
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Figure 2-30. TMA Outline and Installation Drawing (Sheet 4 of 4)
E90401428-4-C
![](/img.php?id=2844465&img=bge.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-84
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Blank Page
![](/img.php?id=2844465&img=bgf.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-85
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29

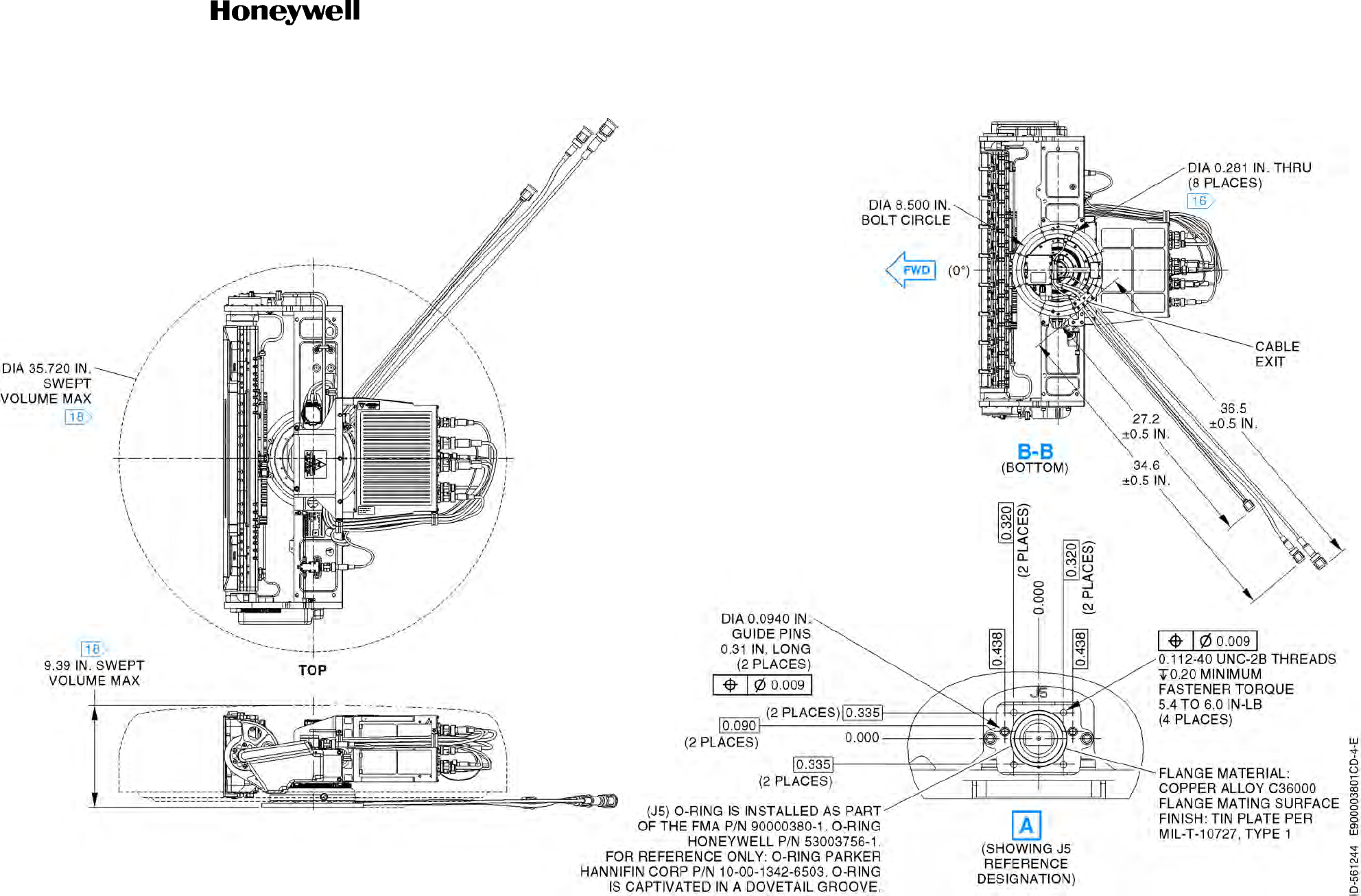

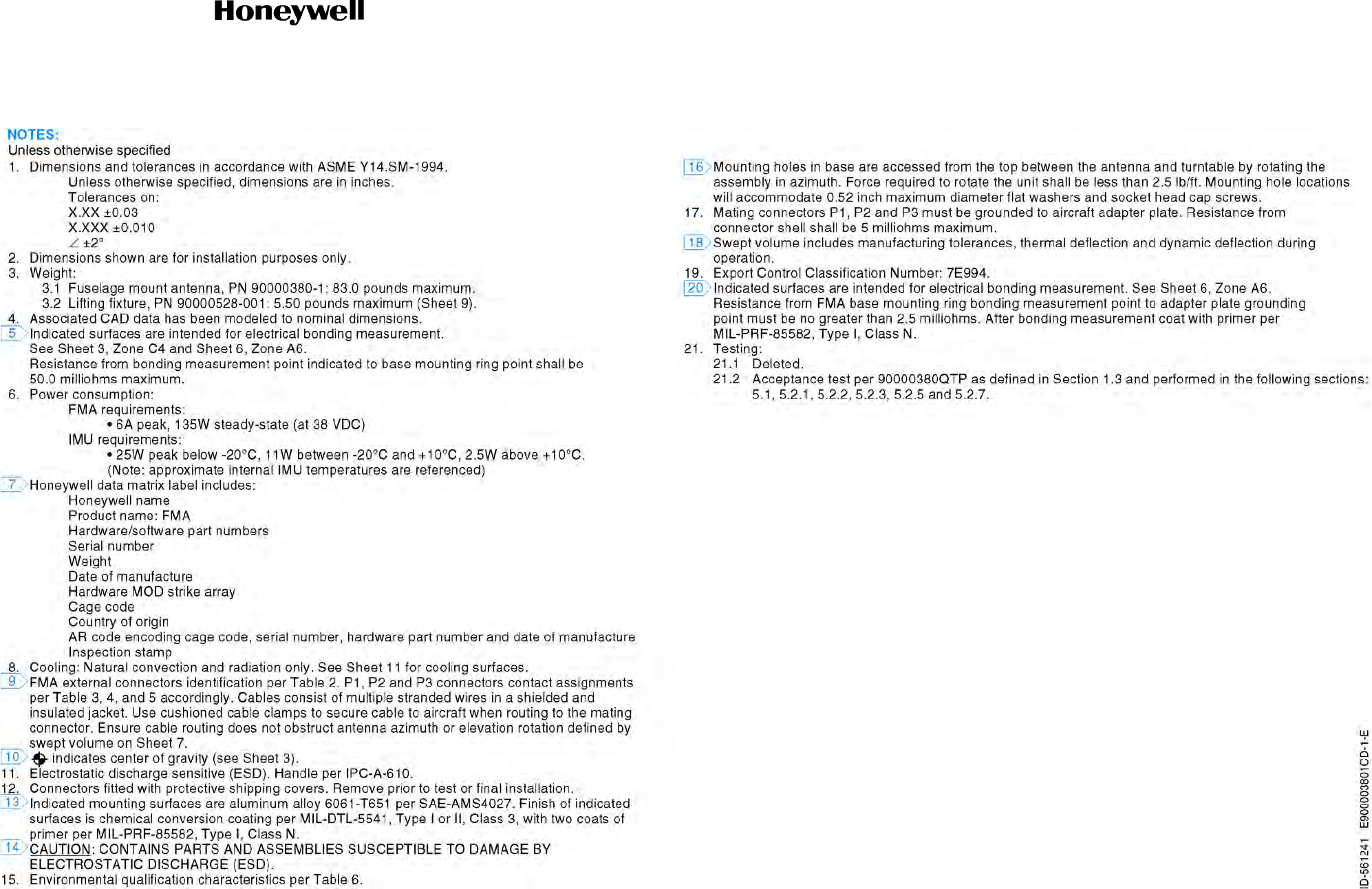

Figure 2-31. FMA Outline and Installation Drawing (Sheet 1 of 12)
![](/img.php?id=2844465&img=bg10.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-86
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Blank Page
![](/img.php?id=2844465&img=bg11.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-87
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29

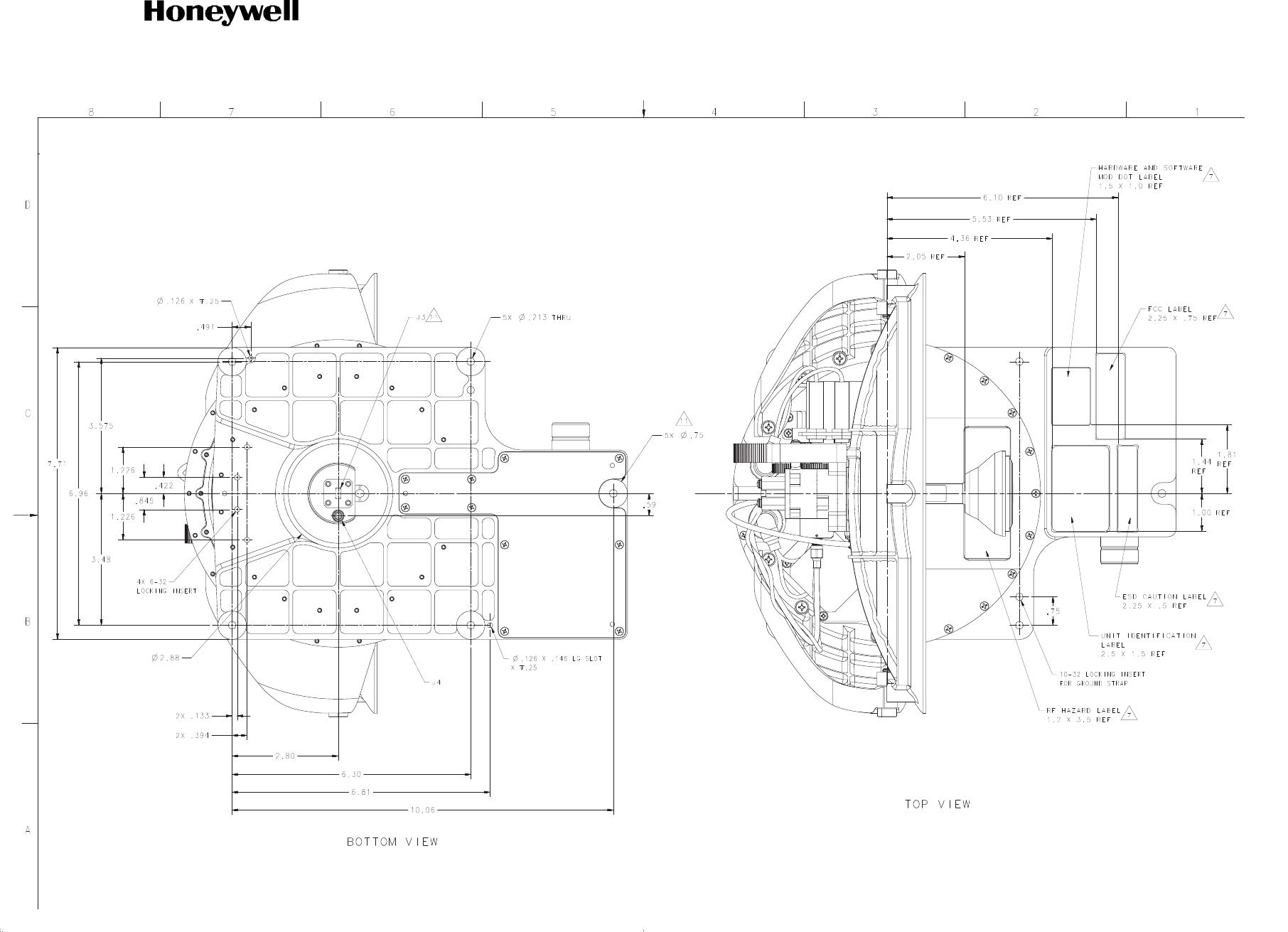

Figure 2-31. FMA Outline and Installation Drawing (Sheet 2 of 12)
![](/img.php?id=2844465&img=bg12.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-88
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Blank Page
![](/img.php?id=2844465&img=bg13.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-89
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29

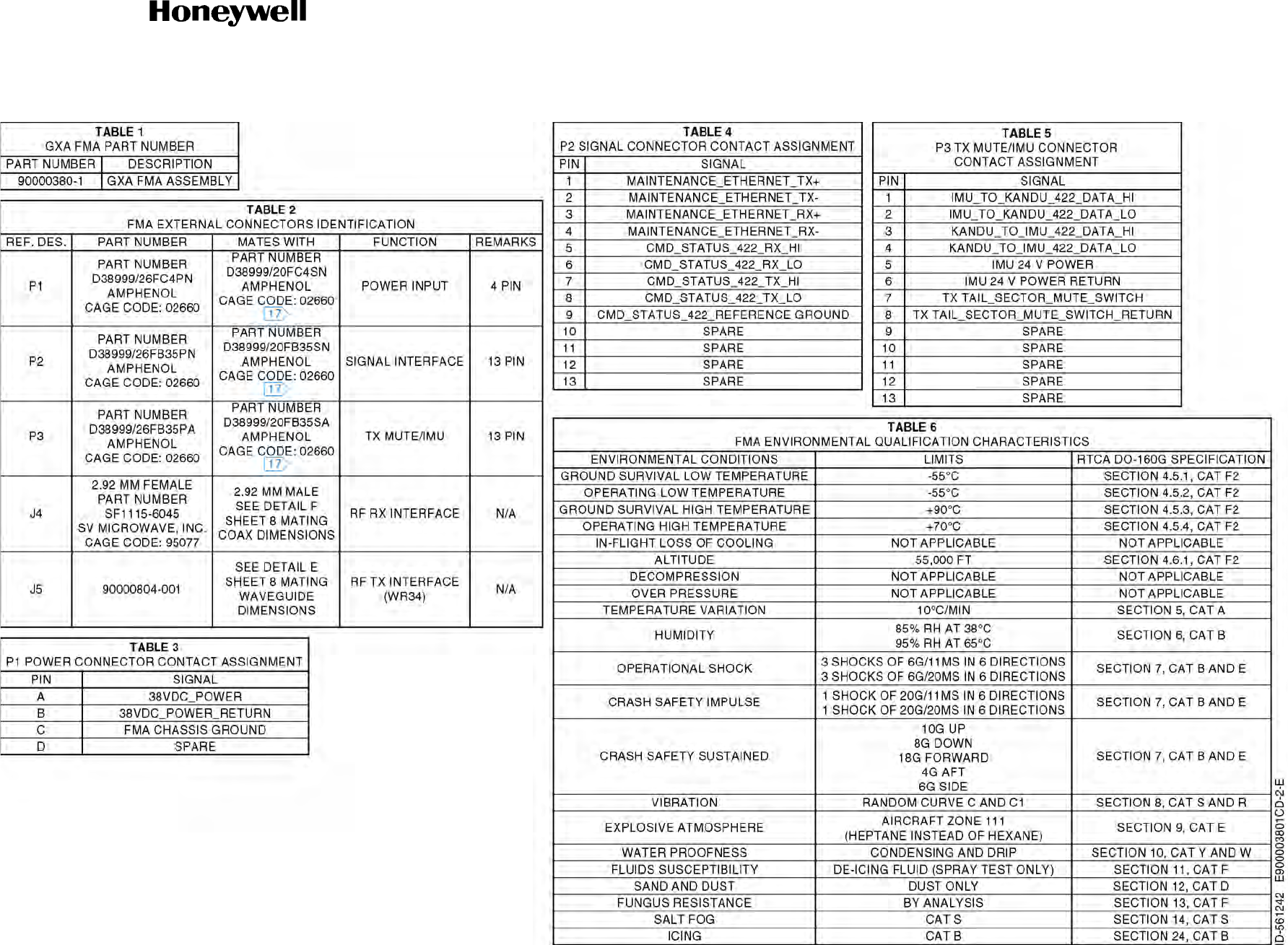

Figure 2-31. FMA Outline and Installation Drawing (Sheet 3 of 12)
![](/img.php?id=2844465&img=bg14.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-90
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Blank Page
![](/img.php?id=2844465&img=bg15.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-91
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Figure 2-31. FMA Outline and Installation Drawing (Sheet 4 of 12)
![](/img.php?id=2844465&img=bg16.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-92
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Blank Page
![](/img.php?id=2844465&img=bg17.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-93
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29

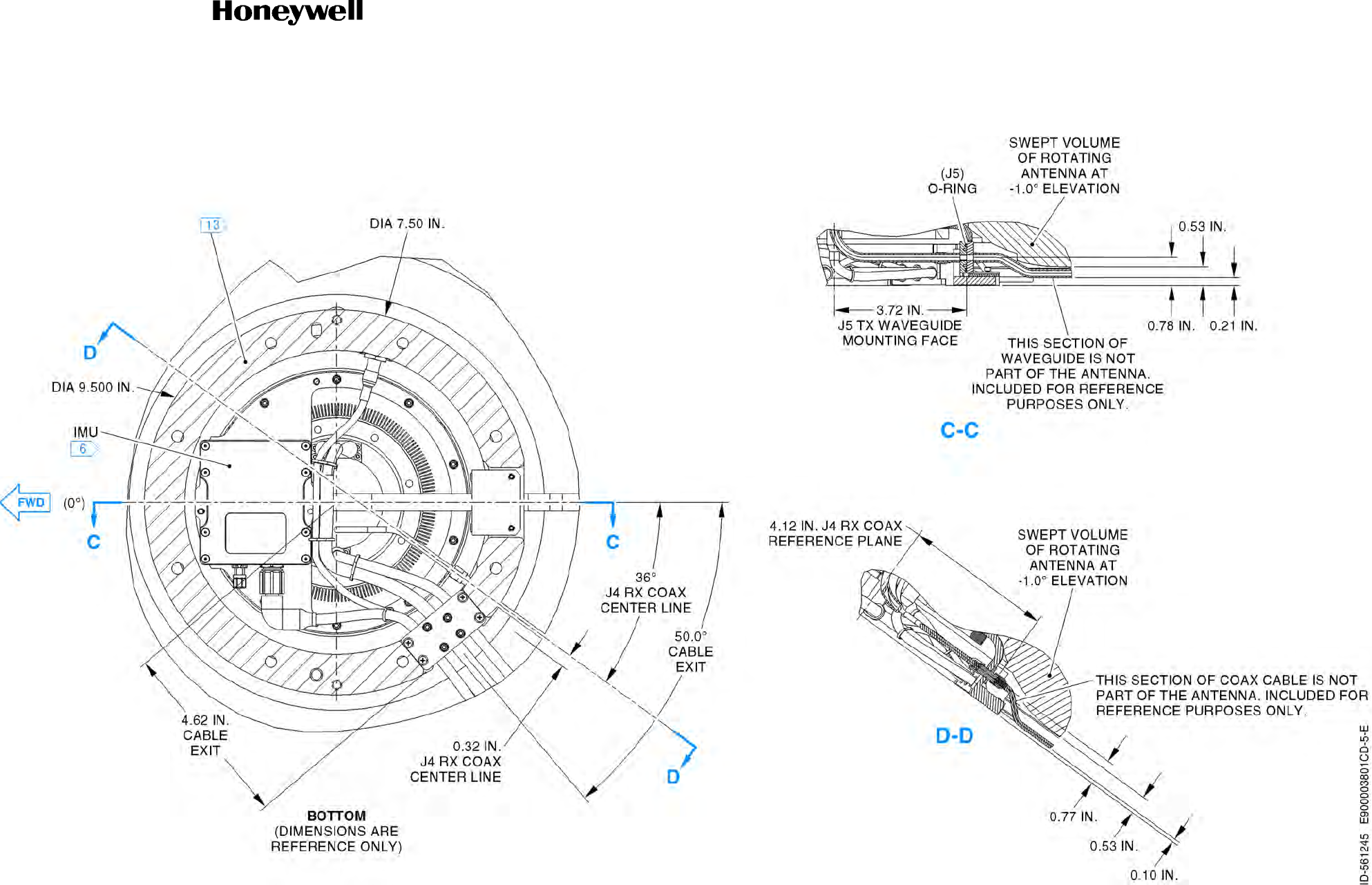

Figure 2-31. FMA Outline and Installation Drawing (Sheet 5 of 12)
![](/img.php?id=2844465&img=bg18.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-94
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Blank Page
![](/img.php?id=2844465&img=bg19.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-95
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29

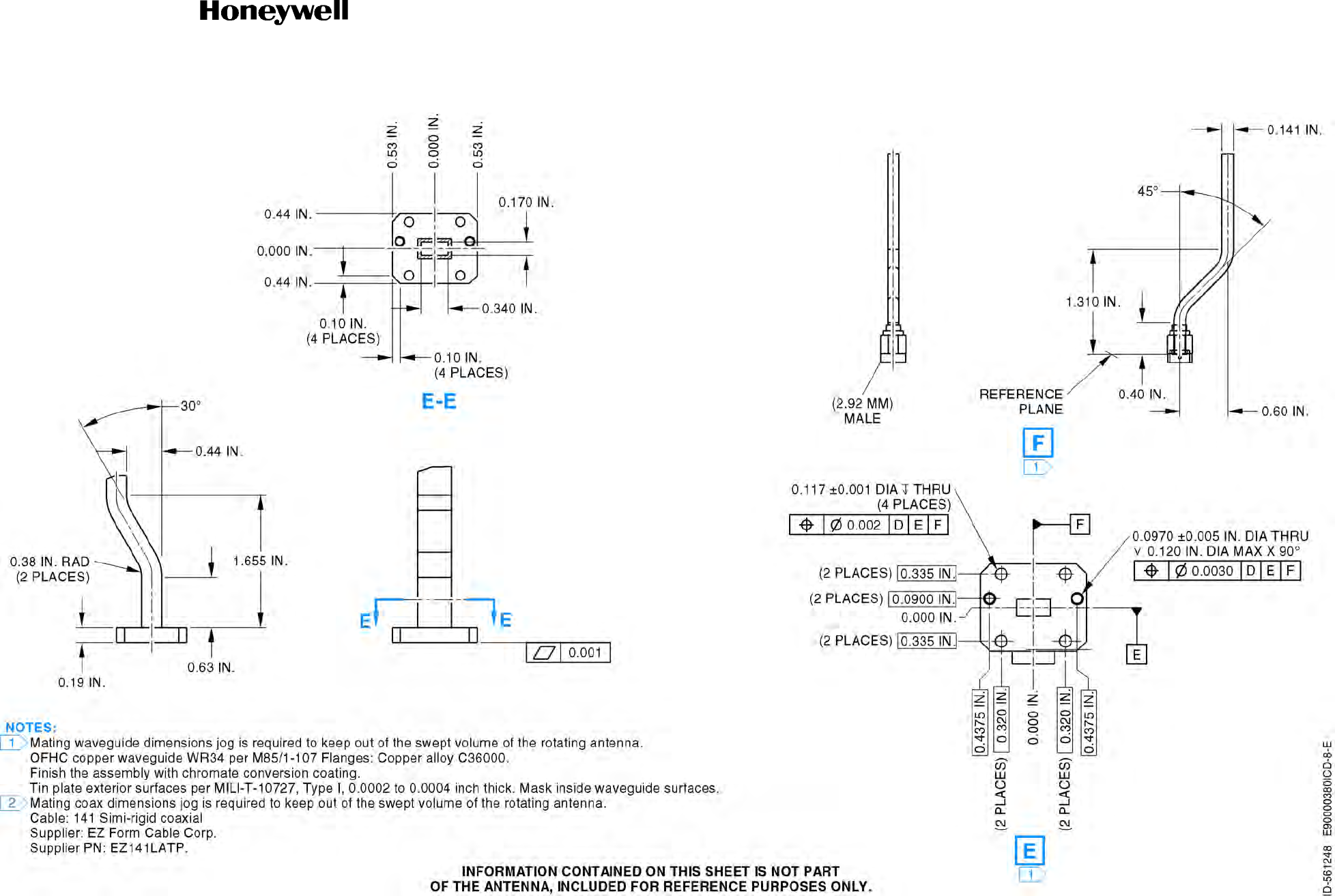

Figure 2-31. FMA Outline and Installation Drawing (Sheet 6 of 12)
![](/img.php?id=2844465&img=bg1a.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-96
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Blank Page
![](/img.php?id=2844465&img=bg1b.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-97
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Figure 2-31. FMA Outline and Installation Drawing (Sheet 7 of 12)
![](/img.php?id=2844465&img=bg1c.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-98
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Blank Page
![](/img.php?id=2844465&img=bg1d.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-99
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Figure 2-31. FMA Outline and Installation Drawing (Sheet 8 of 12)
![](/img.php?id=2844465&img=bg1e.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-100
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Blank Page
![](/img.php?id=2844465&img=bg1f.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-101
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Figure 2-31. FMA Outline and Installation Drawing (Sheet 9 of 12)
![](/img.php?id=2844465&img=bg20.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-102
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Blank Page
![](/img.php?id=2844465&img=bg21.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-103
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Figure 2-31. FMA Outline and Installation Drawing (Sheet 10 of 12)
![](/img.php?id=2844465&img=bg22.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-104
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Blank Page
![](/img.php?id=2844465&img=bg23.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-105
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29

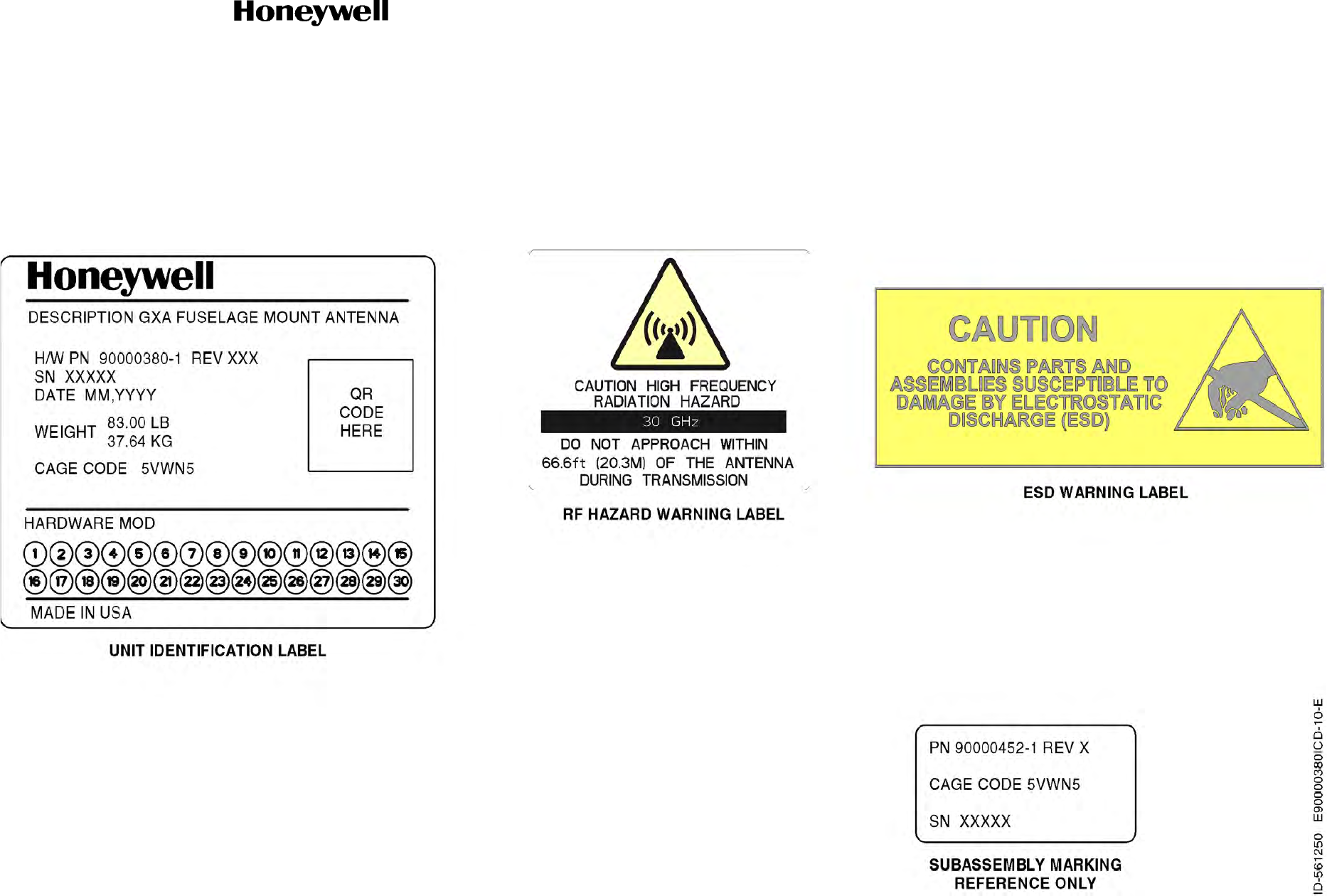

Figure 2-31. FMA Outline and Installation Drawing (Sheet 11 of 12)
![](/img.php?id=2844465&img=bg24.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-106
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Blank Page
![](/img.php?id=2844465&img=bg25.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-107
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29

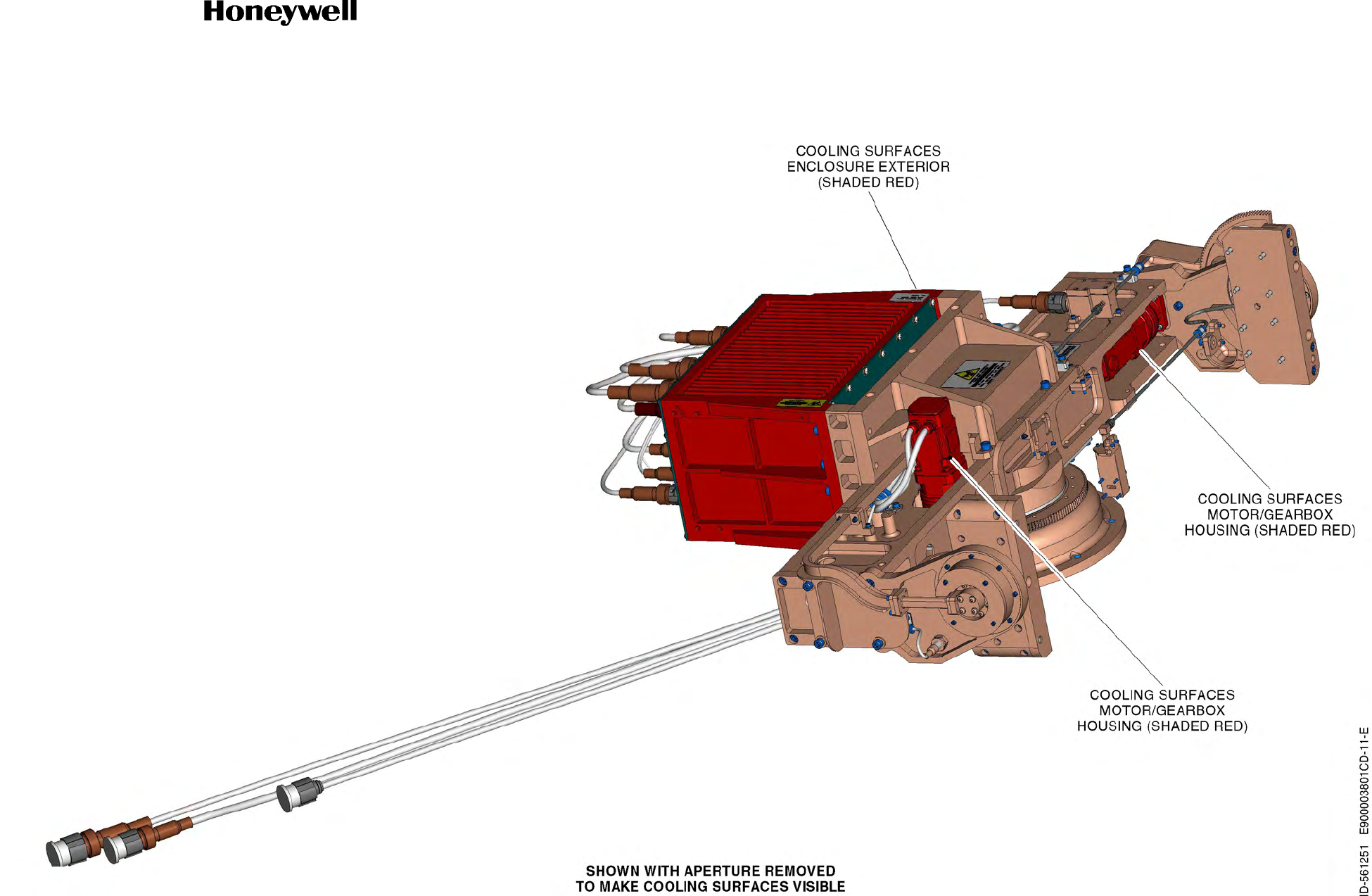

Figure 2-31. FMA Outline and Installation Drawing (Sheet 12 of 12)
![](/img.php?id=2844465&img=bg26.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-108
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Blank Page
![](/img.php?id=2844465&img=bg27.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-109
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29

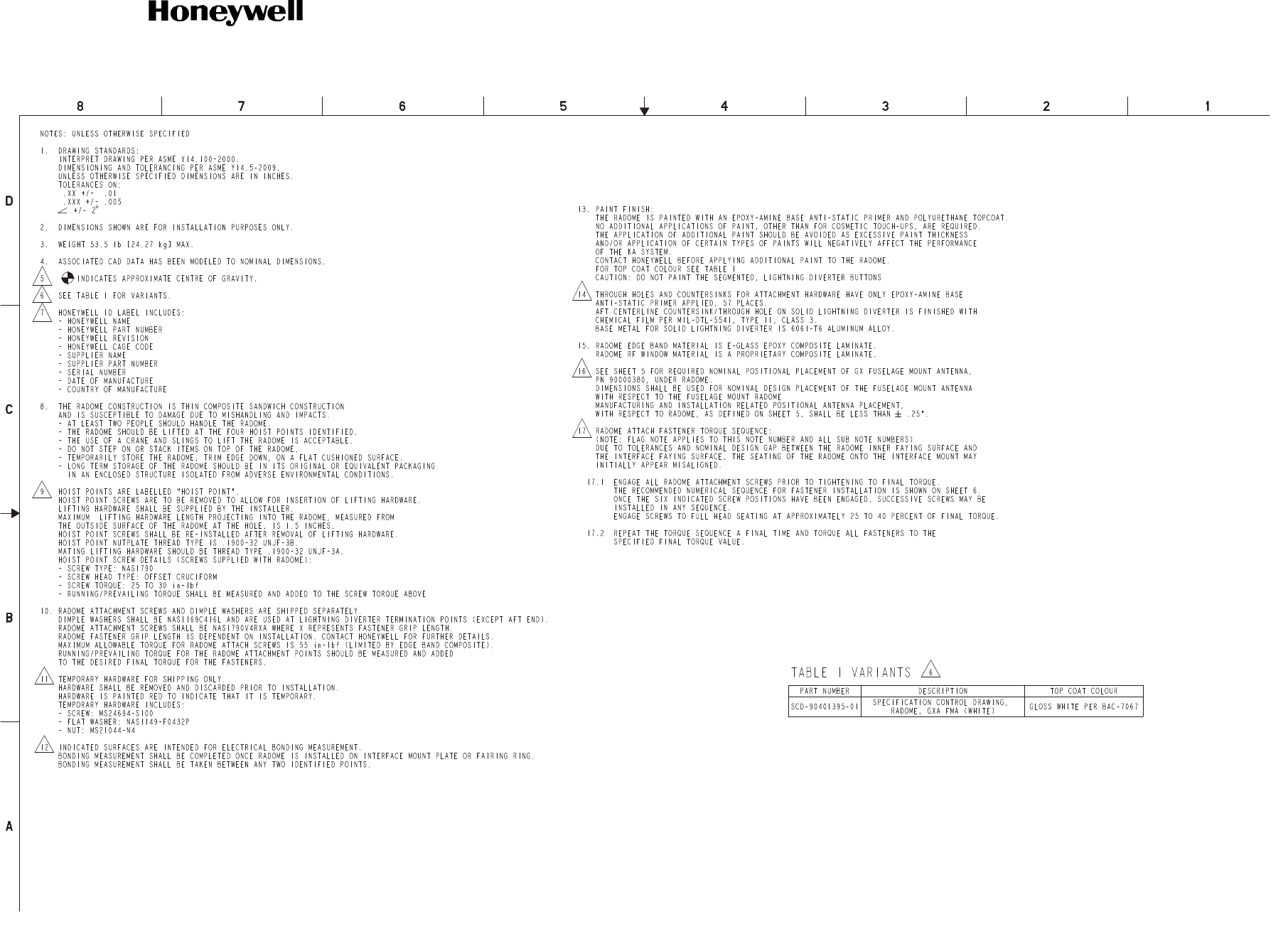

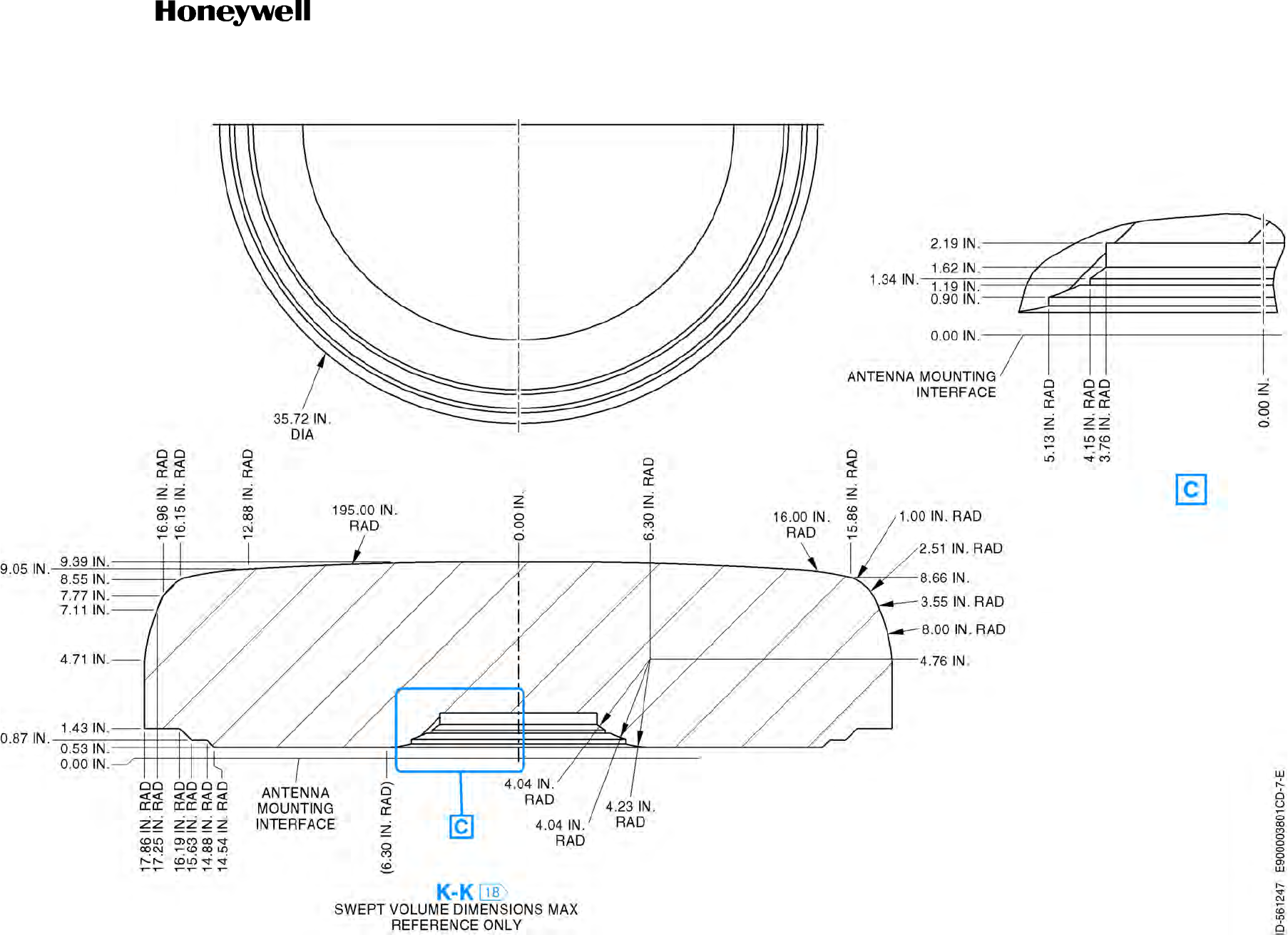

Figure 2-32. Fuselage Mount Radome Outline and Installation Drawing (Sheet 1 of 6)
EICD-90401395-1-B
![](/img.php?id=2844465&img=bg28.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-110
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Blank Page
![](/img.php?id=2844465&img=bg29.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-111
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29

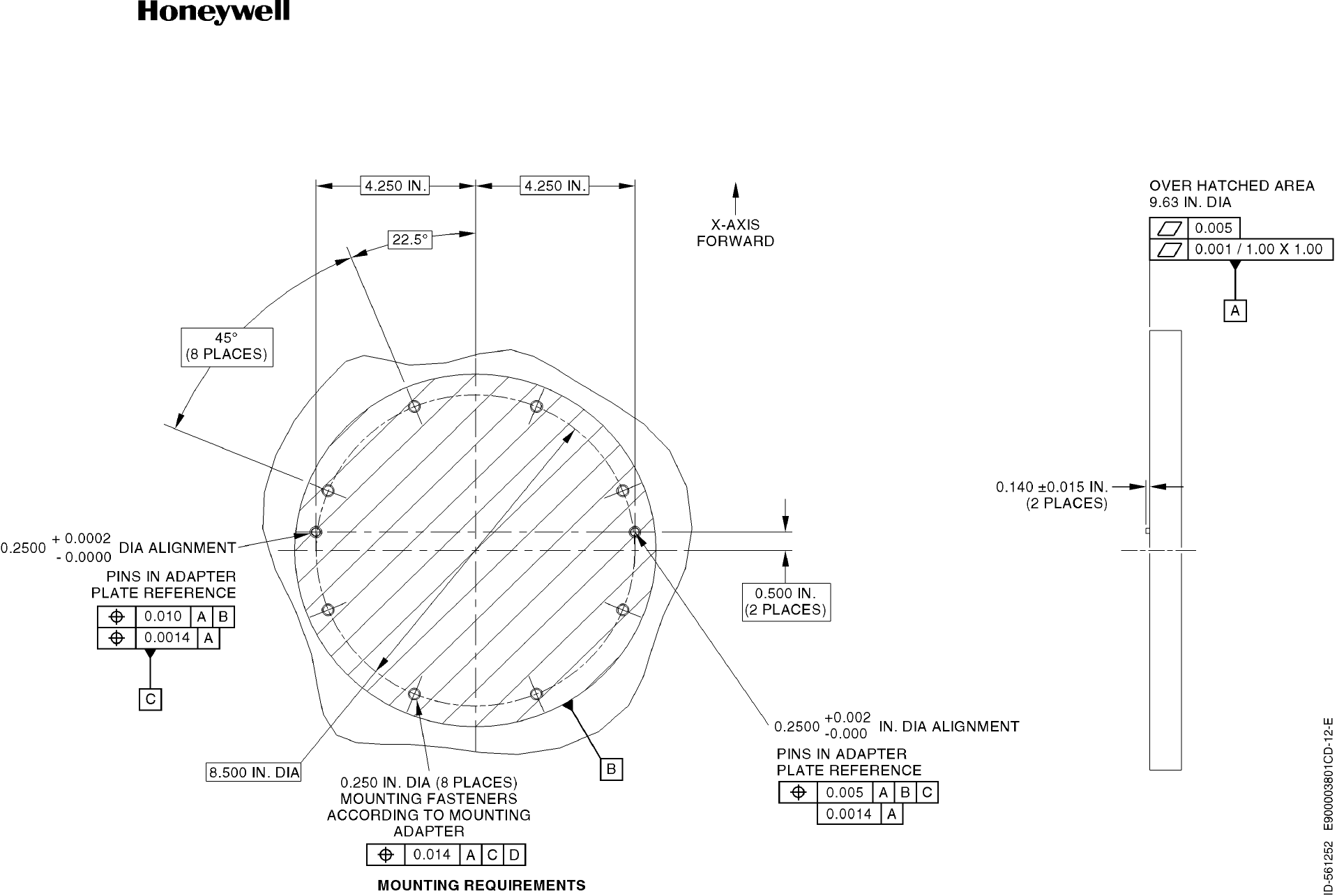

Figure 2-32. Fuselage Mount Radome Outline and Installation Drawing (Sheet 2 of 6)
EICD-90401395-2-B
![](/img.php?id=2844465&img=bg2a.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-112
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Blank Page
![](/img.php?id=2844465&img=bg2b.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-113
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29

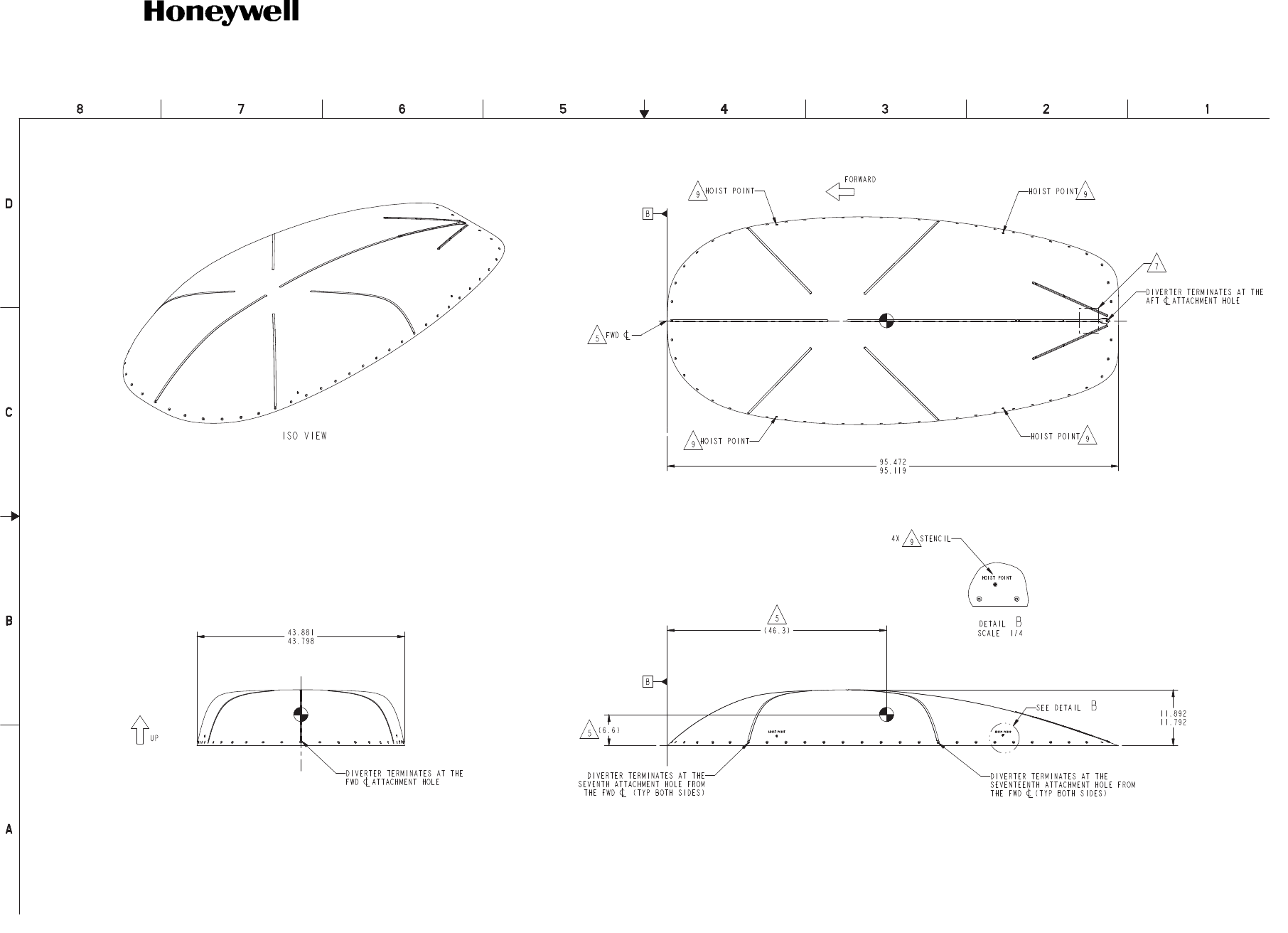

Figure 2-32. Fuselage Mount Radome Outline and Installation Drawing (Sheet 3 of 6)
EICD-90401395-3-B
![](/img.php?id=2844465&img=bg2c.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-114
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Blank Page
![](/img.php?id=2844465&img=bg2d.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-115
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29

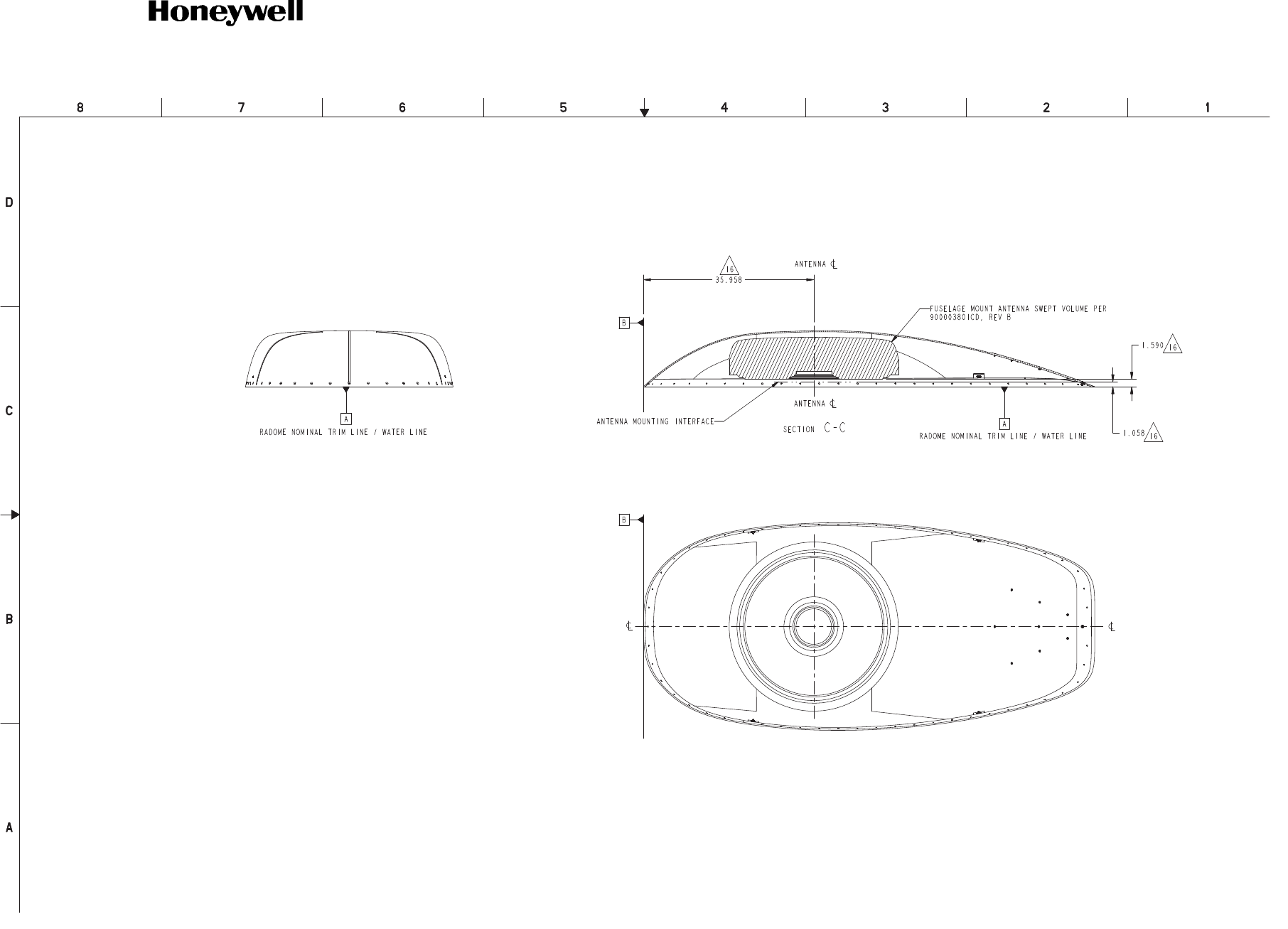

Figure 2-32. Fuselage Mount Radome Outline and Installation Drawing (Sheet 4 of 6)
EICD-90401395-4-B
![](/img.php?id=2844465&img=bg2e.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-116
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Blank Page
![](/img.php?id=2844465&img=bg2f.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-117
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29

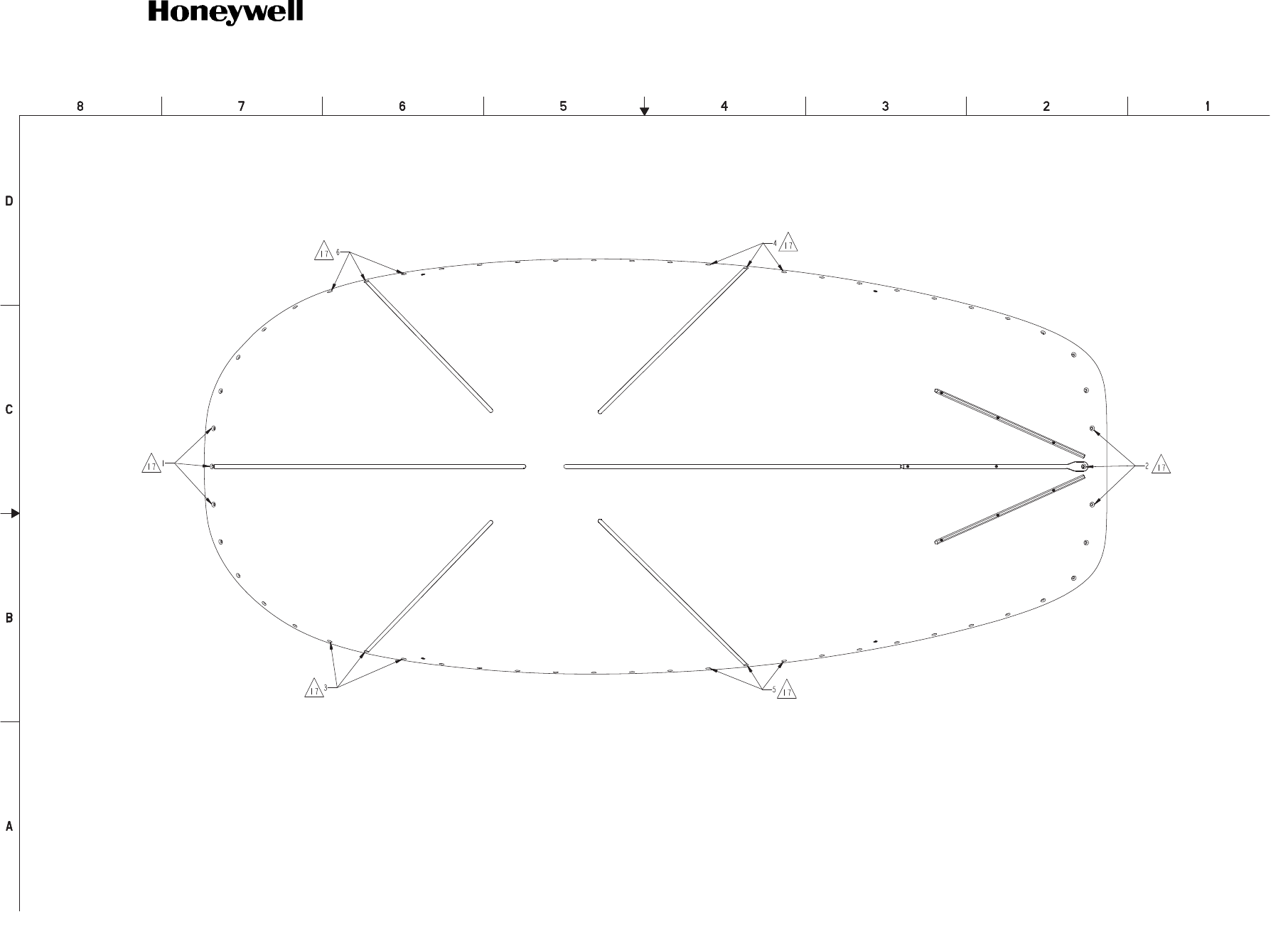

Figure 2-32. Fuselage Mount Radome Outline and Installation Drawing (Sheet 5 of 6)
EICD-90401395-5-B
![](/img.php?id=2844465&img=bg30.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-118
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Blank Page
![](/img.php?id=2844465&img=bg31.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-119
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29

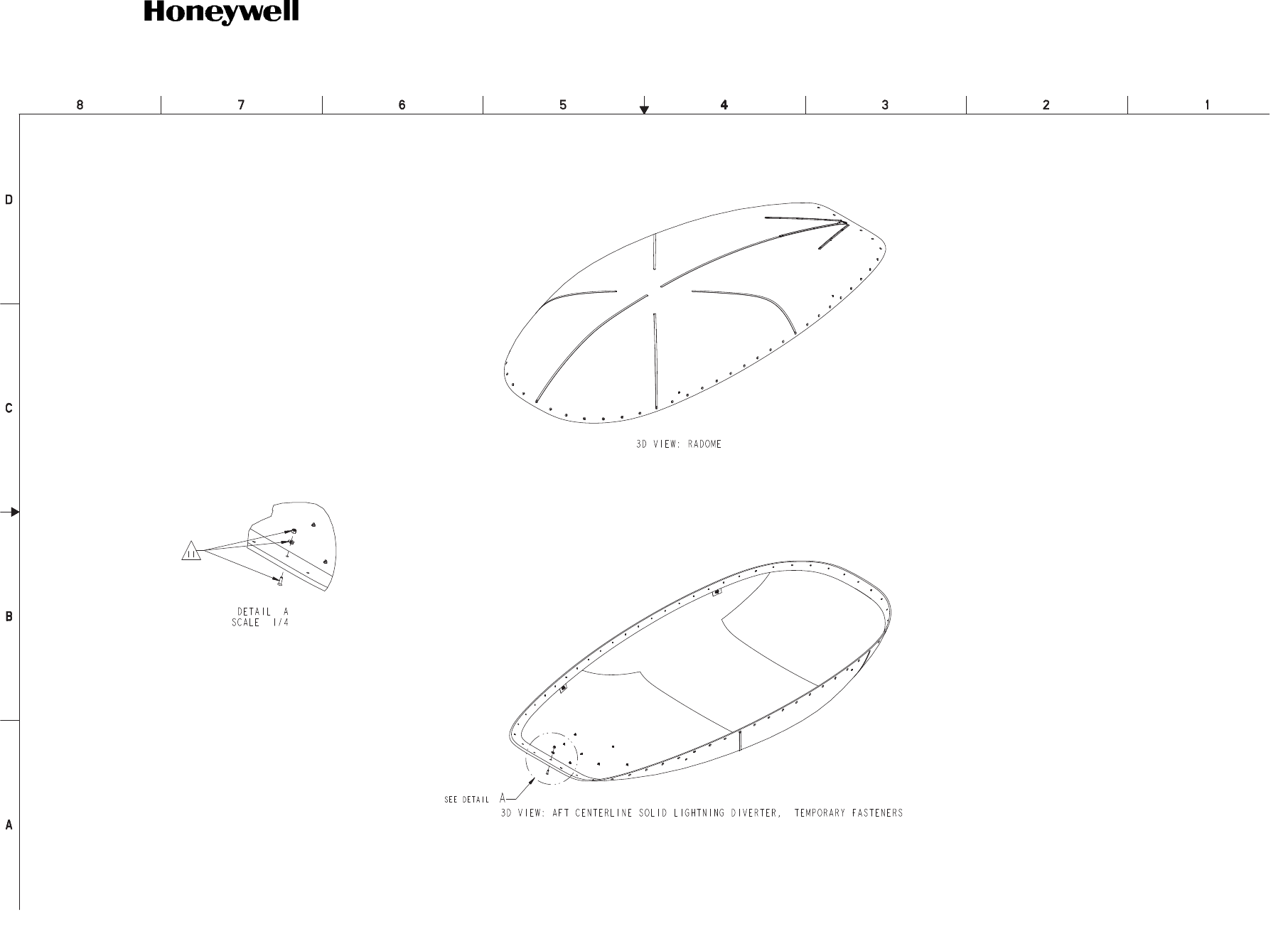

Figure 2-32. Fuselage Mount Radome Outline and Installation Drawing (Sheet 6 of 6)
EICD-90401395-6-B
![](/img.php?id=2844465&img=bg32.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-120
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Blank Page
![](/img.php?id=2844465&img=bg33.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-121
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29

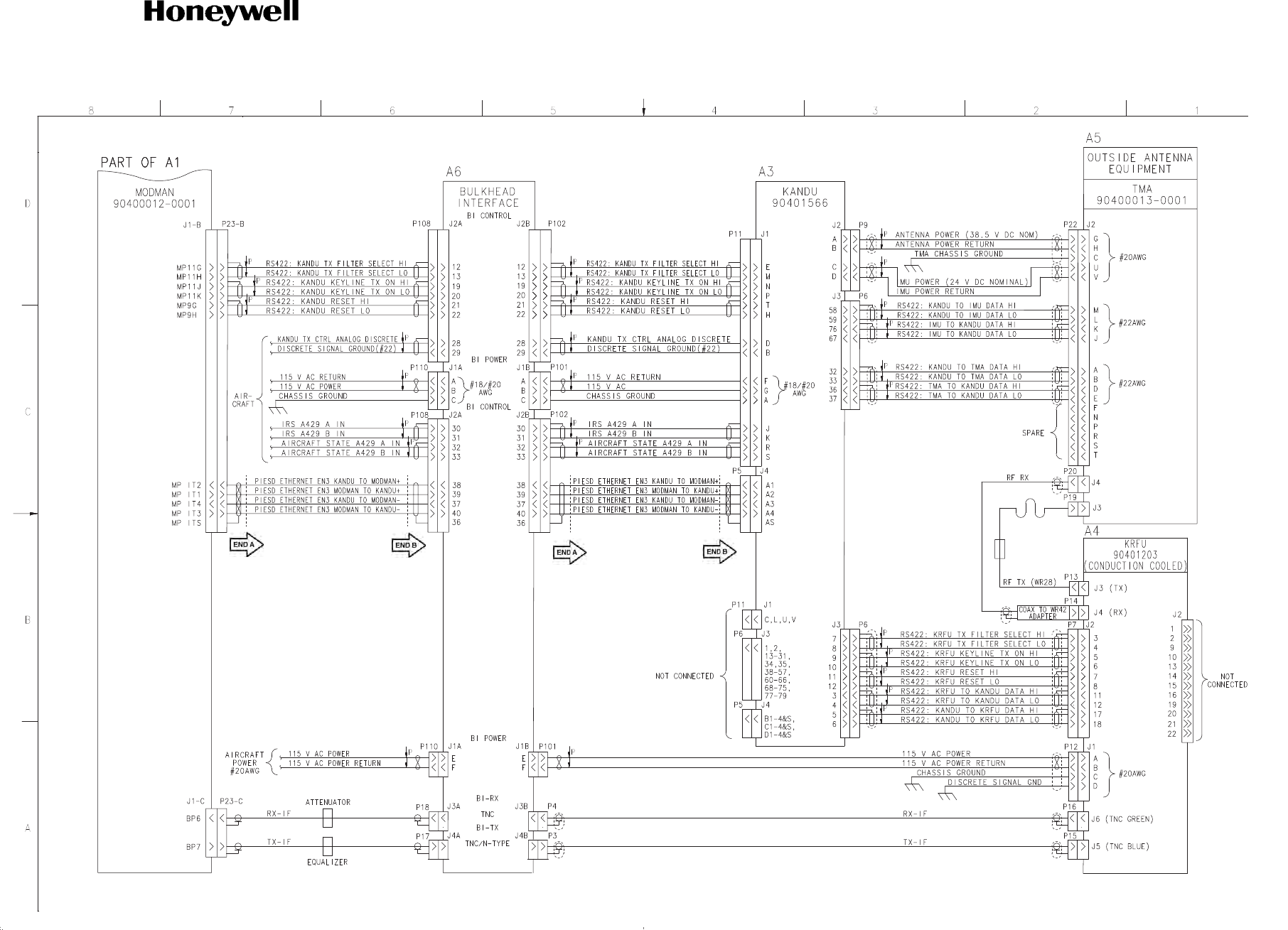

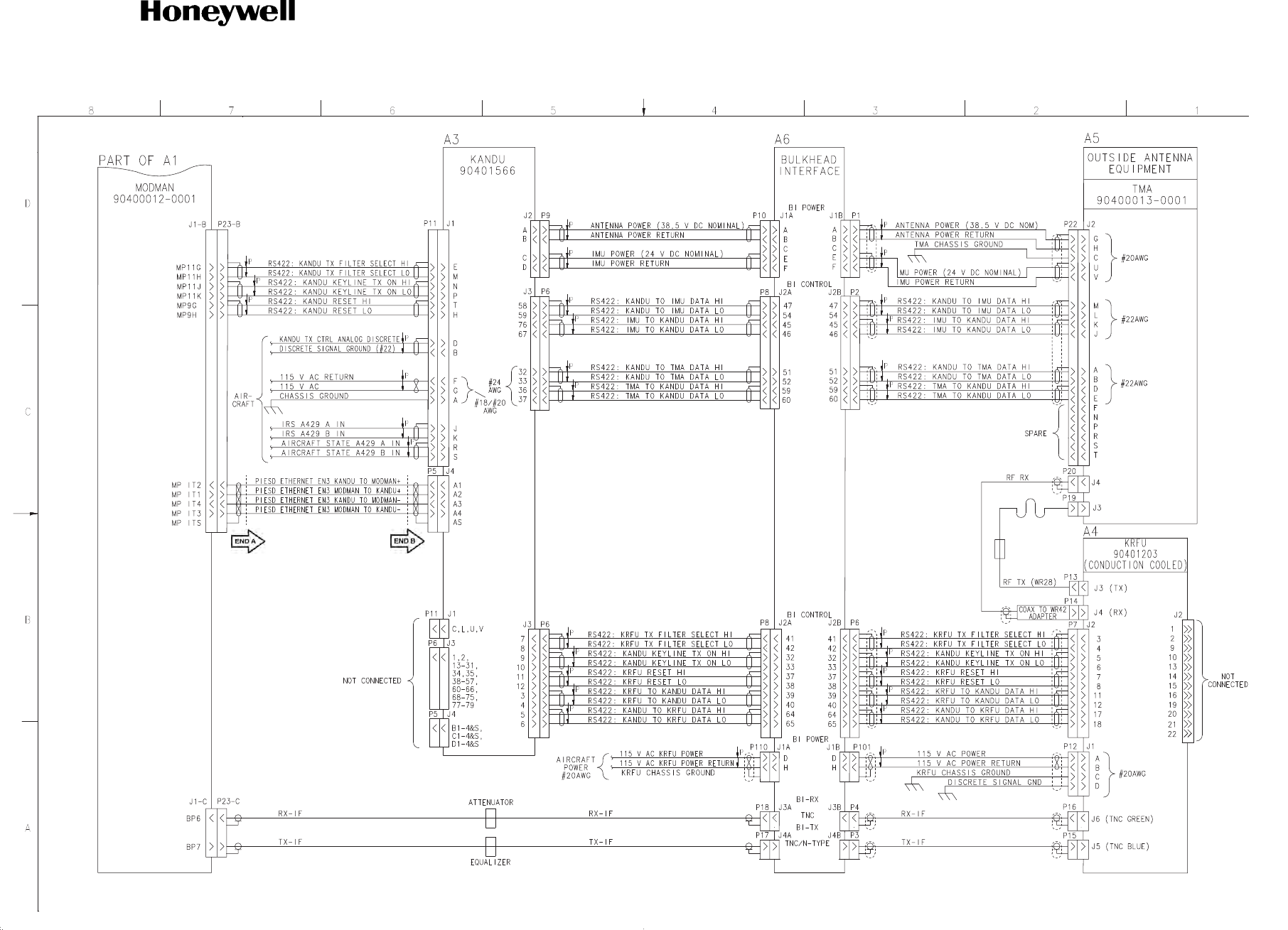

Figure 2-33. JetWave™ System Interconnect Diagram - TMA (Sheet 1 of 10)
DEVELOPMENT - Release - 24 Mar 2015 12:32:44 MST - Printed on 07 Apr 2015
E90400189-0001-1-C
![](/img.php?id=2844465&img=bg34.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-122
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Blank Page
![](/img.php?id=2844465&img=bg35.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-123
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29

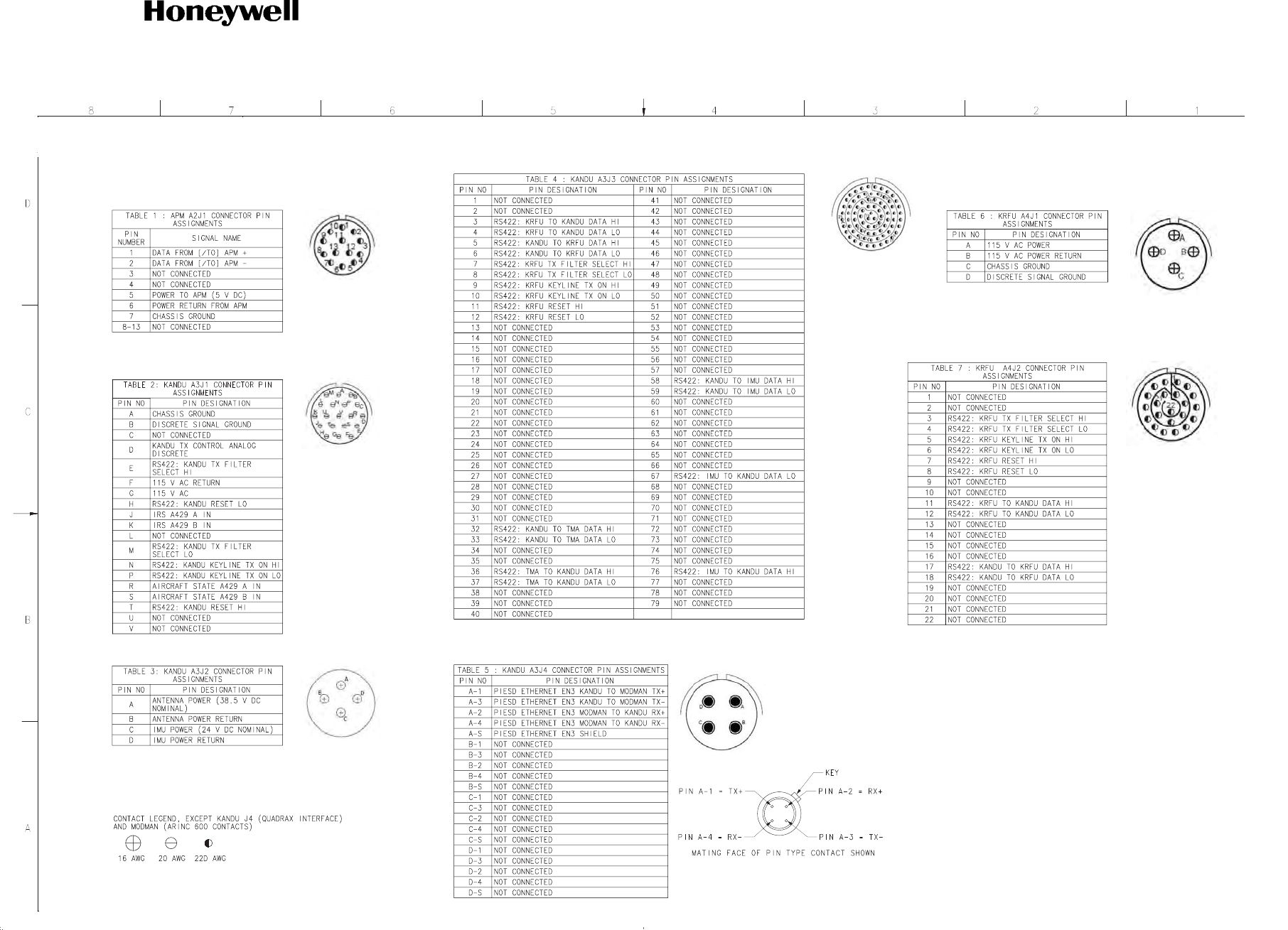

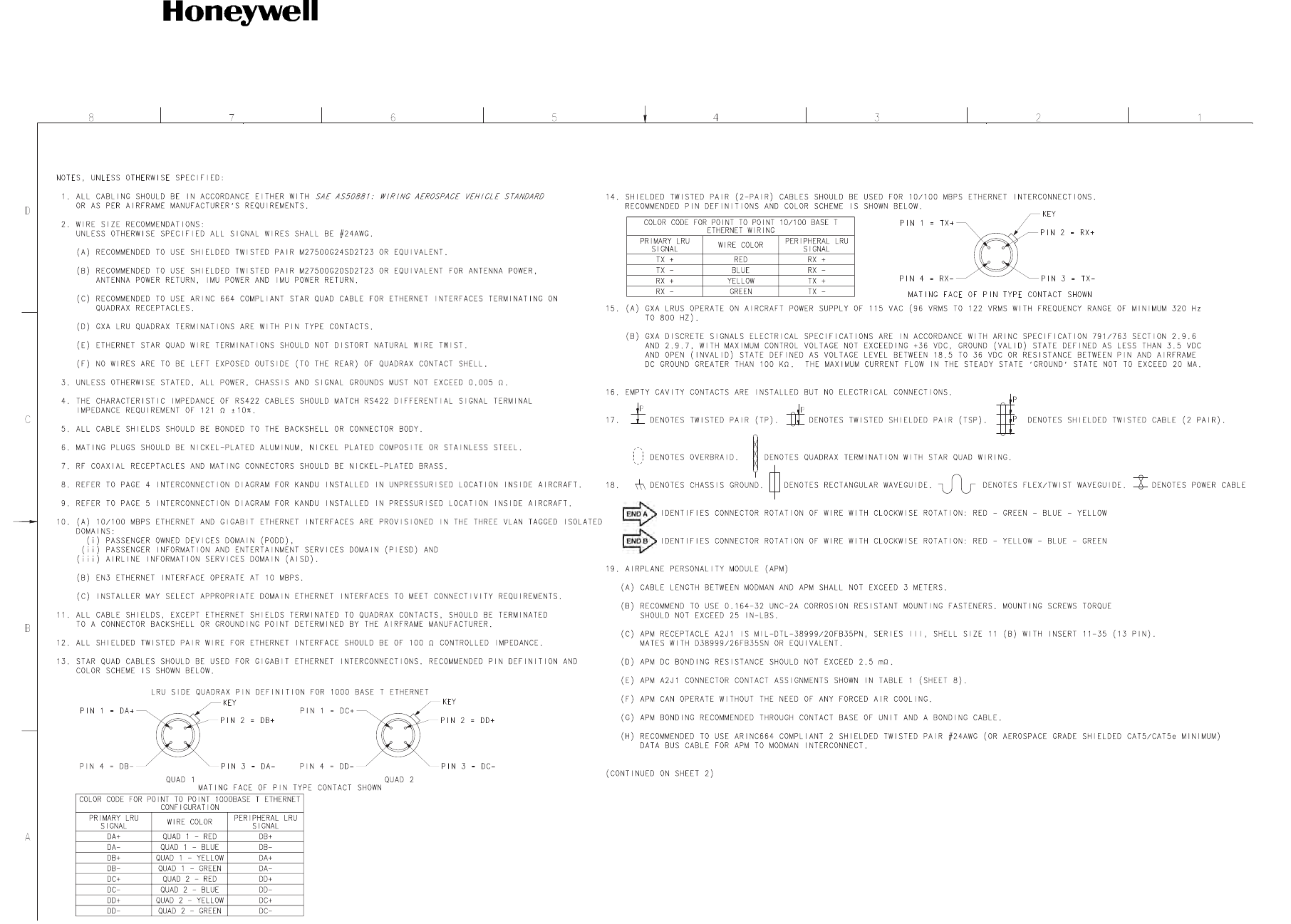

Figure 2-33. JetWave™ System Interconnect Diagram - TMA (Sheet 2 of 10)
E90400189-0001-2-C
![](/img.php?id=2844465&img=bg36.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-124
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Blank Page
![](/img.php?id=2844465&img=bg37.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-125
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29

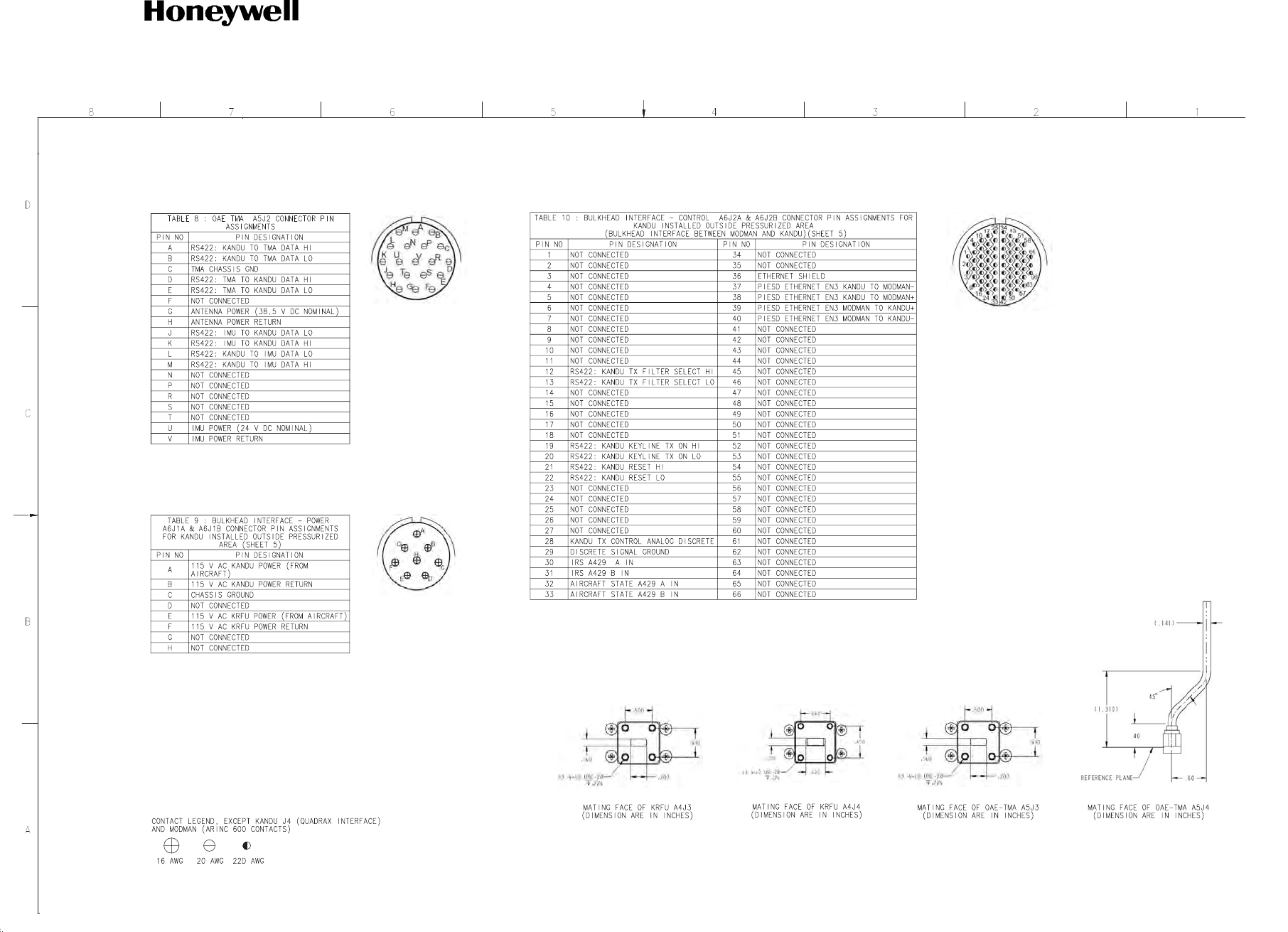

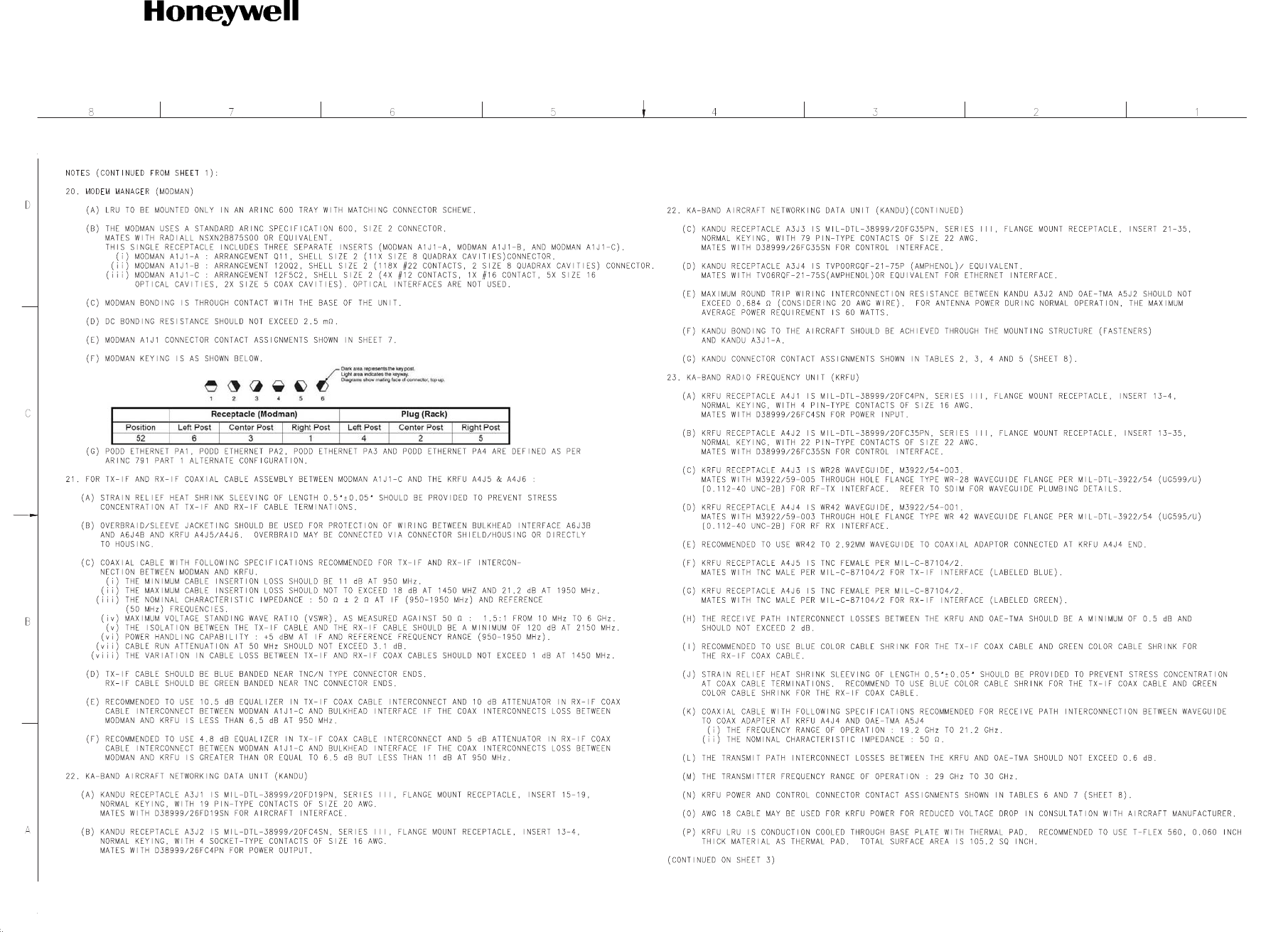

Figure 2-33. JetWave™ System Interconnect Diagram - TMA (Sheet 3 of 10)
E90400189-0001-3-C
![](/img.php?id=2844465&img=bg38.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-126
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Blank Page
![](/img.php?id=2844465&img=bg39.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-127
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29

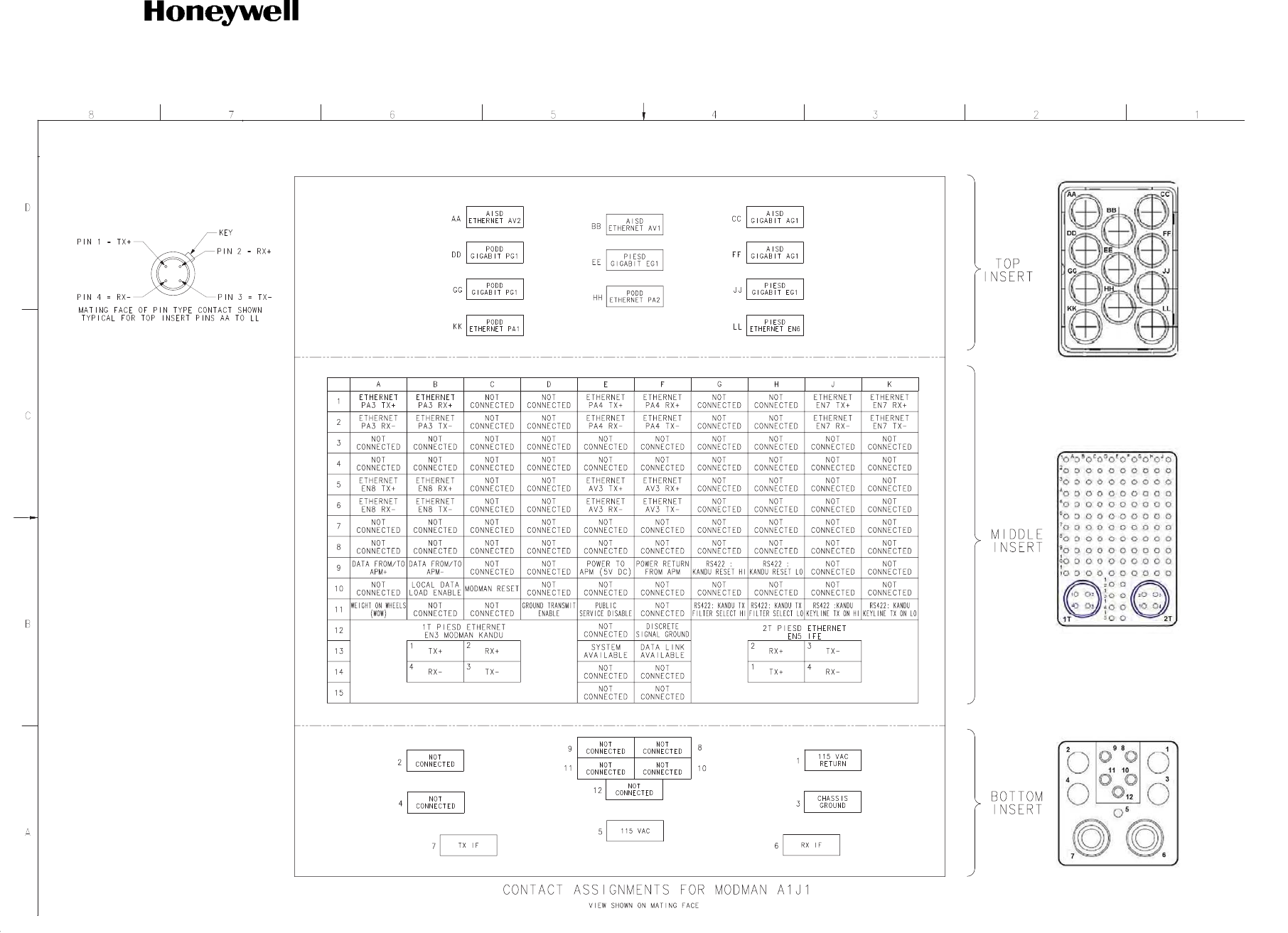

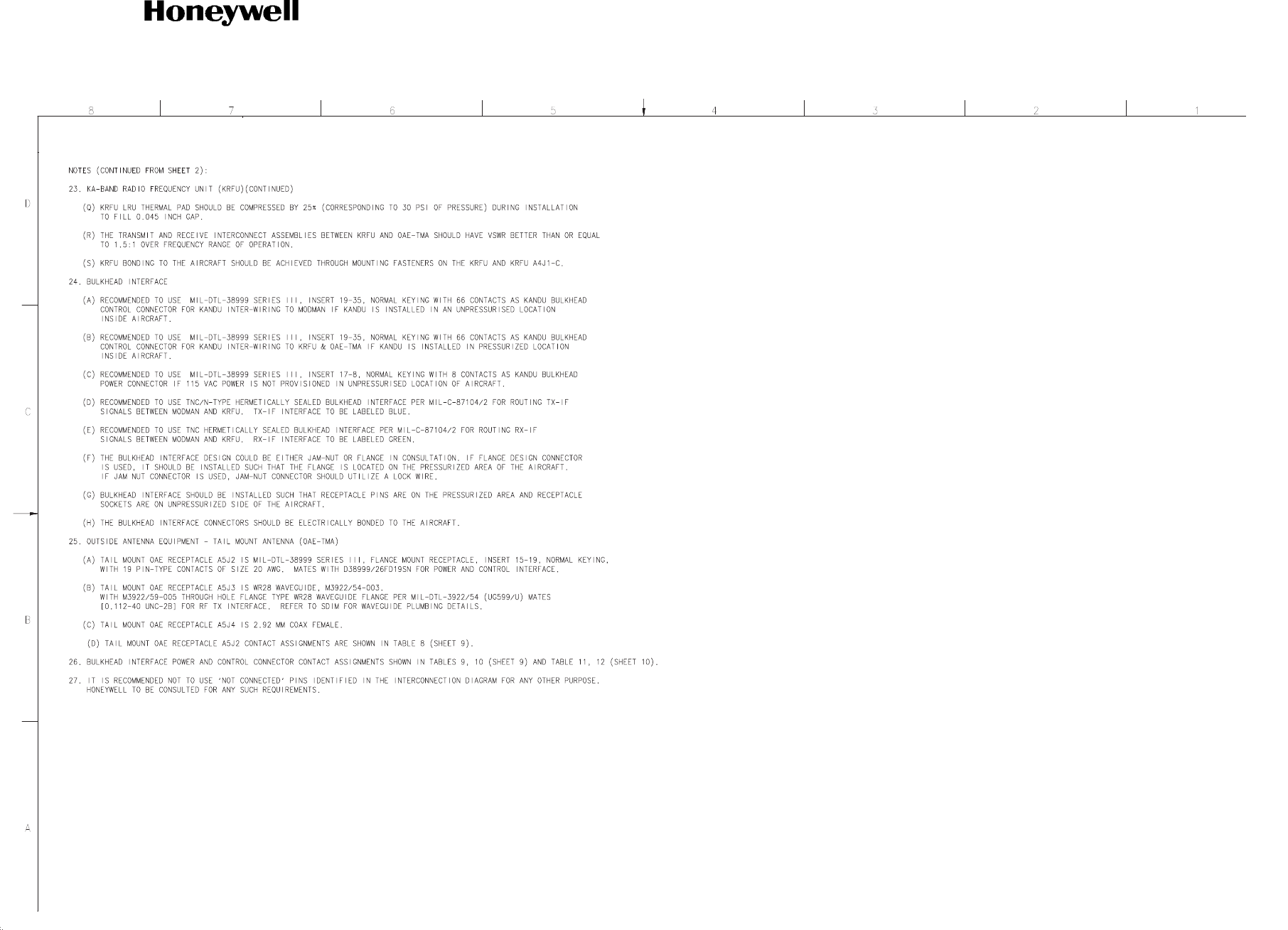

Figure 2-33. JetWave™ System Interconnect Diagram - TMA (Sheet 4 of 10)
E90400189-0001-4-C
![](/img.php?id=2844465&img=bg3a.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-128
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Blank Page
![](/img.php?id=2844465&img=bg3b.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-129
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29

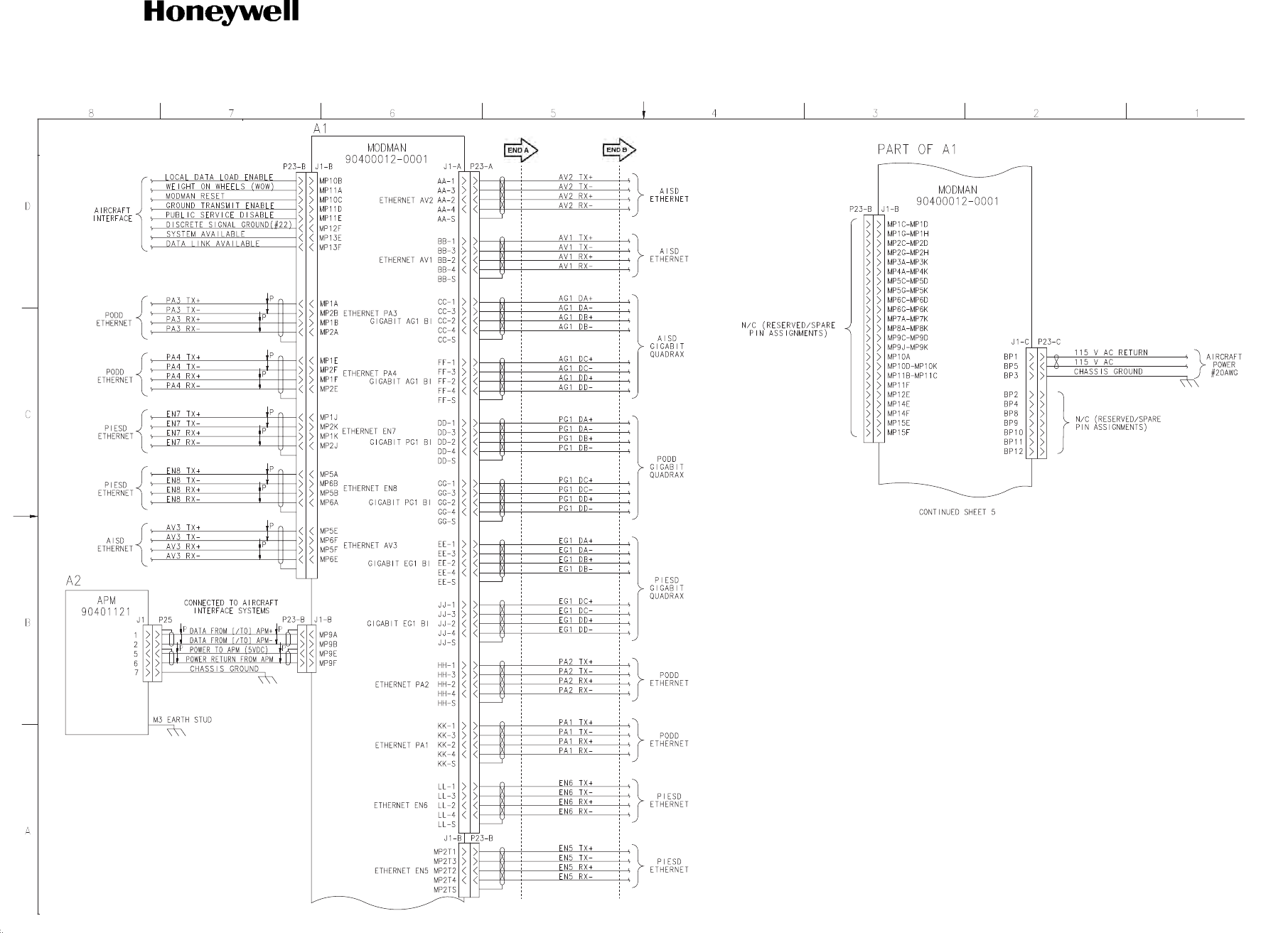

Figure 2-33. JetWave™ System Interconnect Diagram - TMA (Sheet 5 of 10)
E90400189-0001-5-C
![](/img.php?id=2844465&img=bg3c.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-130
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Blank Page
![](/img.php?id=2844465&img=bg3d.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-131
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Figure 2-33. JetWave™ System Interconnect Diagram - TMA (Sheet 6 of 10)
E90400189-0001-6-C
![](/img.php?id=2844465&img=bg3e.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-132
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Blank Page
![](/img.php?id=2844465&img=bg3f.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-133
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Figure 2-33. JetWave™ System Interconnect Diagram - TMA (Sheet 7 of 10)
E90400189-0001-7-C
![](/img.php?id=2844465&img=bg40.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-134
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Blank Page
![](/img.php?id=2844465&img=bg41.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-135
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Figure 2-33. JetWave™ System Interconnect Diagram - TMA (Sheet 8 of 10)
E90400189-0001-8-C
![](/img.php?id=2844465&img=bg42.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-136
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Blank Page
![](/img.php?id=2844465&img=bg43.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-137
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Figure 2-33. JetWave™ System Interconnect Diagram - TMA (Sheet 9 of 10)
E90400189-0001-9-C
![](/img.php?id=2844465&img=bg44.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-138
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Blank Page
![](/img.php?id=2844465&img=bg45.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-139
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Figure 2-33. JetWave™ System Interconnect Diagram - TMA (Sheet 10 of 10)
E90400189-0001-10-C
![](/img.php?id=2844465&img=bg46.png)
SYSTEM DESCRIPTION AND INSTALLATION MANUAL
JetWave™ System
Page 2-140
16 Sep 2015
© Honeywell International Inc. Do not copy without express permission of Honeywell.
23-15-29
Blank Page
