ENTERMEDIA HARMONY Personal Karaoke User Manual

ENTERTECH CO., LTD. Personal Karaoke

User Manual

(User’s Manual is Inside)How to InstallHow to Connect with TVHow to connect with TV and the Stereo

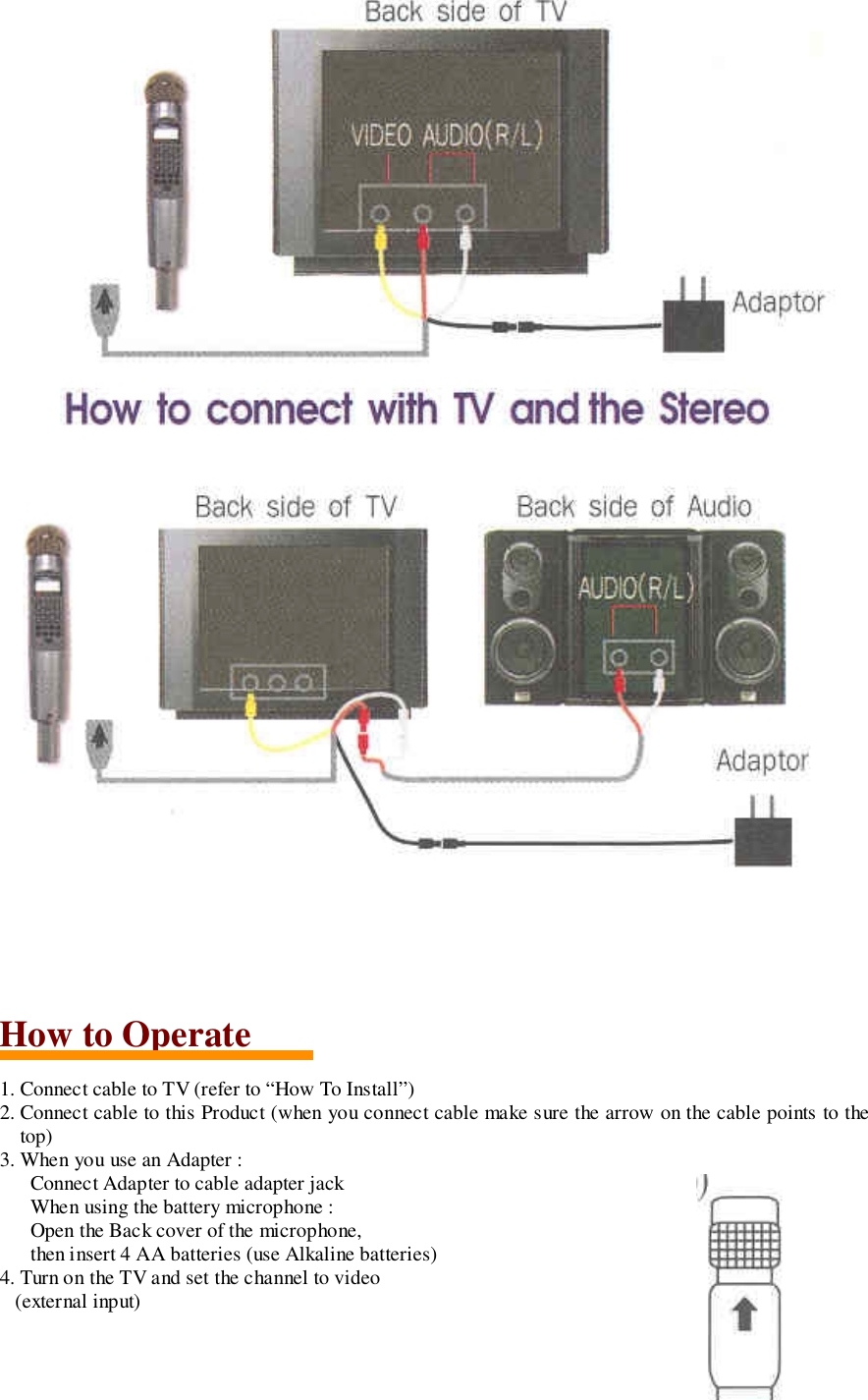

How to Operate1. Connect cable to TV (refer to “How To Install”)2. Connect cable to this Product (when you connect cable make sure the arrow on the cable points to thetop)3. When you use an Adapter :Connect Adapter to cable adapter jackWhen using the battery microphone :Open the Back cover of the microphone,then insert 4 AA batteries (use Alkaline batteries)4. Turn on the TV and set the channel to video   (external input)

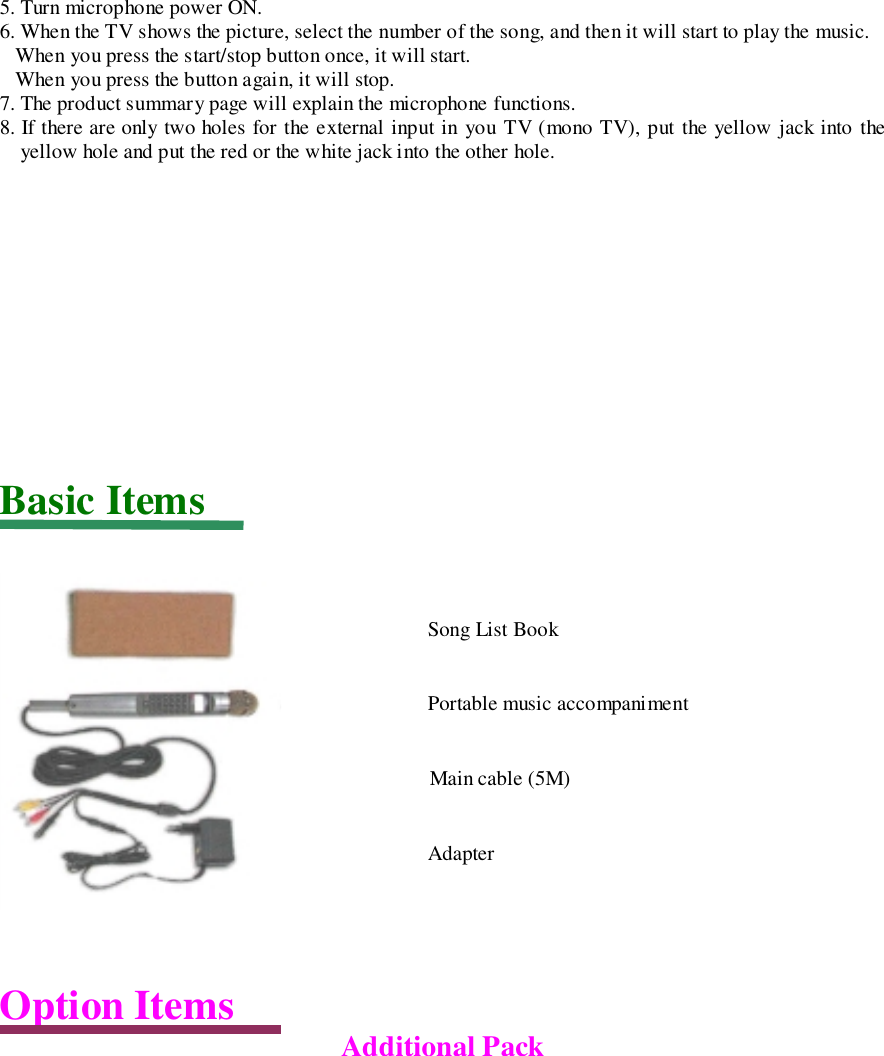

5. Turn microphone power ON.6. When the TV shows the picture, select the number of the song, and then it will start to play the music.   When you press the start/stop button once, it will start.   When you press the button again, it will stop.7. The product summary page will explain the microphone functions.8. If there are only two holes for the external input in you TV (mono TV), put the yellow jack into theyellow hole and put the red or the white jack into the other hole.Basic ItemsOption Items Additional PackSong List BookPortable music accompanimentMain cable (5M)Adapter
PRODUCT SUMMARY1. LCD display will show song selection number with the function icon.
2. / Up / Down button :When you press the up/down button, the song list will show on the screen.It is used to select the microphone, key, tempo, echo, and music sound, picture, musical instrumentchange and value.3.  MIC  Microphone adjustmentThis button is also used to adjust the volume of the microphone.4.  RAN  RandomIt is used to select a song at random.5.  F M  FM radio channel set-upPress the FM key once, the LCD will show FM 106.3 and the TV monitor will show 106.3.Press the FM key twice, the LCD will show FM 106.7 and TV monitor will show 106.7.Press the FM key three times, the LCD will show FM 107.1 and TV monitor will show 107.1.  Press the FM key four times, the LCD will show FM 107.5 and TV monitor will show 107.5.  Press the FM key five times, this will remove the LCD FM icon and will show OFF on the TV monitorSet your FM Radio channel according to the LCD and the TV monitor.6.  MUS  MusicIt is used to adjust the volume of the music by pressing the up/down button.The LCD will display the number ( 0-15 ) and the bar graphics.7.  TMP  TempoIt is used to adjust the tempo of the music by the up/down button. The LCD will show (-07 ~ +08 )beginning with the value(00) and a bar graphic on the TV monitor.8.  RES  ReservationIt is used to pre-select the song. Select the song number first, then press the reservation key (canreserve up to 10 songs).9.  KEY  Key  It is used to adjust the vocal tone by pressing the up/down button.  The LCD will display the numbers (-06 ~ +06) beginning value(00) and a bar graphic on the TVmonitor.10.     HoldDuring the performance, pressing the HOLD button will temporarily stop the music, pressing it againwill resume the performance.11.  MODE  Mode  Press this function change key, and then select a number(1-10-0). MODE ++  1   Score on/off                 Pressing it once will show the score ON to your TV monitor                   and at the end of song, it will show the score.                   If no need for your score, press again to remove it. The score will                   Show how well the tempo was kept.
 MODE ++  2   Reservation Save               After you reserve the favorite songs by using #8 of the reservation               Function key, press the Mode key +2 to show it on the TV monitor :               1. Save reserved song  2. Remove reserved song  3. Play the reserved song  4. The End iconwill show.               Ending, if you press #1 & #4, the song will be saved. Even if the Power is off, the song staysin the system. To play the saved song, press the Mode key +2 & 3 for recall, then 4.               • It can be saved up to 20 songs by the Reservation function. MODE ++  3   Wireless Sub-microphone              Designed  for  the  additional  microphone.  Please  refer  to  the  wireless  Sub-microphoneSummary Sheet for details in this book. MODE ++  4   Language selection              Select the language that you desire, the message will change automatically. MODE ++  5   Echo Volume              The volume can be adjusted by using the up/down button. The basic echo is set for 10 at thebeginning. MODE ++  6   Melody ON/OFF              The song will start to play with the Melody OFF, without melody.              When it is turn ON, it will play with the melody. MODE ++  7   Game              The team will be divided into group A & B. When press the start button, the game will startwith the music randomly selected.              To stop the game, press the random button. MODE ++  8   Continuous Play              With this mode, the songs will be played automatically in sequence of the selections made. MODE ++  9   Manual Display                This  function  will  allow  you  to  select  the  picture  you  desire  with  manual  adjustment.  Bypressing the up/down button for 3 seconds the picture will change. If longer then the 3seconds, it will switch to the automatic feature.  MODE ++  0   Musical Instrument Change                You can select the desired instrument by pressing the up/down button.13.      PLAY/STOP   Select the song and press the play button. If you press it again, it will stop during the play.

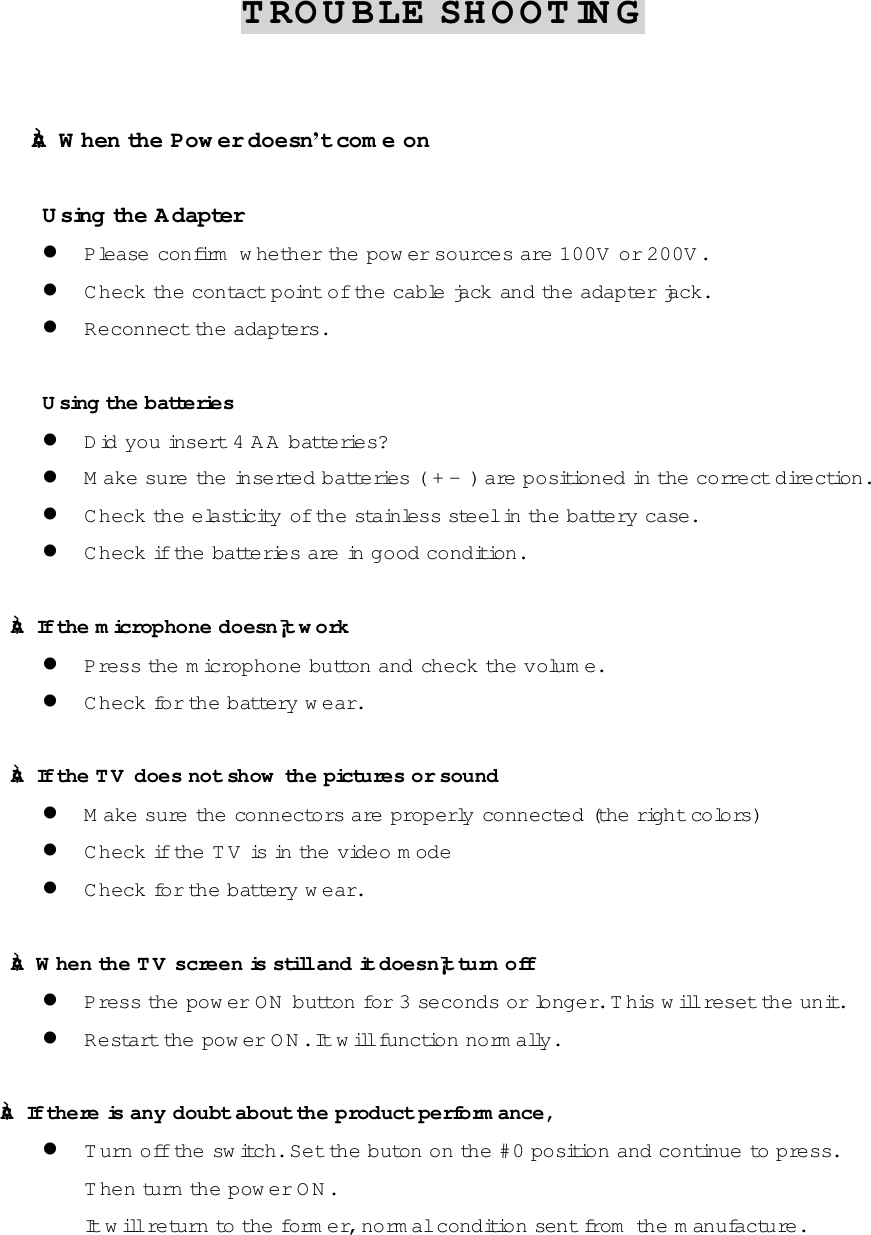

TROUBLE SHOOTING      ¢À When the Pow er doesn’t com e on      Using the Adapter ! Please confirm  w hether the pow er sources are 100V or 200V . ! C heck the contact point of the cable jack and the adapter jack. ! Reconnect the adapters.      Using th e  b a tte ries ! Did you insert 4 AA batteries? ! M ake sure the inserted batteries ( + -  ) a re  positioned in th e  c o rre ct dire c tion. ! C heck the elasticity  o f th e  s ta inless steel in the battery case. ! C heck if th e  b a tte ries are in good condition.  ¢À If th e  microphone doesn¡¯t w o rk  ! Press the m icrophone button and check th e  volum e. ! C heck for the battery wear.  ¢À If th e  T V  does not show  the pictures or sound ! M ake sure the connectors are properly connected (the right colors) ! C heck if th e  T V  is in the video m ode ! C heck for the battery wear.  ¢À  W h e n  th e  T V  screen is still and it doesn¡¯t tu rn  off ! Press the pow er O N  button for 3 seconds or longer. This w ill reset the unit. ! R e s ta rt th e  p o w e r O N . It w ill function norm ally.  ¢À If there is any doubt about the product perform ance, ! T u rn  o ff th e  s w itch. Set the buton o n  th e  # 0  p o s ition and continue to press. T h e n  tu rn  th e  p o w e r O N . It will re tu rn  to  th e  form er, norm al condition sent from  the m anufacture.

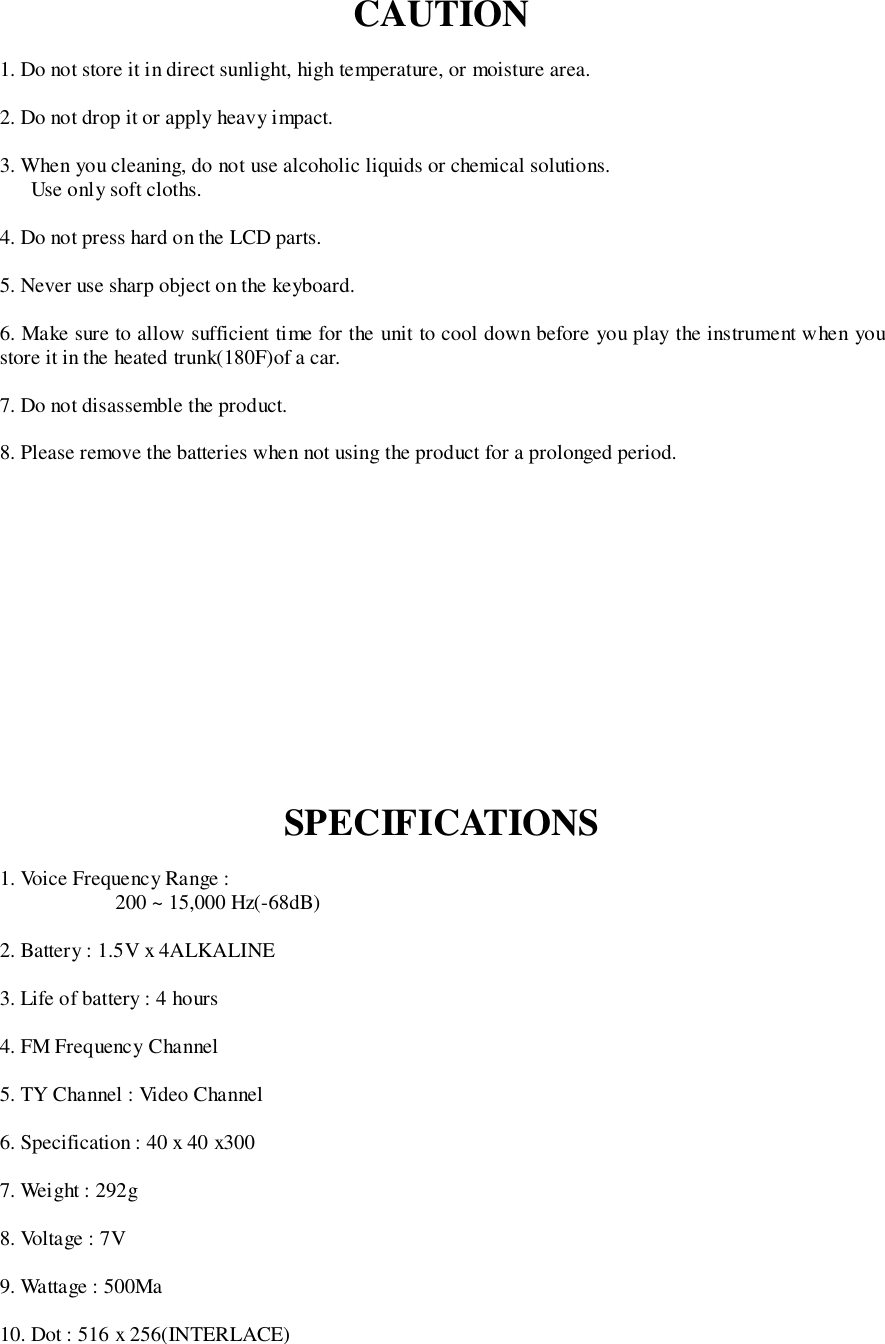

CAUTION1. Do not store it in direct sunlight, high temperature, or moisture area.2. Do not drop it or apply heavy impact.3. When you cleaning, do not use alcoholic liquids or chemical solutions.Use only soft cloths.4. Do not press hard on the LCD parts.5. Never use sharp object on the keyboard.6. Make sure to allow sufficient time for the unit to cool down before you play the instrument when youstore it in the heated trunk(180F)of a car.7. Do not disassemble the product.8. Please remove the batteries when not using the product for a prolonged period.SPECIFICATIONS1. Voice Frequency Range :200 ~ 15,000 Hz(-68dB)2. Battery : 1.5V x 4ALKALINE3. Life of battery : 4 hours4. FM Frequency Channel5. TY Channel : Video Channel6. Specification : 40 x 40 x3007. Weight : 292g8. Voltage : 7V9. Wattage : 500Ma10. Dot : 516 x 256(INTERLACE)
11. Image Color INDEX 256Color12. Overflow Protection Circuit for Reverse Voltage13. Operation temperature :                    -20°C+65°CHOW TO SET UP THE SONG PACK(OPTION)HOW TO ADD THE SONG LIST1. Πρεσσ τηε βυττον ον τηε τοπ οφ τηε χοϖερ ανδ πυλλ δοων τηε βυττον οφ τηε χοϖερ οφ τηε βαχκοφ τηε µιχροπηονε.2. Αφτερ ψου τυρν οφφ τηε ποωερ, πλαχε τηε σονγ παχκ ασσηοων  (τηε αρροω ποιντσ τοπ ποσιτιον).3.  α)  Ματχη  τηε  βοττοµ  οφ  τηε  χοϖερ ωιτη  τηατ  οφ  τηεµιχροπηονε βψ υσινγ τηε ριγητ ηανδ.   β)  Χλοσε  τηε  χοϖερ  πυσηινγ  σλιγητλψ  ον  τοπ  οφ  τηεµιχροπηονε.; Ηοω το ρεµοϖε τηε χαβλε :Βρινγ δοων τηε ταβ ανδ πυλλ ιτ το σεπαρατε τηε χαβλε.∆ο νοτ πυλλ τηε χαβλε αλονγ.1. Πρεσσ τηε ταβ ον τηε τοπ οφ τηε βινδερ.2. Πλαχε  α  νεω  σονγ  λιστ  βετωεεν  τηε  βινδερρινγσ.

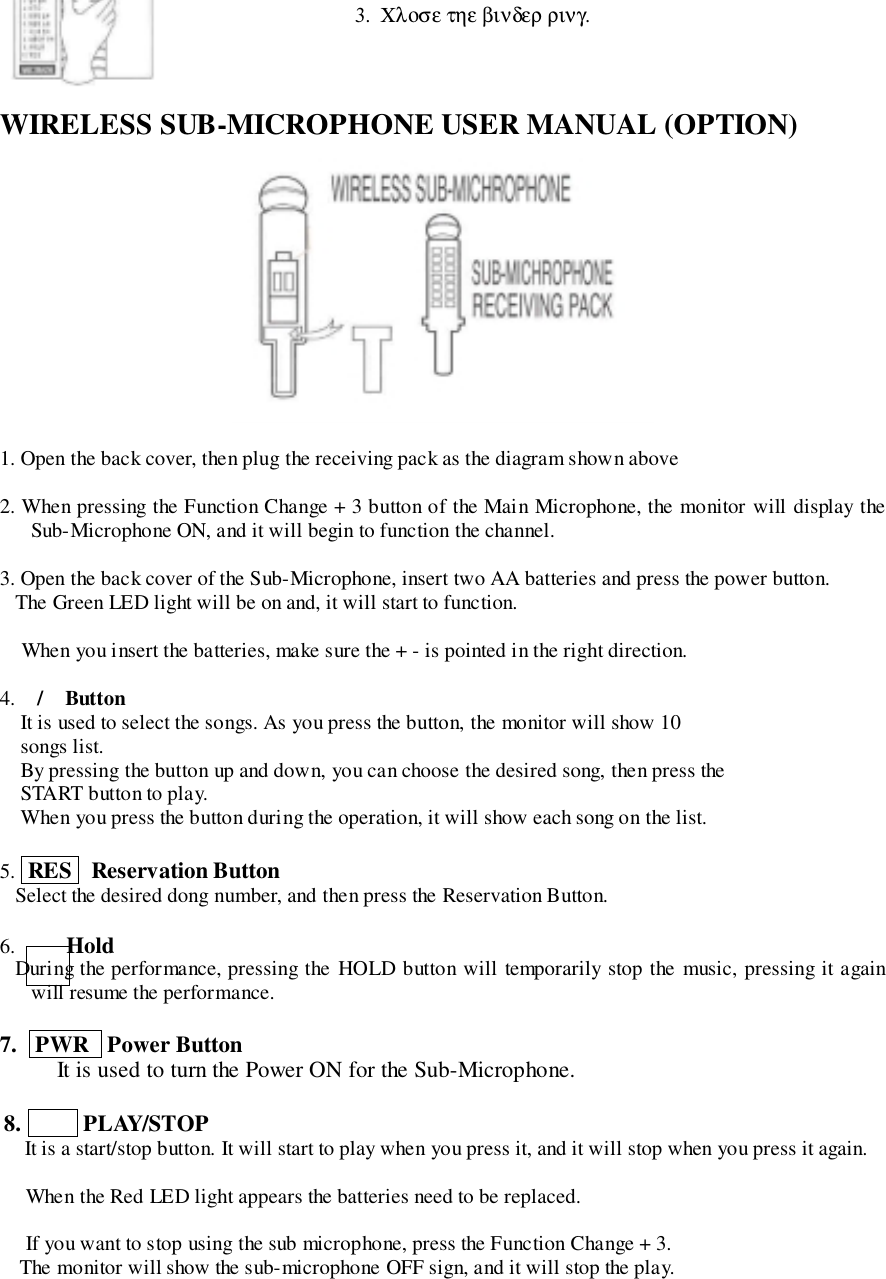

WIRELESS SUB-MICROPHONE USER MANUAL (OPTION)1. Open the back cover, then plug the receiving pack as the diagram shown above2. When pressing the Function Change + 3 button of the Main Microphone, the monitor will display theSub-Microphone ON, and it will begin to function the channel.3. Open the back cover of the Sub-Microphone, insert two AA batteries and press the power button.   The Green LED light will be on and, it will start to function. When you insert the batteries, make sure the + - is pointed in the right direction.4. / ButtonIt is used to select the songs. As you press the button, the monitor will show 10songs list.By pressing the button up and down, you can choose the desired song, then press theSTART button to play.When you press the button during the operation, it will show each song on the list.5.  RES   Reservation Button   Select the desired dong number, and then press the Reservation Button.6.   Hold   During the performance, pressing the HOLD button will temporarily stop the music, pressing it againwill resume the performance.7.   PWR   Power ButtonIt is used to turn the Power ON for the Sub-Microphone.8.     PLAY/STOP    It is a start/stop button. It will start to play when you press it, and it will stop when you press it again. When the Red LED light appears the batteries need to be replaced. If you want to stop using the sub microphone, press the Function Change + 3.   The monitor will show the sub-microphone OFF sign, and it will stop the play.3.  Χλοσε τηε βινδερ ρινγ.

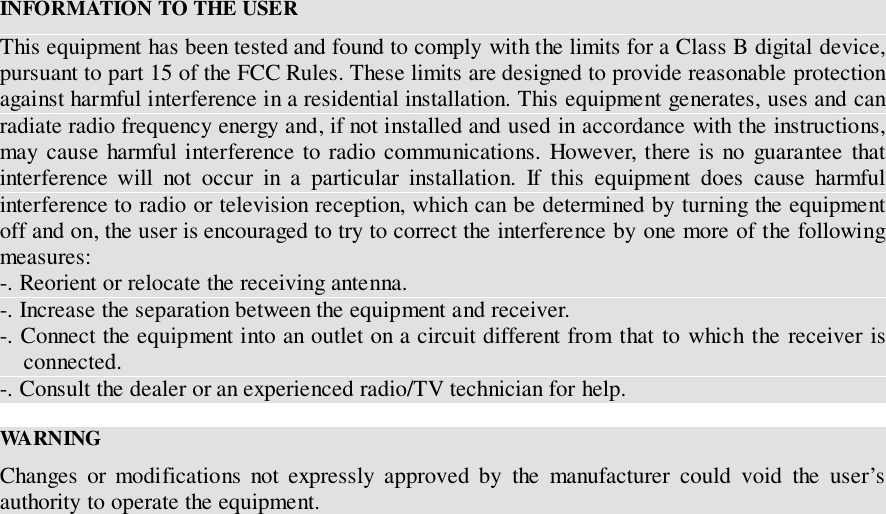

INFORMATION TO THE USERThis equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protectionagainst harmful interference in a residential installation. This equipment generates, uses and canradiate radio frequency energy and, if not installed and used in accordance with the instructions,may cause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one more of the followingmeasures:-. Reorient or relocate the receiving antenna.-. Increase the separation between the equipment and receiver.-. Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected.-. Consult the dealer or an experienced radio/TV technician for help.WA RN INGChanges or modifications not expressly approved by the manufacturer could void the user’sauthority to operate the equipment.
