ESI Cases and Accessories DU7106 DU FM TRANSMITTER User Manual UTO DU7106

ESI Cases and Accessories DU FM TRANSMITTER UTO DU7106

Users Manual

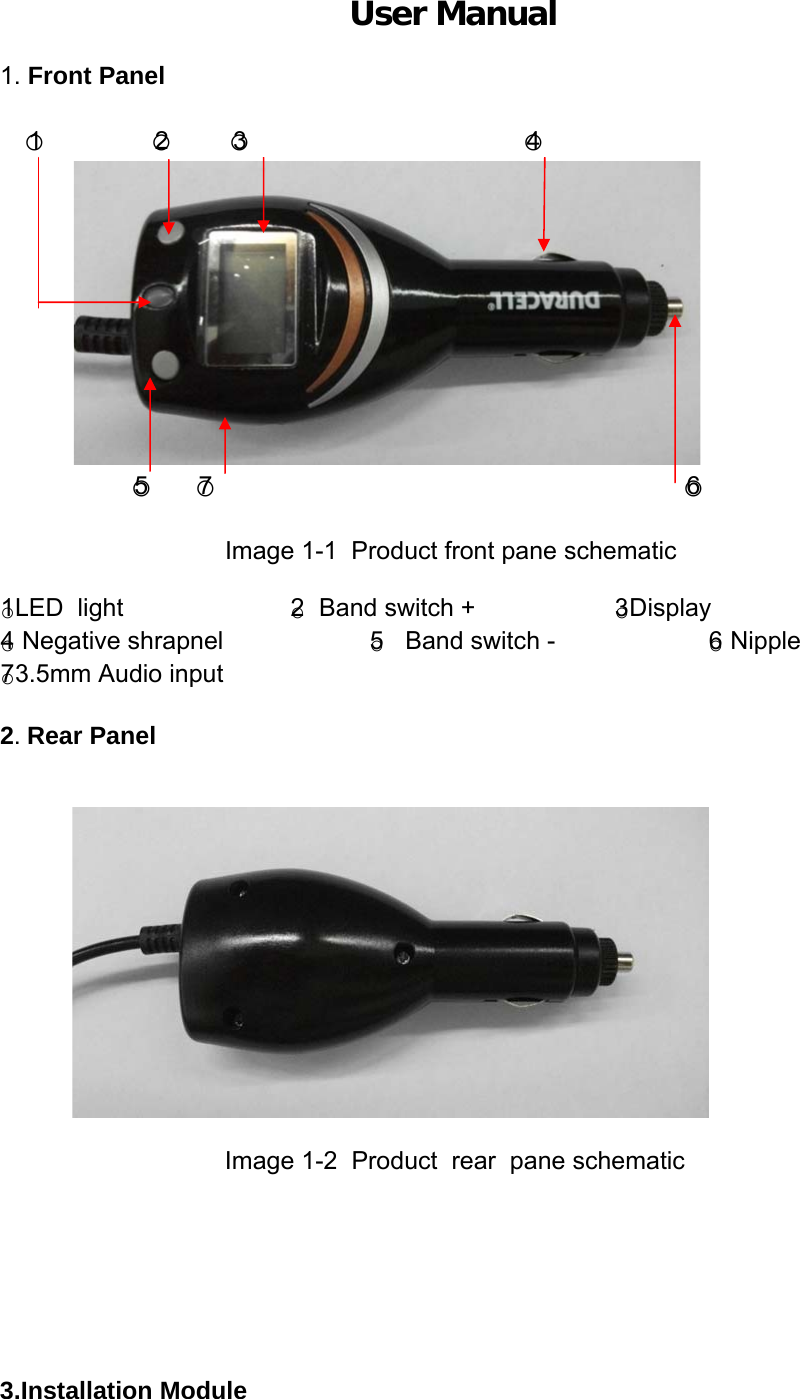

User Manual 1. Front Panel ○1 ○2 ○3 ○4 ○5 ○7 ○6 Image 1-1 Product front pane schematic ○1LED light ○2 Band switch + ○3Display ○4 Negative shrapnel ○5 Band switch - ○6 Nipple ○73.5mm Audio input 2. Rear Panel Image 1-2 Product rear pane schematic 3.Installation Module

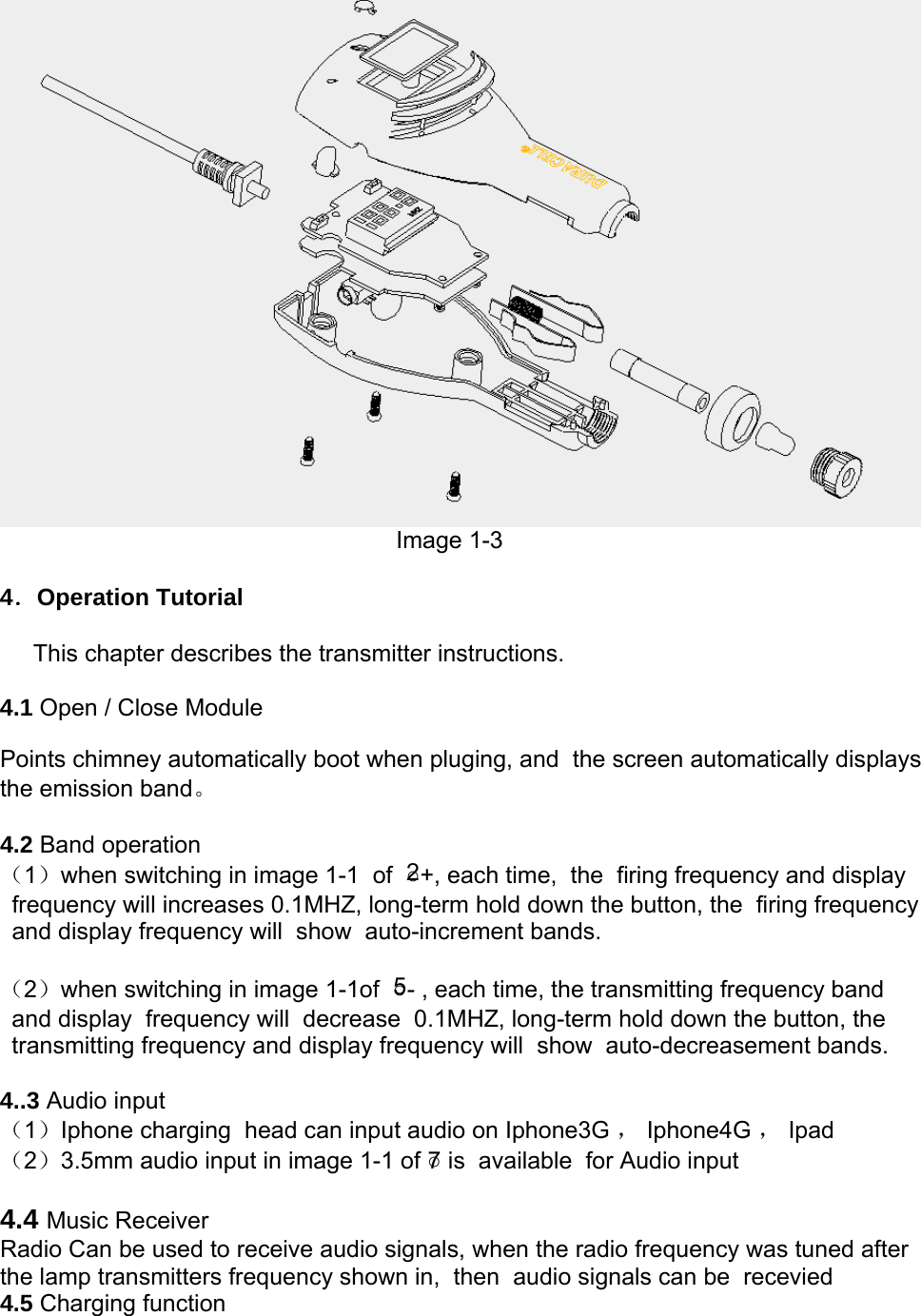

Image 1-3 4．Operation Tutorial This chapter describes the transmitter instructions. 4.1 Open / Close Module Points chimney automatically boot when pluging, and the screen automatically displays the emission band。 4.2 Band operation （1）when switching in image 1-1 of ○2+, each time, the firing frequency and display frequency will increases 0.1MHZ, long-term hold down the button, the firing frequency and display frequency will show auto-increment bands. （2）when switching in image 1-1of ○5- , each time, the transmitting frequency band and display frequency will decrease 0.1MHZ, long-term hold down the button, the transmitting frequency and display frequency will show auto-decreasement bands. 4..3 Audio input （1）Iphone charging head can input audio on Iphone3G ， Iphone4G ， Ipad （2）3.5mm audio input in image 1-1 of ○7 is available for Audio input 4.4 Music Receiver Radio Can be used to receive audio signals, when the radio frequency was tuned after the lamp transmitters frequency shown in, then audio signals can be recevied 4.5 Charging function

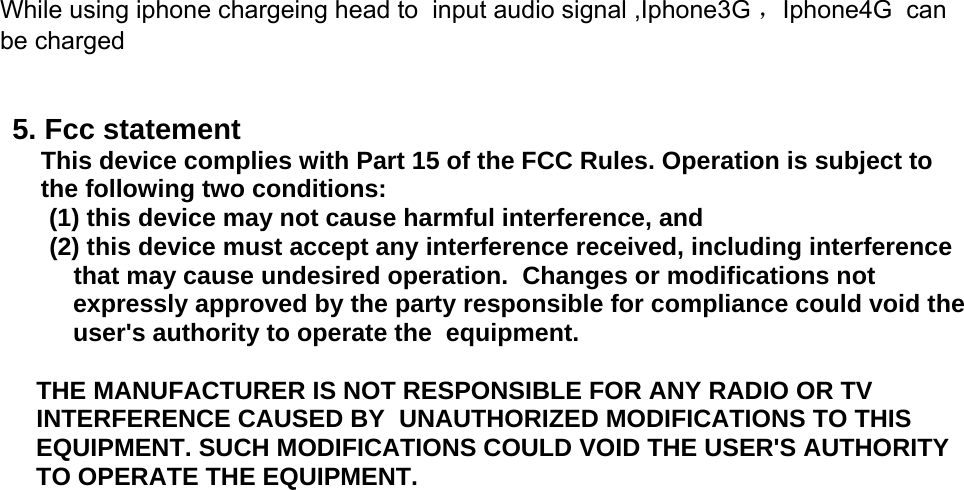

While using iphone chargeing head to input audio signal ,Iphone3G ，Iphone4G can be charged 5. Fcc statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.
