1. Front Panel
○
1 ○
2 ○
3 ○
4
○
5 ○
7 ○
6
Image 1-1 Product front pane schematic
○
1LED light ○
2 Band switch + ○
3Display
○
4 Negative shrapnel ○
5 Band switch - ○
6 Nipple
○
73.5mm Audio input
2. Rear Panel
Image 1-2 Product rear pane schematic
3.Installation Module

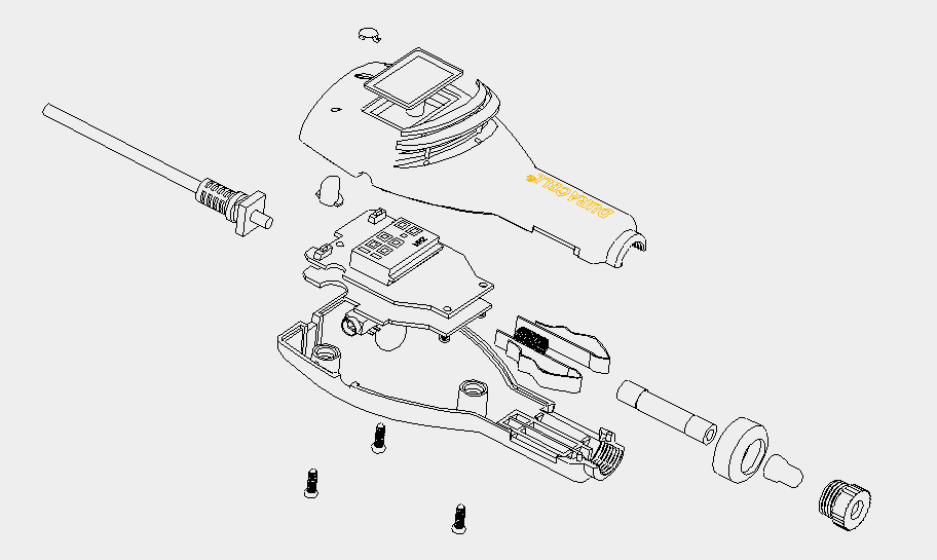

Image 1-3
4．Operation Tutorial
This chapter describes the transmitter instructions.
4.1 Open / Close Module
Points chimney automatically boot when pluging, and the screen automatically displays
the emission band。
4.2 Band operation
（1）when switching in image 1-1 of ○
2+, each time, the firing frequency and display
frequency will increases 0.1MHZ, long-term hold down the button, the firing frequency
and display frequency will show auto-increment bands.
（2）when switching in image 1-1of ○
5- , each time, the transmitting frequency band
and display frequency will decrease 0.1MHZ, long-term hold down the button, the
transmitting frequency and display frequency will show auto-decreasement bands.
4..3 Audio input
（1）Iphone charging head can input audio on Iphone3G ， Iphone4G ， Ipad
（2）3.5mm audio input in image 1-1 of ○7 is available for Audio input
4.4 Music Receiver
Radio Can be used to receive audio signals, when the radio frequency was tuned after
the lamp transmitters frequency shown in, then audio signals can be recevied
4.5 Charging function
While using iphone chargeing head to input audio signal ,Iphone3G ，Iphone4G can
be charged
