1广东德豪润达电气股份有限公司 ELEC-TECH INTERNATIONAL CO., LTD. 产 品 说 明 书 Product Instruction Manual 产品名称： LED WRAP LIGHT (1.2米吸顶灯) Product Name: LED WRAP LIGHT 型号编码Model No.：546761xx（XX＝00~99） 生产商：广东德豪润达电气股份有限公司 Manufacturer: Elec-tech International.,Co.Ltd 地址：广东省珠海市唐家湾镇金凤路1 号 Address: Guangdong Province Zhihai City, Tanjiawan, No.1 Jinfeng Rd 电话Tel：0756-3390990 传真Fax：0756-3390778 网址Web：www.electech.com.cn

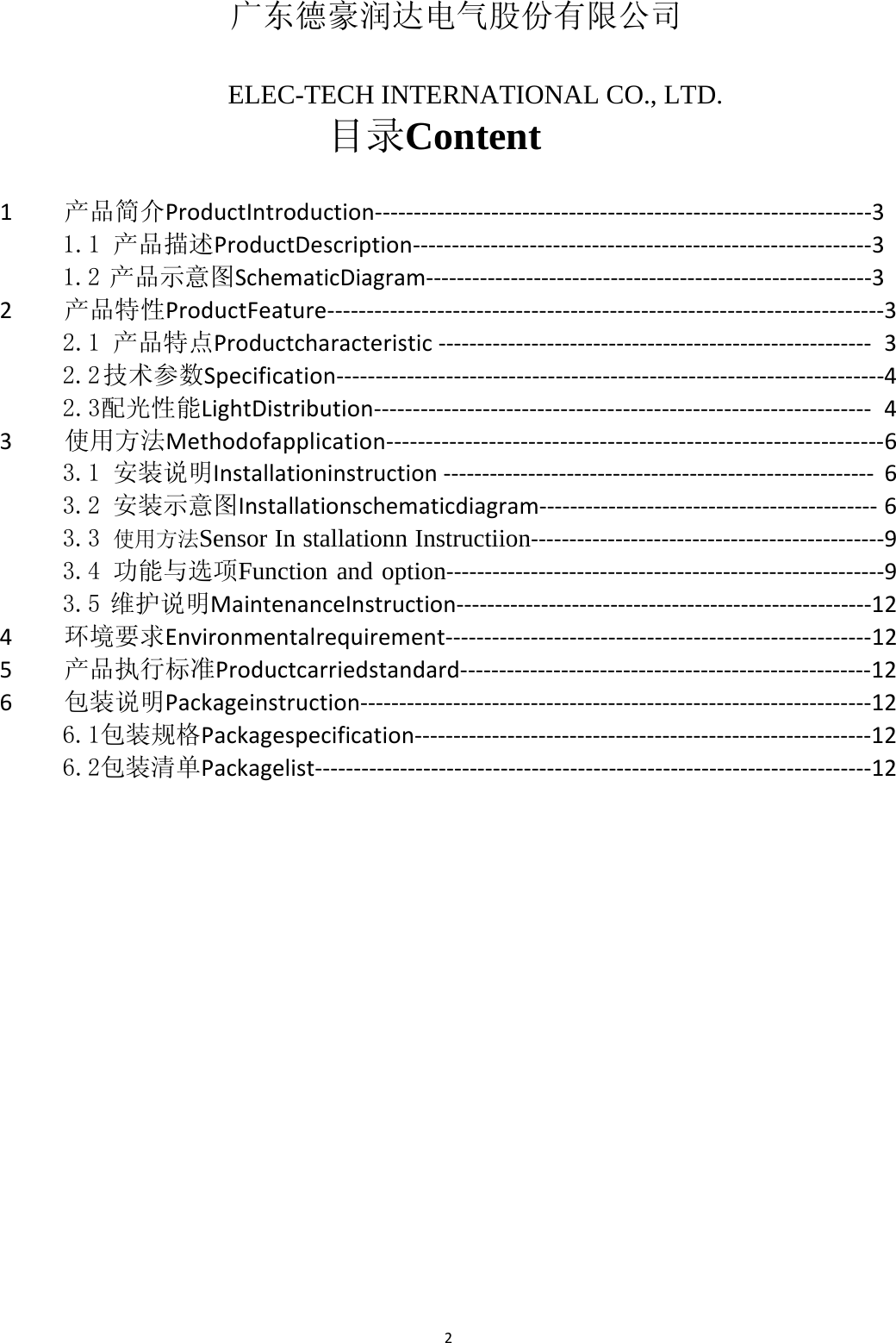

2 广东德豪润达电气股份有限公司 ELEC-TECH INTERNATIONAL CO., LTD. 目录Content 1 产品简介ProductIntroduction‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐31.1 产品描述ProductDescription‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐31.2 产品示意图SchematicDiagram‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐32 产品特性ProductFeature‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐32.1 产品特点Productcharacteristic‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 32.2 技术参数Specification‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐42.3配光性能LightDistribution‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 43 使用方法Methodofapplication‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐63.1 安装说明Installationinstruction‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 63.2 安装示意图Installationschematicdiagram‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐63.3 使用方法Sensor In stallationn Instructiion‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐93.4 功能与选项Function and option‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐9 3.5 维护说明MaintenanceInstruction‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐124 环境要求Environmentalrequirement‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐125 产品执行标准Productcarriedstandard‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐126 包装说明Packageinstruction‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐126.1包装规格Packagespecification‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐126.2包装清单Packagelist‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐12
3广东德豪润达电气股份有限公司 ELEC-TECH INTERNATIONAL CO., LTD. 1.产品简介Product Introduction 1.1. 产品描述：Product Description 1.外形尺寸：1219x152x76mm； 1.Dimension:1219x152x76mm2.外壳为铁板+喷粉，PMMA光学扩散； 2.Housing:Powdersprayediron,PMMAopticaldiffuser3.内置隔离电源； 3.Insidepowersupply4.亿光高效LED灯珠。 4.EverlighthighefficacyLED5. 内置微波感应器 . 5. Built in microwave sensor1.2. 产品示意图：Product schematic diagram: 2.产品特性 Product Featuers: 2.1. 产品特点Product characteristics ： ٛ a. 长寿命（5 万小时以上），是荧光灯6 倍寿命；可替换性高； ٛ Long lifetime (above 35,000hrs), 6 times of lifetime of fluorescent lamp: high replaceability . ٛ b. 高效节能环保；High efficiency, energy saving, environmental friendly ٛ c. 抗震能力强,无紫外线和红外线辐射；转换效率高能适应恶劣环境，能满足写字楼,酒店,家居, ٛ 商场，学校，图书馆等各种使用场合。 Impact resistant, shock resistant, no UV and IR radiation: high conversion rate and adaptable to severe environment , universal application to office ,hotel ,supermarket ,school and library ,etc ٛ d.绿色环保，无有害气体排放，使用热量低，安全可靠。 ٛ Green Initiative, no harmful gas is emitted, low heat is generated while used, safe and reliable . ٛ e.光色纯正，使用过程中无频闪，提供更好的视觉感受，保护人眼视力。 ٛ Authentic and pure light color, no flicker, protecting your eyes while providing better visual enjoyment .

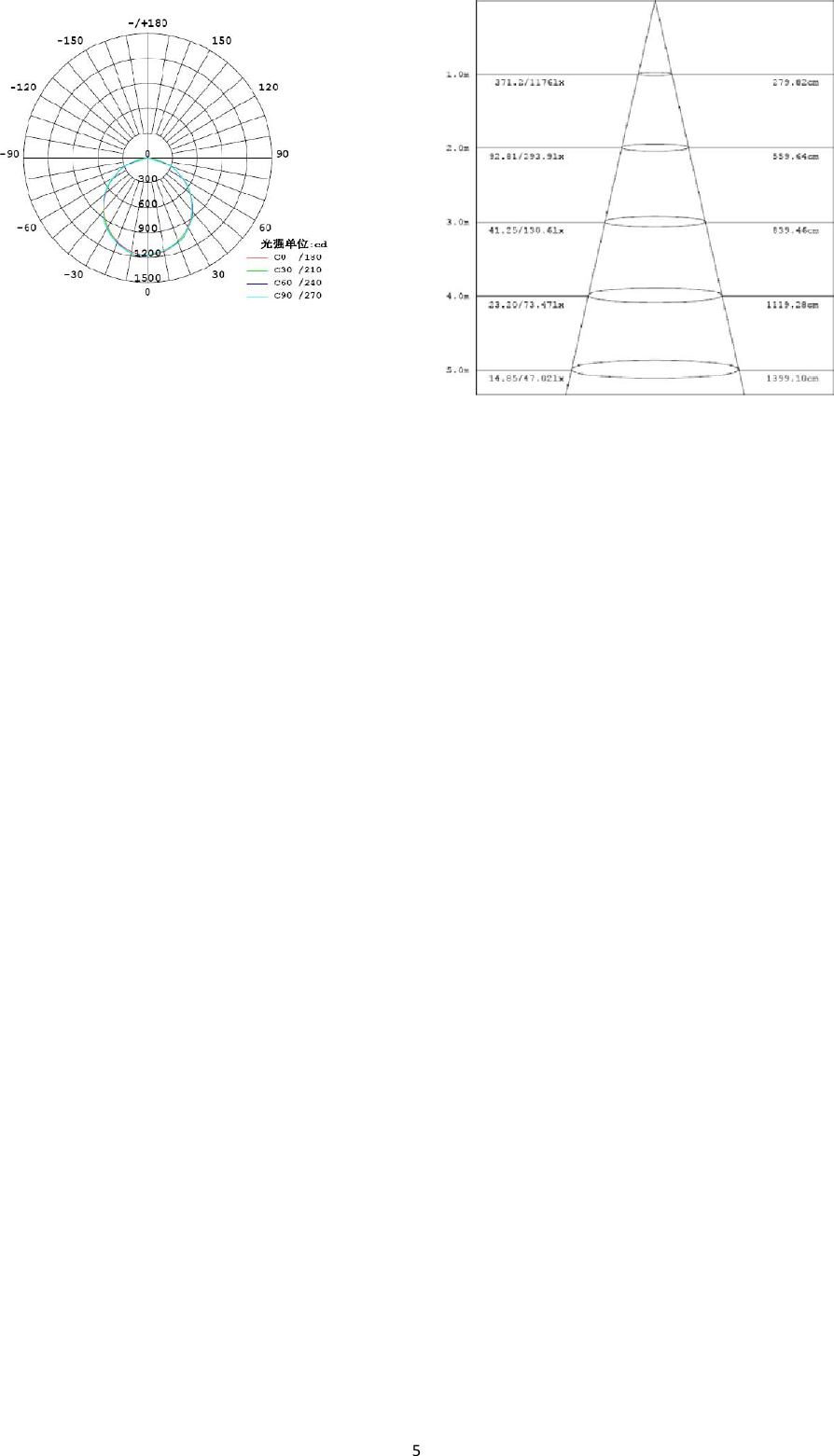

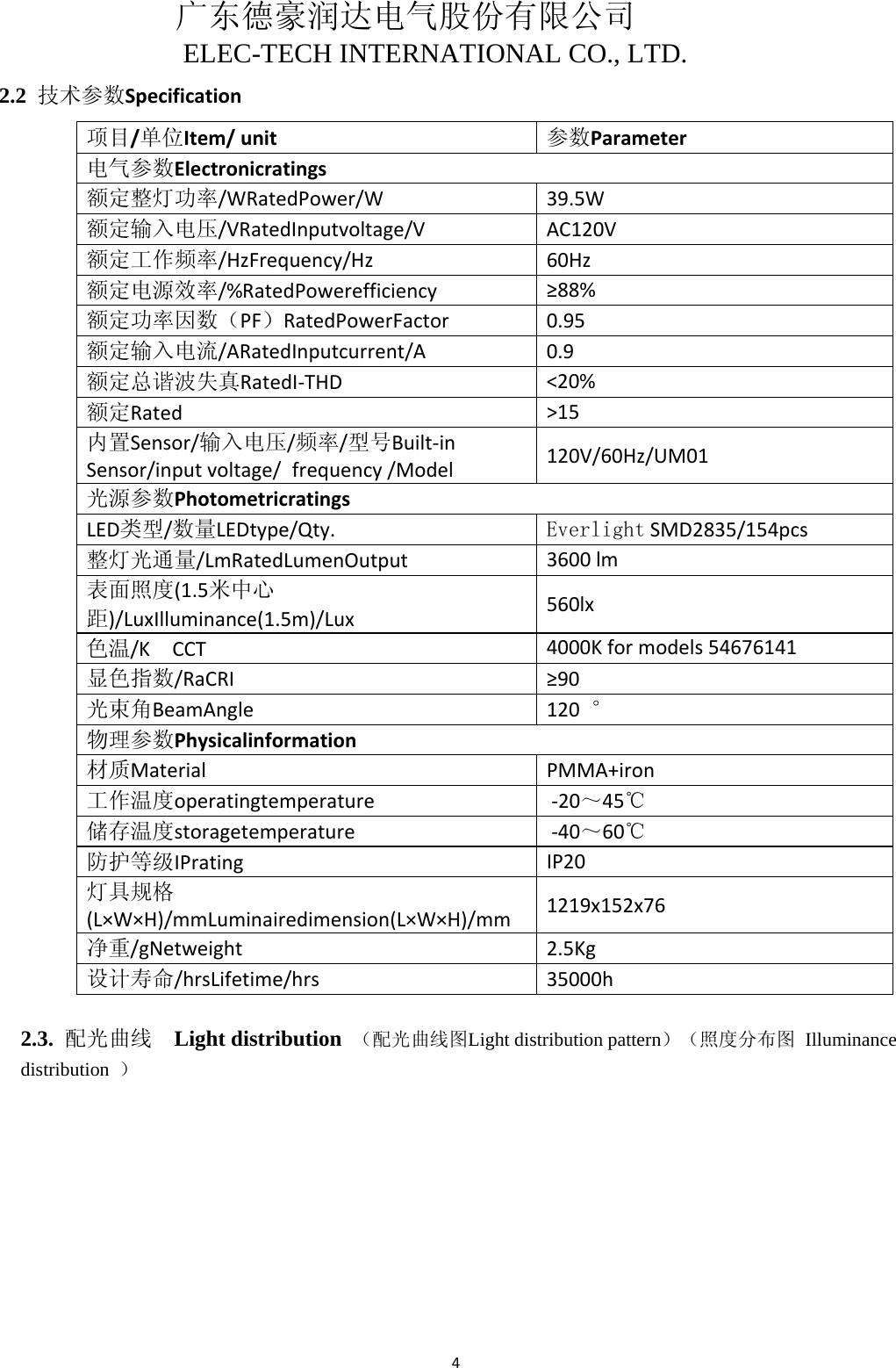

4广东德豪润达电气股份有限公司 ELEC-TECH INTERNATIONAL CO., LTD. 2.2 技术参数Specification项目/单位Item/unit参数Parameter电气参数Electronicratings 额定整灯功率/WRatedPower/W39.5W额定输入电压/VRatedInputvoltage/VAC120V额定工作频率/HzFrequency/Hz60Hz额定电源效率/%RatedPowerefficiency≥88%额定功率因数（PF）RatedPowerFactor0.95额定输入电流/ARatedInputcurrent/A0.9额定总谐波失真RatedI‐THD<20%额定Rated>15内置Sensor/输入电压/频率/型号Built‐inSensor/inputvoltage/ frequency/Model 120V/60Hz/UM01光源参数Photometricratings LED类型/数量LEDtype/Qty.EverlightSMD2835/154pcs整灯光通量/LmRatedLumenOutput3600lm表面照度(1.5米中心距)/LuxIlluminance(1.5m)/Lux560lx色温/KCCT 4000Kformodels54676141显色指数/RaCRI≥90光束角BeamAngle120°物理参数Physicalinformation 材质MaterialPMMA+iron工作温度operatingtemperature‐20～45℃ 储存温度storagetemperature‐40～60℃ 防护等级IPratingIP20灯具规格(L×W×H)/mmLuminairedimension(L×W×H)/mm1219x152x76净重/gNetweight2.5Kg设计寿命/hrsLifetime/hrs35000h 2.3. 配光曲线 Light distribution （配光曲线图Light distribution pattern）（照度分布图 Illuminance distribution ）
5

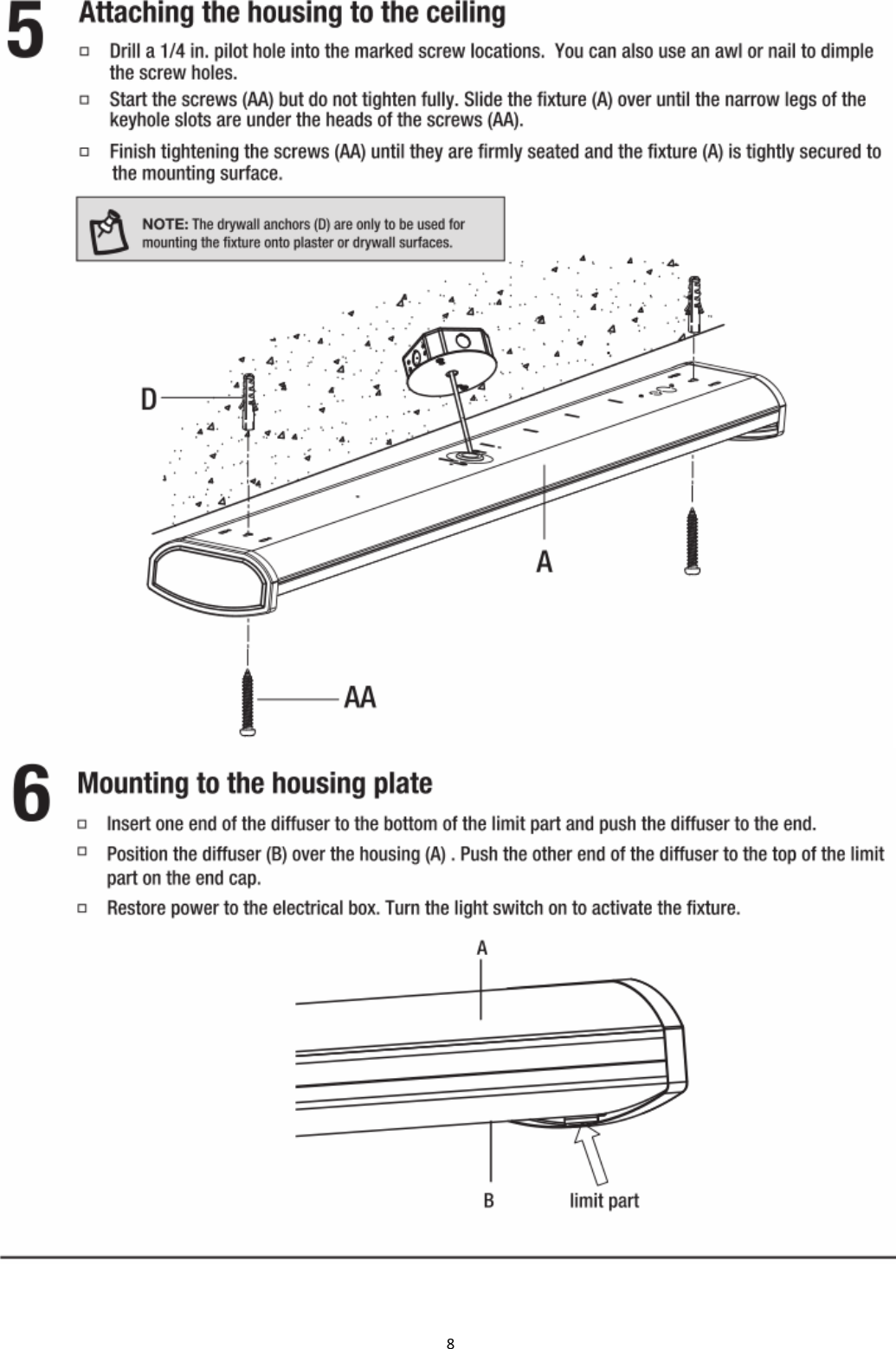

6广东德德豪润达达电气股份有有限公司司 ELEC-TTECH INTERNATTIONAL CO., LTDD. 3. 使用方法：In stallationn Instructiion 3.1 安装方方式Installation method：吸顶式安装 Ceiling installation : 3.2 安装示意图示：Installatioon schematicc diagram :
7
8

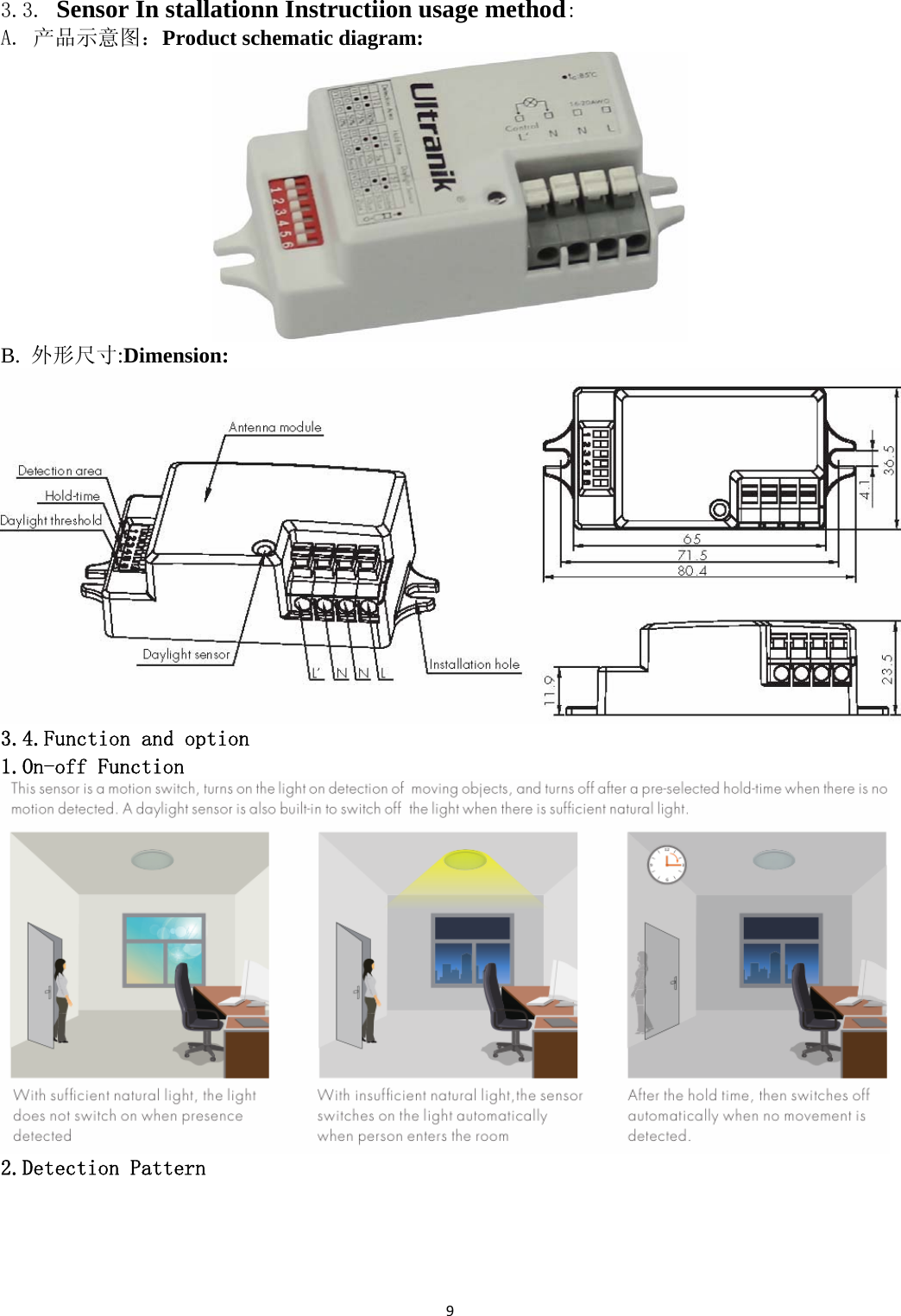

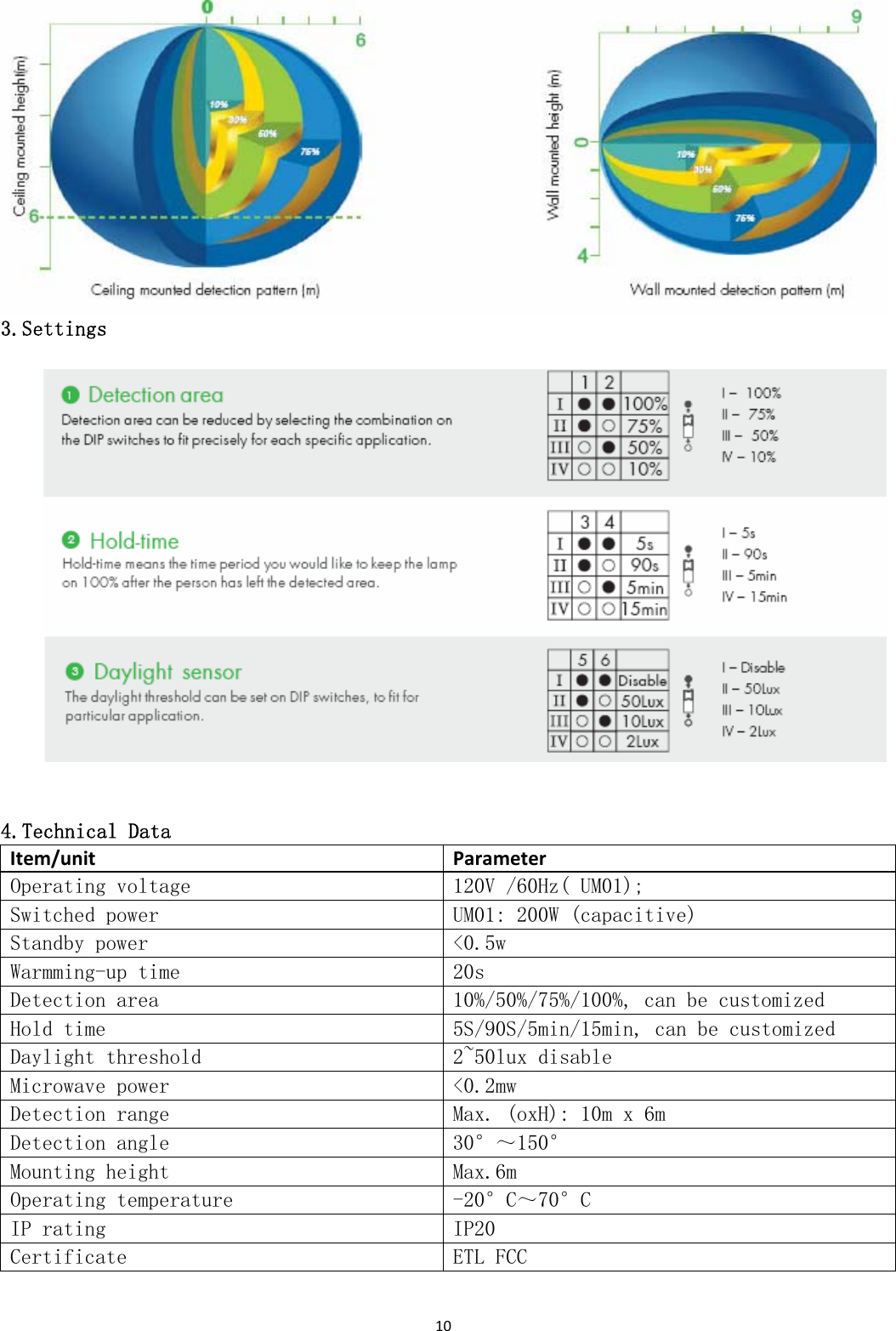

9 3.3. Sensor In stallationn Instructiion usage method: A. 产品示意图：Product schematic diagram: B. 外形尺寸:Dimension: 3.4.Function and option 1.On-off Function 2.Detection Pattern
10 3.Settings 4.Technical Data Item/unit Parameter Operating voltage 120V /60Hz( UM01); Switched power UM01: 200W (capacitive) Standby power <0.5w Warmming-up time 20s Detection area 10%/50%/75%/100%, can be customized Hold time 5S/90S/5min/15min, can be customized Daylight threshold 2~50lux disable Microwave power <0.2mw Detection range Max. (oxH): 10m x 6m Detection angle 30°～150° Mounting height Max.6m Operating temperature -20°C～70°C IP rating IP20 Certificate ETL FCC
11 广东德豪润达电气股份有限公司 ELEC-TECH INTERNATIONAL CO., LTD. 3.5 维护说明Maintenance instruction¾为延长使用寿命请勿使用酒精等挥发性溶剂擦拭灯体；¾Do Not use volatile solvent such as alcohol to clean the troffer.¾清洁时可以使用柔棉布沾肥皂水拧干后擦拭灯体；¾Use soft cotton cloth with suds to clean the troffer .¾非专业人士请勿拆修灯具；¾Non-profecssional Do not attempt to take apart and repair the troffer .¾该灯具电源为专用适配的恒流电源，请勿私自更换电源。 ¾ Please use the constant-current driver exclusively adaptive to the troffer, do not change the driver without permission . Attentions:FCCComplianceStatement:ThisdevicecomplieswithPart15oftheFCCrules.Operationissubjectedtothefollowingtwoconditions:(1)thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.Changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidyourauthoritytooperatetheequipment. ICComplianceStatement:ThisdevicecomplieswithIndustryCanada’slicence‐exemptRSSs.Operationissubjecttothefollowingtwoconditions:(1)thisdevicemaynotcauseinterference,and(2)thisdevicemustacceptanyinterference,includinginterferencethatmaycauseundesiredoperationofthedevice.CetappareilestconformeauxCNRexemptesdelicenced'IndustrieCanada.Sonfonctionnementestsoumisauxdeuxconditionssuivantes:(1)Cedispositifnepeutcauserd'interférences;et(2)Cedispositifdoitacceptertouteinterférence,ycomprislesinterférencesquipeuventcauserunmauvaisfonctionnementdel'appareil. 4. 环境要求Environment requirement 使用环境温度Operating temperature ：-20～45℃； 存贮环境温度Storage temperature ： -40～60℃。 5.产品执行标准Product carried standard UL-1598

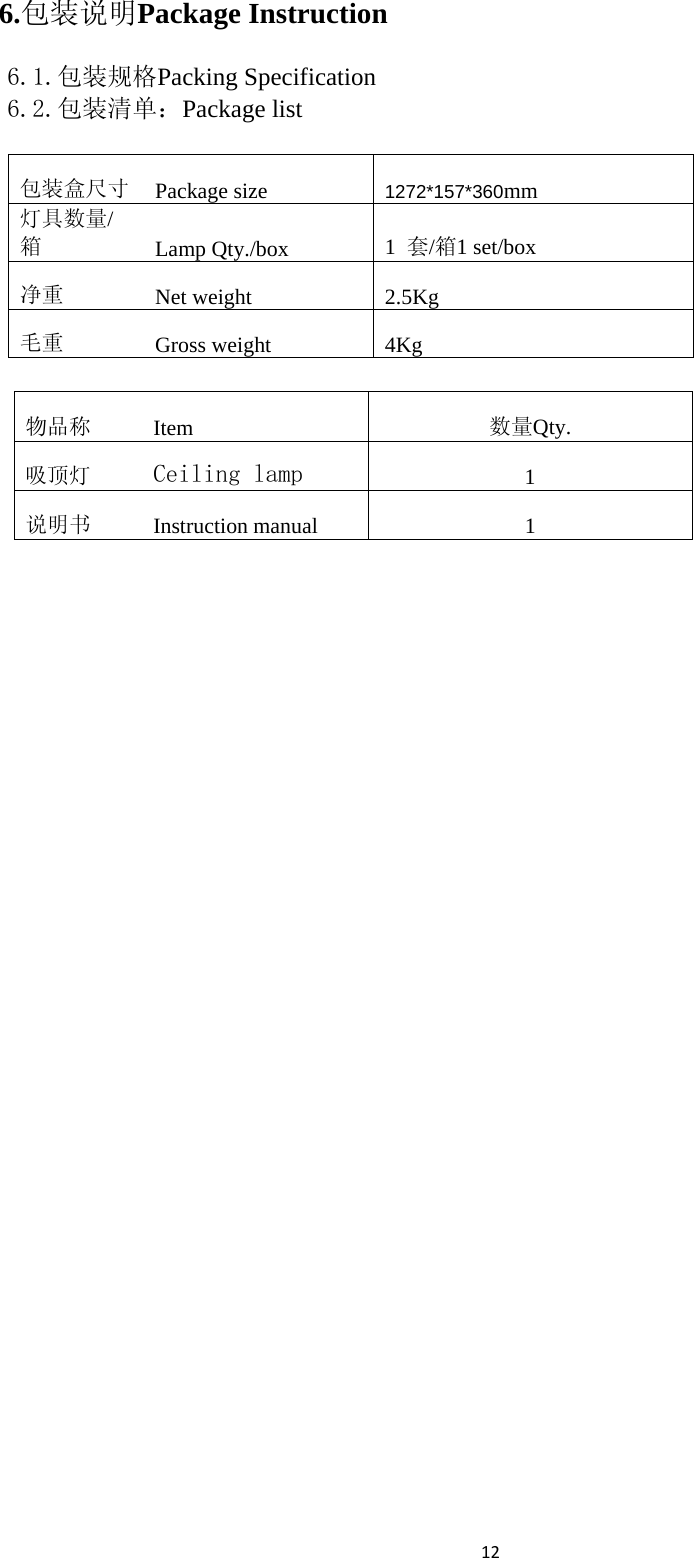

126.包装说明Package Instruction 6.1.包装规格Packing Specification 6.2.包装清单：Package list 包装盒尺寸 Package size 1272*157*360mm 灯具数量/箱 Lamp Qty./box 1 套/箱1 set/box 净重 Net weight 2.5Kg 毛重 Gross weight 4Kg 物品称 Item 数量Qty. 吸顶灯 Ceiling lamp 1 说明书 Instruction manual 1
