User manual

1



广东德豪润达电气股份有限公司

ELEC-TECH INTERNATIONAL CO., LTD.

产

品

说

明

书

Product Instruction Manual

产品名称： LED WRAP LIGHT (1.2米吸顶灯)

Product Name: LED WRAP LIGHT

型号编码Model No.：546761xx（XX＝00~99）

生产商：广东德豪润达电气股份有限公司

Manufacturer: Elec-tech International.,Co.Ltd

地址：广东省珠海市唐家湾镇金凤路1 号

Address: Guangdong Province Zhihai City, Tanjiawan, No.1 Jinfeng Rd

电话Tel：0756-3390990

传真Fax：0756-3390778

网址Web：www.electech.com.cn

2



广东德豪润达电气股份有限公司

ELEC-TECH INTERNATIONAL CO., LTD.

目录Content

1 产品简介ProductIntroduction‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐3

1.1 产品描述ProductDescription‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐3

1.2 产品示意图SchematicDiagram‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐3

2 产品特性ProductFeature‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐3

2.1 产品特点Productcharacteristic‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 3

2.2 技术参数Specification‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐4

2.3配光性能LightDistribution‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 4

3 使用方法Methodofapplication‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐6

3.1 安装说明Installationinstruction‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 6

3.2 安装示意图Installationschematicdiagram‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐6

3.3 使用方法Sensor In stallationn Instructiion‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐9

3.4 功能与选项Function and option‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐9

3.5 维护说明MaintenanceInstruction‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐12

4 环境要求Environmentalrequirement‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐12

5 产品执行标准Productcarriedstandard‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐12

6 包装说明Packageinstruction‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐12

6.1包装规格Packagespecification‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐12

6.2包装清单Packagelist‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐12



3



广东德豪润达电气股份有限公司

ELEC-TECH INTERNATIONAL CO., LTD.

1.产品简介Product Introduction

1.1. 产品描述：Product Description

1.外形尺寸：1219x152x76mm； 1.Dimension:1219x152x76mm

2.外壳为铁板+喷粉，PMMA光学扩散； 2.Housing:Powdersprayediron,PMMAopticaldiffuser

3.内置隔离电源； 3.Insidepowersupply

4.亿光高效LED灯珠。 4.EverlighthighefficacyLED

5. 内置微波感应器 . 5. Built in microwave sensor



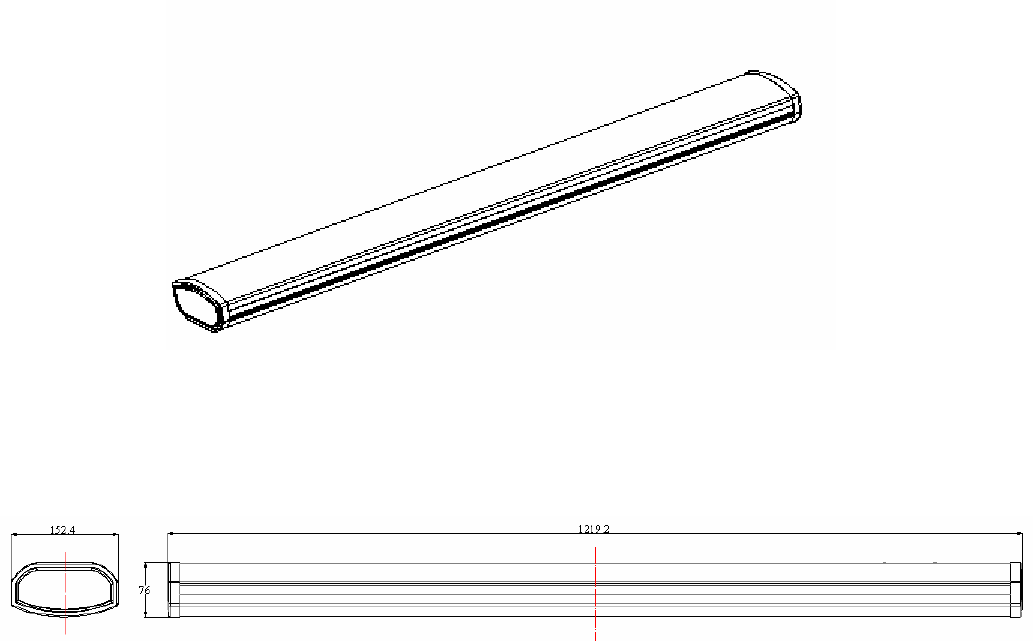

1.2. 产品示意图：Product schematic diagram:

2.产品特性 Product Featuers:

2.1. 产品特点Product characteristics ：

ٛ a. 长寿命（5 万小时以上），是荧光灯6 倍寿命；可替换性高；

ٛ Long lifetime (above 35,000hrs), 6 times of lifetime of fluorescent lamp: high replaceability .

ٛ b. 高效节能环保；High efficiency, energy saving, environmental friendly

ٛ c. 抗震能力强,无紫外线和红外线辐射；转换效率高能适应恶劣环境，能满足写字楼,酒店,家居,

ٛ 商场，学校，图书馆等各种使用场合。

Impact resistant, shock resistant, no UV and IR radiation: high conversion rate and adaptable to severe environment ,

universal application to office ,hotel ,supermarket ,school and library ,etc

ٛ d.绿色环保，无有害气体排放，使用热量低，安全可靠。

ٛ Green Initiative, no harmful gas is emitted, low heat is generated while used, safe and reliable .

ٛ e.光色纯正，使用过程中无频闪，提供更好的视觉感受，保护人眼视力。

ٛ Authentic and pure light color, no flicker, protecting your eyes while providing better visual enjoyment .

4



广东德豪润达电气股份有限公司

ELEC-TECH INTERNATIONAL CO., LTD.

2.2 技术参数Specification

项目/单位Item/unit参数Parameter

电气参数Electronicratings

额定整灯功率/WRatedPower/W39.5W

额定输入电压/VRatedInputvoltage/VAC120V

额定工作频率/HzFrequency/Hz60Hz

额定电源效率/%RatedPowerefficiency≥88%

额定功率因数（PF）RatedPowerFactor0.95

额定输入电流/ARatedInputcurrent/A0.9

额定总谐波失真RatedI‐THD<20%

额定Rated>15

内置Sensor/输入电压/频率/型号Built‐in

Sensor/inputvoltage/ frequency/Model 120V/60Hz/UM01

光源参数Photometricratings

LED类型/数量LEDtype/Qty.EverlightSMD2835/154pcs

整灯光通量/LmRatedLumenOutput3600lm

表面照度(1.5米中心

距)/LuxIlluminance(1.5m)/Lux560lx

色温/KCCT 4000Kformodels54676141

显色指数/RaCRI≥90

光束角BeamAngle120°

物理参数Physicalinformation

材质MaterialPMMA+iron

工作温度operatingtemperature‐20～45℃

储存温度storagetemperature‐40～60℃

防护等级IPratingIP20

灯具规格

(L×W×H)/mmLuminairedimension(L×W×H)/mm1219x152x76

净重/gNetweight2.5Kg

设计寿命/hrsLifetime/hrs35000h

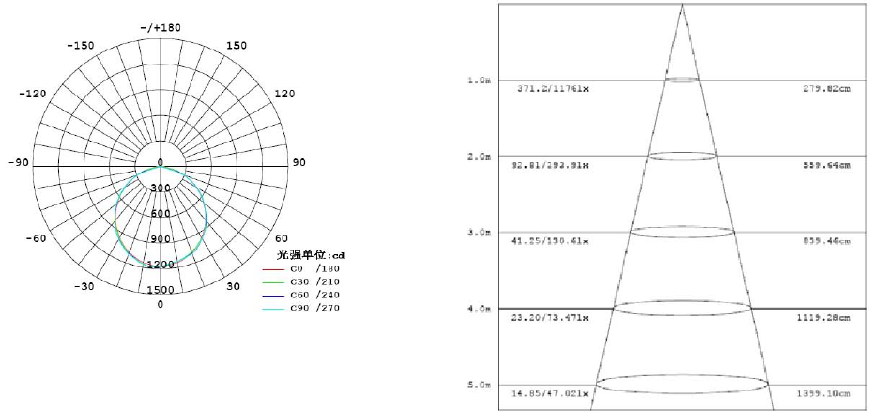

2.3. 配光曲线 Light distribution （配光曲线图Light distribution pattern）（照度分布图 Illuminance

distribution ）

5



6



广东德德豪润达达电气股份有有限公司司

ELEC-TTECH INTERNATTIONAL CO., LTDD.

3. 使用方法：In stallationn Instructiion

3.1 安装方方式Installation method：吸顶式安装 Ceiling installation :

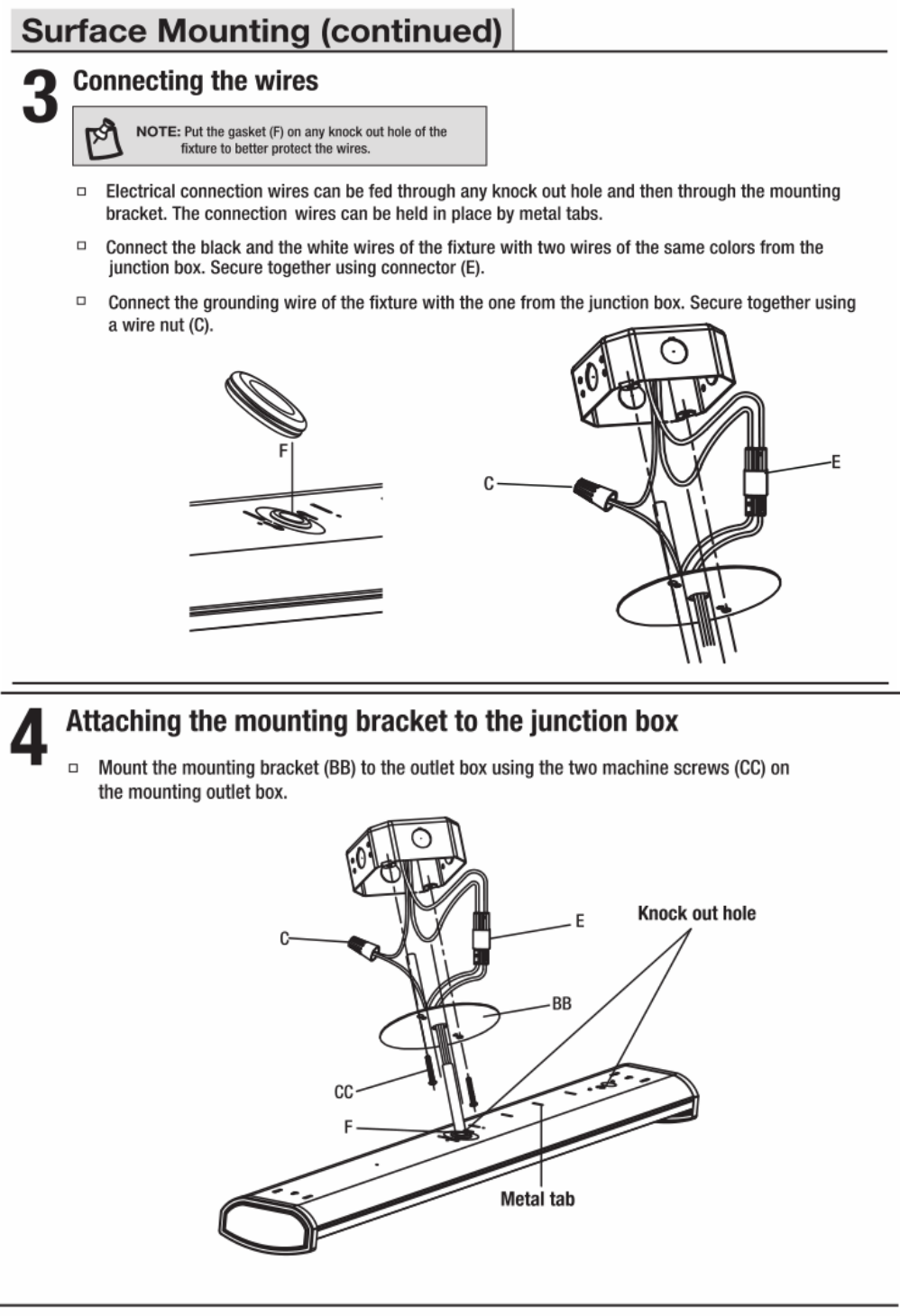

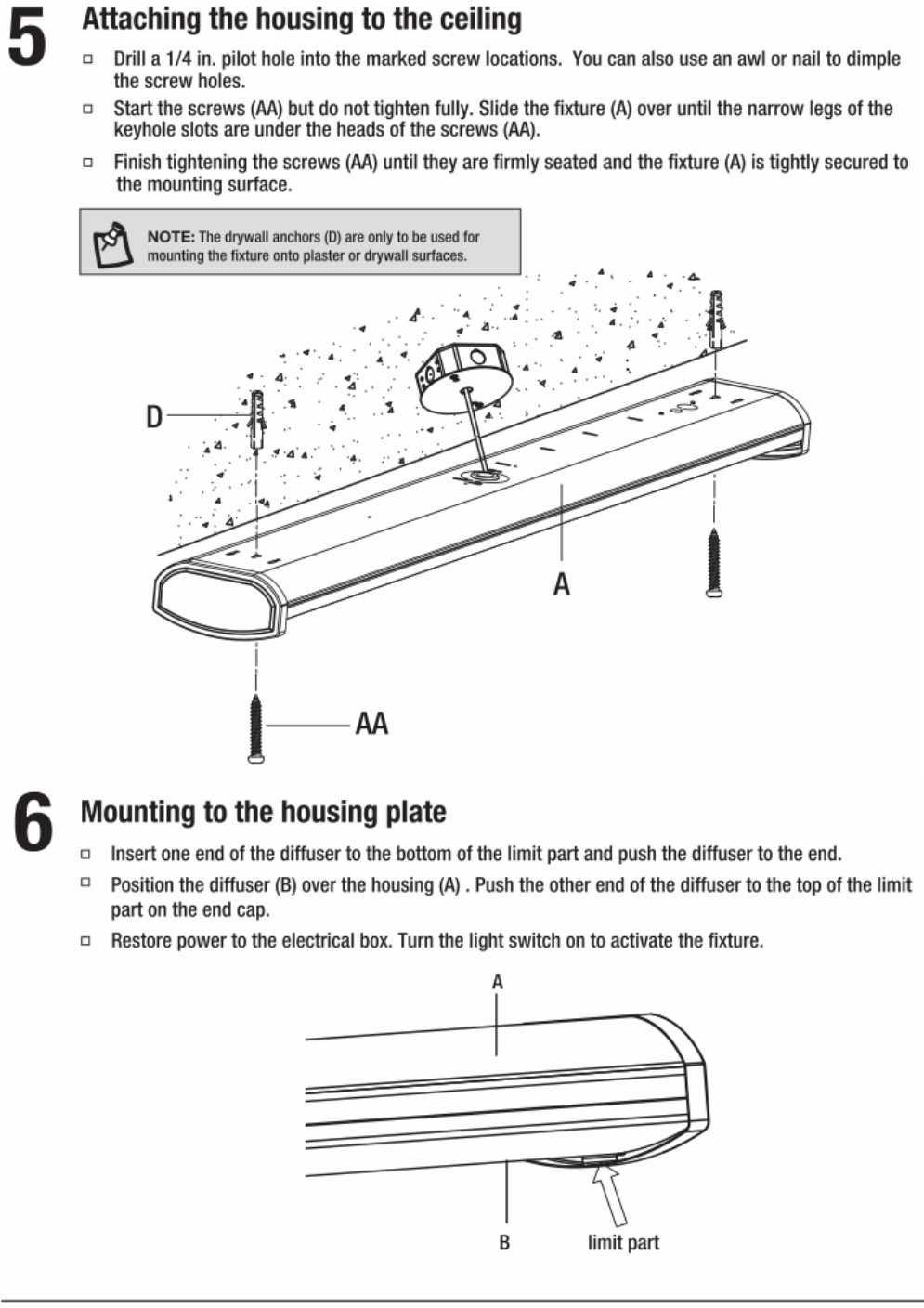

3.2 安装示意图示：Installatioon schematicc diagram :

7



8



9



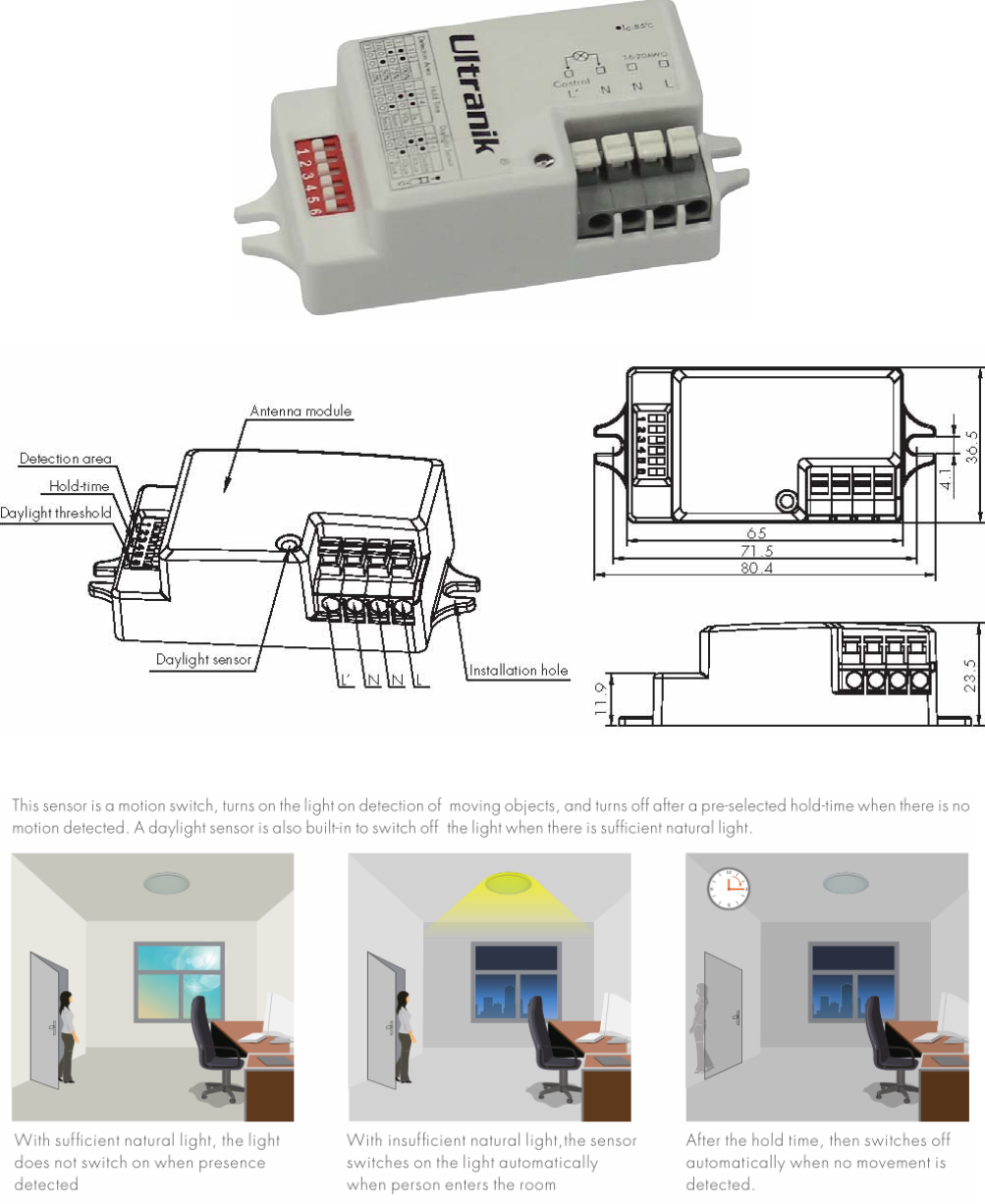

3.3. Sensor In stallationn Instructiion usage method:

A. 产品示意图：Product schematic diagram:

B. 外形尺寸:Dimension:

3.4.Function and option

1.On-off Function

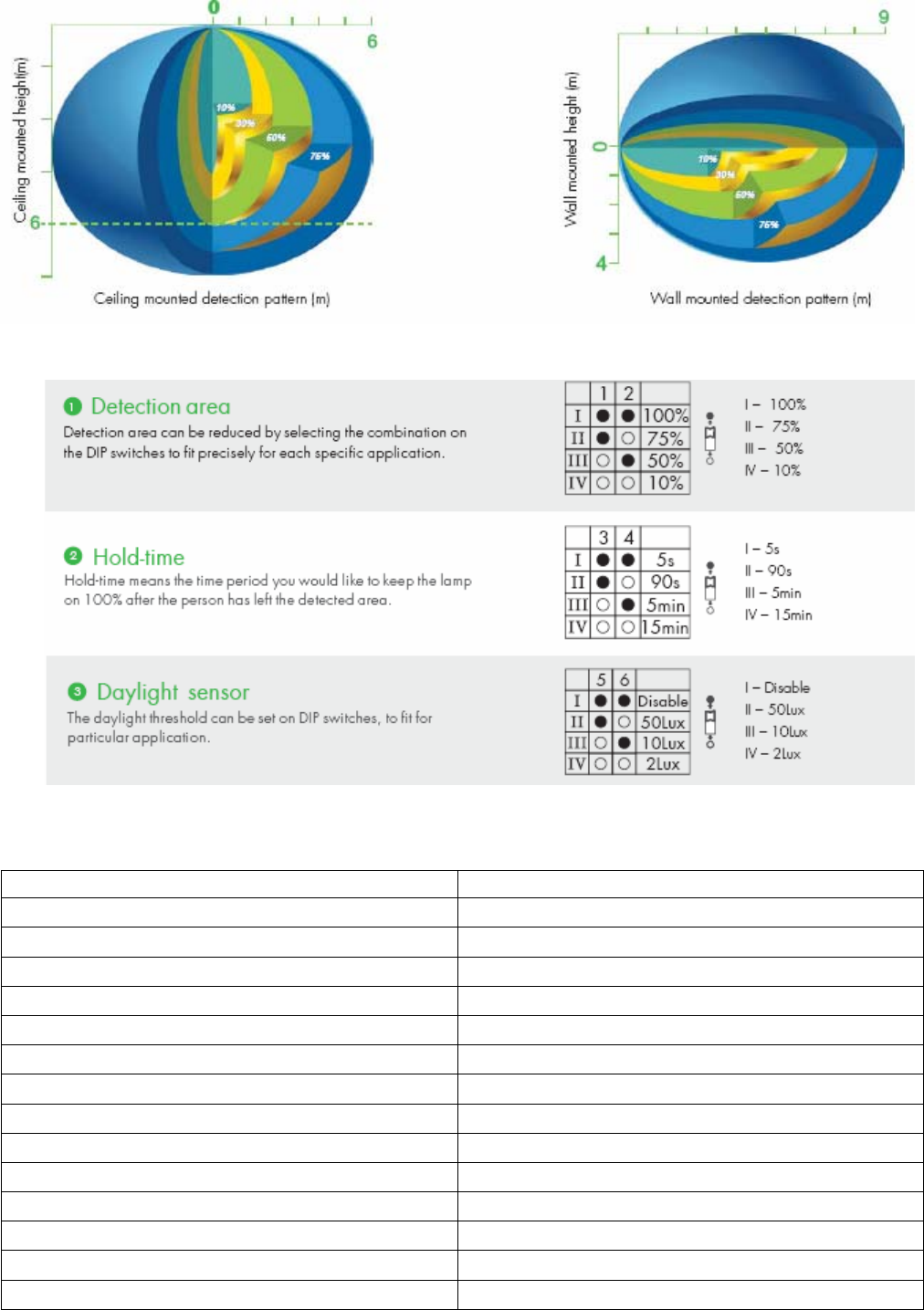

2.Detection Pattern

10



3.Settings

4.Technical Data

Item/unit Parameter

Operating voltage 120V /60Hz( UM01);

Switched power UM01: 200W (capacitive)

Standby power <0.5w

Warmming-up time 20s

Detection area 10%/50%/75%/100%, can be customized

Hold time 5S/90S/5min/15min, can be customized

Daylight threshold 2~50lux disable

Microwave power <0.2mw

Detection range Max. (oxH): 10m x 6m

Detection angle 30°～150°

Mounting height Max.6m

Operating temperature -20°C～70°C

IP rating IP20

Certificate ETL FCC

11



广东德豪润达电气股份有限公司

ELEC-TECH INTERNATIONAL CO., LTD.

3.5 维护说明Maintenance instruction¾为延长使用寿命请勿使用酒精等挥发性溶剂擦拭灯体；¾Do

Not use volatile solvent such as alcohol to clean the troffer.¾清洁时可以使用柔棉布沾肥皂水拧干后擦拭灯

体；¾Use soft cotton cloth with suds to clean the troffer .¾非专业人士请勿拆修灯具；¾Non-profecssional Do

not attempt to take apart and repair the troffer .¾该灯具电源为专用适配的恒流电源，请勿私自更换电源。

¾ Please use the constant-current driver exclusively adaptive to the troffer, do not change the driver without

permission .

Attentions:

FCCComplianceStatement:ThisdevicecomplieswithPart15oftheFCCrules.Operationissubjectedtothe

followingtwoconditions:(1)thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptany

interferencereceived,includinginterferencethatmaycauseundesiredoperation.

Changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidyour

authoritytooperatetheequipment.



ICComplianceStatement:ThisdevicecomplieswithIndustryCanada’slicence‐exemptRSSs.Operationissubject

tothefollowingtwoconditions:(1)thisdevicemaynotcauseinterference,and(2)thisdevicemustacceptany

interference,includinginterferencethatmaycauseundesiredoperationofthedevice.

CetappareilestconformeauxCNRexemptesdelicenced'IndustrieCanada.Sonfonctionnementestsoumisaux

deuxconditionssuivantes:

(1)Cedispositifnepeutcauserd'interférences;et

(2)Cedispositifdoitacceptertouteinterférence,ycomprislesinterférencesquipeuventcauserunmauvais

fonctionnementdel'appareil.

4. 环境要求Environment requirement

使用环境温度Operating temperature ：-20～45℃；

存贮环境温度Storage temperature ： -40～60℃。

5.产品执行标准Product carried

standard UL-1598

12



6.包装说明Package Instruction

6.1.包装规格Packing Specification

6.2.包装清单：Package list

包装盒尺寸 Package size 1272*157*360mm

灯具数量/

箱 Lamp Qty./box 1 套/箱1 set/box

净重 Net weight 2.5Kg

毛重 Gross weight 4Kg

物品称 Item 数量Qty.

吸顶灯 Ceiling lamp 1

说明书 Instruction manual 1
