EULUM DESIGN EUTRED Trailing Edge Dimmer User Manual

EULUM DESIGN, LLC Trailing Edge Dimmer

user manual

EULUM DESIGN LLC 6131 • Kellers Church Road • Pipersville • PA • 18947 • USAEULUM DESIGN LTD Unit 4 • Zone D •Chelmsford Road Ind. Est • Dunmow • CM6 1XG • UKwww.eulum.cominfo@eulum.com UK: +44 (0) 1371 238523USA: +1 215 622 2652TRED-CSB-2APage 1 Features of the Module include:• Wireless Bluetooth 4.0 Mesh Network • Free Casambi lighting control app • Capable of loads up to 2A• Suitable for retrofitting onto existing drivers/luminairesEulum BLE controls have a range of up to 200ft (60m) in open air, combined with a wide range of easy to use lighting arrangements for all lamp types, makes the Eulum BLE control system suitable for all types of installations.Eulum BLE controlsThe BLE mesh network operates without the need for additional controllers or gateway units and prevents the lighting system from interfering with other Bluetooth networks. The TRED moduleThe Eulum Design TRED module operates exclusively through the Casambi app (free on iOS and Android), using a Bluetooth 4.0 mesh network (BLE). The module is designed for a 120-277VAC input, 2A max. load, Trailing Edge phase dimming. The BLE mesh Network Compatible with the following loads:• Incandescent and high voltage halogen lamps• High quality dimmable LED & CFL lamps• Trailing Edge Dimmable LED Drivers• Electronic Transformers

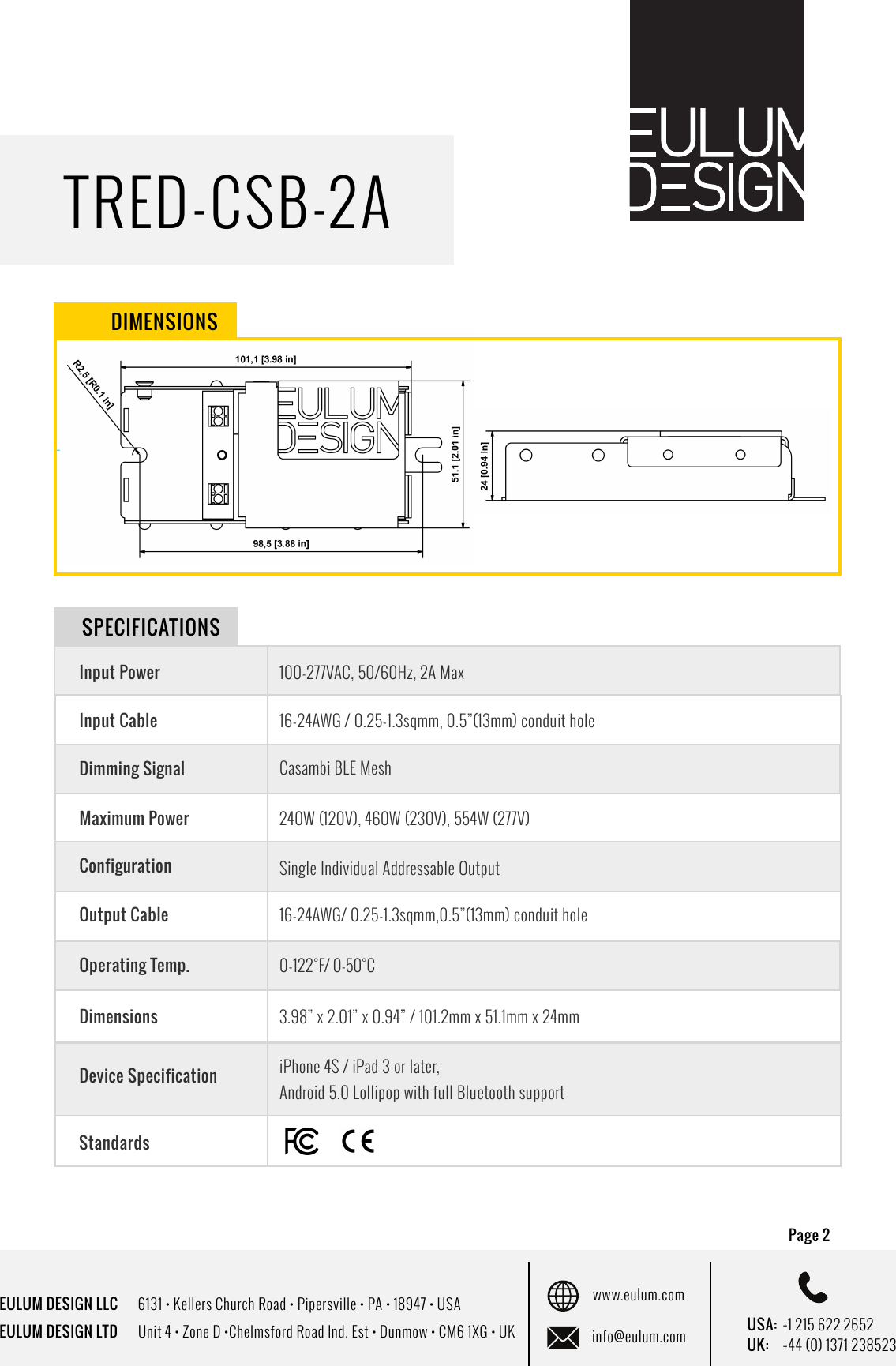

EULUM DESIGN LLC 6131 • Kellers Church Road • Pipersville • PA • 18947 • USAEULUM DESIGN LTD Unit 4 • Zone D •Chelmsford Road Ind. Est • Dunmow • CM6 1XG • UKwww.eulum.cominfo@eulum.com UK: +44 (0) 1371 238523USA: +1 215 622 2652TRED-CSB-2APage 2 DIMENSIONSInput PowerInput CableDimming SignalMaximum PowerConfigurationOperating Temp.Dimensions100-277VAC, 50/60Hz, 2A Max16-24AWG / 0.25-1.3sqmm, 0.5”(13mm) conduit holeCasambi BLE Mesh 240W (120V), 460W (230V), 554W (277V)Single Individual Addressable Output0-122°F / 0-50°C3.98” x 2.01” x 0.94” / 101.2mm x 51.1mm x 24mmDevice SpecificationiPhone 4S / iPad 3 or later, Android 5.0 Lollipop with full Bluetooth supportSPECIFICATIONSOutput CableOperating Temp.16-24AWG/ 0.25-1.3sqmm,0.5”(13mm) conduit hole0-122°F/ 0-50°CStandards

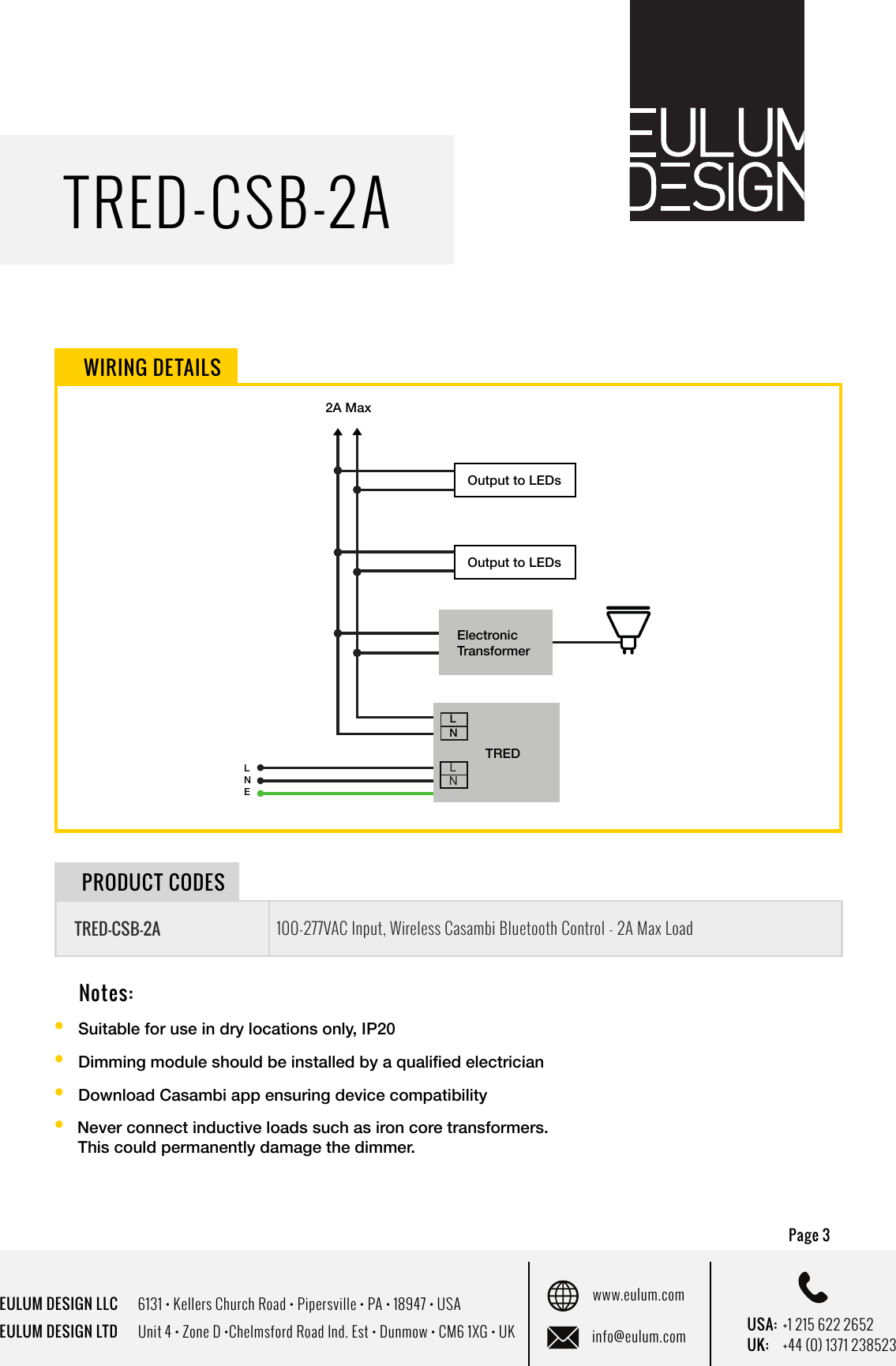

EULUM DESIGN LLC 6131 • Kellers Church Road • Pipersville • PA • 18947 • USAEULUM DESIGN LTD Unit 4 • Zone D •Chelmsford Road Ind. Est • Dunmow • CM6 1XG • UKwww.eulum.cominfo@eulum.com UK: +44 (0) 1371 238523USA: +1 215 622 2652TRED-CSB-2APage 3 Notes:• Suitable for use in dry locations only, IP20 • Dimming module should be installed by a qualied electrician • Download Casambi app ensuring device compatibility• Never connect inductive loads such as iron core transformers. This could permanently damage the dimmer.WIRING DETAILSTRED-CSB-2A100-277VAC Input, Wireless Casambi Bluetooth Control - 2A Max LoadPRODUCT CODESLNLNLNTREDLNE2A MaxElectronic TransformerOutput to LEDsOutput to LEDs

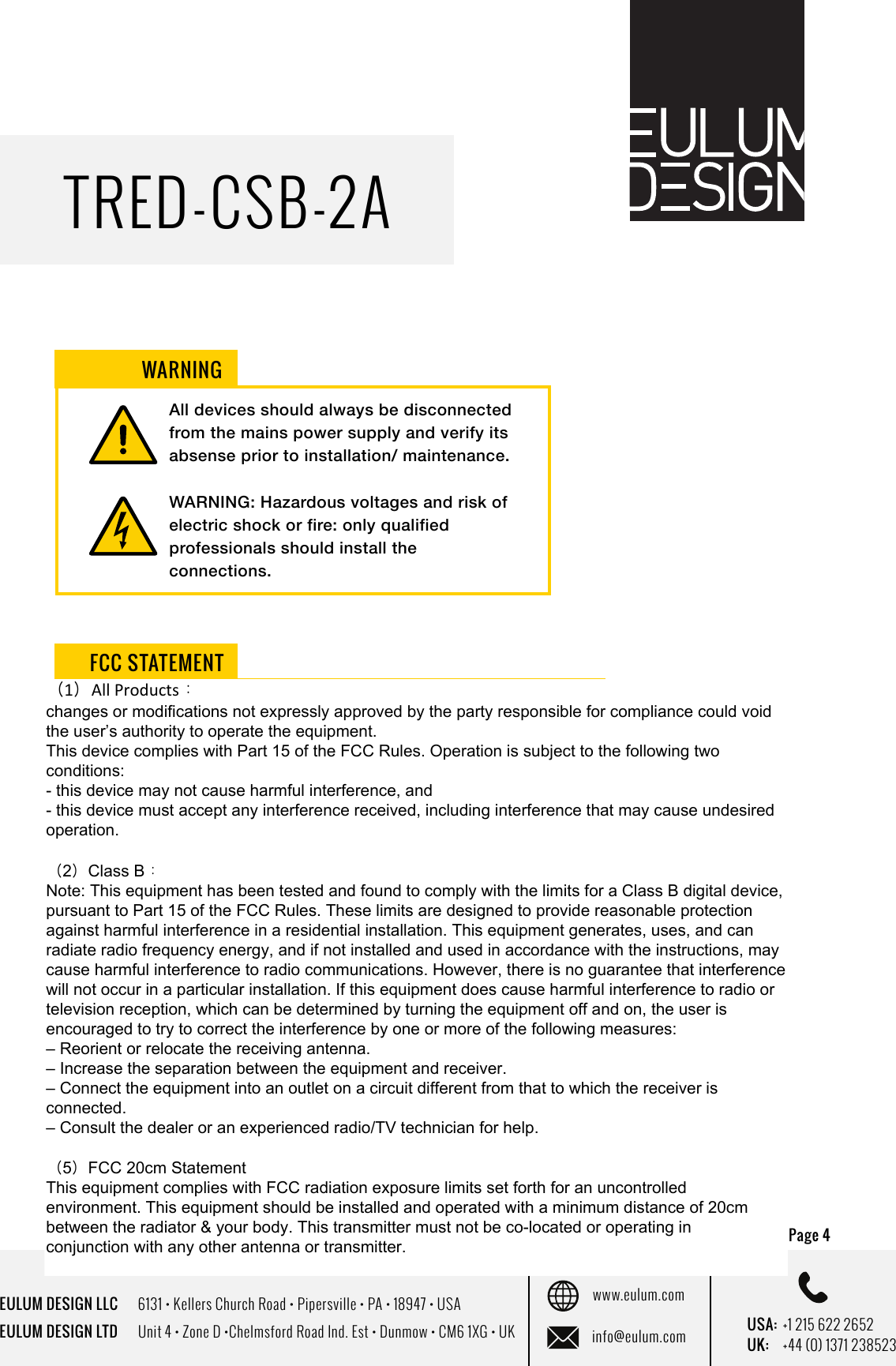

EULUM DESIGN LLC 6131 • Kellers Church Road • Pipersville • PA • 18947 • USAEULUM DESIGN LTD Unit 4 • Zone D •Chelmsford Road Ind. Est • Dunmow • CM6 1XG • UKwww.eulum.cominfo@eulum.com UK: +44 (0) 1371 238523USA: +1 215 622 2652TRED-CSB-2APage 4 All devices should always be disconnected from the mains power supply and verify its absense prior to installation/ maintenance.WARNING: Hazardous voltages and risk of electric shock or fire: only qualified professionals should install the connections. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. WARNINGFCC STATEMENT（1）All Products：changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: - this device may not cause harmful interference, and- this device must accept any interference received, including interference that may cause undesired operation.（2）Class B：Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:– Reorient or relocate the receiving antenna.– Increase the separation between the equipment and receiver.– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.– Consult the dealer or an experienced radio/TV technician for help.（5）FCC 20cm StatementThis equipment complies with FCC radiation exposure limits set forth for an uncontrolledenvironment. This equipment should be installed and operated with a minimum distance of 20cmbetween the radiator & your body. This transmitter must not be co-located or operating inconjunction with any other antenna or transmitter.
