EULUM DESIGN EUTRED Trailing Edge Dimmer User Manual
EULUM DESIGN, LLC Trailing Edge Dimmer
user manual
EULUM DESIGN LLC 6131 • Kellers Church Road • Pipersville • PA • 18947 • USA
EULUM DESIGN LTD Unit 4 • Zone D •Chelmsford Road Ind. Est • Dunmow • CM6 1XG • UK
www.eulum.com
info@eulum.com UK: +44 (0) 1371 238523
USA: +1 215 622 2652
TRED-CSB-2A
Page 1

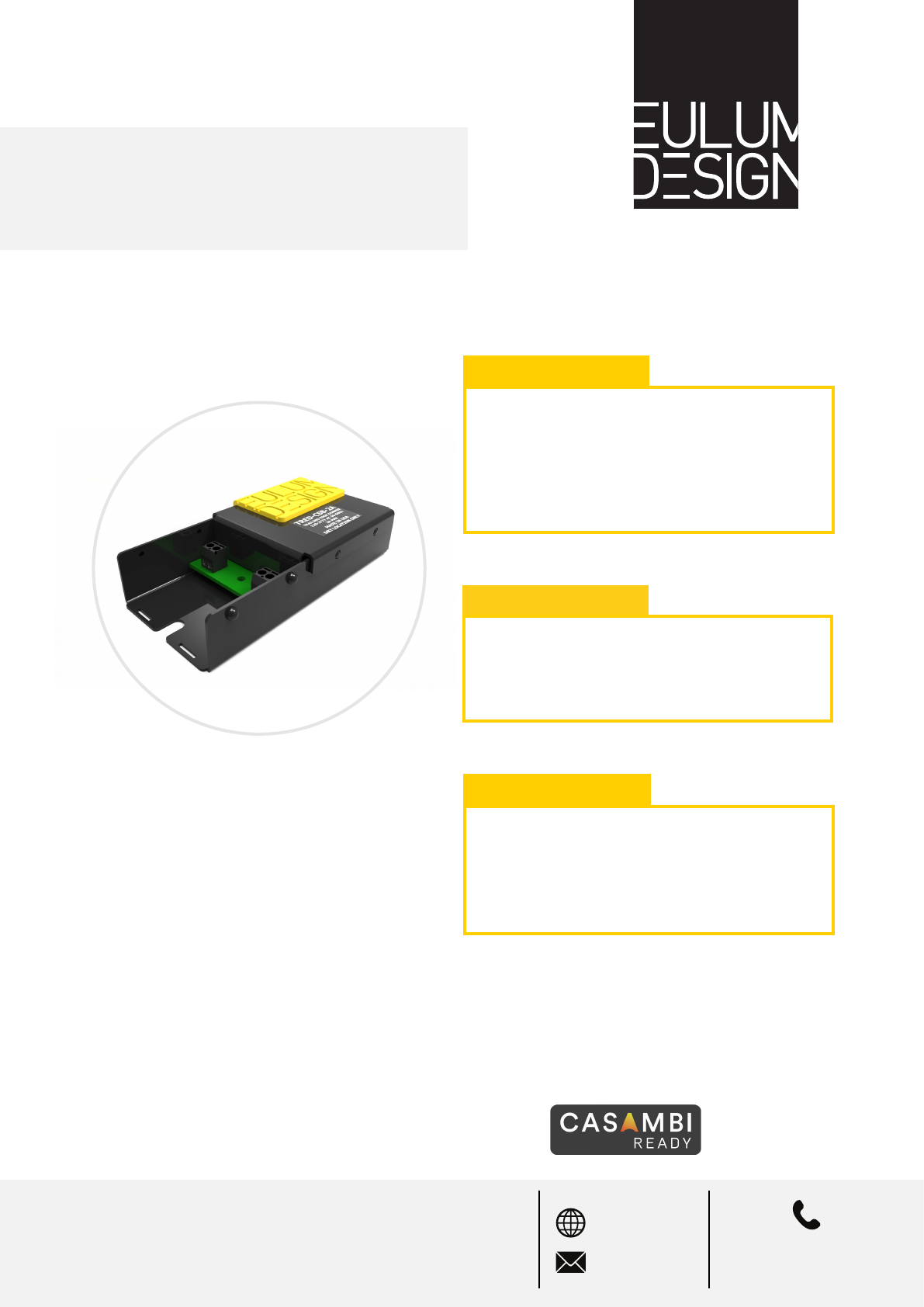

Features of the Module include:
• Wireless Bluetooth 4.0 Mesh Network
• Free Casambi lighting control app
• Capable of loads up to 2A
• Suitable for retrofitting onto existing
drivers/luminaires
Eulum BLE controls have a range of up to
200ft (60m) in open air, combined with a wide
range of easy to use lighting arrangements for
all lamp types, makes the Eulum BLE control
system suitable for all types of installations.
Eulum BLE controls
The BLE mesh network operates without the
need for additional controllers or gateway
units and prevents the lighting system from
interfering with other Bluetooth networks.
The TRED module
The Eulum Design TRED module operates
exclusively through the Casambi app (free on
iOS and Android), using a Bluetooth 4.0 mesh
network (BLE). The module is designed for a
120-277VAC input, 2A max. load, Trailing Edge
phase dimming.
The BLE mesh Network
Compatible with the following loads:
• Incandescent and high voltage halogen lamps
• High quality dimmable LED & CFL lamps
• Trailing Edge Dimmable LED Drivers
• Electronic Transformers
EULUM DESIGN LLC 6131 • Kellers Church Road • Pipersville • PA • 18947 • USA
EULUM DESIGN LTD Unit 4 • Zone D •Chelmsford Road Ind. Est • Dunmow • CM6 1XG • UK
www.eulum.com
info@eulum.com UK: +44 (0) 1371 238523
USA: +1 215 622 2652
TRED-CSB-2A
Page 2
DIMENSIONS
Input Power
Input Cable
Dimming Signal
Maximum Power
Configuration
Operating Temp.
Dimensions
100-277VAC, 50/60Hz, 2A Max
16-24AWG / 0.25-1.3sqmm, 0.5”(13mm) conduit hole
Casambi BLE Mesh
240W (120V), 460W (230V), 554W (277V)
Single Individual Addressable Output
0-122°F / 0-50°C
3.98” x 2.01” x 0.94” / 101.2mm x 51.1mm x 24mm
Device Specification
iPhone 4S / iPad 3 or later,
Android 5.0 Lollipop with full Bluetooth support
SPECIFICATIONS
Output Cable
Operating Temp.
16-24AWG/ 0.25-1.3sqmm,0.5”(13mm) conduit hole
0-122°F/ 0-50°C
Standards
EULUM DESIGN LLC 6131 • Kellers Church Road • Pipersville • PA • 18947 • USA
EULUM DESIGN LTD Unit 4 • Zone D •Chelmsford Road Ind. Est • Dunmow • CM6 1XG • UK
www.eulum.com
info@eulum.com UK: +44 (0) 1371 238523
USA: +1 215 622 2652
TRED-CSB-2A
Page 3
Notes:
• Suitable for use in dry locations only, IP20
• Dimming module should be installed by a qualied electrician
• Download Casambi app ensuring device compatibility
• Never connect inductive loads such as iron core transformers.
This could permanently damage the dimmer.

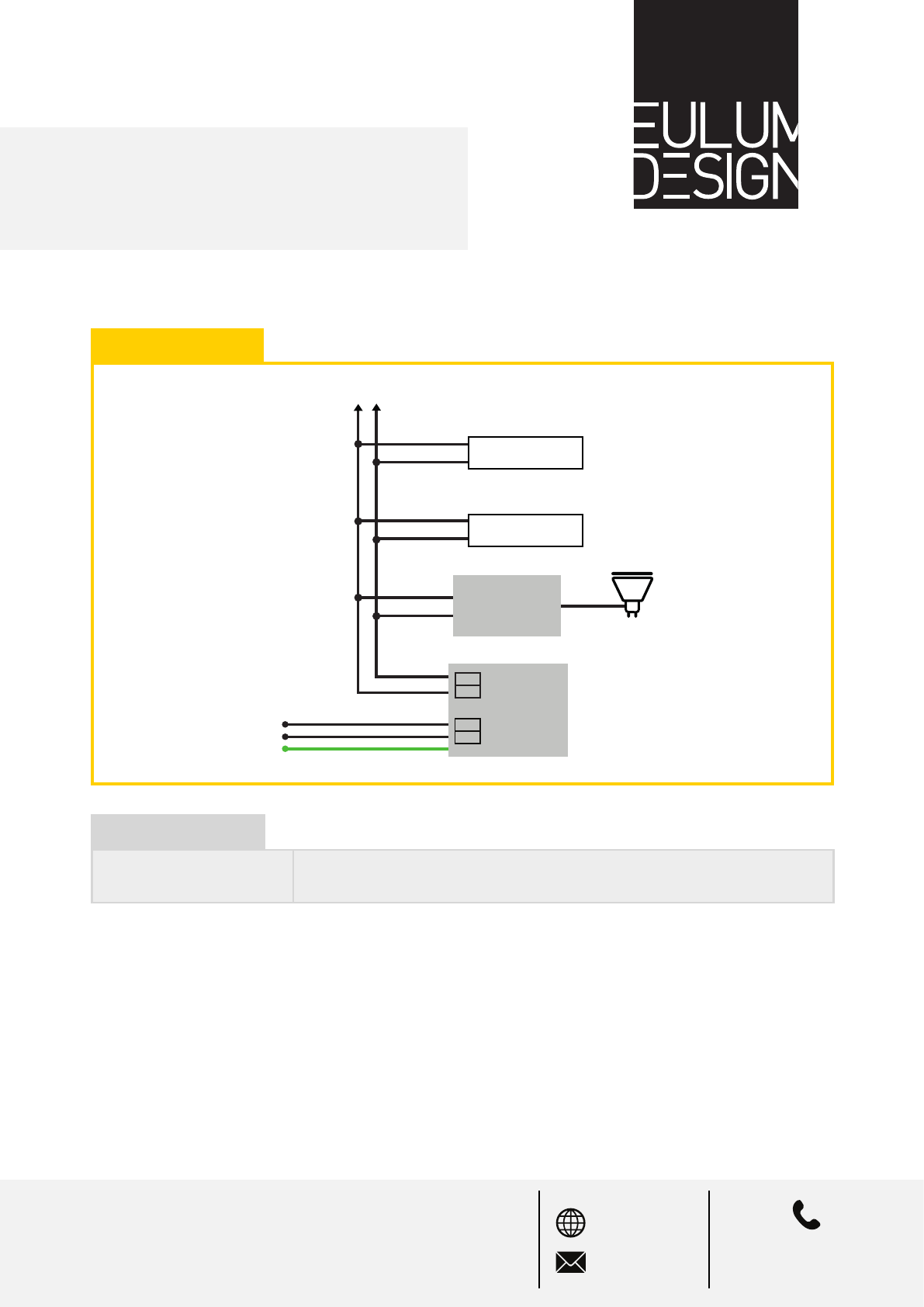

WIRING DETAILS
TRED-CSB-2A
100-277VAC Input, Wireless Casambi Bluetooth Control - 2A Max Load
PRODUCT CODES
L
N
L
N
L
N
TRED
L
N
E
2A Max
Electronic
Transformer
Output to LEDs
Output to LEDs
EULUM DESIGN LLC 6131 • Kellers Church Road • Pipersville • PA • 18947 • USA
EULUM DESIGN LTD Unit 4 • Zone D •Chelmsford Road Ind. Est • Dunmow • CM6 1XG • UK
www.eulum.com
info@eulum.com UK: +44 (0) 1371 238523
USA: +1 215 622 2652
TRED-CSB-2A
Page 4
All devices should always be disconnected
from the mains power supply and verify its
absense prior to installation/ maintenance.
WARNING: Hazardous voltages and risk of
electric shock or fire: only qualified
professionals should install the
connections.
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions.
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
WARNING
FCC STATEMENT
（1）All Products：
changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
- this device may not cause harmful interference, and
- this device must accept any interference received, including interference that may cause undesired
operation.
（2）Class B：
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy, and if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
– Consult the dealer or an experienced radio/TV technician for help.
（5）FCC 20cm Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20cm
between the radiator & your body. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
