EXPORTPRO TECHNOLOGY MT-101 Digital Proportional System User Manual MT 101 Manual for E24 thunderv
SHENZHEN EXPORTPRO TECHNOLOGY CO., LTD Digital Proportional System MT 101 Manual for E24 thunderv
User Manual
01
Transmitter Battery Installation
System Specifications
Open the battery holding tray to
expose the empty battery slots.
1: Switch off, open battery cover/tray.
2: Connect the battery connector.
3: Close the battery cover/tray.
1: Connect the battery to charger.
2: Connect the charger to power outlet.
Insert 4AA batteries into the marked spaces.
Note the correct direction of the batteries.
WARNING:
Incorrect battery alignment
or mixing battery types
and/or charge levels can
damage the remote.
CHARGER LED
INDICATOR:
Red: charging
Green: charging complete
or battery disconnected
Do not leave charged battery
plugged in to the charger
Vehicle Battery Installation and Charging
Motor connector
Servo connector
LED Indicator
Battery connector
Antenna Wire
Battery cover
Battery
Switch
Power Switch
Power Switch
Steering Range Knob
Steering Wheel
Steering Wheel
Antenna(Built-in) Working Station Indicator
Central Trim Knob
Steering Reverse Switch
Throttle Trigger
Grip
Battery Case
RECEIVER
RECIEVER
Model: MT-101RE
Frequency: 2.4GHz FHSS
Operating Voltage: 4.8~6.0V (Alkaline/NiCd/Ni-MH)
3.7~4.2V (Li-Poly 1s)
TRANSMITTER
Model: MT-101T
RF Output Power: <100mW
Operating Voltage: 4.8/6V
Power Supply: 4 Cell Alkaline/Ni-Cd/Ni-MH
Frequency/Modulation Type: 2.4GHz FHSS

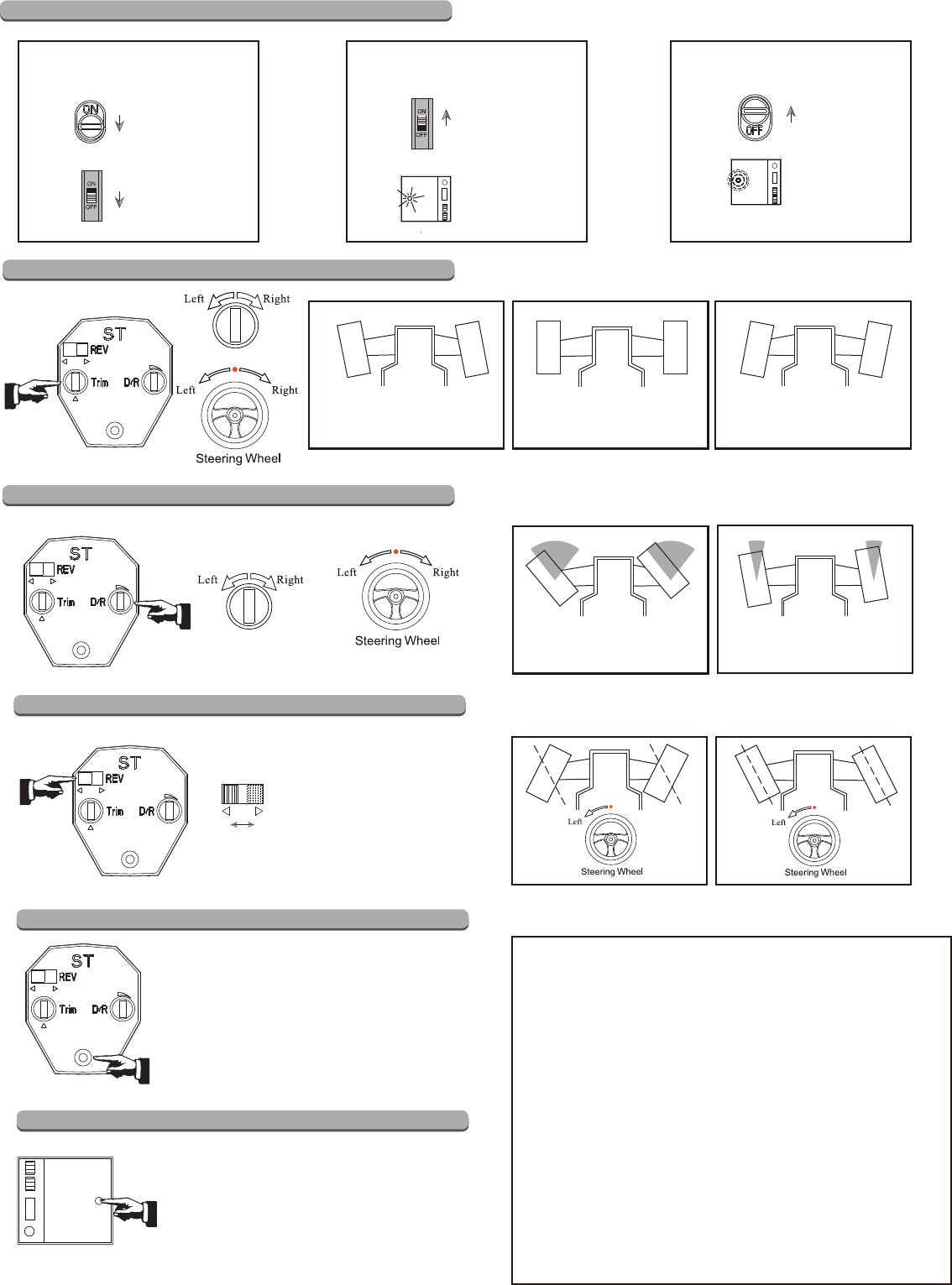

Steering Trim
MT-101T & MT-101RE Bind Procedure
Steering Dual-Rate (D/R)
The receiver LED will stay lit indicating
binding is complete.
Steering Reverse
MT-101T LED Display
MT-101RE LED Display
MT-101T
MT-101RE MT-101RE
MT-101RE MT-101T
Working
Station
Indicator
Step 1: Power off both transmitter
and receiver.
Step 2: Turn on receiver.
The LED indicator on the receiver will
flash.
Step 3: Turn on the transmitter.
The transmitter and receiver will now bind
automitically within 2 seconds.
If the wheels point to the left or the
car wonders left while at neutral
position adjust to the left.
If your car tracks straight and
wheels appear straight,
do not adjust.
If the wheels point to the right or the
car wonders right while at neutral
position adjust to the right.
For less steering adjust to the right
For more steering adjust to the left
Use this adjustment for when
the steering is reversed.
MT-101RE
Working
Station
Indicator
LED ON:
Power on
LED Rapid Flash:
The singal is interrupted
LED Slow Flash:
Low-voltage warning
LED OFF:
Power off
LED ON:
Connected
LED Rapid Flash:
Make sure the steering
wheel or throttle trigger
is not in the working mode
LED Slow Flash:
Low-voltage warning
LED OFF:
Power off
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement. The device can be u
sed in portable exposure condition without restriction
