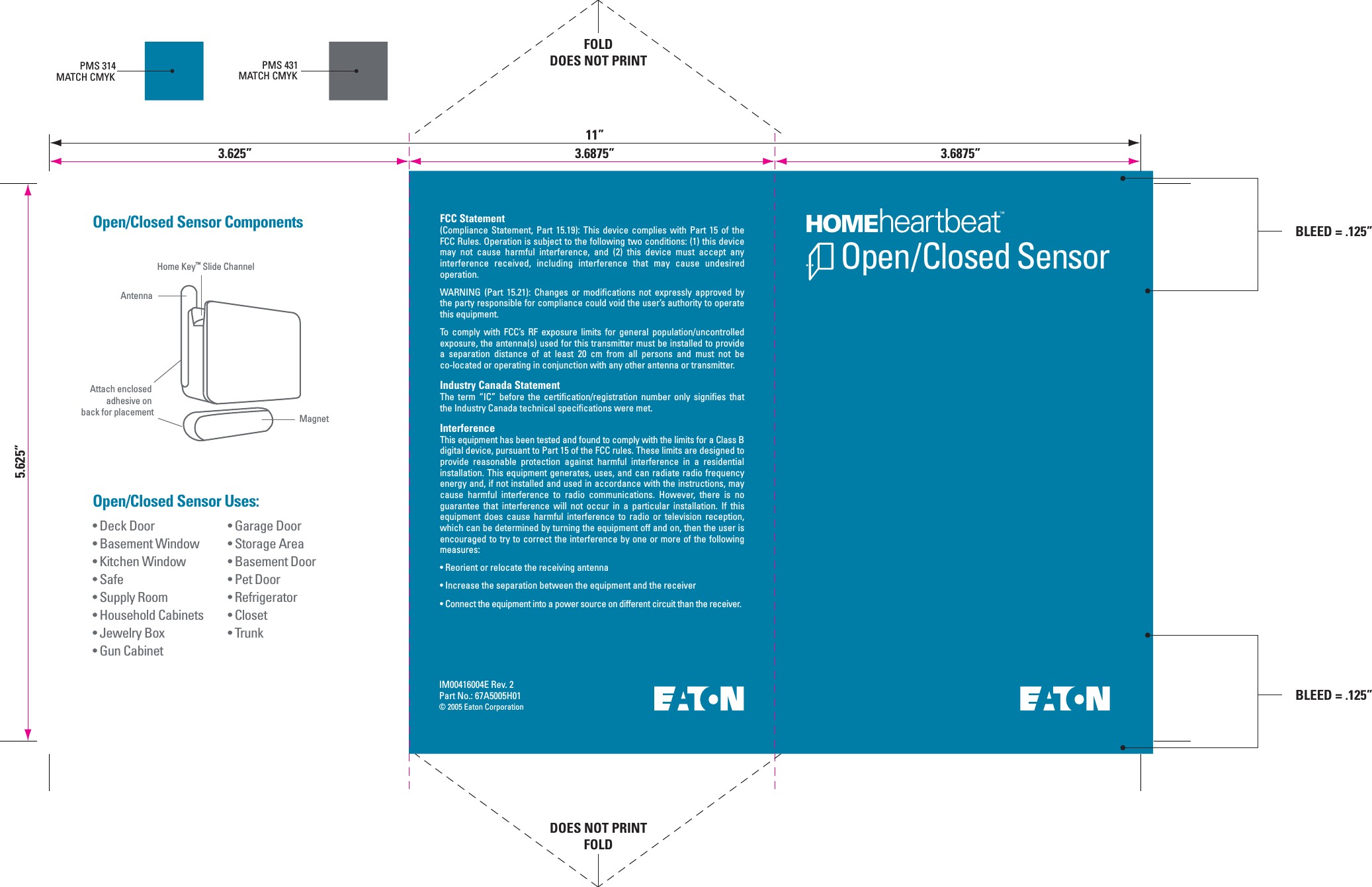

Open/Closed SensorIM00416004E Rev. 2Part No.: 67A5005H01© 2005 Eaton Corporation• Garage Door• Storage Area• Basement Door• Pet Door• Refrigerator• Closet• Trunk• Deck Door• Basement Window• Kitchen Window• Safe• Supply Room• Household Cabinets• Jewelry Box• Gun CabinetOpen/Closed Sensor Uses:Open/Closed Sensor ComponentsPMS 314MATCH CMYKPMS 431MATCH CMYKHome Key™ Slide ChannelAntennaMagnetAttach enclosed adhesive on back for placementFCC Statement(Compliance Statement, Part 15.19): This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.WARNING (Part 15.21): Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.To comply with FCC’s RF exposure limits for general population/uncontrolled exposure, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.Industry Canada StatementThe term “IC” before the certification/registration number only signifies that the Industry Canada technical specifications were met.InterferenceThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, then the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna• Increase the separation between the equipment and the receiver• Connect the equipment into a power source on different circuit than the receiver.5.625”FOLDDOES NOT PRINTDOES NOT PRINTFOLD11”3.625” 3.6875”BLEED = .125”3.6875”BLEED = .125”
