Eaton HHB1BBGW Networking Device User Manual bbgateway C2 sas finalrev3

Eaton Corporation Networking Device bbgateway C2 sas finalrev3

Manual

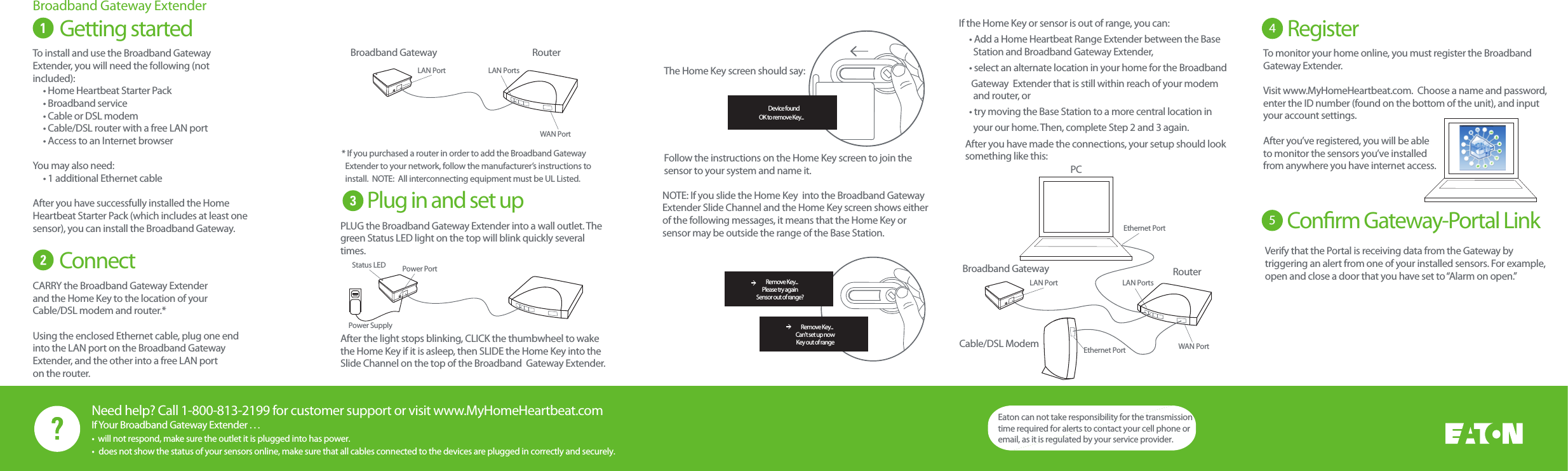

Need help? Call 1-800-813-2199 for customer support or visit www.MyHomeHeartbeat.comIf Your Broadband Gateway Extender . . .Getting started The Home Key screen should say:Follow the instructions on the Home Key screen to join the sensor to your system and name it.Broadband Gateway ExtenderTo install and use the Broadband Gateway Extender, you will need the following (not included):     • Home Heartbeat Starter Pack     • Broadband service     • Cable or DSL modem     • Cable/DSL router with a free LAN port     • Access to an Internet browserYou may also need:      • 1 additional Ethernet cableAfter you have successfully installed the Home Heartbeat Starter Pack (which includes at least one sensor), you can install the Broadband Gateway. Connect CARRY the Broadband Gateway Extender and the Home Key to the location of your Cable/DSL modem and router.*Using the enclosed Ethernet cable, plug one end into the LAN port on the Broadband Gateway Extender, and the other into a free LAN porton the router. If the Home Key or sensor is out of range, you can:     • Add a Home Heartbeat Range Extender between the Base        Station and Broadband Gateway Extender,     • select an alternate location in your home for the Broadband                          Gateway  Extender that is still within reach of your modem       and router, or       • try moving the Base Station to a more central location in       your our home. Then, complete Step 2 and 3 again.Plug in and set up* If you purchased a router in order to add the Broadband Gateway     Extender to your network, follow the manufacturer’s instructions to  install.  NOTE:  All interconnecting equipment must be UL Listed.After you have made the connections, your setup should look something like this:To monitor your home online, you must register the Broadband Gateway Extender. Visit www.MyHomeHeartbeat.com.  Choose a name and password, enter the ID number (found on the bottom of the unit), and input your account settings.After you’ve registered, you will be able to monitor the sensors you’ve installed from anywhere you have internet access.4Register 5Conrm Gateway-Portal Link PLUG the Broadband Gateway Extender into a wall outlet. The green Status LED light on the top will blink quickly several times. After the light stops blinking, CLICK the thumbwheel to wake the Home Key if it is asleep, then SLIDE the Home Key into the Slide Channel on the top of the Broadband  Gateway Extender. NOTE: If you slide the Home Key  into the Broadband Gateway Extender Slide Channel and the Home Key screen shows either of the following messages, it means that the Home Key or sensor may be outside the range of the Base Station.     Remove Key...Please try againSensor out of range?    Remove Key...Can't set up nowKey out of range    Device foundOK to remove Key...Eaton can not take responsibility for the transmission time required for alerts to contact your cell phone or email, as it is regulated by your service provider.Verify that the Portal is receiving data from the Gateway by triggering an alert from one of your installed sensors. For example, open and close a door that you have set to “Alarm on open.”•  will not respond, make sure the outlet it is plugged into has power.•  does not show the status of your sensors online, make sure that all cables connected to the devices are plugged in correctly and securely.RouterBroadband GatewayCable/DSL ModemPCWAN PortLAN Port LAN PortsEthernet PortEthernet PortRouterBroadband GatewayWAN PortLAN Port LAN PortsPower PortStatus LEDPower Supply

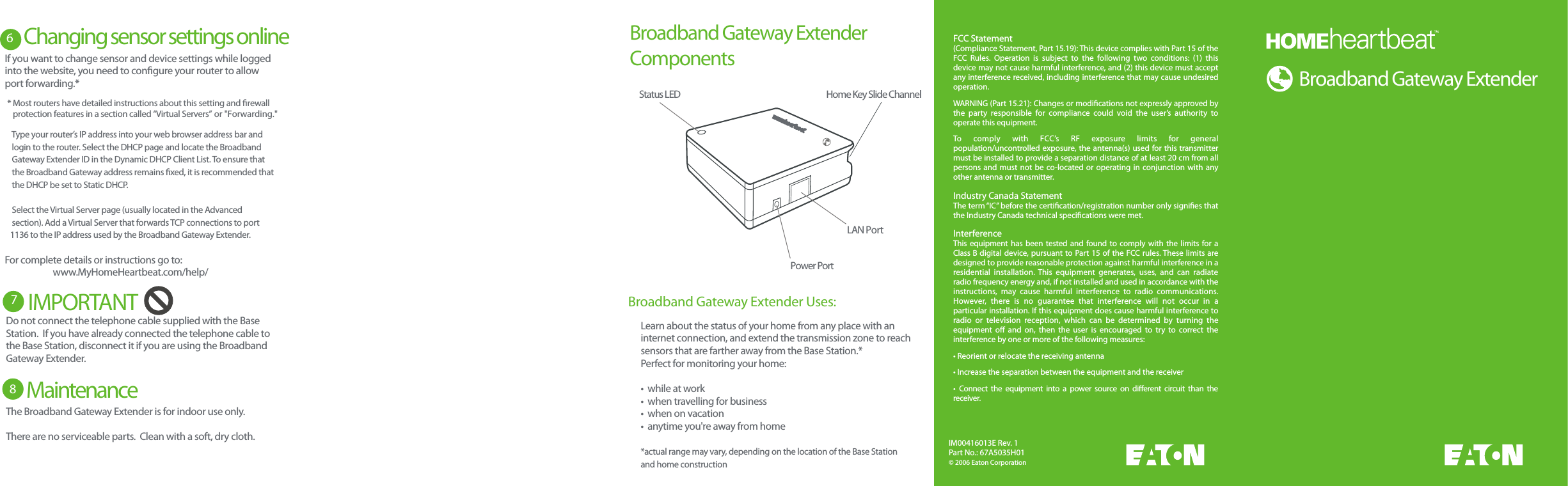

RouterBroadband GatewayCable/DSL ModemPCWAN PortLAN Port LAN PortsEthernet PortEthernet PortRouterBroadband GatewayWAN PortLAN Port LAN PortsPower PortStatus LEDIM00416013E Rev. 1Part No.: 67A5035H01© 2006 Eaton CorporationFCC Statement(Compliance Statement, Part 15.19): This device complies with Part 15 of the FCC  Rules.  Operation  is  subject  to  the  following  two  conditions:  (1)  this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.WARNING (Part 15.21): Changes or modications not expressly approved by the  party  responsible  for  compliance  could  void  the  user’s  authority  to operate this equipment.To  comply  with  FCC’s  RF  exposure  limits  for  general population/uncontrolled exposure, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and  must not  be co-located  or operating  in conjunction  with  any other antenna or transmitter.Industry Canada StatementThe term “IC” before the certication/registration number only signies that the Industry Canada technical specications were met.InterferenceThis  equipment  has been tested  and found  to comply with the  limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential  installation.  This  equipment  generates,  uses,  and  can  radiate radio frequency energy and, if not installed and used in accordance with the instructions,  may  cause  harmful  interference  to  radio  communications. However,  there  is  no  guarantee  that  interference  will  not  occur  in  a particular installation. If this equipment does cause harmful interference to radio  or  television  reception,  which  can  be  determined  by  turning  the equipment  o  and  on,  then  the  user  is  encouraged  to  try  to  correct  the interference by one or more of the following measures:• Reorient or relocate the receiving antenna• Increase the separation between the equipment and the receiver•  Connect  the  equipment  into  a  power  source  on  dierent  circuit  than  the receiver.Broadband Gateway Extender•  will not respond, make sure the outlet it is plugged into has power.•  Broadband Gateway Extender Components Broadband Gateway Extender Uses:LAN PortPower PortHome Key Slide ChannelStatus LEDLearn about the status of your home from any place with aninternet connection, and extend the transmission zone to reachsensors that are farther away from the Base Station.* Perfect for monitoring your home:•  while at work•  when travelling for business•  when on vacation•  anytime you're away from home*actual range may vary, depending on the location of the Base Station and home constructionChanging sensor settings online    * Most routers have detailed instructions about this setting and rewall      protection features in a section called “Virtual Servers” or "Forwarding."7IMPORTANT If you want to change sensor and device settings while logged into the website, you need to congure your router to allow port forwarding.*    Type your router’s IP address into your web browser address bar and      login to the router. Select the DHCP page and locate the Broadband     Gateway Extender ID in the Dynamic DHCP Client List. To ensure that    the Broadband Gateway address remains xed, it is recommended that    the DHCP be set to Static DHCP.     Select the Virtual Server page (usually located in the Advanced    section). Add a Virtual Server that forwards TCP connections to port    1136 to the IP address used by the Broadband Gateway Extender.For complete details or instructions go to:  www.MyHomeHeartbeat.com/help/Do not connect the telephone cable supplied with the BaseStation.  If you have already connected the telephone cable tothe Base Station, disconnect it if you are using the Broadband Gateway Extender.6 7Maintenance 8The Broadband Gateway Extender is for indoor use only.There are no serviceable parts.  Clean with a soft, dry cloth.
