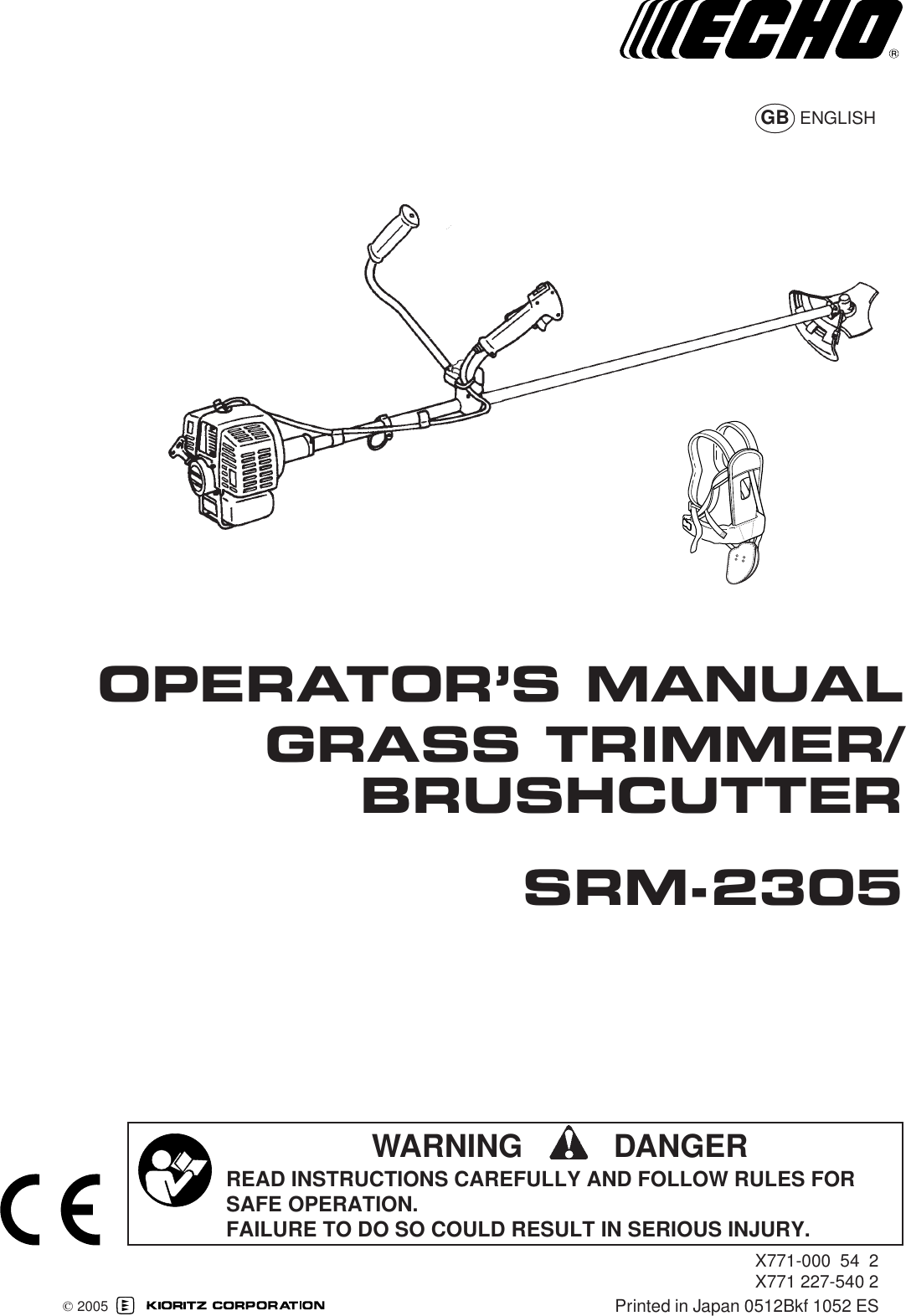

WARNING DANGERREAD INSTRUCTIONS CAREFULLY AND FOLLOW RULES FORSAFE OPERATION.FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY.© 2005 X771-000 54 2X771 227-540 2ENGLISHGBOPERATOR’S MANUALGRASS TRIMMER/BRUSHCUTTERSRM-2305Printed in Japan 0512Bkf 1052 ES

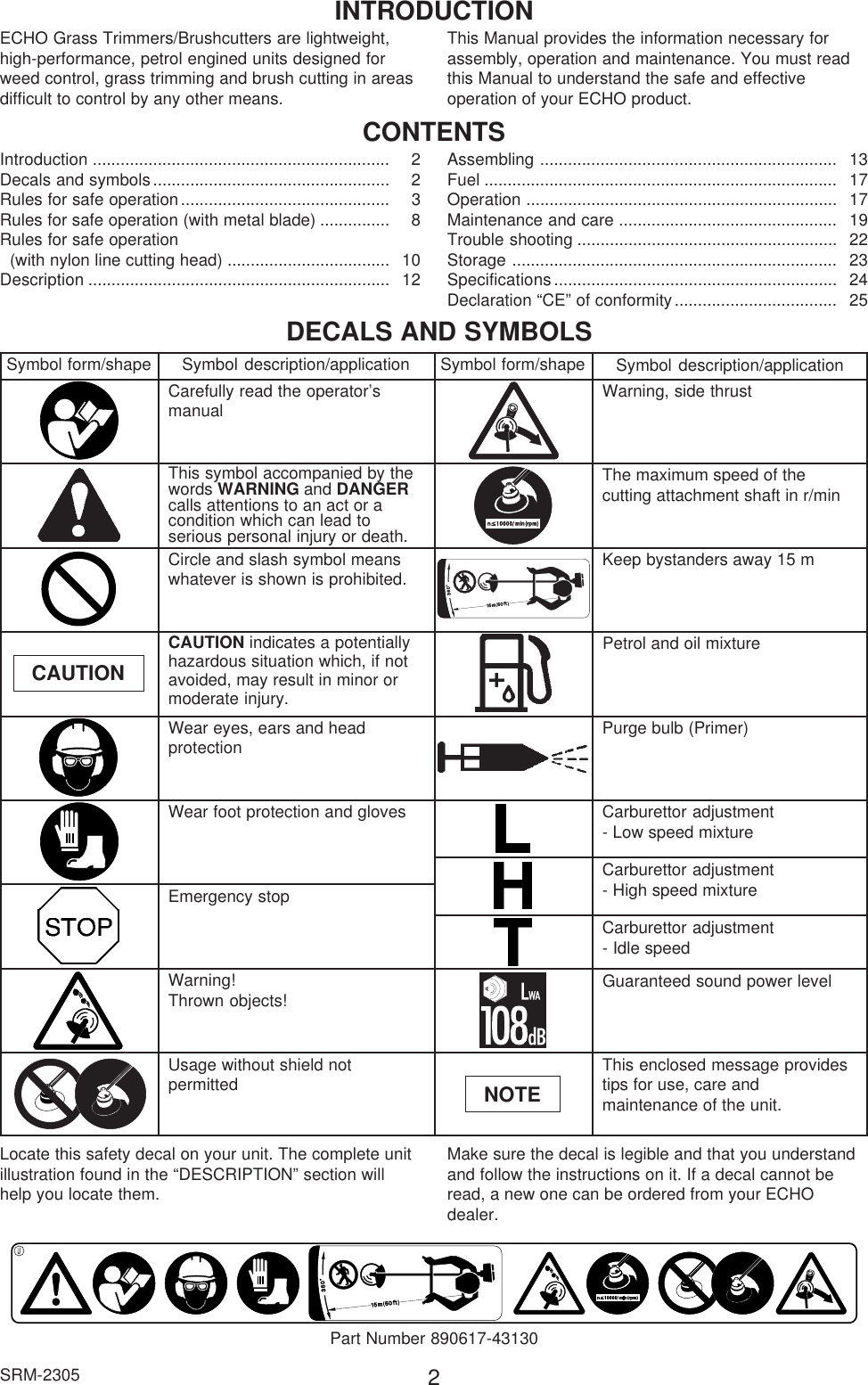

2SRM-2305INTRODUCTIONECHO Grass Trimmers/Brushcutters are lightweight,high-performance, petrol engined units designed forweed control, grass trimming and brush cutting in areasdifficult to control by any other means.CONTENTSIntroduction ................................................................ 2Decals and symbols................................................... 2Rules for safe operation............................................. 3Rules for safe operation (with metal blade) ............... 8Rules for safe operation (with nylon line cutting head) ................................... 10Description ................................................................. 12Assembling ................................................................ 13Fuel ............................................................................ 17Operation ................................................................... 17Maintenance and care ............................................... 19Trouble shooting ........................................................ 22Storage ...................................................................... 23Specifications ............................................................. 24Declaration “CE” of conformity................................... 25This Manual provides the information necessary forassembly, operation and maintenance. You must readthis Manual to understand the safe and effectiveoperation of your ECHO product.DECALS AND SYMBOLSCarefully read the operator’smanualWear eyes, ears and headprotectionCarburettor adjustment- Low speed mixturePurge bulb (Primer)Petrol and oil mixtureWarning, side thrustThis symbol accompanied by thewords WARNING and DANGERcalls attentions to an act or acondition which can lead toserious personal injury or death.The maximum speed of thecutting attachment shaft in r/minCarburettor adjustment- High speed mixtureSymbol form/shape Symbol description/application Symbol form/shape Symbol description/applicationCAUTION indicates a potentiallyhazardous situation which, if notavoided, may result in minor ormoderate injury.Circle and slash symbol meanswhatever is shown is prohibited.Emergency stopKeep bystanders away 15 mUsage without shield notpermittedCarburettor adjustment- Idle speedNOTEWarning!Thrown objects!This enclosed message providestips for use, care andmaintenance of the unit.Wear foot protection and glovesCAUTIONLocate this safety decal on your unit. The complete unitillustration found in the “DESCRIPTION” section willhelp you locate them.Part Number 890617-43130Make sure the decal is legible and that you understandand follow the instructions on it. If a decal cannot beread, a new one can be ordered from your ECHOdealer.Guaranteed sound power level
