Manual
Bentley WiNET Tag User Guide
FAS1503
DOC1036 Revision 0
Document Title UltraClenz, LLC
Page 2
Table of Contents
Revision History ................................................................................................................................................... 3
Box Contents ....................................................................................................................................................... 4
Overview ............................................................................................................................................................. 4
Installing the Batteries .......................................................................................................................................... 5
Step 1 – Open Tag Enclosure........................................................................................................................... 5
Step 2 – Removing Battery Insulators (Batteries preinstalled) ........................................................................... 5
Step 3 – Installing New Batteries (Batteries not preinstalled) ............................................................................. 5
Installing the Tag ................................................................................................................................................. 6
Step 1 – Tag Mounting Location ....................................................................................................................... 6
Step 2 – Attach the Cable to the Tag ................................................................................................................ 6
Step 3 – Fold Cable .......................................................................................................................................... 6
Step 4 – Mount the Tag to the Wall ................................................................................................................... 6
Connecting the Tag to the Dispenser ................................................................................................................... 7
Step 1 – Remove Touch-free Dispenser Gearbox ............................................................................................. 7
Step 2 – Install Cable ....................................................................................................................................... 7
Step 3 – Install Gearbox back into the Dispenser .............................................................................................. 8
Testing the Tag .................................................................................................................................................... 8
Step 1 – Setting up Test Equipment ................................................................................................................. 8
Step 2 – Configuring Terminal Emulation Software (HyperTeminal) .................................................................. 8
Step 3 – Conducting the Test ........................................................................................................................... 9
Maintenance ...................................................................................................................................................... 10
Cleaning ......................................................................................................................................................... 10
Changing the Batteries ................................................................................................................................... 10
Step 1 – Open Tag Enclosure......................................................................................................................... 10
Step 2 – Replacing Old Batteries .................................................................................................................... 10
Certification and Safety Approvals ..................................................................................................................... 11
FCC ............................................................................................................................................................... 11
Warranty ............................................................................................................................................................ 11
Document Title UltraClenz, LLC
Page 3
Revision History
Revision
Date
By
Description
0
01/25/11
MJB
Initial Release
Document Title UltraClenz, LLC
Page 4
Box Contents

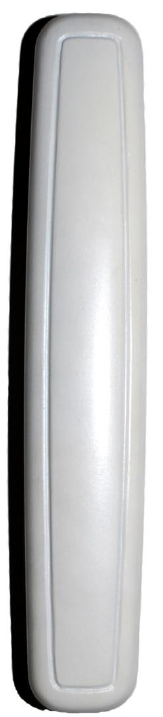

1 WiNET Radio Tag
2 Coin Cell Batteries (CR2430 - Optional)
1 Detachable Cable
1 User’s Guide
Overview
The FAS1503 WiNet Tag, when used as a component of the WiNET wireless monitoring solution, relays radio
transmissions to both the WiNET Hub (FASxxxx) and the WiNET Gateway (FASxxxx) (see Figure 1).

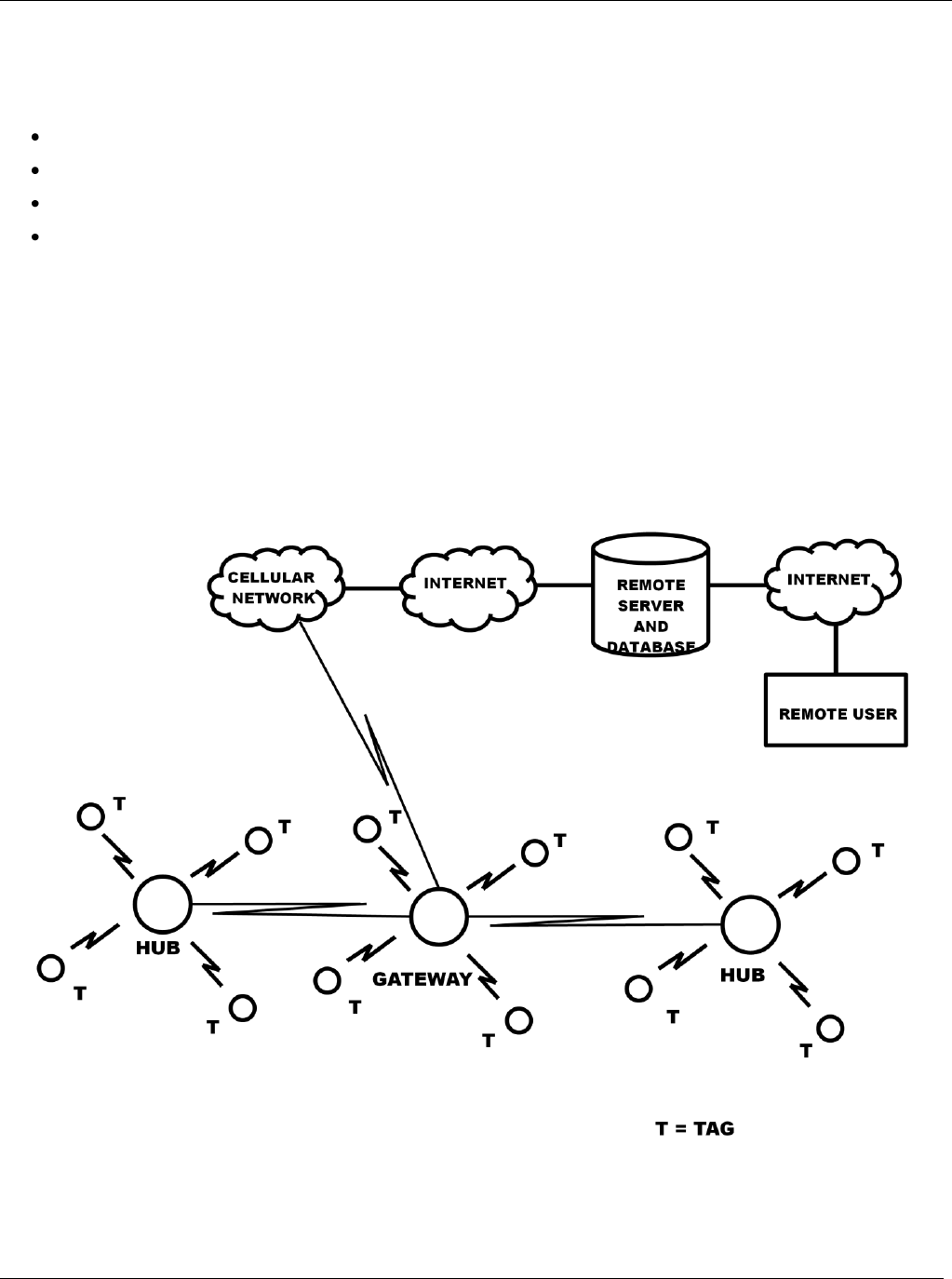

Figure 1. – WiNET Network Topology
Document Title UltraClenz, LLC
Page 5
Installing the Batteries
This procedure will require a small Phillips screwdriver.
Step 1 – Open Tag Enclosure
With a small Phillips screwdriver, remove the two screws located on the front of the Tag enclosure (see Figure 2).
With the screw removed, separate the bottom half of the Tag enclosure from the top half. The Tag will be
secured inside the Tag enclosure.

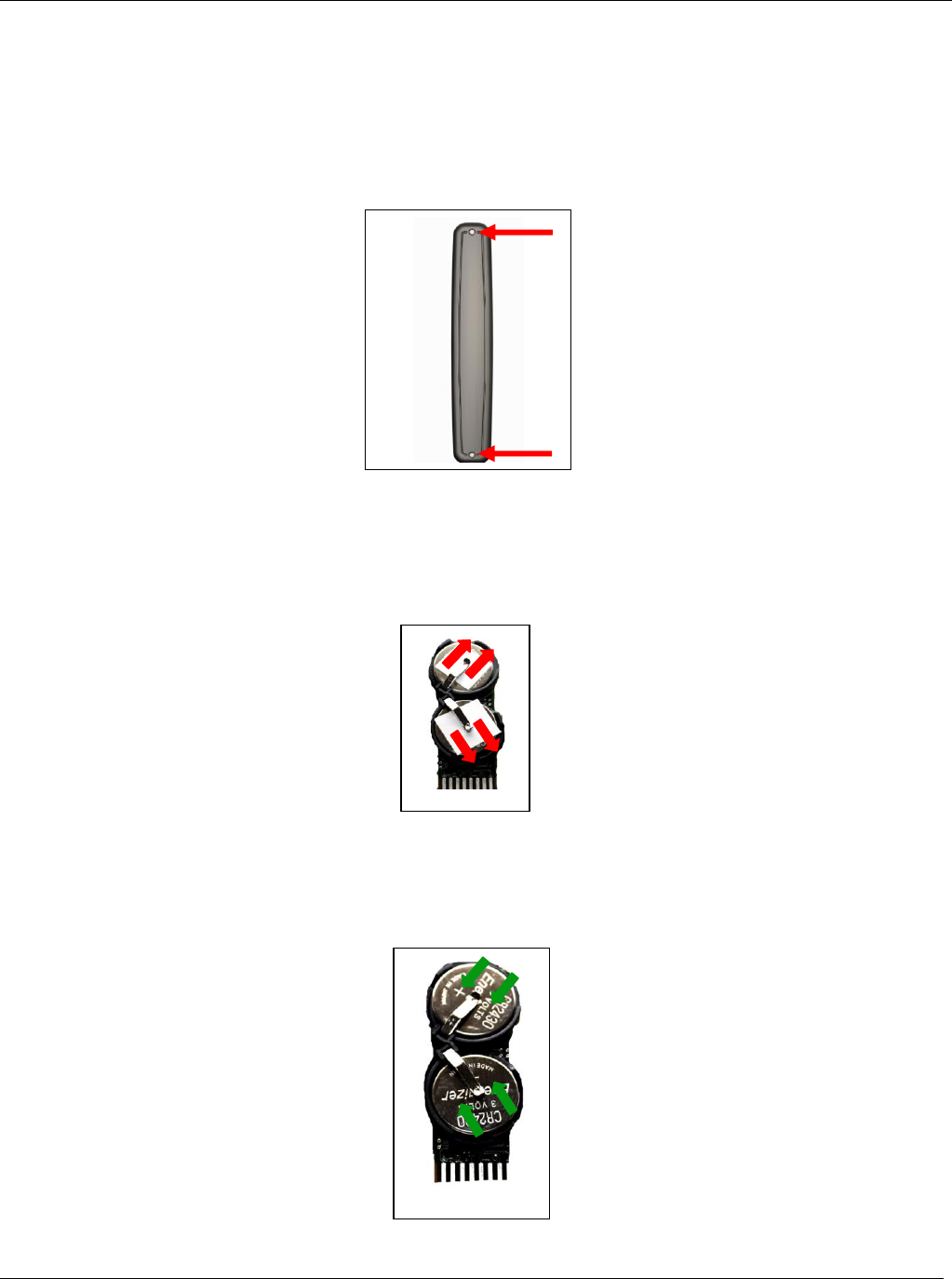

Figure 2 – Location of Screws
Step 2 – Removing Battery Insulators (Batteries preinstalled)
Depending on the configuration ordered, batteries may be preinstalled in the Tag. To prevent power drainage
during shipping, insulators may be inserted between the battery contacts and the battery (see figure 3). Remove
the battery insulators by gently pulling the insulation away from the battery.
Step 3 – Installing New Batteries (Batteries not preinstalled)
Depending on the configuration ordered, batteries may not be preinstalled in the Tag. Insert a coin cell battery
(CR2430) into the battery holder with the positive (+) side facing toward the contact (see figure 4). Repeat the
procedure for the remaining battery holder.
Figure 3
Figure 4
Document Title UltraClenz, LLC
Page 6
Installing the Tag
This procedure will require no tools.
Step 1 – Tag Mounting Location
In a dry indoor environment, locate an area on a wall next to the dispenser where the Tag will be mounted,
preferably to the immediate right or left of the dispenser. Make sure the wall’s surface is clean and free of dirt,
dust or grease.
NOTE: The Tag is a radio and therefore should not be mounted on or near large metal objects. Doing so may
degrade its performance.
Step 2 – Attach the Cable to the Tag
Insert one end of the detachable cable into the port on the back of the Tag (see Figure 5).

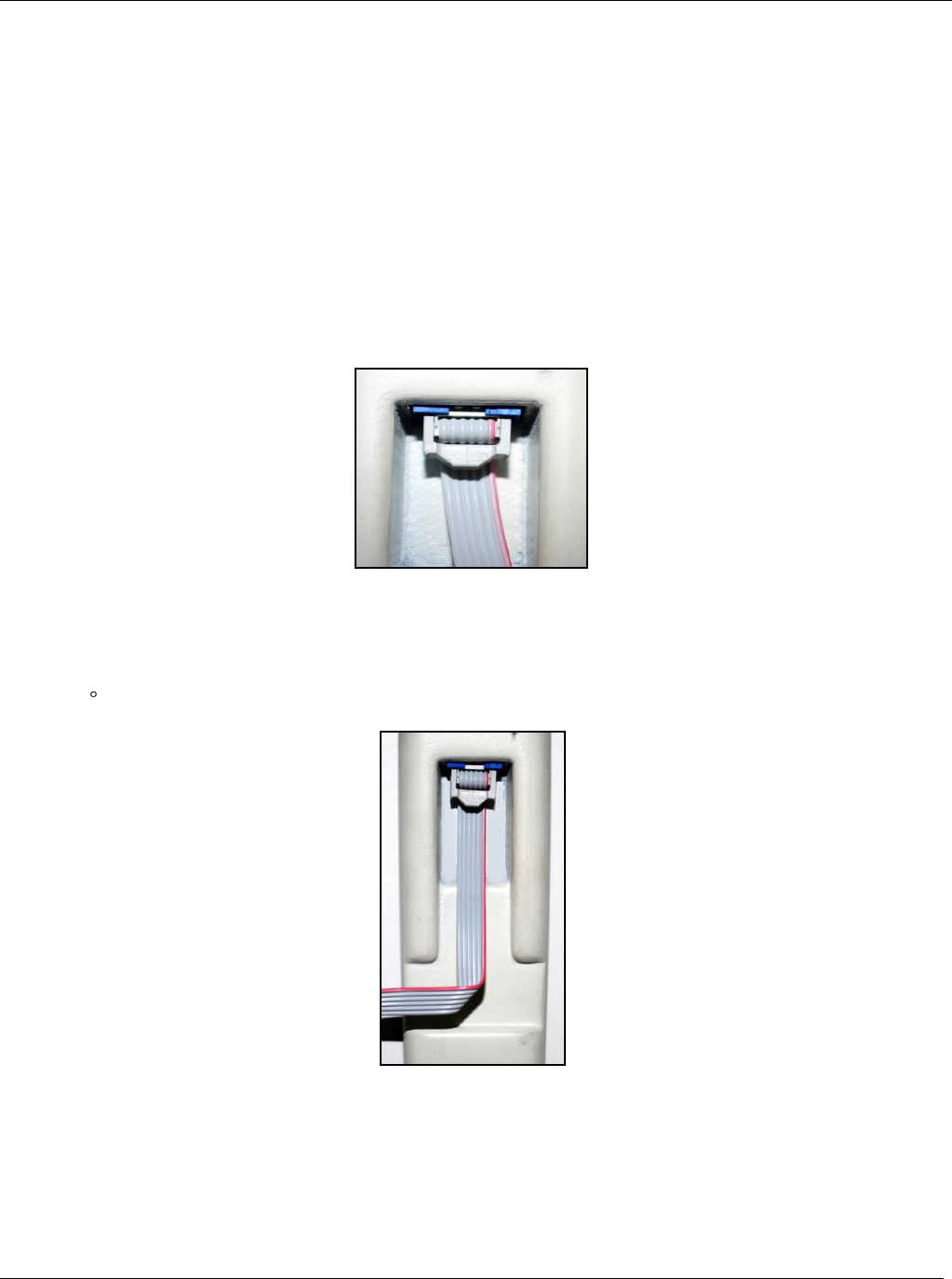

Figure 5
Step 3 – Fold Cable
Make a 90 fold in the cable at the recessed portion of the back of the enclosure (see Figure 6).
Figure 6
If the Tag will be mounted on the left side of the dispenser, fold the cable to the left. If the Tag will be mounted on
the right side of the dispenser, fold the cable to the right.
Step 4 – Mount the Tag to the Wall
Unpeel the protective layer from the two pieces of double sided tape that are located on the back of the Tag.
Align the top of the Tag with the top of the dispenser and press the Tag firmly against the wall.
Document Title UltraClenz, LLC
Page 7
Connecting the Tag to the Dispenser
Step 1 – Remove Touch-free Dispenser Gearbox
Open the cover of the dispenser and remove the touch-free gearbox. To remove the touch-free gearbox, depress
the retention clip located at the top of the touch-free gearbox to unlatch and pivot forward to remove.
Step 2 – Install Cable
Locate the 6-pin port on the back of the touch-free gearbox and insert the free end of the detachable cable into
the port (see figure 7).

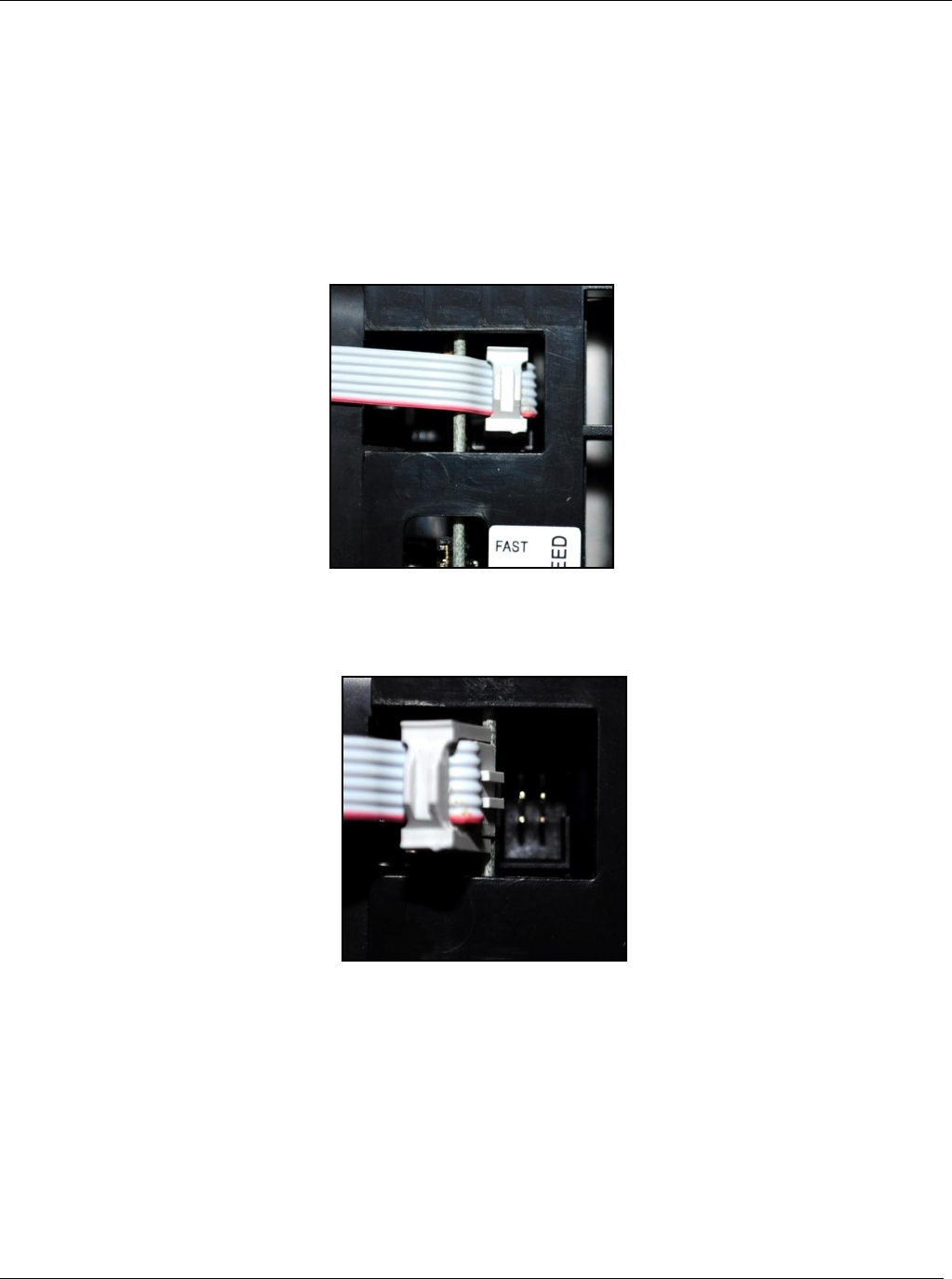

Figure 7
Insure that the two raised tabs on the top of the cable end are inserted into the corresponding opening in the 6-pin
port on the back of the touch-free gearbox (see Figure 8).
Figure 8
Document Title UltraClenz, LLC
Page 8
Step 3 – Install Gearbox back into the Dispenser
To reinstall the touch-free gearbox, place the bottom 2 pivot points into the chassis base and pivot the top
towards the chassis until the touch-free gearbox latches and clicks into place. Close the cover. The finished
installation should look like Figure 9 below.
Figure 9 – Complete Installation
Testing the Tag
This procedure will require a dispenser with the Tag installed, a hub (optional), a USB to RS485 Network Interface
Kit (KIT1101-00), and a gateway attached to a computer running a Terminal Emulation program.
Step 1 – Setting up Test Equipment
For instruction on how to install and configure the USB to RS485 Network Interface Kit, please refer to DOC1000.
Insert the RJ-11 connector, located on the end of the serial cable, into the RS-485 port on the back of the
Gateway as shown in figure 10. The other end of the serial cable will be inserted into the RS-485 Data port on
the USB to RS485 Network Interface adapter.

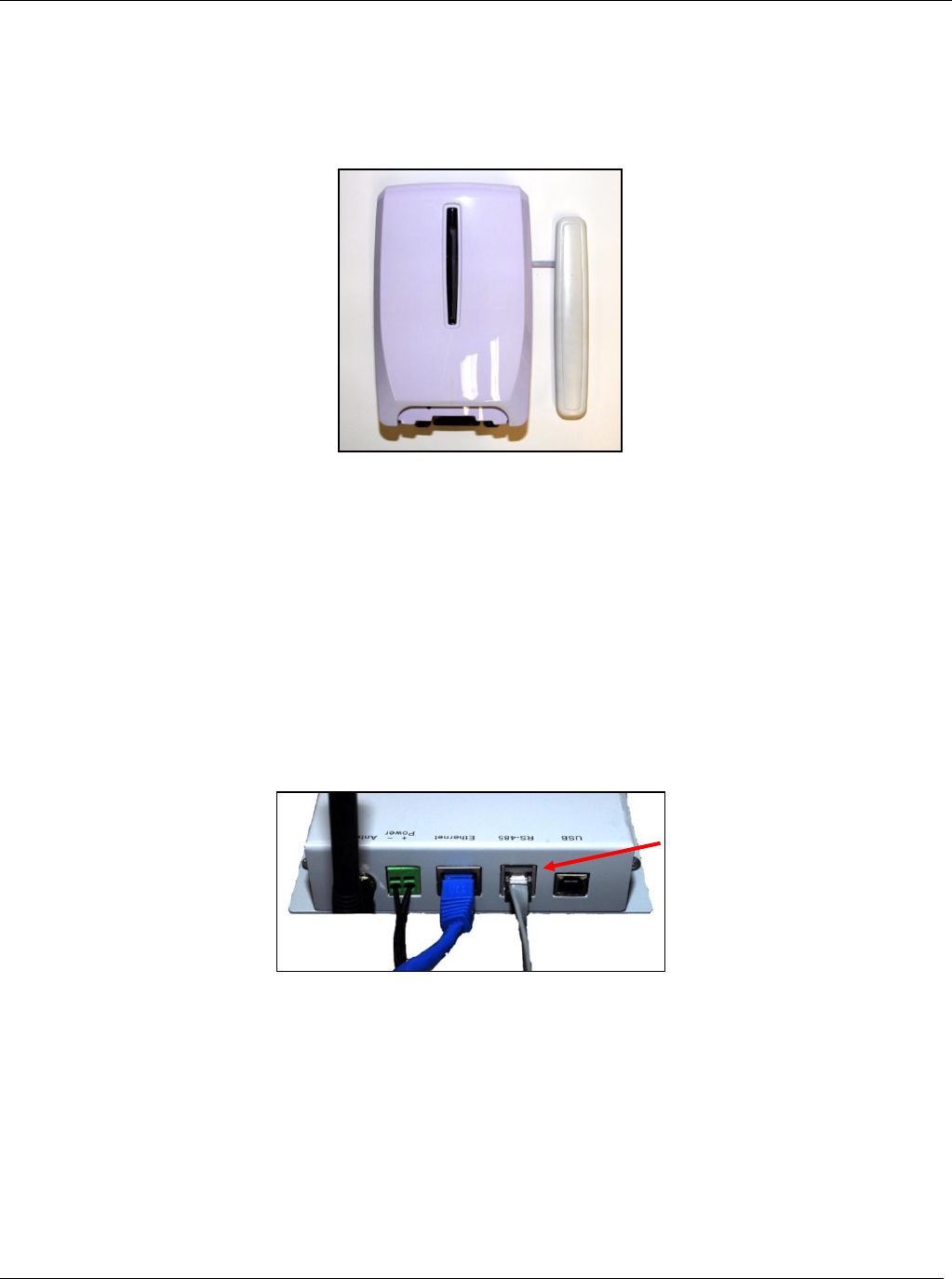

Figure 10 – Location of serial connection in back of Gateway
Insert the USB cable into a USB port on computer. The other end of the USB cable will be inserted into the RS-
485 Data port on the USB to RS485 Network Interface adapter.
Step 2 – Configuring Terminal Emulation Software (HyperTeminal)
For instructions on how to configure Terminal Emulation Software (HyperTerminal), please refer to DOC1038
(WiNET Gateway User Guide). With communications established between Gateway and computer, start a
terminal session. Press G [enter] until the Gateway events are ON. Press M [enter] until the Monitor Events are
OFF.
Document Title UltraClenz, LLC
Page 9
Step 3 – Conducting the Test
With the Gateway properly connected to computer through the USB to RS485 Network Interface adapter, activate
the dispenser. Successful events will appear on terminal session as seen in figure 11. Test the connection
between the Gateway and the Computer by pressing the letter “t” [enter]. You will see the current date time group
that is configured on the Gateway.

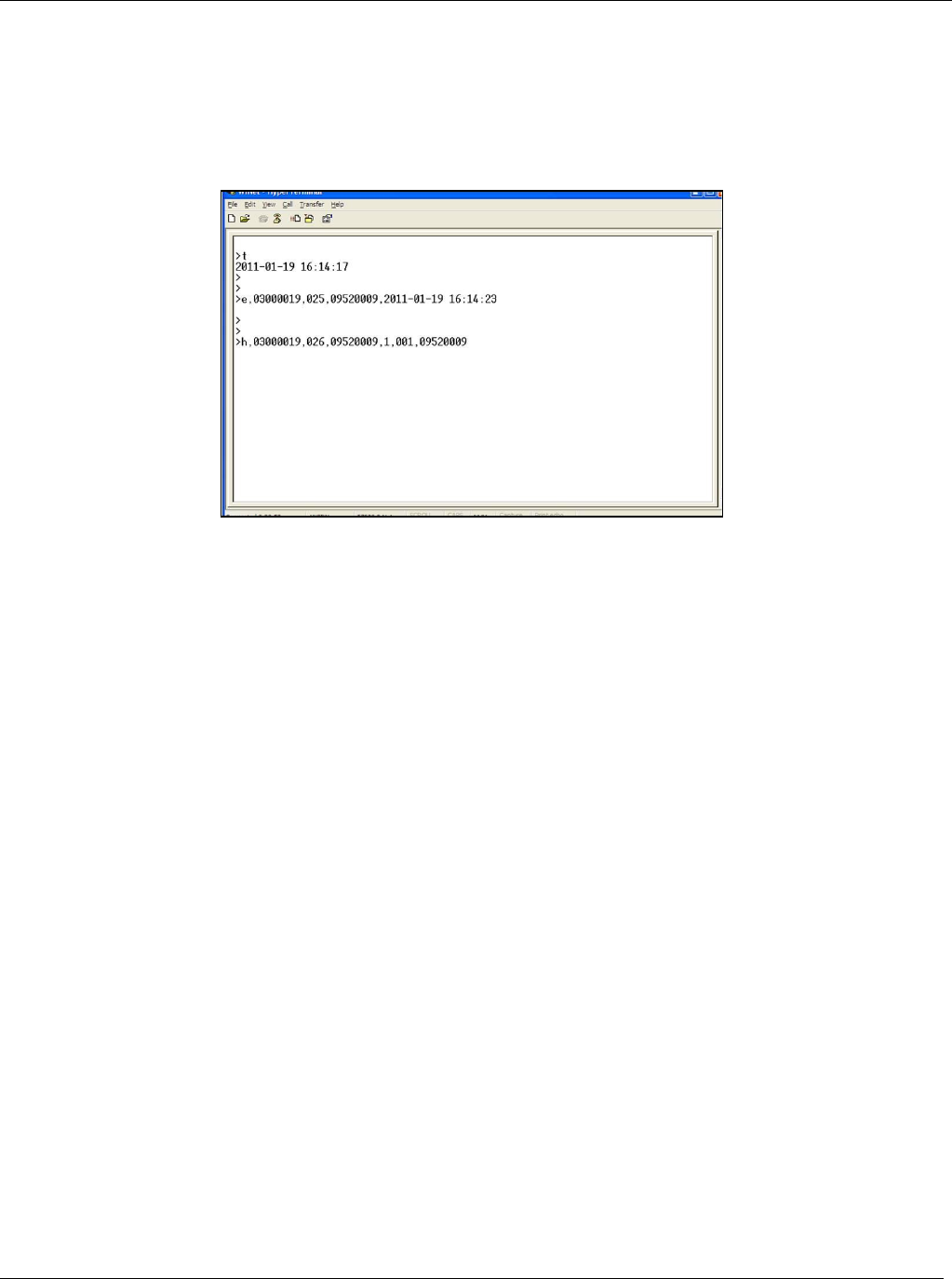

Figure 11 – Successful Tag Test result
A dispense event occurs when a dispenser, equipped with a tag, is activated. Successful dispense events will
appear on screen preceded by a lower case letter e and will look like this:
e,03000019,025,09520009,2011-01-19 16:14:23
The fields are defined as follows:
e = Dispense event
03000019 = Device identification number (unique for each device)
025 = Nonce (Unique identifier - increments by 1 each event)
09520009 = First Responder ID (FRID)
2011-01-19 = Date of event
16:14:23 = Time of event
A heartbeat occurs at regularly predetermined intervals and is designed to announce to the gateway that the
device is online and operational. Successful heartbeats will appear on screen preceded by a lower case letter h
and will look like this:
h,03000019,026,09520009,1,001,09520009
The fields are defined as follows:
h = Heartbeat
03000019 = Device identification number (unique for each device)
026 = Nonce (Unique identifier - increments by 1 each event)
09520009 = First Responder ID (FRID)
1 = Device Type (1=Tag; 2=Hub)
001 = FRQ (First Responder Link Quality)
Document Title UltraClenz, LLC
Page 10
09520009 = Gateway assigned to that network
Maintenance
Cleaning
The exterior can be cleaned with a NON abrasive detergent and a NON abrasive damp (not wet) sponge or cloth.
The Tag is splash resistant but not water proof.
Changing the Batteries
This procedure will require a small Phillips screwdriver and two (2) coin cell batteries (CR2430).
Step 1 – Open Tag Enclosure
With a small Phillips screwdriver, remove the two screws located on the front of the Tag (see Figure 2). With the
screw removed, separate the bottom half of the Tag enclosure from the top half. The Tag will be secured inside
the Tag enclosure.
Step 2 – Replacing Old Batteries
Remove the old batteries by carefully sliding them out of the battery holders. Inset a coin cell battery (CR2430)
into each of the battery holders with the positive (+) side facing toward the contact (see figure 4).
Document Title UltraClenz, LLC
Page 11
Certification and Safety Approvals
FCC
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference at his own expense.
WARNING: Changes or modifications not expressly approved by UltraClenz, LLC could void the user’s authority
to operate the equipment.
Regulations
"Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a
type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce
potential radio interference to other users, the antenna type and its gain should be so chosen that
the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful
communication."
"This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject
to the following two conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause undesired operation of the
device."
Document Title UltraClenz, LLC
Page 12
Warranty
This device is warranted against defective materials and workmanship for one year from the date of delivery.
Equipment covered by this warranty will be repaired or replaced in the United States and Canada, WITHOUT
CHARGE, except for shipping and handling, by our Factory Service Center.
When returning equipment for warranty service, you must first call your distributor’s Warranty Service
Department for your Return Merchandise Authorization Number (RMA), the RMA must be on your return label,
also the shipping charges must be pre-paid and a copy of your receipt must be enclosed.
This warranty covers all defects incurred from normal use of the equipment and does not apply in the following
cases:
a. Loss or damage to the equipment due to abuse, mishandling, accident or failure to follow mounting
instructions.
b. If the equipment is defective as a result of leaking batteries.
c. If the equipment has been serviced or modified by someone other than our authorized agents.
THE AFOREMENTIONED IS IN LIEU OF ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING BUT
NOT LIMITED TO, ANY WARRANTY OF MERCHANTABILITY OR OF FITNESS FOR ANY PARTICULAR
PURPOSE. IN NO EVENT SHALL THE VENDOR BE LIABLE FOR CONSEQUENTIAL, INCIDENTAL,
INDIRECT OR SPECIAL DAMAGES OR LIABILITY, TRANSPORTATION, INSTALLATION OR SUBSTITUTION
COSTS, DELAYS, OR FOR ANY OTHER DAMAGES, COSTS, OR EXPENSES INCURRED, IRRESPECTIVE
OF HOW THEY OCCUR. THIS WARRANTY SHALL NOT EXTEND TO ANY OTHER PERSON OTHER THAN
THE ORIGINAL PUCHASER OF THIS EQUIPMENT OR THE PERSON FOR WHOM IT WAS PURCHASED AS
A GIFT.
This warranty gives you specific legal rights, and you may also have other rights, which may vary from state to
state. This warranty is given with respect to equipment purchased in the United States.
This warranty is for the touch-free soap dispenser only, and excludes any representation or warranty with regard
to any soap, lotion, solution or other liquid used in the dispenser. Use of improperly formulated soaps, lotions,
solutions or other liquids could result, amongst other things, in damage to the dispenser, and/or leakage, which in
turn could create conditions leading to personal injury. In no event shall the vendor be liable for any damage or
injury caused by any soaps, lotions, solutions or other liquids used in the dispenser.
Patent Pending
