WST-101 Four Button Wireless Remote
Specifications
Frequency: 319.5MHz Operating Temperature: 32°-120°F (0°-49°C)
Battery: 3V lithium CR2032 Operating Humidity: 5-95% RH non condensing
Battery life: 5 years Compatible with all GE/Interlogix receivers
Enrolling
Each remote in learned into a control panel as an unsupervised sensor and uses one available zone slot. For all
Concord, Simon3 and Simon XT panels, use sensor group number 01, 03, 06 or 07.
Please refer to your specific control panel installation manual for full instructions.
Operation
Panic or Aux: If the remote is programmed using a panic or portable auxiliary group number. Pressing the Lock
and Unlock buttons simultaneously will activate an audible or silent alarm (depending on group number) and
initiate reports to the central station.
Replacing the Battery
When the battery is low a signal will be send to the control panel, or when a button is pressed the LED will
appear dim or will not turn on at all. Follow these simple steps to replace the battery

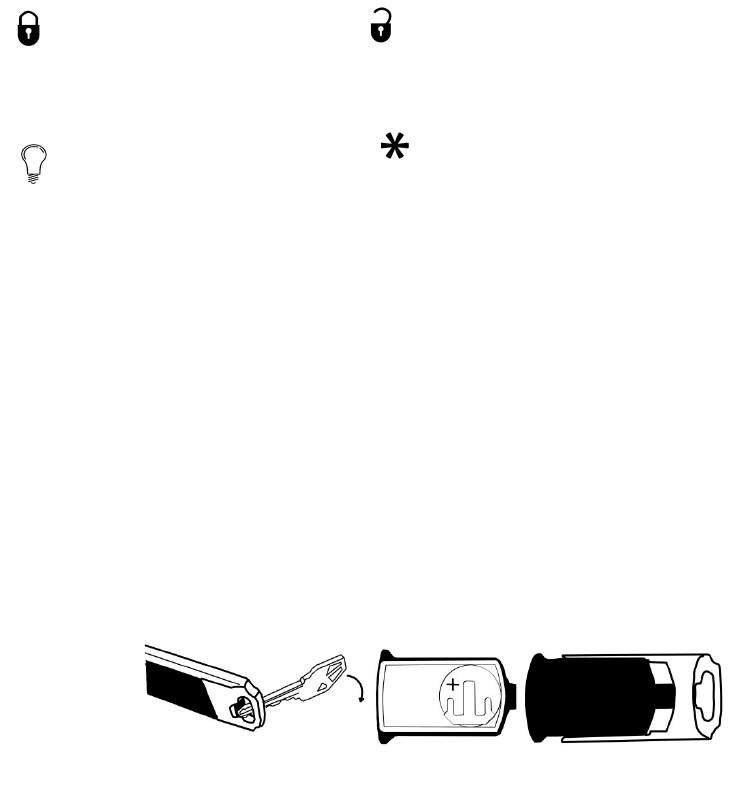

1. With a key or small screwdriver, press the black tab located at the bottom of the remote (fig.1) and slide
the chrome trim off.
2. Carefully separate the front and back piece of plastic to reveal the battery
3. Replace with a CR2032 battery ensuring the + side of the battery faces up (fig.2)
4. Re-assemble the plastics and ensure they click together
5. Ensure the notch in the chrome trim is aligned with the back of the plastic. It will only go on one way.
(fig.3)
Figure 1 Figure 2
Figure 3
Lock
Depending on your control panel:
Press once to arm in Stay mode.
Press twice to arm in Away mode.
Press three times to activate the latchkey
feature.
Light
For Network X panels, press this button to
arm the system in Stay mode. For Concord,
Simon 3 or XT it will turn system controlled
lights on or off.
Unlock
Press this button to disarm your system. You do
not have to enter your access code when you
use this key to disarm the system.
Star
For Network X panels, this button will perform
the same function as programed for the Star
key on keypad. For Simon 3 or XT panels with X-
10 universal module, pressing this button will
open/close the garage door.
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Re-orient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment to an outlet on a different circuit from the receiver
• Consult the dealer or an experienced radio/TV contractor for help.
Warning: Changes or modifications not expressly approved by Ecolink Intelligent Technology Inc. could void
the user’s authority to operate the equipment.
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
FCC ID:XQC-WST101 IC: 9863B-WST101
