Edgecore Networks ECW7211L 802.11ac Cloud-based Indoor Dual Band Enterprise Acess Point User Manual Quick Start Guide
Edgecore Networks Corporation 802.11ac Cloud-based Indoor Dual Band Enterprise Acess Point Quick Start Guide
Contents
User Manual
– 1 –
Quick Start Guide
802.11ac Cloud-based Indoor Dual Band Enterprise Acess Point
ECW7211-L
The ECW7211-L AP includes its own built-in features for mounting the unit to a wall
or suspended ceiling T-rail.
Note:
For Safety and Regulatory information, refer to the Safety and Regulatory
Information document included with the AP.
Caution:
The planning and installation of the AP requires professional personnel
that are trained in the installation of radio transmitting equipment. The user is
responsible for compliance with local regulations concerning items such as
antenna power, use of lightning arrestors, grounding, and radio mast or tower
construction. Therefore, it is recommended to consult a professional contractor
knowledgeable in local radio regulations prior to equipment installation.
Follow these steps to install the AP:
1. Unpack the AP Unpack the AP and check the package contents.
◆802.11a/ac/b/g/n Wireless Access Point
◆AC power adapter
◆Console cable
◆Ceiling-mount accessory
◆Four adhesive foot pads
◆Documentation — Quick Start Guide (this guide) and Regulatory and Safety
Information
E012015-AP- R01
150200001031A
www.edge-core.com
Quick Start Guide
– 2 –

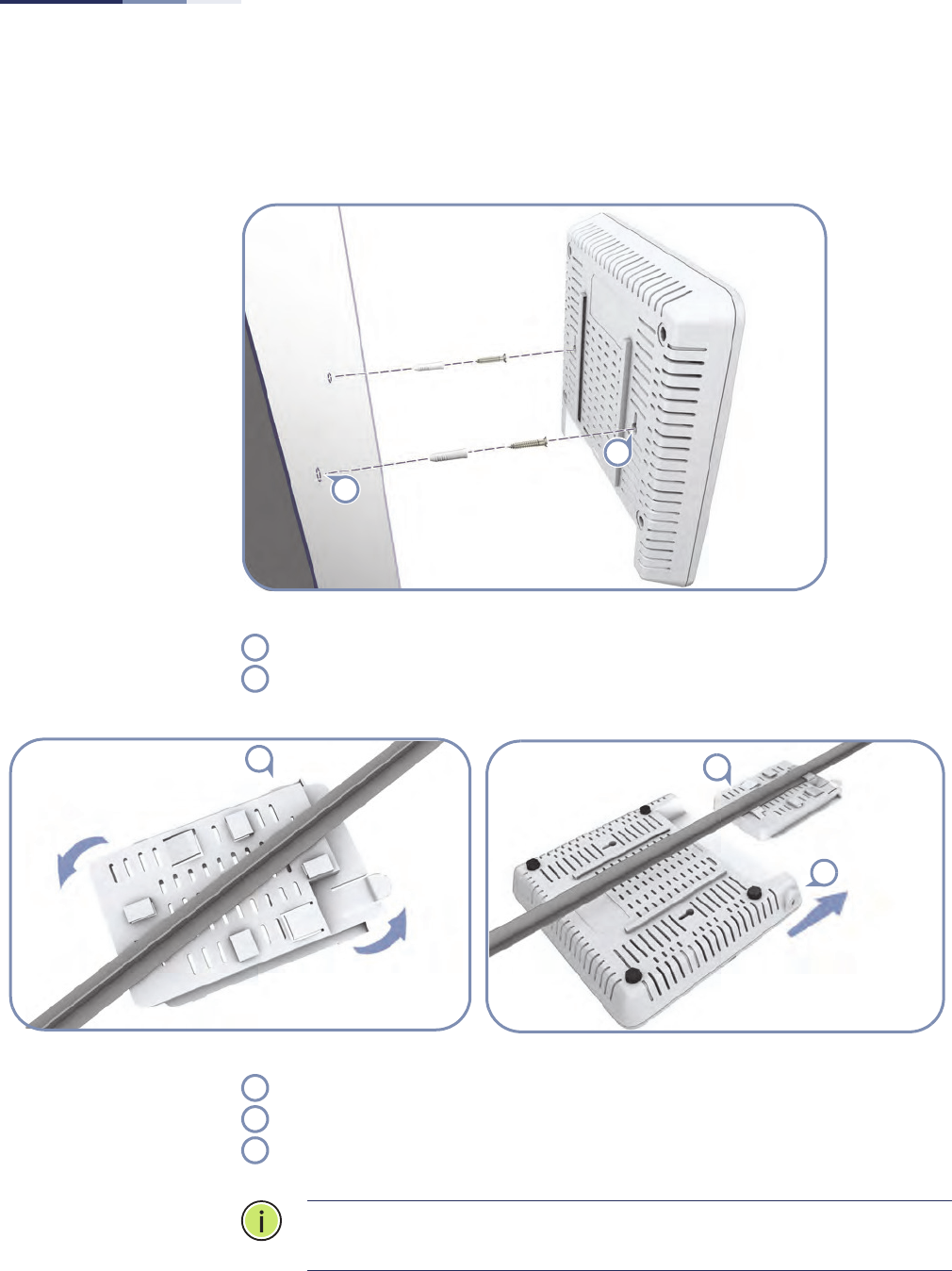

2. Mount the AP After planning your installation, mount the unit on a wall or suspended ceiling
T-rail.
Mounting on a Wall
Set two screws in the wall 116 mm (4.57 in.) apart.
Slide the AP’s wall mounting slots down onto the screws so that the unit is secure.
2
1
1
2
2
3
1
Mounting on a Ceiling T-rail
Position the ceiling-mount accessory clip holders on either side of the T-rail.
Turn the ceiling-mount accessory until the two clips lock it to the T-rail.
Slide the base of the AP onto the T-rail accessory until it is locked in place.
N
OTE
:
The ceiling m ount ing plat e support s tw o differ ent kinds of ceiling bars. The
position illustrat ed above is for 15 m m bars. Use t he ot her posit ion at a 90 degrees
angle for 24.5 m m bars.
1
2
3
Quick Start Guide
– 3 –
3. Connect Cables Connect network cable to the Eth0/PoE 1000BASE-T RJ-45 port for your network
connection. The Etho/PoE port connection can also provide PoE power to the unit.
(Optional) Connect a local LAN switch or computers to the LAN1 and LAN2
100BASE-TX RJ-45 ports.
4. Connect Power If you do not power the unit using PoE, connect the AC power adapter to the AP
and to an AC power source.
Connect Category 5e or better cable to the Eth0/PoE RJ-45 port.
1
1
Connect the power adapter to the power socket on the AP.
Plug the power adapter into a nearby AC power source.
1
2
1
2
Quick Start Guide
– 4 –

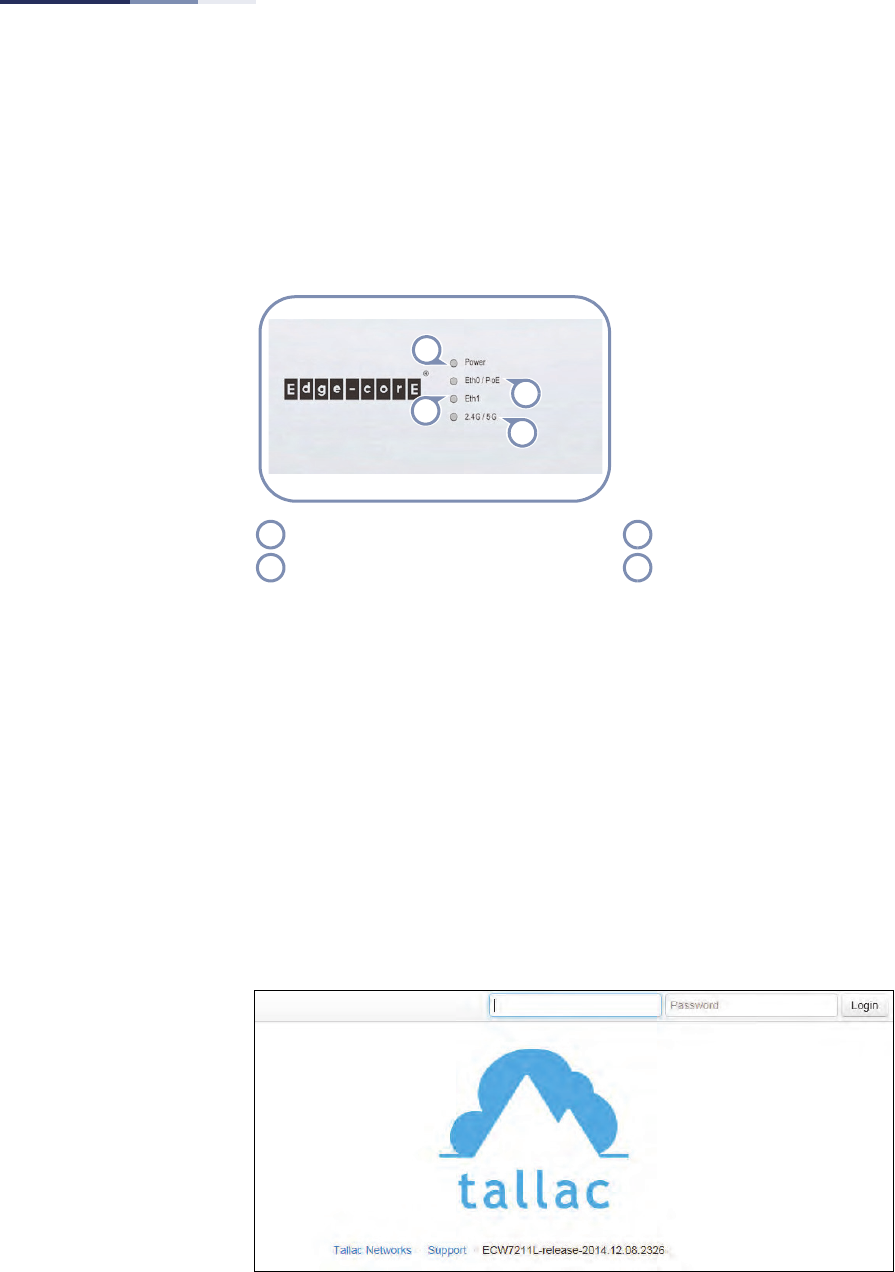

5. Verify AP Operation Verify basic AP operation by checking the system LEDs.
The WAN LED and any connected LAN port LEDs should light up green. The circular
LED on the top panel should light up green and blue to indicate 2.4 GHz and 5 GHz
radio operation respectively.
6. Connect to the Web
User Interface
The AP offers a user-friendly web-based management interface for the
configuration of all the unit’s features.
You can make initial configuration changes by connecting a PC directly to the AP’s
LAN port. The AP has a default management IP address of 192.168.1.1 and a subnet
mask of 255.255.255.0. You must set your PC IP address to be on the same subnet as
the AP (that is, the PC and AP addresses must both start 192.168.1.x).
Log in to the web interface using the default settings:
◆Login Name — root
◆Password — admin123
For more information on AP configuration using the web interface, refer to the
Management Guide, which is on the Edge-Core web site, www.edge-core.com.
Power Eth1
Eth0/PoE Radio — LED2.4 G / 5 GHz
32
1
4
1
3
2
4
Quick Start Guide
– 5 –
Hardware Specifications
Item Specification
Chassis
Size (W x D x H) 200 x 200 x 36.5 mm (7.87 x 7.87 x 1.44 inch)
Weight 750 g (1.65 lb)
Temperature Operating: 0 °C to 45 °C (32 °F to 113 °F)
Storage: -40 °C to 70 °C (-40 °F to 158 °F)
Humidity Operating: 5% to 95% (non-condensing)
Network Interfaces
Ports Eth0/PoE RJ-45 Port: 1000BASE-T, PoE+ PD
Eth1 RJ-45 Ports: 1000BASE-TX
2.4 GHz Radio IEEE 802.11b/g/n
5 GHz Radio IEEE 802.11a/ac/n
Radio Frequencies 2412 ~ 2472 MHz (ETSI), 2412 ~ 2462 MHz (FCC)
5745 ~ 5825 MHz (China)
5180 ~ 5240 MHz (ETSI), 5180 ~ 5240 MHz, 5745 ~ 5825 MHz (FCC)
Power Supply
PoE Input Power 48 VDC, 0.6 A
AC Power Adapter AC Input: 100 ~ 240 VAC
DC Output: 12 VDC, 2.5 A
Power Consumption 22.5 W maximum
Regulatory Compliances
Radio EN 300 328 V1.8.1:2012 (2012-06)
EN 301 893 V1.7.1:2012 (2012-06)
FCC Part 15C 15.247/15.207 (2.4-2.4835GHz)
FCC Part 15E 15.407 (5.150GHz-5.250GHz, 5.725-5.850GHz)
Emissions EN 55022 2010/ AC: 2011, Class B
FCC Part 15 Subpart B, Class B
ICES-003, Issue 5, Class B
Immunity EN 55024 : 2010
EN 301 489-1 V1.9.2 (2011-09), Class B
EN 301 489-17 V2.2.1 (2012-09)
AS/NZS CISPR 22: 2009/Amdt 1: 2010, Class B
Safety UL (CSA 22.2 No. 60950-1 & UL60950-1)
CB (IEC/EN60950-1)
