Wireless LAN Access Point
IEEE 802.11b/g
54Mbps
User’s Manual
Table of Contents
Chapter 1 Introduction............................................................................. 1
1.1 Package Contents..........................................................................................2
1.2 Features.........................................................................................................2
1.3 Specifications................................................................................................2
1.4 Physical Description .....................................................................................3
Chapter 2 Wireless LAN Access Point Connection................................ 5
Chapter 3 Wireless LAN Access Point Configuration........................... 6
3.1 Getting Started ..............................................................................................6
3.2 Configuring the Access Point .....................................................................11
3.2.1 Status and Information.......................................................................................12
3.2.2 Wireless Setting .................................................................................................13
3.2.3 Advanced Setting...............................................................................................27
3.2.4 Security ..............................................................................................................30
3.2.5 MAC Address Filtering......................................................................................38
3.2.6 System Utility ....................................................................................................40
3.2.7 Configuration Tool.............................................................................................44
3.2.8 Firmware Upgrade .............................................................................................46
3.2.9 Reset...................................................................................................................47
Chapter 4 Troubleshooting .................................................................... 48
![](/img.php?id=797973&img=bg3.png)
Introduction
1
Chapter 1 Introduction
This product is an access point for IEEE 802.11g/b 2.4GHz wireless networks. You
can use this access point to build a wireless LAN. Any wireless LAN station can join
the wireless network by using the “Infrastructure Mode”.
The product supports WEP, WPA, ESSID and MAC address filter functions to
consolidate the wireless network security. With ESSID authentication, 64/128 bit
WEP encryption and MAC address filtering you can prevent unauthorized wireless
stations from accessing your wireless network.
This product provides an easy to use user interface and allows users to configure
from a standard web browser. Also it includes a DHCP server to provide multiple
wireless and wired users to get their IP address automatically. With versatile features,
this product is the best choice for you to integrate your wireless and wired network
seamlessly.
![](/img.php?id=797973&img=bg4.png)
Introduction
2
1.1 Package Contents
The Access Point includes the following items:
y One Access Point
y One Power Adapter
y One User’s Manual
1.2 Features
y Complies with the IEEE 802.11b/g (DSSS) 2.4GHz specification.
y High data rate 54Mbps network speed.
y Seamlessly integrate wireless and wired Ethernet LAN networks.
y Auto rate fallback in case of obstacles or interferences.
y Provide 64/128-bit WEP and WPA Data Encryption functions to protect the
wireless data transmissions.
y Built-in DHCP server supports auto IP addresses assignment.
y Supports Web-based configuration.
1.3 Specifications
y Standards: IEEE 802.11b/g (Wireless), IEEE 802.3 (Wired)
y Data Rate: 54/48/36/24/18/12/11/9/6/5.5/2/1Mbps auto fallback
y Security: 64/128-bit WEP and WPA Data Encryption
y Frequency Band: 2.400~2.4835GHz (Industrial Scientific Medical Band)
y Modulation: CCK@11/5.5Mbps, DQPSK@2Mbps and DBPSK@1Mbps
y Radio Technology: Direct Sequence Spread Spectrum (DSSS)
y Antenna: External detachable dipole antenna (with RP-SMA connector)
y Connectors: 10/100Mbps RJ-45 x 1
y Power: 12VDC, 0.4A
y Transmit Power: 18dBm (Typical)
y LEDs: Power, LAN Link/Activity, Wireless Activity
y Dimension: 30(H) x 127(W) x 96(D) mm
y Temperature:
Operating: 32~131°F (0~55°C)
Storage: -4~158°F(-20~70°C)
![](/img.php?id=797973&img=bg5.png)
Introduction
3
y Humidity: 10-90% (Noncondensing)
y Certification: FCC, CE
1.4 Physical Description
Front Panel

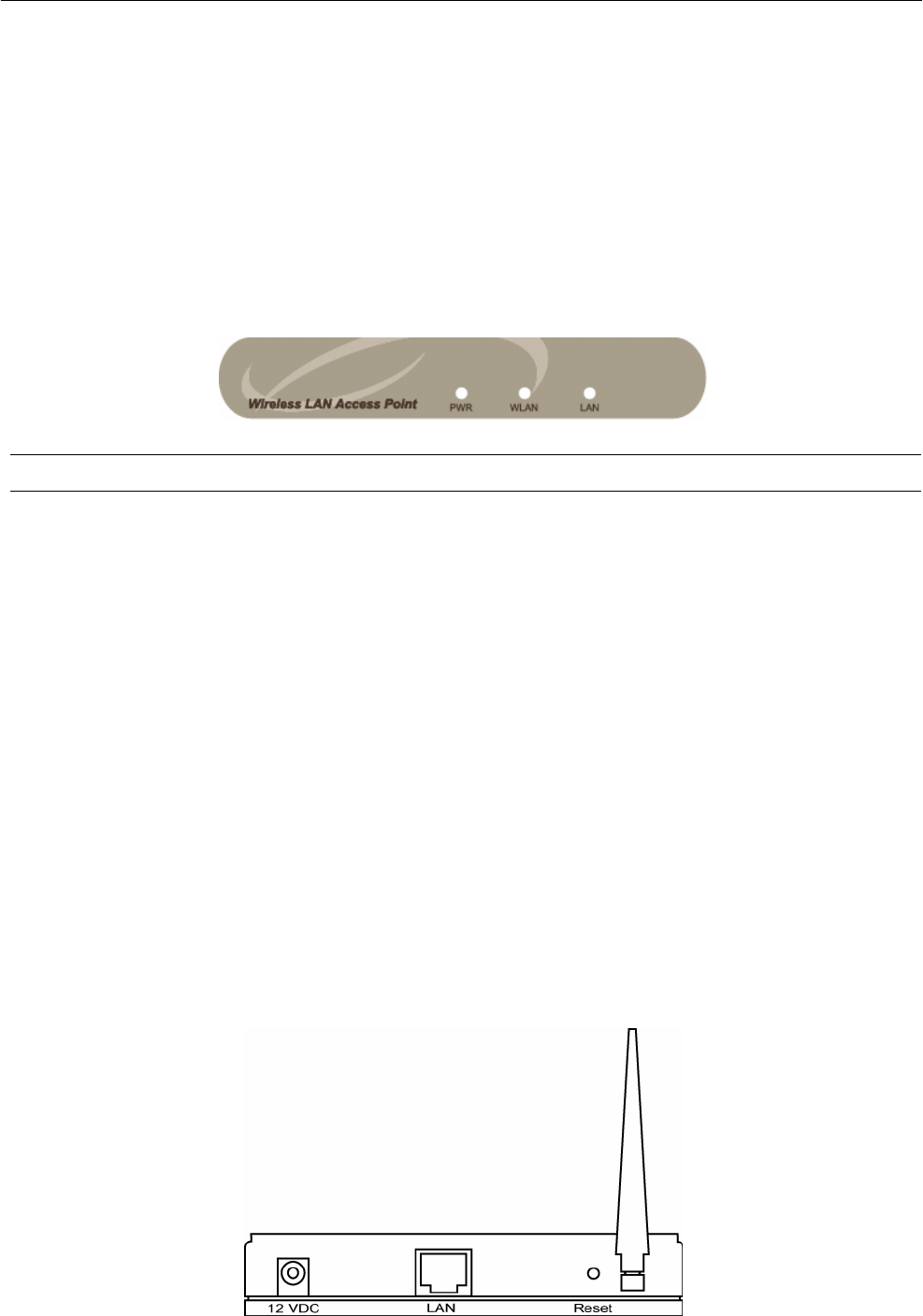

On the Access Point’s front panel there are LED lights that inform you of the Access
Point’s current status. Below is an explanation of each LED.
LED Color Status Description
On Power is supplied.
Flash Starting up.
Power Green
Off No Power.
Flash Antenna is transmitting or receiving data. Wireless
Activity Green Off Antenna is not transmitting or receiving data.
On A valid link is established.
Flash It is transmitting or receiving data.
LAN
Link/Activity Green
Off No link is established.
Back Panel
Access Point’s connection ports are located on the back panel. Below is the
description of each connection port.
![](/img.php?id=797973&img=bg6.png)
Introduction
4
y Antenna Connector
This round connection is standard Reverse SMA connector where any antennas
with Reverse SMA connector can connect to the Access Point.
y DC Adapter Port
Insert the power jack of the power adapter into this port.
y LAN Port
The Access Point’s LAN port is where you connect to your LAN’s network
devices.
y Reset
The Reset button allows you to do one of two things.
1) If problems occur with your Access Point, press the reset button with a
pencil tip (for less than 4 seconds) and the Access Point will re-boot itself,
keeping your original configurations.
2) If problems persist or you experience extreme problems or you forgot your
password, press the reset button until the Power LED goes off and the
Access Point will reset itself to the factory default settings (warning: your
original configurations will be replaced with the factory default settings).
![](/img.php?id=797973&img=bg7.png)
Wireless LAN Access Point Connection
5
Chapter 2 Wireless LAN Access Point
Connection
1. Locate an optimum location for the Wireless LAN Access Point.
The best location for your Access Point is usually at the center of your wireless
network, with line of sight to all of your mobile stations.
2. Connect the Wireless LAN Access Point to your router, hub or switch.
Connect one end of standard UTP cable to the Access Point’s LAN Port and
connect the other end of the cable to a switch, a router or a hub. The Access Point
will then be connected to your existed wired LAN Network.
3. Connect the DC Power Adapter to the Wireless LAN Access Point’s Power
Socket.
Only use the power adapter supplied with the Access Point. Using a different
adapter may damage the product.
The Hardware Installation is complete.
![](/img.php?id=797973&img=bg8.png)
Wireless LAN Access Point Configuration
6
Chapter 3 Wireless LAN Access Point
Configuration
3.1 Getting Started
This Access Point provides a web-based configuration tool allowing configuration
from wired or wireless stations. Follow the instructions below to start the
configuration.
From Wired Station
1. Make sure your wired station is in the same subnet with the Access Point.
The default IP Address and Sub Mask of the Access Point is:
Default IP Address: 192.168.2.1
Default Subnet: 255.255.255.0
Configure your PC to be in the same subnet with the Access Point.
1a) Windows 95/98/Me
1. Click the Start button and select Settings, then click Control Panel. The Control Panel
window will appear.
2. Double-click Network icon. The Network window will appear.
3. Check your list of Network Components. If TCP/IP is not installed, click the Add button to
install it now. If TCP/IP is installed, go to step 6.
4. In the Network Component Type dialog box, select Protocol and click Add button.
5. In the Select Network Protocol dialog box, select Microsoft and TCP/IP and then click the
OK button to start installing the TCP/IP protocol. You may need your Windows CD to
complete the installation.
6. After installing TCP/IP, go back to the Network dialog box. Select TCP/IP from the list of
Network Components and then click the Properties button.
7. Check each of the tabs and verify the following settings:
• Bindings: Check Client for Microsoft Networks and File and printer sharing for
Microsoft Networks.
• Gateway: All fields are blank.
• DNS Configuration: Select Disable DNS.
• WINS Configuration: Select Disable WINS Resolution.
![](/img.php?id=797973&img=bg9.png)
Wireless LAN Access Point Configuration
7
• IP Address: Select Specify an IP Address. Specify the IP Address and Subnet Mask
as following example.
9 IP Address: 192.168.2.3 (any IP address within 192.168.2.2~192.168.2.254 is
available, do not setup 192.168.2.1)
9 Subnet Mask: 255.255.255.0
8. Reboot the PC. Your PC will now have the IP Address you specified.
1b) Windows XP
1: Click the Start button and select Settings, then click Network Connections. The Network
Connections window will appear.
2: Double-click Local Area Connection icon. The Local Area Connection window will appear.
3: Check your list of Network Components. You should see Internet Protocol [TCP/IP] on your list.
Select it and click the Properties button.

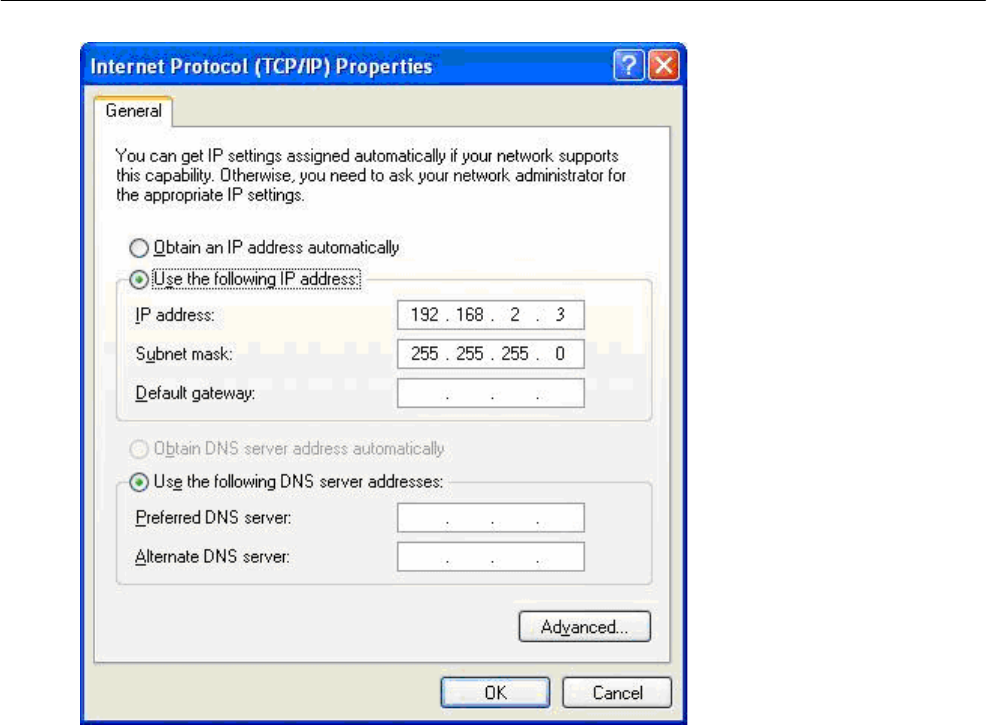

4: In the Internet Protocol (TCP/IP) Properties window, select Use the following IP address and
specify the IP Address and Subnet mask as following.
9 IP Address: 192.168.2.3 (any IP address within 192.168.2.2~192.168.2.254 is
available, do not setup 192.168.2.1)
9 Subnet Mask: 255.255.255.0
9 Default gateway: Let all fields are blank.
9 Preferred DNS server: Let all fields are blank.
9 Alternate DNS server: Let all fields are blank.
![](/img.php?id=797973&img=bga.png)
Wireless LAN Access Point Configuration
8
5: Click OK to confirm the setting. Your PC will now have the IP Address you specified.
1c) Windows 2000
1. Click the Start button and select Settings, then click Control Panel. The Control Panel
window will appear.
2. Double-click Network and Dial-up Connections icon. In the Network and Dial-up
Connection window, double-click Local Area Connection icon. The Local Area Connection
window will appear.
3. In the Local Area Connection window, click the Properties button.
4. Check your list of Network Components. You should see Internet Protocol [TCP/IP] on
your list. Select it and click the Properties button.
5. In the Internet Protocol (TCP/IP) Properties window, select Use the following IP address
and specify the IP Address and Subnet mask as following.
9 IP Address: 192.168.2.3 (any IP address within 192.168.2.2~192.168.2.254 is
available, do not setup 192.168.2.1)
9 Subnet Mask: 255.255.255.0
6. Click OK to confirm the setting. Your PC will now have the IP Address you specified.
![](/img.php?id=797973&img=bgb.png)
Wireless LAN Access Point Configuration
9
1d) Windows NT
1. Click the Start button and select Settings, then click Control Panel. The Control Panel
window will appear.
2. Double-click Network icon. The Network window will appear. Select the Protocol tab from
the Network window.
3. Check if the TCP/IP Protocol is on your list of Network Protocols. If TCP/IP is not installed,
click the Add button to install it now. If TCP/IP is installed, go to step 5.
4. In the Select Network Protocol window, select the TCP/IP Protocol and click the Ok
button to start installing the TCP/IP protocol. You may need your Windows CD to
complete the installation.
5. After you install TCP/IP, go back to the Network window. Select TCP/IP from the list of
Network Protocols and then click the Properties button.
6. Check each of the tabs and verify the following settings:
• IP Address: Select Specify an IP address. Specify the IP Address and Subnet Mask
as following example.
9 IP Address: 192.168.2.3 (any IP address within 192.168.2.2~192.168.2.254 is
available, do not setup 192.168.2.1)
9 Subnet Mask: 255.255.255.0
• DNS: Let all fields are blank.
• WINS: Let all fields are blank.
• Routing: Let all fields are blank.
7. Click OK to confirm the setting. Your PC will now have the IP Address you specified.
2. Enter 192.168.2.1 from Web Browser to get into the Access Point’s
configuration tool.
![](/img.php?id=797973&img=bgc.png)
Wireless LAN Access Point Configuration
10

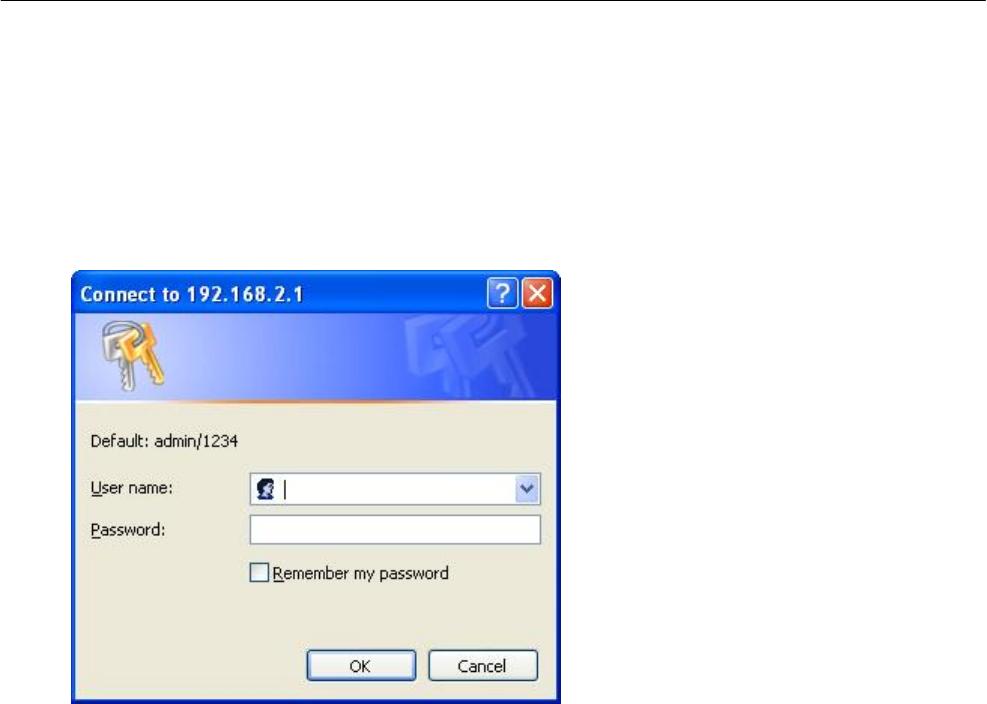

3. A screen will be popped up and request you to enter user name and password.
The default user name and password is as follows.
User Name: admin
Password: 1234
Enter the default user name and password, then press OK button directly.
4. You can start configuring the Access Point.
From Wireless Station
1. Make sure your wireless station is in the same subnet with the Access Point.
Please refer to the step 1 above for configuring the IP Address and Sub Mask of
the wireless station.
2. Connect to the Access Point.
The Access Point’s default ESSID is “default” and the WEP Encryption
function is disabled. Make sure your wireless station is using the same ESSID
as the Access Point and associate your wireless station to the Access Point.
3. Enter 192.168.2.1 from Web Browser to get into the Access Point’s
configuration tool.
4. A screen will be popped up and request you to enter user name and password.
The default user name and password is as follows.
User Name: admin
Password: 1234
Enter the default user name and password, then press OK button directly.
![](/img.php?id=797973&img=bgd.png)
Wireless LAN Access Point Configuration
11
3.2 Configuring the Access Point

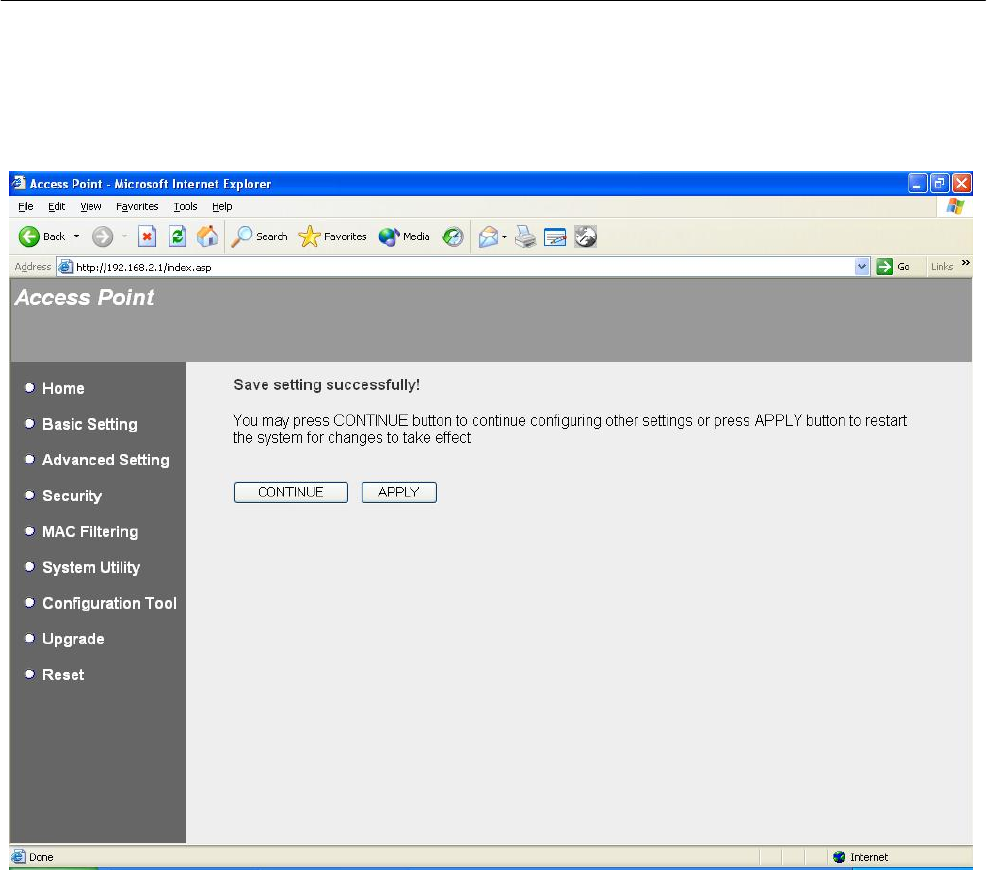

Every time when you have finished modifying a setting page and click “Apply”
button, this page will pop-up. The settings have been successfully saved but will not
take effect immediately. You have to restart the access point to make the new settings
take effect. You can click “CONTINUE” button to change other settings. You also
can click “APPLY” to restart the system and make the settings take effect.
![](/img.php?id=797973&img=bge.png)
Wireless LAN Access Point Configuration
12

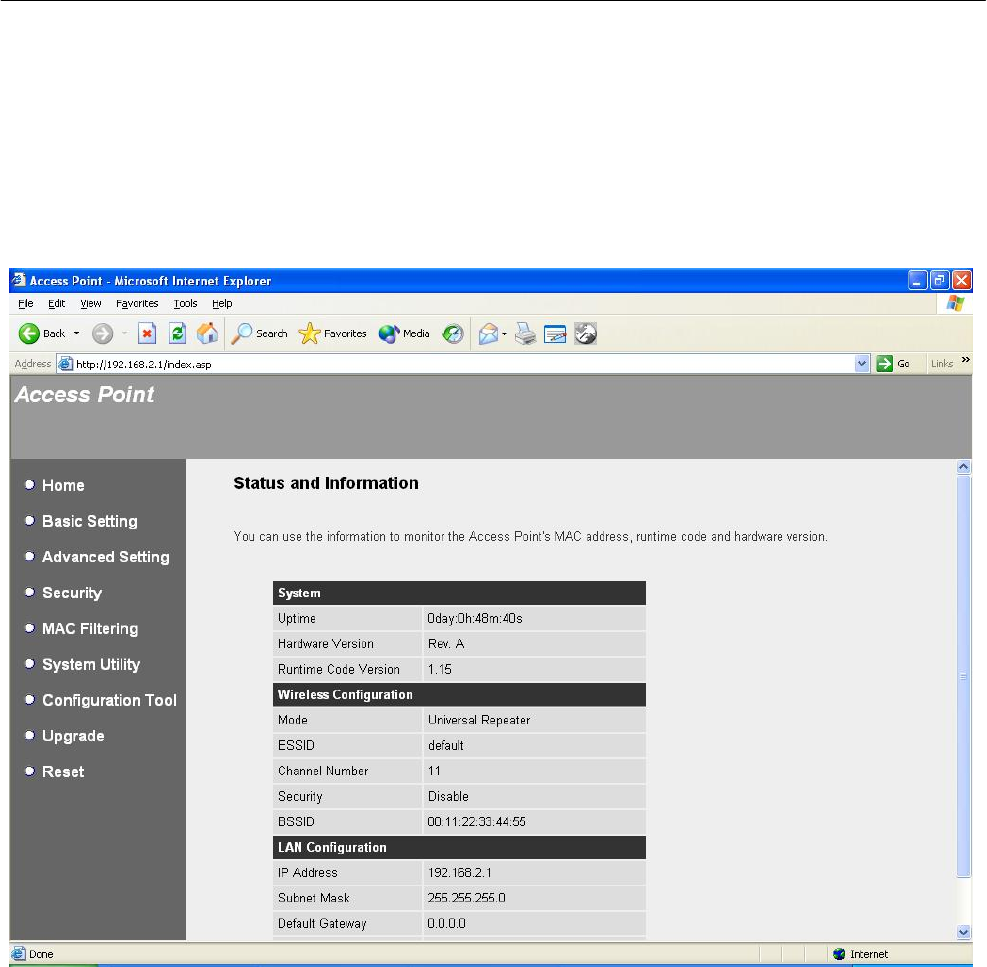

3.2.1 Status and Information
On this screen, you can see the general information of the Access Point including
Alias Name, Firmware Version, ESSID, Channel Number, Status, IP Address, MAC
Address, etc.
![](/img.php?id=797973&img=bgf.png)
Wireless LAN Access Point Configuration
13
3.2.2 Wireless Setting
This Access Point supports AP, Station, Bridge, WDS and Universal Repeater modes.
“AP Mode” provides pure access point function. The simplest way to build up a
wireless LAN is to use “AP Mode”. “Station Mode” is used to let a network device
with only wired Ethernet function to have wireless LAN communication capability. It
provides both Ad Hoc and Infrastructure modes for the “Station Mode”. With
“Station-Ad Hoc mode”, it can let your network device join a wireless LAN with
peer-to-peer communication. With “Station-Infrastructure mode”, it can let your
network device join a wireless LAN through an access point. “AP Bridge Mode”
provides the function to bridge more than 2 wired Ethernet networks together by
wireless LAN. You can use two access points with “AP Bridge-Point to Point mode”
to bridge two wired Ethernet networks together. If you want to bridge more than two
wired Ethernet networks together, you have to use enough access points with “AP
Bridge-Point to Multi-Point mode”. An access point with “AP Bridge-Point to Point
mode” or “AP Bridge-Point to Multi-Point mode” can only be used to bridge wired
Ethernet networks together. It can’t accept connection from other wireless station at
the same time. If you want an access point to bridge wired Ethernet network and
provide connection service for other wireless station at the same time, you have to set
the access point to “AP Bridge-WDS mode”. Simply speaking, “AP Bridge-WDS
mode” function is the combination of “AP mode” and “AP Bridge-Point to Multi-
Point mode”. “Universal Repeater Mode” provides the function to act as AP client
and AP at the same time. It can use AP client function to connect to a Root AP and
use AP function to service all wireless stations within its coverage. All the stations
within the coverage of this access point can be bridged to the Root AP. “Universal
Repeater Mode” is very convenient to extend the coverage of your wireless network.
![](/img.php?id=797973&img=bg10.png)
Wireless LAN Access Point Configuration
14

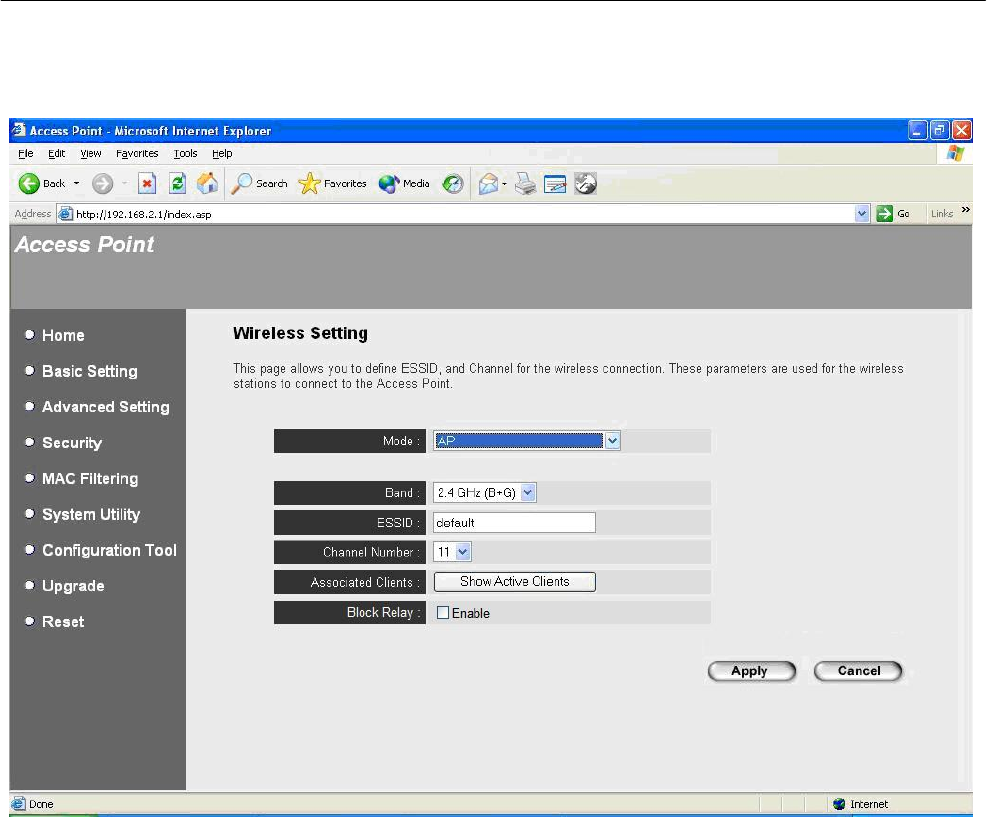

AP mode setting page:
![](/img.php?id=797973&img=bg11.png)
Wireless LAN Access Point Configuration
15

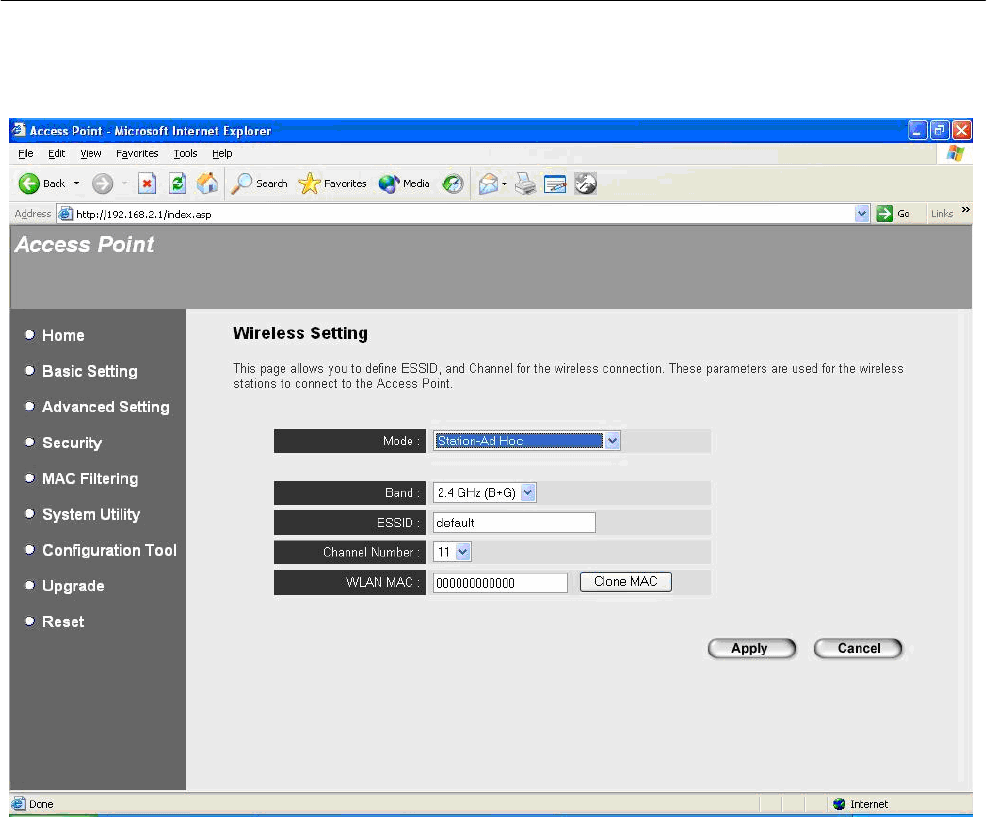

Station-Ad Hoc mode setting page:
![](/img.php?id=797973&img=bg12.png)
Wireless LAN Access Point Configuration
16

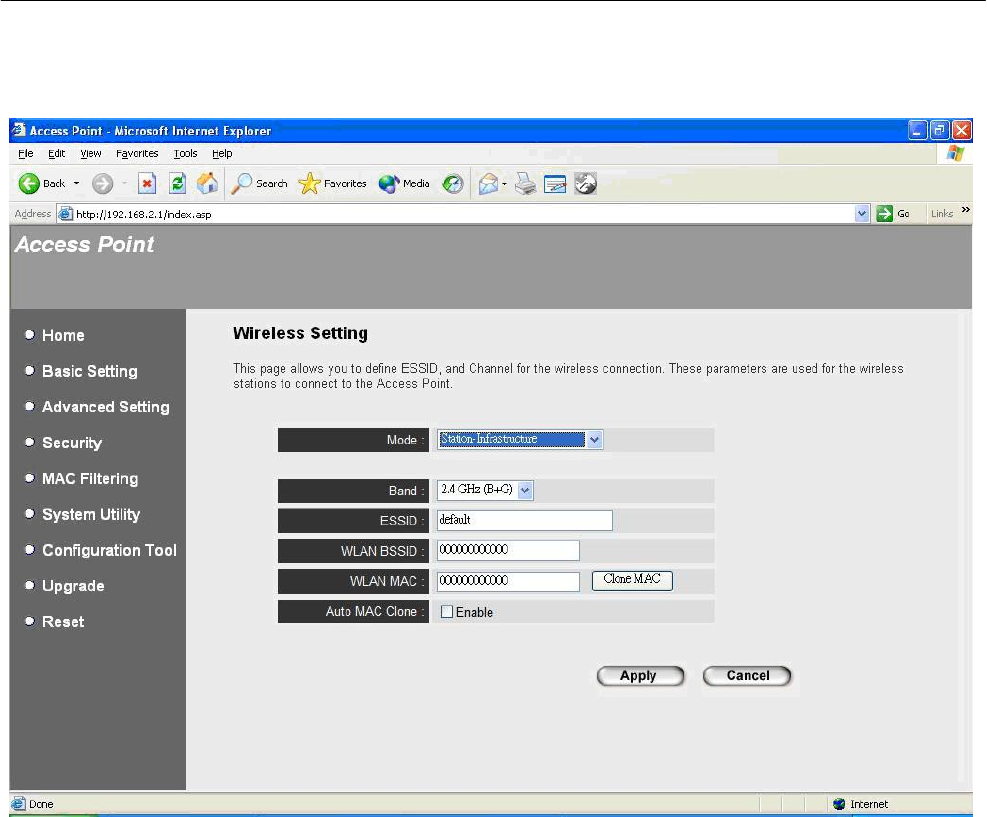

Station-Infrastructure mode setting page:
![](/img.php?id=797973&img=bg13.png)
Wireless LAN Access Point Configuration
17
AP Bridge-Point to Point mode setting page:
![](/img.php?id=797973&img=bg14.png)
Wireless LAN Access Point Configuration
18

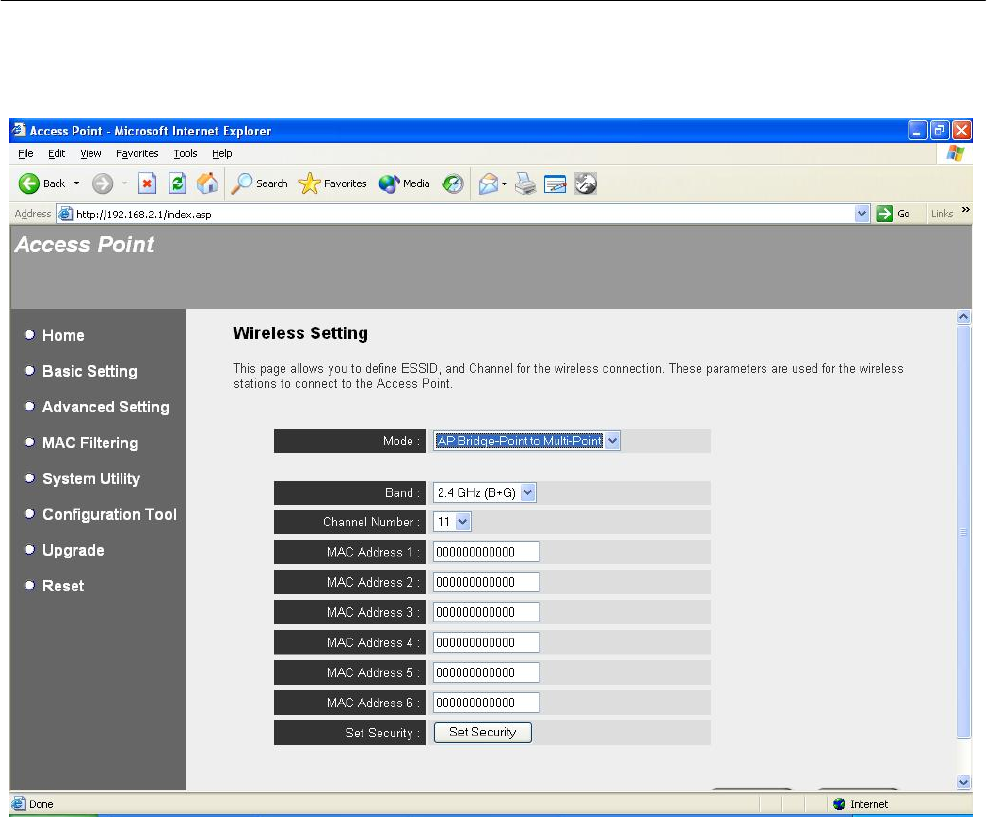

AP Bridge-Point to Multi-Point mode setting page:
![](/img.php?id=797973&img=bg15.png)
Wireless LAN Access Point Configuration
19

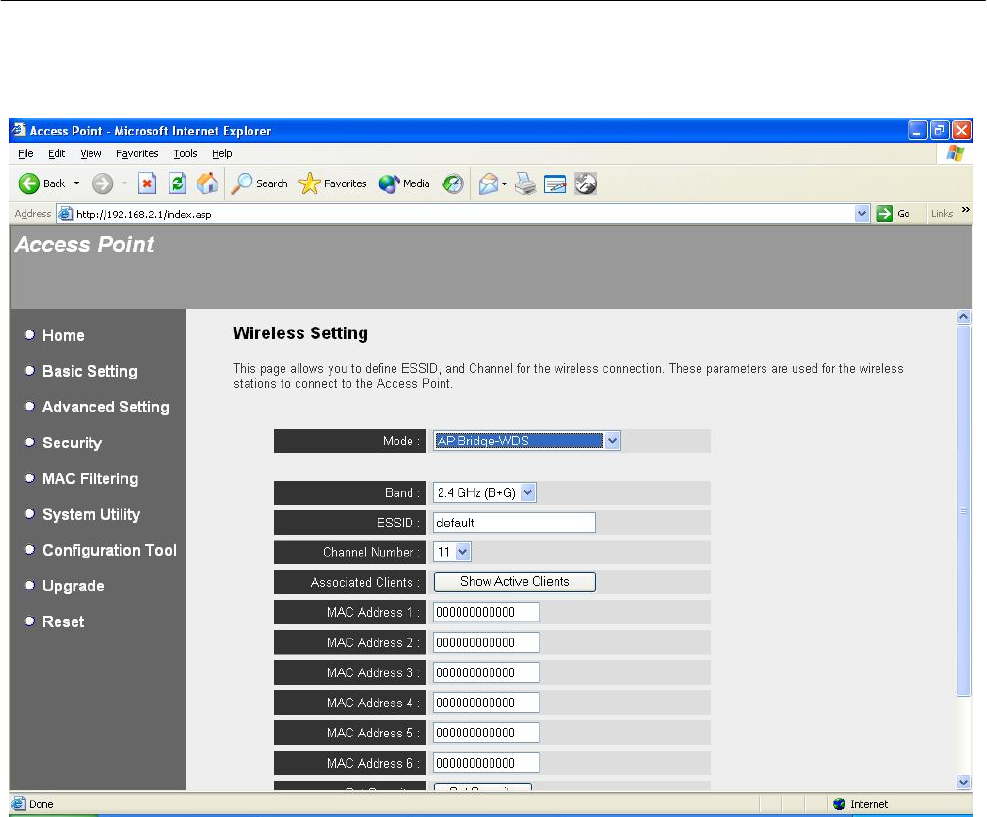

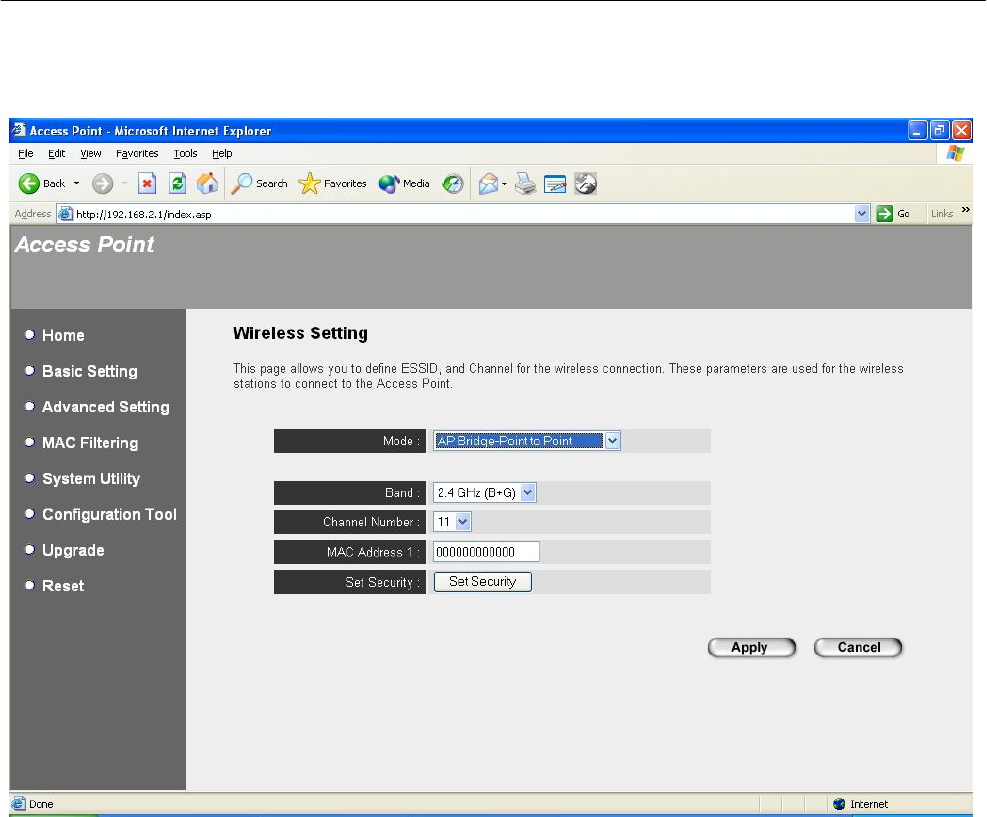

AP Bridge-WDS mode setting page:
![](/img.php?id=797973&img=bg16.png)
Wireless LAN Access Point Configuration
20

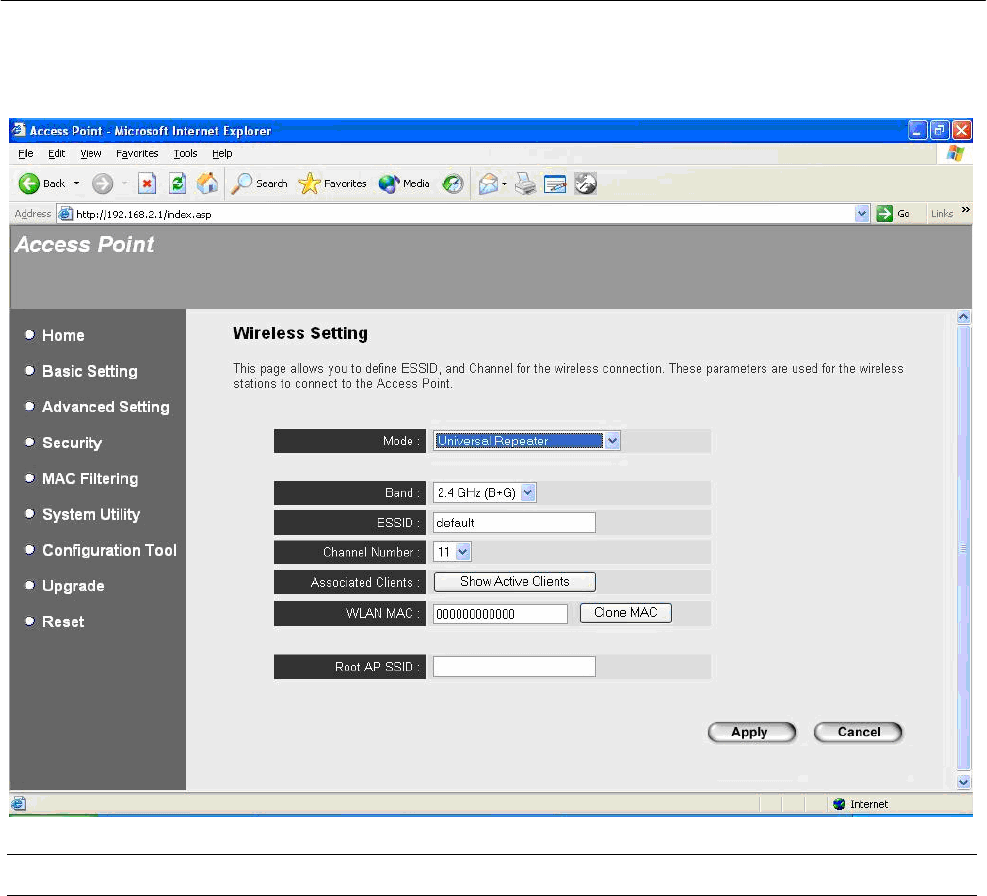

Universal Repeater mode setting page:
Parameter Description
ESSID The ESSID (up to 31 printable ASCII characters) is the unique name
identified in a WLAN. The ID prevents the unintentional merging of two
co-located WLANs. Please make sure that the ESSID of all stations in
the same WLAN network are the same. The default ESSID is “default”.
You should assign ESSID in “AP mode”, “Station-Ad Hoc mode”,
“Station-Infrastructure mode”, “AP Bridge-WDS mode” and “Universal
Repeater mode”.
Band It allows you to set the AP to 802.11b or 802.11g mode. You also can
select B+G mode to allow the AP to select 802.11b and 802.11g
connection automatically.
Channel Number Select the appropriate channel from the list provided to correspond with
your network settings. Channels differ from country to country.
Channel 1-11 (North America)
Channel 1-14 (Japan)
![](/img.php?id=797973&img=bg17.png)
Wireless LAN Access Point Configuration
21
Channel 1-13 (Europe)
There are 14 channels available.
You should assign Channel Number in “AP mode”, “Station-Ad Hoc
mode”, “AP Bridge-Point to Point mode”, “AP Bridge-Point to Multi-Point
mode” and “AP Bridge-WDS mode”, “Universal Repeater mode”.
MAC Address If you want to bridge more than one wired Ethernet networks together
with wireless LAN, you have to set this access point to “AP Bridge-Point
to Point mode”, “AP Bridge-Point to Multi-Point mode” or “AP Bridge-
WDS mode”. You have to enter the MAC addresses of other access
points that join the bridging work.
WLAN BSSID A BSSID is the MAC address of an access point (AP) in an infrastructure
mode BSS. If WLAN BSSID is left at the factory default (000000000000),
the station (client) will connect to any Access Point (AP) with the
specified ESSID. If there is more than one AP with the same ESSID, a
station (client) will connect to the AP with the strongest signal. If you want
to force a station to connect to a specific AP, then set the WLAN BSSID
to the MAC address of the desired AP.
WLAN MAC In “Station-Ad Hoc mode”, “Station-Infrastructure mode” and “Universal
Repeater mode”, this device needs a WLAN MAC address to act as a
station to connect to another peer or Access Point (AP). If WLAN MAC =
000000000000 (factory default), then the device uses the factory
assigned MAC address. If you set the WLAN MAC to any other number,
the device will use the MAC address you have specified. You also can
click “Clone MAC” button to let this device copy the MAC address of the
PC you are using to configure this device. If the device is in one of the 3
modes above, and if the wired interface is connected to an Ethernet
interface on a router, then it is important to set the WLAN MAC to be
identical to the MAC address of the router interface.
Auto MAC Clone You can click on this option to let this device copy the MAC address of
the PC you are using to configure this device automatically. When
clicking on this option, the “Clone MAC” button will be grayed.
Root AP SSID In “Universal Repeater mode”, this device can act as a station to connect
to a Root AP. You should assign the SSID of the Root AP here.
Set Security In “AP Bridge-Point to Point mode”, ““AP Bridge-Point to Multi-Point
mode” and “AP Bridge-WDS mode”, you can click “Set Security” to add
encryption for the communication between the bridged access points.
![](/img.php?id=797973&img=bg18.png)
Wireless LAN Access Point Configuration
22
This can protect your wireless network.
Associated Clients Click “Show Active Clients” button, then an “Active Wireless Client Table”
will pop up. You can see the status of all active wireless stations that are
connecting to the access point.
Block Relay You can enable this option to block direct communication between the
stations which connect to the same access point.
Wireless Site Survey When you use this access point as a wireless station for wired network
device to have wireless capability, you have to associate it with a working
access point. Click “Select Site Survey” button, then a “Wireless Site
Survey Table” will pop up. It will list all available access points near by.
You can select one access point in the table and it will join wireless LAN
through this access point.
Click Apply button at the bottom of the screen to save the above configurations. You can now configure
other advance sections or start using the Access Point.

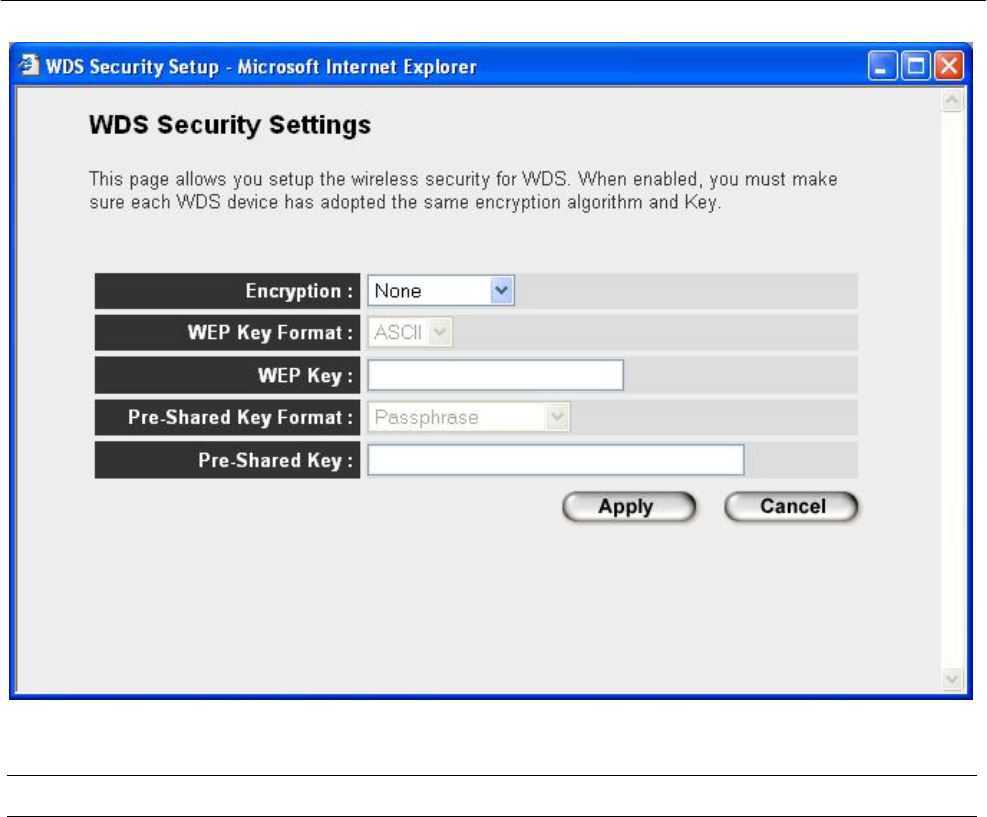

Set Security
“Set Security” let you setup the wireless security for the data transmission between
the bridged access points in “AP Bridge-Point to Point mode”, “AP Bridge-Point to
Multi-Point mode” or “AP Bridge-WDS mode”. It provides “WEP 64bits”, “WEP
128bits”, “WPA (TKIP)”, “WPA2 (AES)” encryption methods.
![](/img.php?id=797973&img=bg19.png)
Wireless LAN Access Point Configuration
23
Parameter Description
Encryption You can select “No encryption”,“WEP 64bits”, “WEP 128bits”, “WPA
(TKIP)” or “WPA2 (AES)” encryption methods.
Key Format This is only used when you select “WEP 64bits” or “WEP 128bits”
encryption method. You may select to select ASCII Characters
(alphanumeric format) or Hexadecimal Digits (in the “A-F”, “a-f” and “0-9”
range) to be the WEP Key. For example:
ASCII Characters: guest
Hexadecimal Digits: 12345abcde
WEP Key This is only used when you select “WEP 64bits” or “WEP 128bits”
encryption method. The WEP key is used to encrypt data transmitted
between the bridged access points. Fill the text box by following the rules
below.
64-bit WEP: input 10-digit Hex values (in the “A-F”, “a-f” and “0-9” range)
or 5-digit ASCII character as the encryption keys.
![](/img.php?id=797973&img=bg1a.png)
Wireless LAN Access Point Configuration
24
128-bit WEP: input 26-digit Hex values (in the “A-F”, “a-f” and “0-9”
range) or 10-digit ASCII characters as the encryption keys.
Pre-shared Key Format You may select to select Passphrase (alphanumeric format) or
Hexadecimal Digits (in the “A-F”, “a-f” and “0-9” range) to be the Pre-
shared Key. For example:
Passphrase: iamguest
Hexadecimal Digits: 12345abcde
Pre-shared Key The Pre-shared key is used to authenticate and encrypt data transmitted
between the bridged access points. Fill the text box by following the rules
below. Hex WEP: input 64-digit Hex values (in the “A-F”, “a-f” and “0-9”
range) or at least 8 character pass phrase as the pre-shared keys.
Click Apply button at the bottom of the screen to save the above configurations. You can now configure
other advance sections or start using the Access Point.

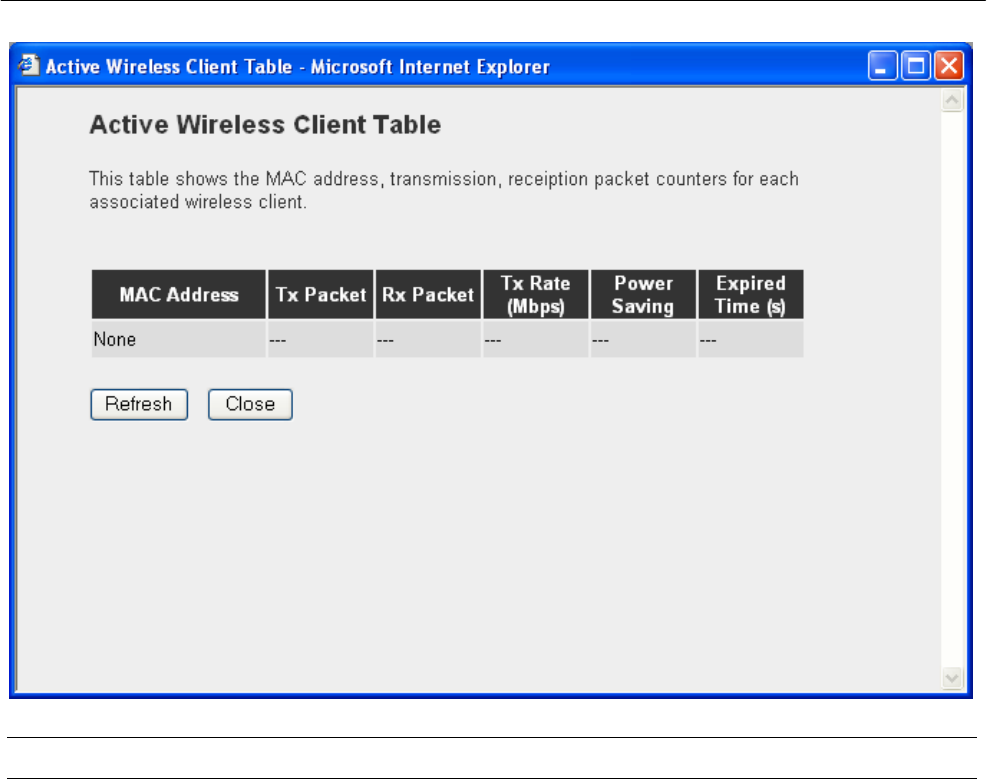

Active Wireless Client Table
“Active Wireless Client Table” records the status of all active wireless stations that
are connecting to the access point. You can lookup the MAC Address, Number of
Transmitted Packets, Number of Received Packets and Encryption Status of each
active wireless client in this table.
![](/img.php?id=797973&img=bg1b.png)
Wireless LAN Access Point Configuration
25
Parameter Description
MAC Address MAC address of this active wireless station.
Tx Packet The number of transmitted packets that are sent out from this active
wireless station.
Rx Packet The number of received packets that are received by this active wireless
station.
TX Rate The transmission rate in Mbps.
Power Saving Shows if the wireless client is in Power Saving mode.
Expired Time The time in second before dissociation. If the wireless keeps idle long
than the expired time, this access point will dissociate it. The wireless
client station has to associate again when it become active.
Refresh Refresh the “Active Wireless Client Table”.
![](/img.php?id=797973&img=bg1c.png)
Wireless LAN Access Point Configuration
26
Close Refresh the “Active Wireless Client Table”.
Wireless Site Survey
When this access point is in “Station-Ad Hoc mode”, “Station-Infrastructure mode”
or “Universal Repeater mode”, it should associate with an access point or station and
connect to your wireless LAN through the associated access point or station.
“Wireless Site Survey” searches for all available access points near by. You can
select one access point listed in this table.
Note: The range of Signal is between 0 and 100. The higher the value, the stronger
the signal.
![](/img.php?id=797973&img=bg1d.png)
Wireless LAN Access Point Configuration
27

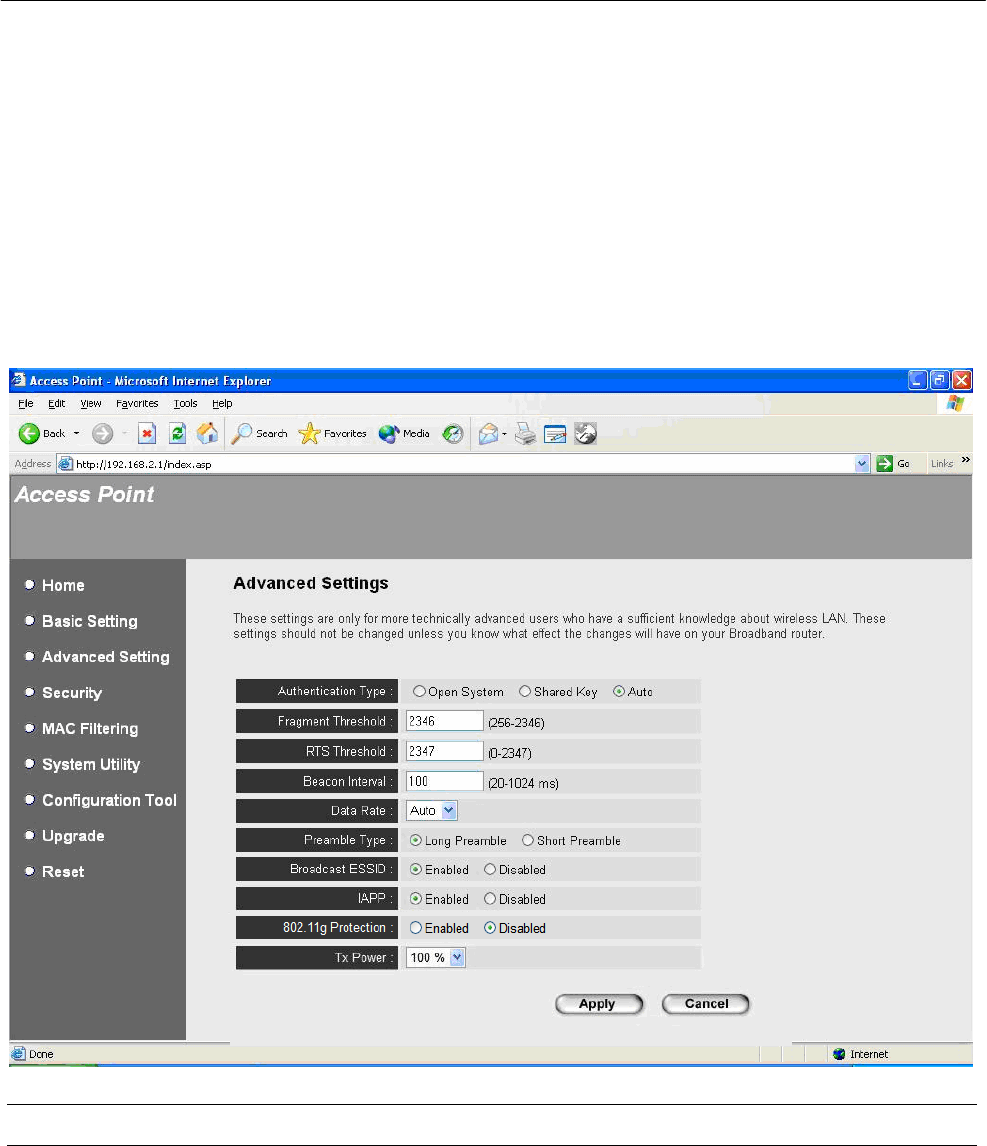

3.2.3 Advanced Setting
You can set advanced parameters of this access point. The parameters include
Authentication Type, Fragment Threshold, RTS Threshold, Beacon Interval, Tx
Operation Rate, Tx Basic Rate, Preamble Type, Broadcast ESSID. You should not
change these parameters unless you know what effect the changes will have on this
access point.
Parameter Description
Authentication Type There are two authentication types: “Open System” and “Shared Key”.
When you select “Open System”, wireless stations can associate with
this access point without WEP encryption. When you select “Shared
Key”, you should also setup WEP key in the “Encryption” page and
wireless stations should use WEP encryption in the authentication phase
to associate with this access point. If you select “Auto”, the wireless client
can associate with this access point by using any one of these two
![](/img.php?id=797973&img=bg1e.png)
Wireless LAN Access Point Configuration
28
authentication types.
Fragment Threshold “Fragment Threshold” specifies the maximum size of packet during the
fragmentation of data to be transmitted. If you set this value too low, it will
result in bad performance.
RTS Threshold When the packet size is smaller than the RTS threshold, the access point
will not use the RTS/CTS mechanism to send this packet.
Beacon Interval The interval of time that this access point broadcast a beacon. Beacon is
used to synchronize the wireless network.
Data Rate The “Data Rate” is the rate this access point uses to transmit data
packets. The access point will use the highest possible selected
transmission rate to transmit the data packets.
Preamble Type Preamble type defines the length of CRC block in the frames during the
wireless communication. “Short Preamble” is suitable for high traffic
wireless network. “Long Preamble” can provide more reliable
communication.
Broadcast ESSID If you enable “Broadcast ESSID”, every wireless station located within
the coverage of this access point can discover this access point easily. If
you are building a public wireless network, enabling this feature is
recommended. Disabling “Broadcast ESSID” can provide better security.
IAPP If you enable “IAPP”, the access point will automatically broadcast
information of associated wireless stations to its neighbors. This will help
wireless station roaming smoothly between access points. If you have
more than one access points in your wireless LAN and wireless stations
have roaming requirements, enabling this feature is recommended.
Disabling “IAPP” can provide better security.
802.11g Protection This is also called CTS Protection. It is recommended to enable the
protection mechanism. This mechanism can decrease the rate of data
collision between 802.11b and 802.11g wireless stations. When the
protection mode is enabled, the throughput of the AP will be a little lower
due to the extra data transmissions.
![](/img.php?id=797973&img=bg1f.png)
Wireless LAN Access Point Configuration
29
Tx Power If you want to lower the transmit power of the access point for saving the
power of the system, you can select the lower percentages from the list.
The lower power will cause the lower signal strength and the coverage
range.
Click Apply button at the bottom of the screen to save the above configurations. You can now configure
other advance sections or start using the Access Point.
![](/img.php?id=797973&img=bg20.png)
Wireless LAN Access Point Configuration
30

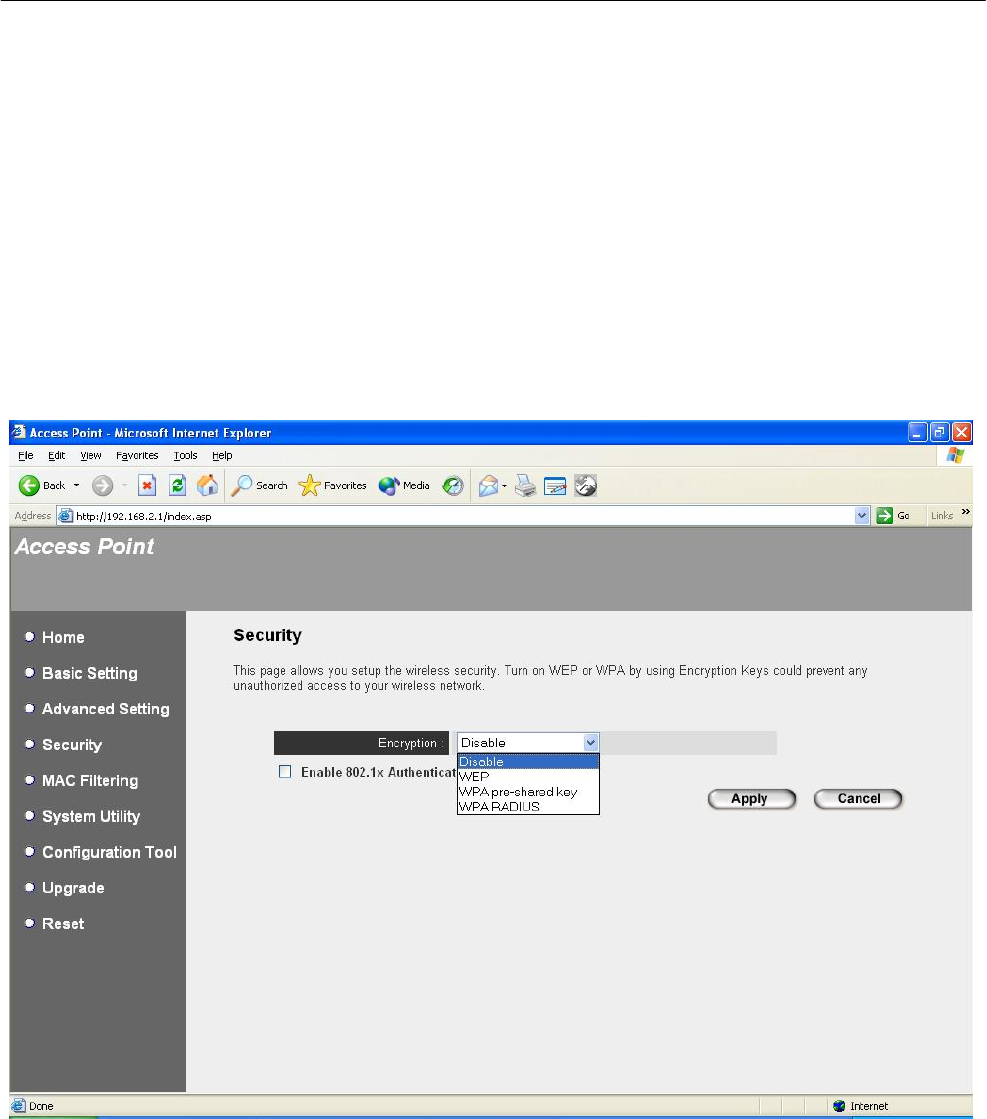

3.2.4 Security
This Access Point provides complete wireless LAN security functions, include WEP,
IEEE 802.11x, IEEE 802.11x with WEP, WPA with pre-shared key and WPA with
RADIUS. With these security functions, you can prevent your wireless LAN from
illegal access. Please make sure your wireless stations use the same security function.
Note: This access point can act as station and AP at the same time in “Universal
Repeater mode”. The security settings apply the same configuration to AP function
and station function.

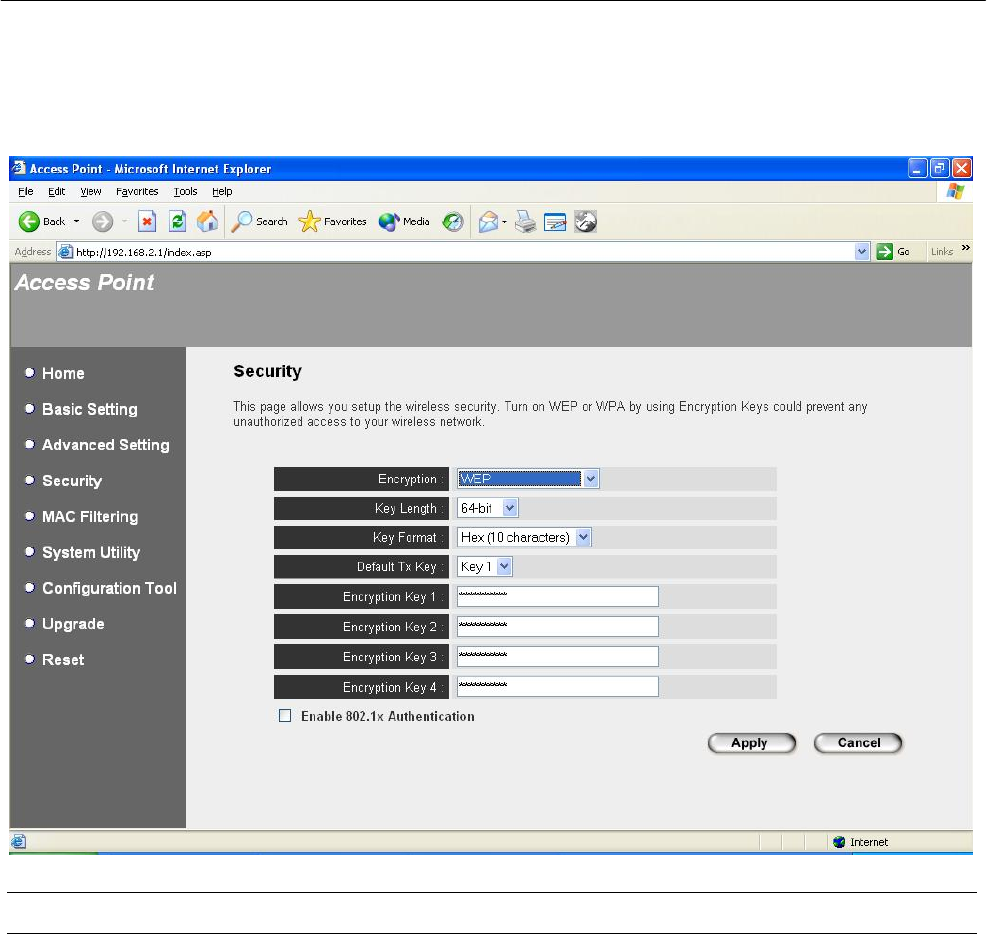

WEP only
When you select 64-bit or128-bit WEP key, you have to enter WEP keys to encrypt
data. You can generate the key by yourself and enter it. You can enter four WEP keys
and select one of them as default key. Then the access point can receive any packets
encrypted by one of the four keys. You can use WEP encryption in “AP mode”,
![](/img.php?id=797973&img=bg21.png)
Wireless LAN Access Point Configuration
31
“Station-Ad Hoc mode”, “Station-Infrastructure mode”, “AP Bridge-WDS mode”
and “Universal Repeater mode”.
Parameter Description
Key Length You can select the 64 or 128-bit key to encrypt transmitted data. Larger
WEP key length will provide higher level of security, but the throughput
will be lower.
Key Format You may select to select ASCII Characters (alphanumeric format) or
Hexadecimal Digits (in the “A-F”, “a-f” and “0-9” range) to be the WEP
Key. For example:
ASCII Characters: guest
Hexadecimal Digits: 12345abcde
Default Tx Key Select one of the four keys to encrypt your data. Only the key you select
it in the “Default key” will take effect.
![](/img.php?id=797973&img=bg22.png)
Wireless LAN Access Point Configuration
32
Key 1 - Key 4 The WEP keys are used to encrypt data transmitted in the wireless
network. Fill the text box by following the rules below.
64-bit WEP: input 10-digit Hex values (in the “A-F”, “a-f” and “0-9” range)
or 5-digit ASCII character as the encryption keys.
128-bit WEP: input 26-digit Hex values (in the “A-F”, “a-f” and “0-9”
range) or 10-digit ASCII characters as the encryption keys.
Click Apply button at the bottom of the screen to save the above configurations. You can now configure
other advance sections or start using the Access Point.

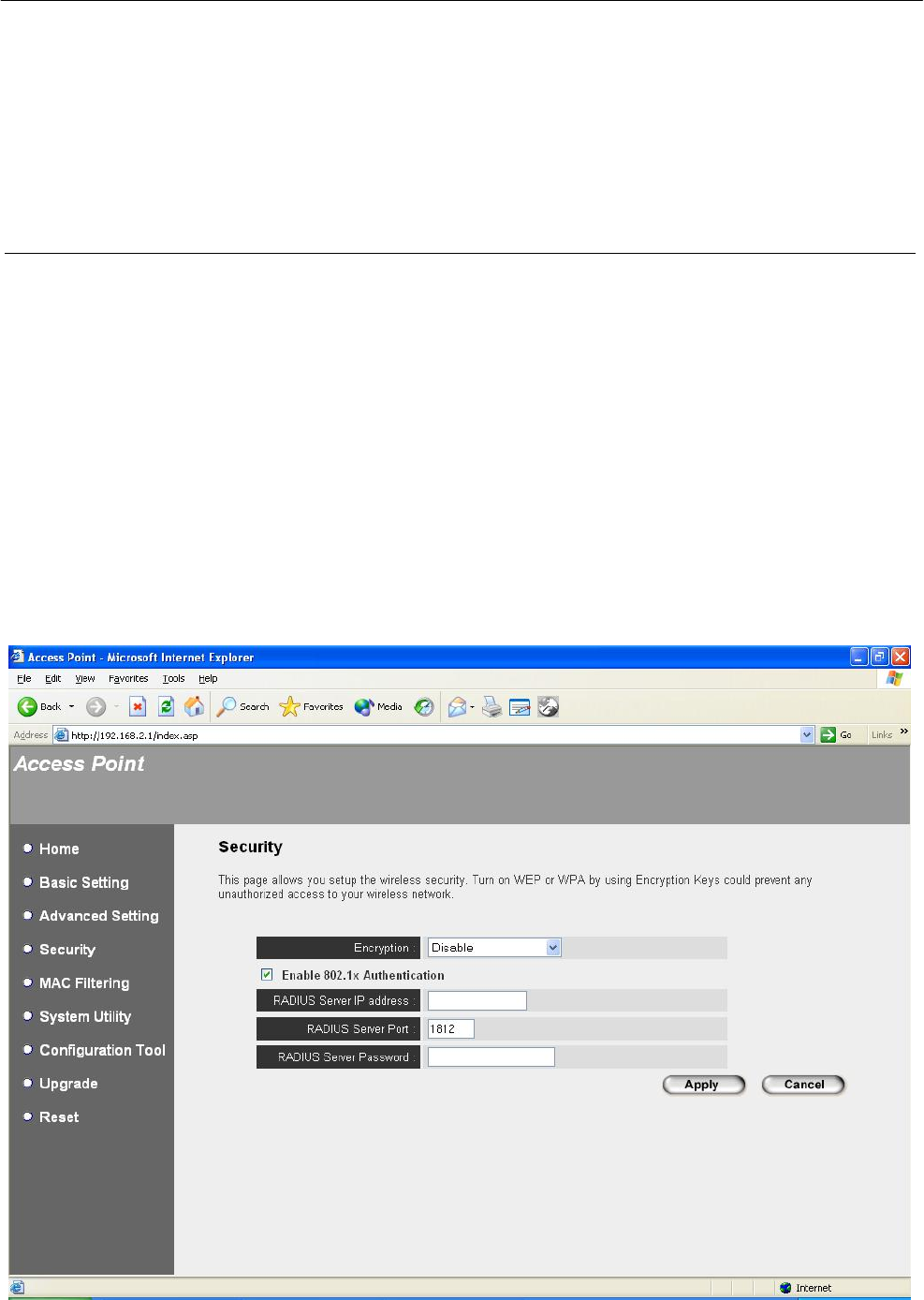

802.1x only
IEEE 802.1x is an authentication protocol. Every user must use a valid account to
login to this Access Point before accessing the wireless LAN. The authentication is
processed by a RADIUS server. This mode only authenticates user by IEEE 802.1x,
but it does not encrypt the data during communication. You can use 802.1x without
encryption in “AP mode”, “AP Bridge-WDS mode” and “Universal Repeater mode”.
![](/img.php?id=797973&img=bg23.png)
Wireless LAN Access Point Configuration
33
Parameter Description
RADIUS Server IP address The IP address of external RADIUS server.
RADIUS Server Port The service port of the external RADIUS server.
RADIUS Server Password The password used by external RADIUS server.
Click Apply button at the bottom of the screen to save the above configurations. You can now configure
other advance sections or start using the Access Point.
802.1x WEP static key
IEEE 802.1x is an authentication protocol. Every user must use a valid account to
login to this Access Point before accessing the wireless LAN. The authentication is
processed by a RADIUS server. This mode also uses WEP to encrypt the data during
communication. You can use 802.1x with WEP encryption in “AP mode”, “AP
Bridge-WDS mode” and “Universal Repeater mode”.
![](/img.php?id=797973&img=bg24.png)
Wireless LAN Access Point Configuration
34
For the WEP settings, please refer to section “WEP only”. For the 802.1x settings,
please refer to section “802.1x only”.
Click Apply button at the bottom of the screen to save the above configurations. You can now configure
other advance sections or start using the Access Point.

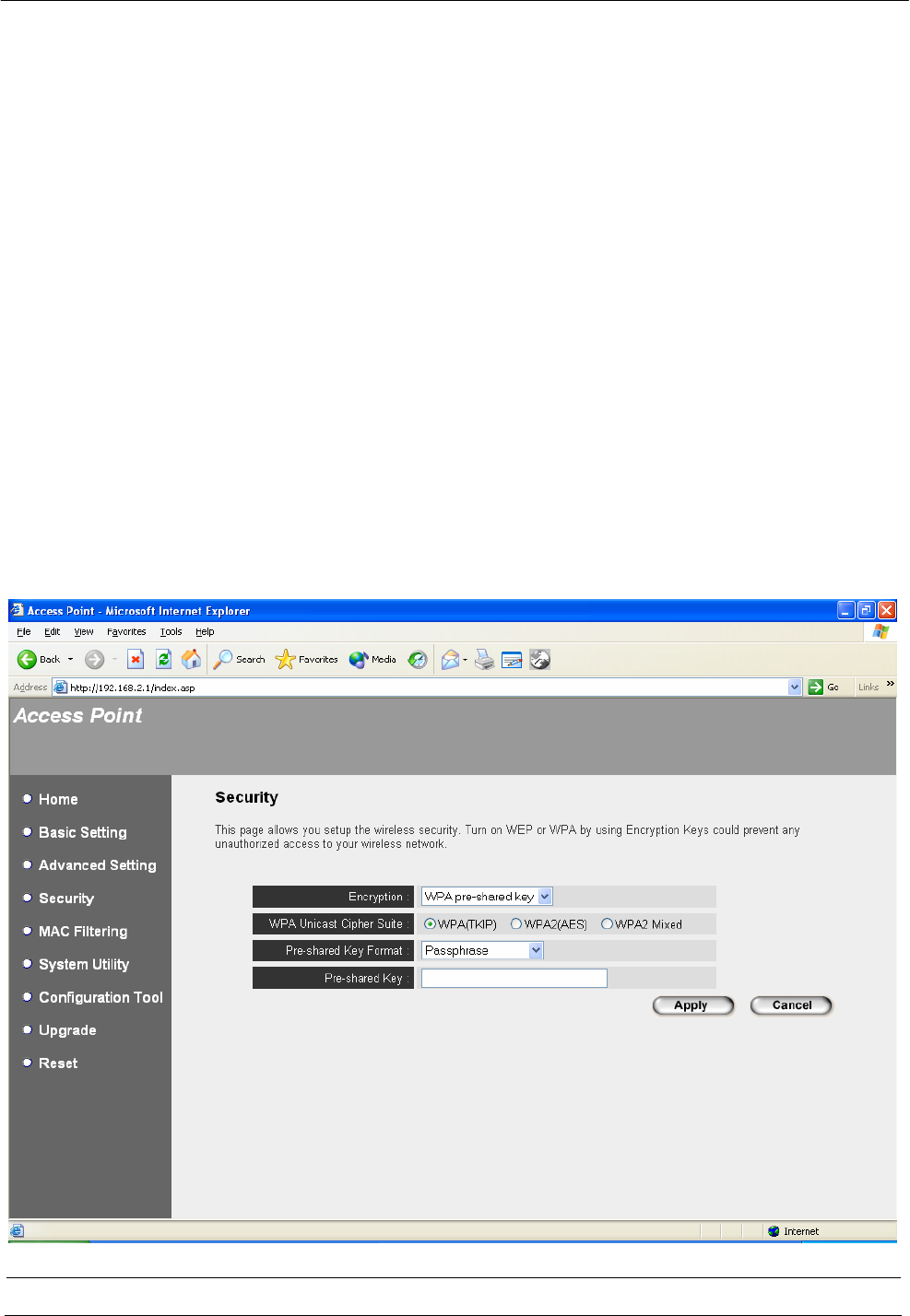

WPA pre-shared key
Wi-Fi Protected Access (WPA) is an advanced security standard. You can use a pre-
shared key to authenticate wireless stations and encrypt data during communication.
It uses TKIP or CCMP(AES) to change the encryption key frequently. So the
encryption key is not easy to be broken by hackers. This can improve security very
much. You can use WPA pre-shared key encryption in “AP mode”, “Station-Ad Hoc
mode”, “Station-Infrastructure mode”, “AP Bridge-WDS mode” and “Universal
Repeater mode”.
Parameter Description
![](/img.php?id=797973&img=bg25.png)
Wireless LAN Access Point Configuration
35
WPA(TKIP) TKIP can change the encryption key frequently to enhance the wireless
LAN security.
WPA2(AES) This use CCMP protocol to change encryption key frequently. AES can
provide high level encryption to enhance the wireless LAN security.
WPA2 Mixed This will use TKIP or AES based on the other communication peer
automatically.
Pre-shared Key Format You may select to select Passphrase (alphanumeric format) or
Hexadecimal Digits (in the “A-F”, “a-f” and “0-9” range) to be the Pre-
shared Key. For example:
Passphrase: iamguest
Hexadecimal Digits: 12345abcde
Pre-shared Key The Pre-shared key is used to authenticate and encrypt data transmitted
in the wireless network. Fill the text box by following the rules below.
Hex: input 64-digit Hex values (in the “A-F”, “a-f” and “0-9” range) or at
least 8 character pass phrase as the pre-shared keys.
Click Apply button at the bottom of the screen to save the above configurations. You can now configure
other advance sections or start using the Access Point.

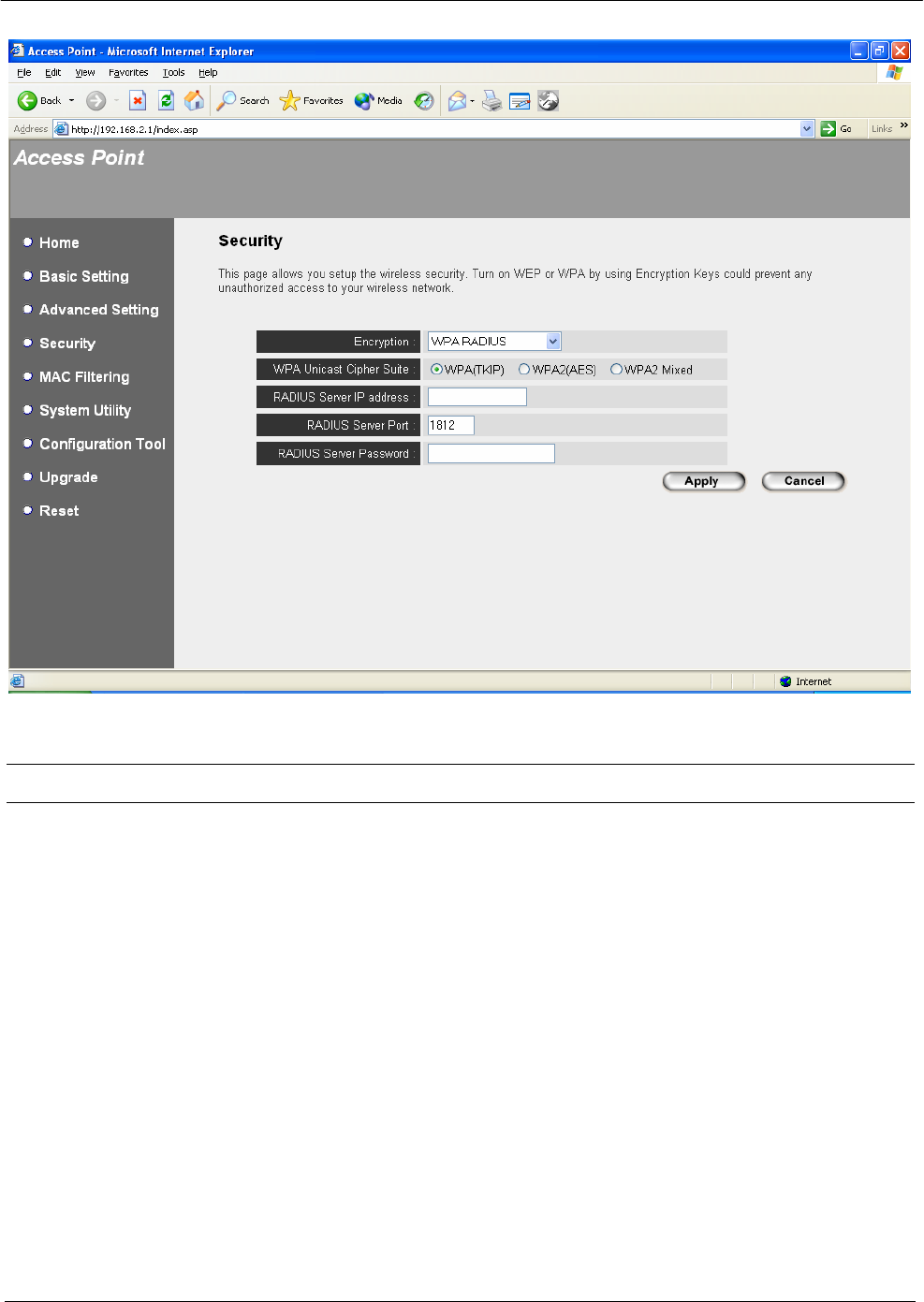

WPA RADIUS
Wi-Fi Protected Access (WPA) is an advanced security standard. You can use an
external RADIUS server to authenticate wireless stations and provide the session key
to encrypt data during communication. It uses TKIP or CCMP(AES) to change the
encryption key frequently. This can improve security very much. You can use WPA
RADIUS encryption in “AP mode”, “AP Bridge-WDS mode” and “Universal
Repeater mode”.
![](/img.php?id=797973&img=bg26.png)
Wireless LAN Access Point Configuration
36
Parameter Description
WPA(TKIP) TKIP can change the encryption key frequently to enhance the wireless
LAN security.
WPA2(AES) This use CCMP protocol to change encryption key frequently. AES can
provide high level encryption to enhance the wireless LAN security.
WPA2 Mixed This will use TKIP or AES based on the other communication peer
automatically.
RADIUS Server IP address The IP address of external RADIUS server.
RADIUS Server Port The service port of the external RADIUS server.
RADIUS Server Password The password used by external RADIUS server.
![](/img.php?id=797973&img=bg27.png)
Wireless LAN Access Point Configuration
37
Click Apply button at the bottom of the screen to save the above configurations. You can now configure
other advance sections or start using the Access Point.
![](/img.php?id=797973&img=bg28.png)
Wireless LAN Access Point Configuration
38

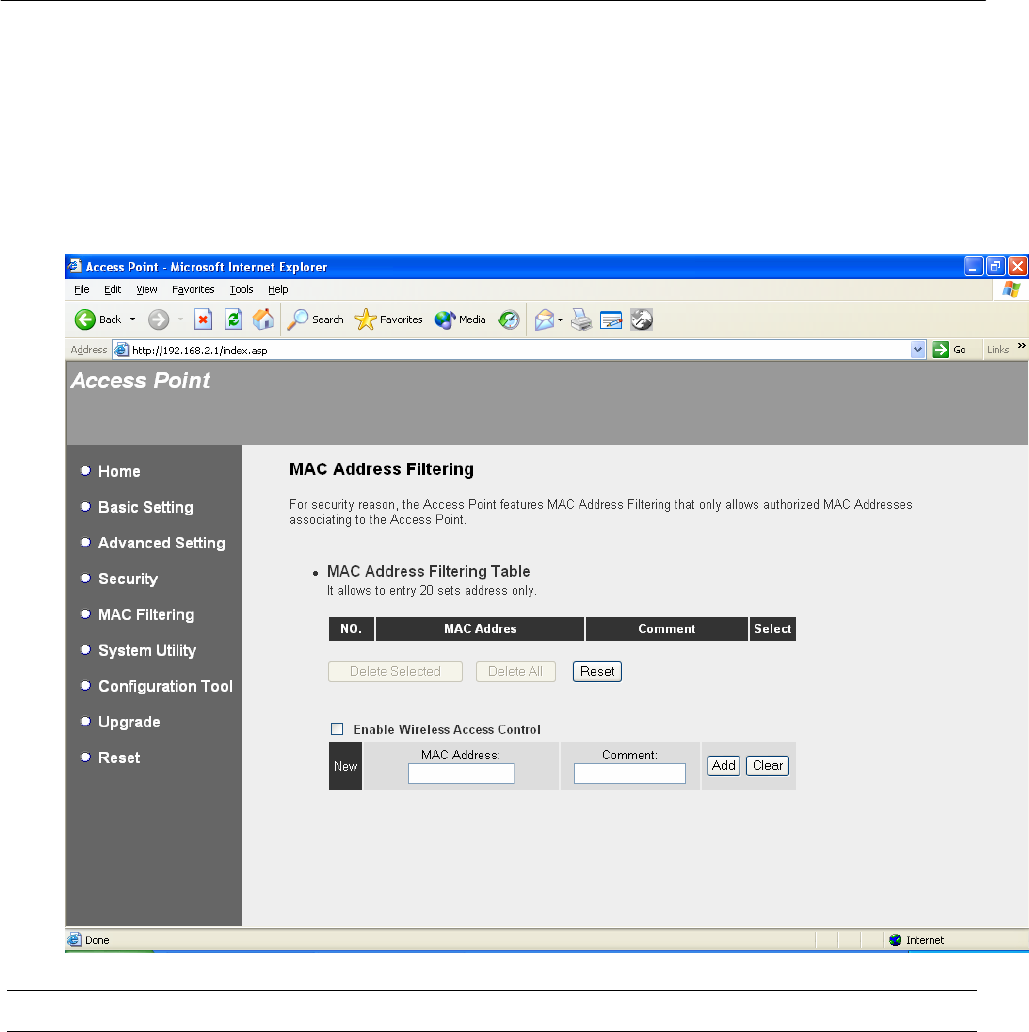

3.2.5 MAC Address Filtering
This Access Point provides MAC Address Filtering, which prevents the unauthorized
MAC Addresses from accessing your wireless network.
Parameter Description
Enable Wireless Access
Control
Enable or disable the MAC Address Filtering function.
MAC Address Filtering Table This table records the MAC addresses of wireless stations you want to
allow to access your network. The “Comment” field is the description of
the wireless station associated with the “MAC Address” and is helpful for
you to recognize the wireless station.
Add MAC address into the
table
In the bottom “New” area, fill in the “MAC Address” and “Comment” of the
wireless station to be added and then click “Add”. Then this wireless
![](/img.php?id=797973&img=bg29.png)
Wireless LAN Access Point Configuration
39
station will be added into the “MAC Address Filtering Table” above. If you
find any typo before adding it and want to retype again. Just click “Clear”
and both “MAC Address” and “Comment” fields will be cleared.
Remove MAC address from
the table
If you want to remove some MAC address from the “MAC Address
Filtering Table”, select the MAC addresses you want to remove in the
table and then click “Delete Selected”. If you want remove all MAC
addresses from the table, just click “Delete All” button.
Reset Click “Reset” will clear your current selections.
Click Apply button at the bottom of the screen to save the above configurations. You can now configure
other advance sections or start using the Access Point.
![](/img.php?id=797973&img=bg2a.png)
Wireless LAN Access Point Configuration
40
3.2.6 System Utility
From here, you can define the Access Point’s IP Address and Login Password and
enable the Access Point to be a DHCP Server.
Parameter Description
Current Password Enter the current password (up to 15-digit alphanumeric string) of the
Access Point. The default password for the Access Point is 1234. Note
that the password is case-sensitive.
New Password Enter the password (up to 15-digit alphanumeric string) you want to login
to the Access Point. Note that the password is case-sensitive.
Re-Enter Password Reconfirm the password (up to 15-digit alphanumeric string) you want to
login to the Access Point. Note that the password is case-sensitive.
![](/img.php?id=797973&img=bg2b.png)
Wireless LAN Access Point Configuration
41
IP Address Designate the Access Point’s IP Address. This IP Address should be
unique in your network. The default IP Address is 192.168.2.1.
Subnet Mask Specify a Subnet Mask for your LAN segment. The Subnet Mask of the
Access Point is fixed and the value is 255.255.255.0.
Gateway Address The IP address of the default gateway of the subnet that this access point
resides in. It allows this access point be accessed by PC from deferent
subnet to do configuration.
DHCP Server Enable or disable the DHCP Server.
Click Apply button at the bottom of the screen to save the above configurations. You can now configure
other advance sections or start using the Access Point.
DHCP Server Setting
DHCP Server will automatically give your LAN client an IP address. If the DHCP is
not enabled then you’ll have to manually set your LAN client’s IP address.
![](/img.php?id=797973&img=bg2c.png)
Wireless LAN Access Point Configuration
42
Parameter Description
Default Gateway IP Specify the gateway IP in your network. This IP address should be
different from the Management IP.
Domain Name Server IP This is the ISP’s DNS server IP address that they gave you; or you can
specify your own preferred DNS server IP address.
Start IP/End IP You can designate a particular IP address range for your DHCP server to
issue IP addresses to your LAN Clients. By default the IP range is from: Start
IP 192.168.2.100 to End IP 192.168.2.200.
Domain Name You can specify the Domain Name for your Access Point.
Lease Time
The DHCP Server when enabled will temporarily give your LAN client an IP
address. In the Lease Time setting you can specify the time period that the
DHCP Server lends an IP address to your LAN clients. The DHCP Server will
change your LAN client’s IP address when this time threshold period is
reached.
![](/img.php?id=797973&img=bg2d.png)
Wireless LAN Access Point Configuration
43
Click Apply button at the bottom of the screen to save the above configurations. You can now configure
other advance sections or start using the Access Point.
![](/img.php?id=797973&img=bg2e.png)
Wireless LAN Access Point Configuration
44
3.2.7 Configuration Tool
The Configuration Tools screen allows you to save (Backup) the Access Point’s
current configuration setting. Saving the configuration settings provides an added
protection and convenience should problems occur with the Access Point and you
have to reset to factory default. When you save the configuration setting (Backup)
you can re-load the saved configuration into the Access Point through the Restore
selection. If extreme problems occur you can use the Restore to Factory Default
selection, this will set all configurations to its original default settings (e.g. when you
first purchased the Access Point).
Parameter Description
Configuration Tools Use the "Backup" tool to save the Access Point’s current configuration to
a file named "config.bin" on your PC. You can then use the "Restore"
tool to upload and restore the saved configuration to the Access Point.
Alternatively, you can use the "Restore to Factory Default" tool to force
![](/img.php?id=797973&img=bg2f.png)
Wireless LAN Access Point Configuration
45
the Access Point to perform a power reset and restore the original factory
settings.
![](/img.php?id=797973&img=bg30.png)
Wireless LAN Access Point Configuration
46
3.2.8 Firmware Upgrade
This page allows you to upgrade the Access Point’s firmware.
Parameter Description

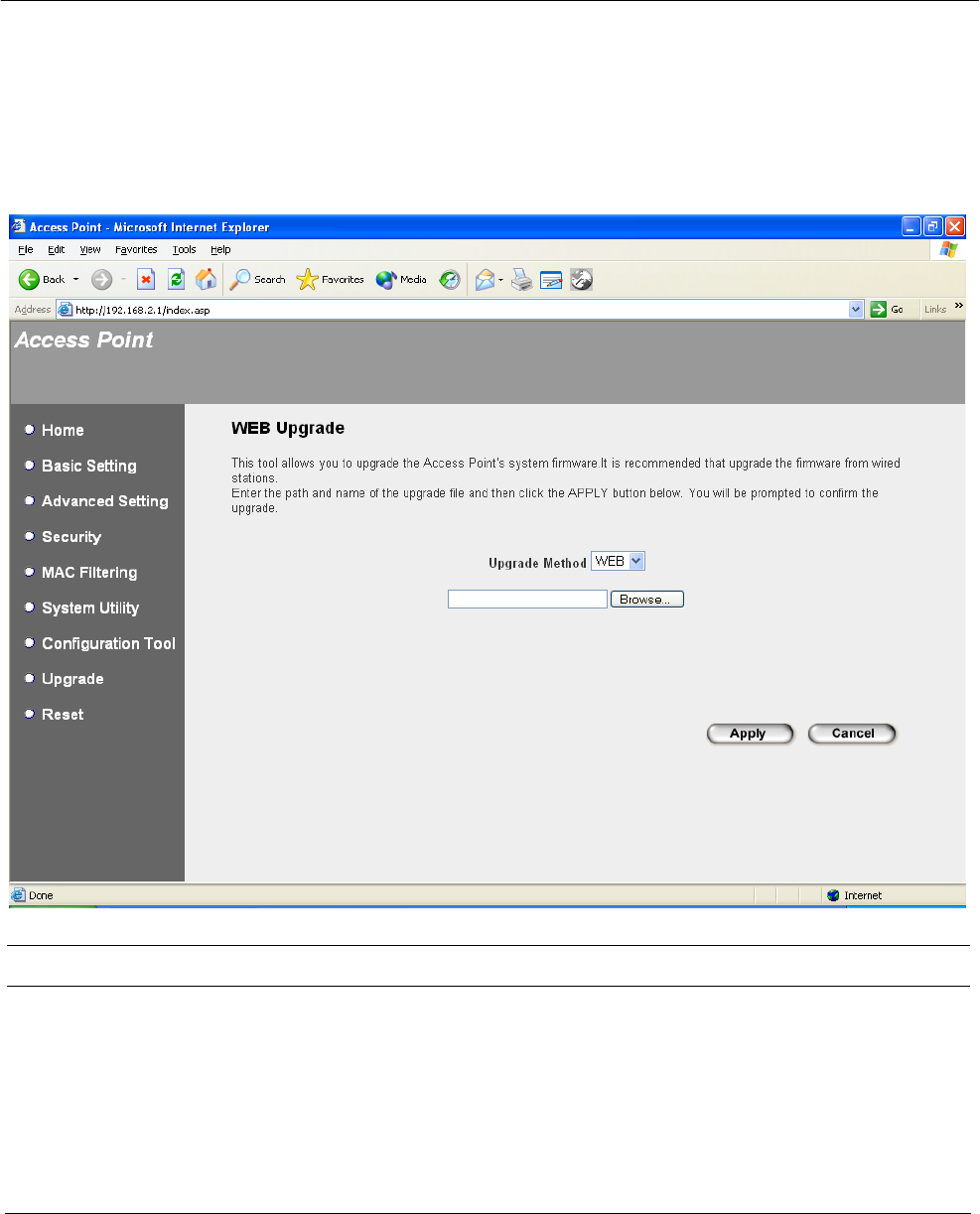

Firmware Upgrade This tool allows you to upgrade the Access Point’s system firmware. To
upgrade the firmware of your Access Point, you need to download the
firmware file to your local hard disk, and enter that file name and path in
the appropriate field on this page. You can also use the Browse button to
find the firmware file on your PC. Please reset the Access Point when the
upgrade process is complete.
Once you’ve selected the new firmware file, click Apply button at the bottom of the screen to start the upgrade
process. (You may have to wait a few minutes for the upgrade to complete). Once the upgrade is complete you
can start using the Access Point.
![](/img.php?id=797973&img=bg31.png)
Wireless LAN Access Point Configuration
47
3.2.9 Reset
You can reset the Access Point’s system should any problem exist. The reset function
essentially Re-boots your Access Point’s system.
Parameter Description

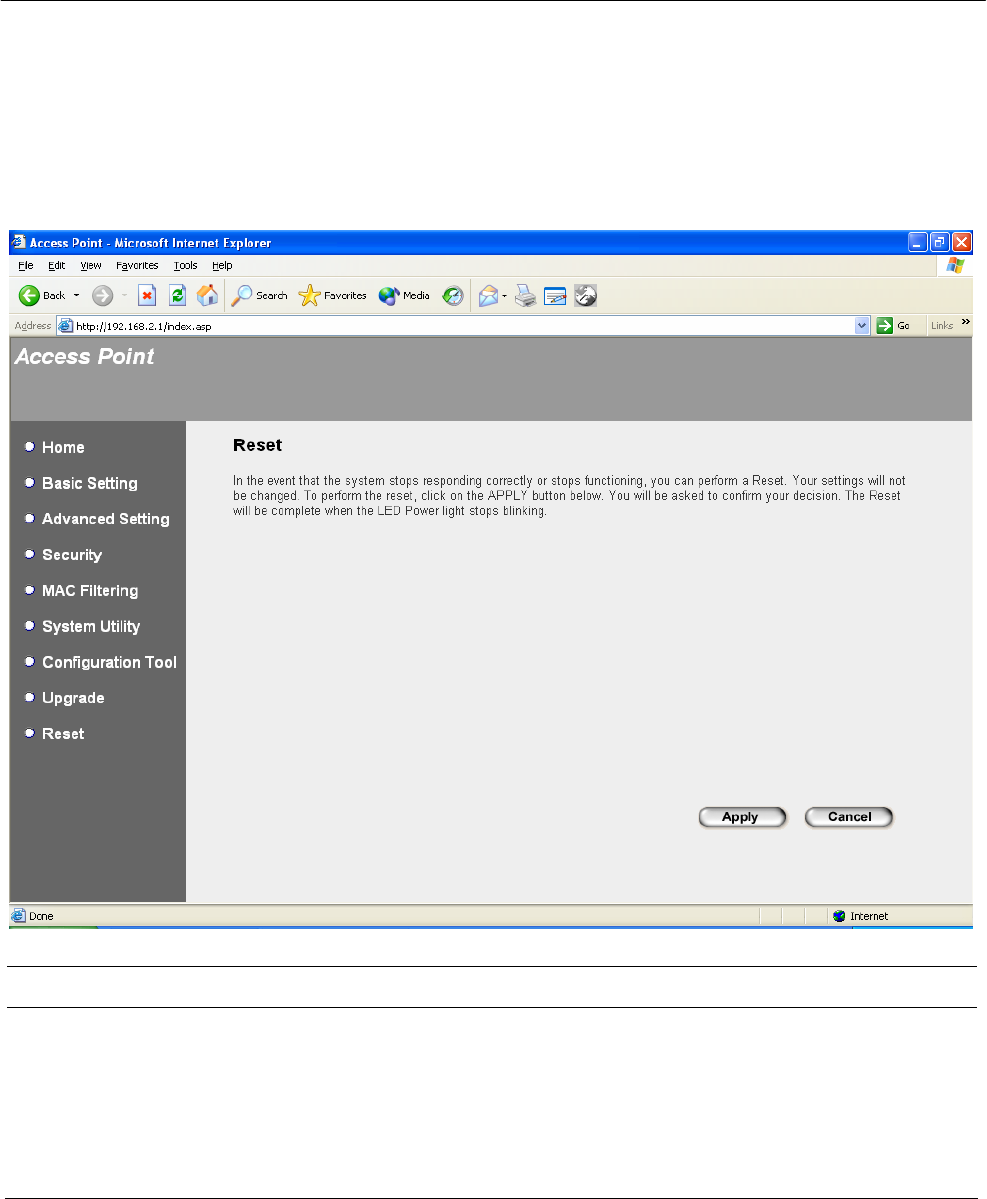

Reset In the event that the system stops responding correctly or in some way stops
functioning, you can perform a reset. Your settings will not be changed. To
perform the reset, click on the Apply button. You will be asked to confirm
your decision. Once the reset process is complete you may start using the
Access Point again.
![](/img.php?id=797973&img=bg32.png)
Troubleshooting
48
Chapter 4 Troubleshooting
This chapter provides solutions to problems usually encountered during the
installation and operation of the Access Point.
1. How to manually find your PC’s IP and MAC Address?
1) In Windows, open the Command Prompt program
2) Type Ipconfig /all and Enter
y Your PC’s IP address is the one entitled IP address
y Your PC’s MAC Address is the one entitled Physical Address
2. What is Ad-hoc?
An Ad-hoc wireless LAN is a group of computers, each with a WLAN adapter,
connected as an independent wireless LAN.
3. What is Infrastructure?
An integrated wireless and wired LAN is called an Infrastructure configuration.
4. What is BSS ID?
A group of wireless stations and an Access Point compose a Basic Service Set
(BSS). Computers in a BSS must be configured with the same BSSID.
5. What is ESSID?
An Infrastructure configuration could also support roaming capability for mobile
workers. More than one BSS can be configured as an Extended Service Set (ESS).
Users within an ESS could roam freely between BSSs while maintaining a
continuous connection to the wireless network stations and the Wireless LAN
Access Points.
6. Can data be intercepted while transmitting through the air?
WLAN features two-fold protection in security. On the hardware side, as with
Direct Sequence Spread Spectrum technology, it has the inherent scrambling
security feature. On the software side, the WLAN series offers the encryption
function (WEP, WPA, WPA2) to enhance security and access control.
![](/img.php?id=797973&img=bg33.png)
Troubleshooting
49
7. What is WEP?
WEP stands for Wired Equivalent Privacy, a data privacy mechanism based on a
64(40)-bit shared key algorithm.
8. What is WPA?
WPA is an acronym for Wi-Fi Protected Access. It is a security protocol for
802.11 wireless networks. WPA can provide data protection with the use of
encryption and the use of access controls and user authentication.
9. What is WPA2?
In addition to WPA, WPA2 provides a stronger encryption mechanism through
Advanced Encryption Standard (AES).
10. What is a MAC Address?
The Media Access Control (MAC) address is a unique number assigned by the
manufacturer to any Ethernet networking device, such as a network adapter, that
allows the network to identify it at the hardware level. For all practical purposes,
this number is usually permanent. Unlike IP addresses, which can change every
time a computer logs on to the network, the MAC address of a device stays the
same, making it a valuable identifier for the network.
![](/img.php?id=797973&img=bg34.png)
Troubleshooting
50
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth
for an uncontrolled environment. This equipment should be installed
and operated with minimum distance 20cm between the radiator &
your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
