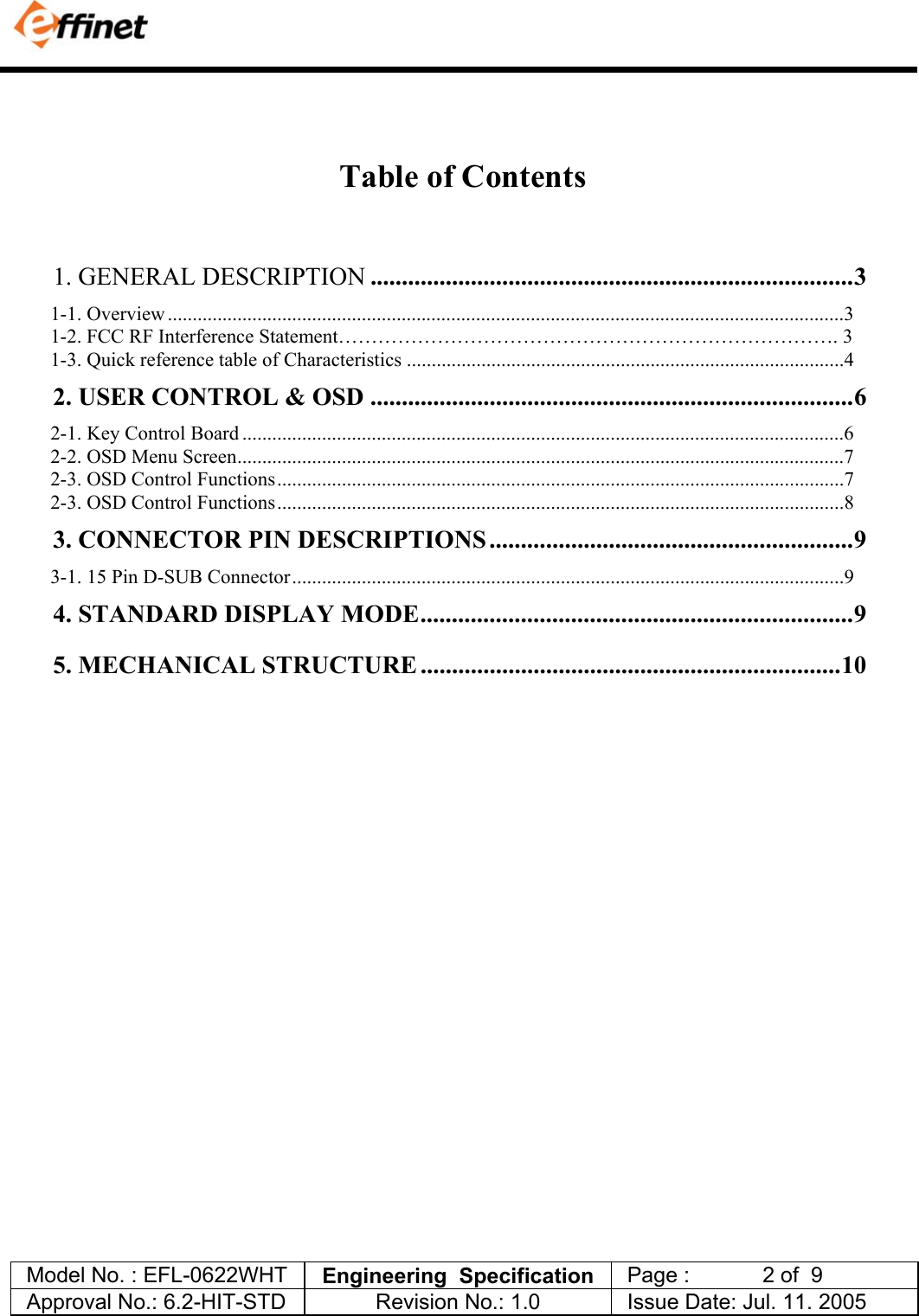

Model No. : EFL-0622WHT Engineering Specification Page : 2 of 9 Approval No.: 6.2-HIT-STD Revision No.: 1.0 Issue Date: Jul. 11. 2005 Table of Contents 1. GENERAL DESCRIPTION .............................................................................3 1-1. Overview ........................................................................................................................................3 1-2. FCC RF Interference Statement…………………………………………………………………. 3 1-3. Quick reference table of Characteristics ........................................................................................4 2. USER CONTROL & OSD .............................................................................6 2-1. Key Control Board .........................................................................................................................6 2-2. OSD Menu Screen..........................................................................................................................7 2-3. OSD Control Functions..................................................................................................................7 2-3. OSD Control Functions..................................................................................................................8 3. CONNECTOR PIN DESCRIPTIONS ..........................................................9 3-1. 15 Pin D-SUB Connector...............................................................................................................9 4. STANDARD DISPLAY MODE.....................................................................9 5. MECHANICAL STRUCTURE ...................................................................10

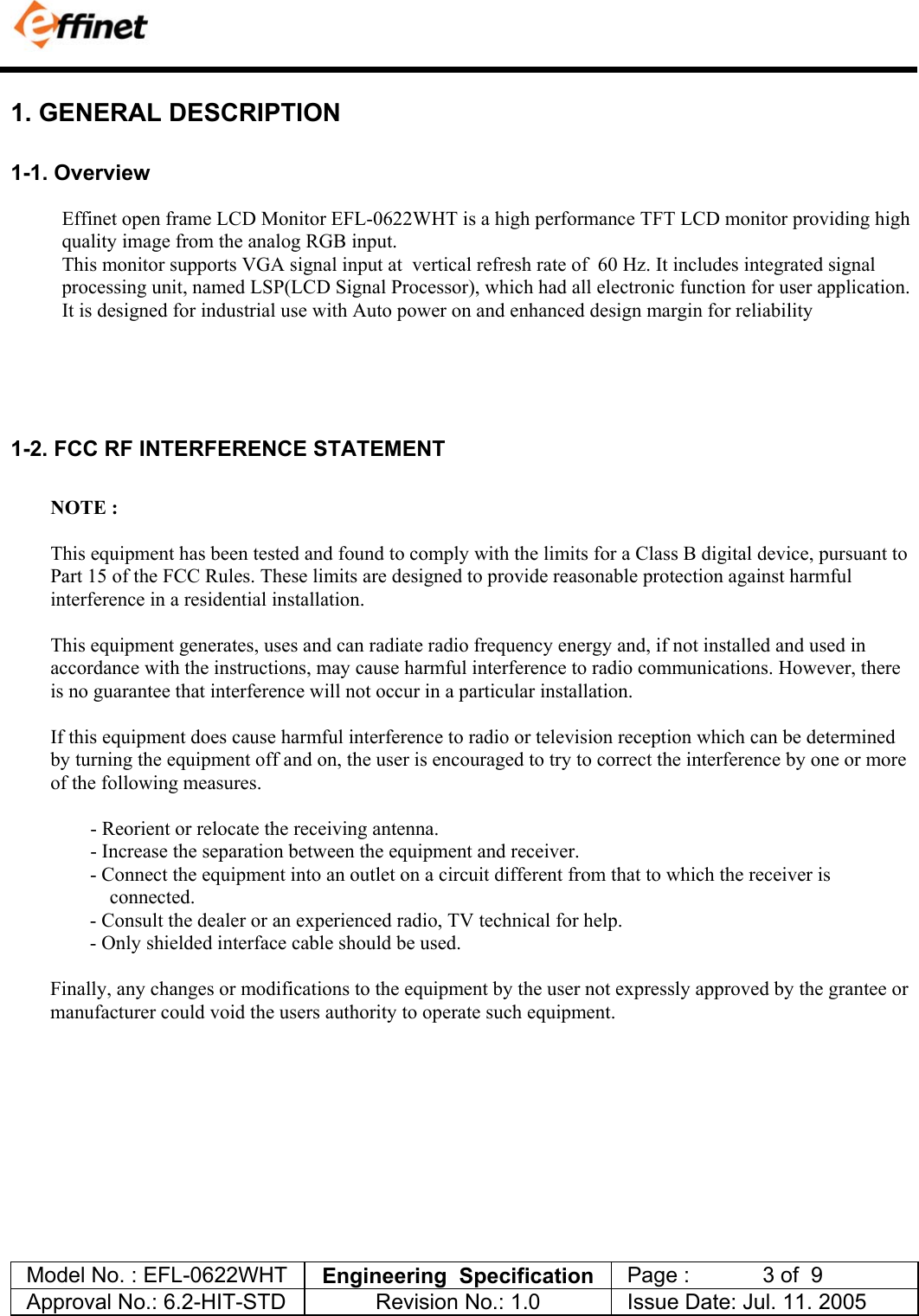

Model No. : EFL-0622WHT Engineering Specification Page : 3 of 9 Approval No.: 6.2-HIT-STD Revision No.: 1.0 Issue Date: Jul. 11. 2005 1. GENERAL DESCRIPTION 1-1. Overview Effinet open frame LCD Monitor EFL-0622WHT is a high performance TFT LCD monitor providing high quality image from the analog RGB input. This monitor supports VGA signal input at vertical refresh rate of 60 Hz. It includes integrated signal processing unit, named LSP(LCD Signal Processor), which had all electronic function for user application. It is designed for industrial use with Auto power on and enhanced design margin for reliability 1-2. FCC RF INTERFERENCE STATEMENT NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures. - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio, TV technical for help. - Only shielded interface cable should be used. Finally, any changes or modifications to the equipment by the user not expressly approved by the grantee or manufacturer could void the users authority to operate such equipment.

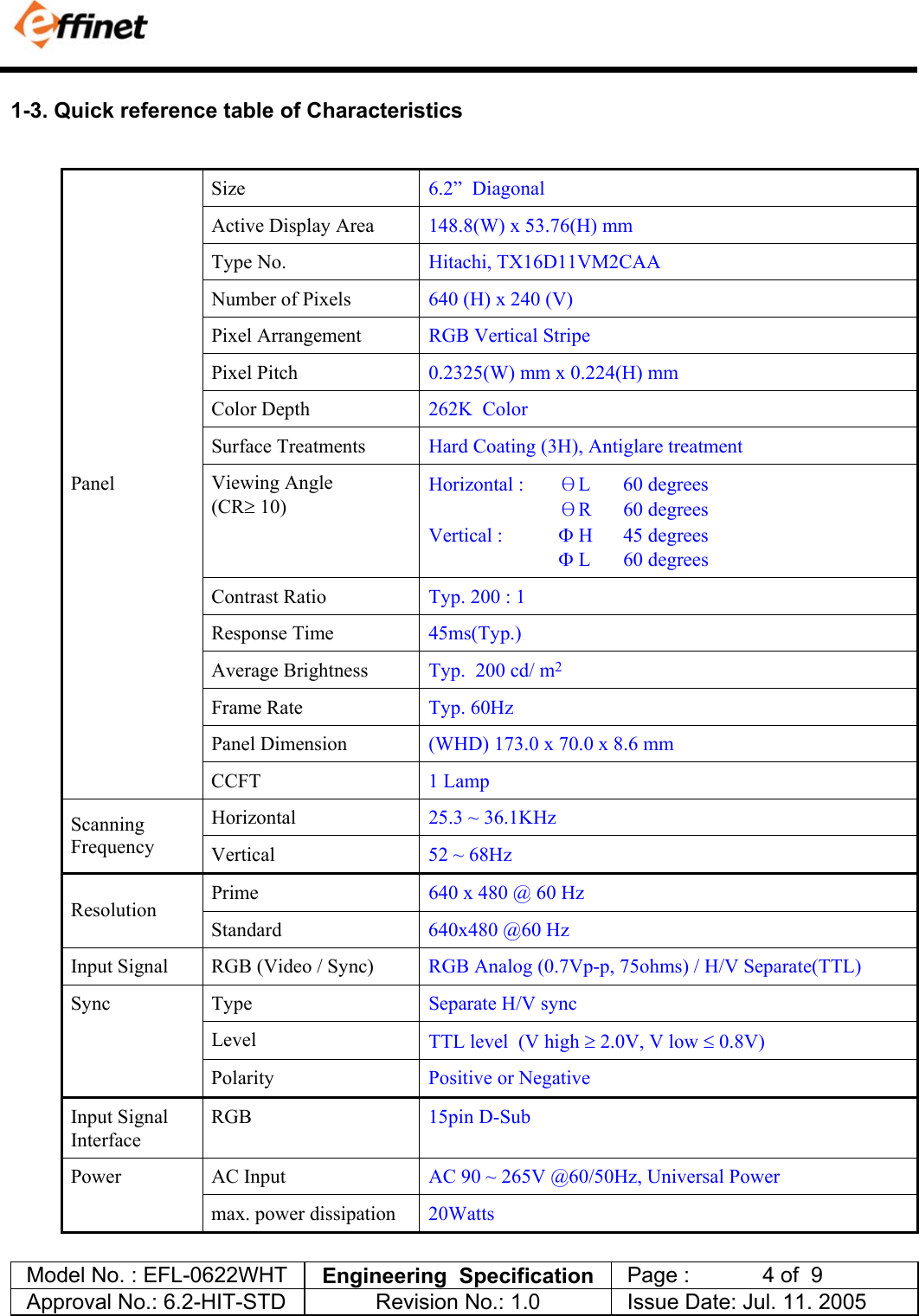

Model No. : EFL-0622WHT Engineering Specification Page : 4 of 9 Approval No.: 6.2-HIT-STD Revision No.: 1.0 Issue Date: Jul. 11. 2005 1-3. Quick reference table of Characteristics Size 6.2” Diagonal Active Display Area 148.8(W) x 53.76(H) mm Type No. Hitachi, TX16D11VM2CAA Number of Pixels 640 (H) x 240 (V) Pixel Arrangement RGB Vertical Stripe Pixel Pitch 0.2325(W) mm x 0.224(H) mm Color Depth 262K Color Surface Treatments Hard Coating (3H), Antiglare treatment Viewing Angle (CR≥ 10) Horizontal : θL 60 degrees θR 60 degrees Vertical : Φ H 45 degrees Φ L 60 degrees Contrast Ratio Typ. 200 : 1 Response Time 45ms(Typ.) Average Brightness Typ. 200 cd/ m2 Frame Rate Typ. 60Hz Panel Dimension (WHD) 173.0 x 70.0 x 8.6 mm Panel CCFT 1 Lamp Horizontal 25.3 ~ 36.1KHz Scanning Frequency Vertical 52 ~ 68Hz Prime 640 x 480 @ 60 Hz Resolution Standard 640x480 @60 Hz Input Signal RGB (Video / Sync) RGB Analog (0.7Vp-p, 75ohms) / H/V Separate(TTL) Type Separate H/V sync Level TTL level (V high ≥ 2.0V, V low ≤ 0.8V) Sync Polarity Positive or Negative Input Signal Interface RGB 15pin D-Sub AC Input AC 90 ~ 265V @60/50Hz, Universal Power Power max. power dissipation 20Watts

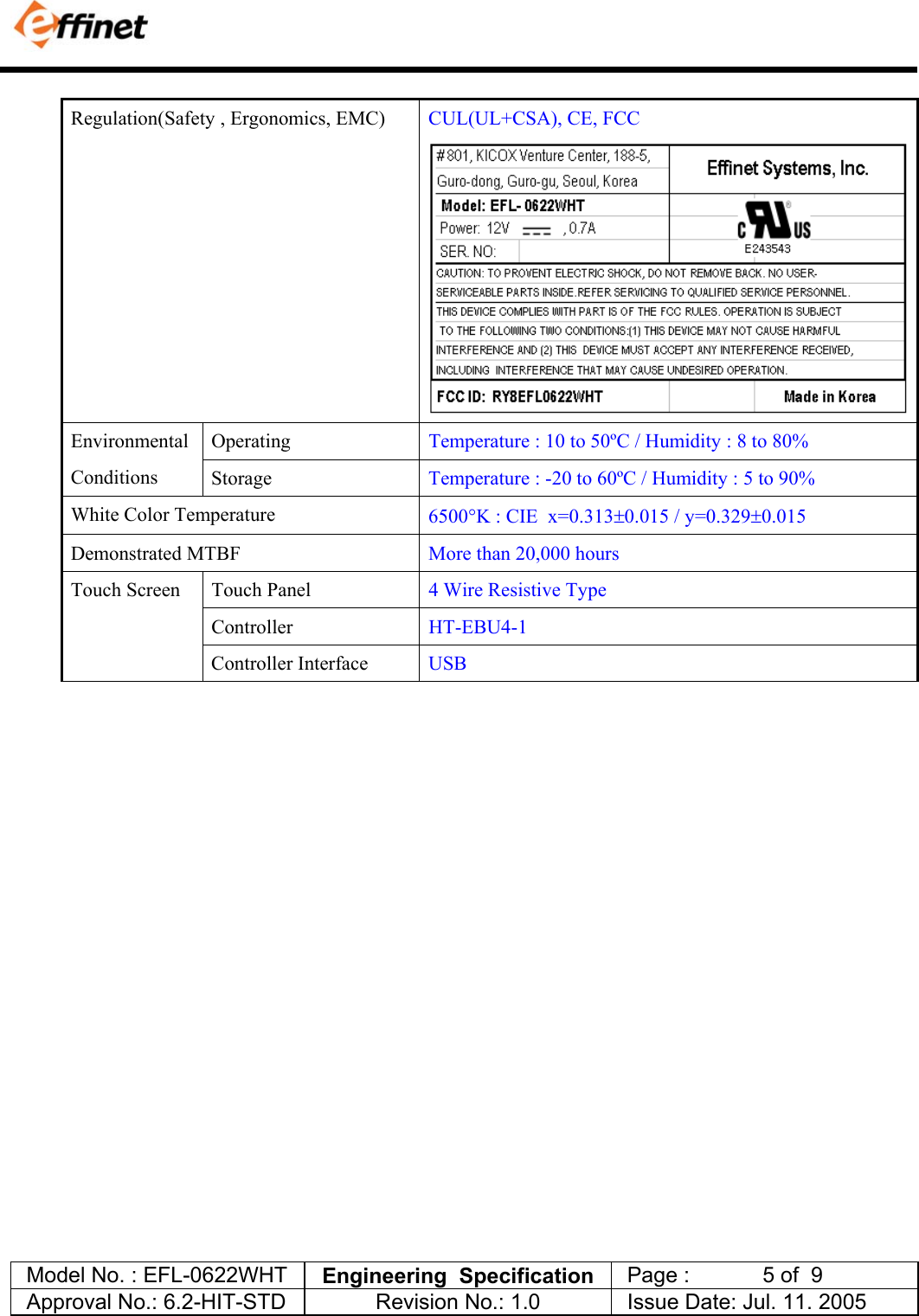

Model No. : EFL-0622WHT Engineering Specification Page : 5 of 9 Approval No.: 6.2-HIT-STD Revision No.: 1.0 Issue Date: Jul. 11. 2005 Regulation(Safety , Ergonomics, EMC) CUL(UL+CSA), CE, FCC Operating Temperature : 10 to 50ºC / Humidity : 8 to 80% Environmental Conditions Storage Temperature : -20 to 60ºC / Humidity : 5 to 90% White Color Temperature 6500°K : CIE x=0.313±0.015 / y=0.329±0.015 Demonstrated MTBF More than 20,000 hours Touch Panel 4 Wire Resistive Type Controller HT-EBU4-1 Touch Screen Controller Interface USB

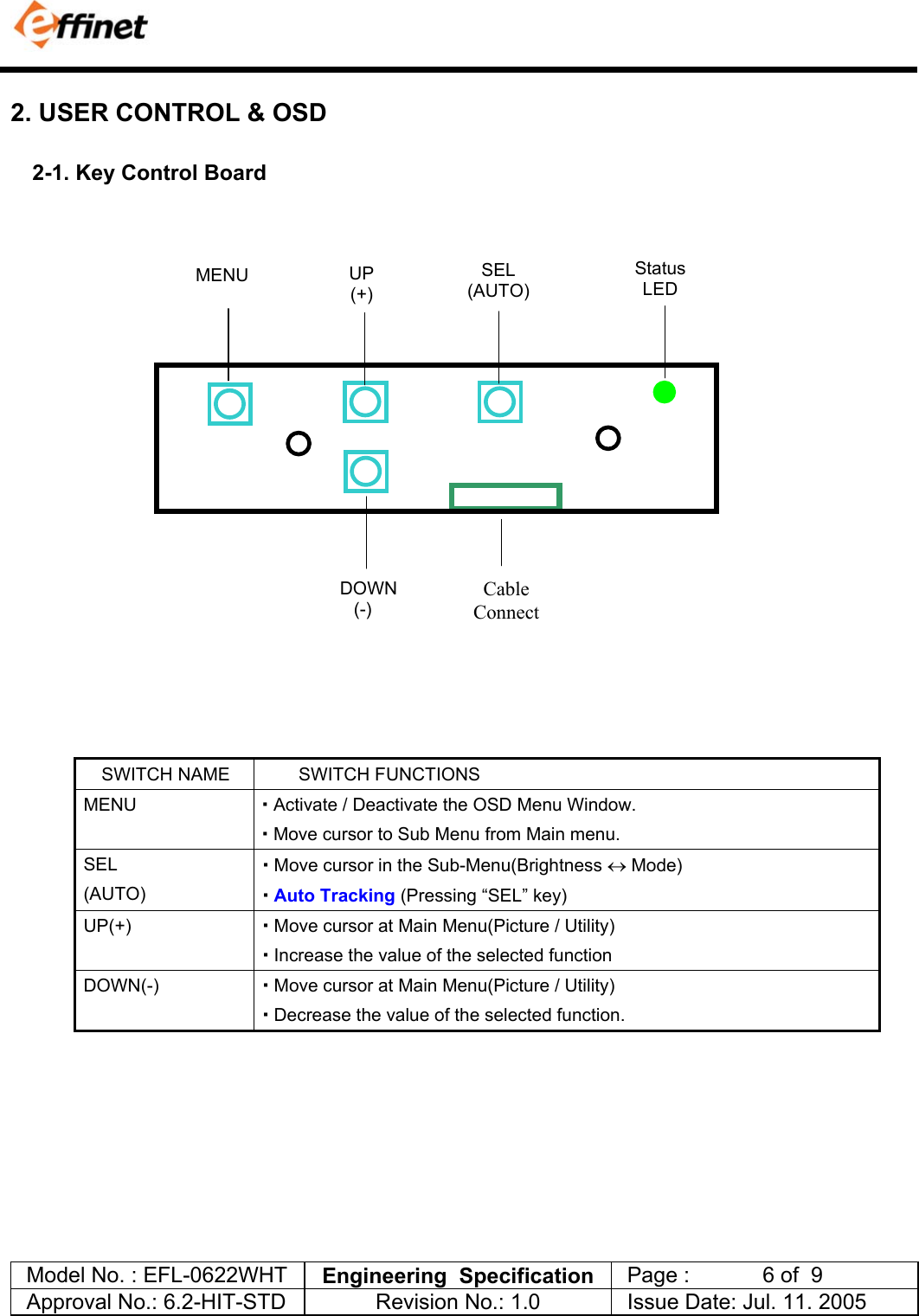

Model No. : EFL-0622WHT Engineering Specification Page : 6 of 9 Approval No.: 6.2-HIT-STD Revision No.: 1.0 Issue Date: Jul. 11. 2005 2. USER CONTROL & OSD 2-1. Key Control Board SWITCH NAME SWITCH FUNCTIONS MENU  Activate / Deactivate the OSD Menu Window.  Move cursor to Sub Menu from Main menu. SEL (AUTO)  Move cursor in the Sub-Menu(Brightness ↔ Mode)  Auto Tracking (Pressing “SEL” key) UP(+)  Move cursor at Main Menu(Picture / Utility)  Increase the value of the selected function DOWN(-)  Move cursor at Main Menu(Picture / Utility)  Decrease the value of the selected function. Cable ConnectSEL (AUTO)UP (+)DOWN(-) MENU Status LED

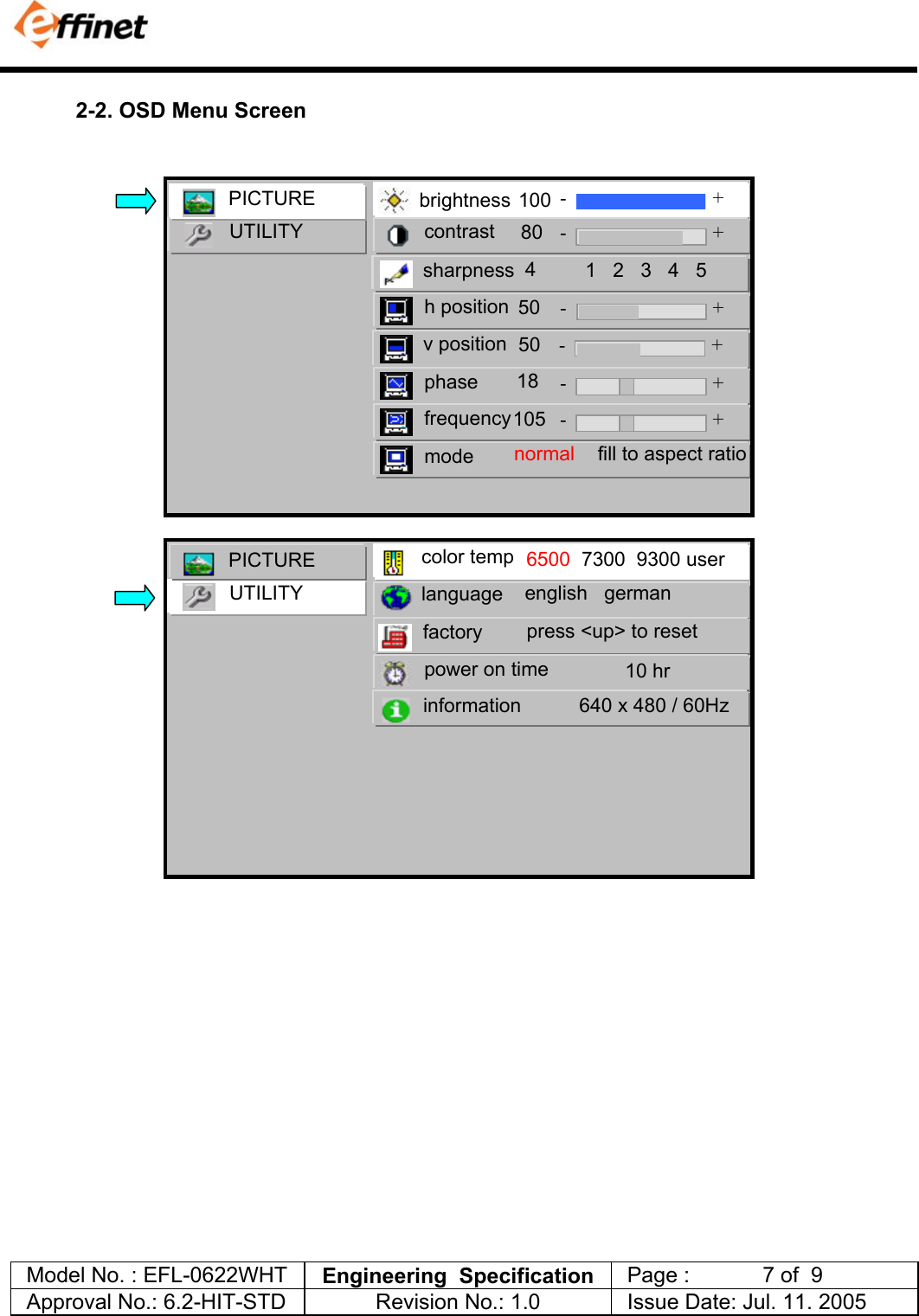

Model No. : EFL-0622WHT Engineering Specification Page : 7 of 9 Approval No.: 6.2-HIT-STD Revision No.: 1.0 Issue Date: Jul. 11. 2005 2-2. OSD Menu Screen UTILITY PICTURE brightness -100 + contrast -80 + sharpness 4h position -50 + v position -50 + phase -18 + frequency -105 + mode normal fill to aspect ratio 1 2 3 4 5 UTILITY PICTURE color temp 6500 7300 9300 user language english german factory press <up> to reset power on time 10 hr information 640 x 480 / 60Hz

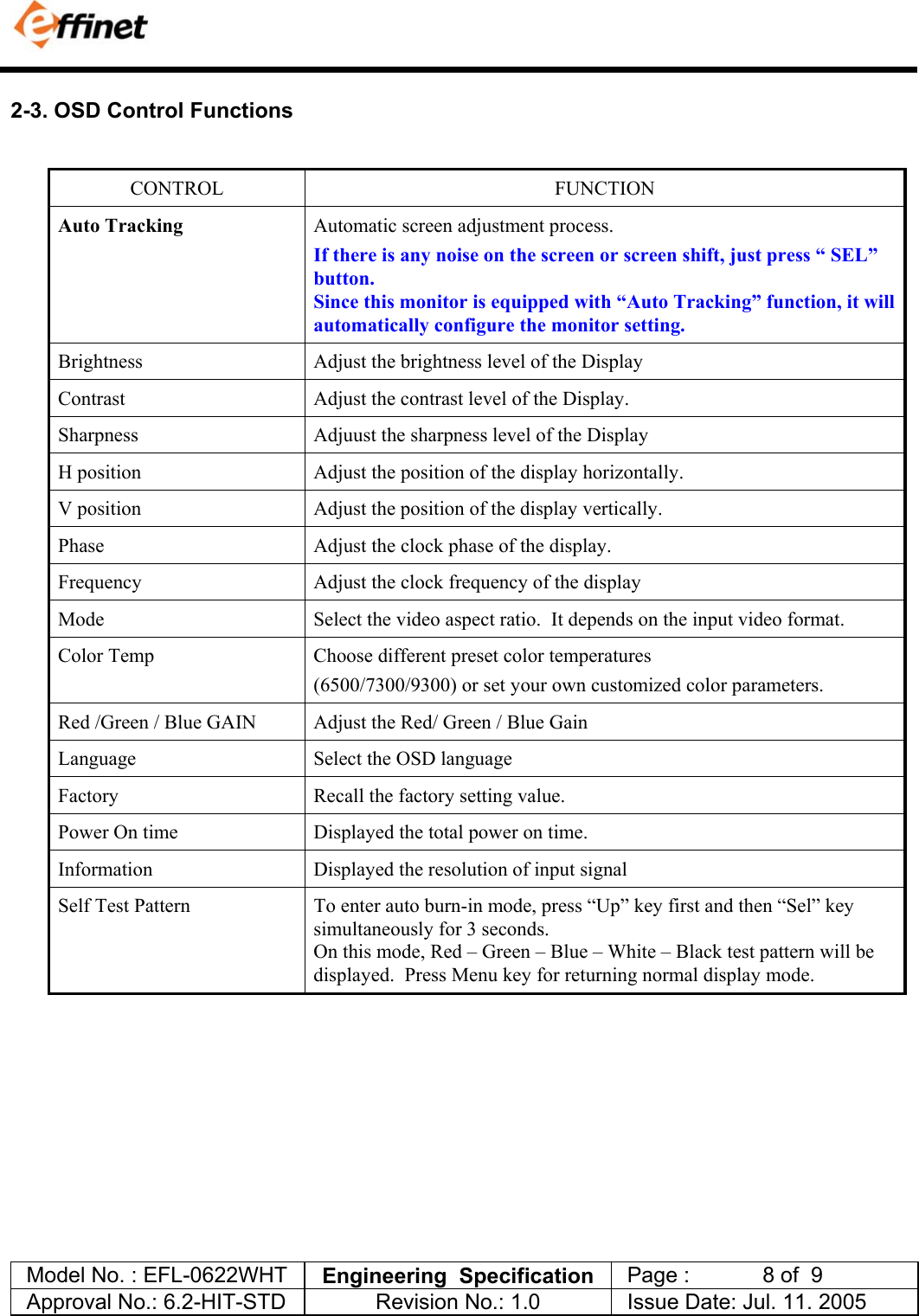

Model No. : EFL-0622WHT Engineering Specification Page : 8 of 9 Approval No.: 6.2-HIT-STD Revision No.: 1.0 Issue Date: Jul. 11. 2005 2-3. OSD Control Functions CONTROL FUNCTION Auto Tracking Automatic screen adjustment process. If there is any noise on the screen or screen shift, just press “ SEL” button. Since this monitor is equipped with “Auto Tracking” function, it will automatically configure the monitor setting. Brightness Adjust the brightness level of the Display Contrast Adjust the contrast level of the Display. Sharpness Adjuust the sharpness level of the Display H position Adjust the position of the display horizontally. V position Adjust the position of the display vertically. Phase Adjust the clock phase of the display. Frequency Adjust the clock frequency of the display Mode Select the video aspect ratio. It depends on the input video format. Color Temp Choose different preset color temperatures (6500/7300/9300) or set your own customized color parameters. Red /Green / Blue GAIN Adjust the Red/ Green / Blue Gain Language Select the OSD language Factory Recall the factory setting value. Power On time Displayed the total power on time. Information Displayed the resolution of input signal Self Test Pattern To enter auto burn-in mode, press “Up” key first and then “Sel” key simultaneously for 3 seconds. On this mode, Red – Green – Blue – White – Black test pattern will be displayed. Press Menu key for returning normal display mode.

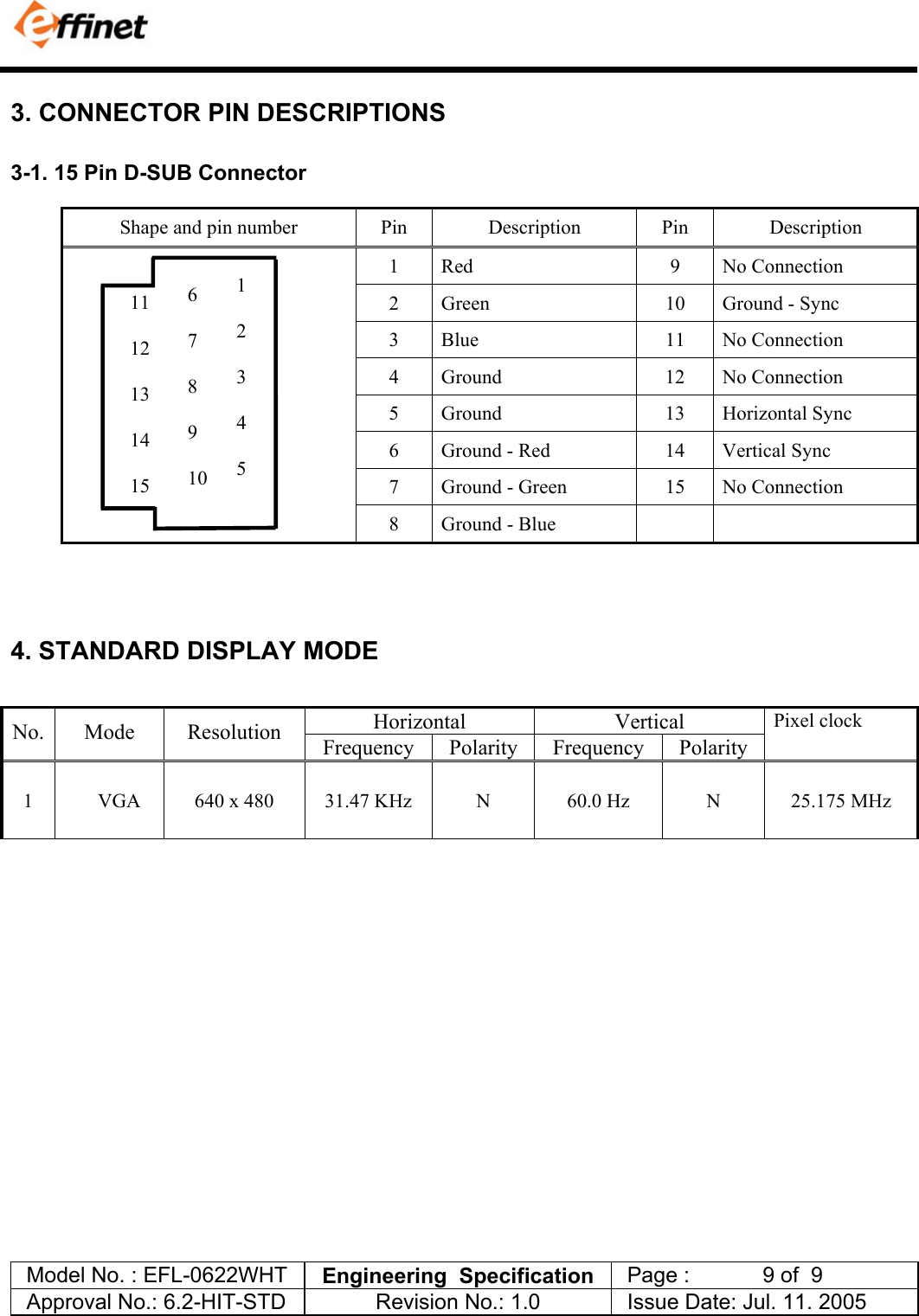

Model No. : EFL-0622WHT Engineering Specification Page : 9 of 9 Approval No.: 6.2-HIT-STD Revision No.: 1.0 Issue Date: Jul. 11. 2005 3. CONNECTOR PIN DESCRIPTIONS 3-1. 15 Pin D-SUB Connector Shape and pin number Pin Description Pin Description 1 Red 9 No Connection 2 Green 10 Ground - Sync 3 Blue 11 No Connection 4 Ground 12 No Connection 5 Ground 13 Horizontal Sync 6 Ground - Red 14 Vertical Sync 7 Ground - Green 15 No Connection 8 Ground - Blue 4. STANDARD DISPLAY MODE Horizontal Vertical No. Mode Resolution Frequency Polarity Frequency Polarity Pixel clock 1 VGA 640 x 480 31.47 KHz N 60.0 Hz N 25.175 MHz 1 2 3 4 56 7 8 9 10 11 12 13 14 15

Model No. : EFL-0622WHT Engineering Specification Page : 10 of 9 Approval No.: 6.2-HIT-STD Revision No.: 1.0 Issue Date: Jul. 11. 2005 5. MECHANICAL STRUCTURE TBD
