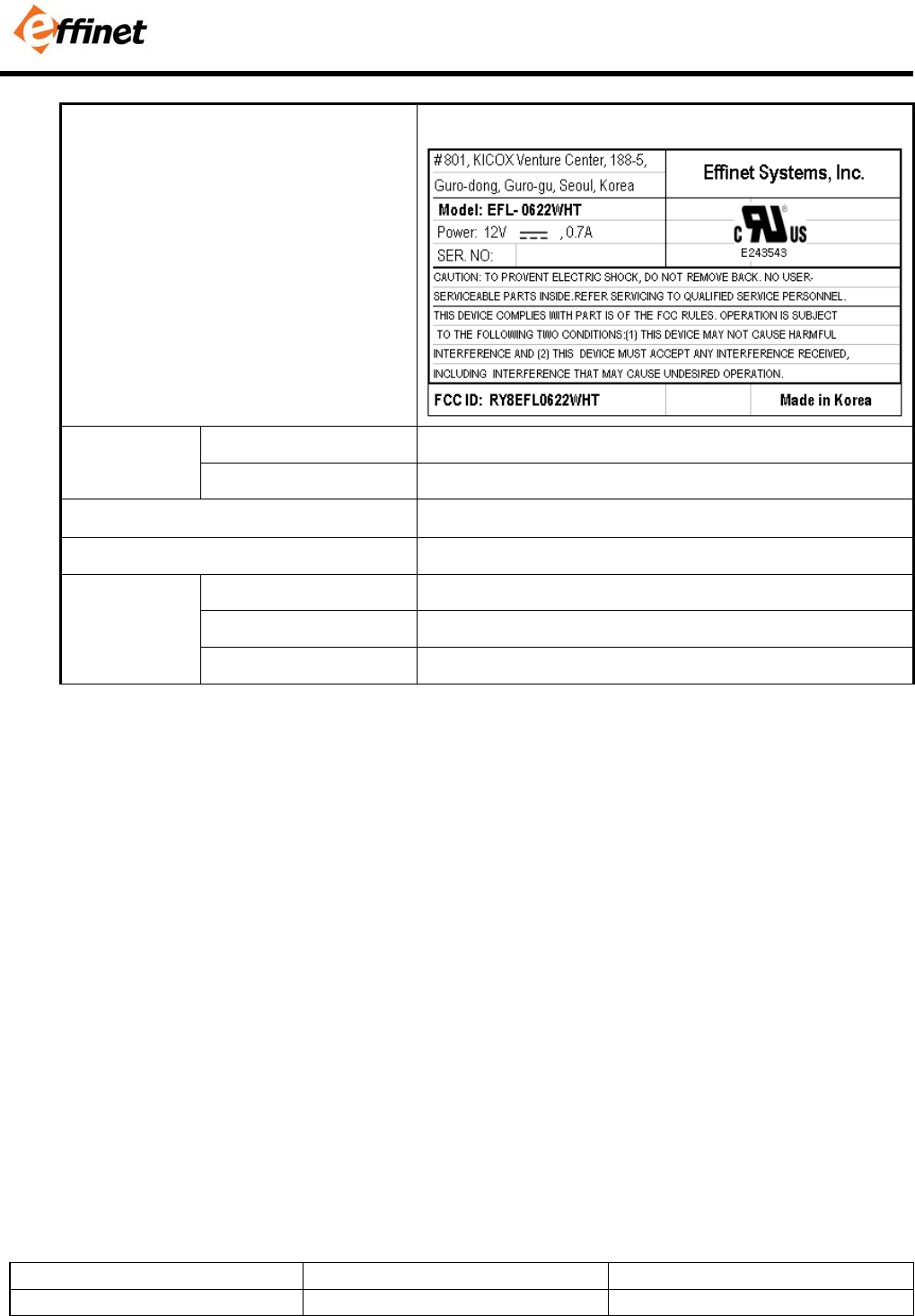

Effinet Systems EFL0622WHT 6.2inches VGA LCD Monitor User Manual EFL0622WHT R10
Effinet Systems, Inc. 6.2inches VGA LCD Monitor EFL0622WHT R10
Users Manual
Model No. : EFL-0622WHT Engineering Specification Page : 1 of 9
Approval No.: 6.2-HIT-STD Revision No.: 1.0 Issue Date: Jul. 11. 2005
Model No. EFL-0622WHT
6.2inches VGA LCD Monitor
- Hitachi TFT LCD Panel
- Wide Viewing Angle, High Speed Response
- Automatic Scanning
- Enhanced Video Quality
- Power Supply with enhanced Design Margin
- Test Pattern for Burn-in & Self Check

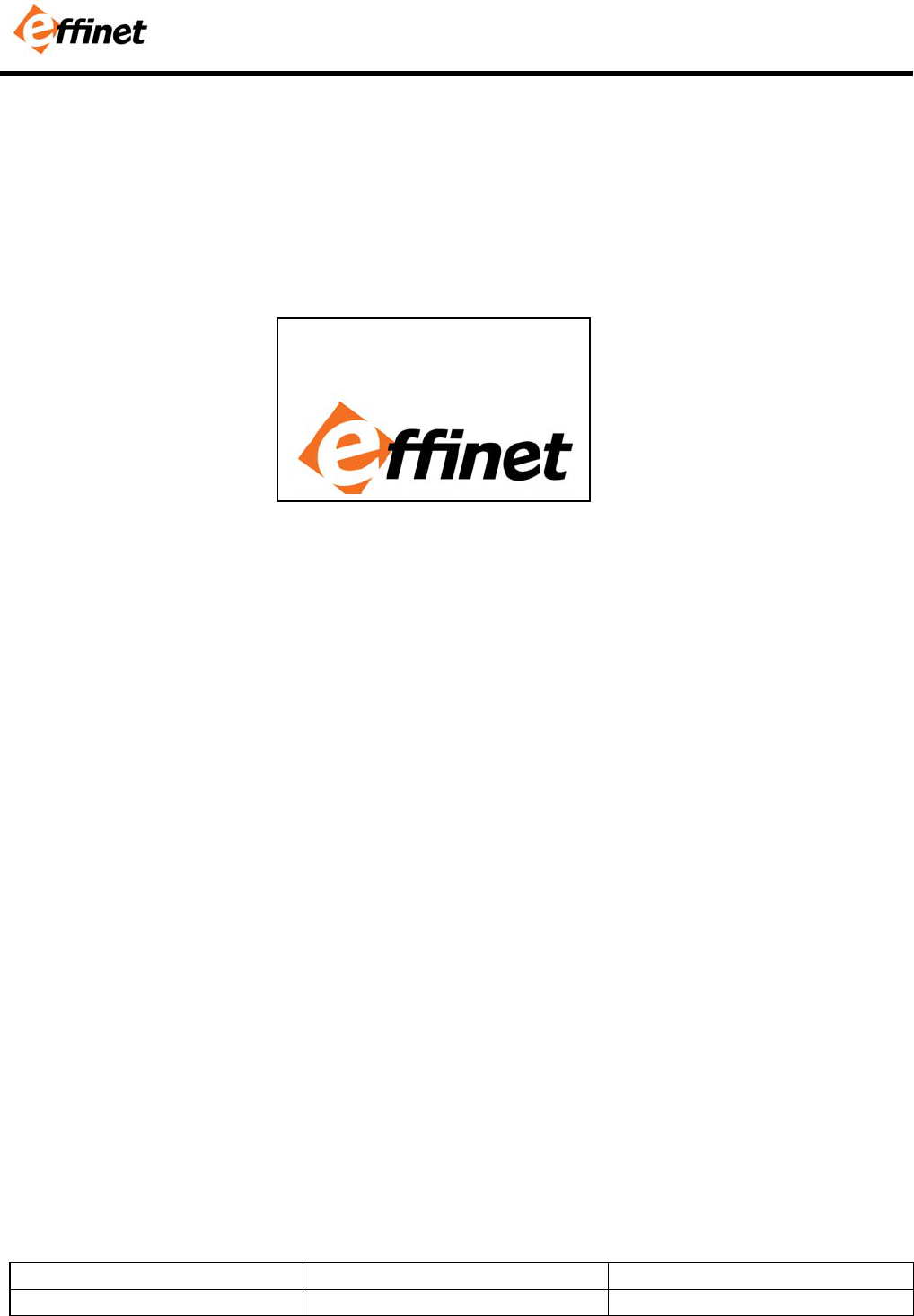

Customer’s logo display
on Booting is available
Model No. : EFL-0622WHT Engineering Specification Page : 2 of 9
Approval No.: 6.2-HIT-STD Revision No.: 1.0 Issue Date: Jul. 11. 2005
Table of Contents
1. GENERAL DESCRIPTION .............................................................................3
1-1. Overview ........................................................................................................................................3
1-2. FCC RF Interference Statement…………………………………………………………………. 3
1-3. Quick reference table of Characteristics ........................................................................................4
2. USER CONTROL & OSD .............................................................................6
2-1. Key Control Board .........................................................................................................................6
2-2. OSD Menu Screen..........................................................................................................................7
2-3. OSD Control Functions..................................................................................................................7
2-3. OSD Control Functions..................................................................................................................8
3. CONNECTOR PIN DESCRIPTIONS ..........................................................9
3-1. 15 Pin D-SUB Connector...............................................................................................................9
4. STANDARD DISPLAY MODE.....................................................................9
5. MECHANICAL STRUCTURE ...................................................................10
Model No. : EFL-0622WHT Engineering Specification Page : 3 of 9
Approval No.: 6.2-HIT-STD Revision No.: 1.0 Issue Date: Jul. 11. 2005
1. GENERAL DESCRIPTION
1-1. Overview
Effinet open frame LCD Monitor EFL-0622WHT is a high performance TFT LCD monitor providing high
quality image from the analog RGB input.
This monitor supports VGA signal input at vertical refresh rate of 60 Hz. It includes integrated signal
processing unit, named LSP(LCD Signal Processor), which had all electronic function for user application.
It is designed for industrial use with Auto power on and enhanced design margin for reliability
1-2. FCC RF INTERFERENCE STATEMENT
NOTE :
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measures.
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio, TV technical for help.
- Only shielded interface cable should be used.
Finally, any changes or modifications to the equipment by the user not expressly approved by the grantee or
manufacturer could void the users authority to operate such equipment.
Model No. : EFL-0622WHT Engineering Specification Page : 4 of 9
Approval No.: 6.2-HIT-STD Revision No.: 1.0 Issue Date: Jul. 11. 2005
1-3. Quick reference table of Characteristics
Size 6.2” Diagonal
Active Display Area 148.8(W) x 53.76(H) mm
Type No. Hitachi, TX16D11VM2CAA
Number of Pixels 640 (H) x 240 (V)
Pixel Arrangement RGB Vertical Stripe
Pixel Pitch 0.2325(W) mm x 0.224(H) mm
Color Depth 262K Color
Surface Treatments Hard Coating (3H), Antiglare treatment
Viewing Angle
(CR≥ 10)
Horizontal : θL 60 degrees
θR 60 degrees
Vertical : Φ H 45 degrees
Φ L 60 degrees
Contrast Ratio Typ. 200 : 1
Response Time 45ms(Typ.)
Average Brightness Typ. 200 cd/ m2
Frame Rate Typ. 60Hz
Panel Dimension (WHD) 173.0 x 70.0 x 8.6 mm
Panel
CCFT 1 Lamp
Horizontal 25.3 ~ 36.1KHz
Scanning
Frequency Vertical 52 ~ 68Hz
Prime 640 x 480 @ 60 Hz
Resolution
Standard 640x480 @60 Hz
Input Signal RGB (Video / Sync) RGB Analog (0.7Vp-p, 75ohms) / H/V Separate(TTL)
Type Separate H/V sync
Level TTL level (V high ≥ 2.0V, V low ≤ 0.8V)
Sync
Polarity Positive or Negative
Input Signal
Interface
RGB 15pin D-Sub
AC Input AC 90 ~ 265V @60/50Hz, Universal Power Power
max. power dissipation 20Watts
Model No. : EFL-0622WHT Engineering Specification Page : 5 of 9
Approval No.: 6.2-HIT-STD Revision No.: 1.0 Issue Date: Jul. 11. 2005
Regulation(Safety , Ergonomics, EMC) CUL(UL+CSA), CE, FCC
Operating Temperature : 10 to 50ºC / Humidity : 8 to 80% Environmental
Conditions Storage Temperature : -20 to 60ºC / Humidity : 5 to 90%
White Color Temperature 6500°K : CIE x=0.313±0.015 / y=0.329±0.015
Demonstrated MTBF More than 20,000 hours
Touch Panel 4 Wire Resistive Type
Controller HT-EBU4-1
Touch Screen
Controller Interface USB
Model No. : EFL-0622WHT Engineering Specification Page : 6 of 9
Approval No.: 6.2-HIT-STD Revision No.: 1.0 Issue Date: Jul. 11. 2005
2. USER CONTROL & OSD

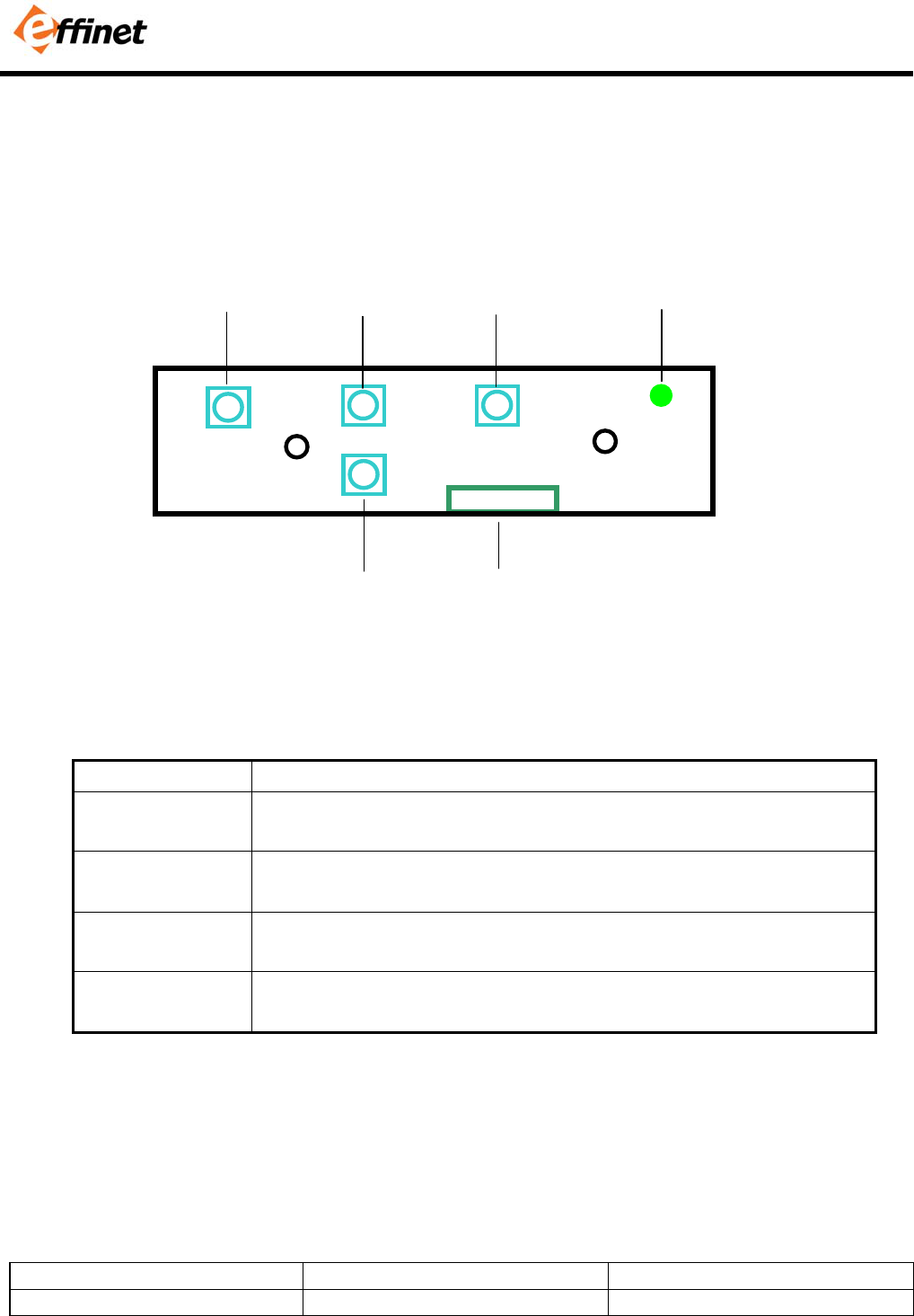

2-1. Key Control Board
SWITCH NAME SWITCH FUNCTIONS
MENU Activate / Deactivate the OSD Menu Window.
Move cursor to Sub Menu from Main menu.
SEL
(AUTO)
Move cursor in the Sub-Menu(Brightness ↔ Mode)
Auto Tracking (Pressing “SEL” key)
UP(+) Move cursor at Main Menu(Picture / Utility)
Increase the value of the selected function
DOWN(-) Move cursor at Main Menu(Picture / Utility)
Decrease the value of the selected function.
Cable
Connect
SEL
(AUTO)
UP
(+)
DOWN
(-)
MENU Status
LED
Model No. : EFL-0622WHT Engineering Specification Page : 7 of 9
Approval No.: 6.2-HIT-STD Revision No.: 1.0 Issue Date: Jul. 11. 2005

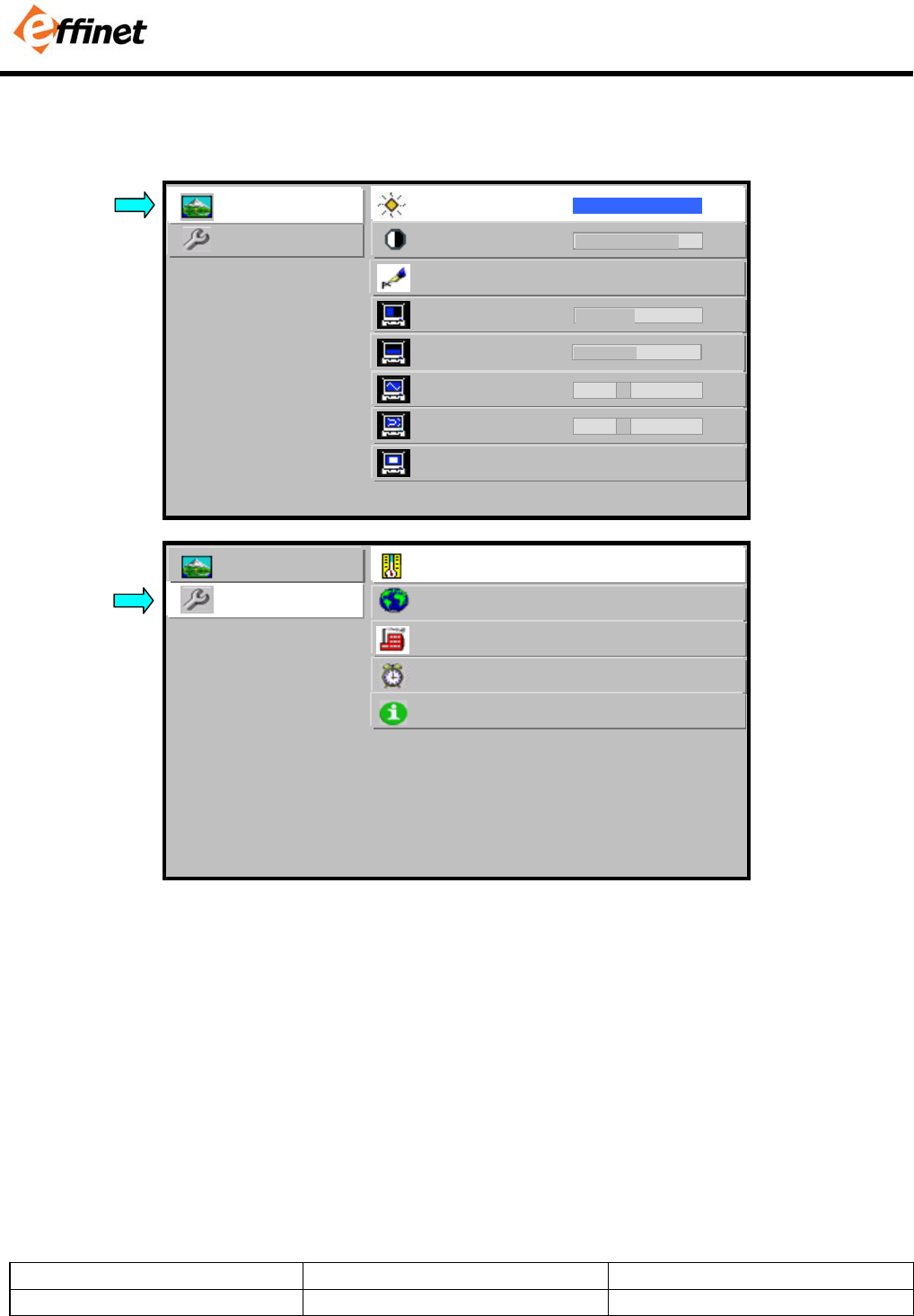

2-2. OSD Menu Screen
UTILITY
PICTURE brightness -
100 +
contrast -
80 +
sharpness 4
h position -
50 +
v position -
50 +
phase -
18 +
frequency -
105 +
mode normal fill to aspect ratio
1 2 3 4 5
UTILITY
PICTURE color temp 6500 7300 9300 user
language english german
factory press <up> to reset
power on time 10 hr
information 640 x 480 / 60Hz
Model No. : EFL-0622WHT Engineering Specification Page : 8 of 9
Approval No.: 6.2-HIT-STD Revision No.: 1.0 Issue Date: Jul. 11. 2005
2-3. OSD Control Functions
CONTROL FUNCTION
Auto Tracking Automatic screen adjustment process.
If there is any noise on the screen or screen shift, just press “ SEL”
button.
Since this monitor is equipped with “Auto Tracking” function, it will
automatically configure the monitor setting.
Brightness Adjust the brightness level of the Display
Contrast Adjust the contrast level of the Display.
Sharpness Adjuust the sharpness level of the Display
H position Adjust the position of the display horizontally.
V position Adjust the position of the display vertically.
Phase Adjust the clock phase of the display.
Frequency Adjust the clock frequency of the display
Mode Select the video aspect ratio. It depends on the input video format.
Color Temp Choose different preset color temperatures
(6500/7300/9300) or set your own customized color parameters.
Red /Green / Blue GAIN Adjust the Red/ Green / Blue Gain
Language Select the OSD language
Factory Recall the factory setting value.
Power On time Displayed the total power on time.
Information Displayed the resolution of input signal
Self Test Pattern To enter auto burn-in mode, press “Up” key first and then “Sel” key
simultaneously for 3 seconds.
On this mode, Red – Green – Blue – White – Black test pattern will be
displayed. Press Menu key for returning normal display mode.
Model No. : EFL-0622WHT Engineering Specification Page : 9 of 9
Approval No.: 6.2-HIT-STD Revision No.: 1.0 Issue Date: Jul. 11. 2005

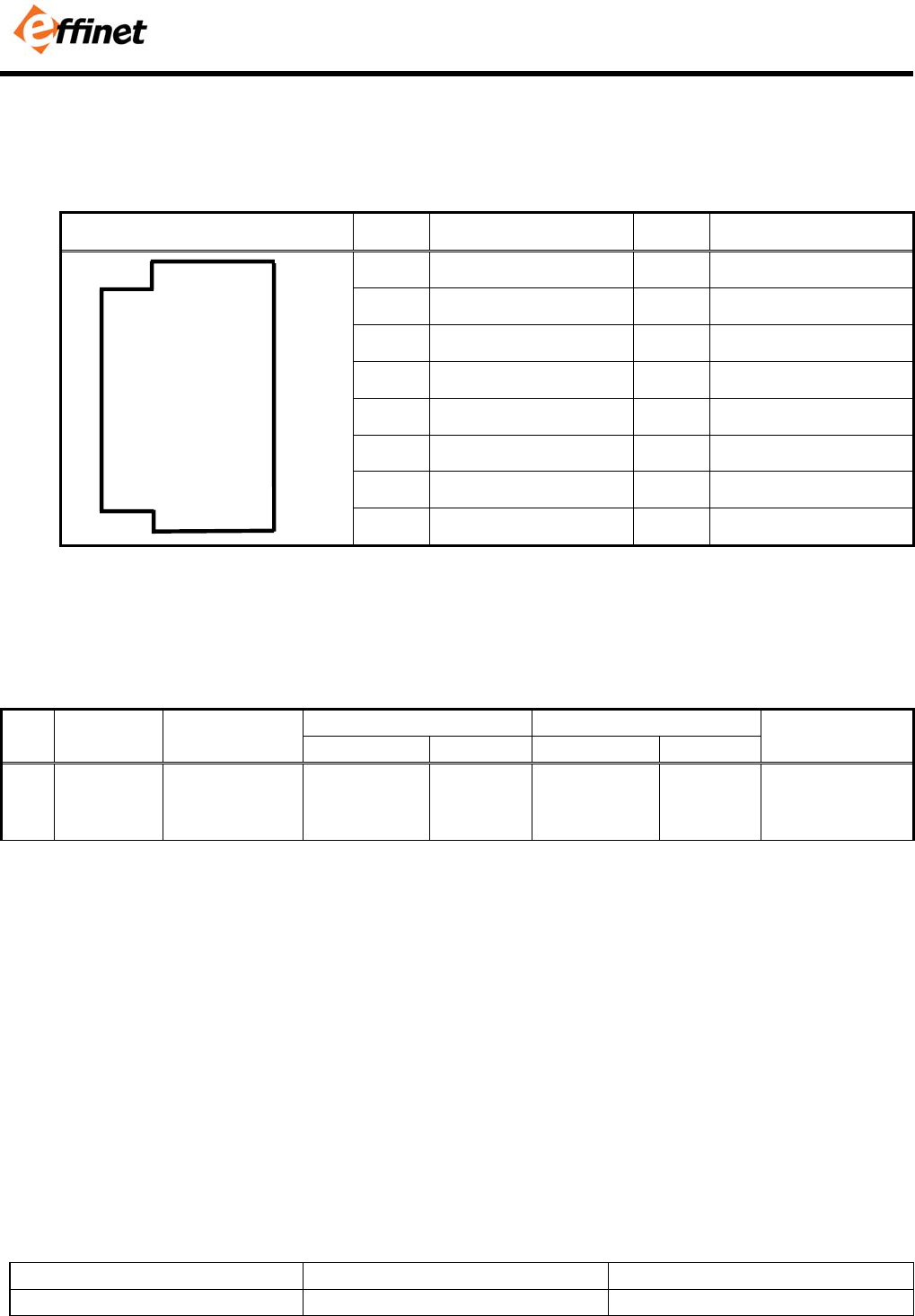

3. CONNECTOR PIN DESCRIPTIONS
3-1. 15 Pin D-SUB Connector
Shape and pin number Pin Description Pin Description
1 Red 9 No Connection
2 Green 10 Ground - Sync
3 Blue 11 No Connection
4 Ground 12 No Connection
5 Ground 13 Horizontal Sync
6 Ground - Red 14 Vertical Sync
7 Ground - Green 15 No Connection
8 Ground - Blue
4. STANDARD DISPLAY MODE
Horizontal Vertical
No. Mode Resolution Frequency Polarity Frequency Polarity
Pixel clock
1 VGA 640 x 480 31.47 KHz N 60.0 Hz N 25.175 MHz
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Model No. : EFL-0622WHT Engineering Specification Page : 10 of 9
Approval No.: 6.2-HIT-STD Revision No.: 1.0 Issue Date: Jul. 11. 2005
5. MECHANICAL STRUCTURE
TBD
