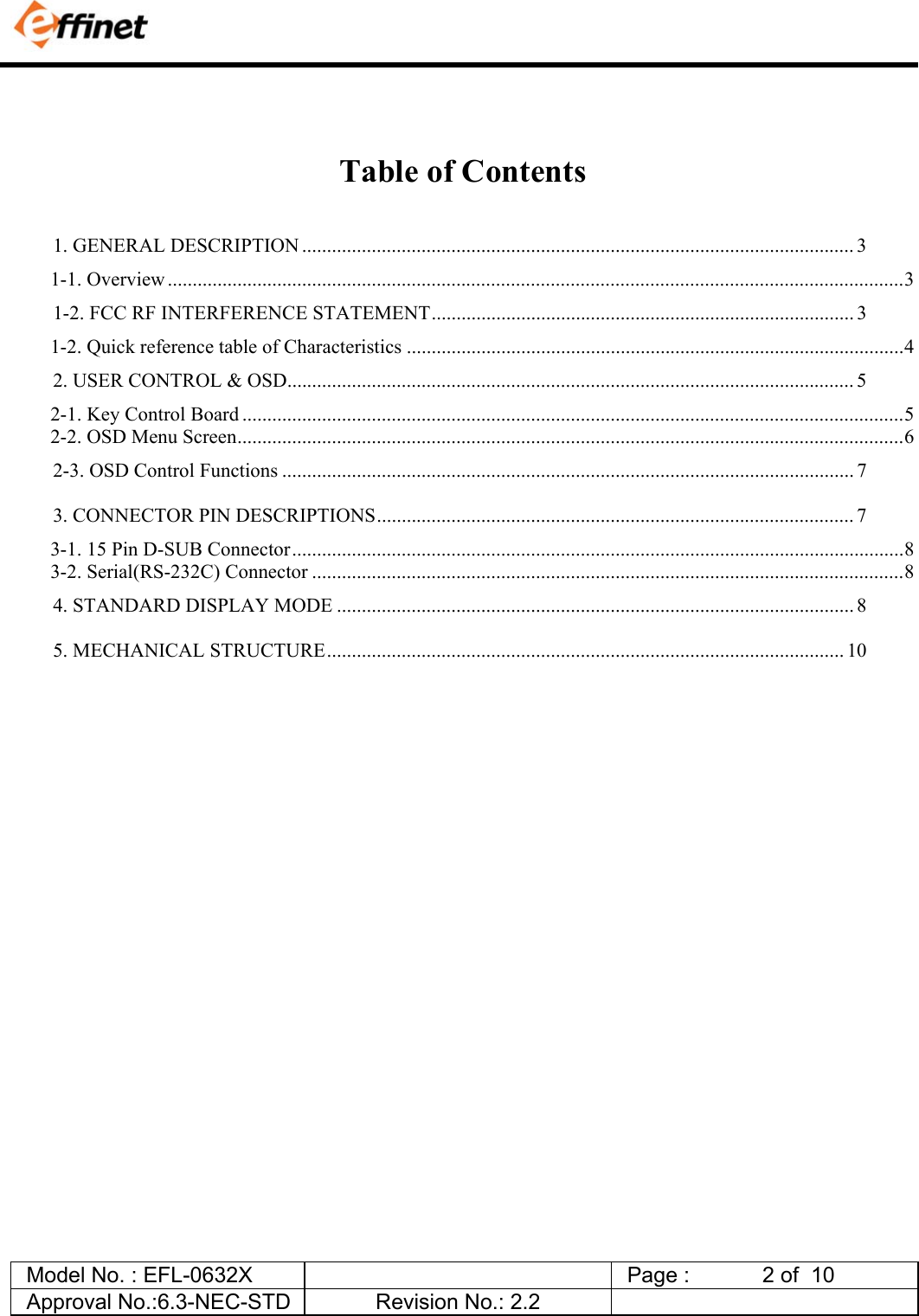

Model No. : EFL-0632X Page : 2 of 10 Approval No.:6.3-NEC-STD Revision No.: 2.2 Table of Contents 1. GENERAL DESCRIPTION ............................................................................................................... 3 1-1. Overview ....................................................................................................................................................3 1-2. FCC RF INTERFERENCE STATEMENT..................................................................................... 3 1-2. Quick reference table of Characteristics ....................................................................................................4 2. USER CONTROL & OSD.................................................................................................................. 5 2-1. Key Control Board .....................................................................................................................................5 2-2. OSD Menu Screen......................................................................................................................................6 2-3. OSD Control Functions ................................................................................................................... 7 3. CONNECTOR PIN DESCRIPTIONS................................................................................................ 7 3-1. 15 Pin D-SUB Connector...........................................................................................................................8 3-2. Serial(RS-232C) Connector .......................................................................................................................8 4. STANDARD DISPLAY MODE ........................................................................................................8 5. MECHANICAL STRUCTURE........................................................................................................ 10

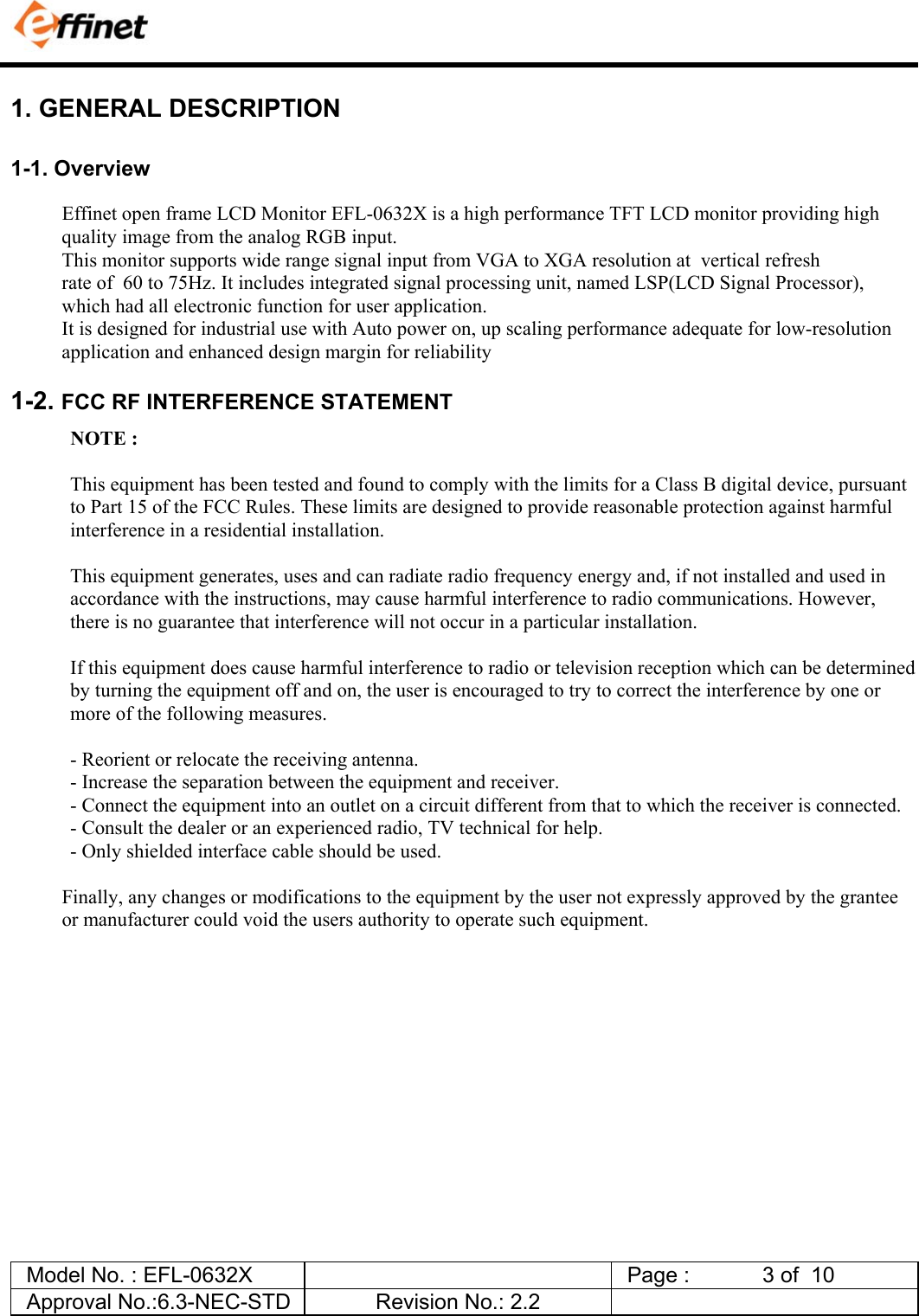

Model No. : EFL-0632X Page : 3 of 10 Approval No.:6.3-NEC-STD Revision No.: 2.2 1. GENERAL DESCRIPTION 1-1. Overview Effinet open frame LCD Monitor EFL-0632X is a high performance TFT LCD monitor providing high quality image from the analog RGB input. This monitor supports wide range signal input from VGA to XGA resolution at vertical refresh rate of 60 to 75Hz. It includes integrated signal processing unit, named LSP(LCD Signal Processor), which had all electronic function for user application. It is designed for industrial use with Auto power on, up scaling performance adequate for low-resolution application and enhanced design margin for reliability 1-2. FCC RF INTERFERENCE STATEMENT NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures. - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio, TV technical for help. - Only shielded interface cable should be used. Finally, any changes or modifications to the equipment by the user not expressly approved by the grantee or manufacturer could void the users authority to operate such equipment.

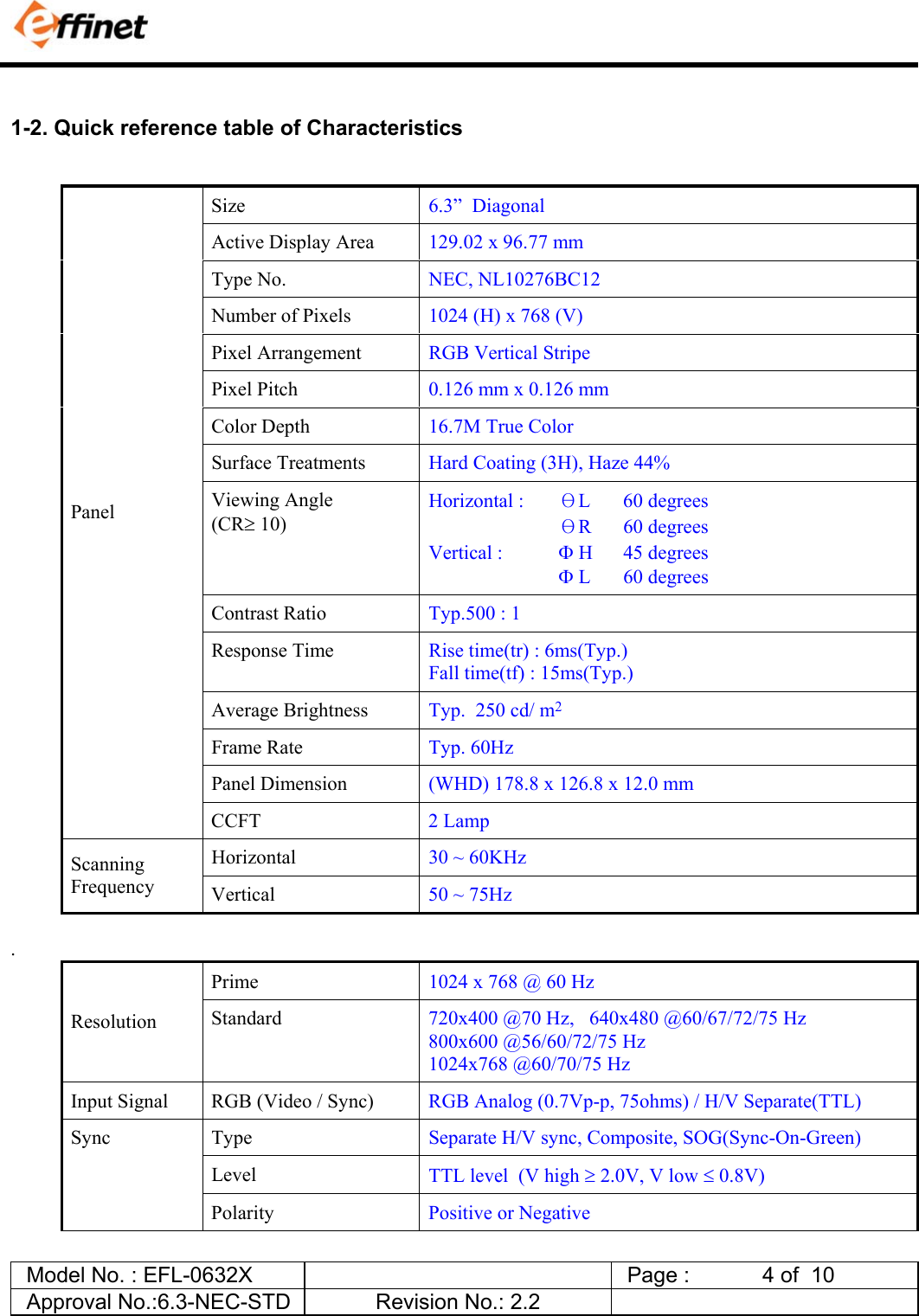

Model No. : EFL-0632X Page : 4 of 10 Approval No.:6.3-NEC-STD Revision No.: 2.2 1-2. Quick reference table of Characteristics Size 6.3” Diagonal Active Display Area 129.02 x 96.77 mm Type No. NEC, NL10276BC12 Number of Pixels 1024 (H) x 768 (V) Pixel Arrangement RGB Vertical Stripe Pixel Pitch 0.126 mm x 0.126 mm Color Depth 16.7M True Color Surface Treatments Hard Coating (3H), Haze 44% Viewing Angle (CR≥ 10) Horizontal : θL 60 degrees θR 60 degrees Vertical : Φ H 45 degrees Φ L 60 degrees Contrast Ratio Typ.500 : 1 Response Time Rise time(tr) : 6ms(Typ.) Fall time(tf) : 15ms(Typ.) Average Brightness Typ. 250 cd/ m2 Frame Rate Typ. 60Hz Panel Dimension (WHD) 178.8 x 126.8 x 12.0 mm Panel CCFT 2 Lamp Horizontal 30 ~ 60KHz Scanning Frequency Vertical 50 ~ 75Hz . Prime 1024 x 768 @ 60 Hz Resolution Standard 720x400 @70 Hz, 640x480 @60/67/72/75 Hz 800x600 @56/60/72/75 Hz 1024x768 @60/70/75 Hz Input Signal RGB (Video / Sync) RGB Analog (0.7Vp-p, 75ohms) / H/V Separate(TTL) Type Separate H/V sync, Composite, SOG(Sync-On-Green) Level TTL level (V high ≥ 2.0V, V low ≤ 0.8V) Sync Polarity Positive or Negative

Model No. : EFL-0632X Page : 5 of 10 Approval No.:6.3-NEC-STD Revision No.: 2.2 Input Signal Interface RGB 15pin D-Sub AC Input AC 90 ~ 265V @60/50Hz, Universal Power max. power dissipation 12Watts Power DC Adaptor Rating DC 12V 3A Regulation(Safety , Ergonomics, EMC) CUL(UL+CSA), CE Operating Temperature : 10 to 50ºC / Humidity : 8 to 80% Environmental Conditions Storage Temperature : -20 to 60ºC / Humidity : 5 to 90% White Color Temperature 6500°K : CIE x=0.313±0.015 / y=0.329±0.015 Demonstrated MTBF More than 20,000 hours Touch Panel 3M Touch / 13-4041-01 Controller EXII-1760SC Touch Screen (Optional) Controller Interface Serial Interface 2. USER CONTROL & OSD 2-1. Key Control Board SWITCH NAME SWITCH FUNCTIONS Cable Connect SEL (AUTO) UP (+) DOWN (-) MENU Status LED

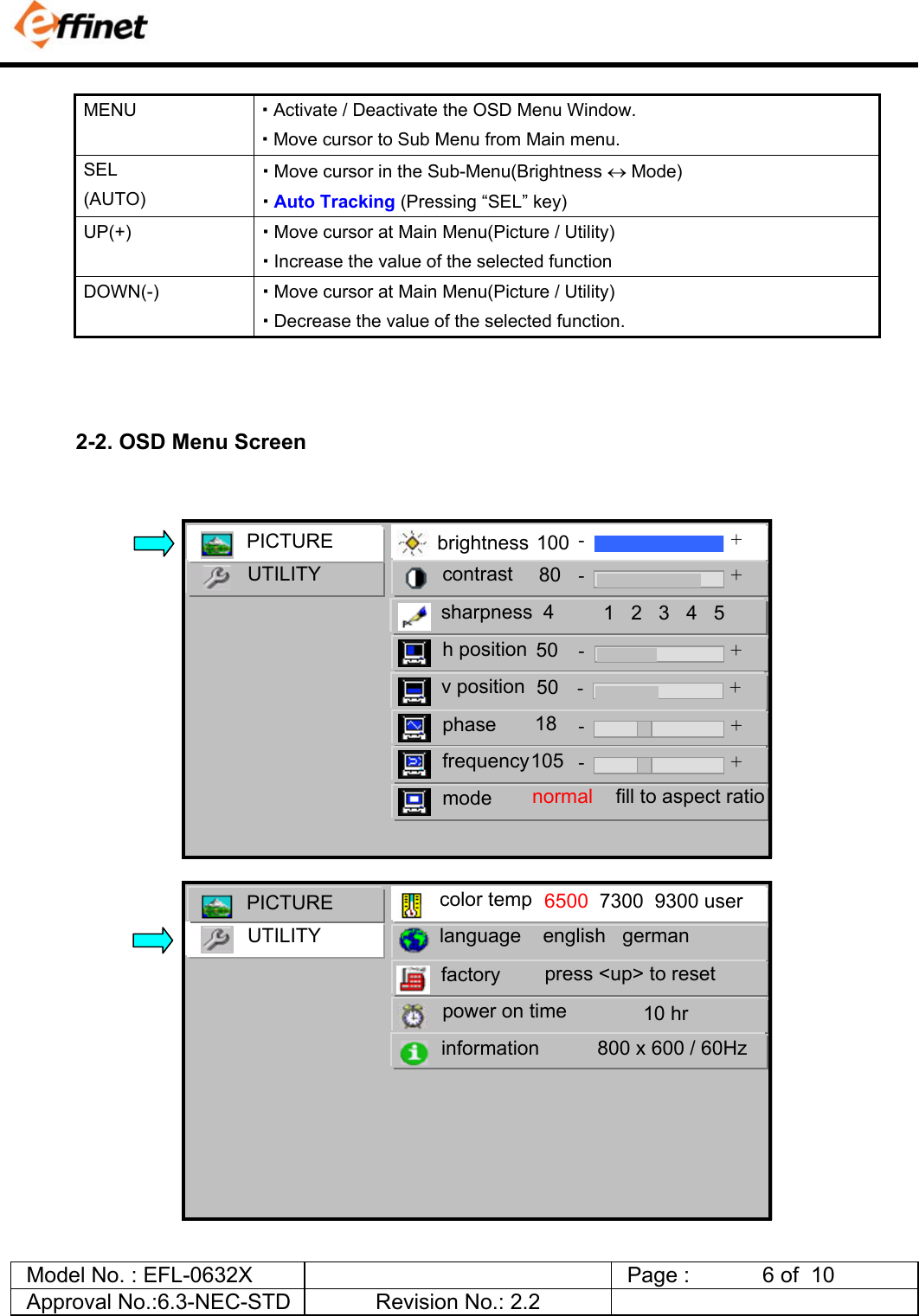

Model No. : EFL-0632X Page : 6 of 10 Approval No.:6.3-NEC-STD Revision No.: 2.2 MENU  Activate / Deactivate the OSD Menu Window.  Move cursor to Sub Menu from Main menu. SEL (AUTO)  Move cursor in the Sub-Menu(Brightness ↔ Mode)  Auto Tracking (Pressing “SEL” key) UP(+)  Move cursor at Main Menu(Picture / Utility)  Increase the value of the selected function DOWN(-)  Move cursor at Main Menu(Picture / Utility)  Decrease the value of the selected function. 2-2. OSD Menu Screen UTILITY PICTURE brightness - 100 + contrast - 80 + sharpness 4 h position - 50 + v position - 50 + phase - 18 + frequency - 105 + mode normal fill to aspect ratio 1 2 3 4 5 UTILITY PICTURE color temp 6500 7300 9300 user language english german factory press <up> to reset power on time 10 hr information 800 x 600 / 60Hz

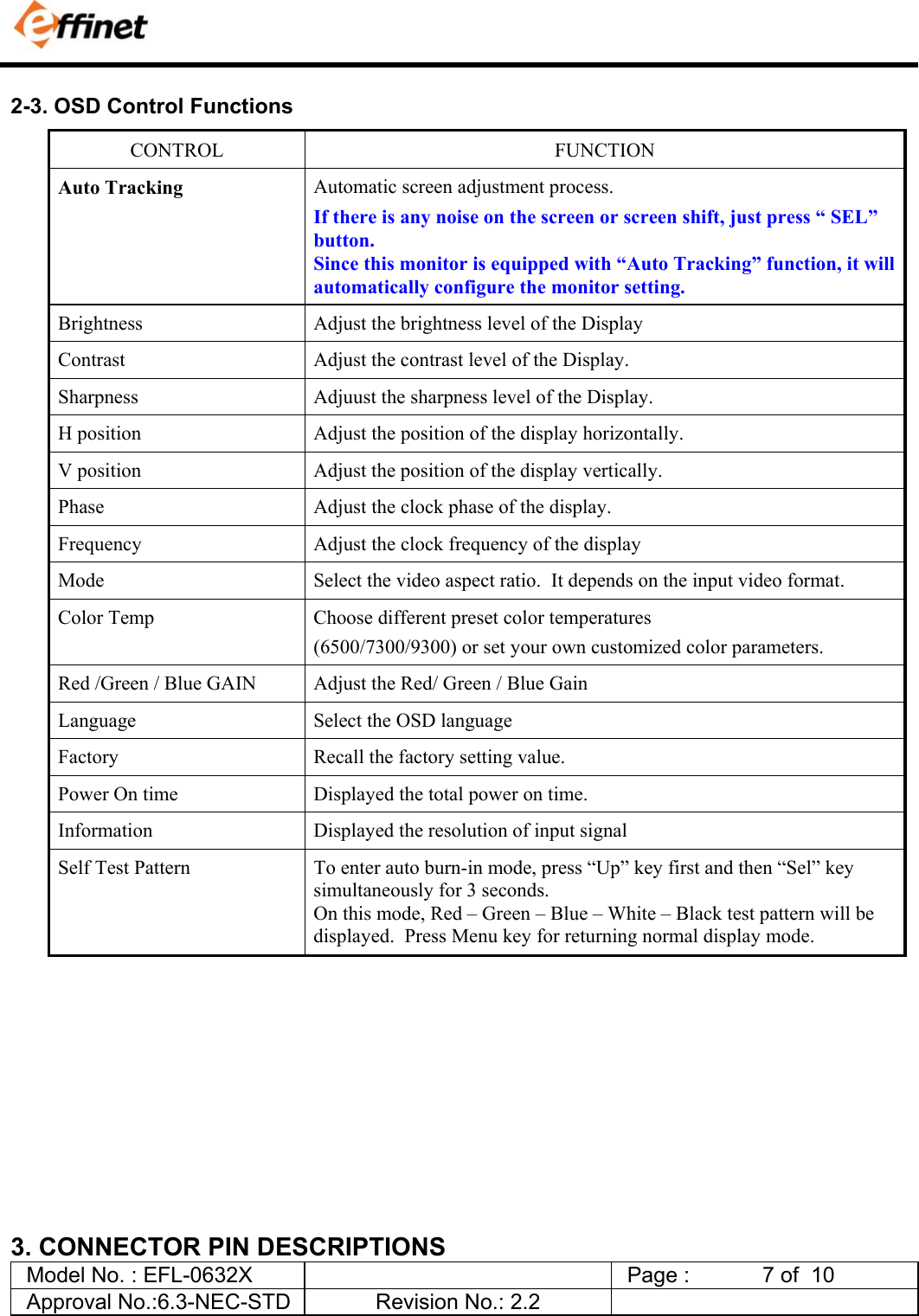

Model No. : EFL-0632X Page : 7 of 10 Approval No.:6.3-NEC-STD Revision No.: 2.2 2-3. OSD Control Functions CONTROL FUNCTION Auto Tracking Automatic screen adjustment process. If there is any noise on the screen or screen shift, just press “ SEL” button. Since this monitor is equipped with “Auto Tracking” function, it will automatically configure the monitor setting. Brightness Adjust the brightness level of the Display Contrast Adjust the contrast level of the Display. Sharpness Adjuust the sharpness level of the Display. H position Adjust the position of the display horizontally. V position Adjust the position of the display vertically. Phase Adjust the clock phase of the display. Frequency Adjust the clock frequency of the display Mode Select the video aspect ratio. It depends on the input video format. Color Temp Choose different preset color temperatures (6500/7300/9300) or set your own customized color parameters. Red /Green / Blue GAIN Adjust the Red/ Green / Blue Gain Language Select the OSD language Factory Recall the factory setting value. Power On time Displayed the total power on time. Information Displayed the resolution of input signal Self Test Pattern To enter auto burn-in mode, press “Up” key first and then “Sel” key simultaneously for 3 seconds. On this mode, Red – Green – Blue – White – Black test pattern will be displayed. Press Menu key for returning normal display mode. 3. CONNECTOR PIN DESCRIPTIONS

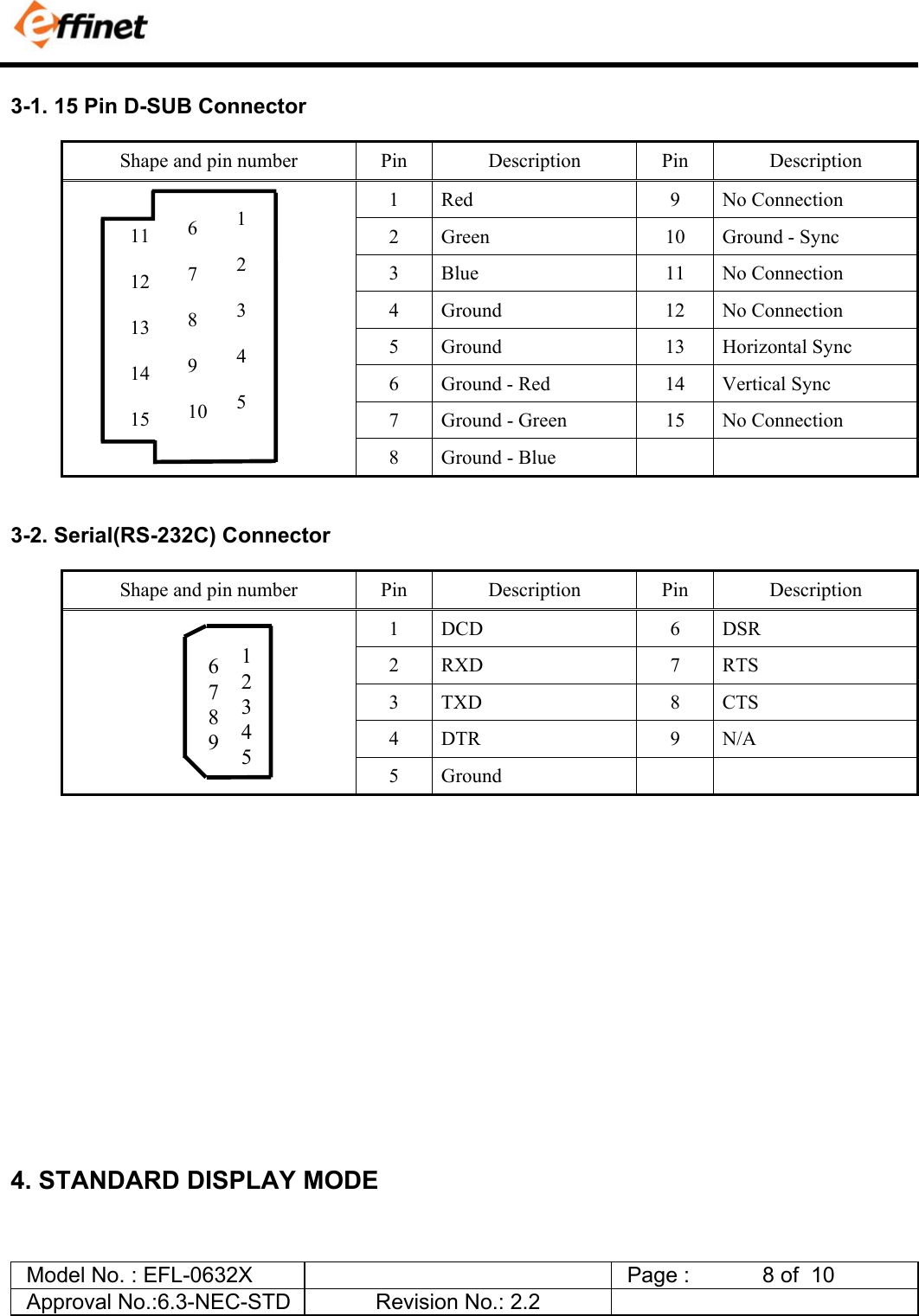

Model No. : EFL-0632X Page : 8 of 10 Approval No.:6.3-NEC-STD Revision No.: 2.2 3-1. 15 Pin D-SUB Connector Shape and pin number Pin Description Pin Description 1 Red 9 No Connection 2 Green 10 Ground - Sync 3 Blue 11 No Connection 4 Ground 12 No Connection 5 Ground 13 Horizontal Sync 6 Ground - Red 14 Vertical Sync 7 Ground - Green 15 No Connection 8 Ground - Blue 3-2. Serial(RS-232C) Connector Shape and pin number Pin Description Pin Description 1 DCD 6 DSR 2 RXD 7 RTS 3 TXD 8 CTS 4 DTR 9 N/A 5 Ground 4. STANDARD DISPLAY MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 6 7 8 9 12 34 5

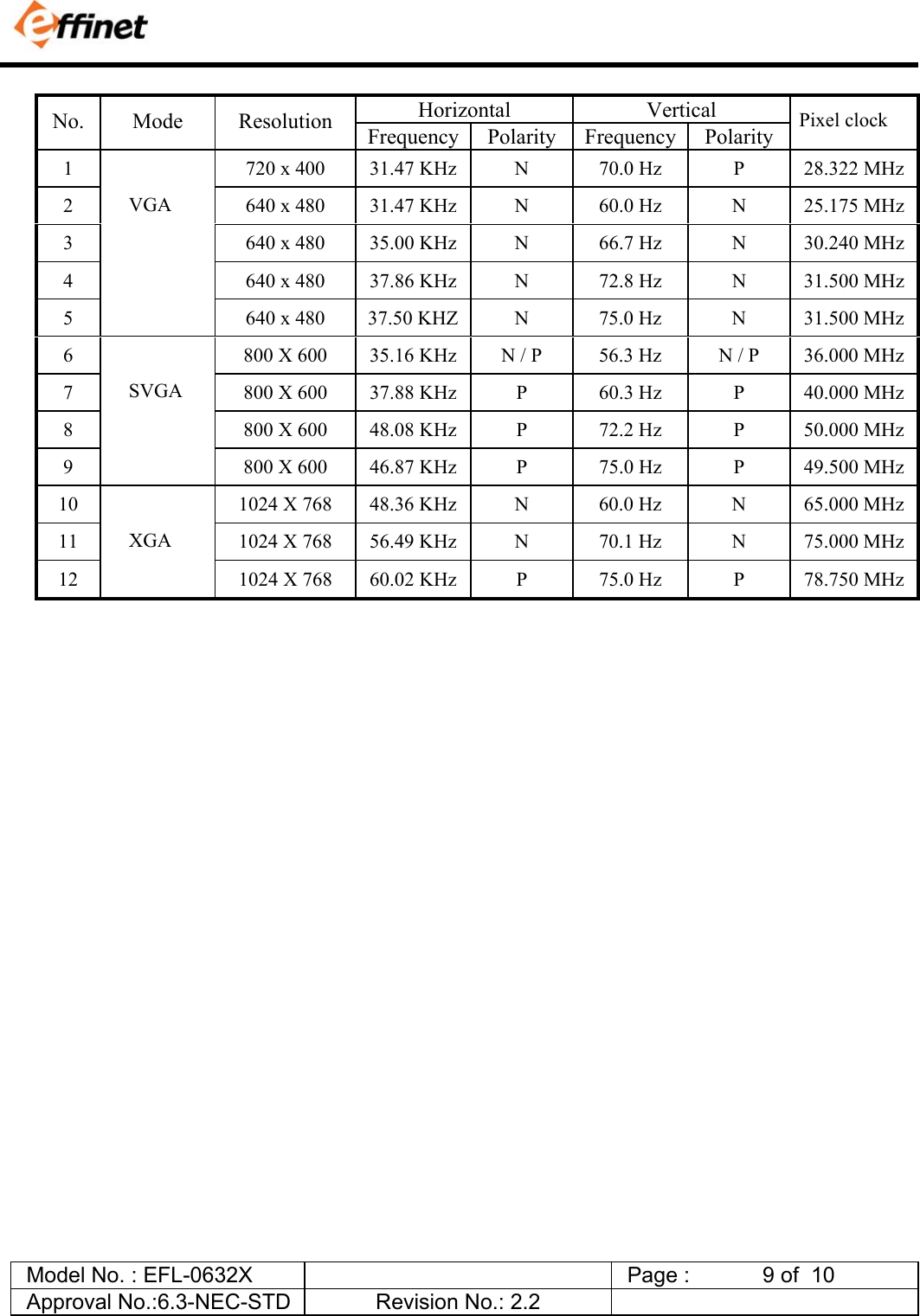

Model No. : EFL-0632X Page : 9 of 10 Approval No.:6.3-NEC-STD Revision No.: 2.2 Horizontal Vertical No. Mode Resolution Frequency Polarity Frequency Polarity Pixel clock 1 720 x 400 31.47 KHz N 70.0 Hz P 28.322 MHz2 640 x 480 31.47 KHz N 60.0 Hz N 25.175 MHz3 640 x 480 35.00 KHz N 66.7 Hz N 30.240 MHz4 640 x 480 37.86 KHz N 72.8 Hz N 31.500 MHz5 VGA 640 x 480 37.50 KHZ N 75.0 Hz N 31.500 MHz6 800 X 600 35.16 KHz N / P 56.3 Hz N / P 36.000 MHz7 800 X 600 37.88 KHz P 60.3 Hz P 40.000 MHz8 800 X 600 48.08 KHz P 72.2 Hz P 50.000 MHz9 SVGA 800 X 600 46.87 KHz P 75.0 Hz P 49.500 MHz10 1024 X 768 48.36 KHz N 60.0 Hz N 65.000 MHz11 1024 X 768 56.49 KHz N 70.1 Hz N 75.000 MHz12 XGA 1024 X 768 60.02 KHz P 75.0 Hz P 78.750 MHz

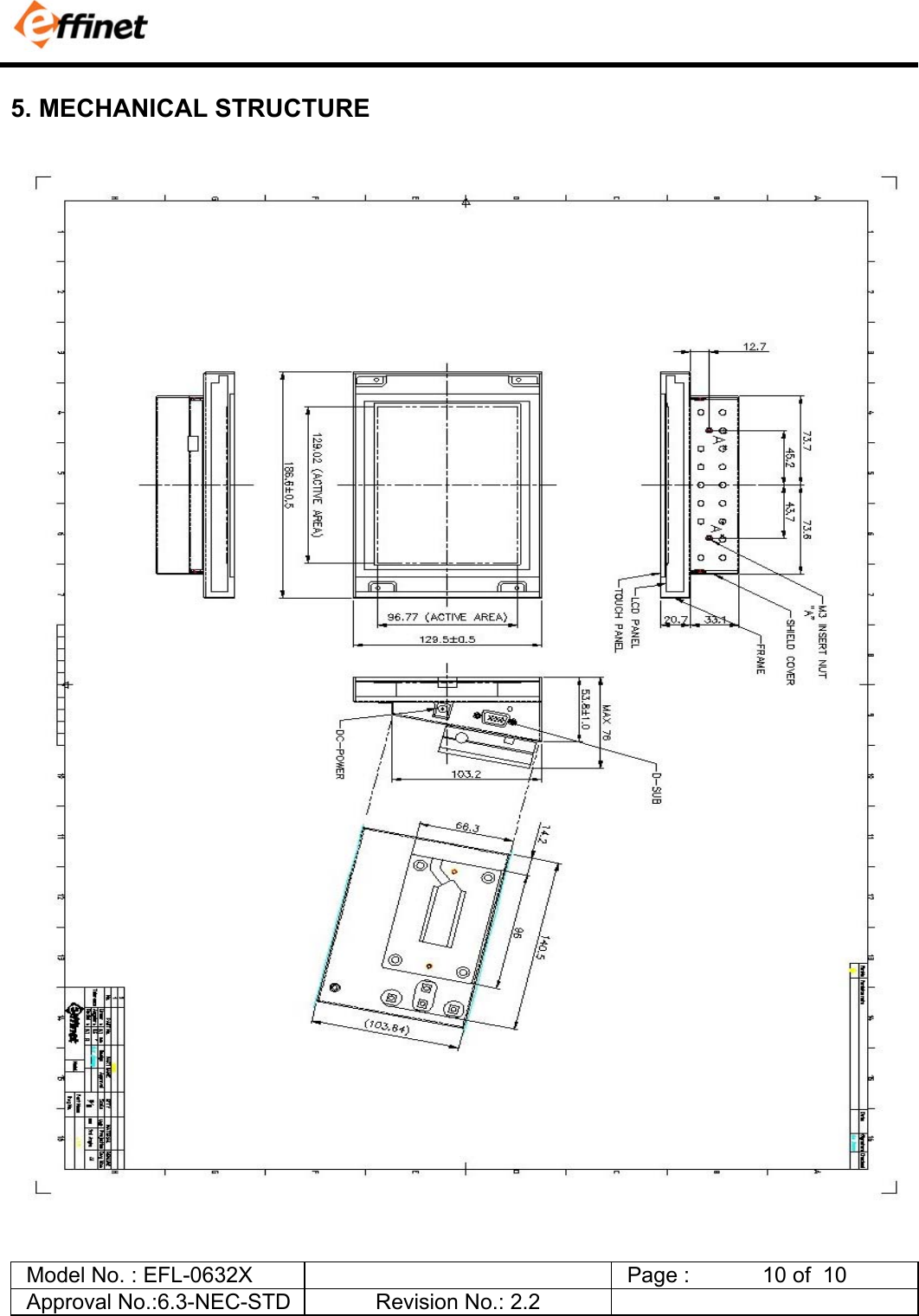

Model No. : EFL-0632X Page : 10 of 10 Approval No.:6.3-NEC-STD Revision No.: 2.2 5. MECHANICAL STRUCTURE
