Effinet Systems EFL1503X 15" LCD Monitor User Manual EFL1503X STD R20
Effinet Systems, Inc. 15" LCD Monitor EFL1503X STD R20
Users Manual
Model No. : EFL-1503X Engineering Specification Page : 1 of 11
Approval No.: 15- LG-STD Revision No.: 2.0 Issue Date: Aug. 02. 2004
Engineering Specification
Model No. EFL-1503X
15inches Slim Type
High resolution LCD Monitor
- LG-Philips TFT LCD Panel
- High performance up-Scaling characteristic
- Automatic Scanning
- Wide Viewing Angle, High Speed Response
- Enhanced Video Quality
- Embedded Power Supply
- Test Pattern for Burn-in & Self Check
- Option
z DVI Input
z 3M Touch
Customer’s logo display
on Booting is available
Model No. : EFL-1503X Engineering Specification Page : 2 of 11
Approval No.: 15- LG-STD Revision No.: 2.0 Issue Date: Aug. 02. 2004
FCC RF
INTERFERENCE STATEMENT
NOTE :
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception
which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures.
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio, TV technical for help.
- Only shielded interface cable should be used.
Finally, any changes or modifications to the equipment by the user not expressly
approved by the grantee or manufacturer could void the users authority to operate
such equipment.
Model No. : EFL-1503X Engineering Specification Page : 3 of 11
Approval No.: 15- LG-STD Revision No.: 2.0 Issue Date: Aug. 02. 2004
Table of Contents
FCC RF INTERFERENCE STATEMENT
.................................. 2
1. GENERAL DESCRIPTION ........................................................... 4
1-1. Overview ........................................................................................................................................4
1-2. Quick reference table of Characteristics ........................................................................................4
2. USER CONTROL & OSD.............................................................. 6
2-1. Key Control Board .........................................................................................................................6
2-2. OSD Menu Screen..........................................................................................................................7
2-3. OSD Control Functions..................................................................................................................8
3. CONNECTOR PIN DESCRIPTIONS ............................................ 9
3-1. 15 Pin D-SUB Connector...............................................................................................................9
3-2. Serial(RS-232C) Connector ...........................................................................................................9
4. STANDARD DISPLAY MODE................................................... 10
5. MECHANICAL STRUCTURE .................................................... 11
Model No. : EFL-1503X Engineering Specification Page : 4 of 11
Approval No.: 15- LG-STD Revision No.: 2.0 Issue Date: Aug. 02. 2004
1. GENERAL DESCRIPTION
1-1. Overview
Effinet open frame LCD Monitor EFL-1503X is a high performance TFT LCD monitor providing high
quality image from the analog RGB input.
This monitor supports wide range signal input from VGA to XGA resolution at vertical refresh
rate of 60 to 75Hz. It includes integrated signal processing unit, named LSP(LCD Signal Processor),
which had all electronic function for user application.
It is designed for industrial use with Auto power on, up scaling performance adequate for low-resolution
application and enhanced design margin for reliability
It also gives versatile optional DVI input.
1-2. Quick reference table of Characteristics
Size 15” Diagonal
Active Display Area 304.1 x 228.1 mm
Type No. LG-Philips, LM150X08
Number of Pixels 1024 (H) x 768 (V)
Pixel Arrangement RGB Vertical Stripe
Pixel Pitch 0.297 mm x 0.297mm
Color Depth 16.7M True Color
Surface Treatments Hard Coating (3H), Haze 44%
Viewing Angle
(CR≥10)
Horizontal : ΘL 65 degrees
ΘR 65 degrees
Vertical : Φ H 45 degrees
Φ L 55 degrees
Contrast Ratio Typ. 400 : 1
Response Time
Rise time(tr) : 5ms(Typ.)
Fall time(tf) : 11ms(Typ.)
Average Brightness Typ. 250 cd/ m2
Frame Rate Typ. 60Hz, Max. 75Hz
Panel Dimension(WHD) 326.5 x 253.5 x 11.2
Panel
CCFT 2 Lamps
Scanning Horizontal 30 ~ 61KHz
Model No. : EFL-1503X Engineering Specification Page : 5 of 11
Approval No.: 15- LG-STD Revision No.: 2.0 Issue Date: Aug. 02. 2004
Frequency Vertical 50 ~ 75Hz
Prime 1024 x 768 @ 60 Hz Resolution
Standard 720x400 @70 Hz,
640x480 @60/67/72/75 Hz
800x600 @56/60/72/75 Hz
1024x768 @60/70/75 Hz
Input Signal RGB (Video / Sync) RGB Analog (0.7Vp-p, 75ohms) / H/V Separate(TTL)
Type Separate H/V sync, Composite, SOG(Sync-On-Green)
Level TTL level (V high ≥ 2.0V, V low ≤ 0.8V)
Sync
Polarity Positive or Negative
Input Signal
Interface
RGB 15pin D-Sub
AC Input AC 90 ~ 265V @60/50Hz, Universal Power
max. power dissipation 26Watts
Power
DC Adapter ratings 12V 4.16A
Regulation(Safety , Ergonomics, EMC) CUL(UL+CSA), CE, FCC
Operating Temperature : 10 to 50ºC / Humidity : 8 to 80% Environmental
Conditions Storage Temperature : -20 to 60ºC / Humidity : 5 to 90%
White Color Temperature 9300°K : CIE x=0.281±0.015 / y=0.311±0.015
6500°K : CIE x=0.313±0.015 / y=0.329±0.015
Touch Panel 3M Touch / 13-5811-121MA
Controller EXII-1060SC(Serial) or EXII-5050UC(USB)
Touch Screen
(Optional)
Controller Interface Serial or USB Interface
Demonstrated MTBF More than 20,000 hours
Model No. : EFL-1503X Engineering Specification Page : 6 of 11
Approval No.: 15- LG-STD Revision No.: 2.0 Issue Date: Aug. 02. 2004
2. USER CONTROL & OSD

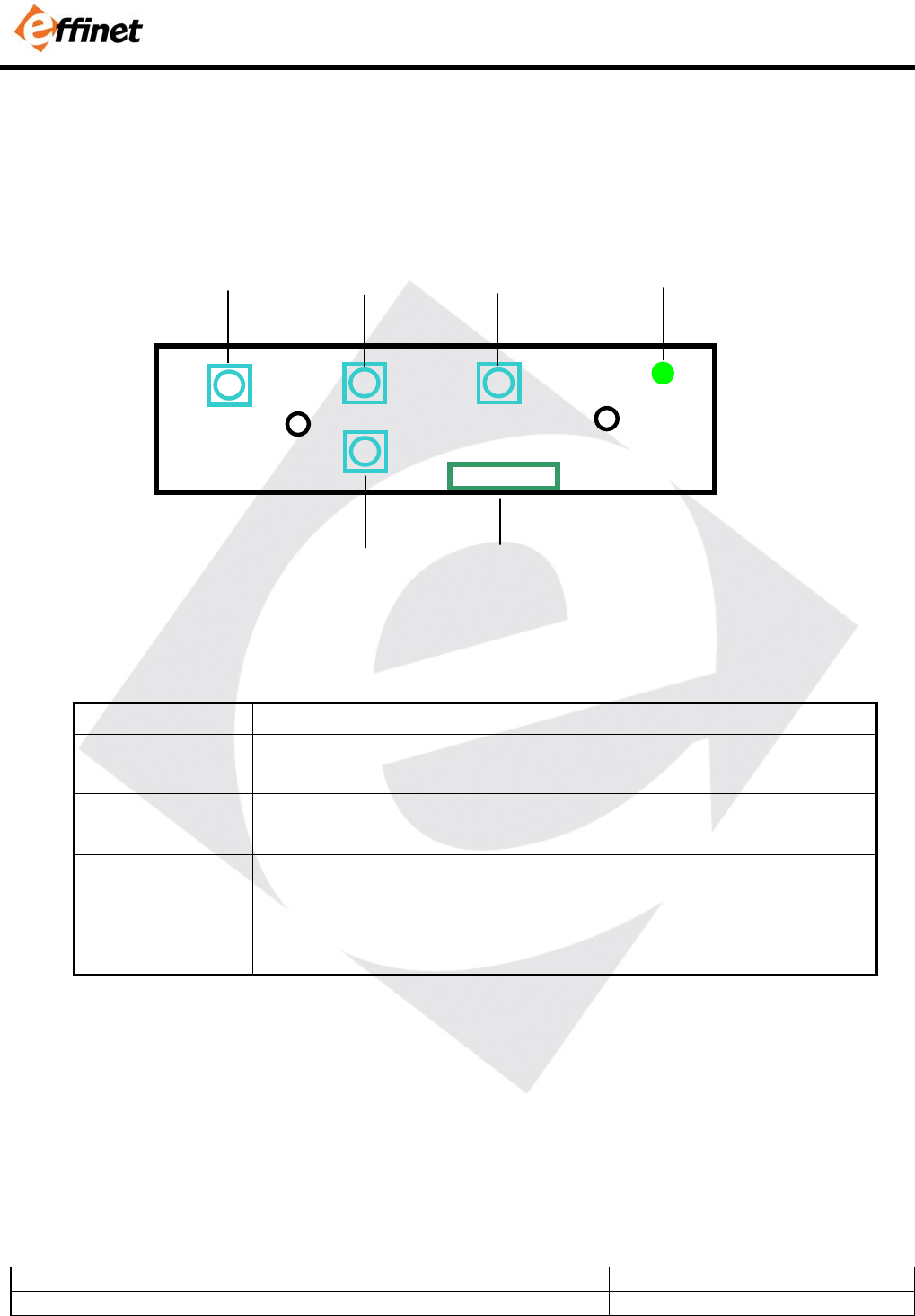

2-1. Key Control Board
SWITCH NAME SWITCH FUNCTIONS
MENU Activate / Deactivate the OSD Menu Window.
Move cursor to Main Menu from sub-menu.
SEL
(AUTO)
Move cursor in the Sub-Menu(Brightness ↔ Mode)
Auto Tracking (Pressing “SEL” key)
UP(+) Move cursor at Main Menu(Picture / Utility)
Increase the value of the selected function
DOWN(-) Move cursor at Main Menu(Picture / Utility)
Decrease the value of the selected function.
Cable
Connect
SEL
(AUTO)
UP
(+)
DOWN
(-)
MENU Status
LED
Model No. : EFL-1503X Engineering Specification Page : 7 of 11
Approval No.: 15- LG-STD Revision No.: 2.0 Issue Date: Aug. 02. 2004

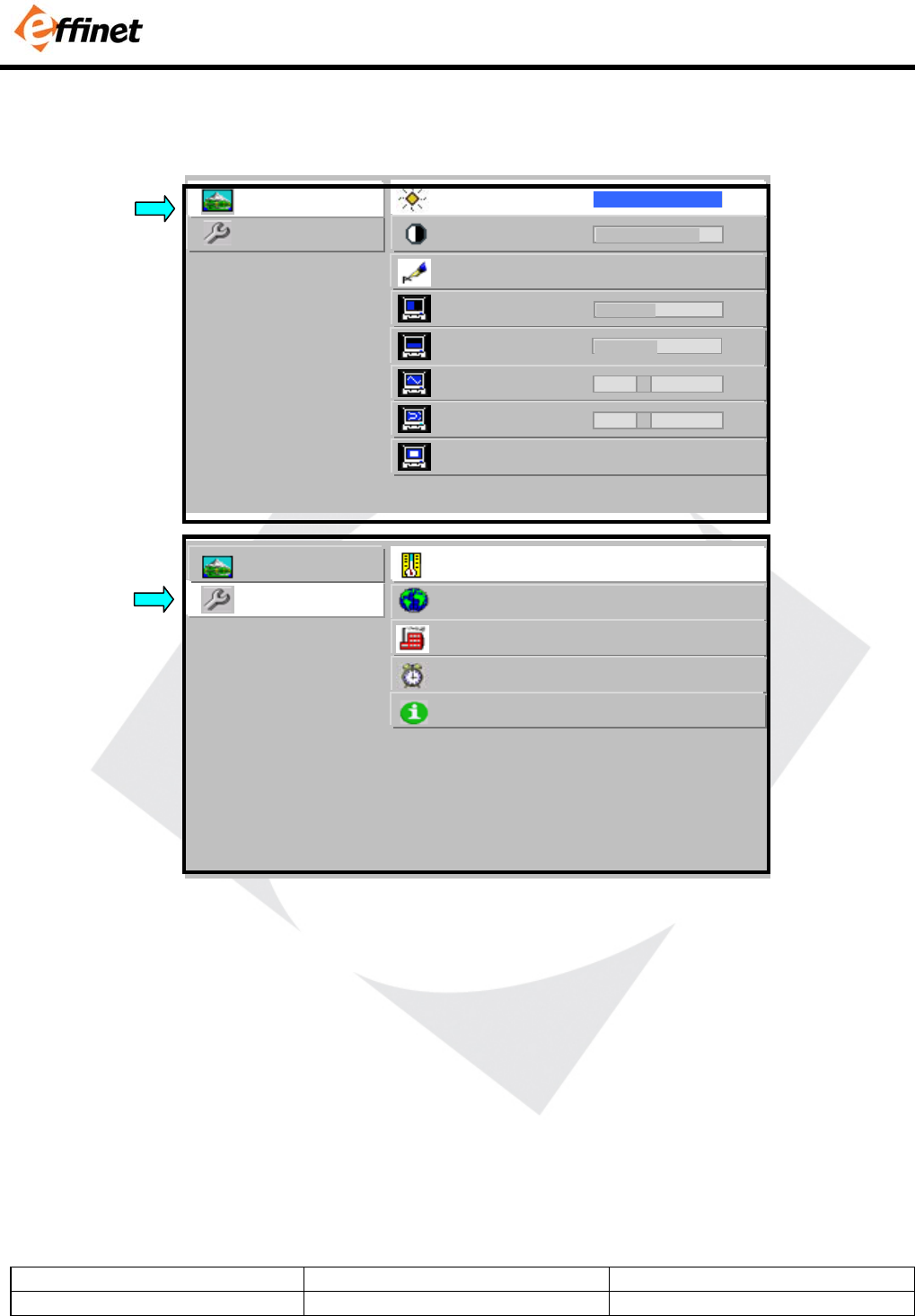

2-2. OSD Menu Screen
UTILITY
PICTURE Brightnes
s
-
100 +
contrast -
80 +
sharpnes
s
4
h position -
50 +
v position -
50 +
phase -
18 +
frequency -
105 +
mode normal fill to aspect
ratio
1 2 3 4 5
UTILITY
PICTURE color
temp
6500 7300 9300 user
language english german
factory press <up> to reset
power on time 10
information 800 x 600 / 60Hz
Model No. : EFL-1503X Engineering Specification Page : 8 of 11
Approval No.: 15- LG-STD Revision No.: 2.0 Issue Date: Aug. 02. 2004
2-3. OSD Control Functions
CONTROL FUNCTION
Auto Tracking Automatic screen adjustment process.
If there is any noise on the screen or screen shift, just press “ SEL”
button.
Since this monitor is equipped with “Auto Tracking” function, it will
automatically configure the monitor setting.
Brightness Adjust the brightness level of the Display
Contrast Adjust the contrast level of the Display.
Sharpness Adjuust the sharpness level of the Display
H position Adjust the position of the display horizontally.
V position Adjust the position of the display vertically.
Phase Adjust the clock phase of the display.
Frequency Adjust the clock frequency of the display
Mode Select the video aspect ratio. It depends on the input video format.
COLOR TEMP Choose different preset color temperatures
(6500/7300/9300) or set your own customized color parameters.
Red /Green / Blue GAIN Adjust the Red/ Green / Blue Gain
Language Select the OSD language
Factory recall Recall the factory setting value.
Power On time Displayed the total power on time.
Information Displayed the resolution of input signal
Self Test Pattern To enter auto burn-in mode, press “Up” key first and then “Sel” key
simultaneously for 3 seconds.
On this mode, Red – Green – Blue – White – Black test pattern will be
displayed. Press Menu key for returning normal display mode.
Model No. : EFL-1503X Engineering Specification Page : 9 of 11
Approval No.: 15- LG-STD Revision No.: 2.0 Issue Date: Aug. 02. 2004

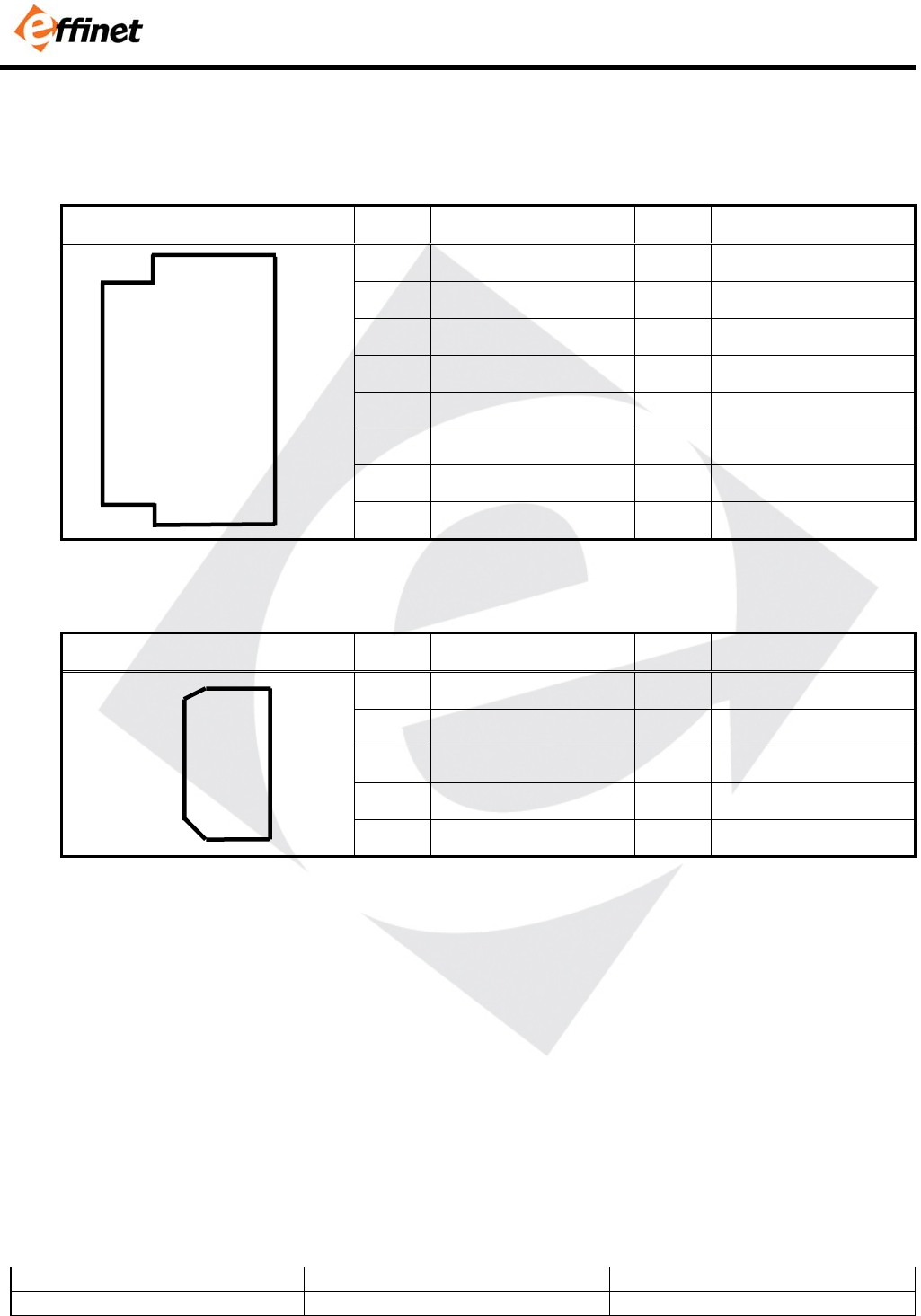

3. CONNECTOR PIN DESCRIPTIONS
3-1. 15 Pin D-SUB Connector
Shape and pin number Pin Description Pin Description
1 Red 9 No Connection
2 Green 10 Ground - Sync
3 Blue 11 No Connection
4 Ground 12 No Connection
5 Ground 13 Horizontal Sync
6 Ground - Red 14 Vertical Sync
7 Ground - Green 15 No Connection
8 Ground - Blue
3-2. Serial(RS-232C) Connector
Shape and pin number Pin Description Pin Description
1 DCD 6 DSR
2 RXD 7 RTS
3 TXD 8 CTS
4 DTR 9 N/A
5 Ground
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
6
7
8
9
1
2
3
4
5
Model No. : EFL-1503X Engineering Specification Page : 10 of 11
Approval No.: 15- LG-STD Revision No.: 2.0 Issue Date: Aug. 02. 2004
4. STANDARD DISPLAY MODE
Horizontal Vertical
No. Mode Resolution
Frequency Polarity Frequency Polarity
Pixel clock
1 720 x 400 31.47 KHz N 70.0 Hz P 28.322 MHz
2 640 x 480 31.47 KHz N 60.0 Hz N 25.175 MHz
3 640 x 480 35.00 KHz N 66.7 Hz N 30.240 MHz
4 640 x 480 37.86 KHz N 72.8 Hz N 31.500 MHz
5
VGA
640 x 480 37.50 KHZ N 75.0 Hz N 31.500 MHz
6 800 X 600 35.16 KHz N / P 56.3 Hz N / P 36.000 MHz
7 800 X 600 37.88 KHz P 60.3 Hz P 40.000 MHz
8 800 X 600 48.08 KHz P 72.2 Hz P 50.000 MHz
9
SVGA
800 X 600 46.87 KHz P 75.0 Hz P 49.500 MHz
10 1024 X 768 48.36 KHz N 60.0 Hz N 65.000 MHz
11 1024 X 768 56.49 KHz N 70.1 Hz N 75.000 MHz
12
XGA
1024 X 768 60.02 KHz P 75.0 Hz P 78.750 MHz
Model No. : EFL-1503X Engineering Specification Page : 11 of 11
Approval No.: 15- LG-STD Revision No.: 2.0 Issue Date: Aug. 02. 2004

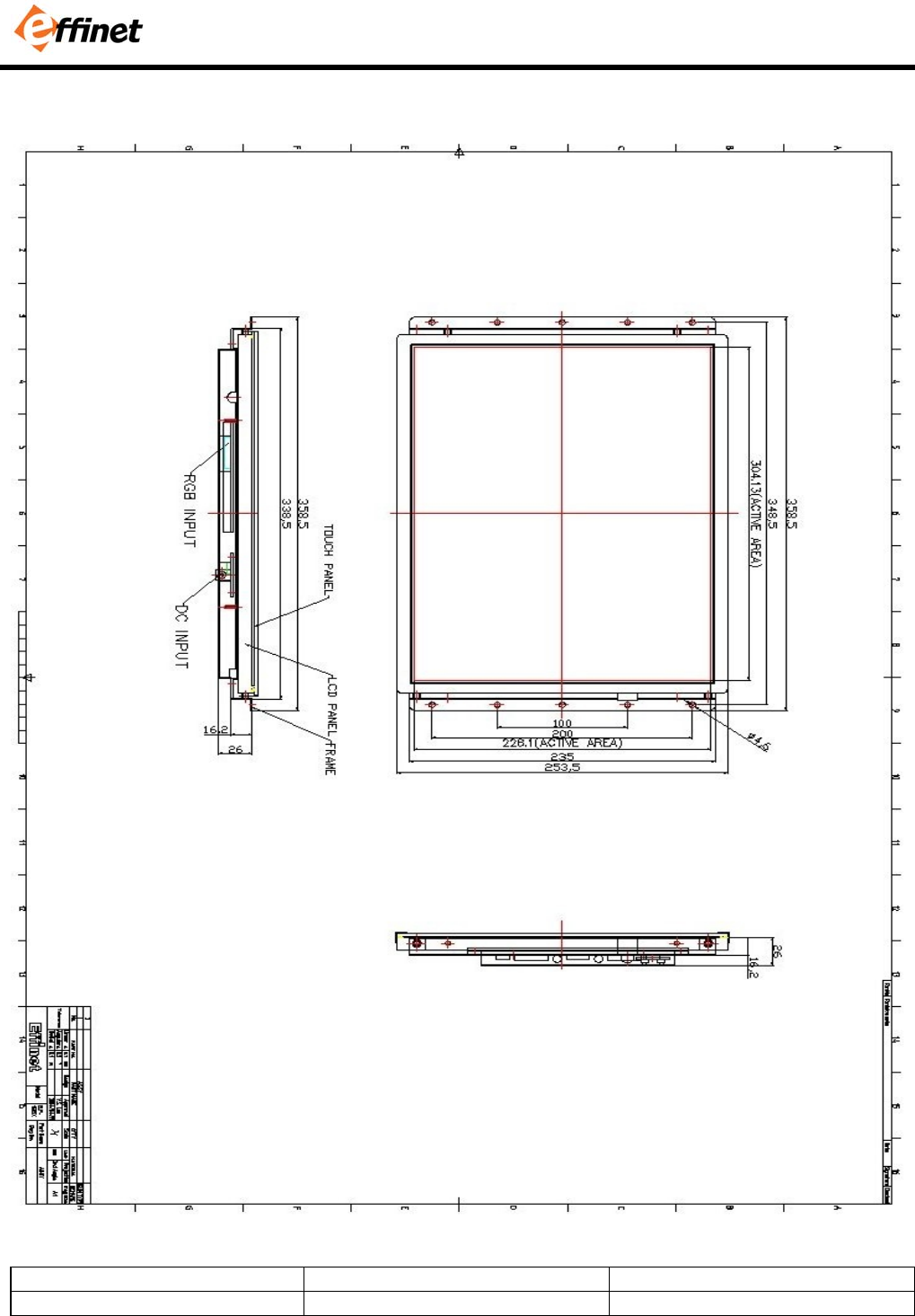

5. MECHANICAL STRUCTURE
