Effinet Systems EFL1902X LCD Monitor User Manual EFL 1702X User s Manual

Effinet Systems, Inc. LCD Monitor EFL 1702X User s Manual

User Manual

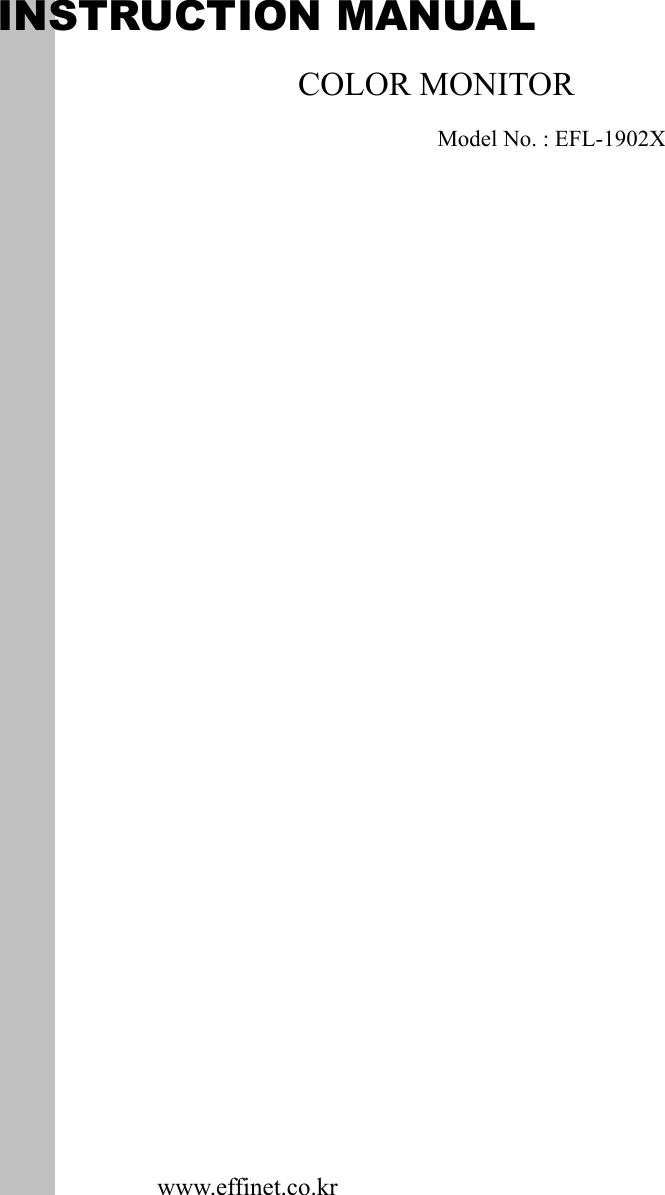

INSTRUCTION MANUAL COLOR MONITOR Model No. : EFL-1902Xwww.effinet.co.kr

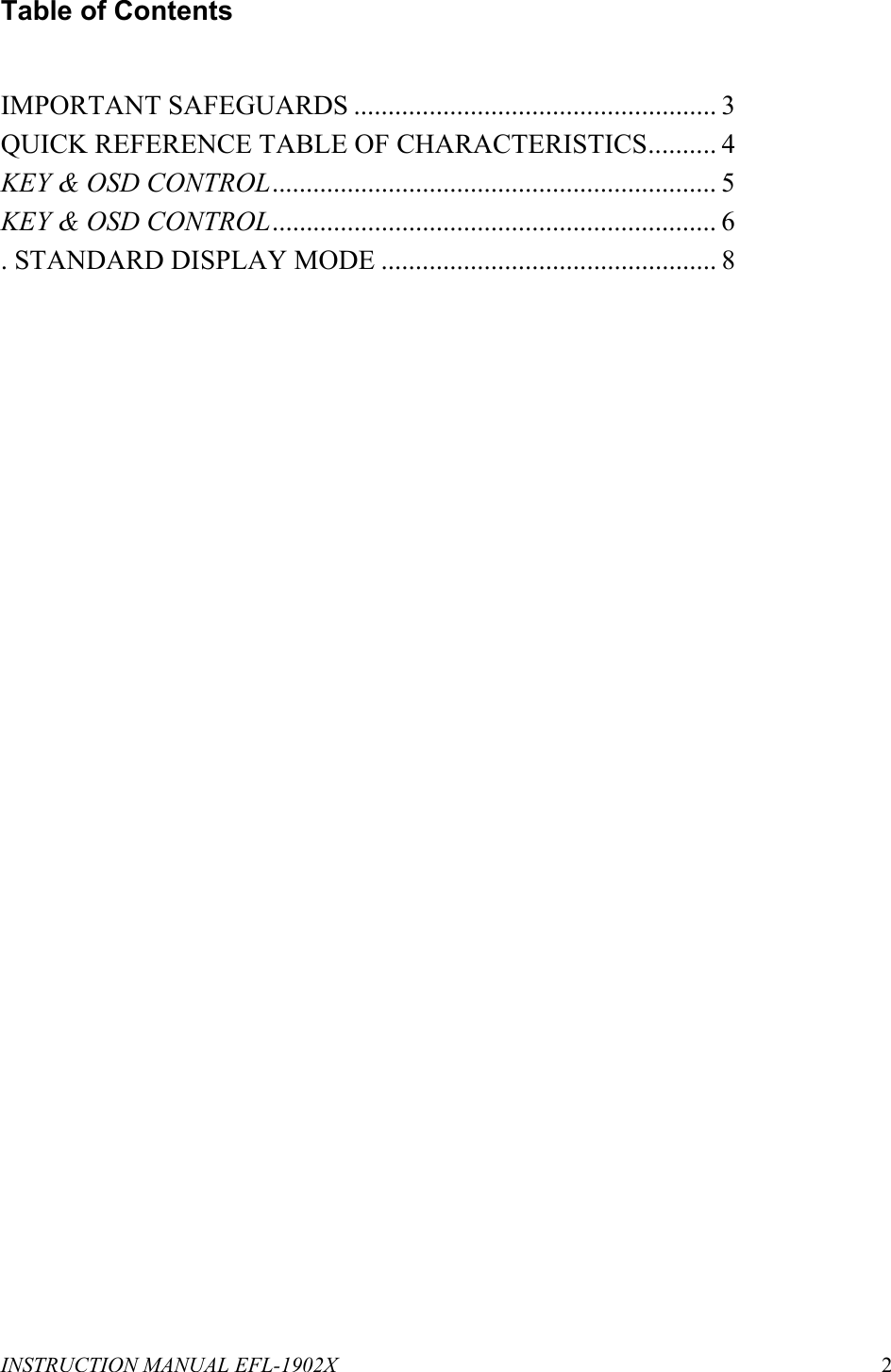

INSTRUCTION MANUAL EFL-1902X 2Table of Contents IMPORTANT SAFEGUARDS ..................................................... 3 QUICK REFERENCE TABLE OF CHARACTERISTICS.......... 4 KEY & OSD CONTROL................................................................. 5 KEY & OSD CONTROL................................................................. 6 . STANDARD DISPLAY MODE ................................................. 8

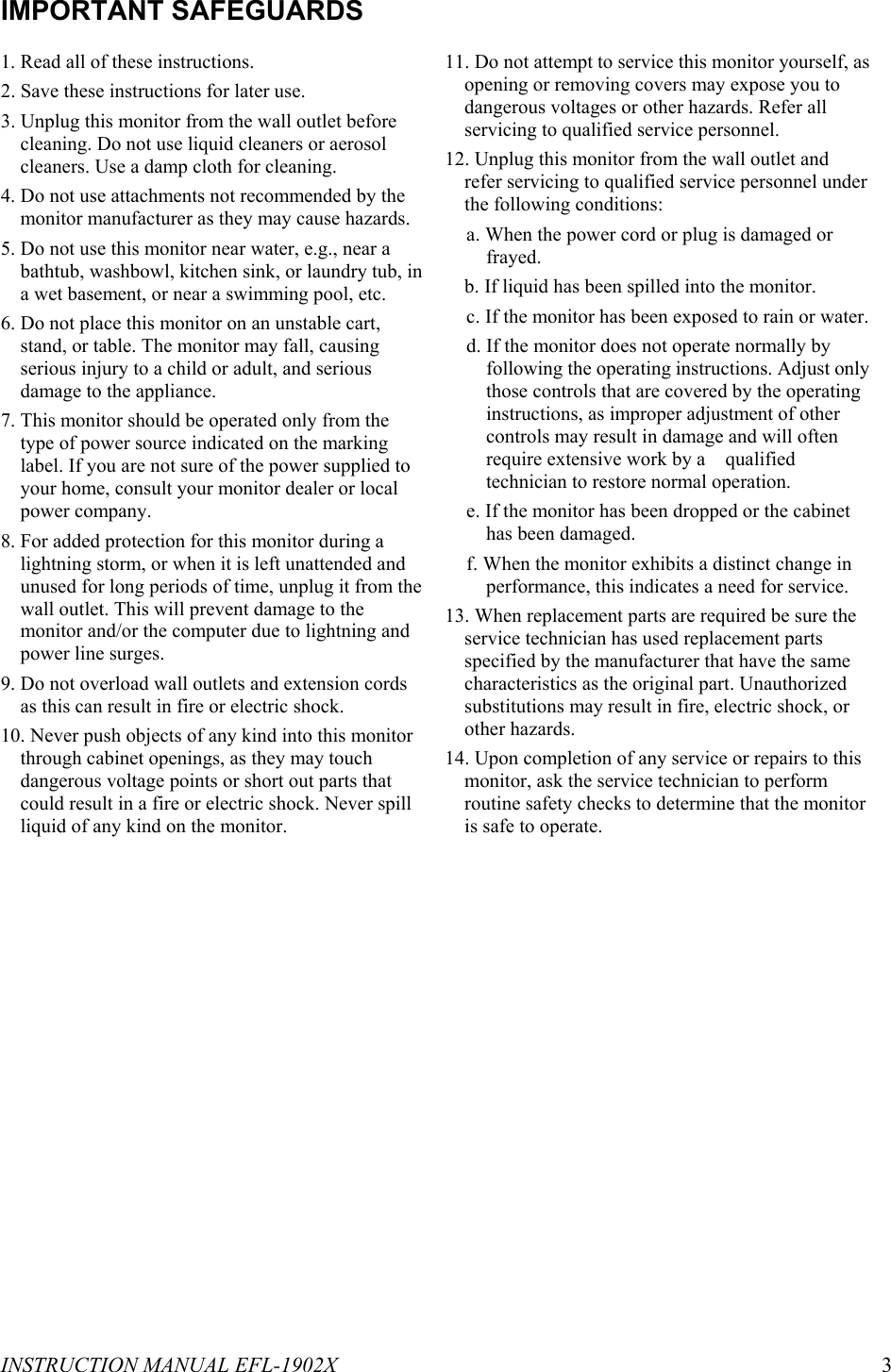

INSTRUCTION MANUAL EFL-1902X 3IMPORTANT SAFEGUARDS 1. Read all of these instructions. 2. Save these instructions for later use. 3. Unplug this monitor from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 4. Do not use attachments not recommended by the monitor manufacturer as they may cause hazards. 5. Do not use this monitor near water, e.g., near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc. 6. Do not place this monitor on an unstable cart, stand, or table. The monitor may fall, causing serious injury to a child or adult, and serious damage to the appliance. 7. This monitor should be operated only from the type of power source indicated on the marking label. If you are not sure of the power supplied to your home, consult your monitor dealer or local power company. 8. For added protection for this monitor during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage to the monitor and/or the computer due to lightning and power line surges. 9. Do not overload wall outlets and extension cords as this can result in fire or electric shock. 10. Never push objects of any kind into this monitor through cabinet openings, as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the monitor. 11. Do not attempt to service this monitor yourself, as opening or removing covers may expose you to dangerous voltages or other hazards. Refer all servicing to qualified service personnel. 12. Unplug this monitor from the wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power cord or plug is damaged or frayed. b. If liquid has been spilled into the monitor. c. If the monitor has been exposed to rain or water.d. If the monitor does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore normal operation. e. If the monitor has been dropped or the cabinet has been damaged. f. When the monitor exhibits a distinct change in performance, this indicates a need for service. 13. When replacement parts are required be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. 14. Upon completion of any service or repairs to this monitor, ask the service technician to perform routine safety checks to determine that the monitor is safe to operate.

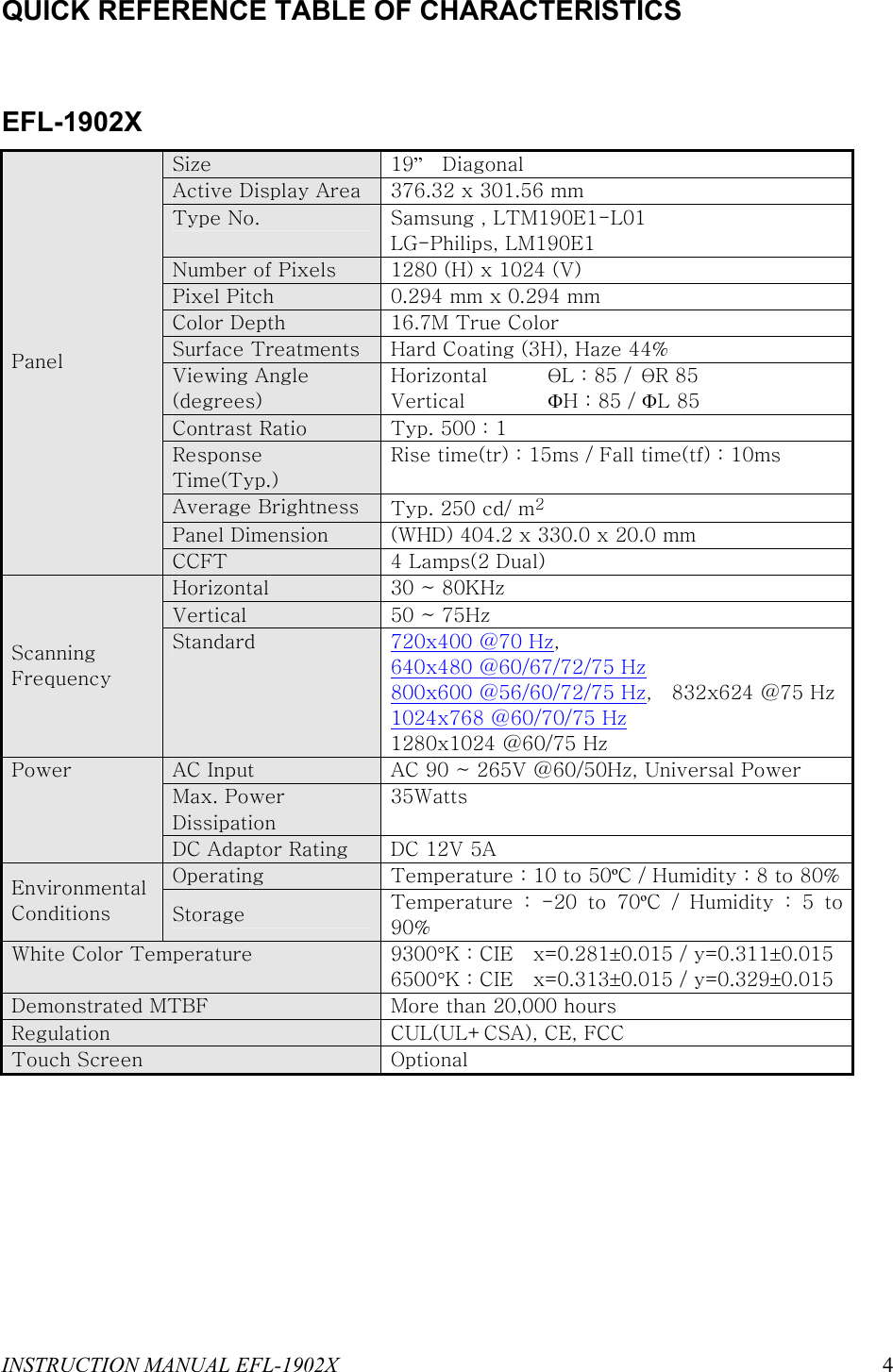

INSTRUCTION MANUAL EFL-1902X 4QUICK REFERENCE TABLE OF CHARACTERISTICS EFL-1902X Size 19” Diagonal Active Display Area 376.32 x 301.56 mm Type No. Samsung , LTM190E1-L01 LG-Philips, LM190E1 Number of Pixels 1280 (H) x 1024 (V) Pixel Pitch 0.294 mm x 0.294 mm Color Depth 16.7M True Color Surface Treatments Hard Coating (3H), Haze 44% Viewing Angle (degrees) Horizontal θL : 85 / θR 85 Vertical ΦH : 85 / ΦL 85 Contrast Ratio Typ. 500 : 1 Response Time(Typ.) Rise time(tr) : 15ms / Fall time(tf) : 10ms Average Brightness Typ. 250 cd/ m2 Panel Dimension (WHD) 404.2 x 330.0 x 20.0 mm Panel CCFT 4 Lamps(2 Dual) Horizontal 30 ~ 80KHz Vertical 50 ~ 75Hz Scanning Frequency Standard 720x400 @70 Hz, 640x480 @60/67/72/75 Hz 800x600 @56/60/72/75 Hz, 832x624 @75 Hz1024x768 @60/70/75 Hz 1280x1024 @60/75 Hz AC Input AC 90 ~ 265V @60/50Hz, Universal Power Max. Power Dissipation 35Watts Power DC Adaptor Rating DC 12V 5A Operating Temperature : 10 to 50ºC / Humidity : 8 to 80% Environmental Conditions Storage Temperature : -20 to 70ºC / Humidity : 5 to 90% White Color Temperature 9300°K : CIE x=0.281±0.015 / y=0.311±0.015 6500°K : CIE x=0.313±0.015 / y=0.329±0.015 Demonstrated MTBF More than 20,000 hours Regulation CUL(UL+CSA), CE, FCC Touch Screen Optional

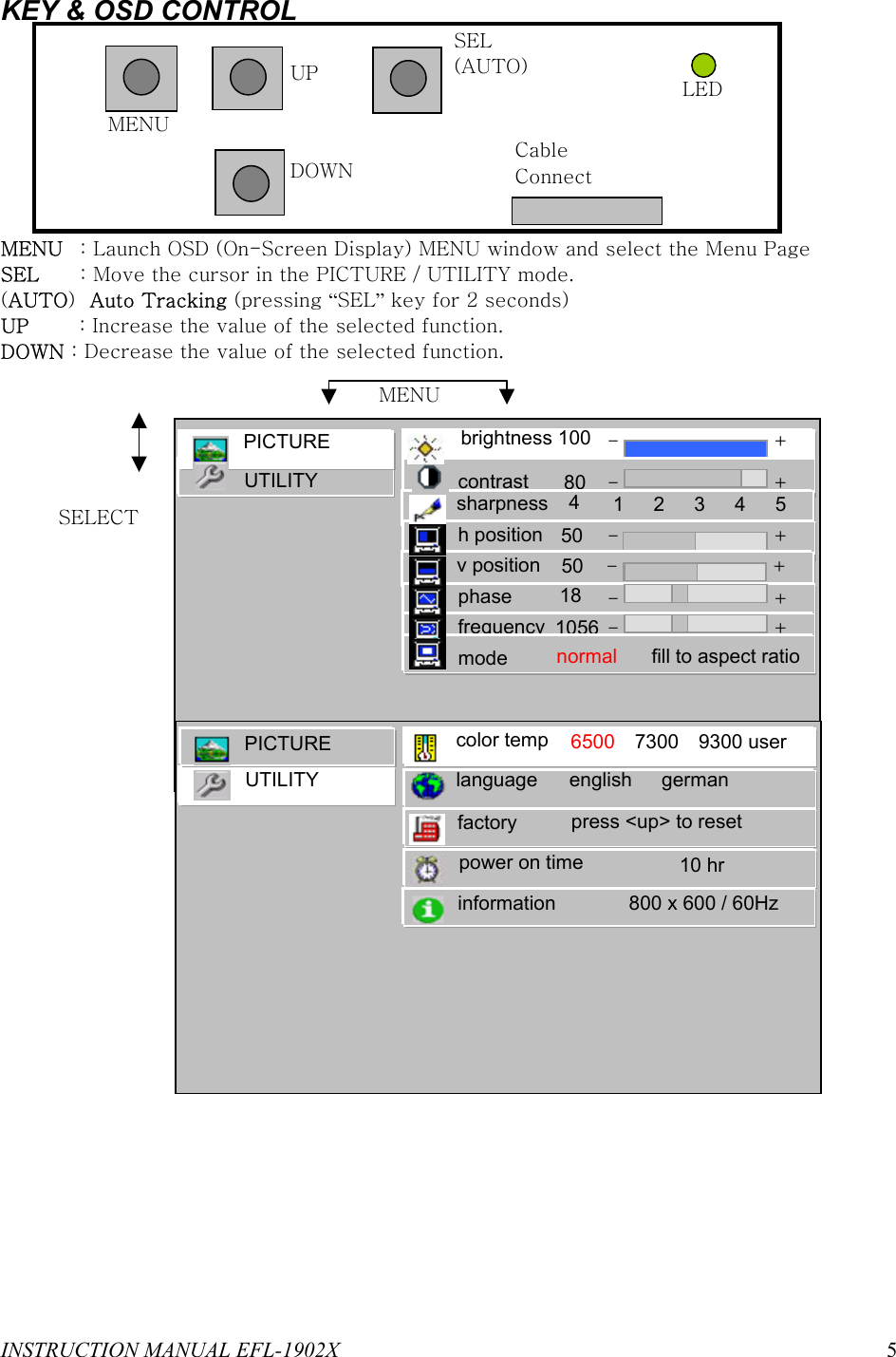

INSTRUCTION MANUAL EFL-1902X 5KEY & OSD CONTROL MENU : Launch OSD (On-Screen Display) MENU window and select the Menu Page SEL : Move the cursor in the PICTURE / UTILITY mode. (AUTO) Auto Tracking (pressing “SEL” key for 2 seconds) UP : Increase the value of the selected function. DOWN : Decrease the value of the selected function. UTILITY PICTURE brightness -100 + contrast -80 + sharpness 4h position -50 + v position -50 + phase -18 + frequency -1056 + mode normal fill to aspect ratio 1 2 3 4 5 SELECT MENUCable ConnectLED SEL (AUTO) MENU UP DOWNUTILITY PICTURE color temp 6500 7300 9300 user language english german factory press <up> to reset power on time 10 hr information 800 x 600 / 60Hz

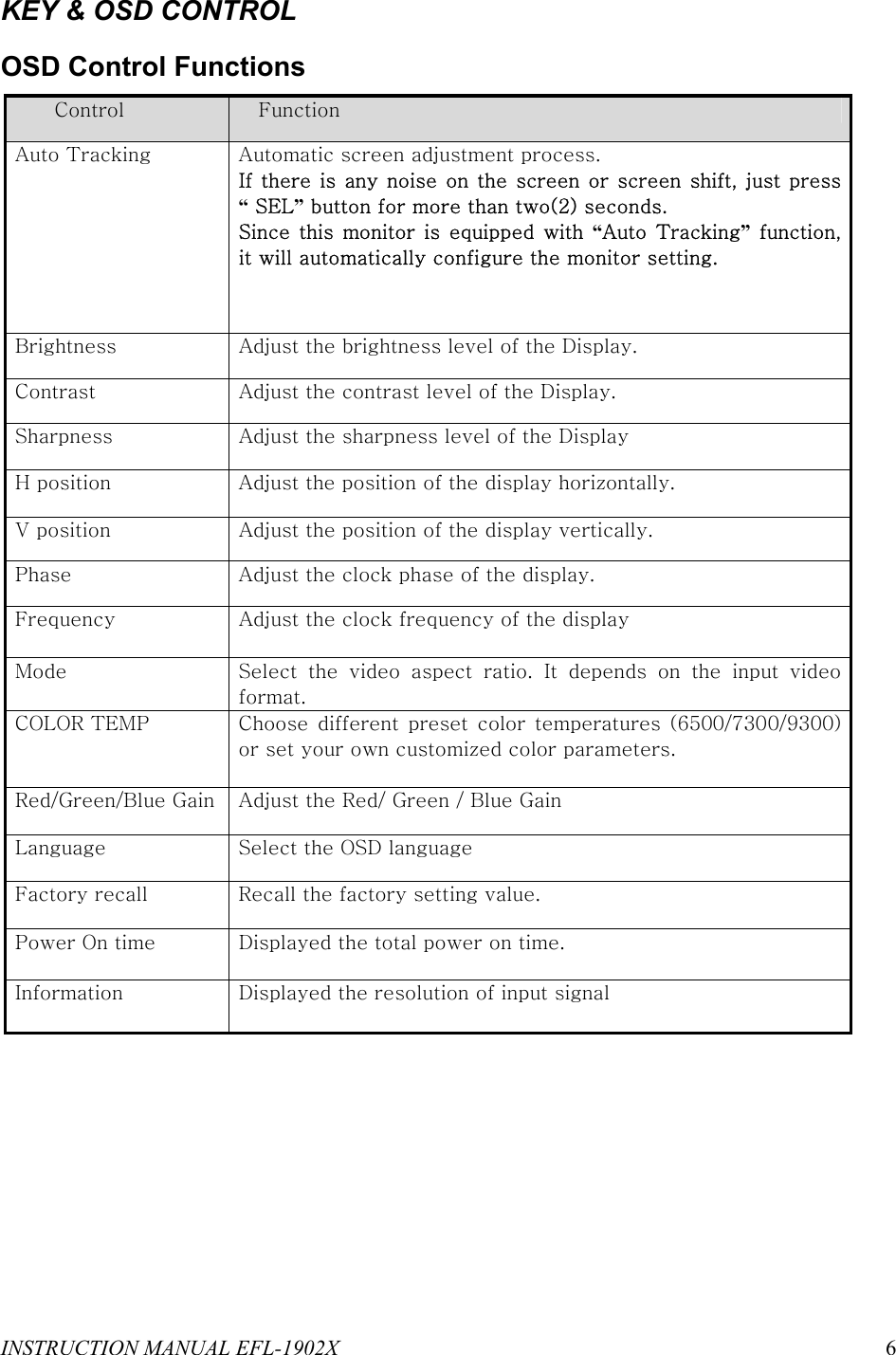

INSTRUCTION MANUAL EFL-1902X 6KEY & OSD CONTROL OSD Control Functions Control Function Auto Tracking Automatic screen adjustment process. If there is any noise on the screen or screen shift, just press “ SEL” button for more than two(2) seconds. Since this monitor is equipped with “Auto Tracking” function, it will automatically configure the monitor setting. Brightness Adjust the brightness level of the Display. Contrast Adjust the contrast level of the Display. Sharpness Adjust the sharpness level of the Display H position Adjust the position of the display horizontally. V position Adjust the position of the display vertically. Phase Adjust the clock phase of the display. Frequency Adjust the clock frequency of the display Mode Select the video aspect ratio. It depends on the input video format. COLOR TEMP Choose different preset color temperatures (6500/7300/9300) or set your own customized color parameters. Red/Green/Blue Gain Adjust the Red/ Green / Blue Gain Language Select the OSD language Factory recall Recall the factory setting value. Power On time Displayed the total power on time. Information Displayed the resolution of input signal

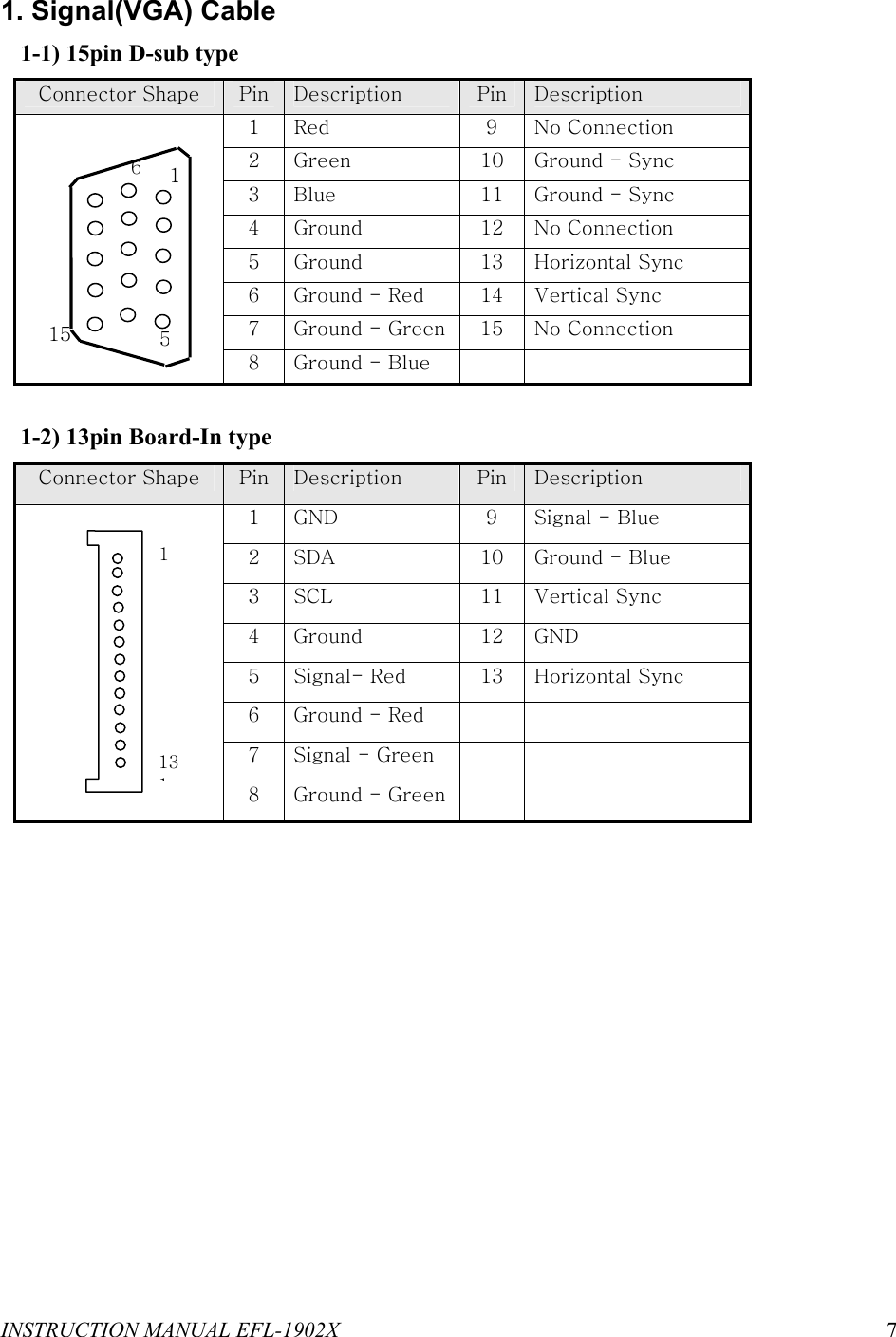

INSTRUCTION MANUAL EFL-1902X 7 1. Signal(VGA) Cable 1-1) 15pin D-sub type Connector Shape Pin Description Pin Description 1 Red 9 No Connection 2 Green 10 Ground - Sync 3 Blue 11 Ground - Sync 4 Ground 12 No Connection 5 Ground 13 Horizontal Sync 6 Ground - Red 14 Vertical Sync 7 Ground - Green 15 No Connection 8 Ground - Blue 1-2) 13pin Board-In type Connector Shape Pin Description Pin Description 1 GND 9 Signal - Blue 2 SDA 10 Ground - Blue 3 SCL 11 Vertical Sync 4 Ground 12 GND 5 Signal- Red 13 Horizontal Sync 6 Ground - Red 7 Signal - Green 8 Ground - Green 1515 61131

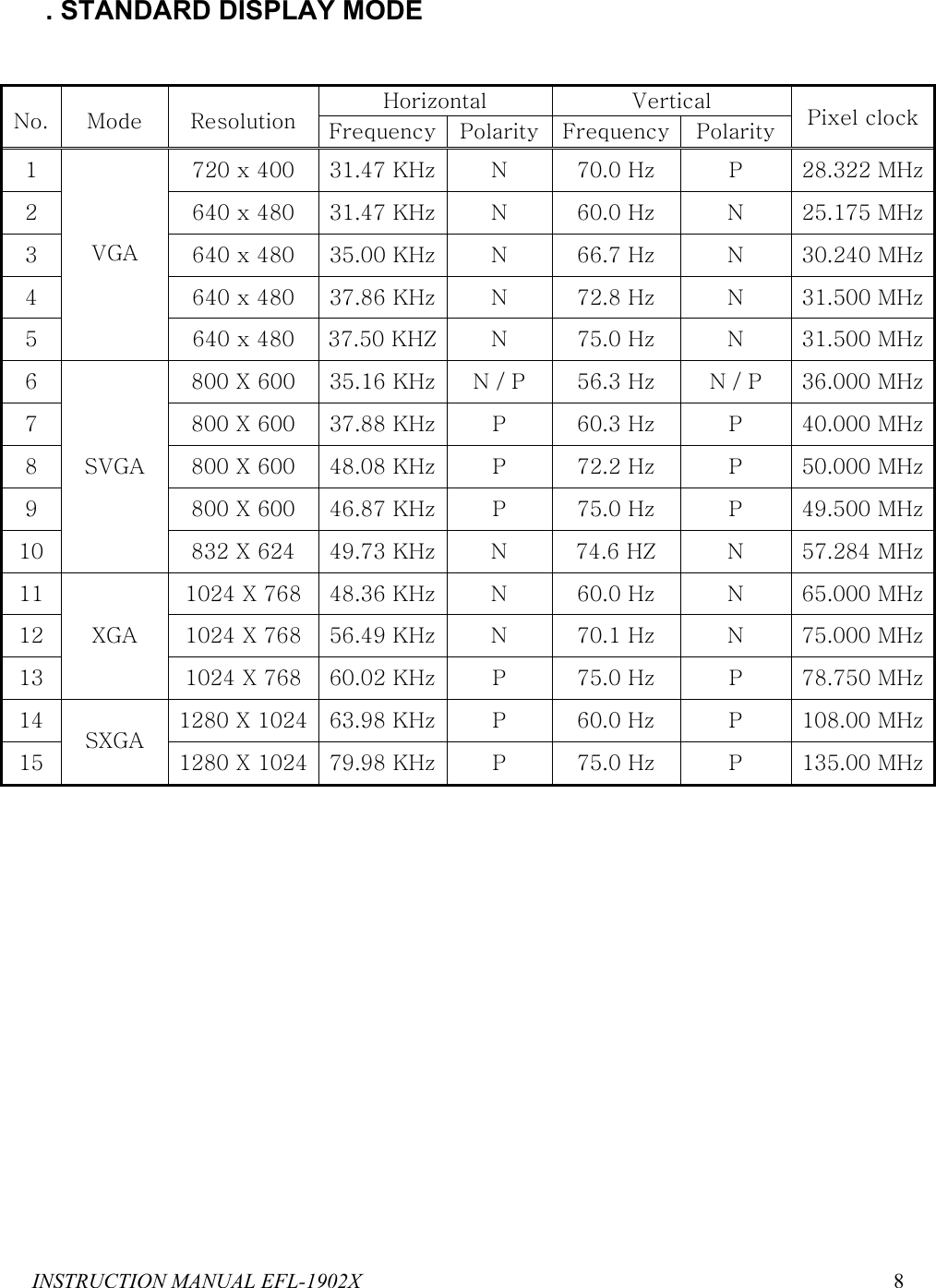

INSTRUCTION MANUAL EFL-1902X 8 . STANDARD DISPLAY MODE Horizontal Vertical No. Mode Resolution Frequency Polarity Frequency Polarity Pixel clock1 720 x 400 31.47 KHz N 70.0 Hz P 28.322 MHz2 640 x 480 31.47 KHz N 60.0 Hz N 25.175 MHz3 640 x 480 35.00 KHz N 66.7 Hz N 30.240 MHz4 640 x 480 37.86 KHz N 72.8 Hz N 31.500 MHz5 VGA 640 x 480 37.50 KHZ N 75.0 Hz N 31.500 MHz6 800 X 600 35.16 KHz N / P 56.3 Hz N / P 36.000 MHz7 800 X 600 37.88 KHz P 60.3 Hz P 40.000 MHz8 800 X 600 48.08 KHz P 72.2 Hz P 50.000 MHz9 800 X 600 46.87 KHz P 75.0 Hz P 49.500 MHz10 SVGA 832 X 624 49.73 KHz N 74.6 HZ N 57.284 MHz11 1024 X 768 48.36 KHz N 60.0 Hz N 65.000 MHz12 1024 X 768 56.49 KHz N 70.1 Hz N 75.000 MHz13 XGA 1024 X 768 60.02 KHz P 75.0 Hz P 78.750 MHz14 1280 X 1024 63.98 KHz P 60.0 Hz P 108.00 MHz15 SXGA 1280 X 1024 79.98 KHz P 75.0 Hz P 135.00 MHz

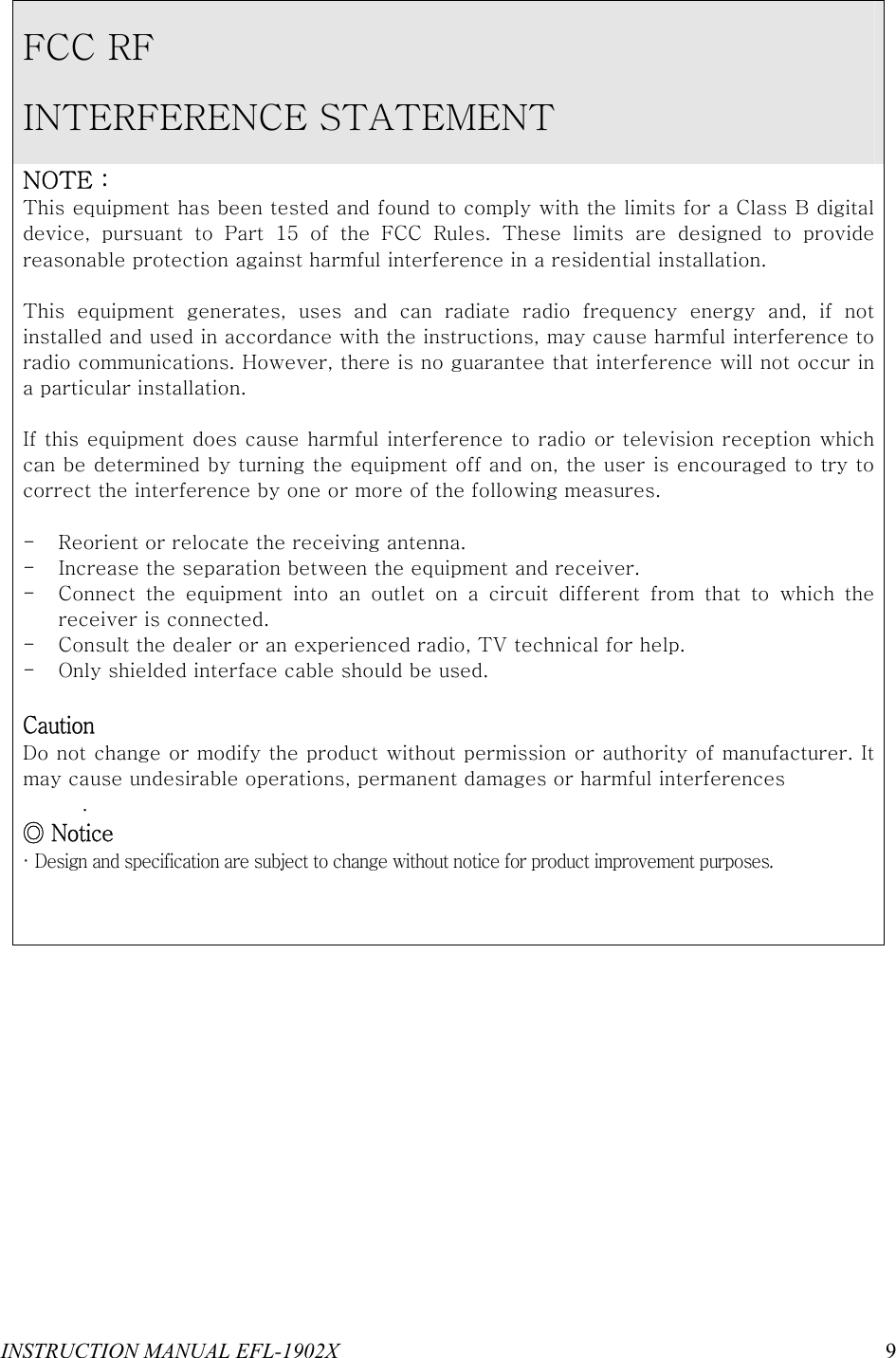

INSTRUCTION MANUAL EFL-1902X 9 FCC RF INTERFERENCE STATEMENT NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures. - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio, TV technical for help. - Only shielded interface cable should be used. Caution Do not change or modify the product without permission or authority of manufacturer. It may cause undesirable operations, permanent damages or harmful interferences . ◎ Notice · Design and specification are subject to change without notice for product improvement purposes.
