Effinet Systems EFL1902X LCD Monitor User Manual EFL 1702X User s Manual
Effinet Systems, Inc. LCD Monitor EFL 1702X User s Manual
User Manual
INSTRUCTION MANUAL
COLOR MONITOR
Model No. : EFL-1902X
www.effinet.co.kr
INSTRUCTION MANUAL EFL-1902X 2
Table of Contents
IMPORTANT SAFEGUARDS ..................................................... 3
QUICK REFERENCE TABLE OF CHARACTERISTICS.......... 4
KEY & OSD CONTROL................................................................. 5
KEY & OSD CONTROL................................................................. 6
. STANDARD DISPLAY MODE ................................................. 8
INSTRUCTION MANUAL EFL-1902X 3
IMPORTANT SAFEGUARDS
1. Read all of these instructions.
2. Save these instructions for later use.
3. Unplug this monitor from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.
4. Do not use attachments not recommended by the
monitor manufacturer as they may cause hazards.
5. Do not use this monitor near water, e.g., near a
bathtub, washbowl, kitchen sink, or laundry tub, in
a wet basement, or near a swimming pool, etc.
6. Do not place this monitor on an unstable cart,
stand, or table. The monitor may fall, causing
serious injury to a child or adult, and serious
damage to the appliance.
7. This monitor should be operated only from the
type of power source indicated on the marking
label. If you are not sure of the power supplied to
your home, consult your monitor dealer or local
power company.
8. For added protection for this monitor during a
lightning storm, or when it is left unattended and
unused for long periods of time, unplug it from the
wall outlet. This will prevent damage to the
monitor and/or the computer due to lightning and
power line surges.
9. Do not overload wall outlets and extension cords
as this can result in fire or electric shock.
10. Never push objects of any kind into this monitor
through cabinet openings, as they may touch
dangerous voltage points or short out parts that
could result in a fire or electric shock. Never spill
liquid of any kind on the monitor.
11. Do not attempt to service this monitor yourself, as
opening or removing covers may expose you to
dangerous voltages or other hazards. Refer all
servicing to qualified service personnel.
12. Unplug this monitor from the wall outlet and
refer servicing to qualified service personnel under
the following conditions:
a. When the power cord or plug is damaged or
frayed.
b. If liquid has been spilled into the monitor.
c. If the monitor has been exposed to rain or water.
d. If the monitor does not operate normally by
following the operating instructions. Adjust only
those controls that are covered by the operating
instructions, as improper adjustment of other
controls may result in damage and will often
require extensive work by a qualified
technician to restore normal operation.
e. If the monitor has been dropped or the cabinet
has been damaged.
f. When the monitor exhibits a distinct change in
performance, this indicates a need for service.
13. When replacement parts are required be sure the
service technician has used replacement parts
specified by the manufacturer that have the same
characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock, or
other hazards.
14. Upon completion of any service or repairs to this
monitor, ask the service technician to perform
routine safety checks to determine that the monitor
is safe to operate.
INSTRUCTION MANUAL EFL-1902X 4
QUICK REFERENCE TABLE OF CHARACTERISTICS
EFL-1902X
Size 19” Diagonal
Active Display Area 376.32 x 301.56 mm
Type No. Samsung , LTM190E1-L01
LG-Philips, LM190E1
Number of Pixels 1280 (H) x 1024 (V)
Pixel Pitch 0.294 mm x 0.294 mm
Color Depth 16.7M True Color
Surface Treatments Hard Coating (3H), Haze 44%
Viewing Angle
(degrees)
Horizontal θL : 85 / θR 85
Vertical ΦH : 85 / ΦL 85
Contrast Ratio Typ. 500 : 1
Response
Time(Typ.)
Rise time(tr) : 15ms / Fall time(tf) : 10ms
Average Brightness Typ. 250 cd/ m2
Panel Dimension (WHD) 404.2 x 330.0 x 20.0 mm
Panel
CCFT 4 Lamps(2 Dual)
Horizontal 30 ~ 80KHz
Vertical 50 ~ 75Hz
Scanning
Frequency
Standard 720x400 @70 Hz,
640x480 @60/67/72/75 Hz
800x600 @56/60/72/75 Hz, 832x624 @75 Hz
1024x768 @60/70/75 Hz
1280x1024 @60/75 Hz
AC Input AC 90 ~ 265V @60/50Hz, Universal Power
Max. Power
Dissipation
35Watts
Power
DC Adaptor Rating DC 12V 5A
Operating Temperature : 10 to 50ºC / Humidity : 8 to 80%
Environmental
Conditions Storage Temperature : -20 to 70ºC / Humidity : 5 to
90%
White Color Temperature 9300°K : CIE x=0.281±0.015 / y=0.311±0.015
6500°K : CIE x=0.313±0.015 / y=0.329±0.015
Demonstrated MTBF More than 20,000 hours
Regulation CUL(UL+CSA), CE, FCC
Touch Screen Optional
INSTRUCTION MANUAL EFL-1902X 5

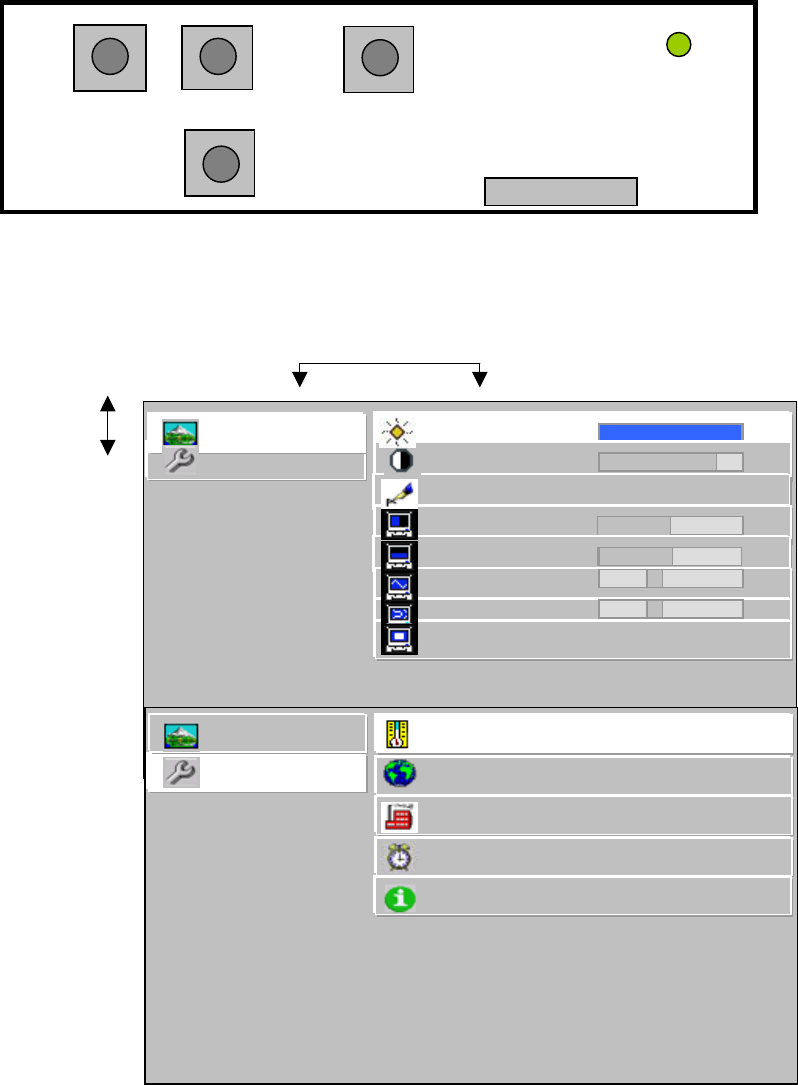

KEY & OSD CONTROL
MENU : Launch OSD (On-Screen Display) MENU window and select the Menu Page
SEL : Move the cursor in the PICTURE / UTILITY mode.
(AUTO) Auto Tracking (pressing “SEL” key for 2 seconds)
UP : Increase the value of the selected function.
DOWN : Decrease the value of the selected function.
UTILITY
PICTURE brightness -
100 +
contrast -
80 +
sharpness 4
h position -
50 +
v position -
50 +
phase -
18 +
frequency -
1056 +
mode normal fill to aspect ratio
1 2 3 4 5
SELECT
MENU
Cable
Connect
LED
SEL
(AUTO)
MENU
UP
DOWN
UTILITY
PICTURE color temp 6500 7300 9300 user
language english german
factory press <up> to reset
power on time 10 hr
information 800 x 600 / 60Hz
INSTRUCTION MANUAL EFL-1902X 6
KEY & OSD CONTROL
OSD Control Functions
Control Function
Auto Tracking Automatic screen adjustment process.
If there is any noise on the screen or screen shift, just press
“ SEL” button for more than two(2) seconds.
Since this monitor is equipped with “Auto Tracking” function,
it will automatically configure the monitor setting.
Brightness Adjust the brightness level of the Display.
Contrast Adjust the contrast level of the Display.
Sharpness Adjust the sharpness level of the Display
H position Adjust the position of the display horizontally.
V position Adjust the position of the display vertically.
Phase Adjust the clock phase of the display.
Frequency Adjust the clock frequency of the display
Mode Select the video aspect ratio. It depends on the input video
format.
COLOR TEMP Choose different preset color temperatures (6500/7300/9300)
or set your own customized color parameters.
Red/Green/Blue Gain Adjust the Red/ Green / Blue Gain
Language Select the OSD language
Factory recall Recall the factory setting value.
Power On time Displayed the total power on time.
Information Displayed the resolution of input signal
INSTRUCTION MANUAL EFL-1902X 7

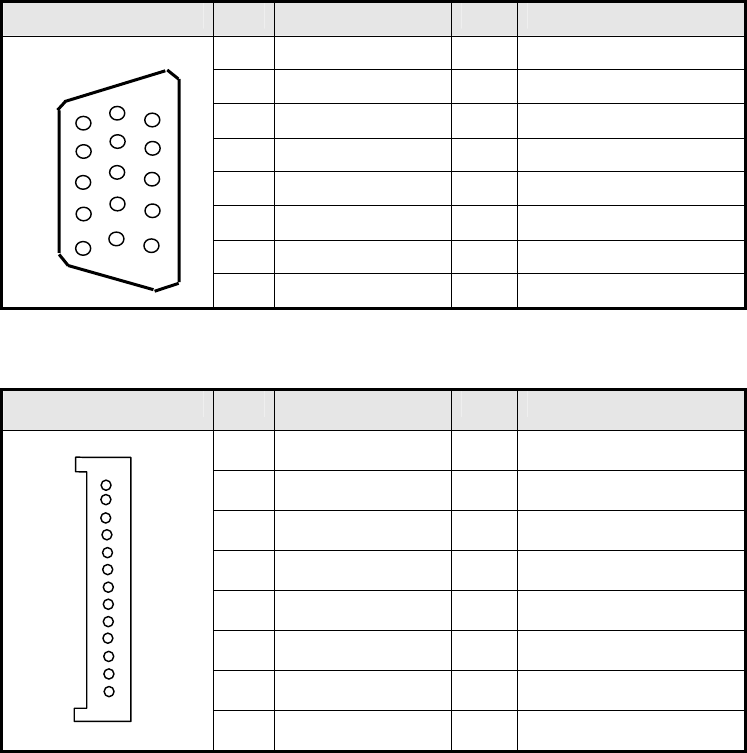

1. Signal(VGA) Cable
1-1) 15pin D-sub type
Connector Shape Pin Description Pin Description
1 Red 9 No Connection
2 Green 10 Ground - Sync
3 Blue 11 Ground - Sync
4 Ground 12 No Connection
5 Ground 13 Horizontal Sync
6 Ground - Red 14 Vertical Sync
7 Ground - Green 15 No Connection
8 Ground - Blue
1-2) 13pin Board-In type
Connector Shape Pin Description Pin Description
1 GND 9 Signal - Blue
2 SDA 10 Ground - Blue
3 SCL 11 Vertical Sync
4 Ground 12 GND
5 Signal- Red 13 Horizontal Sync
6 Ground - Red
7 Signal - Green
8 Ground - Green
1
5
15
6
1
13
1
INSTRUCTION MANUAL EFL-1902X 8
. STANDARD DISPLAY MODE
Horizontal Vertical
No. Mode Resolution Frequency Polarity Frequency Polarity Pixel clock
1 720 x 400 31.47 KHz N 70.0 Hz P 28.322 MHz
2 640 x 480 31.47 KHz N 60.0 Hz N 25.175 MHz
3 640 x 480 35.00 KHz N 66.7 Hz N 30.240 MHz
4 640 x 480 37.86 KHz N 72.8 Hz N 31.500 MHz
5
VGA
640 x 480 37.50 KHZ N 75.0 Hz N 31.500 MHz
6 800 X 600 35.16 KHz N / P 56.3 Hz N / P 36.000 MHz
7 800 X 600 37.88 KHz P 60.3 Hz P 40.000 MHz
8 800 X 600 48.08 KHz P 72.2 Hz P 50.000 MHz
9 800 X 600 46.87 KHz P 75.0 Hz P 49.500 MHz
10
SVGA
832 X 624 49.73 KHz N 74.6 HZ N 57.284 MHz
11 1024 X 768 48.36 KHz N 60.0 Hz N 65.000 MHz
12 1024 X 768 56.49 KHz N 70.1 Hz N 75.000 MHz
13
XGA
1024 X 768 60.02 KHz P 75.0 Hz P 78.750 MHz
14 1280 X 1024 63.98 KHz P 60.0 Hz P 108.00 MHz
15
SXGA
1280 X 1024 79.98 KHz P 75.0 Hz P 135.00 MHz
INSTRUCTION MANUAL EFL-1902X 9
FCC RF
INTERFERENCE STATEMENT
NOTE :
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in
a particular installation.
If this equipment does cause harmful interference to radio or television reception which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures.
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio, TV technical for help.
- Only shielded interface cable should be used.
Caution
Do not change or modify the product without permission or authority of manufacturer. It
may cause undesirable operations, permanent damages or harmful interferences
.
◎ Notice
· Design and specification are subject to change without notice for product improvement purposes.
