Effinet Systems EFL1903X 19" LCD Monitor User Manual EFL1903X STD R22
Effinet Systems, Inc. 19" LCD Monitor EFL1903X STD R22
Users Manual
Model No. : EFL-1903X Engineering Specification
Approval No.: 19-SS-STD Revision No.: 2.2 Issue Date: Aug. 03. 2004
Engineering Specification
Model No. EFL-1903X
19inches High resolution LCD Monitor
- Samsung TFT LCD Panel
- High performance up-Scaling characteristic
- Automatic Scanning
- Wide Viewing Angle, High Speed Response
- Enhanced Video Quality
- Power Supply with enhanced Design Margin
- Test Pattern for Burn-in & Self Check
- Option
z 3 Input (RGB, AV, SVHS)
z DVI Input
z Touch Screen(3M, … )
z Stereo Audio Amplifier
Customer’s logo display
on Booting is available
Model No. : EFL-1903X Engineering Specification
Approval No.: 19-SS-STD Revision No.: 2.2 Issue Date: Aug. 03. 2004
FCC RF
INTERFERENCE STATEMENT
NOTE :
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception
which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures.
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio, TV technical for help.
- Only shielded interface cable should be used.
Finally, any changes or modifications to the equipment by the user not expressly
approved by the grantee or manufacturer could void the users authority to operate
such equipment.
Model No. : EFL-1903X Engineering Specification
Approval No.: 19-SS-STD Revision No.: 2.2 Issue Date: Aug. 03. 2004
Table of Contents
FCC RF INTERFERENCE STATEMENT
.................................. 2
1. GENERAL DESCRIPTION ........................................................... 4
1-1. Overview ........................................................................................................................................4
1-2. Quick reference table of Characteristics ........................................................................................4
2. USER CONTROL & OSD.............................................................. 7
2-1. Description of Control Key ............................................................................................................7
2-2. OSD MENU SCREEN...................................................................................................................8
2-3. OSD Control Functions..................................................................................................................9
3. CONNECTOR PIN DESCRIPTIONS .......................................... 10
3-1. 15 Pin D-SUB Connector.............................................................................................................10
3-2. Serial(RS-232C) Connector .........................................................................................................10
3-3. USB Connector ............................................................................................................................10
4. STANDARD DISPLAY MODE................................................... 11

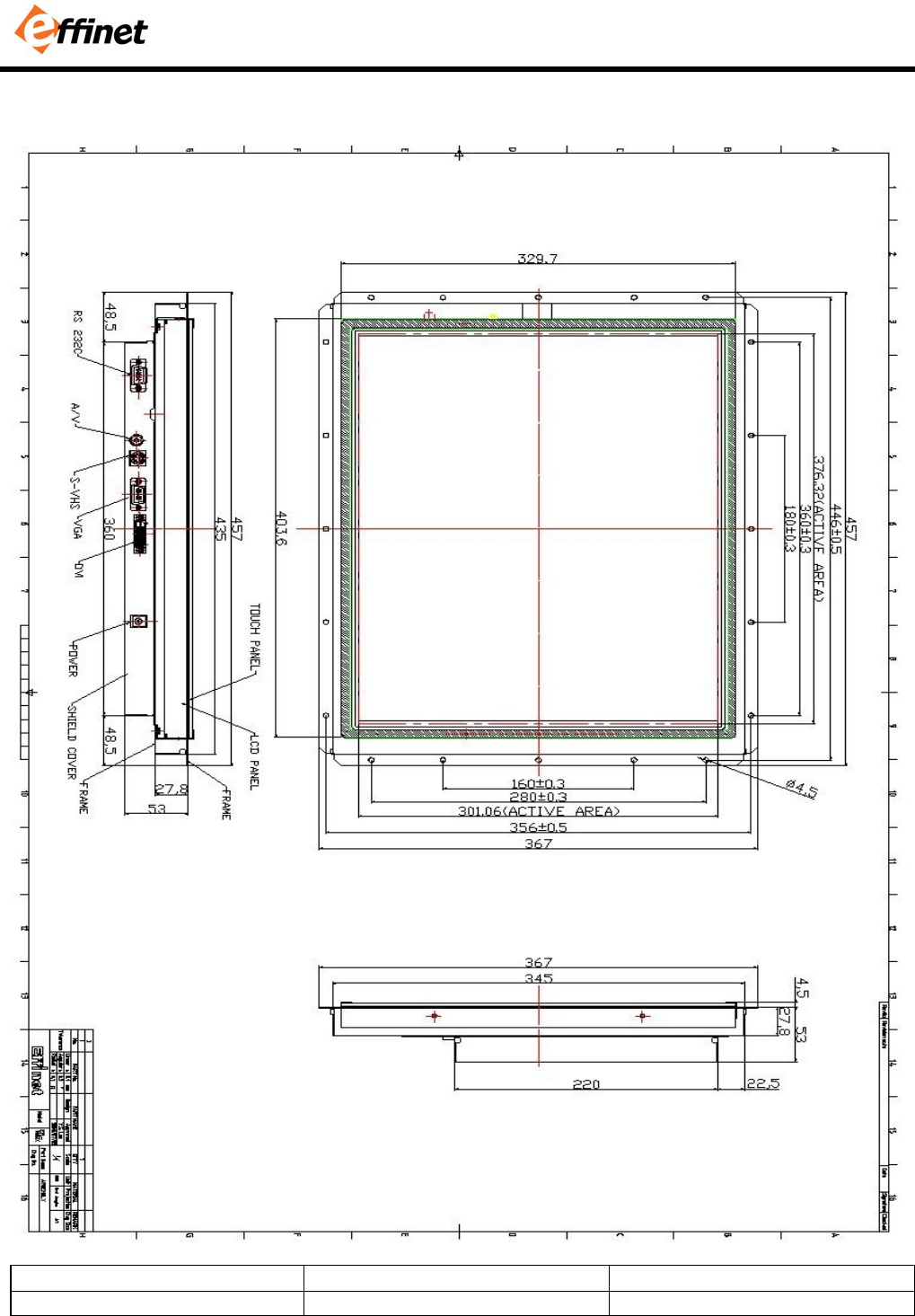

5. MECHANICAL STRUCTURE .................................................... 12
Model No. : EFL-1903X Engineering Specification
Approval No.: 19-SS-STD Revision No.: 2.2 Issue Date: Aug. 03. 2004
1. GENERAL DESCRIPTION
1-1. Overview
Effinet open frame LCD Monitor EFL-1903X is a high performance TFT LCD monitor providing high
quality image from the analog RGB input.
This monitor supports wide range signal input from VGA to SXGA resolution at vertical refresh
rate of 60 to 75Hz. It includes integrated signal processing unit, named LSP (LCD Signal Processor),
which had all electronic function for user application.
It is designed for industrial use with Auto power on, up scaling performance adequate for low-resolution
application and enhanced design margin for reliability
It also gives versatile optional features like, DVI input, Video input, Touch Screen, Stereo Audio amplifier,
Boot up custom logo and custom designed frame.
1-2. Quick reference table of Characteristics
Size 19” Diagonal
Active Display Area 376.32 x 301.056 mm
Type No. Samsung, LTM190E1-L01
Number of Pixels 1280 (H) x 1024 (V)
Pixel Arrangement RGB Vertical Stripe
Pixel Pitch 0.294 mm x 0.294 mm
Color Depth 16.7M True Color
Surface Treatments Hard Coating (3H), Haze 44%
Viewing Angle
(CR≥10)
Horizontal : θL 85 degrees
θR 85 degrees
Vertical : Φ H 85 degrees
Φ L 85 degrees
Contrast Ratio Typ. 500 : 1
Response Time
Rise time(tr) : 15ms(Typ.)
Fall time(tf) : 10ms(Typ.)
Average Brightness Typ. 250 cd/ m2
Frame Rate Typ. 60Hz, Max. 75Hz
Panel Dimension (WHD) 404.2 x 330.0 x 20.0 mm
Panel (S/S)
CCFT 4 Lamps (2 Dual)
Model No. : EFL-1903X Engineering Specification
Approval No.: 19-SS-STD Revision No.: 2.2 Issue Date: Aug. 03. 2004
Horizontal 30 ~ 80 KHz
Scaning
Frequency Vertical 50 ~ 75 Hz
Prime 1280 x 1024 @ 60 Hz
Resolution
Standard 720x400 @70 Hz
640x480 @60/67/72/75 Hz
800x600 @56/60/72/75 Hz
1024x768 @60/70/75 Hz
1280x1024 @60/75 Hz
RGB (Video / Sync) RGB Analog (0.7Vp-p, 75ohms) / H/V Separate (TTL)
Input Signal
CVBS Composite Video 1Vp-p, 75ohms
Type Separate H/V sync, Composite, SOG (Sync-On-Green)
Level TTL level (V high ≥ 2.0V, V low ≤ 0.8V)
Sync
Polarity Positive or Negative
RGB 15pin D-Sub
Video RCA Jack - 1 ea.
Input Signal
Interface S-Video SVHS Jack - 1 ea.
Compatible Color System NTSC M / NTSC 4.43 / PAL M / PAL N / SECAM
AC Input AC 90 ~ 265V @60/50Hz
max. power dissipation 35Watts
Power
Adapter Rating 12V 5A
Regulation(Safety , Ergonomics, EMC) CUL (UL+CSA), CE, FCC
Operating Temperature: 10 to 50ºC / Humidity: 8 to 80% Environmental
Conditions Storage Temperature: -20 to 70ºC / Humidity: 5 to 90%
White Color Temperature 9300°K: CIE x=0.281±0.015 / y=0.311±0.015
6500°K : CIE x=0.313±0.015 / y=0.329±0.015
Demonstrated MTBF More than 20,000 hours
Touch Panel 3M Touch / 13-5471-01MA
Controller EXII-1060SC (Serial) or EXII-5050UC (USB)
Touch Screen
(Optional)
Controller Interface Serial or USB Interface
Mono / Stereo Stereo
Input Audio Jack 3.5mm mini jack
Audio
(Optional)
Audio Output Nominal 1.3 Wrms at 8 ohms
* No external power for audio operation is needed
Model No. : EFL-1903X Engineering Specification
Approval No.: 19-SS-STD Revision No.: 2.2 Issue Date: Aug. 03. 2004
Speaker Connector Molex 5240 : 2p(Left), 3p(Right) ;
* Speaker side : Molex 5102
S/N Ratio Over than 80dB
THD Under 10% (THD : Total Harmonic Distortion)
Aidio
(Optional)

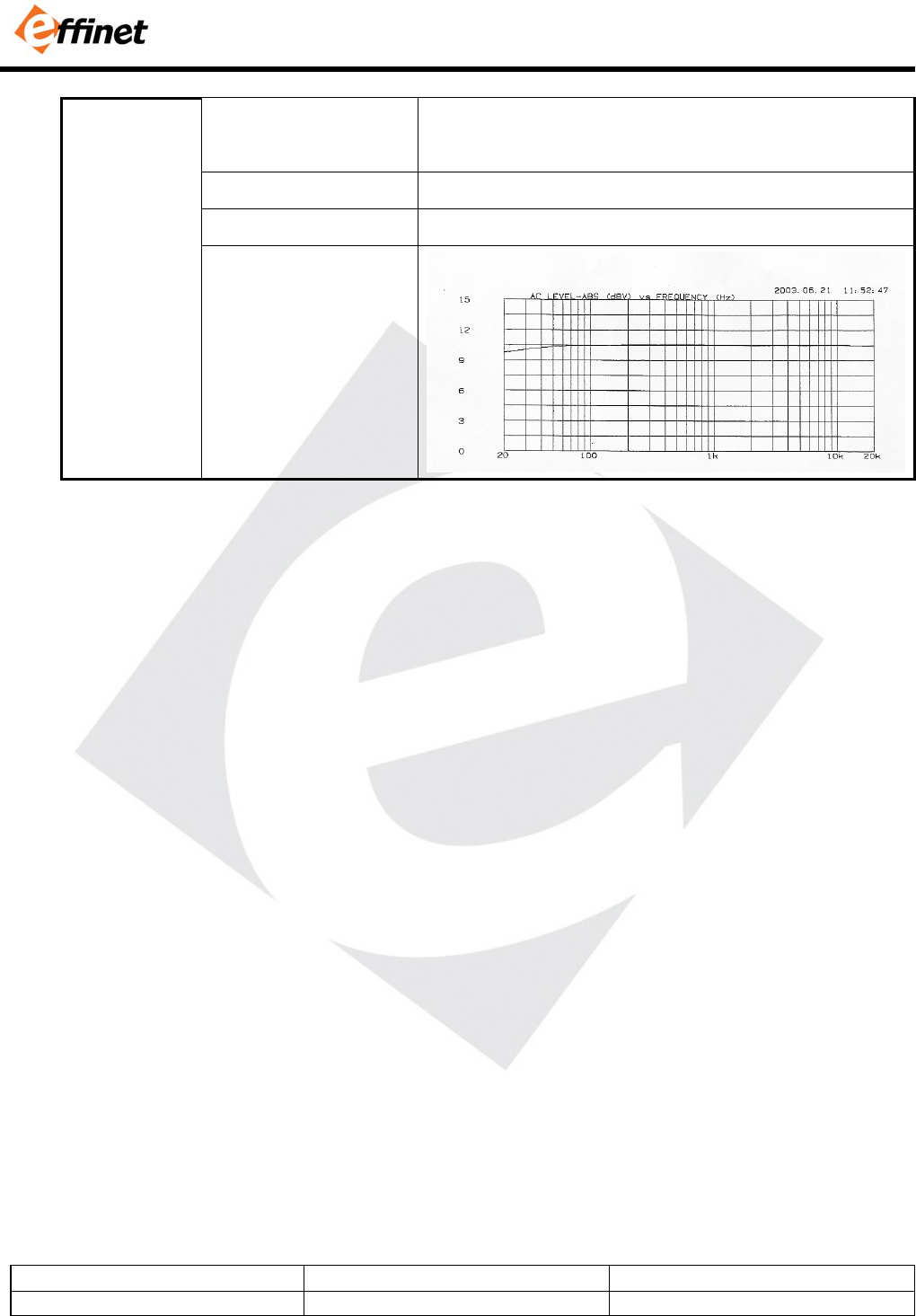

Frequency Response
Model No. : EFL-1903X Engineering Specification
Approval No.: 19-SS-STD Revision No.: 2.2 Issue Date: Aug. 03. 2004
2. USER CONTROL & OSD

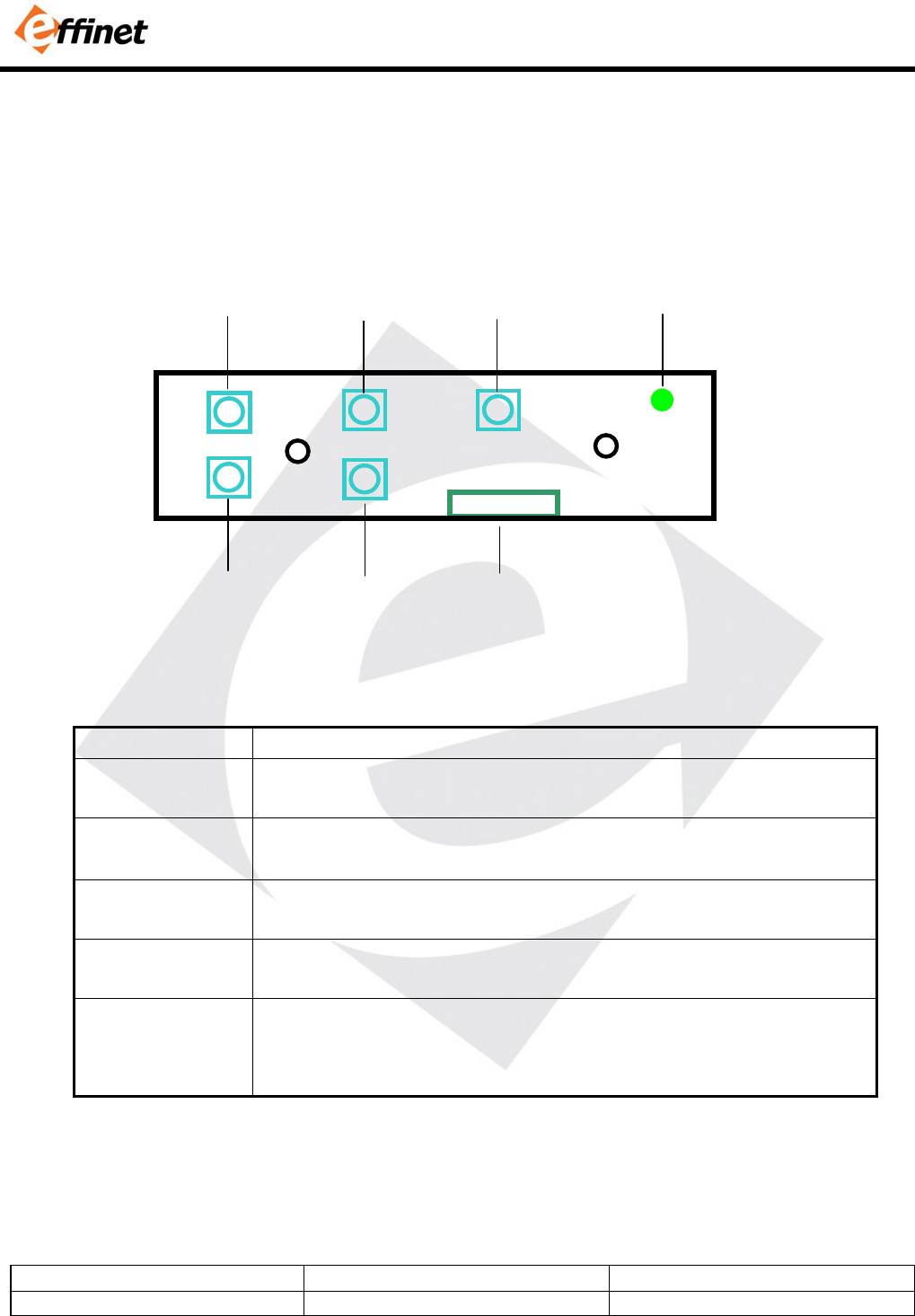

2-1. Description of Control Key
SWITCH NAME SWITCH FUNCTIONS
MENU Activate / Deactivate the OSD Menu Window.
Move cursor to Main Menu from sub-menu.
SEL
(AUTO)
Move cursor in the Sub-Menu(Brightness ↔ Mode)
Auto Tracking (Pressing “SEL” key)
UP(+) Move cursor at Main Menu(Picture / Utility)
Increase the value of the selected function
DOWN(-) Move cursor at Main Menu(Picture / Utility)
Decrease the value of the selected function.
INPUT SELECT Select the input signal( RGB → Video → S-Video → RGB…)
When power off / on, the last memoried input mode will be displayed.
Apply for 3 input model.
Cable
Connect
SEL
(AUTO)
UP
(+)
DOWN
(-)
MENU Status
LED
INPUT SELECT
* 3 input option only
Model No. : EFL-1903X Engineering Specification
Approval No.: 19-SS-STD Revision No.: 2.2 Issue Date: Aug. 03. 2004

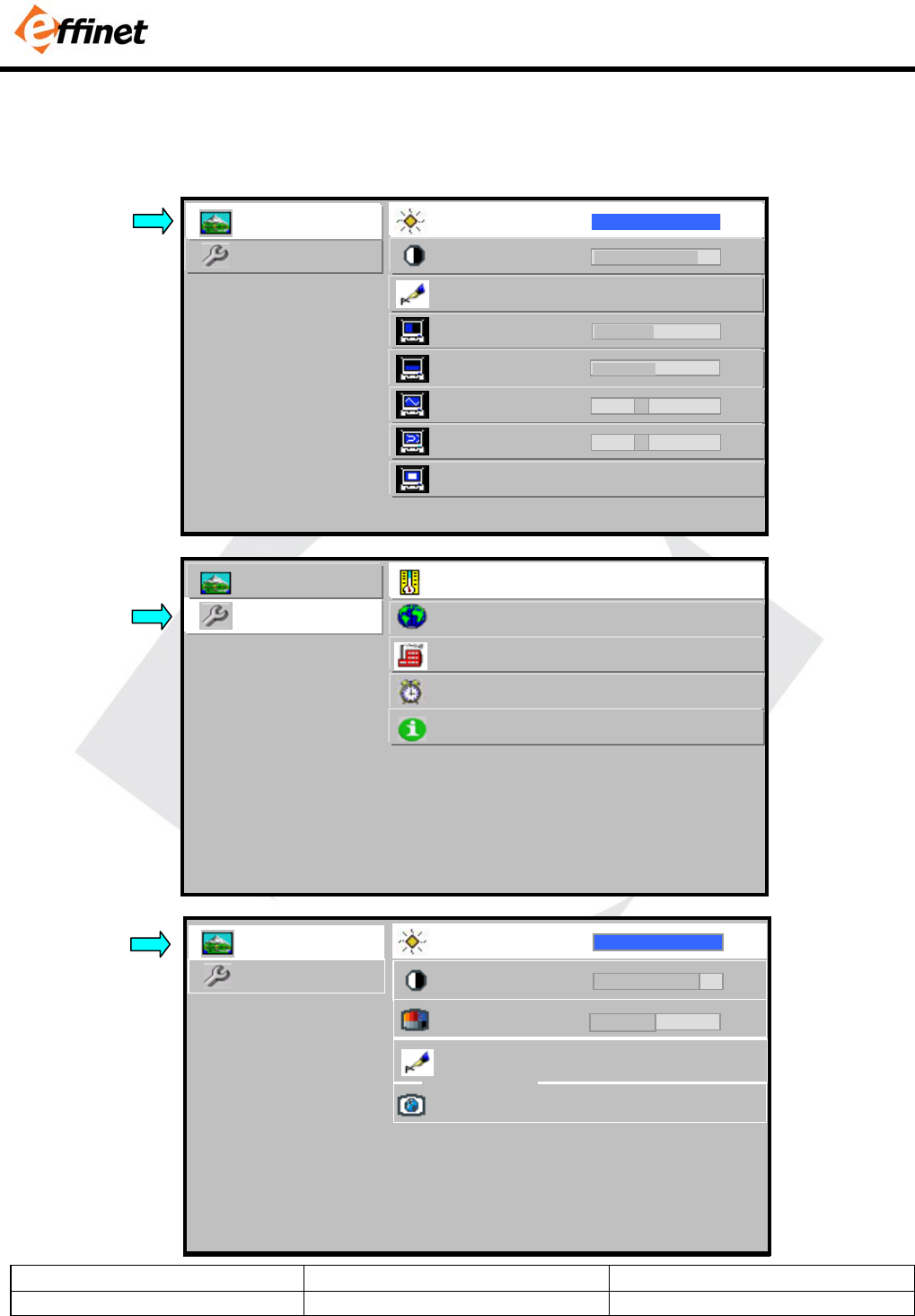

2-2. OSD MENU SCREEN
UTILITY
PICTURE Brightnes
s
-
100 +
contrast -
80 +
sharpnes
s
4
h position -
50 +
v position -
50 +
phase -
18 +
frequency -
105 +
mode normal fill to aspect
ratio
1 2 3 4 5
UTILITY
PICTURE color
temp
6500 7300 9300 user
language english german
factory press <up> to reset
power on time 10
information 800 x 600 / 60Hz
UTILITY
PICTURE Brightnes
s
-
100 +
contrast -
80 +
Video format press <up> to select
color -
50 +
sharpnes
s
4 1 2 3 4 5
VIDEO /
S-VIDEO
Input
Model No. : EFL-1903X Engineering Specification
Approval No.: 19-SS-STD Revision No.: 2.2 Issue Date: Aug. 03. 2004
2-3. OSD Control Functions
CONTROL FUNCTION
Auto Tracking Automatic screen adjustment process.
If there is any noise on the screen or screen shift, just press “ SEL”
button.
Since this monitor is equipped with “Auto Tracking” function, it will
automatically configure the monitor setting.
Brightness Adjust the brightness level of the Display
Contrast Adjust the contrast level of the Display.
Sharpness Adjuust the sharpness level of the Display
H position Adjust the position of the display horizontally.
V position Adjust the position of the display vertically.
Phase Adjust the clock phase of the display.
Frequency Adjust the clock frequency of the display
Mode Select the video aspect ratio. It depends on the input video format.
COLOR TEMP Choose different preset color temperatures
(6500/7300/9300) or set your own customized color parameters.
Red /Green / Blue GAIN Adjust the Red/ Green / Blue Gain
Language Select the OSD language
Factory recall Recall the factory setting value.
Power On time Displayed the total power on time.
Information Displayed the resolution of input signal
Color Set the color (saturation) level
Tint(Hue) Set the hue level. Only for the “NTSC” system
Video Format Select the corresponding input video system.
“Auto” setting means monitor automatically recognize the input video
system. – Default setting
AUTO, NTSC M, NTSC 4.43, PAL M, PAL BGDHI, PAL N SECAM
Self Test Pattern To enter auto burn-in mode, press “Up” key first and then “Sel” key
simultaneously for 3 seconds.
On this mode, Red – Green – Blue – White – Black test pattern will be
displayed. Press Menu key for returning normal display mode.
* Brightness and Contrast value can be set individually for each input mode.
* Color Temperature can be set individually for RGB and Video (S-Video).
Model No. : EFL-1903X Engineering Specification
Approval No.: 19-SS-STD Revision No.: 2.2 Issue Date: Aug. 03. 2004

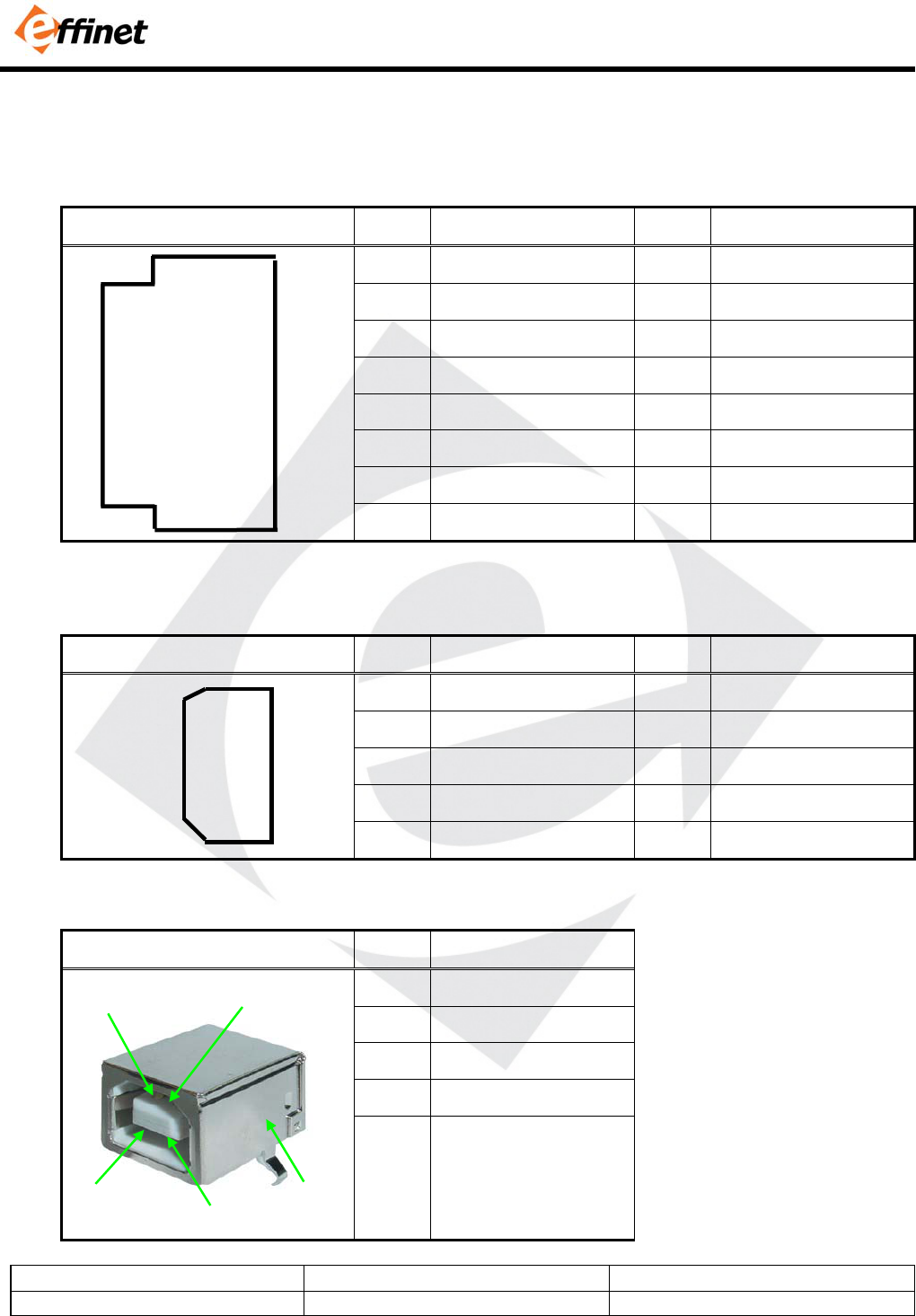

3. CONNECTOR PIN DESCRIPTIONS
3-1. 15 Pin D-SUB Connector
Shape and pin number Pin Description Pin Description
1 Red 9 No Connection
2 Green 10 Ground - Sync
3 Blue 11 No Connection
4 Ground 12 No Connection
5 Ground 13 Horizontal Sync
6 Ground - Red 14 Vertical Sync
7 Ground - Green 15 No Connection
8 Ground - Blue
3-2. Serial(RS-232C) Connector
Shape and pin number Pin Description Pin Description
1 DCD 6 DSR
2 RXD 7 RTS
3 TXD 8 CTS
4 DTR 9 N/A
5 Ground
3-3. USB Connector
Shape and pin number Pin Description
1 +5V
2 DATA (DN)
3 DATA (DP)
4 0V
5 Cable Shield Shell
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
4
3 5
2
6
7
8
9
1
2
3
4
5
Model No. : EFL-1903X Engineering Specification
Approval No.: 19-SS-STD Revision No.: 2.2 Issue Date: Aug. 03. 2004
4. STANDARD DISPLAY MODE
Horizontal Vertical
No. Mode Resolution
Frequency Polarity Frequency Polarity
Pixel clock
1 720 x 400 31.47 KHz N 70.0 Hz P 28.322 MHz
2 640 x 480 31.47 KHz N 60.0 Hz N 25.175 MHz
3 640 x 480 35.00 KHz N 66.7 Hz N 30.240 MHz
4 640 x 480 37.86 KHz N 72.8 Hz N 31.500 MHz
5
VGA
640 x 480 37.50 KHZ N 75.0 Hz N 31.500 MHz
6 800 X 600 35.16 KHz N / P 56.3 Hz N / P 36.000 MHz
7 800 X 600 37.88 KHz P 60.3 Hz P 40.000 MHz
8 800 X 600 48.08 KHz P 72.2 Hz P 50.000 MHz
9 800 X 600 46.87 KHz P 75.0 Hz P 49.500 MHz
10
SVGA
832 X 624 49.73 KHz N 74.6 HZ N 57.284 MHz
11 1024 X 768 48.36 KHz N 60.0 Hz N 65.000 MHz
12 1024 X 768 56.49 KHz N 70.1 Hz N 75.000 MHz
13
XGA
1024 X 768 60.02 KHz P 75.0 Hz P 78.750 MHz
14 1280 X 1024 63.98 KHz P 60.0 Hz P 108.00 MHz
15
SXGA
1280 X 1024 79.98 KHz P 75.0 Hz P 135.00 MHz
Model No. : EFL-1903X Engineering Specification
Approval No.: 19-SS-STD Revision No.: 2.2 Issue Date: Aug. 03. 2004
5. MECHANICAL STRUCTURE
