Effinet Systems, Inc. LCD Monitor for Gaming
User Manual
Model No. : EFL-2602W Engineering Specification Page : 1 of 12
Approval No.: 26-SS -STD Revision No.: 2.3 Issue Date: May. 17. 2005
Engineering Specification
Model No. EFL-2602W
26inches wide LCD Monitor
- Samsung TFT LCD Panel
- High performance up-Scaling characteristic
- Automatic Scanning
- Wide Viewing Angle, High Speed Response
- Enhanced Video Quality
- Power Supply with enhanced Design Margin
- Test Pattern for Burn-in & Self Check
- Option
3 Input (RGB, AV, SVHS)
DVI Input
Stereo Audio Amplifier
Customer’s logo display
on Booting is available
Model No. : EFL-2602W Engineering Specification Page : 2 of 12
Approval No.: 26-SS -STD Revision No.: 2.3 Issue Date: May. 17. 2005
Table of Contents
1. GENERAL DESCRIPTION.................................................... 3
1-1. Overview ...................................................................................................................... 3
1-2. FCC RF INTERFERENCE STATEMENT................................................................ 3
1-3. Quick reference table of Characteristics ........................................................................ 4
2. USER CONTROL & OSD...................................................... 6
2-1. Key Control Board..........................................................................................................6
2-2. OSD Menu Screen ......................................................................................................... 7
2-3. OSD Control Functions .................................................................................................. 8
3. CONNECTOR PIN DESCRIPTIONS .................................... 9
3-1. 15 Pin D-SUB Connector ............................................................................................... 9
3-2. Audio Connector ............................................................................................................9
4. STANDARD DISPLAY MODE............................................. 10
5. MECHANICAL STRUCTURE.............................................. 11
Model No. : EFL-2602W Engineering Specification Page : 3 of 12
Approval No.: 26-SS -STD Revision No.: 2.3 Issue Date: May. 17. 2005
1. GENERAL DESCRIPTION
1-1. Overview
Effinet open frame LCD Monitor EFL-2602W is a high performance TFT LCD monitor providing high
quality image from the analog RGB / DVI / CVBS / S-VHS input.
This monitor supports wide range signal input from VGA to WXGA resolution at vertical refresh rate of
60Hz. It includes integrated signal processing unit, named LSP (LCD Signal Processor), which had all
electronic function for user application.
It is designed for industrial use with up scaling performance adequate for low-resolution application and
enhanced design margin for reliability.
It also gives versatile optional features like, DVI input, Video input, Stereo Audio amplifier, Boot up custom
logo and custom designed frame.
1-2. FCC RF INTERFERENCE STATEMENT
NOTE :
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures.
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio, TV technical for help.
- Only shielded interface cable should be used.
Finally, any changes or modifications to the equipment by the user not expressly approved by the grantee or
manufacturer could void the users authority to operate such equipment.
Model No. : EFL-2602W Engineering Specification Page : 4 of 12
Approval No.: 26-SS -STD Revision No.: 2.3 Issue Date: May. 17. 2005
1-3. Quick reference table of Characteristics
Size 26” Diagonal
Active Display Area 575.77 x 323.71 mm
Type No. Samsung, LTA260W2
Number of Pixels 1366 (H) x 768 (V)
Pixel Arrangement RGB Vertical Stripe
Pixel Pitch 0.511 mm x 0.511 mm
Color Depth 16.7M True Color
Surface Treatments Hard Coating (3H), Haze 44%
Viewing Angle
(CR≥10)
Horizontal : θL 85 degrees
θR 85 degrees
Vertical : Φ H 85 degrees
Φ L 85 degrees
Contrast Ratio Typ. 1000 : 1
Response Time
Rise time(tr) : 10ms(Typ.)
Fall time(tf) : 6ms(Typ.)
Average Brightness Typ. 500 cd/ m2
Frame Rate Typ. 60Hz
Panel Dimension (WHD) 626.0 x 373.0 x 51mm
Panel
CCFT 16 Lamps
Horizontal 30 ~ 60KHz
Scanning
Frequency Vertical 50 ~ 60Hz
Prime 1280 x 768 @ 60 Hz
Resolution
Standard 720x400 @70 Hz
640x480 @60 Hz
800x600 @60 Hz
1024x768 @60 Hz
1280x768 @60 Hz
RGB (Video / Sync) RGB Analog (0.7Vp-p, 75ohms) / H/V Separate (TTL)
Input Signal
CVBS Composite Video 1Vp-p, 75ohms
Type Separate H/V sync, Composite, SOG (Sync-On-Green)
Level TTL level (V high ≥ 2.0V, V low ≤ 0.8V)
Sync
Polarity Positive or Negative
RGB 15pin D-Sub Input Signal
Interface Video RCA Jack - 1 ea.
Model No. : EFL-2602W Engineering Specification Page : 5 of 12
Approval No.: 26-SS -STD Revision No.: 2.3 Issue Date: May. 17. 2005

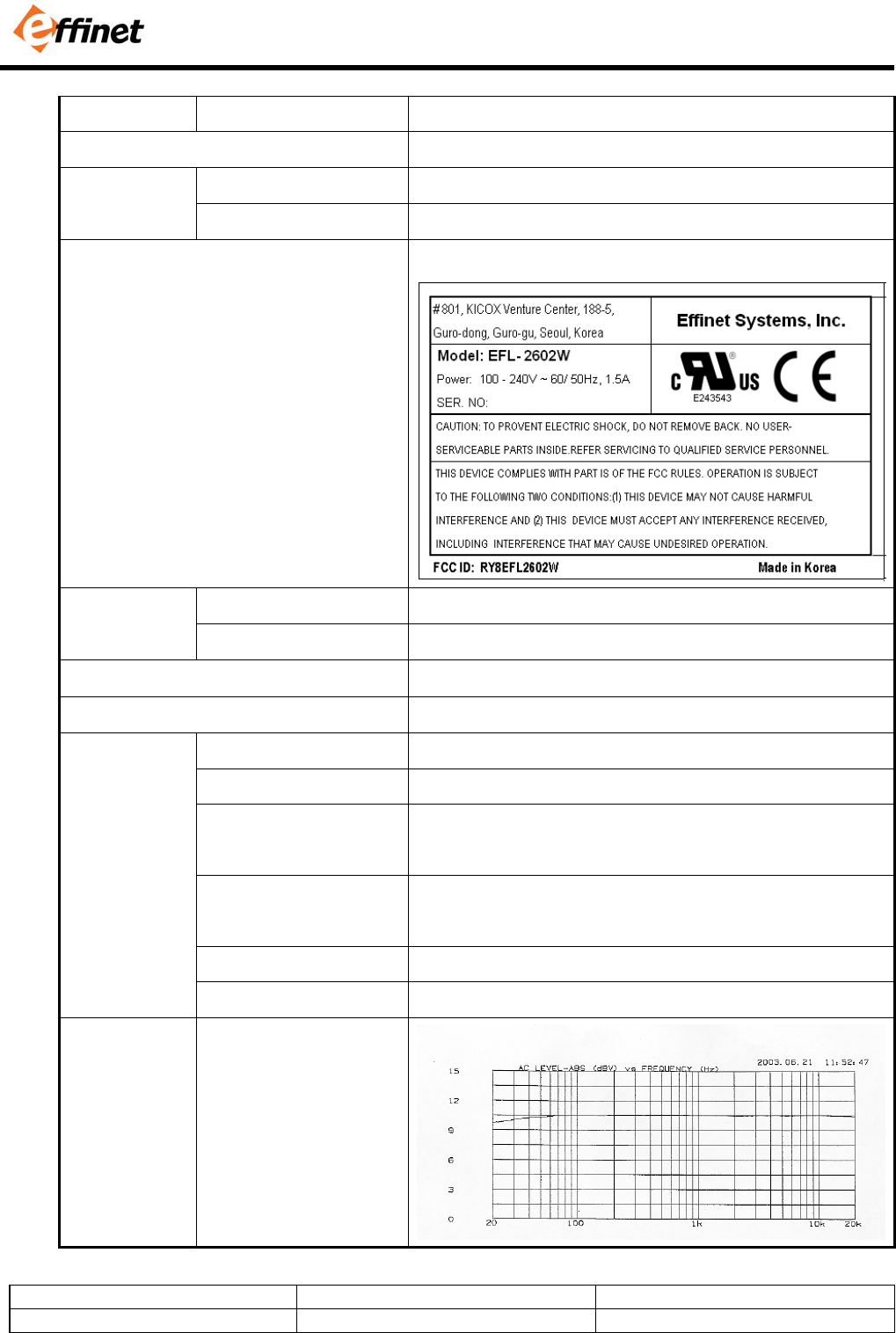

S-Video SVHS Jack - 1 ea.
Compatible Color System NTSC / PAL / SECAM
AC Input AC 90 ~ 265V @60/50Hz, Universal Power Power
Max. Power dissipation 110 Watts
Regulation (Safety, Ergonomics, EMC) CUL (UL+CSA), CE, FCC
Operating Temperature: 0 to 50ºC / Humidity: 8 to 80% Environmental
Conditions Storage Temperature: -20 to 60ºC / Humidity: 5 to 90%
White Color Temperature 12000°K : CIE x=0.272±0.015 / y=0.277±0.015
Demonstrated MTBF More than 20,000 hours
Mono / Stereo Stereo
Input Audio Jack 3.5mm mini jack
Audio Output Nominal 1.3 Wrms at 8 ohms
* No external power for audio operation is needed
Speaker Connector Molex 5240: 2p(Left), 3p(Right);
* Speaker side: Molex 5102
S/N Ratio Over than 80dB
Audio
(Optional)
THD Under 10% (THD: Total Harmonic Distortion)
Audio
(Optional)
Frequency Response
Model No. : EFL-2602W Engineering Specification Page : 6 of 12
Approval No.: 26-SS -STD Revision No.: 2.3 Issue Date: May. 17. 2005
2. USER CONTROL & OSD

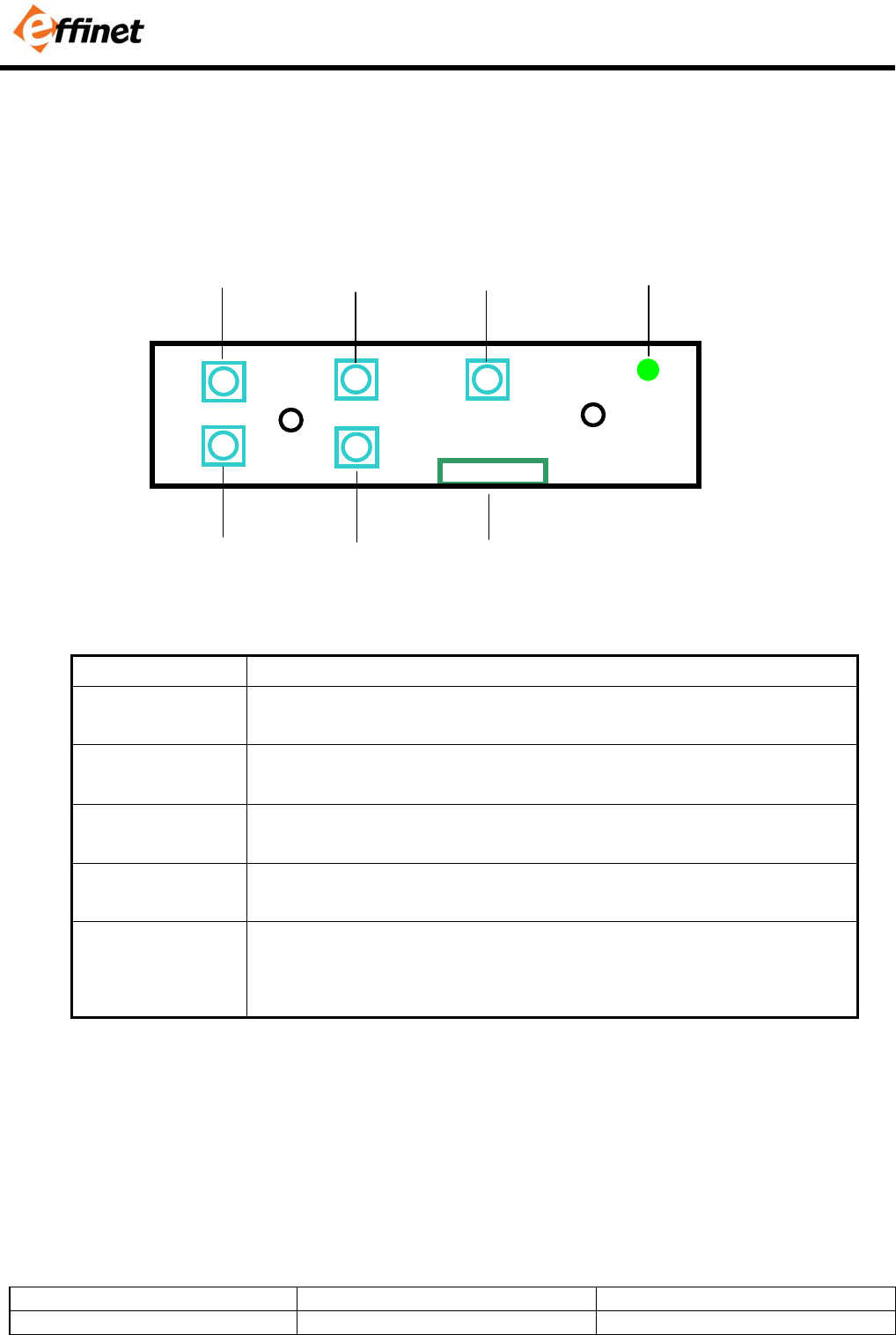

2-1. Key Control Board
SWITCH NAME SWITCH FUNCTIONS
MENU Activate / Deactivate the OSD Menu Window.
Move cursor to Main Menu from sub-menu.
SEL
(AUTO)
Move cursor in the Sub-Menu(Brightness ↔ Mode)
Auto Tracking (Pressing “SEL” key)
UP(+) Move cursor at Main Menu(Picture / Utility)
Increase the value of the selected function
DOWN(-) Move cursor at Main Menu(Picture / Utility)
Decrease the value of the selected function.
INPUT SELECT Select the input signal( RGB → Video → S-Video → RGB…)
When power off / on, the last memoried input mode will be displayed.
Apply for 3 input model.
Cable
Connect
SEL
(AUTO)
UP
(+)
DOWN
(-)
MENU Status
LED
INPUT SELECT
* 3 input option only
Model No. : EFL-2602W Engineering Specification Page : 7 of 12
Approval No.: 26-SS -STD Revision No.: 2.3 Issue Date: May. 17. 2005

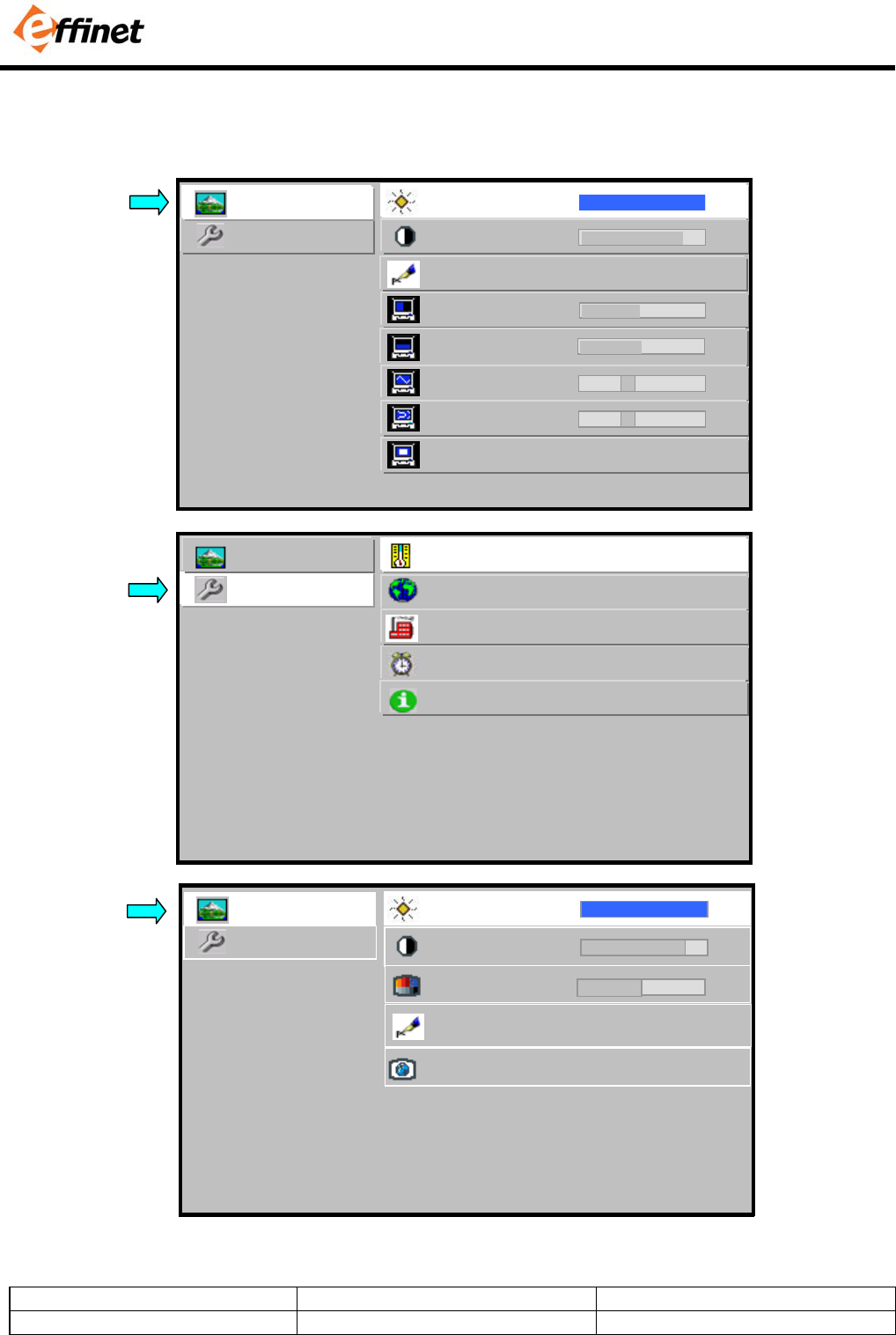

2-2. OSD Menu Screen
UTILITY
PICTURE brightness -
100 +
contrast -
80 +
sharpness 4
h position -
50 +
v position -
50 +
phase -
18 +
frequency -
105 +
mode normal fill to aspect ratio
1 2 3 4 5
UTILITY
PICTURE color temp 6500 7300 9300 user
language english german
factory press <up> to reset
power on time 10 hr
information 800 x 600 / 60Hz
UTILITY
PICTURE brightness -
100 +
contrast -
80 +
Video format press <up> to select
color -
50 +
sharpness 4 1 2 3 4 5
VIDEO /
S-VIDEO
Input
Model No. : EFL-2602W Engineering Specification Page : 8 of 12
Approval No.: 26-SS -STD Revision No.: 2.3 Issue Date: May. 17. 2005
2-3. OSD Control Functions
CONTROL FUNCTION
Auto Tracking Automatic screen adjustment process.
If there is any noise on the screen or screen shift, just press “ SEL”
button.
Since this monitor is equipped with “Auto Tracking” function, it will
automatically configure the monitor setting.
Brightness Adjust the brightness level of the Display
Contrast Adjust the contrast level of the Display.
Sharpness Adjuust the sharpness level of the Display
H position Adjust the position of the display horizontally.
V position Adjust the position of the display vertically.
Phase Adjust the clock phase of the display.
Frequency Adjust the clock frequency of the display
Mode Select the video aspect ratio. It depends on the input video format.
COLOR TEMP Choose different preset color temperatures
(12000/7300/9300) or set your own customized color parameters.
Red /Green / Blue GAIN Adjust the Red/ Green / Blue Gain
Language Select the OSD language
Factory recall Recall the factory setting value.
Power On time Displayed the total power on time.
Information Displayed the resolution of input signal
Color Set the color(saturation) level
Tint(Hue) Set the hue level. Only for the “NTSC” system
Video Format Select the corresponding input video system.
“Auto” setting means monitor automatically recognize the input video
system. – Default setting
AUTO, NTSC M, NTSC 4.43, PAL M, PAL BGDHI, PAL N SECAM
Self Test Pattern To enter auto burn-in mode, press “Up” key first and then “Sel” key
simultaneously for 3 seconds.
On this mode, Red – Green – Blue – White – Black test pattern will be
displayed. Press Menu key for returning normal display mode.
* Brightness and Contrast value can be set individually for each input mode.
* Color Temperature can be set individually for RGB and Video(S-Video).
Model No. : EFL-2602W Engineering Specification Page : 9 of 12
Approval No.: 26-SS -STD Revision No.: 2.3 Issue Date: May. 17. 2005

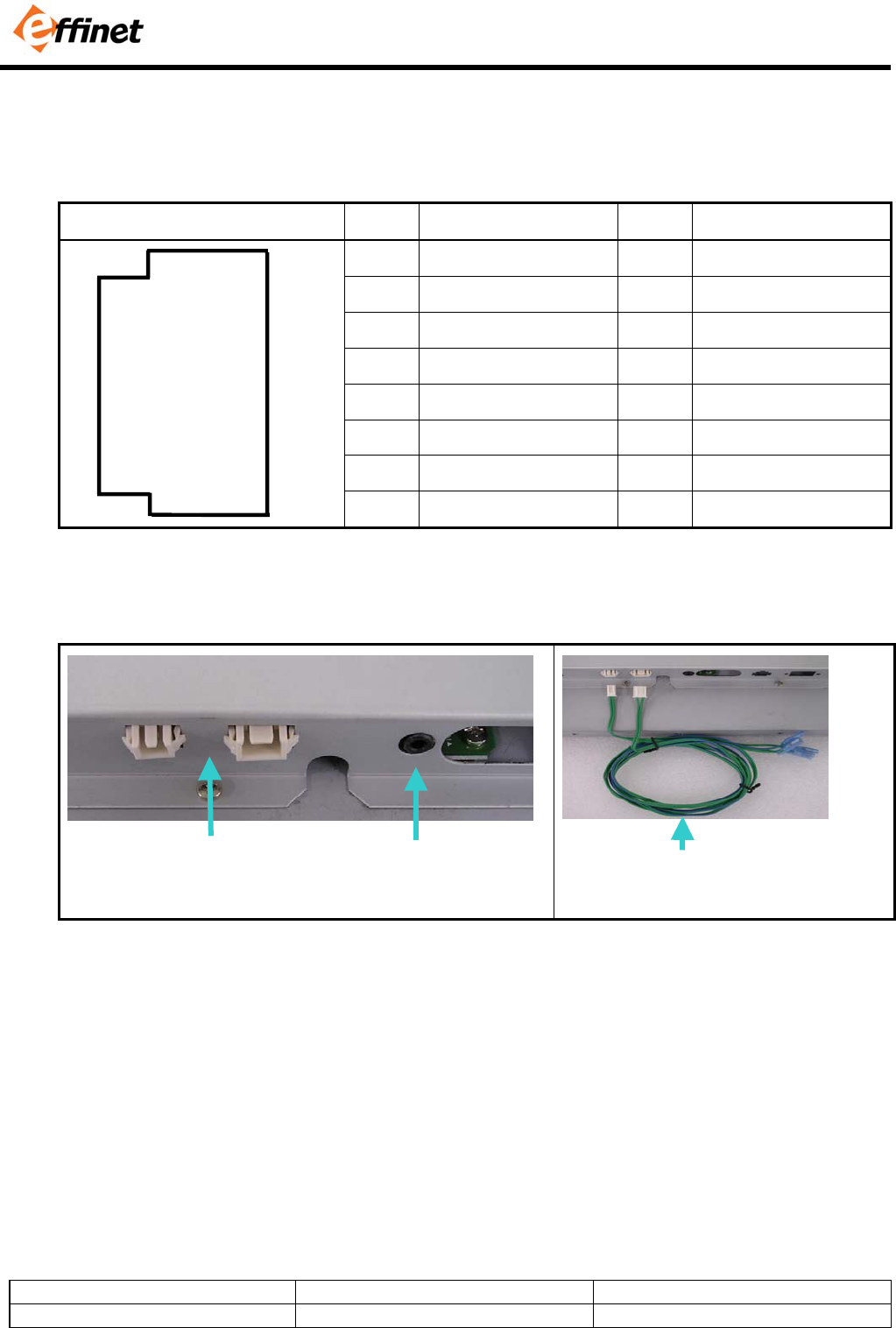

3. CONNECTOR PIN DESCRIPTIONS
3-1. 15 Pin D-SUB Connector
Shape and pin number Pin Description Pin Description
1 Red 9 No Connection
2 Green 10 Ground - Sync
3 Blue 11 No Connection
4 Ground 12 No Connection
5 Ground 13 Horizontal Sync
6 Ground - Red 14 Vertical Sync
7 Ground - Green 15 No Connection
8 Ground - Blue
3-2. Audio Connector
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Speaker Connector (2M)
- Optional
Stereo Audio Input
(3.5mm mini Jack)
Speaker Out Connector
- Molex : 5240
- 2
p(
Left
),
3
p(
Ri
g
ht
)
Model No. : EFL-2602W Engineering Specification Page : 10 of 12
Approval No.: 26-SS -STD Revision No.: 2.3 Issue Date: May. 17. 2005
4. STANDARD DISPLAY MODE
Horizontal Vertical
No. Mode Resolution
Frequency Polarity Frequency Polarity
Pixel clock
1 720 x 400 31.47 KHz N 70.0 Hz P 28.322 MHz
2
VGA
640 x 480 31.47 KHz N 60.0 Hz N 25.175 MHz
3 800 X 600 35.16 KHz N / P 56.3 Hz N / P 36.000 MHz
4
SVGA
800 X 600 37.88 KHz P 60.3 Hz P 40.000 MHz
5 XGA 1024 X 768 48.36 KHz N 60.0 Hz N 65.000 MHz
6 WXGA 1280 X 768 47.7 KHz N 60.0 Hz P 80.152 MHz
Model No. : EFL-2602W Engineering Specification Page : 11 of 12
Approval No.: 26-SS -STD Revision No.: 2.3 Issue Date: May. 17. 2005
5. MECHANICAL STRUCTURE

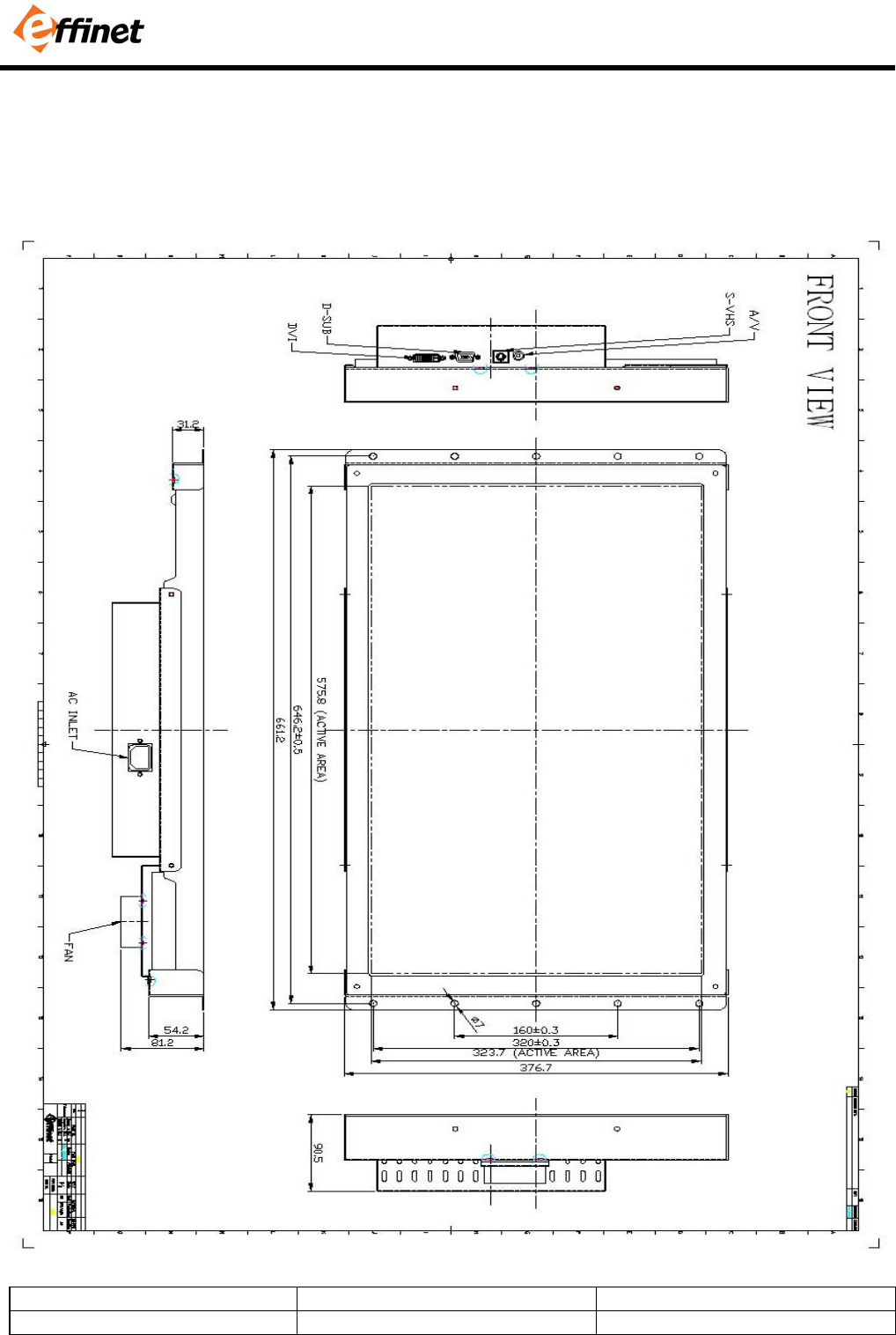

5.1 Front View
Model No. : EFL-2602W Engineering Specification Page : 12 of 12
Approval No.: 26-SS -STD Revision No.: 2.3 Issue Date: May. 17. 2005

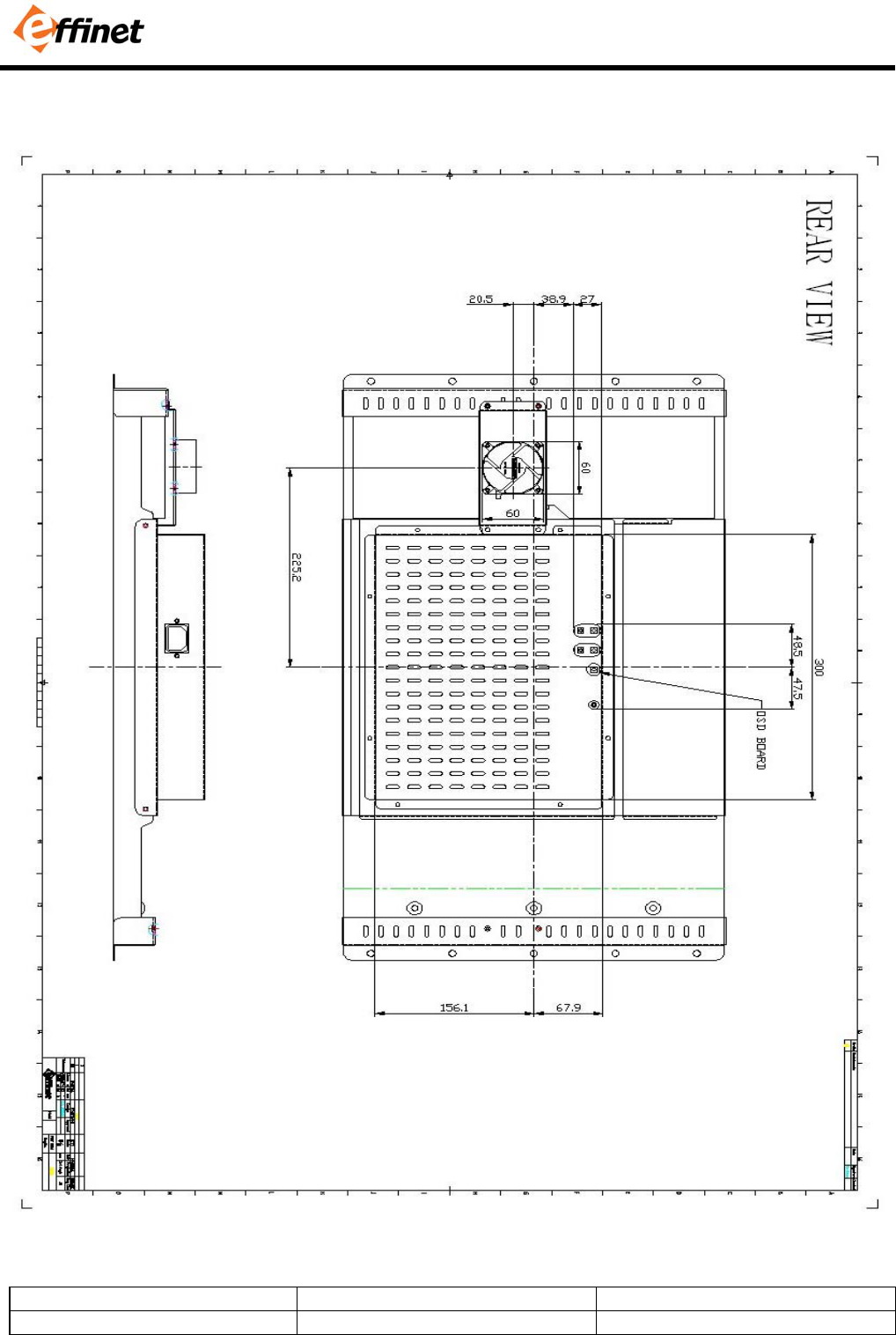

5-2. Rear View
