Electra 2400 Video transmitter User Manual Installation instructions

Electra Enterprises Video transmitter Installation instructions

Installation instructions

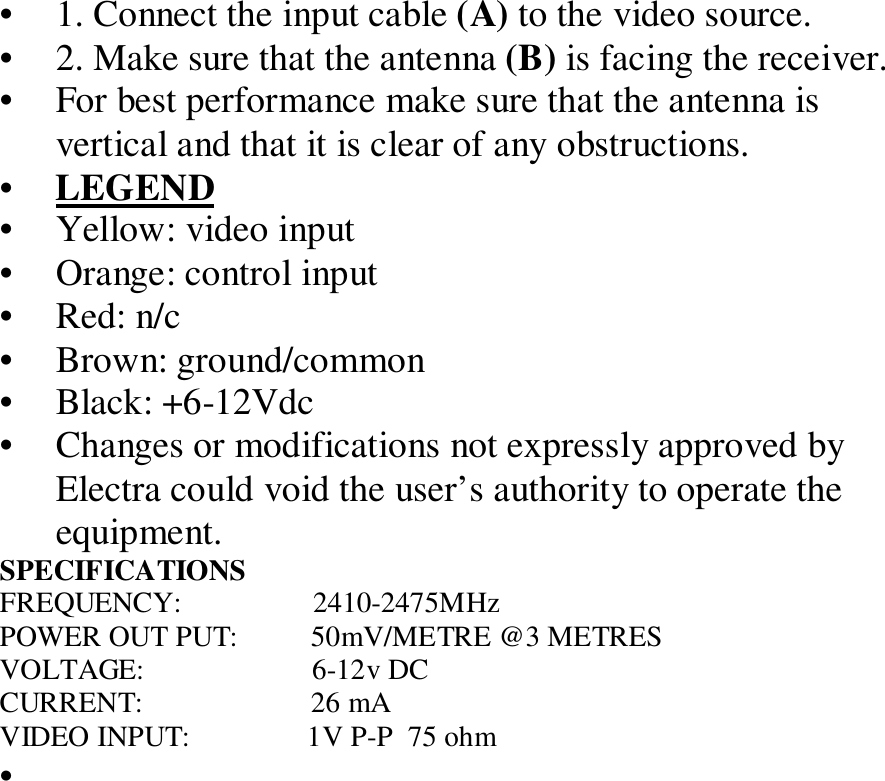

• 1. Connect the input cable (A) to the video source.• 2. Make sure that the antenna (B) is facing the receiver.• For best performance make sure that the antenna isvertical and that it is clear of any obstructions.• LEGEND• Yellow: video input• Orange: control input• Red: n/c• Brown: ground/common• Black: +6-12Vdc• Changes or modifications not expressly approved byElectra could void the user’s authority to operate theequipment.SPECIFICATIONSFREQUENCY:                  2410-2475MHzPOWER OUT PUT:          50mV/METRE @3 METRESVOLTAGE:                       6-12v DCCURRENT:                       26 mAVIDEO INPUT:                1V P-P  75 ohm•
