1
HSG Panini Grill
2
CYCLE 3 CYCLE 2
HSG Panini Grill.
Taste the difference!
Bread type: piadina
Ingredients: bread, hard-boiled egg,
anchovy, lettuce, tuna, cream cheese,
bread.
Bread type: focaccia
Ingredients: bread, mayonnaise,
sliced hot dog, swiss cheese, bread.
Bread type: arabic bread
Ingredients: bread, black pepper,
dried tomatoes (julienne cut), crispy
bacon, mayonnaise, bread.
Bread type: round focaccia
Ingredients: bread, oregano, sliced
mozzarella cheese, ham, sliced
tomatoes, mayonnaise, bread.
Bread type: bagel
Ingredients: bread, mustard, smoked
provolone cheese, dried tomatoes, crispy
bacon, sliced turkey, mayonnaise, bread.
Bread type: french bread
Ingredients: bread, cream cheese,
grilled peppers, grilled zucchini,
grilled eggplants, mayonnaise, bread.
Bread type: ciabatta
Ingredients: bread, fresh spinach,
omelette with potatoes, onions,
marjoram and smoked provolone
cheese, bread.
Bread type: rosmary focaccia
Ingredients: bread, mozzarella
cheese (julienne cut), pesto, tropea
onions, grilled chicken breast, sliced
tomatoes, mayonnaise, bread.
Bread type: sliced rye bread
Ingredients: bread, mushroom
sauce, roast-beef, mushrooms, brie
cheese, mayonnaise, bread.
CYCLE 1
30˝ 30˝ 30˝
40˝ 40˝ 40˝
50˝ 50˝ 50˝
3
CYCLE 4
Heats in the shortest time.
Stays hot to the very last bite!
See the difference between the HSG Panini Grill and a Traditional Panini Grill
in the comparison* below. Isn’t that amazing?
* Based on internal tests.
Cycle 4: without microwave
Bread type: sliced white bread
Ingredients: bread, butter, mustard,
edamer cheese, ham, edamer
cheese, butter, bread.
Bread type: large ciabatta bread
Ingredients: bread, salami, bread.
59˝ 59˝
Traditional
Panini Grill
HSG
Panini Grill
cooking time
core temperature
40˝ 150˝
60 °C
4 °C
60 °C
in only 40˝
4
HSG Panini Grill.
Fast food, fast business!
Food Typology
Hot sandwiches and wraps with different
kinds of bread, stuffing (meat, cheese,
fish, vegetables) and dressings.
Performance*
•Startingtemperature:4°C
(refrigerated sandwich)
•Coretemperatureattheend
 ofthecookingphase:60°C
•Sandwichweight:350gr
•Cookingtime:lessthan60seconds
•Result:toastedbreadwithgrillmarksand
no food remaining on the cooking surface
*performance can slightly vary depending on the filling
Innovative features
•Combinationof3heatingmodes:
 -Contactplates
- Infrared radiation
- Microwaves
•Non-stickcontactsurface
•Self-adjustingupperplate
•Automaticholding
•Automaticlidopeningattheend
of the cooking phase
•Programmableelectroniccontrol
•Energysavingmode
4 different programmes/cooking phases
4 automatic programmes* available to
prepare different sandwich typologies
and to make operations extremely easy.
Then you only need to press a button
and serve your customer.
*Thevariableparametersare:
• Topplatetemperature**
• Bottomplatetemperature**
• Totalcookingphasetime
• Microwavephasetime
**temperature will be the same for all cooking cycles
Do you want to increase your business by serving delicious foods in the shortest time?

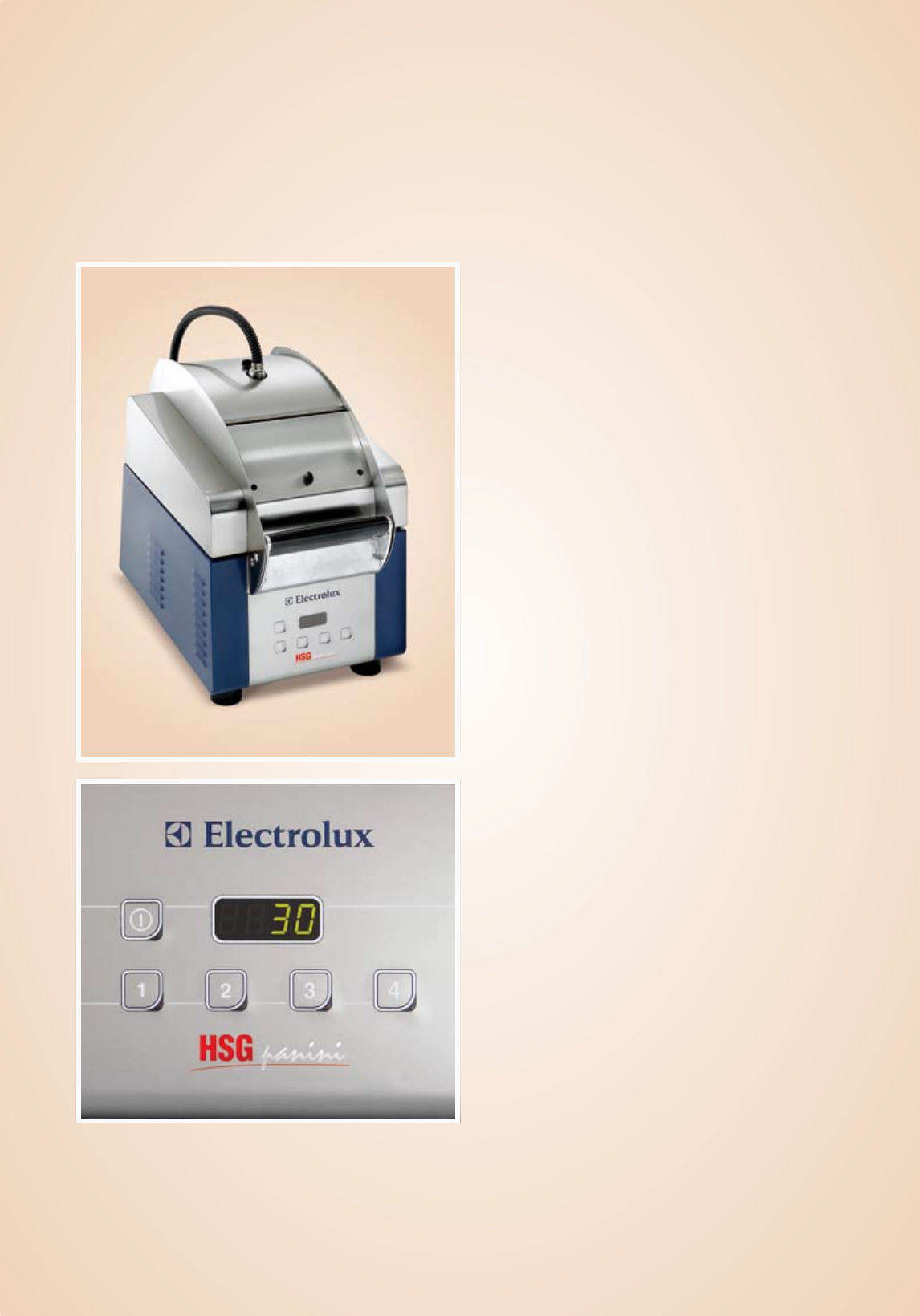

LEDdigitaldisplayshowingcookingcountdown

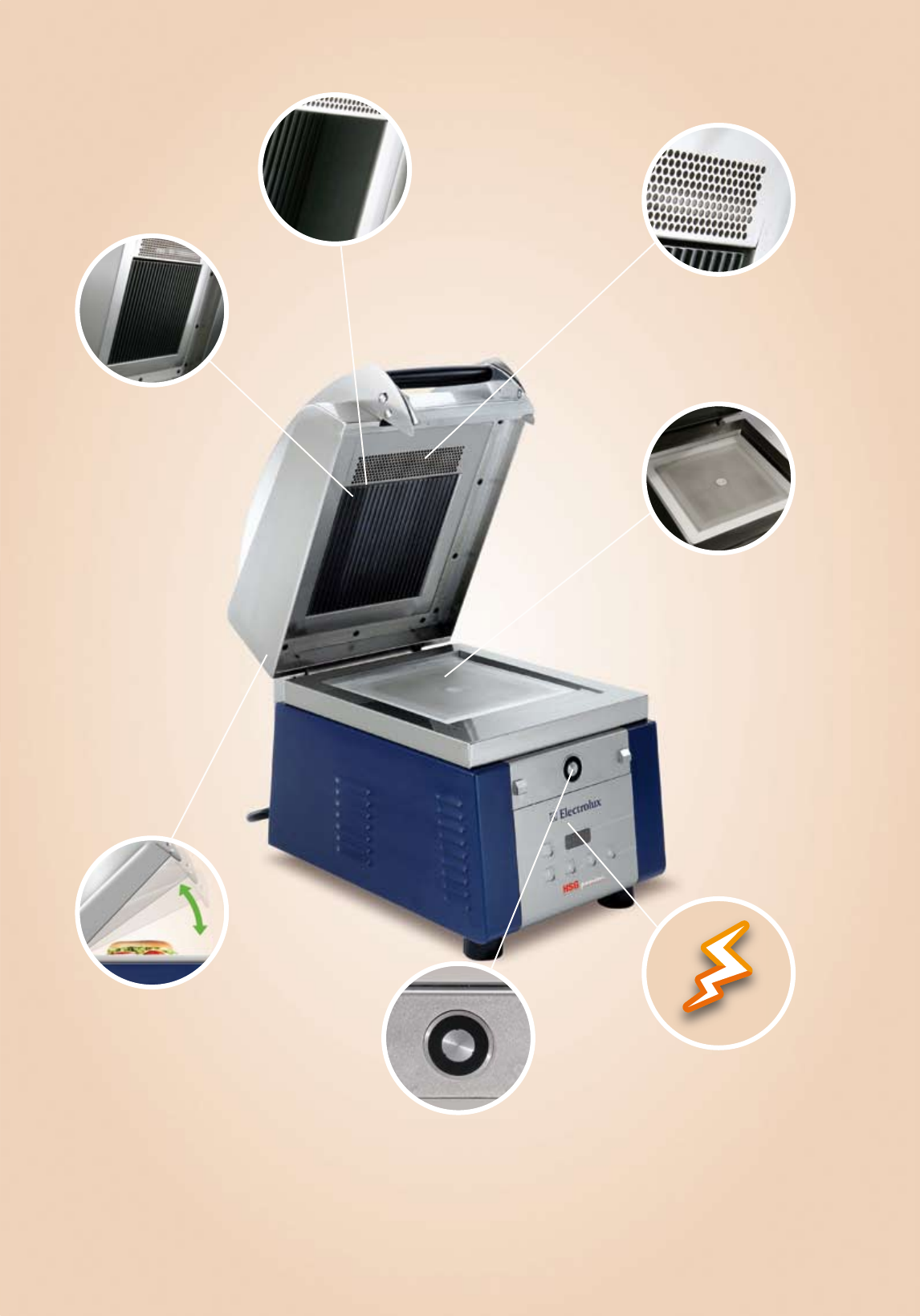

Bottom plate
• Glassquartzsmoothplate
• Non-sticksurface
• Dimensions:250x250mm
 (netcookingarea:
 215x215mm)
Moisture exhaust grid
Astainlesssteelgridpositioned
next to the top plate extracts
excess humidity leaving your
sandwiches crispy and tasty
Automatic holding
and opening system
•Automaticholdingsystemduring
the cooking phase (upper lid
stays closed)
•Automaticde-activationofthe
holding system at the end of the
cooking phase (upper lid opens)
•Machinere-startsonlywhenthe
lid is closed
Electro Magnet
The holding system is controlled
by an electro magnet which is
activated when the lid is closed
and de-activated as soon as the
cooking phase ends (countdown)
Speed
Great tasting, hot, toasted and
marked sandwiches in less than
60seconds
Top plate
• Aluminiumribbedplate
• Non-stickcoating
• Temperature
 upto250°C
• Dimensions:
 215x215mm
Self-adjusting upper plate
• Adjustableheight:
from0,8to7,5cm
5
6
HSG Panini Grill.
Auniquesuccessinhotsandwiches.
Speed
Upto6timesfasterthanastandardsandwich
grill*whileofferingthehighestquality.
The HSG Panini can grill a tasty and warm-to-
the-last-bitesandwichinonly30seconds!
*depending on the filling
Quality
Higher food quality in terms of taste, grill
marks, crispiness, flavour and nutritional
values (vitamin and protein preservation). The
result:aperfectlytoastedsandwich,warmed
throughout, directly from the refrigerator to
the plate in a few seconds.
Warm to the very last bite!
Contact heating plate
perfect grill marks for an appetizing
presentation
Glass quartz plate
thanks to the non-stick coating no
food residues remain on the plates
Infrared heater
delicious crispy sandwiches
in record times
Microwave
sandwiches which are warm inside
and out. Serve only the best
4
1
2
3
Did you know that by combining 3 different heating sources you can prepare
and serve the best sandwiches in the market in less than one minute?
1
2
3
1
44
Total installed power: 5,0kW External dimensions: 630x361x675mm
Topplatepower: 0,9kW Cooking plate dimensions:
Bottomplatepower: 0,9kW Topplate: 215x215mm
Microwavepower: 1,8kW Bottomplate: 215x215mm

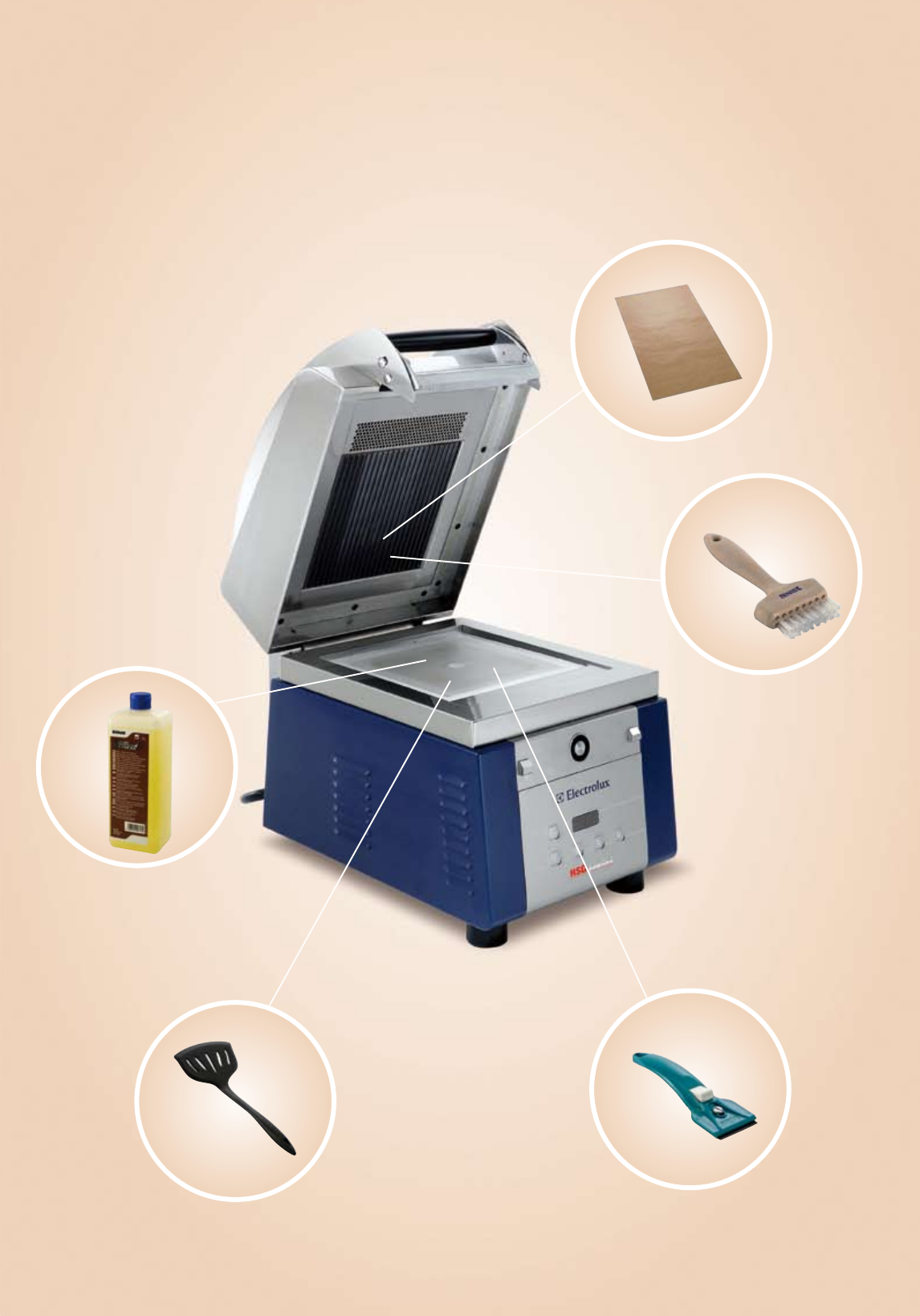

EasytoUse.EasytoClean.
Do you want more?
Degreaser
Spatula
Baking paper
Brush
Scraper
7
8
