Electronic Systems Technology HZN216AN Horizon 2.4 GHz Wireless Modem User Manual
Electronic Systems Technology Horizon 2.4 GHz Wireless Modem
User Manual
ESTeem Horizon Series
User’s Manual
Model 216An
Manual Revision 1.0
January 2016
Electronic Systems Technology, Inc.
Electronic Systems Technology, Inc.
Building B1
415 N. Quay Street
Kennewick, WA 99336
Phone: 509-735-9092
Fax: 509-783-5475
E-mail: market@esteem.com
Web Site: www.esteem.com
Copyright© 2016 by Electronic Systems Technology, Inc.
All rights reserved. Printed in the United States of America. No part of this publication may be reproduced, stored
in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording,
or otherwise, without the prior written permission of Electronic Systems Technology.
Author:
Date:
Name:
Eric P. Marske
Title:
Product Support Manager
Approved by:
Date:
Name:
Mike Eller
Title:
Vice President
PRODUCT WARRANTY
ELECTRONIC SYSTEMS TECHNOLOGY, INC. Specifications subject to change without notice
415 North Quay Street Kennewick, WA 99336 www.esteem.com
Phone (509) 735-9092 Fax (509) 783-5475 Revised: 19 Jan 2016
Electronic Systems Technology, Inc., (hereinafter EST) expressly warrants its products as free of manufacturing defects for a period
of one year from the date of sale to first user/customer. THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED AND
THERE IS EXPRESSLY EXCLUDED ALL WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE. NO OTHER WARRANTY GIVEN BY ANY EMPLOYEE, AGENT, DISTRIBUTOR OR OTHER PERSON WITH
RESPECT TO THE PRODUCT SHALL BE BINDING ON EST.
LIMITATION OF LIABILITY:
EST's liability shall be limited to refunding of purchase price, repair or replacement of product. IN NO EVENT SHALL EST HAVE
LIABILITY FOR CONSEQUENTIAL, INCIDENTAL, SPECIAL OR EXEMPLARY DAMAGES CAUSED DIRECTLY OR
INDIRECTLY BY THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY INTERRUPTION OF SERVICES, LOSS OF
BUSINESS OR ANTICIPATORY PROFITS. IN NO EVENT SHALL EST BE LIABLE FOR ANY DAMAGES WHATSOEVER IN
EXCESS OF THE PURCHASE PRICE OF THE PRODUCT.
In the event that a unit or part requires replacement or factory servicing, the following conditions apply:
a) Customer must obtain from EST an authorized RMA (Return Materials Authorization) Number before shipment of product
or parts to EST for any reason;
b) If the whole unit is shipped, it must be in its original carton and shipping components, or a carton and shipping
components supplied by EST, or it parts only are shipped, they must be packaged and cushioned so as to prevent
damage in transit and shipped freight prepaid;
PRODUCT WILL BE CONSIDERED OUT OF WARRANTY IF:
a) If the product is damaged due to improper or abnormal use, abuse, mishandling, accident or improper maintenance or
failure to follow operating instruction;
b) If the product is defective as a result of sand, dirt, or water damage;
c) If any factory-sealed enclosure has been opened or shows evidence of an attempt to be opened;
d) If defects or damage are caused by the use of unauthorized parts or unauthorized service;
e) If the product has had its serial numbers altered or removed.
Warranty repair form must be accompanied by proof of user's purchase of unit. Product must be shipped to the manufacturer at the
following address:
ESTeem Wireless Modems
415 North Quay Street
Kennewick, Washington USA 99336
ADDITIONAL SERVICE:
If EST releases an improvement update to firmware internal to the ESTeem unit during the 90 day period after the unit was
purchased by the first user/customer, EST will update the applicable unit with the revised version at no charge other than for UPS
handling and shipping to and from your location to the EST factory. Return of any such item must be accompanied with proof of
purchase.
TABLE OF CONTENTS
Revised: 19 Jan 16 Page 1 EST P/N AA107-Horizon
CHAPTER 1 – Introduction
Before You Begin
1-1
Horizon Series Overview
1-1
Horizon Configuration Modes
1-1
Access Point Modes
---------------------------------------------
1-2
Access Point Repeater
---------------------------------------------
1-3

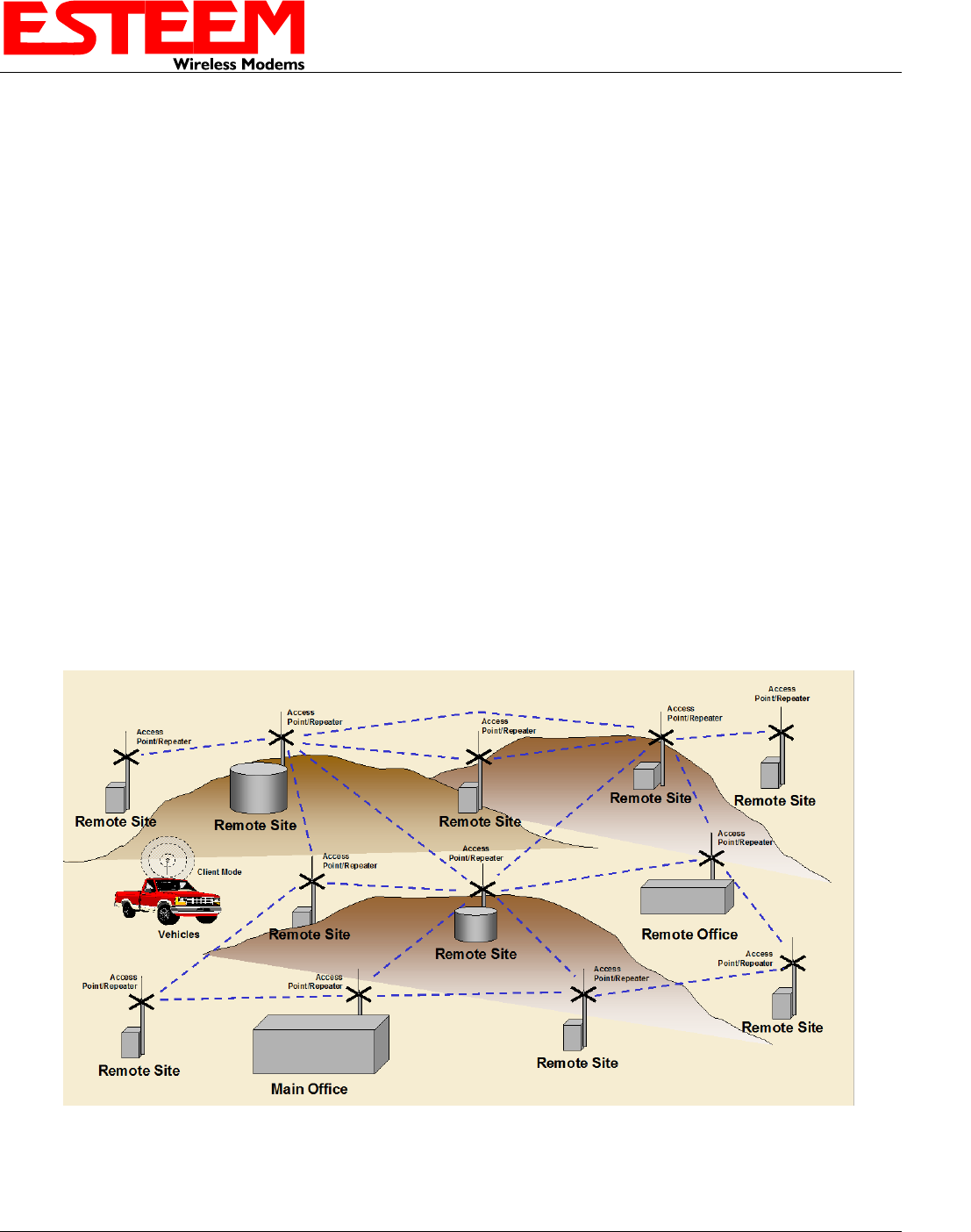

Self-Healing Mesh Network
---------------------------------------------
1-3

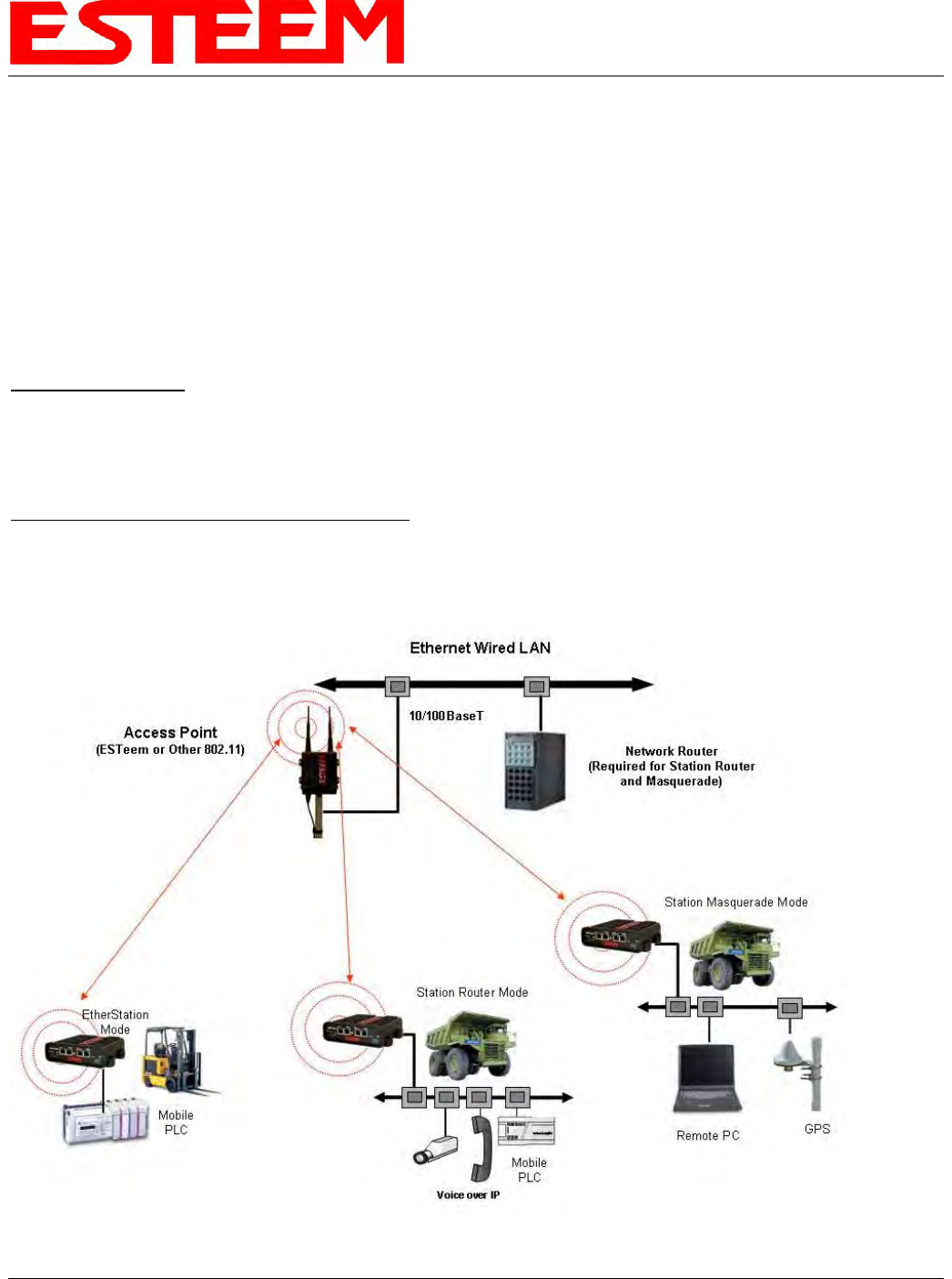

Station (WiFi Client) Modes
---------------------------------------------
1-4
RS-232 Serial Applications
---------------------------------------------
1-5
CHAPTER 2 – Starting Out
Three Configuration Phases
2-1
Horizon Hardware Description
2-1

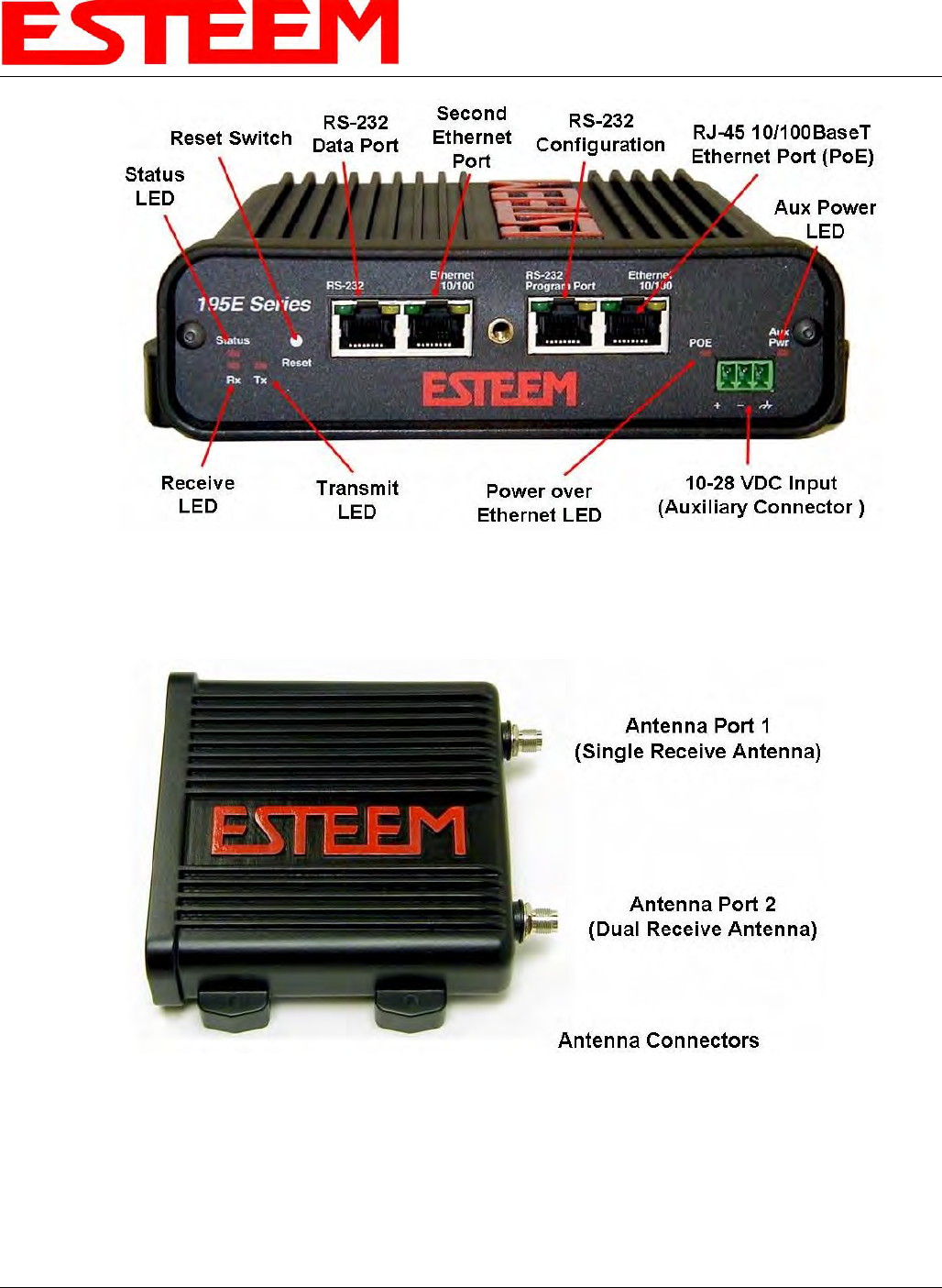

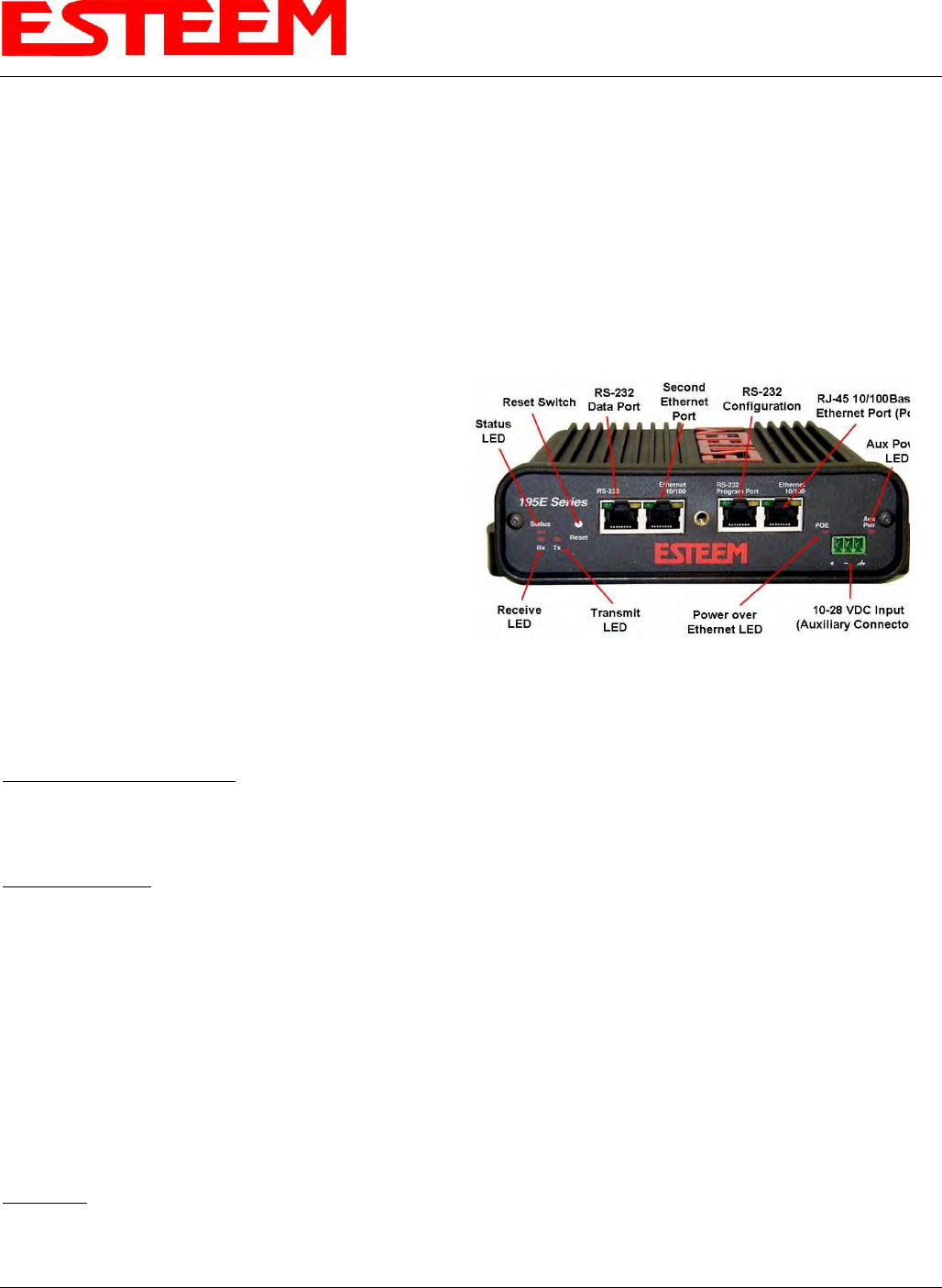

Front Panel Layout
---------------------------------------------
2-2
Antenna Connection Overview
---------------------------------------------
2-2
Horizon Hardware Configuration
2-3
CHAPTER 3 – Example Applications
Modes of Operation Description and Examples
3-1
Ethernet Bridge Mode
---------------------------------------------
3-1
Router Modes
---------------------------------------------
3-3
Mobile Client Modes
---------------------------------------------
3-4
802.11 Access Point Modes
---------------------------------------------
3-5
Programming Examples
3-7

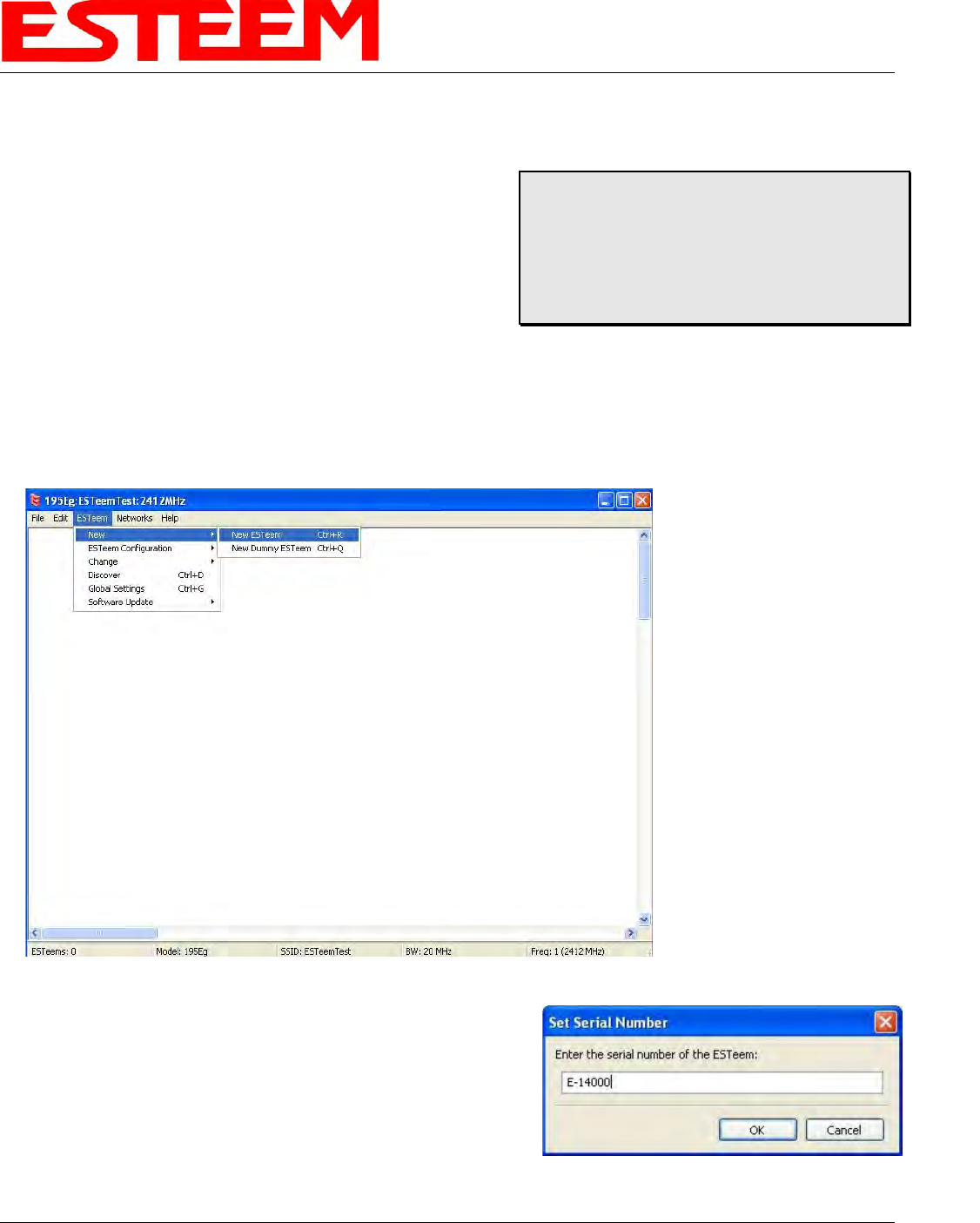

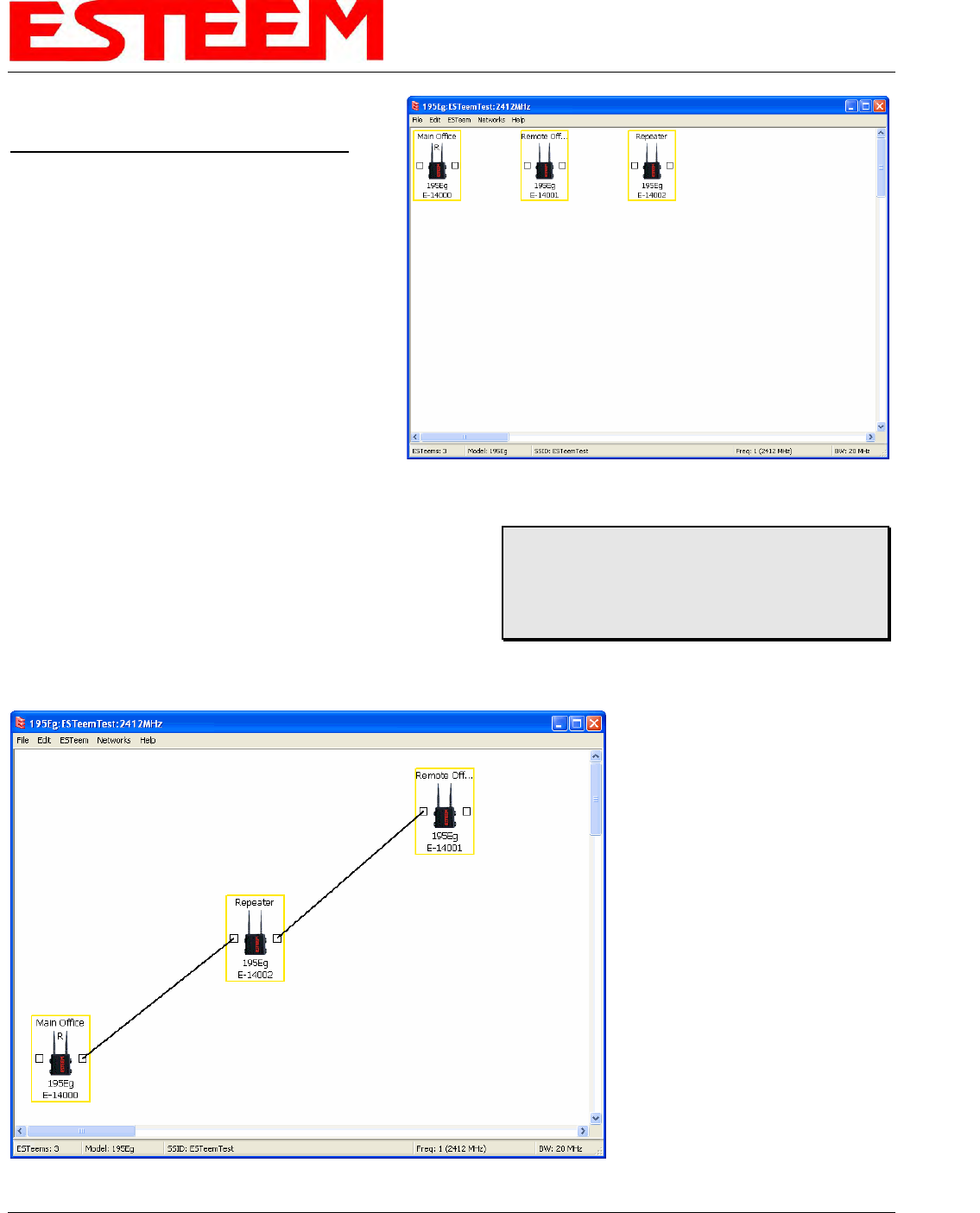

Using ESTeem Network Configuration (ENC) Utility
---------------------------------------------
3-7
Example 1 – Point to Point Ethernet Bridge
---------------------------------------------
3-9
Example 2 – Point to Point Ethernet Bridge with Repeater
---------------------------------------------
3-10

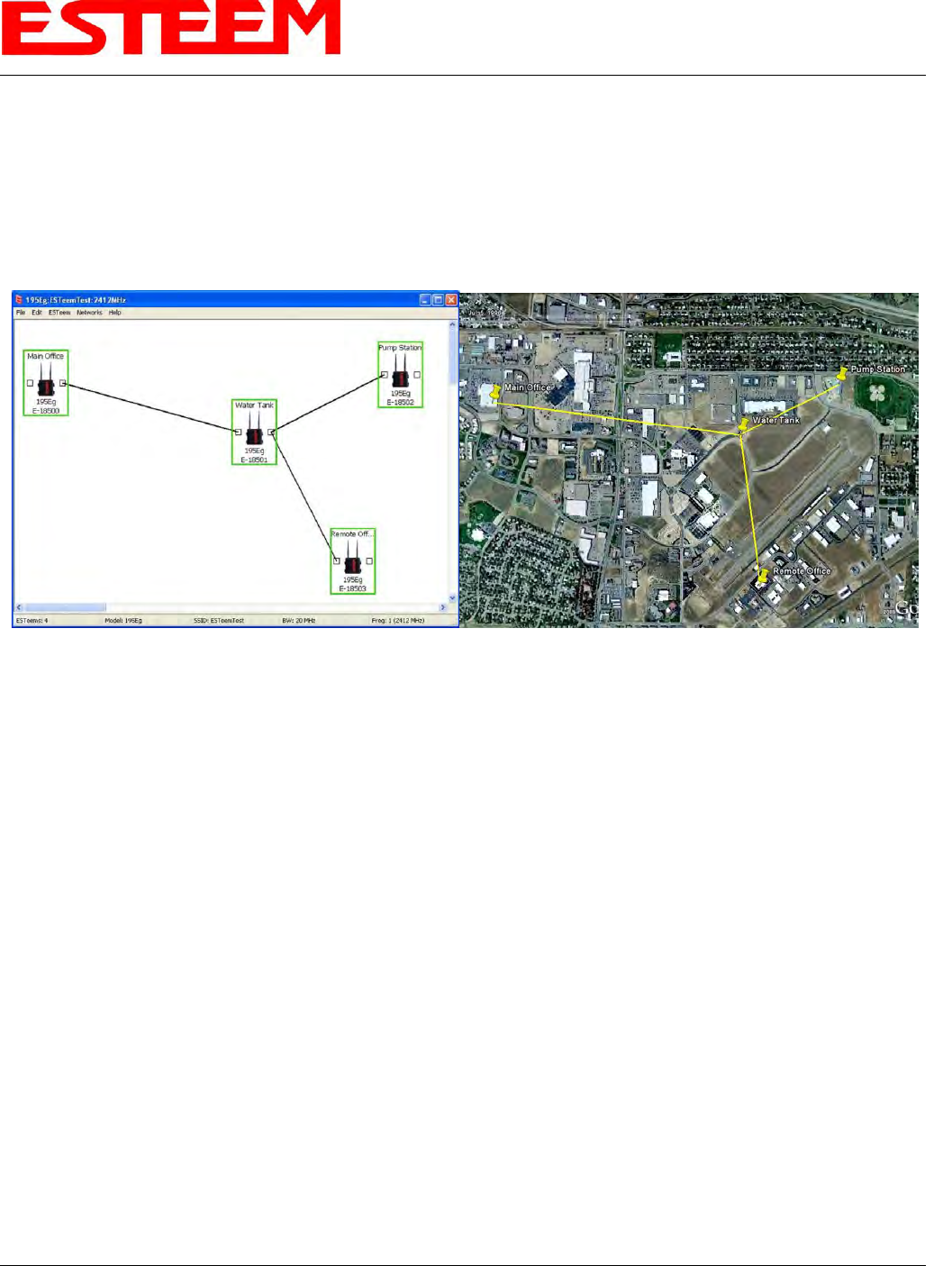

Example 3 – Point to Multipoint with Mesh Repeater
---------------------------------------------
3-11
Example 4 – Point to Multipoint Router Mode
---------------------------------------------
3-13
Example 5 – Mobile Client Mode
---------------------------------------------
3-15
Example 6 – 802.11 Access Point Mode
---------------------------------------------
3-16
Router Addressing Examples
---------------------------------------------
3-17
CHAPTER 4 – Utilities and Features

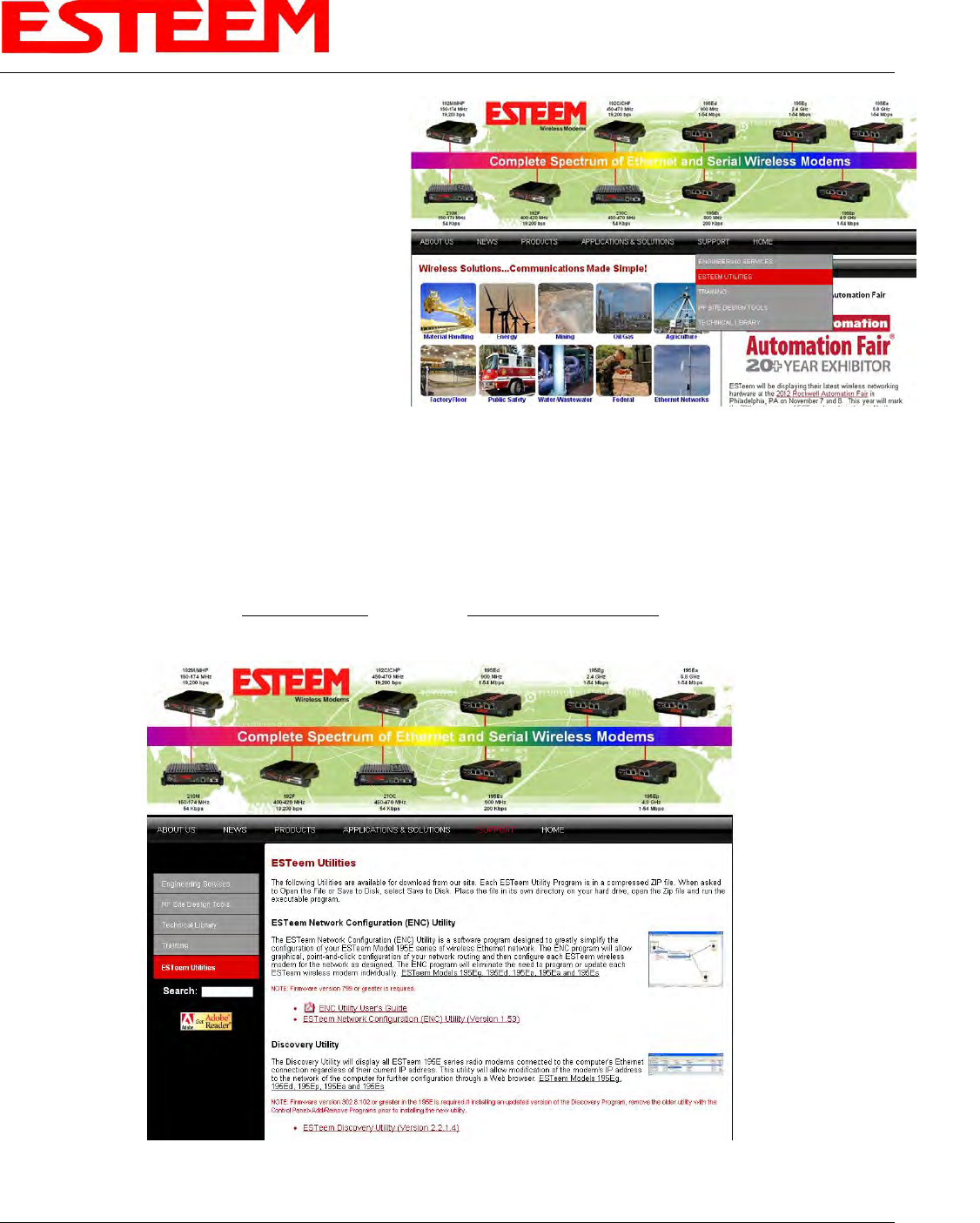

ESTeem Network Configuration (ENC) Utility
---------------------------------------------
4-1

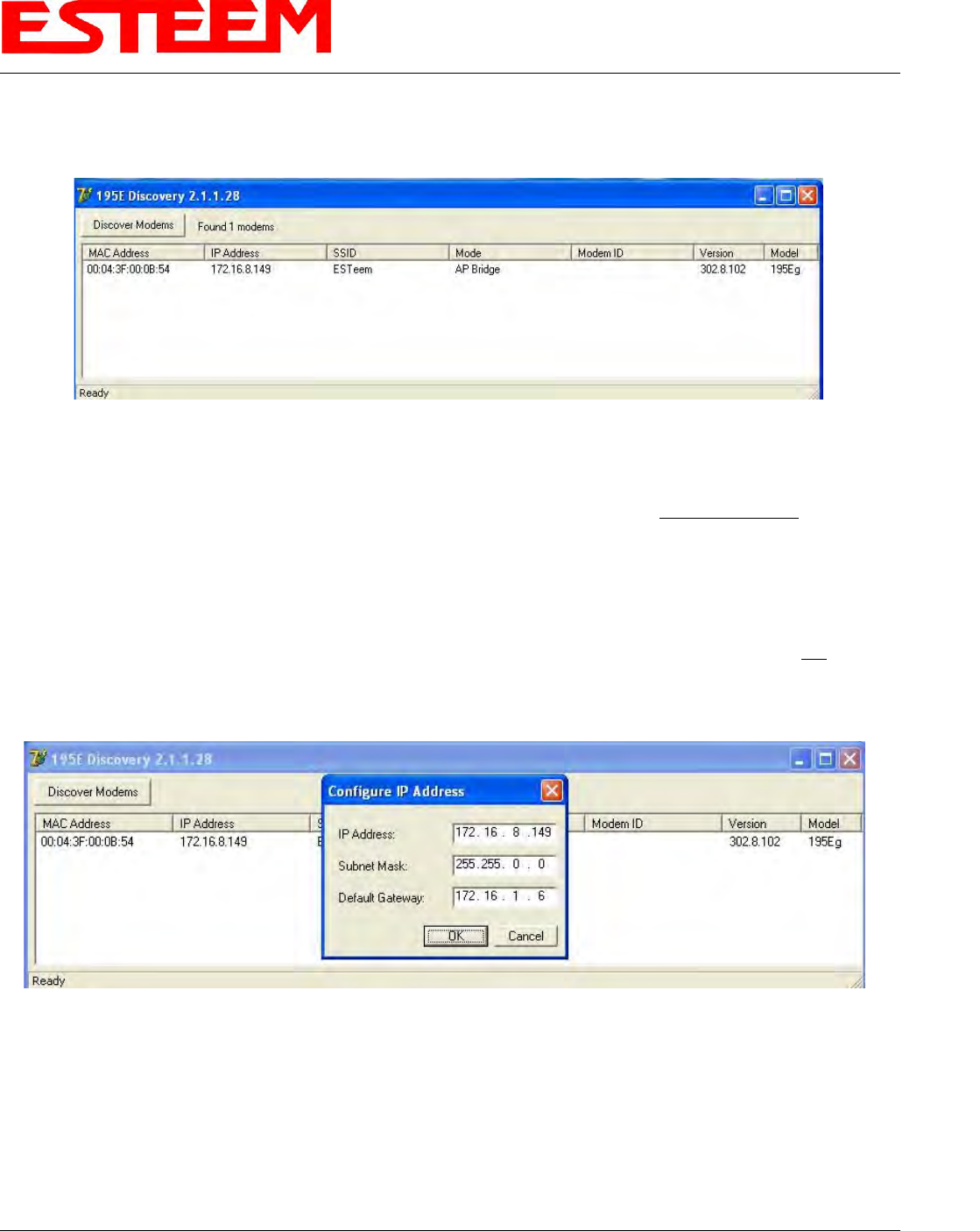

Using ESTeem Discovery Program
---------------------------------------------
4-2
Using EtherStation Status Program
---------------------------------------------
4-5
Setting Local Time 195Eg
---------------------------------------------
4-6
Configuring Time Server
---------------------------------------------
4-7
VLAN Operation
---------------------------------------------
4-9

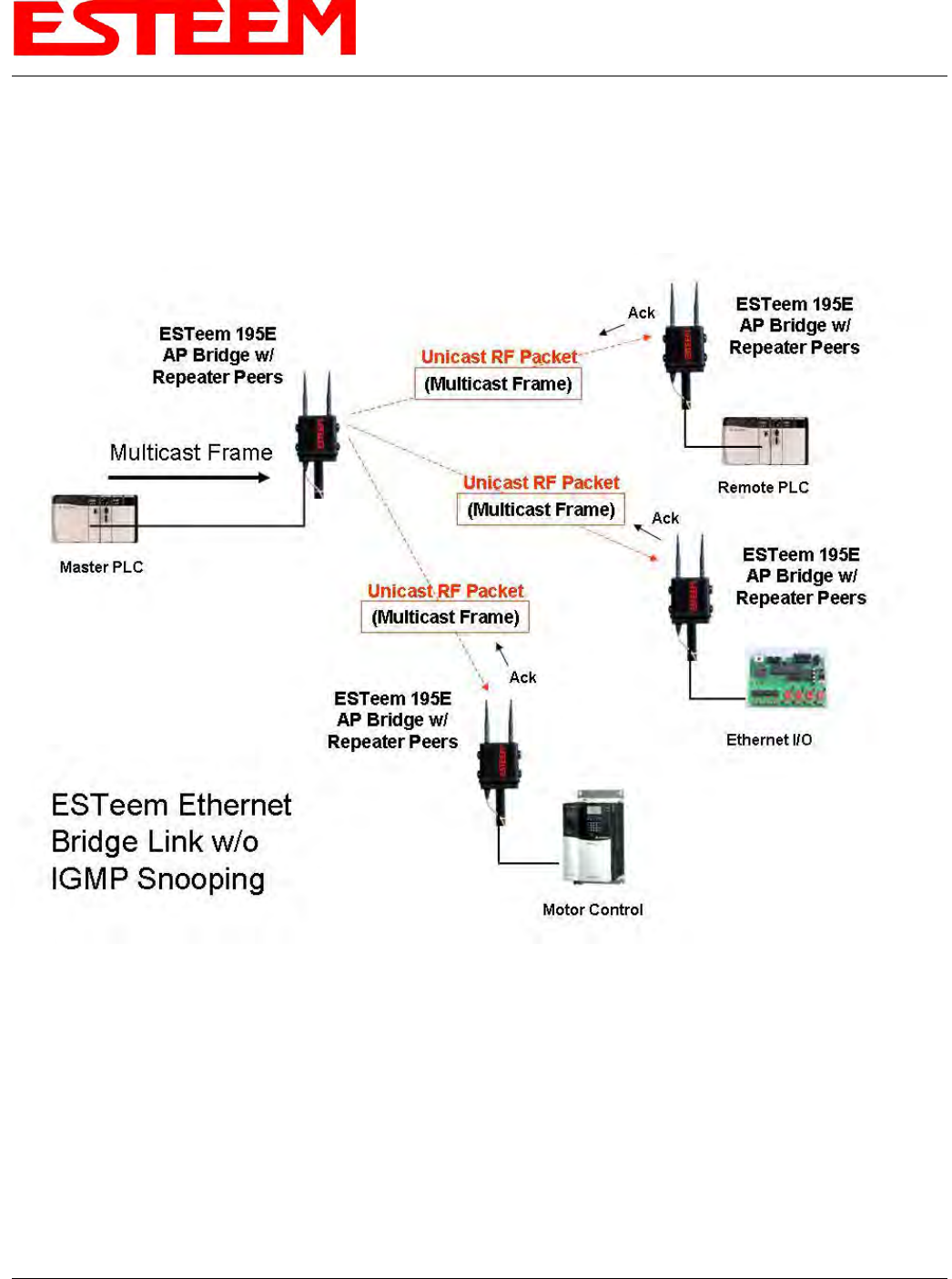

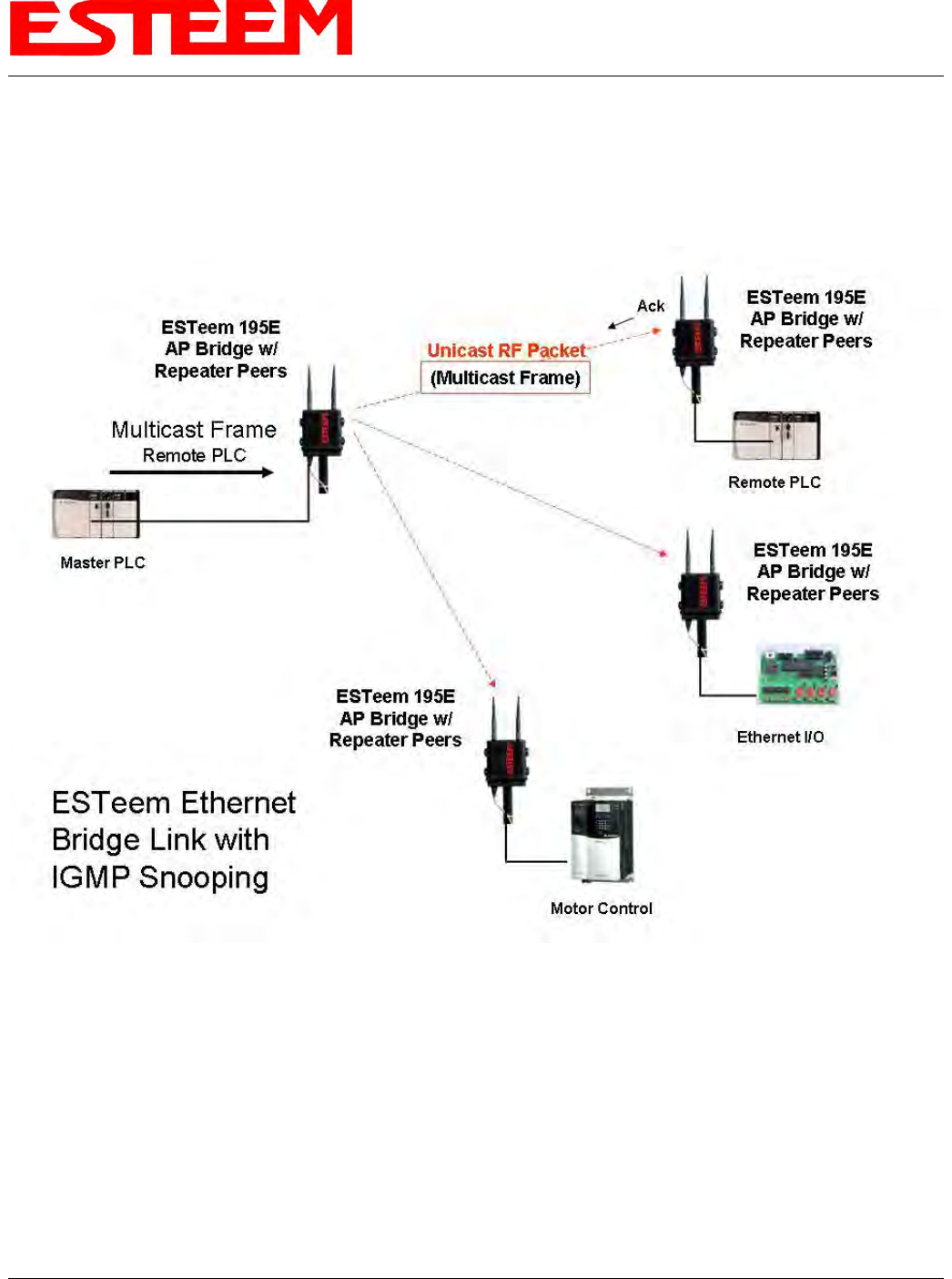

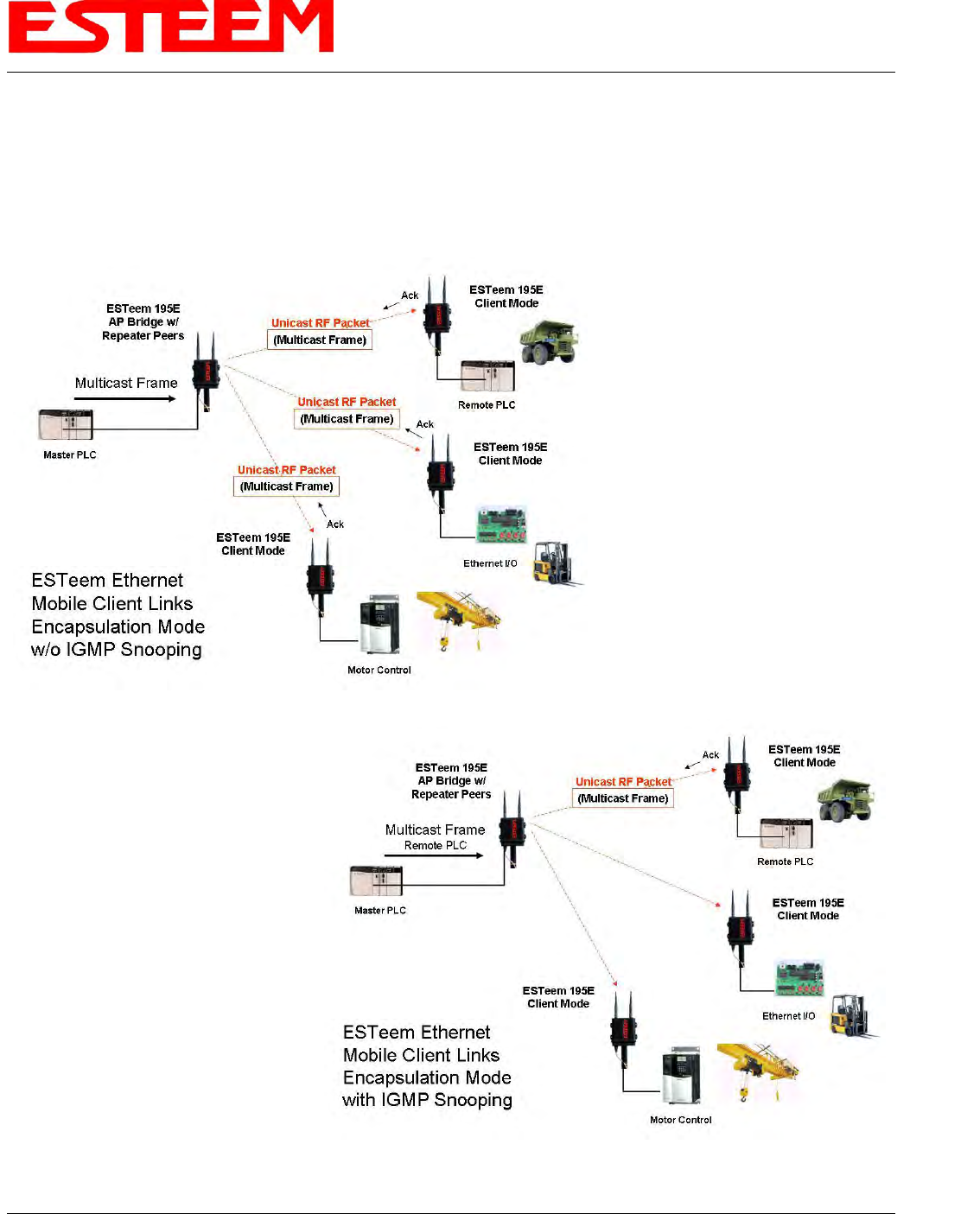

IGMP Snooping
---------------------------------------------
4-10

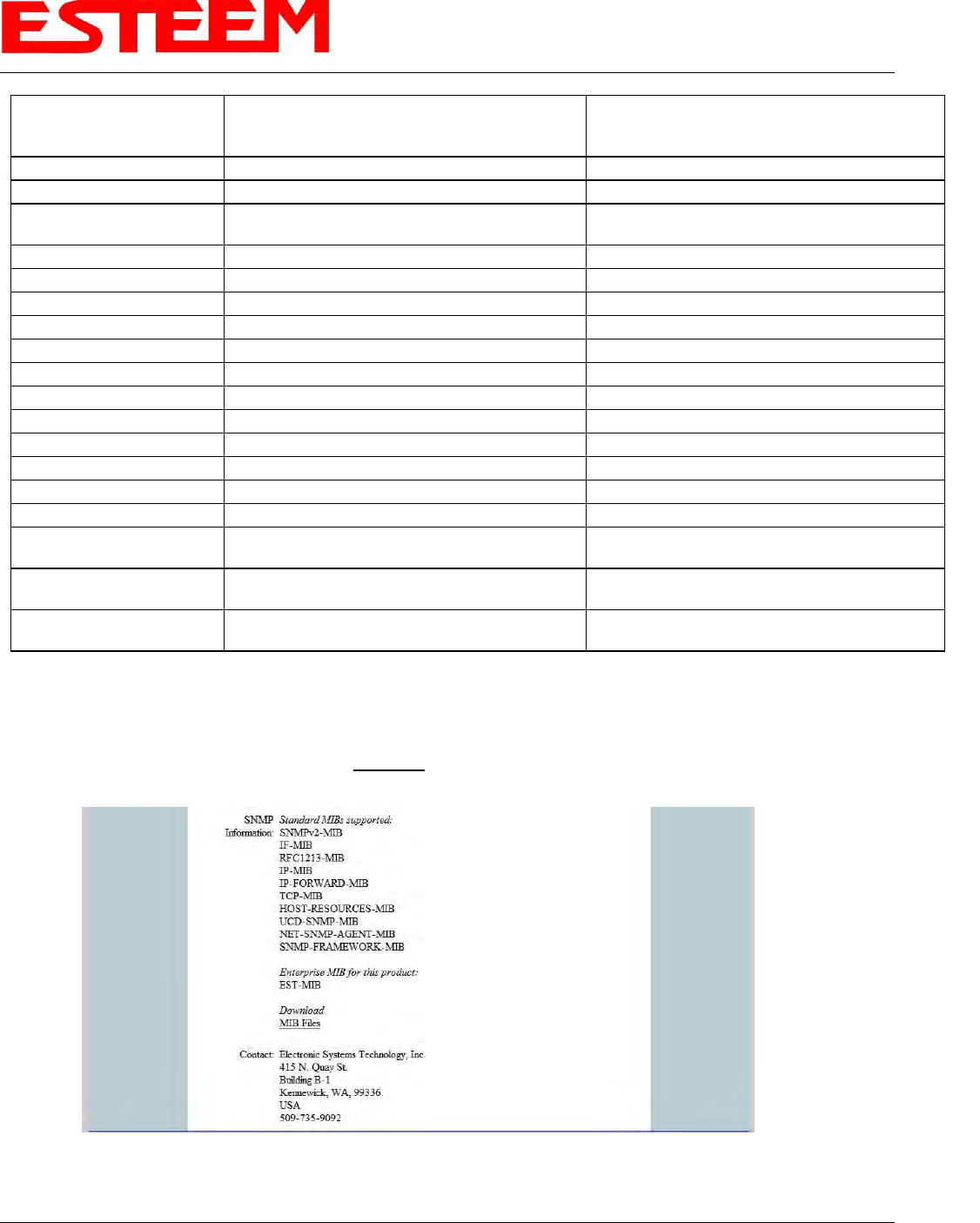

Simple Network Management Protocol (SNMP)
---------------------------------------------
4-15
TABLE OF CONTENTS
Revised: 19 Jan 16 Page 2 EST P/N AA107-Horizon
CHAPTER 5 – Web Configuration

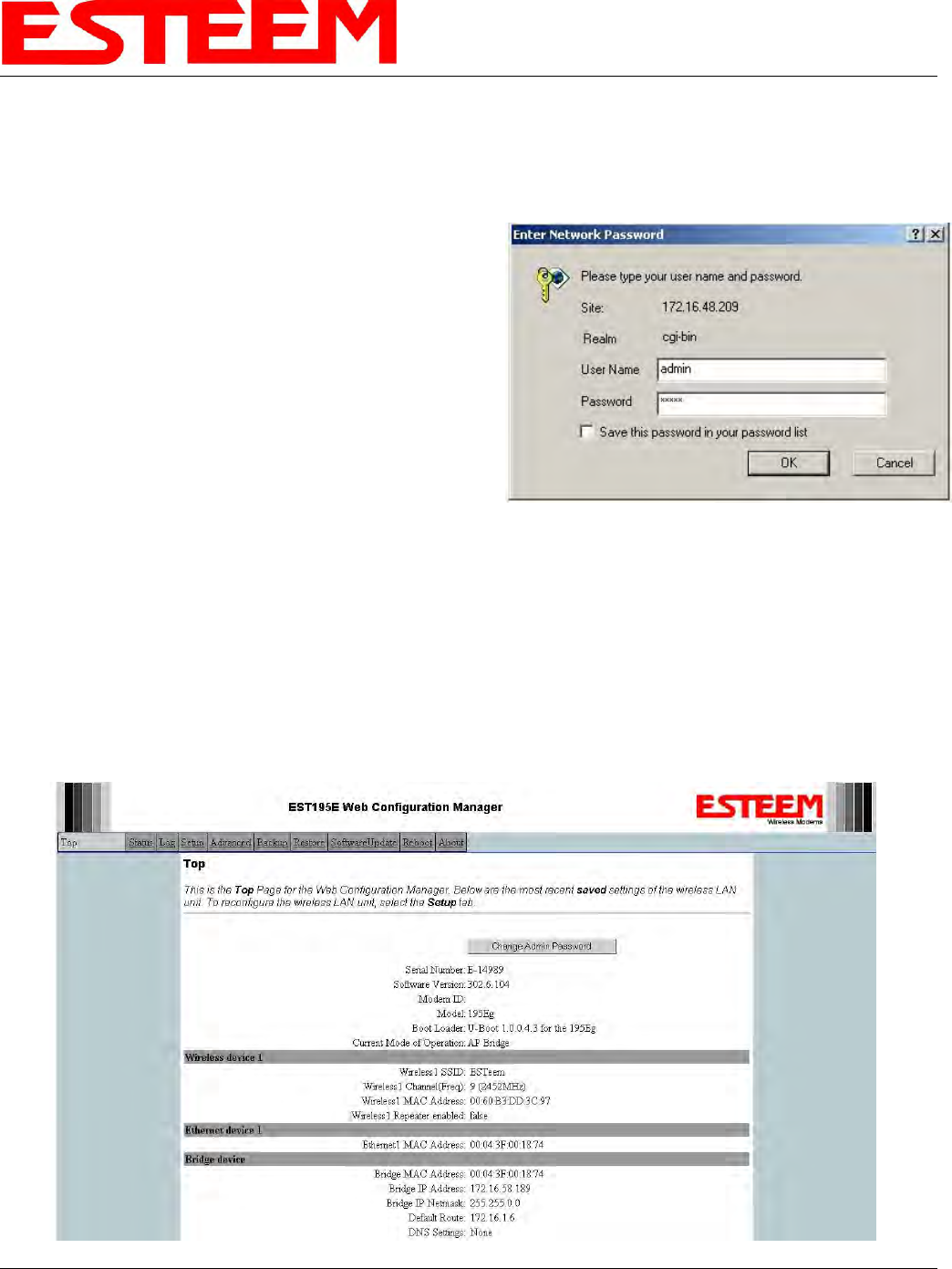

Logging Into Web Configuration Manager
5-1
Web Configuration Manager
5-2
Top Menu
---------------------------------------------
5-2
Setting ModemID Field
---------------------------------------------
5-2

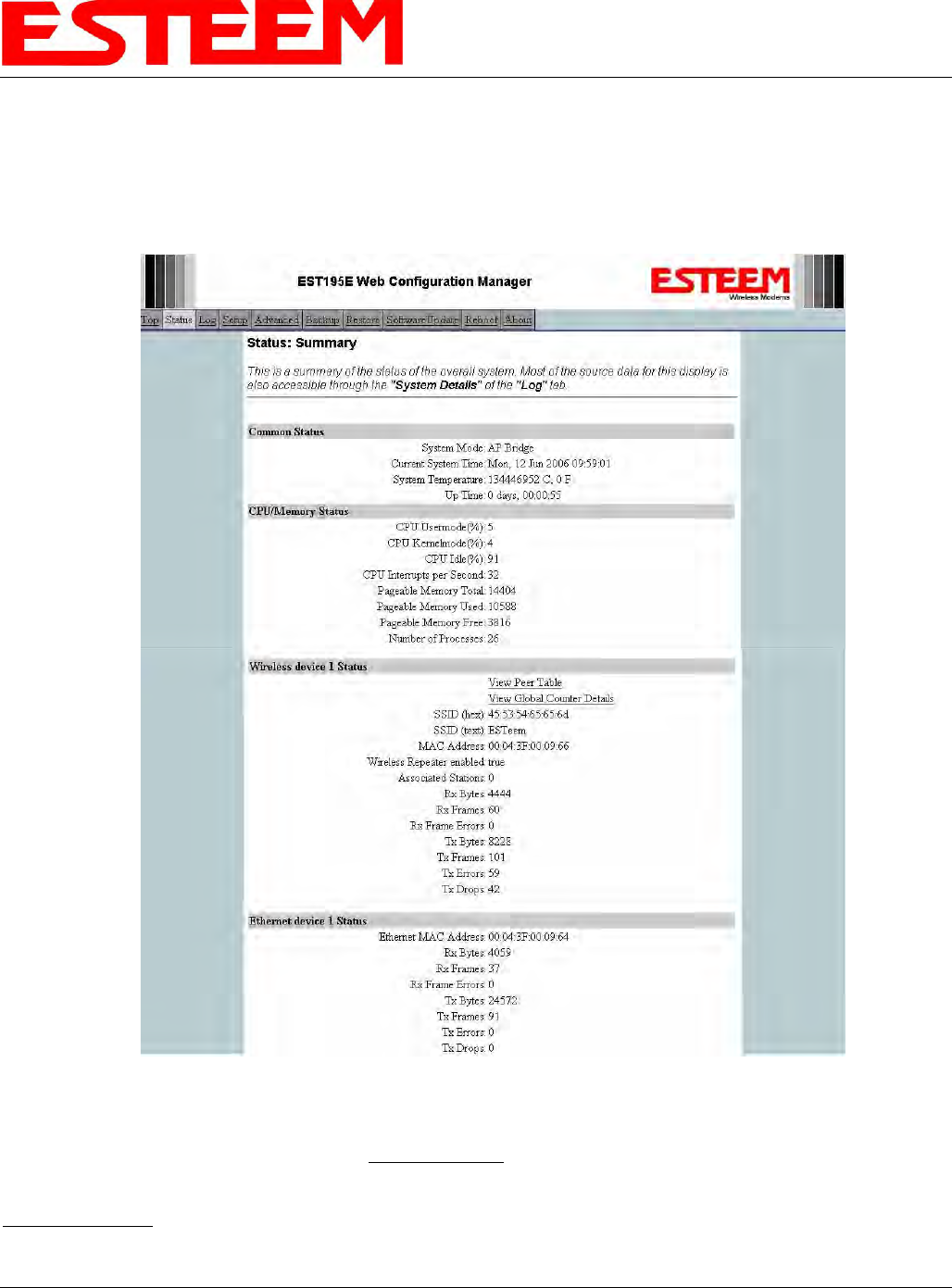

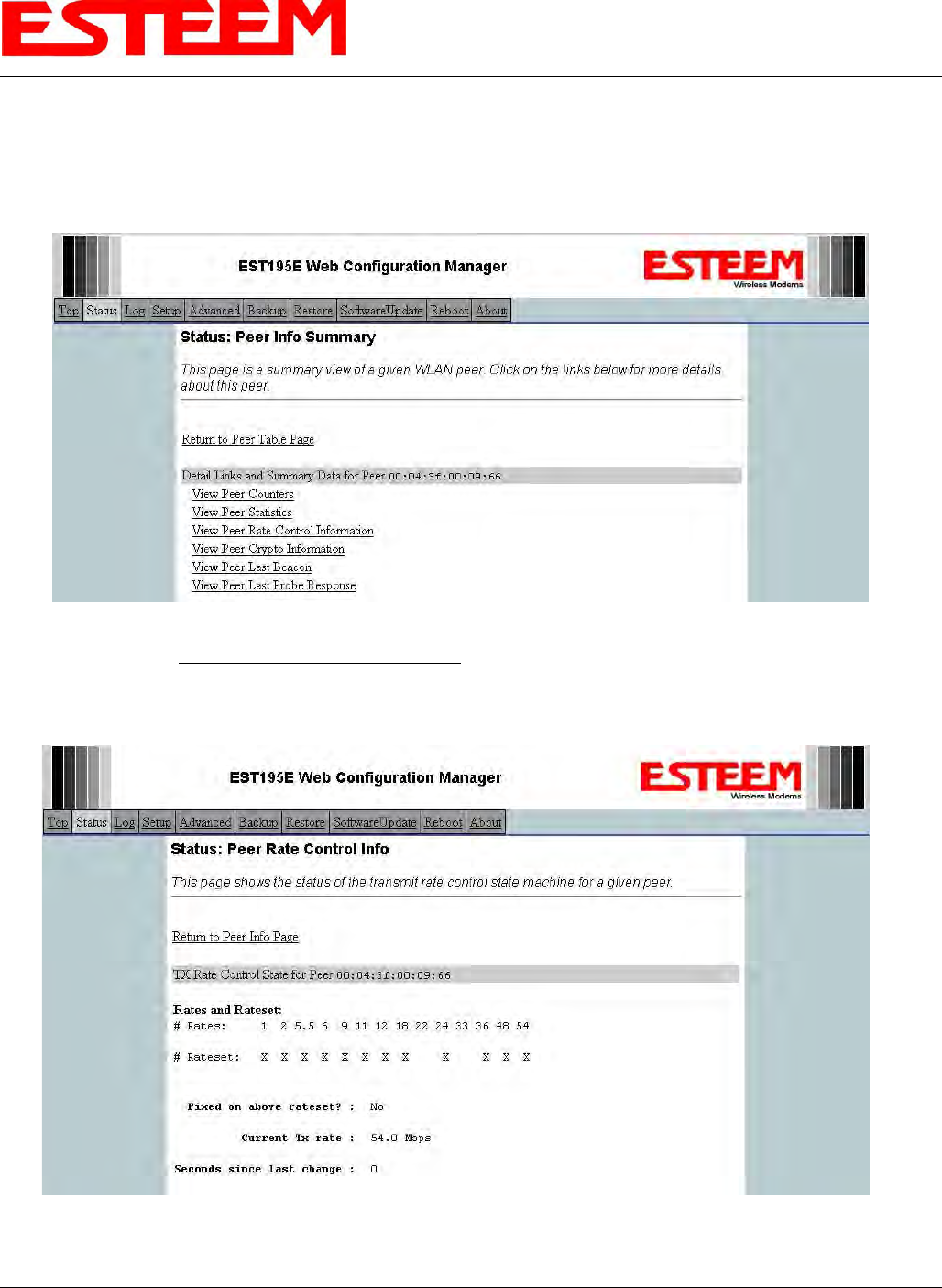

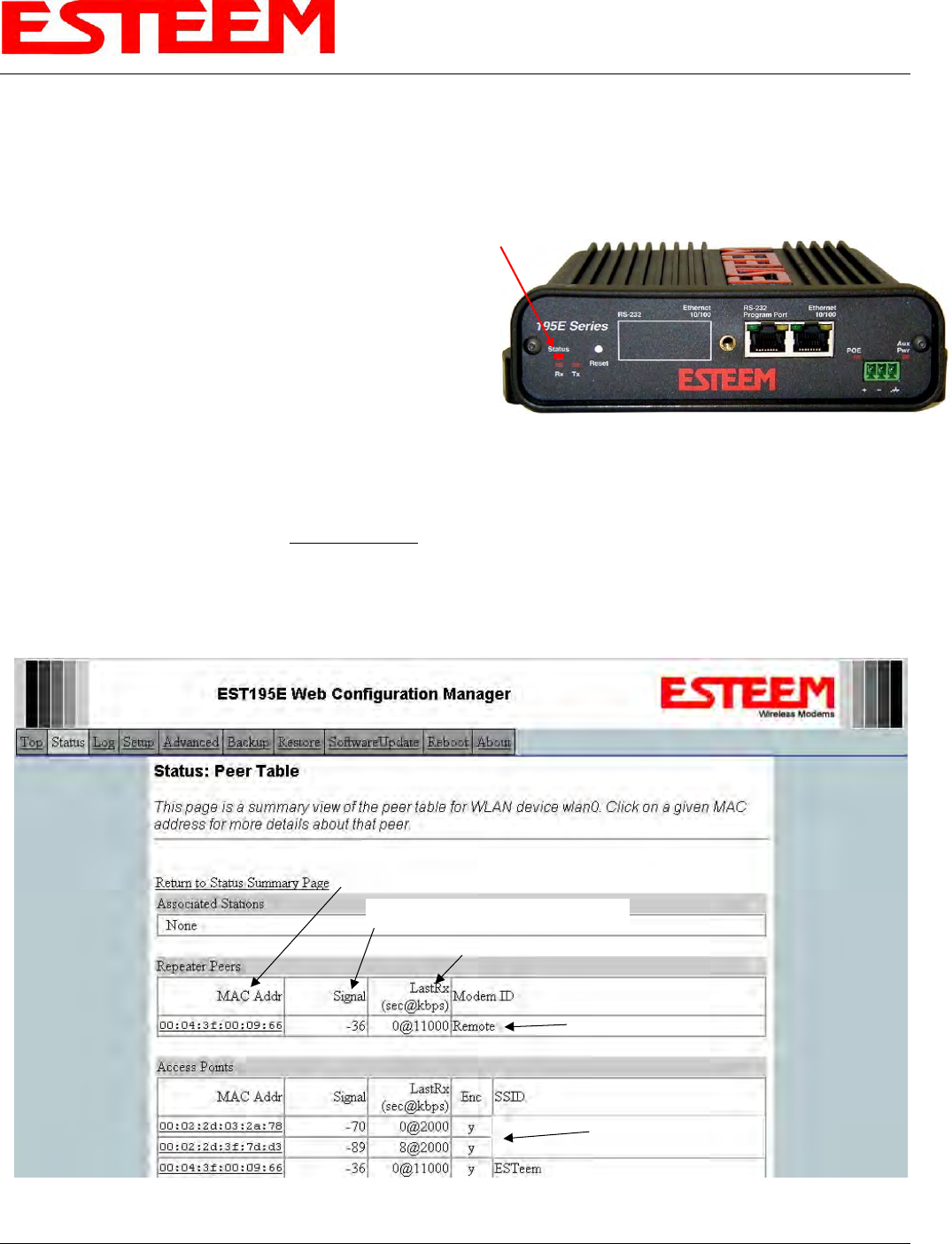

Status Menu
---------------------------------------------
5-3
System Log Screen
---------------------------------------------
5-5
Setup Screen
---------------------------------------------
5-5

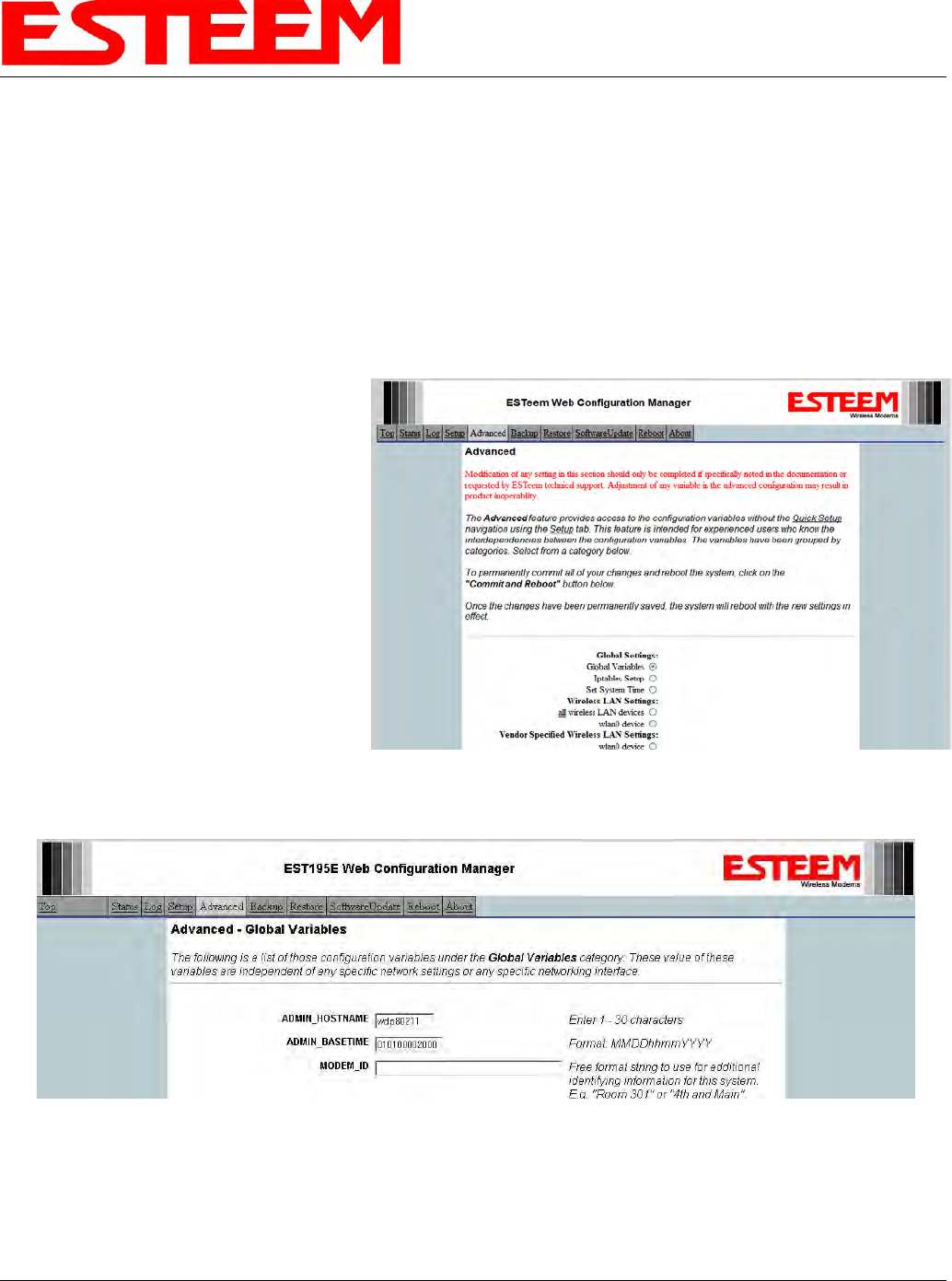

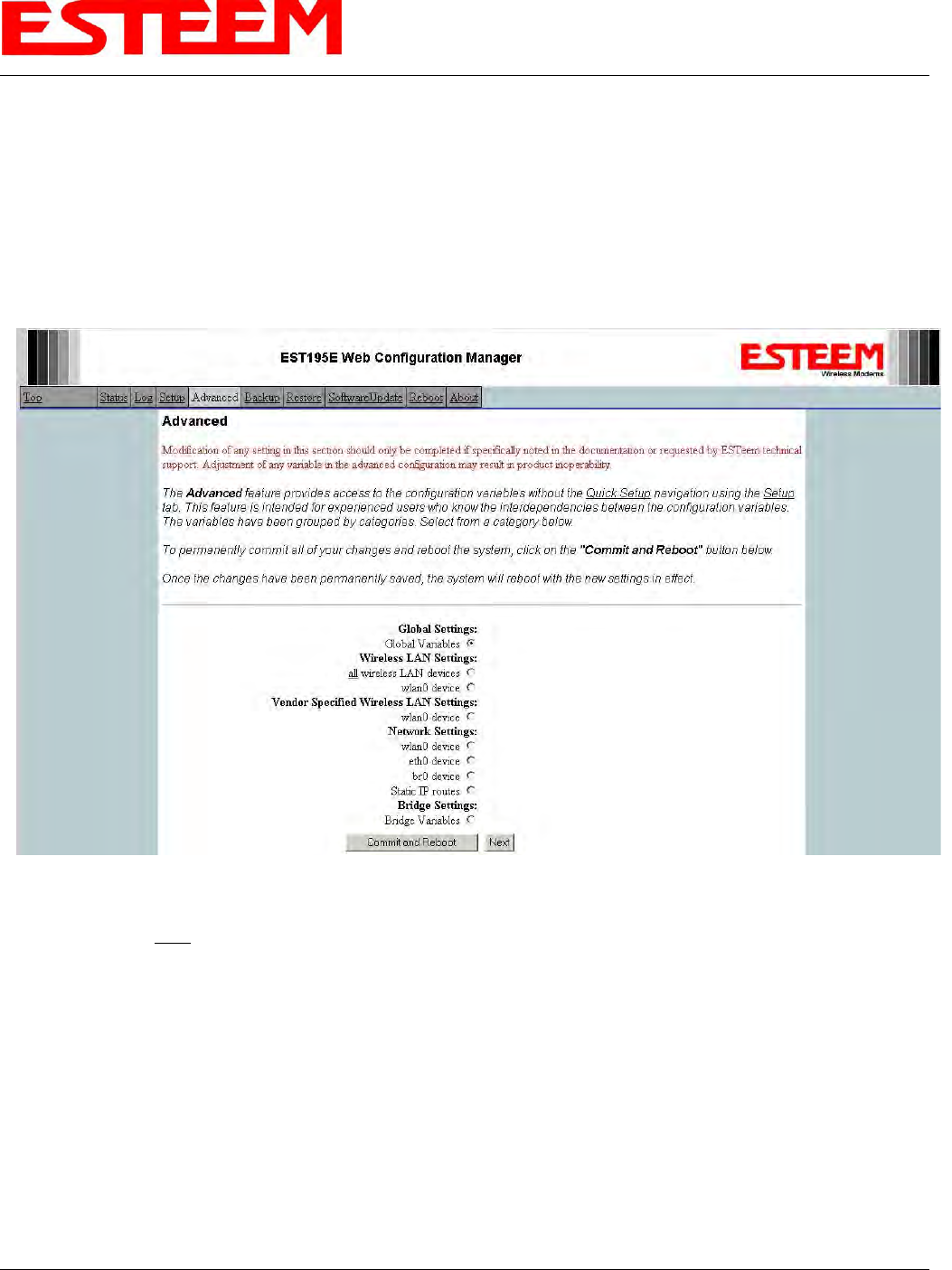

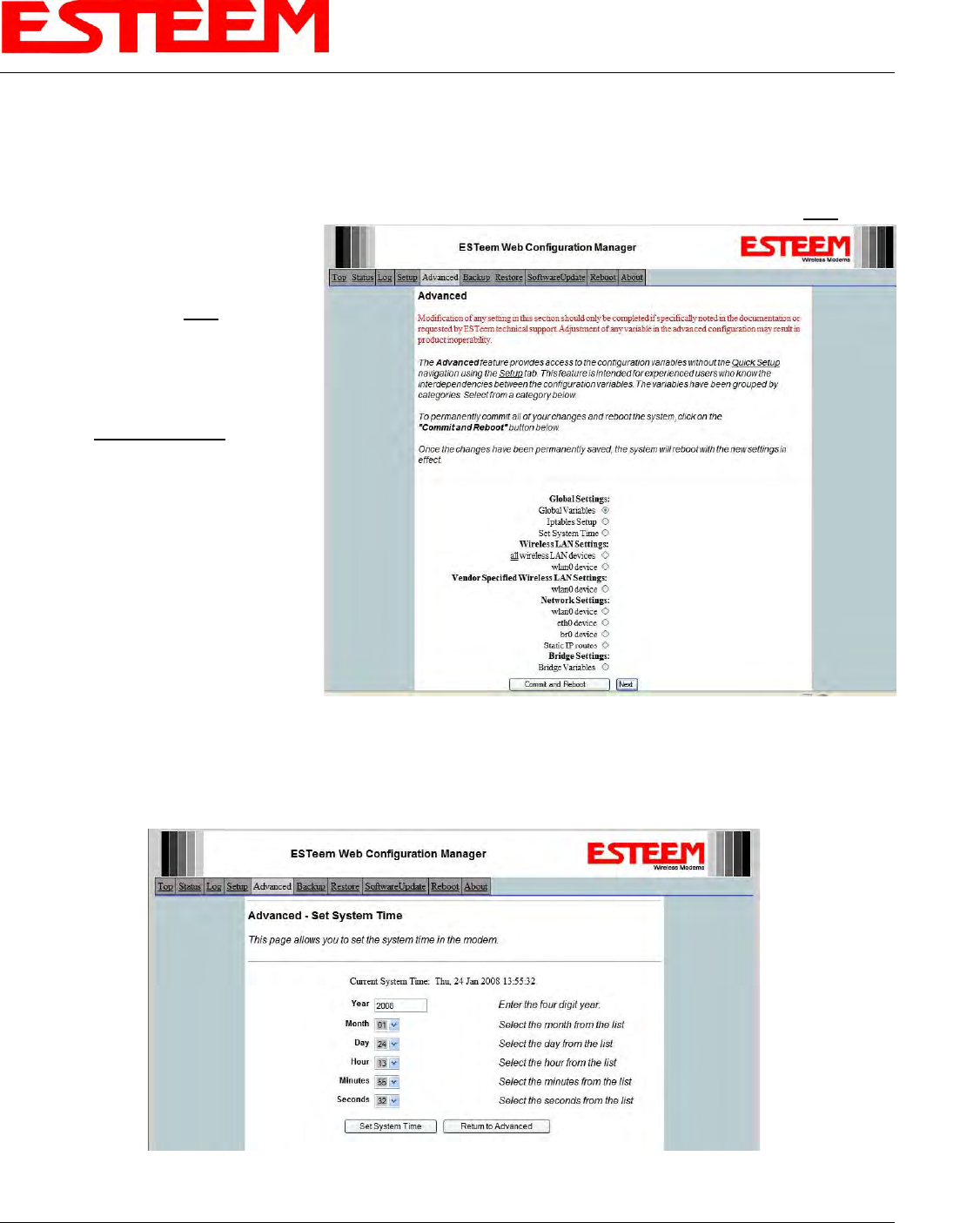

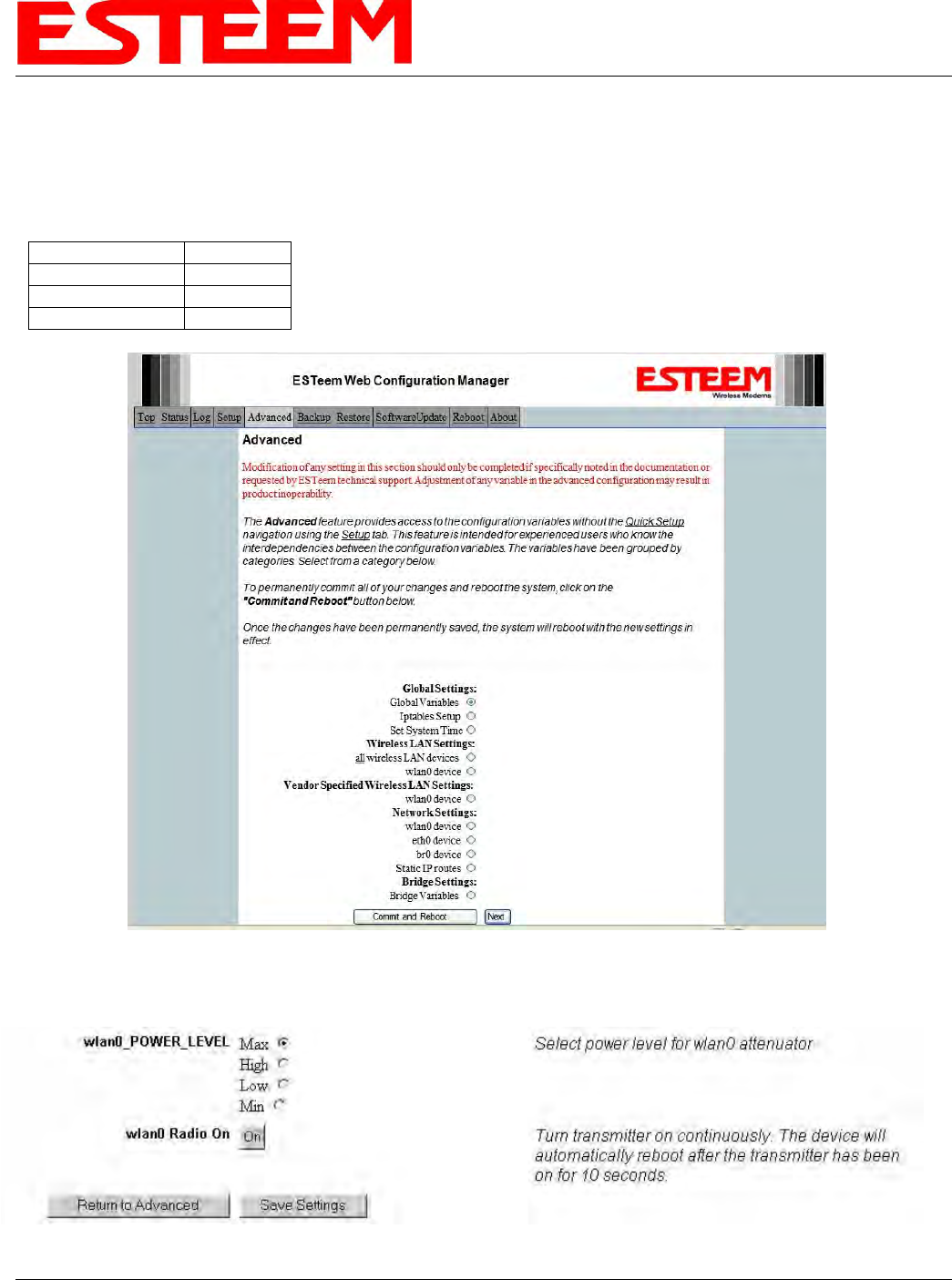

Advanced Configuration Screen
---------------------------------------------
5-6
Backup Screen
---------------------------------------------
5-6
Restore Screen
---------------------------------------------
5-7
Software Update
---------------------------------------------
5-8
System Reboot
---------------------------------------------
5-8
CHAPTER 6 – Serial Configuration and Applications
Using RS-232 Programming Port
6-1
Using RS-232 Data Port
6-3
Second Connections
---------------------------------------------
6-3
Second Configuration
---------------------------------------------
6-3
CHAPTER 7 – Repeating and Mesh Networking
ESTeem Mesh Network
7-1
Configuration
---------------------------------------------
7-1
Rapid Spanning Tree Protocol (RSTP)
7-2
Spanning Tree Protocols (STP)
7-3
Overview
---------------------------------------------
7-3
Phases
---------------------------------------------
7-4
Priority and Path Cost
---------------------------------------------
7-4
Root Bridge
---------------------------------------------
7-4
Redundant Backup
7-5
Redundant Master Configuration
---------------------------------------------
7-5
CHAPTER 8 – Antenna Setups
Antenna and Cable Configurations
8-1
Model 195Eg/195Eg-lp Antenna and Cable Configuration
---------------------------------------------
8-1
Model 195Ea Antenna and Cable Configuration
---------------------------------------------
8-3
Model 195Ed Antenna and Cable Configuration
---------------------------------------------
8-4
Model 195Ep Antenna and Cable Configuration
---------------------------------------------
8-5
Weatherproofing Coaxial Cable Connections
8-6
Antenna Diversity
8-6
Antenna Port Selection
---------------------------------------------
8-7
TABLE OF CONTENTS
Revised: 19 Jan 16 Page 3 EST P/N AA107-Horizon

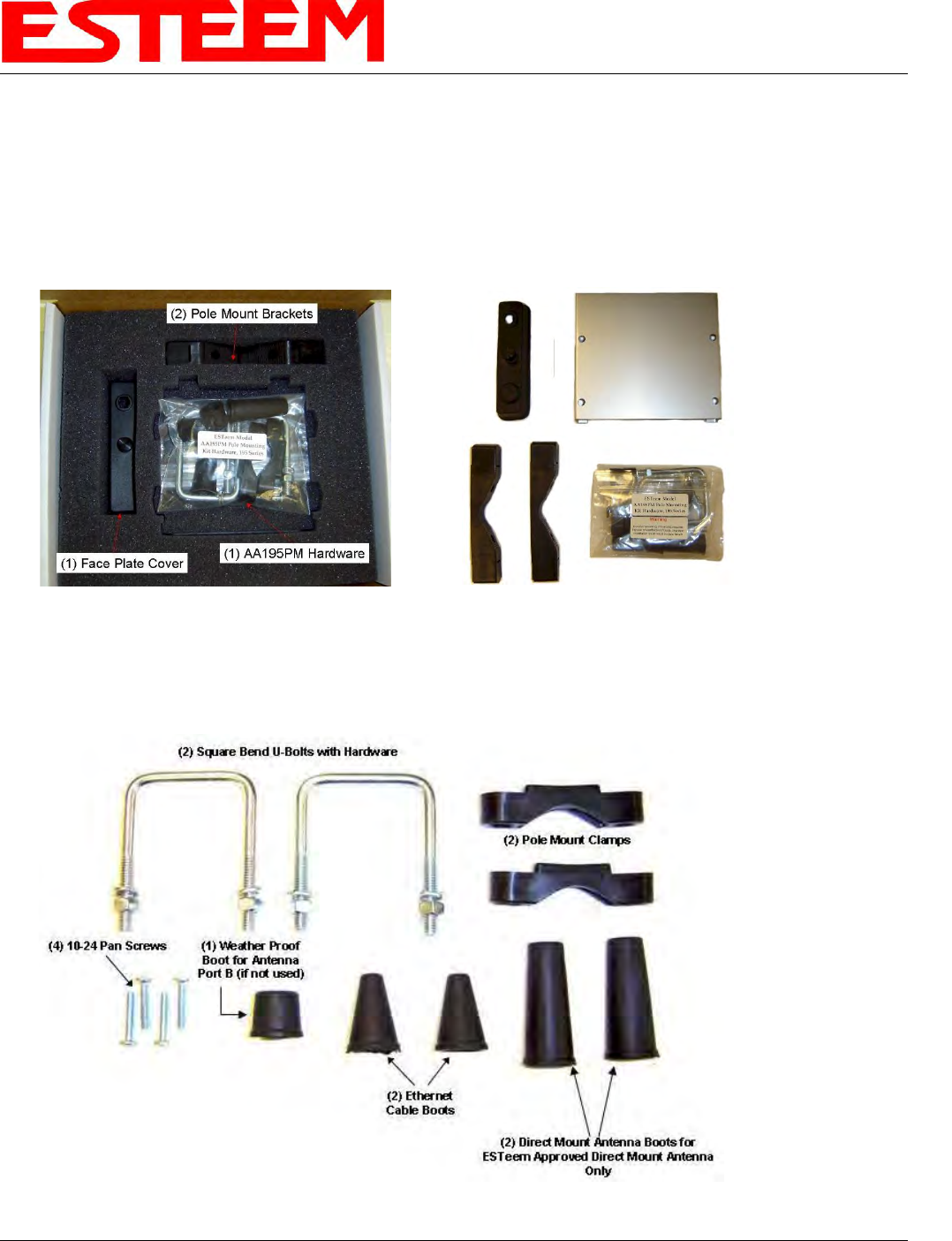

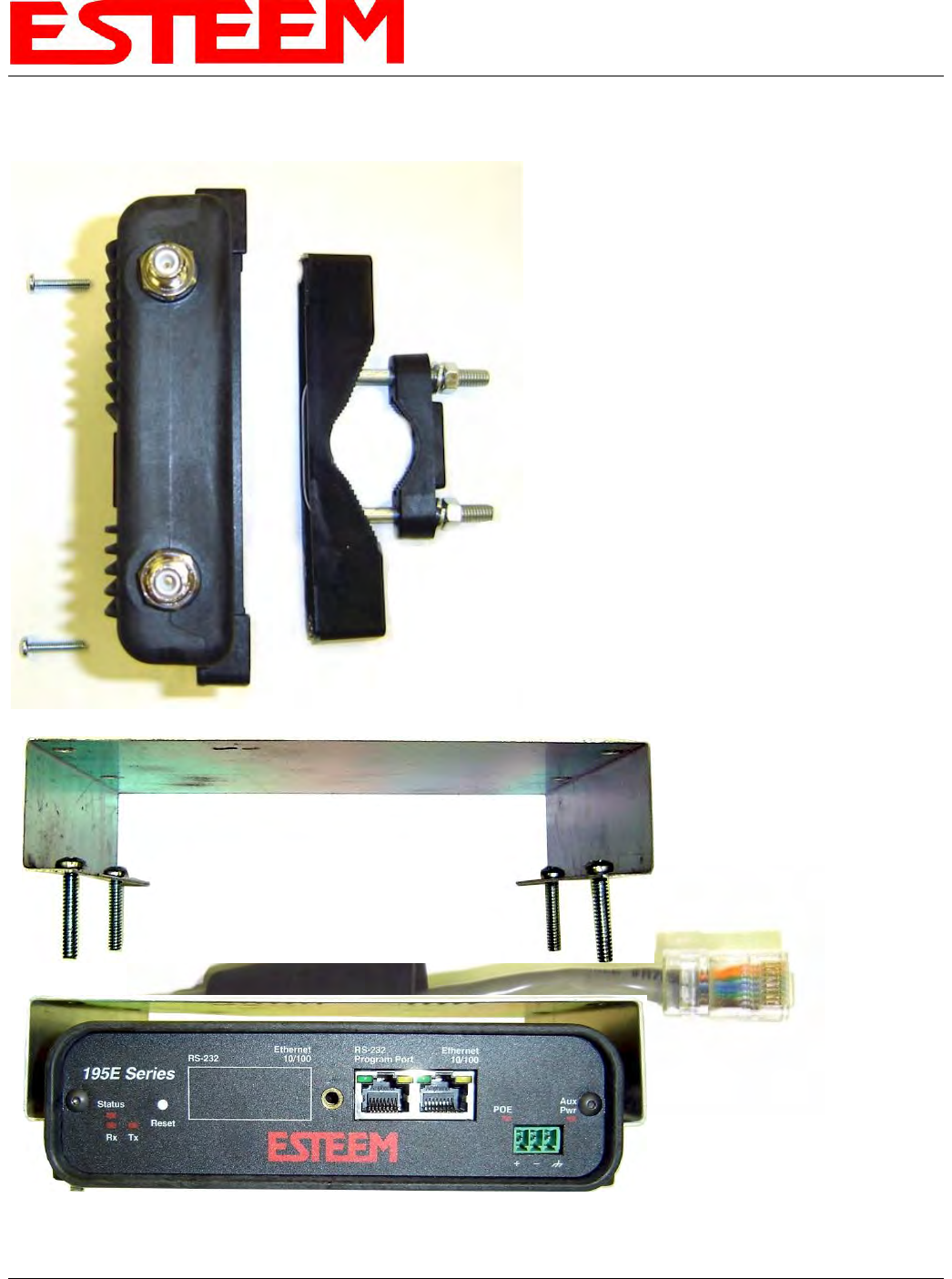

Assembling the AA195PM Outdoor Pole Mounting Kit
8-9
Grounding Procedure
8-14

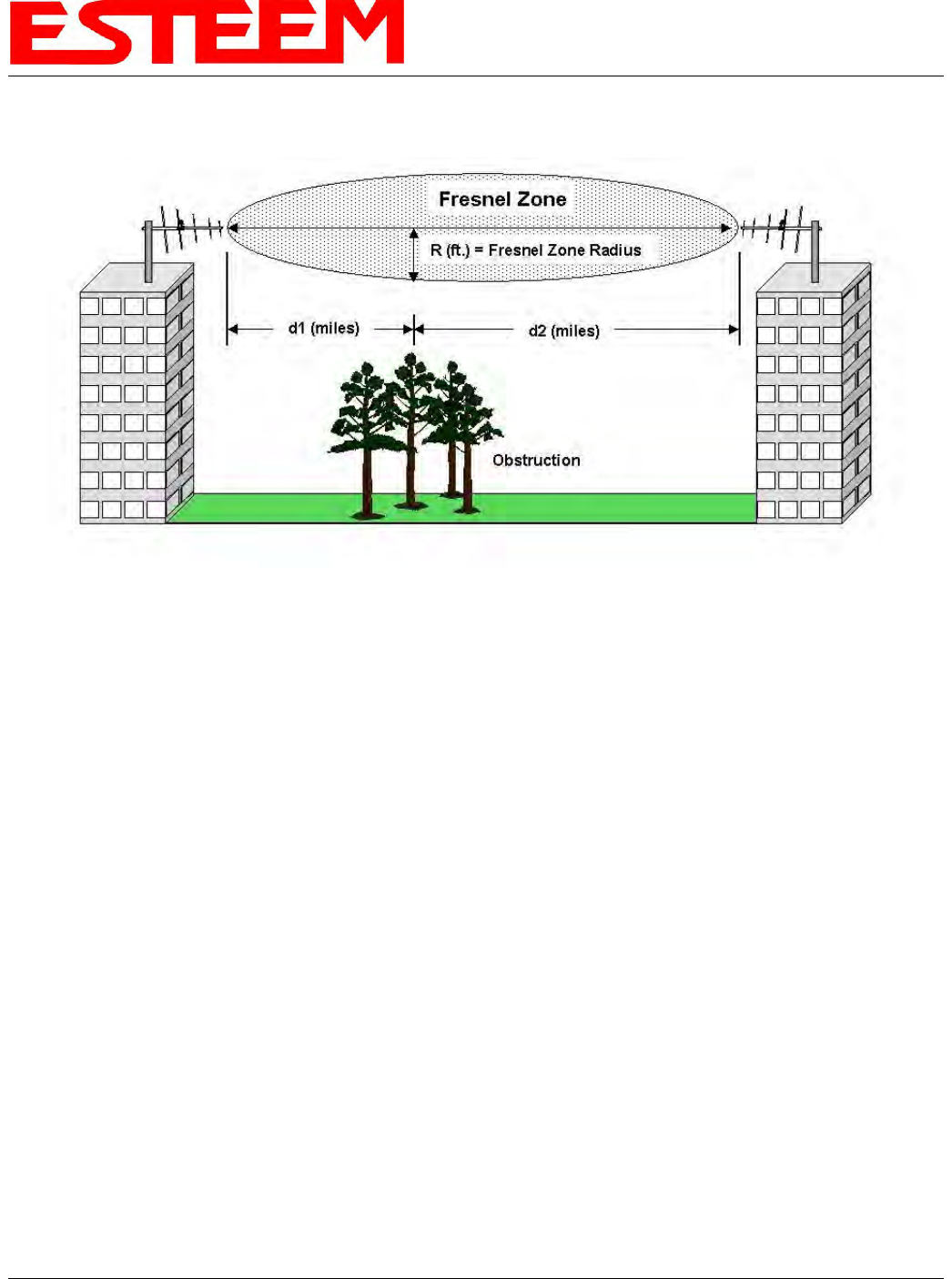

Fresnel Zone
8-15
APPENDIX A – FCC Information
APPENDIX B – Interface Ports
Ethernet Interface
---------------------------------------------
B-1

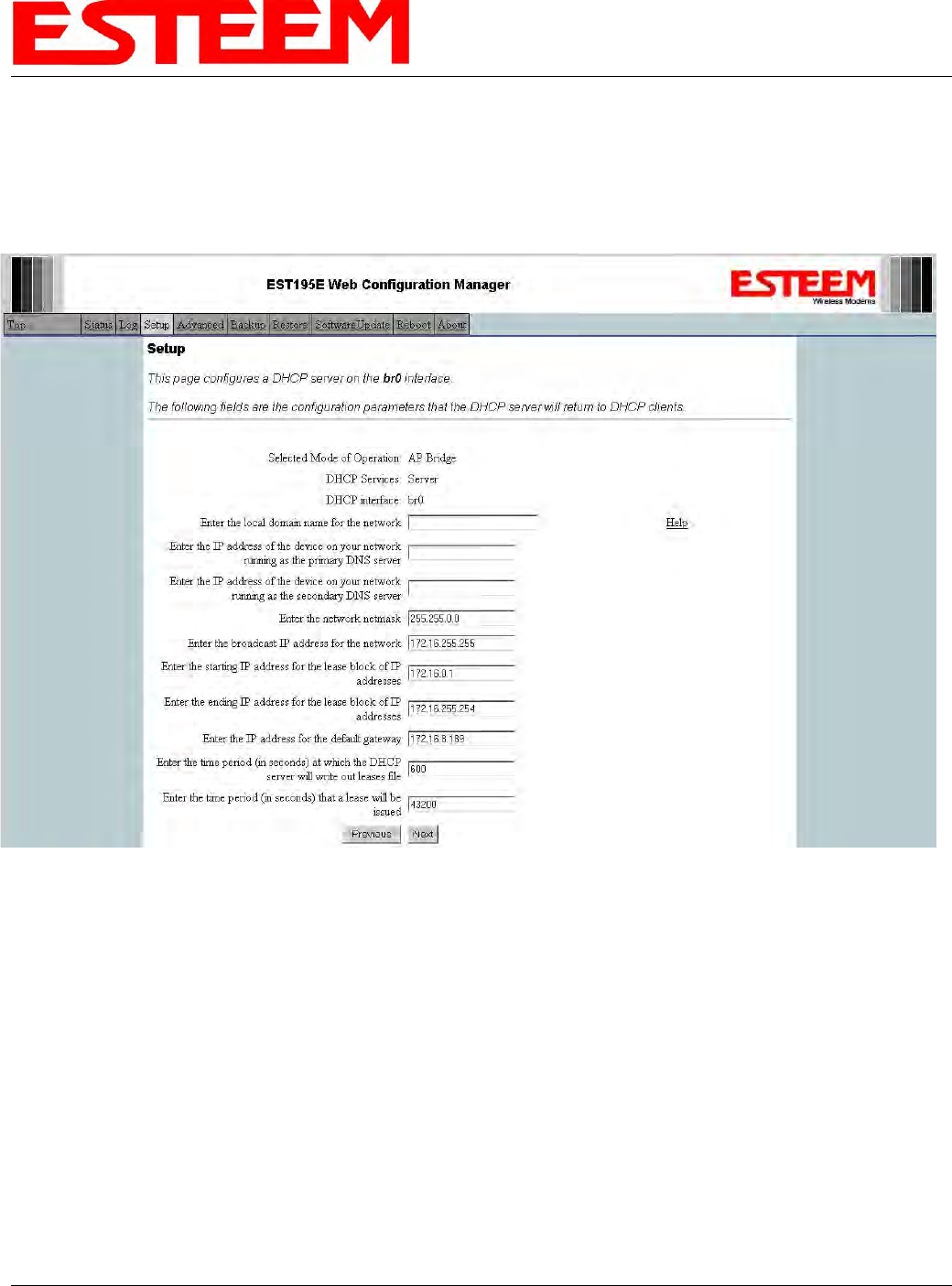

Configuring DHCP Server
---------------------------------------------
B-1

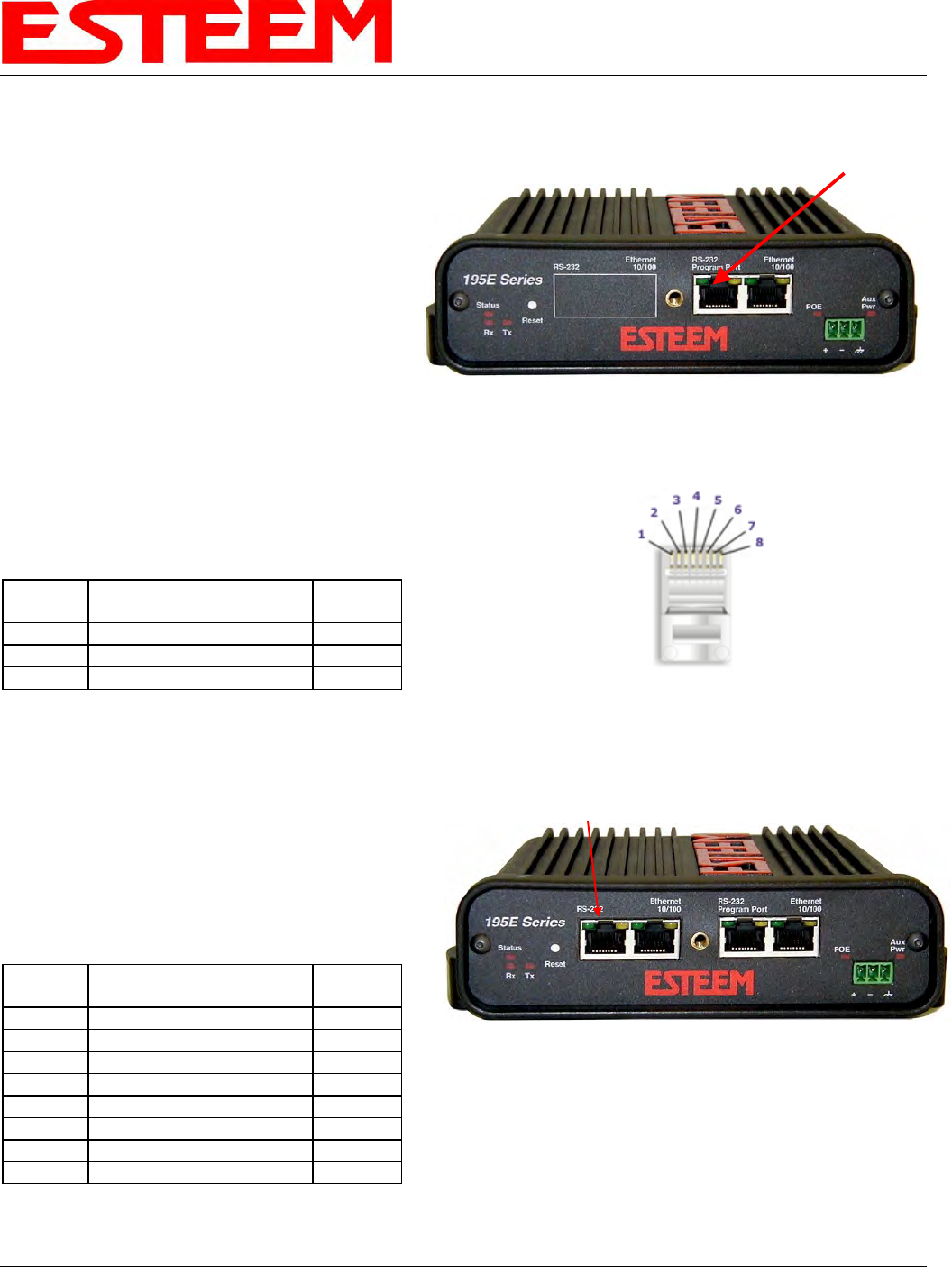

RS-232 Programming Port Pin-Out
---------------------------------------------
B-2
RS-232 Data Port Pin-Out
---------------------------------------------
B-2
APPENDIX C – Radio Configuration
Frequency of Operation
---------------------------------------------
C-1
Setting RF Bandwidth
---------------------------------------------
C-2

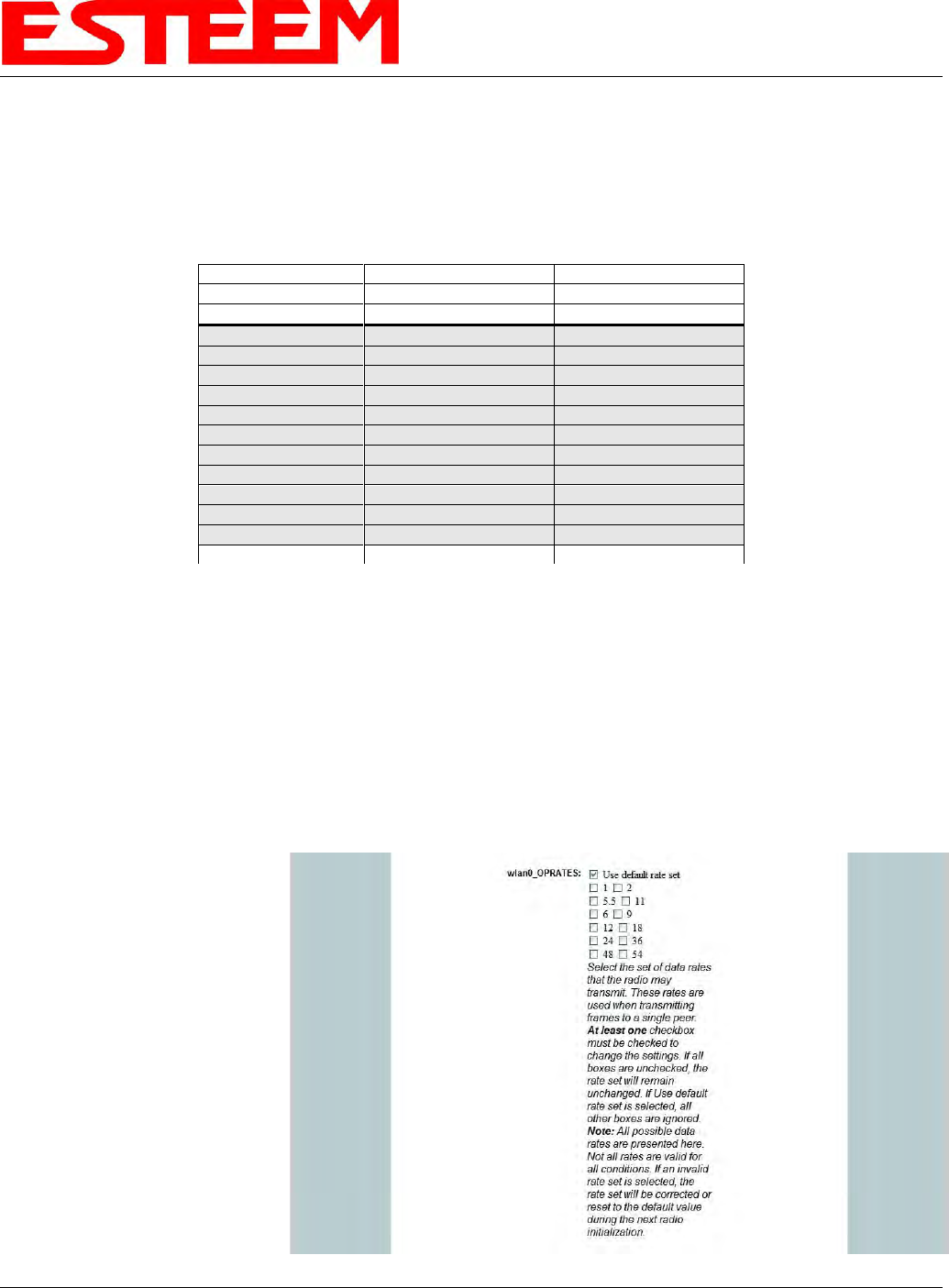

Setting Data Rates
---------------------------------------------
C-2
Setting RF Power Level
---------------------------------------------
C-3
Average RF Output Power
---------------------------------------------
C-4
APPENDIX D – Security
APPENDIX E – Troubleshooting
Testing Communication Link
---------------------------------------------
E-1
Viewing RF Data Rates
---------------------------------------------
E-3
Signal Strength vs Data Rates
---------------------------------------------
E-4

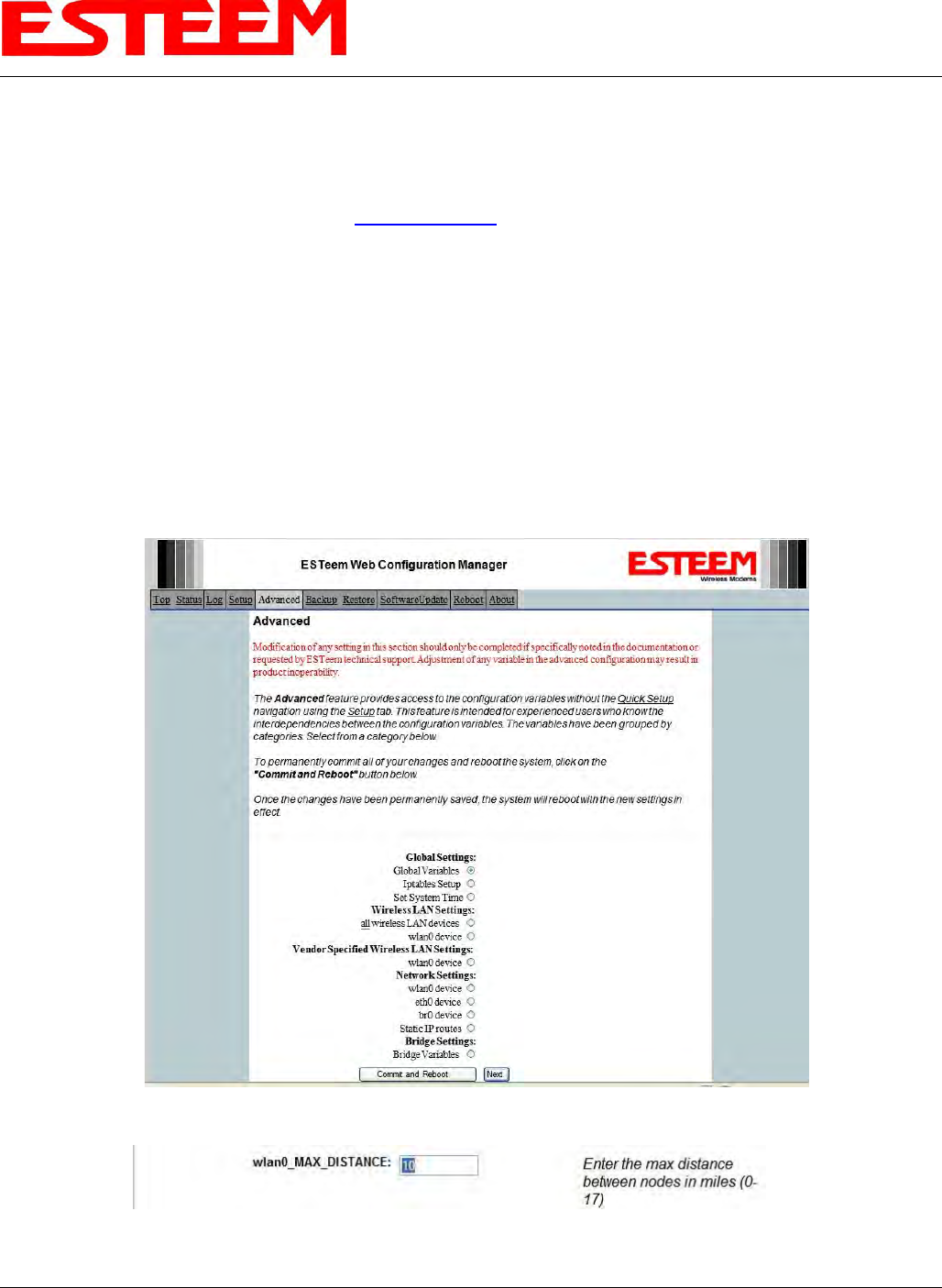

Setting Maximum Distance Value
---------------------------------------------
E-4
Troubleshooting Tips
---------------------------------------------
E-5
APPENDIX F – 216An Specifications
216An Specifications
---------------------------------------------
F-1

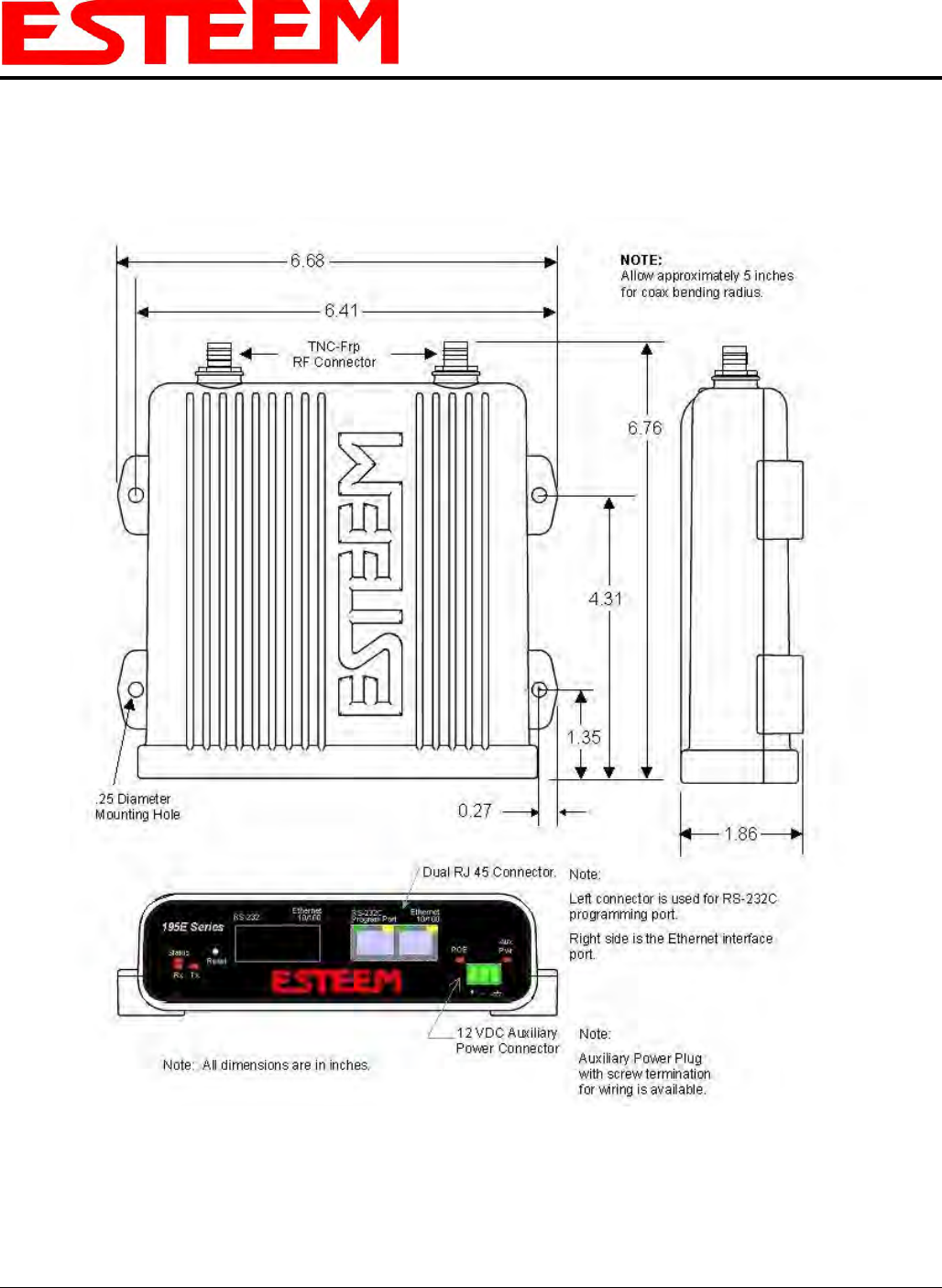

Case Diagram
---------------------------------------------
F-2
Antenna Specifications
---------------------------------------------
F-3
CHAPTER 1
INTRODUCTION
Revised: 19 Jan 16 1-1 EST P/N AA107-Horizon
BEFORE YOU BEGIN
Thank you and congratulations on your purchase of the ESTeem
Horizon Series Wireless Ethernet Modem! This manual was written
to help both the first time and advanced user of the Horizon to
configure the wireless modem for your application. If this is your
first time configuring the Horizon and you would like to get going
as soon as possible, we recommend using the ESTeem Resource CD
provided with the modem. The Resource CD will provide the
software utilities and guide you through the configuration of the
wireless modem for your application.
The ESTeem Horizon Series of wireless Ethernet networking
hardware are very sophisticated networking devices. To keep the manual usably short, many of the application descriptions and
programming details assume the user has a good working knowledge of the following network concepts:
General Ethernet networking and the configuration of LAN topologies
Common Ethernet terminology and acronyms
TCP/IP network protocol structure and how to configure TCP/IP networks and
subnets
How to identify and set the TCP/IP address on your computer
Have administrator privileges to the computer and network you are configuring
If using routing protocols, you must be able to identify and configure the network routers, gateways and firewalls
You must be familiar with using web browser software such as Internet Explorer, Netscape or Mozilla
If you are unfamiliar with any of the above networking concepts, you may need to contact your network administrator for assistance.
HORIZON OVERVIEW
The ESTeem Horizon is a series of wireless LAN
transceivers that can be used to build many types of
Wireless Local Area Networks (WLAN). The
wireless modems in Horizon series can provide RF
data rates up to 150 Mbps and have an RS-232
serial port for legacy device networks. The Model
Horizon is a very sophisticated networking device
that can be configured for multiple modes of
operation depending upon the needs of the wireless
and wired LAN system. The following
configuration modes are provided as an overview
of the basic network types, as all possible network
configurations cannot be listed. For further help in
selecting the correct network type, please refer to
Chapter 4 of this User’s Manual or call Customer
Support at 509-735-9092.

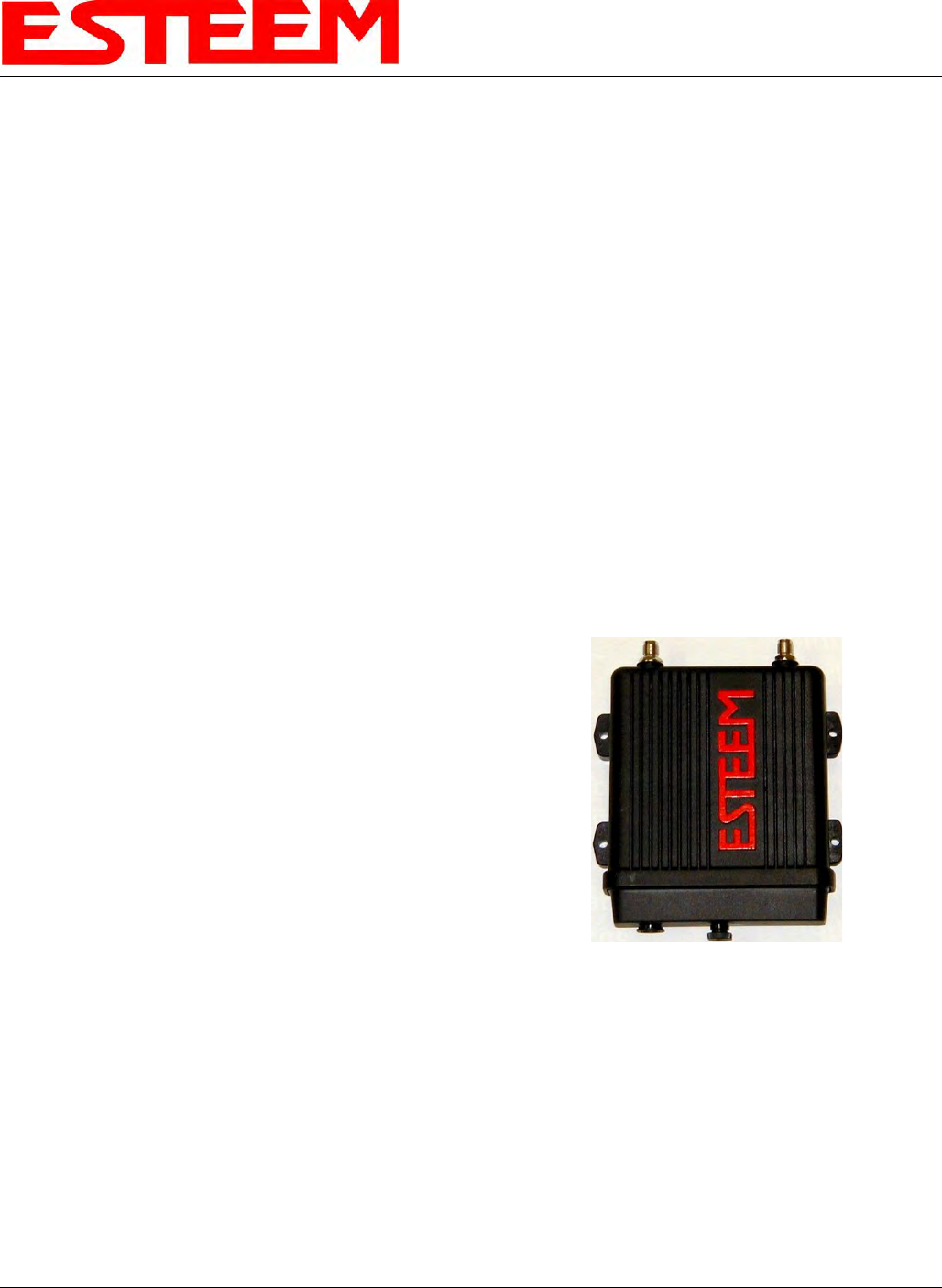

Figure 1: ESTeem Horizon Series
Throughout this User’s Manual are
“Technical Tips” in boxes like this that
have been added to help answer the
most commonly asked questions.

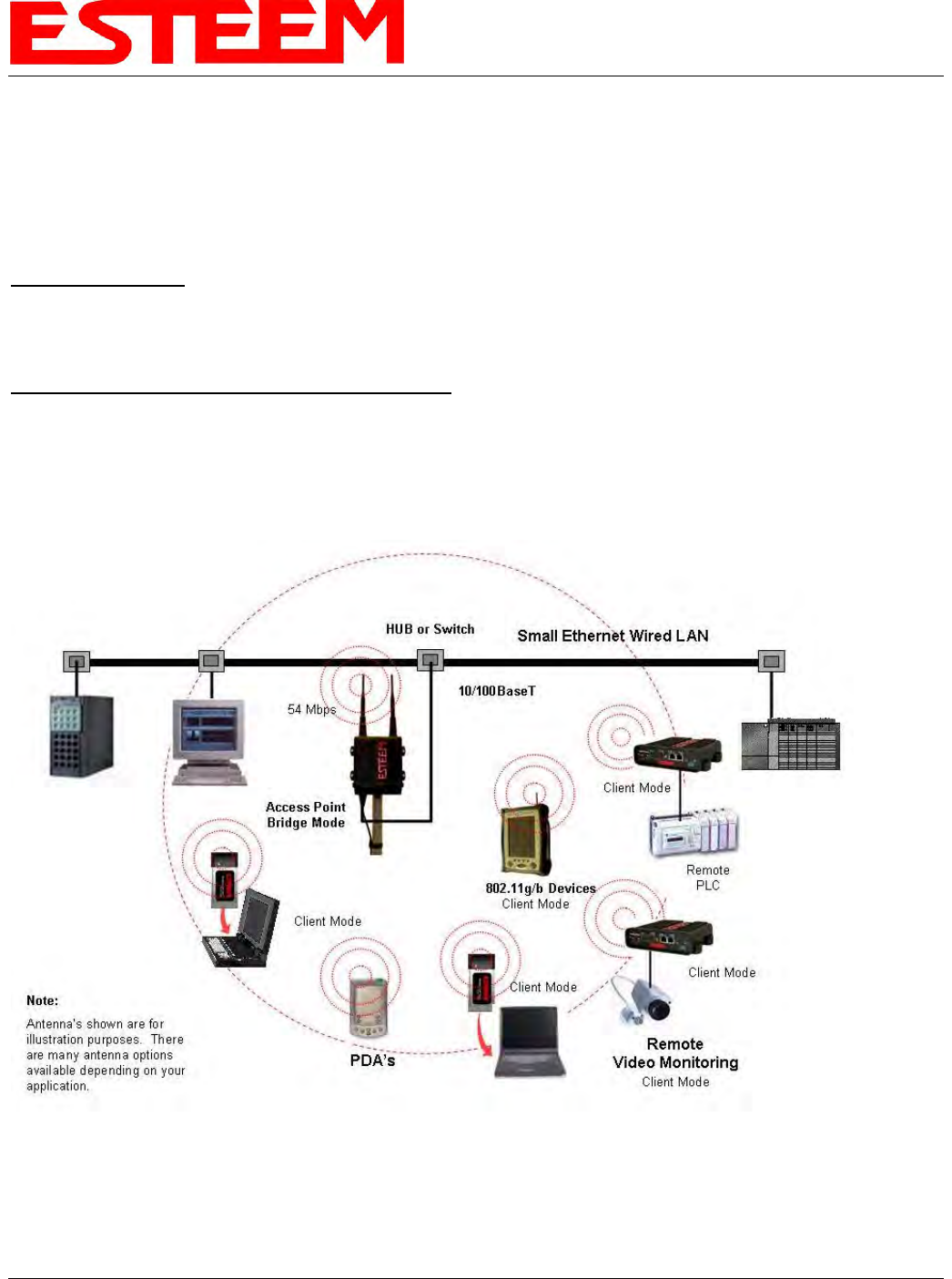

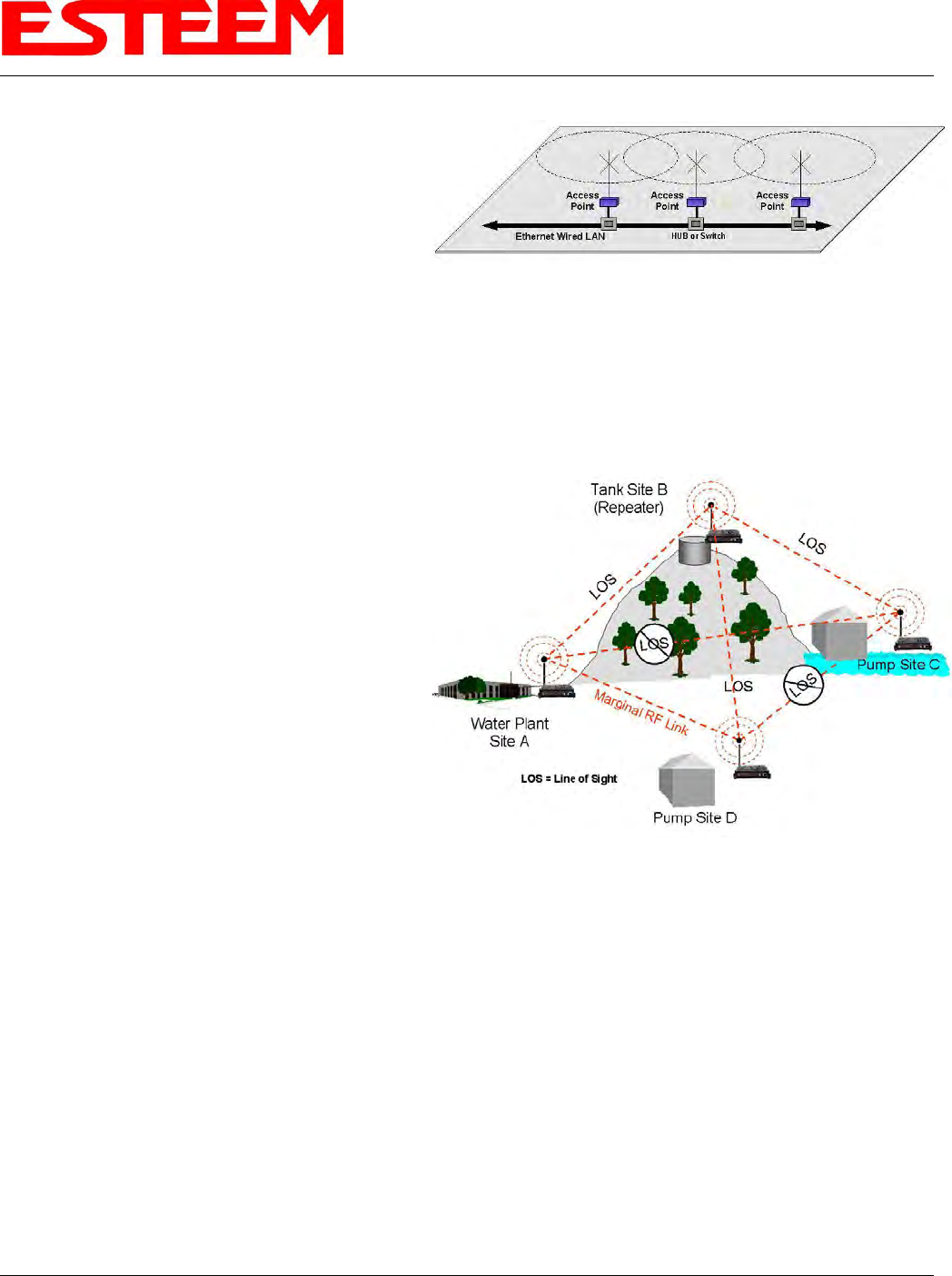

Figure 2: Access Point Bridge Diagram
CHAPTER 1
INTRODUCTION
Revised: 19 Jan 16 1-2 EST P/N AA107-Horizon
CONFIGURATION MODES
The Horizon can be configured for multiple
modes of operation without any changes to the
hardware. The following are brief descriptions
of the configuration modes. For detailed
descriptions and suggested applications for each
mode, please refer to Chapter 4.
Access Point Modes
When the Horizon is configured as an Access
Point it will provide a wireless bridge for mobile
clients such as Horizon or Model 195E modems
in client modes or Wi-Fi devices. Multiple
Access Points can be physically connected to the
same network (LAN) or through a radio link
using the Access Point Repeater mode to
provide overlapping, seamless Ethernet
communication for mobile devices.
1. Access Point Bridge Mode
An ESTeem Horizon in Access Point Bridge mode will both provide wireless access to mobile clients (Access Point) and
bridge all Ethernet data connected to the Ethernet ports. The AP Bridge mode will pass all network traffic between
connected devices including global network broadcasts. (See Figure 2)
2. Access Point Router Mode
In this mode the ESTeem Horizon will function as a router between wired Ethernet networks, connected to the Horizon’s
Ethernet port, and the wireless clients in the network. As in all standard router configurations, the wireless and wired
Ethernet networks will need to be on
separate subnets. The Horizon in
Access Point Router mode will pass
network traffic for connected devices
but will block global network
broadcasts from the wired network.
This mode of operation should be
used instead of the Access Point
Bridge mode when a separation
between networks is required or the
ESTeem is connected to larger LAN
Networks that will continuously send
global network broadcasts (Figure 3).

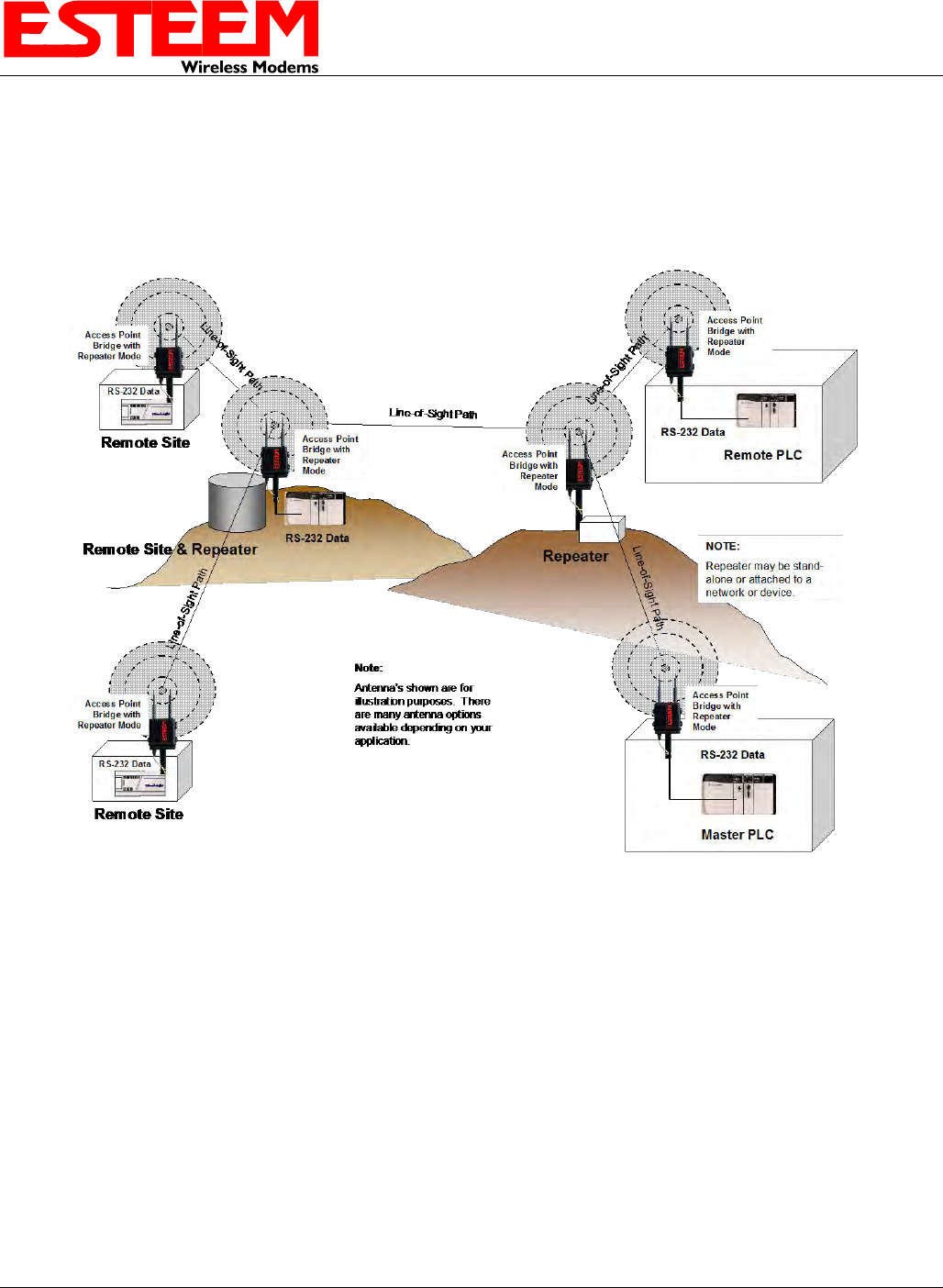

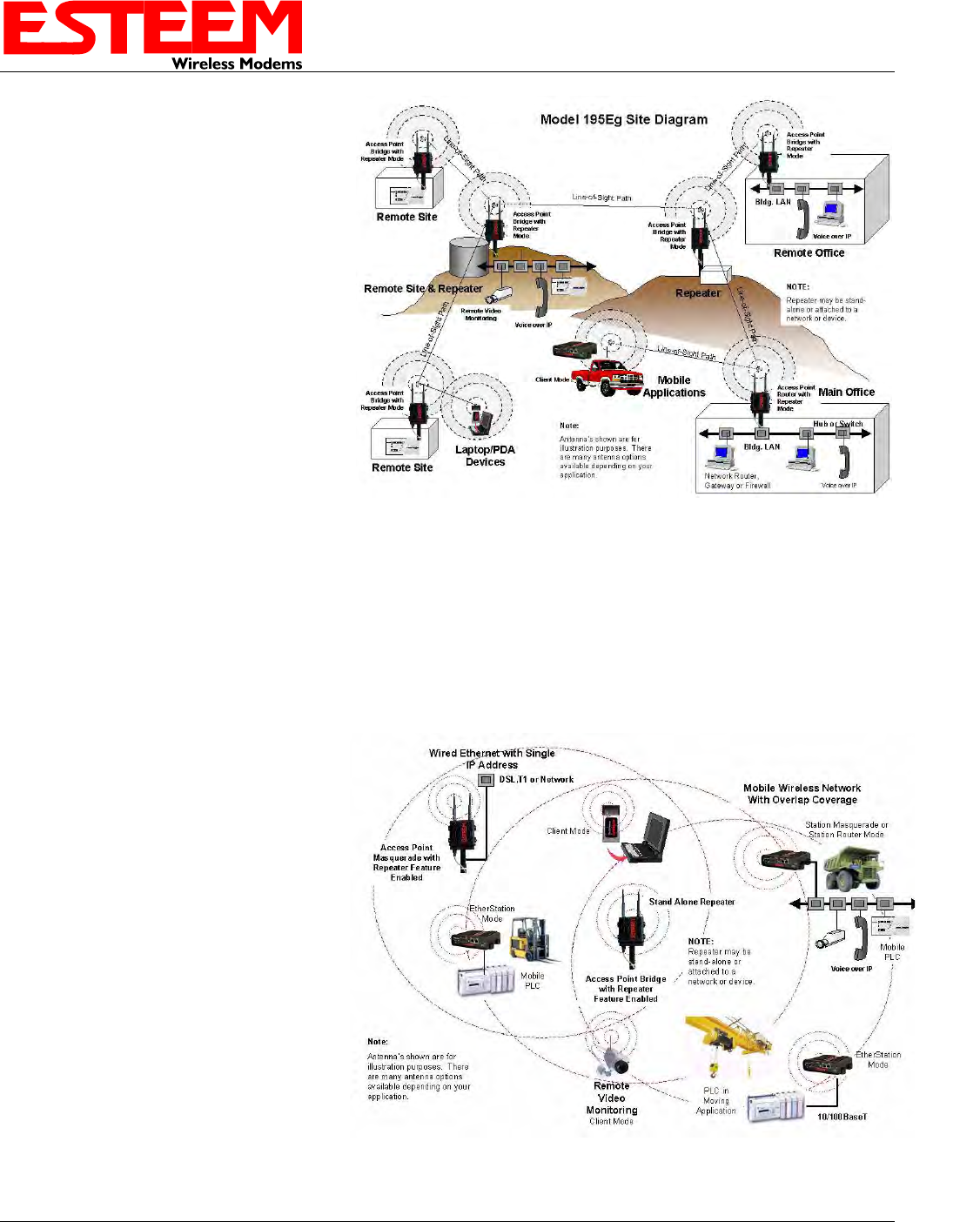

Figure 3: Repeater Mode Diagram

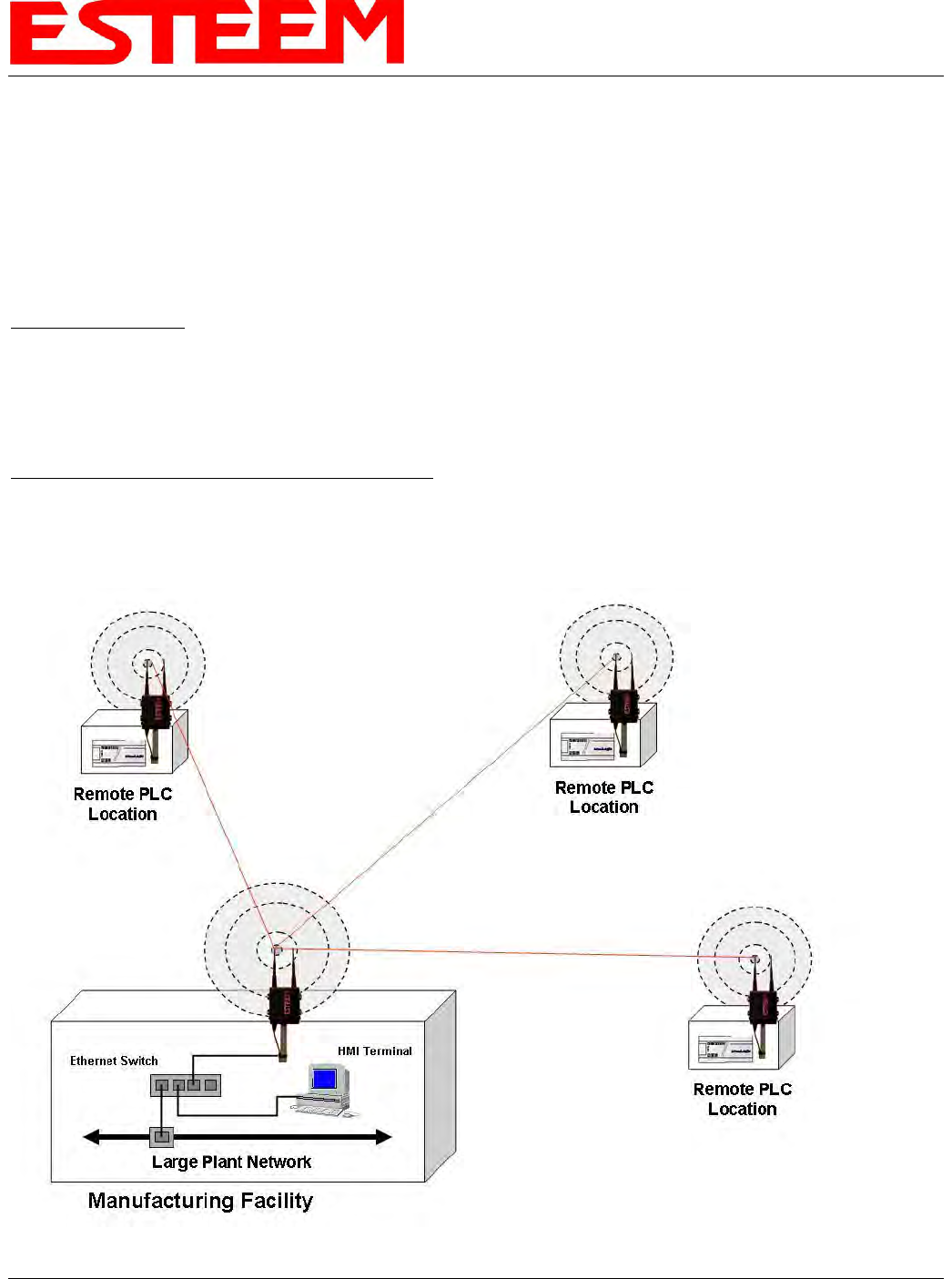

Figure 4: Access Point Masquerade Diagram
CHAPTER 1
INTRODUCTION
Revised: 19 Jan 16 1-3 EST P/N AA107-Horizon
3. Access Point Masquerade Mode
The Access Point Masquerade mode is a special use of the Access Point mode where the Horizon will connect mobile
clients into a single static IP address on a wired network. Data requests from the wireless network will be processed
through the Access Point Masquerade modem, but any request from the wired Ethernet network to devices on the wireless
network will be rejected similar to the operation of a “firewall”. The Horizon will hide all the IP addresses connected on
the wireless link. You would use this mode of operation if Horizon is connected directly to the Internet with a static IP
address (DSL, T1, etc.) and you want the wireless clients to access the information through the Horizon (Figure 4). This
mode should also be used for attaching the Horizon to a network where few IP addresses are available or a firewall for the
wireless clients is required.
Access Point Repeater
The Access Point Repeater is a unique enhancement of the ESTeem Horizon series. The Access Point Repeater can be
used with any of the above Access Point modes. With this repeater feature enabled, the Access Points do not have to be
hardwired together on the same physical LAN to provide seamless Ethernet communication for roaming clients. In addition
to greatly extending the Access Point canopy range, the Horizon will also bridge any Ethernet device or Ethernet network
connected to the unit over this same wireless Ethernet network. This mode gives the user the features of a point to multi-
point bridge network but also allows the Horizon in the Client mode to simultaneously roam under the network canopy.
Self-Healing Mesh Network
If multiple Access Point Repeater routes are configured to the same destination ESTeem, the Horizon will create a “self-
healing” mesh network by automatically re-routing data through alternate paths to reach its destination if the primary
path is inoperable. The routing and priority of alternate paths is completely user configurable. (See Figure 5)

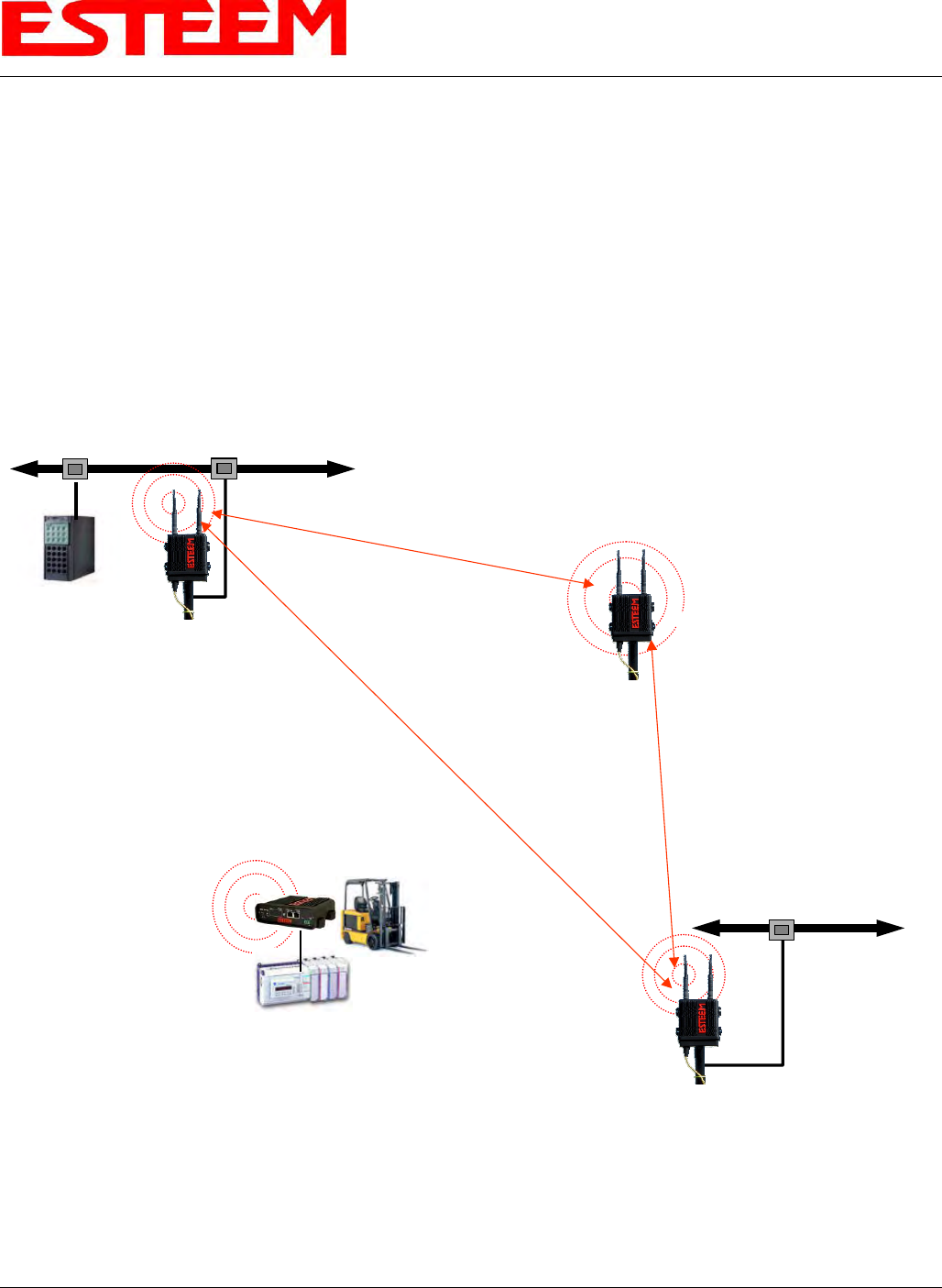

Figure 5: Mesh Network Diagram
CHAPTER 1
INTRODUCTION
Revised: 19 Jan 16 1-4 EST P/N AA107-Horizon
Station (Client) Modes
1. EtherStation Mode
When the Horizon is configured in the EtherStation mode and attached to a single Ethernet Device, the Horizon will
emulate an 802.11 wireless card in functionality for communication as a mobile client. The Horizon will seamless roam
under the radio canopy of Access Points and can provide greatly increased range over a Wireless LAN Card for mobile
Ethernet devices such as vehicles, forklifts, cranes, etc (Figures 2-4).
2. Station Router Mode
The Station Router mode will also functions as a mobile client, similar to EtherStation, but will allow multiple Ethernet
devices to be connected to a single Horizon (Figure 4). The Horizon will function as a router between the wireless client
mode and the wired Ethernet devices connected to the Ethernet port. Similar in configuration to the Access Point Router
mode, the wireless and wired Ethernet networks will need to be on separate subnets. To communicate from wireless
network to devices on the wired Station Router network, a separate router (connected to the Ethernet side of the Access
Point) is required. This mode would be used where multiple Ethernet devices will be connected to a single Horizon in a
mobile client application and the connected Ethernet devices will need to be accessible from the Access Point’s LAN
network.
3. Station Masquerade Mode
The Station Masquerade mode is another case multiple devices will be connected to a single ESTeem in a mobile or client
application. However, unlike the Station Router mode, the Station Masquerade will consolidate all connected Ethernet
devices to a single IP address on the network. The devices connected to the Station Masquerade will be able to access
information from both the wireless and wired LAN, but will be inaccessible the other way similar in application to a
firewall. This mode would be used where multiple Ethernet devices will be connected to a single Horizon in a mobile
application and the IP addresses for each device will be hidden from the LAN connected to the AP. See Figure 4.
CHAPTER 1
INTRODUCTION
Revised: 19 Jan 16 1-5 EST P/N AA107-Horizon
RS-232 Serial Applications
The ESTeem Horizon is installed with an RS-232 data port for serial data applications run over the broadband link (Figure
6). The serial over broadband network can be used in a point-to-point or point-to-multi-point application for networking
serial (RS-232C) devices, providing serial connections to legacy hardware in a new Ethernet network or providing for
high-bandwidth devices (such as Video or Voice over IP) in an existing serial network.
To begin setup of your wireless Ethernet network, continue to Chapter 2 - Staring Out of this User’s Manual.

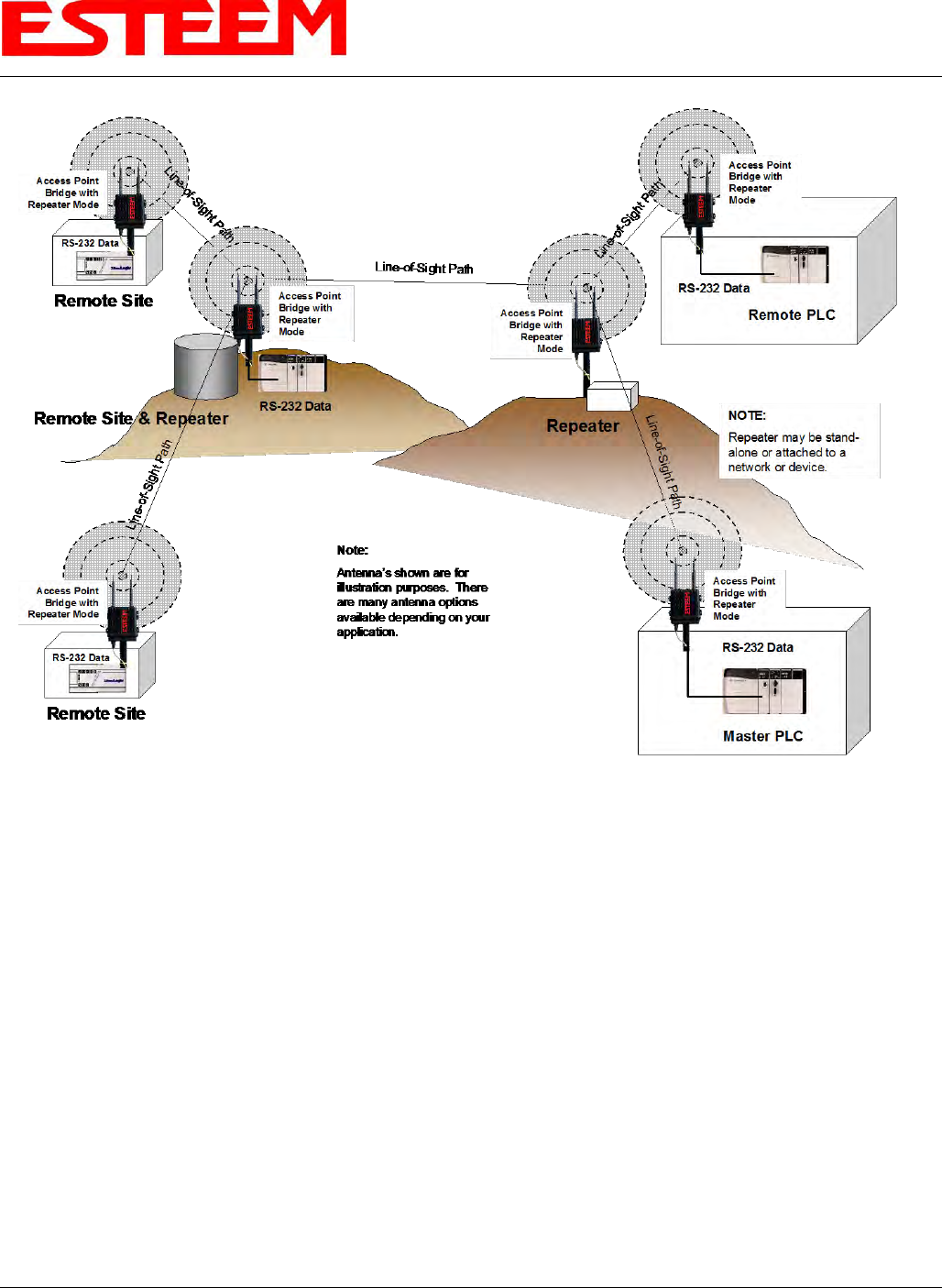

Figure 6: Multi-point Serial Diagram
CHAPTER 2
STARTING OUT
Revised: 19 Jan 16 2-1 EST P/N AA107-Horizon
OVERVIEW
There are three main phases to prepare the ESTeem Horizon for operation in a wireless network:
Phase 1 - Determine the correct mode of operation for the Horizon in the wireless network. The ESTeem Horizon is a
sophisticated networking device that can be configured for multiple modes of operation. Determining the correct mode of
operation for the ESTeem Horizon is the first step. Chapter 3 of this User’s Manual details the modes of operation and
applications where each would be used.
Phase 2 - Program the ESTeem for operation in the wireless network. Once the correct mode of operation for the ESTeem
has been determined, the Horizon can be programmed for the wireless network. To simplify the programming of the Horizon,
ESTeem has created a new software utility called the ESTeem Network Configuration (ENC) Utility which is used to graphically
configure the primary and backup communication routes between radio modems in the network. The ENC Utility can be installed
from the ESTeem Resource Disk or from the ESTeem web site (www.esteem.com). Chapter 4 (Utilities and Features) of this
User’s Manual will guide you in the installation of the software and give a brief overview of operation of the ENC Utility, but a
detailed User’s Guide is available both on the ESTeem Resource Disk and in the Help section of the program itself.

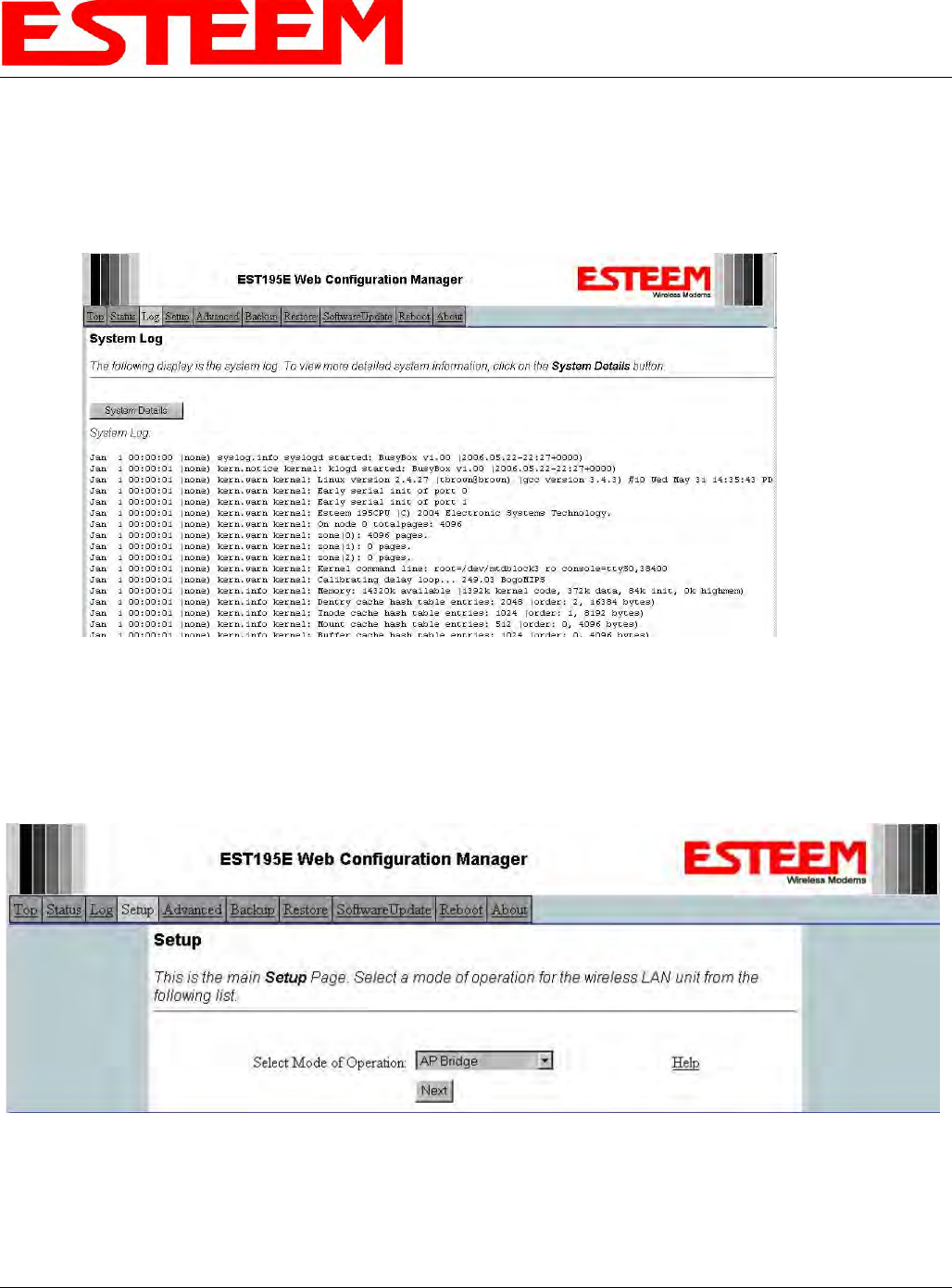

The ESTeem Horizon can also be programmed through the internal Web interface (discussed in detail in Chapter 5) if you do not
have access to the ENC Utility.
Phase 3 - Install the ESTeem hardware and test communication. After the ESTeem Horizon programming, install the
hardware in each remote location. Chapter 8 of this User’s Manual describes the antenna specifications, mounting options and the
configuration of the pole mounting hardware for the ESTeem. For instructions on testing and troubleshooting the wireless link,
refer to Appendix F (Troubleshooting).
MODEL 195E HARDWARE LAYOUT
To begin the configuration, unpack the ESTeem Horizon shipping boxes and locate the items below for initial configuration. Take
a few minutes to inventory your equipment before you proceed. Report any missing or damaged items to Customer Support (509-
735-9092) as soon as possible. Each node in your ESTeem Horizon’s network may have different hardware components based
upon the final installation location (i.e. Outdoor, Indoor, Point-to-point or Muti-Point). Antenna types, cable lengths, power
supplies may be different, but the following items will be required for basic setup:
Model 195E
AA109 Resource Disk

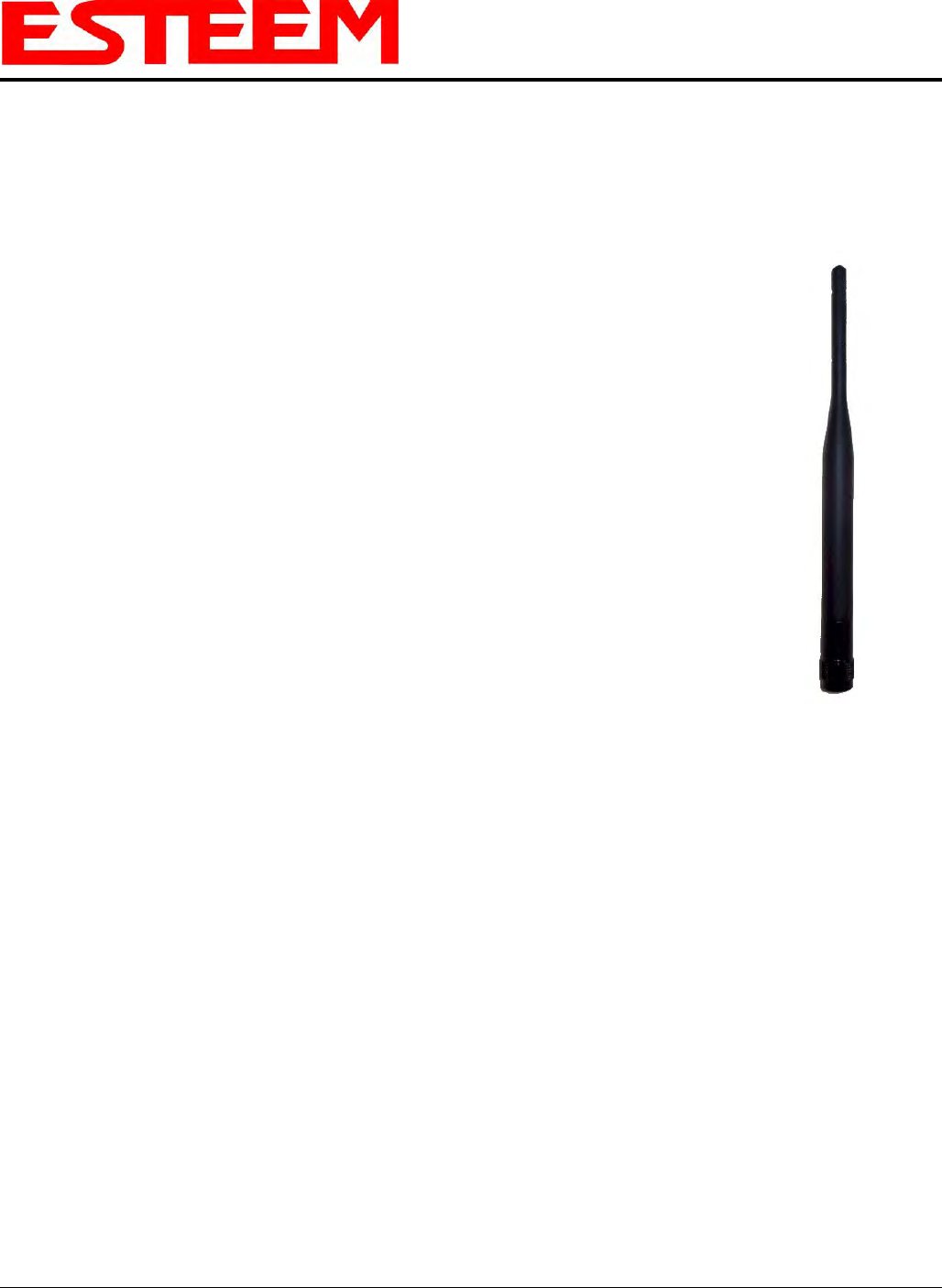

Antenna
(AA01S Displayed)
(2) Ethernet Cables
Power Supply
(AA175 Displayed)
Serial Interface Cable
(AA6021.1)
Note: Your accessory model numbers may vary from the above, but you will need to locate each of above items to continue
configuration.
CHAPTER 2
STARTING OUT
Revised: 19 Jan 16 2-2 EST P/N AA107-Horizon

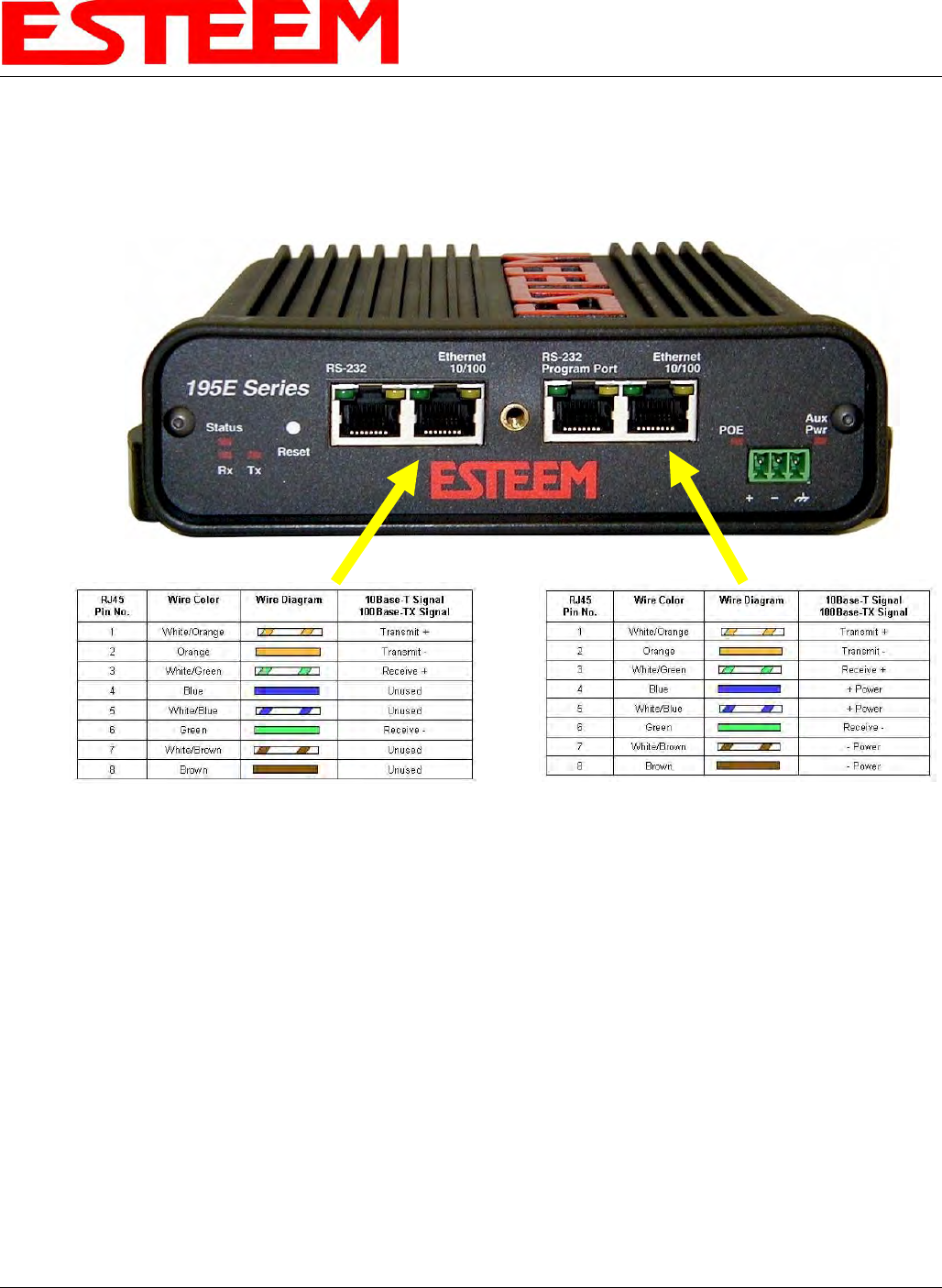

Figure 1: Horizon Front Panel Overview
Figure 2: Horizon Antenna Overview
CHAPTER 2
STARTING OUT
Revised: 19 Jan 16 2-3 EST P/N AA107-Horizon
HORIZON HARDWARE CONFIGURATION
The following steps should be completed to begin configuration of the ESTeem Horizon:
1. Connect the antenna to the antenna connector on the Horizon (Figure 3). For a single antenna use Antenna Port 1 and connect
both if using dual antennas.
2. Assemble the Horizon hardware as shown in Figure 4.

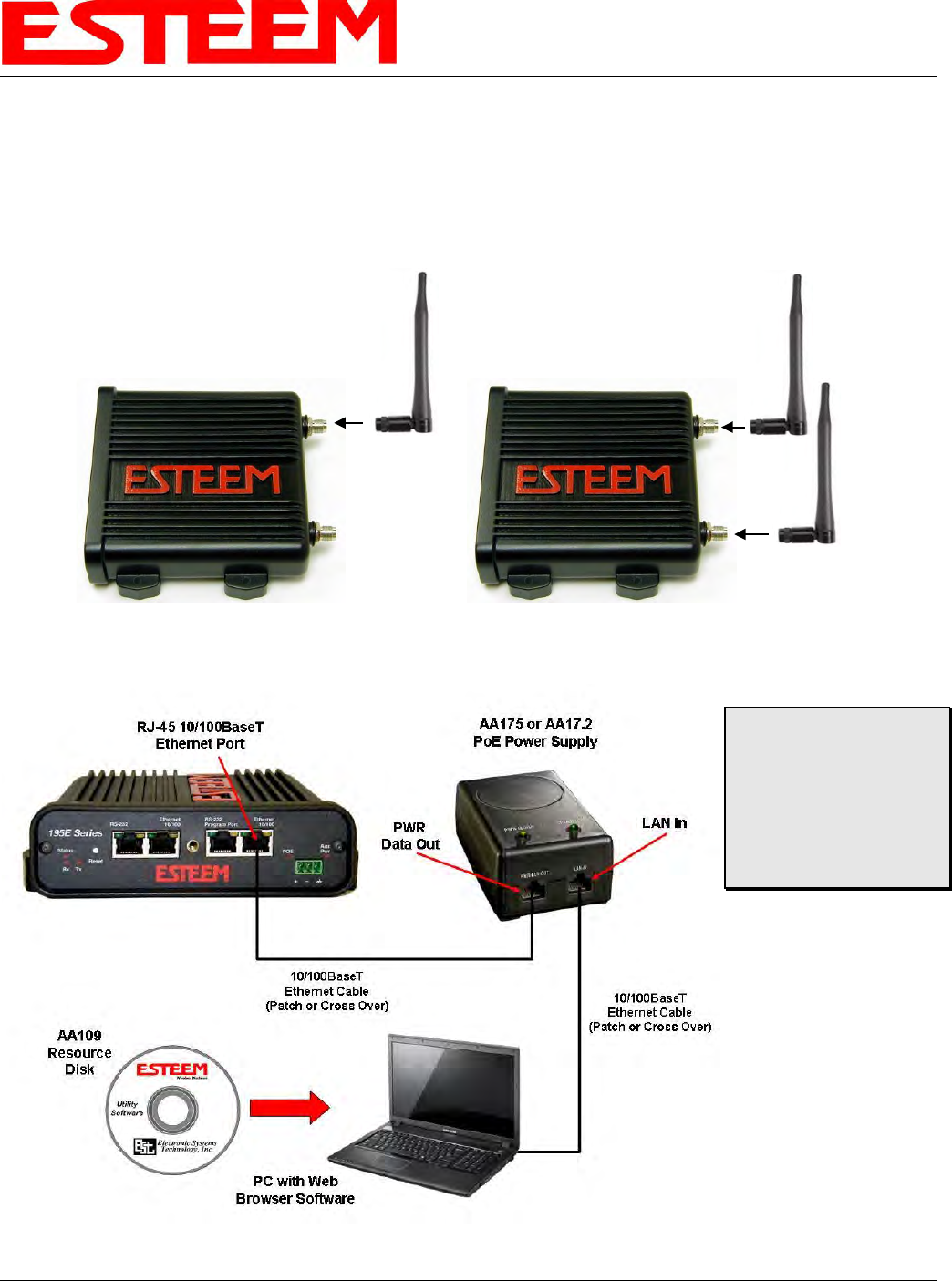

Figure 3: Antenna Configuration Diagram
Technical Tips:
1. Configure the Horizon
prior to mounting.
2. Attach antenna to the
Horizon before powering
up.

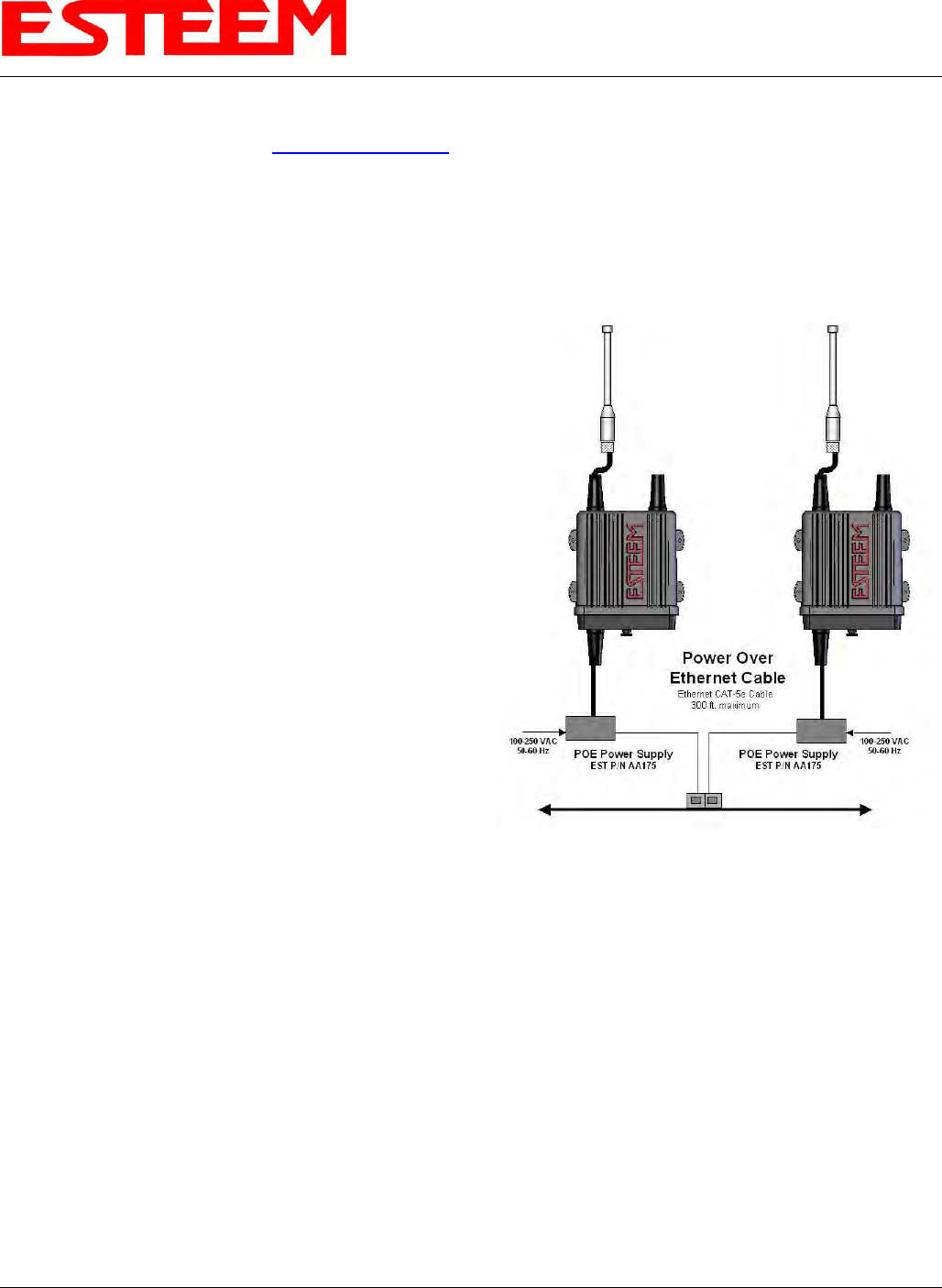

Figure 4: Hardware Configuration Diagram
Leave
Open
Single Antenna
Configuration
Dual Antenna
Configuration
CHAPTER 2
STARTING OUT
Revised: 19 Jan 16 2-4 EST P/N AA107-Horizon
CHAPTER 3
EXAMPLE APPLICATIONS
Revised: 19 Jan 16 3-1 EST P/N AA107-Horizon
MODES OF OPERATION
The ESTeem Horizon is a sophisticated wireless networking device that can be configured for multiple modes of
operation. Determining the correct mode of operation for the ESTeem is the first step in creating a reliable wireless
network. This chapter will explain each mode of operation, provide example applications and detailed programming
information for each mode. Please review the following modes of operations. If you do not see an example of your
application, please contact ESTeem support at 509-735-9092 for help in selecting your mode of operation.
Ethernet Bridge Mode (AP Bridge)
The most commonly used mode of operation with the ESTeem Horizon is the Ethernet bridge mode. The Ethernet
bridge mode will connect two or more ESTeem Horizon’s while passing all network traffic that arrives in both the
wireless and connected Ethernet ports; including all global network traffic (Figure 1). This mode will work in most
wireless applications of the Horizon to wirelessly connect two or more remote Ethernet devices or networks. The
Ethernet bridge mode is also used in repeating (Figure 2) and in self-healing Mesh networks (Figure 3) for fixed (non
mobile) applications.
Example Applications
Building to building remote wireless LAN networks
Point to point wireless Ethernet communication devices
Multi-point wireless Ethernet networks
Remote Supervisory Control and Data Acquisition (SCADA) networks
Redundant, self-healing Mesh networks
Fixed locations with mobile ESTeem Horizon’s
Applications Where Ethernet Bridge Mode Not Used
Mobile applications (see Mobile Clients)
Connections to large Ethernet traffic networks such as large office buildings or plant networks (see Router modes)

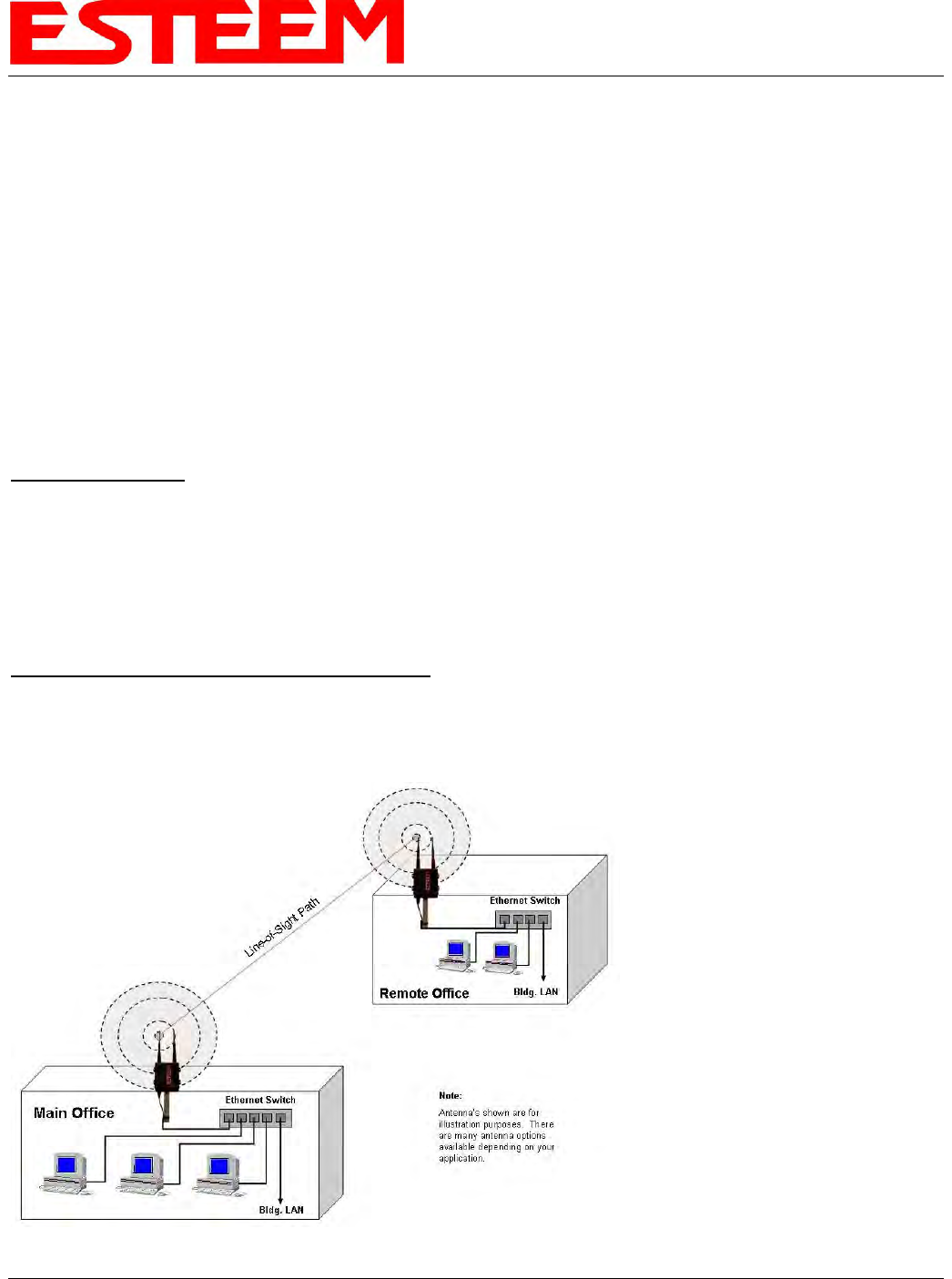

Figure 1: Point to Point Example
CHAPTER 3
EXAMPLE APPLICATIONS
Revised: 19 Jan 16 3-2 EST P/N AA107-Horizon
Figure 3: Multipoint Bridge with Mesh Networking

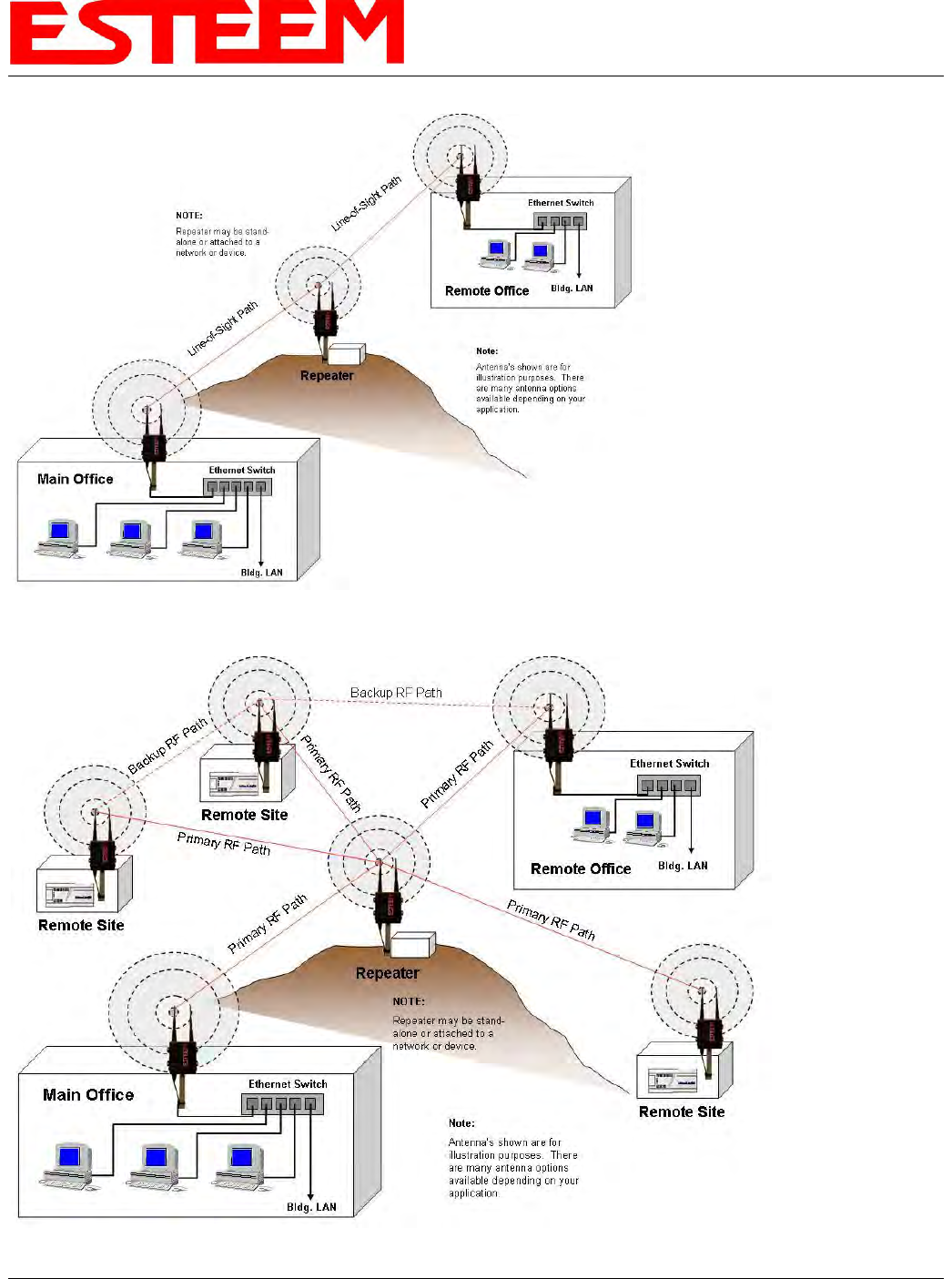

Figure 2: Ethernet Bridge with Repeater
CHAPTER 3
EXAMPLE APPLICATIONS
Revised: 19 Jan 16 3-3 EST P/N AA107-Horizon
Router Modes (AP Router and AP Masquerade)
The ESTeem Horizon can be configured as a network router or network firewall between the Ethernet LAN connection
and the wireless network of remote locations. The router modes are used to limit the network traffic from a busy
Ethernet network connection to only those specific IP address used on the wireless network (see Figure 4). The
Ethernet router mode (AP Router) will allow bi-directional communication from the Ethernet LAN connection to the
wireless network. The Ethernet firewall mode (AP Masquerade) will allow Ethernet devices in the wireless network
to request information from the Ethernet LAN network and receive a response, but no traffic can be generated from
the Ethernet LAN side.
Example Applications
Wireless Ethernet networks connected to large company or plant Ethernet LAN networks (AP Router)
Wireless Ethernet networks with a requirement for network isolation from the plant or company network
(AP Router)
Shared Ethernet connection to direct Internet service (DSL, Cable, T1, etc.) (AP Masquerade)
Applications Where Ethernet Router Mode Not Used
Mobile applications (see Mobile Clients)
Simple network connections only using a single IP network subnet (see Ethernet Bridge modes)
Figure 4: Router Mode Example
CHAPTER 3
EXAMPLE APPLICATIONS
Revised: 19 Jan 16 3-4 EST P/N AA107-Horizon
Mobile Client Modes (EtherStation, Station Router or Station Masquerade)
The ESTeem Horizon can also be configured to function as a mobile client. The client modes allow the Horizon to
seamlessly roam between fixed Access Points. These Access Points can either be ESTeem Horizon wireless
modems configured in one of the three Access Point modes (AP Bridge, AP Router or AP Masquerade – see above)
or any IEEE 802.11 (Wi-Fi). The client modes will allow mobile Ethernet devices to connect to each other or to an
Ethernet LAN through the fixed AP (Figure 5).
The EtherStation mode is used to connect a single Ethernet device to the ESTeem Horizon. If you are connecting
the Horizon to multiple Ethernet devices in a mobile mode, the Station Router or Station Masquerade will be required.
The Station Router will allow bi-directional communication between the Ethernet devices connected to the Horizon
and the wireless network, while the Station Masquerade will serve as a firewall on the Ethernet side.
Example Applications
Mobile applications where the Horizon will change links often between fixed Access Points
Long range mobile client networks
Public safety applications for police, fire and EMS
Applications Where Mobile Client Mode Not Used
Fixed locations using Ethernet Bridging or Routing
Wireless Ethernet networks with repeaters
Figure 5: Router Mode Example
CHAPTER 3
EXAMPLE APPLICATIONS
Revised: 19 Jan 16 3-5 EST P/N AA107-Horizon
802.11 Access Point Modes (AP Bridge, AP Router or AP Masquerade)
The ESTeem Horizon can be configured as a high power 802.11 Access Point (AP). The IEEE 802.11n/g/b Access
Point (AP) functionality is available in all three of the Access Point modes (AP Bridge, AP Router or AP Masquerade).
The Access Point mode will provide either a single wireless connection (Figure 6) or overlapping coverage (Figure 7)
to create a “canopy” of wireless coverage for 802.11 devices. The ESTeem Horizon in AP mode can function as both
an Ethernet bridge or router and 802.11 AP simultaneously (Figure 8).
Example Applications
Industrial, long range 802.11 (Wi-Fi) networks
Hybrid networks of Ethernet bridging/routing and mobile client access
Applications Where Access Point (AP) Mode Not Used
Mobile applications
Figure 6: Single Access Point Network
CHAPTER 3
EXAMPLE APPLICATIONS
Revised: 19 Jan 16 3-6 EST P/N AA107-Horizon
Figure 7: Overlapping Access Point Coverage
Figure 8: Access Point and Ethernet Bridge
CHAPTER 3
EXAMPLE APPLICATIONS
Revised: 19 Jan 16 3-7 EST P/N AA107-Horizon
PROGRAMMING EXAMPLES
Once the mode of operation for the ESTeem has been
determined, you are now ready to program the Horizon for use.
ESTeem has created a simplified network programming utility call
the ESTeem Network Configuration (ENC) Utility. This ENC
Utility will be used in all the following programming examples. For
detailed instructions on installing the ENC Utility, please refer to
the User’s Guide (found in the ESTeem Resource CD or Utility
program itself) or Chapter 4 of this User’s Manual
Adding Esteem’s to ENC Utility and Changing Name
Each of the example applications will use the following procedure to add and rename ESTeem Horizon’s.

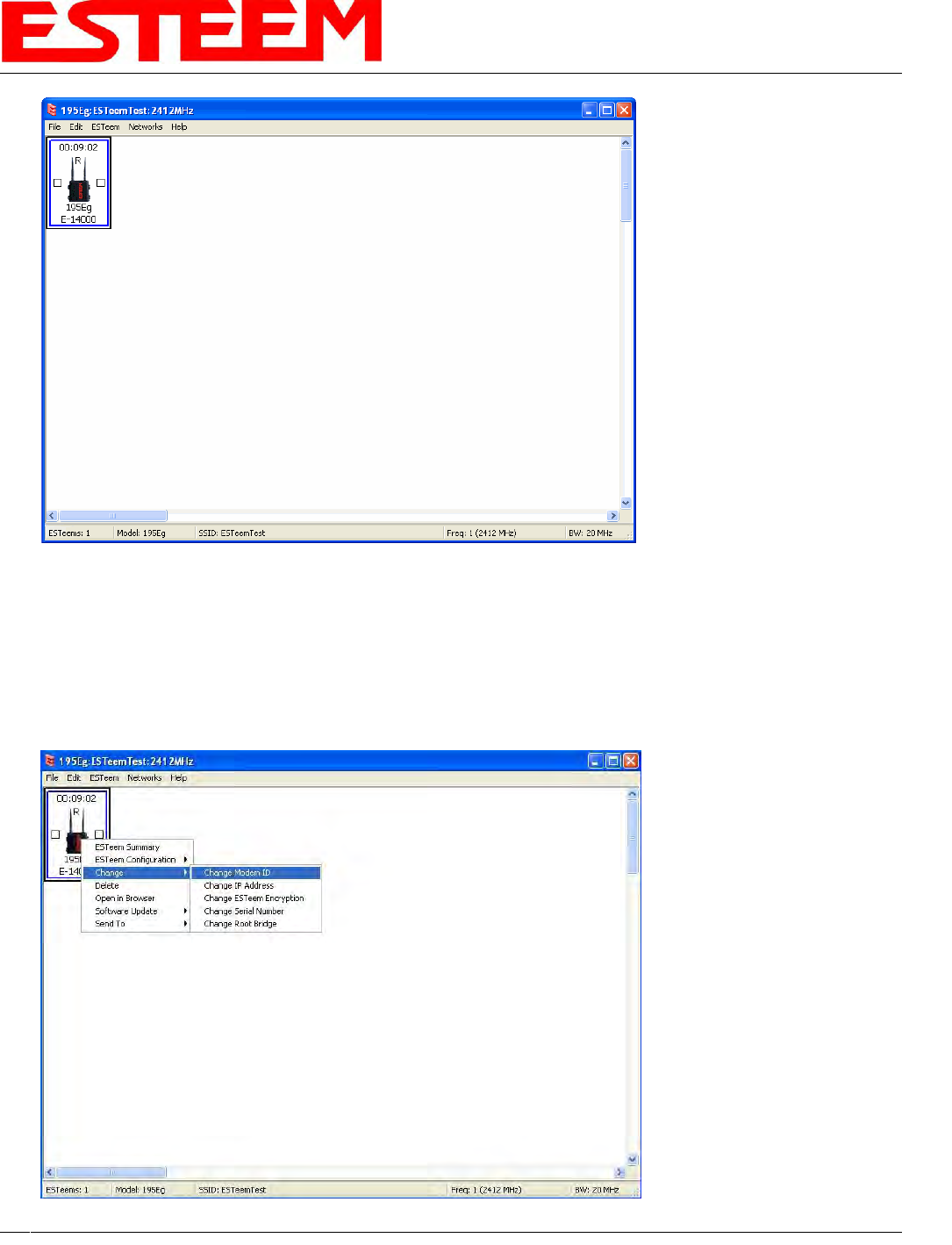

1. Consult the ENC Utility’s User Guide on how the create a new wireless network. Once you have a blank network
configuration page (Figure 9), select ESTeem from the menu items to display the drop down menu, then select
New>New ESTeem.
2. Enter in the ESTeem Horizon serial numbers used for the
example (for example enter E-14000 in the Set Serial Number
Box) and press the OK button (Figure 10). The ENC Utility will
look up the ESTeem Horizon’s serial number in the database
and match the correct Wireless LAN MAC (WLAN MAC)
address to the modem. This WLAN MAC address will be
displayed above the modem symbol on the screen (Figure 11).
Technical Tip: The ENC Utility calculates the
wireless link information based upon exact
ESTeem serial numbers. The serial numbers
listed in the following examples are for example
only. Enter the correct ESTeem serial numbers
for your application.
Figure 9: Adding ESTeem to Blank ENC Configuration Page
Figure 10: Enter the Serial Number
CHAPTER 3
EXAMPLE APPLICATIONS
Revised: 19 Jan 16 3-8 EST P/N AA107-Horizon
3. To change the name of the ESTeem Horizon from the WLAN MAC address to “Main Office” (or any other location
name) to match the example configuration, Right-Mouse click on the ESTeem icon and select Change>Change
Modem ID (Figure 12). Enter “Main Office” in the pop-up window and select OK.
4. Duplicate the above procedure for each ESTeem Horizon added to the network.
Figure 11: Main Office ESTeem Horizon
Figure 12: Change Modem ID
CHAPTER 3
EXAMPLE APPLICATIONS
Revised: 19 Jan 16 3-9 EST P/N AA107-Horizon
Ethernet Bridge Mode Example 1 (Figure 1)
Point to Point Ethernet Bridge
(2) ESTeem Horizon
Serial Numbers: E-14000 (Main Office) and E-14001 (Remote Office)

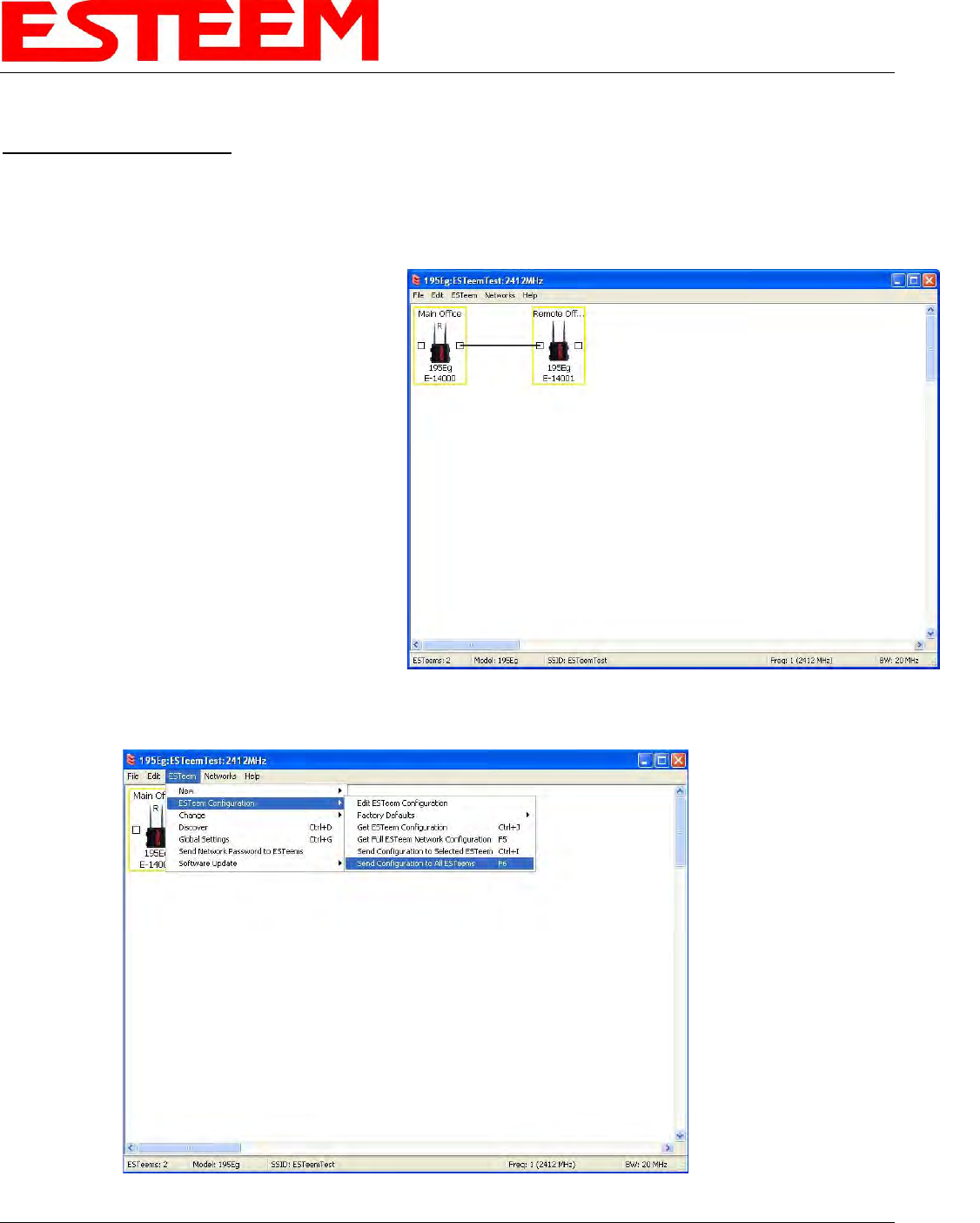

1. Add the two ESTeem Horizons to the network using the above procedure. Once both ESTeem Horizons are on
the configuration page, create a wireless link
by clinking on one of the two connection
boxes and dragging a line to the other
modem (Figure 13).
5. Verify both ESTeem modems are connected
to the same switch as the computer running
the ENC Utility and send the configuration to
both modems at the same time by selecting
ESTeem>ESTeem Configuration>Send
Configuration to All ESTeems (Figure 14).
6. Once the ENC Utility has downloaded the
configuration for both ESTeem Horizons, the
status box around the ESTeems will change
from yellow to blue. This indicates that the
configuration was completed successfully
and the ESTeem Horizons are ready to be
installed in the application.
Figure 13: Create Wireless Link
Figure 14: Send Configuration to ESTeem’s
CHAPTER 3
EXAMPLE APPLICATIONS
Revised: 19 Jan 16 3-10 EST P/N AA107-Horizon
Ethernet Bridge Mode Example 2 (Figure 2)
Point to Point with Repeater Ethernet Bridge
(3) ESTeem Horizon
Serial Numbers:
E-14000 (Main Office)
E-14001 (Remote Office)
E-14002 (Repeater)
1. Using the above procedure, enter the three
ESTeem Horizons into the ENC Utility. Your
layout should appear like Figure 14.
2. Move the ESTeem Horizon icons on the
screen to simulate the layout of the diagram.
Draw connection lines between the modems
to make the wireless link in the same order
as the network layout (Figure 15).
3. Verify all ESTeem modems are connected
to the same switch as the computer running the ENC
Utility and send the configuration to both modems at the
same time by
selecting ESTeem>ESTeem Configuration>Send
Configuration to All ESTeems. Once the ENC Utility has
downloaded the configuration for both ESTeem Horizon’s,
the status box around the ESTeem‘s will change from
yellow to blue. This indicates that the configuration was completed successfully and the ESTeem Horizon’s are
ready to be installed in the application.
Technical Tip: Although it does not matter
where the ESTeem icons are located on the
screen, putting them in the same layout as the
application makes it easier to visually verify the
network connections.
Figure 14: Example 2 Modems
Figure 15: Example 2 Layout
CHAPTER 3
EXAMPLE APPLICATIONS
Revised: 19 Jan 16 3-11 EST P/N AA107-Horizon
Ethernet Bridge Mode Example 3 (Figure 3)
Point to Multipoint with Mesh Repeater Links
(6) ESTeem Horizon
Serial Numbers:
E-14000 (Main Office)
E-14001 (Remote Office)
E-14002 (Repeater)
E-14003 (Remote Site 1)
E-14004 (Remote Site 2)
E-14005 (Remote Site 3)
1. Using the above procedure for adding
ESTeem Horizons, add the six ESTeem
Horizons for this example and rename by
location. Your layout should appear like Figure
16.
2. Move the ESTeem Horizon icons on the
screen to simulate the layout of the diagram.
Draw connection lines between the primary
wireless links modems in the same order as the network layout (Figure 17).

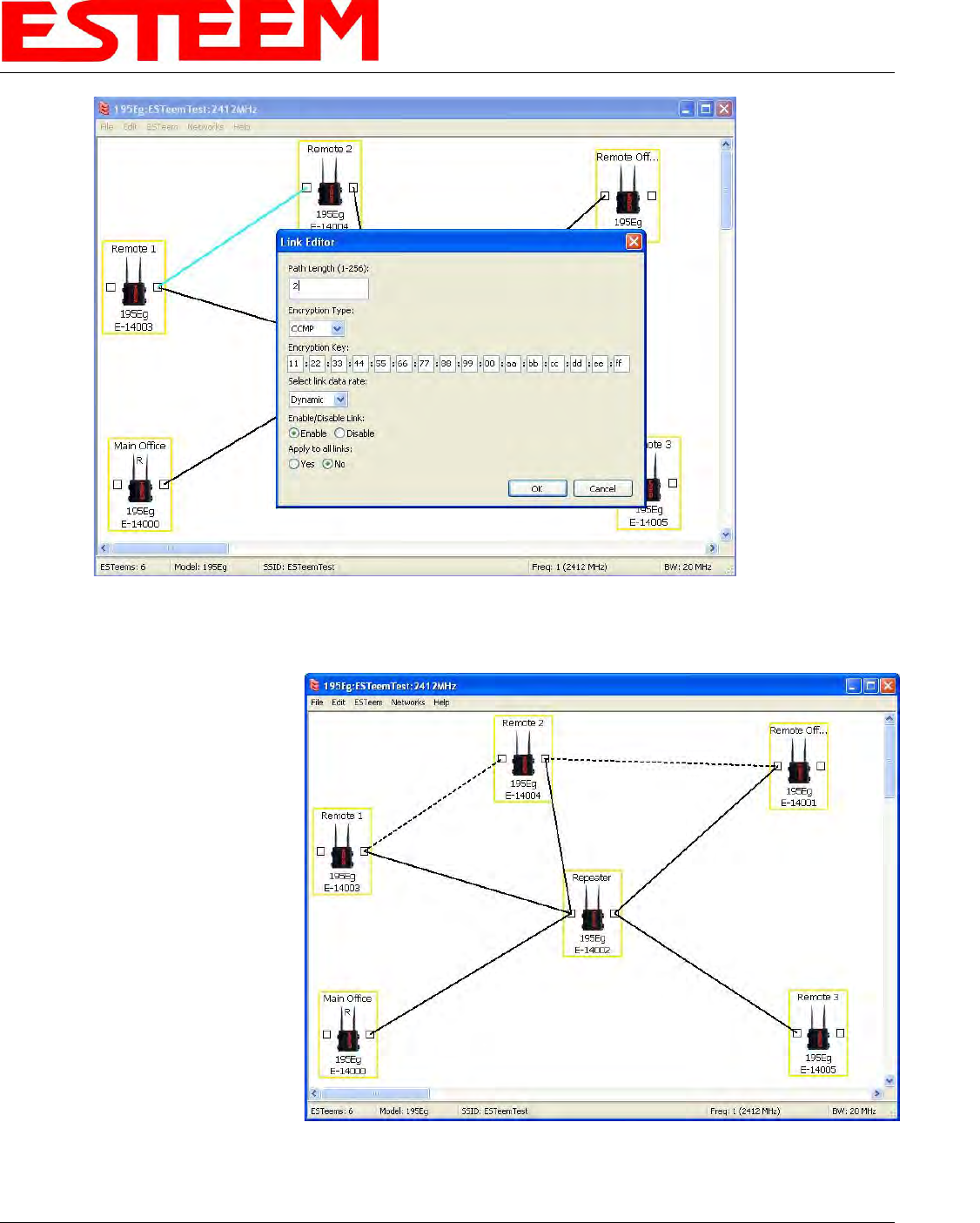

3. To create the backup link between Remote 1 and Remote 2 and the other backup link from Remote 2 to the
Remote Office, draw a wireless connection as you would on the primary link. Double-click on the line created.
The Link Editor box will be displayed (Figure 16). Any Path Length greater than 1 will display as a dashed line

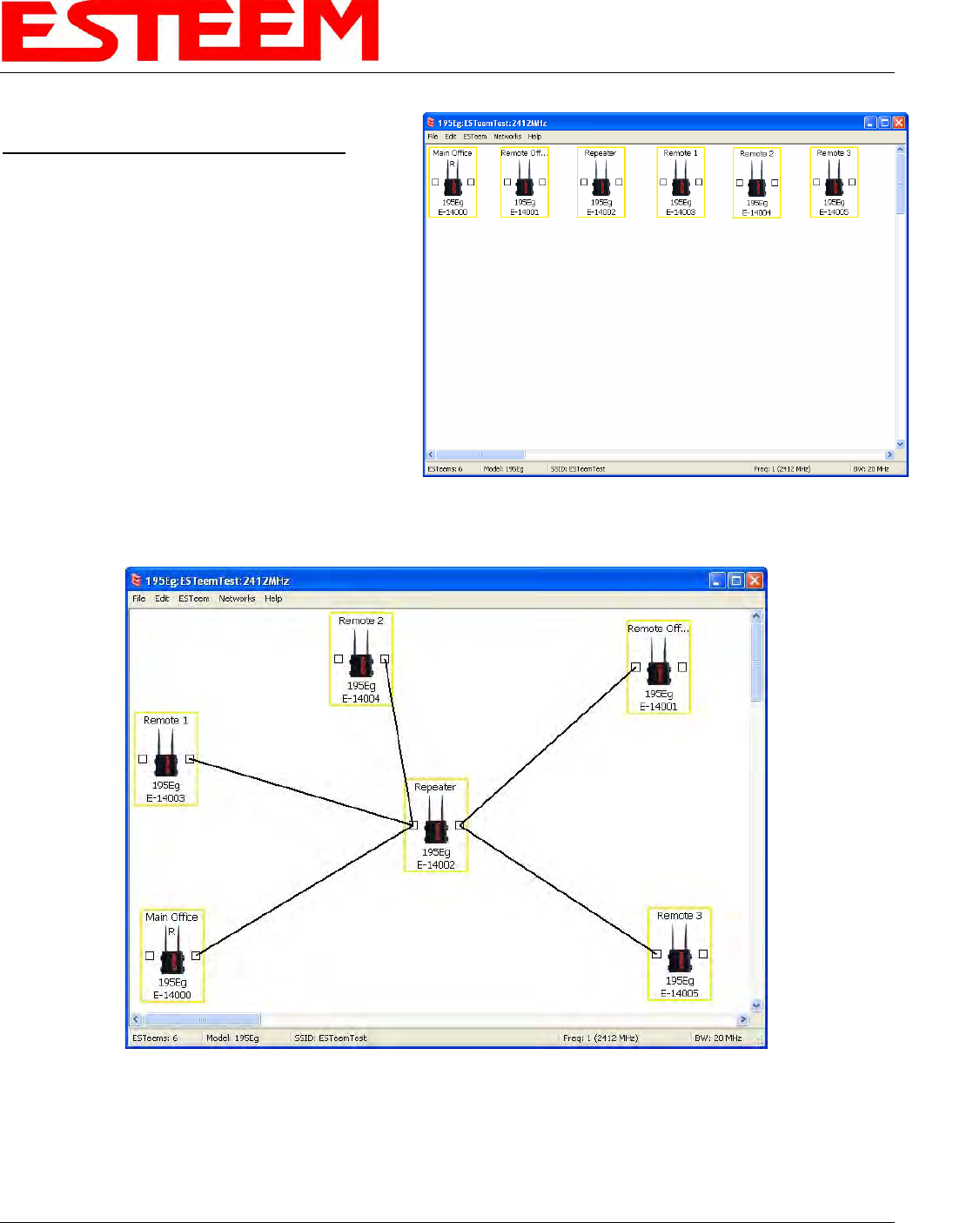

Figure 16: Example 3 Modems
Figure 15: Example 2 Layout
CHAPTER 3
EXAMPLE APPLICATIONS
Revised: 19 Jan 16 3-12 EST P/N AA107-Horizon
indicating a backup link in the repeater Mesh configuration (Figure 17). For detailed instruction on Mesh network
configuration, refer to Chapter 7 of this User’s Manual.
4. Verify all ESTeem modems are
connected to the same switch
as the computer running the
ENC Utility and send the
configuration to all modems at
the same time by selecting
ESTeem>ESTeem
Configuration>Send
Configuration to All ESTeems.
Once the ENC Utility has
downloaded the configuration
for both ESTeem Horizon’s,
the status box around the
ESTeem‘s will change from
yellow to blue. This indicates
that the configuration was
completed successfully and
the ESTeem Horizon’s are
ready to be installed in the
application.
Figure 17: Mesh Network Configuration
Figure 16: Backup Link Configuration
CHAPTER 3
EXAMPLE APPLICATIONS
Revised: 19 Jan 16 3-13 EST P/N AA107-Horizon
Ethernet Router Mode Example (Figure 4)
Point to Multipoint Router Mode
(4) ESTeem Horizon
Serial Numbers:
E-14000 (Router at Network)
E-14001 (Remote Site 1)
E-14002 (Remote Site 2)
E-14003 (Remote Site 3)
1. Using the above procedure for adding
ESTeem Horizons, add the four ESTeem
Horizons for this example and rename by
location. Your layout should appear like
Figure 18.
2. Move the ESTeem Horizon icons on the
screen to simulate the layout of the
diagram. Draw connection lines between
the wireless links modems in the same
order as the network layout (Figure 19).

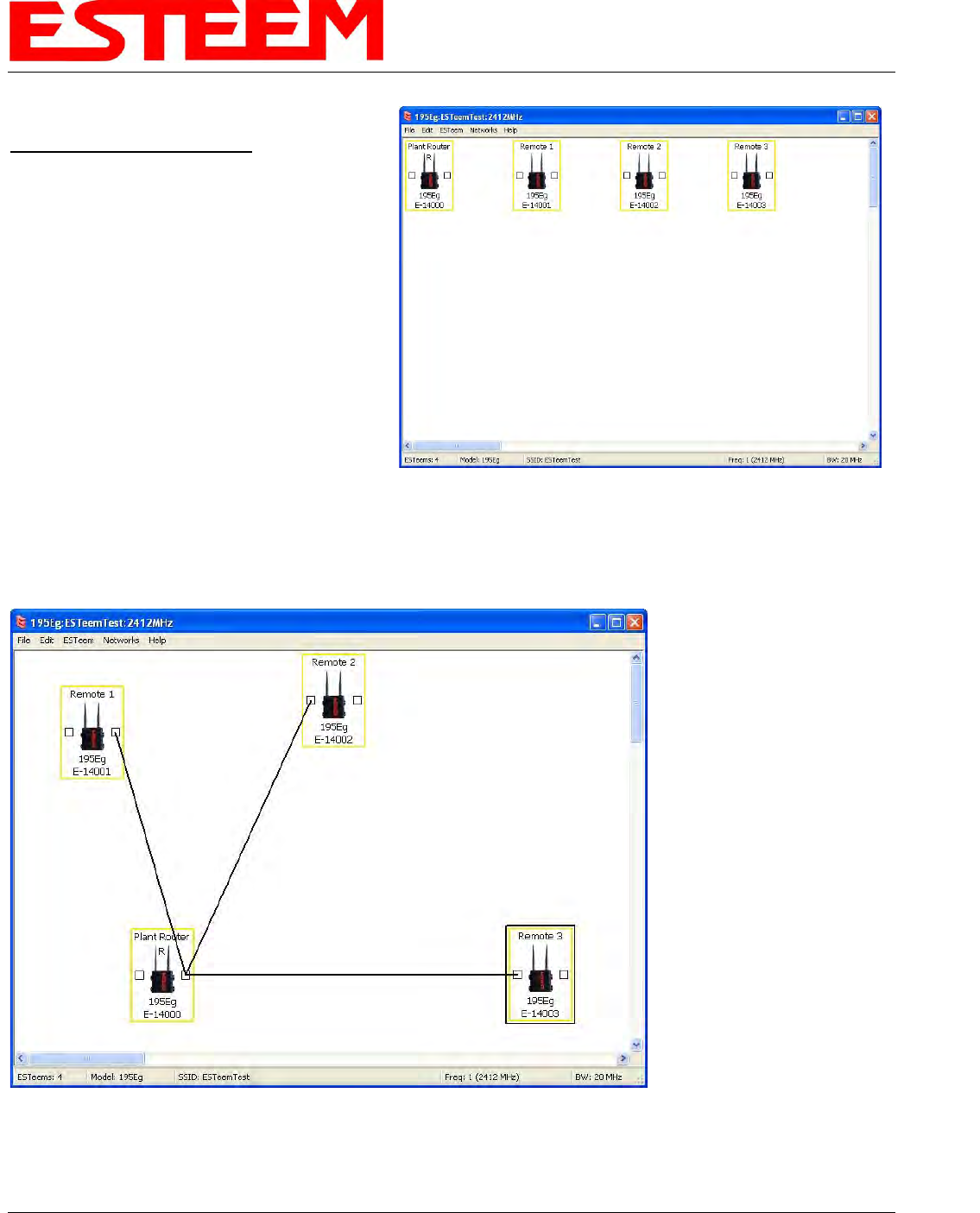

Figure 18: Router Mode Example Modems
Figure 19: Router Example Layout
CHAPTER 3
EXAMPLE APPLICATIONS
Revised: 19 Jan 16 3-14 EST P/N AA107-Horizon
3. By default, the ENC Utility sets all ESTeem modems in AP Bridge
mode. To change the Plant Router ESTeem to AP Router mode,
double-click on the icon to bring up the ESTeem Summary window
and press the Edit button (Figure 20).
4. Change the Mode of Operation from AP Bridge to AP Router
(or Masquerade if desired) and press the Next button at the bottom
of the window (Figure 21).
5. Continue through the configuration screens setting the AP
Router addressing to match the IP address ranges for your
network. For help with setting the router addressing please
refer to Router Address Examples later in this chapter. You will
end on the screen in Figure 22. Press the Finish button to
return to the configuration page.
6. Verify all ESTeem modems are connected to the same switch
as the computer running the ENC Utility and send the
configuration to all modems at the same time by selecting
ESTeem>ESTeem Configuration>Send Configuration to All

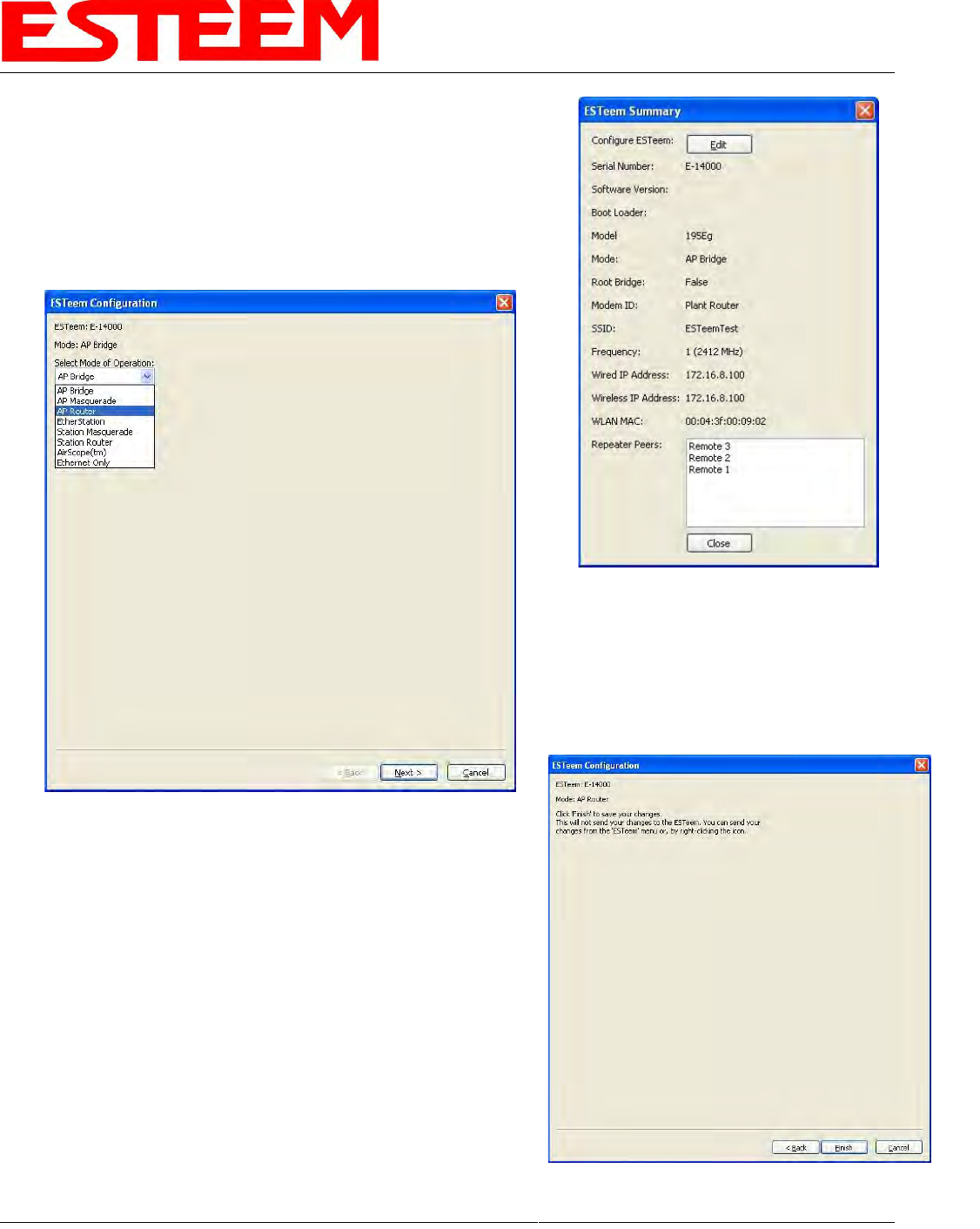

Figure 21: AP Router Configuration
Figure 20: ESTeem Summary Page
Figure 22: ESTeem Summary Page
CHAPTER 3
EXAMPLE APPLICATIONS
Revised: 19 Jan 16 3-15 EST P/N AA107-Horizon
ESTeem’s. Once the ENC Utility has downloaded the configuration for both ESTeem Horizons, the status box
around the ESTeem’s will change from yellow to blue. This indicates that the configuration was completed
successfully and the ESTeem Horizons are ready to be installed in the application.
CHAPTER 3
EXAMPLE APPLICATIONS
Revised: 19 Jan 16 3-16 EST P/N AA107-Horizon
Mobile Client Mode Example (Figure 5)
EtherStation, Station Router and Station Masquerade Modes
(3) ESTeem Horizon
Serial Numbers:
E-14000 (EtherStation)
E-14001 (Station Router)
E-14002 (Station Masquerade)
Setting the ESTeem for Mobile Client (station) mode with the ENC Utility is different than
the Bridge/Router or Access Point (AP) modes. ESTeem modems configured in as a
Mobile Client will not link with a specific fixed modem; but will roam between any 802.11
Access Point with the correct Network Name (SSID) and Encryption. The ESTeem
configured as a client is also not set on a specific operating frequency (channel) but will
scan all channels looking for the AP. Use the following procedure to configure an ESTeem
Horizon in one of the three mobile client modes:

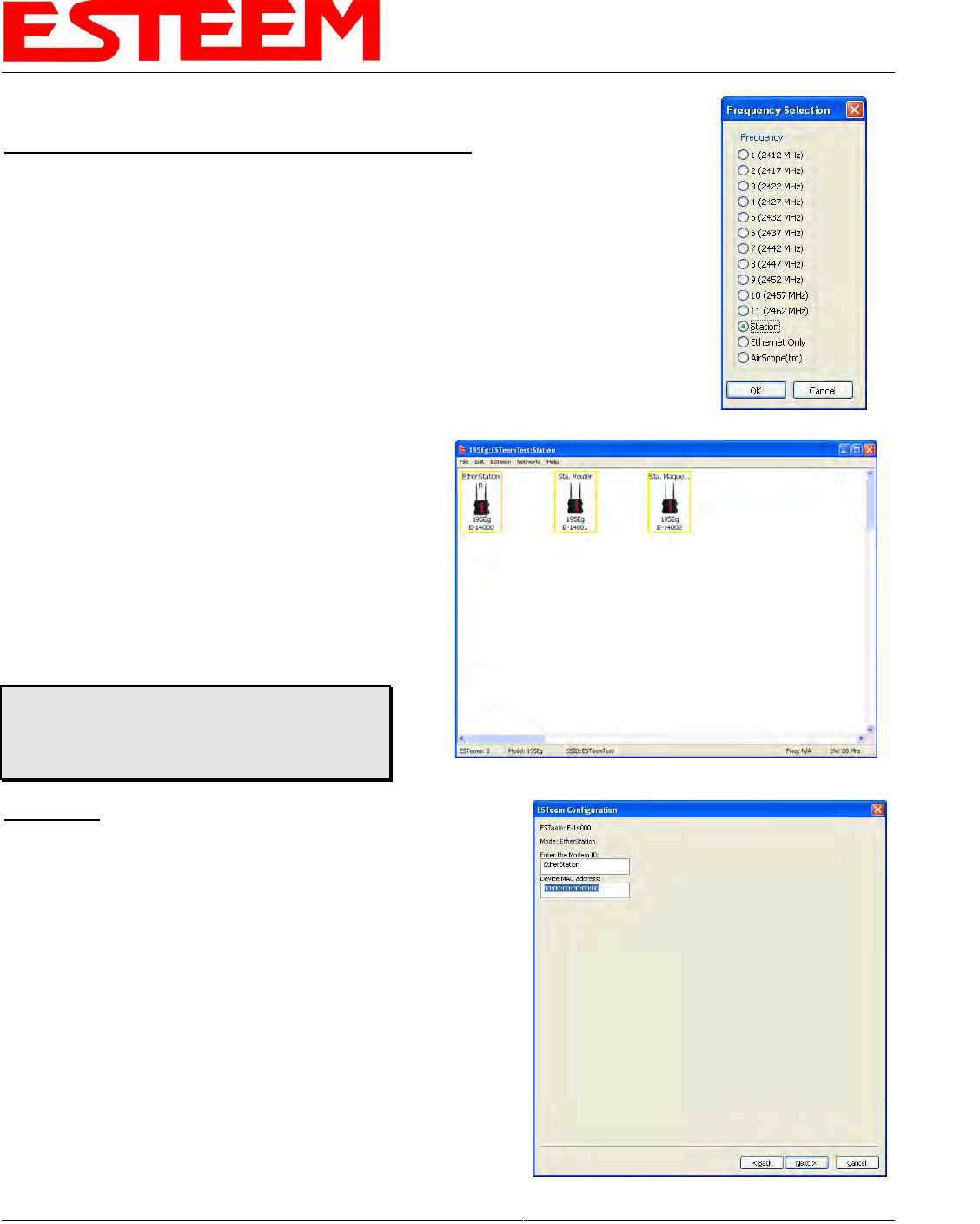

1. Starting a new network of ESTeem Horizons in
Mobile Client mode is the same as any of the
Bridge modes except when you are asked for the
frequency (channel) of operation, select “Station”
(Figure 23).
2. Add the three mobile client modems to the ENC
Utility configuration page as instructed above and
set the Modem ID to match the three modes of
operation. Your configuration will appear as in
Figure 24.
EtherStation
3. By default, the ENC Utility sets all station mode ESTeem
modems to EtherStation mode. The only adjustment
necessary to the EtherStation modem in our example is to
enter the connected Ethernet device’s MAC address. The
ESTeem Horizon will “clone” the Ethernet MAC address of
the connected Ethernet device. To configure the
EtherStation modem, double-click on the icon to bring up the
ESTeem Summary window and press the Edit button (Figure
20).
4. EtherStation mode should be selected in the Mode of
Operation. Press the Next button at the bottom of the window
to continue. Enter the connected Ethernet device’s MAC
address in the “Device MAC Address” box (Figure 25) and
press the Next button at the bottom of the window to continue.
Figure 23: Station
Figure 24: Station Mode Example Modems
Technical Tip: The ESTeem Horizon’s in
Mobile Client modes do not have a specific
frequency of operation as can be seen in Figure
24.
Figure 25: MAC Address Entry
CHAPTER 3
EXAMPLE APPLICATIONS
Revised: 19 Jan 16 3-17 EST P/N AA107-Horizon
5. Verify the encryption settings are correct for the 802.11
AP network in which the EtherStation modem will be
working and press the Finish button to return to the
configuration page.
Station Router and Station Masquerade
6. To configure the two other modems, double-click on
their icons to bring up the ESTeem Summary window
and press the Edit button (Figure 20).
7. Select Station Router for E-14001 and Station
Masquerade for E-14002 in the Mode of Operation
(Figure 26). Press the Next button at the bottom of the
window to continue.
8. Continue through the configuration screens setting the
Station Router/Masquerade addressing to match the IP
address ranges for your network. For help with setting
the router addressing please refer to Router Address
Examples later in this chapter.
9. Verify the encryption settings are correct for the 802.11
AP network in which the EtherStation modem will be
working and press the Finish button to return to the configuration page.
10. Verify all ESTeem modems are connected to the same switch as the computer running the ENC Utility and send
the configuration to all modems at the same time by selecting ESTeem>ESTeem Configuration>Send
Configuration to All ESTeems. Once the ENC Utility has downloaded the configuration for both ESTeem
Horizons, the status box around the ESTeems will change from yellow to blue. This indicates that the
configuration was completed successfully and the ESTeem Horizons are ready to be installed in the application.
802.11 Access Point Modes (Figures 6-8)
Access Point Bridge, Router or Masquerade Modes
Configuring the ESTeem Horizon as an Access
Point for 802.11 clients (as seen Figures 6-8) is
exactly the same as configuration for AP Bridge, AP
Router and AP Masquerade as shown above. The
only difference being that a wireless link is only
added between ESTeem Horizons where a wireless
connection is necessary. In figures 6 and 7 there
would be no wireless link listed in the ENC Utility. In
figure 8, the configuration would be exactly as
shown in Figure 2 with the addition of the mobile
clients in the network.
The 802.11 clients will use the SSID configured
during the setup of the network with the ENC Utility.
The encryption will be set at the factory default
settings for clients (WPA PSK). To adjust the
encryption type, right-mouse click on the ESTeem
Figure 26: Mode of Operation Selection
Figure 27: Encryption Configuration
CHAPTER 3
EXAMPLE APPLICATIONS
Revised: 19 Jan 16 3-18 EST P/N AA107-Horizon
icon and select Change>Change ESTeem Encryption (Figure 27).
CHAPTER 3
EXAMPLE APPLICATIONS
Revised: 19 Jan 16 3-19 EST P/N AA107-Horizon
ROUTER ADDRESSING EXAMPLES
The following are examples of the IP addressing and subnets required for the ESTeem Router modes.
Point to Point Access Point Router to Station Router
AP Router
Wireless IP Address: 172.16.1.6
Netmask: 255.255.0.0
Default Route: 172.17.1.6
Ethernet IP Address: 172.17.1.6
Netmask: 255.255.0.0
Static Route: 172.20.0.0
255.255.0.0
gateway: 172.16.2.22
Station Router
Wireless IP Address: 172.16.2.22
Netmask: 255.255.0.0
Default Route: 172.16.1.6
Ethernet IP Address: 172.20.2.22
Netmask: 255.255.0.0
Device
IP address: 172.17.X.X
Netmask: 255.255.0.0
Default gateway 172.17.1.6
Device
IP address: 172.20.X.X
Netmask: 255.255.0.0
Default gateway 172.20.2.22
Figure 28: AP Router Addressing Example
CHAPTER 3
EXAMPLE APPLICATIONS
Revised: 19 Jan 16 3-20 EST P/N AA107-Horizon
Stand-Alone Access Point Router and Single Station Router
Figure 29: Station Router Addressing Example
Static Routes
Routes for 172.18.0.0 network use
gateway 172.16.2.20
Note: Wireless Networks and
Station Devices Must Be on
Separate Subnets
ESTeem Horizon in Access Point
Router Mode
Ethernet IP Address = 172.17.1.6
Wireless IP Address 172.16.1.6
Netmask = 255.255.0.0
Default Route = 172.17.1.6
ESTeem Horizon in
Station Router Mode
Netmask 255.255.0.0
Wireless IP Address
172.16.2.20
Ethernet IP Address
172.18.2.20
Gateway(Route)
172.16.1.6
Connected Ethernet Devices
IP Address 172.18.X.X
Netmask 255.255.0.0
Gateway (Route) =
172.18.2.20
Computer
IP Address = 172.17.1.1
Netmask = 255.255.0.0
Default Route = 172.17.1.6
CHAPTER 3
EXAMPLE APPLICATIONS
Revised: 19 Jan 16 3-21 EST P/N AA107-Horizon

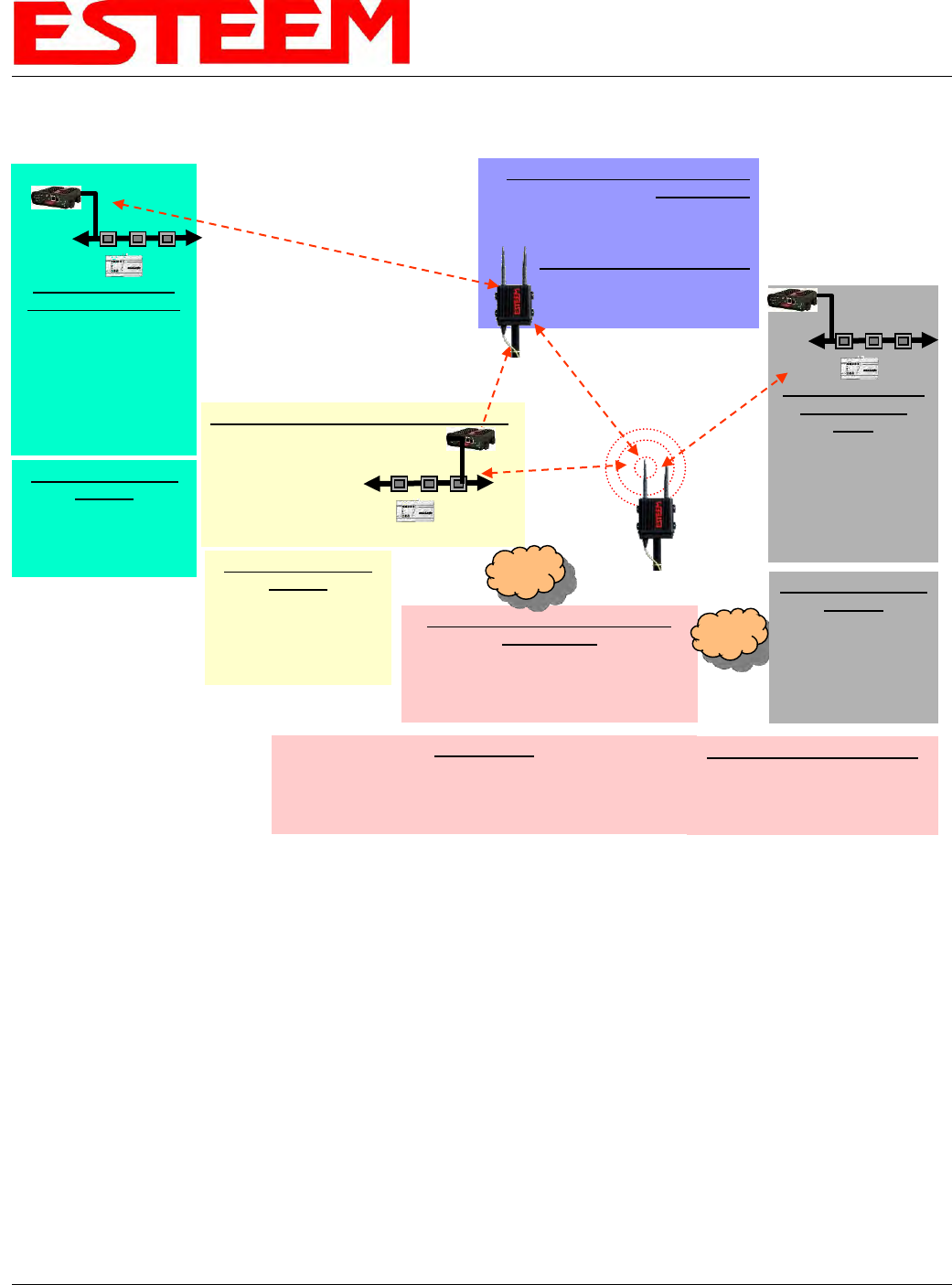

Stand-Alone Access Point Router with Multiple Station Routers
Figure 30: Complete Router Addressing Example
ESTeem Horizon in Access Point
Bridge Mode
Bridge IP Address = 172.16.1.7
Netmask = 255.255.0.0
Default Route = 172.16.1.6
Connected Ethernet Devices
IP Address 172.16.X.X
Netmask 255.255.0.0
Gateway (Route) = 172.16.1.6
ESTeem Horizon in
Station Router
Mode
Netmask 255.255.0.0
Wireless IP Address
172.16.2.22
Ethernet IP Address
172.20.2.20
Gateway(Route)
172.16.1.6
ESTeem Horizon in Station Router Mode
Netmask 255.255.0.0
Wireless IP Address 172.16.2.20
Ethernet IP Address
172.18.2.20
Gateway(Route) 172.16.1.6
Static Routes
Routes for 172.18.0.0 network use gateway 172.16.2.20
Routes for 172.19.0.0 network use gateway 172.16.2.21
Routes for 172.20.0.0 network use gateway 172.16.2.22
Routes for 172.16.0.0 network use gateway 172.16.1.6
Note: Wireless Networks
and Station Devices
Must Be on Separate
Subnets
ESTeem Horizon in Access Point
Router Mode
Ethernet IP Address = 172.17.1.6
Wireless IP Address 172.16.1.6
Netmask = 255.255.0.0
Default Route = 172.17.1.6
ESTeem Horizon in
Station Router Mode
Netmask 255.255.0.0
Wireless IP Address
172.16.2.21
Ethernet IP Address
172.19.2.20
Gateway(Route)
172.16.1.6
Connected Ethernet
Devices
IP Address 172.18.X.X
Netmask 255.255.0.0
Gateway (Route) =
172.18.2.20
Connected Ethernet Devices
IP Address 172.17.X.X
Netmask 255.255.0.0
Gateway (Route) = 172.17.1.6
Connected Ethernet
Devices
IP Address 172.19.X.X
Netmask 255.255.0.0
Gateway (Route) =
172.19.2.20
Connected Ethernet
Devices
IP Address
172.20.X.X
Netmask
255.255.0.0
Gateway (Route) =
172.20.2.20
Blockage
Blockage
CHAPTER 4
UTILITIES & FEATURES
Revised: 19 Jan 16 4-1 EST P/N AA107-Horizon
ESTeem Network Configuration Utility (ENC)
The ESTeem Network Configuration (ENC) Utility is a software program designed to greatly simplify the configuration of
your ESTeem Model 195E wireless Ethernet network. The ENC Utility will allow graphical, point-and-click configuration
of your network routing, then configure each ESTeem wireless modem for the network as designed (Figure 1). The
ENC Utility will eliminate the need to program or update each ESTeem wireless modem individually. The ENC Utility
can send all wireless modem configuration changes simultaneously to a new or existing network.
The ENC Utility will be used for all wireless network programming in this User’s Manual. For detailed instructions on
the use of the ESTeem Network Configuration (ENC) Utility please refer the ENC Utility User’s Guide available on the
ESTeem Resource CD or in the application itself.
Figure 1: ESTeem Network Configuration Utility
CHAPTER 4
UTILITIES & FEATURES
Revised: 19 Jan 16 4-2 EST P/N AA107-Horizon
ESTEEM DISCOVERY UTILITY
The ESTeem Discovery Utility will allow you to
configure the IP address on the Model 195E to
match your network regardless of its current IP
subnet. This utility will also allow you to update the
software in the 195E and open the web
configuration for that wireless modem.
Installation
To install the Discovery Utility on your computer,
insert the Resource Disk in your CD drive.
Note: The ESTeem Resource Disk is a stand-
alone copy of the ESTeem Web site
(Figure 2). Navigation of the Resource
Disk is as simple as using your web browser. All technical documentation, User’s Manuals and the
ESTeem Utility Program are available on the disk.
1. Place the ESTeem Utility CD in your CD-ROM drive. The CD will auto load the ESTeem main page
Note: If the page does not auto load, open your web browser and set your address line to D:\index.html (Where
D: is the drive letter for your CD-ROM drive).
2. From the Main Page select ESTeem Utilities and click on ESTeem Discovery Utility (Figure 3).
Figure 2: ESTeem Resource Main Page
Figure 3: Discovery Utility Download
CHAPTER 4
UTILITIES & FEATURES
Revised: 19 Jan 16 4-3 EST P/N AA107-Horizon
Note: This program is saved in a compressed file format.
3. Double click on the 195EDiscoverySetup<Current Version>.exe file listed in the window to install the program.
4. Connect the Model 195E to your computer either directly to the Ethernet card or through a HUB/Switch using a
CAT-5e Ethernet cable. The Ethernet port on the 195E supports Auto-Negotiation, so either a patch cable or
crossover cable will work. Open the ESTeem Discovery Program and press the Discover Modems button. The
Model 195E will be displayed in the program by the Ethernet MAC address and Current IP Address (Figure 4).
Note: The SSID, Mode of Operation and Modem ID will be adjusted through the ENC Utility or the Web
Configuration Manager...
5. Double-click on the 195E you want to program and the Configure IP Address window will be displayed (Figure 5).
Enter an IP address and Subnet Mask for the 195E that matches your network subnet and press the OK button to
save this to the ESTeem. You will receive notification that the Configuration was Successful and the 195E will
reboot.
Figure 4: Discovery Program Main Page
Figure 5: Change IP Address Window
CHAPTER 4
UTILITIES & FEATURES
Revised: 19 Jan 16 4-4 EST P/N AA107-Horizon
Firmware Updates
To update firmware on any ESTeem Model 195 that is shown on the Discovery program, “right-mouse” click on the
195’s MAC address and select Update from the menu (Figure 6). Once you locate the update file, select the Open
button and the 195 will update, validate and then reboot with the updated operating system.
Opening Web Browser
To quickly open a web browser page to the IP address programmed in the 195 modem, “right-mouse” click on the 195’s
MAC address and select Open Browser from the menu (Figure 6). If your computer is configured for the same IP subnet
at the ESTeem 195 wireless modem, you will be asked to sign in with the Username and Password (Figure 7). You
can now begin programming the Model 195 for your application.
Figure 6: Discovery Features Menu
Figure 7: ESTeem Web Page Log-on Screen
CHAPTER 4
UTILITIES & FEATURES
Revised: 19 Jan 16 4-5 EST P/N AA107-Horizon
ETHERSTATION STATUS PROGRAM
When configured for EtherStation mode, the Web Configuration Manger is turned off. To gather information from the
195E on Access Point, link status and received signal strength you will need to install the ESTeem 195E Status Utility.
The EtherStation Status Utility version 2.0.0.0 or greater provides a new feature that will automatically program the
connected ESTeem 195E to match up with the computer running the software. This software requires the ESTeem
195E to have software version 302.8.102 or greater installed for this feature to function.
This software program is found on the AA109 Resources Disk or available from the ESTeem web site. To install the
utility, please complete the following:
Installation
The ESTeem Discovery Utility will allow you to configure the IP address on the Model 195E to match your network.
Install the Discovery Utility on your computer by inserting the Resource Disk in your CD drive.
Note: The ESTeem Resource Disk is a stand-alone copy of the ESTeem Web site (Figure 1). Navigation of the
Resource Disk is as simple as using your web browser. All technical documentation, User’s Manuals and
the ESTeem Utility Program are available on the disk.
1. Place the ESTeem Utility CD in your CD-ROM drive. The CD will auto load the ESTeem main page.
Note: If the page does not auto load, open your web browser and set your address line to D:\index.html (Where
D: is the drive letter for your CD-ROM drive).
2. From the Main Page select ESTeem Utilities and click on EtherStation Status Utility
Note: This program is saved in a compressed file format. Microsoft Windows XP® will open the file directly, but
other operating systems will require a common compression program such as WinZip available for
download at http://www.winzip.com
3. Double click on the 195EStatusSetup.exe file listed in the window to install the program.
4. Connect the Model 195E to your computer either directly to the Ethernet card or through a Switch using a CAT-5e
Ethernet cable. The Ethernet port on the 195E supports Auto-Negotiation so either a patch cable or crossover cable
will work. Open the ESTeem Status Program.

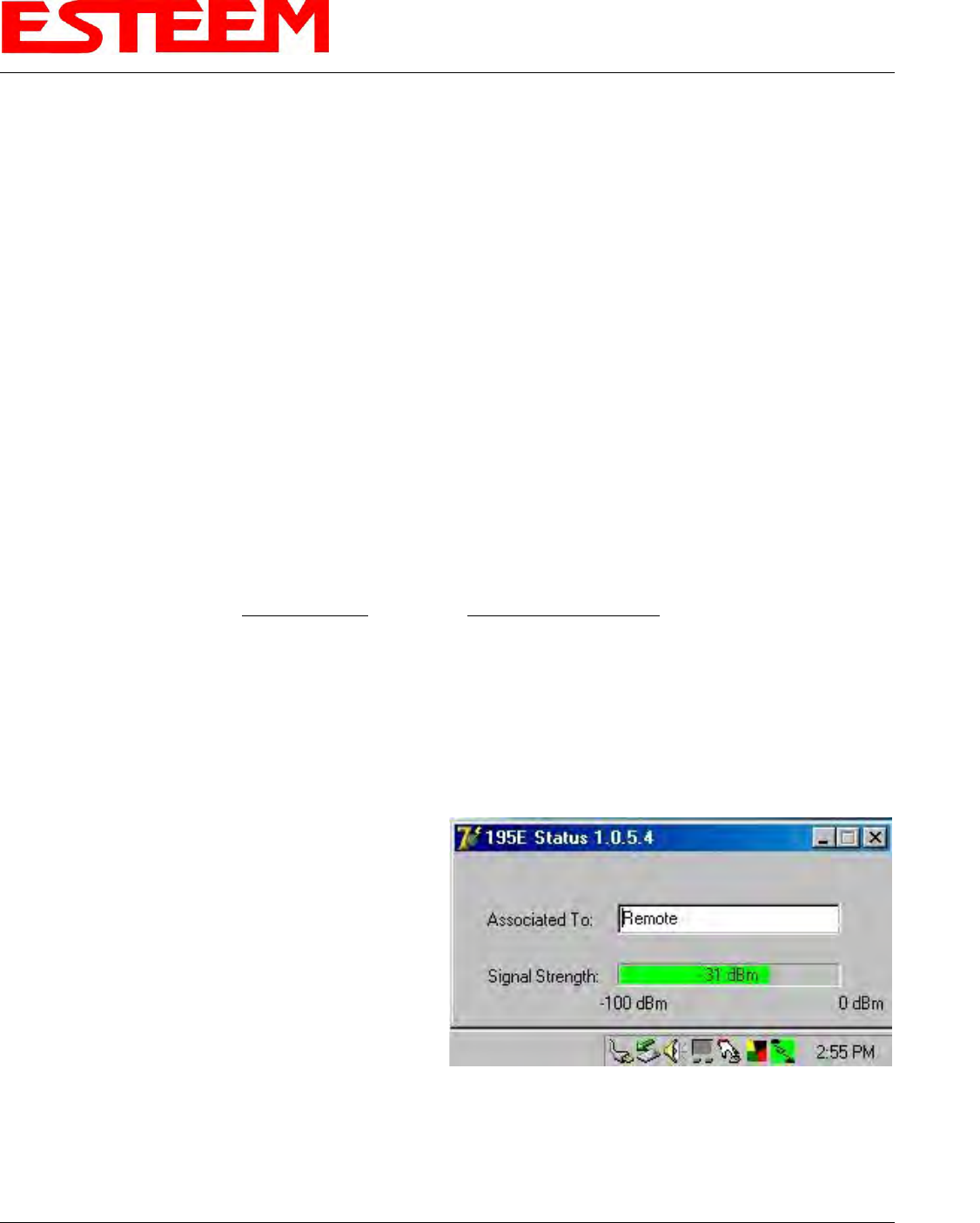

Status icons will appear in your system tray (Figure
8). When the status menu is opened from the
system tray, the status window will be displayed
(Figure 8) to show the Access Point MAC address
and signal strength. The tray icon and Signal
Strength bar will display the colors from Green,
Yellow to Red on progressively poorer signal or will
show Grey if roaming.
Note: This Utility will only operate with an ESTeem
Model 195E in EtherStation mode.
Figure 8: EtherStation Status Program
CHAPTER 4
UTILITIES & FEATURES
Revised: 19 Jan 16 4-6 EST P/N AA107-Horizon
SETTING LOCAL TIME
The ESTeem Model 195E will be shipped from the factory with the internal real-time clock set to Pacific Time. To
change the clock settings to the local time for accurate log file entries:
1. Select Advanced from the top Menu, then Wireless LAN Settings>wlan0 device. Press the Next button
(Figure 9).
2. Select Global Settings>Set
System Time from the menu
and press the Next button to
continue.
3. Select the correct date and
time from the drop-down
menus (Figure 10) and press
the Set System Time button to
save the time to the real time
clock.

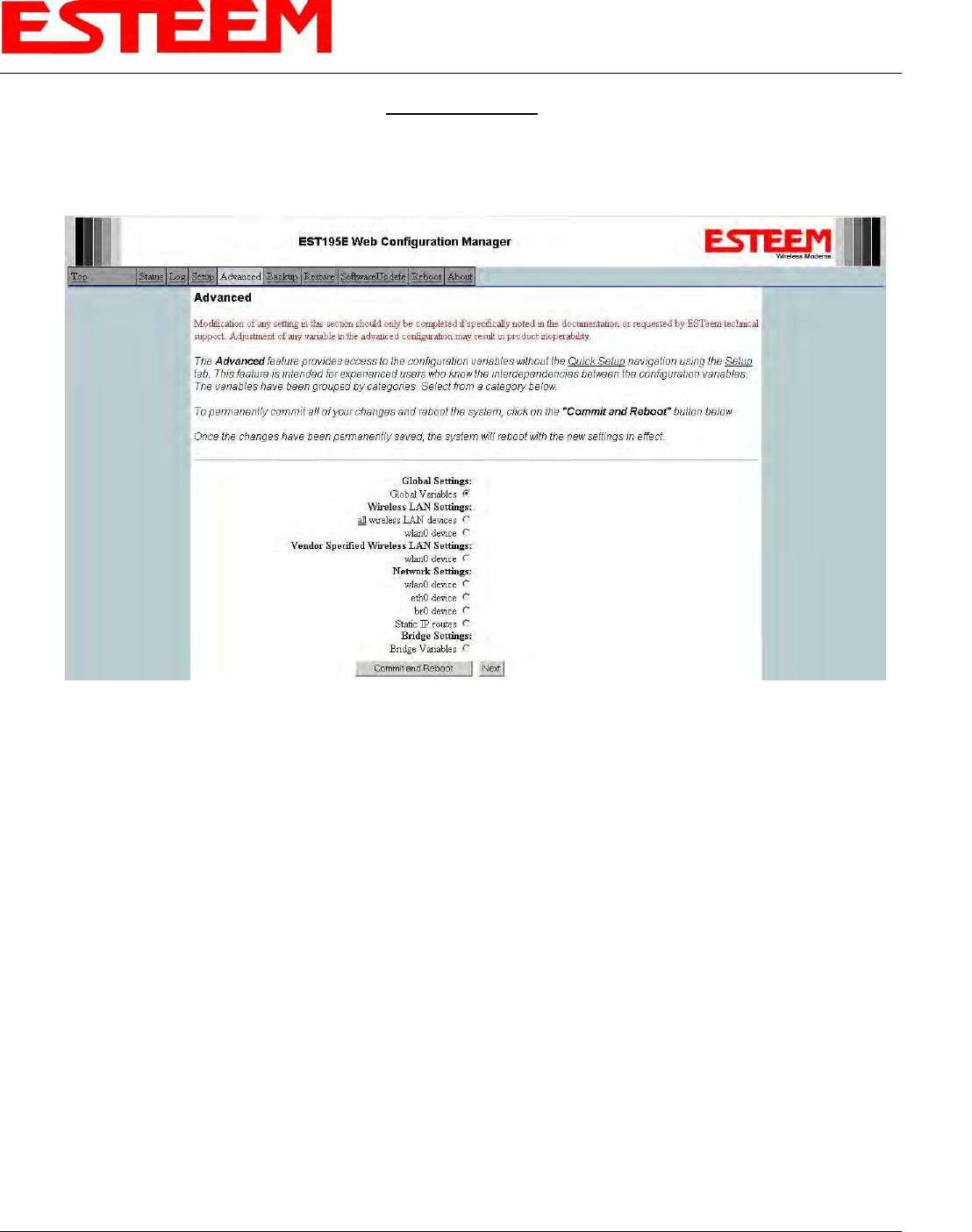

Figure 9: Advanced Features Screen
Figure 10: Advanced Features Screen
CHAPTER 4
UTILITIES & FEATURES
Revised: 19 Jan 16 4-7 EST P/N AA107-Horizon

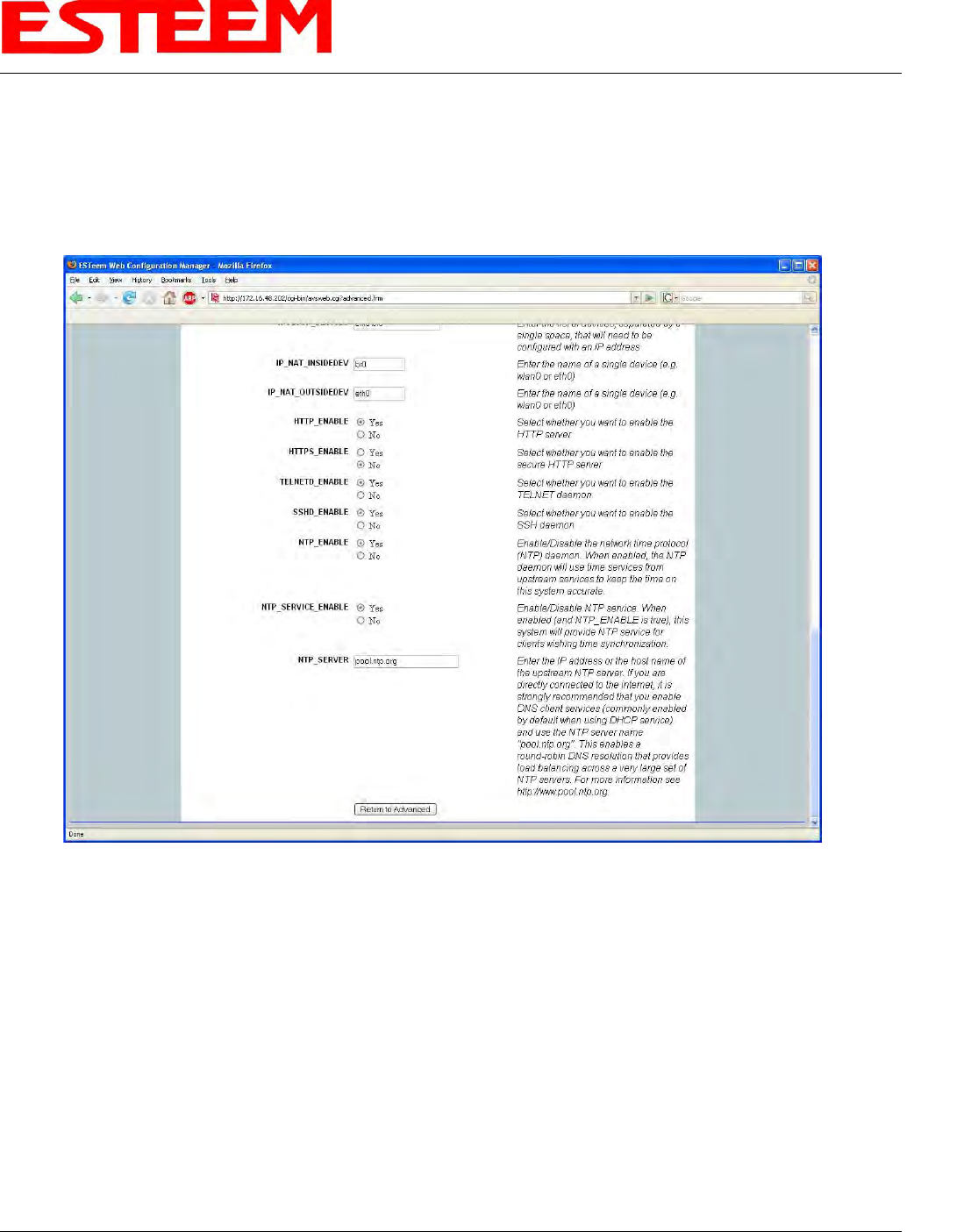

CONFIGURING TIME SERVER
Enabling NTP time synchronization services on the ESTeem 195E will allow usage of time services from upstream
services to keep the time on the system accurate.
To allow time synchronization, the Model 195E must be configured with the NTP Daemon enabled and the appropriate
IP address of the upstream network NTP server.
1. Select Advanced from the menu items and Global Variables (Figure 11).
2. Press the Next button and Figure 11 will be displayed. At the bottom of the page are the NTP server
configurations.
Figure 11: Advanced Settings Menu
CHAPTER 4
UTILITIES & FEATURES
Revised: 19 Jan 16 4-8 EST P/N AA107-Horizon
3. The NTP daemon is enabled by selecting YES for NTP ENABLE (Figure 12). When enabled, the NTP daemon
will use time services from upstream services to keep the time on this system accurate.
4. Next, the NTP SERVICE ENABLE should be configured to “YES,” if you want to allow the system to provide
NTP service for clients wishing time synchronization (Figure 12).
5. The final step in configuring NTP services is to enter the IP address or the host name of the upstream NTP
server.
Figure 12: NTP Settings
CHAPTER 4
UTILITIES & FEATURES
Revised: 19 Jan 16 4-9 EST P/N AA107-Horizon
6. Once configuration is complete, press the Return to Advanced button.
7. To complete the configuration, select “Commit and Reboot.” The ESTeem 195E will now commit the
configuration changes and reboot. (Figure 13)
VLAN OPERATION
Virtual LAN (VLAN) systems are rapidly becoming the desired configuration on larger Ethernet networks. The ESTeem
195E software will allow the Ethernet modems to transparently pass the VLAN packets for these networks. The 195E
currently can not be used as a VLAN switch, but will pass VLAN tagged Ethernet packets through the wireless bridge.
Figure 13: Advanced Settings Menu
CHAPTER 4
UTILITIES & FEATURES
Revised: 19 Jan 16 4-10 EST P/N AA107-Horizon
IGMP SNOOPING
Internet Group Management Protocol (IGMP) Snooping allows the ESTeem 195E to operate more efficiently in networks
with high Multicast (UDP, etc.) traffic. IGMP Snooping will define the destination for the Multicast traffic and send the
data to the correct wireless Ethernet modem, not the entire network. This limiting of Multicast traffic to specific
destinations greatly increases the overall network efficiency.
The problem with using multicast traffic over a wireless connection is that multicast packets do not require an
Acknowledge on the protocol layer. If the wireless network misses a data packet on the RF network, that multicast data
packet is lost.
Theory of Operation
There are two types of Ethernet packets on a network, unicast and multicast. Unicast is intended for exactly one
recipient (and ignored by all others). Multicast is intended to be received by multiple recipients. Interested parties can
listen for particular multicast packets, but most nodes ignore it. In any case, the network medium is still utilized no
matter how many nodes are listening. Broadcast packets are a special type of multicast traffic which all nodes always
receive. These are particularly useful for global announcements (Hey, I'm Alice!) and queries (Hey, I'm Alice and I'm
looking for Bob!). More relevantly, it is how hosts on a network find out each other's addresses, and are absolutely
crucial to the proper functioning of a network.
As the network grows physically, it encounters some growing pains. The first is more physical, relating to the cabling
limitations. Bridges solve this problem by joining two physical networks together so they appear to be a single large
network. Through use of bridges, a network can scale to hundreds or even thousands of hosts. There is a downside,
however. Well before the physical limitations of bridging hit, you start to run into efficiency problems, as all traffic has
to travel everywhere on the network. The raw carrying capacity of this shared medium, often referred to as bandwidth,
is the second scaling problem.
Smart bridges, or switches, help alleviate the bandwidth problem by only passing traffic across the bridge if the
destination host was on the other side. This greatly increases the capacity and efficiency of the network by allowing
two pairs of hosts communicating simultaneously on each side of the switched bridge. Only when the packet needs to
go to the other side is both mediums utilized simultaneously for the same packet.
Unfortunately, broadcast and multicast traffic by its very nature must always be relayed across the bridge. While the
number of network nodes may grow linearly, the multicast traffic tends to grow exponentially. This isn't generally a
problem for wired networks, as they have a considerable amount of bandwidth to spare, but wireless networks have, at
best, an order of magnitude less bandwidth to begin with. If a wireless network is bridged with a wired network, while
the absolute numbers are the same, a much higher proportion of the wireless network’s available bandwidth is used up
by multicast traffic. This effect is further magnified if multiple wireless repeaters are in use.
The preferred way of dealing with excess multicast traffic is to put the wireless network on a different sub-network
(subnet) and use a router to join it to the wired network. This ensures that only unicast traffic intended for the wireless
network crosses over, as multicast and broadcast traffic stays within its local subnet. Normally this is fine, but there are
times where you need multicast traffic to span subnets. For IP traffic, this can be obviated by using a multicast-capable
router, but for legacy multicast protocols that were not designed to be routed, another solution must be found.
There are two primary types of communication networks used in wireless Ethernet systems; fixed points communicating
to each other through an Ethernet Bridge and mobile devices communicating to these fixed points. The fixed point
Ethernet bridge communication in the 195E is through Repeater Peer links, while the mobile communication is from the
Client modes (EtherStation, Station Router and Station Masquerade) to the Access Points (Fixed Locations) in the
network. Each of these networks handles Multicast traffic differently as explained below.
CHAPTER 4
UTILITIES & FEATURES
Revised: 19 Jan 16 4-11 EST P/N AA107-Horizon
Ethernet Bridge Mode (Repeater Peers)
When the ESTeem 195E is configured as a repeater peer, all multicast traffic is “wrapped” in a Unicast frame and sent
to all other repeater peers. (Figure 14) This operation allows the ESTeem network to receive an acknowledge packet
and retransmit the data if the packet is lost during transmission. This unicast encapsulation will work regardless if the
protocol can support IGMP or not.
Figure 14: Repeater Peer Operation
CHAPTER 4
UTILITIES & FEATURES
Revised: 19 Jan 16 4-12 EST P/N AA107-Horizon
Ethernet Bridge Mode (Repeater Peers) With IGMP Snooping
When the ESTeem 195E is configured as a repeater peer, IGMP Snooping is enabled and the network supports IGMP
protocol, the 195E will begin to identify the connected Ethernet devices using Multicast transmissions and report this
information to the network. As this process continues, all sites that have Multicast traffic on the wireless network will
only send these requests to the specific ESTeem reporting the Ethernet device (see Figure 15).
Figure 15: Repeater Peer with IGMP Enabled
CHAPTER 4
UTILITIES & FEATURES
Revised: 19 Jan 16 4-13 EST P/N AA107-Horizon
Client Modes
When the ESTeem 195E is configured as a mobile client (EtherStation, Station Router or Station Masquerade), there
are two configurations that will increase the reliability of Multicast traffic. The first phase is encapsulation of the multicast
packets, as described in the Repeater Peer, and the second is IGMP Snooping if the network will support the protocol.
The encapsulation of the Multicast packets will operate regardless of the IGMP support to increase the reliability.
Figure 16: Unicast Packet to All Clients
Figure 17: Unicast Packet to Single Client
CHAPTER 4
UTILITIES & FEATURES
Revised: 19 Jan 16 4-14 EST P/N AA107-Horizon
Multicast Encapsulation
To enable Multicast Encapsulation, select Advanced>Wireless LAN Settings>wlan0 device and press the Next
Button (Figure 18). Select wlan0_EncapsulateMulitcast to either Multicast (for all Multicast including Broadcast) or
Broadcast (Broadcast only). Press the Accept Button and then Commit and Reboot.
Enabling IGMP Snooping
To enable the ESTeem 195E for IGMP Snooping, select Advanced>Bridge Variables and press the Next Button (Figure
19). Select IGMP Snoop to YES, press the Accept Button and then Commit and Reboot.
Figure 18: Multicast Enable
Figure 19: Repeater Peer with IGMP Enabled
CHAPTER 4
UTILITIES & FEATURES
Revised: 19 Jan 16 4-15 EST P/N AA107-Horizon
Simple Network Management Protocol (SNMP)
The ESTeem 195E supports SNMP Version 1 (SNMPv1) and Version 2 (SNMPv2c) protocol. This protocol enables
any SNMP server to view the status of the wireless network while the system is in operation. The following are a list of
the Management Information Base (MIB) items that are supported in the ESTeem 195E and their MIB location:
MIB Name
MIB Directory Location
Notes
System Temperature
EST-MIB::sysInternalTemp.0
in C * 1000
Uptime
HOST-RESOURCES-
MIB::hrSystemUptime.0
System Update
ModemID
EST-MIB::sysIdentifier.0
User-specified “nickname” for ESTeem
Serial Number
EST-MIB::sysSerialNumber.0
ESTeem serial number
Model
EST-MIB::sysModel.0
ESTeem model number
Firmware Version
EST-MIB::sysFirmwareRevision.0
Firmware revision
System Mode
EST-MIB::sysMode.0
AP_BRIDGE/STA_ETHERSTA, etc
Free Memory
UCD-SNMP-MIB::memTotalFree.0
Total Free Memory
Idle CPU
UCD-SNMP-MIB::ssCpuIdle.0
Percentage of CPU Idle
[[ per-interface ]]
IP Address
IF-MIB::ifAddress
Port Speed
IF-MIB::ifSpeed
In bps
Port Status
IF-MIB::ifOperStatus
Mac Address
IF-MIB::ifPhysAddress
[[ per-wlandev entry ]]
EST-MIB::wirelessDevicesNumber.0
Wireless Port Identification
Device Name
EST-MIB::wirelessDeviceTable.1.wName.1
Name of device (wlan0 standard)
MAC Address
EST-
MIB::wirelessDeviceTable.1.wMacAddress.1
MAC address of WLAN port
Mode
EST-MIB::wirelessDeviceTable.1.wMode.1
Current Mode ap=access point, sta=station
mode and airscope
Frequency
EST-MIB::wirelessDeviceTable.1.wFreq.1
Frequency in MHz
Bandwidth
EST-
MIB::wirelessDeviceTable.1.wBandwidth.1
Bandwidth (5, 10, or 20 MHz if used)
SSID
EST-MIB::wirelessDeviceTable.1.wSSID.1
Service Set Identification
BSSID
EST-MIB::wirelessDeviceTable.1.wBSSID.1
Basic Service Set Identification
Operational Rates
EST-
MIB::wirelessDeviceTable.1.wOpRates.1
List of RF Data Rates in Rate Set
Basic Rates
EST-
MIB::wirelessDeviceTable.1.wBasRates.1
List of RF Basic Rates for status messages
CHAPTER 4
UTILITIES & FEATURES
Revised: 19 Jan 16 4-16 EST P/N AA107-Horizon
[[ peer table entry ]]
All entries in the Peer Table will have a
device entry index, both ESTeem and
other wireless devices
EST-MIB::wirelessPeersNumber.0
Total number of peer entries in table
wlan device
EST-MIB::wirelessPeerTable.1.pDevice.1
index into the wirelessDeviceTable (each
entry will have a unique number
Peer MAC Address
EST-MIB::wirelessPeerTable.1.pMacAddr.1
MAC address of peer
isRepeater?
EST-MIB::wirelessPeerTable.1.pRepeater.1
Is the peer an ESTeem repeater
isAP?
EST-MIB::wirelessPeerTable.1.pAP.1
Is the peer an Access Point
isAssocSta?
EST-MIB::wirelessPeerTable.1.pAssoc.1
Is the peer an Mobile Client
isAdhoc?
EST-MIB::wirelessPeerTable.1.pAdhoc.1
Is the peer an AdHoc Station (802.11 only)
Frequency
EST-MIB::wirelessPeerTable.1.pFreq.1
Frequency in MHz
current rate set
EST-MIB::wirelessPeerTable.1.pCurRates.1
Current Operating Rates
last rx signal
EST-MIB::wirelessPeerTable.1.pSignal.1
Receive Signal in –dBm
last rx noise
EST-MIB::wirelessPeerTable.1.pNoise.1
Background Noise in –dBm
BSSID
EST-MIB::wirelessPeerTable.1.pBssid.1
Basic Service Set ID (In Hex)
SSID
EST-MIB::wirelessPeerTable.1.pSSID.1
SSID in Text
isValid?
EST-MIB::wirelessPeerTable.1.pCurrent.1
True if peer info is for a “current” peer.
last rx
EST-MIB::wirelessPeerTable.1.pLastRxl.1
seconds since last received packet from
peer
last tx
EST-MIB::wirelessPeerTable.1.pLastTx.1
seconds since last transmitted packet to
peer
current tx rate
EST-
MIB::wirelessPeerTable.1.pCurrentRate.1
current tx rate in bps.
Downloading MIB Tables
To download the MIB items listed above and import into your SNMP server, log into any ESTeem 195E and select the
About page (Figure 20). Press the Download MIB Files hyperlink on the page and save the files to your computer.
Figure 20: MIB Table Download
CHAPTER 5
WEB CONFIGURATION
Revised: 19 Jan 16 5-1 EST P/N AA107-Horizon
The ESTeem Horizon Web Configuration Manager is an internal web server that will allow setup, monitoring and
diagnostics of all operating parameters in the Horizon. The Horizon can be configured using any current web browser
software such as Internet Explorer, Mozilla, FireFox or Google Chrome®.
LOGGING ON TO THE ESTeem WEB PAGE
1. Using your Web Browser connect to the Horizon Web
Page with the IP Address that you have assigned it in
Chapter 3.
2. You will now see the Log-on Menu on Figure 1. To enter
the Horizon Top Menu you will need to log into the system
with a User Name and Password.
3. For the User Name enter admin and press the Enter key
(<Enter>). The User Name is defined at the factory and
is not changeable.
4. Enter your Password and press the Enter key (<Enter>).
Note: If this is the first time the Horizon has been
programmed and the Password was not changed
from the factory default values, proceed with the steps below to access the Configuration Menu. The
factory default Password is also admin. Enter admin for the Password and press the Enter key (<Enter>).
All characters are lower case.
5. After Log-in the next screen displayed will be the Horizon Top Menu page (Figure 2). This example screen shows
the Top Menu screen.
Note: Throughout the Configuration Manager are Help Screens that can be accessed for further information
on each item.
Figure 1: ESTeem Web Page Log-on Screen
Figure 2: Top Menu Screen
CHAPTER 5
WEB CONFIGURATION
Revised: 19 Jan 16 5-2 EST P/N AA107-Horizon
WEB CONFIGURATION MANAGER SECTIONS
The following sections will describe the features in each of the main and sub menu items in the web pages. For step-
by-step examples of how to configure the Horizon in different Modes of Operation, please refer to Chapter 3 – Example
Applications.
Top Menu
The Top Menu will be the default web page for the Horizon Web Configuration Manager (Figure 2). This section will
display the current configuration summary for the Horizon and allow changing of the default password. This page will
also display the Modem ID field that can be used to easily identify the Horizon you are programming. This Modem ID
field can be set to any text combination for example, location name, GPS coordinates or addresses.
Setting the Modem ID
1. The Modem ID field can be adjusted
under the Global Variables of the
Advanced Menu tab. Select Global
Variables and press the Next button.
Figure 3 will be displayed.
2. Scroll to the bottom of the Global
Variables window and enter the text you
would like displayed in the Modem ID
field (Figure 4). When complete, press
the Save Settings button and the
Commit Changes button on the next
screen to save the name to the Horizon.
Figure 3: Global Variables Screen
Figure 4: Modem ID Field in Global Variables Screen
CHAPTER 5
WEB CONFIGURATION
Revised: 19 Jan 16 5-3 EST P/N AA107-Horizon
Status Menu
The Status Menu provides a summary of the current mode of operation, system time, processor usage, internal
temperature and status of the communication links to other wireless devices. An example is shown below in Figure 5.
Most of the communication troubleshooting is done in this section of the Web Configuration Manager.
Peer Status Table
The Peer Status submenu lists the connected wireless devices (Horizon’s or 802.11 clients), their signal strength, data
rate and time of last packet sent. Press the View Peer Table link and Repeater Peer Status Table will be displayed
(Figure 6). For a detailed analysis of the information provided in this table, please review Appendix E – Troubleshooting.
Associated Station – This section will list all the associated stations that are attached to the Access Point. These could
be other Horizon’s in one of the three Client modes or 802.11 devices.
Figure 5: Status Screen
CHAPTER 5
WEB CONFIGURATION
Revised: 19 Jan 16 5-4 EST P/N AA107-Horizon
Repeater Peers – This section will list all connected Horizon repeater peers by their Wireless MAC address. For detailed
information on repeaters, see Chapter 6 – Repeating Features.
Access Points – This section will list all other 802.11 Access Points that are sharing the operating channel (frequency)
of the Horizon. You can also note that the Repeater Peers listed above are also included in this list.
Counter Details
The Counter Details submenu will summarize all transmitted and receive data packets for the Horizon (Figure 5).
Figure 6: Peer Table Screen
CHAPTER 5
WEB CONFIGURATION
Revised: 19 Jan 16 5-5 EST P/N AA107-Horizon
System Log Screen
The Log Screen is a trouble-shooting tool that shows the current log of Horizon system messages. See Figure 7. The
System Details button will display a more detailed system diagnostics that may be requested by ESTeem technical
support.
Setup Screen
The Setup screen allows the step-by-step configuration of the Horizon. Please see Chapter 5 for complete description
on System Setup menu and examples for system configurations. See Figure 8.
Figure 7: System Log Screen
Figure 8: Setup Screen
CHAPTER 5
WEB CONFIGURATION
Revised: 19 Jan 16 5-6 EST P/N AA107-Horizon
Advanced Configuration Screen
The Advanced screen allows the user to access all configuration parameters. The parameters are grouped based upon
their variable. It is recommended that only advanced users of the Horizon enter this section unless instructed
by ESTeem technical support. See Figure 9.
Backup
Screen
The
Backup
Screen
saves the
current
configuration in the Horizon to a file on the computer or network. See Figure 10. Pressing the Backup Button will create
a configuration file that can be saved to the computer. This saved file can then be later opened, if necessary, by the
Restore menu to quickly replace a Horizon with a spare modem.
Figure 9: Advanced Features Screen
Figure 10: Backup Screen
CHAPTER 5
WEB CONFIGURATION
Revised: 19 Jan 16 5-7 EST P/N AA107-Horizon

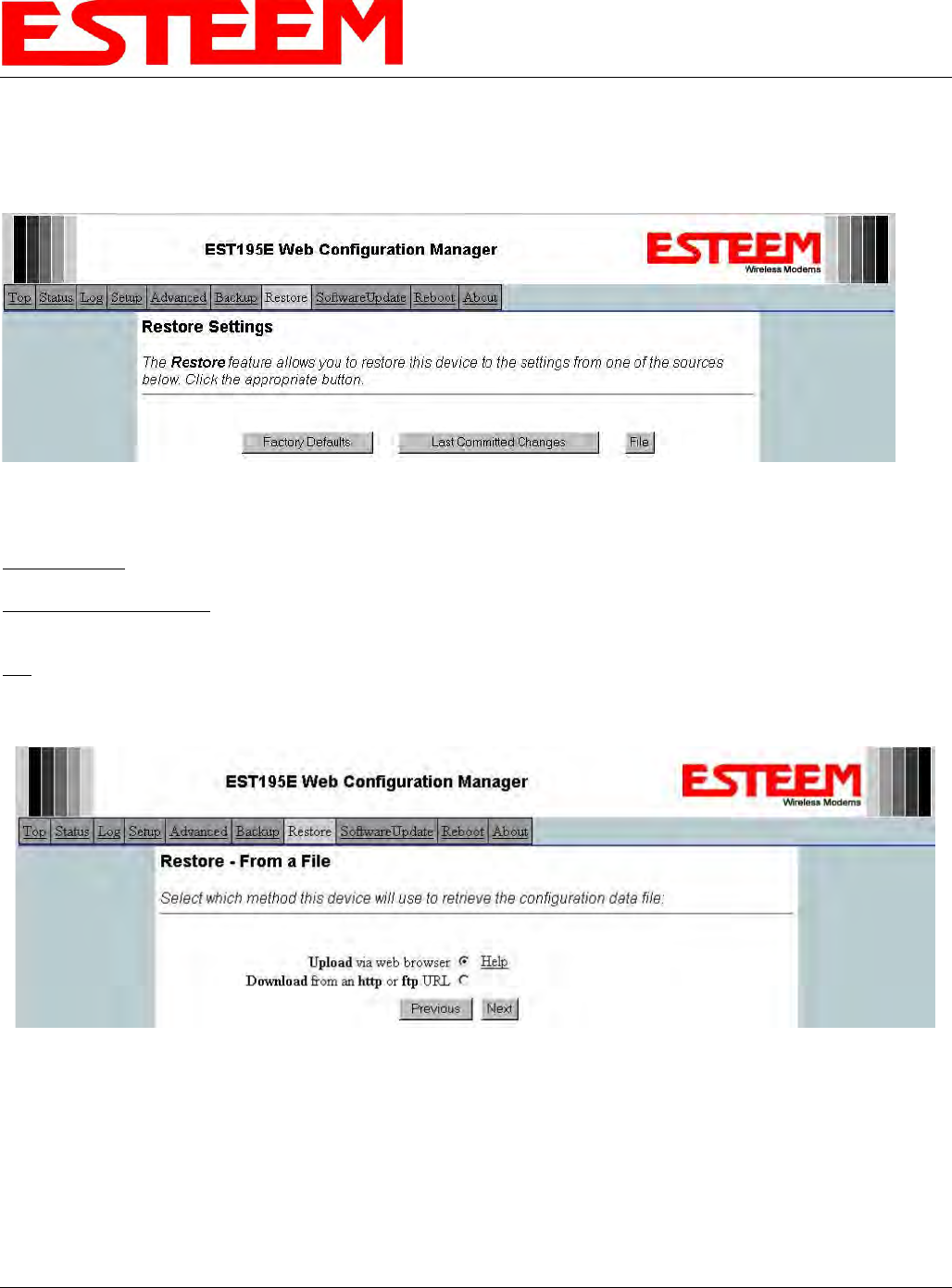

Restore Screen
The Restore screen is used to restore the Horizon to factory defaults, return to the last saved configuration or to access
the configuration files that were backed up to the computer. See Figure 11.
Factory Default – Returns the Horizon to all factory default values.
Last Committed Changes – This button will remove any changes to the modem that have been done since the last
committed changes. The last committed changes will be read from the Flash file and reset in the Horizon.
File – Pressing this button will bring up a selection of where the restore file was saved during the Backup (Figure 12).
Select “Upload via web browser” to browse for files saved on a local computer or select “Download from an http or ftp
URL” for files saved on a network or over the Internet.
Figure 11: Restore Setting Screen
Figure 12: Restore From Local File Screen
CHAPTER 5
WEB CONFIGURATION
Revised: 19 Jan 16 5-8 EST P/N AA107-Horizon

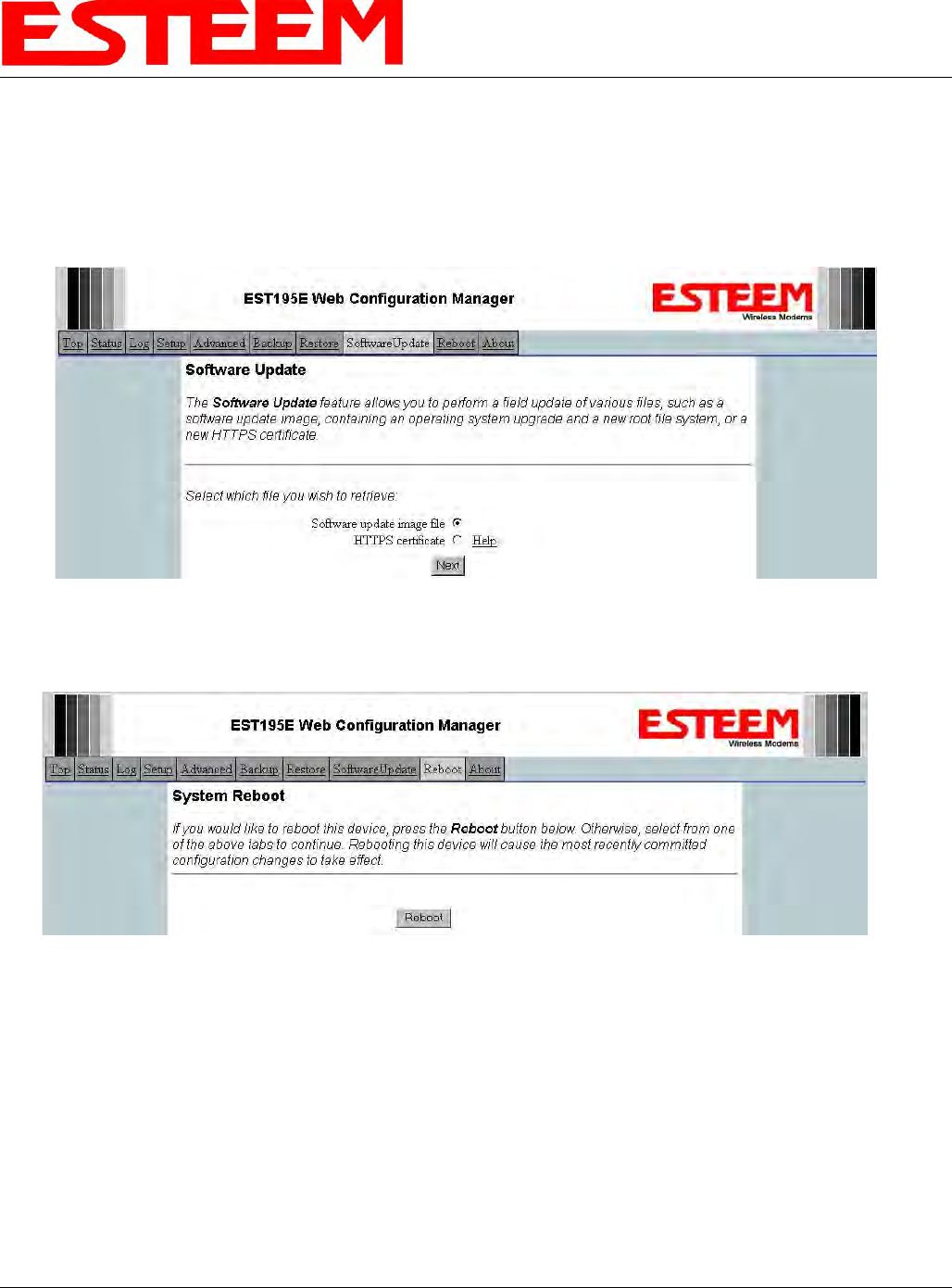

Software Update Screen
The Software Update feature allows the user to update the latest Horizon operating system software from a file supplied
by the factory or the Internet to the Horizon’s flash memory. To upload from a file on your computer, select Upload via
web browser and a file selection window will be displayed. To upload directly from the Internet, select Download from
an http or ftp URL and enter the site address. See Figure 13.
System Reboot Screen
The Reboot screen allows the user to reset the Horizon. See Figure 14.
Figure 13: Software Update Screen
Figure 14: System Reboot Screen
CHAPTER 6
SERIAL APPLICATIONS
Revised: 19 Jan 16 6-1 EST P/N AA107-Horizon
USING THE RS-232 PROGRAMMING PORT
Any terminal emulation program that can run with VT100 emulation can be used for this configuration of the ESTeem.
Most Windows users will probably use either Hyper Terminal or the Terminal Emulation in the ESTeem Utility program.
Configure your RS-232C port for a Baud Rate to 38,400, Data Bits to 8, Parity to None, Stop Bits to 1 and Handshaking
to None. Set the Emulation type to VT100. Once your ESTeem has an IP address, you can attach the ESTeem to your
network and use the Web Server for further programming.
Programming Using the RS-232 Port
1. When configuring the Horizon for the first time you can use the ESTeem RS-232C Configuration Menu to setup the
basic operating parameters such as assigning the IP Address, IP Net Mask, and Gateway IP Address.
2. Connect the serial cable (EST P/N: AA0621.1) between the RS-232 connector (RJ-45) on the Horizon’s
programming port to the serial port on the computer.
3. Plug the Model AA175 or AA175.2 power supply into a wall socket and connect an Ethernet patch cable from the
Horizon Ethernet port to the J1 (Data&PWR) port on the power supply. The Power over Ethernet (PoE) LED on the
front of the ESTeem should be illuminated.
4. If your computer is configured properly, you will see the ESTeem Horizon booting sequence on your Terminal
Emulation program. Once the ESTeem boot sequence is complete (approximately 45 seconds) you will receive this
message:
“Please press Enter to active this console.”
If you don’t see this message press the Reset button on the front panel of the Horizon and/or check the programming
of your RS-232 port.
5. Press the Enter key and you will be at the Configuration Menu Horizon login prompt. See Figure 1.
6. To enter the Horizon Main Menu you will need to log into the system with a login name and password.
7. If this is not the first time configuration of the Horizon, see your network systems administrator for the password.
8. At the Horizon login prompt type admin for the login name and press the Enter key (<Enter>). The login name is
defined at the factory and is not changeable by the user. Note that all characters are lower case.
If this is the first time the Horizon has
been programmed or the Password
was not changed from the factory
default values, the factory default
password is also admin. Enter admin
for the password and press the Enter
key (<Enter>). The ESTeem
Configuration Welcome Screen
(Figure 2) will now be displayed. Note
that all characters are lower case.
Figure 1: RS-232 Port Log-in Screen
CHAPTER 6
SERIAL APPLICATIONS
Revised: 19 Jan 16 6-2 EST P/N AA107-Horizon
9. To set the IP address in the ESTeem Horizon, type the letter “A” and press the Enter key. Enter the value for the
IP address, Netmask and default route pressing the Enter key after each entry.
10. After the basic parameters have been entered into the Horizon you will need to commit the changes to the Horizon
(Figure 3). Press the C key and then Enter. The changes will be saved to flash memory. You can use
programming features in the ESTeem Web Configuration Manager to configure the unit for your application.

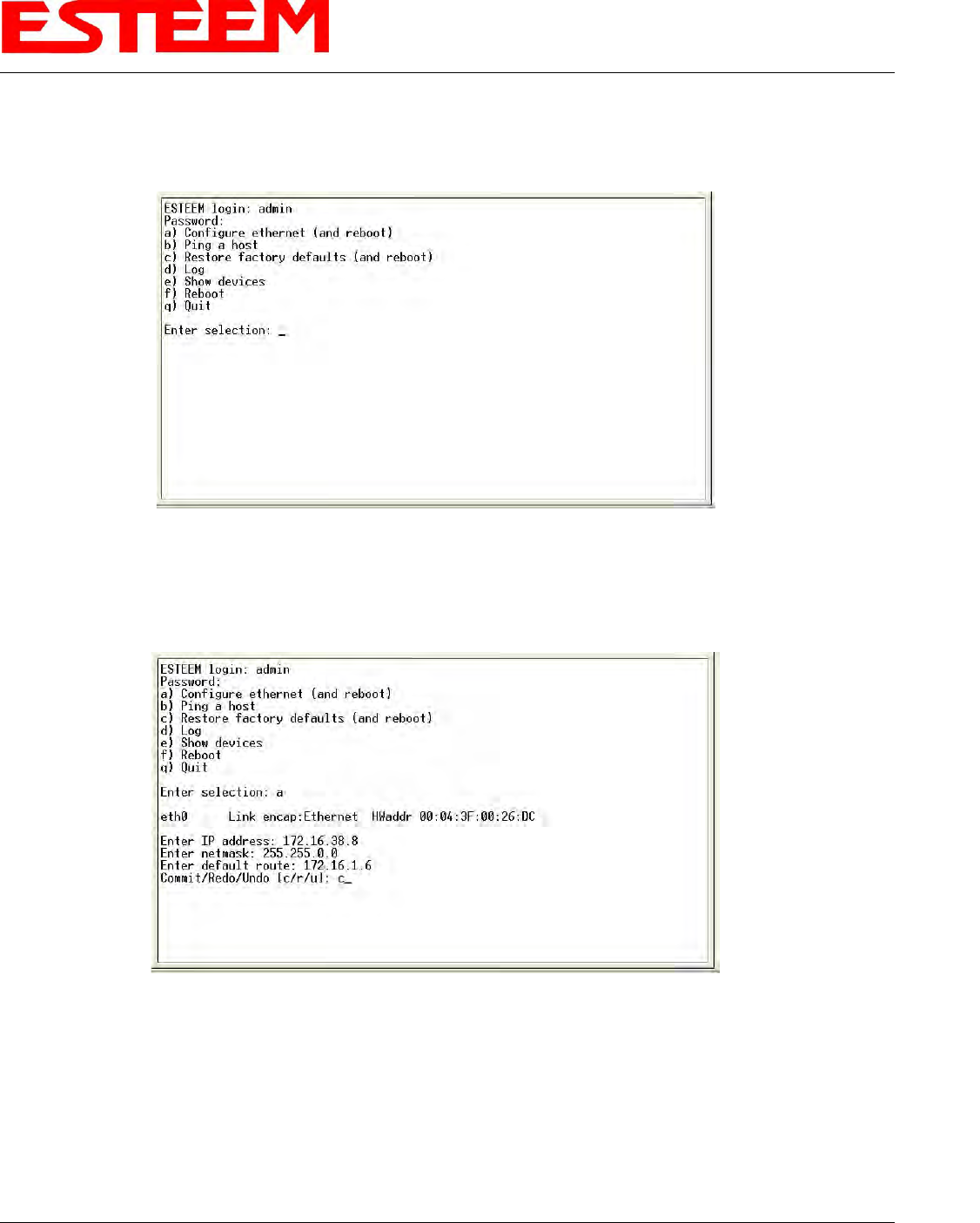

Figure 2: RS-232 Welcome Screen
Figure 3: RS-232 Welcome Screen
CHAPTER 6
SERIAL APPLICATIONS
Revised: 19 Jan 16 6-3 EST P/N AA107-Horizon
USING THE RS-232 DATA PORT
The ESTeem Horizon has a serial data port that can provide RS-232 communication between two or more serial devices
using the wireless broadband link. The serial data is encapsulated and transferred as a standard Ethernet packet over
an operating Horizon wireless Ethernet system. The configuration for a serial Horizon network will be the same as an
Ethernet or a serial (RS-232) based communication network.
The serial interface option can be used to link two or more serial devices in a new or existing system. The serial data
has very little impact on the network bandwidth and will allow for both Ethernet and serial applications simultaneously.
A possible application would be installation of the Horizon in an existing serial based network that was looking for future
upgrade to an Ethernet based system. Another would be using the high-bandwidth Ethernet connections to provide a
link to remote video hardware while also providing a serial link to the existing PLC in a SCADA type application.
SERIAL CONNECTIONS
The RJ-45 serial data port is the far-left port on the face
of the Horizon (Figure 4). Using the ESTeem AA0621.1
interface cable, the Horizon can be connected to a
standard DTE-device (PC) with a male 9-pin Sub-D
connector. The complete cable configuration is
available in Appendix C – Interface Ports.
SERIAL CONFIGURATION
Configuration of the serial port is completed during the standard setup of the Horizon. After completion of the Repeater
Peer configuration screen, the Serial Port Setup screen (Figure 5) will be displayed. Each section in the Serial Port
Setup screen is described in detail with the following:
Enable the RS-232 Data Port
Enabling the serial data port allows the modem to send RS-232 data over the broadband wireless connection
established with the ESTeem repeater peers. The modem can be configured in a point-to-point or point-to-multipoint
system. Select Yes if you wish to enable the serial data port.
Mode of Operation
There are two distinct modes of operation for the serial port in the Horizon. The Redirector mode will provide two-way
serial communication between two or more serial devices, while the Terminal Server mode will allow serial
communication to a specific remote site by connecting through telnet or SSH. Select one of the following modes of
operation:
Full Redirector Mode - This mode allows bi-directional RS-232 data communication with other ESTeem Horizon’s. The
RS-232 data transmission will appear transparent to the connected devices as if a serial cable is connected between
the two ports. This mode will also be used in a multi-point serial network were all serial devices will need bi-directional
communication (Figure 6).
Terminal Server Mode - This mode of operation translates RS-232 serial data into a network-oriented terminal protocol,
such as telnet or SSH. This mode would be selected if an interactive RS-232 session at remote locations is desired
over the wireless Ethernet link.
Baud Rate
Select the data rate of the RS-232 connection to match your serial device.
Figure 4: Horizon Front Panel Overview
CHAPTER 6
SERIAL APPLICATIONS
Revised: 19 Jan 16 6-4 EST P/N AA107-Horizon
Data Bits
Select the number of data bits on the RS-232 connection to match your serial device.
Stop Bits
Select the number of stop bits on the RS-232 connection to match your serial device.
Parity
Select the parity of the RS-232 connection to match your serial device.
Figure 5: Serial Configuration Screen
CHAPTER 6
SERIAL APPLICATIONS
Revised: 19 Jan 16 6-5 EST P/N AA107-Horizon
Flow Control
Select the type of data flow control used on the RS-232 connection. The ESTeem can support Hardware flow control
(RTS/CTS control lines) or Software Flow Control (XON/XOFF). Select None if no serial flow control is necessary.
Maximum Bridge Links for Multicast Packets
This value sets the maximum number of Ethernet bridge links that the multicast packets will be sent through when used
in a multi-point system. A multi-point serial network uses multicast packets (UDP) to send the data to more than one
remote ESTeem. You want to limit the number of network bridge links that these UDP packets will be passed through
to make the network more efficient.
If you are using multiple ESTeem repeater links to send the serial data to remote locations, the value for the maximum
bridge link needs to be increased to a number greater than the longest repeater chain. For example, if you are using
four repeater (peer) links to send the serial data between two or more sites the number will need to be five (5) or greater
(Figure 4).
Destination IP Address
The ESTeem configured for the correct destination IP and port number will send and receive the serial data from another
modem. Set the destination IP address for the ESTeem where the serial data will be sent. If sending to more than one
ESTeem (Multipoint) set to a multicast address (i.e 224.0.0.1).
Note: If you are using the ESTeem Horizon in a multipoint application (multicast), you must have default
Gateway configured in the ESTeem set to the IP address of the Root Bridge modem.
Serial IP Port Number
The ESTeem configured for the correct destination IP and port number will send and receive the serial data from another
modem. Set the IP port numbers to match where the serial data will be sent. The serial data will not be sent if both the
IP address and port number is not correct.
Maximum Packet Size
This number represents the maximum size of the serial data packet in bytes. If the number of bytes of data in the serial
port buffer exceeds the maximum packet size before the timer or delimiter character is reached, the ESTeem will send
forward the serial packet. For example, if the maximum packet size is set to a value of 100, when the serial port receives
100 bytes the data will be sent through the wireless connection.
Number of Milliseconds for Packetization
This number represents the time the ESTeem will hold data in the serial data buffer before sending to the remote
ESTeem. This feature is generally used if the serial data does not have a consistent packet length or delimiter character.
For example, if the number of milliseconds is set to a value of 10 the ESTeem will monitor the incoming serial data
stream and any break in characters longer than 10 milliseconds will cause the data will be sent through the wireless
connection.
Delimiter Characters
Enabling and specifying a delimiter character will transmit the data in the serial buffer when the delimiter character is
recognized in the serial data stream. There are two unique delimiter characters that can be configured and enabled
independently.
Terminal Server Control Lines
Enabling this feature will allow the ESTeem in the Terminal Server mode to read and generate modem control lines to
the connected device.
CHAPTER 6
SERIAL APPLICATIONS
Revised: 19 Jan 16 6-6 EST P/N AA107-Horizon
Figure 6: Serial Full Redirector Example
CHAPTER 7
REPEATING FEATURES
Revised: 19 Jan 16 7-1 EST P/N AA107-Horizon
To increase the wireless network’s area of coverage
for both indoor and outdoor applications, the Horizon
utilizes a custom repeating feature that allows
increased coverage areas without the added
expense of hard cabling or adding an additional point
to point radio link.
With a conventional IEEE 802.11g or 802.11a
Access Point (AP) network, all of the APs have to be
interfaced to a common network either by hardwire, see Figure 1, or a separate, dedicated RF backbone. The Model
Horizon can create this RF backbone, bridge Ethernet networks connected to the wired Ethernet port and provide the
wireless canopy for 802.11 clients simultaneously.
When programmed in any of the three Access Point (AP) Repeater Modes, the Model Horizon will create a wireless
network with other Model Horizon units in radio range that are programmed in the AP Repeater Peer table during setup.
This feature adds the increased functionality of repeaters to the typical Ethernet Bridge configuration.
ESTEEM MESH NETWORK
One of the most powerful features of the AP
Repeater Mode is the ability to input multiple
communication routes and designate the priority for
each of these routes to create a wireless Mesh
network. The ESTeem Horizon will automatically
change communication routes in the network if a
route has failed. The new route will be based upon
the priority level set during configuration. This
wireless Meshing technology allows the RF network
to “self-heal” if any of the communication paths fail.
The routing priority is manually set during the
configuration of the Horizon. A manual path
configuration is far superior to standard “self-
discovery” networks, because you have direct control
over the best RF paths and can easily identify any
failed routes for easy troubleshooting. For example,
Figure 2 shows a typical wireless Ethernet system
used in the Water/Waste Water Industry. The
problem with a standard “self-discovery” Mesh network is the selection of routes. Notice that the communication
between the Water Plant (Site A) and Pump Site D has a marginal link, but it is the most direct route between the
Ethernet devices.
This scenario poses the question, which path will the network select? The ESTeem Mesh Network takes out the
guessing games by allowing the user to select and prioritize all communication routes in the system. In our example
we would want the primary link to go through Tank B (Repeater) and use the direct link only if this primary link fails. The
following sections will show how this completed.
Configuration
The configuration of the repeater paths is completed during setup of the Access Point modes. All three Access Point
modes support repeating and Meshing features. The Mesh network configuration using the ESTeem Network
Configuration (ENC) Utility is shown in detail in Chapter 3 of this User’s Manual.
Figure 1: Conventional Access Point Diagram
Figure 2: Small Mesh Network Diagram
CHAPTER 7
REPEATING FEATURES
Revised: 19 Jan 16 7-2 EST P/N AA107-Horizon
You can also configure the Mesh networking directly through the web configuration setup (Chapter 5). Figure 3 shows
an example repeater peer table from the setup menus. For an Horizon to communicate with another Horizon, select
Yes must at Enable Repeater Capability. Next, the Wireless LAN (WLAN) MAC address of each Model Horizon that
will have direct communications must be added to the Repeater Peer List. Finally, enabling the link allows the
corresponding Horizon to be included in the communication routing. Mobile clients do not require input in the repeater
peer table. If multiple Mesh routes are configured, you will also need to set the values for Priority and Path Costs
(explained in Spanning Tree below). For multiple examples of repeater configurations, please refer to Chapter 3 of this
user’s manual.

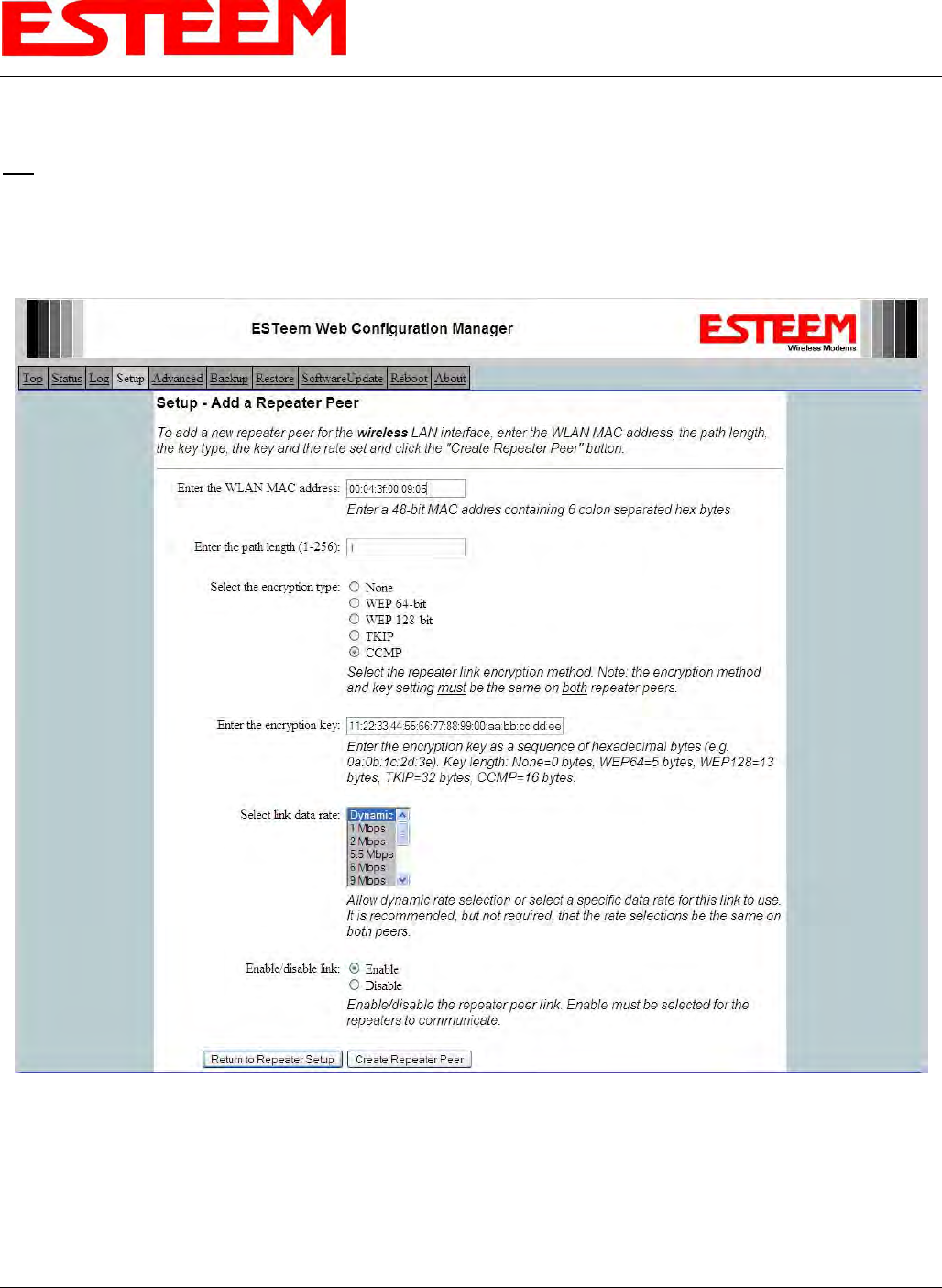

Figure 3: Repeater Configuration Example
CHAPTER 7
REPEATING FEATURES
Revised: 19 Jan 16 7-3 EST P/N AA107-Horizon
RAPID SPANNING TREE PROTOCOL (RSTP)
The ESTeem Model Horizon uses standard Ethernet Rapid Spanning Tree Protocol (RSTP) to determine the radio
routing structure of the wireless network. The primary purpose of RSTP is to make sure that “network loops” are not
created. A network loop is having two communication paths to the same destination where the remote device would
receive the same data multiple times. If there were no way to control the data flow, this data would be constantly passed
around this loop causing a “packet storm” that would shut down the entire network. The Spanning Tree Protocol will
block all these redundant links.
The RSTP operation begins by determining which Ethernet device on the network will be the Root Bridge. All Ethernet
networks have a Root Bridge that is selected by the lowest MAC address. All path costs are evaluated against this Root
Bridge device to determine routing and which paths will be blocked. On a wired Ethernet network, the location of the
Root Bridge is not really important, but in a wireless network selection of the Root Bridge is critical to the wireless
network routing. Let’s use one of the Example network diagrams from Chapter 3 to continue the discussion (Figure 4).
Figure 4: Programming Example #1 Diagram
Access Point Router
with Repeater
Feature Enabled
10/100BaseT
HUB or Switch
Mobile
PLC
EtherStation
Mode
10/100BaseT
Access Point Bridge
with Repeater
Feature Enabled
Primary Repeater Path
Backup Repeater Path
Access Point Bridge
with Repeater
Feature Enabled
Mobile Vehicle
Single Ethernet Device
Example #4
S/N: 14004
Primary Repeater Path
Plant Network
Large Wired LAN
Example #1
S/N: E-14001
WLAN MAC=00:04:3F:00:09:01
Remote Building
Small Ethernet Wired LAN
Example #3
S/N: E-14003
WLAN MAC=00:04:3F:00:09:10
Stand-Alone Repeater Site
Example #2
S/N: E-14002
WLAN MAC= 00:04:3F:00:09:05
Network
Router
(Required)
CHAPTER 7
REPEATING FEATURES
Revised: 19 Jan 16 7-4 EST P/N AA107-Horizon
STP Phases
The following sections describe the process of the STP in the ESTeem Model Horizon as how it would happen in the
above example.
Learning Phase - Once properly configured, each Model Horizon will begin to search out the other Model Horizon units
in radio range that are programmed in the AP Repeater Peer table. All Model Horizon’s will calculate their routes to
every Model Horizon in the network based upon the lowest “path length” to the Root Bridge. Path length is the total
number of wireless links (repeater peer links) to transmit a packet through the wireless network to the Root Bridge.
Note: The Root Bridge in a network should be the Model Horizon where the majority of the data flow is
processed. In every wireless network of two or more radios, the Root Bridge should be user defined. If not defined, the
Horizon with the lowest MAC address will be designated as the Root Bridge.
In Figure 4, the Plant network (Example 1) is the most logical location for the Root Bridge based upon the amount of
data flow. Setting this site as the root bridge is discussed below in Root Bridge.
Blocking and Forwarding Phase – To ensure you do not have a network loop situation due to redundant paths in your
wireless network, the Model Horizon will recognize and disable (block) one or more redundant links and provide back
up links should the primary link fail. This establishes a wireless mesh network with a series of forwarding links, based
upon the shortest path length to the Root Bridge.
For example, looking at Figure 4, the Remote Building has two routes to the Root Bridge (Plant Network – Example #1);
directly to the site and through the repeater. The direct link between the two sites is the shortest route (lowest Path
Length) and will be selected as the primary route unless overridden by manually changing the Path Length in the
configuration.
Path Length
If more than one communication path to the Root Bridge is found, the Horizon must determine which route to take based
upon the lowest Path Length. The default path length to all links in the Horizon network is 1. If the Path Lengths are
equal then the lowest MAC address will determine the priority route. In the ESTeem Mesh Network we want to directly
control all data flow so do not want the routes to be automatically determined.
Looking again at our Example in Figure 4, if we made no changes to the default path length of 1 (note values in Figure
3) the lowest path cost would be direct from the Remote Building to the Root Bridge (Plant Network).
Link Description
Total Path Length
Direct from Remote Building
1
Remote Build to Root Bridge Through
Repeater
2 (Length 1 to repeater + Length 1 to Master = 2)
To configure the Horizon to select the repeater as the primary radio path, set the path length value for the direct link
greater than 2 (such as a value of 3) to make this the primary radio path. The lowest path length will identify the highest
priority. The Model Horizon will use this routing, but also switch to direct communication if the repeater were to
disappear.
Root Bridge
In any Access Point Repeater network consisting of more than two sites, one Model Horizon should be designated as
the Root Bridge. Only one Model Horizon can be designated as the Root Bridge in a given network and should be
located where the majority of the Ethernet data flow is processed. This site may be the Master location in a SCADA
network or could be configured at a repeater site. Selection is important because all Model Horizon’s NOT configured
as the Root Bridge will choose routing based upon the Path Length to the Root Bridge. If you have any question as to
CHAPTER 7
REPEATING FEATURES
Revised: 19 Jan 16 7-5 EST P/N AA107-Horizon
which site in your AP Repeater application should be the Root Bridge, contact ESTeem Customer Support at 509-735-
9092 or e-mail your application to support@esteem.com.
The Root Bridge will be selected in one of two ways: the Root Bridge can be manually set (recommended) during the
configuration of the Repeater Peer table (Figure 3) or the Root Bridge designation will default to the lowest MAC address
of all the Model Horizon’s in the network. The manual Root Bridge configuration is located in the “Advanced Settings”
section.
Redundant Backup
The ESTeem Model Horizon configured in Access Point
Repeater mode will automatically function as a redundant
backup if two Model Horizon’s are installed at the same
location (Figure 7). If two Model Horizon’s are connected to
the same switch, one of the Model Horizon’s will be Blocked
when the Spanning Tree Protocol is completed. The network
will continue to use this route until any problem with the
original Model Horizon is detected and the second Model
Horizon will begin operation at that site.
Redundant Master Configuration
The configuration in Figure 7 will also provide a redundant
backup for the Master Site (Root Bridge). Configure both
Model Horizon’s as Root Bridges (see above) giving the
primary Root Bridge a value of 1 and the secondary Root
Bridge a value of 2.
Figure 7: Redundant Backup Diagram
CHAPTER 8
ANTENNA SETUPS
Revised: 10 Mar 16 8-1 EST P/N AA107-Horizon
216An ANTENNA AND CABLE CONFIGURATIONS (POLE MOUNT)
ESTeem offers different types of antennas for both indoor and outdoor configurations. To reduce potential radio
interference to other users, the antenna type and its gain should be chosen so that the equivalent isotropically radiated
power (e.i.r.p.) is not more than that permitted for successful communication.
This radio transmitter ESTeem 216An has been approved by Industry Canada to operate with the antenna types listed
below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna
types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited
for use with this device.
Le present emetteur radio ESTeem 216An a ete approuve par Industrie Canada pour fonctionner avec les types
d'antenne enumeres ci-dessous et ayant un gain admissible maximal et l'impedance requise pour chaque type
d'antenne. Les types d'antenne non inclus dans cette liste, ou dont le gain est superieur au gain maximal indique, sont
strictement interdits pour l'exploitation de l'emetteur.
Warning: Only the tested cable lengths and antennas provided by EST meet the FCC maximum peak output
power requirements. Any other combination of antennas or coax cables is not authorized. This
device has been designed to operate in a pole mount configuration with the antennas listed below,
having a maximum gain of 6 dB in a multi-point system or 15dB in a point to point network. Antennas
not included in this list or having a gain greater 6 dB in a multi-point system or 15dB in a point to
point network are strictly prohibited for use with this device. The required antenna impedance is 50
ohms.
Part Number: AA20DMEg
Omni-directional direct mount antenna, 5 dBi gain.
Indoor and outdoor applications.
There must be a minimum separation distance of
24 cm. from the antenna to the user.
See Warnings.
Part Number: AA203Eg
Directional pole mount antenna, 6 dBi gain with 3-
ft. integral feedline and connector.
Point to point and point to multi-point outdoor
applications.
Antenna port B is not used in this configuration.
There must be a minimum separation distance of
24 cm. from the antenna to the user.
See Warnings.
Part Number: AA204Eg.1
Directional pole mount antenna, 15 dBi gain with
3-ft. integral feedline and connector.
Point to point applications only.
Maximum Output Power of 250mWatts (Power
Level = Low Power)
Antenna port B is not used in this configuration.
There must be a minimum separation distance of
50 cm. from the antenna to the user.
See Warnings.
Transmit/Receive
Antenna Port 1
Receive Only
Antenna Port 2
Warnings:
Only pre-made coax cables from the factory used in
conjunction with either the AA203Eg or AA204Eg.1
directional antennas meet all FCC Section 15.247(b)
EIRP maximum power requirements.
Use of the AA204Eg.1, directional antenna is limited to
fixed point to point applications only. In accordance FCC
Section 15.247(b)iii, this antenna must be professionally
installed. The installer must ensure the system is used
exclusively for fixed, point-to-point applications and the
ESTeem Horizon is set for 0.25 Watts output power
(Power Level = Min).
CHAPTER 8
ANTENNA SETUPS
Revised: 10 Mar 16 8-2 EST P/N AA107-Horizon
WEATHER PROOFING COAX CONNECTIONS
1. Lightly coat the threads of the connectors with silicone lubricant prior to assembly (See Note 1) and hand
tighten. Make sure to use the silicon sparingly so when assembled, any excess does not get on center
conductor. Care should be taken not to get any lubricant on the center conductor.
2. Wrap the connector assembly with a non-adhesive silicone tape, EST part number AA243, for weather proofing
(See Note 2 and instructions below).
a) Clean surface to be wrapped. Cut off length to be used.
b) Peel back a short length of protective film. Keep tape clean and dry.
c) Begin with one complete overlap of tape onto itself.
d) STRETCH CoaxWrap while continuing to wrap object with “half-laps”, removing clear film as you go (Figure
1). For greater pressure resistance, use 2 or more tightly wrapped layers.
e) End of tape at final wrap should be completely positioned onto itself.
Note: CoaxWrap’s bond begins to cure immediately upon contact with itself.
Repositioning or removal is not recommended after 2 minutes of wrapping.
3. Apply an electrical coating (sealing agent), over the vapor barrier patch for added
protection (See Note 3).
NOTES:
1. Dow Corning RTV-3140 or equivalent.
2. CoaxWrap, CW10B or equivalent.
3. SCOTCHKOTE, 3-M Company, or equivalent.
ANTENNA DIVERSITY
The dual diversity antenna configuration on the ESTeem Model 216An allows the radio to operate more efficiently in
areas with high reflections (such as indoors or in a city) without direct line of sight (LOS) between the antennas. One
of the most difficult conditions to control in a radio system is the effect of a destructive reflected radio signal called
mutipathing. Multipathing occurs when waves emitted by the transmitter travel along a different path and interfere
destructively with waves traveling on a direct line-of-site path. The phenomenon occurs because waves traveling along
different paths may be completely out of phase when they reach the antenna, thereby canceling each other out. The
dual diversity antenna configuration places a physical distance between the antennas where one reflected signal will be
out of phase, but the second will be not. The ESTeem Model 216An will sample both antennas and select the best
receive signal.
Figure 1: Installation Example
CHAPTER 8
ANTENNA SETUPS
Revised: 10 Mar 16 8-3 EST P/N AA107-Horizon
ANTENNA PORT SELECTION
The antenna ports on the Model 216An must be configured for either a single receive antenna (external mount antennas)
or dual diversity antenna setup. To access the port configuration open ESTeem Web page using your computer’s Web
Browser as per instructions in Chapter 5. Select Advanced from the menu items and Radio Settings-wlan0 device
(Figure 1).
Figure 2: Advanced Settings Menu
CHAPTER 8
ANTENNA SETUPS
Revised: 10 Mar 16 8-4 EST P/N AA107-Horizon
Press the next button and wlan0 configuration menu will be displayed. The receive antenna is configured by selecting
the wlan0_dot11CurrentRXAntenna drop down (Figure 3) and selecting the receive antenna. A value of 0 = Dual
diversity (Both antenna Ports A & B will be used to receive). A value of 1 = Single receive source (Antenna Port A only).
Figure 3: Receive Antenna Settings Menu
CHAPTER 8
ANTENNA SETUPS
Revised: 10 Mar 16 8-5 EST P/N AA107-Horizon
ASSEMBLING THE AA195PM TWO HOLE OUTDOOR POLE MOUNTING KIT
The AA195PM mounting kit contains everything required for pole mounting and weatherproofing the ESTeem Model
216Ang for outdoor installations. The 216Ang with AA195PM mounting kit can be directly mounted to a round pole from
1.25” to a diameter of 2.25” OD. Any mounting structure greater than 2” requires hose clamp strapping run through the
Pole Mount Brackets. The mounting kit requires the following assembly:
1. If you purchased an AA195PM mounting kit with your Model 216Ang, the kit will be packed in the same packing
box as the ESTeem (Figure 4).
2. Remove and inventory the two (2) Pole Mounting Brackets, one (1) Two-Hole Face Plate Cover (with single port
cover installed), one (1) Heat Shield and (1) AA195PM Hardware bag from the packing box (Figure 4). Report any
Figure 4: Packet Box Contents
Figure 5: AA195PM Hardware Contents
CHAPTER 8
ANTENNA SETUPS
Revised: 10 Mar 16 8-6 EST P/N AA107-Horizon
missing or damaged items to ESTeem Customer Support (Phone 509-735-9092) as soon as possible for
replacement.
3. Inventory the AA195PM Hardware bag for all the components listed in Figure 5.
4. Assemble the two Pole Mounting Brackets with the included U-bolts, hardware and Pole Mount Clamps. Reference
Figure 6.
5. Place the four supplied 10-24 x 1” Phillips Pan Head screws through the mounting holes of the Heat Shield and
attach to the top of the ESTeem 216Ang (Figure 7).

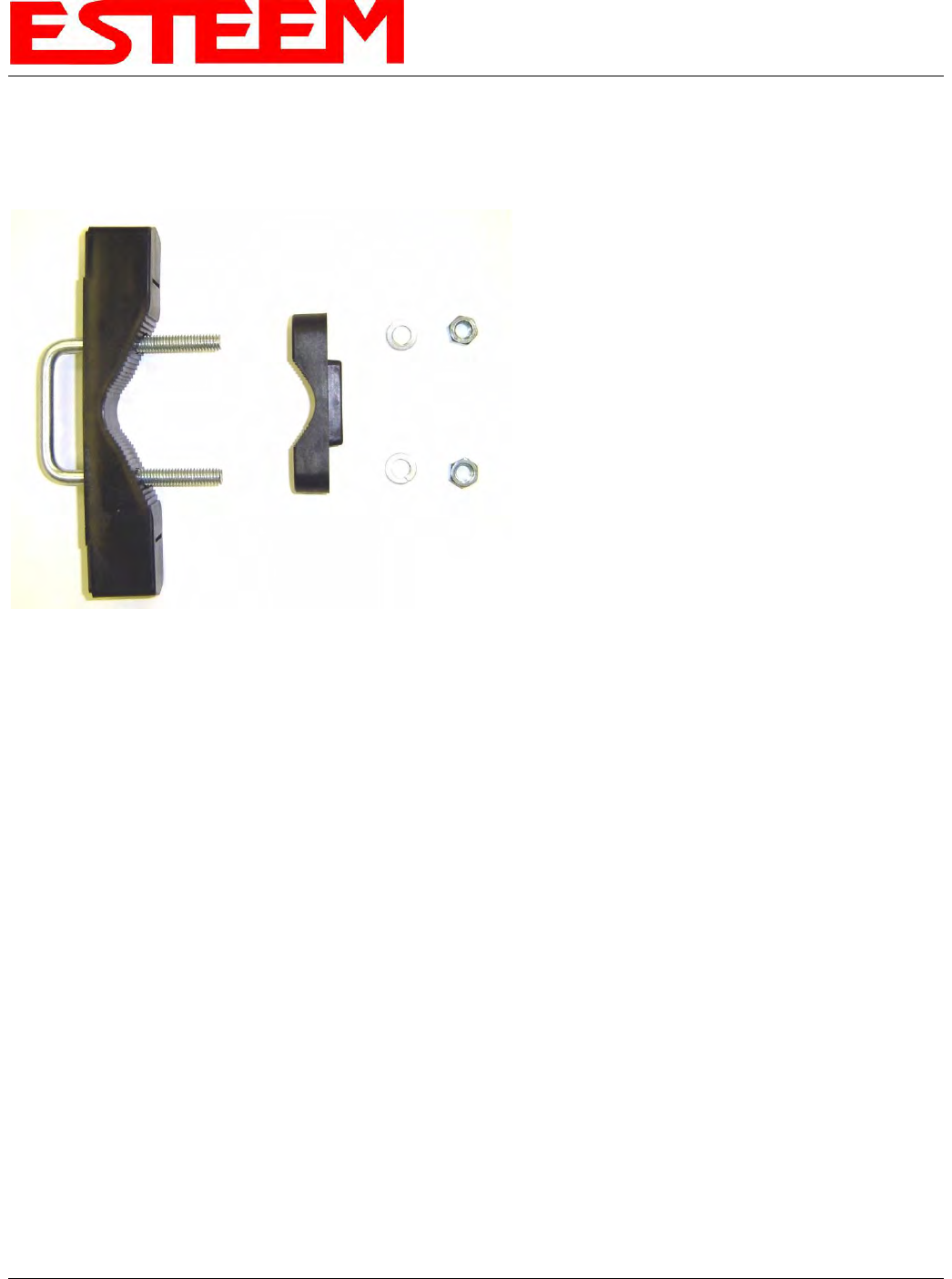

Figure 6: Pole Mount Assembly
CHAPTER 8
ANTENNA SETUPS
Revised: 10 Mar 16 8-7 EST P/N AA107-Horizon
6. Attach the two Pole Mounting Brackets to the ESTeem Model 216Ang with the 10-24 x 1” Phillips Pan Head screws
through the top of the heat shield. Reference Figure 8 (Heat Shield removed for detail).
Figure 7: Heat Shield Attachment
Figure 8: Pole Mount Connection to Case
(Heat Shield Removed for Detail)
Ethernet Cable Boot
Figure 9: Ethernet Cable Assembly
CHAPTER 8
ANTENNA SETUPS
Revised: 10 Mar 16 8-8 EST P/N AA107-Horizon
7. Assemble the outdoor rated CAT-5e Ethernet cable (Not Provided) with the supplied Ethernet Cable Boot (Figure 9).
8. Feed the CAT-5e Ethernet connector(s) through the Face Plate Cover and secure the Ethernet Cable Boot to the
cover. Reference Figure 10.
NOTE: The Ethernet cable boot must be installed before the RJ-45 end is installed. If using the ESTeem AA09.1
outdoor Ethernet cable, verify that the Ethernet cable boot end is routed toward the ESTeem 216Ang.
9. Route the CAT-5e Ethernet cable through the molded strain-relief fins in the Face Plate Cover (Figure 11) to secure
the cable and provide strain-relief for the connector. If a second Ethernet cable is installed, remove the second port
cover and route cable.
10. Plug the CAT-5e Ethernet cable to the Model 216Ang’s Ethernet port and secure the Face Plate Cover with the
attached thumb screw. Verify that the weatherproof seal on the Face Plate Cover is sealed against the outer rim of
the Model 216Ang. Reference Figure 12.
11. Attach the antenna connector boots as show in Figure 13 for either dual attached antennas or external antennas.
You are now ready to mount the ESTeem Model 216Ang
Figure 11: Face Plate Cover Strain Relief
Figure 10: Ethernet Cable Routing
Face Plate Cover
Ethernet Cable Boots
Second Port Cover
Remove for 2nd Cable
CHAPTER 8
ANTENNA SETUPS
Revised: 10 Mar 16 8-9 EST P/N AA107-Horizon
CHAPTER 8
ANTENNA SETUPS
Revised: 10 Mar 16 8-10 EST P/N AA107-Horizon
Caution: Outdoor mounting of the 216Ang requires the use of weatherproof boots. Improper
installation could result in radio failure.
Caution: Always mount the 216Ang vertically with the antenna ports on top.
Figure 12: Face Plate Cover Installed on ESTeem
Figure 13: Completed AA195PM Mounts
Direct Mount
Antenna Boots
Port A
EST Approved Direct Mount
Antenna Only
Port B
EST Approved External
Antenna With Factory
Installed Boot
Weather Proof Boot
NOTE: Remove Plastic
Connector Cover
Before Installation
Face Towards
The South
(North America)
CHAPTER 8
ANTENNA SETUPS
Revised: 10 Mar 16 8-11 EST P/N AA107-Horizon
216An POLE MOUNT GROUNDING PROCEEDURES
Mounting the 216An series radio modem outdoors requires proper grounding procedures to prevent damage to both
the radio hardware and the connected Ethernet and Serial peripherals. The case on the 216An series wireless modem
is electrically conductive, but the AA195 Pole Mount kit provides isolation from the connected structure. To bring the
216An case to a ground potential with Earth ground and eliminate any static buildup on the case itself, the shield on the
Ethernet cable is used to provide the ground connection.
Outdoor Ethernet Cable
A critical component of this grounding protection system is the ESTeem AA09.1 outdoor, shielded CAT-5E Ethernet
cable. This cable provides three, necessary elements; Ethernet data, DC Power over Ethernet (PoE) applications, and
a ground from the 216An case to the AA166 surge protector. The Ethernet cable is outdoor rated and protected from
UV breakdown.
Installation
The following diagram outlines all the critical components and connections in the 216An series system. The Earth
ground connection to the surge protector must be installed to comply with local Electrical code requirements.
Figure 14: Pole Mount Installation Diagram
ESTeem Model 195E
Series Wireless Modem
ESTeem AA09.1
Outdoor, Shielded
CAT-5E Cable
(300 ft. maximum)
Metal RJ-45 Hood
(Amp 5-569530-3)
Drain Wire Soldered
To Metal RJ-45 Hood
Drain Wire With
Ring Terminal Connected
to Ground Lug
Approved Earth
Ground Connection
AA166 Ethernet
Surge Protection
Ethernet Patch Cable
(AA09.2)
Power Over Ethernet
Supply
(AA175)
Metal RJ-45 Hood
(Amp 5-569530-3)
CHAPTER 8
ANTENNA SETUPS
Revised: 10 Mar 16 8-12 EST P/N AA107-Horizon
FRESNEL ZONE
The Fresnel zone shows the ellipsoid spread of the radio waves around the visual line-of-sight after they leave the
antenna (see Figure 15). This area must be clear of obstructions or the signal strength will be reduced due to signal
blockage. Typically, 20% Fresnel Zone blockage introduces little signal loss to the link. Beyond 40% blockage, signal
loss will become significant. This calculation is based on a flat earth. It does not take into account the curvature of the
earth. It is recommended for RF path links greater than 7 miles to have a microwave path analysis done that takes the
curvature of the earth and the topography of the terrain into account.
Fresnel Zone Radius = 72.1 SQRT [(d1d2) / (F (d1 + d2)]
Units
Fresnel Zone Radius in feet.
d1 and d2 in statue miles
F in GHz
Figure 15: Fresnel Zone Diagram
APPENDIX A
LICENSING INFORMATION
Revised: 20 Mar 16 APX A-1 EST P/N AA107-Horizon
INFORMATION TO USERS
The ESTeem Horizon complies with Part 15 of the FCC
Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including
interference that may cause undesired operation.
Note to User:
Changes or modifications to this equipment not expressly
approved by ESTeem Wireless Modems for compliance
could void the user's authority to operate the equipment.
Other Information
Model 216An
Direct Sequence/OFDM Spread Spectrum Device
(USA) FCC ID: ENPEST216AN
(Canada) IC No: 2163A-216AN
The equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own
expense.
APPENDIX A
LICENSING INFORMATION
Revised: 20 Mar 16 APX A-2 EST P/N AA107-Horizon
FEDERAL COMMUNICATIONS COMMISSION FIELD OFFICES
ALASKA
1011 E. Tudor Rd.
Rm 240 Box 2955
Anchorage, AK 99510
CALIFORNIA
Interstate Office Park
4542 Ruffner St., Room 370
San Diego, CA 92111-2216
Los Angeles Office (LA)
Ceritos Corporate Tower
18000 Studebaker Rd., Room 660
Cerritos, CA 90701-3684
San Francisco Office (SF)
5653 Stoneridge Drive, Suite 105
Pleasanton, CA 94588-8543
COLORADO
Denver Office (DV)
215 S. Wadsworth Blvd., Suite 303
Lakewood, CO 80226-1544
FLORIDA
919 Federal Bldg
51 SE First Ave.
Miami, FL 33130
Tampa Office (TP)
2203 N. Lois Ave., Room 1215
Tampa, FL 33607-2356
GEORGIA
Atlanta Office (AT)
3575 Koger Blvd., Suite 320
Duluth, GA 30096-4958
HAWAII
7304 Prince Kuhi
Federal Building
Honolulu, HI
ILLINOIS
Chicago Office (CG)
Park Ridge Office Ctr., Room 306
1550 Northwest Highway
Park Ridge, IL 60068-1460
LOUISIANA
New Orleans Office (OR)
2424 Edenborn Ave. Suite 460
Metarie, LA 70001
MARYLAND
1017 Geo. Fallon
Building 31
Hopkins Plaza
Baltimore, MD
MASSACHUSETTS
Boston Office (BS)
1 Batterymarch Park
Quincy, MA 02169-7495
MICHIGAN
Detroit Office (DT)
24897 Hathaway Street
Farmington Hills, MI 48335-1552
MINNESOTA
691 Federal Building
316 N Robert St.
St. Paul, MN
MISSOURI
Kansas City Office (KC)
520 NE Colbern Road
Second Floor
Lee’s Summit, MO 64086
NEW YORK
1307 Federal Building
111 W. Huron
Buffalo, NY 14202
NEW YORK
New York Office (NY)
201 Varick Street, Suite 1151
New York, NY 10014-4870
OREGON
1782 Federal Building
1220 SW 3rd Avenue
Portland, OR 97204
PENNSYLVANIA
Philadelphia Office (PA)
One Oxford Valley Office Bld.
Room 404
2300 E. Lincoln Hwy
Langhorne, PA 19047-1859
PUERTO RICO
747 Federal Building
Carlo Chardon Ave.
Hato Rey, PR 00918
TEXAS
Dallas Office (DL)
9330 LBJ Freeway, Room 1170
Dallas, TX 75243-3429
5636 Federal Building
515 Rusk Avenue
Houston, TX 77002
WASHINGTON DC
Columbia Office (CF)
9300 East Hampton Drive
Capitol Heights, MD 20743
WASHINGTON
Seattle Office (ST)
11410 NE 122nd Way
Room 312
Kirkland, WA 98034-6927
APPENDIX B
INTERFACE PORTS
Revised: 19 Jan 16 APX B-1 EST P/N AA107-Horizon
ETHERNET INTERFACE
The ESTeem Horizon’s Ethernet Port is a Full and Half-Duplex Auto-negotiation interface supporting both 10 Mbps and 100 Mbps
(10/100BaseT). The Ethernet port is compliant with IEEE 802.3at-2009 Power Over Ethernet Plus (PoE+) to provide both data and
power over the same CAT-5E grade Ethernet cable. The port is compatible with TIA/EIA-568B cable configuration (Figure 1).
A second Ethernet port is included with the ESTeem Horizon. This second Ethernet port can be configured to bridge to the primary
Ethernet port or configured to communicate on the Wireless or Ethernet side of the Horizon in router mode.
Figure 1: Ethernet Pin Layout
APPENDIX B
INTERFACE PORTS
Revised: 19 Jan 16 APX B-2 EST P/N AA107-Horizon
CONFIGURING DHCP SERVER
The ESTeem Horizon Ethernet port supports both client and server Dynamic Host Configuration Protocol (DHCP). Figure 2 shows
the DHCP host configuration screen that will be shown if DHCP server is selected in the setup screens. Enter the values that match
the DHCP configuration for your network.
Figure 2: DHCP Server Configuration
APPENDIX B
INTERFACE PORTS
Revised: 19 Jan 16 APX B-3 EST P/N AA107-Horizon
RS-232C PROGRAMMING PORT
CONFIGURATION
The ESTeem Horizon has a proprietary RS-232C
interface in a RJ-45 connector on the front panel. To
interface the Horizon to the serial port on the computer,
you need ESTeem cable AA0621 that combines a
standard Ethernet patch cable to a 9-pin Female adapter.
The serial port on the ESTeem Horizon can be used to
access the configuration menu in the ESTeem for system
and network configuration. The ESTeem
communications port operates at 38,400 bps, No Parity, 8
Data Bits and 1 Stop Bit (38,400,N,8,1). Configure your
terminal program to match these settings.
RS-232 PROGRAMMING PORT PIN-OUT TABLE
ESTeem Model AA0621
RS-232C Port Pin-Out Table
RJ-45
Pin No.
Function
DB-9
Pin No.
4
Signal Ground (GND)
5
5
Receive Data (RxD)
2
6
Transmit Data (TxD)
3
RS-232C DATA PORT CONFIGURATION
The ESTeem Horizon has an RS-232C data interface in a RJ-
45 connector on the front panel. See Chapter 6 for further
information on serial data port configuration. To interface
the Horizon to the serial port on the computer, you need serial
cable with the following pin-out:
ESTeem Model AA0621
RS-232C Port Pin-Out Table
RJ-45
Pin No.
Function
DB-9
Pin No.
1
Data Set Ready (DSR)
6
2
Data Carrier Detect (DCD)
1
3
Data Terminal Ready (DTR)
4
4
Signal Ground (GND)
5
5
Receive Data (RxD)
2
6
Transmit Data (TxD)
3
7
Clear to Sent (CTS)
8
8
Request to Sent (RTS)
7
Horizon Serial Port Interface
Ethernet Pin-out
Horizon Serial Data Port Interface
RS-232
Programming Port
RS-232
Data Port
APPENDIX C
RADIO CONFIGURATION
Revised: 19 Jan 16 APX C-1 EST P/N AA107-Horizon
HORIZON FREQUENCIES OF OPERATION
In a wireless Ethernet network all of the ESTeem Horizon must be set to the same radio frequency of operation (channel) and
bandwidth. The following table shows the channels and corresponding frequencies of operation for each model of ESTeem. The
frequency of operation is selectable when configuring the mode of operation of the Horizon (reference Chapter 3).
Figure 1: Radio Frequency Channel Selection
RF COMMUNICATIONS DATA RATE
The RF data rate of the Horizon can be programmed for operation at multiple data rates. The RF data rate can be set for a fixed
rate or a specific range that is dynamically scaled by the Horizon from monitoring the received signal quality. Dynamic scaling
means that the Horizon will operate at the highest RF data rate that is programmed into unit. If the received data quality drops
below the required minimums for reliable communications, the Horizon will reduce the data rate to the next lowest step to increase
signal quality. Conversely if the signal quality increases above the minimums the Horizon will increase the RF data rate the next
highest level.
The ESTeem Horizon is set at the
factory to operate at maximized
scaling speed data rates and should
not need adjustment. The RF Data
Rate is programmed in the Horizon
through the Advanced
Menu>Wireless LAN
Settings>Wlan0 Device and the
value for wlan0_OPRATES:. In the
example shown in Figure 3 the RF
Date Rate is programmed to dynamic
scale all data rates to 54 Mbps
(recommend factory default setting).
To set the values for the data rate,
check the box next to the listed data
rate to enable this rate for operation.
Channel Number
Frequency
Bandwidths
Model 216An
1
2412 MHz
20/40 MHz
2
2417 MHz
20/40 MHz
3
2422 MHz
20/40 MHz
4
2427 MHz
20/40 MHz
5
2432 MHz
20/40 MHz
6
2437 MHz
20/40 MHz
7
2442 MHz
20/40 MHz
8
2447 MHz
20/40 MHz
9
2452 MHz
20/40 MHz
10
2457 MHz
20/40 MHz
11
2462 MHz
20/40 MHz
Figure 2: Advanced Data Rate Selection
APPENDIX C
RADIO CONFIGURATION
Revised: 19 Jan 16 APX C-2 EST P/N AA107-Horizon
SETTING RF POWER LEVEL
The ESTeem Horizon peak power is adjustable in output power from the advanced configuration menu. The output power is
adjusted on the Advanced Menu>Wireless LAN Settings>Wlan0 Device screen (Figure 4) of the Web Configuration Manager.
Select the value and press the Save Settings button.
Max (Maximum)
Full Power
Hi (High)
75% Power
Lo (Low)
50% Power
Min (Minimum)
25% Power
Figure 5: Power Level Settings
Figure 4: Advanced Global Variables
APPENDIX D
SECURITY
Revised: 19 Jan 16 APX D-1 EST P/N AA107-Horizon
OVERVIEW
The security for the ESTeem Horizon, like all network security, must be multi-layered. One level of security is never enough to
make sure that data does not end up in the wrong hands. Please review the following security levels and decide what is the most
appropriate for your network.
AES-CCMP (802.11i and WPA-2)
AES-CCMP (Advanced Encryption Standard-Counter Mode CBC-MAC Protocol) is the encryption algorithm used in the IEEE
802.11i and WPA-2 security protocols. This national encryption standard uses a 128 bit-AES block cipher and CCMP technique to
ensure the highest level of security and integrity available on a wireless network. AES-CCMP incorporates two sophisticated
cryptographic techniques (counter mode and CBC-MAC) and adapts them to Ethernet frames to provide a robust security protocol
between the mobile client and the access point. AES itself is a very strong cipher, but counter mode makes it difficult for an
eavesdropper to spot patterns, and the CBC-MAC message integrity method ensures that messages have not been tampered with.
The ESTeem Horizon is compatible as either an Access Point or client in either WPA2 or IEEE 802.11i security systems.
Wi-Fi Protected Access 2 with Preshared Key (WPA2 PSK)
WPA2 PSK uses a common passphrase (preshared key) between the Access Point (AP) and the client to begin a secure communication
session. This passphrase must be entered exactly the same in both the Access Point and the client. This passphrase is used to
authenticate communication session between the AP and client to begin the secure wireless networking session.
Wi-Fi Protected Access 2 with Enterprise Server (WPA Enterprise)
Like WPA2 PSK, WPA2 Enterprise verifies the authenticity of the Access Point and client, but uses an 802.1x backend
authentication server handling the authentication decision. The most commonly type of authentication server is a RADIUS server.
The ESTeem Horizon can be configured to operate with an established RADIUS server on the network.
WPA
Wi-Fi Protected Access with Preshared Key (WPA PSK)
WPA, which uses 802.1x, was introduced in 2003 to improve on the authentication and encryption features of WEP. All
authentication is handled within this access point device. WPA has two significant advantages over WEP:
1. An encryption key differing in every packet. The TKIP (Temporal Key Integrity Protocol) mechanism shares a starting key
between devices. Each device then changes their encryption key for every packet. It is extremely difficult for hackers to read
messages even if they have intercepted the data.
2. Certificate Authentication (CA) can be used, blocking a hacker posing as a valid user.
Wi-Fi Protected Access with Enterprise Server (WPA Enterprise)
Like WPA PSK, WPA Enterprise verifies the authenticity of the Access Point and client, but uses an 802.1x backend authentication
server handling the authentication decision. The most commonly type of authentication server is a RADIUS server. The ESTeem
Horizon can be configured to operate with an established RADIUS server on the network.
WPA is server/client relationship from a software driver on a computer’s wireless LAN (WLAN) card to an Access Point. The
scope of WPA is limited in use to this configuration only. The ESTeem Horizon can support WPA Enterprise and PSK as an Access
Point, but the level of security on the Bridging layer is configured separately.
APPENDIX D
SECURITY
Revised: 19 Jan 16 APX D-2 EST P/N AA107-Horizon
128-BIT WEP
The 128 WEP uses a particular algorithm called RC4 encryption to encode and decode traffic that is based on a 104-bit encryption
key and a 24-bit Initialization Vector (IV). RC4 starts with a relatively short encryption key (104 bits) that is expanded into a nearly
infinite stream of keys to accompany the stream of packets.
The basic concept of RC4 is good, but the way it’s implemented in WEP leaves it open to compromise. The researchers that test
the integrity of the system usually focus on one piece of the implementation, the Initialization Vector (IV).
The IV (24 bits) is the algorithm component that’s supposed to keep expanded keys from repeating. From the researcher’s point of
view, a high-volume access point is mathematically guaranteed to reuse the same key stream at least once a day. When this happens,
it’s called an IV collision this becomes a soft spot to enter the system.
The researchers aren’t saying that it’s easy to break into the system, or that it’s being done on a regular basis, only that it is possible
and administrators should consider ways to reduce the possibility
ACCESS CONTROL LIST (ACL)
The ACL is one of the simplest yet most secure methods of network security. The ACL is a configurable MAC filter in the Model
192E that can be set to allow specific MAC address on the wireless network by individual address or address ranges. The same
filter can also be set to reject individual MAC addresses or address ranges.
The MAC address is a unique, 6 hexadecimal field address assigned at the manufacturer that can not be changed. The MAC address
is traceable through the IEEE governing body to the manufacturer and is the “fingerprint” for all Ethernet devices.
Using a combination of both the WPA or 128-Bit WEP encryption and the ACL filter provide the ESTeem an extremely secure
wireless networking layer.
DISABLING BROADCAST PROBES AND HIDING SSID
A simple but very effective way of securing a network is to make the network difficult to find. By disabling broadcast probes and
hiding the Service Set Identification (SSID), wireless and network “sniffers” will not be able to find your ESTeem Horizon network.
To gain access to the wireless network, you would be required to have the SSID and all security loaded in the WLAN card software
prior to entering the network.
PROPRIETARY BRIDGE COMMUNICATION
Although the ESTeem Horizon is compatible with the open communication standards IEEE 802.11g and 802.11b, the repeater
communication between the units is a proprietary communication link. No other manufacturer of wireless hardware can access the
ESTeem repeater network when bridging between Ethernet networks. This proprietary communication layer, in combination with
the other security settings, allows you as the user to reject wireless clients into the network if so desired. When used in conjunction
with the Access Control List the 802.11g and 802.11b client access can be removed.
The security level of the bridge communication link is configurable for 64-Bit WEP, 128-Bit WEP or TKIP and is completely
independent of the client access level or any other communication link level. For example, an ESTeem Horizon can be configured
for WPA Enterprise for client level access, communicate to another ESTeem Horizon using a TKIP bridge link and also
communicate 128-Bit WEP to our older ESTeem Model 192E radio modems all running simultaneously.
APPENDIX D
SECURITY
Revised: 19 Jan 16 APX D-3 EST P/N AA107-Horizon
MASQUERADE MODES
When the ESTeem Horizon is configured in either the Access Point Masquerade or the Client Masquerade modes, the wireless
modem functions as a network firewall. If access to the wired network is the greatest concern, place the ESTeem in the Masquerade
mode and the wireless network will be completely isolated from the wired Ethernet network.
INCREASING NETWORK SECURITY
The following are a few suggestions to help improve the overall security of your wireless network:
1. Enable the security. If you research all of the articles regarding hackers, they have gotten into the user’s network due to the
security not being enabled.
2. Set the ACL filter to include only those MAC address of the wireless Ethernet device being used on the network.
3. Make sure the keys are not reused in your company, since reuse increases the statistical likelihood that someone can figure the
key out and change the default password on your access point or wireless router
4. As a network administrator, you should periodically survey your company using a tool like NetStumbler to see if any "rogue"
access points pop up within your company without authorization. All of your hard work to "harden" your wireless network
could be wasted if a rogue AP was plugged into your network behind the firewall.
5. Many access points allow you to control access based on the MAC address of the NIC attempting to associate with it. If the
MAC address of your NIC isn't in the table of the access point, you won't associate with it. And while it's true that there are
ways of spoofing a MAC address that's been sniffed out of the air, it takes an additional level of sophistication to spoof a MAC
address. The downside of deploying MAC address tables is that if you have a lot of access points, maintaining the tables in each
access point could be time consuming. Some higher-end, enterprise-level access points have mechanisms for updating these
tables across multiple access points of the same brand.
6. Consider using an additional level of authentication, such as Remote Access Dailin User Service (RADIUS), before you permit
an association with your access points through WPA and WPA2 Enterprise.
7. If you're deploying a wireless router, think about assigning static IP addresses for your wireless NICs and turn off Dynamic
Host Configuration Protocol (DHCP). If you're using a wireless router and have decided to turn off DHCP, also consider
changing the IP subnet. Many wireless routers default to the 192.168.1.0 network and use 192.168.1.1 as the default router.
8. Only purchase Access Points that have flashable firmware. There are a number of security enhancements that are being
developed, and you want to be sure that you can upgrade your access point.
9. A simple security technique used by the military is to have the administrator periodically change the key for the system i.e.
weekly, monthly, etc.
APPENDIX E
TROUBLESHOOTING
Revised: 19 Jan 16 APX E-1 EST P/N AA107-Horizon
TESTING COMMUNICATION LINK
After you have configured at least two of the Horizon wireless Ethernet modems for operation, you can verify
communication with each the following steps:
Status Light
The quickest source of link status is to view the Status
Light on the face of the Horizon (Figure 1). If the Status
light is solid, the Horizon has a connection to another
Horizon listed in the Peer Table.
Status Screen/Peer Table
To view detailed information on the status of the communication link (such as connection speed, signal strength and
last update time) you can open the Status Screen from the Web Interface. After press the Status tab at the top of the
screen the Status: Summary will be displayed showing the status of all ports and memory in the Horizon. Under the
Wireless Status heading click on the View Peer Table (Figure 2). The Peer Table will list all other Wifi (Horizong and
Horizona only) or mobile client wireless activity seen by the Horizon and how it is classified.
Note: The data rate displayed is not necessarily indicative of the RF data rate between the ESTeems. The rate
show in the Repeater Peer table will be the last RF packet, which could consist of either data, repeater
beacon or network probes.
Figure 1: Connection Status Light
Figure 2: Repeater Peer Table
Status LED
Solid Red on Link
Opposite Modem’s Wireless MAC
Receive Signal Strength (dBm)
Last Packet Received
Peer Modem ID
Other Access Points
APPENDIX E
TROUBLESHOOTING
Revised: 19 Jan 16 APX E-2 EST P/N AA107-Horizon
Repeater Peers - The Peer Table will display all connected Horizons configured to repeat to this ESTeem by their
Wireless (WLAN) MAC address.
Received Signal Strength – This is the first of the two numbers listed in the block. This signal strength value is listed in
dBm.
Last RX – This is the time of the last received data packet. When monitoring the status menu, it is important to note the
time the last transmission was updated so you are not looking at “stale” data.
Current Data Rate – This is the current speed the last data packet received by the Horizon. This may not be the data
rate between the radio modems. Note that the speed is listed in kbps, so that 11000 kbps is equal to 11 Mbps.
Note: The ESTeem Horizon uses spread spectrum technology that analyzes each data packet for signal strength and
data quality (strength vs. noise). The higher your signal, the mare background noise you can sustain without
causing degradation in the data transfer. This is also true for lower signal strengths with a very low background
noise. These values are provided for guidance and if you have any questions about the values in your
application, please contact ESTeem Customer Support at 509-735-9092 or e-mail your application to
support@esteem.com.
Modem ID – This is Modem ID for the opposite repeater peer.
APPENDIX E
TROUBLESHOOTING
Revised: 19 Jan 16 APX E-3 EST P/N AA107-Horizon
Viewing RF Data Rates
The value shown on the Peer Status Screen for data rate may not be the actual rate of the RF link. To view the link
information, click on the Opposite Modems WLAN MAC address in the Repeater Peer list (Figure 2) and further link
status information will be displayed (Figure 3).
Once loaded, click on View Peer Rate Control Information. (Figure 4)
The value of the Current TX rate is the RF data rate between the two ESTeem Horizon.
Figure 3: Peer Summary Table
Figure 4: Rate Control Information
APPENDIX E
TROUBLESHOOTING
Revised: 19 Jan 16 APX E-4 EST P/N AA107-Horizon
SIGNAL STRENGTH VS DATA RATE
The average signal strength required to maintain a specific data rate will vary by ESTeem Horizon model and bandwidth.
To review the required signal level and its effect from distance and hardware selected, please use the ESTeem RF
Design program available from our web site (www.esteem.com). Please note that the data rates can be greatly affected
by overall activity on the radio channel and the total background noise. These values should be used as a guide, but
testing after installation is required.
LONG RANGE POINT TO POINT APPLICATIONS
The factory configuration on the Horizon is optimized for distances up to 10 miles. If your application has an RF link
with a range greater than 10 miles, you will need to set the maximum range value on both ESTeem Horizon’s on this
communication link. To access the Maximum Distance value select Advanced from the top Menu then Wireless LAN
Settings>wlan0 device and press the Next button (Figure 5).
Scroll down the menu list until you find the Maximum Distance variable (Figure 6). Enter the maximum distance of the
connection in miles. At the bottom of the screen press Return to Advanced button and then Commit and Reboot
button (Figure 5) to save the information.
Figure 5: Advanced Features Screen
Figure 6: Maximum Distance Value Entry
APPENDIX E
TROUBLESHOOTING
Revised: 19 Jan 16 APX E-5 EST P/N AA107-Horizon
TROUBLESHOOTING TIPS
General (Applicable to All Modes of Operation)
Where do I find the latest firmware version number? – We have the latest version number of the Horizon firmware listed
on the ESTeem Web site (www.esteem.com) under the Horizon product page.
How and when do I update the Horizon firmware? - You should only update the Horizon firmware if you are having a
specific problem and it is recommended that you do so by ESTeem Customer Support personnel. All the update
instructions and files are located on the ESTeem FTP site at the following address:
ftp://www.esteem.com/Horizon
Do all firmware versions have to be the same to communicate between the Horizon? – It is not necessary for all the
firmware versions to be the same revision to communication, but the later version may have added features that the
other versions will not recognize.
What characters are valid for WEP Key entry? - Only the Hexadecimal characters 0-9 and A-F are valid for key entry.
What ESTeem Utility version is required to program the Horizon? – The ESTeem Utility program is not required to
program the Horizon. The Horizon can be programmed using any Terminal Emulation program (such as Windows
HyperTerminal) and any web browser program.
What is the speed and duplex configuration on the Horizon – The Horizon is an auto-negotiation full/half-duplex 10/100
Base-T interface. Ether a cross-over or patch cable is supported.
Access Point Mode
Wireless LAN cards are not connecting – Verify that the wireless LAN cards are set to Infrastructure Mode, have a
matching SSID (or ESSIS) set the same as the Horizon and that all encryption codes are the same.
My Wireless LAN card shows a solid connection, but I can not pass any data – Verify the encryption and the ACL setting
on the Horizon match the wireless LAN card.
Access Point Repeater Mode
How long does it take to re-establish the Wireless Ethernet Network? - If a communication link is lost and the Wireless
Network needs to re-establish the repeater routes, the time can take up to 10 seconds.
Should the AP Repeater Mode be used on mobile equipment? - The AP Repeater mode should be used on equipment
that will not change the Repeater Route as it moves. For example, if a mobile device such as a crane can communicate
directly to another ESTeem and will not loose the link in its travel, the AP Repeater Mode could be used. If the device
requires two ESTeem Horizon’s (Base and Repeater) to maintain communication across its complete travel, the Station
Modes should be used on the mobile device. The problem will be in the time that the mobile ESTeem will take to transfer
between the two sites. In Access Point Repeater mode the transfer can take up to 30 seconds, while the EtherStation
mode will transfer without a packet loss.
Does WEP have to be used? – The WEP does not have to be enabled for the modems to communicate, but all modems
must be configured the same way.
Correct configuration, but cannot establish communications. – In addition to the network configuration, all Horizon
modems configured in the AP mode must share the same SSID and be on the same frequency channel. The most
likely cause of the error is the WLAN MAC address is not configured in both Horizon’s repeater tables. If only one side
is configured, everything will appear to be correct but no communication will function.
APPENDIX E
TROUBLESHOOTING
Revised: 19 Jan 16 APX E-6 EST P/N AA107-Horizon
EtherStation
How do I access the Horizon web page in EtherStation Mode? The Horizon does not have an active web browser when
configured in EtherStation mode. You must access the ESTeem with the ESTeem Discovery Program or through the
RS-232 port after configuration in this mode. To monitor the link status, you can use the EtherStation Status program.
What IP address do I configure the ESTeem in EtherStation mode? – The Horizon will not have an IP address in
EtherStation mode.
I can not link my device into the wireless network – Verify that the MAC address of the device is exactly the same as
configured in the Horizon. The MAC address must have colons between the values.
Can I connect my Horizon in EtherStation mode to a HUB or Ethernet Switch? – No. The modem must be connected
directly to the Ethernet device for which it is programmed. In EtherStation mode the Horizon can only service ONE
Ethernet device.
APPENDIX F
216An SPECIFICATIONS
Horizon 216An Specifications
Revised: 10 Mar 16 APX F-1 EST P/N AA107-Horizon
ESTeem 216An Specifications
Transmitter/Receiver
Frequency of Operation (Software Selectable)
2.412 to 2.462 GHz (11-channels)
RF Data Rate
1 to 150 Mbps (20 steps)
Tx Output Power (Software Selectable)
250 to 1000 mW (Pk) (4-levels)
Tx Output Impedance
50 ohms
Rx Sensitivity
-92 to -69 dBm
FCC Type Acceptance
ENPEST216AN
Industry Canada Type Acceptance
2163A-216AN
LED Indicators
Power (On/Off) - Carrier Detect (On/Off) - Transmitter (On/Off) -
Receiver (On/Off)
Power Requirements
Receive
600ma @ 12 VDC
Transmit
1.350A (Cont) 3A (Peak) @ 12 VDC
PoE Power Supply
(IEEE 802.3at,30 watts) (opt)
External Power Input
10 to 28 VDC @ 3A
Input/Output Connectors
Ethernet Port 1 (10/100)
RJ-45 Female
Ethernet Port 2 (10/100)
802.11 Compatibility
802.11n/g/b
RS-232C Comm Port (2,400 to 115.2 K baud)
RJ-45 Female
RS-232C Programming Port (38,400, N, 8, 1)
Antenna Input/Outputs
TNC Reverse Female
External DC Input Power
Mini-Combicon, 3 pin female
Case
Temperature Range
-30° to +60° C
Humidity
95% Non-condensing
Dimensions
1.9 in. H x 6.7 in. W x 6.2 in. L
Weight
1.25 lbs.
Product Warranty
1 Year
Other
Outdoor Pole Mt. Kit
AA195PM (opt)
PoE Power Supply
AA175.2 (opt)
External DC Input Power Connector
AA195PP (opt)
APPENDIX F
216An SPECIFICATIONS
Model 195Eg Case Specifications
Revised: 10 Mar 16 APX F-2 EST P/N AA107-Horizon
APPENDIX F
216An SPECIFICATIONS
Antenna Specifications
Revised: 10 Mar 16 APX F-3 EST P/N AA107E
Model: AA20DMEg
Applications: Model 195Eg direct case mount
Antenna Type: Omni-Directional, Sleeve dipole
Frequency: 2400 to 2485 MHz
Polarization: Vertical
Impedance: 50 ohms
Gain: 5 dBi (3 dBd)
VSWR: < 2:1
Power: 10 W
Front To Back Ratio: n/a
Horizontal Beamwidth: n/a
Vertical Beamwidth: n/a
Antenna Material: Polyurethane Plastic Radome
Recommended Mounting Hardware: n/a
Antenna Connector: TNC-R Male
Flexibility: +/- 20
Antenna Envelope: 8.28 in. length by .54 in. width
Temperature: -40 to +70 C
Weight: 33 grams
Model AA20DMEg
Caution
Omni-directional antenna
should not be located within
24 cm of personnel.
APPENDIX F
216An SPECIFICATIONS
Antenna Specifications
Revised: 10 Mar 16 APX F-4 EST P/N AA107E
Model No: AA203Eg
Antenna Type: Directional, DC grounded
Applications: Fixed base.
Frequency: 2400 to 2485 MHz
Polarization: Vertical or Horizontal
Impedance: 50 ohms
Gain: 6 dBi (4 dBd)
VSWR: < 1.5
Front to Back Ratio: >23 dB
Horizontal Beamwidth: 55 degrees @ ½ power
Vertical Beamwidth: 55 degrees @ ½ power
Antenna Material: Sealed in UV stable fiberglass enclosed radome
Mounting Hardware: Stainless steel U bolts (included) for mounting up
to 1 5/8 in. diameter pipe.
Antenna Connector: TNC-R Male with 36in. pig tail
Maximum Power Input: 5 Watts
Antenna Envelope: 4.5 in. length by 3 in. diameter
Windload (RWV): 125 mph
Lateral Thrust at
Rated Wind: 5.8 lbs.
Wind Surface Area: 0.060 ft2
Weight: 1 lbs.
Model AA203Eg
Caution
To comply with the FCC
exposure compliance
requirements, a separation
distance of at least 24 cm
must be maintained between
the antenna and all persons.
APPENDIX F
216An SPECIFICATIONS
Antenna Specifications
Revised: 10 Mar 16 APX F-5 EST P/N AA107E
Model No: AA204Eg.1
Applications: Fixed base mounting
Antenna Type: 2.4 GHz ISM, Directional, DC Grounded, Parabolic Grid
Frequency: 2400-2485 MHz
Polarization: Vertical or Horizontal
Impedance: 50 ohms
Gain: 15 dBi (13 dBd) nominal
VSWR: < 1.5:1 nominal
Front to Back Ratio: >24 dB
Horizontal Beamwidth: 16 degrees @ ½ power
Vertical Beamwidth: 11 degrees @ ½ power
Antenna Material: Zinc plated cold rolled steel with polyester power
coat finish
Recommended Mounting
Hardware: Standard U-bolt steel mast clamp
complete with mounting hardware. Designed for
masts of up to 2.5 in. O.D.
Antenna Connector: TNC-R Male with 36 in. pig-tail
Maximum Power Input: 10 Watts
Wind Survival: 100 mph
Wind Load: 16 mph
Antenna Envelope: 34 in. length by 17 in. width by 11 in. height
Weight: 3 lbs.
Use of the AA204Eg.1, directional antenna is limited to fixed point-to-point applications only. In accordance with FCC
Section 15.247(b)iii, this antenna must be professionally installed. The installer must ensure the system is used exclusively
for fixed, point-to-point applications and the ESTeem Model 195Eg is set for 0.25 Watts output power (Power Level =
Min).
Model AA204Eg.1
Caution
To comply with the FCC exposure
compliance requirements, a
separation distance of at least 50 cm
must be maintained between the
antenna and all persons.
