User Manual Part 2
59
_______________________________________________________________________________________________
Section 2 - Installation
Contents:
2.1 Operating environment
2.2 Preliminary operations
2.3 Telemeasuring socket connections
2.4 RS232 and RS485 socket connections
2.5 SCH0005AR1 Calibration procedure
2.6 Preventive maintenance
- Front panel
- Rear panel
60
2.1 OPERATING ENVIRONMENT
You can install the apparatus in a standard component rack or on a suitable surface such as a bench or
desk. In any case, the area should be as clean and well-ventilated as possible. Always allow for at least
2 cm of clearance under the unit for ventilation. If you set the apparatus on a flat surface, install spacers
on the bottom cover plate. If you install the apparatus in a rack, provide adequate clearance above and
below. Do not locate the apparatus directly above a hot piece of equipment.
2.2 PRELIMINARY OPERATIONS
Correct installation of the equipment is important for maximum performance and reliability. Antenna
and earth connections must be installed with the greatest care. The equipment adjustment isn’t need,
because the unit is completely adjusted by our technical staff. This is the installation procedure:
1. connect the power supply cable of the transmitter to the auxiliary socket on the rear panel of the
amplifier;
2. connect the power supply cable of the amplifier to the electric network (230VAC). If there is the Isolator
Transformer, the amplifier is provided with cable and plug;
3. connect the exciter / antenna cable to the RF IN and RF OUT on the rear panel of the amplifier.
WARNING!!!
FOR ELECTRICAL SAFETY REASONS AND IN ORDER TO KEEP THE APPARATUS SAFE,
THE GROUND TERMINAL OF THE APPARATUS MUST BE CONNECTED TO THE EX-
ISTING GROUNDING SYSTEM AND NOT BY USING THE SHIELD OF THE OUTPUT
COAXIAL CABLE.
1
2
3
3
61
When the apparatus is put within a combined system it is directly connected to the input splitting and output
combining systems.
Before fully powering the apparatus, check that the output connections of the coaxial cable to the
antenna system are working.
In order to this it is possible to check the indication of the reflected power at low power levels. Only if
the SWR indication on the display is 0, the output power can be slowly increased. At maximum output
power, some watts might be shown as reflected power.

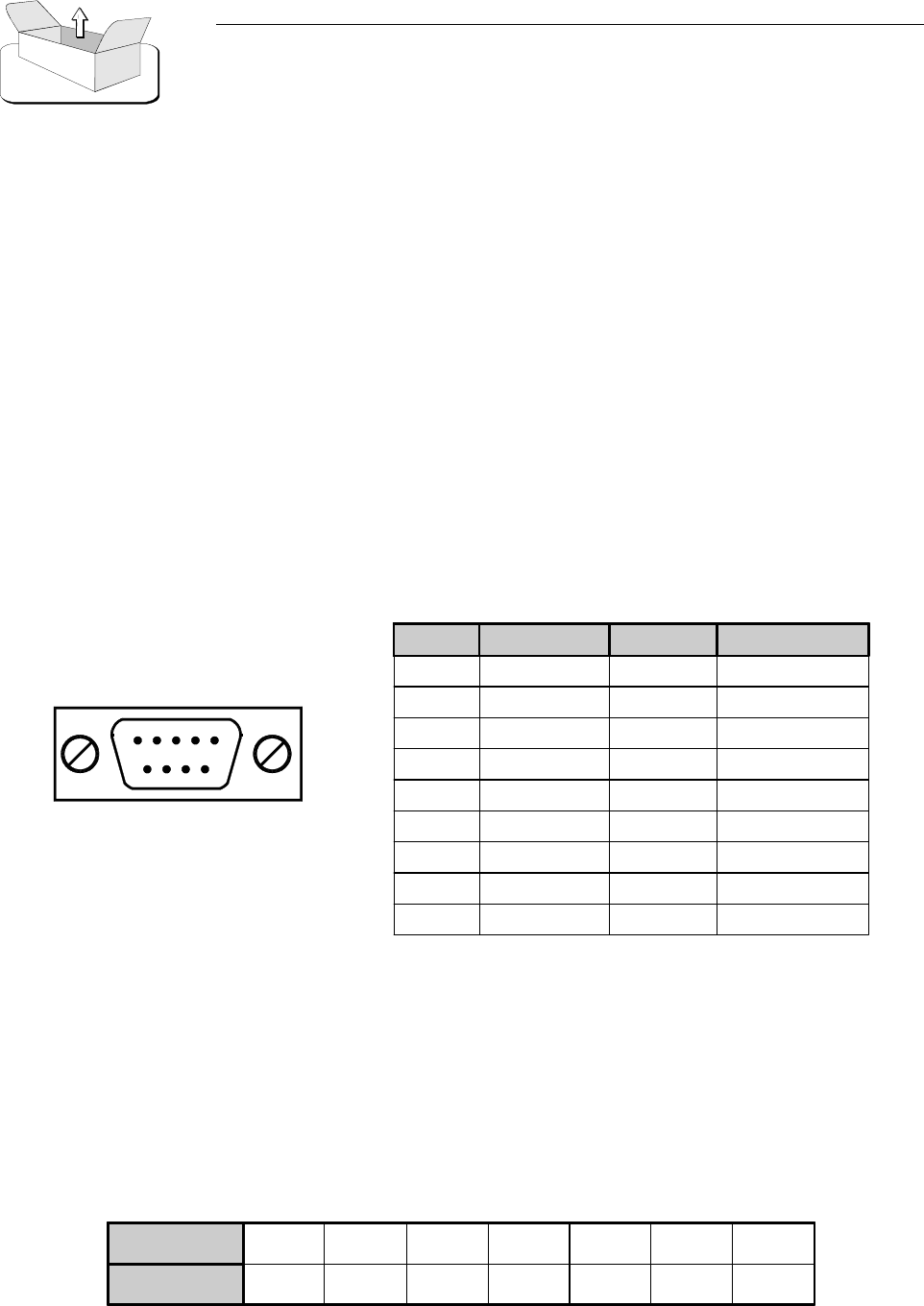

2.3 TELEMEASURING SOCKET CONNECTIONS
The following table summarizes the Telemeasuring pin connections.
2.4 RS232 AND RS485 SOCKET CONNECTIONS
The connector DB25 may be configured as RS232 or RS485 socket, depending on the position of the
jumpers on the board. In case it is used as RS232 socket, the jumpers JP3, JP4, JP5 and JP6 have to be
positioned towards the serigraphy “RS232”. If the jumpers JP1 and JP2 are placed in “N” position, the
follwing configuration is obtained:
DB9 Socket
PIN 23567820
FUNCTIONS RxD TxD RTS 12V GND 12V 12V
N° Pin SYGNAL TYPE IN/OUT FUNCTION
1 Ground
2 Logical Input 5V= On - 0V= Off
3 Analog Output Dir Power
4 Analog Output Ref Power
5 Analog Output Unbalancing
6 Analog Output Temperature
7 Analog Output Alarm 5V= On - 0V= Off
8N.C.
9N.C.
62
If the jumpers JP1 and JP2 are put in “M” position, the following configuration will be obtained:
In order to use the connector as RS485 socket, the jumper JP3, JP4, JP5 and JP6 have to be positioned
towards the serigraphy “RS485”. In this way, the following configuration will be obtained:
2.5 SCH0005AR1 CALIBRATION PROCEDURE
WARNING: this procedure is very delicate, so be VERY CAREFUL in order to avoid damaging
the equipment !!!
First of all turn on the equipment with the correct antenna connection, and then perform the following steps:
- Power supply voltages and currents calibration
Measure with a tester the voltage Vdr1 on the power supply of the first driver transistor without loading the
power supply (this can be done by disconnecting the six supply wires from the RF power modules). Verify
that it is 29V. Then take the calibration load (consisting of five 47Ω/20W resistors connected in parallel) and
connect it between the positive power supply terminal (corresponding to Vdr1) and ground. Turn the trimmer
R1 until you read on the display Vdr1 equal to the value measured before with the tester. Then turn the
trimmer R22 until you read on the display Idr1 = 3.1A.
Repeat the procedure above for the power supply of the second driver stage: measure with the tester the
voltage Vdr2 and turn the trimmer R3 and R27 until you read on the display the correct values.
Measure with a tester the voltage V1 on the power supply of the first final power transistor. Verify that it is
PIN 23456720
FUNCTIONS TxD RxD RTS CTS 12V GND 12V
PIN 23456720
FUNCTIONS Rx+ RX- TX- TX+ 12V GND 12V
63
around 32V. Then take the calibration load and connect it between the positive power supply terminal
(corresponding to V1) and ground. Turn the trimmer R5 until you read on the display V1 equal to the value
measured before with the tester. Then turn the trimmer R33 until you read on the display Idr1 = 3.4A.
Repeat the procedure above for the power supplies of the remaining three power transistors: measure with
the tester the voltages V2-V3-V4 and turn the trimmers R7-R9-R11 until you read on the display the correct
values measured.
To calibrate the remaining currents readings, you have to connect the calibration load to the other three power
supplies (not all together, but one at a time!) and then turn the trimmers R39-R45-R51 until you read on the
display I2=I3=I4= 3.4A.
- Temperature calibration
Measure with a tester the voltage of the OUT pin of the integrated temperature sensor mounted on the heat
dissipating element. Than perform the operation explained in this example:
- voltage measured (for example) = 2.93V
- fixed number = 2.73
- perform subtraction: 2.93-2.73 = 0.20
If you get a result of 0.20, it means that the temperature is 20°C, so you have to turn the trimmer R102 until
you read TEMP = 20°C.
- Forward power calibration
Disconnect the antenna and connect a wattmeter (with a suitable dummy load!) to the antenna connector. Put
the cover on the amplifier module and then give power to the equipment until you read 1000W on the
wattmeter. Then turn the trimmer R96 until you read FWD = 1000W (approximately).
- Reflected power calibration
To perform the reflected power calibration just disconnect the REF SMB (J6) and the FWD SMB (J7)
connectors from the control board and connect the forward power reading cable to J6 (REF). Give 50W of
forward power to the equipment and turn the R97 trimmer until you read on the display REF = 50W.
Note: When you have completed this calibration be sure to restore the original connections on the
control board!
64
To ensure the best reliability for the board operations it is advisable that you turn the unused trimmers (those
corresponding to the unused readings connectors) counterclockwise until they reach the zero position (you
will hear a click).
2.6 PREVENTIVE MAINTENANCE
To ensure maximum performance and minimum repair trouble, we strongly recommend you to follow the
below stated headlines for preventive maintenance:
1. check antenna installation and ground connection at regular intervals;
2. keep your apparatus clean and dry externally: this will ensure continuous functioning of the front panel
controls;
3. if the apparatus has not been used for a long period of time combined with exposure to extreme environ-
mental conditions, open the unit and make a visual inspection.
Remove salt, water or ice with a moist cloth before turning the apparatus on. Check that the cooling fans are
running freely.
4. for general maintenance and top performance, call an authorized service technician to give the apparatus
and the complete antenna/earth connection installation a general check every 12-18 months;
5. check at regular intervals that the air intake located on the front panel is free of dust. If there is visible dust,
remove it by means of a soft brush.
65

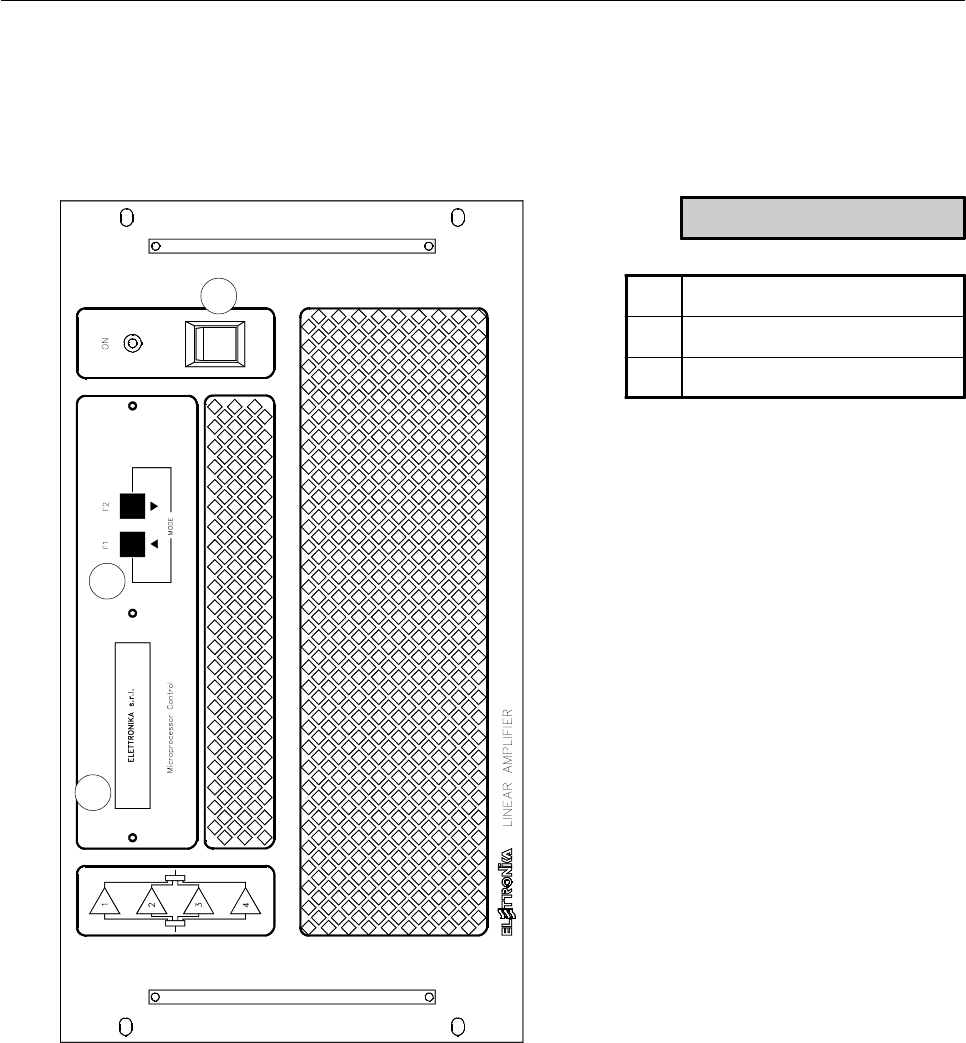

Front panel
DESCRIPTION
1 LCD Display
2 Function keys
3Main switch
12
3
66
Rear panel
1
If there is the Isolator Transformer, the
amplifier is provided with cable and plug.
2
3
4
5 6 7
9
8
*
DESCRIPTION
1 Breaker
2 Power supply socket
3 Driver supply
4Fuse
5I
2
C BUS Socket
6 RS232 Socket
7 Telemeasuring socket
8 RF Input connector
9 RF Output connector
67
_______________________________________________________________________________________________
Section 3 - Diagram
Contents:

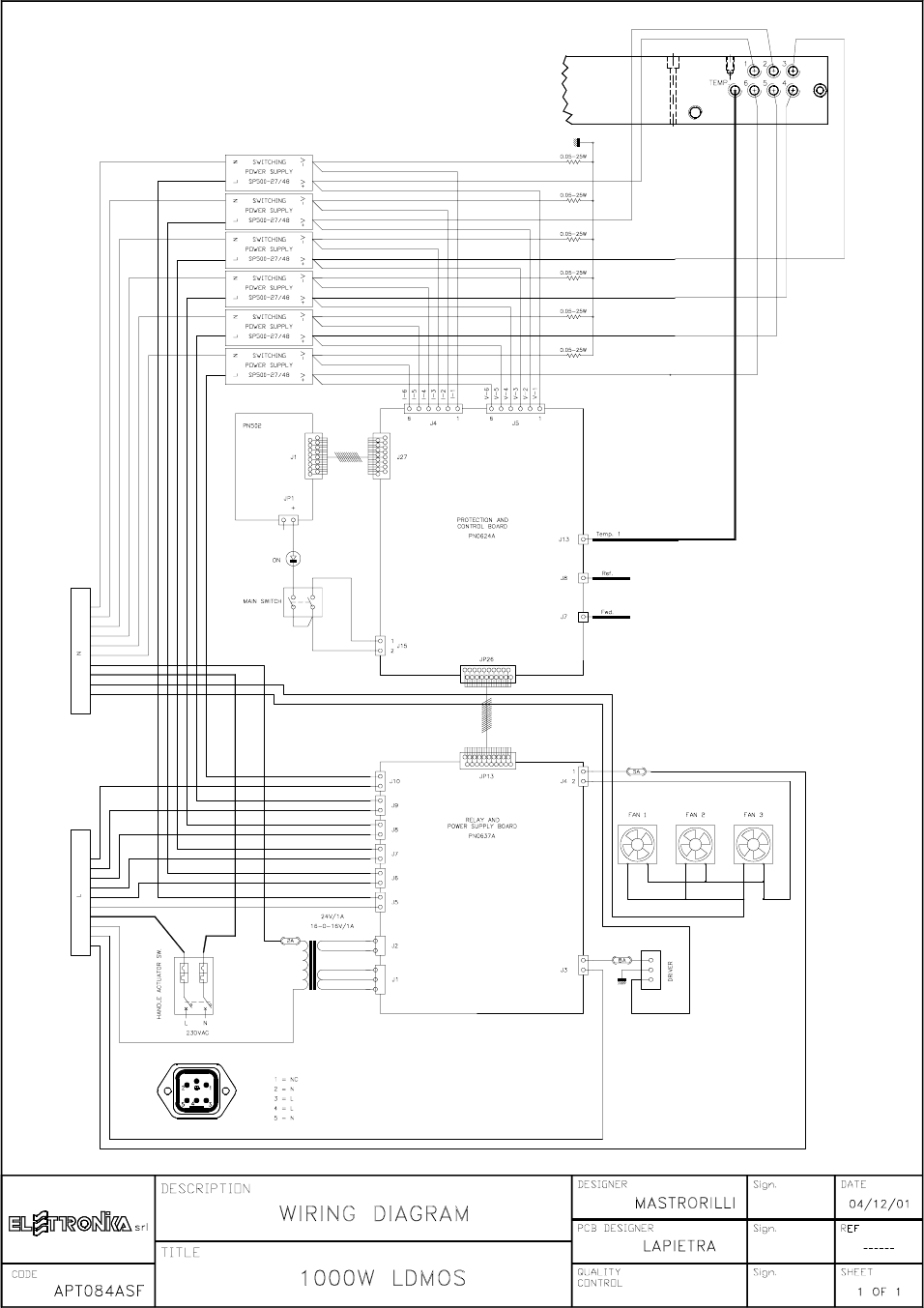

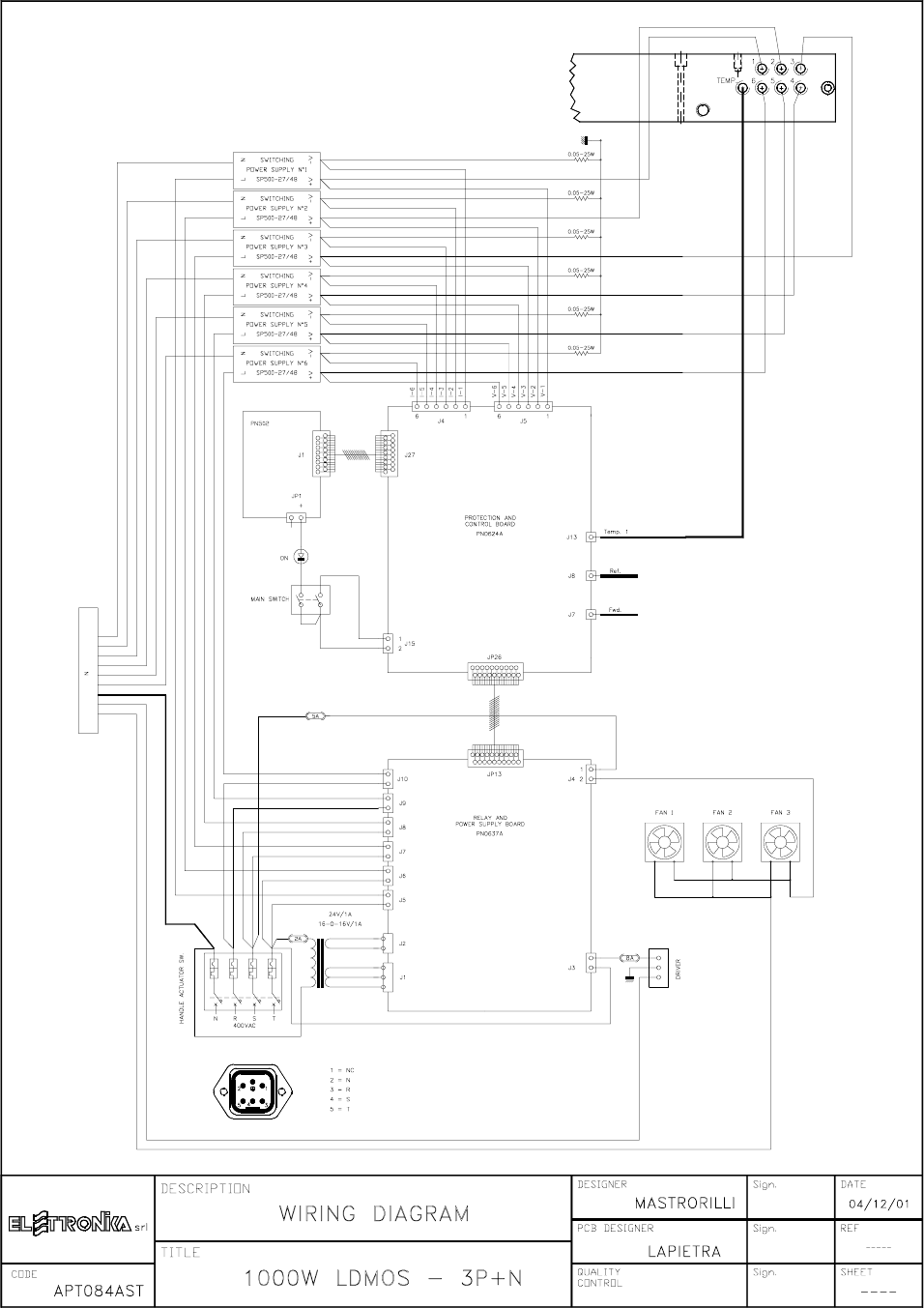

- Cable diagrams

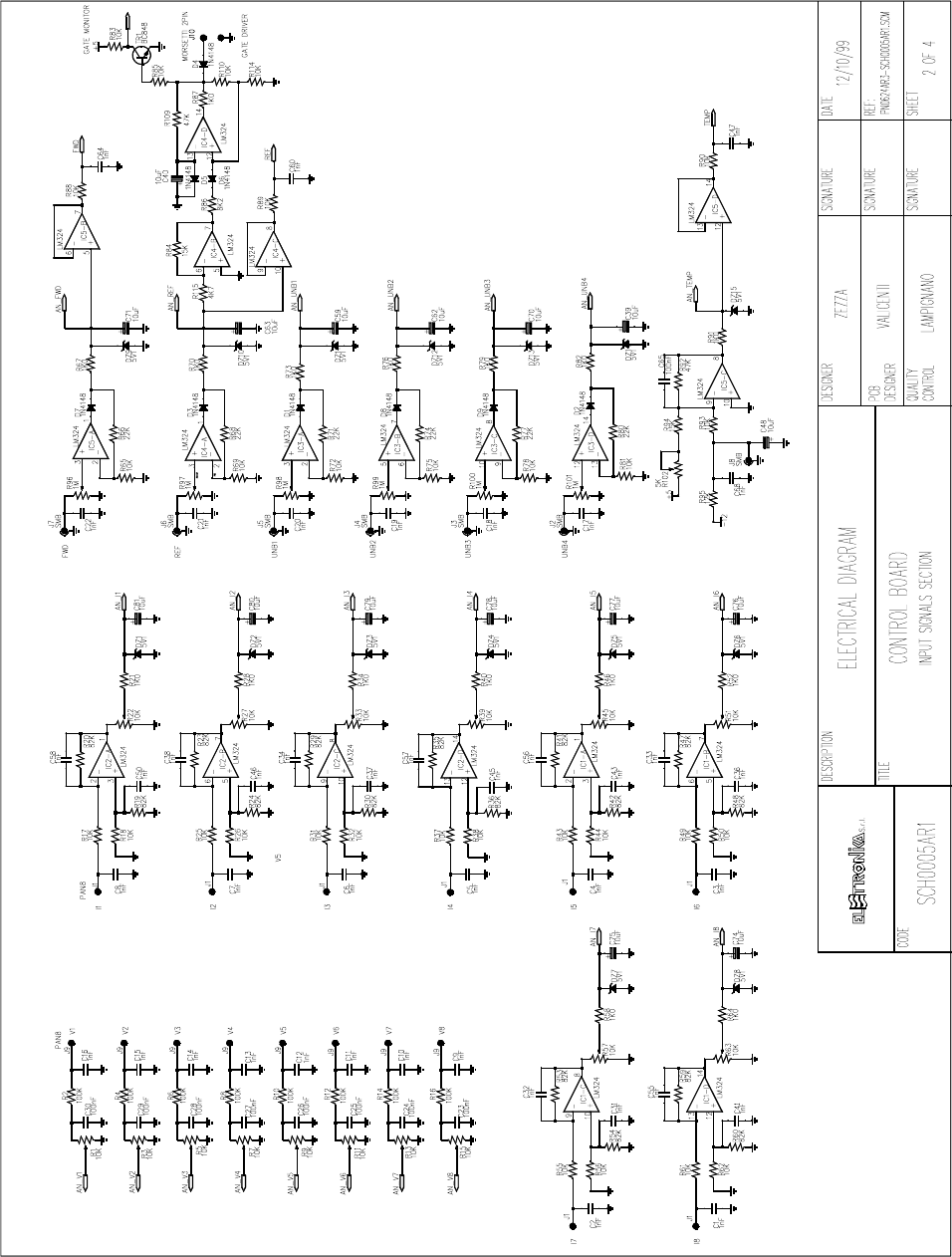

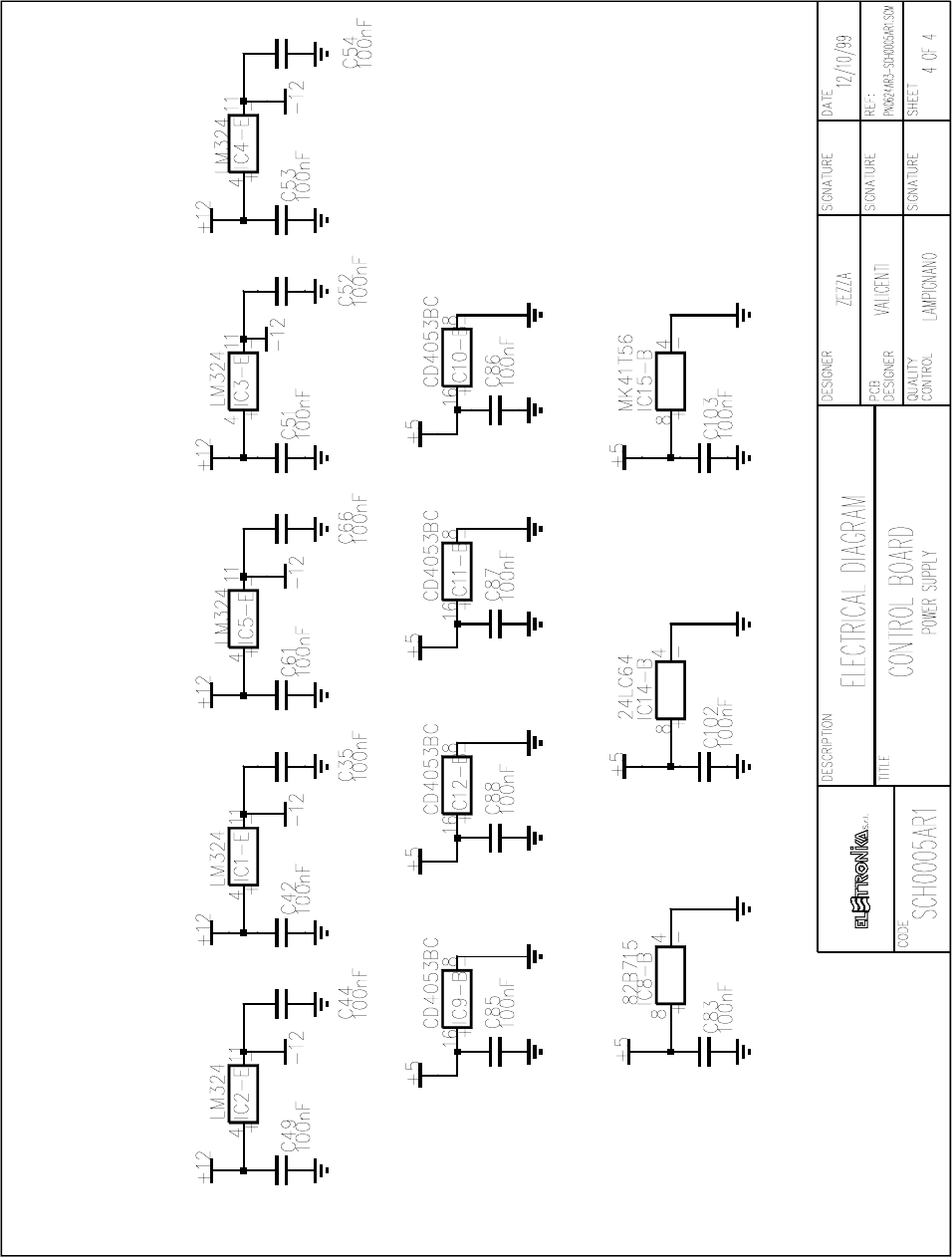

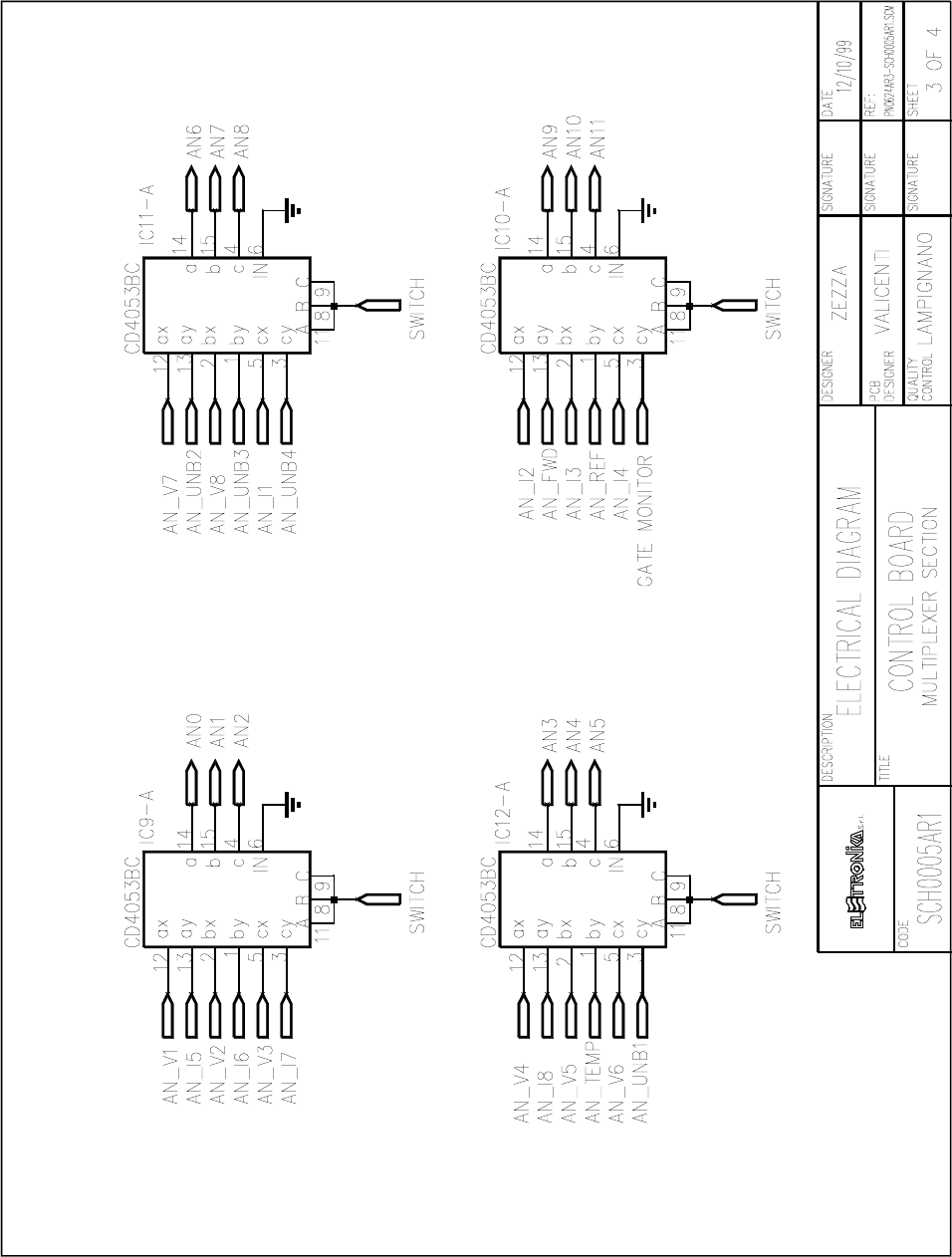

- SCH0005AR1 (Protection board)

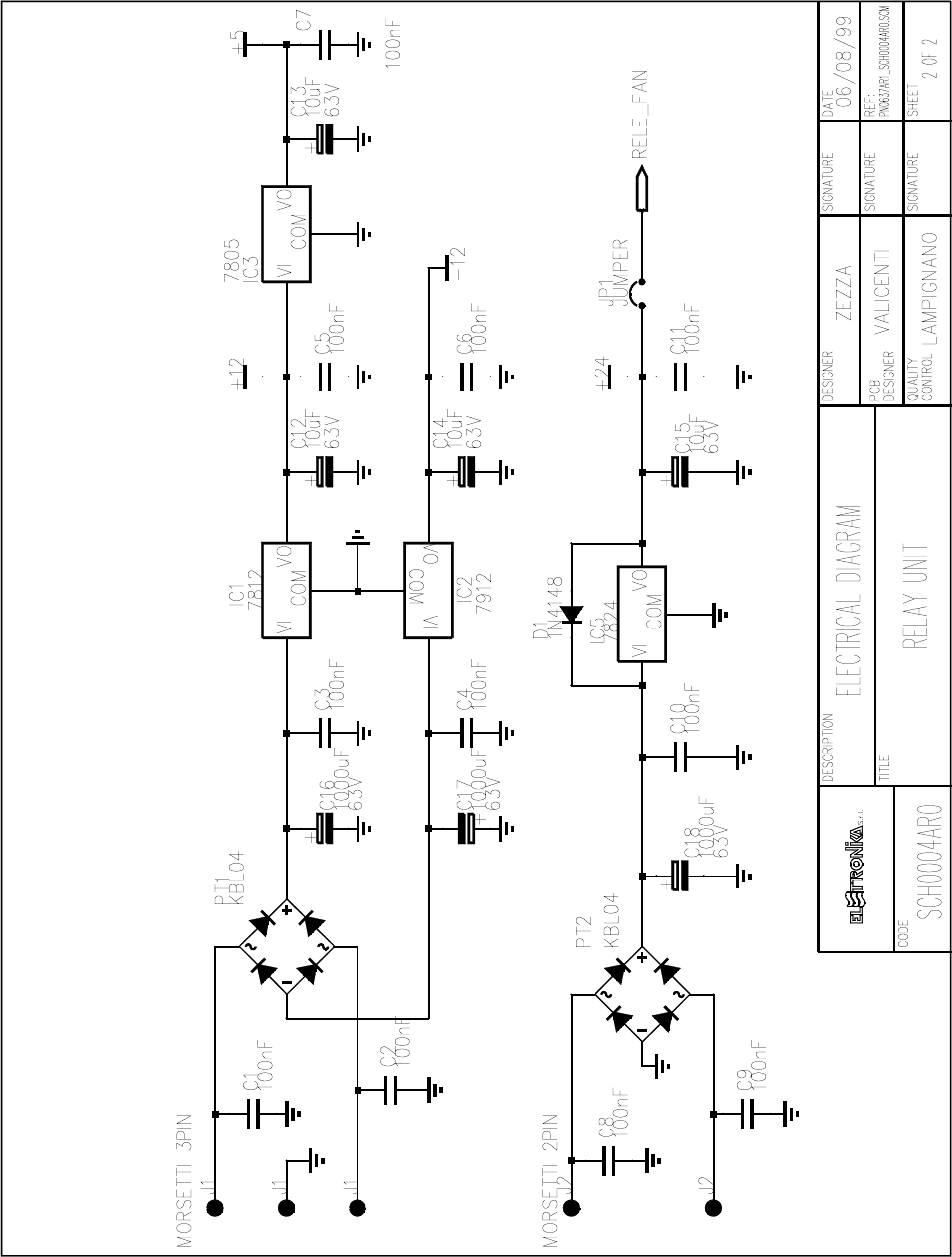

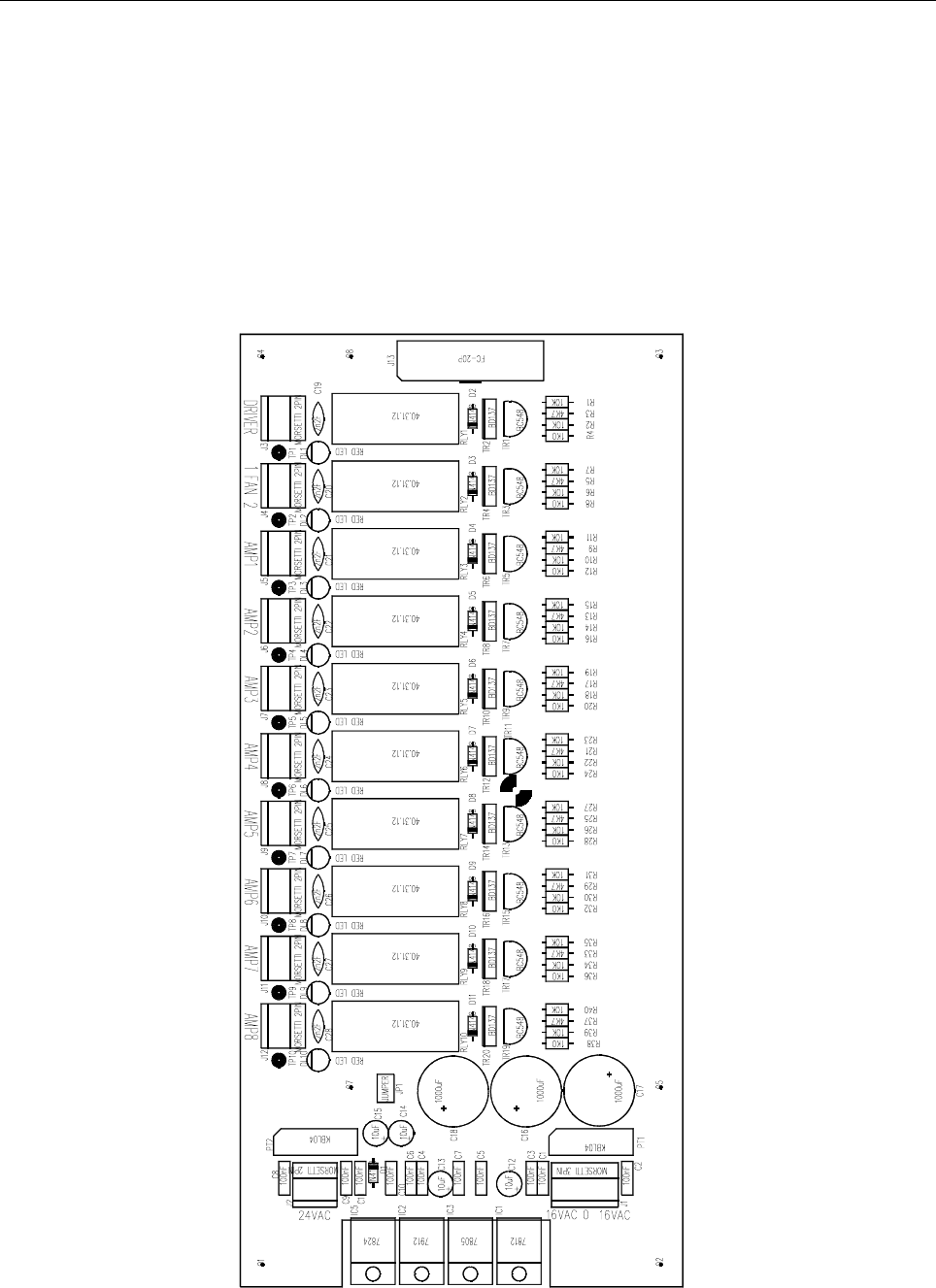

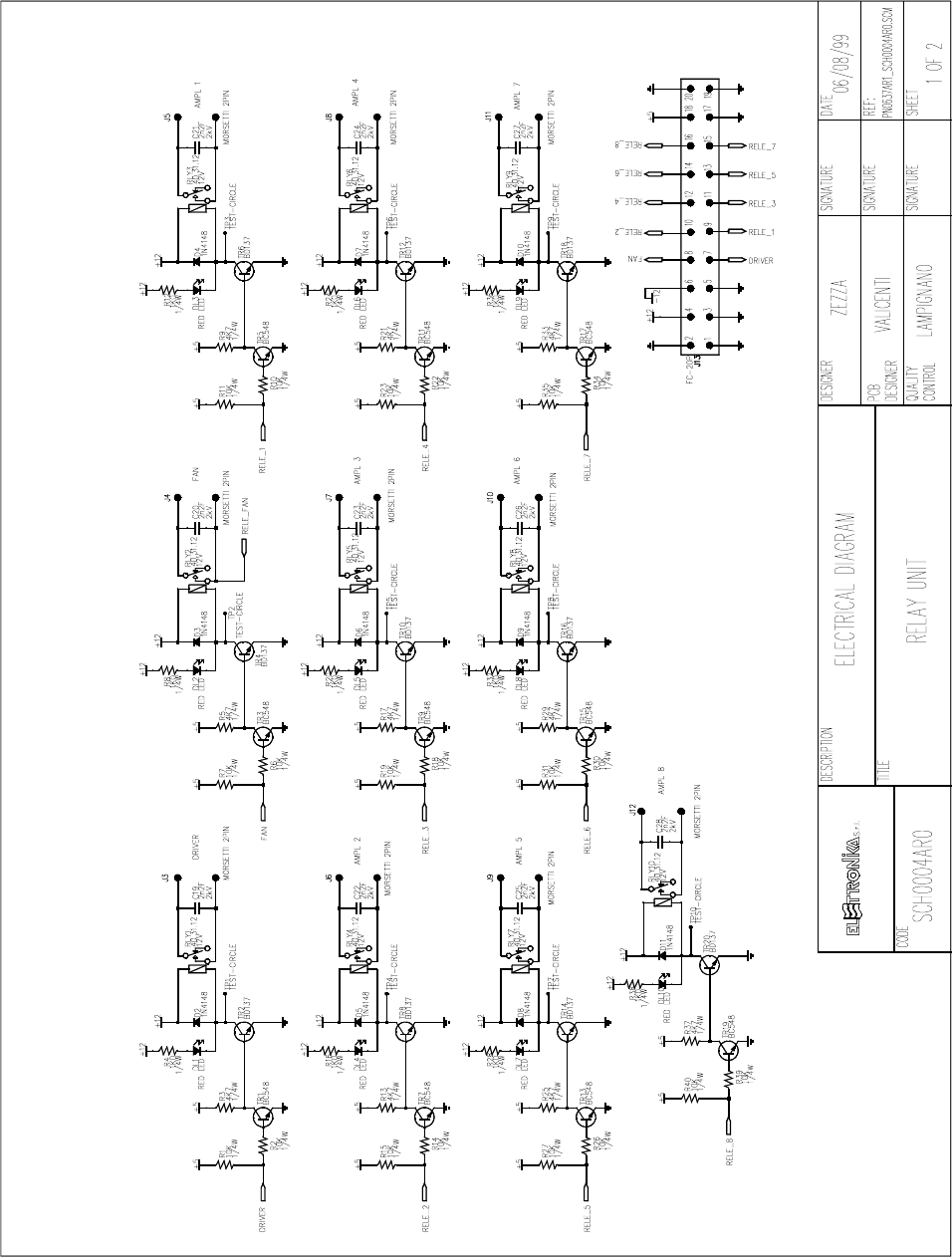

- SCH0004AR0 (Relay board)

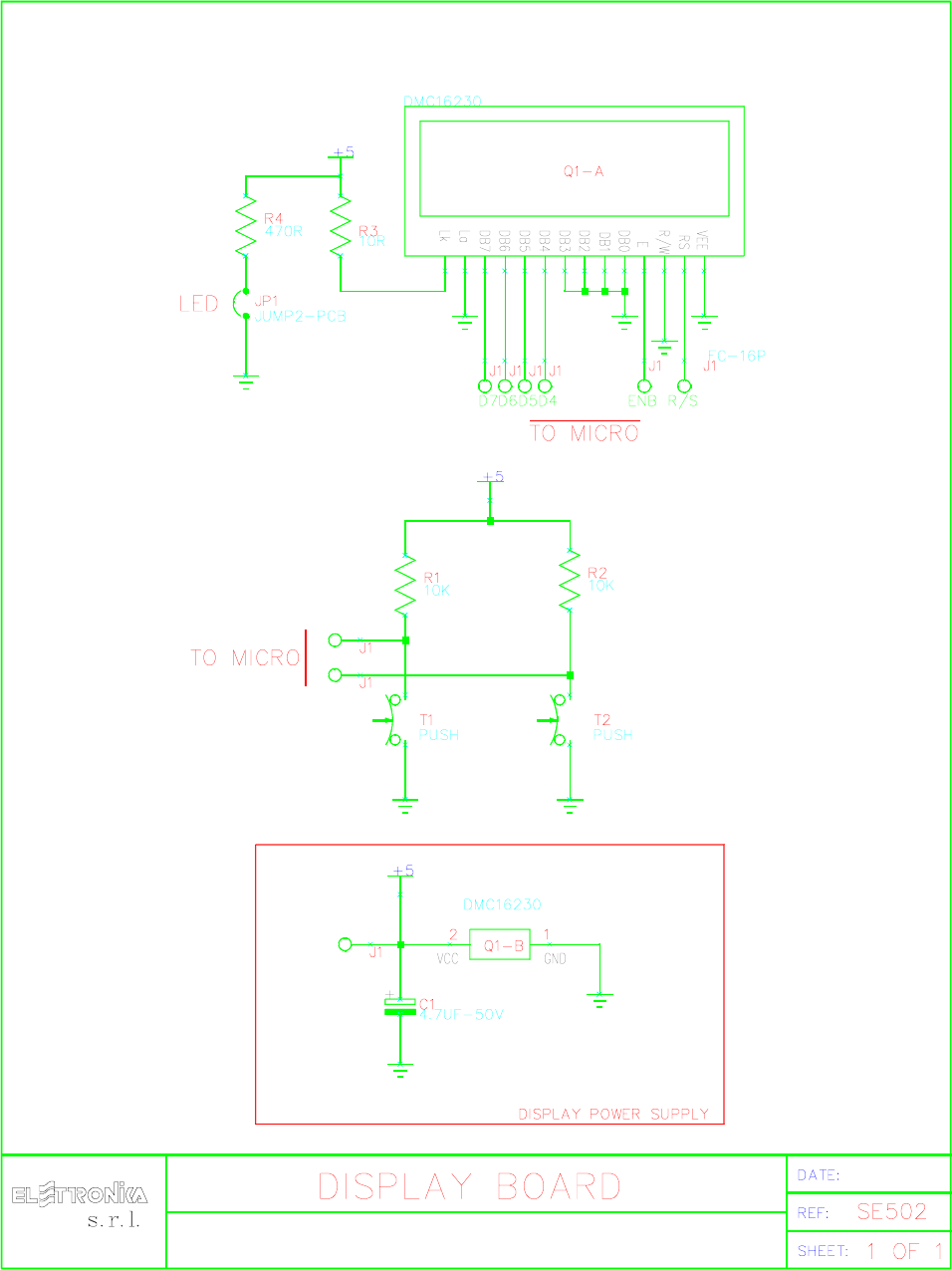

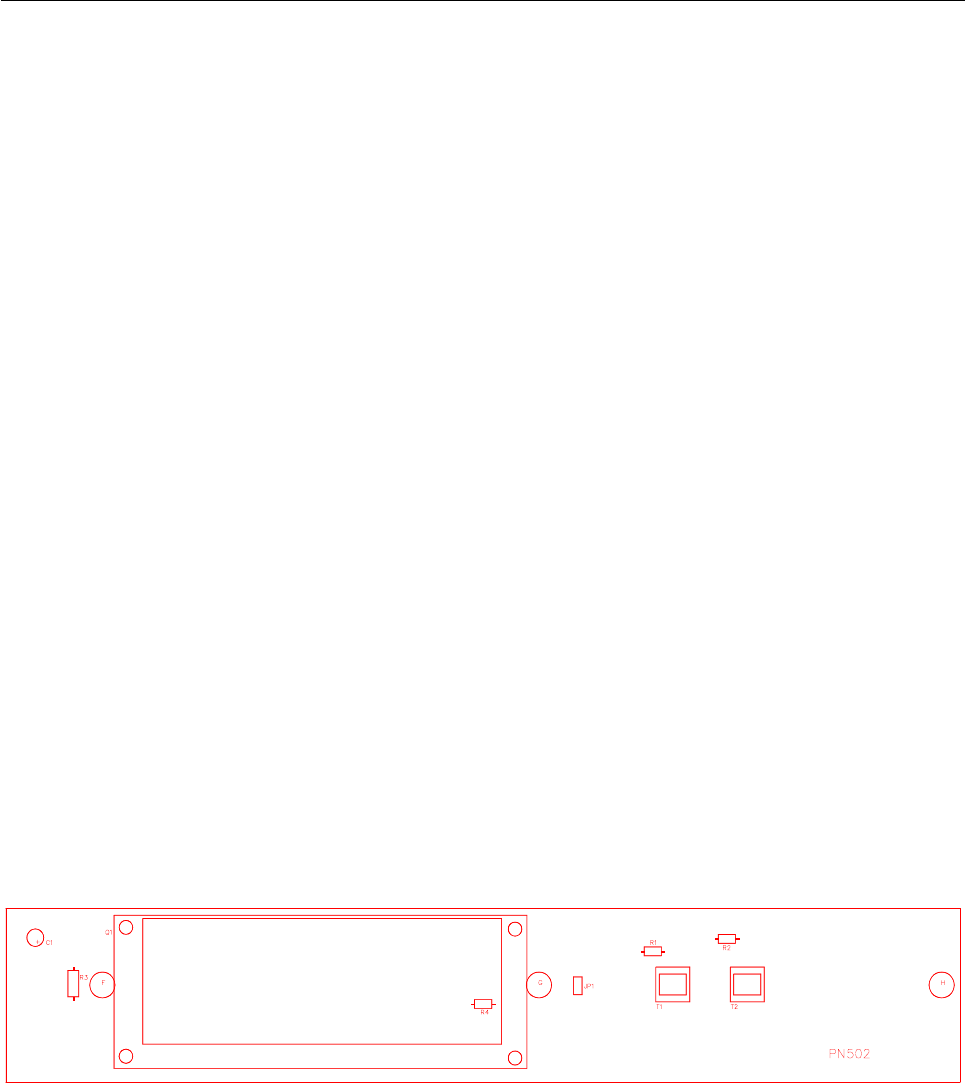

- PN502 (Display board)

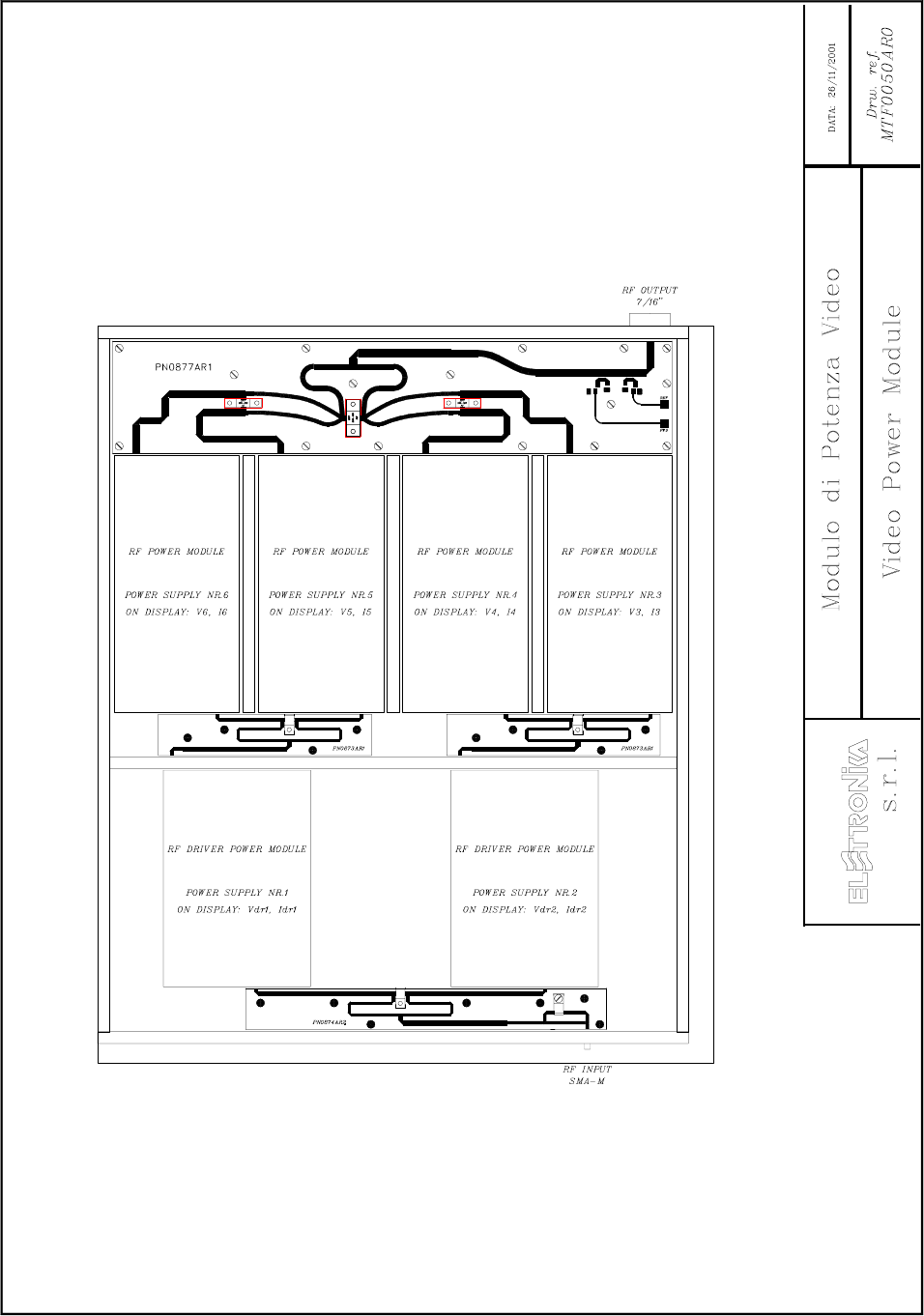

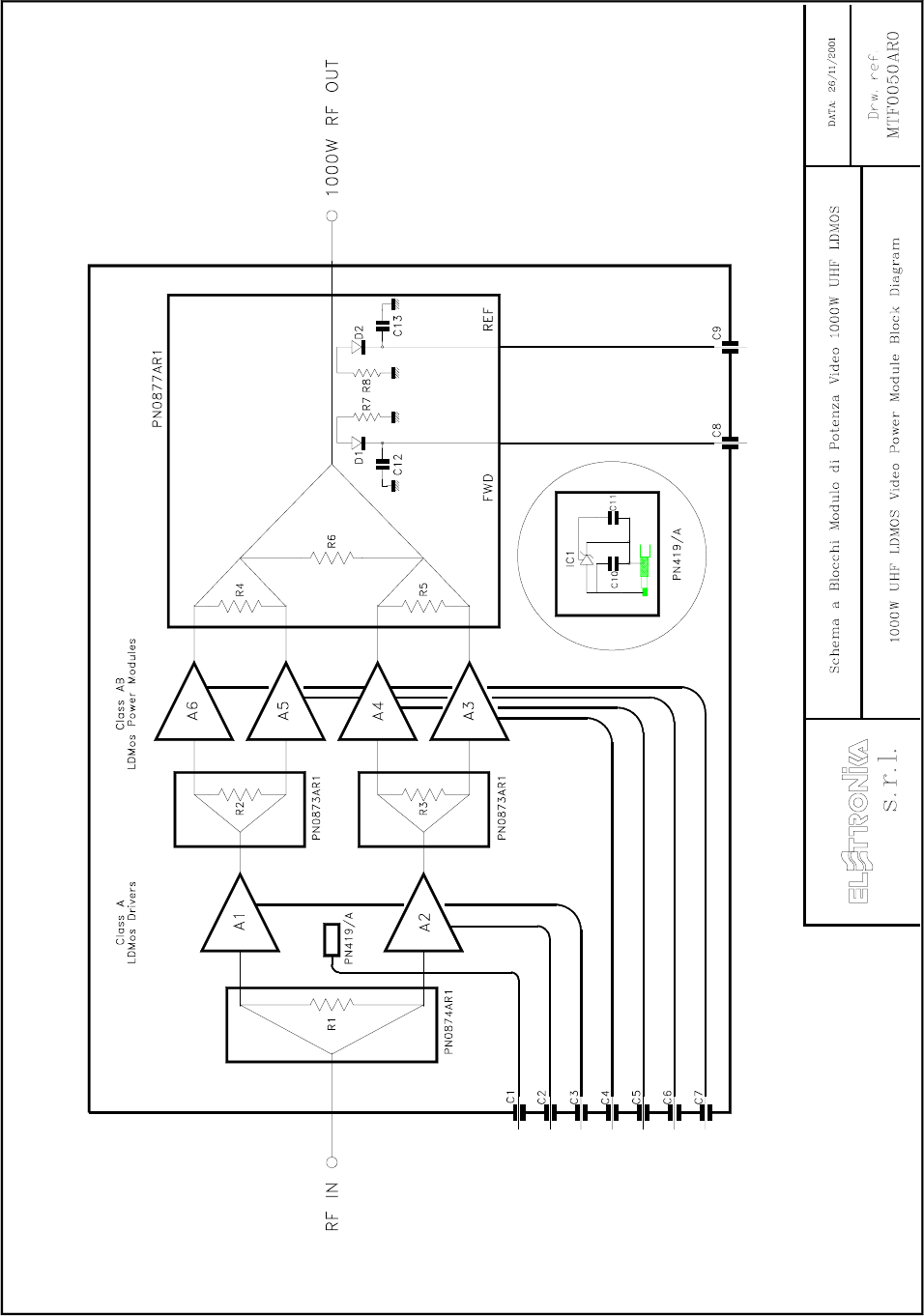

- MTF0050AR0 (1kW LDMOS Power mdoule)

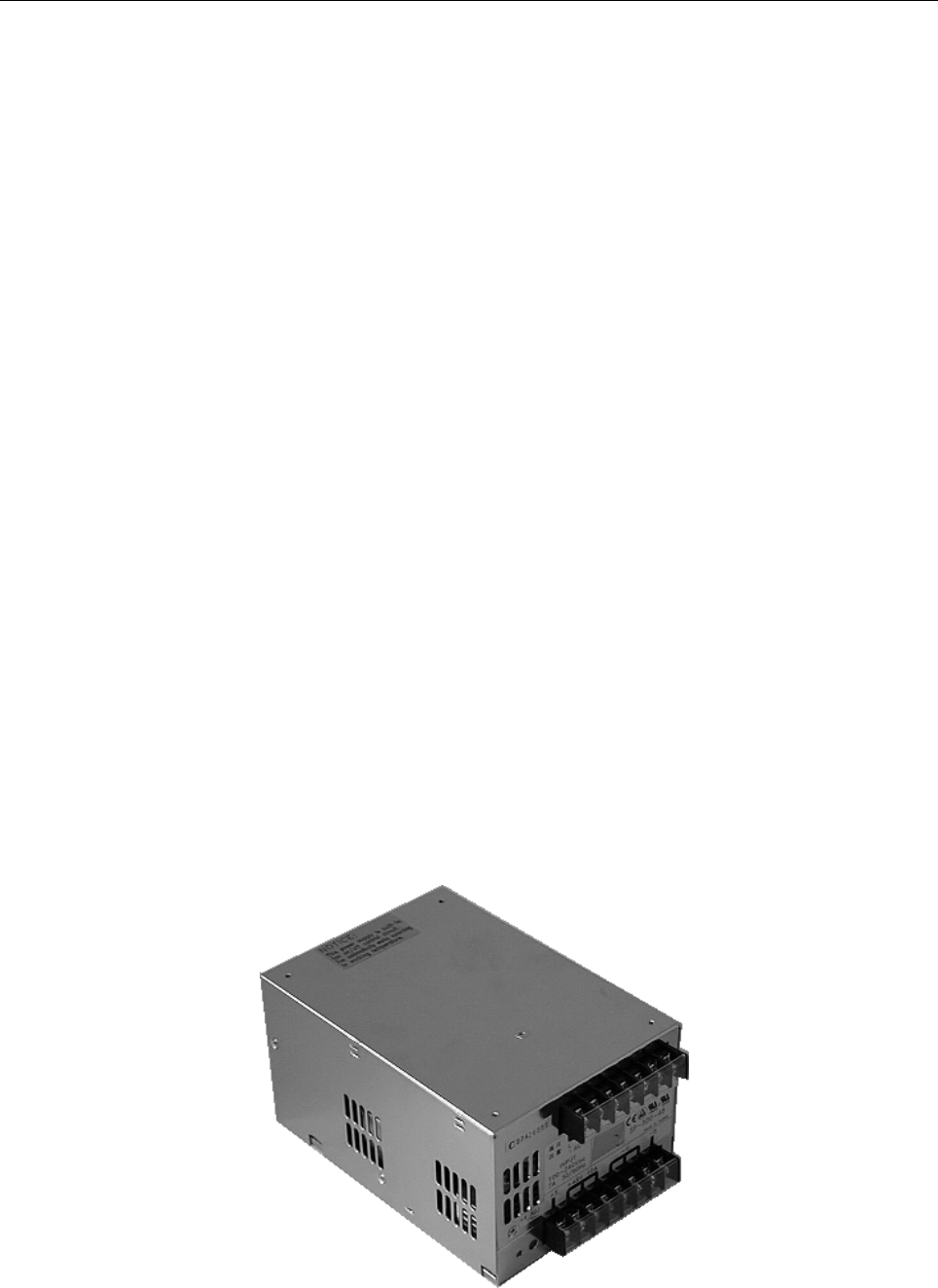

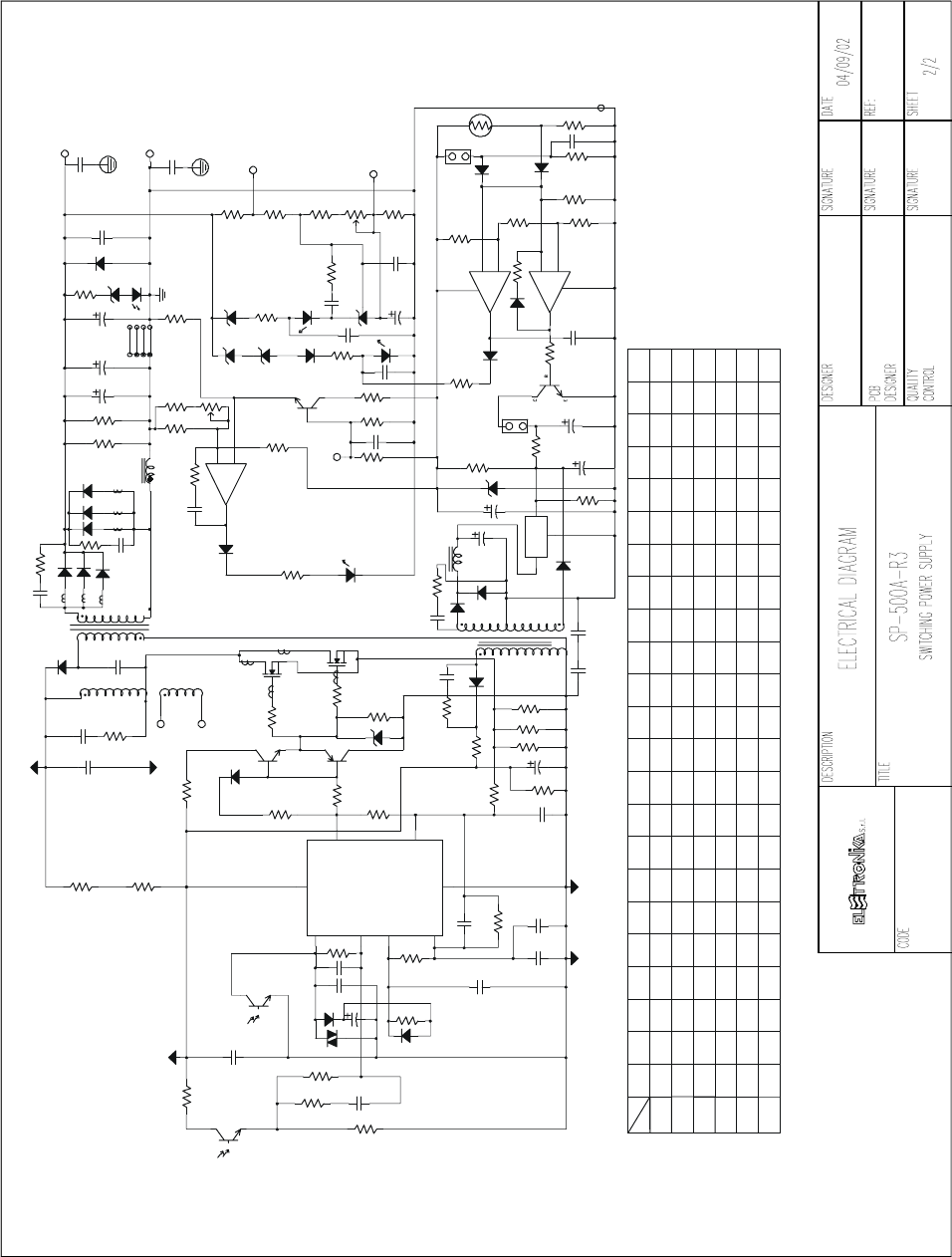

- SP500-27/48 (Switching power supply)

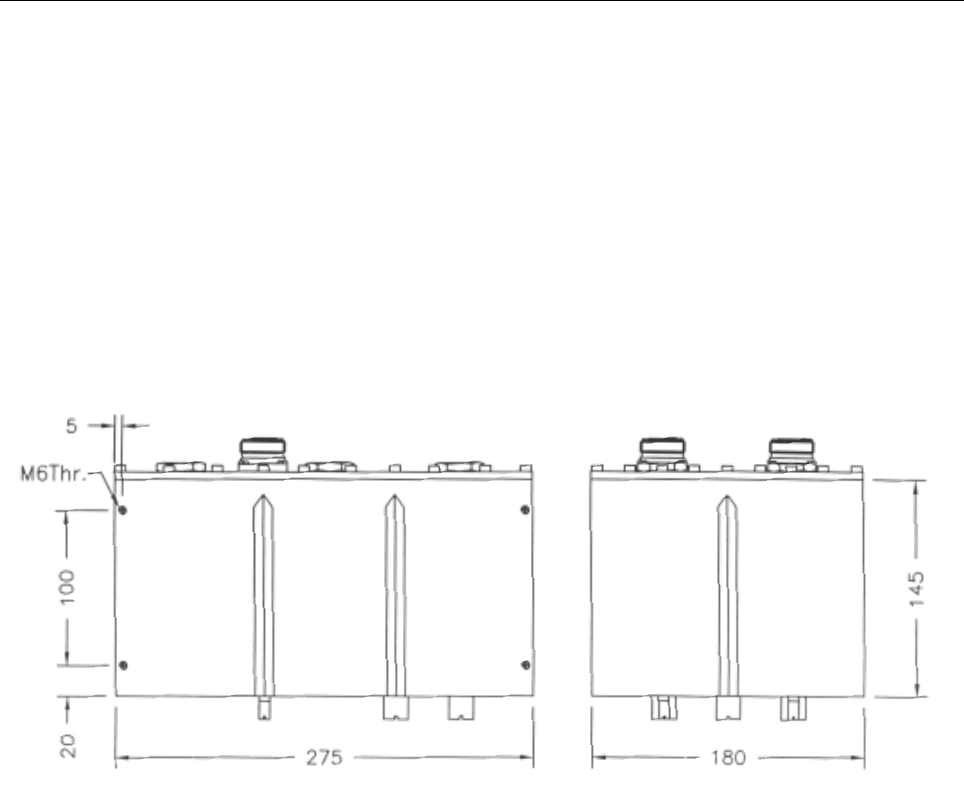

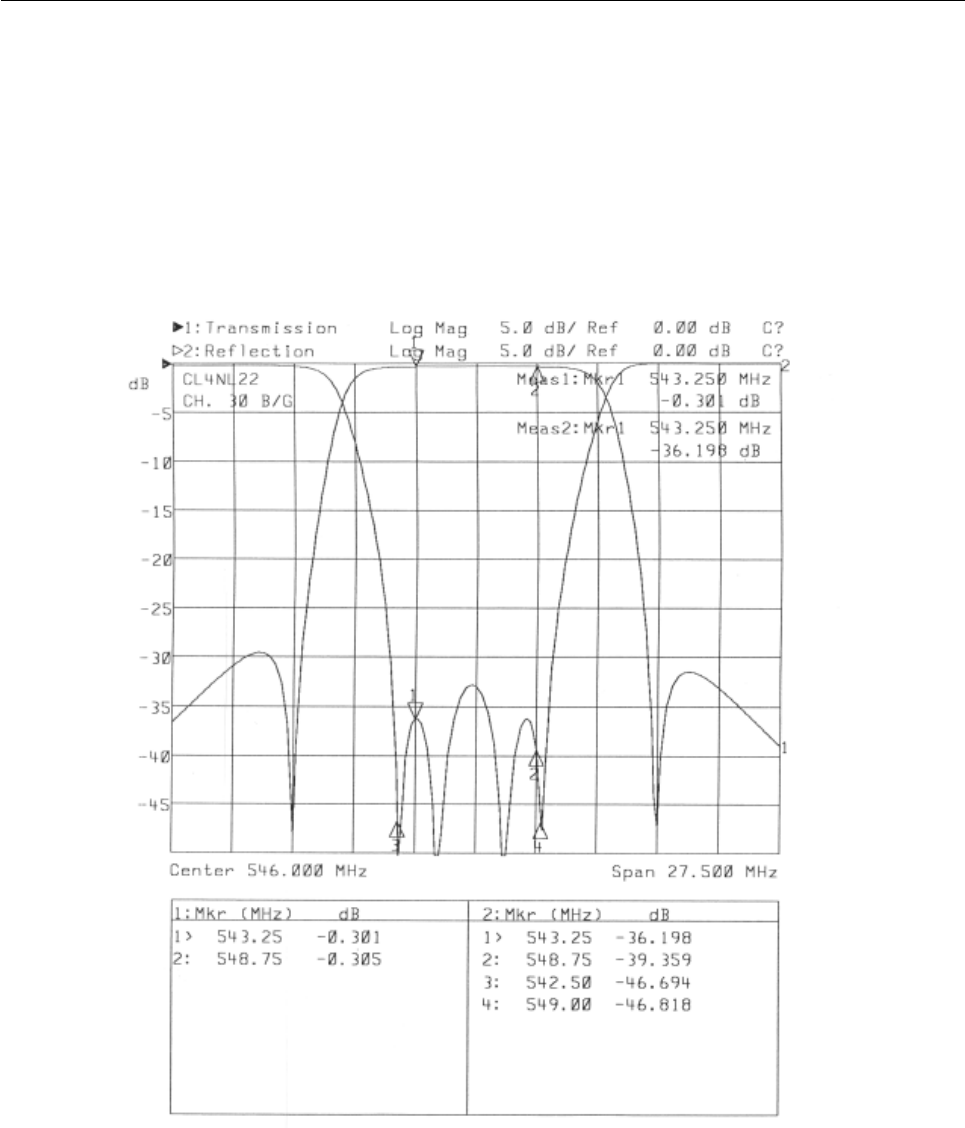

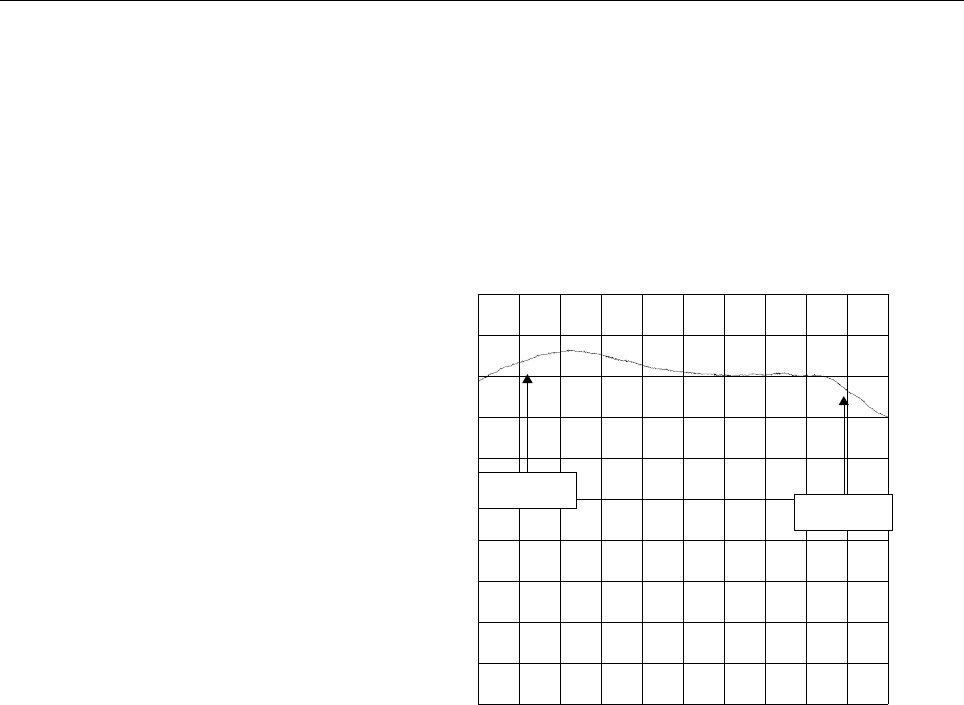

- 06641 (UHF Band-pass filter)
68
69
70
This page is intentionally blank
71
Part Name Code Description Qty
MTF0050AR0 MODULO 1kW UHF LDMOS 1
16009 SCHEDA DISPLAY x 1kW FM A MOSFET 1
SCH0005AR1 SCHEDA CONDIZ. PROTEZ. PIC PN624AR2 1
SCH0004AR0 SCHEDA UNITÀ 8 RELAYS PN637A 1
E0012 ALIM. SWITCHING SP-500-27 6
07522 INTERRUTTORE LUM. cod. I 4715 1
07541 PORTAFUS. 10A PANN. cod. P1820 3
02830 PRESA VDE 10A cod. PX675 A63 1
Z0081 TAV... SUPPOR. GUIDA DIN INT. MAG. 1
07527 INTERR. MAGNETOTERM. 25A cod. 23867 1
Z0021 TAV. 635/A TOND. OTT. x INT. MAGNET. 2
03065 PORTALED 5mm INNESTO A VITE 443.1613 1
03060 LED VERDE DIAM. 5mm 1
09546 TOR. P. 110/220 S.24V 1.5A 16/0/16 1A 1
02518 R114082000 PRESA SMB x RG174 3
08500 CAVO RG174 50Ω4
02876 PRESA VOLANTE ILME 16A PENTAPOLARE 3mt 1
02877 SPINA A PANNELLO ILME 16A PENTAPOLARE 1
02228 GE 15145 D/60 NF A VITONE 1
02502 J01150A0041 SMA x RG58/c 1
08503 CABLE RG303 50Ω1,40
V0962 MORSETTIERA/GIUNZIONE ELECO E806 2
07925 PROTEZIONE IN GOMMA PVC PG 075 1
V0970 MORSETTIERA/EQUIPOTENZIALE 44672 2
07605C VENTOLA D2E097-CB01-02 3
07605D COND. 1,5uF 400V 3
FUS8A FUSIBILI 8A 5x20 RITARDATI CT520280 1
FUS5A FUSIBILI 5A 5x20 RITARDATI ST520250 1
FUS02A FUSIBILI 2A 5x20 RITARDATI ST520220 1
CON0109 CON0109R1 LAT. 6U SX PROF. 755 x 1kW LDMOS 1
CON0110 CON0110R1 LAT. 6U DX PROF. 755 x 1kW LDMOS 1
CON0014 CON0014R5 POSTERIORE 6U 1.5kW FM ZN 1
05861 PANN. 6U TAV. 970/A AMPL. FM GRIGIO 1
05553B KIT MANIGLIE 5-6U cod. 235.013 2
Z0673 TAV. 1199 CHIUS. CONT. PROF. 775 ZN 2
CON0015 CON0015R5 CONVOGLIATORE 1.5kW FM ZN 1
DET0135 DET0135R0 SUPPORTO SCHEDA PN624 1
DET0516 DET0516R0 SUPPORTO PRESE ZN 1
DET0513 DET0513R0 SUPPORTO COND. VENTOLE 1
DET0514 DET0514R0 ANGOLARE x VENTOLE 1
DET0515 DET0515R1 PART. FISSAGGIO VENTOLE 6
CON0111 CON0111R0 SOSTEGNO VENTOLE ZN 1
DET0575 DET0575R1 BARRA FISSAGGIO ALIM. SP500 6
SCH0168AR1 PATCH PER PN0624A 1
Component list APT084ASF - AUTV/1000LD
72
This page is intentionally blank
73
PROTECTION BOARD SCH0005AR1
DESCRIPTION
(Stand-alone configuration)
The SCH0005AR1 board is a mi-
croprocessor-based board de-
signed to perform all the control
functions inside the amplifier mod-
ule.
Both RF and power supply param-
eters are continuously monitored in
order to guarantee optimal perform-
ance in every working environ-
ment.
The board checks the power sup-
ply voltages and currents, the work-
ing temperature of the power mod-
ules, the forward and the reflected
RF power of the amplifier.
Various alarm conditions can be
detected by the board due to pos-
sible electrical failures during nor-
mal operation of the amplifier mod-
ule.
The board automatically turns off
the amplifier or part of it when ab-
normal parameters are detected and
restores the initial working condi-
tions if all the parameters return to
allowed values. The board is also
equipped with a serial port connector which, in a near future, will allow the remote control operation
through a local PC or a modem connection.
74

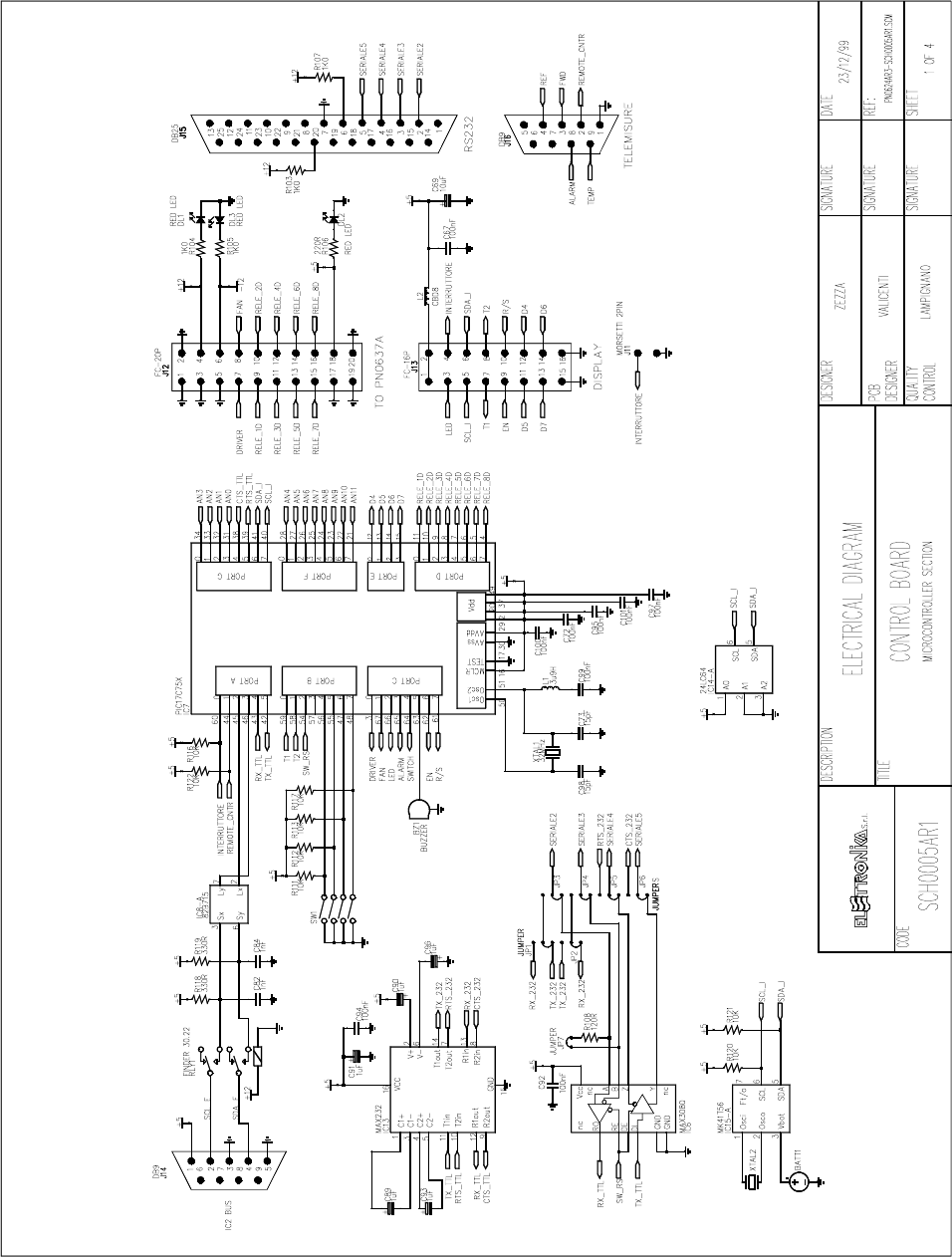

75
76
77
78

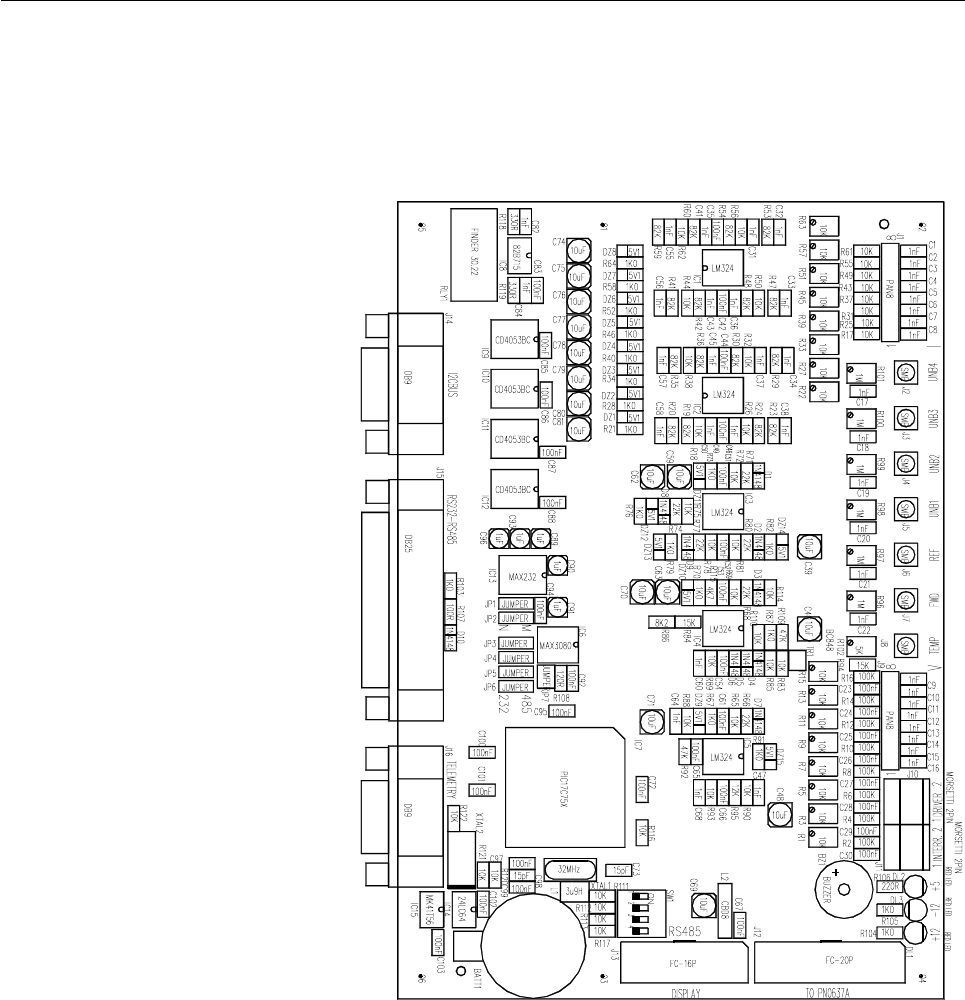

COMPONENT LIST SCH0005AR1
Part Name/Number Description Qty. Comps. Page 1/4
BATT BH-001RB 03093 BATTERY HOLDER 1 BATT1
BZ AI-155 03705 5VDC BUZZER 1 BZ1
CC 100nF-S 01065B Y5V 1206 COND 35 C23-30
C35
C42
C44
C49
C51-54
C61
C65-67
C72
C83
C85-88
C92
C94-95
C97
C99-103
CC 15pF-S 01088 SMD 1206 COND 2 C73
C98
CC 1nF-S 01096 SMD 1206 COND 44 C1-22
C31-34
C36-38
C41
C43
C45-47
C50
C55-58
C60
C64
C68
C82
C84
CE 10uF35V-S 01778A ELETTR SMD COND 17 C39-40
C48
C59
C62-63
C69-71
C74-81
CE 1uF50V-S 01763A ELETTR SMD COND 5 C89-91
C93
C96
D 1N4148-S 03002 SMD DIODE 9 D1-9
DL LEDR3 03058 RED LED DIODE 3mm 3 DL1-3
79
Part Name/Number Description Qty. Comps. Page 2/4
DZ 5V1-S 03128 SMD ZENER DIODE 15 DZ1-15
IC 24LC64 04815 SMD INTEG CIRCUIT 1 IC14
IC 82B715-S 04734A SMD INTEG CIRCUIT 1 IC8
IC CD4053BC-S 04710A SMD INTEG CIRCUIT 4 IC9-12
IC LM324M-S 04658A SMD INTEG CIRCUIT 5 IC1-5
IC MAX232-S 04804B SMD INTEG CIRCUIT 1 IC13
IC MAX3080-S 04770 SMD INTEG CIRCUIT 1 IC6
IC MK41T56 04611 SMD INTEG CIRCUIT 1 IC15
IC PIC17C75X 04807A SMD INTEG CIRCUIT 1 IC7
IND 3u9H-S 05030 INDUCTOR 1 L1
IND CBD8 05072 INDUCTOR 1 L2
J DB25-90G 02688 PCB CONNECTOR 1 J15
J DB9-90G 02797 PCB CONNECTOR 2 J14
J16
J FC-16P 02701-02700 PCB CONNECTOR POL 1 J13
J FC-20P 02868-02867 PCB CONNECTOR POL 1 J12
J PAN8 02716-17-18 PCB CONNECTOR 2 J1
J9
J SCREWCONN2 02853 PCB SCREW CONNECTOR 2 J10-11
J SMB-PCB 02516 PCB CONNECTOR 7 J2-8
JU JUMP2 02739-02742 MASCHIO PAN2 1 JP7
JU JUMP3 02707-02742 MASCHIO PAN3 6 JP1-6
R 100K-S 00065A RES 1/4W 5% SMD 1206 8 R2
R4
R6
R8
R10
R12
R14
R16
R 10K-S 00053A RES 1/4W 5% SMD 1206 38 R17-18
R25-26
R31-32
R37-38
R43-44
R49-50
R55-56
R61-62
R65
R69
R72
R75
R78
R81
R83
80
Part Name/Number Description Qty. Comps. Page 3/4
R85
R88-90
R93
R110-114
R116-117
R120-122
R 120R-S 00030A RES 1/4W 5% SMD 1206 1 R108
R 12K-S 00054A RES 1/4W 5% SMD 1206 1 R95
R 15K-S 00055A RES 1/4W 5% SMD 1206 2 R84
R94
R 1K0-S 00041A RES 1/4W 5% SMD 1206 20 R21
R28
R34
R40
R46
R52
R58
R64
R67
R70
R73
R76
R79
R82
R87
R91
R103-105
R107
R 220R-S 00033A RES 1/4W 5% SMD 1206 1 R106
R 22K-S 00057A RES 1/4W 5% SMD 1206 6 R66
R68
R71
R74
R77
R80
R 330R-S 00035B RES 1/4W 5% SMD 1206 2 R118-119
R 47K-S 00061A RES 1/4W 5% SMD 1206 2 R92
R109
R 4K7-S 00049A RES 1/4W 5% SMD 1206 1 R115
R 82K-S 00064A RES 1/4W 5% SMD 1206 16 R19-20
R23-24
R29-30
R35-36
R41-42
R47-48
81
Part Name/Number Description Qty. Comps. Page 4/4
R53-54
R59-60
R 8K2-S 00052A RES 1/4W 5% SMD 1206 1 R86
RL FINDER30.22 07564 RELE 1 RLY1
RV 10K-3266W 00810 VARIABLE RESISTOR 16 R1
R3
R5
R7
R9
R11
R13
R15
R22
R27
R33
R39
R45
R51
R57
R63
RV 1M-3266W 00811 VARIABLE RESISTOR 6 R96-101
RV 5K-3266W 00809 VARIABLE RESISTOR 1 R102
SW SWITCH-4DIP 07531 PCB DIP SWITCH 1 SW1
TR BC848 03457 NPN SMD TRANSISTOR 1 TR1
XTAL 32.768k-S 05146 QUARTZ 1 XTAL2
XTAL 32MHz-S 05291 QUARTZ 1 XTAL1
82
RELÈ BOARD SCH0004AR0
Component layout SCH0004AR0
Note: solder the two terminals of JP1 connector.
83
84
85
COMPONENT LIST SCH0004AR0
Part Name/Number Description Qty. Comps. Page 1/2
CC 100nF 01065 CERAMIC COND 11 C1-11
CC 2nF2 2kV 01045A CERAMIC COND 10 C19-28
CE 1000uF63V 01811 ELETT. COND. 3 C16-18
CE 10uF63V 01779 ELETT. COND. 4 C12-15
D 1N4148 03001 DIODE 11 D1-11
DB KBL04 03042 BRIDGE DIODE 2 PT1-2
DL LEDR3 03058 RED LED DIODE 3mm 10 DL1-10
IC 7805 04315 VOLTAGE REGULATOR 1 IC3
IC 7812 04321 VOLTAGE REGULATOR 1 IC1
IC 7824 04331 VOLTAGE REGULATOR 1 IC5
IC 7912 04322 VOLTAGE REGULATOR 1 IC2
J FC-20P 02868-02867 PCB CONNECTOR POL 1 J13
J SCREWCONN2 02853 PCB SCREW CONNECTOR 11 J2-12
J SCREWCONN3 02860 PCB SCREW CONNECTOR 1 J1
JU JUMP2 02739-02742 MASCHIO PAN2 1 JP1
R 10K 0053 RES 1/4W 5% 20 R1-2
R6-7
R10-11
R14-15
R18-19
R22-23
R26-27
R30-31
R34-35
R39-40
R 1K0 0041 RES 1/4W 5% 10 R4
R8
R12
R16
R20
R24
R28
R32
R36
R38
R 4K7 0049 RES 1/4W 5% 10 R3
R5
R9
R13
R17
R21
R25
R29
86
Part Name/Number Description Qty. Comps. Page 2/2
R33
R37
RL 40.31.12 07567 RELE 10 RLY1-10
TR BC548 03423 NPN TRANSISTOR 10 TR1
TR3
TR5
TR7
TR9
TR11
TR13
TR15
TR17
TR19
TR BD137 03408 NPN TRANSISTOR 10 TR2
TR4
TR6
TR8
TR10
TR12
TR14
TR16
TR18
TR20
87
Component layout PN502
DISPLAY BOARD pn502
DESCRIPTION
The display board, PN502, is used to display the main operating parameters of the amplifier module.
The two keys on the right of the LCD display are used to scroll the list of parameters which can be
displayed. These parameters are:
1. Temperature (TEMP)
2. Direct Power (FWD PWR)
3. Reflected Power (REF PWR)
4. Max 6 Power supply voltages (V1...V6)
5. Max 6 Power supply currents (I1...I6)
6. Max 4 Unbalancing powers (UNB1...UNB4)
Depending on the apparatus in which the board is, the parameters 4, 5 and 6 may be less than the ones
listed. The first line of the display shows the type of amplifier or the number of the amplifier module,
referring to the whole apparatus, if this is composed by more than one amplifier. It also shows alarm
conditions, if any, inside the amplifier module. If the amplifier module is turned off by a protection
device, the first line displays “AMPLIFIER OFF”.
88
89
COMPONENT LIST pn502
REFER. DESCRIPTION ELETTRONIKA CODE
R1 10kΩ 1/4W RESISTOR 00053
R2 10kΩ 1/4W RESISTOR 00053
R3 10Ω 1/2W RESISTOR 00127
R4 470Ω 1/4W RESISTOR 00037
C1 4.7uF 35V ELECTROL. CAPACITOR 01775
Q1-A DISPLAY 03072B
PN502 PRINTED CIRCUIT BOARD 09502
90
1kW LDMOS POWER MODULE MTF0050AR0
DESCRIPTION
The 1000W output power PEP ampli-
fier module has been realized by cou-
pling four 250W Video power modules.
A 4-way Wilkinson coupler, completely
balanced by means of power resistors,
has been used in output. This way an
excellent de-coupling between the am-
plifier is obtained, as well as the possi-
bility to work even with only one ac-
tive module. The high extension of the
IV/V UHF band and the presence of
parasitic capabilities towards ground,
along with the resistors, required an ac-
curate design of the couple which has
been possible thanks to the use of so-
phisticated simulation software. The
module also has two 40W class A driv-
ers realized with LDMOS technology,
one for each couple of final modules.
All the amplification chain is then real-
ized LDMOS technology. The high gain of the output stages allows to drive them with class A drivers,
thus giving the module high linearity characteristics, which can be especially appreciated in DVB-T
applications. The module is completed by two directional couplers for the reading of Forward and
Reflected power. Besides the by-pass capacitors by TUSONIX used on power supply allow an excel-
lent de-coupling with RF stages.
TECHNICAL CHARACTERISTICS
Output power 1000W Sync. Peak
Frequency 470 - 860MHz
Input impedance 50Ω
Input R.L. 15dB min
Output impedance 50Ω
Power Supply 32V Power module and 29V Driver module
Small signal gain with 5dB/div.
REF 10.7 dBm ATT 20 dB MKR 860.0 MHz
5 dB/ -0.15 dBm
P:-->T
MARKER
860.0 MHz
- 0. 1 5 dBm
RBW
1 MHz
VBW
300 kHz
DL
- 24. 30 dBm
SWP 50 ms SPAN 500 MHz CENTER 670 MHz
470MHz 860MHz
91
92
93
COMPONENT LIST MTF0050AR0
REFER. TYPE ELETTRONIKA CODE
R1 100Ω 20W RESISTOR 00444
R2 100Ω 20W RESISTOR 00444
R3 100Ω 20W RESISTOR 00444
R4 100Ω 150W RESISTOR 00428
R5 100Ω 150W RESISTOR 00428
R6 100Ω 250W RESISTOR 00429
R7 82Ω 1206 SMD RESISTOR 00028A
R8 82Ω 1206 SMD RESISTOR 00028A
C1 1nF Feed-Thru TUSONIX CAPACITOR 01400
C2 1nF Feed-Thru TUSONIX CAPACITOR 01400
C3 1nF Feed-Thru TUSONIX CAPACITOR 01400
C4 1nF Feed-Thru TUSONIX CAPACITOR 01400
C5 1nF Feed-Thru TUSONIX CAPACITOR 01400
C6 1nF Feed-Thru TUSONIX CAPACITOR 01400
C7 1nF Feed-Thru TUSONIX CAPACITOR 01400
C8 1nF Feed-Thru TUSONIX CAPACITOR 01400
C9 1nF Feed-Thru TUSONIX CAPACITOR 01400
C10 1nF 1206 SMD CAPACITOR 01096
C11 1nF 1206 SMD CAPACITOR 01096
C12 1nF 1206 SMD CAPACITOR 01096
C13 1nF 1206 SMD CAPACITOR 01096
A1 UHF 40W Class A LDMOS Driver M. SCH0052AR0
A2 UHF 40W Class A LDMOS Driver M. SCH0052AR0
A3 UHF LDMOS Power Module 04900
A4 UHF LDMOS Power Module 04900
A5 UHF LDMOS Power Module 04900
A6 UHF LDMOS Power Module 04900
D1 HSMS-2800 DIODE 03207
D2 HSMS-2800 DIODE 03207
IC1 LM335 TEMPERATURE SENSOR 00663
94
SPECIFICATION
MODEL SP-500-27 SP-500-48
DC Output Voltage 27Vdc 48Vdc
Output Rated Current 18A 10A
Output Current Range 0-18A 0-10A
Ripple & Noise (p-p) 200mVp-p 240mVp-p
DC Output Power 486W 480W
Efficiency 87% 87%
DC Voltage Adj. 24-30V 41-56V
Over V. Protection 31V-36.5V 57.6V-67.2V
Input Voltage Range 88-264Vac
Input Frequency 47-63Hz
Power Factor 0.95/100-240Vac
Overload Protection 105%-135%
Type: Foldback current limiting
Recovery: Auto
Over Temp. Protection > =70°C Output Shutdown
Fan Control Temp. > =60°C Fan On
< =50°C Fan Off
Working Temp., Humidity -10°C/+50°C, 20%-90% RH
Dimension 185x120x93
Weight 1.8Kg.
SWITCHING POWER SUPPLY SP500-27/48
95
96
D9202
D9202
/1KV
331
/1KV
471
24V
27V
48V
27/1W
22/1W TR130
TR131
221
/1KV D920239/1W TR132
15V /500V
MODEL
222
222
/50 0V
/50 0V
12V
13.5V
222
C71,72
SP-500B DIFFERENT COMPONENT:
PART NO. L51R80,81 D60,61
62
C25P06Q
C25P06Q
10/1W
10/1W
TR12915/1W D9202
TR127
TR127
1K
/35V
1000u
/35V
1000u
/35V
1K
1K
220
220
/2W
/2W
270
/2W 1000u
V-
C
CN2
R86
C73,74
75
R82,83 C80R95R94
1u/50V
1u/50V
1K8
1K5
10K
6K8
10K 1K5 1u/50V
3K3
/2W /1/2W/63V 6K8220u
1000u
/35V
/50V
470u
680
/2W
/2W
1K 2K2
2K2 20K
24K
2K
2K
1u/50V
224
/100V
1K536K /1 00V
224
104/100V
C60
1N4148
D54
C55 102/50V
C56
1u/50V
1N4148
D53
R71
5K1
103/50V
C57
1KR73
330
R72
MOC3022
U51:2
1M
R69
100
R56
680
R57
R74
75K
22K
R70
C54 103/50V
R67
24K
8
7
6
5
4
3
2
1
U55
3845
C58
R68 1K
R66
471/100V
C61
68K
R65
C59
471/1KV
C65
68P/50V
0.82/2W R64
100u/35V
C62
0.22/2W
R63
0.22/2W
R62
D55
HER104
R61
1R
15 /1/2W
R60 C63
222/500V
17
4
HER204
D75
HER204
D69
222/500V
C87
22/1/2W
R112
16
18
5
18V/1W
ZD51
5K1
R58
5.1
R59
2SK1358
Q52
D
G
S
2SK1358
Q51
51
R115
PC123
U53:A
A1020
Q54
68K
R89
2SC1815
Q56
2K R111
22
R91 1N4148
D64
RC
5K1 R117
R116
2K
C88
103/50V
C93
105/50V
DR005
L52
47u/50V
C86
1u/50V
C85
5.1V/1W
ZD55
51/2W
R110
CN51:A
2.2/1/2W
R109
FAN
78
7812
RG51
C2120
Q55
100
R106
33V/1W
12V/1W
18V/1W
12.9V
15V/1W18V/1W
15V/1W
TF403
TF402
J2,J3TF404910
910
820
J1,J2
J3
J1,J2
J3
33V/1W27V/1W
J3,J4
J1,J2
TF400
TF407
J1,J2
J3,J4
J3,J4
J1,J2
1K2 TF401
1K2
910
C101
222/250VAC
10mm
R87 1.40
T51 ZD53ZD52 ZD54
C102
222/250VAC
JUMP18V/1W JUMP
JUMP
JUMP
16.1V
12.9V
JUMP
JUMP
1K 5
1K 8
8K2
10K
6K8
1K 8
5.4V
5.4V
5.4V
R84 R50
HER104
D76
560/1/2W
R120
ZD60
47u/50V
C83
47u/50V
C84
C92
X
X
X
16.1V
10.6V
10.6V 6K8
10K1K 2
1K 1
X
X
221/1KV
820 10K
200K/1W
R52
200K/1W
R51
R49
JUMP
104/630V
C64
15/1/2W
R54
B
104/100V
C53
PC123
U52:B
CN2
PC123
U53:B
V- T-
T+
1N4148
D52
2SC2655
Q53
5.1
R55
3
2
7
100/2W
R53
9
C51
100P/2KV
V+ C71
D60:A
HER308
D51
BD
R80
13-15
8
D62:A
D61:A
T51:D
BD
510-12
C52
103/2KV
D60:B
R81
D61:B
D62:B
C73
BD
BD
C72
R82
R83
89
10
L51:A
104/100V
C79
-
+
LM324
U54:C
JUM P
D70
R84
R50
R88
1K
SVR2
JUMP
ZD52
J3
J4
LE D 1
R87
10
R93
TB1:A
ZD54
1K
R90
ZD 53
C74
C75
J2
J1
ZD60
HER203
D63
104/100V
C76
R86
473/630V
C77
+V
TB1:B
TB1:F
473/630V
C78
-V
+S
RC-
820
R105
104/100V
C81
820
R104
6K8
R103
103/50V
C82
1.5K
R102
7
14
5
2
3
1N4148
D68
1N4148
D67 -
+
LM324
U54:A
15K
R108
3K9
R100
1N4148
D65
-
+
LM324
U54:B
1N4148
D66
1K
R107
CN4:A
6
11
3K9
R101
2.2u/50V
C91
10
R96
C92
C
A
R
TL431
SHR1
C90
PC123
U52:A
C80
1K
R92
1K
SVR1
TB1:H
R94
R95
U51:1
MOC3022
-S
RT
RTH2
5K
R+
R-
97
COMPONENT LIST SP-500-27-C
SPECIFICATIONS QUANTITY POSITION
CASE 910-D-R3 1
CASE 910-T-R3 1 1
1208PTB1;L;20cm+TUBE/TYPE:B; 1 CASE
PIN KS-1 3 +S+V -S-V G-RC
MYLAR FILM 910-R1 2
BOX PS-300 194x127x103mm 1 1
SCREW P 3x6 ISO NI 4 PCBA PCBB
SCREW F 5.0x12 TP1 NI 2 FAN
SCREW F 3x6 TP2 NI 5 CASE
LABEL UP SP-500-27-R2 1
LABEL INDCON UL E010-R2 FAN CONT. 1
CARTON PS-300 1CUFT 1 8
261x18mm 1 1 TB1
327x18mm 1 TB2
BOM FOR SP-500-27A ON PCB 1
R/C 1/4W 5.1Ω 5% HP=10 T-52mm 2 R10, R11
R/C 1/4W 100Ω 5% HP=10 T-52mm 2 R26, R32
R/C 1/4W 680Ω 5% HP=10 T-52mm 1 R27
R/C 1/4W 1kΩ 5% HP=10 T-52mm 1 R24
R/C 1/4W 2.2kΩ 5% HP=10 T-52mm 2 R23, R25
R/C 1/4W 5.1kΩ 5% HP=10 T-52mm 1 R12
R/C 1/4W 10kΩ 5% HP=10 T-52mm 1 R16
R/C 1/4W 270kΩ 5% HP=10 T-52mm 1 R29
R/C 1/4W 330kΩ 5% HP=10 T-52mm 1 R30
R/C 1/2W 5.1Ω 5% T-52mm 1 R21
R/C 1/2W 680kΩ 5% T-52mm 1 R1
R/MO 2W 51Ω 5% 1 R4
R/MO 2W 30kΩ 5% 2 R17, R18
R/M 1/4W 22kΩ 1% T-52mm 1 R28
R/M 1W 499kΩ 1% MFR-1WS 4 R14, R15, R8,R9
R/NW 2W 0.22Ω 5% 1 R6
R/NW 2W 0.33Ω 5% 2 R5, R7
R/FS 5W 10Ω 10% T=130°C 1 R2
NTC 5kΩ 10% TSC-502 1 RT
MOV 0.6W 470V 14 TNR15G471K 1 ZNR1
C/Y2 221/250VAC 20% P=7.5 AC 1 C32
C/Y2 222/250VAC 20% P=7.5 AC 3 C14, C3, C4
C/Y2 472/250VAC 20% P=7.5 AC 1 C16
C/X2 104/250VAC 20% P=15 KNB153X 1 C5
C/X2 474/250VAC 20% P=22 KNB153X 4 C1, C2, C17, C8
C/M 104/63V 10% P=5 1 C21
C/M 104/100V 10% P=5 1 C6
C/M 474/50V 10% P=5 1 C18
98
SPECIFICATIONS QUANTITY POSITION
C/C 221/1KV 10% P=5 Y5P 1 C20
C/C 471/1KV 10% P=5 Y5P 1 C12
C/ML 102/100V 5% P=3 1 C11
C/ML 472/100V 5% P=3 1 C13
C/ML 103/100V 5% P=3 1 C67
C/ML 473/100V 5% P=5 1 C19
C/E 150u/400V 85°C 22x30 HP3 3 C10, C26, C9
C/E 2.2u/50V 105°C 5x11 KM 3 C22, C24, C25
C/E 220u/25V 105°C 8x11.5 KM 1 C17
C/E 470u/25V 105°C 10x16 MHA 1 C23
RD 15/A/600V GLASS D15XB60 1 BD1
RD 1A/50V 1N4001 T-52mm 1 D2
RD 3A/600V 1N5406 DO-201 1 D9
SFRD HER104 1A/300V T-52mm 4 D4, D6, D7, D8
SFRD RHRP1560 15A/600V TO220 1 D1
SBD 1N5819 1A/40V T-52mm 1 D5
HIGH-SPEED DIODE 1N4148 T-52mm 1 D3
ZD 1/2W 8.9V 2% 9B3 T-52mm 1 ZD4
BJT 2SA1020 -2A/50V TO92M 1 Q3
BJT 2SA562Y -0.5A/-30V TO92 1 Q8
BJT 2SC1815GR 0.1A/40V TO92 1 Q7
BJT 2SC2655 2A/50V TO92M 1 Q4
FET IRFP460 20A/500V TO3P 2 Q1, Q2
TRIAC BTA16-600B 16A TO220 1 TRC1
CONTROL LT1249CN8 1 U1
TR134-R2 Ku130125x2 1 L1
LF TF360 ET-28 3.12mH 2 LF1, LF2
BEAD CORE BD-001A-M4S RH3.5x3x1.5 5 C14F, D1A, Q1D,
Q1G, Q2D
BEAD CORE BD-001A-M4S RH3.5x3x1.5 1 Q2G
FUSE F10 L 250 5x20 G- U GFE 1 FS1
FUSE CLIP 5x20 2 FS1
TB DT-4C-B14W(1171)-07 1 TB1
WAFER 8822-02 P=2.5 2 CN2, CN3
WAFER 8822-04 P=2.5 1 CN4
WAFER JS-1120-03N2 UL P=3.96 1 CN1
WIRE 07#18 90mm 52Tx2 2 F-F
HS YS032W-048 71431W-048 2 HS1, HS3
HS YS032W-070B 71431W-070B 1 HS2
MHS013-R1 SP-500 1 RT
TO220-A 11.4x21.5x5.8 1 RT
TO3P-A 17.5x28.5x5.9 1 RT
CORE MS-130125 HKH-130 2 L1
PCB SP-500A-R9 FR-4 2OZ DS 1 PCB
TW 3.0 NI 1 RT
99
SPECIFICATIONS QUANTITY POSITION
SCREW P 3x8 ISO NI 2 D1, TRC1
SCREW P 3x10 ISO NI 3 BD1, Q1, Q2
SCREW P 3x6 TP2 ZN 6 HS1, HS2, HS3
SCREW P 3x16 TP2 ZN 1 RT
10 1M (20mm) 20/100 RT
BOM FOR SP-500-27B ON PCB 1
R/C 1/4W 1Ω 5% HP=10 T-52mm 1 R61
R/C 1/4W 5.1Ω 5% HP=10 T-52mm 2 R55, R59
R/C 1/4W 10Ω 5% HP=10 T-52mm 2 R93, R96
R/C 1/4W 22Ω 5% HP=10 T-52mm 1 R91
R/C 1/4W 51Ω 5% HP=10 T-52mm 1 R115
R/C 1/4W 100Ω 5% HP=10 T-52mm 2 R106, R56
R/C 1/4W 330Ω 5% HP=10 T-52mm 1 R72
R/C 1/4W 680Ω 5% HP=10 T-52mm 1 R57
R/C 1/4W 820Ω 5% HP=10 T-52mm 3 R104, R105, R87
R/C 1/4W 1kΩ 5% HP=10 T-52mm 5 R107, R66, R73,
R88, R90
R/C 1/4W 1kΩ 5% HP=10 T-52mm 1 R92
R/C 1/4W 1.1kΩ 5% HP=10 T-52mm 1 R84
R/C 1/4W 1.5kΩ 5% HP=10 T-52mm 1 R102
R/C 1/4W 2kΩ 5% HP=10 T-52mm 3 R111, R116, R95
R/C 1/4W 2.2kΩ 5% HP=10 T-52mm 1 R86
R/C 1/4W 3.9kΩ 5% HP=10 T-52mm 2 R100, R101
R/C 1/4W 5.1kΩ 5% HP=10 T-52mm 3 R117, R58, R71
R/C 1/4W 6.8kΩ 5% HP=10 T-52mm 2 R103, R50
R/C 1/4W 15kΩ 5% HP=10 T-52mm 1 R108
R/C 1/4W 22kΩ 5% HP=10 T-52mm 1 R70
R/C 1/4W 24kΩ 5% HP=10 T-52mm 1 R94
R/C 1/4W 68kΩ 5% HP=10 T-52mm 2 R65, R89
R/C 1/4W 75kΩ 5% HP=10 T-52mm 1 R74
R/C 1/4W 1MΩ 5% HP=10 T-52mm 1 R69
R/C 1/2W 2.2Ω 5% T-52mm 1 R109
R/C 1/2W 15Ω 5% T-52mm 2 R54, R60
R/C 1/2W 22Ω 5% T-52mm 1 R112
R/C 1/2W 560Ω 5% T-52mm 1 R120
R/C 1W 27Ω 5% 2 R80, R81
R/C 1W 200kΩ 5% CFR-1WS 2 R51, R52
R/MO 2W 51Ω 5% 1 R110
R/MO 2W 100Ω 5% 1 R53
R/MO 2W 1kΩ 5% 2 R82, R83
R/M 1/4W 24kΩ 1% T-52mm 1 R67
R/NW 2W 0.22Ω 5% 2 R62, R63
R/NW 2W 0.82Ω 5% 1 R64
MVR 0.W 1kΩ 10% 6 VP=5x2.5 1 SVR1
NTC 5kΩ 10% TSC-502 1 RTH2
100
SPECIFICATIONS QUANTITY POSITION
JUMP 0.6 P=5 1 SVR2
JUMP 0.6 P=10 2 D70, R49
JUMP 1.4 P=10 9A 3 J1, J2, J3
C/Y2 222/250VAC 20% P=7.5 AC 2 C101, C102
C/M 473/630V 10% P=15 2 C77, C78
C/M 104/63V 10% P=5 5 C53, C60, C76,
C79, C81
C/M 104/630V 10% P=15 1 C64
C/M 224/63V 10% P=5 1 C80
C/C 68P/50V 10% P=5 NPO 1 C65
C/C 331/1KV 10% P=5 Y5P 2 C71, C72
C/C 471/100V 10% P=5 Y5P 1 C61
C/C 471/1KV 10% P=5 Y5P 1 C59
C/C 222/500V 20% P=5 Z5U 2 C63, C87
C/C 103/100V 20% P=5 Z5U 1 C88
C/ML 102/100V 5% P=3 1 C55
C/ML 103/100V 5% P=3 3 C54, C57, C82
C/MC 105/50V80, -20%P=5 Y5V 1 C93
C/C 101/2KV EPOXY 10% P=5 Y5P 1 C51
C/C 103/2KV EPOXY 80, -20% P=10 Y5V 1 C52
C/E 1u/50V 105°C 5x11 KM 2 C56, C85
C/E 2.2u/50V 105°C 5x11 KM 1 C91
C/E 47u/50V 105°C 6.3x11 KM 3 C83, C84, C86
C/E 100u/35V 105°C 8x11.5 KM 1 C62
C/E 470u/50V LL5K 12.5x25 YXG 3 C73, C74, C75
SFRD ESAD92-02 20A/200V TO3P 3 D60, D61, D62
SFRD HER104 1A/300V T-52mm 2 D55, D76
SFRD HER203 2A/200V T-52mm 1 D63
SFRD HER204 2A/300V T-52mm 2 D69, D75
SFRD HER308 3A/1KV 1 D51
HIGH-SPEED DIODE 1N4148 T-52mm 5 D52, D53, D54,
D64, D65
HIGH-SPEED DIODE 1N4148 T-52mm 3 D66, D67, D68
ZD 1/2W 10.6V 2% 11B2 T-52mm 1 ZD60
ZD 1W 5.1V 2% 1N4733 T-52mm 1 ZD55
ZD 1W 15V 2% 1N4744 T-52mm 1 ZD53
ZD 1W 18V 2% 1N4746 T-52mm 3 ZD51, ZD52,
ZD54
LED A264B/G A264B/G/F14-9 1 LED1
BJT 2SA1020 -2A/50V TO92M 1 Q54
BJT 2SC1815FGR 0.1A/40V TO92 1 Q56
BJT 2SC2120 0.8A/30V TO92 1 Q55
BJT 2SC2655 2A/50V TO92M 1 Q53
FET 2SK1358 9A/900V TO3P 2 Q51, Q52
SHR 431 2.5V 2% MM1431AT 1 SHR1
101
SPECIFICATIONS QUANTITY POSITION
RG MC7812CT 1.0A/12V TO220 1 RG51
PHOTO-TRIAC MOC3022 1 U51
PHOTO PC123 TLP721F(04-GR) 2 U52, U53
PWM TL3845P TI 1 U55
OP LM324 LA6324N 1 U54
DR-COIL DR005A 9x12 0.35 498uH 1 L52
TR131-R4 Ku130125x2 91.6u SP500-27 1 L51
MT TF403-R1 ETD-44 SP-500-27 1 T51
BEAD CORE BD-001A-M4S RH3.5x3x1.5 10 D60, D61, D62,
Q51, Q52
TB DT-4C-B14W(1172)-08 1 TB1
WAFER 8822-02 P=2.5 1 CN51
I/O WIRE PSP300-CN1-R1 1 CN1
I/O WIRE PSP300-CN6-R2 1 CN3
I/O WIRE SP500-CN1-R1 1 CN2
I/O WIRE SP500-CN2-R3 1 CN4
HS YS021W-3 72020-3 h=25m/m 1 HS53
HS YS032W-070 71431W-070 2 HS51, HS52
CORE MS-130125 HKH-130 2 L51
PCB SP-500B-R10 FR4 20Z DS 1 PCB
TW 30. NI 1 RTH2
SCREW P 3x10 ISO NI 5 D60, D61, D62,
Q51, Q52
SCREW P 3x6 TP2 ZN 5 HS51, HS52,
RTH2
SCREW T 3x6 TP2 NI H 1 HS53
102
1kW UHF TV Output Filter IMD Suppressor Code 06641
SPECIFICATIONS
Frequency 470 - 860MHz
Connectors 7/16”
Power handling 1200W CW
Insertion loss 0.28dB Typ. @ V.C.
Return loss 28dB
Operating temperature -10° to +50°C
Bandwidth 6 to 8MHz
Selectivity @V.C.-5.5/+11 -50dB
Selectivity @V.C.-11/+16.5 -35dB
Weight 8kg
4 SECTION BANDPASS FILTER WITH 2 NOTCH ELEMENTS - COMB-LINE STRUCTURE, INDUCTIVE COUPLING
IRISES; CONSTANT BANDWITDH WITH FINE REGULATION, VERY EASY TO TUNE - EXACT GENERALIZED
CHEBISHEV DESIGN GIVING MAXIMUM SELECTIVITY AND MINIMUM GROUP DELAY VARIATION
103
TESTING AND CALIBRATION INSTRUCTIONS
The output filter Mod. CL4NL22 is made up by a 4-resonator band-pass section and two “notch”
resonators. It can be adjusted on all the channels of the TV UHF band (470 ÷ 860MHz) and on all the
world standards (intercarrier 4.5 - 6.5MHz). The pass-band section is made up by the group of the four
resonators, while the two separate resonator are the notches. The filter is symmetrical, thus there is no
difference between the upper and lower notch.
The band width is adjusted by changing the insertion of the lower Post Screws which are placed
between the band-pass resonators; inserting the post screws it is increased. In order to perform this
adjustment, loose the bolt of each post screws by means of a wrench n° 19. The first and third post
screws have to be adjusted for the same protrusion from the body of the filter, while the middle one
should usually be adjusted in a slightly different manner in order to obtain an equiripple response.
The input and output coupling, which can be reached by removing the protection cups, can be adjusted
by means of the two lower Coupling Stubs next to the connectors. The adjustment is made by means of a
flat wrench n° 18, taking into consideration that when the maximum coupling is obtained when the
command cuts are parallel to the longer side of the filter, the minimum when they are orthogonal to it.
The response symmetry is determined by the protrusion of the above mantioned stubs; these are set by
loosening the relevant lower clamps by means of a tube wrench n° 16. The clamps, once tightened, also
determine the friction of the rotatio of the couplings.
The suggested calibration sequence os the following:
set the measuring instrument on
- C.G. = (P.V. + P.A.) / 2
- SPAN = INTERCARRIER * 5 (Es. 27,5MHz std. B/G)
- RESPONSE = 5dB/div.
- ADAPTATION = 10dB/div.
Center Frequency
[MHz=] Coupling Stub
[mm=] Post Screw
[mm=]
474 2 6
570 16 15
666 29 17
762 38 17
858 40 17
104
• Set the coupling stubs and the post screws according to the indicative protrusion from their edge to the body
of the filter listed in the table.
• Tune the band-pass section on the wanted channel and load input and output correctly to obtain an
optimal response. At this stage the tuning of the two notches have to be kept distant from one another.
Adjust the band width to -35dB at the limits of the screen (Es. std. B/G: BW (-35dB) = 27,5MHz). The
input and output couplings may affect the tuning of the resonators, as such they have to be adjusted in
small steps, one after another. The equiripple response is obtained by adjusting the middle Post Screws.
• Tune the two notches bringing them to the frequencies P.V.-INTERCARRIER and
P.A.+INTERCARRIER. This will cause a change in the response and the adaptation of the band-pass.
Correct the response by acting on the band-pass tuning.
• Complete the calibration on both sides in this sequence: adjust the coupling, re-tune the notch in case
it has moved and then the band-pass tuning. If needed, adjust the middle Post Screws to obtain the best
equiripple adaptation. Perform this sequence in little steps trying to obtain the best adaptation.
• Check the symmetry of the obtained response, and correct it if needed according to the following
criterion: if the lower notch is more accentuated than the other one, insert the coupling stubs, otherwise,
if the upper one is more accentuated, extract them.
• Once the symmetry of the response has been corrected, complete the calibration as explained above.
Once the calibration has been completed, put again the protection cups on the coupling regulators.
Insertion loss @ P.V. (dB) < -0.40 (typ. -0.32)
R.L. (from P.V.-0.75 to P.A.+0.25) (dB) > 28
Attenuation @ P.V. -INTERCARRIER (dB) > 40
Attenuation @ P.V. +INTERCARRIER (dB) > 40
105
FREQUENCY RESPONSE
