KEYCHAIN REMOTE INSTRUCTION

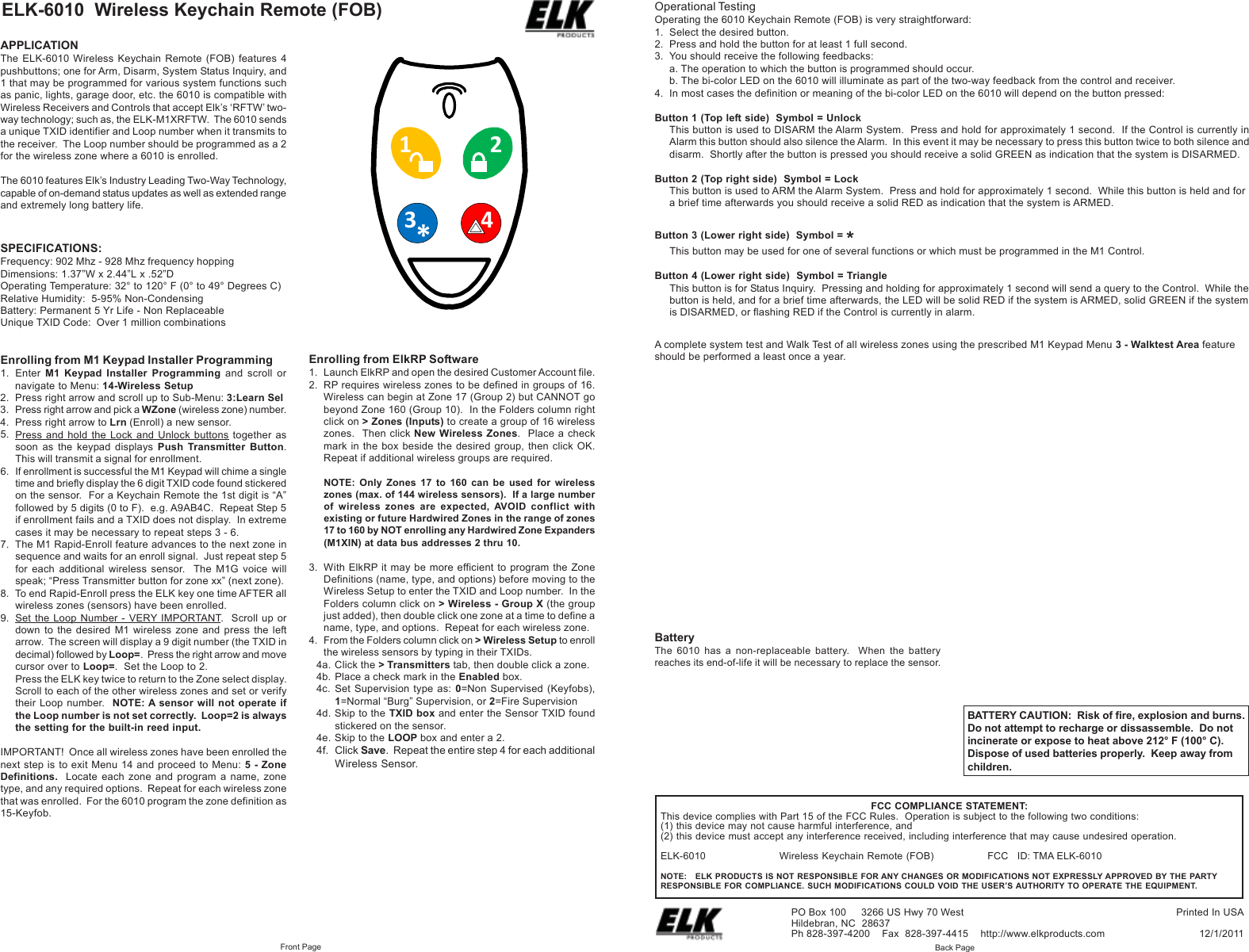

ELK-6010 Wireless Keychain Remote (FOB)BatteryThe 6010 has a non-replaceable battery. When the batteryreaches its end-of-life it will be necessary to replace the sensor.Enrolling from ElkRP Software1. Launch ElkRP and open the desired Customer Account file.2. RP requires wireless zones to be defined in groups of 16.Wireless can begin at Zone 17 (Group 2) but CANNOT gobeyond Zone 160 (Group 10). In the Folders column rightclick on > Zones (Inputs) to create a group of 16 wirelesszones. Then click New Wireless Zones. Place a checkmark in the box beside the desired group, then click OK.Repeat if additional wireless groups are required.NOTE: Only Zones 17 to 160 can be used for wirelesszones (max. of 144 wireless sensors). If a large numberof wireless zones are expected, AVOID conflict withexisting or future Hardwired Zones in the range of zones17 to 160 by NOT enrolling any Hardwired Zone Expanders(M1XIN) at data bus addresses 2 thru 10.3. With ElkRP it may be more efficient to program the ZoneDefinitions (name, type, and options) before moving to theWireless Setup to enter the TXID and Loop number. In theFolders column click on > Wireless - Group X (the groupjust added), then double click one zone at a time to define aname, type, and options. Repeat for each wireless zone.4. From the Folders column click on > Wireless Setup to enrollthe wireless sensors by typing in their TXIDs.4a. Click the > Transmitters tab, then double click a zone.4b. Place a check mark in the Enabled box.4c. Set Supervision type as: 0=Non Supervised (Keyfobs),1=Normal “Burg” Supervision, or 2=Fire Supervision4d. Skip to the TXID box and enter the Sensor TXID foundstickered on the sensor.4e. Skip to the LOOP box and enter a 2.4f. Click Save. Repeat the entire step 4 for each additionalWireless Sensor.FCC COMPLIANCE STATEMENT:This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may cause undesired operation.ELK-6010 Wireless Keychain Remote (FOB) FCC ID: TMA ELK-6010NOTE: ELK PRODUCTS IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTYRESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.Printed In USA12/1/2011PO Box 100 3266 US Hwy 70 WestHildebran, NC 28637Ph 828-397-4200 Fax 828-397-4415 http://www.elkproducts.comFront Page Back PageOperational TestingOperating the 6010 Keychain Remote (FOB) is very straightforward:1. Select the desired button.2. Press and hold the button for at least 1 full second.3. You should receive the following feedbacks:a. The operation to which the button is programmed should occur.b. The bi-color LED on the 6010 will illuminate as part of the two-way feedback from the control and receiver.4. In most cases the definition or meaning of the bi-color LED on the 6010 will depend on the button pressed:Button 1 (Top left side) Symbol = UnlockThis button is used to DISARM the Alarm System. Press and hold for approximately 1 second. If the Control is currently inAlarm this button should also silence the Alarm. In this event it may be necessary to press this button twice to both silence anddisarm. Shortly after the button is pressed you should receive a solid GREEN as indication that the system is DISARMED.Button 2 (Top right side) Symbol = LockThis button is used to ARM the Alarm System. Press and hold for approximately 1 second. While this button is held and fora brief time afterwards you should receive a solid RED as indication that the system is ARMED.Button 3 (Lower right side) Symbol = *This button may be used for one of several functions or which must be programmed in the M1 Control.Button 4 (Lower right side) Symbol = TriangleThis button is for Status Inquiry. Pressing and holding for approximately 1 second will send a query to the Control. While thebutton is held, and for a brief time afterwards, the LED will be solid RED if the system is ARMED, solid GREEN if the systemis DISARMED, or flashing RED if the Control is currently in alarm.A complete system test and Walk Test of all wireless zones using the prescribed M1 Keypad Menu 3 - Walktest Area featureshould be performed a least once a year.BATTERY CAUTION: Risk of fire, explosion and burns.Do not attempt to recharge or dissassemble. Do notincinerate or expose to heat above 212° F (100° C).Dispose of used batteries properly. Keep away fromchildren.APPLICATIONThe ELK-6010 Wireless Keychain Remote (FOB) features 4pushbuttons; one for Arm, Disarm, System Status Inquiry, and1 that may be programmed for various system functions suchas panic, lights, garage door, etc. the 6010 is compatible withWireless Receivers and Controls that accept Elk’s ‘RFTW’ two-way technology; such as, the ELK-M1XRFTW. The 6010 sendsa unique TXID identifier and Loop number when it transmits tothe receiver. The Loop number should be programmed as a 2for the wireless zone where a 6010 is enrolled.The 6010 features Elk’s Industry Leading Two-Way Technology,capable of on-demand status updates as well as extended rangeand extremely long battery life.SPECIFICATIONS:Frequency: 902 Mhz - 928 Mhz frequency hoppingDimensions: 1.37”W x 2.44”L x .52”DOperating Temperature: 32° to 120° F (0° to 49° Degrees C)Relative Humidity: 5-95% Non-CondensingBattery: Permanent 5 Yr Life - Non ReplaceableUnique TXID Code: Over 1 million combinationsEnrolling from M1 Keypad Installer Programming1. Enter M1 Keypad Installer Programming and scroll ornavigate to Menu: 14-Wireless Setup2. Press right arrow and scroll up to Sub-Menu: 3:Learn Sel3. Press right arrow and pick a WZone (wireless zone) number.4. Press right arrow to Lrn (Enroll) a new sensor.5. Press and hold the Lock and Unlock buttons together assoon as the keypad displays Push Transmitter Button.This will transmit a signal for enrollment.6. If enrollment is successful the M1 Keypad will chime a singletime and briefly display the 6 digit TXID code found stickeredon the sensor. For a Keychain Remote the 1st digit is “A”followed by 5 digits (0 to F). e.g. A9AB4C. Repeat Step 5if enrollment fails and a TXID does not display. In extremecases it may be necessary to repeat steps 3 - 6.7. The M1 Rapid-Enroll feature advances to the next zone insequence and waits for an enroll signal. Just repeat step 5for each additional wireless sensor. The M1G voice willspeak; “Press Transmitter button for zone xx” (next zone).8. To end Rapid-Enroll press the ELK key one time AFTER allwireless zones (sensors) have been enrolled.9. Set the Loop Number - VERY IMPORTANT. Scroll up ordown to the desired M1 wireless zone and press the leftarrow. The screen will display a 9 digit number (the TXID indecimal) followed by Loop=. Press the right arrow and movecursor over to Loop=. Set the Loop to 2.Press the ELK key twice to return to the Zone select display.Scroll to each of the other wireless zones and set or verifytheir Loop number. NOTE: A sensor will not operate ifthe Loop number is not set correctly. Loop=2 is alwaysthe setting for the built-in reed input.IMPORTANT! Once all wireless zones have been enrolled thenext step is to exit Menu 14 and proceed to Menu: 5 - ZoneDefinitions. Locate each zone and program a name, zonetype, and any required options. Repeat for each wireless zonethat was enrolled. For the 6010 program the zone definition as15-Keyfob.43*21
