Elpas Solutions 5-BTE00433 INFANT PROTECTION BRACELET User Manual USERS MANUAL
Elpas Solutions Ltd. INFANT PROTECTION BRACELET USERS MANUAL
USERS MANUAL

Elpas BTE Baby Tag
P/N: BTE00433
User Guide
www.elpas.com
Page 1 of 4
V2/Nov 2013
Introduction
This User Guide provides basic instructions for the successful deployment of the BTE Baby Tag.
CAUTION! Reasonable effort was made to ensure that the specifications and other information in this guide are accurate and complete at the time of its publication.
Nonetheless, all information contained in this document is subject to change at any time without prior notice. Modifications made to this equipment without the prior
written consent of Elpas Solutions Ltd. will void all warranties including the pertinent regulatory certifications and as such revoke your authority to operate this product.
Furthermore If this equipment is modified, appropriate inspection and testing must be conducted to ensure continued safe use of the device. Elpas will provide upon
request circuit diagrams. Component part lists, descriptions, calibration instructions or other information to assist service personnel to repair parts.

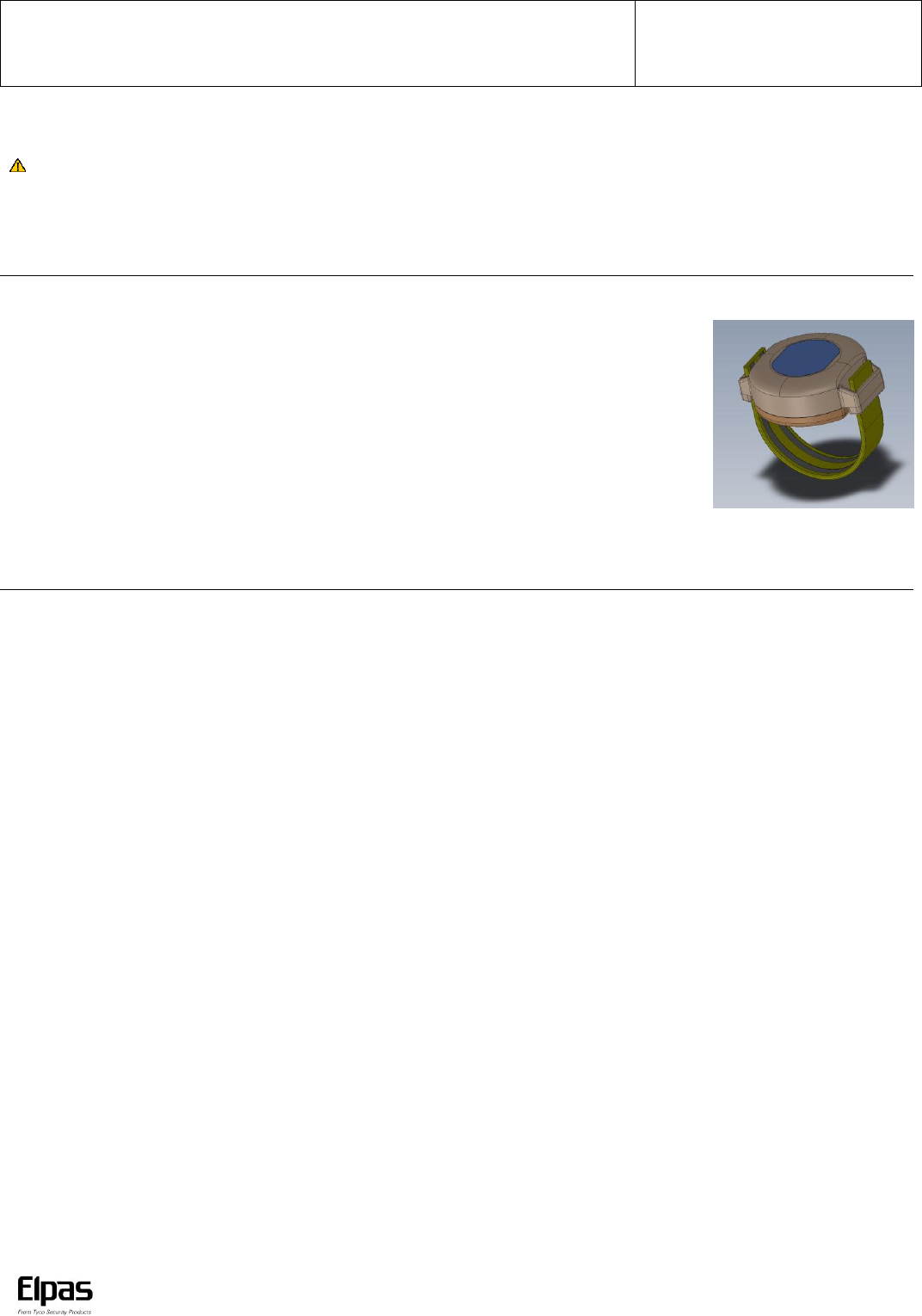

Product Description
The Elpas BTE Baby Tag is a small, baby friendly Active RFID Tag that provides wireless
abduction and mother-baby mismatch deterrence from the time of birth until discharge.
The Tag employs a disposable, size-adjustable, tamper-resistant band made from hypo-allergenic
materials to guard against unapproved attempts to detach the device from the protected baby.
The Tag transmits real-time indoor positioning data so that medical personnel can always know
the whereabouts, movement and status of the protected infant.
For added security, the BTE Baby Tag also supports instantaneous near-exit location alerting to
help guard against unauthorized departmental transfers and to assist in enforcing staff and family
escort policies between hospital departments.
Tamper Transmissions
Transmission Rate: 3 RF transmissions (each transmission @ 2ms
in duration), 250ms-400ms apart
Event Transmission Rates in LF Zones
Moving Tag
LF Response Time: Onboard LF receiver activates every 250
milliseconds to check if the tag is in a LF zone.
Transmission Rate: 3 RF transmissions (each transmission @ 2ms
in duration), 250m-400ms apart.
Transmitted Message Type: RF Data Message includes ID code of
LF Beacon.
Motionless Tag
LF Response Time: Onboard LF receiver polls every 60 seconds to
check if the tag is in a LF zone.
Transmission Rate when in LF: 3 RF transmissions (each
transmission @ 2ms in duration), 250m-400ms apart.
Transmitted Message Type: RF Data Message includes ID code of
LF Beacon.
Important Usage & Safety Considerations
It is important that you read, understand, and
follow the instructions in this user guide.
Should you have any questions, please contact
your local Elpas support representative before
proceeding.
Training: It is the responsibility of the System
Installer to ensure that all appropriate staff
members are suitably trained in the usage & care
of the BTE Baby Tag.
Supervisory Alerts: should be configured in the
Host RTLS Application to notify staff members that
the
BTE Baby Tag.is:
In a Low Battery Condition
Not properly transmitting location and status
data.
Additionally all Supervisory Alerts should be
triggered periodically to ensure system integrity.
(Refer to your Eiris Configuration Guides for additional details.)
Preliminary_V2

Elpas BTE Baby Tag – User Guide
www.elpas.com
Page 2 of 4
V2/Nov 2013

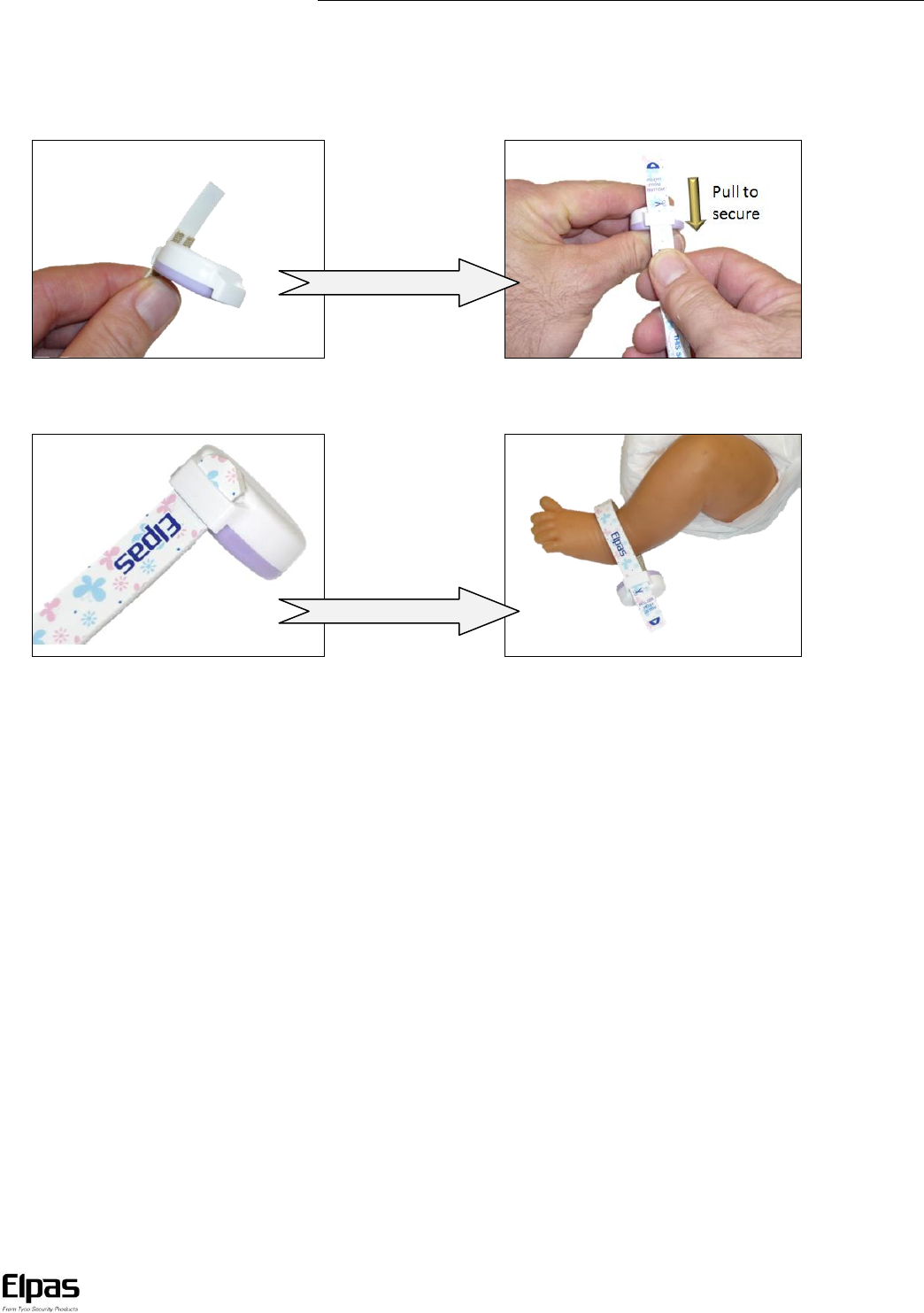

Tag Attachment
1. Insert the band into one of the tag slits and pull until approximately
1cm or 0.5inches of conductive material has been pulled through.
2. Pull back on the band so that the contact pins make a secure
contact with the conducting sheath.
3. Using safety scissors cut the band so that the edge of the band is
level with the face of the tag and trim the corners.
4. Insert second end into second leaving sufficient band length to
slide the bracelet over the infant’s heal.
5. Slide bracelet over foot and onto ankle with tag facing outwards
with the cut band end towards the heal
6. Pull the exposed end until secure however be careful not to over-tighten the band. Confirm that the tag is snug enough to prevent removal over
the baby’s heal, yet loose enough to allow circulation.
7. Using safety scissors cut the band so that the edge of the band is level with the face of the tag and trim the corners
Band Tightening
Should the infant lose weight during his/her stay, the bracelet band may be shortened by pulling on one of the exposed ends. After the band is
tightened, the excess band may be cut and corners trimmed.
Tag Removal
1. Use safety scissors to cut bracelet band.
2. Pull remaining band sections through slits from the top of the tag.
Note See Eiris system user guide for tag discharge procedure.
Preliminary_V2

Elpas BTE Baby Tag – User Guide
www.elpas.com
Page 3 of 4
V2/Nov 2013
Cleaning & Disinfection Procedures
Use an appropriate antibacterial disinfectant such as Dispatch® Hospital Cleaner Disinfectant with Bleach from Caltech Industries
(http://www.caltechind.com) to clean the Baby Tag.
Since ‘Cleaning Procedures’ may vary according to facility guidelines, thus the procedures given below are for illustrative purposes only:
Option 1 – Using Dispatch Disinfectant Spray
1. Lightly wet a disposable towel with Dispatch spray
2. Do not saturate the towel
3. Wipe the outer surfaces of the sensor
4. Next wipe the sensor with a dry disposable towel
5. Allow the sensor to air dry
6. Return the clean sensor to inventory or usage
7. Dispose of used towels per facility policies
Option 2 – Using Dispatch Disinfectant Towels
1. Open a new Dispatch pre-moistened towel
2. Wipe the outer surfaces of the sensor
3. Next wipe the sensor with a dry disposable towel
4. Allow the sensor to air dry
5. Return the clean sensor to inventory or usage
6. Dispose of used towels per facility policies
Product Specifications
Item
Description
RTLS Technologies
RF (433MHz) LF (125KHz)
RF Under LF
2 seconds; after 10 minutes returns to 10 seconds when in motion or 60 seconds when stationary
LF Sampling
Every 250ms
LF Timeout
Transmits burst of 3 non-LF messages when LF signal is not received for approximately 2 seconds
Supervision Events
Band Connected (B2 up), Low Battery
Band Disconnected /Tamper (B2 down)
LF (Entry/Exit), Matching, Pairing
3 RF transmissions (each transmission @ 2ms in duration), 250m-400ms apart (user configurable).
Power Source
Two Internal 3V Lithium batteries (Type: CR2025)
Average Battery Life
(Active 80% of the time)
2 years approximate
Red LED Status Indicator
Initial activation: Once for 3 seconds
Low Battery: Flashes once every 10 seconds
Entry/Exit LF zone, Band connected/disconnected: Flashes 3 times
Green LED Status Indicator
Positive mother/baby match result
Tag ID
Unique, factory-programmed ID
Construction
Nylon base & cap (IP-67)
Dimensions (H x W x D)
3.5 x 2.9 x 12cm (1.4 x 1.2 x 0.5 inches)
Weight
12 grams (0.4 ounces)
Storage Environment
Temp: -30°C to 70°C (-22°F to 159°F) Humidity: 100% non-condensing
Operating Temperature
Temp: -10°C to 70°C (14°F to 158°F) Humidity: 20% to 80% non-condensing
Management Software
Eiris V4.8 or higher (standard functionality)
Elpas V4.8 or higher ((local mother baby matching functionality)
Regulatory
IC, FCC & CE compliant
Warranty
1 year limited (excluding battery)
* Anti-tamper detection requires the usage of the Mounting Clip (Elpas P/N: 5-ETC09001) to attach the Tag to the asset to be protected
Product Accessories
Part Number
Description
TBD
Disposable Tamper Detection Band
Preliminary_V2

Elpas BTE Baby Tag – User Guide
Page 4 of 4
V2/Nov 2013
W.E.E.E. Product Recycling Declaration
For information regarding the recycling of this product you must contact the company from which you orignially purchased it.
If you are discarding this product and not returning it for repair then you must ensure that it is returned as identified by your supplier.
This product is not to be thrown away with everyday waste - Directive 2002/96/EC Waste Electrical and Electronic Equipment.
FCC & IC Compliance Standards
This device (FCC# TBD and IC# T BD) complies with FCC Rules Part 15 and
with Industry Canada license-exempt RSS standard(s). Operation is subject
to two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any inte rference that may be received or that
may cause undesired operation.
For Industry Canada: Le présent appareil est conforme aux CNR d'Industrie
Canada applicables aux appareils radio exempts de licence. L'exploitation
est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas
produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d' en
compromettre le fonctionnement.
Note: This equipment has been tested and found to comply with the li mits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates; uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on
the user is encouraged of:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help
Changes or modifications to this equipment not expressly approved by
the party responsible for compliance (Elpas Solutions Ltd.) could void
the u ser ’ s a u t h o r i ty t o op e r ate th e e q u i p men t .
This equipment complies with FCC and IC RF radiation exposure limits
set forth for an uncontrolled environment .
Company Contact
Elpas, Inc.
Westford, Massachusetts ( USA) - Tel : 1-800-223-0020
EU Declaration of Conformity
This equipment is in compliance with the essential requirements and
other relevant provisions of Directive 1999/5/EC
Product Warranty
Elpas Soluti ons, Lt d. (El pas or t h e Com p a n y ) , an d it s af f i li a t e s , w a r r a nt s it s pr o d u c t s (h e r e i n a f t e r r e f e r r e d t o as " t h e P r o d u c t ” ) t o be f r ee o f de f ec t s i n m ateri al s and workm anship
un der normal operat ing condi tions and use for a peri od of one ye ar f rom the dat e o f shi pment by El pas. Th e Co m p a n y ’ s ob l i g a t i on s sh al l be l i m i t e d wi t h i n th e warr a n t y pe r i o d , at i t s
opt ion, to repair or to re place th e defecti ve Prod uct or any def ectiv e compon ent or part thereof . To exerci se thi s war ranty, th e pr oduct must be retur ned to the man ufactur e r freight
pre paid and i nsured.
This warranty d oes not apply to repair s or re placem ent c ause d by im proper i nstal lati on, Pr oduct misu se, fai lure t o f oll ow in s tallati on o r op er atin g i nstructi ons, alte rati on, abuse,
acc ide nt , t am peri ng, re pair by anyon e ot her than Elpa s, external ca uses, and fail ure to pe rform req ui red prev ent iv e mai ntenance. Thi s warr anty al so do es not ap pl y t o any pr oduct s,
acc essori es, or at tac hments use d in co njuncti on wi th the Pro du ct, incl uding batt eries, whic h sh all be cov ere d sol ely by thei r own war ranti es, i f any. El pas sh al l not be liable for an y
dam age or loss what soev er, wh ether dir ectly, indir ectly, inc ident ally, conse quenti all y or otherwi se, resulti ng from a malf unc tion of the Pr oduct due to prod ucts, ac cessorie s, or
at tachm ent s of oth ers, i nclu di ng bat teri es, u se d in conjunct ion wi th t he Pr od uct.
ELP AS MAKE S NO EXPRESS WARRANTI ES E XCEPT THOS E ST ATED IN T HI S STATEMENT . ELPA S DISC LAIMS ALL OTHE R W ARRANTIE S, EXPRES S O R IM PLIE D, INCLU DI NG
WIT HO UT LIMITAT ION IMP LIED W ARRANTI ES OF MER CHA NTABI LITY A ND FIT NESS FO R A PARTI CULA R PURPOSE. ELPAS ’ S S O LE R E S P O N S I B I LI T Y F O R W A R R A N T Y C L A I MS I S
LI MITED TO REPAI R OR TO REPLA CE AS SET FORTH IN THI S STATEM ENT.
Elpas shall hav e no liabi lity for any de ath, per sonal injury, pr operty damage, or othe r l oss whethe r di rect, indir ect, incide ntal, consequenti al, or ot herwi se, b ased o n a clai m that the
Product fail ed t o f uncti on. Ho wev er, if Elpa s is hel d li abl e, whether dir ectly or indire ctly, for any l oss or dam age ari si ng under t hi s li mited warrant y or otherwi se, regardl es s of ca use
or ori gin, the com pany 's max im um liabil ity shall be lim it ed to th e purc hase price of the Product, whi ch sh all be fi xed as liqui dat ed dam ages and no t as a pe nalt y, and shall be the
com plete and exclu si v e liabi lity of Elpas.
Elpas shall not, under any circumst ances whatsoev er, be li abl e for any inac curacy, error of judgm ent , def ault, or negli ge nce of Elpas, its em ployee s, of fic er s, age nts, or any oth er
part y, or of the purcha ser o r us er, ari sing from any assi st ance or com muni cation of any kind regardi ng the co nfi gur ation, desi gn, i nstall atio n, or creatio n of securi ty system inv olvi ng
the Pr oduct, t hat bei ng the re sponsibil ity of the purch aser or user. If Elpas is unabl e to make such re pai r o r re placem ent, t h e c o m p a n y ’ s enti re l iabili ty shall be li mited to the co st of a
rea sonabl e su bst itut e pro duct. Elp as s hal l not be respon si ble f or a ny di sm antli ng, i nstall ation, rein st al lati on, purcha si ng, shippi ng, insu rance, or a ny sim ilar c harg es.
Elpas s hall hav e no li abil ity f or any d amage s, i ncl udi ng wit hout l imi tation, any direct , i ndi rect, incid ental, speci al, or conseque ntial damage s, expenses, c osts, pr ofi ts, los t sav i ngs or
ear ning s, or other dam ages ari si ng out of the use of the Product or the rem ov al , inst allati on, rein stall ation, re pair or repla cement of the Product or any rel ate d ev ent s. In the ev ent
that t he re i s any l iabil ity a gai nst El pas, such l iabil ity sh all b e li mit ed to the purch ase price of the Pro duct which am ount shall b e f ixed a s l iquid ated dam ages.
The purc haser and user understand that this Pr od uct may be com promise d or circ umv ented by int enti onal act s; that the Pr oduct wil l not in all ca ses prev ent death, per sonal inj ury,
pro perty damage, or othe r loss r esulti ng from burglary, robb ery , fi re or ot her ca uses; and that the Prod uc t wil l not in all ca ses prov ide a de quat e warning or prot ection. The pur chaser
an d user al so u nder st and that a pr operly in stal led a nd maintai ned alarm may reduc e the ri sk of ev ents such as bur glary, robbe ry, and f ire wit hout war ni ng, b ut i t is not i nsura nc e or a
gu arant ee th at such ev ent s will not occur or that th er e wil l be no deat h, per sonal injur y, pr operty damag e, or other l oss as a r esul t of such ev ents.
By purcha si ng the P roduct, t he purch aser and u ser shall d efend, i ndem nify and hold Elpas, i ts officer s, di recto rs, affili ates, sub si diari es, agent s, serv ant s, em ployee s, and authori zed
rep rese nt ativ es h ar mle ss from and again st any and al l claim s, sui ts, co st s, dama ges, and judgm ents i nc urred, cl aimed, or su st ai ned whethe r f or death, pe rsonal i njury, pro pert y
dam age, or other wi se, beca use of or i n any way relat ed t o t he c onf igur atio n, d esign, in stal latio n, or c reatio n of a securi ty syst em involv ing the P roduct, an d th e us e, sal e, distri buti on,
an d in st allati on of the Product, incl uding paym ent of any an d a l l a t t or n e y ’ s f e e s, c o st s, a n d e x p e n se s i n c u r r e d a s a r e s u l t o f an y s u c h e v e nt s.
The purc ha ser or u ser shoul d foll ow the Pr oduct in st all ation an d operati on in str uct ions and t est the Pr oduct a nd t he enti re s y stem at lea st once eac h week. F or vari ous rea sons ,
includi ng but not li mi ted to change s in env ironmental con diti ons, electri c, electro nic , or elect romagn etic di sru ption s, an d t amperi ng, the Pr oduct may not perform as expect ed. The
pur cha ser and u ser ar e adv ised t o tak e all nec essar y prec aution s f or the p rot ection and saf ety of per sons and propert y.
This stat ement provi des certai n leg al rig hts. Ot her ri ght s m ay v ary by stat e or cou ntry. Under c ertain ci rcum st ance s, some st ate s o r count ries may not al low ex clusio n or li mitati on of
incident al or c on se quenti al damage s or i mpli ed warra nties, so t he abov e ex clusio ns m ay not ap ply un der th ose ci rcumst ances and in t hose st ates or co unt ries.
Elpas re serv es the right to modif y this sta tement at any tim e, in it s sol e discr etion wit hout not ice to any purc haser or use r . Howev er, thi s stat ement shall not be modi fi ed or varied
ex cept by Elp as i n writin g, and Elpa s do es not authori ze any si ngl e i ndi v idual to a ct on it s behal f to modif y or v ary thi s st atem ent . Any qu estio ns ab out
this stat ement shoul d be dir ected t o Elpa s.
Preliminary_V2
