Elpas Lone Worker Transmitter
P/N: Honeywell Version
User Guide
www.elpas.com
Page 1 of 4
V5/June 2013
Introduction
The Elpas Lone Worker Transmitter is a commercial-grade
Active RFID Tag that provides discreet around-the-clock
wireless location based tracking of staff members.
The Transmitter delivers precise real-time location data that
identifies the individual in trouble and the location of the
evolving security incident. This data is used by RTLS
applications and security platforms for dispatching emergency
response teams.
The Transmitter includes two user programmable wireless
emergency call buttons on either side of the unit for manual
duress alerting. Pressing the both push buttons simultaneously
will trigger the transmitter to emit a duress alert.
(Actual product may vary from photo)
Product Specifications
RTLS Technologies
RF (433MHz) LF (125KHz)
RF (Motion/Stationary)
Supervision messages every 10secs /60secs
RF Under LF
6 RF transmissions (each transmission
@ 4ms in duration), 312.5ms apart
Event Messages
Button Press/Release
Low Battery
3 RF transmissions (each transmission
@4ms in duration), 312.5ms apart
Power Source
CR2450 Lithium Battery
Battery Life
18 to 36 months, depending on usage
LED Status Indicator
Button Press/Release, Motion/Stationary
Entering/Exiting LF Field, Low Battery
Badge ID
Unique, factory-programmed ID
Construction
Nylon Plastic (IP67)
Dimensions (H x W x D)
8.3 x 4.4 x 1.7 cm (3.3 x 1.7 x 0.7 inches)
Weight
40 grams (1.4 ounces)
Mounting
Lanyard worn
Operating
Environment
Temp: -30°C to 70°C (25°F to 159°F)
Humidity: 95% non-condensing
Management
Software
Eiris V4.8 or higher
Elpas Configurator V4.8 or higher
Regulatory
IC, FCC & CE compliant
Warranty
1 year limited (excluding battery)
Product offerings and specifications are subject to change without notice..
Accessories
5-PBA90003
CR2450 Lithium Battery (tray of 25pcs)
5-WTA90002
Pendant Lanyard (set of 5)
Usage Considerations
It is important that you read, understand, and
follow the instructions in this user guide.
Should you have any questions, please contact
your local Elpas support representative before
proceeding.
Package Contents
The Lone Worker Tag is shipped with the
following items:
One Lone Worker Tag
One Pendant Lanyard
One CR2450 Lithium Battery
Preliminary_V5
Elpas Lone Worker Transmitter – User Guide
www.elpas.com
Page 2 of 4
V5/June 2013
Initial Activation & Software Enrollment
The Lone Worker Transmitter is shipped from the factory in
Sleep Mode to conserve battery power during transit.
1. Prior to initial usage, remove the Activation Label and then
press simultaneously both of the Tag’s emergency call push
buttons for at least 7 seconds.
This action serves as a means of Awakening the Transmitter from
Sleep Mode as well as enrolling its unique factory installed
ID Number (a six-digital hexadecimal value) into the Host RTLS
Application.
If the Enrollment process was successful the Transmitter’s
Red LED Status Indicator will alight for 3 seconds.
(Refer to your Eiris Configuration Guides for additional details.)

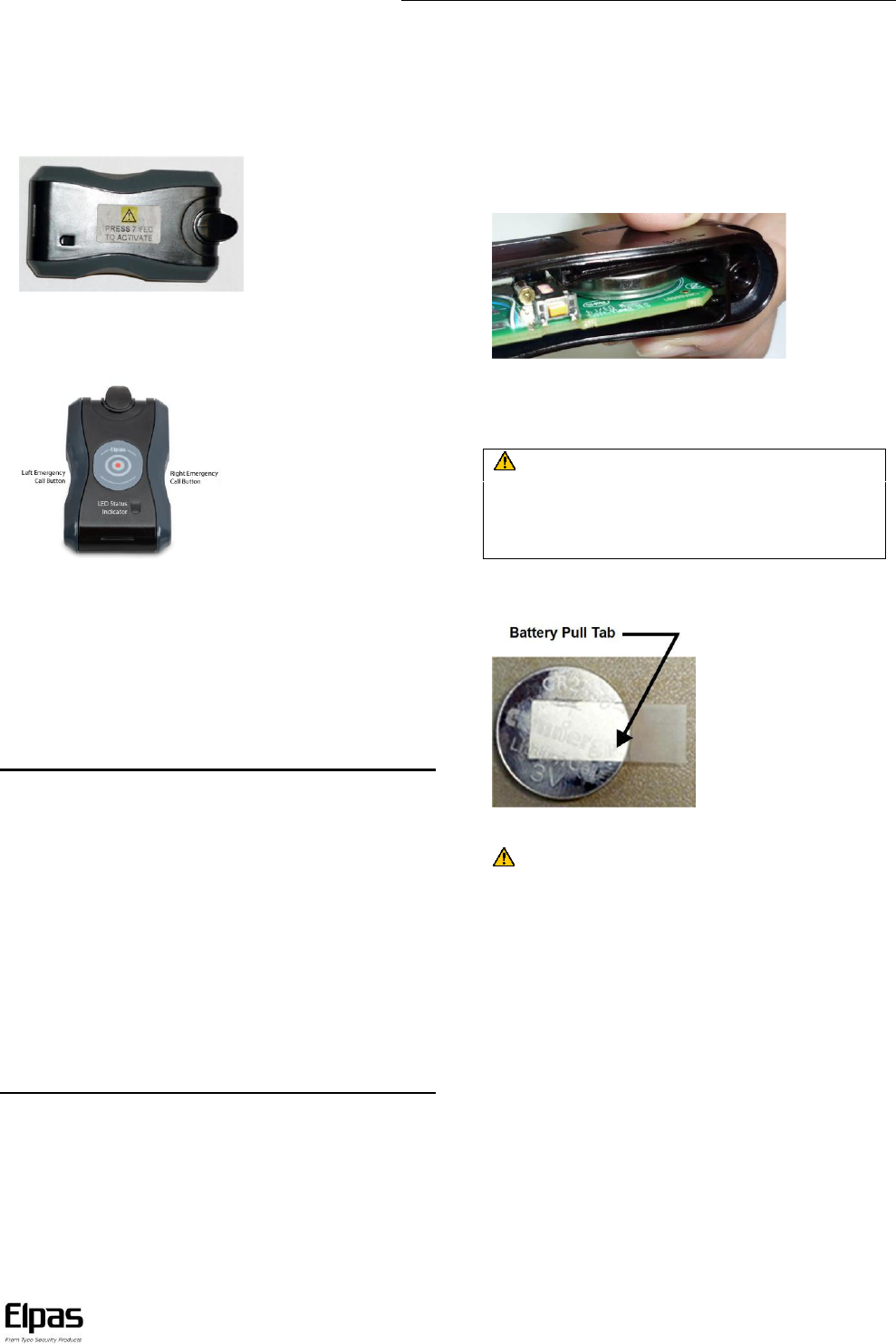

Battery Replacement
1. Temporarily suspend usage of the Transmitter in the host
RTLS application.
2. Place the transmitter on its right side. Remove the 2 screws
that holds the battery cover to the body of the Transmitter
3. Utilize the pull tab to slide the battery out of the Transmitter
from the battery Dispose of the used battery in accordance
with local regulations.
CAUTION! After removing the battery please wait at
least 30 seconds before installing the replacement battery
so as to not cause damage to the tag or to negatively affect
the tag’s operational performance.
4. Before inserting a new battery into place, Place a new
Battery Pull Tab onto the (+) positive side of the battery.
5. Slide the battery back into the transmitter.
IMPORTANT! Ensure that the positive (+) side of the
battery faces up and that the pull tab is fully accessible.
6. Close the side-cover such that the screw holes are correctly
aligned. Tighten the 2 screws snugly into place. Do not over-
tighten as this may strip the case threads.
7. Reactive the Transmitter in the Host RTLS Application.
Safety Issues
It is the responsibility of the system installer to ensure that the
appropriate staff members are suitably trained in the usage and
maintenance of the Lone Worker Transmitter.
Additionally, Supervisory Alerts should be configured in the Host
RTLS Application to notify staff members that the detection
Transmitter is:
In a low battery condition or
Not properly transmitting location and status data.
Note: The above configured Supervisory Alerts should be triggered
periodically to ensure system integrity.
Alert Testing
Pressing either the left or right emergency call push-button
individually will trigger the Lone Worker Transmitter to emit a Test
Alert Message so that the host RTLS application can confirm that
the unit is functioning properly.
Preliminary_V5
Elpas Lone Worker Transmitter – User Guide
www.elpas.com
Page 3 of 4
V5/June 2013
RF Transmissions in LF Fields
For Moving Transmitter
LF Response Time: Onboard LF receiver polls every 250ms to check if the Transmitter is in a LF zone
Transmission Rate: 3 RF event transmissions (each transmission about 2ms in duration), at 0.4 second intervals.
If the Transmitter stays in a LF zone, then repeated at 2 seconds intervals.
Transmitted Message Type: RF Data Message includes ID code of LF Beacon. Motion bit, M=1.
For Motionless Transmitters
LF Response Time: Onboard LF receiver polls every 250ms to check if the Transmitter is in a LF zone
Transmission Rate: 3 RF supervision transmissions (each transmission about 2ms in duration), 0.4 seconds apart:
If the Transmitter stays in a LF zone for more than 10 minutes, then repeated at 15 second intervals.
Transmitted Message Type: RF Data Message includes ID code of LF Beacon. Motion bit, M=0
Cleaning & Disinfection Procedures
Use an appropriate antibacterial disinfectant such as Dispatch® Hospital Cleaner Disinfectant with Bleach from Caltech Industries
(http://www.caltechind.com) to clean the Lone Worker Transmitter.
Since ‘Cleaning Procedures’ may vary according to facility guidelines, thus the procedures given below are for illustrative purposes only:
Option 1 – Using Dispatch Disinfectant Spray
1. Lightly wet a disposable towel with Dispatch spray
2. Do not saturate the towel
3. Wipe the outer surfaces of the sensor
4. Next wipe the sensor with a dry disposable towel
5. Allow the sensor to air dry
6. Return the clean sensor to inventory or usage
7. Dispose of used towels per facility policies
Option 2 – Using Dispatch Disinfectant Towels
1. Open a new Dispatch pre-moistened towel
2. Wipe the outer surfaces of the sensor
3. Next wipe the sensor with a dry disposable towel
4. Allow the sensor to air dry
5. Return the clean sensor to inventory or usage
6. Dispose of used towels per facility policies
Preliminary_V5
Elpas Lone Worker Transmitter – User Guide
Page 4 of 4
V5/June 2013
W.E.E.E. Product Recycling Declaration
For information regarding the recycling of this product you must contact the company from which you orignially purchased it.
If you are discarding this product and not returning it for repair then you must ensure that it is returned as identified by your supplier.
This product is not to be thrown away with everyday waste - Directive 2002/96/EC Waste Electrical and Electronic Equipment.
FCC & IC Compliance Standards
This device complies with FCC Ru les Part 15 and with Industry Canada license -
exempt RSS standard(s). Ope ration is subject to two condition s: (1) This device
may not cause harmful inte rference, and (2) this device must accept any
interference that may be rece ived or th at may cause undesired operat ion.
For Industry Canada: Le présent appareil est conf orme aux CNR d'Indu strie
Canada applicables aux appareils radio exempts de licence. L'explo itation est
autorisée aux deux conditions suivante s : (1) l'appareil ne doit pas produi re de
brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brou illage
radioélectriqu e subi, mê me si le brou illage est susceptible d'en comp romettre le
fonctionnement.
Note: This equipment has been tested and found to comply with the limits for a
Class B d igital device, pursuant to part 15 of the F CC Rules. The se limit s are
designed to provide reasonable protection against harmful inte rference in a
residential installat ion. This equipment generates; uses and can radiate radio
frequency energy and, if not installed and used in accordance with t he
instructions, may cause harmful interference to radio commun ications. Ho wever,
there is no guarantee that interference will not occur in a part icular installation.
If this equipment does cause harmful in terference to radio or television reception,
which can be determined by turning the equipment off and on
the user is encou raged of :
• Reorient or relocate the receiving antenna.
• Increase the separation between the eq uipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV te chnician for help
Changes or modifications to this equipment not exp ressly approved by
the party responsible for compliance (Elpas Solutions Ltd.) could void
th e u s e r ’ s a u t h o r it y t o o p e ra te t h e e q ui p m e n t .
This equipment complies with F CC and IC R F rad iation exposure limit s
set forth for an uncontrolled environme nt.
Company Contact
Elpas, Inc.
Westford, Massachusetts (USA) - Tel: 1-800-223-0020
EU Declaration of Conformity
This equipment is in compliance with the essential require ments and
other relevant p rovisions of Directive 1 999/5/EC
Product Warranty
Elpas Solutions, Lt d. (t he Com p a n y ) , a n d i t s a f f il i a t es, wa r r a n t s i t s pr o d uct s ( h e r e i n a f t e r r e f e r r e d t o a s "t h e P r o d u c t ” ) t o b e f r e e o f def e c t s i n m aterials and wor kmanship under
norm al op erating c onditions and u se for a period of o ne y ea r from the date of shipm ent by Elpas. The C om p a n y ’ s o b l i g a t i o n s s h a l l b e l i m i t e d wi t hi n t h e w a r r a n t y p e r i o d , a t i t s
opt i on, to repair or to r eplace the d ef ective Pr oduct or a ny def ect iv e component or part t hereof. To exercise t hi s warranty, the product mu st be r et urned to th e man uf acturer
freight prepai d and i nsured.
This warranty do e s not apply t o r epairs o r replacement cause d by i mproper install ation, P roduct m i su s e, f ailure to f ollow ins tallatio n or operating i nst ructions, alter a tion,
abuse, acci dent, tampering, repair by anyone ot her t h an Elpas, ext ern al cau se s, a nd f ailure t o perf orm requir ed pr eventive maintenance. Thi s warranty al so does not apply to
any product s, acce ssori es, or at tachments used in conjunction with the Pro duct, incl udi n g b att eries, which shall be covered s olely by th ei r o wn warranties, if any. Elpas shall
not b e liabl e for any dam age or lo ss whatsoever, whether directly, indirectly, incid ent al ly, co nsequentially or ot herwise, re sulting from a malf uncti on of the Product due to
products, accessories, or attachment s of other s, including batt eries, used i n c onj unction with th e Product.
ELPAS MAKES NO EXPRESS W ARRANTIES E XC EPT THOSE STATED I N THIS STATEMENT. E LPAS DISCLAIMS A LL OTHER W ARRA NTIES, EXPRESS OR IM PLIED,
INCLUDING W ITHOUT LIMITATION IMPLI ED W ARRANTIES OF MERCHANTABI LI TY A N D FITNESS FOR A PARTI CU LAR PURPOSE. ELP AS’ S S O L E R E S P O N S I B I LIT Y F O R
WARRANTY CLAIMS IS LIMITED TO RE PAIR OR TO REPLACE AS SET F O RT H IN THIS STATEMENT.
Elpas shall have no li a bility f or any de ath, personal i nj ury, pr op erty dama ge, or othe r loss whether d irect, i ndi r ect, inci de nt al, consequential , or ot herwi se, base d on a c laim
that the Pro d uct failed to f unct ion. Howev er, if El pa s i s held liable, whether directl y or indirectl y, f or any loss or dam age arising under thi s limited wa rranty or oth er wi se,
regardless of cause or o r i gin, th e c om pany's maxi m um liability shall be lim ited t o t he purchase price of th e P roduct, which sh al l be f ix ed as liquidated damages and no t as a
penal ty, and shall b e the complet e a nd exclusive li abi lity of El pa s.
Elpas shall not, un de r any ci rcum stances whatsoev er, be li able f or any inaccuracy, error of judgment , default, or negligence o f Elpas, its emplo yees, off icers, a gents, or any
other part y, or of the purchaser or user, arising from any assi st a nce or comm uni cation of any kind r egarding the conf iguration, design, installation, or creation of security
system involvi ng the Product, that bei ng t he r esponsibility of the pur chaser or user. If Elpas i s unable to make such repai r or repl ac ement, t h e c o m p a n y ’ s e ntire l i ability shall
be li m ited to the c ost of a rea s on a ble substi t ut e product. Elpa s shall not be r esponsible for any dismantling, i n stallation, r ei n st allation, p urc ha si ng, shippi ng, i nsurance, or any
si milar charges.
Elpas s h all hav e no li ability for an y dama ge s, i nclu di ng with out limi t at ion, any di rect, indirect, inc i dental, special, or con s e quential dam ages, ex penses, cost s, pr of its, lost
savings or earning s, or ot h er damage s arisi ng out of the use of the Pr oduct or the removal, instal lation, reinstallatio n, rep air or repl acem ent of the Product or any related
events. In the event that there is any liabil ity against El pas, such liabil i ty shall be limited to the purc hase price of the Product which amount shall be f i xed as li quidated
dam ages.
The pu rchaser and user under sta n d that thi s Pr od uct may be comprom i sed or ci rcu mvented by i nt ent ional act s; that th e Pro duct will not i n all cases prev ent deat h, pe rsonal
injury, property damage, or ot he r l oss res ulting from burgl ary, robbery, fire or other causes; a nd t hat the Product will no t in al l cases p rov ide ad equat e warning or pr ot ection.
The p urc haser and u ser al so understand that a properly installed and maintained alarm may reduce th e ri sk of ev ents such as b ur glary, robbery, and fire wi thout warning, but
it is not insur an ce or a gua r a ntee that such ev ent s wi ll not oc cu r or t hat ther e wi ll be no deat h, personal injury, p roperty damage, or ot he r loss as a r esult of su ch events.
By purchasing the Pr od uct, the purc haser and use r shall defend, ind emnify and hold El pa s, it s offi cers, di rect or s, af f iliates, sub si di aries, age nt s, serv ants, employ ee s , and
aut horized rep re sentat iv es harm less f rom and against any an d all clai m s, suits, co sts, damages, an d judgments incu rred, clai m ed, or su stained wheth er for death, personal
injury, pr op erty damag e, or oth er wi se, because of or in an y way relat e d to th e conf iguration, design, i nstallation, or creation of a security syst em i nvolving the Product , and
the use, sale, di st ri bution, an d i nst allation of the Product, i ncl uding payment of any and all atto rn e y ’ s f e e s, c o s t s , a n d e x pen s e s i n c u r r e d a s a re sul t of a n y suc h ev e n t s .
The purchaser o r u s e r should f ollow the Product install ation and op er ation instruct i ons and te st the P roduct and th e entire s yst em at l east once eac h week. F or v ariou s
reasons, i ncludi ng but not limi ted to ch an ge s i n envi ronm ent al conditions, el ect ri c, electronic, or el ectr omagnet ic disru pti on s, and tamperin g, the Product m ay not perf orm as
expect ed. The p urc ha ser and user are a dvised to t ake al l necessary precauti o ns for the pr ot ect i on and safety of persons and property.
This stat ement prov i des certain le g al rights. Ot her rights may vary by state or country. Under cert ai n circ um st ances, some st ates or countries may not allow exclusi on o r
limitation of i nci dental or con seq uential dam age s or i m plied warrantie s, so t he abov e ex clusions may not ap pl y under those cir c umstances and in t ho se state s or c ount ries.
Elpas reserv es t he right t o modify this sta tement at any tim e, in its sol e di scretion wi thout noti ce to any pur chaser or user. H owe ver, this stateme nt shall not be modif ied or
varied ex cept by El pa s in writin g, and Elp a s doe s not authorize any si ngle in di v i dual to act on i ts be half to modif y or v ary t hi s statem ent. A ny
questions about thi s st atem e nt should be d irected to El pas.
Preliminary_V5
