Elpas Solutions 5-PIR00433 CURTAIN PIR DETECTOR User Manual
Elpas Solutions Ltd. CURTAIN PIR DETECTOR
User Manual
Elpas Curtain PIR Detector
P/N: 5-PIR00433
Installation Guide
www.elpas.com
Page 1 of 8
V3/April 2013
Introduction
This installation guide provides basic instructions for common Curtain PIR Detector installation scenarios.
CAUTION! It is important that you read, understand, and follow the instructions in this document. If you have questions, call your local
Elpas support representative.
Product Description
The Elpas Curtain PIR Detector is a battery operated; wireless curtain type PIR for protecting interior doors, walls, ceilings, windows
and skylights as well as glass displays in residential,commercial and light industrial environments designed for use in Elpas Safety,
Security and Visibility systems
The detector provides horizontal or vertical curtain-shape, passive–infrared perimeter coverage up to 6m x 1m (20ft x 3.5ft) and
additionally can also be used as an internal invisible barrier to detect movement between two adjoining areas.
The Curtain PIR Detector is engineered to continuously measure the ambient temperature of all objects within its field of view. Any
rapid or differential change in temperature triggers the detector to transmit identifiable coded alarm RF messages which can be used
to alert security personal of a possible intruder in the protected area.
To ensure maximum security reliability, the detector supports remote supervision to protect against unauthorized tampering,
unapproved removal or of a dead battery condition. Small in size and weight, Curtain PIR Detector is easily fastened to walls or
ceilings and delivers three years of dependable service between battery changes.

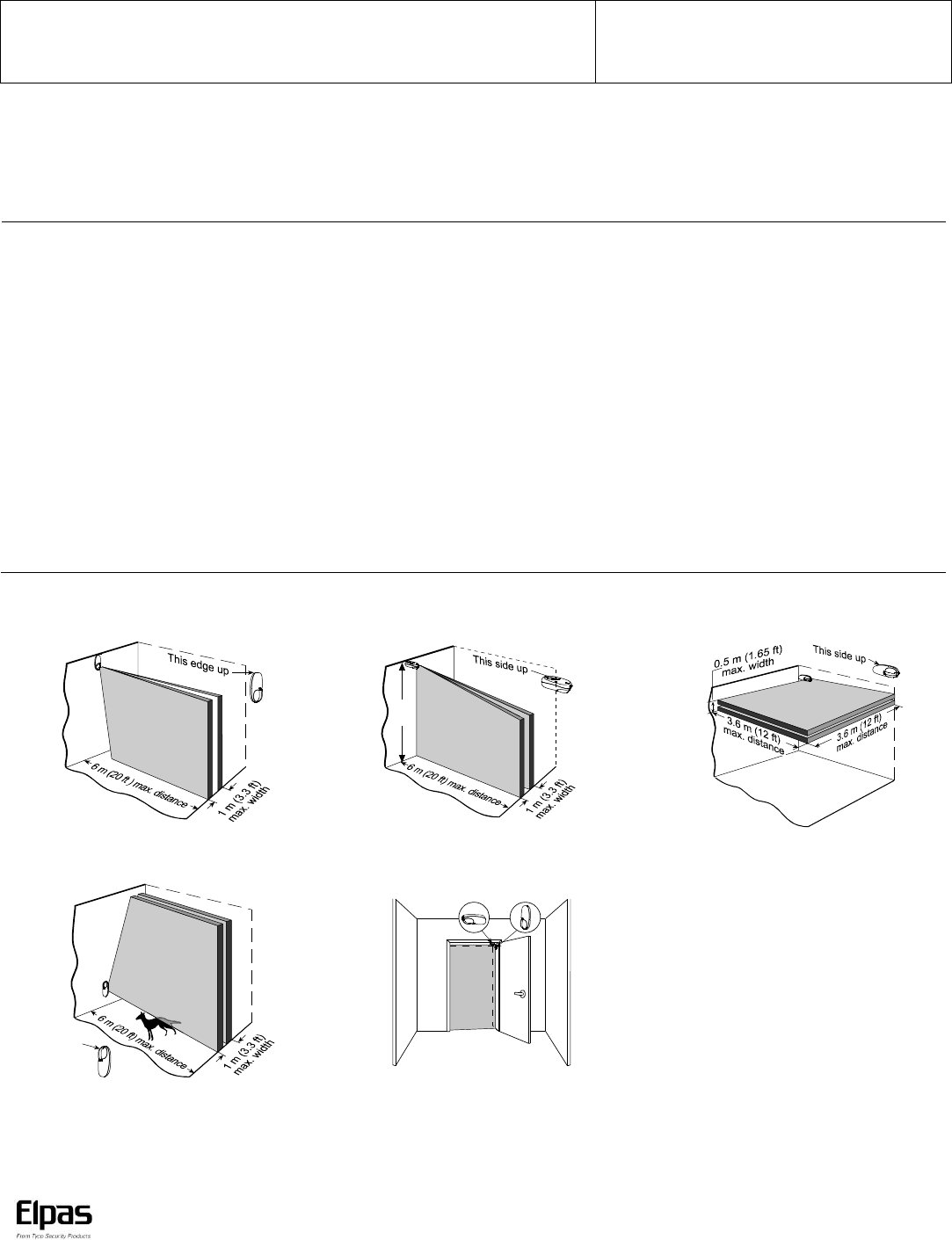

Coverage Patterns & Mounting Alternatives
Wall-Mount Curtain
2.4m
Ceiling-Mount Curtain
Overhead Curtain
This
side
up
Curtain / Pet Alley
OPTION A OPTION B
DETECTION
CURTAIN
CLIP MCW on Internal Doorframe
Preliminary
Elpas Curtain PIR Detector – Installation Guide
www.elpas.com
Page 2 of 8
V3/April 2013
Tamper Switch
The PIR Detector contains two spring loaded tamper switch that when
pressed, generates a ‘State’ message that is useful for registering the
detector in the host Elpas RTLS application.
(Refer to the Eiris Configuration Guide for enrolling transmitter IDs.)
Once registered, the tamper switch can also be used as an input trigger for
a device supervision tamper alert indicating non-authorized attempts to
remove the device’s cover.
Power
The PIR Detector derives its power from one CR2430 type lithium battery
(factory supplied).
IMPORTANT: The Wireless Input Module as well as all the input devices to be
monitored should be powered down when wiring in order to prevent accidental
shorts/spikes to cause damage to any of the devices.
Supported Event Transmissions
The Magnetic Contact Transmitter can transmit state changes from up to
two dry contact inputs (as a button press event message) to the host RTLS
server.
Input 1 – Button 1 Event
Input 2 – Button 2 Event
The input module can also transmit a state change from the tamper
switch (as a motion event message) indicating a non-authorized
attempt to remove the module’s cover.
Tamper Switch – Motion Event
Note: Whenever a state change is detected the input module automatically
transmits 4 RF event messages 400ms apart with each transmission about 2ms
in duration).

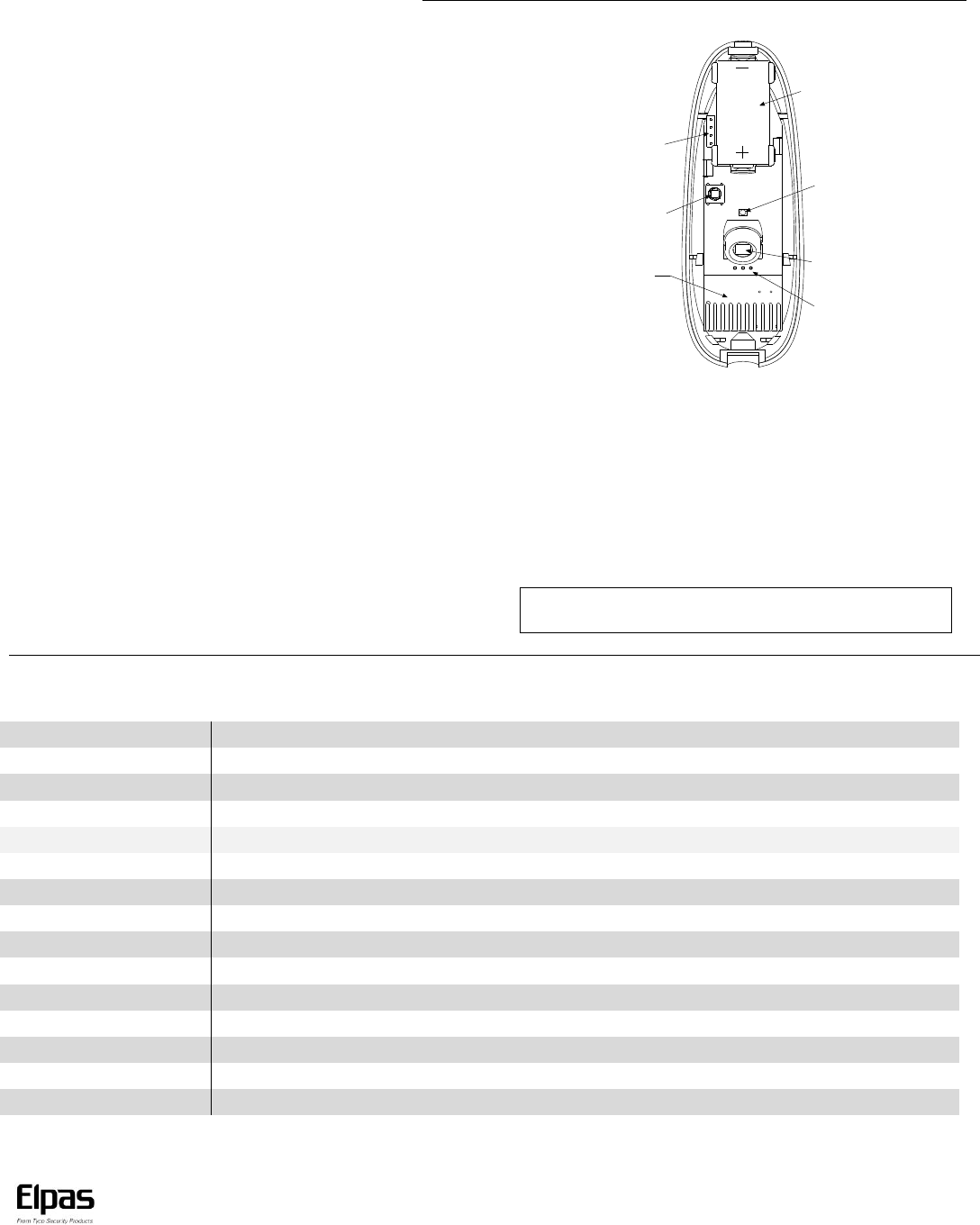

FRONT
TAMPER
SWITCH
SENSOR
RANGE
SELECT
JUMPER
3 VOLT
LITHIUM
BATTERY
BACK
TAMPER
SWITCH
(OPTIONAL)
RF
MODULE
LEDS
Status Indicator
The Magnetic Contact Transmitter has a Red Status LED that
flashes once/second signaling either a low voltage condition or that
the device is transmitting.
Lithium Battery Installation (supplied with device)
Before inserting the CR2430 type lithium battery into the module’s
battery holder, confirm that the holes of the battery Isolator are
aligned with the contact pins. Then ensure that the positive (+) side
of the battery faces the PCB.
IMPORTANT: Inserting the 1/2AA battery improperly into the
battery clip may cause damage to the Wireless Input Module.
Product Specifications
Signaling Technologies
RF (433MHz)
Transmission Rate
Every 60 seconds
Device Inputs
1 analog dry contacts and one reed switch
Supervised Events
Low Battery, Tamper
Power Source
3.6V/1.2Ah Lithium Battery, LiSOCl2 size 1/2 AA
Average Battery Life
Approximately 3 years
LED Indicator
Low Battery, Device Transmission
Badge ID
Unique, factory-programmed ID
Construction
White polycarbonate plastic
Dimensions (H x W x D)
81 x 22 x 23.5 mm (3-3/16 x 7/8 x 15/16 in.)
Weight
Reed Switch (excluding battery): 34 grams (1.2 ounces) Magnet: 13 grams (0.45 ounces)
Operating Environment
Temp: 0°C to 49°C (32°F to 120°F) Humidity: 90% non-condensing
Remote Management
Eiris 4.8 (or higher) Elpas Configurator 4.8 (or higher) ELC Programmer V2.0
Standards
IC, FCC & CE compliant
Warranty
1 year limited warranty (excluding battery)
Product offerings and specifications are subject to change without notice. Not all products include all features
Preliminary
Elpas Curtain PIR Detector – Installation Guide
www.elpas.com
Page 3 of 8
V3/April 2013
Installation Guidelines
BREAK-AWAY
SEGMENT
ATTENTION: The back tamper
switch becomes functional
only when the break-away
segment is secured to the
wall with a screw.
INSERT SCREW TO
SECURE COVER
WITH BASE
4
3
POSITION THE
PCB IN ITS
PLACE IN THE
BASE
1
DRILL TWO HOLES
IN THE MOUNTING
SURFACE AND
SECURE BASE
WITH TWO
SCREWS 2
FOR BACK TAMPER
(OPTIONAL), DRILL
TWO HOLES
AND SECURE
WITH TWO SCREW

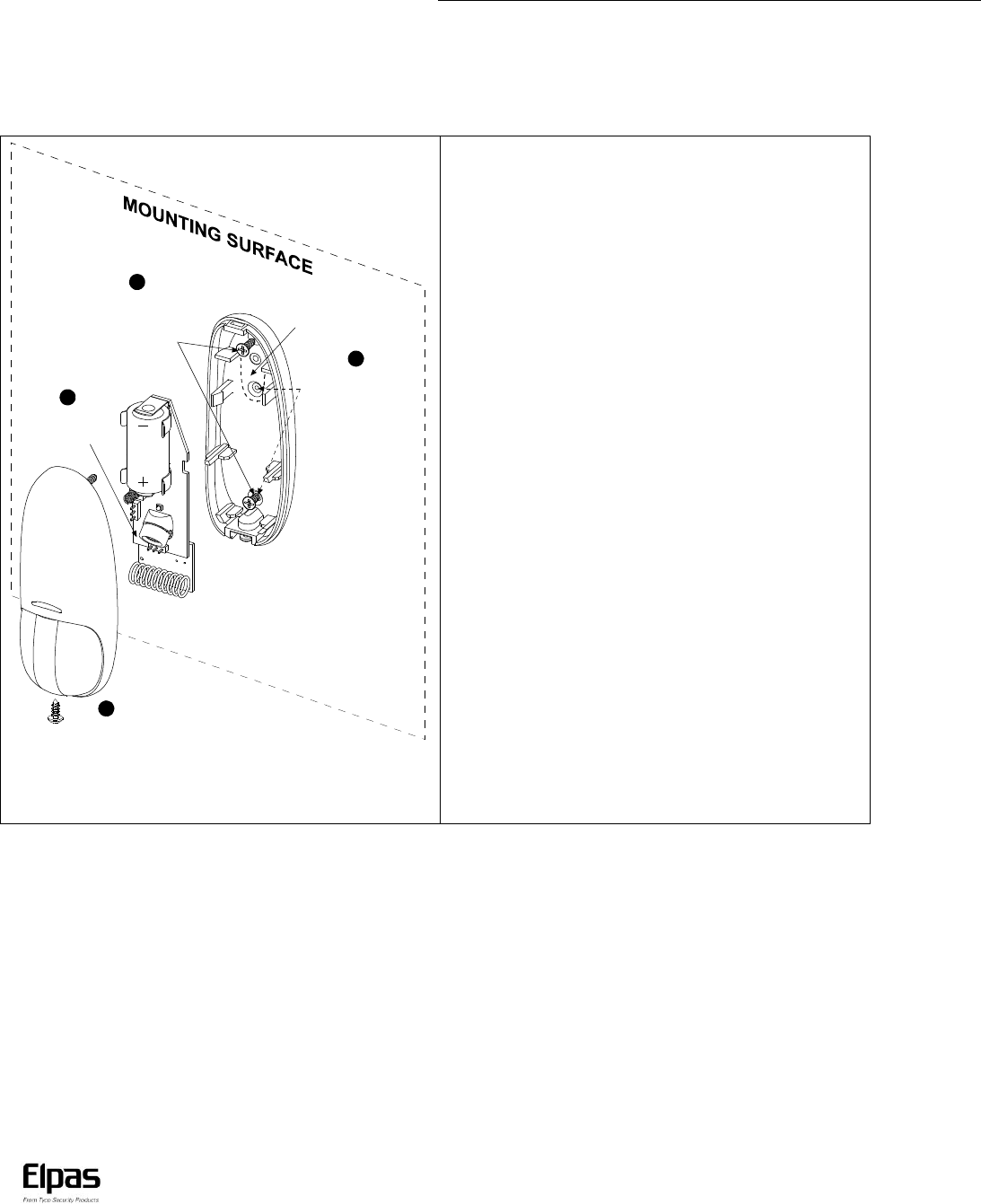

Figure 9. Surface Mounting
Notes:
1 ) After mounting, be sure that no gaps remain in the detector
housing. For example, in the area around the screw holes.
2) Remove the battery using your fingers, and not with a
screwdriver.

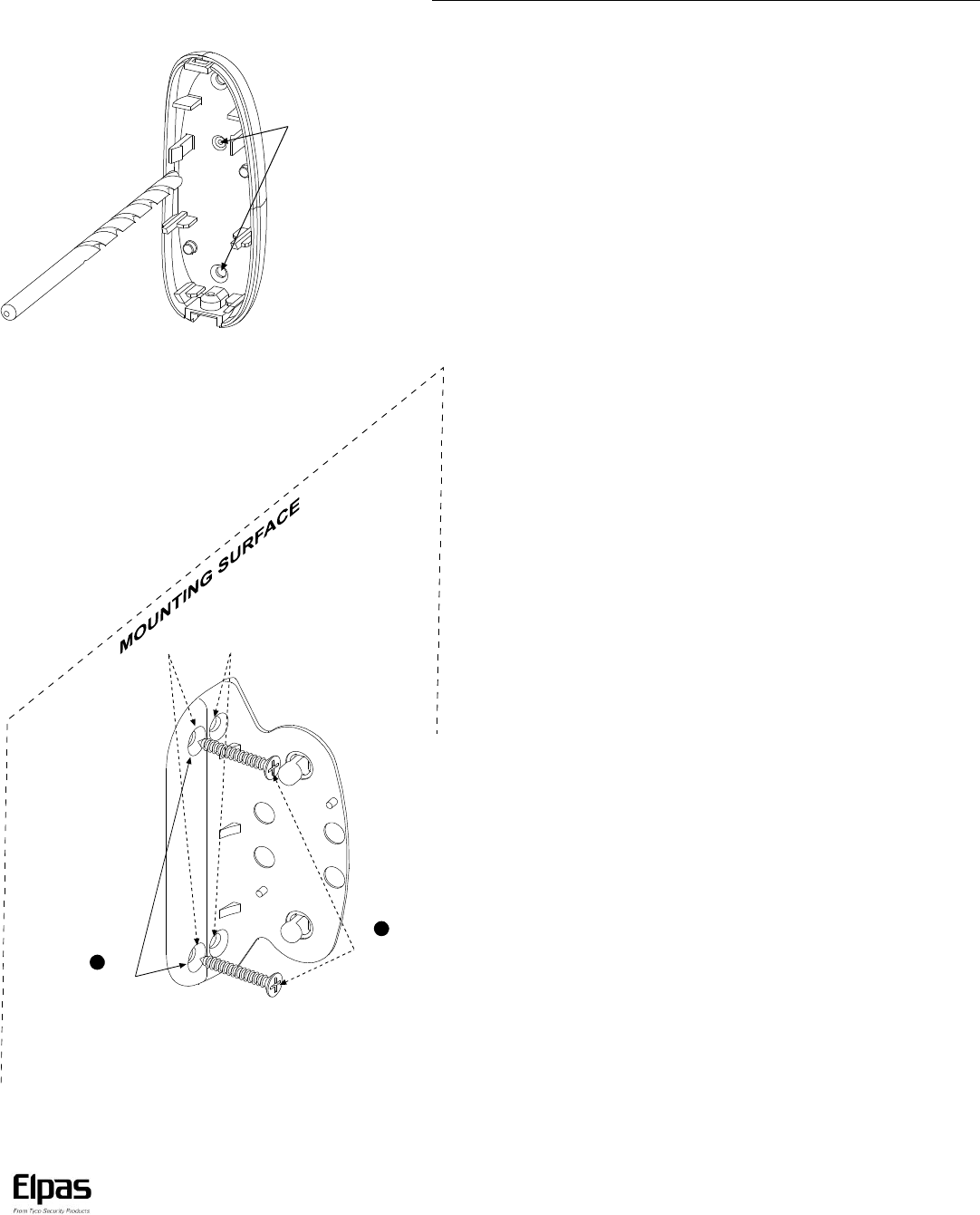

Bracket Mounting
Note: When mounting using the bracket, the back tamper is not functional.
Preliminary
Elpas Curtain PIR Detector – Installation Guide
www.elpas.com
Page 4 of 8
V3/April 2013
DRILL TWO
7 mm (1/4“)
HOLES
AT THE
MARKED
SPOTS
NOTE: THE BRACKET PROVIDES TWO MOUNTING OPTIONS
FOR OPTIMUM ANGLE COVERAGE .
USE THESE TWO HOLES TO INCREASE
THE COVERAGE RANGE BY 5
USE THESE TWO HOLES TO INCREASE THE
COVERAGE RANGE BY 10
DRILL TWO
HOLES IN THE
MOUNTING
SURFACE
1
SECURE
BRACKET
WITH TWO
SCREWS
2
***
Preliminary
Elpas Curtain PIR Detector – Installation Guide
www.elpas.com
Page 5 of 8
V3/April 2013
PLACE THE
LOCKING PLATE
OVER THE TWO
PINS
2
SECURE THE
LOCKING
PLATE BY
PRESSING
DOWNWARD
3
LOCKING
PLATE
PLACE THE
BASE SLOTS
OVER THE
TWO
BRACKET
PINS
1

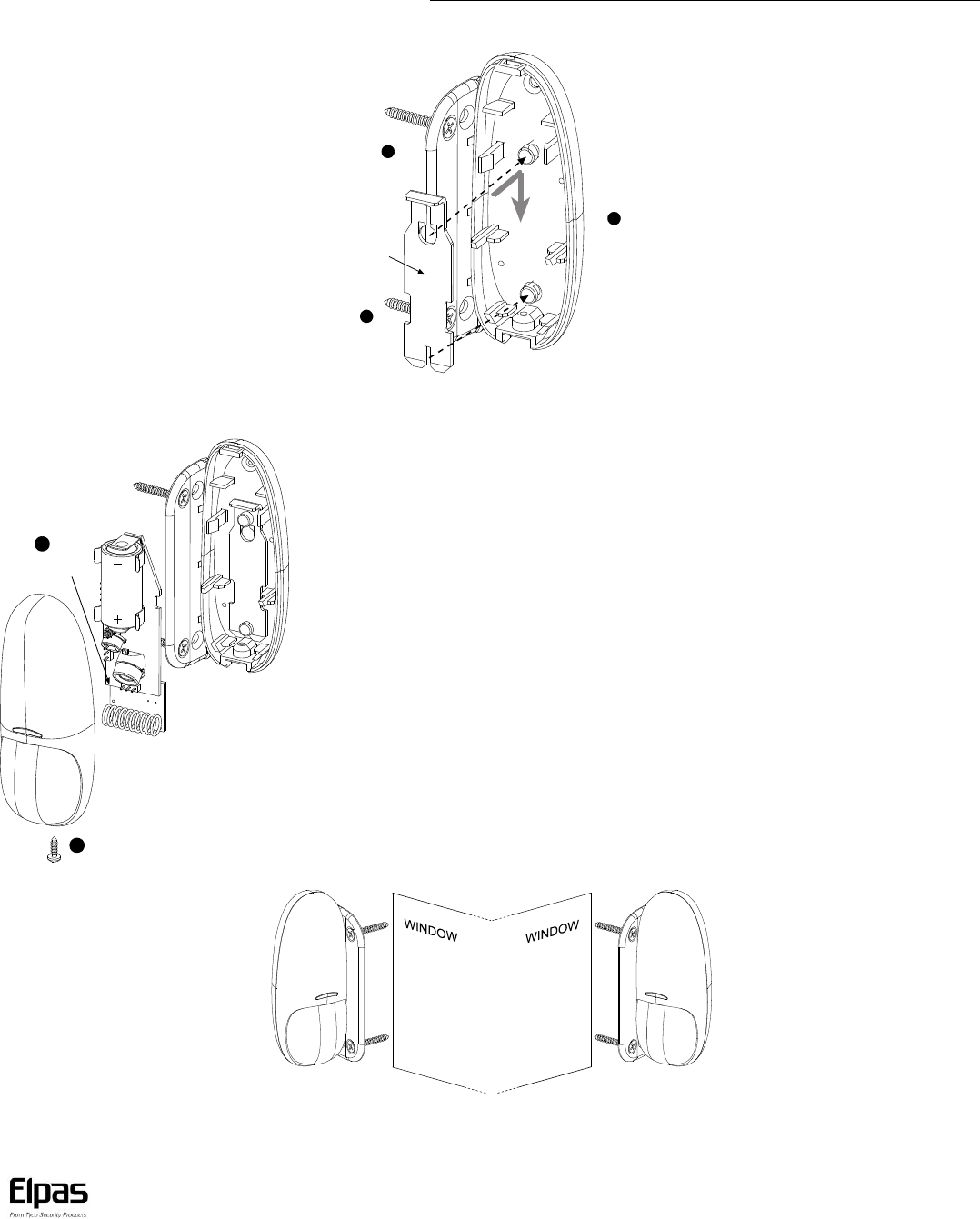

Figure 12. Securing Locking Plate to Base
POSITION THE
PCB CORRECTLY
IN THE BASE
1
INSERT SCREW TO
SECURE COVER
WITH BASE
2
Figure 13. Mounting Cover to Base
Note: The CLIP MCW can be mounted on either side of a window.
Figure 14. Mounting on Both Sides of a Window
Preliminary
Elpas Curtain PIR Detector – Installation Guide
www.elpas.com
Page 6 of 8
V3/April 2013
Setting the Coverage Range
A 4-pin jumper is used to select 3 ranges, according to the type of installation, for the curtain beams (see Figures 7 and 15).
Short range -
approx.
2 m (6 ft)
Medium range -
approx.
4 m (12 ft)
Long range -
approx.
6 m (18 ft)
Figure 15. Range Jumper Settings
Short Range Medium Range Long Range
Figure 16. Range Setting Diagram
The purpose of the range setting is to ensure optimal signal processing and high immunity against false alarms.
Mount the range jumper in the desired position and make sure that the protected area is within the selected coverage range (see figure 16). Carry out a
walk test (refer to Para. 3.5) to verify proper performance.
Walk Testing
A Mount the cover and tighten the screw. Wait for the detector to stabilize (the LED stops flashing approx. two minutes after the cover is
closed .)
B. Walk slowly across the far end of the curtain pattern (in opposite directions). The LED indicator lights for approx. 3 seconds whenever you
enter or exit a curtain beam .
Important: Perform walk test at least once a week to assure proper function of the detector.
Note: After closing the cover the detector enters a 15 minute walk test mode. In this mode the LED will flash each time a detection occurs, regardless of
LED jumper settings, and the detector will transmit on the occurrence of each detection event.
Preliminary
Elpas Curtain PIR Detector – Installation Guide
Page 7 of 8
V3/April 2013
W.E.E.E. Product Recycling Declaration
For information regarding the recycling of this product you must contact the company from which you orignially purchased it.
If you are discarding this product and not returning it for repair then you must ensure that it is returned as identified by your supplier.
This product is not to be thrown away with everyday waste - Directive 2002/96/EC Waste Electrical and Electronic Equipment.
EU Declaration of Conformity
This equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC
FCC & IC Compliance Standards
This device (FCC ID#: O4X5-PIR00433 and IC ID#:1467G-5PIR00433)
complies with F CC Rules Part 15 and with Industry Canada license -exempt
RSS standard(s). Operation is subject to two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any
interference that may be received or t hat may cause undesired operation.
For Industry Canada: Le présent appareil est conforme aux CNR d'Industrie
Canada applicables aux appareils radio exempts de licence. L'exploitation
est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas
produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
Note: This equipment has been tested and found to comply with the li mi ts
for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against har mful
interference in a residential installation. This equipment generates; uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help
Changes or modifications to this equipment not expressly approved by the
par t y r e spon si ble for co mp l ian ce ( E l pas Sol u ti on s Lt d . ) coul d v o i d th e u s e r ’s
authority to operate the equipment.
This equipment complies with FCC and IC RF radiation exposure limi ts set
forth for an uncontrolled environment.
Company Contact
Elpas, Inc. Westford, Massachusetts (USA)
Tel: 1-800-223-0020
Product Warranty
E l p a s Sol u t i on s, L t d . (t he C o m p an y ), a n d i t s a f f i l i at es, w a r r a n t s it s pr od uc t s ( h e r e i n a f te r ref e r r ed t o as "t h e Pr o d uc t ”) to be free of defect s in m aterial s and workman shi p und er normal
op e r a t in g co nd i t io n s an d u se f or a p e r i od o f one ye ar f r o m t h e dat e of sh i pm e n t by El pa s. T h e Com p an y ’s o b l iga t io n s s h a l l b e l im ited wi thi n the warr ant y p eri od, at it s opti on, to repai r or
to repla ce the de fectiv e Product or an y defecti ve c om ponent or part t hereof. To ex er cise thi s warra nty, the pr od uct must be retu rne d to th e m a nuf acturer freig ht prepaid and insured.
This warrant y doe s not ap pl y to r epair s or repl acem ent caused by i mprop er inst allat ion, Pro duct mi suse, fail ur e to follo w instal lation or op er at ing instruct ions, alter at ion, ab use, ac ci de nt,
tamperi ng, re pair by a ny on e other than El pas, ex ternal causes, a nd fail ure to p erform re quired prev entiv e mai ntenanc e. This w arra nt y also doe s not apply to any pr od uct s, acce ssories, or
attachm ent s u sed in co nj un ct ion with t he Pro duct, incl uding batt eries, whi ch shall be cov er ed sol el y b y th ei r o wn warr antie s, if any. El pas shall not be li able for any dam ag e or lo ss
whatsoev er, wh et her di rectly, in dire ctly, inci dental ly, conseq uentiall y or oth er wi se, result ing from a mal functi on of the Pro du ct due to produc ts, acces sori es, or attac hment s of ot her s,
includi ng batt eries, used i n c onj uncti on wit h t he Prod uct.
ELPAS MAKES NO EXPRESS W ARRANTIE S EXCEPT T HO SE ST AT ED IN THIS STATEMENT. ELP AS DI SC LAI MS ALL OTHER WARRANTI ES, EXP RESS OR IMP LIED, I NCLUDING
W I TH O UT L I M I TAT I O N I M P LI E D W A R R A N T IE S O F M E R C H A N T AB I LI T Y A N D F I TNE S S F OR A P A R T IC UL A R P U RP O SE . E L P A S’ S S O LE RE S PO N S I B I LIT Y F O R W ARRANTY C LAIMS IS
LIMITED TO REPAI R OR TO RE PLACE AS SET F ORTH IN T HIS STATEM ENT.
Elpas shal l hav e no liabi lity f or any deat h, personal injury, pro perty dam ag e, or other lo ss wh et he r di re ct , indirect, incide nt al , consequ ential, or ot he rwi se, based on a clai m that the
Produc t failed to f unct ion. Ho wev er, if El pa s is hel d li abl e, whet her dir ectly or in di rectly, for any loss or damag e ari si ng un de r this li mited warra nt y o r ot her wi se, regardl ess of cause or
origin, t he com pany' s max imum li abi lity shall be limited to the pur ch ase pri ce of the Product, which shall b e f ixed as liquid at ed dam ages and not as a penal ty, and shal l be the com plet e
and ex cl usi ve l iabili ty of El pa s.
Elpas sh all not, under any cir cum stanc es what soever, be lia bl e for any inaccu ra cy, error of jud gm ent , def ault, or negl igence o f Elpas, it s employ ees, off icers, agent s, or any other part y,
or of the purc haser or u ser, ari si ng f rom any assi st ance or c om municati on of any kind regar di ng t he c onf igurati on, design, i n st allat ion, o r creati on of securi ty sy st em i nv olv ing the
Produc t, th at bei n g t h e r es po n s i b i l i t y o f t h e p ur c ha se r or u s e r . If El p a s i s u n ab l e t o m a k e s uc h r e p ai r o r r epl a c e m ent , t h e c o m pa ny ’s e n t i r e l iabili ty shall be li mited to t he co st of a
reasona bl e substi tut e pro duct. El pas s hall not be responsi ble f or any di sm ant ling, insta ll at ion, rei nstall at ion, pu rcha si ng, ship pi ng, insura nc e, or any sim ilar c harges.
Elpas shall hav e no liabi lity for any dam age s, incl uding wit hout lim itation, any dire ct, indir ect, inci dental , spe ci al , or co nseque nt ial damage s, exp en se s, cost s, pr of its, lo st sav ings or
earnin gs, or other d am ag es ari si ng out of t he use of t he Product or th e remov al, instal lation, reinst al lation, r epair or re pl ac em ent of th e Pr oduct or any r el ate d ev ents. I n the ev ent that
there i s any l iabil ity ag ai nst Elpas, such li abili ty shall be limi ted to t he purc hase pri ce of the Product whi ch amount shall b e fixed as liq ui dat ed dam ag es.
The pu rchaser and u ser under sta nd that thi s Pr od uct may be com promi sed or circumv ented by i ntenti onal act s; t hat the Pr oduct wil l not i n al l cases pr ev ent deat h, pe rsonal injury,
propert y dama ge, or other loss result ing from burglar y, ro bbery, fi re or ot her causes; and th at the Pro duct will not in all c ases prov ide adequat e war ni ng or pr otecti on. The purchaser and
user al so unde rst and that a p roperl y ins tall ed and m ai nt ai ne d alarm may r educ e t he risk of ev ents such a s burglary, ro bbery, and f ire wit hout warni ng, but it i s n ot insura nc e or a
guarant ee th at su ch ev ent s wil l not occ ur or t hat ther e wil l be no death, perso nal injur y, prop ert y damag e, or other loss as a re sult of such ev ents.
By purchasi ng the Prod uct , th e purcha ser an d user shall defen d, in dem ni fy and hold El pas, its off icers, direct or s, af fili at es , subsi di aries, agent s, se rvant s, empl oy ee s, and authori zed
repres entativ es harmless from and ag ai nst any and all claims, sui ts, costs, dam ages, and ju dgment s incurred, clai med, or su st ained wheth er f or deat h, p er son al inj ury, pr op ert y damag e,
or ot her wise, beca use of or in any way rel ated to th e conf igurati on, desi gn, in stal lation, or creati on of a sec uri ty system inv olv ing the P roduct, and the use, sale, di stri bution, and
i n s t a l lat i o n of t h e Pr od uc t , in c l u di ng p a y m e n t o f an y an d al l at t or ney’ s f ee s, c ost s, a n d ex pe nse s i n c ur re d a s a re s u l t of a n y such ev ents.
The p urc haser or u ser should fol low th e Pr od uct in st allation and oper ation instr uct ions and te st the Pr oduct and the enti re syste m at least o nc e each week. For v ar ious re aso ns, incl udi ng
but not li mited to ch an ges in env ironment al co ndi tion s, electri c, elect ronic, or electromag neti c di srupti on s, and tamperi ng, the Pr od uct may not perf orm as exp ect ed. The purch aser and
user a re advi sed to take all necessary pr ecautions f or the pr ot ectio n a nd safety of per son s and pr opert y.
This st atem ent prov ide s ce rt ai n leg al ri ghts. Other right s may vary by st ate or count ry. Unde r cert ai n cir cum stanc es, som e state s or count ries may not al low ex clusi on or lim itati on of
incide nt al or c onseq uenti al damag es or i mpli ed wa rrant ies, so t he a bov e excl usi ons m ay not apply u nder t hose ci rc um st anc es an d i n t hose st ate s or co untrie s.
Preliminary
Elpas Curtain PIR Detector – Installation Guide
www.elpas.com
Page 8 of 8
V3/April 2013
Elpas reserv es t he right to modif y thi s stat em ent at any time, in i ts sole discretion wi thout noti ce to an y purchaser or user . Ho wever, this st at em ent shall not be m odi fied or v aried ex cept
by Elpas in writi ng, and El pas doe s not authorize any si ngle indiv idual to act on it s behalf to modi fy or v ary thi s statem ent. A ny qu est i ons abo ut thi s
st ateme nt should be directed t o Elpas.
Preliminary
