User Manual
June 2011 IL42-5016D
Elster
Raleigh, North Carolina USA
+1 800 338 5251 (US toll free)
+1 905 634 4895 (Canada)
support@us.elster.com
EA_Water 2.0 module
Installation instructions
General
This leaflet contains instructions for Elster’s EA_Water 2.0 module for use on water meters to provide readings to the
EnergyAxis® System. For proper installation and maximum life of the modules, use the following procedures.
The EA_Water 2.0 module can be installed as an integral, wall, or pipe mount. The integral mount consists of the module
being mounted directly to the water meter. See “Integral mount” on page 1 for specific instructions. The wall mount is
mounted to a mostly flat surface such as a wall or other surface. See “Wall mount” on page 2 for specific instructions. The
pipe mount consists of hardware to mount the module to a pipe. See “Pipe mount” on page 4 for specific instructions.
Familiarize yourself with the location and identification of the terminals on your water meter registers before any installation
procedure.
Radio communications performance and mounting
The EA_Water 2.0 module is designed to provide excellent radio communications performance when it is mounted such
that the front surface arrows point up. Alternate mounting orientations may impair radio communications performance.
Connection instructions
The EA_Water 2.0 module register connections are as follows:
Installation instructions
Integral mount
The EA_Water 2.0 module is shipped fully assembled and ready to install. You will need to mount the EA_Water 2.0 module
directly onto the water meter register. The integral mount cover has a hoop that fits around the water meter register.
Function Module
cable color
Register terminal color
Elster AMCO Badger Sensus Hersey Neptune
Data Green Red Green Green Green Red
Power (or power/clock) Red Green Red Red Red Black
Common (ground) Black Black Black Black Black Green
IL42-5016D
4:27 pm, Jun 14, 2011
IL42-5016D June 2011
2
1. Align the hoop EA_Water 2.0 module over the water meter register so that the EA_Water 2.0 module wires are
able to connect to the water meter terminals.
2. Securely attach the EA_Water 2.0 module over the water meter register.
3. Using the table in “Connection instructions” on page 1, connect the appropriate wires to the correct terminals on
the water meter register. Typically, the connection is made by placing the wire under the screw terminal and
tightening down securely. See the product documentation for your water meter register for more information.
Wall mount
The EA_Water 2.0 module can be mounted on a wall close to the water meter. To assist placing the enclosure on the
hanging screw, the enclosure has hash marks that will help you properly align the module.
The cable from the EA_Water 2.0 module and the water meter register should not exceed 100 feet (30 meters).
1. Remove the remote mount cover from the EA_Water 2.0 module.
CAUTION
!
Be sure to connect the cables correctly. Failing to properly connect the cables may prevent the module from operating
correctly. For information on proper connections, see “Connection instructions” on page 1.
2. For proper operation of the module, connect the cables as described in “Connection instructions” on page 1.
a. If you do not have an inline connector, splice the cables from the EA_Water 2.0 module to the water meter
register cable using weatherproof gel caps (for example, 3M style 314 IDC). Be sure to follow the
manufacturer’s directions for wire preparation when using gel caps.

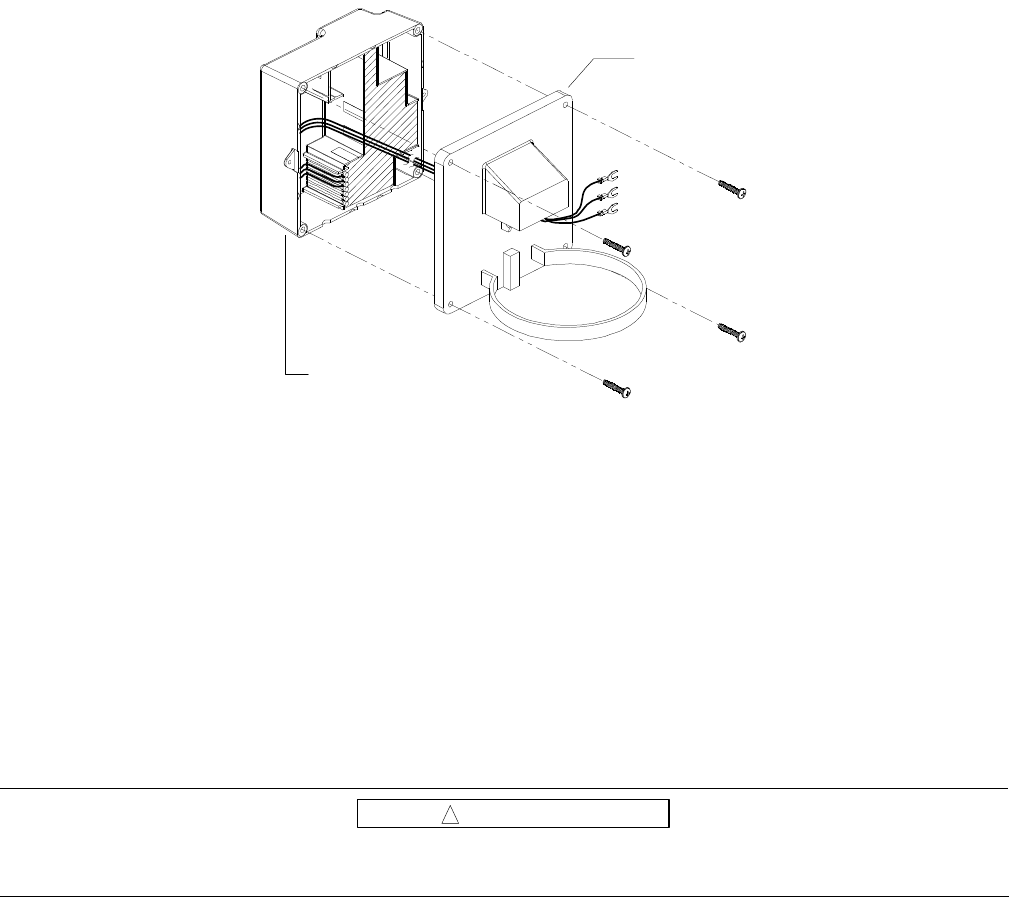

EA_Water 2.0 remote module
Integral mount cover
June 2011 IL42-5016D
3
Insert the cable back into the EA_Water 2.0 module, making sure to provide strain relief for the cable. Be sure
to securely fashion the cable by using the cable tie, as illustrated in the next figure.
CAUTION
!
Be sure that the arrows are as closely aligned as possible before mating. Failing to properly align the arrows may result in
damage to the connector, requiring a replacement of either the connector or the module itself.
b. If you have an inline connector, align the arrows on both connector ends. Press firmly to fully mate the
connectors (see next figure).
3. Reattach the remote mount cover to the EA_Water 2.0 module.
4. Hang the EA_Water 2.0 module on the hanger screw, making sure it is level.
5. Screw 2 screws into the 2 bottom supporting screw mounts.

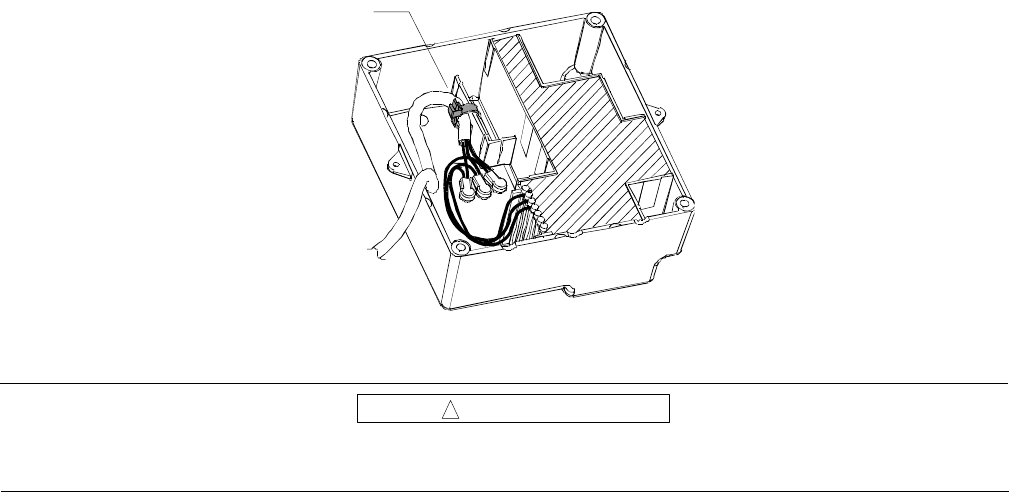

Cable tie
Be sure to carefully
align arrows
IL42-5016D June 2011
4
6. Using the table in “Connection instructions” on page 1, connect the appropriate wires to the correct terminals on
the water meter register. Typically, the connection is made by placing the wire under the screw terminal and
tightening down securely. See the product documentation for your water meter register for more information.
7. When you have completed the installation, secure the EA_Water 2.0 enclosure by inserting the tamper plugs into
bottom supporting screw mounts.
Pipe mount
The EA_Water 2.0 module can be mounted on a pipe close to the water meter. The pipe mounting option uses a hose
clamp and mounting bracket to attach the EA_Water 2.0 module to a pipe.
The cable from the EA_Water 2.0 module to the water meter register should not exceed 100 feet (30 meters).
1. Remove the remote mount cover from the EA_Water 2.0 module.
2. Align the mounting bracket to the remote mount cover and secure the mounting bracket with screws.
CAUTION
!
Be sure to connect the cables correctly. Failing to properly connect the cables may prevent the module from operating
correctly. For information on proper connections, see “Connection instructions” on page 1.

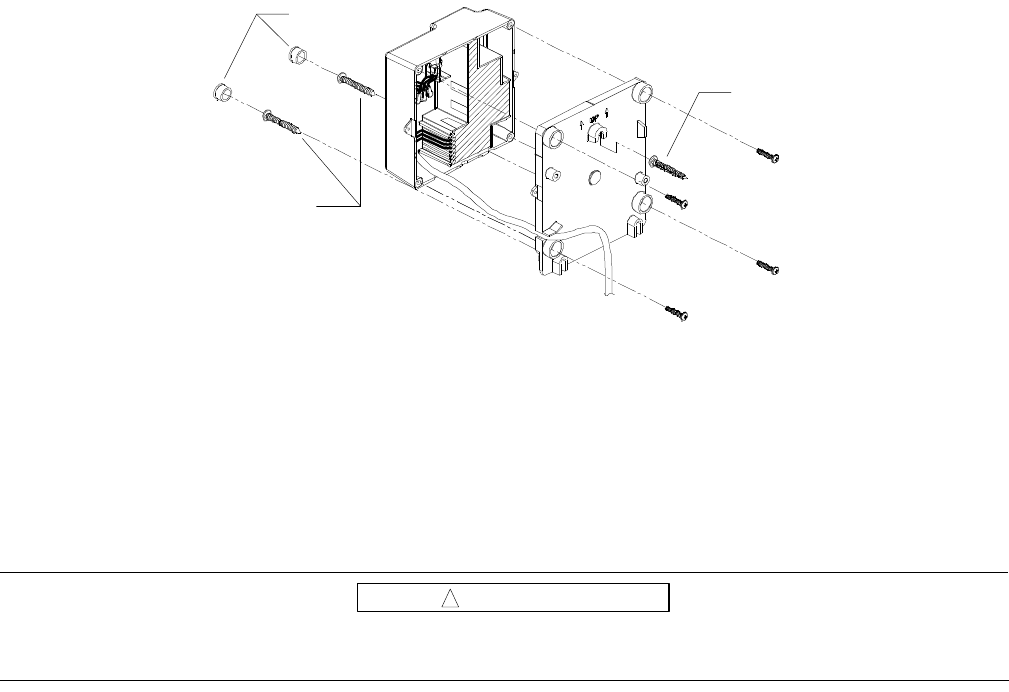

Tamper plugs
Hanger screw
Supporting screws
June 2011 IL42-5016D
5
3. For proper operation of the module, connect the cables as described in “Connection instructions” on page 1.
a. If you do not have an inline connector, splice the cables from the EA_Water 2.0 module to the water meter
register cable using weatherproof gel caps (for example, 3M style 314 IDC). Be sure to follow the
manufacturer’s directions for wire preparation when using gel caps.
Insert the cable back into the EA_Water 2.0 module, making sure to provide strain relief for the cable. Be sure
to securely fashion the cable by using the cable tie, as illustrated in the next figure.
CAUTION
!
Be sure that the arrows are as closely aligned as possible before mating. Failing to properly align the arrows may result in
damage to the connector, requiring a replacement of either the connector or the module itself.
b. If you have an inline connector, align the arrows on both connector ends. Press firmly to fully mate the
connectors (see next figure).
Cable tie
IL42-5016D June 2011
6
4. Insert the cable back into the EA_Water 2.0 module, making sure to provide strain relief for the cable. Be sure to
securely fashion the cable by using the cable tie as illustrated in the next figure.
5. Reattach the remote mount cover to the EA_Water 2.0 module.

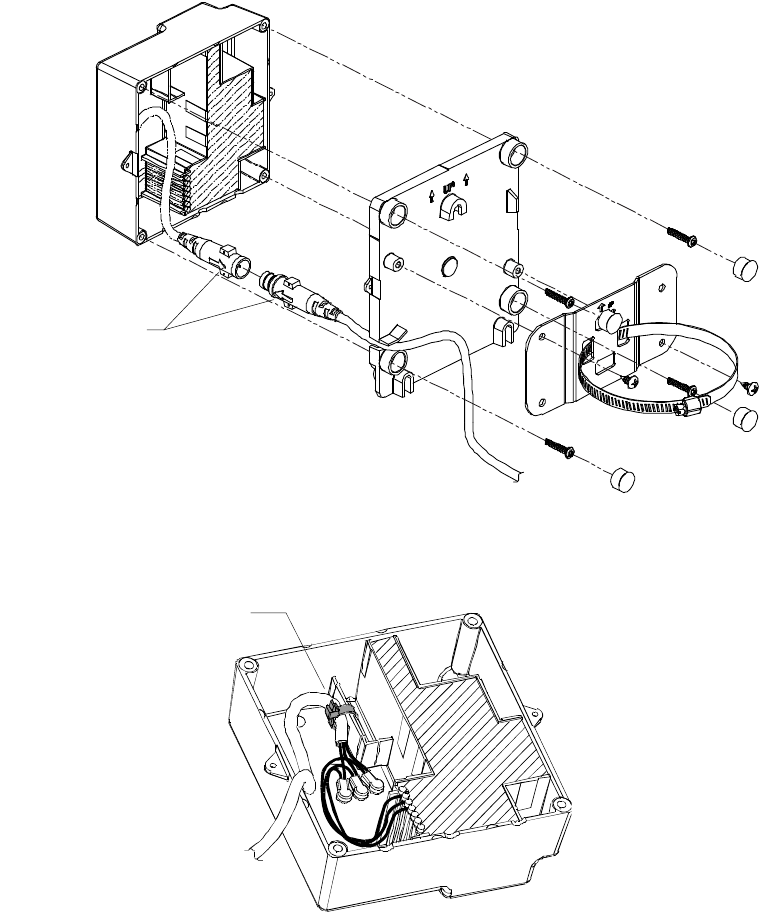

6. Thread the pipe hose clamp through the slot of the mounting bracket
7. Mount and secure the EA_Water 2.0 module to the pipe.
8. Using the table in “Connection instructions” on page 1, connect the appropriate wires to the correct terminals on
the water meter register. Typically, the connection is made by placing the wire under the screw terminal and
tightening down securely. See the product documentation for your water meter register for more information.
Be sure to carefully
align arrows
Cable tie
June 2011 IL42-5016D
7
9. When you have completed the installation, secure the EA_Water 2.0 enclosure by inserting the tamper plugs into
tamper plug mounts..
Tamper plugs
Tamper plugs
Mounting bracket
Hose clamp
IL42-5016D June 2011
