R520 Quick Setup Guide_V1 0_0914
R520 Quick Setup Guide
FCC ID: 2AQ5T-R520
1. Introduction
Thanks for purchasing R520 broadband router. This router, equipped with the latest 4G and
Wireless-N technology, is a full function network equipment. It can support you to freely access
network connection in different occasions, such as meeting, exhibition, factory, or home. When
using SIM card to access network, you could also make phone calls or send text messages
simultaneously. R520 has extraordinary performance, and is very easy to use and manage. It
supports multiple devices sharing one broadband link and ISP account, to offer you great
convenience and cost efficiency. In the meanwhile, it provides multiple management functions, to
configure system, DHCP server, firewall, static route table. R520 broadband router is easy to
configure, so non-professionals could configure the device. Before you start to configure R520,
please read this user guide, to fully understand the functions of R520.

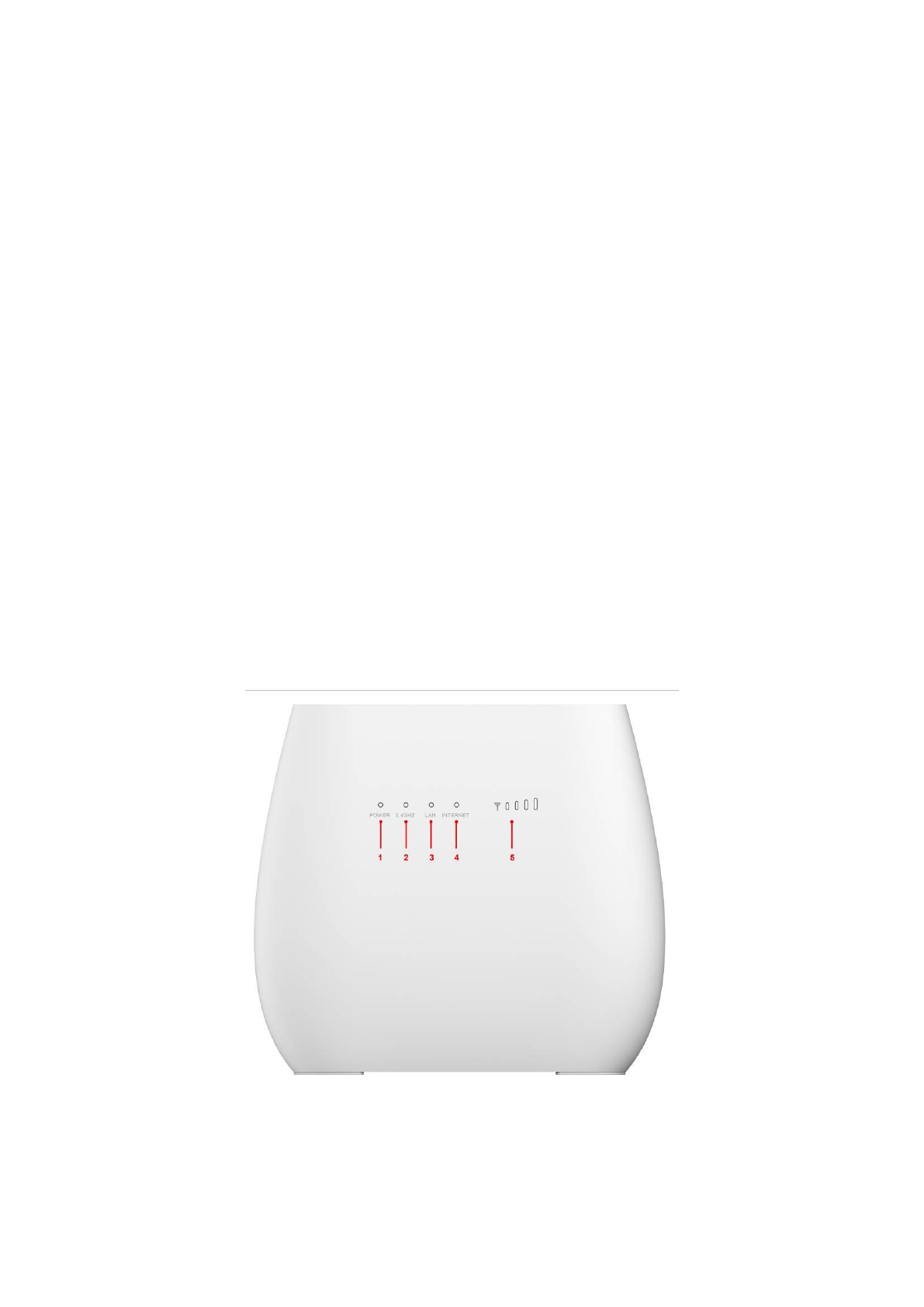

2.Product layout
Number
LED
Description
1
Power
A blink green light indicates a proper connection to the power
supply
2
WIFI/WPS
1. Light up in green when WIFI is enabled;
2. Blink slowly when data transfer;
3. Blink quickly when WPS is enabled
3
LAN
For the LAN connection will shine.
4
Internet
Light up in green when Internet is enabled. Blink when data
transfer.
5
Signal
Show signal strength.
Number
Connections
Description
6
Power
Turn on/off the router.
7
Power Adapter
Connect Power to DC-Jack 12V/1A Power Adapter. Using power
supplies with a different voltage from the one included with the
R520 will cause damage and void the warranty.
8
LAN
LAN ports provide connections to Ethernet enabled devices.
9
WAN/LAN
If the WAN is set to the WAN Mode, will be as the WAN
interface, you can dial the DSL module; If WAN set to LAN
MODE, will be a LAN interface
10
TEL
Connect the telephone
Number
Connections
Description
11
RESET
Press the reset button 3 seconds to restore the device to its factory
default settings.
12
WPS
Click this button to start WPS encryption.
13
SIM
Insert SIM card to automatically identify registration
3.Led Indication
Feature
Colour
Working Stauts
Remark
Power
Green,Solid
Power on
Dark
Power off
LAN
Green,Blink
- 0.5s
RJ45 cable connected
Dark
no RJ45 cable connected
Internet
Blue,Solid
Regiester to LTE(not connect)
Blue,Blink-
0.5s
Connected to LTE network
Green,Solid
Regiester to 3G/2G network
Green,Blink
- 0.5s
Connected to 3G/2G network
Red,Solid
No SIM card or No network
Service
SIGNAL
Green(1-4
bar)
Indicate signal strength
4.Connection the Device
1) Ethernet Connection: Connect Ethernet cable between your PC/Notebook and one of the four
available LAN ports on R520

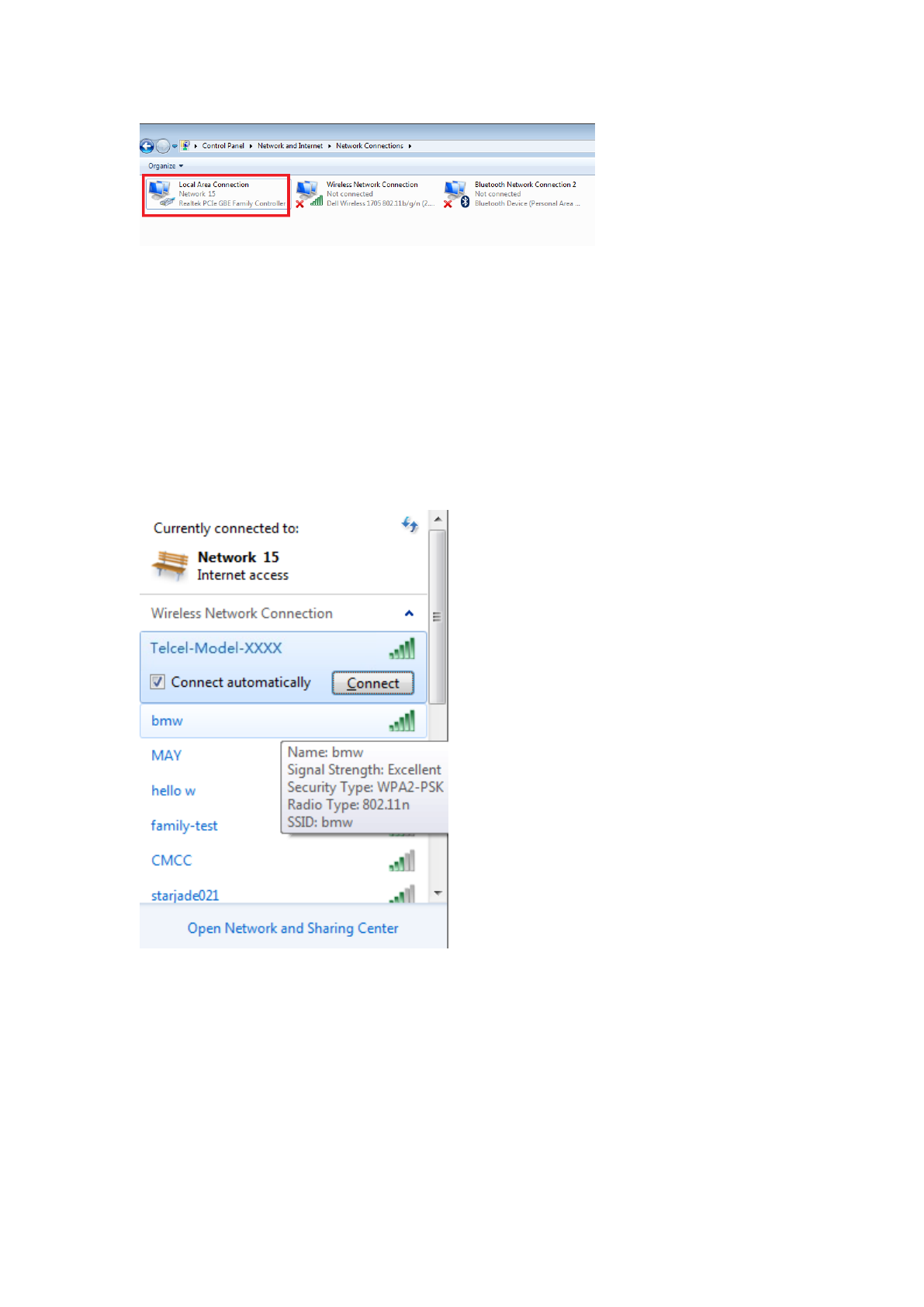

2) Establish Wi-Fi connection:
you must ensure that the computer equipped with a wireless network card. If the computer showed
the presence of Wi-Fi connectivity, the wireless LAN is available. Otherwise, you need to check
your wireless network card is working properly.

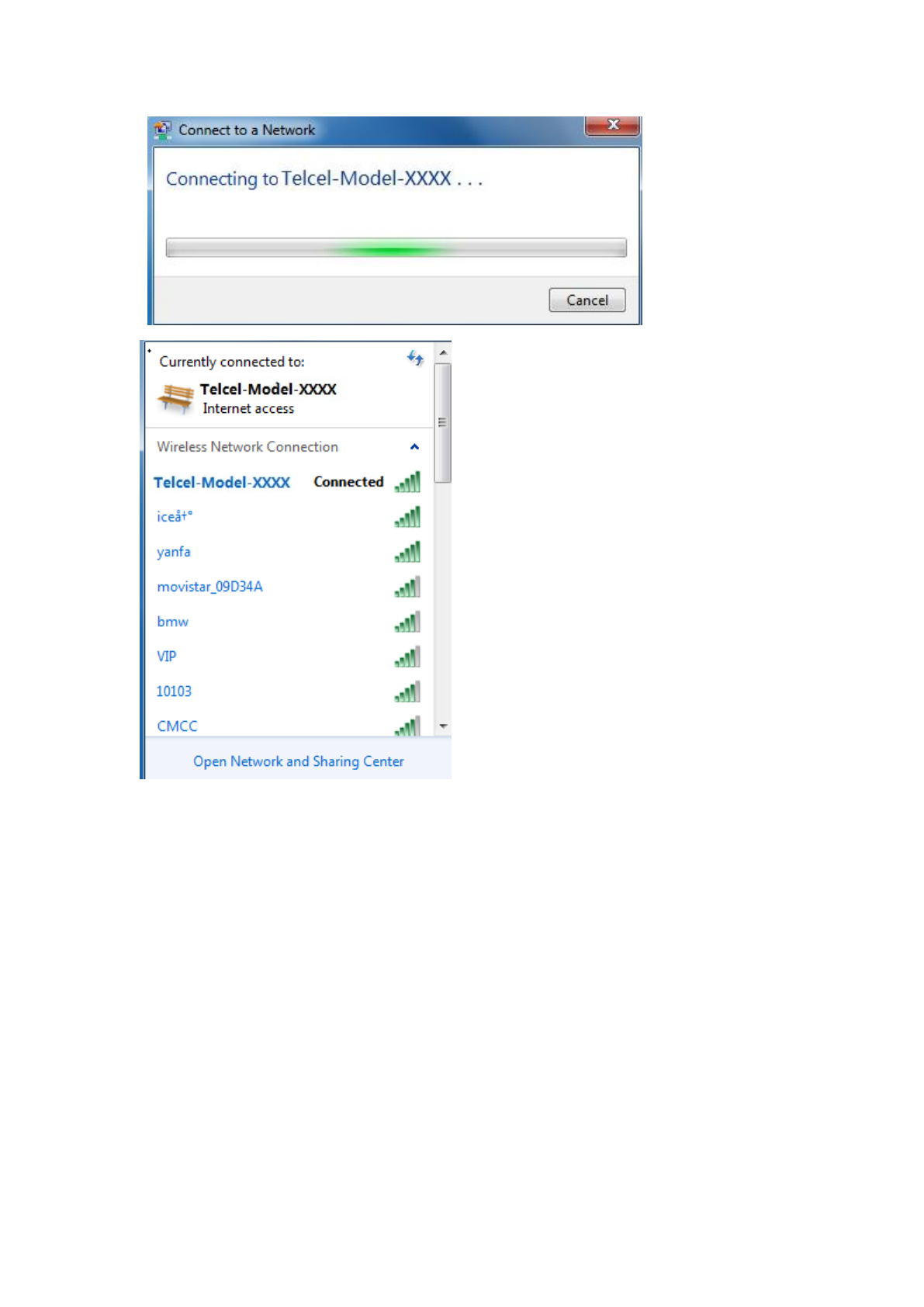

In the Wi-Fi list, select the SSID consistent with R520 Wi-Fi, click Connect. Then enter the
correct Wi-Fi password, click ok. A moment later, Wi-Fi connection is displayed next to the name,
Wi-Fi connection is successful.

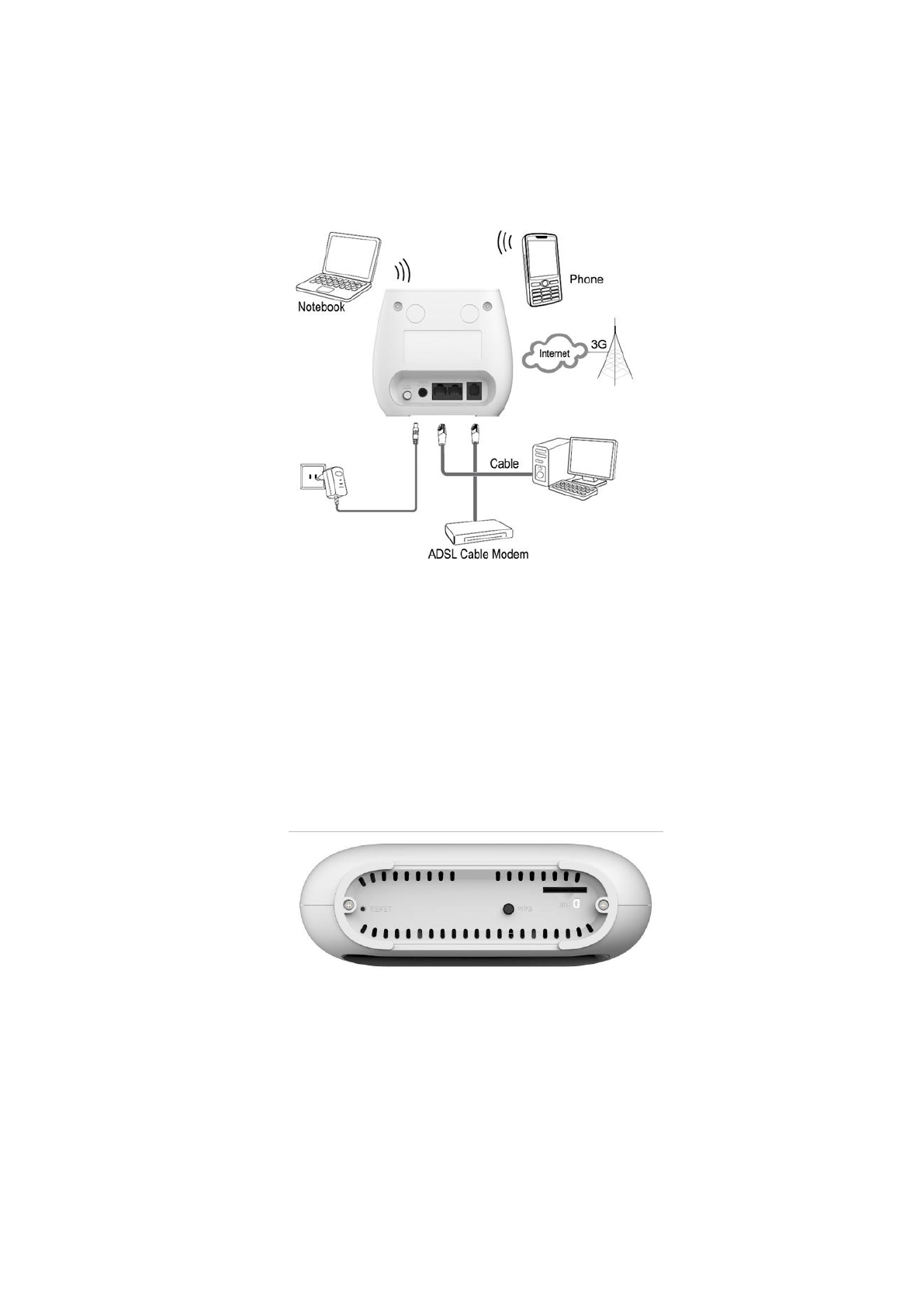

5.Network Setup
5.1WAN Setting
1) Connect Ethernet cable between your PC/Notebook and one of the four available LAN ports
on R520.
2) Connect Ethernet cable between WAN ports of your ADSL/CABLE modem and WAN port
of R520. Please make sure your ADSL/CABLE modem is working properly. Contact your
ISP if you have any question.
3) Power up R520.
5.2/3G/4G Setting
When using SIM card to access network, you could also make phone calls or send text
messages.
1) Insert SIM card into the port.
(Attention : the SIM card can support the function of plugging during the operation of
the equipment.)
2) Power up R520. Press Power button, then front panel will light up and remain stable.
6.Usage
You can place R520 on a desk or other flat surface. Please keep R520 away from heating. For
optimal performance, please place your R520 in the center of your home (office), in a location that
is away from any potential interference source, such as metal walls or microwave oven.Computers
& laptops etc may be connected to the R520 via USB cable for Internet Access.
7.Configuration
7.1 Login management page view
Whenever you want to configure your network or the R520, you can access the Configuration
Menu by opening the web-browser and typing in the IP Address of the R520. For example,
http://192.168.8.1
Note: If you changed the default IP Address assigned to the R520, make sure to enter the
correct IP Address.
●The default Account is Telcel
●The default Password is Telcel
Enter the Account and Password, login administration pages

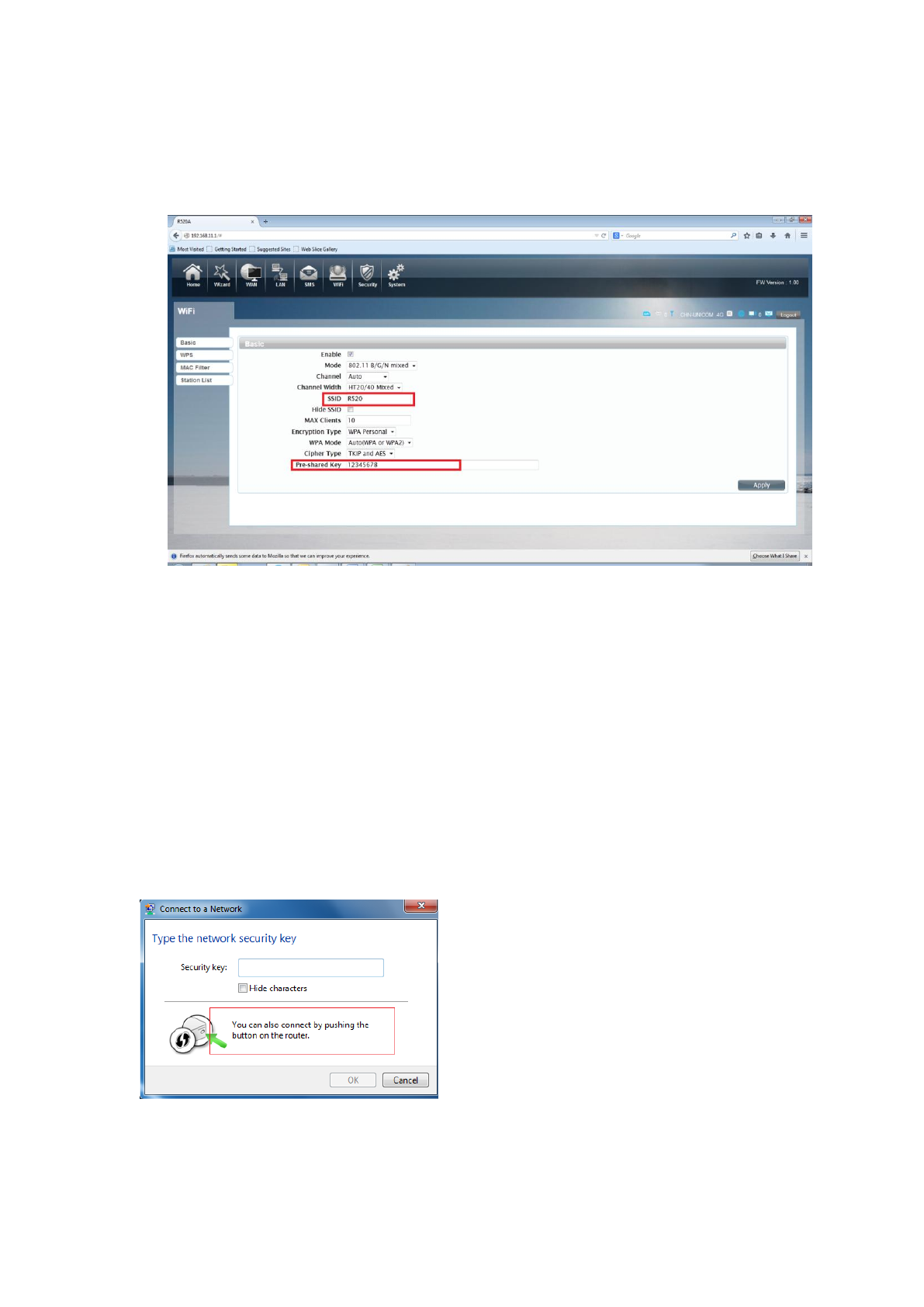

7.2 Edit WIFI Basic
Enter the Wi-Fi menu, view the default SSID and Wi-Fi password
●The default SSID is Telcel-Model-XXXX (Last 4 characters corresponding to the
last digits of the MAC address)
●The default Wi-Fi Password is 1234567890
You will go to the overview and log in page. The Factory default user name and password are
admin. It is recommended to change the admin password for security purpose. Please refer to
Administrator Settings to change the admin password.
7.3Quick access R520 via WPS
If your WiFi Enabled , device supports WPS (Wifi Protected Setup) and you have forgotten or do
not wish to enter your password to connect to your R520, you may use the following available
procedures for quick access to R520.
1) Press the WPS key on R520,
2) Select the SSID of the device and connect
or Acctive the WPS on the WiFi equipment.
8. Call function:
This device provides call and text message functions. When you browse internet, you can keep
connection with your family and friends.
The steps are as follows:
1) Insert 3/4G SIM card, and open the device

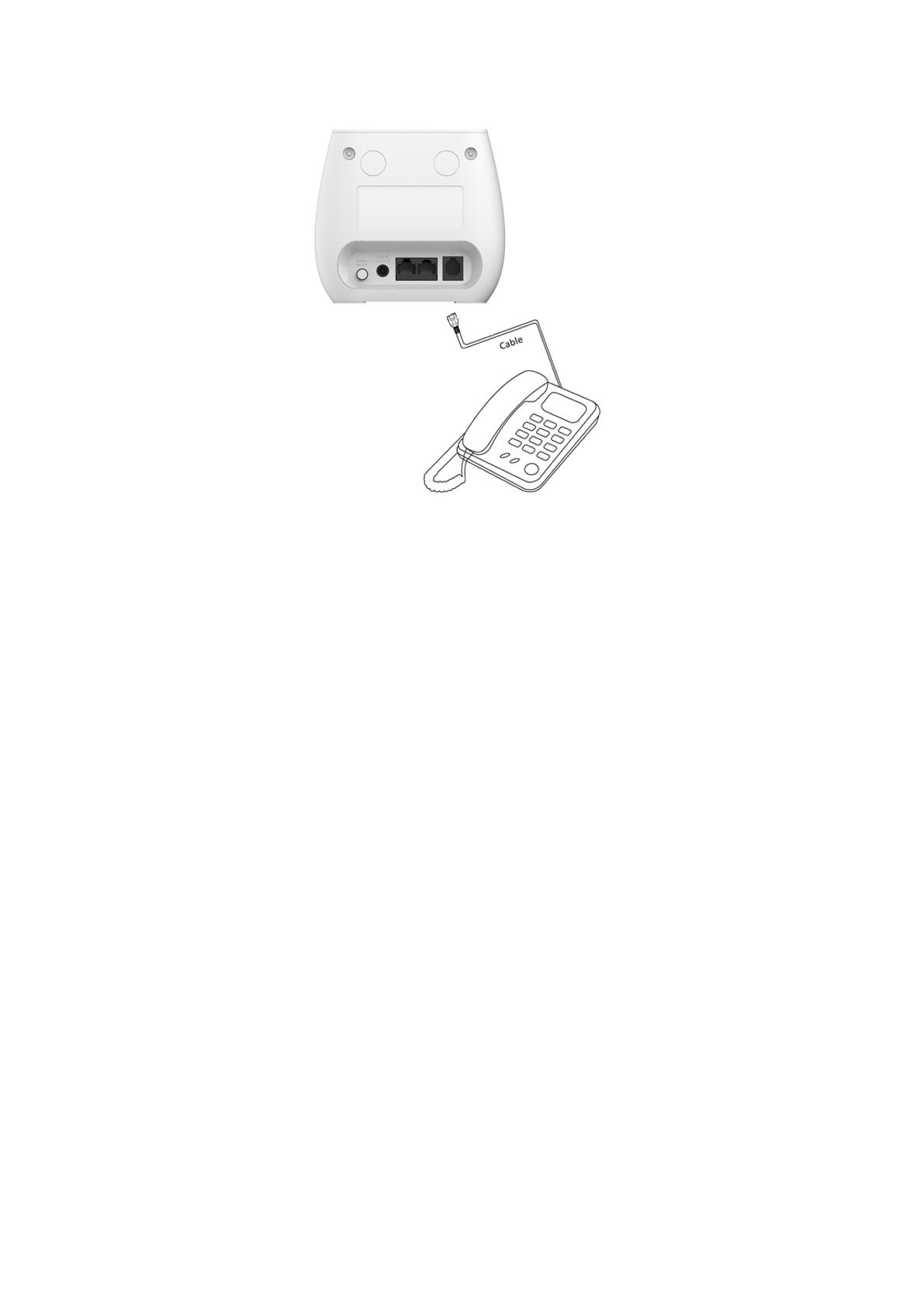

2) Connect the telephone through the RJ11 port of the device
3) When phone function is booted up, your telephone's signal LED will turn on. Then you
can start to use the call functions.
Caution:
1. Please make sure that your SIM card supports voice call service
2. Please start to use the call functions; after call function is fully booted up (all text messages
are received)

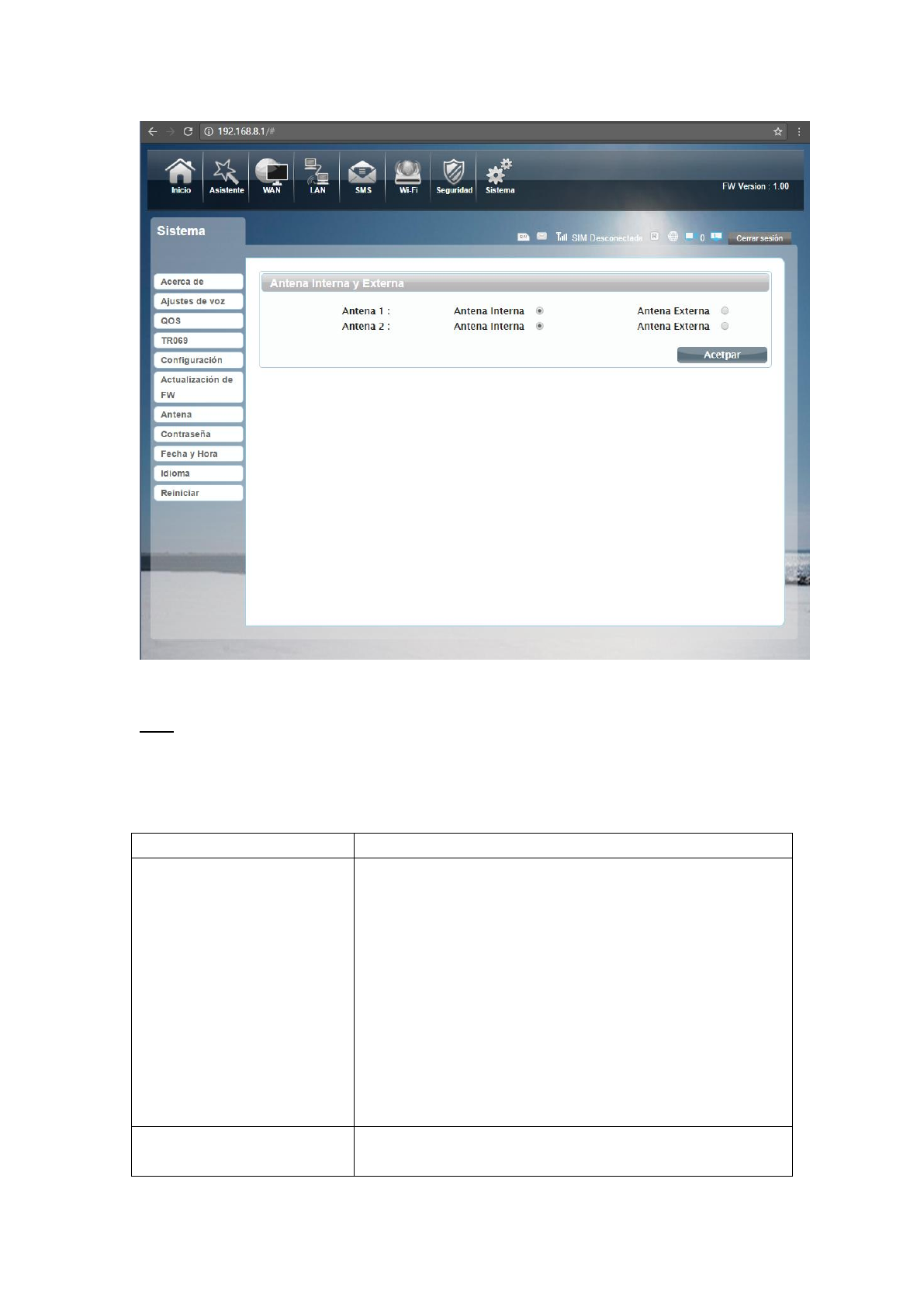

9.Antenna
Choose External/Internal Antenna. R520 is equipped with internal Antenna, but you can connect
External Antennal if needed.
FAQ
This Appendix provides solutions to some problems that could be seen when install and use the
device. Please read the following instruction, it will help you to solve these problems. If you fail to
solve your issues from this FAQ, please contact us.
Problem
Solution
Wireless device cannot connect
to SSID.
Please make sure the wireless function of your PC is
turned on. If it is already on, please refresh the
network list.
Please make sure your PC is in the wireless signal
coverage of the device.
Please make sure your device is away from the
electromagnetic interference.
Please make sure your device’s wireless function is
turned on.
If the problem is still not solved, please try to reset your device
to default settings.
Cannot Access internet:
Please make sure your PC is in the wireless signal
coverage of the device.
Please make your device’s DHCP function is turned
on.
Please make sure your firewall is turned off.
If the problem is still not solved, and your PC has got connected
to the network, but the wireless icon shows an yellow
exclamation mark. It means your wireless card could not be
allocated an IP address. Please use the static IP settings, and fill
DNS and gateway according to instructions of your operator.
Input IP, but fail to login to the
administration page.
Please make sure the problem is not caused by the
Cache of the internet browser, please clean up the
Cache.
Please make sure the network connection is good, and
the light of connected ports are on.
Please make sure the username and password are
correct
If the problem is still not solved, and your PC already gets the
IP address. You can try to use wireless connection or static IP
methods to try it again.
If connected via wireless connection, please try to ping
192.168.0.1 to see if there is any response. If responses are
received, please check if you set an agent server for connection.
If no agent server is set, then please not to set an agent server,
and reset the device.
IP conflict ion when turn on
the device:
Please make sure if your LAN has other DHCP
servers.
Please make sure that IP address is not occupied by
other computers or devices. If occupied, please
change the IP address of that device to avoid the
IP conflicts.
Safety warning
Stay away from interference:
All the wireless devices could be possibly interfered, and it will affect the performance of the
device
Turn off the device in restricted area:
Please follow any instruction, turn off the device around airplanes, medical devices, gases,
chemicals or explosive areas
Qualified services:
Please don’t disassemble this device yourself. Please contact professionals to repair and install the
device.
Danger of explosion:
Turn off your device in any areas that explosion could possibly happen. Please follow all the
notices in the areas where spark could cause fire or explosion.
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC’s RF radiation exposure limits set forth for an
uncontrolled environment. The antenna(s) used for this transmitter must be installed and operated
to provide a separation distance of at least 20 cm from all persons and must not be collocated or
operating in conjunction with any other antenna or transmitter. Installers must ensure that 20cm
separation distance will be maintained between the device (excluding itshandset) and users.
