Configuration and Use Manual

P/N 20002743, Rev. B

October 2006

Micro Motion®

Model 1500 Transmitters

with the Filling and Dosing

Application

Configuration and Use Manual

are trademarks of Micro Motion, Inc., Boulder, Colorado. Micro Motion is a registered trade name of Micro Motion, Inc., Boulder,

Colorado. The Micro Motion and Emerson logos are trademarks and service marks of Emerson Electric Co. All other trademarks

are property of their respective owners.

Configuration and Use Manual i

Contents

Chapter 1 Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.2 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.3 Version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.4 Flowmeter documentation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.5 Communication tools. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1.6 Planning the configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1.7 Pre-configuration worksheet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1.8 Micro Motion customer service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Chapter 2 Connecting with ProLink II Software . . . . . . . . . . . . . . . . . . . . . . . . 5

2.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2.2 Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2.3 ProLink II configuration upload/download . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2.4 Connecting from a PC to a Model 1500 transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Chapter 3 Flowmeter Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3.2 Applying power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3.3 Performing a loop test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3.4 Trimming the milliamp output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

3.5 Zeroing the flowmeter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3.5.1 Preparing for zero . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3.5.2 Zero procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Chapter 4 Required Transmitter Configuration . . . . . . . . . . . . . . . . . . . . . . . 15

4.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

4.2 Characterizing the flowmeter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

4.2.1 When to characterize. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

4.2.2 Characterization parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

4.2.3 How to characterize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

4.3 Configuring the channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

4.4 Configuring the measurement units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

4.4.1 Mass flow units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

4.4.2 Volume flow units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

4.4.3 Density units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

4.4.4 Temperature units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

4.4.5 Pressure units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

ii Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Contents

4.5 Configuring the mA output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

4.5.1 Configuring the primary variable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

4.5.2 Configuring the mA output range (LRV and URV). . . . . . . . . . . . . . . . . . 24

4.5.3 Configuring the AO cutoff . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

4.5.4 Configuring the fault action, fault value, and last

measured value timeout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

4.5.5 Configuring added damping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

4.6 Configuring the discrete output(s). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

4.7 Configuring the discrete input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

4.8 Establishing a meter verification baseline. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Chapter 5 Using the Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

5.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

5.2 Recording process variables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

5.3 Viewing process variables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

5.4 Viewing transmitter status and alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

5.4.1 Using the status LED. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

5.4.2 Using ProLink II software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

5.5 Using the totalizers and inventories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Chapter 6 Optional Transmitter Configuration . . . . . . . . . . . . . . . . . . . . . . . . 35

6.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

6.2 Default values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

6.3 Parameter location within ProLink II . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

6.4 Creating special measurement units. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

6.4.1 About special measurement units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

6.4.2 Special mass flow unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

6.4.3 Special volume flow unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

6.4.4 Special unit for gas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

6.5 Configuring cutoffs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

6.5.1 Cutoffs and volume flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

6.5.2 Interaction with the AO cutoff. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

6.6 Configuring the damping values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

6.6.1 Damping and volume measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

6.6.2 Interaction with the added damping parameter . . . . . . . . . . . . . . . . . . . . 39

6.6.3 Interaction with the update rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

6.7 Configuring the update rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

6.7.1 Effects of Special mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

6.8 Configuring the flow direction parameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

6.9 Configuring events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

6.10 Configuring slug flow limits and duration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

6.11 Configuring fault handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

6.11.1 Changing status alarm severity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

6.11.2 Changing the fault timeout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

6.12 Configuring digital communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

6.12.1 Changing the digital communications fault indicator . . . . . . . . . . . . . . . . 49

6.12.2 Changing the Modbus address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

6.12.3 Changing the RS-485 parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

6.12.4 Changing the floating-point byte order. . . . . . . . . . . . . . . . . . . . . . . . . . . 51

6.12.5 Changing the additional communications response delay. . . . . . . . . . . . 51

6.13 Configuring variable mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

6.14 Configuring device settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

6.15 Configuring sensor parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Configuration and Use Manual iii

Contents

Chapter 7 Configuring the Filling and Dosing Application . . . . . . . . . . . . . . . . 53

7.1 About this chapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

7.2 User interface requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

7.3 About the filling and dosing application. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

7.3.1 Purge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

7.3.2 Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

7.4 Configuring the filling and dosing application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

7.4.1 Flow source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

7.4.2 Filling control options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

7.4.3 Valve control parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

7.5 Overshoot compensation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

7.5.1 Configuring overshoot compensation . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

7.5.2 Standard AOC calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

7.5.3 Rolling AOC calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Chapter 8 Using the Filling and Dosing Application . . . . . . . . . . . . . . . . . . . . 67

8.1 About this chapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

8.2 User interface requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

8.3 Operating the filling and dosing application from ProLink II . . . . . . . . . . . . . . . . . . . 67

8.3.1 Using the Run Filler window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

8.3.2 Using a discrete input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

8.3.3 Fill sequences with PAUSE and RESUME. . . . . . . . . . . . . . . . . . . . . . . . 72

Chapter 9 Pressure Compensation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

9.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

9.2 Pressure compensation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

9.2.1 Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

9.2.2 Pressure correction factors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

9.2.3 Pressure measurement unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

9.3 Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Chapter 10 Measurement Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

10.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

10.2 Meter validation, meter verification, and calibration . . . . . . . . . . . . . . . . . . . . . . . . . 81

10.2.1 Meter verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

10.2.2 Meter validation and meter factors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

10.2.3 Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

10.2.4 Comparison and recommendations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

10.3 Performing meter verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

10.3.1 Specification uncertainty limit and test results . . . . . . . . . . . . . . . . . . . . . 85

10.3.2 Additional ProLink II tools for meter verification. . . . . . . . . . . . . . . . . . . . 86

10.4 Performing meter validation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

10.5 Performing density calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

10.5.1 Preparing for density calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

10.5.2 Density calibration procedures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

10.6 Performing temperature calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

iv Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Contents

Chapter 11 Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

11.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

11.2 Guide to troubleshooting topics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

11.3 Micro Motion customer service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

11.4 Transmitter does not operate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

11.5 Transmitter does not communicate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

11.6 Zero or calibration failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

11.7 Fault conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

11.8 I/O problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

11.9 Transmitter status LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

11.10 Status alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

11.11 Checking process variables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

11.12 Meter fingerprinting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

11.13 Troubleshooting filling problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

11.14 Diagnosing wiring problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

11.14.1 Checking the power supply wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

11.14.2 Checking the sensor-to-transmitter wiring . . . . . . . . . . . . . . . . . . . . . . . 102

11.14.3 Checking grounding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

11.14.4 Checking for RF interference. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

11.15 Checking ProLink II . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

11.16 Checking the output wiring and receiving device . . . . . . . . . . . . . . . . . . . . . . . . . . 103

11.17 Checking slug flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

11.18 Checking output saturation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

11.19 Checking the flow measurement unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

11.20 Checking the upper and lower range values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

11.21 Checking the characterization. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

11.22 Checking the calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

11.23 Checking the test points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

11.23.1 Obtaining the test points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

11.23.2 Evaluating the test points. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

11.23.3 Excessive drive gain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

11.23.4 Erratic drive gain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

11.23.5 Low pickoff voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

11.24 Checking the core processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

11.24.1 Checking the core processor LED. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

11.24.2 Core processor resistance test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

11.25 Checking sensor coils and RTD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

11.25.1 Remote core processor with remote transmitter installation . . . . . . . . . 110

11.25.2 4-wire remote installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Appendix A Default Values and Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

A.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

A.2 Default values and ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Appendix B Installation Architectures and Components . . . . . . . . . . . . . . . . . 119

B.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

B.2 Installation diagrams. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

B.3 Component diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

B.4 Wiring and terminal diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Configuration and Use Manual v

Contents

Appendix C Menu Flowcharts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

C.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

C.2 Version information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

C.3 Flowcharts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

Appendix D NE53 History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

D.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

D.2 Software change history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

vi Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Configuration and Use Manual 1

Using ProLink II Required ConfigurationFlowmeter StartupBefore You Begin

Chapter 1

Before You Begin

1.1 Overview

This chapter provides an orientation to the use of this manual, and includes a pre-configuration

worksheet. This manual describes the procedures required to start, configure, use, maintain, and

troubleshoot the Model 1500 transmitter with the filling and dosing application.

1.2 Safety

Safety messages are provided throughout this manual to protect personnel and equipment. Read each

safety message carefully before proceeding to the next step.

1.3 Version

Different configuration options are available with different versions of the components. Table 1-1 lists

the version information that you may need and describes how to obtain the information.

1.4 Flowmeter documentation

Table 1-2 lists documentation sources for additional information.

Table 1-1 Obtaining version information

Component With ProLink II

Transmitter software View > Installed Options > Software Revision

Core processor software ProLink > Core Processor Diagnostics > CP SW Rev

Table 1-2 Flowmeter documentation resources

Topic Document

Sensor installation Sensor documentation

Transmitter installation Transmitter Installation: Model 1500 and 2500 Transmitters

2Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Before You Begin

1.5 Communication tools

Most of the procedures described in this manual require the use of a communication tool. To

configure and use the Model 1500 transmitter with the filling and dosing application, you must use

ProLink II v2.3 or later, or a customer-written program that uses the transmitter’s Modbus interface.

For certain features, ProLink II v2.5 or later is required; this is noted where applicable.

Basic information on ProLink II and connecting ProLink II to your transmitter is provided in

Chapter 2. For more information, see the ProLink II manual, installed with the ProLink II software or

available on the Micro Motion web site (www.micromotion.com).

For information on the transmitter’s Modbus interface, see:

•Using Modbus Protocol with Micro Motion Transmitters, November 2004, P/N 3600219,

Rev. C (manual plus map)

•Modbus Mapping Assignments for Micro Motion Transmitters, October 2004, P/N 20001741,

Rev. B (map only)

Both of these manuals are available on the Micro Motion web site.

1.6 Planning the configuration

The pre-configuration worksheet in Section 1.7 provides a place to record information about your

flowmeter (transmitter and sensor) and your application. This information will affect your

configuration options as you work through this manual. Fill out the pre-configuration worksheet and

refer to it during configuration. You may need to consult with transmitter installation or application

process personnel to obtain the required information.

If you are configuring multiple transmitters, make copies of this worksheet and fill one out for each

individual transmitter.

Configuration and Use Manual 3

Before You Begin

Using ProLink II Required ConfigurationFlowmeter StartupBefore You Begin

1.7 Pre-configuration worksheet

Item Configuration data

Sensor type T- S er i e s

Other

Installation type 4-wire remote

Remote core processor with remote transmitter

Transmitter software

version ______________________________________

Core processor type Standard

Enhanced

Core processor software

version ______________________________________

Outputs Channel A (Terminals 21 & 22) Milliamp

Channel B (Terminals 23 & 24) Discrete output Internal power

External power

Channel C (Terminals 31 & 32) Discrete output

Discrete input

Internal power

External power

Assignment Channel A (Terminals 21 & 22) Process variable ____________________

Primary valve control

Secondary valve control

3-position analog valve control

Channel B (Terminals 23 & 24) ______________________________________

Active high Active low

Channel C (Terminals 31 & 32) ______________________________________

Active high Active low

Measurement units Mass flow ______________________________________

Volume flow ______________________________________

Density ______________________________________

Pressure ______________________________________

Temperature ______________________________________

ProLink II version ______________________________________

4Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Before You Begin

1.8 Micro Motion customer service

For customer service, phone the support center nearest you:

• In the U.S.A., phone 800-522-MASS (800-522-6277) (toll-free)

• In Canada and Latin America, phone +1 303-527-5200

•In Asia:

- In Japan, phone 3 5769-6803

- In other locations, phone +65 6777-8211 (Singapore)

•In Europe:

- In the U.K., phone 0870 240 1978 (toll-free)

- In other locations, phone +31 (0) 318 495 670 (The Netherlands)

Customers outside the U.S.A. can also email Micro Motion customer service at

International.Support@EmersonProcess.com.

Configuration and Use Manual 5

Using ProLink II Required ConfigurationFlowmeter StartupBefore You Begin

Chapter 2

Connecting with ProLink II Software

2.1 Overview

ProLink II is a Windows-based configuration and management tool for Micro Motion transmitters. It

provides complete access to transmitter functions and data.

This chapter provides basic information for connecting ProLink II to your transmitter. The following

topics and procedures are discussed:

• Requirements (see Section 2.2)

• Configuration upload/download (see Section 2.3)

• Connecting to a Model 1500 transmitter (see Section 2.4)

The instructions in this manual assume that users are already familiar with ProLink II software. For

more information on using ProLink II, or for detailed instructions on installing ProLink II, see the

ProLink II software manual, which is automatically installed with ProLink II, and is also available on

the Micro Motion web site (www.micromotion.com).

2.2 Requirements

To use ProLink II with a Model 1500 transmitter with the filling and dosing application, the following

are required:

• ProLink II v2.3 or later, for access to the filling and dosing application

• ProLink II v2.5 or later, for access to meter verification

• The appropriate signal converter and cables: RS-485 to RS-232 or USB to RS-232

- For RS-485 to RS-232, the Black Box® Async RS-232 <-> 2-wire RS-485 Interface

Converter (Code IC521A-F) signal converter is available from Micro Motion.

- For USB to RS-232, the Black Box USB Solo (USB–>Serial) (Code IC138A-R2)

converter can be used.

• 25-pin to 9-pin adapter (if required by your PC)

2.3 ProLink II configuration upload/download

ProLink II provides a configuration upload/download function which allows you to save configuration

sets to your PC. This allows:

• Easy backup and restore of transmitter configuration

• Easy replication of configuration sets

Micro Motion recommends that all transmitter configurations be downloaded to a PC as soon as the

configuration is complete.

Parameters specific to the filling and dosing application are not included in the upload or download.

6Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Connecting with ProLink II Software

To access the configuration upload/download function:

1. Connect ProLink II to your transmitter as described in this chapter.

2. Open the File menu.

• To save a configuration file to a PC, use the Load from Xmtr to File option.

• To restore or load a configuration file to a transmitter, use the Send to Xmtr from File

option.

2.4 Connecting from a PC to a Model 1500 transmitter

ProLink II software can communicate with a Model 1500 transmitter using Modbus protocol on the

RS-485 physical layer. There are two connection types:

• RS-485 configurable connection

• SP (service port) non-configurable (standard) connection

Both connection types use the RS-485 terminals (terminals 33 and 34). These terminals are available

in service port mode for 10 seconds after transmitter power-up. After this interval, the terminals revert

to RS-485 mode.

• To make a service port connection, you must configure ProLink II appropriately and connect

during the 10-second interval after transmitter power-up. Once a service port connection is

made, the terminals will remain in service port mode. You may disconnect and reconnect as

often as required, as long as you continue to use service port mode.

• To make an RS-485 connection, you must configure ProLink II appropriately, wait for the

10-second interval to expire, then connect. The terminals will now remain in RS-485 mode,

and you may disconnect and reconnect as often as required, as long as you continue to use

RS-485 mode.

• To change from service port mode to RS-485 mode, or vice versa, you must cycle power to the

transmitter and reconnect using the desired connection type.

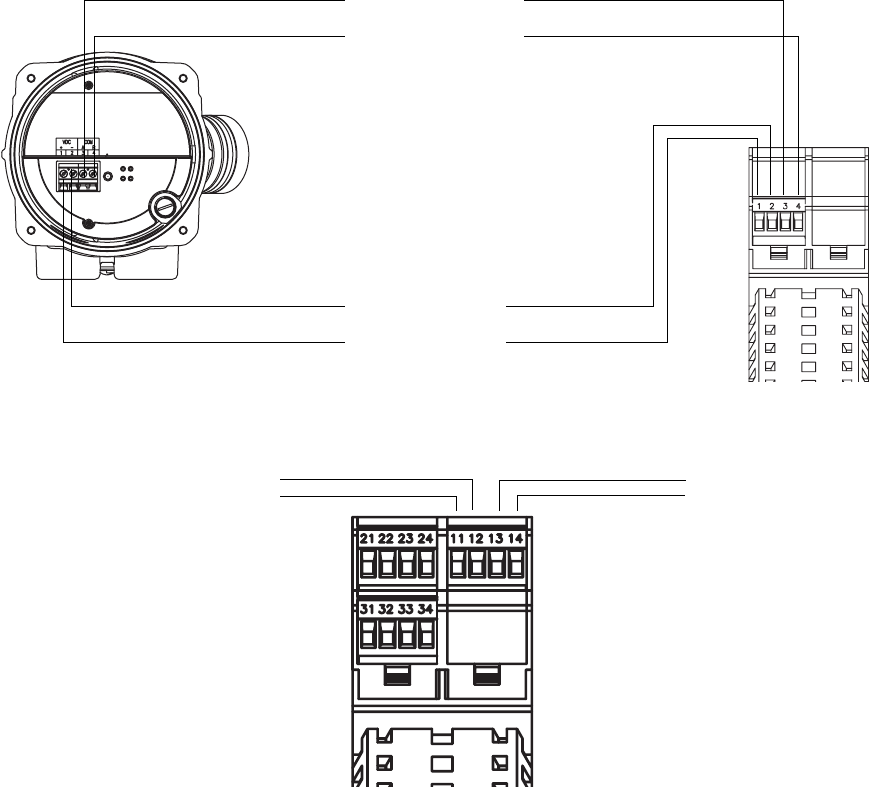

To connect a PC to the RS-485 terminals or an RS-485 network:

1. Attach the signal converter to the serial port of your PC, using a 25-pin to 9-pin adapter if

required.

2. To connect to the RS-485 terminals, connect the signal converter leads to terminals 33 and 34.

See Figure 2-1.

3. To connect to an RS-485 network, connect the signal converter leads to any point in the

network. See Figure 2-2.

4. For long-distance communication, or if noise from an external source interferes with the

signal, install 120-ohm, 1/2-watt resistors in parallel with the output at both ends of the

communication segment.

5. Ensure that the transmitter is disconnected from a host PLC.

Configuration and Use Manual 7

Connecting with ProLink II Software

Using ProLink II Required ConfigurationFlowmeter StartupBefore You Begin

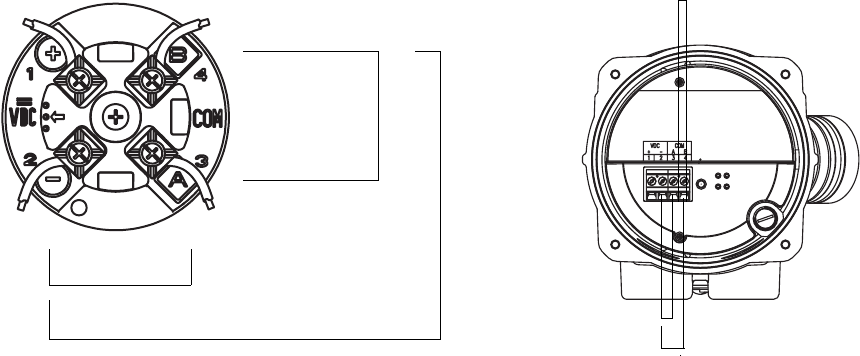

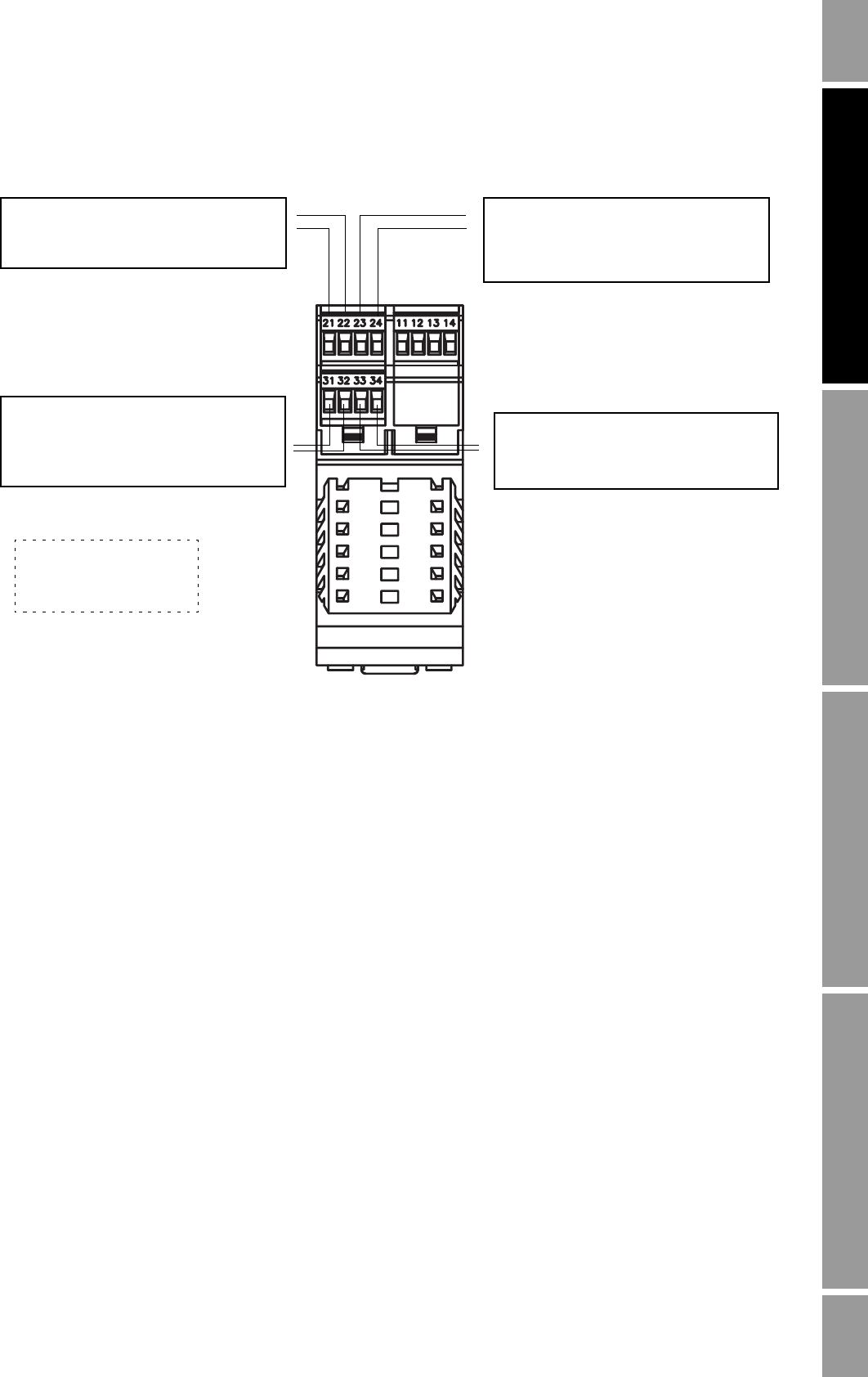

Figure 2-1 RS-485 terminal connections to Model 1500

Figure 2-2 RS-485 network connections to Model 1500

6. Start ProLink II software. From the Connection menu, click on Connect to Device. In the

screen that appears, specify connection parameters appropriate to your connection:

• For service port mode, set Protocol to Service Port, and set COM port to the appropriate

value for your PC. Baud rate, Stop bits, and Parity are set to standard values and cannot

be changed. See Table 2-1.

• For RS-485 mode, set the connection parameters to the values configured in your

transmitter. See Table 2-1.

RS-485/B

RS-485/A

RS-485 to RS-232

signal converter

25-pin to 9-pin serial port

adapter (if necessary)

DCS or PLC

Add resistance if necessary

(see Step 4)

RS-485 to RS-232

signal converter

25-pin to 9-pin serial port

adapter (if necessary)

RS-485/B

RS-485/A

8Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Connecting with ProLink II Software

7. Click the Connect button. ProLink II will attempt to make the connection.

8. If an error message appears:

a. Swap the leads between the two terminals and try again.

b. Ensure you are using the correct COM port.

c. If you are in RS-485 mode, you may be using incorrect connection parameters.

- Connect in service port mode and check the RS-485 configuration. If required, change

the configuration or change your RS-485 connection parameters to match the existing

configuration.

- If you are unsure of the transmitter’s address, use the Poll button in the Connect

window to return a list of all devices on the network.

d. Check all the wiring between the PC and the transmitter.

Table 2-1 Modbus connection parameters for ProLink II

Connection type

Connection parameter Configurable (RS-485 mode) SP standard (service port mode)

Protocol As configured in transmitter

(default = Modbus RTU) Modbus RTU(1)

(1) Required value; cannot be changed by user.

Baud rate As configured in transmitter (default = 9600) 38,400(1)

Stop bits As configured in transmitter (default = 1) 1(1)

Parity As configured in transmitter (default = odd) none(1)

Address/Tag Configured Modbus address (default = 1) 111(1)

COM port COM port assigned to PC serial port COM port assigned to PC serial port

Configuration and Use Manual 9

Using ProLink II Required ConfigurationFlowmeter StartupBefore You Begin

Chapter 3

Flowmeter Startup

3.1 Overview

This chapter describes the procedures you should perform the first time you start the flowmeter. You

do not need to use these procedures every time you cycle power to the flowmeter.

The following procedures are discussed:

• Applying power to the flowmeter (see Section 3.2)

• Performing a loop test on the transmitter outputs (see Section 3.3)

• Trimming the mA output (see Section 3.4)

• Zeroing the flowmeter (see Section 3.5)

Note: All ProLink II procedures provided in this chapter assume that your computer is already

connected to the transmitter and you have established communication. All ProLink II procedures also

assume that you are complying with all applicable safety requirements. See Chapter 2 for more

information.

3.2 Applying power

Before you apply power to the flowmeter, close and tighten all housing covers.

Turn on the electrical power at the power supply. The flowmeter will automatically perform

diagnostic routines. When the flowmeter has completed its power-up sequence, the status LED will

turn green if conditions are normal. If the status LED exhibits different behavior, an alarm condition is

present (see Section 5.4) or configuration of the filling and dosing application is not complete.

10 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Flowmeter Startup

3.3 Performing a loop test

A loop test is a means to:

• Verify that the mA outupt is being sent by the transmitter and received accurately by the

receiving device

• Determine whether or not you need to trim the mA output

• Select and verify the discrete output voltage

• Read the discrete input

Perform a loop test on all inputs and outputs available on your transmitter. Before performing the loop

tests, ensure that your transmitter terminals are configured for the input/outputs that will be used in

your application (see Section 4.3).

ProLink II is used for loop testing. See Figure 3-1 for the loop test procedure. Note the following:

• The mA reading does not need to be exact. You will correct differences when you trim the mA

output. See Section 3.4.

WARNING

Upon transmitter startup or abnormal power reset, any external device

controlled by a discrete output may be momentarily activated.

Upon transmitter startup or abnormal power reset, discrete output states are

unknown. As a result, an external device controlled by a discrete output may

receive current for a brief period.

When using Channel B as a discrete output:

• You can prevent current flow upon normal startup by setting Channel B polarity

to active low (see Section 4.6).

• There is no programmatic method to prevent current flow for Channel B upon

abnormal power reset. You must design the system so that a brief current flow to

the external device controlled by Channel B cannot cause negative

consequences.

When using Channel C as a discrete output, there is no programmatic method to

prevent current flow upon either transmitter startup or abnormal power reset. You

must design the system so that a brief current flow to the external device controlled

by Channel C cannot cause negative consequences.

Configuration and Use Manual 11

Flowmeter Startup

Using ProLink II Required ConfigurationFlowmeter StartupBefore You Begin

Figure 3-1 ProLink II – Loop test procedure

3.4 Trimming the milliamp output

Trimming the mA output creates a common measurement range between the transmitter and the device

that receives the mA output. For example, a transmitter might send a 4 mA signal that the receiving

device reports incorrectly as 3.8 mA. If the transmitter output is trimmed correctly, it will send a

signal appropriately compensated to ensure that the receiving device actually indicates a 4 mA signal.

You must trim the mA output at both the 4 mA and 20 mA points to ensure appropriate compensation

across the entire output range.

ProLink II is used to trim the mA output. See Figure 3-2 for the mA output trim procedure. Note the

following:

• Any trimming performed on the output should not exceed ± 200 microamps. If more trimming

is required, contact Micro Motion customer support.

Test

Fix Milliamp 1

ProLink Menu

Fix Discrete Out 1

Fix Discrete Out 2 Read Discrete Input

Enter mA value

Fix mA

ON or OFF

Read output at

receiving device

Verify state at

receiving device

Toggle remote input

device

Verify Present State LED

at transmitter

Correct? Correct? Correct?

Loop test successful

UnFix

Check output wiring

Troubleshoot receiving device Loop test successful Check input wiring

Troubleshoot input device

Yes No Yes No

12 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Flowmeter Startup

Figure 3-2 ProLink II – mA output trim procedure

3.5 Zeroing the flowmeter

Zeroing the flowmeter establishes the flowmeter’s point of reference when there is no flow. The meter

was zeroed at the factory, and should not require a field zero. However, you may wish to perform a

field zero to meet local requirements or to confirm the factory zero.

Note: Do not zero the flowmeter if a high severity alarm is active. Correct the problem, then zero the

flowmeter. You may zero the flowmeter if a low severity alarm is active. See Section 5.4 for

information on viewing transmitter status and alarms.

When you zero the flowmeter, you may need to adjust the zero time parameter. Zero time is the

amount of time the transmitter takes to determine its zero-flow reference point.

•A long zero time may produce a more accurate zero reference but is more likely to result in a

zero failure. This is due to the increased possibility of noisy flow, which causes incorrect

calibration.

•A short zero time is less likely to result in a zero failure but may produce a less accurate zero

reference.

The default zero time is 20 seconds. For most applications, the default zero time is appropriate.

You can zero the flowmeter with ProLink II or with the zero button on the transmitter.

If the zero procedure fails, see Section 11.6 for troubleshooting information.

Calibration

Milliamp Trim 1

ProLink Menu

Read mA output at

receiving device

Read mA output at

receiving device

Equal?

Enter receiving device

value in Enter Meas

Read mA output at

receiving device

Read mA output at

receiving device

Equal?

Enter receiving device

value in Enter Meas

Finish

4 mA trim 20 mA trim

Yes

No No

Yes

Configuration and Use Manual 13

Flowmeter Startup

Using ProLink II Required ConfigurationFlowmeter StartupBefore You Begin

Additionally, if you have the enhanced core processor and you are using ProLink II to zero the

flowmeter, you can also restore the prior zero immediately after zeroing (e.g., an “undo” function), as

long as you have not closed the Calibration window or disconnected from the transmitter. Once you

have closed the Calibration window or disconnected from the transmitter, you can no longer restore

the prior zero.

3.5.1 Preparing for zero

To prepare for the zero procedure:

1. Apply power to the flowmeter. Allow the flowmeter to warm up for approximately 20 minutes.

2. Run the process fluid through the sensor until the sensor temperature reaches the normal

process operating temperature.

3. Close the shutoff valve downstream from the sensor.

4. Ensure that the sensor is completely filled with fluid.

5. Ensure that the process flow has completely stopped.

3.5.2 Zero procedure

To zero the transmitter:

• With ProLink II, see Figure 3-3.

• With the zero button, see Figure 3-4. Note the following:

- You cannot change the zero time with the zero button. If you need to change the zero time,

you must use ProLink II.

- The zero button is located on the front panel of the transmitter. To press the zero button,

use a fine-pointed object that will fit into the opening (0.14 in [3.5 mm]). Hold the button

down until the status LED on the front panel begins to flash yellow.

CAUTION

If fluid is flowing through the sensor, the sensor zero calibration may be

inaccurate, resulting in inaccurate process measurement.

To improve the sensor zero calibration and measurement accuracy, ensure that

process flow through the sensor has completely stopped.

14 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Flowmeter Startup

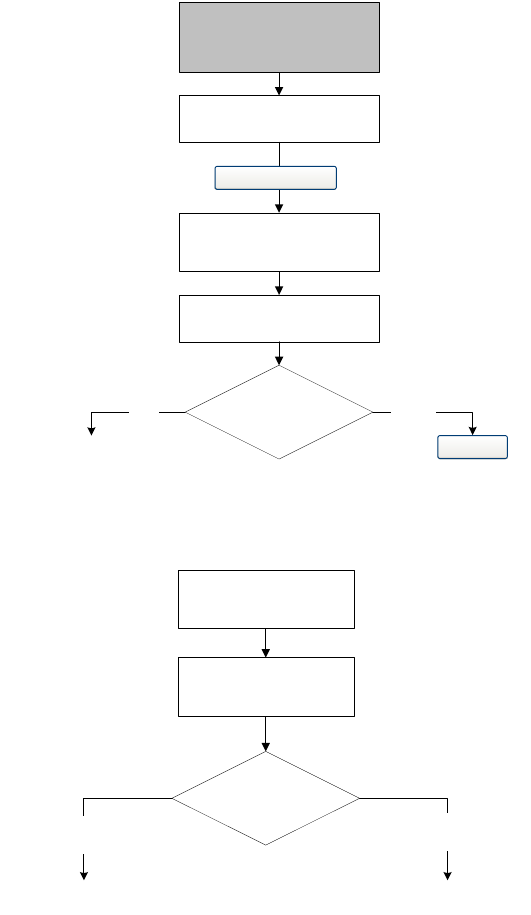

Figure 3-3 ProLink II – Flowmeter zero procedure

Figure 3-4 Zero button – Flowmeter zero procedure

Modify zero time

if required

Calibration

Failure LED

Calibration in Progress

LED turns red

Green

Troubleshoot

Red

Perform Auto Zero

Done

ProLink >

Calibration >

Zero Calibration

Wait until Calibration in

Progress LED turns green

Status LED

Status LED flashes

yellow

Done

Solid Green or

Solid Yellow

Troubleshoot

Solid

Red

Press ZERO button

Configuration and Use Manual 15

Using ProLink II Required ConfigurationFlowmeter StartupBefore You Begin

Chapter 4

Required Transmitter Configuration

4.1 Overview

This chapter describes the configuration procedures that are usually required when a transmitter is

installed for the first time. The procedures in this chapter should be performed in the order shown in

Figure 4-1.

Figure 4-1 Required configuration procedures in order

This chapter provides basic flowcharts for each procedure. For more detailed flowcharts, see the

ProLink II flowcharts, provided in Appendix C.

Default values and ranges for the parameters described in this chapter are provided in Appendix A.

For optional transmitter configuration parameters and procedures, see Chapter 6. For configuration of

the filling and dosing application, see Chapter 7.

Note: All ProLink II procedures provided in this chapter assume that your computer is already

connected to the transmitter and you have established communication. All ProLink II procedures also

assume that you are complying with all applicable safety requirements. See Chapter 2 for more

information.

Characterize the flowmeter

(Section 4.2)

Configure the channels

(Section 4.3)

Configure measurement units

(Section 4.4)

Configure mA output

(Section 4.5)

Configure discrete outputs(1)

(Section 4.6)

Configure discrete input(1)

(Section 4.7)

Done(2)

(1) Only the input or outputs that have been assigned to

a channel need to be configured.

(2) If the meter verification option has been purchased,

the final configuration step should be to establish a

meter verification baseline (see Section 4.8).

16 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Required Transmitter Configuration

4.2 Characterizing the flowmeter

Characterizing the flowmeter adjusts the transmitter to compensate for the unique traits of the sensor

it is paired with. The characterization parameters, or calibration parameters, describe the sensor’s

sensitivity to flow, density, and temperature.

4.2.1 When to characterize

If the transmitter, core processor, and sensor were ordered together, then the flowmeter has already

been characterized. You need to characterize the flowmeter only if the core processor and sensor are

being paired together for the first time.

4.2.2 Characterization parameters

The characterization parameters that must be configured depend on your flowmeter’s sensor type:

“T-Series” or “Other” (also referred to as “Straight Tube” and “Curved Tube,” respectively), as listed

in Table 4-1. The “Other” category includes all Micro Motion sensors except T-Series.

The characterization parameters are provided on the sensor tag. The format of the sensor tag varies

depending on your sensor’s date of purchase. See Figures 4-2 and 4-3 for illustrations of newer and

older sensor tags.

Table 4-1 Sensor calibration parameters

Parameter

Sensor type

T-Se ries Other

K1 ✓✓

(1)

(1) See the section entitled “Density calibration factors.”

K2 ✓✓

(1)

FD ✓✓

(1)

D1 ✓✓

(1)

D2 ✓✓

(1)

Temp coeff (DT)(2)

(2) On some sensor tags, shown as TC.

✓✓

(1)

Flowcal ✓(3)

(3) See the section entitled “Flow calibration values.”

FCF and FT ✓(4)

(4) Older T-Series sensors. See the section entitled “Flow calibration values.”

FCF ✓(5)

(5) Newer T-Series sensors. See the section entitled “Flow calibration values.”

FTG ✓

FFQ ✓

DTG ✓

DFQ1 ✓

DFQ2 ✓

Configuration and Use Manual 17

Required Transmitter Configuration

Using ProLink II Required ConfigurationFlowmeter StartupBefore You Begin Using ProLink II Required ConfigurationFlowmeter StartupBefore You Begin Using ProLink II Required ConfigurationFlowmeter StartupBefore You Begin Using ProLink II Required ConfigurationFlowmeter StartupBefore You Begin

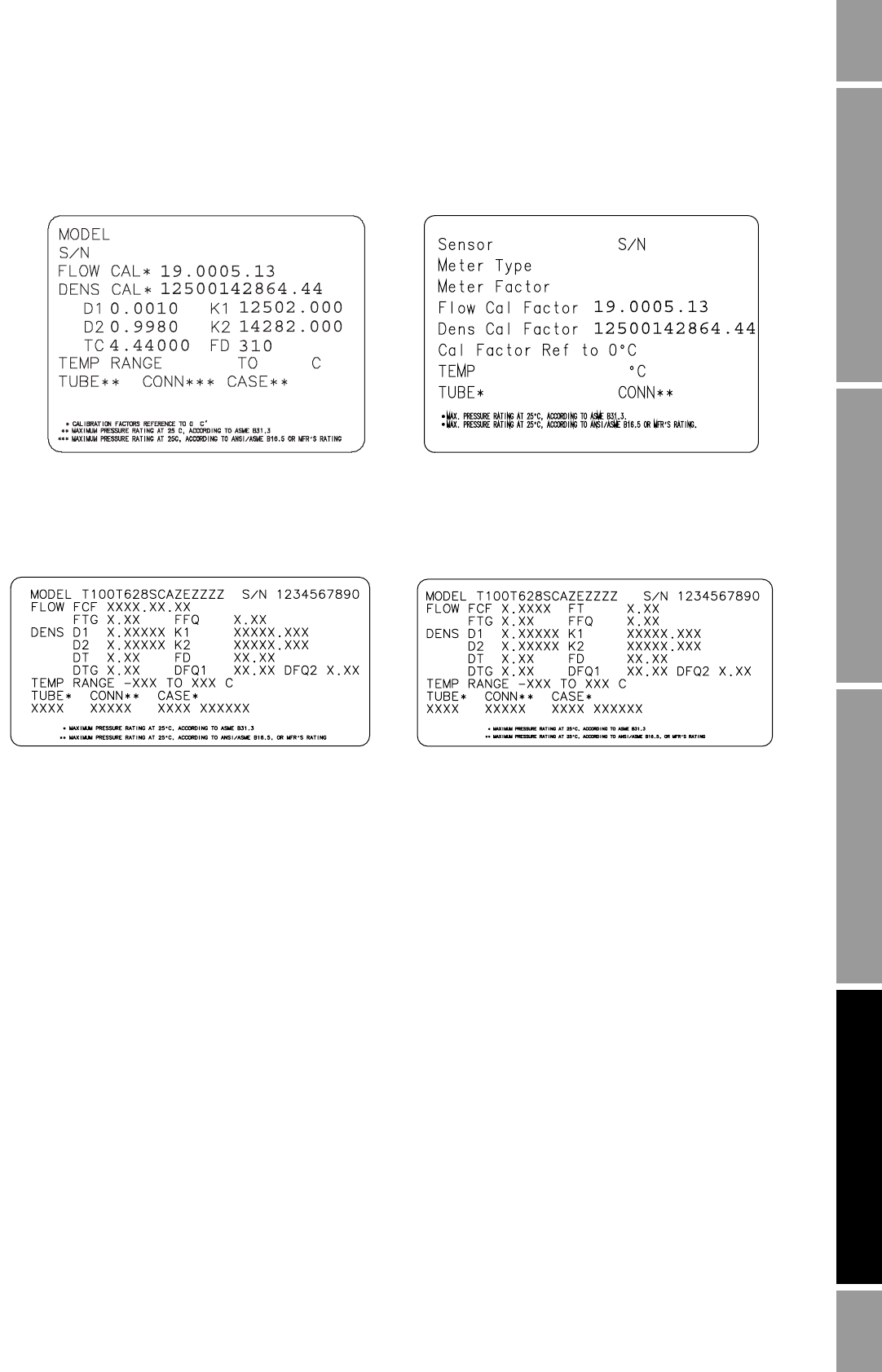

Figure 4-2 Sample calibration tags – All sensors except T-Series

Figure 4-3 Sample calibration tags – T-Series sensors

Density calibration factors

If your sensor tag does not show a D1 or D2 value:

• For D1, enter the Dens A or D1 value from the calibration certificate. This value is the

line-condition density of the low-density calibration fluid. Micro Motion uses air.

• For D2, enter the Dens B or D2 value from the calibration certificate. This value is the

line-condition density of the high-density calibration fluid. Micro Motion uses water.

If your sensor tag does not show a K1 or K2 value:

• For K1, enter the first 5 digits of the density calibration factor. In the sample tag in Figure 4-2,

this value is shown as 12500.

• For K2, enter the second 5 digits of the density calibration factor. In the sample tag in

Figure 4-2, this value is shown as 14286.

If your sensor does not show an FD value, contact Micro Motion customer service.

If your sensor tag does not show a DT or TC value, enter the last 3 digits of the density calibration

factor. In the sample tag in Figure 4-2, this value is shown as 4.44.

Newer tag Older tag

18 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Required Transmitter Configuration

Flow calibration values

Two separate values are used to describe flow calibration: a 6-character FCF value and a 4-character

FT value. Both values contain decimal points. During characterization, these are entered as a single

10-character string that includes two decimal points. In ProLink II, this value is called the Flowcal

parameter.

To obtain the required value:

• For older T-Series sensors, concatenate the FCF value and the FT value from the sensor tag, as

shown below.

• For newer T-Series sensors, the 10-character string is represented on the sensor tag as the FCF

value. The value should be entered exactly as shown, including the decimal points. No

concatenation is required.

• For all other sensors, the 10-character string is represented on the sensor tag as the Flow Cal

value. The value should be entered exactly as shown, including the decimal points. No

concatenation is required.

4.2.3 How to characterize

To characterize the flowmeter:

1. See the menu flowchart in Figure 4-4.

2. Ensure that the correct sensor type is configured.

3. Set required parameters, as listed in Table 4-1.

Figure 4-4 Characterizing the flowmeter

Flow FCF X.XXXX FT X.XX

Configuration

ProLink Menu

Device

·Sensor type

Density

T Series Config

Straight

tube

Curved

tube

Sensor type?

Flow

Density

Flow

Configuration and Use Manual 19

Required Transmitter Configuration

4.3 Configuring the channels

The six input/output terminals provided on the Model 1500 are organized into three pairs. These pairs

are called Channels A, B, and C. The channels should be configured before doing any other I/O

configuration.

The outputs and variable assignments are controlled by the channel configuration. Table 4-2 shows

how each channel may be configured and the power options for each channel.

To configure the channels, see the menu flowchart in Figure 4-5.

Figure 4-5 Configuring the channels

CAUTION

Changing the channel configuration without verifying I/O configuration can

produce process error.

When the configuration of a channel is changed, the channel’s behavior will be

controlled by the I/O configuration that is stored for the new channel type, which

may or may not be appropriate for the process. To avoid causing process error:

• Configure the channels before configuring the I/O.

• When changing channel configuration, be sure that all control loops affected by

this channel are under manual control.

• Before returning the loop to automatic control, ensure that the channel's I/O is

correctly configured for your process. See Sections 4.5, 4.6, and 4.7.

Table 4-2 Channel configuration options

Channel Terminals Configuration Option Power

A 21 & 22 mA output (not configurable) Internal (not configurable)

B 23 & 24 Discrete output 1 (DO1) Internal or external(1)

(1) If set to external power, you must provide power to the outputs.

C 31 & 32 Discrete output 2 (DO2) Internal or external(1)

Discrete input (DI)

Configuration

ProLink Menu

Channel

Channel B

· Type assignment

· Power type

Channel C

· Type assignment

· Power type

20 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Required Transmitter Configuration

4.4 Configuring the measurement units

For each process variable, the transmitter must be configured to use the measurement unit appropriate

to your application.

To configure measurement units, see the menu flowchart in Figure 4-6. For details on measurement

units for each process variable, see Sections 4.4.1 through 4.4.5.

Figure 4-6 Configuring measurement units

4.4.1 Mass flow units

The default mass flow measurement unit is g/s. See Table 4-3 for a complete list of mass flow

measurement units.

If the mass flow unit you want to use is not listed, you can define a special measurement unit for mass

flow (see Section 6.4).

Table 4-3 Mass flow measurement units

ProLink II label Unit description

g/s Grams per second

g/min Grams per minute

g/hr Grams per hour

kg/s Kilograms per second

kg/min Kilograms per minute

kg/hr Kilograms per hour

kg/day Kilograms per day

mTon/min Metric tons per minute

mTon/hr Metric tons per hour

mTon/day Metric tons per day

lbs/s Pounds per second

lbs/min Pounds per minute

lbs/hr Pounds per hour

lbs/day Pounds per day

sTon/min Short tons (2000 pounds) per minute

sTon/hr Short tons (2000 pounds) per hour

sTon/day Short tons (2000 pounds) per day

Configuration

ProLink Menu

Density

· Dens units

Flow

· Mass flow units

· Vol flow units

Temperature

· Temp units

Pressure

· Pressure units

Configuration and Use Manual 21

Required Transmitter Configuration

4.4.2 Volume flow units

The default volume flow measurement unit is L/s. See Table 4-4 for a complete list of volume flow

measurement units.

If the volume flow unit you want to use is not listed, you can define a special measurement unit for

volume flow (see Section 6.4).

lTon/hr Long tons (2240 pounds) per hour

lTon/day Long tons (2240 pounds) per day

special Special unit (see Section 6.4)

Table 4-4 Volume flow measurement units

ProLink II label Unit description

ft3/sec Cubic feet per second

ft3/min Cubic feet per minute

ft3/hr Cubic feet per hour

ft3/day Cubic feet per day

m3/sec Cubic meters per second

m3/min Cubic meters per minute

m3/hr Cubic meters per hour

m3/day Cubic meters per day

US gal/sec U.S. gallons per second

US gal/min U.S. gallons per minute

US gal/hr U.S. gallons per hour

US gal/day U.S. gallons per day

mil US gal/day Million U.S. gallons per day

l/sec Liters per second

l/min Liters per minute

l/hr Liters per hour

mil l/day Million liters per day

Imp gal/sec Imperial gallons per second

Imp gal/min Imperial gallons per minute

Imp gal/hr Imperial gallons per hour

Imp gal/day Imperial gallons per day

barrels/sec Barrels per second(1)

(1) Unit based on oil barrels (42 U.S gallons).

barrels/min Barrels per minute(1)

barrels/hr Barrels per hour(1)

barrels/day Barrels per day(1)

special Special unit (see Section 6.4)

Table 4-3 Mass flow measurement units continued

ProLink II label Unit description

22 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Required Transmitter Configuration

4.4.3 Density units

The default density measurement unit is g/cm3. See Table 4-3 for a complete list of density

measurement units.

4.4.4 Temperature units

The default temperature measurement unit is degC. See Table 4-6 for a complete list of temperature

measurement units.

4.4.5 Pressure units

Configuring the pressure unit is required only if pressure compensation will be implemented. See

Section 9.2.

4.5 Configuring the mA output

The mA output can be used either to report the mass flow or volume flow process variable or to

control a valve for the filling and dosing application.

Configuring the mA output for valve control is discussed in Section 7.4.

Note: If the mA output is configured for valve control, it cannot be used to report alarm status, and

the mA output will never go to fault levels.

Table 4-5 Density measurement units

ProLink II label Unit description

SGU Specific gravity unit (not temperature corrected)

g/cm3 Grams per cubic centimeter

g/l Grams per liter

g/ml Grams per milliliter

kg/l Kilograms per liter

kg/m3 Kilograms per cubic meter

lbs/Usgal Pounds per U.S. gallon

lbs/ft3 Pounds per cubic foot

lbs/in3 Pounds per cubic inch

degAPI API gravity

sT/yd3 Short ton per cubic yard

Table 4-6 Temperature measurement units

ProLink II label Unit description

degC Degrees Celsius

degF Degrees Fahrenheit

degR Degrees Rankine

degK Degrees Kelvin

Configuration and Use Manual 23

Required Transmitter Configuration

If the mA output is used to report mass flow or volume flow, the following parameters must be

configured:

• Primary variable

• Upper range value (URV) and lower range value (LRV)

• AO (analog output) cutoff

• AO added damping

• Fault action and fault value

• Last measured value timeout

To configure the mA output, see the menu flowchart in Figure 4-7. For details on mA output

parameters, see Sections 4.5.1 through 4.5.5.

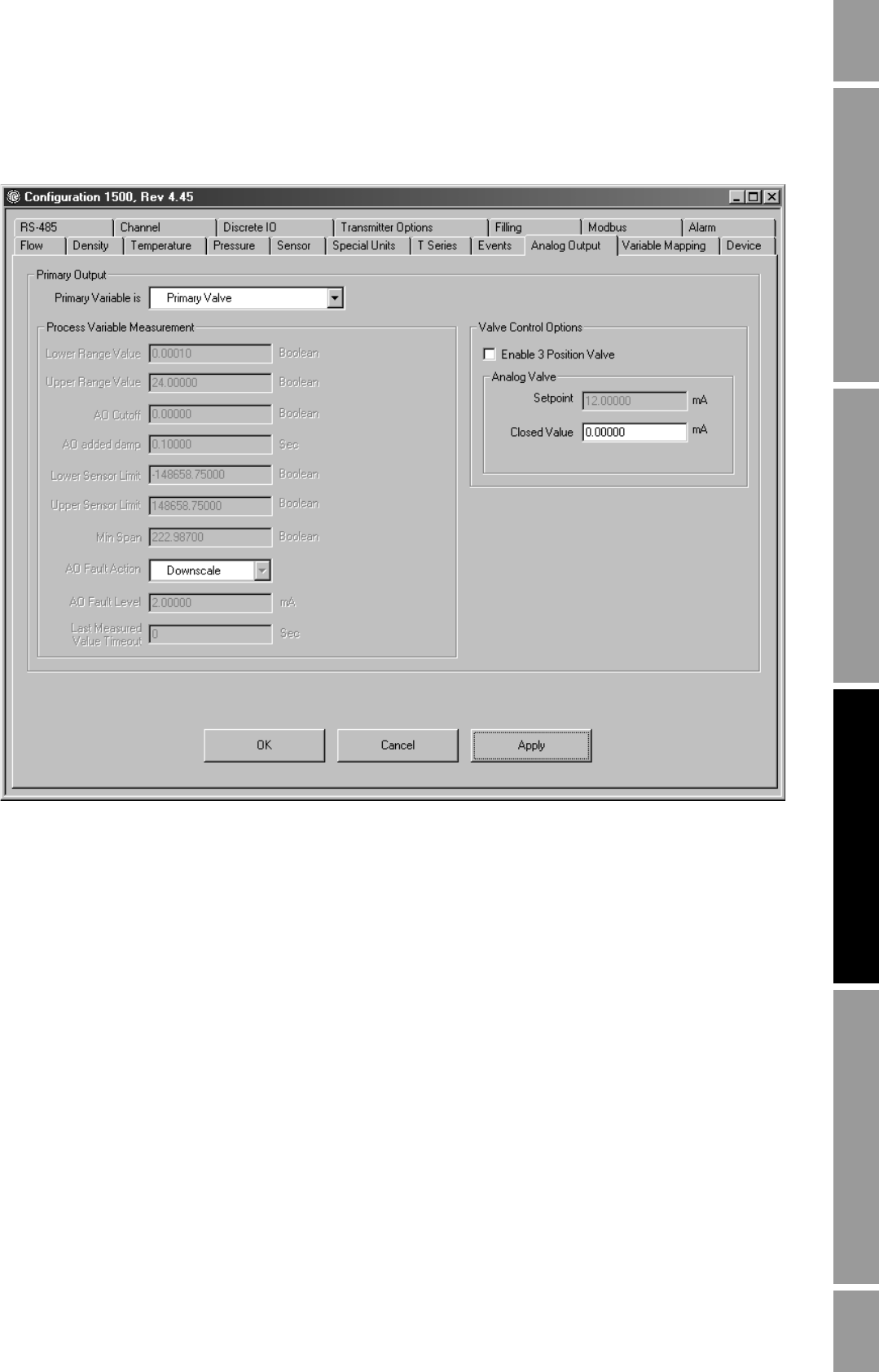

Figure 4-7 Configuring the mA output

CAUTION

Changing the channel configuration without verifying I/O configuration can

produce process error.

When the configuration of a channel is changed, the channel’s behavior will be

controlled by the configuration that is stored for the new channel type, which may or

may not be appropriate for the process. To avoid causing process error:

• Configure the channels before configuring the mA output (see Section 4.3).

• When changing the mA output configuration, be sure that all control loops

affected by this output are under manual control.

• Before returning the loop to automatic control, ensure that the mA output is

correctly configured for your process.

Configuration

ProLink Menu

Analog output

Primary variable is

Process variable measurement

· Lower range value

· Upper range value

· AO cutoff

· AO added damp

· Lower sensor limit

· Upper sensor limit

·Min span

· AO fault action

· Last measured value timeout

Process variable measurement

· Enable 3 position valve

· Analog valve setpoint

· Analog valve closed value

24 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Required Transmitter Configuration

4.5.1 Configuring the primary variable

The primary variable is the process variable to be reported through the mA output. Table 4-7 lists the

process variables that can be assigned to the mA outputs.

Note: The process variable assigned to the mA output is always the PV (primary variable).

4.5.2 Configuring the mA output range (LRV and URV)

The mA output uses a range of 4 to 20 mA to represent the assigned process variable. You must

specify:

• The lower range value (LRV) – the value of the process variable that will be indicated when

the mA output produces 4 mA

• The upper range value (URV) – the value of the process variable that will be indicated when

the mA output produces 20 mA

Enter values in the measurement units that are configured for the assigned process variable (see

Section 4.4).

Note: The URV can be set below the LRV; for example, the URV can be set to 0 and the LRV can be

set to 100.

4.5.3 Configuring the AO cutoff

The AO (analog output) cutoff specifies the lowest mass flow or volume flow value that will be

reported through the mA output. Any mass flow or volume flow values below the AO cutoff will be

reported as zero.

Note: For most applications, the default AO cutoff is used. Contact Micro Motion customer support

before changing the AO cutoff.

Multiple cutoffs

Cutoffs can also be configured for the mass flow and volume flow process variables (see Section 6.5).

If mass flow or volume flow has been assigned to the mA output, a non-zero value is configured for

the flow cutoff, and the AO cutoff is also configured, the cutoff occurs at the highest setting, as shown

in the following example.

Table 4-7 mA output process variable assignments

Process variable ProLink II label

Mass flow Mass Flow Rate

Volume flow Volume Flow Rate

Example Configuration:

• mA output: Mass flow

• AO cutoff: 10 g/sec

• Mass flow cutoff: 15 g/sec

As a result, if the mass flow rate drops below 15 g/sec, the mA output

will report zero flow.

Configuration and Use Manual 25

Required Transmitter Configuration

4.5.4 Configuring the fault action, fault value, and last measured value timeout

Note: If the mA output is configured for valve control, it cannot be used to report alarm status, and

the mA output will never go to fault levels.

If the transmitter encounters an internal fault condition, it can indicate the fault by sending a

preprogrammed output level to the receiving device. You can specify the output level by configuring

the fault action. Options are shown in Table 4-8.

By default, the transmitter immediately reports a fault when a fault is encountered. You can configure

the transmitter to delay reporting a fault by changing the last measured value timeout to a non-zero

value. During the fault timeout period, the transmitter continues to report its last valid measurement.

4.5.5 Configuring added damping

A damping value is a period of time, in seconds, over which the process variable value will change to

reflect 63% of the change in the actual process. Damping helps the transmitter smooth out small,

rapid measurement fluctuations:

• A high damping value makes the output appear to be smoother because the output must change

slowly.

• A low damping value makes the output appear to be more erratic because the output changes

more quickly.

The added damping parameter specifies damping that will be applied to the mA output. It affects the

measurement of the process variable assigned to the mA output, but does not affect other outputs.

When you specify a new added damping value, it is automatically rounded down to the nearest valid

value. Note that added damping values are affected by the Update Rate parameter (see Section 6.7).

Note: Added damping is not applied if the mA output is fixed (i.e., during loop testing) or is reporting

a fault.

Table 4-8 mA output fault actions and values

Fault action Fault output value

Upscale 21–24 mA (default: 22 mA)

Downscale 1.0–3.6 mA (default: 2.0 mA)

Internal zero The value associated with 0 (zero) flow, as determined by URV and LRV values

None(1)

(1) If the mA output fault action is set to None, the digital communications fault action should also be set to None. See

Section 6.12.1.

Tracks data for the assigned process variable; no fault action

CAUTION

Setting the fault action to NONE may result in process error due to

undetected fault conditions.

To avoid undetected fault conditions when the fault action is set to NONE, use

some other mechanism such as digital communications to monitor device status.

26 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Required Transmitter Configuration

Multiple damping parameters

Damping can also be configured for the mass flow and volume flow process variables (see

Section 6.6). If one of these process variables has been assigned to the mA output, a non-zero value is

configured for its damping, and added damping is also configured for the mA output, the effect of

damping the process variable is calculated first, and the added damping calculation is applied to the

result of that calculation. See the following example.

4.6 Configuring the discrete output(s)

Note: Configure the transmitter channels for the required output types before configuring individual

outputs. See Section 4.3.

The discrete outputs generate two voltage levels to represent ON or OFF states. The voltage levels

depend on the output’s polarity, as shown in Table 4-9. Figure 4-8 shows a diagram of a typical

discrete output circuit.

Example Configuration:

• Flow damping: 1

• mA output: Mass flow

• Added damping: 2

As a result:

• A change in mass flow will be reflected in the primary mA output

over a time period that is greater than 3 seconds. The exact time

period is calculated by the transmitter according to internal

algorithms which are not configurable.

CAUTION

Changing the channel configuration without verifying I/O configuration can

produce process error.

When the configuration of a channel is changed, the channel’s behavior will be

controlled by the configuration that is stored for the new channel type, which may or

may not be appropriate for the process. To avoid causing process error:

• Configure the channels before configuring the discrete output (see Section 4.3).

• When changing the discrete output configuration, be sure that all control loops

affected by this output are under manual control.

• Before returning the loop to automatic control, ensure that the discrete output is

correctly configured for your process.

Configuration and Use Manual 27

Required Transmitter Configuration

Figure 4-8 Discrete output circuit

The discrete outputs can be used to indicate a fault, to indicate filling in progress, or to control the

primary or secondary valves, as described in Table 4-10.

Note: Before you can assign a discrete output to valve control, the Fill Type parameter must be

configured. See Chapter 7 and Figure 7-3.

Table 4-9 Discrete output polarity

Polarity Output power supply Description

Active high Internal • When asserted, the circuit provides a pull-up to 15 V.

• When not asserted, the circuit provides 0 V.

External • When asserted, the circuit provides a pull-up to a site-specific

voltage, maximum 30 V.

• When not asserted, circuit provides 0 V.

Active low Internal • When asserted, the circuit provides 0 V.

• When not asserted, the circuit provides a pull-up to 15 V.

External • When asserted, the circuit provides 0 V.

• When not asserted, the circuit provides a pull-up to a site-specific

voltage, to a maximum of 30 V.

15 V (Nom)

Out+

Out–

3.2 Kohm

28 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Required Transmitter Configuration

To configure the discrete output, see the menu flowchart in Figure 4-9.

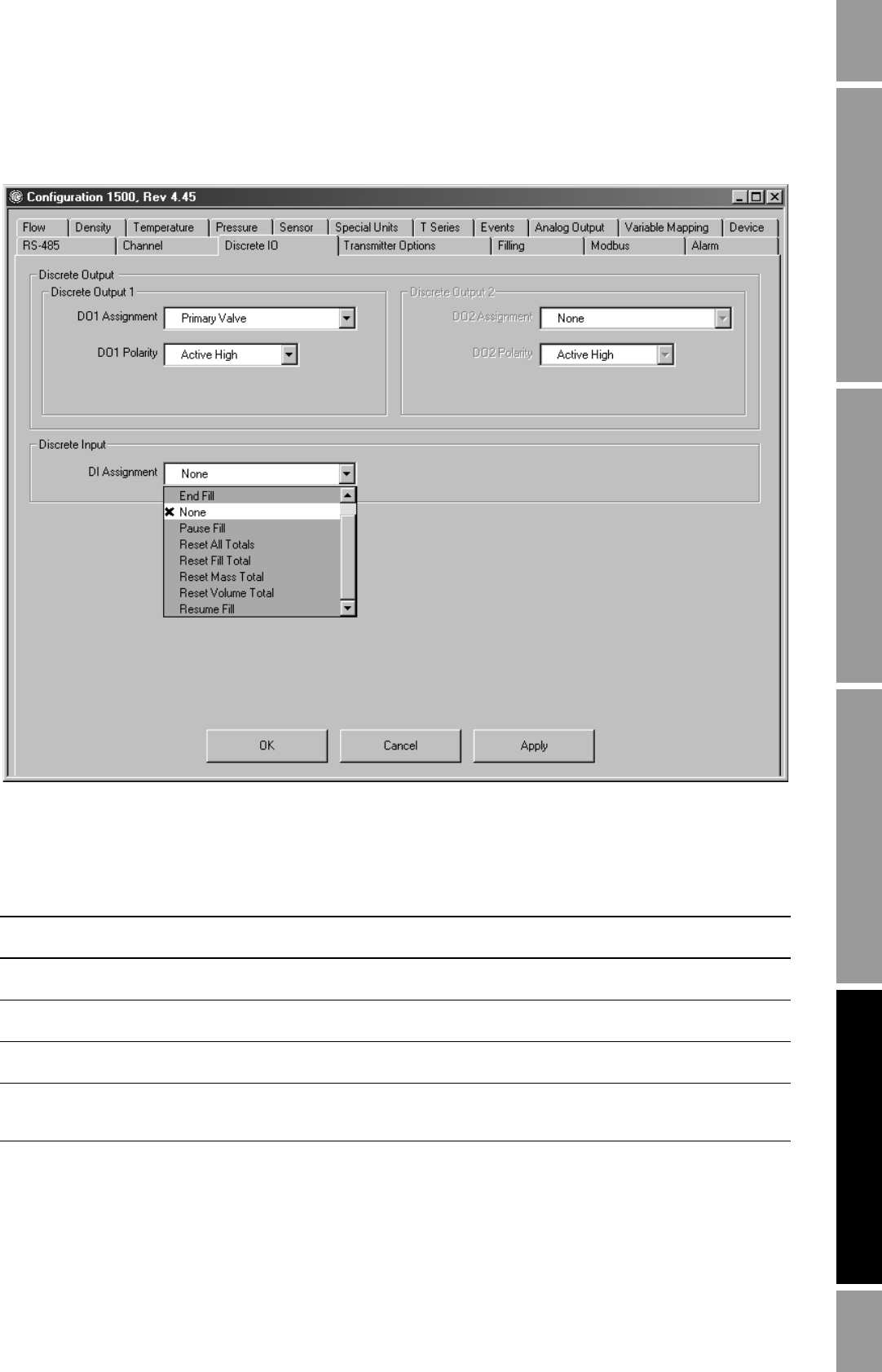

Figure 4-9 Configuring the discrete output(s)

WARNING

Upon transmitter startup or abnormal power reset, any external device

controlled by a discrete output may be momentarily activated.

Upon transmitter startup or abnormal power reset, discrete output states are

unknown. As a result, an external device controlled by a discrete output may

receive current for a brief period.

When using Channel B as a discrete output:

• You can prevent current flow upon normal startup by setting Channel B polarity

to active low.

• There is no programmatic method to prevent current flow for Channel B upon

abnormal power reset. You must design the system so that a brief current flow to

the external device controlled by Channel B cannot cause negative

consequences.

When using Channel C as a discrete output, there is no programmatic method to

prevent current flow upon either transmitter startup or abnormal power reset. You

must design the system so that a brief current flow to the external device controlled

by Channel C cannot cause negative consequences.

Table 4-10 Discrete output assignments and output levels

Assignment Condition Discrete output level(1)

(1) Voltage descriptions in this column assume that Polarity is set to Active High. If Polarity is set to Active Low, the voltages

are reversed.

Primary valve (DO1 only)

Secondary valve (DO2 only) Open Site-specific

Closed 0 V

Fill in progress (DO2 only) ON Site-specific

OFF 0 V

Fault indication (DO2 only) ON Site-specific

OFF 0 V

Configuration

ProLink Menu

Discrete IO

Discrete output

· DO1 assignment

· DO1 polarity

· DO2 assignment

· DO2 polarity

Discrete input

· DI assignment

Configuration and Use Manual 29

Required Transmitter Configuration

4.7 Configuring the discrete input

Note: Configure the transmitter channels for the required input/output types before configuring the

discrete input. See Section 4.3.

The discrete input is used to initiate a transmitter action from a remote input device. If your

transmitter has been configured for a discrete input, the following actions may be assigned to the

discrete input:

•Begin fill

• End fill

• Pause fill

• Resume fill

• Reset fill total

• Reset mass total

• Reset volume total

• Reset all totals

Note: If the filling and dosing application is active, the Reset All Totals function includes resetting the

fill total.

To configure the discrete input, see the menu flowchart in Figure 4-9.

4.8 Establishing a meter verification baseline

Note: This procedure applies only if your transmitter is connected to an enhanced core processor and

you have ordered the meter verification option. In addition, ProLink II v2.5 or later is required.

Meter verification is a method of establishing that the flowmeter is performing within factory

specifications. See Chapter 10 for more information about meter verification.

Micro Motion recommends performing meter verification several times over a range of process

conditions after the transmitter’s required configuration procedures have been completed. This will

establish a baseline for how widely the verification measurement varies under normal circumstances.

The range of process conditions should include expected temperature, pressure, density, and flow rate

variations.

CAUTION

Changing the channel configuration without verifying I/O configuration can

produce process error.

When the configuration of a channel is changed, the channel’s behavior will be

controlled by the configuration that is stored for the new channel type, which may or

may not be appropriate for the process. To avoid causing process error:

• Configure the channels before configuring the discrete output (see Section 4.3).

• When changing the discrete output configuration, be sure that all control loops

affected by this output are under manual control.

• Before returning the loop to automatic control, ensure that the discrete output is

correctly configured for your process.

30 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Required Transmitter Configuration

View the trend chart for these initial tests. By default, the specification uncertainty limit is set at

±4.0%, which will avoid false Fail/Caution results over the entire range of specified process

conditions. If you observe a structural integrity variation greater than 4% due to normal process

conditions, you may adjust the specification uncertainty limit to match your process variation. To

avoid false Fail/Caution results, it is advisable to set the specification uncertainty limit to

approximately twice the variation due to the effect of normal process conditions.

In order to perform this baseline analysis, you will need the enhanced meter verification capabilities

of ProLink II v2.5 or later. Refer to the manual entitled ProLink® II Software for Micro Motion®

Transmitters: Installation and Use, P/N 20001909, Rev D or later.

Configuration and Use Manual 31

Optional Configuration Using the FillerFiller ConfigurationUsing the Transmitter

Chapter 5

Using the Transmitter

5.1 Overview

This chapter describes how to use the transmitter in everyday operation. The following topics and

procedures are discussed:

• Recording process variables (see Section 5.2)

• Viewing process variables (see Section 5.3)

• Viewing transmitter status and alarms, and the alarm log (see Section 5.4)

• Viewing and using the totalizers and inventories (see Section 5.5)

For information on using the filling and dosing application, see Chapter 8.

Note: All ProLink II procedures provided in this section assume that your computer is already

connected to the transmitter and you have established communication. All ProLink II procedures also

assume that you are complying with all applicable safety requirements. See Chapter 2 for more

information.

5.2 Recording process variables

Micro Motion suggests that you make a record of the process variables listed below, under normal

operating conditions. This will help you recognize when the process variables are unusually high or

low, and may help in fine-tuning transmitter configuration.

Record the following process variables:

• Flow rate

• Density

•Temperature

• Tube frequency

• Pickoff voltage

•Drive gain

For information on using this information in troubleshooting, see Section 11.11.

32 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Using the Transmitter

5.3 Viewing process variables

Process variables include measurements such as mass flow rate, volume flow rate, mass total, volume

total, temperature, and density.

To view process variables with ProLink II software:

1. The Process Variables window opens automatically when you first connect to the transmitter.

2. If you have closed the Process Variables window:

a. Open the ProLink menu.

b. Select Process Variables.

5.4 Viewing transmitter status and alarms

You can view transmitter status using the status LED or ProLink II.

The transmitter broadcasts alarms whenever a process variable exceeds its defined limits or the

transmitter detects a fault condition. Using ProLink II, you can view active alarms and you can view

the alarm log. For information regarding all the possible alarms, see Table 11-4.

5.4.1 Using the status LED

The status LED is located on the front panel. This LED shows transmitter status as described in

Table 5-1.

5.4.2 Using ProLink II software

To view current status and alarms with ProLink II software:

1. Click ProLink.

2. Select Status. The status indicators are divided into three categories: Critical, Informational,

and Operational. To view the indicators in a category, click on the tab.

• A tab is red if one or more status indicators in that category is on.

• Within the tabs, current status alarms are shown by red status indicators.

Table 5-1 Transmitter status reported by the status LED

Status LED state Alarm priority Definition

Green No alarm Normal operating mode

Flashing yellow No alarm Zero in progress

Yellow Low severity alarm • Alarm condition: will not cause measurement error

• Outputs continue to report process data

• This alarm may indicate “Fill not ready” condition,

e.g., target set to 0, no flow source configured, no

valves configured.

Red High severity (critical fault) alarm • Alarm condition: will cause measurement error

• Outputs go to configured fault indicators

Configuration and Use Manual 33

Using the Transmitter

Optional Configuration Using the FillerFiller ConfigurationUsing the Transmitter

To view the alarm log:

1. Click ProLink.

2. Select Alarm log. Entries in the alarm log are divided into two categories: High Priority and

Low Priority. Within each category:

• All currently active alarms are listed, with a red status indicator.

• All alarms that are no longer active are listed, with a green status indicator.

3. To remove an inactive alarm from the list, click the ACK checkbox, then click Apply.

The alarm log is cleared and regenerated with every transmitter power cycle.

Note: The location of alarms in the Status or Alarm Log window is not affected by the configured

alarm severity (see Section 6.11.1). Alarms in the Status window are predefined as Critical,

Informational, or Operational. Alarms in the Alarm Log window are predefined as High Priority or

Low Priority.

5.5 Using the totalizers and inventories

The totalizers keep track of the total amount of mass or volume measured by the transmitter over a

period of time. The totalizers can be viewed, started, stopped, and reset.

The inventories track the same values as the totalizers but can be reset separately. Because the

inventories are reset separately, you can keep a running total of mass or volume across multiple

totalizer resets.

Note: Mass and volume totalizer and inventory values are held across transmitter power cycles. The

fill total is not held across power cycles.

Note: If the Special update rate is configured, no inventories are available. See Section 6.7.

To view the current value of the totalizers and inventories with ProLink II software:

1. Click ProLink.

2. Select Process Variables or Totalizer Control.

Table 5-2 shows how you can control the totalizers and inventories using ProLink II software. To get

to the Totalizer Control screen:

1. Click ProLink.

2. Select Totalizer Control.

Note: The fill total can be reset independently from the Run Filler window (see Section 8.3.1). It

cannot be reset independently from the Totalizer window.

Table 5-2 Totalizer and inventory control with ProLink II software

To accomplish this On the totalizer control screen...

Stop the mass and volume totalizers and inventories Click Stop

Start the mass and volume totalizers and inventories Click Start

Reset mass totalizer Click Reset Mass Total

Reset volume totalizer Click Reset Volume Total

Simultaneously reset all totalizers (mass, volume, and fill) Click Reset

Simultaneously reset all inventories (mass and volume)(1)

(1) If enabled in the ProLink II preferences. Click View > Preferences, and set the Enable Inventory Totals Reset checkbox as desired.

Click Reset Inventories

34 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Configuration and Use Manual 35

Optional Configuration Using the FillerFiller ConfigurationUsing the Transmitter

Chapter 6

Optional Transmitter Configuration

6.1 Overview

This chapter describes transmitter configuration parameters that may or may not be used, depending

on your application requirements. For required transmitter configuration, see Chapter 4.

The following configuration parameters and options are described in this chapter:

• Special measurement units (see Section 6.4)

• Cutoffs (see Section 6.5)

• Damping (see Section 6.6)

• Update rate (see Section 6.7)

• Flow direction (see Section 6.8)

• Events (see Section 6.9)

• Slug flow (see Section 6.10)

• Fault handling (see Section 6.11)

• Digital communications settings (see Section 6.12)

• Variable mapping (see Section 6.13)

• Device settings (see Section 6.14)

• Sensor parameters (see Section 6.15)

6.2 Default values

Default values and ranges for the most commonly used parameters are provided in Appendix A.

6.3 Parameter location within ProLink II

For information on parameter location within the ProLink II interface, see Appendix C.

6.4 Creating special measurement units

If you need to use a non-standard unit of measure, you can create one special measurement unit for

mass flow and one special measurement unit for volume flow.

36 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Optional Transmitter Configuration

6.4.1 About special measurement units

Special measurement units consist of:

• Base unit – A combination of:

- Base mass or base volume unit – A measurement unit that the transmitter already

recognizes (e.g., kg, m3)

- Base time unit – A unit of time that the transmitter already recognizes (e.g., seconds, days)

• Conversion factor – The number by which the base unit will be divided to convert to the

special unit

• Special unit – A non-standard volume flow or mass flow unit of measure that you want to be

reported by the transmitter

The terms above are related by the following formula:

To create a special unit, you must:

1. Identify the simplest base volume or mass and base time units for your special mass flow or

volume flow unit. For example, to create the special volume flow unit pints per minute, the

simplest base units are gallons per minute:

• Base volume unit: gallon

• Base time unit: minute

2. Calculate the conversion factor using the formula below:

Note: 1 gallon per minute = 8 pints per minute

3. Name the new special mass flow or volume flow measurement unit and its corresponding

totalizer measurement unit:

• Special volume flow measurement unit name: Pint/min

• Volume totalizer measurement unit name: Pints

Names can be up to 8 characters long.

4. To apply the special measurement unit to mass flow or volume flow measurement, select

Special from the list of measurement units (see Section 4.4.1 or 4.4.2).

6.4.2 Special mass flow unit

To create a special mass flow measurement unit:

1. Specify the base mass unit.

2. Specify the base time unit.

3. Specify the mass flow conversion factor.

4. Assign a name to the new special mass flow measurement unit.

5. Assign a name to the mass totalizer measurement unit.

ConversionFactor x BaseUnit(s)[]

y SpecialUnit(s)[]

---------------------------------------------=

x BaseUnit(s)[]y SpecialUnit(s)[]=

1 (gallon per minute)

8 (pints per minute)

-------------------------------------------------------0.125 (conversion factor)=

Configuration and Use Manual 37

Optional Transmitter Configuration

Optional Configuration Using the FillerFiller ConfigurationUsing the Transmitter

6.4.3 Special volume flow unit

To create a special volume flow measurement unit:

1. Specify the base volume unit.

2. Specify the base time unit.

3. Specify the volume flow conversion factor.

4. Assign a name to the new special volume flow measurement unit.

5. Assign a name to the volume totalizer measurement unit.

6.4.4 Special unit for gas

For many gas applications, standard or normal volume flow rate is used as the quasi mass flow rate.

Standard or normal volume flow rate is calculated as the mass flow rate divided by the density of the

gas at a reference condition.

To configure a mass flow special unit that represents standard or normal volume flow rate, you must

calculate the mass flow conversion factor from the density of the gas at a reference temperature,

pressure, and composition.

ProLink II offers a Gas Unit Configurator tool to calculate this mass flow conversion factor. The tool

will automatically update the mass flow conversion factor in the Special Units tab. If ProLink II is

not available, special mass units can be used to set up standard or normal volume flow units for gas

applications.

Note: Micro Motion recommends that you do not use the flowmeter to measure actual volume flow of

a gas (volumetric flow at line conditions). If you need to measure actual volume flow, contact Micro

Motion customer support.

To use the Gas Unit Configurator:

1. Start ProLink II and connect to your transmitter.

2. Open the Configuration window.

3. Click the Special Units tab.

4. Click the Gas Unit Configurator button.

5. Select the Time Unit that your special unit will be based on.

6. Click a radio button to specify that your special unit will be defined in terms of English Units

or SI (Système International) Units.

7. Click Next.

CAUTION

The flowmeter should not be used for measuring the actual volume of gases.

Standard or normal volume is the traditional unit for gas flow. Coriolis flowmeters

measure mass. Mass divided by standard or normal density yields standard or

normal volume units.

38 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Optional Transmitter Configuration

8. Define the standard density to be used in calculations.

• To use a fixed standard density, click the top radio button, enter a value for standard

density in the Standard Density textbox, and click Next.

• To use a calculated standard density, click the second radio button and click Next. Then

enter values for Reference Temperature, Reference Pressure, and Specific Gravity on

the next panel, and click Next.

9. Check the values displayed.

• If they are appropriate for your application, click Finish. The special unit data will be

written to the transmitter.

• If they are not appropriate for your application, click Back as many times as necessary to

return to the relevant panel, correct the problem, then repeat the above steps.

6.5 Configuring cutoffs

Cutoffs are user-defined values below which the transmitter reports a value of zero for the specified

process variable. Cutoffs can be set for mass flow, volume flow, or density.

See Table 6-1 for cutoff default values and related information. See Sections 6.5.1 and 6.5.2 for

information on how the cutoffs interact with other transmitter measurements.

6.5.1 Cutoffs and volume flow

The mass flow cutoff is not applied to the volume flow calculation. Even if the mass flow drops below

the cutoff, and therefore the mass flow indicators go to zero, the volume flow rate will be calculated

from the actual mass flow process variable.

However, the density cutoff is applied to the volume flow calculation. Accordingly, if the density

drops below its configured cutoff value, both the reported density and the reported volume flow rate

will go to zero.

6.5.2 Interaction with the AO cutoff

The mA output also has a cutoff – the AO cutoff. If the mA output is configured for mass or volume

flow:

• And the AO cutoff is set to a greater value than the mass and volume cutoffs, the flow

indicators will go to zero when the AO cutoff is reached.

• And the AO cutoff is set to a lower value than the mass or volume cutoff, the flow indicator

will go to zero when the mass or volume cutoff is reached.

See Section 4.5.3 for more information on the AO cutoff.

Table 6-1 Cutoff default values

Cutoff type Default Comments

Mass flow 0.0 g/s Recommended setting: 0.5–1.0% of the sensor’s rated maximum flowrate

Volume flow 0.0 L/s Lower limit: 0

Upper limit: the sensor’s flow calibration factor, in units of L/s, multiplied by 0.2

Density 0.2 g/cm3Range: 0.0–0.5 g/cm3

Configuration and Use Manual 39

Optional Transmitter Configuration

Optional Configuration Using the FillerFiller ConfigurationUsing the Transmitter

6.6 Configuring the damping values

A damping value is a period of time, in seconds, over which the process variable value will change to

reflect 63% of the change in the actual process. Damping helps the transmitter smooth out small,

rapid measurement fluctuations.

• A high damping value makes the output appear to be smoother because the output must change

slowly.

• A low damping value makes the output appear to be more erratic because the output changes

more quickly.

When you specify a new damping value, it is automatically rounded down to the nearest valid

damping value. Flow, density, and temperature have different valid damping values. Valid damping

values are listed in Table 6-2.

For the Model 1500 transmitter with the filling and dosing application, the default damping value for

flow has been set to 0.04 seconds. For most filling and dosing applications, the default flow damping

value is used. Contact Micro Motion customer support before changing the flow damping value.

Before setting the damping values, review Sections 6.6.1 through 6.6.3 for information on how the

damping values interact with other transmitter measurements and parameters.

6.6.1 Damping and volume measurement

When configuring damping values, be aware that volume measurement is derived from mass and

density measurements; therefore, any damping applied to mass flow and density will affect volume

measurements. Be sure to set damping values accordingly.

6.6.2 Interaction with the added damping parameter

The mA output has a damping parameter – added damping. If damping is configured for flow, the mA

output is configured for mass flow or volume flow, and added damping is also configured for the mA

output, the effect of damping the process variable is calculated first, and the added damping

calculation is applied to the result of that calculation.

See Section 4.5.5 for more information on the added damping parameter.

Table 6-2 Valid damping values

Process variable Update rate(1)

(1) See Section 6.6.3.

Valid damping values

Flow (mass and volume) Normal (20 Hz) 0, .2, .4, .8, ... 51.2

Special (100 Hz) 0, .04, .08, .16, ... 10.24

Density Normal (20 Hz) 0, .2, .4, .8, ... 51.2

Special (100 Hz) 0, .04, .08, .16, ... 10.24

Temperature Not applicable 0, .6, 1.2, 2.4, 4.8, ... 76.8

40 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Optional Transmitter Configuration

6.6.3 Interaction with the update rate

Flow and density damping values depend on the configured Update Rate (see Section 6.7). If you

change the update rate, the damping values are automatically adjusted. Damping rates for Special are

20% of Normal damping rates. See Table 6-2.

Note: The specific process variable selected for the Special update rate is not relevant; all damping

values are adjusted as described.

6.7 Configuring the update rate

The update rate is the rate at which the sensor reports process variables to the transmitter. This affects

transmitter response time to changes in the process.

There are two settings for Update Rate: Normal and Special.

• When Normal is configured, most process variables are polled at the rate of 20 times per

second (20 Hz).

• When Special is configured, a single, user-specified process variable is reported at a faster

rate, and all others are reported at a slower rate. If you set the update rate to Special, you must

also specify which process variable will be updated at 100 Hz. Polling for some process

variables and diagnostic/calibration data is dropped (see Section 6.7.1), and the remaining

process variables are polled a minimum of 6 times per second (6.25 Hz).

Not all process variables can be used as the 100 Hz variable. Only the following process variables can

be selected:

• Mass flow rate

• Volume flow rate

For the Model 1500 transmitter with the filling and dosing application, Special is the default, and the

100 Hz variable is automatically set to the variable configured as the fill flow source (mass flow rate

or volume flow rate).

For filling and dosing applications, Micro Motion recommends:

•Use

Special for all “short” applications (fill duration less than 15 seconds).

•Use

Normal for all “long” applications (fill duration of 15 or more seconds).

For all other applications, Micro Motion recommends using the Normal update rate. Contact Micro

Motion before using the Special update rate for other applications.

Note: If you change the Update Rate setting, the setting for damping is automatically adjusted. See

Section 6.6.3.

Configuration and Use Manual 41

Optional Transmitter Configuration

Optional Configuration Using the FillerFiller ConfigurationUsing the Transmitter

6.7.1 Effects of Special mode

In Special mode:

• Not all process variables are updated. The process variables listed below are always updated:

- Mass flow

-Volume flow

- Density

- Temperature

-Drive gain

- LPO amplitude

- RPO amplitude

- Status (contains Event 1 and Event 2)

- Raw tube frequency

- Mass total

- Volume total

-Board temperature

- Core input voltage

- Mass inventory

- Volume inventory

All other process variables are not polled at all. The omitted process variables will remain at

the values they held before Special mode was implemented.

• Calibration data is not refreshed.

Micro Motion recommends the following:

• If Special mode is required, ensure that all required data is being updated.

• Do not perform any calibrations while in Special mode.

6.8 Configuring the flow direction parameter

Note: If the mA output is configured for valve control, this parameter has no effect.

The flow direction parameter controls how the transmitter reports flow rate and how flow is added to

or subtracted from the totalizers, under conditions of forward flow, reverse flow, or zero flow.

•Forward (positive) flow moves in the direction of the arrow on the sensor.

•Reverse (negative) flow moves in the direction opposite of the arrow on the sensor.

Options for flow direction include:

•Forward

•Reverse

• Absolute Value

• Bidirectional

• Negate Forward

• Negate Bidirectional

42 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Optional Transmitter Configuration

For the effect of flow direction on the mA output:

• See Figure 6-1 if the 4 mA value of the mA output is set to 0.

• See Figure 6-2 if the 4 mA value of the mA output is set to a negative value.

For a discussion of these figures, see the examples following the figures.

For the effect of flow direction on totalizers and flow values reported via digital communication,

see Table 6-3.

Figure 6-1 Effect of flow direction on mA outputs: 4mA value = 0

Reverse

flow(1)

-x x0

mA output configuration:

• 20 mA value = x

• 4 mA value = 0

To set the 4 mA and 20 mA values,

see Section 4.5.2.

Forward

flow(2)

Zero flow

Reverse

flow(1) Forward

flow(2)

Zero flow

Flow direction parameter:

•Forward

Flow direction parameter:

• Reverse

• Negate Forward

-x x0

Reverse

flow(1) Forward

flow(2)

Zero flow

Flow direction parameter:

• Absolute value

• Bidirectional

• Negate Bidirectional

(1) Process fluid flowing in opposite direction from flow direction arrow on sensor.

(2) Process fluid flowing in same direction as flow direction arrow on sensor.

-x

mA output

Configuration and Use Manual 43

Optional Transmitter Configuration

Optional Configuration Using the FillerFiller ConfigurationUsing the Transmitter

Figure 6-2 Effect of flow direction on mA outputs: 4mA value < 0

Example 1 Configuration:

• Flow direction = Forward

• mA output: 4 mA = 0 g/s; 20 mA = 100 g/s

(See the first graph in Figure 6-1.)

As a result:

• Under conditions of reverse flow or zero flow, the mA output level

is 4 mA.

• Under conditions of forward flow, up to a flow rate of 100 g/s, the

mA output level varies between 4 mA and 20 mA in proportion to

(the absolute value of) the flow rate.

• Under conditions of forward flow, if (the absolute value of) the flow

rate equals or exceeds 100 g/s, the mA output will be proportional

to the flow rate up to 20.5 mA, and will be level at 20.5 mA at

higher flow rates.

Reverse

flow(1)

mA output

–x x0

mA output configuration:

• 20 mA value = x

• 4 mA value = –x

• –x < 0

To set the 4 mA and 20 mA values,

see Section 4.5.2.

Forward

flow(2)

Zero flow

Reverse

flow(1) Forward

flow(2)

Zero flow

Flow direction parameter:

•Forward

Flow direction parameter:

• Reverse

• Negate Forward

–x x0

Reverse

flow(1) Forward

flow(2)

Zero flow

Flow direction parameter:

• Absolute value

• Bidirectional

• Negate Bidirectional

(1) Process fluid flowing in opposite direction from flow direction arrow on sensor.

(2) Process fluid flowing in same direction as flow direction arrow on sensor.

mA output

44 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Optional Transmitter Configuration

Example 2 Configuration:

• Flow direction = Reverse

• mA output: 4 mA = 0 g/s; 20 mA = 100 g/s

(See the second graph in Figure 6-1.)

As a result:

• Under conditions of forward flow or zero flow, the mA output level

is 4 mA.

• Under conditions of reverse flow, up to a flow rate of 100 g/s, the

mA output level varies between 4 mA and 20 mA in proportion to

the absolute value of the flow rate.

• Under conditions of reverse flow, if the absolute value of the flow

rate equals or exceeds 100 g/s, the mA output will be proportional

to the absolute value of the flow rate up to 20.5 mA, and will be

level at 20.5 mA at higher absolute values.

Example 3 Configuration:

• Flow direction = Forward

• mA output: 4 mA = –100 g/s; 20 mA = 100 g/s

(See the first graph in Figure 6-2.)

As a result:

• Under conditions of zero flow, the mA output is 12 mA.

• Under conditions of forward flow, up to a flow rate of 100 g/s, the

mA output varies between 12 mA and 20 mA in proportion to (the

absolute value of) the flow rate.

• Under conditions of forward flow, if (the absolute value of) the flow

rate equals or exceeds 100 g/s, the mA output is proportional to

the flow rate up to 20.5 mA, and will be level at 20.5 mA at higher

flow rates.

• Under conditions of reverse flow, up to a flow rate of 100 g/s, the

mA output varies between 4 mA and 12 mA in inverse proportion

to the absolute value of the flow rate.

• Under conditions of reverse flow, if the absolute value of the flow

rate equals or exceeds 100 g/s, the mA output is inversely

proportional to the flow rate down to 3.8 mA, and will be level at

3.8 mA at higher absolute values.

Configuration and Use Manual 45

Optional Transmitter Configuration

Optional Configuration Using the FillerFiller ConfigurationUsing the Transmitter

6.9 Configuring events

An event occurs if the real-time value of a user-specified process variable varies beyond a

user-specified value. Events are used to perform specific actions on the transmitter. For example, the

event can be defined to activate a discrete output if the flow rate is above a specified value. The

discrete output, then, may be configured to close a valve.

Note: Events cannot be used to manage the filling process.

You can define one or two events. You may define the events on a single process variable or on two

different process variables. Each event is associated with either a high or a low alarm.

Configuring an event includes the following steps:

1. Selecting Event 1 or Event 2.

2. Assigning a process variable to the event.

3. Specifying the Event Type:

•Active High – alarm is triggered if process variable goes above setpoint

•Active Low – alarm is triggered if process variable goes below setpoint

Table 6-3 Effect of flow direction on totalizers and digital communications

Flow direction value

Forward flow(1)

(1) Process fluid flowing in same direction as flow direction arrow on sensor.

Flow totals Flow values via digital comm.

Forward Increase Positive

Reverse No change Positive

Bidirectional Increase Positive

Absolute value Increase Positive(2)

(2) Refer to the digital communications status bits for an indication of whether flow is positive or negative.

Negate Forward No change Negative

Negate Bidirectional Decrease Negative

Flow direction value

Zero flow

Flow totals Flow values via digital comm.

All No change 0

Flow direction value

Reverse flow(3)

(3) Process fluid flowing in opposite direction from flow direction arrow on sensor.

Flow totals Flow values via digital comm.

Forward No change Negative

Reverse Increase Negative

Bidirectional Decrease Negative

Absolute value Increase Positive(2)

Negate Forward Increase Positive

Negate Bidirectional Increase Positive

46 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Optional Transmitter Configuration

4. Specifying the setpoint – the value at which the event will occur or switch state (ON to OFF, or

vice versa).

Note: Events do not occur if the process variable equals the setpoint. The process variable must be

greater than (Active High) or less than (Active Low) the setpoint for the event to occur.

ProLink II automatically displays event information on the Informational panel of the Status window

and in the Output Levels window.

6.10 Configuring slug flow limits and duration

Slugs – gas in a liquid process or liquid in a gas process – occasionally appear in some applications.

The presence of slugs can significantly affect the process density reading. The slug flow parameters

can help the transmitter suppress extreme changes in process variables, and can also be used to

identify process conditions that require correction.

Slug flow parameters are as follows:

•Low slug flow limit – the point below which a condition of slug flow will exist. Typically, this

is the lowest density point in your process’s normal density range. Default value is 0.0 g/cm3;

range is 0.0–10.0 g/cm3.

•High slug flow limit – the point above which a condition of slug flow will exist. Typically, this

is the highest density point in your process’s normal density range. Default value is 5.0 g/cm3;

range is 0.0–10.0 g/cm3.

•Slug flow duration – the number of seconds the transmitter waits for a slug flow condition

(outside the slug flow limits) to return to normal (inside the slug flow limits). If the transmitter

detects slug flow, it will post a slug flow alarm and hold its last “pre-slug flow” flow rate until

the end of the slug flow duration. If slugs are still present after the slug flow duration has

expired, the transmitter will report a flow rate of zero. Default value for slug flow duration is

0.0 seconds; range is 0.0–60.0 seconds.

Example Define Event 1 to indicate that the mass flow rate in forward or

backward direction is less than 2 lb/min.

1. Specify lb/min as the mass flow unit.

2. Set Flow Direction to Absolute Value.

3. Select Event 1.

4. Configure:

• Variable = Mass Flow Rate

• Type = Active Low

• Setpoint = 2

Configuration and Use Manual 47

Optional Transmitter Configuration

Optional Configuration Using the FillerFiller ConfigurationUsing the Transmitter

If the transmitter detects slug flow:

• A slug flow alarm is posted immediately.

• During the slug duration period, the transmitter holds the mass flow rate at the last measured

pre-slug value, independent of the mass flow rate measured by the sensor. All outputs that

report mass flow rate and all internal calculations that include mass flow rate will use this

value.

• If slugs are still present after the slug duration period expires, the transmitter forces the mass

flow rate to 0, independent of the mass flow rate measured by the sensor. All outputs that

report mass flow rate and all internal calculations that include mass flow rate will use 0.

• When process density returns to a value within the slug flow limits, the slug flow alarm is

cleared and the mass flow rate reverts to the actual measured value.

Note: Raising the low slug flow limit or lowering the high slug flow limit will increase the possibility

that the transmitter will report slug flow.

Note: The slug flow limits must be entered in g/cm3, even if another unit has been configured for

density. Slug flow duration is entered in seconds.

Note: If slug flow duration is set to 0, the mass flow rate will be forced to 0 as soon as slug flow is

detected.

6.11 Configuring fault handling

There are four ways that the transmitter can report faults:

• By setting the mA output to its configured fault level (see Section 4.5.4 )

• By configuring a discrete output to indicate fault status (see Section 4.6)

• By setting the digital communications fault indicator (see Section 6.12.1)

• By posting an alarm to the active alarm log

Status alarm severity controls which of these methods is used. For some faults only, fault timeout

controls when the fault is reported.

6.11.1 Changing status alarm severity

Status alarms are classified into three levels of severity. Severity level controls transmitter behavior

when the alarm condition occurs. See Table 6-4.

You cannot reclassify a Fault alarm, or change another alarm to a Fault alarm. However, alarms can

be reclassified from Informational to Ignore, or vice versa. For example, the default severity level for

the A118 – DO1 Fixed alarm is Information, but you can set it to Ignore.

Table 6-4 Alarm severity levels

Severity level Transmitter action

Fault If this condition occurs, an alarm will be generated and all outputs go to their

configured fault levels. Output configuration is described in Chapter 4.

Informational If this condition occurs, an alarm will be generated but output levels are not affected.

Ignore If this condition occurs, no alarm will be generated (no entry is added to the active

alarm log) and output levels are not affected.

48 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Optional Transmitter Configuration

For a list of all status alarms and default severity levels, see Table 6-5. (For more information on

status alarms, including possible causes and troubleshooting suggestions, see Section 11.10.)

Table 6-5 Status alarms and severity levels

Alarm code ProLink II message Default

severity Configurable? Affected by

fault timeout?

A001 CP EEPROM Failure Fault No No

A002 CP RAM Failure Fault No No

A003 Sensor Failure Fault No Yes

A004 Temp Out of Range Fault No Yes

A005 Mass Flow Overrange Fault No Yes

A006 Characterize Meter Fault No No

A008 Density Out of Range Fault No Yes

A009 Xmtr Initializing Fault No No

A010 Calibration Failure Fault No No

A011 Cal Fail, Too Low Fault No No

A012 Cal Fail, Too High Fault No No

A013 Cal Fail, Too Noisy Fault No No

A014 Transmitter Error Fault No No

A016 Sensor RTD Error Fault No Yes

A017 Meter RTD Error Fault No Yes

A018 EEPROM Failure Fault No No

A019 RAM Failure Fault No No

A020 Cal Factors Missing Fault No No

A021 Sensor Type Incorrect Fault No No

A022(1) CP Configuration Failure Fault No No

A023(1) CP Totals Failure Fault No No

A024(1) CP Program Corrupt Fault No No

A025(1) CP Boot Program Fault Fault No No

A026 Xmtr Comm Problem Fault No No

A028 Comm Problem Fault No No

A032(2) Meter Verification/Outputs In Fault Fault No No

A100 mA 1 Saturated Info Yes No

A101 mA 1 Fixed Info Yes No

A102 Drive Overrange/Partially Full Tube Info Yes No

A103(1) Data Loss Possible Info Yes No

A104 Cal in Progress Info Yes No

A105 Slug Flow Info Yes No

A107 Power Reset Info Yes No

A108 Event 1 On Info Yes No

A109 Event 2 On Info Yes No

A112 Upgrade Software Info Yes No

A115 External Input Error Info Yes No

Configuration and Use Manual 49

Optional Transmitter Configuration

Optional Configuration Using the FillerFiller ConfigurationUsing the Transmitter

6.11.2 Changing the fault timeout

By default, the transmitter immediately reports a fault when a fault is encountered. For specific faults,

you can configure the transmitter to delay reporting the fault by changing the fault timeout to a

non-zero value. If fault timeout is configured:

• During the fault timeout period, the transmitter continues to report its last valid measurement.

• The fault timeout applies only to the mA output and discrete output. Fault indication via digital

communications is unaffected.

The fault timeout is not applicable to all faults. See Table 6-5 for information about which faults are

affected by fault timeout.

6.12 Configuring digital communications

The digital communications parameters control how the transmitter will communicate using

Modbus/RS-485 protocol.

The following digital communications parameters can be configured:

• Fault indicator

• Modbus address

• RS-485 settings

• Floating-point byte order

• Additional communications response delay

6.12.1 Changing the digital communications fault indicator

The transmitter can indicate fault conditions using a digital communications fault indicator. Table 6-6

lists the options for the digital communications fault indicator.

Note: If an output is configured for valve control, the output will never go to fault levels.

A118 DO1 Fixed Info Yes No

A119 DO2 Fixed Info Yes No

A131(2) Meter Verification/Outputs at Last Value Info Yes No

(1) Applies only to systems with the standard core processor.

(2) Applies only to systems with the enhanced core processor.

Table 6-6 Digital communications fault indicators and values

Fault indicator options Fault output value

Upscale Process variables indicate the value is greater than the upper sensor limit. Totalizers

stop counting.

Downscale Process variables indicate the value is less than the lower sensor limit. Totalizers stop

counting.

Zero Flow rates go to the value that represents zero flow, and density and temperature

values are reported as zero. Totalizers stop counting.

Table 6-5 Status alarms and severity levels continued

Alarm code ProLink II message Default

severity Configurable? Affected by

fault timeout?

50 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Optional Transmitter Configuration

6.12.2 Changing the Modbus address

The transmitter’s Modbus address is used by devices on a network to identify and communicate with

the transmitter using Modbus protocol. The Modbus address must be unique on the network. If the

transmitter will not be accessed using Modbus protocol, the Modbus address is not required.

Modbus addresses must be in the range 1–110, inclusive.

If you are connected to the transmitter using an RS-485 connection, and you change the Modbus

address, then:

• If you are using ProLink II, ProLink II will automatically switch to the new address and retain

the connection.

• If you are using a different host program, the connection will be broken. You must reconnect

using the new Modbus address.

Note: Changing the Modbus address does not affect service port connections. Service port

connections always use a default address of 111.

6.12.3 Changing the RS-485 parameters

RS-485 parameters control how the transmitter will communicate over its RS-485 terminals. The

following parameters can be set:

•Protocol

•Baud rate

• Parity

• Stop bits

To enable RS-485 communications with the transmitter from a remote device:

1. Set the transmitter’s digital communications parameters appropriately for your network.

2. Configure the remote device to use the specified parameters.

If you are connected to the transmitter using an RS-485 connection:

• And you change the the baud rate:

- If you are using ProLink II, ProLink II will automatically switch to the new baud rate and

retain the connection.

- If you are using a different host program, the connection will be broken. You must

reconnect using the new baud rate.

• And you change the protocol, parity or stop bits, all host programs will lose the connection.

You must reconnect using the new settings.

Note: Changing the RS-485 communication settings does not affect service port connections. Service

port connections always use default settings.

Not-A-Number (NAN) Process variables report IEEE NAN and Modbus scaled integers report Max Int.

Totalizers stop counting.

Flow to Zero Flow rates go to the value that represents zero flow; other process variables are not

affected. Totalizers stop counting.

None (default) Process variables reported as measured.

Table 6-6 Digital communications fault indicators and values continued

Fault indicator options Fault output value

Configuration and Use Manual 51

Optional Transmitter Configuration

Optional Configuration Using the FillerFiller ConfigurationUsing the Transmitter

6.12.4 Changing the floating-point byte order

Four bytes are used to transmit floating-point values. For contents of bytes, see Table 6-7.

The default byte order for the transmitter is 3–4–1–2. You may need to reset byte order to match the

byte order used by a remote host or PLC. Byte order codes are listed in Table 6-8.

6.12.5 Changing the additional communications response delay

Some hosts or PLCs operate at slower speeds than the transmitter. In order to synchronize

communication with these devices, you can configure an additional time delay to be added to each

response the transmitter sends to the remote host.

The basic unit of delay is in terms of 2/3 of one character time as calculated for the current serial port

baud rate setting and character transmission parameters. This basic delay unit is multiplied by the

configured value to arrive at the total additional time delay. You can specify a value in the range 1 to

255.

6.13 Configuring variable mapping

The Variable Mapping panel in the Configuration window provides another way to assign the primary

variable (PV). The PV parameter shown on this panel is the same as the Primary Variable parameter

in the Analog Output panel (see Section 4.5): if you change the parameter here, it is automatically

changed in the Analog Output panel, and vice versa.

The secondary variable (SV), tertiary variable (TV), and quaternary variable (QV) are not used by the

Model 1500 transmitter with the filling and dosing application, and cannot be changed.

Table 6-7 Byte contents in Modbus commands and responses

Byte Bits Definitions

1 S E E E E E E E S = Sign

E = Exponent

2 E M M M M M M M E = Exponent

M = Mantissa

3 M M M M M M M M M = Mantissa

4 M M M M M M M M M = Mantissa

Table 6-8 Byte order codes and byte orders

Byte order code Byte order

01–2–3–4

–4–1–2

22–1–4–3

34–3–2–1

52 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Optional Transmitter Configuration

6.14 Configuring device settings

The device settings are used to describe the flowmeter components. Table 6-9 lists and defines the

device settings.

If you are entering a date, use the left and right arrows at the top of the calendar to select the year and

month, then click on a date.

6.15 Configuring sensor parameters

The sensor parameters are used to describe the sensor component of your flowmeter. They are not

used in transmitter processing, and are not required. The following sensor parameters can be changed:

• Serial number

• Model number

• Sensor material

• Liner material

•Flange

Table 6-9 Device settings

Parameter Description

Tag Also called the “software tag.” Used by other devices on the network to identify this transmitter. The

tag must be unique on the network. Not used in transmitter processing and not required.

Maximum length: 8 characters.

Descriptor Any user-supplied description. Not used in transmitter processing, and not required.

Maximum length: 16 characters.

Message Any user-supplied message. Not used in transmitter processing, and not required.

Maximum length: 32 characters.

Date Any user-selected date. Not used in transmitter processing, and not required.

Configuration and Use Manual 53

Optional Configuration Using the FillerFiller ConfigurationUsing the Transmitter

Chapter 7

Configuring the Filling and Dosing Application

7.1 About this chapter

This chapter explains how to configure the filling and dosing application on the Model 1500

transmitter. For information on using the filling and dosing application, see Chapter 8.

7.2 User interface requirements

ProLink II v2.3 or later is required to configure the filling and dosing application.

Alternatively, configuration can be performed via a customer-written program using the Modbus

interface to the Model 1500 transmitter and the filling and dosing application. Micro Motion has

published the Modbus interface in the following manuals:

•Using Modbus Protocol with Micro Motion Transmitters, November 2004, P/N 3600219,

Rev. C (manual plus map)

•Modbus Mapping Assignments for Micro Motion Transmitters, October 2004, P/N 20001741,

Rev. B (map only)

Both of these manuals are available on the Micro Motion web site.

7.3 About the filling and dosing application

The filling and dosing application is used to begin flow, then end flow automatically when the target

amount of process fluid has flowed through the sensor. During a fill, flow may be paused and

resumed. A fill may also be ended before the target is reached.

CAUTION

Changing configuration can affect transmitter operation, including filling.

Changes made to filling configuration while a fill is running do not take effect until

the fill is ended. Changes made to other configuration parameters may affect filling.

To ensure correct filling, do not make any configuration changes while a fill is in

progress.

54 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Configuring the Filling and Dosing Application

Transmitter outputs change state according to fill status or operator commands. The control system

opens or closes valves in response to the signals from the transmitter. The filling and dosing

application must be configured for the type of valve used for fill control:

• One-stage discrete – Fill controlled by a single discrete (ON/OFF) valve. The valve opens

completely when the fill begins, and closes completely when the fill target is reached (or the

fill is paused or ended).

• Two-stage discrete – Fill controlled by two discrete valves: a primary valve and a secondary

valve. One valve must open at the beginning of the fill; the other opens at a user-defined point.

One valve must stay open until the end of the fill; the other closes at a user-defined point. See

Figure 7-1 for illustrations of the different opening and closing options.

• Three-position analog – Fill controlled by one analog valve which can be fully open, fully

closed, or partially closed. See Figure 7-2 for an illustration of the three-position analog fill.

The Model 1500 filling transmitter provides three outputs which can be used for valve control:

• Channel B always functions as a discrete output, and can be used to control the primary valve.

• Channel C can function as a discrete output or a discrete input. When used as a discrete output,

it can be assigned to control the secondary valve.

• The mA output on Channel A can function as:

- A discrete output, to control either the primary or secondary valve. When used as a

discrete output, an interposing solid-state relay is required.

- A three-level output, to control a three-position analog valve. When used as a three-level

output, the 20 mA output level sets the valve to open full, and two user-specified output

levels are used to set the valve to closed and to closed partial.

Note: If Channel A is configured for valve control, the channel cannot be used to report alarm status

and the mA output will never go to fault levels.

Accordingly:

• A one-stage discrete fill requires either Channel A or Channel B configured to control the

primary valve.

• A two-stage discrete fill requires any valid pair of Channels A, B, and C configured to control

the primary and secondary valves.

• A three-position analog fill requires Channel A configured as a three-level output.

Note: See Table 7-1 for detailed information on output options.

Configuration and Use Manual 55

Configuring the Filling and Dosing Application

Optional Configuration Using the FillerFiller ConfigurationUsing the Transmitter

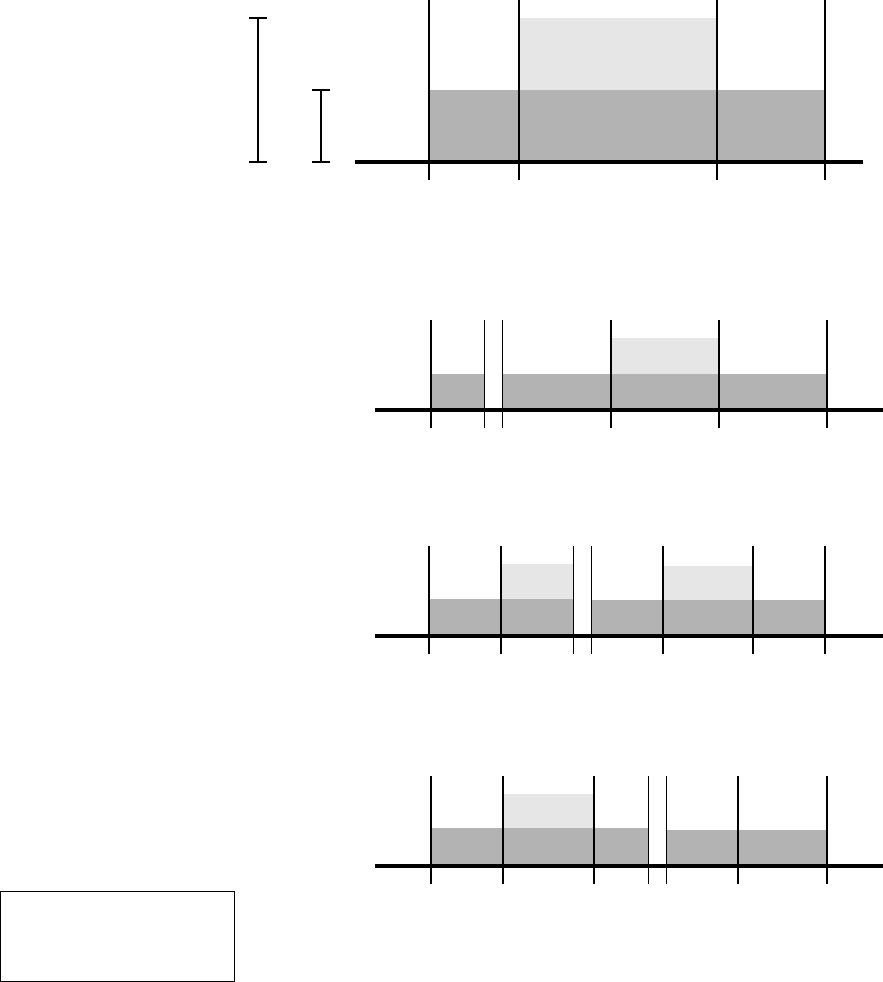

Figure 7-1 Two-stage discrete fill

Figure 7-2 Three-position analog fill

0% (Begin)

Open Primary

100% (End)

Close Secondary

Open Primary at 0%

Close Primary before Close

Secondary

Primary

Open

Secondary

Open

Primary

Open Secondary at 0%

Close Primary after Close

Secondary

0% (Begin)

Open Secondary

100% (End)

Close Primary

Primary valve

Secondary valve

Flow

Open

Primary

Open Secondary at 0%

Close Primary before Close

Secondary

Primary

0% (Begin)

Open Secondary

100% (End)

Close Secondary

0% (Begin)

Open Primary

100% (End)

Close Primary

Open Primary at 0%

Close Primary after Close

Secondary

Open

Secondary

(Begin)

Full flow

Partial

flow

Open

Full

Closed

(100%, End)

Partial

56 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Configuring the Filling and Dosing Application

7.3.1 Purge

Note: Two-stage discrete filling is not supported if a purge cycle is configured. If this functionality is

required, configure the mA output as a three-level output, to control the fill, and configure Channel C

as a discrete output, to control the purge.

If purge will be performed, one of the following valve control configurations is required:

• Two discrete outputs (one may be the mA output configured as a discrete output). One must be

assigned to the primary valve and the other must be assigned to the secondary valve. The

primary valve is used to control the fill, and the secondary valve controls the purge.

• The mA output configured as a three-level output, and Channel C configured as a discrete

output assigned to the secondary valve.

The second discrete output is typically set up to control compressed air or a vacuum. These

techniques are used to clear any process fluid that may be left in the piping from the previous fill.

There are two purge modes: manual and automatic.

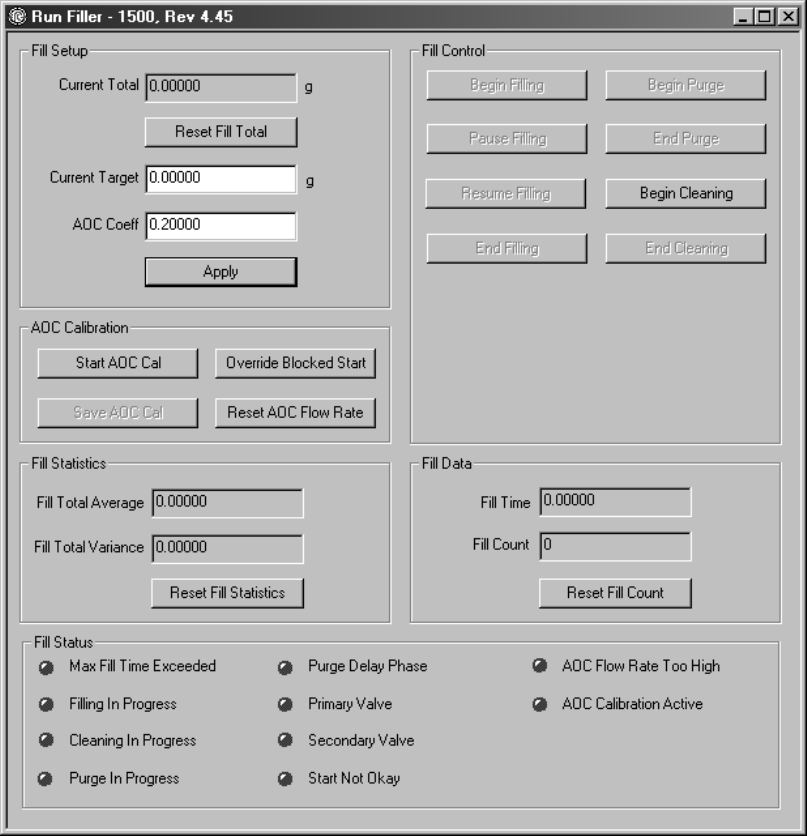

• If Manual is configured, the Begin Purge and End Purge buttons on the Run Filler window

are used to control the purge. The End Fill button also stops a purge.

• If Auto is configured, the purge starts automatically after the configured Purge Delay, and

continues for the configured Purge Time. The purge may be stopped manually using the End

Fill button.

In both cases, the discrete output assigned to the secondary valve transmits an Open signal when the

purge begins, and transmits a Closed signal when the purge ends. The primary valve remains closed

throughout the purge.

The purge can be stopped at any point, by using the End Purge or End Fill button.

7.3.2 Cleaning

Cleaning does not require any special valve configuration. When cleaning is started, all valves

assigned to the system (except any valves configured for purging, as discussed in the previous section)

are opened; when cleaning is stopped, all valves assigned to the system are closed.

Typically, cleaning involves flowing water or air through the system.

7.4 Configuring the filling and dosing application

To configure the filling and dosing application:

1. Open the ProLink II Configuration window.

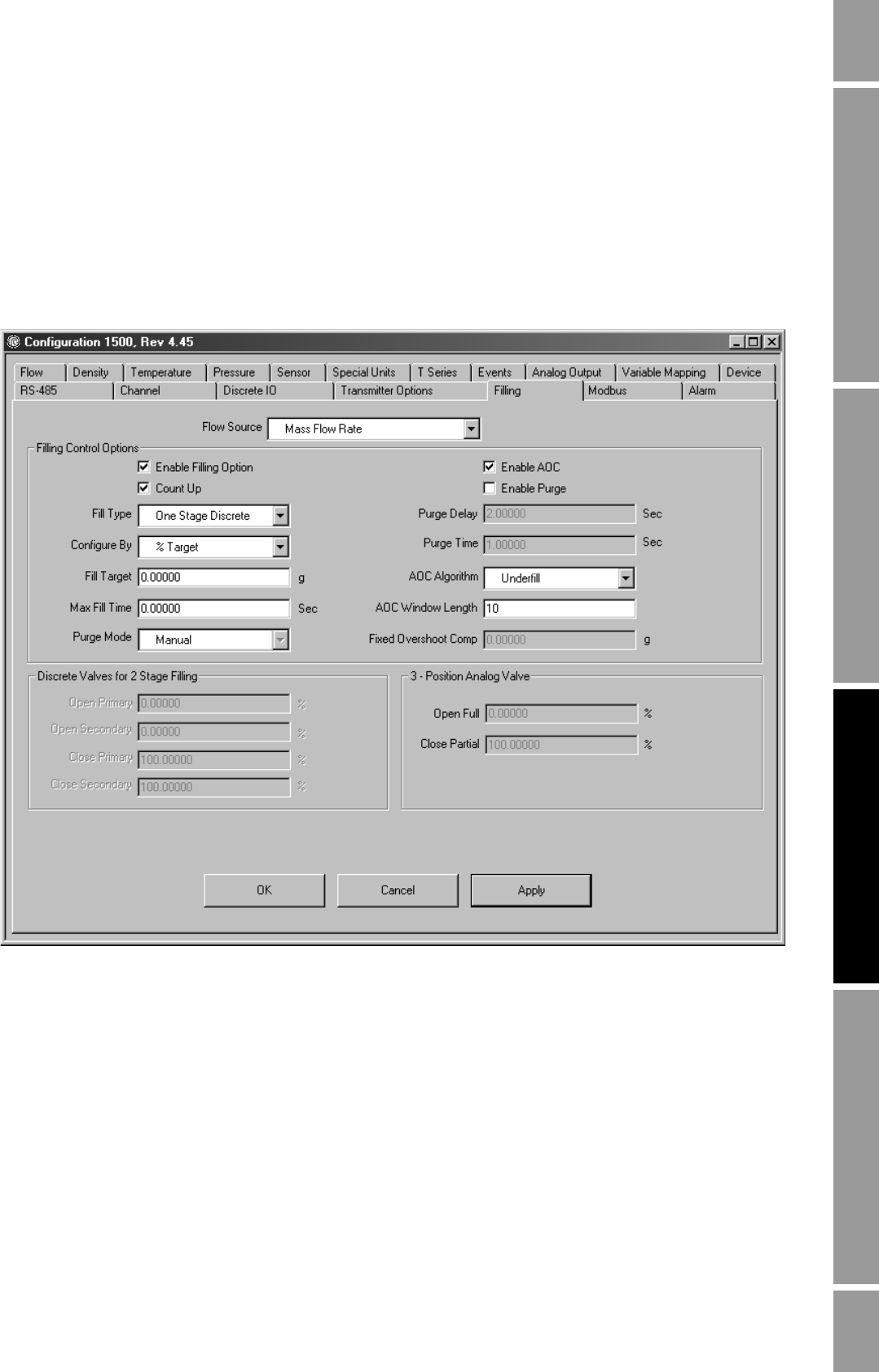

2. Click the Filling tab. The panel shown in Figure 7-3 is displayed. In this panel:

a. Configure the flow source (see Section 7.4.1) and click Apply.

b. Configure Fill Type and other filling control options (see Section 7.4.2) and click Apply.

Note: You must configure Fill Type before configuring valve control.

3. Configure valve control as required:

• If you are configuring a one-stage discrete fill, skip this step and continue with Step 6.

• If you are configuring a two-stage discrete fill, configure Open Primary, Open

Secondary, Close Primary, and Close Secondary (see Section 7.4.3 and Table 7-4),

then click Apply.

Configuration and Use Manual 57

Configuring the Filling and Dosing Application

Optional Configuration Using the FillerFiller ConfigurationUsing the Transmitter

Note: Either Open Primary or Open Secondary must be set to 0. Either Close Primary or Close

Secondary must be set to 100% (if configured by %) or 0 (if configured by quantity). Settings are

adjusted automatically to ensure that these requirements are met.

• If you are configuring a three-position analog fill, configure Open Full and Closed Partial

values (see Section 7.4.3 and Table 7-5), then click Apply.

Figure 7-3 Filling panel

4. Configure transmitter outputs for the requirements of your filling application. Options are

listed in Table 7-1.

• To configure Channel B or C as a discrete output, use the Channel Configuration panel in

the ProLink II Configuration window (see Section 4.6). To assign a function to Channel

B or Channel C, use the Discrete IO panel in the ProLink II Configuration window (see

Figure 7-4).

• To configure Channel A as a discrete output, use the Analog Output panel in the

ProLink II Configuration window (see Figure 7-5). In this panel:

-Set

Primary Variable to Primary Valve or Secondary Valve.

- Ensure that Enable 3 Position Valve is disabled.

58 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Configuring the Filling and Dosing Application

• To configure Channel A as a three-level output, use the Analog Output panel and:

-Set

Primary Variable to Primary Valve.

- Ensure that Enable 3 Position Valve is enabled.

- Specify the Setpoint, which is the mA output level that sets the valve to closed partial.

- Specify the Closed Value, which is the mA output level that sets the valve to closed

full. This value must be between 0 and 4 mA, and should be set according to the

requirements of the valve.

Figure 7-4 Discrete IO panel

Table 7-1 Output requirements and assignments

Fill type Output requirements Options Assignment

One-stage discrete One discrete output Channel A Primary valve

Channel B Primary valve

One-stage discrete

with purge cycle Two discrete outputs Channel A

Channel C Primary valve; 3-position valve disabled

Secondary (purge) valve

Channel B

Channel A Primary valve

Secondary (purge) valve with 3-position valve

disabled

Channel B

Channel C Primary valve

Secondary(purge) valve

Two-stage discrete Two discrete outputs Channel A

Channel C Primary valve with 3-position valve disabled

Secondary valve

Channel B

Channel A Primary valve

Secondary valve with 3-position valve disabled

Channel B

Channel C Primary valve

Secondary valve

Three-position analog One three-level output Channel A Primary valve with 3-position valve enabled

Three-position analog

with purge cycle One three-level output and

one discrete output Channel A

Channel C Primary valve with 3-position valve enabled

Secondary (purge) valve

Configuration and Use Manual 59

Configuring the Filling and Dosing Application

Optional Configuration Using the FillerFiller ConfigurationUsing the Transmitter

Figure 7-5 Analog Output panel

5. If you want to use overshoot compensation, see Section 7.5 for options and configuration

instructions. This applies to both fixed and automatic overshoot compensation (AOC).

6. If Channel C has been configured as a discrete input, you can assign a fill control function to

this channel. See Section 8.3.2.

7.4.1 Flow source

The flow source specifies the flow variable that will be used to measure fill quantity. Select one of the

flow sources defined in Table 7-2.

• If you select None, the filling application is automatically disabled.

• If you select Mass Flow Rate or Volume Flow Rate, that variable will automatically be

defined as the 100 Hz variable, and Update Rate will automatically be set to Special. See

Section 6.7 for more information.

Note: If the filling application is enabled, you should not specify any variable other than the flow

source variable as the 100 Hz variable.

60 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Configuring the Filling and Dosing Application

7.4.2 Filling control options

The filling control options are used to define the fill process. Filling control options are listed and

defined in Table 7-3.

Table 7-2 Flow sources

Flow source Default Description

None Fill controller is disabled.

Mass flow rate ✓Mass flow process variable as measured by transmitter

Volume flow rate Volume flow process variable as measured by transmitter

Table 7-3 Filling control options

Control option Default Description

Enable Filling

Option Enabled If enabled, the filling application is available for use.

If disabled, the filling application is not available for use. However, it is still

installed on the transmitter.

Count Up Enabled Controls how the fill total is calculated and displayed:

• If enabled, fill totals increase from zero to the target value.

• If disabled, fill totals decrease from the target value to zero.

Does not affect fill configuration.

Enable AOC Enabled Automatic Overshoot Compensation (AOC) instructs the fill controller to

compensate for the time required to close the valve, using the calculated AOC

coefficient. See Section 7.5 for overshoot compensation options.

Enable Purge Disabled If enabled, the secondary valve is used for purging. See Section 7.3.1.

Fill Type One Stage

Discrete Specify One Stage Discrete, Two Stage Discrete, or Three Position Analog. See

Section 7.3.

If Purge is enabled, you may not specify Two Stage Discrete. See Section 7.3.1.

Configure By % Target Select % Target or Quantity.

• If set to % Target, Open Primary, Open Secondary, Close Primary, and Close

Secondary values are configured as a percentage of the fill target.

• If set to Quantity, Open Primary and Open Secondary are each configured as

a quantity at which the valve should open; Close Primary and Close

Secondary are configured as a quantity that is subtracted from the target.

Fill Target 0.00000 g Enter the value at which the fill will be complete.

• If Mass Flow Rate was specified for flow source, enter the value in the current

measurement unit for mass. This unit is derived from the mass flow

measurement unit (see Section 4.4.1).

• If Volume Flow Rate was specified for flow source, enter the value in the

current measurement unit for volume. This unit is derived from the volume flow

measurement unit (see Section 4.4.2).

Max Fill Time 0.00000 sec Enter a value of 0.00000 or any positive number (in seconds). There is no upper

limit. If the fill does not reach the target before this time has elapsed, the fill is

aborted and fill timeout error messages are posted.

If Max Fill Time is set to 0, it is disabled.

Purge Mode Manual Select the purge control method:

• Auto: A purge cycle occurs automatically after every fill, as defined by the

Purge Delay and Purge Time parameters.

• Manual: Purge must be started and stopped using the buttons on the Run

Filler window.

Purge must be enabled before Purge Mode can be configured.

Purge Delay 2.00000 sec Used only if Purge Mode is set to Auto.

Enter the number of seconds that will elapse after a fill is complete before the

purge will begin. At this point, the purge (secondary) valve will be opened

automatically.

Configuration and Use Manual 61

Configuring the Filling and Dosing Application

Optional Configuration Using the FillerFiller ConfigurationUsing the Transmitter

7.4.3 Valve control parameters

The valve control parameters are used to open and close the valves at particular points in the fill

process.

• Valve control parameters for two-stage discrete filling are listed and defined in Table 7-4.

• Valve control parameters for three-position analog filling are listed and defined in Table 7-5.

Note: Valve control parameters are not used for one-stage discrete filling. In one-stage discrete filling,

the valve opens when the fill is started, and closes when the fill target is reached.

Purge Time 1.00000 sec Used only if Purge Mode is set to Auto.

Enter the purge duration, in seconds. When Purge Time has elapsed, the purge

(secondary) valve will be closed automatically.

AOC Algorithm Underfill Select the type of overshoot compensation to be performed:

• Underfill – The actual quantity delivered will never exceed the target quantity.

• Overfill – The actual quantity delivered will never be less than the target

quantity.

• Fixed – The valve will close at the point defined by the target quantity minus

the Fixed Overshoot Comp parameter.

Underfill and Overfill are available only if AOC is enabled.

Fixed is available only if AOC is disabled.

AOC Window

Length 10 For standard AOC calibration, specify the maximum number of fills that will be

run during calibration.

For rolling AOC calibration, specify the number of fills that will be used to

calculate AOC.

Fixed Overshoot

Comp 0.00000 Used only if AOC is disabled and AOC Algorithm is set to Fixed.

Enter the value to be subtracted from the target quantity to determine the point

at which the valve will close. Enter the value in mass or volume units, as

appropriate to the configured flow source.

Table 7-3 Filling control options continued

Control option Default Description

62 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Configuring the Filling and Dosing Application

7.5 Overshoot compensation

Overshoot compensation keeps the actual quantity delivered as close as possible to the fill target by

compensating for the time required to close the valve. Without overshoot compensation, there will

always be some amount of overfill because of the time required for the transmitter to observe that the

target has been reached and send the command to close the valve, and then for the control system and

valve to respond. When overshoot compensation is configured, the transmitter issues the valve close

command before the target is reached. See Figure 7-6.

Table 7-4 Valve control parameters – Two-stage discrete fill

Flow option Default Description

Open Primary 0.00% of target Enter the quantity or the percent of the target at which the primary valve will

open.

Either Open Primary or Open Secondary must be set to 0. If one of these

parameters is set to a non-zero value, the other is set to 0 automatically.

Before a fill of this type can be started, the primary valve must be assigned to

a discrete output. See Section 7.4, Step 4.

Open

Secondary 0.00% of target Enter the quantity or the percent of the target at which the secondary valve will

open.

Either Open Primary or Open Secondary must be set to 0. If one of these

parameters is set to a non-zero value, the other is set to 0 automatically.

Before a fill of this type can be started, the secondary valve must be assigned

to a discrete output. See Section 7.4, Step 4.

Close Primary 100.00% of target Enter the percent of the target, or the quantity to be subtracted from the target,

at which the primary valve will close.(1)

Either Close Primary or Close Secondary must be set to close when the target

is reached. If one of these parameters is set to a value that is not the target,

the other is adjusted accordingly.

(1) See the definition of Configure By in Table 7-3.

Secondary 100.00% of target Enter the percent of the target, or the quantity to be subtracted from the target,

at which the secondary valve will close.(1)

Either Close Primary or Close Secondary must be set to close when the target

is reached. If one of these parameters is set to a value that is not the target,

the other is adjusted accordinly.

Table 7-5 Valve control parameters – Three-position analog fill

Flow option Default Description

Open Full 0.00% of target Enter the quantity or the percent of the target at which the valve will transition

from partial flow to full flow.

Close Partial 100.00% of target Enter the percent of the target, or the quantity to be subtracted from the target,

at which the valve will transition from full flow to partial flow.(1)

(1) See the definition of Configure By in Table 7-3.

Configuration and Use Manual 63

Configuring the Filling and Dosing Application

Optional Configuration Using the FillerFiller ConfigurationUsing the Transmitter

Figure 7-6 Overshoot compensation and flow

Three types of overshoot compensation can be configured:

•Fixed – The valve will close at the point defined by the target minus the quantity specified in

Fixed Overshoot Comp.

•Underfill – The valve will close at the point defined by the AOC coefficient calculated during

AOC calibration, adjusted to ensure that the actual quantity delivered never exceeds the target.

(The initial adjusted target is less than the actual target, and moves upward toward the target

during calibration.)

•Overfill – The valve will close at the point defined by the AOC coefficient calculated during

AOC calibration, adjusted to ensure that the actual quantity delivered is never less than the

target. (The variance of the fills is added to the AOC-adjusted target.)

AOC calibration is required only if Underfill or Overfill is configured. There are two forms of AOC

calibration:

•Standard – Several fills are run during a special “calibration period.” The AOC coefficient is

calculated from data collected from these fills. See Section 7.5.2 for instructions on the

standard AOC calibration procedure.

•Rolling – The AOC coefficient is calculated from data collected from the x most recent fills,

where x is the value specified for AOC Window Length. There is no special calibration period.

For example, if AOC Window Length is set to 10, the first AOC coefficient is calculated from

the first ten fills. When the eleventh fill is run, the AOC coefficient is recalculated, based on

the ten most recent fills, and so on. No special calibration procedure is required.

Valve closes

Transmitter issues

Close valve command

Targe t

reached

Overfill

Valve closesTransmitter issues

Close valve command Tar g et

Compensation

factor

No overshoot compensation

Overshoot compensation

Flow

64 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Configuring the Filling and Dosing Application

7.5.1 Configuring overshoot compensation

Fixed overshoot compensation is used if the compensation value is already known. To configure fixed

overshoot compensation:

1. Disable the Enable AOC checkbox in the Filling panel (see Figure 7-3).

2. Set AOC Algorithm to Fixed.

3. Click Apply.

4. Specify the appropriate value for Fixed Overshoot Comp. Enter values in the unit used for

the flow source.

5. Click Apply.

Note: Do not enable the Enable AOC checkbox. The Enable AOC checkbox is enabled only for

underfill or overfill.

To configure automatic overshoot compensation for underfill or overfill:

1. Enable the Enable AOC checkbox in the Filling panel (see Figure 7-3).

2. Set AOC Algorithm to Underfill or Overfill.

3. Set AOC Window Length:

• If standard AOC calibration will be used, specify the maximum number of fills that will be

used to calculate the AOC coefficient during calibration.

• If rolling AOC calibration will be used, specify the number of fills that will be used to

calculate the AOC coefficient.

4. Click Apply.

5. If standard AOC calibration will be used, follow the instructions in Section 7.5.2. If rolling

AOC calibration will be used, follow the instructions in Section 7.5.3.

7.5.2 Standard AOC calibration

Note: In common use, the first training fill will always be slightly overfilled because the default

compensation factor is 0. To prevent this, set the AOC Coeff value in the Run Filler window (see

Figure 8-1) to a small positive number. This value must be small enough so that when it is multiplied

by the flow rate, the resulting value is less than the fill target.

To perform standard AOC calibration:

1. Click ProLink > Run Filler. The window shown in Figure 8-1 is displayed.

2. Click Start AOC Cal. The AOC Calibration Active light turns red, and will remain red while

AOC calibration is in progress.

3. Run as many fills as desired, up to the number specified in AOC Window Length.

Note: If you run more fills, the AOC coefficient is calculated from the x most recent fills, where x is the

value specified for AOC Window Length.

4. When the fill totals are consistently satisfactory, click Save AOC Cal.

The AOC coefficient is calculated from the fills run during this time period, and is displayed in the

Run Filler window. This factor will be applied to all subsequent fills while AOC is enabled, until

another AOC calibration is performed.

Configuration and Use Manual 65

Configuring the Filling and Dosing Application

Optional Configuration Using the FillerFiller ConfigurationUsing the Transmitter

Another AOC calibration is recommended:

• If equipment has been replaced or adjusted

• If flow rate has changed significantly

• If fills are consistently missing the target value

7.5.3 Rolling AOC calibration

Note: In common use, the first fill may be slightly overfilled because the default compensation factor

is 0.2. To prevent this, increase the AOC Coeff value in the Run Filler window (see Figure 8-1). This

value must be small enough so that when it is multiplied by the flow rate, the resulting value is less

than the fill target.

To enable rolling AOC calibration:

1. Click ProLink > Run Filler. The window shown in Figure 8-1 is displayed.

2. Click Start AOC Cal. The AOC Calibration Active light turns red.

3. Begin filling. Do not click Save AOC Cal. The AOC coefficient is recalculated after each fill,

and the current value is displayed in the Run Filler window.

At any time, you can click Save AOC Cal. The current AOC coefficient will be saved in the

transmitter and used for all overshoot compensation during subsequent fills. In other words, this

action changes the AOC calibration method from rolling to standard.

66 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Configuration and Use Manual 67

Optional Configuration Using the FillerFiller ConfigurationUsing the Transmitter

Chapter 8

Using the Filling and Dosing Application

8.1 About this chapter

This chapter explains how to use the filling and dosing application on the Model 1500 transmitter. For

information on configuring the filling and dosing application, see Chapter 7.

8.2 User interface requirements

ProLink II can be used to operate the filling and dosing application. If desired, a discrete input can be

configured to perform a fill control function.

Alternatively, the filling and dosing application can be operated by a customer-written program using

the Modbus interface to the Model 1500 transmitter and the filling and dosing application. Micro

Motion has published the Modbus interface in the following manuals:

•Using Modbus Protocol with Micro Motion Transmitters, November 2004, P/N 3600219,

Rev. C (manual plus map)

•Modbus Mapping Assignments for Micro Motion Transmitters, October 2004, P/N 20001741,

Rev. B (map only)

Both of these manuals are available on the Micro Motion web site.

8.3 Operating the filling and dosing application from ProLink II

To operate the filling and dosing application from ProLink II, open the ProLink II Run Filler window

and use the fill control buttons. The following actions may performed:

• Beginning, ending, pausing, and resuming a fill

• Manually starting and stopping a purge

• Manually starting and stopping a clean

• Performing standard AOC calibration (see Section 7.5.2)

In addition, the Run Filler window allows you to reset various fill parameters and displays a variety of

fill status information.

CAUTION

Changing configuration can affect transmitter operation, including filling.

Changes made to filling configuration while a fill is running do not take effect until

the fill is ended. Changes made to other configuration parameters may affect filling.

To ensure correct filling, do not make any configuration changes while a fill is in

progress.

68 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Using the Filling and Dosing Application

Figures 8-3 through 8-7 illustrate the various fill sequences for two-stage discrete filling or three-

position analog filling when the fill is paused and resumed at different points in the fill.

Note: The fill total is not held across a transmitter power cycle.

8.3.1 Using the Run Filler window

The ProLink II Run Filler window is shown in Figure 8-1.

The Fill Setup, Fill Control, AOC Calibration, Fill Statistics, and Fill Data displays and controls are

listed and defined in Table 8-1.

The Fill Status fields show the current status of the fill or the filling application:

• A green LED indicates that the condition is inactive or the valve is closed.

• A red LED indicates that the condition is active or the valve is open.

The Fill Status fields are defined in Table 8-2.

Figure 8-1 Run Filler window

Configuration and Use Manual 69

Using the Filling and Dosing Application

Optional Configuration Using the FillerFiller ConfigurationUsing the Transmitter Optional Configuration Using the FillerFiller ConfigurationUsing the Transmitter Optional Configuration Using the FillerFiller ConfigurationUsing the Transmitter Optional Configuration Using the FillerFiller ConfigurationUsing the Transmitter

Table 8-1 Run Filler displays and controls

Display/Control Description

Fill Setup Current Total Displays the running fill total, updated periodically, for the current fill.

This value is not updated between fills. However, if flow is present while a fill is

paused, the value is updated.

Reset Fill Total Resets the fill total to 0.

Current Target Displays the target quantity for the current fill.

• To change this value, enter the new target value and click Apply.

• You cannot change the target while a fill is in progress, unless the fill is

paused.

AOC Coeff Displays the factor used to adjust the target, if AOC is enabled.(1)

• To change this value, enter the new AOC value and click Apply. WARNING:

Writing to this parameter will overwrite any existing AOC calibration results.

• You cannot change the AOC coefficient while a fill is in progress, whether the

fill is currently flowing or is paused.

Fill Control Begin Filling Starts the fill.

The fill total is automatically reset before filling begins.

Pause Filling Temporarily stops the fill.

The fill can be resumed if the fill total is less than the fill target.

Resume Filling Restarts a fill that has been paused.

Counting resumes from the total at which the fill was paused.

End Filling Permanently stops the fill or purge.

The fill cannot be resumed.

Begin Purge Begins a manual purge by opening the secondary valve.

You cannot begin a purge while a fill is in progress.

You cannot begin a fill while a purge is in progress.

End Purge Ends a manual purge by closing the secondary valve.

Begin Cleaning Opens all valves (except purge valve) that are assigned to a transmitter output.

Cleaning cannot be started if a fill or purge is in progress.

End Cleaning Closes all valves that are assigned to a transmitter output.

AOC

Calibration Start AOC Cal Begins AOC calibration.

Save AOC Cal Ends AOC calibration and saves the calculated AOC coefficient.

Override Blocked Start Enables filling if the fill has been blocked by:

•Slug flow

• A core processor fault

• The last measured flow rate is too high, as indicated by the corresponding

status LED (see Table 8-2).

Reset AOC Flow

Rate(2) Resets the last measured flow rate to zero, to bypass the condition indicated by

the AOC Flow Rate Too High status LED (see Table 8-2).

If the flow rate is too high, and this is not a one-time condition:

• And you are using standard AOC calibration, try resetting the AOC flow rate

(see below). If this does not clear the condition, repeat AOC calibration.

• And you are using rolling AOC calibration, overriding the blocked start once or

twice should correct the condition.

70 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Using the Filling and Dosing Application

8.3.2 Using a discrete input

If a discrete input is assigned to a fill control function, the function is triggered when the discrete

input is in an ON state.

Table 8-3 lists the fill control functions. To assign a discrete input to trigger a fill function:

1. Ensure that Channel C is configured as a discrete input (see Section 4.3).

2. Open the ProLink II Configuration window and click on the Discrete IO tab. The panel

shown in Figure 8-2 is displayed.

3. Select the fill control function to be triggered. Fill control functions are listed and defined in

Table 8-3.

Fill Statistics Fill Total Average Displays the calculated average of all fill totals since fill statistics were reset.

Fill Total Variance Displays the calculated variance of all fill totals since fill statistics were reset.

Reset Fill Statistics Resets fill total average and fill total variance to zero.

Fill Data Fill Time Displays the number of seconds that have elapsed in the current fill. Seconds

that the fill was paused are not included in the fill time value.

Fill Count Displays the number of fills that have been performed since fill statistics were

reset. Only completed fills are counted; fills that were ended before the target

was reached are not included in this total. The maximum number is 65535; after

that number has been reached, counting resumes with 1.

Reset Fill Count Resets the fill counter to zero.

(1) This field displays the result of AOC calibration. If you reset it manually, AOC calibration data is lost. Typically, the only reason to

set it manually is to prevent overfill on the first few fills. See Section 7.5.

(2) Applicable only when AOC Algorithm is set to Underfill.

Table 8-2 Fill Status fields

Status LED Description

Max Fill Time Exceeded The current fill has exceeded the current setting for Max Fill Time. The fill is aborted.

Filling In Progress A fill is currently being performed.

Cleaning In Progress The Start Clean function has been activated, and all valves assigned to transmitter

outputs are open (except purge valve)

Purge In Progress A purge has been started, either automatically or manually.

Purge Delay Phase An automatic purge cycle is in progress, and is currently in the delay period between

the completion of the fill and the start of the purge.

Primary Valve The primary valve is open. If a three-position analog valve has been configured, the

valve is either open or closed partial.

Secondary Valve The secondary valve is open.

Start Not Okay One or more conditions required to start a fill are not met.

AOC Flow Rate Too High The last measured flow rate is too large to allow the fill to start. In other words, the AOC

coefficient, compensated for the flow rate, specifies that the valve close command

should be issued before the fill has begun. This can happen if the flow rate has

increased significantly with no corresponding change in the AOC coefficient. AOC

calibration is recommended. To adjust the AOC value, you can use the Override

Blocked Start function to run a fill without AOC (see Table 8-1).

AOC Calibration Active AOC calibration is in progress.

Table 8-1 Run Filler displays and controls continued

Display/Control Description

Configuration and Use Manual 71

Using the Filling and Dosing Application

Figure 8-2 Discrete IO panel

Note: The Reset All Totals function (see Section 4.7) includes resetting the fill total.

Table 8-3 Fill control functions

Function ON state actions

Begin fill • Starts the fill.

• The fill total is automatically reset before filling begins.

End fill • Permanently stops the fill.

• The fill cannot be resumed.

Pause fill • Temporarily stops the fill.

• The fill can be resumed if the fill total is less than the fill target.

Resume fill • Restarts a fill that has been paused.

• Counting resumes from the point at which the fill was paused.

Reset fill total • Resets fill total to zero.

• Reset cannot be performed while a fill is running or while a fill is paused. Before a fill can be reset,

the fill target must be reached or the fill must be ended.

72 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Using the Filling and Dosing Application

8.3.3 Fill sequences with PAUSE and RESUME

This section provides illustrations of fill sequences when the fill is paused and resumed at different

points in the process.

Figure 8-3 Fill sequences: Two-stage discrete fill, Open Primary at 0%, Close Primary First

0% 100%

Normal operation

Configured values

• Open Primary: 0%

• Open Secondary: m%

• Close Primary: n%

Legend

•Primary valve

• Secondary valve

•Flow

0% m% 100%

x% before Secondary Open

n%x% m+x%

0% m% 100%

x% after Secondary Open,

when m+x% < n%

n%x% m+x%

0% m% 100%

x% after Secondary Open,

when m+x% > n%

n%x% m+x%

0% m%

x% after Primary Close

n% x% 100%m+x%

Valve behavior with PAUSE/RESUME at x%

Configuration and Use Manual 73

Using the Filling and Dosing Application

Figure 8-4 Fill sequences: Two-stage discrete fill, Open Primary at 0%, Close Secondary first

0% 100%

Normal operation

Configured values

• Open Primary: 0%

• Open Secondary: m%

• Close Secondary: n%

Legend

•Primary valve

• Secondary valve

•Flow

0% m% 100%

x% before Secondary Open

n%x% m+x%

0% m% 100%

x% after Secondary Open,

when m+x% < n%

n%x% m+x%

0% m% 100%

x% after Secondary Open,

when m+x% > n%

n%x% m+x%

0% m%

x% after Secondary Close

n% x% 100%m+x%

Valve behavior with PAUSE/RESUME at x%

74 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Using the Filling and Dosing Application

Figure 8-5 Fill sequences: Two-stage discrete fill, Open Secondary at 0%, Close Primary First

0% m% 100%

Normal operation

0% m% 100%

x% before Primary Open

n%x% m+x%

0% m% 100%

x% after Primary Open, when

m+x% < n%

n%x% m+x%

0% m% 100%

x% after Primary Open, when

m+x% > n%

n%x% m+x%

0% m%

x% after Primary Close

n% x% 100%m+x%

Configured values

• Open Secondary: 0%

• Open Primary: m%

• Close Primary: n%

Legend

•Primary valve

• Secondary valve

•Flow

Valve behavior with PAUSE/RESUME at x%

Configuration and Use Manual 75

Using the Filling and Dosing Application

Figure 8-6 Fill sequences: Two-stage discrete fill, Open Secondary at 0%, Close Secondary First

0% m% 100%

Normal operation

0% m% 100%

x% before Primary Open

n%x% m+x%

0% m% 100%

x% after Primary Open, when

m+x% < n%

n%x% m+x%

0% m% 100%

x% after Primary Open, when

m+x% > n%

n%x% m+x%

0% m%

x% after Secondary Close

n% x% 100%m+x%

Configured values

• Open Secondary: 0%

• Open Primary: m%

• Close Secondary: n%

Legend

•Primary valve

• Secondary valve

•Flow

Valve behavior with PAUSE/RESUME at x%

76 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Using the Filling and Dosing Application

Figure 8-7 Fill sequences: Three-position analog valve

Normal operation

Valve behavior with PAUSE/RESUME at x%

Full flow

Partial

flow

m% Closedn%

Configured values

• Open Full: m%

• Closed Partial: n%

0% m% Closedn%x%

0% m+x% Closedn%x%

m+x%

0% m% Closedx%n%

x% after Open Full and before

Closed Partial

x% after Closed Partial

x% before Open Full

Configuration and Use Manual 77

Measurement Performance DefaultsTroubleshootingCompensation

Chapter 9

Pressure Compensation

9.1 Overview

This chapter defines pressure compensation and describes how to configure it.

Note: All procedures provided in this chapter assume that your computer is already connected to the

transmitter and you have established communication. All procedures also assume that you are

complying with all applicable safety requirements. See Chapter 2 for more information.

9.2 Pressure compensation

The Model 1500 transmitter can compensate for the effect of pressure on the sensor flow tubes.

Pressure effect is defined as the change in sensor flow and density sensitivity due to process pressure

change away from calibration pressure.

Note: Pressure compensation is optional. Configure pressure compensation only if required by your

application.

9.2.1 Options

There are two ways to configure pressure compensation:

• If the operating pressure is a known static value, you can enter the external pressure in the

software.

• If the operating pressure varies significantly, you can use the transmitter’s Modbus interface to

write the current pressure value to the transmitter at appropriate intervals.

Note: If you configure a static pressure value, ensure that it is accurate. If you update the pressure via

Modbus, ensure that the external pressure measurement device is accurate and reliable.

9.2.2 Pressure correction factors

When configuring pressure compensation, you must provide the flow calibration pressure – the

pressure at which the flowmeter was calibrated (which therefore defines the pressure at which there

will be no effect on the calibration factor). Refer to the calibration document shipped with your

sensor. If the data is unavailable, use 20 psi.

Two additional pressure correction factors may be configured: one for flow and one for density. These

are defined as follows:

• Flow factor – the percent change in the flow rate per psi

• Density factor – the change in fluid density, in g/cm3/psi

78 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Pressure Compensation

Not all sensors or applications require pressure correction factors. For the pressure correction values

to be used, obtain the pressure effect values from the product data sheet for your sensor, then reverse

the signs (e.g., if the pressure effect is 0.000004, enter a pressure correction factor of –0.000004).

9.2.3 Pressure measurement unit

The default measurement unit for pressure is PSI. In other words, the transmitter expects to receive

pressure data in psi. If you will use a different pressure measurement unit, you must configure the

transmitter to use that measurement unit.

See Table 9-1 for a complete list of pressure measurement units.

9.3 Configuration

To enable and configure pressure compensation with ProLink II, see Figure 9-1.

Table 9-1 Pressure measurement units

ProLink II label Unit description

In Water @ 68F Inches water @ 68 °F

In Mercury @ 0C Inches mercury @ 0 °C

Ft Water @ 68F Feet water @ 68 °F

mm Water @ 68F Millimeters water @ 68 °F

mm Mercury @ 0C Millimeters mercury @ 0 °C

PSI Pounds per square inch

bar Bar

millibar Millibar

g/cm2 Grams per square centimeter

kg/cm2 Kilograms per square centimeter

pascals Pascals

Kilopascals Kilopascals

Torr @ 0C Torr @ 0 °C

atms Atmospheres

Configuration and Use Manual 79

Pressure Compensation

Measurement Performance DefaultsTroubleshootingCompensation

Figure 9-1 Configuring pressure compensation with ProLink II

Note: If at any time you disable pressure compensation, then re-enable it, you must re-enter the

external pressure value.

To enable and configure pressure compensation using the Modbus interface, or to write pressure

values to the transmitter using the Modbus interface, see the manual entitled Using Modbus Protocol

with Micro Motion Transmitters, November 2004, P/N 3600219, Rev. C.

Enter Flow factor

Configure

Enter Density factor

Enter Cal pressure

Set up pressure

input via Modbus

Enter External

Pressure

Enable External Pressure

Compensation

Enable

Configure pressure unit(1)

Set measurement unit

Dynamic? Static?

View >

Preferences

ProLink >

Configuration >

Pressure

ProLink >

Configuration >

Pressure

Apply Apply

Apply

Done

(1) See Section 9.2.3.

80 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Configuration and Use Manual 81

Measurement Performance DefaultsTroubleshootingCompensation

Chapter 10

Measurement Performance

10.1 Overview

This chapter describes the following procedures:

• Meter verification (see Section 10.3)

• Meter validation and adjusting meter factors (see Section 10.4)

• Density calibration (see Section 10.5)

• Temperature calibration (see Section 10.6)

Note: All procedures discussed in this chapter assume that you have established communication

between ProLink II and the Model 1500 transmitter and that you are complying with all applicable

safety requirements. See Chapter 2 for more information.

Note: For information on zero calibration, see Section 3.5. For information on AOC calibration, see

Chapter 7.

10.2 Meter validation, meter verification, and calibration

The Model 1500 transmitter supports the following procedures for the evaluation and adjustment of

measurement performance:

•Meter verification – establishing confidence in the sensor’s performance by analyzing

secondary variables associated with flow and density

•Meter validation – confirming performance by comparing the sensor’s measurements to a

primary standard

•Calibration – establishing the relationship between a process variable (flow, density, or

temperature) and the signal produced by the sensor

To perform meter verification, your flowmeter must use the enhanced core processor and the meter

verification option must have been purchased.

These three procedures are discussed and compared in Sections 10.2.1 through 10.2.4. Before

performing any of these procedures, review these sections to ensure that you will be performing the

appropriate procedure for your purposes.

10.2.1 Meter verification

Meter verification evaluates the structural integrity of the sensor tubes by comparing current tube

stiffness to the stiffness measured at the factory. Stiffness is defined as the deflection of the tube per

unit of load, or force divided by displacement. Because a change in structural integrity changes the

sensor’s response to mass and density, this value can be used as an indicator of measurement

performance. Changes in tube stiffness are typically caused by erosion, corrosion, or tube damage.

Notes: To use meter verification, the transmitter must be paired with an enhanced core processor, and

the meter verification option must be purchased for the transmitter.

82 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Measurement Performance

Meter verification either holds the last output value or causes the outputs to go to the configured fault

values during the procedure (approximately 4 minutes).

Micro Motion recommends that you perform meter verification on a regular basis.

10.2.2 Meter validation and meter factors

Meter validation compares a measurement value reported by the transmitter with an external

measurement standard. Meter validation requires one data point.

Note: For meter validation to be useful, the external measurement standard must be more accurate

than the sensor. See the sensor’s product data sheet for its accuracy specification.

If the transmitter’s mass flow, volume flow, or density measurement is significantly different from the

external measurement standard, you may want to adjust the corresponding meter factor. A meter

factor is the value by which the transmitter multiplies the process variable value. The default meter

factors are 1.0, resulting in no difference between the data retrieved from the sensor and the data

reported externally.

Meter factors are typically used for proving the flowmeter against a weights and measures standard.

You may need to calculate and adjust meter factors periodically to comply with regulations.

10.2.3 Calibration

The flowmeter measures process variables based on fixed points of reference. Calibration adjusts

those points of reference. Three types of calibration can be performed:

• Zero (see Section 3.5)

• Density calibration

• Temperature calibration

Density and temperature calibration require two data points (low and high) and an external

measurement for each. Calibration produces a change in the offset and/or the slope of the line that

represents the relationship between process density and the reported density value, or the relationship

between process temperature and the reported temperature value.

Note: For density or temperature calibration to be useful, the external measurements must be

accurate.

Flowmeters are calibrated at the factory, and normally do not need to be calibrated in the field.

Calibrate the flowmeter only if you must do so to meet regulatory requirements. Contact Micro

Motion before calibrating your flowmeter.

Micro Motion recommends using meter validation and meter factors, rather than calibration, to prove

the meter against a regulatory standard or to correct measurement error.

Configuration and Use Manual 83

Measurement Performance

Measurement Performance DefaultsTroubleshootingCompensation

10.2.4 Comparison and recommendations

When choosing among meter verification, meter validation, and calibration, consider the following

factors:

• Process interruption

- Meter verification requires approximately four minutes to perform. During these four

minutes, flow can continue (provided sufficient stability is maintained); however, outputs

will not report process data.

- Meter validation for density does not interrupt the process at all. However, meter

validation for mass flow or volume flow requires process down-time for the length of the

test.

- Calibration requires process down-time. In addition, density and temperature calibration

require replacing the process fluid with low-density and high density fluids, or

low-temperature and high-temperature fluids.

• External measurement requirements

- Meter verification does not require external measurements.

- Zero calibration does not require external measurements.

- Density calibration, temperature calibration, and meter validation require external

measurements. For good results, the external measurement must be highly accurate.

• Measurement adjustment

- Meter verification is an indicator of sensor condition, but does not change flowmeter

internal measurement in any way.

- Meter validation does not change flowmeter internal measurement in any way. If you

decide to adjust a meter factor as a result of a meter validation procedure, only the reported

measurement is changed – the base measurement is not changed. You can always reverse

the change by returning the meter factor to its previous value.

- Calibration changes the transmitter’s interpretation of process data, and accordingly

changes the base measurement. If you perform a zero calibration, you can restore the

factory zero at a later time. You cannot return to the previous zero (if different from the

factory zero), density calibration values, or temperature calibration values unless you have

manually recorded them.

Micro Motion recommends obtaining the meter verification transmitter option and performing meter

verification on a regular basis.

10.3 Performing meter verification

Note: To use meter verification, the transmitter must be paired with an enhanced core processor, and

the meter verification option must be purchased for the transmitter.

The meter verification procedure can be performed on any process fluid. It is not necessary to match

factory conditions. Meter verification is not affected by any parameters configured for flow, density,

or temperature.

During the test, process conditions must be stable. To maximize stability:

• Maintain a constant temperature and pressure.

• Avoid changes to fluid composition (e.g., two-phase flow, settling, etc.).

• Maintain a constant flow. For higher test certainty, reduce or stop flow.

84 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Measurement Performance

If stability varies outside test limits, the meter verification procedure will be aborted. Verify process

stability and retry.

During meter verification, you must choose to fix the outputs at either the configured fault levels or

the last measured value. The outputs will remain fixed for the duration of the test (approximately four

minutes). Disable all control loops for the duration of the procedure, and ensure that any data reported

during this period is handled appropriately.

To perform meter verification, follow the procedure illustrated in Figure 10-1. For a discussion of

meter verification results, see Section 10.2.1. For additional meter verification options provided by

ProLink II, see Section 10.3.2.

Figure 10-1 Meter verification procedure – ProLink II

Verify configuration

parameters

Tools >

Meter Verification >

Structural Integrity Method

View previous test data

Enter optional test data

Initialize and start meter

verification

Abort

Fault

configuration

Hold last

value

Progress bar shows

test in progress

Finish(2)

Graph of results

Rerun

test?

Yes

PassFail

Start

Back(1)

View report (option to print

or save)

Back

Abort

(1) If the graph was viewed at the beginning of the procedure,

clicking Back here will return to the beginning of the

procedure (along the dotted line).

(2) The results of the meter verification test are not saved

until Finish is clicked.

Configuration and Use Manual 85

Measurement Performance

Measurement Performance DefaultsTroubleshootingCompensation

10.3.1 Specification uncertainty limit and test results

The result of the meter verification test will be a percent uncertainty of normalized tube stiffness. The

default limit for this uncertainty is ±4.0%. This limit is stored in the transmitter, and can be changed

with ProLink II when optional test parameters are entered. For most installations, it is advisable to

leave the uncertainty limit at the default value.

When the test is completed, the result will be reported as Pass, Fail, or Abort:

•Pass – The test result is within the specification uncertainty limit. If transmitter zero and

configuration match factory values, the sensor will meet factory specifications for flow and

density measurement. It is expected that meters will pass meter verification every time the test

is run.

•Fail/Caution – The test result is not within the specification uncertainty limit. Micro Motion

recommends that you immediately re-run the meter verification test. If the meter passes the

second test, the first Fail/Caution result can be ignored. If the meter fails the second test, the

flow tubes may be damaged. Use the knowledge of your process to consider the type of

damage and determine the appropriate action. These actions might include removing the meter

from service and physically inspecting the tubes. At minimum, you should perform a flow

validation (see Section 10.4) and a density calibration (see Section 10.5).

•Abort – A problem occurred with the meter verification test (e.g., process instability). Check

your process and retry the test.

86 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Measurement Performance

10.3.2 Additional ProLink II tools for meter verification

In addition to the Pass, Fail, and Abort result provided by the procedure, ProLink II provides the

following additional meter verification tools:

• Test metadata – ProLink II allows you to enter a large amount of metadata about each test so

that past tests can be audited easily. ProLink II will prompt you for this optional data during

the test.

• Visibility of configuration and zero changes – ProLink II has a pair of indicators that show

whether the transmitter’s configuration or zero has changed since the last meter verification

test. The indicators will be green if configuration and zero are the same, and red otherwise.

You can find out more information about changes to configuration and zero by clicking the

button next to each indicator.

• Plotted data points – ProLink II shows the exact stiffness uncertainty on a graph. This allows

you to see not only whether the meter is operating within specification, but also where the

results fall within the specified limits. (The results are shown as two data points: LPO and

RPO. The trending of these two points can help identify if local or uniform changes are

occurring to the flow tubes.)

•Trending – ProLink II has the ability to store a history of meter verification data points. This

history is displayed on the results graph. The rightmost data points are the most recent. This

history lets you see how your meter is trending over time, which can be an important way of

detecting meter problems before they become severe. You can view the graph of past results at

either the beginning or the end of the meter verification procedure. The graph is shown

automatically at the end. Click View Previous Test Data to view the graph at the beginning.

•Data manipulation – You can manipulate the graphed data in various ways by double-clicking

the graph. When the graph configuration dialog is open, you can also export the graph in a

number of formats (including “to printer”) by clicking Export.

•Detailed report form – At the end of a meter verification test, ProLink II displays a detailed

report of the test, which includes the same recommendations for pass/caution/abort results

found in Section 10.3.1. You have the options of printing the report or saving it to disk as an

HTML file.

More information about using ProLink II to perform meter verification can be found in the ProLink II

manual (ProLink II Software for Micro Motion Transmitters, P/N 20001909, Rev D or later) and in the

on-line ProLink II help system.

Note: Historical data (e.g., previous test results or whether zero has changed) are stored on the

computer on which ProLink II is installed. If you perform meter verification on the same transmitter

from a different computer, the historical data will not be visible.

10.4 Performing meter validation

To perform meter validation, measure a sample of the process fluid and compare the measurement

with the flowmeter’s reported value.

Use the following formula to calculate a meter factor:

Valid values for meter factors range from 0.8 to 1.2. If the calculated meter factor exceeds these

limits, contact Micro Motion customer service.

NewMeterFactor ConfiguredMeterFactor ExternalStandard

ActualTransmitterMeasurement

-----------------------------------------------------------------------------------

×=

Configuration and Use Manual 87

Measurement Performance

Measurement Performance DefaultsTroubleshootingCompensation

10.5 Performing density calibration

Density calibration includes the following calibration points:

• All sensors:

- D1 calibration (low-density)

- D2 calibration (high-density)

• T-Series sensors only:

- D3 calibration (optional)

- D4 calibration (optional)

For T-Series sensors, the optional D3 and D4 calibrations could improve the accuracy of the density

measurement. If you choose to perform the D3 and D4 calibration:

• Do not perform the D1 or D2 calibration.

• Perform D3 calibration if you have one calibrated fluid.

• Perform both D3 and D4 calibrations if you have two calibrated fluids (other than air and

water).

The calibrations that you choose must be performed without interruption, in the order listed here.

Note: Before performing the calibration, record your current calibration parameters. If you are using

ProLink II, you can do this by saving the current configuration to a file on the PC. If the calibration

fails, restore the known values.

You can calibrate for density with ProLink II.

10.5.1 Preparing for density calibration

Before beginning density calibration, review the requirements in this section.

Sensor requirements

During density calibration, the sensor must be completely filled with the calibration fluid, and flow

through the sensor must be at the lowest rate allowed by your application. This is usually

accomplished by closing the shutoff valve downstream from the sensor, then filling the sensor with

the appropriate fluid.

Example The flowmeter is installed and proved for the first time. The flowmeter

mass measurement is 250.27 lb; the reference device measurement is

250 lb. A mass flow meter factor is determined as follows:

The first mass flow meter factor is 0.9989.

One year later, the flowmeter is proved again. The flowmeter mass

measurement is 250.07 lb; the reference device measurement is

250.25 lb. A new mass flow meter factor is determined as follows:

The new mass flow meter factor is 0.9996.

MassFlowMeterFactor 1 250

250.27

------------------

×0.9989==

MassFlowMeterFactor 0.9989 250.25

250.07

------------------

×0.9996==

88 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Measurement Performance

Density calibration fluids

D1 and D2 density calibration require a D1 (low-density) fluid and a D2 (high-density) fluid. You

may use air and water. If you are calibrating a T-Series sensor, the D1 fluid must be air and the D2

fluid must be water.

For D3 density calibration, the D3 fluid must meet the following requirements:

• Minimum density of 0.6 g/cm3

• Minimum difference of 0.1 g/cm3 between the density of the D3 fluid and the density of water.

The density of the D3 fluid may be either greater or less than the density of water

For D4 density calibration, the D4 fluid must meet the following requirements:

• Minimum density of 0.6 g/cm3

• Minimum difference of 0.1 g/cm3 between the density of the D4 fluid and the density of the

D3 fluid. The density of the D4 fluid must be greater than the density of the D3 fluid

• Minimum difference of 0.1 g/cm3 between the density of the D4 fluid and the density of water.

The density of the D4 fluid may be either greater or less than the density of water

10.5.2 Density calibration procedures

To perform a D1 and D2 density calibration, see Figure 10-2.

To perform a D3 density calibration or a D3 and D4 density calibration, see Figure 10-3.

CAUTION

For T-Series sensors, the D1 calibration must be performed on air and the D2

calibration must be performed on water.

Configuration and Use Manual 89

Measurement Performance

Measurement Performance DefaultsTroubleshootingCompensation

Figure 10-2 D1 and D2 density calibration – ProLink II

Figure 10-3 D3 or D3 and D4 density calibration – ProLink II

Enter density of D1 fluid

Calibration in Progress

light turns green

Calibration in Progress

light turns red

D1 calibration

Close shutoff valve

downstream from sensor Fill sensor with D1 fluid Fill sensor with D2 fluid

Enter density of D2 fluid

Calibration in Progress

light turns green

Calibration in Progress

light turns red

D2 calibration

Done

Do Cal Do Cal

ProLink Menu >

Calibration >

Density cal – Point 1

ProLink Menu >

Calibration >

Density cal – Point 2

Enter density of D3 fluid

Calibration in Progress

light turns green

Calibration in Progress

light turns red

D3 calibration

Close shutoff valve

downstream from sensor Fill sensor with D3 fluid

Enter density of D4 fluid

Calibration in Progress

light turns green

Calibration in Progress

light turns red

D4 calibration

Done

Do Cal Do Cal

Done

ProLink Menu >

Calibration >

Density cal – Point 3

Fill sensor with D4 fluid

ProLink Menu >

Calibration >

Density cal – Point 4

90 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Measurement Performance

10.6 Performing temperature calibration

Temperature calibration is a two-part procedure: temperature offset calibration and temperature slope

calibration. The entire procedure must be completed without interruption.

You can calibrate for temperature with ProLink II. See Figure 10-4.

Figure 10-4 Temperature calibration – ProLink II

Enter temperature of low-

temperature fluid

Temperature Offset calibration

Do Cal

Wait until sensor achieves

thermal equilibrium

Fill sensor with low-

temperature fluid

Calibration in Progress

light turns green

Calibration in Progress

light turns red

Enter temperature of high-

temperature fluid

Temperature Slope calibration

Do Cal

Wait until sensor achieves

thermal equilibrium

Fill sensor with high-

temperature fluid

Calibration in Progress

light turns green

Calibration in Progress

light turns red

Done

ProLink Menu >

Calibration >

Temp offset cal

ProLink Menu >

Calibration >

Temp slope cal

Configuration and Use Manual 91

Measurement Performance DefaultsTroubleshootingCompensation

Chapter 11

Troubleshooting

11.1 Overview

This chapter describes guidelines and procedures for troubleshooting the meter. The information in

this chapter will enable you to:

• Categorize the problem

• Determine whether you are able to correct the problem

• Take corrective measures (if possible)

• Contact the appropriate support agency

Note: All ProLink II procedures provided in this section assume that your computer is already

connected to the transmitter and you have established communication. All ProLink II procedures also

assume that you are complying with all applicable safety requirements. See Chapter 2 for more

information.

11.2 Guide to troubleshooting topics

Refer to Table 11-1 for a list of troubleshooting topics discussed in this chapter.

Table 11-1 Troubleshooting topics and locations

Section Topic

Section 11.4 Transmitter does not operate

Section 11.5 Transmitter does not communicate

Section 11.6 Zero or calibration failure

Section 11.7 Fault conditions

Section 11.8 I/O problems

Section 11.9 Transmitter status LED

Section 11.10 Status alarms

Section 11.11 Checking process variables

Section 11.12 Meter fingerprinting

Section 11.13 Troubleshooting filling problems

Section 11.14 Diagnosing wiring problems

Section 11.14.1 Checking the power supply wiring

Section 11.14.2 Checking the sensor-to-transmitter wiring

Section 11.14.3 Checking for RF interference

Section 11.14.4 Checking for RF interference

Section 11.15 Checking ProLink II

Section 11.16 Checking the output wiring and receiving device

92 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Troubleshooting

11.3 Micro Motion customer service

To speak to a customer service representative, contact the Micro Motion Customer Service

Department. Contact information is provided in Section 1.8.

Before contacting Micro Motion customer service, review the troubleshooting information and

procedures in this chapter, and have the results available for discussion with the technician.

11.4 Transmitter does not operate

If the transmitter does not operate at all (i.e., the transmitter is not receiving power, or the status LED

is not lit), perform all of the procedures in Section 11.14.

If the procedures do not indicate a problem with the electrical connections, contact Micro Motion

customer service.

11.5 Transmitter does not communicate

If you cannot establish communication with the transmitter:

• Check connections and observe port activity at the host (if possible).

• Verify communications parameters.

• If all parameters appear to be set correctly, try swapping the leads.

• Increase the response delay value (see Section 6.12.5). This parameter is useful if the

transmitter is communicating with a slower host.

11.6 Zero or calibration failure

If a zero or calibration procedure fails, the transmitter will send a status alarm indicating the cause of

failure. See Section 11.10 for specific remedies for status alarms indicating calibration failure.

11.7 Fault conditions

If the analog or digital outputs indicate a fault condition (by transmitting a fault indicator), determine

the exact nature of the fault by checking the status alarms with ProLink II software. Once you have

identified the status alarm(s) associated with the fault condition, refer to Section 11.10.

Section 11.17 Checking slug flow

Section 11.18 Checking output saturation

Section 11.19 Checking the flow measurement unit

Section 11.20 Checking the upper and lower range values

Section 11.21 Checking the characterization

Section 11.22 Checking the calibration

Section 11.23 Checking the test points

Section 11.24 Checking the core processor

Section 11.25 Checking sensor coils and RTD

Table 11-1 Troubleshooting topics and locations continued

Section Topic

Configuration and Use Manual 93

Troubleshooting

Measurement Performance DefaultsTroubleshootingCompensation

Some fault conditions can be corrected by cycling power to the transmitter. A power cycle can clear

the following:

• Loop test

• Zero failure

• Stopped internal totalizer

11.8 I/O problems

If you are experiencing problems with an mA output, discrete output, or discrete input, use Table 11-2

to identify an appropriate remedy.

Table 11-2 I/O problems and remedies

Symptom Possible cause Possible remedy

No output

Loop test failed Power supply problem Check power supply and power supply wiring.

See Section 11.14.1.

Fault condition present if fault

indicators are set to downscale or

internal zero

Check the fault indicator settings to verify

whether or not the transmitter is in a fault

condition. See Section 4.5.4 to check the mA

fault indicator.

If a fault condition is present, see Section 11.7.

Channel not configured for desired

output (Channel B or C only) Verify channel configuration for associated

output terminals.

mA output < 4 mA Process condition below LRV Verify process.

Change the LRV. See Section 4.5.2.

Fault condition if fault indicator is set to

internal zero Check the fault indicator settings to verify

whether or not the transmitter is in a fault

condition. See Section 4.5.4.

If a fault condition is present, see Section 11.7.

Open in wiring Verify all connections.

Channel not configured for mA

operation Verify channel configuration.

Bad mA receiving device Check the mA receiving device or try another

mA receiving device. See Section 11.16.

Bad output circuit Measure DC voltage across output to verify that

output is active.

Constant mA output Output is fixed in a test mode Exit output from test mode. See Section 3.3.

Zero calibration failure Cycle power.

Stop flow and rezero. See Section 3.5.

mA output consistently out of

range Fault condition if fault indicator is set to

upscale or downscale Check the fault indicator settings to verify

whether or not the transmitter is in a fault

condition. See Section 4.5.4.

If a fault condition is present, see Section 11.7.

LRV and URV not set correctly Check the LRV and URV. See Section 11.20.

Consistently incorrect mA

measurement Output not trimmed correctly Trim the output. See Section 3.4.

Incorrect flow measurement unit

configured Verify flow measurement unit configuration. See

Section 11.19.

Incorrect process variable configured Verify process variable assigned to mA output.

See Section 4.5.1.

LRV and URV not set correctly Check the LRV and URV. See Section 11.20.

94 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Troubleshooting

11.9 Transmitter status LED

The Model 1500 transmitter includes a LED that indicates transmitter status. See Table 11-3. If the

status LED indicates an alarm condition:

1. View the alarm code using ProLink II.

2. Identify the alarm (see Section 11.10).

3. Correct the condition.

mA reading correct at low

currents but wrong at higher

currents

mA loop resistance may be too high Verify that mA output load resistance is below

maximum supported load (see installation

manual for your transmitter).

Cannot zero with Zero

button Not pressing Zero button for sufficient

interval Button must be pressed for 0.5 seconds to be

recognized. Press button until LED starts to

flash yellow, then release button.

Core processor in fault mode Correct core processor faults and retry.

Cannot connect to terminals

33 & 34 in service port mode Terminals not in service port mode Terminals are accessible in service port mode

ONLY for a 10-second interval after power-up.

Cycle power and connect during this interval.

Leads reversed. Switch leads and try again.

Transmitter installed on multidrop

network All Model 1500 and 2500 devices on network

default to address=111 during 10-second

service port interval. Disconnect or power down

other devices, or use RS-485 communications.

Cannot establish Modbus

communication on terminals

33 & 34

Incorrect Modbus configuration After 10-second interval on power-up, the

transmitter switches to Modbus

communications. Default settings are:

• Address=1

• Baud rate=9600

• Parity=odd

Verify configuration. Default settings can be

changed using ProLink II v2.0 or higher.

Leads reversed Switch leads and try again.

DI is fixed and does not

respond to input switch Possible internal/external power

configuration error Internal means that the transmitter will supply

power to the output. External means that an

external pull-up resistor and source are

required. Verify configuration setting is correct

for desired application.

Table 11-3 Model 1500/2500 transmitter status reported by the status LED

Status LED state Alarm priority Definition

Green No alarm Normal operating mode

Flashing yellow No alarm Zero in progress

Yellow Low severity alarm • Alarm condition: will not cause measurement error

• Outputs continue to report process data

• May indicate that the fill is not completely

configured

Red High severity alarm • Alarm condition: will cause measurement error

• Outputs go to configured fault indicators, unless

the output is configured for valve control

Table 11-2 I/O problems and remedies continued

Symptom Possible cause Possible remedy

Configuration and Use Manual 95

Troubleshooting

Measurement Performance DefaultsTroubleshootingCompensation

11.10 Status alarms

Status alarm can be viewed with ProLink II. A list of status alarms and possible remedies is provided

in Table 11-4.

Table 11-4 Status alarms and remedies

Alarm

code ProLink II label Possible remedy

A001 CP EEPROM Failure Cycle power to the flowmeter.

The flowmeter might need service. Contact Micro Motion. See Section 1.8.

A002 CP RAM Failure Cycle power to the flowmeter.

The flowmeter might need service. Contact Micro Motion. See Section 1.8.

A003 Sensor Failure Check the test points. See Section 11.23.

Check the sensor coils. See Section 11.25.

Check wiring to sensor. See Section 11.14.2.

Check for slug flow. See Section 11.17.

Check sensor tubes.

A004 Temp Out of Range Check the test points. See Section 11.23.

Check the sensor RTD reading(s). See Section 11.25.

Check wiring to sensor. See Section 11.14.2.

Verify flowmeter characterization. See Section 4.2.

Verify that process temperature is within range of sensor and transmitter.

Contact Micro Motion. See Section 1.8.

A005 Mass Flow Overrange Check the test points. See Section 11.23.

Check the sensor coils. See Section 11.25.

Verify process.

Make sure that the appropriate measurement unit is configured. See

Section 11.19.

Verify 4 mA and 20 mA values. See Section 11.20.

Verify calibration factors in transmitter configuration. See Section 4.2.

Re-zero the transmitter.

A006 Characterize Meter Check the characterization. Specifically, verify the FCF and K1 values. See

Section 4.2.

If the problem persists, contact Micro Motion. See Section 1.8.

A008 Density Out of Range Check the test points. See Section 11.23.

Check the sensor coils. See Section 11.25.

Verify process. Check for air in the flow tubes, tubes not filled, foreign material

in tubes, or coating in tubes.

Verify calibration factors in transmitter configuration. See Section 4.2.

Perform density calibration. See Section 10.5.

A009 Xmtr Initializing Allow the flowmeter to warm up. The error should disappear once the flowmeter

is ready for normal operation.

If alarm does not clear, make sure that the sensor is completely full or

completely empty. Verify sensor configuration and wiring to sensor.

A010 Calibration Failure If alarm appears during a transmitter zero, ensure that there is no flow through

the sensor, then retry.

Cycle power to the flowmeter, then retry.

96 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Troubleshooting

A011 Cal Fail, Too Low Ensure that there is no flow through the sensor, then retry.

Cycle power to the flowmeter, then retry.

A012 Cal Fail, Too High Ensure that there is no flow through the sensor, then retry.

Cycle power to the flowmeter, then retry.

A013 Cal Fail, Too Noisy Remove or reduce sources of electromechanical noise, then attempt the

calibration or zero procedure again.

Sources of noise include:

• Mechanical pumps

• Pipe stress at sensor

• Electrical interference

• Vibration effects from nearby machinery

Cycle power to the flowmeter, then retry. See Section 11.22.

A014 Transmitter Error Cycle power to the flowmeter.

The transmitter might need service. Contact Micro Motion. See Section 1.8.

A016 Sensor RTD Error Check the test points. See Section 11.23.

Check the sensor coils. See Section 11.25.

Check wiring to sensor. See Section 11.14.2.

Make sure the appropriate sensor type is configured. See Section 4.2.

Contact Micro Motion. See Section 1.8.

A017 Meter RTD Error Check the test points. See Section 11.23.

Check the sensor coils. See Section 11.25.

Contact Micro Motion. See Section 1.8.

A018 EEPROM Failure Cycle power to the flowmeter.

The transmitter might need service. Contact Micro Motion. See Section 1.8.

A019 RAM Failure Cycle power to the flowmeter.

The transmitter might need service. Contact Micro Motion. See Section 1.8.

A020 Cal Factors Missing Check the characterization. Specifically, verify the FCF value. See Section 4.2.

A021 Sensor Type Incorrect Check the characterization. Specifically, verify the K1 value. See Section 4.2.

A022(1) CP Configuration Failure Cycle power to the flowmeter.

The transmitter might need service. Contact Micro Motion. See Section 1.8.

A023(1) CP Totals Failure Cycle power to the flowmeter.

The transmitter might need service. Contact Micro Motion. See Section 1.8.

A024(1) CP Program Corrupt Cycle power to the flowmeter.

The transmitter might need service. Contact Micro Motion. See Section 1.8.

A025(1) CP Boot Program Fault Cycle power to the flowmeter.

The transmitter might need service. Contact Micro Motion. See Section 1.8.

A026 Xmtr Comm Problem Check the wiring between the transmitter and the core processor (see

Section 11.14.2). The wires may be swapped. After swapping wires, cycle

power to the flowmeter.

Check for noise in wiring or transmitter environment.

Check the core processor LED. See Section 11.24.

Check that the core processor is receiving power. See Section 11.14.1.

Perform the core processor resistance test. See Section 11.24.2.

Table 11-4 Status alarms and remedies continued

Alarm

code ProLink II label Possible remedy

Configuration and Use Manual 97

Troubleshooting

Measurement Performance DefaultsTroubleshootingCompensation

A028 Comm Problem Cycle power to the flowmeter.

The transmitter might need service or upgrading. Contact Micro Motion. See

Section 1.8.

A032(2) Meter

Verification/Outputs In

Fault

Meter verification in progress, with outputs set to fault. Allow the procedure to

complete. If desired, abort the procedure and restart with outputs set to last

measured value.

A100 mA 1 Saturated See Section 11.18.

A101 mA 1 Fixed Exit mA output trim. See Section 3.4.

Exit mA output loop test. See Section 3.3.

Check to see if the output has been fixed via digital communication.

A102 Drive Overrange/

Partially Full Tube Excessive drive gain. See Section 11.23.3.

Check the sensor coils. See Section 11.25.

A103(1) Data Loss Possible Cycle power to the flowmeter.

View the entire current configuration to determine what data were lost.

Configure any settings with missing or incorrect data.

The transmitter might need service. Contact Micro Motion. See Section 1.8.

A104 Cal in Progress Allow the flowmeter to complete calibration.

A105 Slug Flow See Section 11.17.

A107 Power Reset No action required.

A108 Event 1 On Be advised of alarm condition.

If you believe the event has been triggered erroneously, verify the Event 1

settings. See Section 6.9.

A109 Event 2 On Be advised of alarm condition.

If you believe the event has been triggered erroneously, verify the Event 2

settings. See Section 6.9.

A112 Upgrade Software Contact Micro Motion to get a transmitter software upgrade. See Section 1.8.

Note that the device is still functional.

A118 DO1 Fixed Exit discrete output loop test. See Section 3.3.

A119 DO2 Fixed Exit discrete output loop test. See Section 3.3.

A131(2) Meter

Verification/Outputs at

Last Value

Meter verification in progress, with outputs set to last measured value. Allow

the procedure to complete. If desired, abort the procedure and restart with

outputs set to fault.

(1) Applies only to systems with the standard core processor.

(2) Applies only to systems with the enhanced core processor.

Table 11-4 Status alarms and remedies continued

Alarm

code ProLink II label Possible remedy

98 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Troubleshooting

11.11 Checking process variables

Micro Motion suggests that you make a record of the process variables listed below, under normal

operating conditions. This will help you recognize when the process variables are unusually high or

low. The meter fingerprinting feature can also provide useful data (see Section 11.12).

• Flow rate

• Density

•Temperature

• Tube frequency

• Pickoff voltage

•Drive gain

For troubleshooting, check the process variables under both normal flow and tubes-full no-flow

conditions. Except for flow rate, you should see little or no change between flow and no-flow

conditions. If you see a significant difference, record the values and contact Micro Motion customer

service for assistance. See Section 1.8.

Unusual values for process variables may indicate a variety of different problems. Table 11-5 lists

several possible problems and remedies.

Table 11-5 Process variables problems and possible remedies

Symptom Cause Possible remedy

Steady non-zero flow rate under

no-flow conditions Misaligned piping (especially in new

installations) Correct the piping.

Open or leaking valve Check or correct the valve mechanism.

Bad sensor zero Rezero the flowmeter. See Section 3.5.

Bad flow calibration factor Verify characterization. See

Section 4.2.

Configuration and Use Manual 99

Troubleshooting

Measurement Performance DefaultsTroubleshootingCompensation

Erratic non-zero flow rate under

no-flow conditions RF interference Check environment for RF interference.

See Section 11.14.4.

Wiring problem Verify all sensor-to-transmitter wiring

and ensure the wires are making good

contact.

Incorrectly grounded 9-wire cable (in

remote core processor with remote

transmitter installations)

Verify 9-wire cable installation. Refer to

Appendix B for diagrams, and see the

installation manual for your transmitter.

Vibration in pipeline at rate close to

sensor tube frequency Check environment and remove source

of vibration.

Leaking valve or seal Check pipeline.

Inappropriate measurement unit Check configuration. See

Section 11.19.

Inappropriate damping value Check configuration. See Section 4.5.5

and Section 6.6.

Slug flow See Section 11.17.

Plugged flow tube Check drive gain and tube frequency.

Purge the flow tubes.

Moisture in sensor junction box Open junction box and allow it to dry.

Do not use contact cleaner. When

closing, ensure integrity of gaskets and

O-rings, and grease all O-rings.

Mounting stress on sensor Check sensor mounting. Ensure:

• Sensor is not being used to support

pipe.

• Sensor is not being used to correct

pipe misalignment.

• Sensor is not too heavy for pipe.

Sensor cross-talk Check environment for sensor with

similar (±0.5 Hz) tube frequency.

Incorrect sensor orientation Sensor orientation must be appropriate

to process fluid. See the installation

manual for your sensor.

Erratic non-zero flow rate when flow

is steady Output wiring problem Verify wiring between transmitter and

receiving device. See the installation

manual for your transmitter.

Problem with receiving device Test with another receiving device.

Inappropriate measurement unit Check configuration. See

Section 11.19.

Inappropriate damping value Check configuration. See Section 4.5.5

and Section 6.6.

Excessive or erratic drive gain See Section 11.23.3 and

Section 11.23.4.

Slug flow See Section 11.17.

Plugged flow tube Check drive gain and tube frequency.

Purge the flow tubes.

Wiring problem Verify all sensor-to-transmitter wiring

and ensure the wires are making good

contact.

Table 11-5 Process variables problems and possible remedies continued

Symptom Cause Possible remedy

100 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Troubleshooting

Inaccurate flow rate or fill total Bad flow calibration factor Verify characterization. See

Section 4.2.

Inappropriate measurement unit Check configuration. See

Section 11.19.

Bad sensor zero Rezero the flowmeter. See Section 3.5.

Bad density calibration factors Verify characterization. See

Section 4.2.

Bad flowmeter grounding See Section 11.14.3.

Slug flow See Section 11.17.

Problem with receiving device See Section 11.16.

Wiring problem Verify all sensor-to-transmitter wiring

and ensure the wires are making good

contact.

Inaccurate density reading Problem with process fluid Use standard procedures to check

quality of process fluid.

Bad density calibration factors Verify characterization. See

Section 4.2.

Wiring problem Verify all sensor-to-transmitter wiring

and ensure the wires are making good

contact.

Bad flowmeter grounding See Section 11.14.3.

Slug flow See Section 11.17.

Sensor cross-talk Check environment for sensor with

similar (±0.5 Hz) tube frequency.

Plugged flow tube Check drive gain and tube frequency.

Purge the flow tubes.

Temperature reading significantly

different from process temperature RTD failure Check for alarm conditions and follow

troubleshooting procedure for indicated

alarm.

Disable external temperature

compensation. See Figure C-1.

Temperature reading slightly different

from process temperature Temperature calibration required Perform temperature calibration. See

Section 10.6.

Unusually high density reading Plugged flow tube Check drive gain and tube frequency.

Purge the flow tubes.

Incorrect K2 value Verify characterization. See

Section 4.2.

Unusually low density reading Slug flow See Section 11.17.

Incorrect K2 value Verify characterization. See

Section 4.2.

Unusually high tube frequency Sensor erosion Contact Micro Motion. See Section 1.8.

Unusually low tube frequency Plugged flow tube Purge the flow tubes.

Unusually low pickoff voltages Several possible causes See Section 11.23.5.

Unusually high drive gain Several possible causes See Section 11.23.3.

Table 11-5 Process variables problems and possible remedies continued

Symptom Cause Possible remedy

Configuration and Use Manual 101

Troubleshooting

Measurement Performance DefaultsTroubleshootingCompensation

11.12 Meter fingerprinting

The meter fingerprinting feature provides snapshots, or “fingerprints,” of twelve process variables, at

four different points of transmitter operation. See Table 11-6.

For all process variables except Mech Zero, the instantaneous value, 5-minute running average,

5-minute running standard deviation, recorded minimum, and recorded maximum are recorded. For

Mech Zero, only the 5-minute running average and 5-minute running standard deviation are recorded.

To use the meter fingerprinting feature:

1. From the ProLink menu, select Finger Print.

2. Use the Type pulldown list to specify the point in time for which you want to view data.

3. Use the Units pulldown list to specify SI or English units.

The display is updated continuously.

Note: Due to the continuous updating, the meter fingerprinting feature can have a negative effect on

other sensor-transmitter communications. Do not open the meter fingerprinting window unless you

plan to use it, and be sure to close it when you no longer need it.

11.13 Troubleshooting filling problems

If the fill cannot be started:

• Check the status LED on the transmitter.

- If it is solid red, the transmitter is in a fault condition and a fill cannot be started. Correct

the fault condition and retry. The cleaning function may be useful.

- If it is solid yellow, the transmitter is in a low-severity fault condition, such as slug flow, or

the fill flow source, target, or discrete outputs are not correctly configured.

Note: A fill can be started under some low-severity fault conditions.

If the system is in slug flow, try using the cleaning function, or pulsing fluid through the

sensor by turning the discrete outputs ON and OFF (if the valves are controlled by discrete

outputs). The Test Discrete Output function can be used for this.

• Ensure that the fill is correctly and completely configured:

- A flow source must be specified.

- A non-zero positive value must be specified for the fill target.

- All outputs required for valve control must be configured.

Table 11-6 Meter fingerprinting data

Fingerprint time Description Process variables recorded

Current Present-time values • Mass flow rate

• Volume flow rate

• Density

• Temperature

• Case temperature

•Live zero

• Tube frequency

• Drive gain

• Left pickoff

• Right pickoff

• Board temperature

• Input voltage

Factory Values at time transmitter left factory

Installation Values at time of first sensor zero

Last zero Values at time of most recent sensor zero

102 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Troubleshooting

If fill accuracy is unsatisfactory or has changed, or if fill variation is too great:

• Implement overshoot compensation (if not already implemented).

• If standard AOC calibration is implemented, repeat the AOC calibration.

• If rolling AOC calibration is implemented, try increasing the AOC Window Length value.

• Check for mechanical problems with the valve.

11.14 Diagnosing wiring problems

Use the procedures in this section to check the transmitter installation for wiring problems.

11.14.1 Checking the power supply wiring

To check the power supply wiring:

1. Verify that the correct external fuse is used. An incorrect fuse can limit current to the

transmitter and keep it from initializing.

2. Power down the transmitter.

3. Ensure that the power supply wires are connected to the correct terminals. Refer to

Appendix B for diagrams.

4. Verify that the power supply wires are making good contact, and are not clamped to the wire

insulation.

5. Use a voltmeter to test the voltage at the transmitter’s power supply terminals. Verify that it is

within the specified limits. For DC power, you may need to size the cable. Refer to

Appendix B for diagrams, and see your transmitter installation manual for power supply

requirements.

11.14.2 Checking the sensor-to-transmitter wiring

To check the sensor-to-transmitter wiring, verify that:

• The transmitter is connected to the sensor according to the wiring information provided in

your transmitter installation manual. Refer to Appendix B for diagrams.

• The wires are making good contact with the terminals.

If the wires are incorrectly connected:

1. Power down the transmitter.

2. Correct the wiring.

3. Restore power to the transmitter.

11.14.3 Checking grounding

The sensor and the transmitter must be grounded. If the core processor is installed as part of the

sensor, it is grounded automatically. If the core processor is installed separately, it must be grounded

separately. See your sensor and transmitter installation manuals for grounding requirements and

instructions.

Configuration and Use Manual 103

Troubleshooting

Measurement Performance DefaultsTroubleshootingCompensation

11.14.4 Checking for RF interference

If you are experiencing RF (radio frequency) interference on your discrete output, use one of the

following solutions:

• Eliminate the RF source. Possible causes include a source of radio communications, or a large

transformer, pump, motor, or anything else that can generate a strong electrical or

electromagnetic field, in the vicinity of the transmitter.

• Move the transmitter.

• Use shielded cable for the discrete output.

- Terminate output cable shielding at the input device. If this is not possible, terminate the

output shielding at the cable gland or conduit fitting.

- Do not terminate shield inside the wiring compartment.

- 360° termination of shielding is not necessary.

11.15 Checking ProLink II

Ensure that you are using the required version of ProLink II. ProLink II v2.3 or later is required for

the Model 1500 transmitter with filling and dosing application. ProLink II v2.5 or later is required for

meter verification, and for some of the features and functions described in this manual.

To check the version of ProLink II:

1. Start ProLink II.

2. Open the Help menu.

3. Click About ProLink.

11.16 Checking the output wiring and receiving device

If you receive an inaccurate mA reading, there may be a problem with the output wiring or the

receiving device.

• Check the output level at the transmitter.

• Check the wiring between the transmitter and the receiving device.

• Try a different receiving device.

11.17 Checking slug flow

Slugs – gas in a liquid process or liquid in a gas process – occasionally appear in some applications.

The presence of slugs can significantly affect the process density reading. Slug flow limits and

duration can help the transmitter suppress extreme changes in reading.

Note: Default slug flow limits are 0.0 and 5.0 g/cm3. Raising the low slug flow limit or lowering the

high slug flow limit will increase the possibility of slug flow conditions.

If slug limits have been configured, and slug flow occurs:

• A slug flow alarm is generated.

• All outputs that are configured to represent flow rate hold their last “pre-slug flow” value for

the configured slug flow duration.

104 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Troubleshooting

If the slug flow condition clears before the slug-flow duration expires:

• Outputs that represent flow rate revert to reporting actual flow.

• The slug flow alarm is deactivated, but remains in the active alarm log until it is

acknowledged.

If the slug flow condition does not clear before the slug-flow duration expires, outputs that represent

flow rate report a flow rate of zero.

If slug time is configured for 0.0 seconds, outputs that represent flow rate will report zero flow as

soon as slug flow is detected.

If slug flow occurs:

• Check process for cavitation, flashing, or leaks.

• Change the sensor orientation.

• Monitor density.

• If desired, enter new slug flow limits (see Section 6.10).

• If desired, increase slug duration (see Section 6.10).

11.18 Checking output saturation

If an output variable exceeds the upper range limit or goes below the lower range limit, the

applications platform produces an output saturation alarm. The alarm can mean:

• The output variable is outside appropriate limits for the process.

• The unit of flow needs to be changed.

• Sensor flow tubes are not filled with process fluid.

• Sensor flow tubes are plugged.

If an output saturation alarm occurs:

• Bring flow rate within sensor limit.

• Check the measurement unit. You may be able to use a smaller or larger unit.

• Check the sensor:

- Ensure that flow tubes are full.

- Purge flow tubes.

• For the mA outputs, change the mA URV and LRV (see Section 4.5.2).

11.19 Checking the flow measurement unit

Using an incorrect flow measurement unit can cause the transmitter to produce unexpected output

levels, with unpredictable effects on the process. Make sure that the configured flow measurement

unit is correct. Check the abbreviations; for example, g/min represents grams per minute, not gallons

per minute. See Section 4.4.

11.20 Checking the upper and lower range values

A saturated mA output or incorrect mA measurement could indicate a faulty URV or LRV. Verify that

the URV and LRV are correct and change them if necessary. See Section 4.5.2.

Configuration and Use Manual 105

Troubleshooting

Measurement Performance DefaultsTroubleshootingCompensation

11.21 Checking the characterization

A transmitter that is incorrectly characterized for its sensor might produce inaccurate output values. If

the flowmeter appears to be operating correctly but sends inaccurate output values, an incorrect

characterization could be the cause.

If you discover that any of the characterization data are wrong, perform a complete characterization.

See Section 4.2.

11.22 Checking the calibration

Improper calibration can cause the transmitter to send unexpected output values. If the transmitter

appears to be operating correctly but sends inaccurate output values, an improper calibration may be

the cause.

Micro Motion calibrates every transmitter at the factory. Therefore, you should suspect improper

calibration only if the transmitter has been calibrated after it was shipped from the factory.

The calibration procedures in this manual are designed for calibration to a regulatory standard. See

Chapter 10. To calibrate for true accuracy, always use a measurement source that is more accurate

than the meter. Contact Micro Motion customer service for assistance.

Note: Micro Motion recommends using meter factors, rather than calibration, to prove the meter

against a regulatory standard or to correct measurement error. Contact Micro Motion before

calibrating your flowmeter. For information on meter performance, see Chapter 10.

11.23 Checking the test points

Some status alarms that indicate a sensor failure or overrange condition can be caused by problems

other than a failed sensor. You can diagnose sensor failure or overrange status alarms by checking the

meter test points. The test points include left and right pickoff voltages, drive gain, and tube

frequency. These values describe the current operation of the sensor.

11.23.1 Obtaining the test points

To obtain the test points with ProLink II software:

1. Select Diagnostic Information from the ProLink menu.

2. Write down the values you find in the Tube Frequency box, the Left Pickoff box, the Right

Pickoff box, and the Drive Gain box.

11.23.2 Evaluating the test points

Use the following guidelines to evaluate the test points:

• If the drive gain is unstable, refer to Section 11.23.3.

• If the value for the left or right pickoff does not equal the appropriate value from Table 11-7,

based on the sensor flow tube frequency, refer to Section 11.23.5.

• If the values for the left and right pickoffs equal the appropriate values from Table 11-7, based

on the sensor flow tube frequency, record your troubleshooting data and contact Micro Motion

customer service. See Section 1.8.

106 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Troubleshooting

11.23.3 Excessive drive gain

Excessive drive gain can be caused by several problems. See Table 11-8.

Table 11-7 Sensor pickoff values

Sensor(1)

(1) If your sensor is not listed, contact Micro Motion. See Section 1.8

Pickoff value

ELITE Model CMF sensors 3.4 mV peak-to-peak per Hz based on sensor flow tube frequency

Model D, DL, and DT sensors 3.4 mV peak-to-peak per Hz based on sensor flow tube frequency

Model F025, F050, F100 sensors 3.4 mV peak-to-peak per Hz based on sensor flow tube frequency

Model F200 sensors (compact case) 2.0 mV peak-to-peak per Hz based on sensor flow tube frequency

Model F200 sensors (standard case) 3.4 mV peak-to-peak per Hz based on sensor flow tube frequency

Model H025, H050, H100 sensors 3.4 mV peak-to-peak per Hz based on sensor flow tube frequency

Model H200 sensors 2.0 mV peak-to-peak per Hz based on sensor flow tube frequency

Model R025, R050, or R100 sensors 3.4 mV peak-to-peak per Hz based on sensor flow tube frequency

Model R200 sensors 2.0 mV peak-to-peak per Hz based on sensor flow tube frequency

Micro Motion T-Series sensors 0.5 mV peak-to-peak per Hz based on sensor flow tube frequency

CMF400 I.S. sensors 2.7 mV peak-to-peak per Hz based on sensor flow tube frequency

CMF400 sensors with booster amplifiers 3.4 mV peak-to-peak per Hz based on sensor flow tube frequency

Table 11-8 Excessive drive gain causes and remedies

Cause Possible remedy

Excessive slug flow See Section 11.17.

Plugged flow tube Purge the flow tubes.

Cavitation or flashing Increase inlet or back pressure at the sensor.

If a pump is located upstream from the sensor, increase the distance

between the pump and sensor.

Drive board or module failure, cracked flow tube,

or sensor imbalance Contact Micro Motion. See Section 1.8.

Mechanical binding at sensor Ensure sensor is free to vibrate.

Open drive or left pickoff sensor coil Contact Micro Motion. See Section 1.8.

Flow rate out of range Ensure that flow rate is within sensor limits.

Incorrect sensor characterization Verify characterization. See Section 4.2.

Configuration and Use Manual 107

Troubleshooting

Measurement Performance DefaultsTroubleshootingCompensation

11.23.4 Erratic drive gain

Erratic drive gain can be caused by several problems. See Table 11-9.

11.23.5 Low pickoff voltage

Low pickoff voltage can be caused by several problems. See Table 11-10.

11.24 Checking the core processor

The Core Processor Diagnostics window displays data for many operational variables that are

internal to the core processor. Both current data and lifetime statistics are shown.

To view the core processor data, select Core Processor Diagnostics from the ProLink menu.

From this window:

• You can reset lifetime statistics by pressing the Reset Lifetime Stats button.

• You can also change values for electronic offsent, sensor failure timeout, drive P coefficient,

drive I coefficient, target amplitude override, and target frequency. Contact Micro Motion

customer service before changing these values.

Additionally, two core processor procedures are available:

• You can check the core processor LED. The core processor has an LED that indicates different

flowmeter conditions. See Table 11-11.

• You can perform the core processor resistance test to check for a damaged core processor.

Table 11-9 Erratic drive gain causes and remedies

Cause Possible remedy

Wrong K1 characterization constant for sensor Re-enter the K1 characterization constant. See

Section 4.2.

Polarity of pick-off reversed or polarity of drive reversed Contact Micro Motion. See Section 1.8.

Slug flow See Section 11.17.

Foreign material caught in flow tubes Purge flow tubes.

Table 11-10 Low pickoff voltage causes and remedies

Cause Possible remedy

Faulty wiring runs between the sensor and core processor Verify wiring. Refer to Appendix B for diagrams, and see

your transmitter installation manual.

Process flow rate beyond the limits of the sensor Verify that the process flow rate is not out of range of the

sensor.

Slug flow See Section 11.17.

No tube vibration in sensor Check for plugging.

Ensure sensor is free to vibrate (no mechanical binding).

Verify wiring.

Test coils at sensor. See Section 11.25.

Moisture in the sensor electronics Eliminate the moisture in the sensor electronics.

The sensor is damaged Contact Micro Motion. See Section 1.8.

108 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Troubleshooting

11.24.1 Checking the core processor LED

To check the core processor LED:

1. Maintain power to the transmitter.

2. Remove the core processor lid (see Figure B-2). The core processor is instrinsically safe and

can be opened in all environments.

3. Check the core processor LED against the conditions described in Table 11-11 (standard core

processor) or Table 11-12 (enhanced core processor).

4. To return to normal operation, replace the lid.

Note: When reassembling the meter components, be sure to grease all O-rings.

Table 11-11 Standard core processor LED behavior, meter conditions, and remedies

LED behavior Condition Possible remedy

1 flash per second (ON

25%, OFF 75%) Normal operation No action required.

1 flash per second (ON

75%, OFF 25%) Slug flow See Section 11.17.

Solid ON Zero or calibration in

progress If calibration is in progress, no action required. If no calibration is in

progress, contact Micro Motion. See Section 1.8.

Core processor

receiving between 11.5

and 5 volts

Check power supply to transmitter. See Section 11.14.1, and refer to

Appendix B for diagrams.

3 rapid flashes,

followed by pause Sensor not recognized Check wiring between transmitter and sensor (remote core processor

with remote transmitter installation). Refer to Appendix B for diagrams,

and see your transmitter installation manual.

Improper configuration Check sensor characterization parameters. See Section 4.2.

Broken pin between

sensor and core

processor

Contact Micro Motion. See Section 1.8.

4 flashes per second Fault condition Check alarm status.

OFF Core processor

receiving less than 5

volts

• Verify power supply wiring to core processor. Refer to Appendix B for

diagrams.

• If transmitter status LED is lit, transmitter is receiving power. Check

voltage across terminals 1 (VDC+) and 2 (VDC–) in core processor.

Normal reading is approximately 14 VDC. If reading is normal,

internal core processor failure is possible. Contact Micro Motion. See

Section 1.8. If reading is 0, internal transmitter failure is possible.

Contact Micro Motion. See Section 1.8. If reading is less than 1 VDC,

verify power supply wiring to core processor. Wires may be switched.

See Section 11.14.1, and refer to Appendix B for diagrams.

• If transmitter status LED is not lit, transmitter is not receiving power.

Check power supply. See Section 11.14.1, and refer to Appendix B

for diagrams. If power supply is operational, internal transmitter,

display, or LED failure is possible. Contact Micro Motion. See

Section 1.8.

Core processor

internal failure Contact Micro Motion. See Section 1.8.

Configuration and Use Manual 109

Troubleshooting

Measurement Performance DefaultsTroubleshootingCompensation

11.24.2 Core processor resistance test

To perform the core processor resistance test:

1. Power down the transmitter.

2. Remove the core processor lid.

3. Disconnect the 4-wire cable between the core processor and the transmitter (see Figure B-3 or

Figure B-4).

4. Measure the resistance between core processor terminals 3 and 4 (RS-485/A and RS-485/B).

See Figure 11-1. Resistance should be 40 kΩ to 50 kΩ.

5. Measure the resistance between core processor terminals 2 and 3 (VDC– and RS-485/A).

Resistance should be 20 kΩ to 25 kΩ.

6. Measure the resistance between core processor terminals 2 and 4 (VDC– and RS-485/B).

Resistance should be 20 kΩ to 25 kΩ.

7. If any resistance measurements are lower than specified, the core processor may not be able to

communicate with a transmitter or a remote host. Contact Micro Motion (see Section 1.8).

Table 11-12 Enhanced core processor LED behavior, meter conditions, and remedies

LED behavior Condition Possible remedy

Solid green Normal operation No action required.

Flashing yellow Zero in progress If calibration is in progress, no action required. If no calibration is in

progress, contact Micro Motion. See Section 1.8.

Solid yellow Low severity alarm Check alarm status.

Solid red High severity alarm Check alarm status.

Flashing red (80% on,

20% off) Tubes not full If alarm A105 (slug flow) is active, see Section 11.17.

If alarm A033 (tubes not full) is active, verify process. Check for air in

the flow tubes, tubes not filled, foreign material in tubes, or coating in

tubes.

Flashing red (50% on,

50% off) Electronics failed Contact Micro Motion. See Section 1.8.

Flashing red (50% on,

50% off, skips every

4th)

Sensor failed Contact Micro Motion. See Section 1.8.

OFF Core processor

receiving less than 5

volts

• Verify power supply wiring to core processor. Refer to Appendix B for

diagrams.

• If transmitter status LED is lit, transmitter is receiving power. Check

voltage across terminals 1 (VDC+) and 2 (VDC–) in core processor.

If reading is less than 1 VDC, verify power supply wiring to core

processor. Wires may be switched. See Section 11.14.1, and refer to

Appendix B for diagrams. Otherwise, contact Micro Motion (see

Section 1.8).

• If transmitter status LED is not lit, transmitter is not receiving power.

Check power supply. See Section 11.14.1, and refer to Appendix B

for diagrams. If power supply is operational, internal transmitter,

display, or LED failure is possible. Contact Micro Motion. See

Section 1.8.

Core processor

internal failure Contact Micro Motion. See Section 1.8.

110 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Troubleshooting

To return to normal operation:

1. Reconnect the 4-wire cable between the core processor and the transmitter (see Figure B-3 or

Figure B-4).

2. Replace the core processor lid.

Note: When reassembling the meter components, be sure to grease all O-rings.

Figure 11-1 Core processor resistance test

11.25 Checking sensor coils and RTD

Problems with sensor coils can cause several alarms, including sensor failure and a variety of

out-of-range conditions. Testing the sensor coils involves testing the terminal pairs and testing for

shorts to case.

11.25.1 Remote core processor with remote transmitter installation

If you have a remote core processor with remote transmitter (see Figure B-1):

1. Power down the transmitter.

2. Remove the end-cap from the core processor housing.

3. At the core processor, unplug the terminal blocks from the terminal board.

4. Using a digital multimeter (DMM), check the pickoff coils listed in Table 11-13 by placing the

DMM leads on the unplugged terminal blocks for each terminal pair. Record the values.

40 kΩ –50 kΩ

20 kΩ – 25 kΩ

40 kΩ –50 kΩ

20 kΩ – 25 kΩ

Enhanced core processorStandard core processor

Configuration and Use Manual 111

Troubleshooting

Measurement Performance DefaultsTroubleshootingCompensation

5. There should be no open circuits, i.e., no infinite resistance readings. The LPO and RPO

readings should be the same or very close (± 5 Ω). If there are any unusual readings, repeat the

coil resistance tests at the sensor junction box to eliminate the possibility of faulty cable. The

readings for each coil pair should match at both ends.

6. Leave the core processor terminal blocks disconnected. At the sensor, remove the lid of the

junction box and test each sensor terminal for a short to case by placing one DMM lead on the

terminal and the other lead on the sensor case. With the DMM set to its highest range, there

should be infinite resistance on each lead. If there is any resistance at all, there is a short to

case.

7. At the sensor, test terminal pairs as follows:

a. Brown against all other terminals except Red

b. Red against all other terminals except Brown

c. Green against all other terminals except White

d. White against all other terminals except Green

e. Blue against all other terminals except Gray

f. Gray against all other terminals except Blue

g. Orange against all other terminals except Yellow and Violet

h. Yellow against all other terminals except Orange and Violet

i. Violet against all other terminals except Yellow and Orange

Note: D600 sensors and CMF400 sensors with booster amplifiers have different terminal pairs.

Contact Micro Motion for assistance (see Section 1.8).

There should be infinite resistance for each pair. If there is any resistance at all, there is a short

between terminals.

8. See Table 11-14 for possible causes and solutions.

9. If the problem is not resolved, contact Micro Motion (see Section 1.8).

10. To return to normal operation:

a. Plug the terminal blocks into the terminal board.

b. Replace the end-cap on the core processor housing.

c. Replace the lid on the sensor junction box.

Note: When reassembling the meter components, be sure to grease all O-rings.

Table 11-13 Coils and test terminal pairs

Coil

Test terminal pair

Colors Numbers

Drive coil Brown to red 3 — 4

Left pickoff coil (LPO) Green to white 5 — 6

Right pickoff coil (RPO) Blue to gray 7 — 8

Resistance temperature detector (RTD) Yellow to violet 1 — 2

Lead length compensator (LLC) (all sensors except CMF400 I.S. and T-Series)

Composite RTD (T-Series sensors only)

Fixed resistor (CMF400 I.S. sensors only)

Yellow to orange 1 — 9

112 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Troubleshooting

11.25.2 4-wire remote installation

If you have a 4-wire remote installation (see Figure B-1):

1. Power down the transmitter.

2. Remove the core processor lid.

Note: You may disconnect the 4-wire cable between the core processor and the transmitter, or leave it

connected.

3. If you have a standard core processor – Loosen the captive screw (2.5 mm) in the center of the

core processor. Carefully remove the core processor from the sensor by grasping it and lifting

it straight up. Do not twist or rotate the core processor.

4. If you have an enhanced core processor – Loosen the two captive screws (2.5 mm) that hold

the core processor in the housing. Gently lift the core processor out of the housing, then

disconnect the sensor cable from the feedthrough pins. Do not damage the feedthrough pins.

5. Using a digital multimeter (DMM), check the pickoff coil resistances by placing the DMM

leads on the pin pairs. Refer to Figure 11-2 (standard core processor) or Figure 11-3 (enhanced

core processor) to identify the pins and pin pairs. Record the values.

Table 11-14 Sensor and cable short to case possible causes and remedies

Possible cause Solution

Moisture inside the sensor junction box Make sure that the junction box is dry and no corrosion is present.

Liquid or moisture inside the sensor case Contact Micro Motion. See Section 1.8.

Internally shorted feedthrough (sealed passage

for wiring from sensor to sensor junction box) Contact Micro Motion. See Section 1.8.

Faulty cable Replace cable.

Improper wire termination Verify wire terminations inside sensor junction box. See Micro

Motion’s 9-Wire Flowmeter Cable Preparation and Installation Guide

or the sensor documentation.

CAUTION

If the core processor (feedthrough) pins are bent, broken, or damaged in any

way, the core processor will not operate.

To avoid damage to the core processor (feedthrough) pins:

• Do not twist or rotate the core processor when lifting it.

• When replacing the core processor (or sensor cable) on the pins, be sure to

align the guide pins and mount the core processor (or sensor cable) carefully.

Configuration and Use Manual 113

Troubleshooting

Measurement Performance DefaultsTroubleshootingCompensation

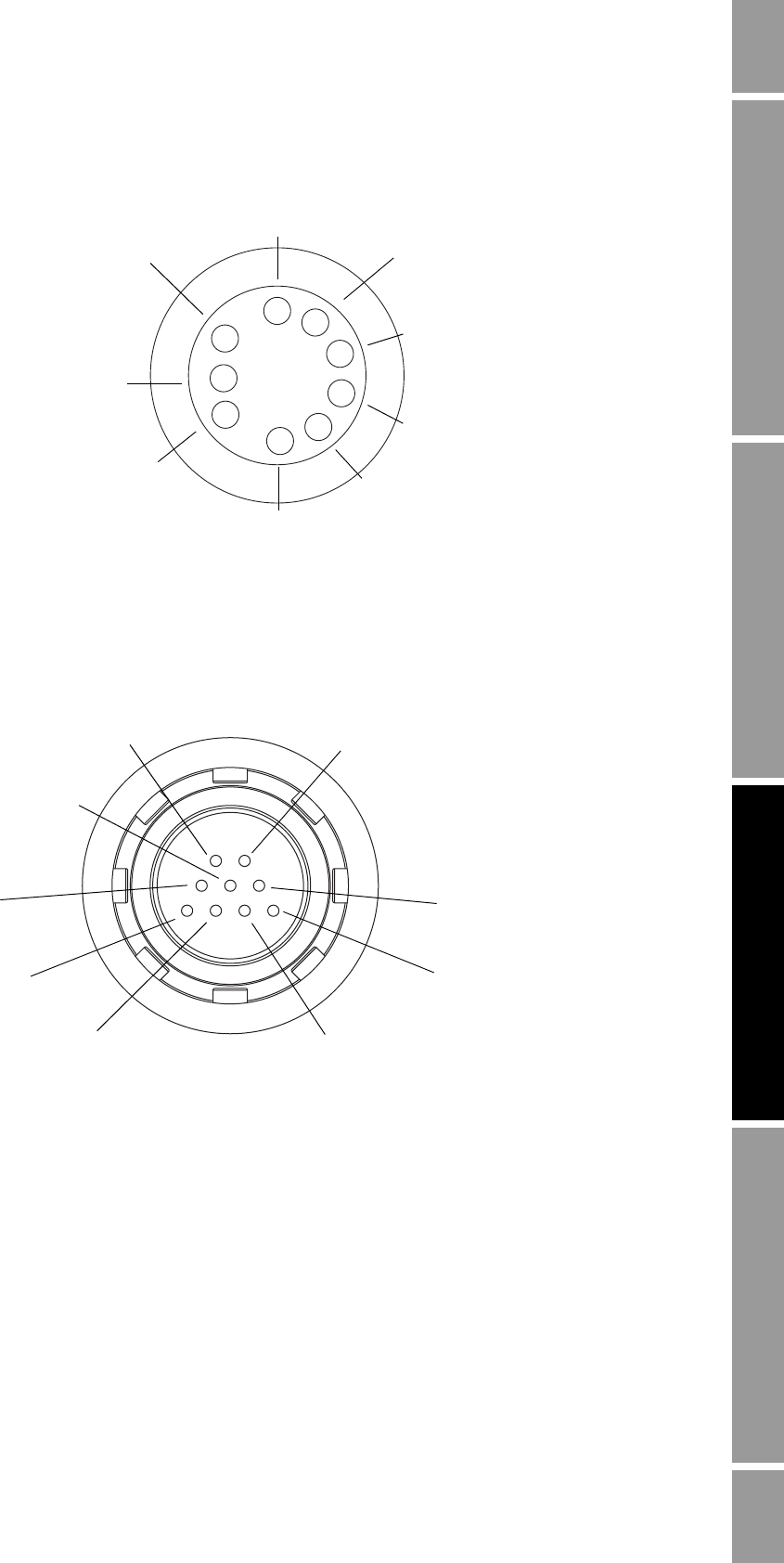

Figure 11-2 Sensor pins – Standard core processor

Figure 11-3 Sensor pins – Enhanced core processor

6. There should be no open circuits, i.e., no infinite resistance readings. The LPO and RPO

readings should be the same or very close (± 5 ohms).

7. Using the DMM, check between each pin and the sensor case. With the DMM set to its highest

range, there should be infinite resistance on each lead. If there is any resistance at all, there is a

short to case. See Table 11-14 for possible causes and solutions.

Left pickoff

( + )

Right pickoff

( + )

Drive

( + )

Drive

( – )

Right pickoff

( – )

Left pickoff

( – )

Lead length compensator(1)

( + )

Resistance temperature detector return /

Lead length compensator

(common)

Resistance temperature detector

( + )

(1) LLC for all sensors except T-Series and CMF400 I.S. For T-Series sensors, functions as

composite RTD. For CMF400 I.S. sensors, functions as fixed resistor.

Left pickoff +

Right pickoff +

Drive + Drive –

Right pickoff –

Left pickoff –

LLC

RTD + RTD –

114 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Troubleshooting

8. Test terminal pairs as follows:

a. Drive + against all other terminals except Drive –

b. Drive – against all other terminals except Drive +

c. Left pickoff + against all other terminals except Left pickoff –

d. Left pickoff – against all other terminals except Left pickoff +

e. Right pickoff + against all other terminals except Right pickoff –

f. Right pickoff – against all other terminals except Right pickoff +

g. RTD + against all other terminals except LLC + and RTD/LLC

h. LLC + against all other terminals except RTD + and RTD/LLC

i. RTD/LLC against all other terminals except LLC + and RTD +

Note: D600 sensors and CMF400 sensors with booster amplifiers have different terminal pairs.

Contact Micro Motion for assistance (see Section 1.8).

There should be infinite resistance for each pair. If there is any resistance at all, there is a short

between terminals. See Table 11-14 for possible causes and solutions.

9. If the problem is not resolved, contact Micro Motion (see Section 1.8).

To return to normal operation:

1. If you have a standard core processor:

a. Align the three guide pins on the bottom of the core processor with the corresponding

holes in the base of the core processor housing.

b. Carefully mount the core processor on the pins, taking care not to bend any pins.

2. If you have an enhanced core processor:

a. Plug the sensor cable onto the feedthrough pins, being careful not to bend or damage any

pins.

b. Replace the core processor in the housing.

3. Tighten the captive screw(s) to 6 to 8 in-lbs (0,7 to 0,9 N-m) of torque.

4. Replace the core processor lid.

Note: When reassembling the meter components, be sure to grease all O-rings.

Configuration and Use Manual 115

Measurement Performance DefaultsTroubleshootingCompensation

Appendix A

Default Values and Ranges

A.1 Overview

This appendix provides information on the default values for most transmitter parameters. Where

appropriate, valid ranges are also defined.

These default values represent the transmitter configuration after a master reset. Depending on how

the transmitter was ordered, certain values may have been configured at the factory.

The default values listed here apply to all Version 4.x transmitters using a Version 3.x core processor.

A.2 Default values and ranges

The table below contains the default values and ranges for the most frequently used transmitter

settings.

Table A-1 Transmitter default values and ranges

Type Setting Default Range Comments

Flow Flow direction Forward

Flow damping 0.04 sec 0.0–51.2 sec User-entered value is

corrected to nearest lower

value in list of preset values.

Flow calibration factor 1.00005.13 For T-Series sensors, this

value represents the FCF and

FT factors concatenated. See

Section 4.2.2.

Mass flow units g/s

Mass flow cutoff 0.0 g/s Recommended setting is

0.5–1.0% of the sensor’s

rated maximum flowrate.

Volume flow units L/s

Volume flow cutoff 0.0 L/s 0.0–x L/s x is obtained by multiplying

the flow calibration factor by

0.2, using units of L/s.

Meter factors Mass factor 1.00000

Density factor 1.00000

Volume factor 1.00000

116 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Default Values and Ranges

Density Density damping 1.6 sec 0.0–51.2 sec User-entered value is

corrected to nearest lower

value in list of preset values.

Density units g/cm3

Density cutoff 0.2 g/cm30.0–0.5 g/cm3

D1 0.00000

D2 1.00000

K1 1000.00

K2 50,000.00

FD 0.00000

Temp Coefficient 4.44

Slug flow Slug flow low limit 0.0 g/cm30.0–10.0 g/cm3

Slug flow high limit 5.0 g/cm30.0–10.0 g/cm3

Slug duration 0.0 sec 0.0–60.0 sec

Temperature Temperature damping 4.8 sec 0.0–38.4 sec User-entered value is

corrected to nearest lower

value in list of preset values.

Temperature units Deg C

Temperature calibration factor 1.00000T0.0000

Pressure Pressure units PSI

Flow factor 0.00000

Density factor 0.00000

Cal pressure 0.00000

T-Series sensor D3 0.00000

D4 0.00000

K3 0.00000

K4 0.00000

FTG 0.00000

FFQ 0.00000

DTG 0.00000

DFQ1 0.00000

DFQ2 0.00000

Special units Base mass unit g

Base mass time sec

Mass flow conversion factor 1.00000

Base volume unit L

Base volume time sec

Volume flow conversion factor 1.00000

Event 1 Variable Density

Type Low alarm

Setpoint 0.0

Setpoint units g/cm3

Table A-1 Transmitter default values and ranges continued

Type Setting Default Range Comments

Configuration and Use Manual 117

Default Values and Ranges

Measurement Performance DefaultsTroubleshootingCompensation Measurement Performance DefaultsTroubleshootingCompensation Measurement Performance DefaultsTroubleshootingCompensation Measurement Performance DefaultsTroubleshootingCompensation

Event 2 Variable Density

Type Low alarm

Setpoint 0.0

Setpoint units g/cm3

Update Rate Update rate Special Normal or

Special

Analog output Primary variable Mass flow

LRV –200.00000 g/s

URV 200.00000 g/s

AO cutoff 0.00000 g/s

AO added damping 0.00000 sec

LSL –200 g/s Read-only

USL 200 g/s Read-only

MinSpan 0.3 g/s Read-only

Fault action Downscale

AO fault level – downscale 2.0 mA 1.0–3.6 mA

AO fault level – upscale 22 mA 21.0–24.0 mA

Last measured value timeout 0.00 sec

LRV Mass flow –200.000 g/s

Volume flow –0.200 l/s

URV Mass flow 200.000 g/s

Volume flow 0.200 l/s

Fill Flow source Mass flow rate

Enable Filling Option Enabled

Count Up Enabled

Enable AOC Enabled

Enable Purge Disabled

Fill Type One Stage Discrete

Configure By % Target

Fill Target 0.00000 g

Max Fill Time 0.00000 sec

Purge Mode Manual

Purge Delay 2.00000 sec

Purge Time 1.00000 sec

AOC Algorithm Underfill

AOC Window Length 10

Fixed Overshoot Comp 0.00000

Valve control –

Two-stage

discrete fill

Open Primary 0.00% of target 0.00–100 %

Open Secondary 0.00% of target 0.00–100 %

Close Primary 100.00% of target 0.00–100 %

Close Secondary 100.00% of target 0.00–100 %

Table A-1 Transmitter default values and ranges continued

Type Setting Default Range Comments

118 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Default Values and Ranges

Valve control –

Three-position

analog fill

Open Full 0.00% of target 0.00–100 %

Close Partial 100.00% of target 0.00–100 %

Digital comm Fault setting None

Floating-point byte order 3–4–1–2

Additional communications

response delay 0 Configured value is multiplied

by 2/3 character time to arrive

at real-time value

Modbus address 1 RS-485 connections only

Protocol Modbus RTU RS-485 connections only

Baud rate 9,600 RS-485 connections only

Parity None RS-485 connections only

Stop bits 1 RS-485 connections only

Table A-1 Transmitter default values and ranges continued

Type Setting Default Range Comments

Configuration and Use Manual 119

Transmitter Menus IndexNE53 HistoryDiagrams

Appendix B

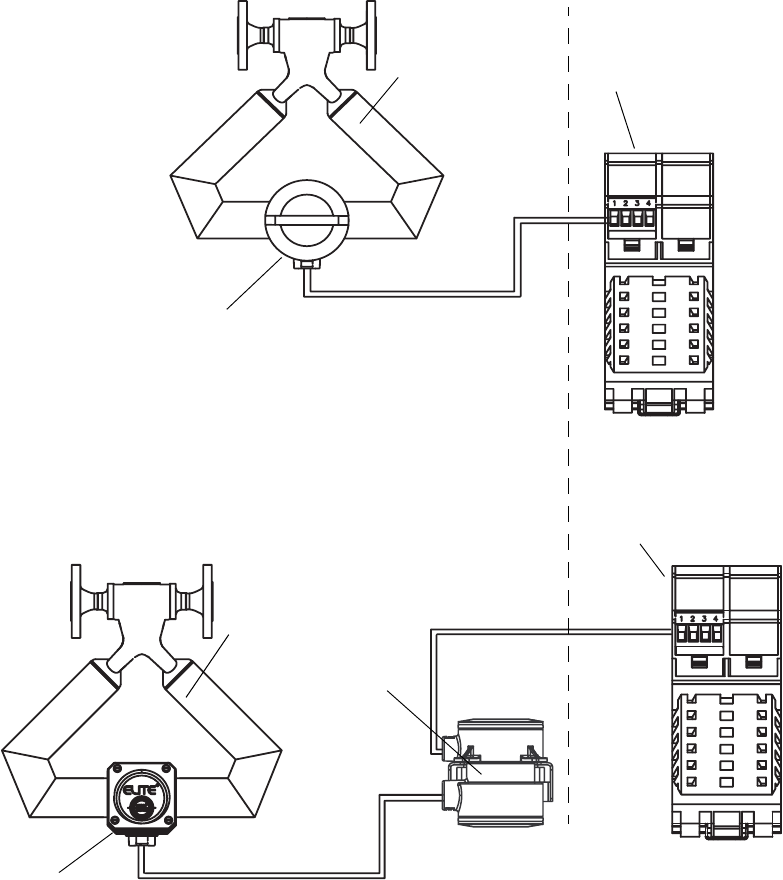

Installation Architectures and Components

B.1 Overview

This appendix provides illustrations of different flowmeter installation architectures and components,

for the Model 1500 transmitter with the filling and dosing application.

B.2 Installation diagrams

Model 1500 transmitters can be installed in two different ways:

• 4-wire remote

• Remote core processor with remote transmitter

See Figure B-1.

B.3 Component diagrams

In remote core processor with remote transmitter installations, the core processor is installed

stand-alone. See Figure B-2.

B.4 Wiring and terminal diagrams

A 4-wire cable is used to connect the core processor to the transmitter. See Figure B-3 (standard core

processor) or Figure B-4 (enhanced core processor).

Figure B-5 shows the transmitter’s power supply terminals.

Figure B-6 shows the output terminals for the Model 1500 transmitter with the filling and dosing

application.

120 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Installation Architectures and Components

Figure B-1 Installation architectures

Model 1500 transmitter

(top view)

Sensor

Core processor

(standard or enhanced) 4-wire cable

Sensor

Core processor

(standard only)

Junction box 9-wire cable

4-wire cable

4-wire remote

Remote core processor with remote transmitter

Hazardous area Safe area

Model 1500 transmitter

(top view)

Configuration and Use Manual 121

Installation Architectures and Components

Transmitter Menus IndexNE53 HistoryDiagrams

Figure B-2 Remote core processor components

Figure B-3 4-wire cable between Model 1500 transmitter and standard core processor

End-cap

Mounting bracket

Core processor lid

Core processor housing

Conduit opening

for 4-wire cable

Conduit opening

for 9-wire cable

4 X Cap screws (4 mm)

Core processor

terminals

Transmitter terminals for

sensor connection

User-supplied or

factory-supplied 4-wire cable

VDC+ (Red)

VDC– (Black)

RS-485/B (Green)

RS-485/A (White)

122 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Installation Architectures and Components

Figure B-4 4-wire cable between Model 1500 transmitter and enhanced core processor

Figure B-5 Power supply terminals

Core processor

terminals Transmitter terminals for

sensor connection

VDC+ (Red)

VDC– (Black)

RS-485/B (Green)

RS-485/A (White)

User-supplied or

factory-supplied 4-wire cable

–

+ –

Power supply jumper to

other Model 1500/2500

transmitters (optional)

Primary power supply

(DC)

Configuration and Use Manual 123

Installation Architectures and Components

Transmitter Menus IndexNE53 HistoryDiagrams

Figure B-6 Terminal configuration

Terminals 21 & 22 (Channel A)

mA1 output

Internal power only

Terminals 23 & 24 (Channel B)

DO1

Internal or external power

No communications

Terminals 31 & 32 (Channel C)

DO2 OR DI

Internal or external power

No communications

mA = milliamp

DO = discrete output

DI = discrete input

Terminals 33 & 34

Service port OR Modbus RS-485

(Modbus RTU or Modbus ASCII)

124 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Configuration and Use Manual 125

Transmitter Menus IndexNE53 HistoryDiagrams

Appendix C

Menu Flowcharts

C.1 Overview

This appendix provides the following ProLink II menu flowcharts for the Model 1500 transmitter with

the filling and dosing application:

• Top-level menu – Figure C-1

• Operating menus – Figure C-2

• Configuration menus – Figures C-3 and C-4

C.2 Version information

These menu flowcharts are based on:

• Transmitter software rev4.4

• Enhanced core processor software v3.2

• ProLink II v2.5

Menus may vary slightly for different versions of these components.

C.3 Flowcharts

Figure C-1 ProLink II top-level menu

File

Preferences

· Use External Temperature

· Enable Inventory Totals Reset

· Enable External Pressure Compensation

· Copper RTD

Installed options

Data LoggerLoad from Xmtr to File

Save to Xmtr from File

License

Connect to Device

Disconnect

View Connection

Gas Unit Configurator

Meter Verification

Options

· ProLink II Language

· Error Log On

Tools Plug-insProLink

See Figure C-2

Note: For information on Data Logger, see the ProLink II manual.

Note: The Reset Inventories option is available only if it has been enabled in the ProLink II Preferences menu.

126 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Menu Flowcharts

Figure C-2 ProLink II operating menus

ProLink

Configuration

Output Levels

Process Variables

Status

Alarm Log

Diagnostic Information

Calibration

Test

Totalizer Control

Core Processor Diagnostics

Finger Print

Run Filler

Calibration

· Zero Calibration

· Milliamp Trim 1

· Density Cal – Point 1

· Density Cal – Point 2

· Density Cal – Flowing Density

· Density Cal – Point 3

· Density Cal – Point 4

· Temp Offset Cal

· Temp Slope Cal

Test

· Fix Milliamp 1

· Fix Discrete Output

· Read Discrete Input

Totalizer Control

· Reset Mass Total

· Reset Volume Total

· All Totals – Reset

· All Totals – Start

· All Totals – Stop

· Reset Inventories

Fill Setup

· Reset Fill Total

· Current Target

· AOC Coefficient

Fill Control

· Begin Filling

· Pause Filling

· Resume Filling

· End Filling

·Begin Purge

·End Purge

· Begin Cleaning

· End Cleaning

AOC Calibration

·Start AOC Cal

· Save AOC Cal

· Override Blocked Start

· Reset AOC Flow Rate

Reset Fill Statistics

Reset Fill Count

Fill Status

Configuration and Use Manual 127

Menu Flowcharts

Transmitter Menus IndexNE53 HistoryDiagrams

Figure C-3 ProLink II configuration menu

Configuration

ProLink Menu

Flow

· Flow direction

·Flow damp

·Flow cal

· Mass flow cutoff

· Mass flow units

· Vol flow cutoff

· Vol flow units

· Mass factor

· Dens factor

· Vol factor

Density

· Dens units

· Dens damping

· Slug high limit

· Slug low limit

· Slug duration

· Low density cutoff

·K1

·K2

·FD

·D1

·D2

· Temp coeff (DT)

Temperature

· Temp units

· Temp cal factor

· Temp damping

· External temperature

Pressure

·Flow factor

· Dens factor

· Cal pressure

· Pressure units

· External pressure

Sensor

· Sensor s/n

· Sensor model num

·Sensor matl

· Liner matl

·Flange

Special Units

· Base mass unit

· Base mass time

· Mass flow conv fact

· Mass flow text

· Mass total text

· Base vol unit

· Base vol time

· Vol flow conv fact

· Vol flow text

· Vol total text

Gas unit configurator

T Series

· FTG

· FFQ

·DTG

·DFQ1

·DFQ2

·K3

·D3

·D4

·K4

Events

Event 1

·Variable

·Type

·Setpoint

Event 2

·Variable

·Type

·Setpoint

128 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Menu Flowcharts

Figure C-4 ProLink II configuration menu continued

Configuration

ProLink Menu

Analog output

Primary variable is

Process variable measurement

· Lower range value

· Upper range value

· AO cutoff

· AO added damp

· Lower sensor limit

· Upper sensor limit

·Min span

· AO fault action

· AO fault level

· Last measured value timeout

Valve control options

· Enable 3 position valve

· Analog valve setpoint

· Analog valve closed value

Device

·Tag

·Date

· Descriptor

·Message

·Sensor type

· Transmitter serial

· Floating pt ordering

· Add comm resp delay

Digital comm settings

· Digital comm fault

setting

· Modbus address

Update rate

· Update rate

·100 Hz variable

RS-485

·Protocol

· Baud rate

·Parity

·Stop bits

Channel

Channel B

· Type assignment

· Power type

Channel C

· Type assignment

· Power type

Discrete IO

Discrete output

·DO1 assignment

· DO1 polarity

·DO2 assignment

· DO2 polarity

Discrete input

· DI assignment

Filling

Flow source

Filling control options

· Enable filling option

· Count up

· Enable AOC

· Enable purge

· Fill type

·Configure by

· Fill target

· Max fill time

· Purge mode

· Purge delay

· Purge time

· AOC algorithm

· AOC window length

· Fixed overshoot comp

Discrete valves for 2 stage filling

· Open primary

· Open secondary

· Close primary

· Close secondary

3 position analog valve

· Open full

· Close partial

Alarm

· Alarm severity

Variable mapping

· Primary variable

Note: The DO2 options are available only if Channel C has been configured for discrete output.

Note: The discrete input options are available only if Channel C has been configured for discrete input.

Configuration and Use Manual 129

Transmitter Menus IndexNE53 HistoryDiagrams

Appendix D

NE53 History

D.1 Overview

This appendix documents the change history of the Model 1500 transmitter software with the filling

and dosing application.

D.2 Software change history

Table D-1 describes the change history of the transmitter software. Operating instructions are English

versions.

Table D-1 Transmitter software change history

Date Software

version Changes to software Operating

instructions

04/2005 4.3 Original release 20002743 A

10/2006 4.4 Software expansion 20002743 B

Added support for enhanced core processor

Added support for batches smaller than 0.01 g

Software adjustment

Master reset automatically enables Special mode

Feature addition

Meter verification availability as an option

130 Micro Motion® Model 1500 Transmitters with the Filling and Dosing Application

Configuration and Use Manual 131

Transmitter Menus IndexNE53 HistoryDiagrams

Index

Numerics

100 Hz variable 40

Added damping 25

Additional communications response delay 51

Alarms

alarm log 33

alarm severity 47

ignoring 47

slug flow 47

status 95

viewing 32

Analog output cutoff

See AO cutoff

AO cutoff 24

AOC

See Overshoot compensation

AOC calibration 62, 63

rolling 65

standard 64

types 63

Autozero 12
