Bulletin 71.1:95

D100117X012

November 2009

www.sherregulators.com

95 Series Industrial Pressure Regulators

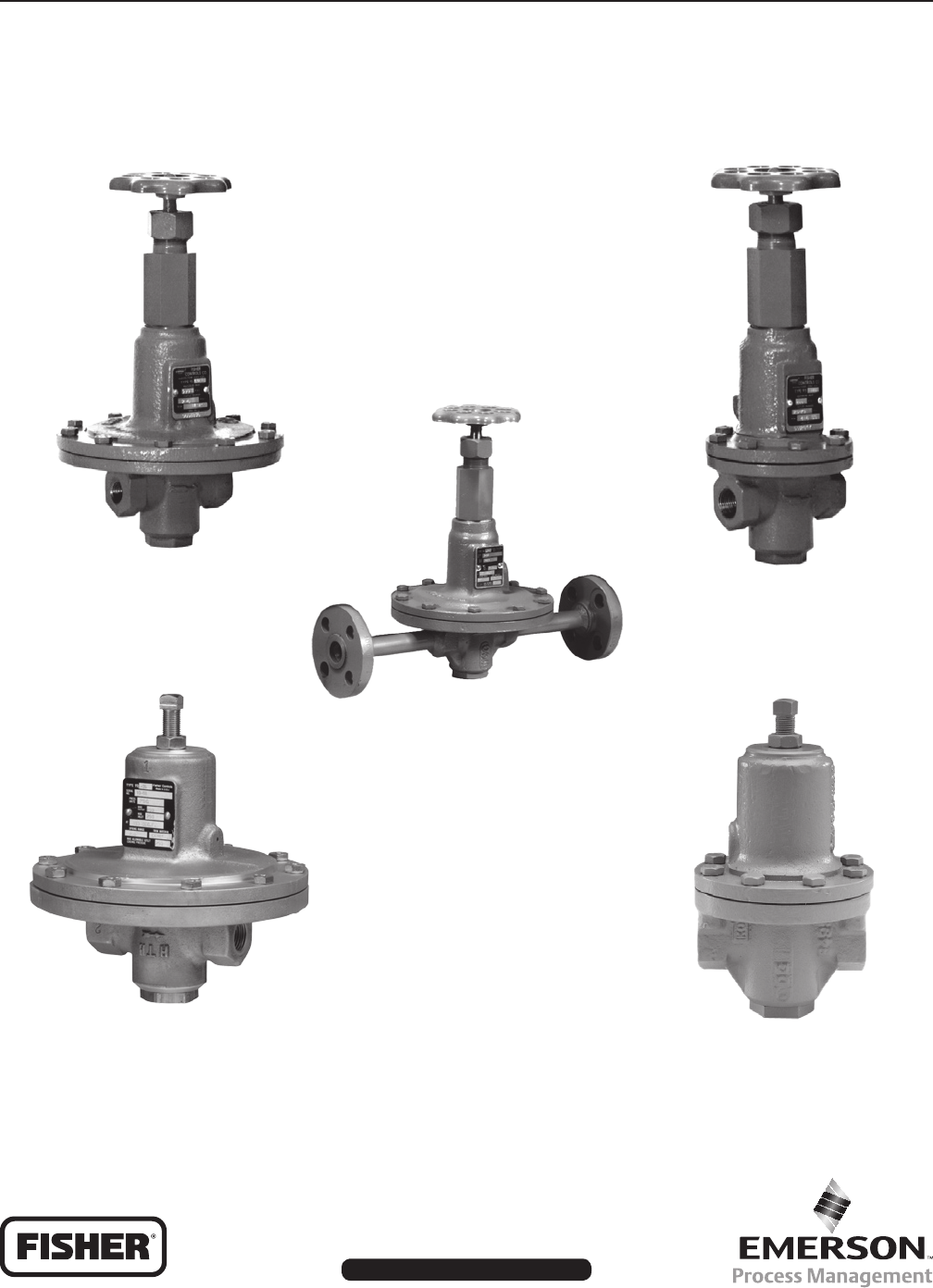

Figure 1. 95 Series Pressure Reducing Regulators

TYPE 95LD

W1894-1 / IL

TYPE 95HD

W1894-1 / IL

TYPE 95LD (FLANGED)

W6195 / IL

TYPE 95L TYPE 95H

W5091 / IL

W5092 / IL

Bulletin 71.1:95

2

Monel® is a trademark of Special Metals Corporation.

Hastelloy® C is a trademark of Haynes International, Inc.

Introduction

The 95 Series regulators are compact, large-capacity,

direct-operated pressure regulators (see Figures 1 and 2).

The units are available in NPS 1/4 through 2 (DN 15

through 50) sizes and are offered in several different

end connection congurations. They are designed

to handle pressures up to 600 psig (41,4 bar) and

temperatures up to 650°F (343°C).

This product can help solve the toughest pressure

control applications. Typical applications include

superheated steam, steam injection, steam tracing,

nitrogen purging, boiler feed water, process chemicals,

cooling water, test xtures, wash tanks, sterilizers/

autoclaves, fuel lines, pneumatic supply, and

many others.

Features

• Handwheels—Allow easy pressure setting changes

and are standard on Types 95LD, 95HD, and optional

on the NPS 1/2 (DN 15) body size of the Types 95L

and 95H regulators. Tee-handles are optional on all

other Types 95L and 95H body sizes.

• Versatile—Can be used with all process media

including air, steam, gas, water, liquids (oils and

process chemicals), and oxygen.

• Tight Shutoff With Elastomer Seats—Metal seats

available for high temperatures.

• Direct-Operated—Design maximizes speed

of response.

• Robust—Up to 600 psig (41,4 bar) inlet pressure.

• P1 = P2—Inlet equals outlet rating in 95H Series up

to 600 psig (41,4 bar).

• Rugged Construction—Available in a variety of

materials including Cast iron, Carbon steel, Stainless

steel, Monel®, Hastelloy® C, Peruoroelastomer

(FFKM), and Fluorocarbon (FKM) to address the

toughest service conditions. Severe service

elastomers and corrosion resistant trims are also

available - excellent uid compatibility.

• Differential Pressure Capability—Spring-loaded

Polytetrauoroethylene (PTFE) packing and tapped

connections permit pressure loading of the

Types 95LD and 95HD spring cases.

• Special Service Capabilities—Optional materials

are available for applications handling sour gases,

cryogenics, and superheated steam. These

constructions comply with the recommendations

of NACE International Standards MR0175

and MR0103.

• Large Turndown Ratio—No need for low Cv trims at

low ows.

• Graphite Gaskets—For high temperature

applications up to 650°F (343°C) (optional).

• Set Pressures to 400 Psig (27,6 bar)

• Multiple End Connection Options—To match

your application.

• Easy Maintenance—Seating parts are easily

accessible by removing the plug on the bottom of

the regulator.

Principle of Operation

The 95 Series (refer to Figure 2) is a direct-operated

regulator. Downstream pressure is registered

internally through the body to the under side of the

diaphragm. When the downstream pressure is at or

above the set pressure, the disk is held against the

orice, and there is no ow through the regulator.

When demand increases, downstream pressure drops

slightly allowing the spring to extend, moving the stem

down and the disk away from the orice. This allows

ow through the body to the downstream system.

Types 95H, 95L, 95HP, and 95HT use spring force to

regulate outlet pressure. Types 95HD and 95LD use

spring force to maintain a differential pressure between

spring case loading pressure and outlet pressure.

Installation

The 95 Series regulators may be installed in any

position, as long as ow will be in the same direction as

that indicated by the body arrow. The Types 95H, 95L,

95HT, and 95HP regulators should be installed so that

their spring case vents are protected from anything that

might clog them.

Emerson™ provides an instruction manual with

every regulator shipped. Refer to this for complete

installation, operation, and maintenance instructions.

Included is a complete listing of individual parts and

recommended spare parts.

Bulletin 71.1:95

3

Specications

Available Congurations

Type 95L: Low-pressure regulator for 2 to 30 psig

(0,14 to 2,1 bar) outlet pressures

Type 95H: High-pressure regulator for 5 to 150 psig

(0,35 to 10,3 bar) outlet pressures

Type 95LD: Low-pressure differential regulator for

2 to 30 psi (0,14 to 2,1 bar) differential

pressures with handwheel and packing box

Type 95HD: High-pressure differential regulator for

5 to 150 psi (0,35 to 10,3 bar) differential

pressures with handwheel and packing box

Type 95HP: High-pressure regulator for 15 to

400 psig (1,0 to 27,6 bar) outlet pressures

(soft-seated)

Type 95HT: High-pressure/high temperature

regulator for 15 to 300 psig (1,0 to 20,7 bar) outlet

pressures (metal seat) and up to 650°F (343°C)

Body and Orice Sizes

NPS 1/4 body: 1/4-inch (6,4 mm) orice

NPS 1/2 (DN 15) body: 3/8-inch (9,5 mm) orice

NPS 3/4 and 1 (DN 20 and 25) bodies:

9/16-inch (14 mm) orice

NPS 1-1/2 and 2 (DN 40 and 50) bodies:

1-1/16-inch (27 mm) orice

End Connection Styles

NPT, ASME anged; all sizes are fabricated with

slip-on anges and are 14-inch face-to-face

(EN anged; 356 mm face-to-face), CL150 RF,

CL300 RF, PN 16/25/40 RF, or SWE

Maximum Cold Working Pressures of Body Size

and Material

See Table 3

Outlet or Differential Pressure Ranges

See Table 5

Maximum Temperature Ranges of Diaphragm and

Seat Materials(1)(2)

MATERIAL TEMPERATURE RANGE

Nitrile (NBR)

Neoprene (CR)

Fluorocarbon(FKM)(3)

Ethylenepropylene (EPDM)

Peruoroelastomer (FFKM)

PTFE

Stainless steel

-40° to 180°F (-40° to 82°C)

-40° to 180°F (-40° to 82°C)

0° to 300°F (-18° to 149°C)

-40° to 275°F (-40° to 135°C)

0° to 425°F (-18° to 218°C)

-40° to 400°F (-40° to 204°C)

-40° to 650°F (-40° to 343°C)

Spring Case Construction

Vent is a drilled untapped hole (standard).

NPT (optional) See Figure 2

On Types 95HD and 95LD, the NPT tapped vent

is standard.

Maximum Temperature Ranges of

Body Materials(1)(2)

TYPES BODY AND SPRING

CASE MATERIALS TEMPERATURE RANGE

95L, 95LD

95H, 95HD

Cast Iron

Steel

Stainless steel

-40° to 406°F (-40° to 208°C)

-20° to 450°F (-29° to 232°C)

-40° to 450°F (-40° to 232°C)

95HP Steel

Stainless steel

-20° to 450°F (-29° to 232°C)

-40° to 450°F (-40° to 232°C)

95HT Steel

Stainless steel

-20° to 650°F (-29° to 343°C)

-40° to 550°F (-40° to 288°C)

Pressure Setting Adjustment

Adjusting screw (standard), Handwheel/Tee

handle (optional) NPS 1/2 (DN 15) bodies have a

handwheel all other sizes have tee handles.

Types 95LD and 95HD: Handwheel for adjustment

Pressure Registration

Internal

Typical Regulating Capacities

Air: See Tables 8, 9, 10, 11, and 12

Steam: See Tables 13, 14, 15, 16, and 17

Water: See Tables 18, 19, 20, 21, and 22

1. The pressure/temperature limits in this bulletin, and any applicable standard or code limitation for this regulator should not be exceeded.

2. Pressures and/or the body end connection may decrease these maximum temperatures.

3. Fluorocarbon (FKM) is limited to 200°F (93°C) hot water.

- continued -

Bulletin 71.1:95

4

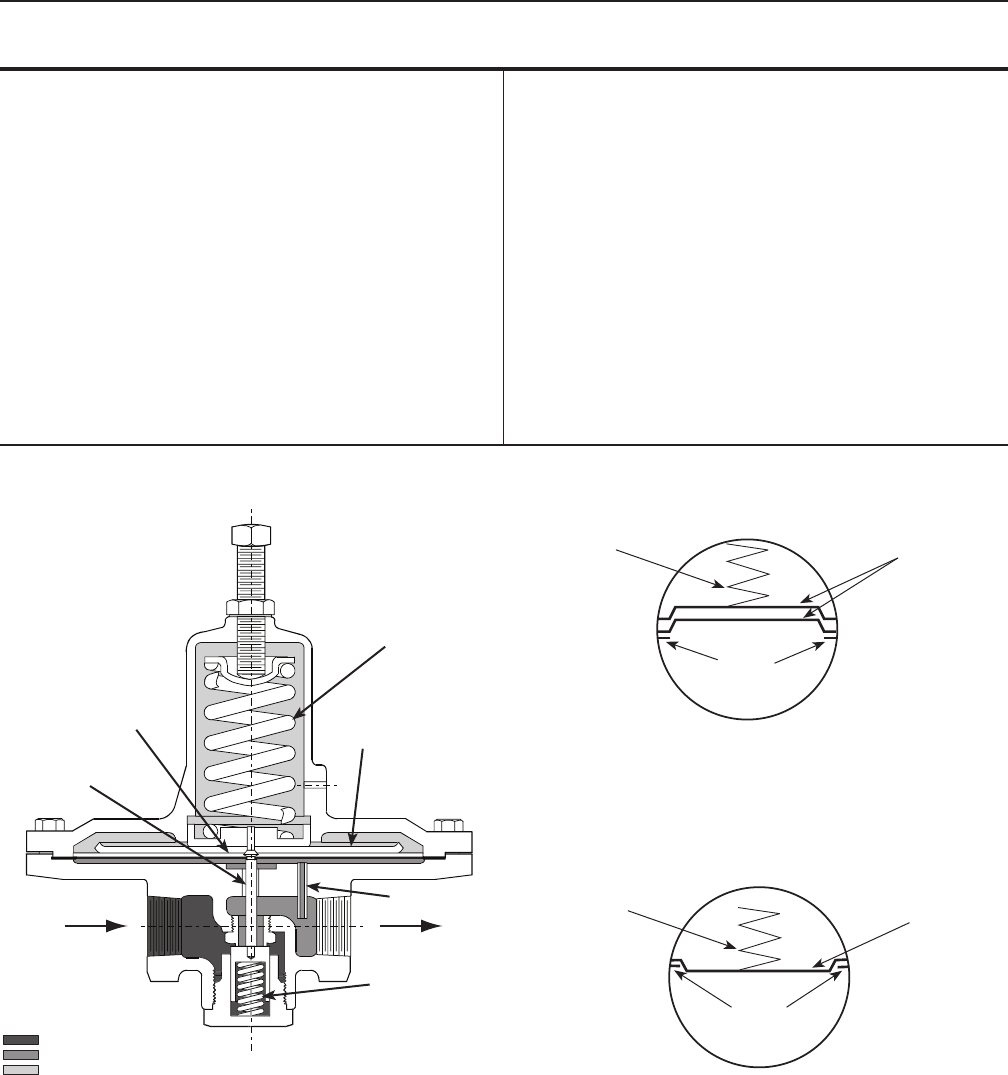

TYPE 95L WITH METAL SEAT AND DIAPHRAGM

(ALSO TYPICAL OF TYPE 95H OR 95HT)

INLET PRESSURE

OUTLET PRESSURE

ATMOSPHERIC PRESSURE

CONTROL

SPRING

PITOT TUBE

VALVE PLUG

SPRING

STEM

ASSEMBLY

DIAPHRAGM DIAPHRAGM HEAD

ASSEMBLY

A6554

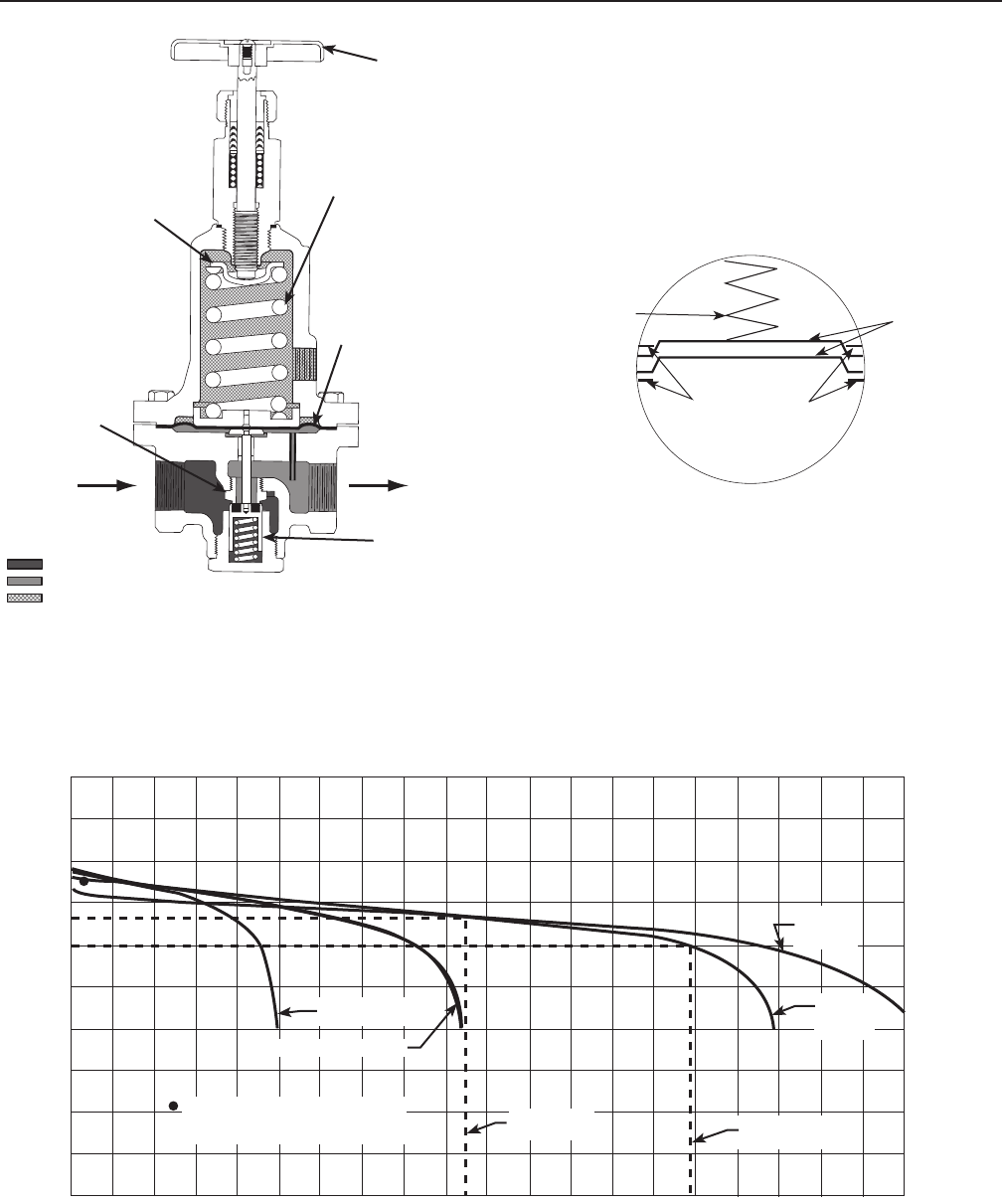

Figure 2. 95 Series Operational Schematic

Specications (continued)

Shutoff Classication Per ANSI/FCI 70-3-2004

Metal Seats: Class IV

PTFE: Class lV

Elastomer Seats: Class VI or better

Flow and Sizing Coefcients

See Table 4

Pressure Connections

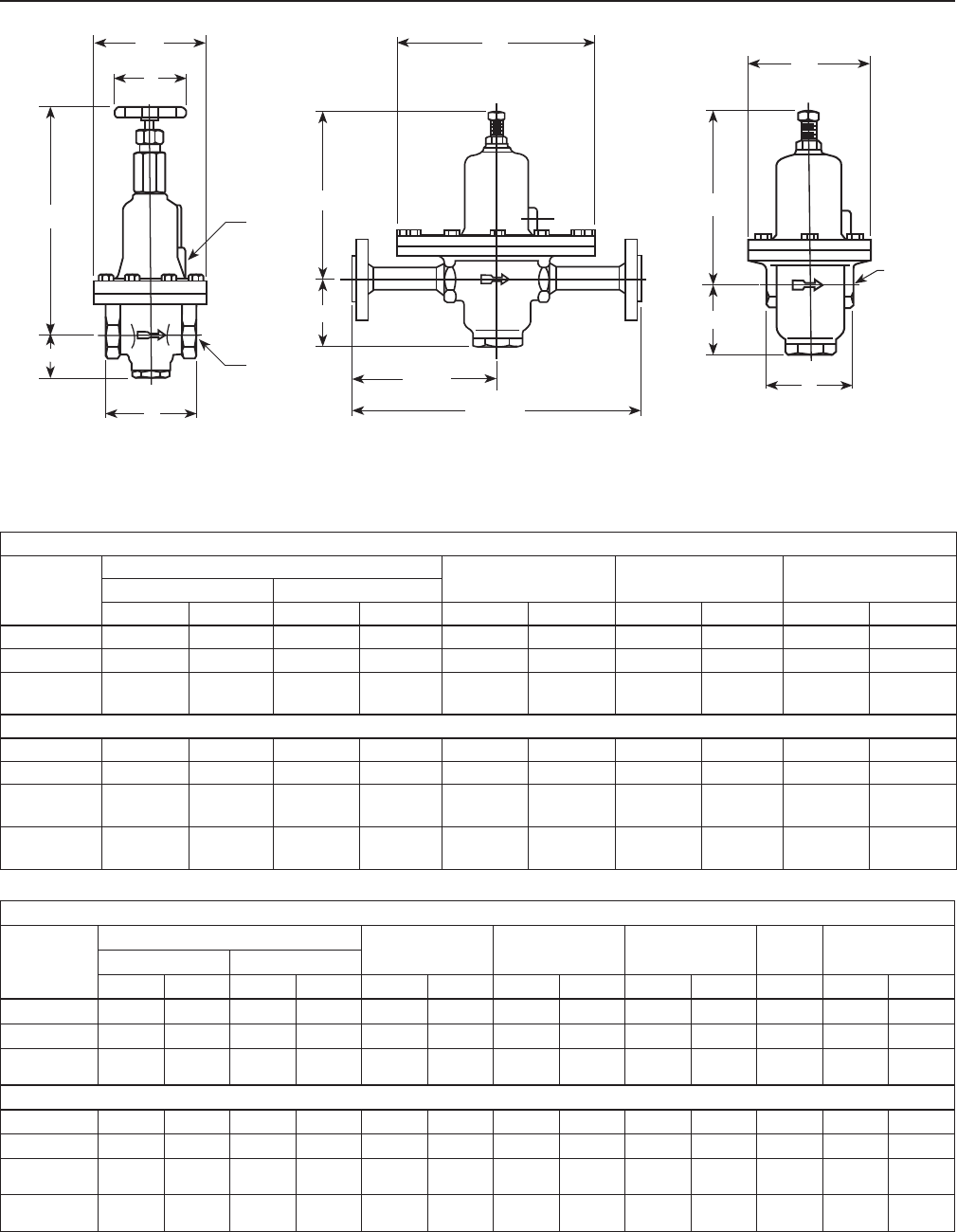

See Figure 4

Construction Materials

See Table 6

Common Services and Material Compatibility

See Table 7

Approximate Weights

95H Series

NPS 1/4 body: 4 pounds (2 kg)

NPS 1/2 (DN 15) body: 8 pounds (4 kg)

NPS 3/4 and 1 (DN 20 and 25) bodies:

20 pounds (9 kg)

NPS 1-1/2 and 2 bodies (DN 40 and 50):

73 pounds (33 kg)

95L Series

NPS 1/4 body: 6 pounds (3 kg)

NPS 1/2 (DN 15) body: 12 pounds (5 kg)

NPS 3/4 and 1 (DN 20 and 25) bodies:

32 pounds (15 kg)

SPRING

SPRING

GASKET

GASKET

METAL DIAPHRAGMS

METAL DIAPHRAGM

TYPE 95L WITH TWO METAL DIAPHRAGMS

(ALSO TYPICAL OF 95H OR 95HT, EXCEPT

ONLY TYPE 95L, NPS 1/4, 2 TO 6 PSI (0,14 to 0,41 bar) RANGE)

TYPE 95L (NPS 1/4, 2 TO 6 PSI (0,14 to 0,41 bar) RANGE)

WITH METAL DIAPHRAGM

Bulletin 71.1:95

5

Figure 2. 95 Series Operational Schematic (continued)

TYPE 95HD WITH ELASTOMER SEAT AND DIAPHRAGM

(ALSO TYPICAL OF TYPE 95LD)

HANDWHEEL

CONTROL SPRING

ELASTOMER

DIAPHRAGM

VALVE PLUG

GUIDE

ORIFICE

UPPER SPRING SEAT

INLET PRESSURE

OUTLET PRESSURE

LOADING PRESSURE

M1006

Figure 3. Air Flow Performance Curves of a NPS 1 (DN 25) Type 95L Regulator

OUTLET PRESSURE, PSIG

AIR FLOW IN THOUSANDS OF SCFH

OUTLET PRESSURE, bar

AIR FLOW IN Nm3/h

0 2 4 6 8 10 12 14 16 18 20

20

18

16

14

12

10

8

6

4

2

0

1,4

1,2

1,1

0,97

0,83

0,69

0,55

0,41

0,28

0,14

0

53,6 107 161 214 268 322 375 429 482 536

CE4967-A

B0392-2 / IL

25 PSIG (1,7 bar)

AT INLET

50 PSIG (3,5 bar) AT INLET

INITIAL SETPOINT = 15 PSIG (1,0 bar)

AT 300 SCFH (8,0 Nm3/h) FLOW RATE

WITH 100 PSIG (6,9 bar) AT INLET

CAPACITY AT

10% DROOP CAPACITY AT

20% DROOP

100 PSIG

(6,9 bar)

AT INLET

200 PSIG

(13,8 bar)

AT INLET

METAL DIAPHRAGMS

(KEY 12)

SPRING (KEY 11)

GASKETS (KEY 19)

TYPE 95HD WITH TWO METAL DIAPHRAGMS

(EXCEPT ONLY TYPE 95HD, NPS 1/4,

2 TO 6 PSI (0,14 TO 0,41 bar) RANGE)

Bulletin 71.1:95

6

Table 1. Sizing Types 95HD and 95LD Pressure Regulators

STEPS EXAMPLE - PSIG EXAMPLE - bar

1. Determine service conditions.

P1 = 135 psig, P2 = 25 to 40 psig,

Bias = 10 psig

Loading pressure = 15 to 30 psig

Qmax = 1100 SCFH air

Specic Gravity = 1

Allowable droop = 20%

Line size = 1/2-inch

P1 = 9,31 bar, P2 = 1,7 to 2,8 bar,

Bias = 0,69 bar

Loading pressure = 1,0 to 2,1 bar

Qmax = 29,5 Nm3/h air

Specic Gravity = 1

Allowable droop = 20%

Line size = 13 mm

2. Select type number and spring range

using Tables 3 and 5.

Since the bias set is 10 psig, select the Type 95LD

with a 5 to 15 psig spring range. (The Type 95LD

will withstand the pressure for the application, and

also has the lightest spring available.)

Since the bias set is 0,69 bar, select the Type 95LD

with a 0,34 to 1,0 bar spring range. (The Type 95LD

will withstand the pressure for the application, and also

has the lightest spring available.)

3. Using the Fisher® Sizing Program,

calculate Cg from data given in the

capacity tables. Use the table inlet

pressure closest to the service condition.

Also calculate using the table outlet

pressure which is closest to the

spring bias.

For the purpose of sizing, use the spring setpoint

(bias) of 10 psi as outlet pressure, and an inlet

pressure of 150 psig.

The closest capacity data in Tables 4 and 8

shows the following:

C1 = 35 (Table 4)

P1table = 150 psig

P2table = 10 psi

Droop = 10 psig x 20% = 2 psig

∆Ptable = 150 psig - (10 psig - 2 psig) = 142 psid

Q = 1400 SCFH for size NPS 1/2 Type 95LD at

20% droop

For the purpose of sizing, use the spring setpoint

(bias) of 0,69 bar as outlet pressure, and an inlet

pressure of 10,3 bar.

The closest capacity data in Tables 4 and 8 shows

the following:

C1 = 35 (Table 4)

P1table = 10,3 bar

P2table = 0,69 bar

Droop = 0,69 bar x 20% = 0,14 bar

∆Ptable = 10,3 bar - (0,69 bar - 0,14 bar) = 9,8 bar d

Q = 37,5 Nm3/h for size DN 15 Type 95LD at

20% droop

4. Use the information in Step 3 to calculate

Cg using the Fisher Sizing Program. Cg calculated = 8.5 Cg calculated = 8.5

5. Calculate ow for application based upon

actual conditions and calculated Cg.

P1 = 135 psig

P2max = 40 psi

Droop = 10 psig x 20% = 2 psig

∆P actual = 135 psig - (40 psig - 2 psig) = 97 psid

Cg calculated = 8.5

Q = 1248 SCFH air with droop equal to

20% of spring bias

P1 = 9,3 bar

P2max = 2,8 bar

Droop = 0,69 bar x 20% = 0,14 bar

∆P actual = 9,3 bar - (2,8 bar - 0,14 bar) = 6,7 bar d

Cg calculated = 8.5

Q = 33,4 Nm3/h air with droop equal to

20% of spring bias

Table 2. Back Calculating Sizing Coefcients

STEPS EXAMPLE - PSIG EXAMPLE - bar

1. Determine service conditions. P1 = 25 psig, P2 = 18 psig, Qmax = 10 GPM,

Medium = Water

P1 = 1,7 bar, P2 = 1,2 bar,

Medium = Water, Qmax = 37,8 l/min

2. Select Type number and spring range

using Tables 3 and 5.

The Type 95L with a 13 to 30 psig pressure range,

will provide the lightest spring for the application.

The Type 95L with a 0,90 to 2,1 bar pressure range,

will provide the lightest spring for the application.

3. Because the capacity table for a Type 95L

in Table 18 does not provide data for the

exact application, choose the values from

the table that most closely match the

application. An NPS 1 (DN 25) Type 95L

ts the closest.

P1table = 30 psig

P2table = 20 psig

Droop = 20 psig x 20% = 4 psig

∆Ptable = 30 psig - (20 psig - 4 psig) = 14 psid

Q = 13 GPM

Km = 0.67 (See Table 4)

P1table = 2,1 bar

P2table = 1,4 bar

Droop = 1,4 bar x 20% = 0,28 bar

∆Ptable = 2,1 bar - (1,4 bar - 0,28 bar) = 0,97 bar d

Q = 49,2 l/min

Km = 0.67 (See Table 4)

4. Use information in Step 3 to calculate Cv

using Fisher® Sizing Program. Cv calculated = 3.47 Cv calculated = 3.41

5. Determine ow capacity of Type 95 with

actual conditions using Cv calculated from

Step 4.

Cv = 3.47

P1 = 25 psig

P2 = 18 psig

Droop = 18 psig x 20% = 3.6 psig

∆P actual = 25 psig - (18 psig - 3.6 psig) = 10.6 psid

Q calculated = 11.3 GPM

Cv = 3.41

P1 = 1,7 bar

P2 = 1,2 bar

Droop = 1,2 bar x 20% = 0,25 bar

∆P actual = 1,7 bar - (1,2 bar - 0,25 bar) = 0,73 bar d

Q calculated = 42,8 l/min

Table 3. Maximum Cold Working Pressures of Body Size and Material(1)(2)

TYPES BODY SIZES, NPS BODY AND SPRING

CASE MATERIALS

MAXIMUM INLET PRESSURE,

PSIG (bar)

MAXIMUM OUTLET PRESSURE,

PSIG (bar)

95L and 95LD All Sizes

Cast Iron

Steel

Stainless steel

250 (17,2)

300 (20,7)

300 (20,7)

50 (3,4)

125 (8,6)

125 (8,6)

95H and 95HD All Sizes

Cast Iron

Steel

Stainless steel

250 (17,2)

300 (20,7)

300 (20,7)

250 (17,2)

300 (20,7)

300 (20,7)

95HP All Sizes Steel

Stainless steel

600 (41,4)

600 (41,4)

600 (41,4)

550 (37,9)

95HT

1/4 to 1 (DN 25) Steel

Stainless steel

600 (41,4)

600 (41,4)

600 (41,4)

550 (37,9)

1-1/2, 2 (DN 40, 50) Steel

Stainless steel

600 (41,4)

600 (41,4)

450 (31,0)

450 (31,0)

1. The pressure/temperature limits in this bulletin, and any applicable standard or code limitation should not be exceeded.

2. Temperature and/or the body end connection may decrease these maximum pressures.

Bulletin 71.1:95

7

Table 4. Flow and Sizing Coefcients for all 95 Series Regulators

BODY SIZE,

NPS (DN)

WIDE-OPEN COEFFICIENTS (FOR RELIEF SIZING) C1Km

IEC SIZING COEFFICIENTS

XTFDFL

CvCgCs

1/4 0.8 28 1.40

35

0.83

0.775

0.58 0.91

1/2 (15) 1.9 67 3.35 0.71 0.58 0.84

3/4, 1 (20, 25) 4.4 156 7.80 0.67 0.44 0.82

1-1/2, 2 (40, 50) 12.5 475 23.75 38 0.83 0.913 0.37 0.91

K

m = FL2

Table 5. Body Sizes and Pressure Ranges

TYPES BODY SIZES,

NPS (DN)

OUTLET OR DIFFERENTIAL

PRESSURE RANGE(1)

SPRING WIRE

DIAMETER

SPRING

FREE LENGTH SPRING PART NUMBER

AND COLOR

Psi/Psig bar Inches mm Inches mm

95L and 95LD

1/4

2 to 6

5 to 15

13 to 30

0,14 to 0,41

0,35 to 1,0

0,90 to 2,1

0.148

0.172

0.207

3,76

4,37

5,26

2.00

2.00

1.94

50,8

50,8

49,2

1E392527022 Yellow

1E392627012 Green

1E392727142 Red

1/2 (15)

2 to 6

5 to 15

13 to 30

0,14 to 0,41

0,35 to 1,0

0,90 to 2,1

0.207

0.234

0.281

5,26

5,94

7,14

2.50

2.57

2.44

63,5

65,2

62,0

1E395627022 Yellow

1D7455T0012 Green

1E395727192 Red

3/4, 1 (20, 25)

2 to 6

5 to 15

13 to 30

0,14 to 0,41

0,35 to 1,0

0,90 to 2,1

0.306

0.343

0.406

7,77

8,71

10,3

4.00

4.00

4.00

102

102

102

1E398927022 Yellow

1E399027142 Green

1E399127162 Red

95H and 95HD

1/4

15 to 30

25 to 75

70 to 150

1,0 to 2,1

1,7 to 5,2

4,8 to 10,3

0.148

0.172

0.207

3,76

4,37

5,26

2.00

2.00

1.94

50,8

50,8

49,2

1E392527022 Yellow

1E392627012 Green

1E392727142 Red

1/2 (15)

15 to 30

25 to 75

70 to 150

1,0 to 2,1

1,7 to 5,2

4,8 to 10,3

0.207

0.234

0.281

5,26

5,94

7,14

2.50

2.57

2.44

63,5

65,2

62,0

1E395627022 Yellow

1D7455T0012 Green

1E395727192 Red

3/4, 1 (20, 25)

15 to 30

25 to 75

70 to 150

1,0 to 2,1

1,7 to 5,1

4,8 to 10,3

0.306

0.343

0.406

7,77

8,71

10,3

4.00

4.00

4.00

102

102

102

1E398927022 Yellow

1E399027142 Green

1E399127162 Red

1-1/2, 2 (40, 50)

5 to 80

60 to 120

100 to 140

120 to 150

0,35 to 5,5

4,1 to 8,3

6,9 to 9,7

8,3 to 10,3

0.531

0.562

0.593

0.656

13,5

14,3

15,1

16,7

6.56

6.56

6.50

6.56

167

167

165

167

1E795327082 Light Blue

1E795427082 Light Gray

1E793327082 Yellow

1P788827082 Black

95HT

1/4 15 to 100

80 to 300

1,0 to 6,9

5,5 to 20,7

0.192

0.282

4,88

7,16

1.96

1.96

49,8

49,8

14B9941X012 Unpainted

14B9940X012 Unpainted

1/2 (15) 15 to 100

80 to 300

1,0 to 6,9

5,5 to 20,7

0.282

0.375

7,16

9,52

2.50

2.50

63,5

63,5

14B9943X012 Unpainted

14B9942X022 Unpainted

3/4, 1 (20, 25) 15 to 100

80 to 300

1,0 to 6,9

5,5 to 20,7

0.437

0.562

11,1

14,3

4.03

4.03

102

102

14B9944X022 Unpainted

14B9945X022 Unpainted

1-1/2, 2 (40, 50) 15 to 100

60 to 260

1,0 to 6,9

4,1 to 17,9

0.625

0.812

15,9

20,6

6.70

6.70

170

170

17B1704X012 Unpainted

17B1705X012 Unpainted

95HP

1/4 15 to 100

80 to 400

1,0 to 6,9

5,5 to 27,6

0.192

0.282

4,88

7,16

1.96

1.96

49,8

49,8

14B9941X012 Unpainted

14B9940X012 Unpainted

1/2 (15) 15 to 100

80 to 400

1,0 to 6,9

5,5 to 27,6

0.282

0.375

7,16

9,52

2.50

2.50

63,5

63,5

14B9943X012 Unpainted

14B9942X022 Unpainted

3/4, 1 (20, 25) 15 to 100

80 to 400

1,0 to 6,9

5,5 to 27,6

0.437

0.562

11,1

14,3

4.03

4.03

102

102

14B9944X022 Unpainted

14B9945X022 Unpainted

1-1/2, 2 (40, 50) 15 to 100

60 to 300

1,0 to 6,9

4,1 to 20,7

0.625

0.812

15,9

20,6

6.70

6.70

170

170

17B1704X012 Unpainted

17B1705X012 Unpainted

1. For Types 95LD and 95HD regulators, the pressure ranges indicate the differential pressure that can be obtained with the indicated spring. The differential pressure (spring setting) is

added to the spring case loading pressure to determine the actual outlet pressure.

Bulletin 71.1:95

8

Table 6. Construction Materials

MAIN VALVE MATERIALS

Body Spring Case Regulator Spring Valve Plug Spring

Cast Iron

WCC/WCB Steel

CF8M Stainless steel

Hastelloy® C

Monel®

Cast Iron

WCC/WCB Steel

CF8M Stainless steel

Zinc-plated Steel (standard)

Inconel®

302 Stainless steel

17-7PH

302 Stainless steel (standard)

Inconel®

Trim Materials:

ELASTOMER SEAT

Part Name Standard Optional

Diaphragm

Neoprene (CR) or Fluorocarbon (FKM)

302 Stainless steel

Ethylenepropylene (EPDM)

Monel®

Hastelloy® C

PTFE protector available with

elastomeric diaphragm

Disk

PTFE

Nitrile (NBR)

Ethylenepropylene (EPDM)

Peruoroelastomer (FFKM)

Disk Holder

Brass or 416 Stainless steel

316 Stainless steel

Monel®

Hastelloy® C

Valve Plug Guide

Valve Plug

Orice

Stem Assembly

Bolting Grade 5 Steel B8M, B7

METAL SEAT

Diaphragm 302 Stainless steel(1) Monel®

Hastelloy® C

Disk 416 Stainless steel

316 Stainless steel

Monel®

Hastelloy® C

Disk Holder Brass or 416 Stainless steel

Valve Plug 416 Stainless steel

Valve Plug Guide

Brass or 416 Stainless steelOrice

Stem Assembly

Gaskets Composition Graphite

Bolting Grade 5 Steel B8M, B7

1. Two diaphragms are required if metal diaphragm is to be used except only for Type 95L, NPS 1/4, 2 to 6 psi (0,14 to 0,41 bar) range which uses only one metal diaphragm.

Bulletin 71.1:95

9

Table 7. Compatibility

CORROSION INFORMATION

Fluid

Material

Fluid

Material

Carbon Steel

Cast Iron

302 or 304

Stainless Steel

316

Stainless Steel

416

Stainless Steel

Monel®

Hastelloy® C

Carbon Steel

Cast Iron

302 or 304

Stainless Steel

316

Stainless Steel

416

Stainless Steel

Monel®

Hastelloy® C

Acetic Acid, Air Free

Acetic Acid Vapors

Acetone

Acetylene

Alcohols

C

C

A

A

A

C

C

A

A

A

B

A

A

A

A

B

A

A

A

A

C

C

A

A

A

B

B

A

A

A

A

A

A

A

A

Hydrochloric Acid (Air free)

Hydrogen

Hydrogen Peroxide

Hydrogen Sulde, Liquid

Magnesium Hydroxide

C

A

I.L.

C

A

C

A

A

C

A

C

A

A

A

A

C

A

A

A

A

C

A

B

C

A

C

A

A

C

A

B

A

B

A

A

Aluminum Sulfate

Ammonia

Ammonium Chloride

Ammonium Nitrate

Ammonium Sulfate

C

A

C

A

C

C

A

C

C

C

A

A

B

A

B

A

A

B

A

A

C

A

C

C

C

B

A

B

C

A

A

A

A

A

A

Methanol

Methyl Ethyl Ketone

Natural Gas

Nitric Acid

Petroleum Oils, Rened

A

A

A

C

A

A

A

A

C

A

A

A

A

A

A

A

A

A

B

A

A

A

A

C

A

A

A

A

C

A

A

A

A

B

A

Ammonium Sulte

Beer

Benzene (Benzol)

Benzoic Acid

Boric Acid

C

B

A

C

C

C

B

A

C

C

A

A

A

A

A

A

A

A

A

A

B

B

A

A

B

C

A

A

A

A

A

A

A

A

A

Phosphoric Acid (Air Free)

Phosphoric Acid Vapors

Potassium Chloride

Potassium Hydroxide

Propane

C

C

B

B

A

C

C

B

B

A

A

B

A

A

A

A

B

A

A

A

C

C

C

B

A

B

C

B

A

A

A

I.L.

A

A

A

Butane

Calcium Chloride (Alkaline)

Carbon Dioxide, Dry

Carbon Dioxide, Wet

Carbon Disulde

A

B

A

C

A

A

B

A

C

A

A

C

A

A

A

A

B

A

A

A

A

C

A

A

B

A

A

A

A

B

A

A

A

A

A

Silver Nitrate

Sodium Acetate

Sodium Carbonate

Sodium Chloride

Sodium Chromate

C

A

A

C

A

C

A

A

C

A

A

B

A

B

A

A

A

A

B

A

B

A

B

B

A

C

A

A

A

A

A

A

A

A

A

Carbon Tetrachloride

Carbonic Acid

Chlorine Gas, Dry

Chlorine Gas, Wet

Chlorine, Liquid

B

C

A

C

C

B

C

A

C

C

B

B

B

C

C

B

B

B

C

C

C

A

C

C

C

A

A

A

C

C

A

A

A

B

A

Sodium Hydroxide

Stearic Acid

Sulfur

Sulfur Dioxide, Dry

Sulfur Trioxide, Dry

A

A

A

A

A

A

C

A

A

A

A

A

A

A

A

A

A

A

A

A

B

B

A

B

B

A

B

A

A

A

A

A

A

A

A

Chromic Acid

Citric Acid

Coke Oven Gas

Copper Sulfate

Ether

C

I.L.

A

C

B

C

C

A

C

B

C

B

A

B

A

B

A

A

B

A

C

B

A

A

A

A

B

B

C

A

A

A

A

A

A

Sulfuric Acid (Aerated)

Sulfuric Acid (Air Free)

Sulfurous Acid

Trichloroethylene

Water, Boiler Feed

C

C

C

B

B

C

C

C

B

C

C

C

B

B

A

C

C

B

A

A

C

C

C

B

B

C

B

C

A

A

A

A

A

A

A

Ethyl Chloride

Ethylene

Ethylene Glycol

Formaldehyde

Formic Acid

C

A

A

B

I.L.

C

A

A

B

C

A

A

A

A

B

A

A

A

A

B

B

A

A

A

C

A

A

A

A

A

A

A

I.L.

A

A

Water, Distilled

Water, Sea

Zinc Chloride

Zinc Sulfate

A

B

C

C

A

B

C

C

A

B

C

A

A

B

C

A

B

C

C

B

A

A

C

A

A

A

A

A

Freon, Wet

Freon, Dry

Gasoline, Rened

Glucose

Hydrochloric Acid (Aerated)

B

B

A

A

C

B

B

A

A

C

B

A

A

A

C

A

A

A

A

C

I.L.

I.L.

A

A

C

A

A

A

A

C

A

A

A

A

B

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

A—Recommended

B—Minor to moderate effect. Proceed with caution.

C—Unsatisfactory

I.L.—Information lacking

- continued -

Bulletin 71.1:95

10

Table 7. Compatibility (continued)

FLUID INFORMATION

Fluid Neoprene

(CR)

Nitrile

(NBR)

Fluorocarbon

(FKM) EPDM Fluid Neoprene

(CR)

Nitrile

(NBR)

Fluorocarbon

(FKM) EPDM

Acetic Acid (30%)

Acetone

Alcohol, Ethyl

Alocohol, Methyl

Ammonia, Anhydrous

Ammonia, Gas, (Hot)

Benzene

Brine (Calcium Chloride)

Butadiene Gas

Butane, Gas

Butane, Liquid

Carbon Tetrachloride

Chlorine, Dry

Chlorine, Wet

Coke Oven Gas

Ethyl Acetate

Ethylene Glycol

Freon 11

Freon 12

C

B

A

A+

A

B

C

A

B

A

B

C

C

C

C

C

A

B

A+

B

C

A

A

C

C

C

A

C

A+

A

C

C

C

B

C

A

A

A

B

C

B

C

C

C

A

B

B

A

A

A

A

A

A+

C

A

A+

B

A

A

A

A

A

B

C

A

C

C

C

C

C

C

C

B

A

C

B

Freon 22

Freon 114

Gasoline

Hydrogen Gas

Hydrogen Sulde (Dry)

Hydrogen Sulde (Wet)

Jet Fuel (JP-4)

Natural Gas

Natural Gas + H2S (Sour Gas)

Nitric Acid (10%)

Nitric Acid (50 to 100%)

Nitrogen

Oil (Fuel)

Propane

Sea Water

Sulfur Dioxide

Sulfuric Acid (to 50%)

Sulfuric Acid (50 to 100%)

Water (Ambient)

Water at 200°F (93°C)

A+

A

B

A

A

B

C

A

A

B

C

A

B

A

B

A

B

C

A

C

C

A

A+

A

C

C

A

A+

B

C

C

A

A+

A

A

C

C

C

A

B

C

B

A

A

C

C

A

A

C

A

A

A

A

A

A

A

A

A

A

B

A

A

C

A

A

A

I.L.

C

C

C

C

A

C

C

A

A

B

B

A

A

A+ —Best possible selection

A—Recommended

B—Minor to moderate effect. Proceed with caution.

C—Unsatisfactory

I.L.—Information lacking

Universal NACE Compliance

Optional materials are available for applications

handling sour gases. These constructions comply

with the recommendations of NACE International sour

service standards.

The manufacturing processes and materials used by

Emerson assure that all products specied for sour

gas service comply with the chemical, physical, and

metallurgical requirements of NACE MR0175 ISO

and/or NACE MR0103. Customers have the

responsibility to specify correct materials.

Environmental limitations may apply and shall be

determined by the user.

Capacity Data

The capacity information on the following pages is

based on three droop factors, 10%, 20%, and 40%.

Droop is deviation from the setpoint of the regulator,

and is usually stated in percentage of setpoint value.

For example, refer to the air ow rate curve in

Figure 3. The regulator is set for 15 psig (1,0 bar)

at the outlet, with 100 psig (6,9 bar) at the inlet and a

300 SCFH (8,0 Nm3/h) ow rate. Capacity at 10%

droop is read at the intersection of a line projected

horizontally to the right from the 13.5 psig (0,93 bar)

outlet pressure point and the 100 psig (6,9 bar) inlet

curve. The 13.5 psig (0,93 bar) is derived by applying

the droop factor of 10% to the regulator setting of

15 psig (1,0 bar). The same method is employed for

20% droop, except the capacity value is read at the

12 psig (0,83 bar) outlet pressure point, 20% less than

the 15 psig (1,0 bar) setting.

For highest capacity and the most accurate control

within a particular type of the 95 Series regulators,

use the lowest range spring that can be adjusted

to the desired setpoint (see Table 5 for part numbers

of appropriate springs for each body size). See

Table 1 for sizing example for the Types 95HD and

95LD regulators.

If closer control is necessary, a regulator of larger

capacity or different design should be selected, so

that the necessary ow can be obtained with a smaller

droop factor.

Sometimes it may be necessary to interpolate

the capacity table data to determine capacity for

outlet settings not given. To maintain accuracy, it is

important when interpolating to stay within a spring

range if possible. The following is a procedure for

interpolating the data to calculate ow:

1. Determine which spring is to be used.

2. Find the two outlet settings (P2a and P2b) that

bracket the actual outlet pressure P2.

Bulletin 71.1:95

11

following appropriate conversion factors: 1.29 for 0.6

specic gravity natural gas, 0.808 for propane, 0.707

for butane, or 1.018 for nitrogen. For gases of other

specic gravities, divide by the square root of the

appropriate specic gravity.

Then, if capacity is desired in Nm3/h at 0°C and

1,10325 bar, multiply SCFH by 0.0268.

Capacities in Tables 8, 9, 10, and 11 are for regulators

using elastomer diaphragms. Depending on regulator

construction, a multiplier must be used to convert to

capacities for regulators using metal diaphragms.

To determine wide-open ow capacity for relief valve

sizing of air at a temperature of 60°F, use the equation

for critical pressure drops (absolute outlet pressure

equal to one-half or less than one-half the absolute

inlet pressure).

Q = P1(abs)Cg

where,

Q = Gas ow, SCFH (60°F and 14.7 psia)

P1(abs) = Absolute inlet pressure, psia (add 14.7 psi to

gauge inlet pressure to obtain absolute inlet pressure)

Cg = Wide-open gas sizing coefcient from Table 4

For pressure drops lower than critical (absolute outlet

pressure greater than one-half the absolute inlet

pressure), use the sizing nomographs in Fisher®

Catalog 10, or the Fisher Sizing Program.

To obtain capacities in Nm3/h at 0°C and 1,01325 bar,

multiply the capacity determined in SCFH by 0.0268.

Steam Capacities

Capacities in Tables 13, 14, 15, 16, and 17 are in

pounds/h of saturated steam. To obtain capacities

in kg/h, multiply the capacities given in the table by

0.4535. Capacities have been calculated for stainless

steel diaphragms only since steam service exceeds

the elastomer diaphragm temperature limits.

3. For a given body size and inlet pressure, nd the

capacity Qa for P2a and Qb for P2b.

4. Use the following formula to determine the

interpolated capacity (Q).

Qb - Qa Qb - Q

P2b - P2a P2b - P2

=

Example:

P1 = 100 psig (6,9 bar)

NPS 1/4 Type 95H with 15 to 30 psig

(1,0 to 2,1 bar) spring range

P2 = 20 psig (1,4 bar)

Determine air capacity, Q.

Solution:

Qa = 1100 SCFH (29,5 Nm3/h)

P2a = 15 psig (1,0 bar)

Qb = 1600 SCFH (42,9 Nm3/h)

P2b = 30 psig (2,1 bar)

1600 - 1100 1600 - Q

30 - 15 30 - 20

=

Q = 1270 SCFH

42,9 - 29,5 42,9 - Q

2,1 - 1,0 2,1 - 1,4

Q = 34,0 Nm3/h

=

Note

The same interpolation procedure can

be used for different inlet pressures.

An alternative method for interpolating capacities is to

back calculate Cv’s as shown in Table 2.

Contact your local Sales Ofce if you should have

any questions about selecting the proper regulator.

Air Capacities

Regulating capacities at selected pressures and outlet

pressure ows are given in SCFH (60°F and 14.7 psia)

of air. To determine the equivalent capacities for

other gases, multiply the table capacities by the

Bulletin 71.1:95

12

Table 8. Air SCFH (Nm3/h) Capacities(1) for NPS 1/4 through 1 (DN 25) Types 95L and 95LD Regulators with Elastomer Diaphragm

RECOMMENDED

OUTLET

PRESSURE

RANGE,

PSIG/PSI (bar)

PRESSURE REGULATOR BODY SIZE, NPS (DN)

Outlet

Setting,

Psig/

Psi

(bar)

Inlet 1/4 1/2 (15) 3/4 (20) 1 (25)

Droop Droop Droop Droop

Psig (bar) 10% 20% 10% 20% 10% 20% 10% 20%

2 to 6

(0,14 to 0,41)

2 (0,14)

10

20

30

50

75

100

150

200

250

(0,69)

(1,4)

(2,1)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

150 (4,0)

200 (5,4)

250 (6,7)

250 (6,7)

250 (6,7)

250 (6,7)

280 (7,5)

280 (7,5)

330 (8,8)

280 (7,5)

300 (8,0)

380 (10,2)

380 (10,2)

380 (10,2)

380 (10,2)

400 (10,7)

400 (10,7)

430 (11,5)

300 (8,0)

350 (9,4)

350 (9,4)

350 (9,4)

350 (9,4)

350 (9,4)

380 (10,2)

400 (10,7)

450 (12,1)

400 (10,7)

500 (13,4)

530 (14,2)

530 (14,2)

530 (14,2)

530 (14,2)

550 (14,7)

550 (14,7)

600 (16,1)

680 (18,2)

850 (22,8)

1100 (29,5)

1500 (40,2)

2100 (56,3)

2500 (67,0)

2500 (67,0)

2500 (67,0)

2500 (67,0)

1200 (32,2)

1700 (45,6)

2200 (59,0)

2900 (77,7)

3800 (102)

4200 (113)

4600 (123)

4700 (126)

4700 (126)

800 (21,4)

1000 (26,8)

1300 (34,8)

1700 (45,6)

2500 (67,0)

3000 (80,4)

3000 (80,4)

3000 (80,4)

3000 (80,4)

1400 (37,5)

2000 (53,6)

2600 (69,7)

3400 (91,1)

4500 (121)

5000 (134)

5400 (145)

5600 (150)

5600 (150)

5 (0,35)

10

20

30

50

75

100

150

200

250

(0,69)

(1,4)

(2,1)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

200 (5,4)

300 (8,0)

400 (10,7)

450 (12,1)

450 (12,1)

500 (13,4)

500 (13,4)

500 (13,4)

500 (13,4)

380 (10,2)

530 (14,2)

600 (16,1)

600 (16,1)

630 (16,9)

630 (16,9)

630 (16,9)

630 (16,9)

630 (16,9)

400 (10,7)

500 (13,4)

550 (14,7)

600 (16,1)

650 (17,4)

700 (18,8)

700 (18,8)

700 (18,8)

700 (18,8)

600 (16,1)

750 (20,1)

850 (22,8)

850 (22,8)

900 (24,1)

900 (24,1)

900 (24,1)

900 (24,1)

900 (24,1)

1100 (29,5)

1900 (50,9)

2300 (61,6)

3500 (93,8)

3800 (102)

4200 (113)

4200 (113)

4200 (113)

4200 (113)

1700 (45,6)

3400 (91,1)

4200 (113)

5500 (147)

6800 (182)

7200 (193)

7600 (204)

8300 (222)

8300 (222)

1300 (34,8)

2200 (59,0)

2800 (75,0)

4200 (113)

4500 (121)

5000 (134)

5000 (134)

5000 (134)

5000 (134)

2000 (53,6)

4000 (107)

5000 (134)

6500 (174)

8000 (214)

8500 (228)

9000 (241)

9800 (263)

10 000 (268)

1. To obtain capacities for regulators using metal diaphragms, multiply the table values by 0.8.

- continued -

To determine wide-open ow capacity for relief valve

sizing of steam, use the equation for critical pressure

drops (absolute outlet pressure equal to one-half or

less than one-half absolute inlet pressure).

Q = P1(abs)Cs

where,

Q = Steam ow, pounds/h

P1(abs) = Absolute inlet pressure, psia (add 14.7 psi to

gauge inlet pressure to obtain absolute inlet pressure)

Cs = Wide-open steam sizing coefcient from Table 4

For pressure drops lower than critical (absolute

outlet pressure greater than one-half absolute inlet

pressure), use the sizing nomographs in Fisher

Catalog 10, or the Fisher Sizing Program.

Water Capacities

All water capacities in Tables 18, 19, 20, 21, and 22

are in GPM. Capacities in Tables 18, 19, and 21

are for regulators using only elastomer diaphragms.

Depending on regulator size, a multiplier, given in

these tables, must be used to convert to capacities for

regulators using metal diaphragms.

To determine ow capacity for liquid relief valve sizing,

refer to Fisher® Catalog 10, or the Fisher Sizing

Program using the Cv coefcients given in Table 4.

The Km values listed in Table 4 can be used to predict

choked ow on liquid service.

To convert capacities to m3/h, multiply GPM by 0.2271.

Bulletin 71.1:95

13

Table 8. Air SCFH (Nm3/h) Capacities(1) for NPS 1/4 through 1 (DN 25) Types 95L and 95LD Regulators with Elastomer

Diaphragm (continued)

RECOMMENDED

OUTLET

PRESSURE

RANGE,

PSIG/PSI (bar)

PRESSURE REGULATOR BODY SIZE, NPS (DN)

Outlet

Setting,

Psig/Psi

(bar)

Inlet 1/4 1/2 (15) 3/4 (20) 1 (25)

Droop Droop Droop Droop

Psig (bar) 10% 20% 10% 20% 10% 20% 10% 20%

5 to 15

(0,35 to 1,0)

10 (0,69)

20

30

50

75

100

150

200

250

(1,4)

(2,1)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

500 (13,4)

600 (16,1)

750 (20,1)

750 (20,1)

750 (20,1)

750 (20,1)

750 (20,1)

750 (20,1)

680 (18,2)

850 (22,8)

930 (24,9)

930 (24,9)

1000 (26,8)

1000 (26,8)

1000 (26,8)

1000 (26,8)

750 (20,1)

900 (24,1)

1000 (26,8)

1000 (26,8)

1000 (26,8)

1000 (26,8)

1000 (26,8)

1000 (26,8)

1100 (29,5)

1200 (32,2)

1400 (37,5)

1400 (37,5)

1400 (37,5)

1400 (37,5)

1400 (37,5)

1400 (37,5)

1700 (45,6)

2100 (56,3)

2800 (75,0)

4700 (126)

6400 (172)

7700 (206)

8500 (228)

8500 (228)

2500 (67,0)

4200 (113)

5300 (142)

8500 (228)

9300 (249)

12 000 (322)

13 000 (348)

13 000 (348)

2000 (53,6)

2500 (67,0)

3300 (88,4)

5500 (147)

7500 (201)

9000 (241)

10 000 (268)

10 000 (268)

3000 (80,4)

5000 (134)

6300 (169)

10 000 (268)

11 000 (295)

14 000 (375)

15 000 (402)

15 000 (402)

15 (1,0)

20

30

50

75

100

150

200

250

(1,4)

(2,1)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

450 (12,1)

700 (18,8)

900 (24,1)

1000 (26,8)

1000 (26,8)

1000 (26,8)

1000 (26,8)

1000 (26,8)

700 (18,8)

1000 (26,8)

1200 (32,2)

1200 (32,2)

1300 (34,8)

1300 (34,8)

1300 (34,8)

1300 (34,8)

800 (21,4)

1100 (29,5)

1300 (34,8)

1400 (37,5)

1400 (37,5)

1400 (37,5)

1400 (37,5)

1400 (37,5)

1200 (32,2)

1500 (40,2)

1600 (42,9)

1650 (44,2)

1800 (48,2)

1800 (48,2)

1800 (48,2)

1800 (48,2)

1900 (50,9)

3200 (85,8)

5100 (137)

6800 (182)

8500 (228)

11 000 (295)

11 000 (295)

11 000 (295)

2700 (72,4)

4500 (121)

7200 (193)

9300 (249)

13 000 (348)

15 000 (402)

15 000 (402)

15 000 (402)

2200 (59,0)

3800 (102)

6000 (161)

8000 (214)

10 000 (268)

13 000 (348)

13 000 (348)

13 000 (348)

3200 (85,8)

5300 (142)

8500 (228)

11 000 (295)

15 000 (402)

18 000 (482)

18 000 (482)

18 000 (482)

13 to 30

(0,90 to 2,1)

20 (1,4)

30

40

50

75

100

150

200

250

(2,1)

(2,8)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

550 (14,7)

750 (20,1)

900 (24,1)

1100 (29,5)

1100 (29,5)

1100 (29,5)

1100 (29,5)

1100 (29,5)

850 (22,8)

1100 (29,5)

1300 (34,8)

1500 (40,2)

1500 (40,2)

1500 (40,2)

1500 (40,2)

1500 (40,2)

1100 (29,5)

1300 (34,8)

1400 (37,5)

1500 (40,2)

1600 (42,9)

1600 (42,9)

1600 (42,9)

1600 (42,9)

1500 (40,2)

1700 (45,6)

1800 (48,2)

2000 (53,6)

2100 (56,3)

2100 (56,3)

2100 (56,3)

2100 (56,3)

2500 (67,0)

3800 (102)

4600 (123)

6800 (182)

8000 (214)

10 000 (268)

13 000 (348)

13 000 (348)

3800 (102)

5500 (147)

6800 (182)

9300 (249)

13 000 (348)

15 000 (402)

17 000 (456)

17 000 (456)

3000 (80,4)

4500 (121)

5500 (147)

8000 (214)

9500 (255)

12 000 (322)

15 000 (402)

15 000 (402)

4500 (121)

6500 (174)

8000 (214)

11 000 (295)

15 000 (402)

18 000 (482)

20 000 (536)

20 000 (536)

25 (1,7)

40

50

75

100

150

200

250

(2,76)

(3,45)

(5,17)

(6,90)

(10,3)

(13,8)

(17,2)

900 (24,1)

1200 (32,2)

1400 (37,5)

1500 (40,2)

1600 (42,9)

1600 (42,9)

1600 (42,9)

1200 (32,2)

1600 (42,9)

2000 (53,6)

2500 (67,0)

2500 (67,0)

2500 (67,0)

2500 (67,0)

1600 (42,9)

1900 (50,9)

2000 (53,6)

2100 (56,3)

2200 (59,0)

2200 (59,0)

2200 (59,0)

2400 (64,3)

2500 (67,0)

2800 (75,0)

3300 (88,4)

3300 (88,4)

3300 (88,4)

3300 (88,4)

4200 (113)

5100 (137)

7200 (193)

8500 (228)

10 000 (268)

13 000 (348)

13 000 (348)

5500 (147)

6800 (182)

9300 (249)

13 000 (348)

17 000 (456)

21 000 (563)

21 000 (563)

5000 (134)

6000 (161)

8500 (228)

10 000 (268)

12 000 (322)

16 000 (429)

16 000 (429)

6500 (174)

8000 (214)

11 000 (295)

15 000 (402)

20 000 (536)

25 000 (670)

25 000 (670)

30 (2,1)

40

50

75

100

150

200

250

(2,76)

(3,45)

(5,17)

(6,90)

(10,3)

(13,8)

(17,2)

900 (24,1)

1200 (32,2)

1700 (45,6)

1800 (48,2)

1900 (50,9)

1900 (50,9)

1900 (50,9)

1200 (32,2)

1500 (40,2)

2300 (61,6)

2500 (67,0)

2500 (67,0)

2500 (67,0)

2500 (67,0)

1800 (48,2)

2000 (53,6)

2300 (61,6)

2400 (64,3)

2500 (67,0)

2500 (67,0)

2500 (67,0)

2400 (64,3)

2700 (72,4)

3200 (85,8)

3600 (96,5)

3600 (96,5)

3600 (96,5)

3600 (96,5)

3400 (91,1)

4200 (113)

7100 (190)

8500 (228)

11 000 (295)

14 000 (375)

14 000 (375)

5100 (137)

6400 (172)

9300 (249)

13 000 (348)

17 000 (456)

22 000 (590)

22 000 (590)

4000 (107)

5000 (134)

8400 (225)

10 000 (268)

13 000 (348)

17 000 (456)

17 000 (456)

6000 (161)

7500 (201)

11 000 (295)

15 000 (402)

20 000 (536)

26 000 (697)

26 000 (697)

1. To obtain capacities for regulators using metal diaphragms, multiply the table values by 0.8.

Bulletin 71.1:95

14

Table 9. Air SCFH (Nm3/h) Capacities(1) for NPS 1/4 through 1/2 (DN 15) Types 95H and 95HD Regulators with Elastomer Diaphragm

- continued -

RECOMMENDED

OUTLET

PRESSURE,

PSIG/PSI (bar)

PRESSURE REGULATOR BODY SIZES, NPS (DN)

Outlet

Setting,

Psig/Psi

(bar)

Inlet 1/4 1/2 (15)

Droop Droop

Psig (bar) 10% 20% 40% 10% 20% 40%

15 to 30

(1,0 to 2,1)

15 (1,0)

30

40

50

75

100

150

200

250

300

(2,1)

(2,8)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

680 (18,2)

750 (20,1)

840 (22,5)

1100 (29,5)

1100 (29,5)

1400 (37,5)

1900 (50,9)

1700 (45,6)

2000 (53,6)

1000 (26,8)

1000 (26,8)

1200 (32,2)

1500 (40,2)

1600 (42,9)

2100 (56,3)

2300 (61,6)

2400 (64,3)

2700 (72,4)

1300 (34,8)

1200 (32,2)

1300 (34,8)

2000 (53,6)

2500 (67,0)

2800 (75,0)

3000 (80,4)

3200 (85,8)

3300 (88,4)

900 (24,1)

900 (24,1)

900 (24,1)

1200 (32,2)

1400 (37,5)

1800 (48,2)

2200 (59,0)

2100 (56,3)

2700 (72,4)

1400 (37,5)

1500 (40,2)

1500 (40,2)

1800 (48,2)

2100 (56,3)

2400 (64,3)

2800 (75,0)

3100 (83,1)

3300 (88,4)

2200 (59,0)

2300 (61,6)

2200 (59,0)

2700 (72,4)

2900 (77,7)

3200 (85,8)

3600 (96,5)

3900 (105)

4300 (115)

30 (2,1)

40

50

75

100

150

200

250

300

(2,8)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

610 (16,3)

780 (20,9)

1500 (40,2)

1600 (42,9)

2200 (59,0)

2800 (75,0)

2800 (75,0)

3200 (85,8)

750 (20,1)

960 (25,7)

1700 (45,6)

2500 (67,0)

3500 (93,8)

4200 (113)

4100 (110)

4600 (123)

1100 (29,5)

1300 (34,8)

2500 (67,0)

3000 (80,4)

4400 (118)

4800 (129)

4900 (131)

5000 (134)

1500 (40,2)

1300 (34,8)

1800 (48,2)

2000 (53,6)

2400 (64,3)

3100 (83,1)

3500 (93,8)

4000 (107)

2300 (61,6)

2100 (56,3)

2800 (75,0)

3000 (80,4)

3800 (102)

4300 (115)

4600 (123)

4900 (131)

3500 (93,8)

3400 (91,1)

4200 (113)

4400 (118)

5300 (142)

5800 (155)

6300 (169)

6600 (177)

25 to 75

(1,7 to 5,2)

50 (3,4)

60

75

100

150

200

250

300

(4,1)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

1000 (26,8)

1200 (32,2)

1400 (37,5)

2100 (56,3)

2600 (69,7)

3600 (96,5)

4000 (107)

1300 (34,8)

1600 (42,9)

2300 (61,6)

3300 (88,4)

4500 (121)

5800 (155)

6200 (166)

1700 (45,6)

2400 (64,3)

3200 (85,8)

4600 (123)

6000 (161)

6500 (174)

7000 (188)

1200 (32,2)

1400 (37,5)

2100 (56,3)

2500 (67,0)

3100 (83,1)

3100 (83,1)

3500 (93,8)

2000 (53,6)

2300 (61,6)

2900 (77,7)

3700 (99,2)

4600 (123)

4500 (121)

5100 (137)

3800 (102)

3900 (105)

5000 (134)

5700 (153)

6500 (174)

6900 (185)

7300 (196)

75 (5,2)

100

125

150

200

250

300

(6,9)

(8,6)

(10,3)

(13,8)

(17,2)

(20,7)

1600 (42,9)

2200 (59,0)

2500 (67,0)

3700 (99,2)

4900 (131)

5100 (137)

2400 (64,3)

3200 (85,8)

3900 (105)

5400 (145)

6500 (174)

7600 (204)

3000 (80,4)

3800 (102)

4600 (123)

6000 (161)

6700 (180)

9000 (241)

2300 (61,6)

2600 (69,7)

3200 (85,8)

3700 (99,2)

4000 (107)

4700 (126)

3700 (99,2)

4300 (115)

4700 (126)

5500 (147)

6100 (163)

7100 (190)

6200 (166)

7300 (196)

7700 (206)

8500 (228)

9500 (255)

10 000 (268)

70 to 150

(4,8 to 10,3)

100 (6,9)

125

150

175

200

250

300

(8,6)

(10,3)

(12,1)

(13,8)

(17,2)

(20,7)

2000 (53,6)

2000 (53,6)

2600 (69,7)

2800 (75,0)

3300 (88,4)

4000 (107)

2800 (75,0)

3500 (93,8)

4100 (110)

4600 (123)

5800 (155)

6900 (185)

3700 (99,2)

4500 (121)

5300 (142)

5900 (158)

7300 (196)

8600 (230)

3400 (91,1)

4000 (107)

4800 (129)

5200 (139)

4300 (115)

8000 (214)

5800 (155)

6800 (182)

7800 (209)

8200 (220)

8900 (239)

11 000 (295)

8800 (236)

11 000 (295)

12 000 (322)

13 000 (348)

14 000 (375)

15 000 (402)

125 (8,6)

150

175

200

225

250

300

(10,3)

(12,1)

(13,8)

(15,5)

(17,2)

(20,7)

2000 (53,6)

2800 (75,0)

3400 (91,1)

3600 (96,5)

3800 (102)

4600 (123)

3000 (80,4)

4200 (113)

4300 (115)

5600 (150)

6200 (166)

7200 (193)

4200 (113)

5100 (137)

6000 (161)

6600 (177)

7300 (196)

8700 (233)

5200 (139)

5000 (134)

5500 (147)

6800 (182)

6900 (185)

7000 (188)

8200 (220)

9000 (241)

9300 (249)

11 000 (295)

13 000 (348)

13 000 (348)

11 000 (295)

13 000 (348)

14 000 (375)

16 000 (429)

17 000 (456)

19 000 (509)

150 (10,3)

175

200

225

250

300

(12,1)

(13,8)

(15,5)

(17,2)

(20,7)

2500 (67,0)

3000 (80,4)

3300 (88,4)

4000 (107)

5400 (145)

3800 (102)

4300 (115)

5400 (145)

6300 (169)

7600 (204)

4900 (131)

5700 (153)

6600 (177)

7300 (196)

8400 (225)

5600 (150)

6500 (174)

7100 (190)

9000 (241)

8700 (233)

9500 (255)

11 000 (295)

12 000 (322)

14 000 (375)

15 000 (402)

12 000 (322)

14 000 (375)

16 000 (429)

18 000 (482)

20 000 (536)

1. To obtain capacities for regulators using metal diaphragms, multiply the table values by 0.6.

Bulletin 71.1:95

15

Table 9. Air SCFH (Nm3/h) Capacities(1) for NPS 3/4 through 1 (DN 20 through 25) Types 95H and 95HD Regulators with Elastomer

Diaphragm (continued)

RECOMMENDED

OUTLET

PRESSURE,

PSIG/PSI (bar)

PRESSURE REGULATOR BODY SIZES, NPS (DN)

Outlet

Setting,

Psig/Psi

(bar)

Inlet

3/4 (20) 1 (25)

Droop Droop

Psig (bar) 10% 20% 40% 10% 20% 40%

15 to 30

(1,0 to 2,1)

15 (1,0)

30

40

50

75

100

150

200

250

300

(2,1)

(2,8)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

2200 (59,0)

2700 (72,4)

2900 (77,7)

3800 (102)

4000 (107)

5000 (134)

6000 (161)

6800 (182)

7400 (198)

3100 (83,1)

3800 (102)

4300 (115)

5500 (147)

6000 (161)

7000 (188)

8000 (214)

8700 (233)

9600 (257)

4900 (131)

6200 (166)

6800 (182)

8400 (225)

9000 (241)

10 000 (268)

11 000 (295)

11 000 (295)

12 000 (322)

2200 (59,0)

2600 (69,7)

3400 (91,1)

4800 (129)

5400 (145)

7000 (188)

8700 (233)

8500 (228)

10 000 (268)

3300 (88,4)

4200 (113)

5400 (145)

7000 (188)

8000 (214)

10 000 (268)

11 700 (314)

12 000 (322)

14 000 (375)

5400 (145)

6500 (174)

8200 (220)

11 000 (295)

12 000 (322)

15 000 (402)

16 000 (429)

17 000 (456)

18 000 (482)

30 (2,1)

40

50

75

100

150

200

250

300

(2,8)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

2900 (77,7)

4000 (107)

5700 (153)

6300 (169)

7700 (206)

9200 (247)

9000 (241)

10 000 (268)

4500 (121)

6000 (161)

8500 (228)

9800 (263)

12 000 (322)

12 000 (322)

13 000 (348)

14 000 (375)

6200 (166)

7800 (209)

12 000 (322)

14 000 (375)

16 000 (429)

17 000 (456)

18 000 (482)

19 000 (509)

3200 (85,8)

4000 (107)

5400 (145)

7400 (198)

10 000 (268)

12 000 (322)

14 000 (375)

15 000 (402)

5200 (139)

6600 (177)

9300 (249)

11 000 (295)

15 000 (402)

18 000 (482)

20 000 (536)

21 000 (563)

6600 (177)

8300 (222)

12 000 (322)

16 000 (429)

22 000 (590)

26 000 (697)

27 000 (724)

28 000 (750)

25 to 75

(1,7 to 5,2)

50 (3,4)

60

75

100

150

200

250

300

(4,1)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

4000 (107)

6000 (161)

7400 (198)

8300 (222)

11 000 (295)

12 000 (322)

12 000 (322)

6700 (180)

8600 (230)

11 000 (295)

13 000 (348)

17 000 (456)

18 000 (482)

18 000 (482)

9000 (241)

12 000 (322)

15 000 (402)

21 000 (563)

24 000 (643)

25 000 (670)

26 000 (697)

4400 (118)

6300 (169)

7000 (188)

16 000 (429)

15 000 (402)

17 000 (456)

19 000 (509)

7200 (193)

9600 (257)

13 000 (348)

18 000 (482)

24 000 (643)

26 000 (697)

27 000 (724)

9200 (247)

12 000 (322)

16 000 (429)

24 000 (643)

31 000 (831)

36 000 (965)

38 000 (1018)

75 (5,2)

100

125

150

200

250

300

(6,9)

(8,6)

(10,3)

(13,8)

(17,2)

(20,7)

8000 (214)

11 000 (295)

12 000 (322)

14 000 (375)

16 000 (429)

16 000 (429)

12 000 (322)

16 000 (429)

18 000 (482)

21 000 (563)

24 000 (643)

25 000 (670)

15 000 (402)

19 000 (509)

22 000 (590)

24 000 (643)

26 000 (697)

28 000 (750)

8700 (233)

13 000 (348)

13 000 (348)

17 000 (456)

22 000 (590)

23 000 (616)

13 000 (348)

17 000 (456)

21 000 (563)

28 000 (750)

33 000 (884)

35 000 (938)

15 000 (402)

20 000 (536)

25 000 (670)

32 000 (858)

38 000 (1018)

45 000 (1206)

70 to 150

(4,8 to 10,3)

100 (6,9)

125

150

175

200

250

300

(8,6)

(10,3)

(12,1)

(13,8)

(17,2)

(20,7)

8500 (228)

12 000 (322)

13 000 (348)

15 000 (402)

15 000 (402)

19 000 (509)

14 000 (375)

18 000 (482)

21 000 (563)

23 000 (616)

25 000 (670)

29 000 (777)

18 000 (482)

22 000 (590)

26 000 (697)

30 000 (804)

37 000 (992)

41 000 (1099)

11 000 (295)

14 000 (375)

16 000 (429)

16 000 (429)

21 000 (563)

26 000 (697)

16 000 (429)

20 000 (536)

25 000 (670)

27 000 (724)

34 000 (911)

38 000 (1018)

19 000 (509)

23 000 (616)

28 000 (750)

32 000 (858)

39 000 (1045)

46 000 (1233)

125 (8,6)

150

175

200

225

250

300

(10,3)

(12,1)

(13,8)

(15,5)

(17,2)

(20,7)

12 000 (322)

13 000 (348)

16 000 (429)

17 000 (456)

18 000 (482)

21 000 (563)

18 000 (482)

21 000 (563)

25 000 (670)

28 000 (750)

29 000 (777)

32 000 (858)

21 000 (563)

25 000 (670)

29 000 (777)

33 000 (884)

37 000 (992)

45 000 (1206)

13 000 (348)

15 000 (402)

17 000 (456)

19 000 (509)

20 000 (536)

26 000 (697)

20 000 (536)

23 000 (616)

28 000 (750)

30 000 (804)

34 000 (911)

41 000 (1099)

23 000 (616)

27 000 (724)

31 000 (831)

35 000 (938)

39 000 (1045)

46 000 (1233)

150 (10,3)

175

200

225

250

300

(12,1)

(13,8)

(15,5)

(17,2)

(20,7)

14 000 (375)

16 000 (429)

20 000 (536)

20 000 (536)

23 000 (616)

20 000 (536)

24 000 (643)

29 000 (777)

30 000 (804)

37 000 (992)

29 000 (777)

29 000 (777)

33 000 (884)

37 000 (992)

45 000 (1206)

16 000 (429)

20 000 (536)

22 000 (590)

26 000 (697)

31 000 (831)

22 000 (590)

26 000 (697)

30 000 (804)

35 000 (938)

44 000 (1179)

26 000 (697)

30 000 (804)

35 000 (938)

39 000 (1045)

46 000 (1233)

1. To obtain capacities for regulators using metal diaphragms, multiply the table values by 0.6.

Bulletin 71.1:95

16

Table 10. Air SCFH (Nm3/h) Capacities for NPS 1-1/2 through 2 (DN 40 through 50) Types 95H and 95HD Regulators with Either

Elastomer or Stainless Steel Diaphragm

RECOMMENDED

OUTLET

PRESSURE

RANGE,

PSIG/PSI (bar)

PRESSURE REGULATOR BODY SIZE, NPS (DN)

Outlet

Setting,

Psig/Psi

(bar)

Inlet

1-1/2 (40) 2 (50)

Droop Droop

Psig (bar) 10% 20% 40% 10% 20% 40%

5 to 80

(0,35 to 5,5)

5 (0,35)

10

20

30

50

75

100

150

200

250

300

(0,69)

(1,4)

(2,1)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

950 (25,5)

2100 (56,3)

2500 (67,0)

3500 (93,8)

5000 (134)

6500 (174)

8500 (228)

12 000 (322)

15 000 (402)

18 000 (482)

1000 (26,8)

2500 (67,0)

3000 (80,4)

4000 (107)

6000 (161)

8000 (214)

11 000 (295)

14 000 (375)

17 000 (456)

20 000 (536)

1500 (40,2)

4300 (115)

5000 (134)

6000 (161)

8000 (214)

9500 (255)

12 000 (322)

17 000 (456)

19 000 (509)

21 000 (563)

1000 (26,8)

1800 (48,2)

3400 (91,1)

4000 (107)

5500 (147)

9000 (241)

15 000 (402)

16 000 (429)

18 000 (482)

19 000 (509)

1100 (29,5)

2000 (53,6)

4600 (123)

5500 (147)

7000 (188)

12 000 (322)

18 000 (482)

19 000 (509)

20 000 (536)

21 000 (563)

1500 (40,2)

2600 (69,7)

7300 (196)

9000 (241)

11 000 (295)

14 000 (375)

21 000 (563)

21 000 (563)

22 000 (590)

23 000 (616)

30 (2,1)

40

50

75

100

150

200

250

300

(2,8)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

3400 (91,1)

4500 (121)

6000 (161)

8000 (214)

12 000 (322)

20 000 (536)

25 000 (670)

29 000 (777)

6100 (163)

9000 (241)

12 000 (322)

15 000 (402)

21 000 (563)

31 000 (831)

35 000 (938)

38 000 (1018)

10 000 (268)

14 000 (375)

18 000 (482)

23 000 (616)

35 000 (938)

38 000 (1018)

41 000 (1099)

44 000 (1179)

4500 (121)

8000 (214)

15 000 (402)

24 000 (643)

44 000 (1179)

48 000 (1286)

51 000 (1367)

53 000 (1420)

6200 (166)

10 000 (268)

20 000 (536)

30 000 (804)

50 000 (1340)

55 000 (1474)

58 000 (1554)

59 000 (1581)

11 000 (295)

15 000 (402)

25 000 (670)

35 000 (938)

54 000 (1447)

58 000 (1554)

60 000 (1608)

61 000 (1635)

50 (3,4)

60

75

100

150

200

250

300

(4,1)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

6300 (169)

9000 (241)

10 000 (268)

13 000 (348)

21 000 (563)

31 000 (831)

39 000 (1045)

10 000 (268)

14 000 (375)

19 000 (509)

28 000 (750)

36 000 (965)

45 000 (1206)

51 000 (1367)

20 000 (536)

32 000 (858)

45 000 (1206)

61 000 (1635)

64 000 (1715)

66 000 (1769)

67 000 (1796)

6500 (174)

12 000 (322)

20 000 (536)

30 000 (804)

43 000 (1152)

55 000 (1474)

65 000 (1742)

11 000 (295)

20 000 (536)

40 000 (1072)

68 000 (1822)

75 000 (2010)

80 000 (2144)

84 000 (2251)

21 000 (563)

35 000 (938)

55 000 (1474)

75 000 (2010)

83 000 (2224)

86 000 (2305)

89 000 (2385)

75 (5,2)

100

125

150

200

250

300

(6,9)

(8,6)

(10,3)

(13,8)

(17,2)

(20,7)

14 000 (375)

17 000 (456)

20 000 (536)

23 000 (616)

33 000 (884)

43 000 (1152)

22 000 (590)

30 000 (804)

39 000 (1045)

49 000 (1313)

57 000 (1528)

65 000 (1742)

42 000 (1126)

55 000 (1474)

71 000 (1903)

81 000 (2171)

85 000 (2278)

88 000 (2358)

15 000 (402)

20 000 (536)

26 000 (697)

50 000 (1340)

70 000 (1876)

90 000 (2412)

28 000 (750)

45 000 (1206)

69 000 (1849)

90 000 (2412)

110 000 (2948)

120 000 (3216)

50 000 (1340)

65 000 (1742)

76 000 (2037)

96 000 (2573)

110 000 (2948)

120 000 (3216)

60 to 120

(4,1 to 8,3) 100 (6,9)

125

150

175

225

250

300

(8,6)

(10,3)

(12,1)

(15,5)

(17,2)

(20,7)

11 000 (295)

22 000 (590)

25 000 (670)

28 000 (750)

33 000 (884)

40 000 (1072)

29 000 (777)

37 000 (992)

47 000 (1260)

62 000 (1662)

70 000 (1876)

88 000 (2358)

50 000 (1340)

64 000 (1715)

75 000 (2010)

95 000 (2546)

110 000 (2948)

120 000 (3216)

12 000 (322)

25 000 (670)

33 000 (884)

28 000 (750)

45 000 (1206)

55 000 (1474)

30 000 (804)

45 000 (1206)

52 000 (1394)

62 000 (1662)

70 000 (1876)

80 000 (2144)

54 000 (1447)

71 000 (1903)

90 000 (2412)

95 000 (2546)

130 000 (3484)

150 000 (4020)

100 to 140

(6,9 to 9,7) 125 (8,6)

150

175

200

225

250

300

(10,3)

(12,1)

(13,8)

(15,5)

(17,2)

(20,7)

21 000 (563)

25 000 (670)

28 000 (750)

30 000 (804)

35 000 (938)

42 000 (1126)

40 000 (1072)

47 000 (1260)

54 000 (1447)

60 000 (1608)

70 000 (1876)

85 000 (2278)

64 000 (1715)

74 000 (1983)

90 000 (2412)

100 000 (2680)

110 000 (2948)

130 000 (3484)

22 000 (590)

32 000 (858)

39 000 (1045)

46 000 (1233)

56 000 (1501)

86 000 (2305)

40 000 (1072)

50 000 (1340)

70 000 (1876)

100 000 (2680)

120 000 (3216)

150 000 (4020)

65 000 (1742)

75 000 (2010)

90 000 (2412)

110 000 (2948)

130 000 (3484)

150 000 (4020)

120 to 150

(8,3 to 10,3) 150 (10,3)

175

200

225

250

300

(12,1)

(13,8)

(15,5)

(17,2)

(20,7)

19 000 (509)

23 000 (616)

29 000 (777)

35 000 (938)

45 000 (1206)

32 000 (858)

44 000 (1179)

61 000 (1635)

70 000 (1876)

90 000 (2412)

54 000 (1447)

79 000 (2117)

100 000 (2680)

120 000 (3216)

150 000 (4020)

20 000 (536)

24 000 (643)

29 000 (777)

49 000 (1313)

86 000 (2305)

33 000 (884)

45 000 (1206)

61 000 (1635)

96 000 (2573)

140 000 (3752)

55 000 (1474)

80 000 (2144)

100 000 (2680)

120 000 (3216)

150 000 (4020)

Bulletin 71.1:95

17

Table 11. Air SCFH (Nm3/h) Capacities for NPS 1/4 through 1/2 (DN 15) Type 95HP Regulators with Elastomer Diaphragms(1)

- continued -

RECOMMENDED

OUTLET

PRESSURE

RANGE,

PSIG (bar)

PRESSURE REGULATOR BODY SIZE, NPS (DN)

Outlet

Setting,

Psig (bar)

Inlet

1/4 1/2 (15)

Droop Droop

Psig (bar) 10% 20% 40% 10% 20% 40%

15 to 100

(1,0 to 6,9)

15 (1,0)

30

40

50

75

100

150

200

250

300

400

500

600

(2,1)

(2,8)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

300 (8,0)

350 (9,4)

380 (10,2)

530 (14,2)

800 (21,4)

1100 (29,5)

1200 (32,2)

1500 (40,2)

1700 (45,6)

1800 (48,2)

1900 (50,9)

2100 (56,3)

550 (14,7)

580 (15,5)

600 (16,1)

750 (20,1)

1200 (32,2)

1600 (42,9)

1700 (45,6)

2100 (56,3)

2300 (61,6)

2300 (61,6)

2400 (64,3)

2600 (69,7)

850 (22,8)

1000 (26,8)

1200 (32,2)

1300 (34,8)

2000 (53,6)

2400 (64,3)

2800 (75,0)

2900 (77,7)

2900 (77,7)

2900 (77,7)

3000 (80,4)

3200 (85,8)

600 (16,1)

620 (16,6)

700 (18,8)

900 (24,1)

1100 (29,5)

1700 (45,6)

2100 (56,3)

2400 (64,3)

2700 (72,4)

3300 (88,4)

3900 (105)

4500 (121)

850 (22,8)

900 (24,1)

1200 (32,2)

1500 (40,2)

1700 (45,6)

2300 (61,6)

2800 (75,0)

3000 (80,4)

3300 (88,4)

3800 (102)

4200 (113)

4800 (129)

1400 (37,5)

1500 (40,2)

1700 (45,6)

1800 (48,2)

2600 (69,7)

3100 (83,1)

3500 (93,8)

3800 (102)

4000 (107)

4300 (115)

4500 (121)

4900 (131)

30 (2,1)

40

50

75

100

150

200

250

300

400

500

600

(2,8)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

430 (11,5)

500 (13,4)

700 (18,8)

800 (21,4)

1400 (37,5)

2000 (53,6)

2200 (59,0)

2400 (64,3)

2800 (75,0)

2800 (75,0)

2800 (75,0)

750 (20,1)

900 (24,1)

1200 (32,2)

1700 (45,6)

2500 (67,0)

3000 (80,4)

3300 (88,4)

3500 (93,8)

3900 (105)

3900 (105)

3900 (105)

1100 (29,5)

1600 (42,9)

2100 (56,3)

2900 (77,7)

3800 (102)

4200 (113)

4300 (115)

4300 (115)

4300 (115)

4300 (115)

4300 (115)

900 (24,1)

1200 (32,2)

1300 (34,8)

1800 (48,2)

2100 (56,3)

2600 (69,7)

3000 (80,4)

3500 (93,8)

4100 (110)

4800 (129)

5300 (142)

1500 (40,2)

1600 (42,9)

2100 (56,3)

2600 (69,7)

3200 (85,8)

3800 (102)

4000 (107)

4700 (126)

5200 (139)

5900 (158)

6200 (166)

1900 (50,9)

2000 (53,6)

3600 (96,5)

4100 (110)

4800 (129)

5100 (137)

5600 (150)

5900 (158)

6300 (169)

6400 (172)

7100 (190)

50 (3,4)

60

75

100

150

200

250

300

400

500

600

(4,1)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

700 (18,8)

730 (19,6)

1400 (37,5)

2200 (59,0)

3000 (80,4)

3500 (93,8)

3500 (93,8)

4000 (107)

4400 (118)

5000 (134)

1300 (34,8)

1500 (40,2)

2500 (67,0)

3600 (96,5)

4600 (123)

4700 (126)

5500 (147)

5700 (153)

5700 (153)

5700 (153)

1900 (50,9)

2500 (67,0)

3200 (85,8)

4700 (126)

5500 (147)

5800 (155)

6200 (166)

6200 (166)

6200 (166)

6200 (166)

1500 (40,2)

1700 (45,6)

2300 (61,6)

2800 (75,0)

3500 (93,8)

3800 (102)

4400 (118)

5200 (139)

5700 (153)

6000 (161)

2500 (67,0)

3100 (83,1)

3800 (102)

4800 (129)

5700 (153)

6000 (161)

6400 (172)

7000 (188)

7400 (198)

8200 (220)

4000 (107)

5000 (134)

6000 (161)

6800 (182)

7800 (209)

8100 (217)

8800 (236)

9300 (249)

9600 (257)

10 000 (268)

100 (6,9)

125

150

175

200

250

300

400

500

600

(8,6)

(10,3)

(12,1)

(13,8)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

2000 (53,6)

3100 (83,1)

3600 (96,5)

4500 (121)

5000 (134)

6100 (163)

7000 (188)

7800 (209)

7800 (209)

3200 (85,8)

4100 (110)

5100 (137)

5700 (153)

6700 (180)

8300 (222)

10 000 (268)

11 000 (295)

12 000 (322)

3900 (105)

4700 (126)

5500 (147)

6200 (166)

7800 (209)

9000 (241)

11 000 (295)

12 000 (322)

12 000 (322)

4100 (110)

5000 (134)

5700 (153)

5700 (153)

6500 (174)

7200 (193)

7800 (209)

8700 (233)

9000 (241)

6700 (180)

8000 (214)

8800 (236)

9300 (249)

10 000 (268)

11 000 (295)

12 000 (322)

13 000 (348)

14 000 (375)

9000 (241)

11 000 (295)

13 000 (348)

14 000 (375)

15 000 (402)

16 000 (429)

17 000 (456)

17 000 (456)

18 000 (482)

80 to 300

(5,5 to 20,7)

125 (8,6)

150

175

200

225

250

300

400

500

600

(10,3)

(12,1)

(13,8)

(15,5)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

2100 (56,3)

2200 (59,0)

2800 (75,0)

3100 (83,1)

3300 (88,4)

3700 (99,2)

5200 (139)

6300 (169)

7000 (188)

2800 (75,0)

3200 (85,8)

4000 (107)

4300 (115)

4900 (131)

5700 (153)

7500 (201)

9500 (255)

11 000 (295)

4100 (110)

4700 (126)

5600 (150)

6100 (163)

6600 (177)

7900 (212)

11 000 (295)

13 000 (348)

16 000 (429)

3000 (80,4)

3500 (93,8)

4000 (107)

4000 (107)

4400 (118)

5200 (139)

6500 (174)

7900 (212)

9300 (249)

5200 (139)

6000 (161)

6500 (174)

6700 (180)

7000 (188)

8200 (220)

10 000 (268)

12 000 (322)

14 000 (375)

8600 (230)

9500 (255)

11 000 (295)

11 000 (295)

12 000 (322)

14 000 (375)

15 000 (402)

18 000 (482)

21 000 (563)

200 (13,8)

225

250

300

350

400

450

500

600

(15,5)

(17,2)

(20,7)

(24,1)

(27,6)

(31,0)

(34,5)

(41,4)

3200 (85,8)

3800 (102)

4200 (113)

4800 (129)

5700 (153)

6300 (169)

6700 (180)

7200 (193)

4500 (121)

5400 (145)

6600 (177)

7500 (201)

8500 (228)

9700 (260)

11 000 (295)

13 000 (348)

6400 (172)

7200 (193)

8700 (233)

10 000 (268)

12 000 (322)

13 000 (348)

15 000 (402)

18 000 (482)

5500 (147)

5600 (150)

6500 (174)

7500 (201)

8800 (236)

9600 (257)

11 000 (295)

11 000 (295)

9300 (249)

10 000 (268)

11 000 (295)

13 000 (348)

14 000 (375)

15 000 (402)

17 000 (456)

19 000 (509)

15 000 (402)

17 000 (456)

19 000 (509)

20 000 (536)

22 000 (590)

24 000 (643)

26 000 (697)

30 000 (804)

1. To obtain capacities for Type 95HT (metal diaphragm), multiply the table values by 0.6.

Bulletin 71.1:95

18

Table 11. Air SCFH (Nm3/h) Capacities for NPS 1/4 through 1/2 (DN 15) Type 95HP Regulators with Elastomer

Diaphragms(1) (continued)

Table 11. Air SCFH (Nm3/h) Capacities for NPS 3/4 through 1 (DN 20 through 25) Type 95HP Regulators with Elastomer

Diaphragms(1) (continued)

- continued -

RECOMMENDED

OUTLET

PRESSURE

RANGE,

PSIG (bar)

PRESSURE REGULATOR BODY SIZE, NPS (DN)

Outlet

Setting,

Psig (bar)

Inlet

1/4 1/2 (15)

Droop Droop

Psig (bar) 10% 20% 40% 10% 20% 40%

80 to 300

(5,5 to 20,7)

250 (17,2)

275

300

350

400

450

500

550

600

(19,0)

(20,7)

(24,1)

(27,6)

(31,0)

(34,5)

(37,9)

(41,4)

4100 (110)

4200 (113)

5000 (134)

5200 (139)

5800 (155)

6300 (169)

6700 (180)

7200 (193)

5800 (155)

6600 (177)

7500 (201)

8600 (230)

9700 (260)

11 000 (295)

12 000 (322)

13 000 (348)

7700 (206)

8400 (225)

10 000 (268)

12 000 (322)

13 000 (348)

15 000 (402)

16 000 (429)

18 000 (482)

7600 (204)

7200 (193)

8000 (214)

9200 (247)

9700 (260)

10 000 (268)

11 000 (295)

12 000 (322)

12 000 (322)

13 000 (348)

14 000 (375)

16 000 (429)

17 000 (456)

18 000 (482)

20 000 (536)

20 000 (536)

19 000 (509)

20 000 (536)

23 000 (616)

26 000 (697)

28 000 (750)

31 000 (831)

34 000 (911)

36 000 (965)

300 (20,7)

350

400

450

500

550

600

(24,1)

(27,6)

(31,0)

(34,5)

(37,9)

(41,4)

5200 (139)

5600 (150)

6000 (161)

6400 (172)

6800 (182)

7200 (193)

7700 (206)

8800 (236)

9900 (265)

11 000 (295)

12 000 (322)

13 000 (348)

10 000 (268)

12 000 (322)

13 000 (348)

15 000 (402)

17 000 (456)

18 000 (482)

9000 (241)

9500 (255)

10 000 (268)

11 000 (295)

11 000 (295)

12 000 (322)

16 000 (429)

17 000 (456)

18 000 (482)

19 000 (509)

20 000 (536)

21 000 (563)

24 000 (643)

28 000 (750)

31 000 (831)

34 000 (911)

37 000 (992)

41 000 (1099)

80 to 400

(5,5 to 27,6)

Type 95HP Only

400 (27,6) 500

600

(34,5)

(41,4)

7000 (188)

7200 (193)

13 000 (348)

14 000 (375)

17 000 (456)

19 000 (509)

11 000 (295)

12 000 (322)

20 000 (536)

21 000 (563)

38 000 (1018)

42 000 (1126)

1. To obtain capacities for Type 95HT (metal diaphragm), multiply the table values by 0.6.

RECOMMENDED

OUTLET

PRESSURE

RANGE,

PSIG (bar)

PRESSURE REGULATOR BODY SIZE, NPS (DN)

Outlet

Setting,

Psig (bar)

Inlet 3/4 (20) 1 (25)

Droop Droop

Psig (bar) 10% 20% 40% 10% 20% 40%

15 to 100

(1,0 to 6,9)

15 (1,0)

30

40

50

75

100

150

200

250

300

400

500

600

(2,1)

(2,8)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

1300 (34,8)

1300 (34,8)

1500 (40,2)

2400 (64,3)

3100 (83,1)

4000 (107)

4500 (121)

5500 (147)

6500 (174)

8200 (220)

10 000 (268)

12 000 (322)

1800 (48,2)

2100 (56,3)

2400 (64,3)

3200 (85,8)

4300 (115)

5000 (134)

6200 (166)

7000 (188)

8000 (214)

9500 (255)

11 000 (295)

13 000 (348)

2900 (77,7)

2900 (77,7)

3400 (91,1)

4600 (123)

6000 (161)

7600 (204)

8300 (222)

9200 (247)

10 000 (268)

12 000 (322)

13 000 (348)

15 000 (402)

1200 (32,2)

1300 (34,8)

1900 (50,9)

2600 (69,7)

3000 (80,4)

4500 (121)

5500 (147)

6500 (174)

7500 (201)

9000 (241)

11 000 (295)

12 000 (322)

1600 (42,9)

2000 (53,6)

2700 (72,4)

3800 (102)

4700 (126)

6400 (172)

7500 (201)

9000 (241)

10 000 (268)

12 000 (322)

14 000 (375)

16 000 (429)

2500 (67,0)

3000 (80,4)

3800 (102)

5400 (145)

7000 (188)

9600 (257)

13 000 (348)

13 000 (348)

14 000 (375)

17 000 (456)

20 000 (536)

22 000 (590)

30 (2,1)

40

50

75

100

150

200

250

300

400

500

600

(2,8)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

1700 (45,6)

2200 (59,0)

3000 (80,4)

4100 (110)

5000 (134)

6000 (161)

7400 (198)

8500 (228)

11 000 (295)

13 000 (348)

15 000 (402)

2800 (75,0)

3500 (93,8)

4500 (121)

6100 (163)

7200 (193)

9000 (241)

10 000 (268)

12 000 (322)

14 000 (375)

15 000 (402)

17 000 (456)

4600 (123)

5700 (153)

7200 (193)

9500 (255)

12 000 (322)

14 000 (375)

14 000 (375)

16 000 (429)

18 000 (482)

21 000 (563)

22 000 (590)

1900 (50,9)

2300 (61,6)

3300 (88,4)

4000 (107)

6400 (172)

6500 (174)

8000 (214)

9000 (241)

12 000 (322)

15 000 (402)

17 000 (456)

2900 (77,7)

3300 (88,4)

4800 (129)

6000 (161)

9500 (255)

11 000 (295)

14 000 (375)

15 000 (402)

18 000 (482)

22 000 (590)

24 000 (643)

4700 (126)

5800 (155)

8400 (225)

11 000 (295)

15 000 (402)

18 000 (482)

20 000 (536)

22 000 (590)

25 000 (670)

30 000 (804)

32 000 (858)

1. To obtain capacities for Type 95HT (metal diaphragm), multiply the table values by 0.6.

Bulletin 71.1:95

19

Table 11. Air SCFH (Nm3/h) Capacities for NPS 3/4 through 1 (DN 20 through 25) Type 95HP Regulators with Elastomer

Diaphragms(1) (continued)

RECOMMENDED

OUTLET

PRESSURE

RANGE,

PSIG (bar)

PRESSURE REGULATOR BODY SIZE, NPS (DN)

Outlet

Setting,

Psig (bar)

Inlet 3/4 (20) 1 (25)

Droop Droop

Psig (bar) 10% 20% 40% 10% 20% 40%

15 to 100

(1,0 to 6,9)

50 (3,4)

60

75

100

150

200

250

300

400

500

600

(4,1)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

2800 (75,0)

3800 (102)

5000 (134)

7500 (201)

8000 (214)

10 000 (268)

11 000 (295)

14 000 (375)

16 000 (429)

19 000 (509)

5000 (134)

6200 (166)

8500 (228)

12 000 (322)

13 000 (348)

15 000 (402)

16 000 (429)

19 000 (509)

20 000 (536)

24 000 (643)

8000 (214)

10 000 (268)

14 000 (375)

18 000 (482)

21 000 (563)

22 000 (590)

24 000 (643)

26 000 (697)

27 000 (724)

31 000 (831)

3000 (80,4)

4000 (107)

5400 (145)

9000 (241)

10 000 (268)

13 000 (348)

15 000 (402)

16 000 (429)

18 000 (482)

20 000 (536)

5000 (134)

6400 (172)

9300 (249)

14 000 (375)

16 000 (429)

21 000 (563)

23 000 (616)

26 000 (697)

30 000 (804)

33 000 (884)

8500 (228)

11 000 (295)

15 000 (402)

22 000 (590)

26 000 (697)

32 000 (858)

34 000 (911)

38 000 (1018)

42 000 (1126)

47 000 (1260)

100 (6,9)

125

150

175

200

250

300

400

500

600

(8,6)

(10,3)

(12,1)

(13,8)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

8500 (228)

11 000 (295)

12 000 (322)

13 000 (348)

16 000 (429)

18 000 (482)

22 000 (590)

25 000 (670)

29 000 (777)

14 000 (375)

18 000 (482)

20 000 (536)

22 000 (590)

26 000 (697)

29 000 (777)

32 000 (858)

36 000 (965)

39 000 (1045)

18 000 (482)

22 000 (590)

26 000 (697)

30 000 (804)

37 000 (992)

42 000 (1126)

46 000 (1233)

53 000 (1420)

55 000 (1474)

8800 (236)

11 000 (295)

14 000 (375)

16 000 (429)

20 000 (536)

21 000 (563)

28 000 (750)

36 000 (965)

43 000 (1152)

15 000 (402)

19 000 (509)

23 000 (616)

26 000 (697)

33 000 (884)

35 000 (938)

45 000 (1206)

56 000 (1501)

66 000 (1769)

18 000 (482)

23 000 (616)

26 000 (697)

31 000 (831)

39 000 (1045)

46 000 (1233)

62 000 (1662)

78 000 (2090)

95 000 (2546)

80 to 300

(5,5 to 20,7)

125 (8,6)

150

175

200

225

250

300

400

500

600

(10,3)

(12,1)

(13,8)

(15,5)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

7000 (188)

7000 (188)

9500 (255)

10 000 (268)

12 000 (322)

13 000 (348)

16 000 (429)

18 000 (482)

20 000 (536)

11 000 (295)

13 000 (348)

15 000 (402)

16 000 (429)

19 000 (509)

20 000 (536)

25 000 (670)

30 000 (804)

34 000 (911)

19 000 (509)

21 000 (563)

24 000 (643)

27 000 (724)

29 000 (777)

33 000 (884)

39 000 (1045)

46 000 (1233)

52 000 (1394)

7800 (209)

7500 (201)

8500 (228)

9500 (255)

10 000 (268)

12 000 (322)

17 000 (456)

21 000 (563)

26 000 (697)

13 000 (348)

13 000 (348)

15 000 (402)

16 000 (429)

18 000 (482)

23 000 (616)

29 000 (777)

36 000 (965)

43 600 (1168)

20 000 (536)

23 000 (616)

25 000 (670)

29 000 (777)

32 000 (858)

38 000 (1018)

48 000 (1286)

59 000 (1581)

69 000 (1849)

200 (13,8)

225

250

300

350

400

450

500

600

(15,5)

(17,2)

(20,7)

(24,1)

(27,6)

(31,0)

(34,5)

(41,4)

11 000 (295)

14 000 (375)

17 000 (456)

21 000 (563)

21 000 (563)

25 000 (670)

27 000 (724)

30 000 (804)

20 000 (536)

24 000 (643)

28 000 (750)

34 000 (911)

35 000 (938)

41 000 (1099)

45 000 (1206)

50 000 (1340)

30 000 (804)

35 000 (938)

42 000 (1126)

49 000 (1313)

55 000 (1474)

62 000 (1662)

68 000 (1822)

75 000 (2010)

12 000 (322)

14 000 (375)

18 000 (482)

20 000 (536)

22 000 (590)

25 000 (670)

27 000 (724)

30 000 (804)

21 000 (563)

23 000 (616)

31 000 (831)

37 000 (992)

40 000 (1072)

46 000 (1233)

51 000 (1367)

59 000 (1581)

31 000 (831)

35 000 (938)

44 000 (1179)

55 000 (1474)

59 000 (1581)

69 000 (1849)

76 000 (2037)

90 000 (2412)

250 (17,2)

275

300

350

400

450

500

550

600

(19,0)

(20,7)

(24,1)

(27,6)

(31,0)

(34,5)

(37,9)

(41,4)

15 000 (402)

18 000 (482)

22 000 (590)

22 000 (590)

25 000 (670)

26 000 (697)

27 000 (724)

31 000 (831)

25 000 (670)

30 000 (804)

36 000 (965)

37 000 (992)

42 000 (1126)

44 000 (1179)

45 000 (1206)

52 000 (1394)

36 000 (965)

41 000 (1099)

50 000 (1340)

55 000 (1474)

61 000 (1635)

65 000 (1742)

74 000 (1983)

80 000 (2144)

16 000 (429)

17 000 (456)

24 000 (643)

24 000 (643)

28 000 (750)

31 000 (831)

34 000 (911)

38 000 (1018)

27 000 (724)

31 000 (831)

39 000 (1045)

43 000 (1152)

50 000 (1340)

56 000 (1501)

62 000 (1662)

68 000 (1822)

38 000 (1018)

42 000 (1126)

51 000 (1367)

59 000 (1581)

68 000 (1822)

76 000 (2037)

85 000 (2278)

93 000 (2492)

300 (20,7)

350

400

450

500

550

600

(24,1)

(27,6)

(31,0)

(34,5)

(37,9)

(41,4)

21 000 (563)

24 000 (643)

27 000 (724)

30 000 (804)

33 000 (884)

36 000 (965)

37 000 (992)

41 000 (1099)

46 000 (1233)

50 000 (1340)

55 000 (1474)

59 000 (1581)

48 000 (1286)

57 000 (1528)

67 000 (1796)

76 000 (2037)

86 000 (2305)

95 000 (2546)

22 000 (590)

26 000 (697)

31 000 (831)

35 000 (938)

40 000 (1072)

44 000 (1179)

38 000 (1018)

47 000 (1260)

55 000 (1474)

64 000 (1715)

72 000 (1930)

81 000 (2171)

49 000 (1313)

58 000 (1554)

69 000 (1849)

79 000 (2117)

90 000 (2412)

100 000 (2680)

80 to 400

(5,5 to 27,6)

Type 95HP Only

400 (27,6) 500

600

(34,5)

(41,4)

35 000 (938)

40 000 (1072)

60 000 (1608)

65 000 (1742)

90 000 (2412)

100 000 (2680)

42 000 (1126)

50 000 (1340)

80 000 (2144)

85 000 (2278)

95 000 (2546)

110 000 (2948)

1. To obtain capacities for Type 95HT (metal diaphragm), multiply the table values by 0.6.

Bulletin 71.1:95

20

Table 12. Air SCFH (Nm3/h) Capacities for NPS 1-1/2 through 2 (DN 40 through 50) Types 95HT (Metal Diaphragm) and 95HP

(Elastomer Diaphragm) Regulators

- continued -

RECOMMENDED

OUTLET

PRESSURE

RANGE,

PSIG (bar)

PRESSURE REGULATOR BODY SIZE, NPS (DN)

Outlet

Setting,

Psig (bar)

Inlet 1-1/2 (40) 2 (50)

Droop Droop

Psig (bar) 10% 20% 40% 10% 20% 40%

15 to 100

(1,0 to 6,9)

15 (1,0)

30

40

50

75

100

150

200

250

300

400

500

600

(2,1)

(2,8)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

1800 (48,2)

3800 (102)

4500 (121)

5800 (155)

7000 (188)

10 000 (268)

14 000 (375)

18 000 (482)

21 000 (563)

25 000 (670)

28 000 (750)

30 000 (804)

2800 (75,0)

5000 (134)

6000 (161)

8000 (214)

9500 (255)

13 000 (348)

18 000 (482)

22 000 (590)

25 000 (670)

28 000 (750)

30 000 (804)

32 000 (858)

3800 (102)

7000 (188)

8000 (214)

11 000 (295)

14 000 (375)

19 000 (509)

24 000 (643)

27 000 (724)

29 000 (777)

31 000 (831)

33 000 (884)

35 000 (938)

2000 (53,6)

4000 (107)

5000 (134)

8000 (214)

10 000 (268)

20 000 (536)

31 000 (831)

31 000 (831)

31 000 (831)

32 000 (858)(1)

33 000 (884)(1)

34 000 (911)(1)

3000 (80,4)

6000 (161)

8000 (214)

12 000 (322)

16 000 (429)

25 000 (670)

33 000 (884)

33 000 (884)

33 000 (884)

34 000 (911)(1)

35 000 (938)(1)

36 000 (965)(1)

4000 (107)

8000 (214)

12 000 (322)

20 000 (536)

26 000 (697)

32 000 (858)

36 000 (965)

37 000 (992)

37 000 (992)

38 000 (1018)(1)

39 000 (1045)(1)

39 000 (1045)(1)

30 (2,1)

40

50

75

100

150

200

250

300

400

500

600

(2,8)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

4500 (121)

5500 (147)

6500 (174)

8000 (214)

12 000 (322)

17 000 (456)

23 000 (616)

28 000 (750)

34 000 (911)

37 000 (992)

39 000 (1045)

6300 (169)

7500 (201)

9500 (255)

12 000 (322)

19 000 (509)

28 000 (750)

35 000 (938)

39 000 (1045)

41 000 (1099)

42 000 (1126)

43 000 (1152)

11 000 (295)

13 000 (348)

17 000 (456)

23 000 (616)

30 000 (804)

36 000 (965)

40 000 (1072)

44 000 (1179)

48 000 (1286)

50 000 (1340)

52 000 (1394)

4500 (121)

5500 (147)

7500 (201)

12 000 (322)

35 000 (938)

49 000 (1313)

53 000 (1420)

55 000 (1474)

56 000 (1501)(1)

57 000 (1528)(1)

58 000 (1554)(1)

7000 (188)

9000 (241)

14 000 (375)

23 000 (616)

43 000 (1152)

52 000 (1394)

56 000 (1501)

58 000 (1554)

60 000 (1608)(1)

61 000 (1635)(1)

62 000 (1662)(1)

13 000 (348)

15 000 (402)

25 000 (670)

39 000 (1045)

49 000 (1313)

56 000 (1501)

60 000 (1608)

61 000 (1635)

63 000 (1688)(1)

64 000 (1715)(1)

65 000 (1742)(1)

50 (3,4)

60

75

100

150

200

250

300

400

500

600

(4,1)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

6500 (174)

8500 (228)

12 000 (322)

18 000 (482)

24 000 (643)

30 000 (804)

36 000 (965)

46 000 (1233)

54 000 (1447)

60 000 (1608)

11 000 (295)

13 000 (348)

18 000 (482)

28 000 (750)

37 000 (992)

45 000 (1206)

50 000 (1340)

57 000 (1528)

62 000 (1662)

67 000 (1796)

21 000 (563)

27 000 (724)

35 000 (938)

48 000 (1286)

58 000 (1554)

62 000 (1662)

65 000 (1742)

66 000 (1769)

69 000 (1849)

72 000 (1930)

8000 (214)

17 000 (456)

30 000 (804)

50 000 (1340)

63 000 (1688)

72 000 (1930)

78 000 (2090)

84 000 (2251)(1)

88 000 (2358)(1)

92 000 (2466)(1)

13 000 (348)

22 000 (590)

36 000 (965)

56 000 (1501)

73 000 (1956)

80 000 (2144)

85 000 (2278)

89 000 (2385)(1)

92 000 (2466)(1)

95 000 (2546)(1)

27 000 (724)

40 000 (1072)

50 000 (1340)

70 000 (1876)

81 000 (2171)

88 000 (2358)

91 000 (2439)

94 000 (2519)(1)

97 000 (2600)(1)

100 000 (2680)(1)

100 (6,9)

125

150

200

250

300

400

500

600

(8,6)

(10,3)

(13,8)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

20 000 (536)

23 000 (616)

30 000 (804)

38 000 (1018)

48 000 (1286)

65 000 (1742)

75 000 (2010)

82 000 (2198)

32 000 (858)

38 000 (1018)

55 000 (1474)

65 000 (1742)

75 000 (2010)

85 000 (2278)

95 000 (2546)

103 000 (2760)

60 000 (1608)

72 000 (1930)

92 000 (2466)

96 000 (2573)

98 000 (2626)

100 000 (2680)

102 000 (2734)

105 000 (2814)

40 000 (1072)

50 000 (1340)

82 000 (2198)

98 000 (2626)

107 000 (2868)

117 000 (3136)(1)

127 000 (3404)(1)

133 000 (3564)(1)

45 000 (1206)

63 000 (1688)

97 000 (2600)

110 000 (2948)

117 000 (3136)

125 000 (3350)(1)

130 000 (3484)(1)

135 000 (3618)(1)

70 000 (1876)

86 000 (2305)

107 000 (2868)

121 000 (3243)

127 000 (3404)

133 000 (3564)(1)

135 000 (3618)(1)

138 000 (3698)(1)

60 to 260

(4,1 to 17,9)

125 (8,6)

150

175

200

225

250

300

400

500

600

(10,3)

(12,1)

(13,8)

(15,5)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

16 000 (429)

18 000 (482)

20 000 (536)

22 000 (590)

30 000 (804)

36 000 (965)

42 000 (1126)

48 000 (1286)

52 000 (1394)

26 000 (697)

30 000 (804)

33 000 (884)

38 000 (1018)

42 000 (1126)

52 000 (1394)

72 000 (1930)

85 000 (2278)

95 000 (2546)

49 000 (1313)

55 000 (1474)

63 000 (1688)

72 000 (1930)

80 000 (2144)

95 000 (2546)

120 000 (3216)

130 000 (3484)

140 000 (3752)

17 000 (456)

18 000 (482)

20 000 (536)

22 000 (590)

32 000 (858)

50 000 (1340)

96 000 (2573)

110 000 (2948)

125 000 (3350)

26 000 (697)

30 000 (804)

34 000 (911)

40 000 (1072)

50 000 (1340)

75 000 (2010)

136 000 (3645)

160 000 (4288)

170 000 (4556)

59 000 (1581)

70 000 (1876)

80 000 (2144)

96 000 (2573)

111 000 (2975)

135 000 (3618)

166 000 (4449)

185 000 (4958)

195 000 (5226)

200 (13,8)

225

250

300

350

(15,5)

(17,2)

(20,7)

(24,1)

27 000 (724)

29 000 (777)

40 000 (1072)

46 000 (1233)

51 000 (1367)

54 000 (1447)

72 000 (1930)

82 000 (2198)

92 000 (2466)

99 000 (2653)

128 000 (3430)

140 000 (3752)

28 000 (750)

30 000 (804)

42 000 (1126)

54 000 (1447)

52 000 (1394)

55 000 (1474)

80 000 (2144)

97 000 (2600)

106 000 (2841)

100 000 (2680)

142 000 (3806)

160 000 (4288)

1. Capacities limited due to boost.

Bulletin 71.1:95

21

Table 12. Air SCFH (Nm3/h) Capacities for NPS 1-1/2 through 2 (DN 40 through 50) Types 95HT (Metal Diaphragm) and 95HP

(Elastomer Diaphragm) Regulators (continued)

Table 13. Steam Capacities(1) for NPS 1/4 through 1 (DN 25) Types 95L and 95LD Regulators with Stainless Steel Diaphragm

- continued -

RECOMMENDED

OUTLET

PRESSURE

RANGE,

PSIG (bar)

PRESSURE REGULATOR BODY SIZE, NPS (DN)

Outlet

Setting,

Psig (bar)

Inlet 1-1/2 (40) 2 (50)

Droop Droop

Psig (bar) 10% 20% 40% 10% 20% 40%

60 to 260

(4,1 to 17,9)

200 (13,8)

400

450

500

600

(27,6)

(31,0)

(34,5)

(41,4)

54 000 (1447)

62 000 (1662)

72 000 (1930)

90 000 (2412)

100 000 (2680)

110 000 (2948)

120 000 (3216)

130 000 (3484)

165 000 (4422)

180 000 (4824)

190 000 (5092)

200 000 (5360)

76 000 (2037)

80 000 (2144)

100 000 (2680)

125 000 (3350)

166 000 (4449)

160 000 (4288)

170 000 (4556)

180 000 (4824)

196 000 (5253)

200 000 (5360)

215 000 (5762)

230 000 (6164)

250 (17,2)

275

300

350

400

450

500

550

600

(19,0)

(20,7)

(24,1)

(27,6)

(31,0)

(34,5)

(37,9)

(41,4)

30 000 (804)

45 000 (1206)

56 000 (1501)

64 000 (1715)

71 000 (1903)

74 000 (1983)

81 000 (2171)

84 000 (2251)

60 000 (1608)

80 000 (2144)

102 000 (2734)

110 000 (2948)

120 000 (3216)

129 000 (3457)

138 000 (3698)

145 000 (3886)

102 000 (2734)

130 000 (3484)

154 000 (4127)

169 000 (4529)

180 000 (4824)

190 000 (5092)

198 000 (5306)

205 000 (5494)

30 000 (804)

40 000 (1072)

57 000 (1528)

74 000 (1983)

84 000 (2251)

93 000 (2492)

102 000 (2734)

110 000 (2948)

60 000 (1608)

80 000 (2144)

108 000 (2894)

140 000 (3752)

155 000 (4154)

168 000 (4502)

175 000 (4690)

182 000 (4878)

103 000 (2760)

125 000 (3350)

168 000 (4502)

194 000 (5199)

215 000 (5762)

225 000 (6030)

235 000 (6298)

245 000 (6566)

60 to 300

(4,1 to 20,7)

Type 95HP Only

300 (20,7)

350

400

450

500

550

600

(24,1)

(27,6)

(31,0)

(34,5)

(37,9)

(41,4)

53 000 (1420)

64 000 (1715)

80 000 (2144)

95 000 (2546)

104 000 (2787)

112 000 (3002)

94 000 (2519)

115 000 (3082)

130 000 (3484)

145 000 (3886)

158 000 (4234)

168 000 (4502)

150 000 (4020)

180 000 (4824)

200 000 (5360)

220 000 (5896)

235 000 (6298)

250 000 (6700)

54 000 (1447)

70 000 (1876)

90 000 (2412)

110 000 (2948)

128 000 (3430)

136 000 (3645)

97 000 (2600)

128 000 (3430)

145 000 (3886)

163 000 (4368)

181 000 (4851)

199 000 (5333)

151 000 (4047)

192 000 (5146)

220 000 (5896)

240 000 (6432)

260 000 (6968)

280 000 (7504)

1. Capacities limited due to boost.

RECOMMENDED

OUTLET

PRESSURE

RANGE,

PSIG/PSI (bar)

PRESSURE REGULATOR BODY SIZE, NPS (DN)

Outlet

Setting,

Psig/Psi

(bar)

Inlet 1/4 1/2 (15) 3/4 (20) 1 (25)

Droop Droop Droop Droop

Psig (bar) 10% 20% 10% 20% 10% 20% 10% 20%

2 to 6

(0,14 to 0,41)

2 (0,14)

10

20

30

50

75

100

150

200

250

(0,69)

(1,4)

(2,1)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

6.0 (2,7)

8.0 (3,6)

10 (4,5)

10 (4,5)

10 (4,5)

10 (4,5)

11 (5,0)

11 (5,0)

13 (5,9)

11 (5,0)

12 (5,4)

15 (6,8)

15 (6,8)

15 (6,8)

15 (6,8)

16 (7,3)

16 (7,3)

17 (7,7)

12 (5,4)

14 (6,4)

14 (6,4)

14 (6,4)

14 (6,4)

14 (6,4)

15 (6,8)

16 (7,3)

18 (8,2)

16 (7,3)

20 (9,1)

21 (9,5)

21 (9,5)

21 (9,5)

21 (9,5)

22 (10,0)

22 (10,0)

24 (10,9)

27 (12,2)

34 (15,4)

44 (20,0)

60 (27,2)

84 (38,1)

100 (45,4)

100 (45,4)

100 (45,4)

100 (45,4)

48 (21,8)

68 (30,8)

88 (39,9)

120 (54,4)

150 (68,0)

170 (77,1)

180 (81,6)

190 (86,2)

190 (86,2)

32 (14,5)

40 (18,1)

52 (23,6)

68 (30,8)

100 (45,4)

120 (54,4)

120 (54,4)

120 (54,4)

120 (54,4)

56 (25,4)

80 (36,3)

100 (45,4)

140 (63,5)

180 (81,6)

200 (90,7)

220 (99,8)

220 (99,8)

220 (99,8)

5 (0,35)

10

20

30

50

75

100

150

200

250

(0,69)

(1,4)

(2,1)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

8.0 (3,6)

12 (5,4)

16 (7,3)

18 (8,2)

18 (8,2)

20 (9,1)

20 (9,1)

20 (9,1)

20 (9,1)

15 (6,8)

21 (9,5)

24 (10,9)

24 (10,9)

25 (11,3)

25 (11,3)

25 (11,3)

25 (11,3)

25 (11,3)

16 (7,3)

20 (9,1)

22 (10,0)

24 (10,9)

26 (11,8)

28 (12,7)

28 (12,7)

28 (12,7)

28 (12,7)

24 (10,9)

30 (13,6)

34 (15,4)

34 (15,4)

36 (16,3)

36 (16,3)

36 (16,3)

36 (16,3)

36 (16,3)

44 (20,0)

76 (34,5)

92 (41,7)

140 (63,5)

150 (68,0)

170 (77,1)

170 (77,1)

170 (77,1)

170 (77,1)

68 (30,8)

140 (63,5)

170 (77,1)

220 (99,8)

270 (122)

290 (132)

300 (136)

330 (150)

330 (150)

52 (23,6)

88 (39,9)

110 (49,9)

170 (77,1)

180 (81,6)

200 (90,7)

200 (90,7)

200 (90,7)

200 (90,7)

80 (36,3)

160 (72,6)

200 (90,7)

260 (118)

320 (145)

340 (154)

360 (163)

390 (177)

400 (181)

5 to 15

(0,35 to 1,0)

10 (0,69)

20

30

50

75

100

150

200

250

(1,4)

(2,1)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

20 (9,1)

24 (10,9)

30 (13,6)

30 (13,6)

30 (13,6)

30 (13,6)

30 (13,6)

30 (13,6)

27 (12,2)

34 (15,4)

37 (16,8)

37 (16,8)

40 (18,1)

40 (18,1)

40 (18,1)

40 (18,1)

30 (13,6)

36 (16,3)

40 (18,1)

40 (18,1)

40 (18,1)

40 (18,1)

40 (18,1)

40 (18,1)

44 (20,0)

48 (21,8)

56 (25,4)

56 (25,4)

56 (25,4)

56 (25,4)

56 (25,4)

56 (25,4)

68 (30,8)

84 (38,1)

110 (49,9)

190 (86,2)

260 (118)

310 (141)

340 (154)

340 (154)

100 (45,4)

170 (77,1)

210 (95,3)

340 (154)

370 (168)

480 (218)

520 (236)

520 (236)

80 (36,3)

100 (45,4)

130 (59,0)

220 (99,8)

300 (136)

360 (163)

400 (181)

400 (181)

120 (54,4)

200 (90,7)

250 (113)

400 (181)

440 (200)

560 (254)

600 (272)

600 (272)

15 (1,0)

20

30

50

75

100

150

200

250

(1,4)

(2,1)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

18 (8,2)

28 (12,7)

36 (16,3)

40 (18,1)

40 (18,1)

40 (18,1)

40 (18,1)

40 (18,1)

28 (12,7)

40 (18,1)

48 (21,8)

48 (21,8)

52 (23,6)

52 (23,6)

52 (23,6)

52 (23,6)

32 (14,5)

44 (20,0)

52 (23,6)

56 (25,4)

56 (25,4)

56 (25,4)

56 (25,4)

56 (25,4)

48 (21,8)

60 (27,2)

64 (29,0)

68 (30,8)

72 (32,7)

72 (32,7)

72 (32,7)

72 (32,7)

76 (34,5)

130 (59,0)

200 (90,7)

270 (122)

340 (154)

440 (200)

440 (200)

440 (200)

110 (49,9)

180 (81,6)

290 (132)

370 (168)

520 (236)

600 (272)

600 (272)

600 (272)

88 (39,9)

150 (68,0)

240 (109)

320 (145)

400 (181)

520 (236)

520 (236)

520 (236)

130 (59,0)

210 (95,3)

340 (154)

440 (200)

600 (272)

720 (327)

720 (327)

720 (327)

1. Capacities are in pounds/h (kg/h) of saturated steam.

Bulletin 71.1:95

22

Table 13. Steam Capacities(1) for NPS 1/4 through 1 (DN 25) Types 95L and 95LD Regulators with Stainless Steel

Diaphragm (continued)

Table 14. Steam Capacities(1) for NPS 1/4 through 1/2 (DN 15) Types 95H and 95HD Regulators with Metal Diaphragm

- continued -

RECOMMENDED

OUTLET

PRESSURE

RANGE,

PSIG/PSI (bar)

PRESSURE REGULATOR BODY SIZE, NPS (DN)

Outlet

Setting,

Psig/Psi

(bar)

Inlet 1/4 1/2 (15) 3/4 (20) 1 (25)

Droop Droop Droop Droop

Psig (bar) 10% 20% 10% 20% 10% 20% 10% 20%

13 to 30

(0,90 to 2,1)

20 (1,4)

30

40

50

75

100

150

200

250

(2,1)

(2,8)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

22 (10,0)

30 (13,6)

36 (16,3)

44 (20,0)

44 (20,0)

44 (20,0)

44 (20,0)

44 (20,0)

34 (15,4)

44 (20,0)

52 (23,6)

60 (27,2)

60 (27,2)

60 (27,2)

60 (27,2)

60 (27,2)

44 (20,0)

52 (23,6)

56 (25,4)

60 (27,2)

64 (29,0)

64 (29,0)

64 (29,0)

64 (29,0)

60 (27,2)

68 (30,8)

72 (32,7)

80 (36,3)

84 (38,1)

84 (38,1)

84 (38,1)

84 (38,1)

100 (45,4)

150 (68,0)

180 (81,6)

270 (122)

320 (145)

400 (181)

520 (236)

520 (236)

100 (45,4)

150 (68,0)

180 (81,6)

270 (122)

320 (145)

400 (181)

520 (236)

520 (236)

120 (54,4)

180 (81,6)

220 (99,8)

320 (145)

380 (172)

480 (218)

600 (272)

600 (272)

180 (81,6)

260 (118)

320 (145)

440 (200)

600 (272)

720 (327)

800 (363)

800 (363)

25 (1,7)

40

50

75

100

150

200

250

(2,8)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

36 (16,3)

48 (21,8)

56 (25,4)

60 (27,2)

64 (29,0)

64 (29,0)

64 (29,0)

48 (21,8)

64 (29,0)

80 (36,3)

100 (45,4)

100 (45,4)

100 (45,4)

100 (45,4)

64 (29,0)

76 (34,5)

80 (36,3)

84 (38,1)

88 (39,9)

88 (39,9)

88 (39,9)

96 (43,5)

100 (45,4)

110 (49,9)

130 (59,0)

130 (59,0)

130 (59,0)

130 (59,0)

170 (77,1)

200 (90,7)

290 (132)

340 (154)

400 (181)

520 (236)

520 (236)

220 (99,8)

270 (122)

370 (168)

520 (236)

680 (308)

840 (381)

840 (381)

200 (90,7)

240 (109)

340 (154)

400 (181)

480 (218)

640 (290)

640 (290)

260 (118)

320 (145)

440 (200)

600 (272)

800 (363)

1000 (454)

1000 (454)

30 (2,1)

40

50

75

100

150

200

250

(2,8)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

36 (16,3)

48 (21,8)

68 (30,8)

72 (32,7)

76 (34,5)

76 (34,5)

76 (34,5)

48 (21,8)

60 (27,2)

92 (41,7)

100 (45,4)

100 (45,4)

100 (45,4)

100 (45,4)

72 (32,7)

80 (36,3)

92 (41,7)

96 (43,5)

100 (45,4)

100 (45,4)

100 (45,4)

96 (43,5)

110 (49,9)

130 (59,0)

140 (63,5)

140 (63,5)

140 (63,5)

140 (63,5)

140 (63,5)

170 (77,1)

280 (127)

340 (154)

440 (200)

560 (254)

560 (254)

200 (90,7)

260 (118)

370 (168)

520 (236)

680 (308)

880 (399)

880 (399)

160 (72,6)

200 (90,7)

340 (154)

400 (181)

520 (236)

680 (308)

680 (308)

240 (109)

300 (136)

440 (200)

600 (272)

800 (363)

1000 (454)

1000 (454)

1. Capacities are in pounds/h (kg/h) of saturated steam.

RECOMMENDED

OUTLET

PRESSURE

RANGE,

PSIG/PSI (bar)

PRESSURE REGULATOR BODY SIZE, NPS (DN)

Outlet Setting,

Psig/Psi (bar)

Inlet 1/4 1/2 (15)

Droop Droop

Psig (bar) 10% 20% 40% 10% 20% 40%

15 to 30

(1,0 to 2,1)

15 (1,0)

30

40

50

75

100

150

200

250

300

(2,1)

(2,8)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

20 (9,1)

23 (10,4)

25 (11,3)

33 (15,0)

33 (15,0)

42 (19,1)

57 (25,9)

51 (23,1)

60 (27,2)

30 (13,6)

30 (13,6)

36 (16,3)

45 (20,4)

48 (21,8)

63 (28,6)

69 (31,3)

72 (32,7)

81 (36,7)

39 (17,7)

36 (16,3)

39 (17,7)

60 (27,2)

75 (34,0)

84 (38,1)

90 (40,8)

96 (43,5)

99 (44,9)

27 (12,2)

27 (12,2)

27 (12,2)

36 (16,3)

42 (19,1)

54 (24,5)

66 (29,9)

63 (28,6)

81 (36,7)

42 (19,1)

45 (20,4)

45 (20,4)

54 (24,5)

63 (28,6)

72 (32,7)

84 (38,1)

93 (42,2)

99 (44,9)

66 (29,9)

69 (31,3)

66 (29,9)

81 (36,7)

87 (39,5)

96 (43,5)

110 (49,9)

120 (54,4)

130 (59,0)

30 (2,1)

40

50

75

100

150

200

250

300

(2,8)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

18 (8,2)

23 (10,4)

45 (20,4)

48 (21,8)

66 (29,9)

84 (38,1)

84 (38,1)

96 (43,5)

23 (10,4)

29 (13,2)

51 (23,1)

75 (34,0)

110 (49,9)

130 (59,0)

120 (54,4)

140 (63,5)

33 (15,0)

39 (17,7)

75 (34,0)

90 (40,8)

130 (59,0)

140 (63,5)

150 (68,0)

150 (68,0)

45 (20,4)

39 (17,7)

54 (24,5)

60 (27,2)

72 (32,7)

93 (42,2)

110 (49,9)

120 (54,4)

69 (31,3)

63 (28,6)

84 (38,1)

90 (40,8)

110 (49,9)

130 (59,0)

140 (63,5)

150 (68,0)

110 (49,9)

100 (45,4)

130 (59,0)

130 (59,0)

160 (72,6)

170 (77,1)

190 (86,2)

200 (90,7)

25 to 75

(1,7 to 5,2)

50 (3,4)

60

75

100

150

200

250

300

(4,1)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

30 (13,6)

36 (16,3)

42 (19,1)

63 (28,6)

78 (35,4)

110 (49,9)

120 (54,4)

39 (17,7)

48 (21,8)

69 (31,3)

99 (44,9)

140 (63,5)

170 (77,1)

190 (86,2)

51 (23,1)

72 (32,7)

96 (43,5)

140 (63,5)

180 (81,6)

200 (90,7)

210 (95,3)

36 (16,3)

42 (19,1)

63 (28,6)

75 (34,0)

93 (42,2)

93 (42,2)

110 (49,9)

60 (27,2)

69 (31,3)

87 (39,5)

110 (49,9)

140 (63,5)

140 (63,5)

150 (68,0)

110 (49,9)

120 (54,4)

150 (68,0)

170 (77,1)

200 (90,7)

210 (95,3)

220 (99,8)

75 (5,2)

100

125

150

200

250

300

(6,9)

(8,6)

(10,3)

(13,8)

(17,2)

(20,7)

48 (21,8)

66 (29,9)

75 (34,0)

110 (49,9)

150 (68,0)

150 (68,0)

72 (32,7)

96 (43,5)

120 (54,4)

160 (72,6)

200 (90,7)

230 (104)

90 (40,8)

110 (49,9)

140 (63,5)

180 (81,6)

200 (90,7)

270 (122)

69 (31,3)

78 (35,4)

96 (43,5)

110 (49,9)

120 (54,4)

140 (63,5)

110 (49,9)

130 (59,0)

140 (63,5)

170 (77,1)

180 (81,6)

210 (95,3)

190 (86,2)

220 (99,8)

230 (104)

260 (118)

290 (132)

300 (136)

1. Capacities are based in pounds/h (kg/h) of saturated steam.

Bulletin 71.1:95

23

Table 14. Steam Capacities(1) for NPS 1/4 through 1/2 (DN 15) Types 95H and 95HD Regulators with Metal Diaphragm (continued)

Table 14. Steam Capacities(1) for NPS 3/4 through 1 (DN 20 through 25) Types 95H and 95HD Regulators with Metal Diaphragm (continued)

- continued -

RECOMMENDED

OUTLET

PRESSURE

RANGE,

PSIG/PSI (bar)

PRESSURE REGULATOR BODY SIZE, NPS (DN)

Outlet Setting,

Psig/Psi (bar)

Inlet 1/4 1/2 (15)

Droop Droop

Psig (bar) 10% 20% 40% 10% 20% 40%

70 to 150

(4,8 to 10,3)

100 (6,9)

125

150

175

200

250

300

(8,6)

(10,3)

(12,1)

(13,8)

(17,2)

(20,7)

60 (27,2)

60 (27,2)

78 (35,4)

84 (38,1)

99 (44,9)

120 (54,4)

84 (38,1)

110 (49,9)

120 (54,4)

140 (63,5)

170 (77,1)

210 (95,3)

110 (49,9)

140 (63,5)

160 (72,6)

180 (81,6)

220 (99,8)

260 (118)

100 (45,4)

120 (54,4)

140 (63,5)

160 (72,6)

130 (59,0)

240 (109)

170 (77,1)

200 (90,7)

230 (104)

250 (113)

270 (122)

330 (150)

260 (118)

330 (150)

360 (163)

390 (177)

420 (191)

450 (204)

125 (8,6)

150

175

200

225

250

300

(10,3)

(12,1)

(13,8)

(15,5)

(17,2)

(20,7)

60 (27,2)

84 (38,1)

100 (45,4)

110 (49,9)

110 (49,9)

140 (63,5)

90 (40,8)

130 (59,0)

130 (59,0)

170 (77,1)

190 (86,2)

220 (99,8)

130 (59,0)

150 (68,0)

180 (81,6)

200 (90,7)

220 (99,8)

260 (118)

160 (72,6)

150 (68,0)

170 (77,1)

200 (90,7)

210 (95,3)

210 (95,3)

250 (113)

270 (122)

280 (127)

330 (150)

390 (177)

390 (177)

330 (150)

390 (177)

420 (191)

480 (218)

510 (231)

570 (259)

150 (10,3)

175

200

225

250

300

(12,1)

(13,8)

(15,5)

(17,2)

(20,7)

75 (34,0)

90 (40,8)

99 (44,9)

120 (54,4)

160 (72,6)

110 (49,9)

130 (59,0)

160 (72,6)

190 (86,2)

230 (104)

150 (68,0)

170 (77,1)

200 (90,7)

220 (99,8)

250 (113)

170 (77,1)

200 (90,7)

210 (95,3)

270 (122)

260 (118)

290 (132)

330 (150)

360 (163)

420 (191)

450 (204)

360 (163)

420 (191)

480 (218)

540 (245)

600 (272)

1. Capacities are based in pounds/h (kg/h) of saturated steam.

RECOMMENDED

OUTLET

PRESSURE

RANGE,

PSIG/PSI (bar)

PRESSURE REGULATOR BODY SIZE, NPS (DN)

Outlet Setting,

Psig/Psi (bar)

Inlet 3/4 (20) 1 (25)

Droop Droop

Psig (bar) 10% 20% 40% 10% 20% 40%

15 to 30

(1,0 to 2,1)

15 (1,0)

30

40

50

75

100

150

200

250

300

(2,1)

(2,8)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

66 (29,9)

81 (36,7)

87 (39,5)

110 (49,9)

120 (54,4)

150 (68,0)

180 (81,6)

200 (90,7)

220 (99,8)

93 (42,2)

110 (49,9)

130 (59,0)

170 (77,1)

180 (81,6)

210 (95,3)

240 (109)

260 (118)

290 (132)

150 (68,0)

190 (86,2)

200 (90,7)

250 (113)

270 (122)

300 (136)

330 (150)

330 (150)

360 (163)

66 (29,9)

78 (35,4)

100 (45,4)

140 (63,5)

160 (72,6)

210 (95,3)

260 (118)

260 (118)

300 (136)

99 (44,9)

130 (59,0)

160 (72,6)

210 (95,3)

240 (109)

300 (136)

360 (163)

360 (163)

420 (191)

160 (72,6)

200 (90,7)

250 (113)

330 (150)

360 (163)

450 (204)

480 (218)

510 (231)

540 (245)

30 (2,1)

40

50

75

100

150

200

250

300

(2,8)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

87 (39,5)

120 (54,4)

170 (77,1)

190 (86,2)

230 (104)

280 (127)

270 (122)

300 (136)

140 (63,5)

180 (81,6)

260 (118)

290 (132)

360 (163)

360 (163)

390 (177)

420 (191)

190 (86,2)

230 (104)

360 (163)

420 (191)

480 (218)

510 (231)

540 (245)

570 (259)

96 (43,5)

120 (54,4)

160 (72,6)

220 (99,8)

300 (136)

360 (163)

420 (191)

450 (204)

160 (72,6)

200 (90,7)

280 (127)

330 (150)

450 (204)

540 (245)

600 (272)

630 (286)

200 (90,7)

250 (113)

360 (163)

480 (218)

660 (299)

780 (354)

810 (367)

840 (381)

25 to 75

(1,7 to 5,2)

50 (3,4)

60

75

100

150

200

250

300

(4,1)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

120 (54,4)

180 (81,6)

220 (99,8)

250 (113)

330 (150)

360 (163)

360 (163)

200 (90,7)

260 (118)

330 (150)

390 (177)

510 (231)

540 (245)

540 (245)

270 (122)

360 (163)

450 (204)

630 (286)

720 (327)

750 (340)

780 (354)

130 (59,0)

190 (86,2)

210 (95,3)

480 (218)

450 (204)

510 (231)

570 (259)

220 (99,8)

290 (132)

390 (177)

540 (245)

720 (327)

780 (354)

810 (367)

280 (127)

360 (163)

480 (218)

720 (327)

930 (422)

1100 (499)

1100 (499)

75 (5,2)

100

125

150

200

250

300

(6,9)

(8,6)

(10,3)

(13,8)

(17,2)

(20,7)

240 (109)

330 (150)

360 (163)

420 (191)

480 (218)

480 (218)

360 (163)

480 (218)

540 (245)

630 (286)

720 (327)

750 (340)

450 (204)

570 (259)

660 (299)

720 (327)

780 (354)

840 (381)

260 (118)

390 (177)

390 (177)

510 (231)

660 (299)

690 (313)

390 (177)

510 (231)

630 (286)

840 (381)

990 (449)

1100 (499)

450 (204)

600 (272)

750 (340)

960 (435)

1100 (499)

1400 (635)

1. Capacities are based in pounds/h (kg/h) of saturated steam.

Bulletin 71.1:95

24

Table 14. Steam Capacities(1) for NPS 3/4 through 1 (DN 20 through 25) Types 95H and 95HD Regulators with Metal Diaphragm (continued)

Table 15. Steam Capacities(1) for NPS 1-1/2 through 2 (DN 40 through 50) Types 95H and 95HD Regulators with Metal Diaphragm

- continued -

RECOMMENDED

OUTLET

PRESSURE

RANGE,

PSIG/PSI (bar)

PRESSURE REGULATOR BODY SIZE, NPS (DN)

Outlet Setting,

Psig/Psi (bar)

Inlet 3/4 (20) 1 (25)

Droop Droop

Psig (bar) 10% 20% 40% 10% 20% 40%

70 to 150

(4,8 to 10,3)

100 (6,9)

125

150

175

200

250

300

(8,6)

(10,3)

(12,1)

(13,8)

(17,2)

(20,7)

260 (118)

360 (163)

390 (177)

450 (204)

450 (204)

570 (259)

420 (191)

540 (245)

630 (286)

690 (313)

750 (340)

870 (395)

540 (245)

660 (299)

780 (354)

900 (408)

1100 (499)

1200 (544)

330 (150)

420 (191)

480 (218)

480 (218)

630 (286)

780 (354)

480 (218)

600 (272)

750 (340)

810 (367)

1000 (454)

1100 (499)

570 (259)

690 (313)

840 (381)

960 (435)

1200 (544)

1400 (635)

125 (8,6)

150

175

200

225

250

300

(10,3)

(12,1)

(13,8)

(15,5)

(17,2)

(20,7)

360 (163)

390 (177)

480 (218)

510 (231)

540 (245)

630 (286)

540 (245)

630 (286)

750 (340)

840 (381)

870 (395)

960 (435)

630 (286)

750 (340)

870 (395)

990 (449)

1100 (499)

1400 (635)

390 (177)

450 (204)

510 (231)

570 (259)

600 (272)

780 (354)

600 (272)

690 (313)

840 (381)

900 (408)

1000 (454)

1200 (544)

690 (313)

810 (367)

930 (422)

1100 (499)

1200 (544)

1400 (635)

150 (10,3)

175

200

225

250

300

(12,1)

(13,8)

(15,5)

(17,2)

(20,7)

420 (191)

480 (218)

600 (272)

600 (272)

690 (313)

600 (272)

720 (327)

870 (395)

900 (408)

1100 (499)

870 (395)

870 (395)

990 (449)

1100 (499)

1400 (635)

480 (218)

600 (272)

660 (299)

780 (354)

930 (422)

660 (299)

780 (354)

900 (408)

1100 (499)

1300 (590)

780 (354)

900 (408)

1100 (499)

1200 (544)

1400 (635)

1. Capacities are based in pounds/h (kg/h) of saturated steam.

RECOMMENDED

OUTLET

PRESSURE

RANGE,

PSIG/PSI (bar)

PRESSURE REGULATOR BODY SIZE, NPS (DN)

Outlet Setting,

Psig/Psi (bar)

Inlet 1-1/2 (40) 2 (50)

Droop Droop

Psig (bar) 10% 20% 40% 10% 20% 40%

5 to 80

(0,35 to 5,5)

5 (0,35)

10

20

30

50

75

100

150

200

250

300

(0,69)

(1,4)

(2,1)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

48 (21,8)

110 (49,9)

130 (59,0)

180 (81,6)

250 (113)

330 (150)

430 (195)

600 (272)

750 (340)

900 (408)

50 (22,7)

130 (59,0)

150 (68,0)

200 (90,7)

300 (136)

400 (181)

550 (249)

700 (318)

850 (386)

1000 (454)

75 (34,0)

220 (99,8)

250 (113)

300 (136)

400 (181)

480 (218)

600 (272)

850 (386)

950 (431)

1100 (499)

50 (22,7)

90 (40,8)

170 (77,1)

200 (90,7)

280 (127)

450 (204)

750 (340)

800 (363)

900 (408)

950 (431)

55 (24,9)

100 (45,4)

230 (104)

280 (127)

350 (159)

600 (272)

900 (408)

950 (431)

1000 (454)

1100 (499)

75 (34,0)

130 (59,0)

370 (168)

450 (204)

550 (249)

700 (318)

1100 (499)

1100 (499)

1100 (499)

1200 (544)

15 (1,0)

30

40

50

75

100

150

200

250

300

(2,1)

(2,8)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

130 (59,0)

180 (81,6)

230 (104)

300 (136)

380 (172)

500 (227)

750 (340)

900 (408)

1100 (499)

150 (68,0)

230 (104)

300 (136)

400 (181)

480 (218)

610 (277)

950 (431)

1100 (499)

1300 (590)

250 (113)

400 (181)

480 (218)

650 (295)

800 (363)

1000 (454)

1200 (544)

1400 (635)

1500 (680)

140 (63,5)

190 (86,2)

240 (109)

350 (159)

500 (227)

750 (340)

1000 (454)

1200 (544)

1300 (590)

200 (90,7)

280 (127)

350 (159)

540 (245)

750 (340)

1000 (454)

1200 (544)

1400 (635)

1500 (680)

280 (127)

400 (181)

600 (272)

1100 (499)

1300 (590)

1500 (680)

1600 (726)

1700 (771)

1800 (816)

30 (2,1)

40

50

75

100

150

200

250

300

(2,8)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

170 (77,1)

230 (104)

300 (136)

400 (181)

600 (272)

1000 (454)

1300 (590)

1500 (680)

300 (136)

450 (204)

600 (272)

750 (340)

1100 (499)

1600 (726)

1800 (816)

1900 (862)

500 (227)

700 (318)

900 (408)

1200 (544)

1800 (816)

1900 (862)

2100 (953)

2200 (998)

230 (104)

400 (181)

750 (340)

1200 (544)

2200 (998)

2400 (1089)

2600 (1179)

2700 (1225)

310 (141)

500 (227)

1000 (454)

1500 (680)

2500 (1134)

2800 (1270)

2900 (1315)

3000 (1361)

550 (249)

750 (340)

1300 (590)

1800 (816)

2700 (1225)

2900 (1315)

3000 (1361)

3100 (1406)

1. Capacities are based in pounds/h (kg/h) of saturated steam.

Bulletin 71.1:95

25

Table 15. Steam Capacities(1) for NPS 1-1/2 through 2 (DN 40 through 50) Types 95H and 95HD Regulators with Metal Diaphragm (continued)

Table 16. Steam Capacities(1) for NPS 1/4 through 1/2 (DN 15) Type 95HT Regulators with Metal Diaphragm

- continued -

RECOMMENDED

OUTLET

PRESSURE

RANGE,

PSIG/PSI (bar)

PRESSURE REGULATOR BODY SIZE, NPS (DN)

Outlet Setting,

Psig/Psi (bar)

Inlet 1-1/2 (40) 2 (50)

Droop Droop

Psig (bar) 10% 20% 40% 10% 20% 40%

5 to 80

(0,35 to 5,5)

50 (3,4)

60

75

100

150

200

250

300

(4,1)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

300 (136)

450 (204)

500 (227)

640 (290)

1100 (499)

1600 (726)

2000 (907)

550 (249)

700 (318)

950 (431)

1400 (635)

1800 (816)

2300 (1043)

2600 (1179)

1000 (454)

1600 (726)

2300 (1043)

3100 (1406)

3200 (1452)

3300 (1497)

3400 (1542)

330 (150)

600 (272)

1000 (454)

1500 (680)

2200 (998)

2800 (1270)

3300 (1497)

600 (272)

1000 (454)

2000 (907)

3400 (1542)

3800 (1724)

4000 (1814)

4200 (1905)

1100 (499)

1800 (816)

2800 (1270)

3800 (1724)

4200 (1905)

4300 (1950)

4500 (2041)

75 (5,2)

100

125

150

200

250

300

(6,9)

(8,6)

(10,3)

(13,8)

(17,2)

(20,7)

700 (318)

850 (386)

1000 (454)

1200 (544)

1700 (771)

2200 (998)

1100 (499)

1500 (680)

2000 (907)

2500 (1134)

2900 (1315)

3300 (1497)

2100 (952)

2800 (1270)

3600 (1633)

4100 (1860)

4300 (1950)

4400 (1996)

750 (340)

1000 (454)

1300 (590)

2500 (1134)

3500 (1588)

4500 (2041)

1400 (635)

2300 (1043)

3500 (1588)

4500 (2041)

5500 (2495)

6000 (2722)

2500 (1134)

3300 (1497)

3800 (1724)

4800 (2177)

5500 (2495)

6000 (2722)

60 to 120

(4,1 to 8,3) 100 (6,9)

125

150

175

225

250

300

(8,6)

(10,3)

(12,1)

(15,5)

(17,2)

(20,7)

550 (249)

1100 (499)

1300 (590)

1400 (635)

1700 (771)

2000 (907)

1500 (680)

1900 (862)

2400 (1089)

3100 (1406)

3500 (1588)

4400 (1996)

2500 (1134)

3200 (1452)

3800 (1724)

4800 (2177)

5500 (2495)

6000 (2722)

600 (272)

1300 (590)

1700 (771)

1400 (635)

2300 (1043)

2800 (1270)

1500 (680)

2300 (1043)

2600 (1179)

3100 (1406)

3500 (1588)

4000 (1814)

2700 (1225)

3600 (1633)

4500 (2041)

4800 (2177)

6500 (2948)

7500 (3402)

100 to 140

(6,9 to 9,7) 125 (8,6)

150

175

200

225

250

300

(10,3)

(12,1)

(13,8)

(15,5)

(17,2)

(20,7)

1100 (499)

1300 (590)

1400 (635)

1500 (680)

1800 (816)

2100 (953)

2000 (907)

2400 (1089)

2700 (1225)

3000 (1361)

3500 (1588)

4300 (1950)

3200 (1452)

3700 (1678)

4500 (2041)

5000 (2268)

5500 (2495)

6500 (2948)

1100 (499)

1600 (726)

2000 (907)

2300 (1043)

2800 (1270)

4300 (1950)

2000 (907)

2500 (1134)

3500 (1588)

5000 (2268)

6000 (2722)

7500 (3402)

3300 (1497)

3800 (1724)

4500 (2041)

5500 (2495)

6500 (2948)

7500 (3402)

120 to 150

(8,3 to 10,3) 150 (10,3)

175

200

225

250

300

(12,1)

(13,8)

(15,5)

(17,2)

(20,7)

950 (431)

1200 (544)

1500 (680)

1800 (816)

2300 (1043)

1600 (726)

2200 (998)

3100 (1406)

3500 (1588)

4500 (2041)

2700 (1225)

4000 (1814)

5000 (2268)

6000 (2722)

7500 (3402)

1000 (454)

1200 (544)

1500 (680)

2500 (1134)

4300 (1950)

1700 (771)

2300 (1043)

3100 (1406)

4800 (2177)

7000 (3175)

2800 (1270)

4000 (1814)

5000 (2268)

6000 (2722)

7500 (3402)

1. Capacities are based in pounds/h (kg/h) of saturated steam.

RECOMMENDED

OUTLET

PRESSURE

RANGE,

PSIG (bar)

PRESSURE REGULATOR BODY SIZE, NPS (DN)

Outlet Setting,

Psig (bar)

Inlet 1/4 1/2 (15)

Droop Droop

Psig (bar) 10% 20% 40% 10% 20% 40%

15 to 100

(1,0 to 6,9)

15 (1,0)

30

40

50

75

100

150

200

250

300

400

500

600

(2,1)

(2,8)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

9 (4,1)

11 (5,0)

11 (5,0)

16 (7,3)

24 (10,9)

33 (15,0)

36 (16,3)

45 (20,4)

51 (23,1)

54 (24,5)

57 (25,9)

63 (28,6)

17 (7,7)

17 (7,7)

18 (8,2)

23 (10,4)

36 (16,3)

48 (21,8)

51 (23,1)

63 (28,6)

69 (31,3)

69 (31,3)

72 (32,7)

78 (35,4)

26 (11,8)

30 (13,6)

36 (16,3)

39 (17,7)

60 (27,2)

72 (32,7)

84 (38,1)

87 (39,5)

87 (39,5)

87 (39,5)

90 (40,8)

96 (43,5)

18 (8,2)

19 (8,6)

21 (9,5)

27 (12,2)

33 (15,0)

51 (23,1)

63 (28,6)

72 (32,7)

81 (36,7)

99 (44,9)

120 (54,4)

140 (63,5)

26 (11,8)

27 (12,2)

36 (16,3)

45 (20,4)

51 (23,1)

69 (31,3)

84 (38,1)

90 (40,8)

99 (44,9)

110 (49,9)

130 (59,0)

140 (63,5)

42 (19,1)

45 (20,4)

51 (23,1)

54 (24,5)

78 (35,4)

93 (42,2)

110 (49,9)

110 (49,9)

120 (54,4)

130 (59,0)

140 (63,5)

150 (68,0)

30 (2,1)

40

50

75

100

150

200

(2,8)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

13 (5,9)

15 (6,8)

21 (9,5)

24 (10,9)

42 (19,1)

60 (27,2)

23 (10,4)

27 (12,2)

36 (16,3)

51 (23,1)

75 (34,0)

90 (40,8)

33 (15,0)

48 (21,8)

63 (28,6)

87 (39,5)

110 (49,9)

130 (59,0)

27 (12,2)

36 (16,3)

39 (17,7)

54 (24,5)

63 (28,6)

78 (35,4)

45 (20,4)

48 (21,8)

63 (28,6)

78 (35,4)

96 (43,5)

110 (49,9)

57 (25,9)

60 (27,2)

110 (49,9)

120 (54,4)

140 (63,5)

150 (68,0)

1. Capacities are based in pounds/h (kg/h) of saturated steam.

Bulletin 71.1:95

26

Table 16. Steam Capacities(1) for NPS 1/4 through 1/2 (DN 15) Type 95HT Regulators with Metal Diaphragm (continued)

- continued -

RECOMMENDED

OUTLET

PRESSURE

RANGE,

PSIG (bar)

PRESSURE REGULATOR BODY SIZE, NPS (DN)

Outlet Setting,

Psig (bar)

Inlet 1/4 1/2 (15)

Droop Droop

Psig (bar) 10% 20% 40% 10% 20% 40%

15 to 100

(1,0 to 6,9)

30 (2,1)

250

300

400

500

600

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

66 (29,9)

72 (32,7)

84 (38,1)

84 (38,1)

84 (38,1)

99 (44,9)

110 (49,9)

120 (54,4)

120 (54,4)

120 (54,4)

130 (59,0)

130 (59,0)

130 (59,0)

130 (59,0)

130 (59,0)

90 (40,8)

110 (49,9)

120 (54,4)

140 (63,5)

160 (72,6)

120 (54,4)

140 (63,5)

160 (72,6)

180 (81,6)

190 (86,2)

170 (77,1)

180 (81,6)

190 (86,2)

190 (86,2)

210 (95,3)

75 (5,2)

100

125

150

200

250

300

400

500

600

(6,9)

(8,6)

(10,3)

(13,8)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

45 (20,4)

60 (27,2)

72 (32,7)

99 (44,9)

120 (54,4)

150 (68,0)

170 (77,1)

200 (90,7)

210 (95,3)

75 (34,0)

96 (43,5)

120 (54,4)

140 (63,5)

190 (86,2)

220 (99,8)

250 (113)

280 (127)

280 (127)

96 (43,5)

120 (54,4)

140 (63,5)

190 (86,2)

230 (104)

250 (113)

270 (122)

290 (132)

290 (132)

84 (38,1)

110 (49,9)

120 (54,4)

150 (68,0)

160 (72,6)

170 (77,1)

200 (90,7)

210 (95,3)

240 (109)

150 (68,0)

170 (77,1)

190 (86,2)

230 (104)

240 (109)

260 (118)

280 (127)

300 (136)

330 (150)

220 (99,8)

260 (118)

300 (136)

330 (150)

330 (150)

360 (163)

390 (177)

390 (177)

420 (191)

100 (6,9)

125

150

175

200

250

300

400

500

600

(8,6)

(10,3)

(12,1)

(13,8)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

60 (27,2)

93 (42,2)

110 (49,9)

140 (63,5)

150 (68,0)

180 (81,6)

210 (95,3)

230 (104)

230 (104)

96 (43,5)

120 (54,4)

150 (68,0)

170 (77,1)

200 (90,7)

250 (113)

300 (136)

330 (150)

360 (163)

120 (54,4)

140 (63,5)

170 (77,1)

190 (86,2)

230 (104)

270 (122)

330 (150)

360 (163)

360 (163)

120 (54,4)

150 (68,0)

170 (77,1)

170 (77,1)

200 (90,7)

220 (99,8)

230 (104)

260 (118)

270 (122)

200 (90,7)

240 (109)

260 (118)

280 (127)

300 (136)

330 (150)

360 (163)

390 (177)

420 (191)

270 (122)

330 (150)

390 (177)

420 (191)

450 (204)

480 (218)

510 (231)

510 (231)

540 (245)

80 to 300

(5,5 to 20,7)

125 (8,6)

150

175

200

225

250

300

400

500

600

(10,3)

(12,1)

(13,8)

(15,5)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

63 (28,6)

66 (29,9)

84 (38,1)

93 (42,2)

99 (44,9)

110 (49,9)

160 (72,6)

190 (86,2)

210 (95,3)

84 (38,1)

96 (43,5)

120 (54,4)

130 (59,0)

150 (68,0)

170 (77,1)

230 (104)

290 (132)

330 (150)

120 (54,4)

140 (63,5)

170 (77,1)

180 (81,6)

200 (90,7)

240 (109)

330 (150)

390 (177)

480 (218)

90 (40,8)

110 (49,9)

120 (54,4)

120 (54,4)

130 (59,0)

160 (72,6)

200 (90,7)

240 (109)

280 (127)

160 (72,6)

180 (81,6)

200 (90,7)

200 (90,7)

210 (95,3)

250 (113)

300 (136)

360 (163)

420 (191)

260 (118)

290 (132)

330 (150)

330 (150)

360 (163)

420 (191)

450 (204)

540 (245)

630 (286)

200 (13,8)

225

250

300

350

400

450

500

600

(15,5)

(17,2)

(20,7)

(24,1)

(27,6)

(31,0)

(34,5)

(41,4)

96 (43,5)

110 (49,9)

130 (59,0)

140 (63,5)

170 (77,1)

190 (86,2)

200 (90,7)

220 (99,8)

140 (63,5)

160 (72,6)

200 (90,7)

230 (104)

260 (118)

290 (132)

330 (150)

390 (177)

190 (86,2)

220 (99,8)

260 (118)

300 (136)

360 (163)

390 (177)

450 (204)

540 (245)

170 (77,1)

170 (77,1)

200 (90,7)

230 (104)

260 (118)

290 (132)

330 (150)

330 (150)

280 (127)

300 (136)

330 (150)

390 (177)

420 (191)

450 (204)

510 (231)

570 (259)

450 (204)

510 (231)

570 (259)

600 (272)

660 (299)

720 (327)

780 (354)

900 (408)

250 (17,2)

275

300

350

400

450

500

550

600

(19,0)

(20,7)

(24,1)

(27,6)

(31,0)

(34,5)

(37,9)

(41,4)

120 (54,4)

130 (59,0)

150 (68,0)

160 (72,6)

170 (77,1)

190 (86,2)

200 (90,7)

220 (99,8)

170 (77,1)

200 (90,7)

230 (104)

260 (118)

290 (132)

330 (150)

360 (163)

390 (177)

230 (104)

250 (113)

300 (136)

360 (163)

390 (177)

450 (204)

480 (218)

540 (245)

230 (104)

220 (99,8)

240 (109)

280 (127)

290 (132)

300 (136)

330 (150)

360 (163)

360 (163)

390 (177)

420 (191)

480 (218)

510 (231)

540 (245)

600 (272)

600 (272)

570 (259)

600 (272)

690 (313)

780 (354)

840 (381)

930 (422)

1000 (454)

1100 (499)

300 (20,7)

350

400

450

500

550

600

(24,1)

(27,6)

(31,0)

(34,5)

(37,9)

(41,4)

160 (72,6)

170 (77,1)

180 (81,6)

190 (86,2)

200 (90,7)

220 (99,8)

230 (104)

260 (118)

300 (136)

330 (150)

360 (163)

390 (177)

230 (104)

260 (118)

300 (136)

330 (150)

360 (163)

390 (177)

270 (122)

290 (132)

300 (136)

330 (150)

330 (150)

360 (163)

480 (218)

510 (231)

540 (245)

570 (259)

600 (272)

630 (286)

720 (327)

840 (381)

930 (422)

1000 (454)

1100 (499)

1200 (544)

1. Capacities are based in pounds/hour (kg/h) of saturated steam.

Bulletin 71.1:95

27

Table 16. Steam Capacities(1) for NPS 3/4 through 1 (DN 20 through 25) Type 95HT Regulators with Metal Diaphragm (continued)

- continued -

RECOMMENDED

OUTLET

PRESSURE

RANGE,

PSIG (bar)

PRESSURE REGULATOR BODY SIZE, NPS (DN)

Outlet

Setting,

Psig (bar)

Inlet 3/4 (20) 1 (25)

Droop Droop

Psig (bar) 10% 20% 40% 10% 20% 40%

15 to 100

(1,0 to 6,9)

15 (1,0)

30

40

50

75

100

150

200

250

300

400

500

600

(2,1)

(2,8)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

39 (17,7)

39 (17,7)

45 (20,4)

72 (32,7)

93 (42,2)

120 (54,4)

140 (63,5)

170 (77,1)

200 (90,7)

250 (113)

300 (136)

360 (163)

54 (24,5)

63 (28,6)

72 (32,7)

96 (43,5)

130 (59,0)

150 (68,0)

190 (86,2)

210 (95,3)

240 (109)

290 (132)

330 (150)

390 (177)

87 (39,5)

87 (39,5)

100 (45,4)

140 (63,5)

180 (81,6)

230 (104)

250 (113)

280 (127)

300 (136)

360 (163)

390 (177)

450 (204)

36 (16,3)

39 (17,7)

57 (25,9)

78 (35,4)

90 (40,8)

140 (63,5)

170 (77,1)

200 (90,7)

230 (104)

270 (122)

330 (150)

360 (163)

48 (21,8)

60 (27,2)

81 (36,7)

110 (49,9)

140 (63,5)

190 (86,2)

230 (104)

270 (122)

300 (136)

360 (163)

420 (191)

480 (218)

75 (34,0)

90 (40,8)

110 (49,9)

160 (72,6)

210 (95,3)

290 (132)

360 (163)

390 (177)

420 (191)

510 (231)

600 (272)

660 (299)

30 (2,1)

40

50

75

100

150

200

250

300

400

500

600

(2,8)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

51 (23,1)

66 (29,9)

90 (40,8)

120 (54,4)

150 (68,0)

180 (81,6)

220 (99,8)

260 (118)

330 (150)

390 (177)

450 (204)

84 (38,1)

110 (49,9)

140 (63,5)

180 (81,6)

220 (99,8)

270 (122)

300 (136)

360 (163)

420 (191)

450 (204)

510 (231)

140 (63,5)

170 (77,1)

220 (99,8)

290 (132)

360 (163)

420 (191)

420 (191)

480 (218)

540 (245)

630 (286)

660 (299)

57 (25,9)

69 (31,3)

99 (44,9)

120 (54,4)

190 (86,2)

200 (90,7)

240 (109)

270 (122)

360 (163)

450 (204)

510 (231)

87 (39,5)

99 (44,9)

140 (63,5)

180 (81,6)

290 (132)

330 (150)

420 (191)

450 (204)

540 (245)

660 (299)

720 (327)

140 (63,5)

170 (77,1)

250 (113)

330 (150)

450 (204)

540 (245)

600 (272)

660 (299)

750 (340)

900 (408)

960 (435)

75 (5,2)

100

125

150

200

250

300

400

500

600

(6,9)

(8,6)

(10,3)

(13,8)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

190 (86,2)

220 (99,8)

280 (127)

330 (150)

390 (177)

420 (191)

510 (231)

600 (272)

720 (327)

330 (150)

360 (163)

450 (204)

540 (245)

630 (286)

660 (299)

750 (340)

870 (395)

930 (422)

450 (204)

540 (245)

660 (299)

810 (367)

930 (422)

990 (449)

1100 (499)

1200 (544)

1300 (590)

190 (86,2)

240 (109)

290 (132)

390 (177)

480 (218)

510 (231)

600 (272)

720 (327)

750 (340)

300 (136)

420 (191)

510 (231)

660 (299)

780 (354)

900 (408)

960 (435)

1100 (499)

1200 (544)

420 (191)

570 (259)

690 (313)

930 (422)

1100 (499)

1300 (590)

1700 (771)

2100 (953)

2500 (1134)

100 (6,9)

125

150

175

200

250

300

400

500

600

(8,6)

(10,3)

(12,1)

(13,8)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

260 (118)

330 (150)

360 (163)

390 (177)

480 (218)

540 (245)

660 (299)

750 (340)

870 (395)

420 (191)

540 (245)

600 (272)

660 (299)

780 (354)

870 (395)

960 (435)

1100 (499)

1100 (499)

540 (245)

660 (299)

780 (354)

900 (408)

1100 (499)

1300 (590)

1400 (635)

1600 (726)

1700 (771)

260 (118)

330 (150)

420 (191)

480 (218)

600 (272)

630 (286)

840 (381)

1100 (499)

1300 (590)

450 (204)

570 (259)

690 (313)

780 (354)

990 (449)

1100 (499)

1400 (635)

1700 (771)

2000 (907)

540 (245)

690 (313)

780 (354)

930 (422)

1200 (544)

1400 (635)

1900 (862)

2300 (1043)

2900 (1315)

80 to 300

(5,5 to 20,7)

125 (8,6)

150

175

200

225

250

300

400

500

600

(10,3)

(12,1)

(13,8)

(15,5)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

210 (95,3)

210 (95,3)

290 (132)

300 (136)

360 (163)

390 (177)

480 (218)

540 (245)

600 (272)

330 (150)

390 (177)

450 (204)

480 (218)

570 (259)

600 (272)

750 (340)

900 (408)

1000 (454)

570 (259)

630 (286)

720 (327)

810 (367)

870 (395)

990 (449)

1200 (544)

1400 (635)

1600 (726)

230 (104)

230 (104)

260 (118)

290 (132)

300 (136)

360 (163)

510 (231)

630 (286)

780 (354)

390 (177)

390 (177)

450 (204)

480 (218)

540 (245)

690 (313)

870 (395)

1100 (499)

1300 (590)

600 (272)

690 (313)

750 (340)

870 (395)

960 (435)

1100 (499)

1400 (635)

1800 (816)

2100 (953)

200 (13,8)

225

250

300

350

400

450

500

600

(15,5)

(17,2)

(20,7)

(24,1)

(27,6)

(31,0)

(34,5)

(41,4)

330 (150)

420 (191)

510 (231)

630 (286)

630 (286)

750 (340)

810 (367)

900 (408)

600 (272)

720 (327)

840 (381)

1000 (454)

1100 (499)

1200 (544)

1400 (635)

1500 (680)

900 (408)

1100 (499)

1300 (590)

1500 (680)

1700 (771)

1900 (862)

2000 (907)

2300 (1043)

360 (163)

420 (191)

540 (245)

600 (272)

660 (299)

750 (340)

810 (367)

900 (408)

630 (286)

690 (313)

930 (422)

1100 (499)

1200 (544)

1400 (635)

1500 (680)

1800 (816)

930 (422)

1100 (499)

1300 (590)

1700 (771)

1800 (816)

2100 (953)

2300 (1043)

2700 (1225)

1. Capacities are based in pounds/hour (kg/h) of saturated steam.

Bulletin 71.1:95

28

Table 16. Steam Capacities(1) for NPS 3/4 through 1 (DN 20 through 25) Type 95HT Regulators with Metal Diaphragm (continued)

Table 17. Steam Capacities(1) for NPS 1-1/2 through 2 (DN 40 through 50) Type 95HT Regulators with Metal Diaphragm

- continued -

RECOMMENDED

OUTLET

PRESSURE

RANGE,

PSIG (bar)

PRESSURE REGULATOR BODY SIZE, NPS (DN)

Outlet

Setting,

Psig (bar)

Inlet 3/4 (20) 1 (25)

Droop Droop

Psig (bar) 10% 20% 40% 10% 20% 40%

80 to 300

(5,5 to 20,7)

250 (17,2)

275

300

350

400

450

500

550

600

(19,0)

(20,7)

(24,1)

(27,6)

(31,0)

(34,5)

(37,9)

(41,4)

450 (204)

540 (245)

660 (299)

660 (299)

750 (340)

780 (354)

810 (367)

930 (422)

750 (340)

900 (408)

1100 (499)

1100 (499)

1300 (590)

1300 (590)

1400 (635)

1600 (726)

1100 (499)

1200 (544)

1500 (680)

1700 (771)

1800 (816)

2000 (907)

2200 (998)

2400 (1089)

480 (218)

510 (231)

720 (327)

720 (327)

840 (381)

930 (422)

1000 (454)

1100 (499)

810 (367)

930 (422)

1200 (544)

1300 (590)

1500 (680)

1700 (771)

1900 (862)

2000 (907)

1100 (499)

1300 (590)

1500 (680)

1800 (816)

2000 (907)

2300 (1043)

2600 (1179)

2800 (1270)

300 (20,7)

350

400

450

500

550

600

(24,1)

(27,6)

(31,0)

(34,5)

(37,9)

(41,4)

630 (286)

720 (327)

810 (367)

900 (408)

990 (449)

1100 (499)

1100 (499)

1200 (544)

1400 (635)

1500 (680)

1700 (771)

1800 (816)

1400 (635)

1700 (771)

2000 (907)

2300 (1043)

2600 (1179)

2900 (1315)

660 (299)

780 (354)

930 (422)

1100 (499)

1200 (544)

1300 (590)

1100 (499)

1400 (635)

1700 (771)

1900 (862)

2200 (998)

2400 (1089)

1500 (680)

1700 (771)

2100 (953)

2400 (1089)

2700 (1225)

3000 (1361)

1. Capacities are based in pounds/hour (kg/h) of saturated steam.

RECOMMENDED

OUTLET

PRESSURE

RANGE,

PSIG (bar)

PRESSURE REGULATOR BODY SIZE, NPS (DN)

Outlet Setting,

Psig (bar)

Inlet 1-1/2 (40) 2 (50)

Droop Droop

Psig (bar) 10% 20% 40% 10% 20% 40%

15 to 100

(1,0 to 6,9)

15 (1,0)

30

40

50

75

100

150

200

250

300

400

500

600

(2,1)

(2,8)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

90 (40,8)

190 (86,2)

230 (104)

290 (132)

350 (159)

500 (227)

700 (318)

900 (408)

1100 (499)

1300 (590)

1400 (635)

1500 (680)

140 (63,5)

250 (113)

300 (136)

400 (181)

480 (218)

650 (295)

900 (408)

1100 (499)

1300 (590)

1400 (635)

1500 (680)

1600 (726)

190 (86,2)

350 (159)

400 (181)

550 (249)

700 (318)

950 (431)

1200 (544)

1400 (635)

1500 (680)

1600 (726)

1700 (771)

1800 (816)

100 (45,4)

200 (90,7)

250 (113)

400 (181)

500 (227)

1000 (454)

1600 (726)

1600 (726)

1600 (726)

1600 (726)

1700 (771)

1700 (771)

150 (68,0)

300 (136)

400 (181)

600 (272)

780 (354)

1300 (590)

1700 (771)

1700 (771)

1700 (771)

1700 (771)

1800 (816)

1800 (816)

200 (90,7)

400 (181)

600 (272)

1000 (454)

1300 (590)

1600 (726)

1800 (816)

1900 (862)

1900 (862)

1900 (862)

1900 (862)

2000 (907)

30 (2,1)

40

50

75

100

150

200

250

300

400

500

600

(2,8)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

220 (99,8)

270 (122)

330 (150)

400 (181)

600 (272)

850 (386)

1200 (544)

1400 (635)

1700 (771)

1900 (862)

2000 (907)

320 (145)

380 (172)

480 (218)

600 (272)

950 (431)

1400 (635)

1800 (816)

2000 (907)

2100 (953)

2100 (953)

2200 (998)

550 (249)

650 (295)

850 (386)

1100 (499)

1500 (680)

1800 (816)

2000 (907)

2200 (998)

2400 (1089)

2500 (1134)

2600 (1179)

230 (104)

280 (127)

400 (181)

600 (272)

1800 (816)

2500 (1134)

2700 (1225)

2800 (1270)

2800 (1270)

2900 (1315)

2900 (1315)

350 (159)

450 (204)

700 (318)

1200 (544)

2200 (998)

2600 (1179)

2800 (1270)

2900 (1315)

3000 (1361)

3100 (1406)

3100 (1406)

630 (286)

750 (340)

1300 (590)

2000 (907)

2500 (1134)

2800 (1270)

3000 (1361)

3100 (1406)

3200 (1452)

3200 (1452)

3300 (1497)

50 (3,4)

60

75

100

150

200

250

300

400

500

600

(4,1)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

330 (150)

430 (195)

600 (272)

900 (408)

1200 (544)

1500 (680)

1800 (816)

2300 (1043)

2700 (1225)

3000 (1361)

550 (249)

650 (295)

900 (408)

1400 (635)

1900 (862)

2300 (1043)

2500 (1134)

2900 (1315)

3100 (1406)

3400 (1542)

1100 (499)

1400 (635)

1800 (816)

2400 (1089)

2900 (1315)

3100 (1406)

3300 (1497)

3300 (1497)

3500 (1588)

3600 (1633)

400 (181)

850 (386)

1500 (680)

2500 (1134)

3200 (1452)

3600 (1633)

3900 (1769)

4200 (1905)

4400 (1996)

4600 (2087)

630 (286)

1100 (499)

1800 (816)

2800 (1270)

3700 (1678)

4000 (1814)

4300 (1950)

4500 (2041)

4600 (2087)

4800 (2177)

1400 (635)

2000 (907)

2500 (1134)

3500 (1588)

4100 (1860)

4400 (1996)

4600 (2087)

4700 (2132)

4900 (2223)

5000 (2268)

1. Capacities are based in pounds/hour (kg/h) of saturated steam.

Bulletin 71.1:95

29

Table 17. Steam Capacities(1) for NPS 1-1/2 through 2 (DN 40 through 50) Type 95HT Regulators with Metal Diaphragm (continued)

Table 18. Water Capacities(1) in GPM (l/min) for NPS 1/4 through 1 (DN 25) Types 95L and 95LD Regulators with Elastomer Diaphragm

- continued -

RECOMMENDED

OUTLET/

DIFFERENTIAL

PRESSURE

RANGE,

PSIG (bar)

PRESSURE REGULATOR BODY SIZE, NPS (DN)

Outlet/

Differential

Setting,

Psig (bar)

Inlet 1-1/2 (40) 2 (50)

Droop Droop

Psig (bar) 10% 20% 40% 10% 20% 40%

15 to 100

(1,0 to 6,9) 100 (6,9)

125

150

200

250

300

400

500

600

(8,6)

(10,3)

(13,8)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

1000 (454)

1200 (544)

1500 (680)

1900 (862)

2400 (1089)

3300 (1497)

3800 (1724)

4100 (1860)

1600 (726)

1900 (862)

2800 (1270)

3300 (1497)

3800 (1724)

4300 (1950)

4800 (2177)

5200 (2359)

3000 (1361)

3600 (1633)

4600 (2087)

4800 (2177)

4900 (2223)

5000 (2268)

5100 (2313)

5300 (2404)

2000 (907)

2500 (1134)

4100 (1860)

4900 (2223)

5400 (2449)

5900 (2676)

6400 (2903)

6700 (3039)

2300 (1043)

3200 (1452)

4900 (2223)

5500 (2495)

5900 (2676)

6300 (2858)

6500 (2948)

6800 (3084)

3500 (1588)

4300 (1950)

5400 (2449)

6100 (2767)

6400 (2903)

6700 (3039)

6800 (3084)

6900 (3130)

60 to 260

(4,1 to 17,9)

100 (6,9)

125

150

175

225

250

300

400

500

600

(8,6)

(10,3)

(12,1)

(15,5)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

800 (363)

900 (408)

1000 (454)

1100 (499)

1500 (680)

1800 (816)

2100 (953)

2400 (1089)

2600 (1179)

1300 (590)

1500 (680)

1700 (771)

1900 (862)

2100 (953)

2600 (1179)

3600 (1633)

4300 (1950)

4800 (2177)

2500 (1134)

2800 (1270)

3200 (1452)

3600 (1633)

4000 (1814)

4800 (2177)

6000 (2722)

6500 (2948)

7000 (3175)

850 (386)

900 (408)

1000 (454)

1100 (499)

1600 (726)

2500 (1134)

4800 (2177)

5500 (2495)

6300 (2858)

1300 (590)

1500 (680)

1700 (771)

2000 (907)

2500 (1134)

3800 (1724)

6800 (3084)

8000 (3629)

8500 (3856)

3000 (1361)

3500 (1588)

4000 (1814)

4800 (2177)

5600 (2540)

6800 (3084)

8300 (3765)

9300 (4218)

9800 (4445)

200 (13,8)

225

250

300

350

400

450

500

600

(15,5)

(17,2)

(20,7)

(24,1)

(27,6)

(31,0)

(34,5)

(41,4)

1300 (590)

1400 (635)

2000 (907)

2300 (1043)

2700 (1225)

3100 (1406)

3600 (1633)

4500 (2041)

2500 (1134)

2700 (1225)

3600 (1633)

4100 (1860)

5000 (2268)

5500 (2495)

6000 (2722)

6500 (2948)

4600 (2087)

4900 (2223)

6400 (2903)

7000 (3175)

8300 (3765)

9000 (4082)

9500 (4309)

10 000 (4536)

1400 (635)

1500 (680)

2100 (953)

2700 (1225)

3800 (1724)

4000 (1814)

5000 (2268)

6300 (2858)

2600 (1179)

2800 (1270)

4000 (1814)

4900 (2223)

8300 (3765)

8000 (3629)

8500 (3856)

9000 (4082)

5300 (2404)

5000 (2268)

7100 (3221)

8000 (3629)

9800 (4445)

10 000 (4536)

10 800 (4899)

11 500 (5216)

250 (17,2)

275

300

350

400

450

500

550

600

(19,0)

(20,7)

(24,1)

(27,6)

(31,0)

(34,5)

(37,9)

(41,4)

1500 (680)

2300 (1043)

2800 (1270)

3200 (1452)

3600 (1633)

3700 (1678)

4100 (1860)

4200 (1905)

3000 (1361)

4000 (1814)

5100 (2313)

5500 (2495)

6000 (2722)

6500 (2948)

6900 (3130)

7300 (3311)

5100 (2313)

6500 (2948)

7700 (3493)

8500 (3856)

9000 (4082)

9500 (4309)

9900 (4491)

10 000 (4536)

1500 (680)

2000 (907)

2900 (1315)

3700 (1678)

4200 (1905)

4700 (2132)

5100 (2313)

5500 (2495)

3000 (1361)

4000 (1814)

5400 (2449)

7000 (3175)

7800 (3538)

8400 (3810)

8800 (3992)

9100 (4128)

5200 (2359)

6300 (2858)

8400 (3810)

9700 (4400)

11 000 (4990)

11 000 (4990)

12 000 (5443)

12 000 (5443)

1. Capacities are based in pounds/hour (kg/h) of saturated steam.

RECOMMENDED

OUTLET

PRESSURE

RANGE,

PSIG/PSI (bar)

PRESSURE REGULATOR BODY SIZE, NPS (DN)

Outlet

Setting,

Psig/Psi

(bar)

Inlet 1/4 1/2 (15) 3/4 (20) 1 (25)

Droop Droop Droop Droop

Psig (bar) 10% 20% 10% 20% 10% 20% 10% 20%

2 to 6

(0,14 to 0,41) 5 (0,35)

10

20

30

50

75

100

150

200

250

(0,69)

(1,4)

(2,1)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

1.0 (3,8)

2.0 (7,6)

2.3 (8,7)

2.7 (10,2)

2.7 (10,2)

2.7 (10,2)

2.7 (10,2)

2.7 (10,2)

2.7 (10,2)

1.8 (6,8)

3.0 (11,4)

3.3 (12,5)

3.5 (13,2)

3.5 (13,2)

3.5 (13,2)

3.5 (13,2)

3.5 (13,2)

3.5 (13,2)

2.0 (7,6)

2.8 (10,6)

3.3 (12,5)

3.7 (14,0)

3.7 (14,0)

3.7 (14,0)

3.7 (14,0)

3.7 (14,0)

3.7 (14,0)

3.3 (12,5)

4.0 (15,1)

4.7 (17,8)

4.8 (18,2)

4.8 (18,2)

4.8 (18,2)

4.8 (18,2)

4.8 (18,2)

4.8 (18,2)

5.0 (18,9)

7.5 (28,4)

10 (37,8)

11 (41,6)

11 (41,6)

11 (41,6)

11 (41,6)

11 (41,6)

11 (41,6)

7.0 (26,5)

11 (41,6)

13 (49,2)

17 (64,3)

20 (75,7)

22 (83,3)

22 (83,3)

22 (83,3)

22 (83,3)

5.8 (22,0)

9.2 (34,8)

12 (45,4)

13 (49,2)

13 (49,2)

13 (49,2)

13 (49,2)

13 (49,2)

13 (49,2)

8.3 (31,4)

13 (49,2)

16 (60,6)

20 (75,7)

23 (87,1)

27 (102)

27 (102)

27 (102)

27 (102)

5 to 15

(0,35 to 1,0) 10 (0,69)

20

30

50

75

100

150

200

250

(1,4)

(2,1)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

1.8 (6,8)

2.5 (9,5)

3.0 (11,4)

3.0 (11,4)

3.0 (11,4)

3.0 (11,4)

3.0 (11,4)

3.0 (11,4)

2.7 (10,2)

3.5 (13,2)

3.8 (14,4)

3.8 (14,4)

3.8 (14,4)

3.8 (14,4)

3.8 (14,4)

3.8 (14,4)

3.7 (14,0)

4.0 (15,1)

4.2 (15,9)

4.2 (15,9)

4.2 (15,9)

4.2 (15,9)

4.2 (15,9)

4.2 (15,9)

5.0 (18,9)

5.2 (19,7)

5.3 (20,1)

5.3 (20,1)

5.3 (20,1)

5.3 (20,1)

5.3 (20,1)

5.3 (20,1)

7.0 (26,5)

10 (37,8)

12 (45,4)

12 (45,4)

12 (45,4)

12 (45,4)

12 (45,4)

12 (45,4)

10 (37,8)

13 (49,2)

17 (64,3)

20 (75,7)

22 (83,3)

22 (83,3)

22 (83,3)

22 (83,3)

8.3 (31,4)

12 (45,4)

14 (53,0)

14 (53,0)

14 (53,0)

14 (53,0)

14 (53,0)

14 (53,0)

12 (45,4)

16 (60,6)

20 (75,7)

25 (94,6)

27 (102)

27 (102)

27 (102)

27 (102)

1. To obtain capacities for regulators with metal diaphragms, multiply the table values by 0.8.

Bulletin 71.1:95

30

Table 18. Water Capacities(1) in GPM (l/min) for NPS 1/4 through 1 (DN 25) Types 95L and 95LD Regulators with

Elastomer Diaphragm (continued)

Table 19. Water Capacities(1) in GPM (l/min) or NPS 1/4 through 1/2 (DN 15) Types 95H and 95HD Regulators with Elastomer Diaphragm

- continued -

RECOMMENDED

OUTLET/

DIFFERENTIAL

PRESSURE

RANGE,

PSIG/PSI (bar)

PRESSURE REGULATOR BODY SIZE, NPS (DN)

Outlet/

Differential

Setting,

Psig/Psi

(bar)

Inlet 1/4 1/2 (15) 3/4 (20) 1 (25)

Droop Droop Droop Droop

Psig (bar) 10% 20% 10% 20% 10% 20% 10% 20%

5 to 15

(0,35 to 1,0) 15 (1,0)

20

30

50

75

100

150

200

250

(1,4)

(2,1)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

1.8 (6,8)

2.7 (10,2)

3.5 (13,2)

3.7 (14,0)

3.7 (14,0)

3.7 (14,0)

3.7 (14,0)

3.7 (14,0)

2.2 (8,3)

3.3 (12,5)

4.3 (16,3)

4.5 (17,0)

4.5 (17,0)

4.5 (17,0)

4.5 (17,0)

4.5 (17,0)

3.5 (13,2)

4.7 (17,8)

4.8 (18,2)

5.0 (18,9)

5.0 (18,9)

5.0 (18,9)

5.0 (18,9)

5.0 (18,9)

5.0 (18,9)

5.8 (22,0)

6.2 (23,5)

6.3 (23,8)

6.3 (23,8)

6.3 (23,8)

6.3 (23,8)

6.3 (23,8)

7.0 (26,5)

11 (41,6)

15 (56,8)

15 (56,8)

15 (56,8)

15 (56,8)

15 (56,8)

17 (64,3)

8.5 (32,2)

13 (49,2)

17 (64,3)

22 (83,3)

28 (106)

32 (121)

35 (132)

35 (132)

8.3 (31,4)

13 (49,2)

18 (68,1)

18 (68,1)

18 (68,1)

18 (68,1)

18 (68,1)

20 (75,7)

10 (37,8)

15 (56,8)

20 (75,7)

27 (102)

33 (125)

37 (140)

42 (159)

42 (159)

13 to 30

(0,90 to 2,1)

20 (1,4)

30

40

50

75

100

150

200

250

(2,1)

(2,8)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

2.0 (7,6)

2.7 (10,2)

3.3 (12,5)

3.8 (14,4)

3.8 (14,4)

3.8 (14,4)

3.8 (14,4)

3.8 (14,4)

2.9 (11,0)

3.8 (14,4)

4.7 (17,8)

5.0 (18,9)

5.0 (18,9)

5.0 (18,9)

5.0 (18,9)

5.0 (18,9)

4.3 (16,3)

5.2 (19,7)

5.5 (20,8)

5.5 (20,8)

5.5 (20,8)

5.5 (20,8)

5.5 (20,8)

5.5 (20,8)

5.8 (22,0)

6.7 (25,4)

7.2 (27,3)

7.2 (27,3)

7.2 (27,3)

7.2 (27,3)

7.2 (27,3)

7.2 (27,3)

10 (37,8)

13 (49,2)

14 (53,0)

18 (68,1)

22 (83,3)

23 (87,1)

23 (87,1)

25 (94,6)

11 (41,6)

13 (49,2)

17 (64,3)

20 (75,7)

27 (102)

32 (121)

37 (140)

38 (144)

12 (45,4)

15 (56,8)

17 (64,3)

22 (83,3)

25 (94,6)

27 (102)

27 (102)

30 (114)

13 (49,2)

16 (60,6)

20 (75,7)

25 (94,6)

32 (121)

38 (144)

43 (163)

45 (170)

25 (1,7)

40

50

75

100

150

200

250

(2,8)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

2.6 (9,8)

3.3 (12,5)

3.7 (14,0)

4.2 (15,9)

4.2 (15,9)

4.2 (15,9)

4.2 (15,9)

3.5 (13,2)

4.3 (16,3)

5.8 (22,0)

5.8 (22,0)

5.8 (22,0)

5.8 (22,0)

5.8 (22,0)

5.2 (19,7)

5.8 (22,0)

5.8 (22,0)

5.8 (22,0)

5.8 (22,0)

5.8 (22,0)

5.8 (22,0)

7.5 (28,4)

7.8 (29,5)

8.0 (30,3)

8.0 (30,3)

8.0 (30,3)

8.0 (30,3)

8.0 (30,3)

13 (49,2)

14 (53,0)

22 (83,3)

23 (87,1)

28 (106)

33 (125)

35 (132)

13 (49,2)

16 (60,6)

22 (83,3)

27 (102)

32 (121)

38 (144)

41 (155)

15 (56,8)

17 (64,3)

25 (94,6)

28 (106)

33 (125)

40 (151)

42 (159)

16 (60,6)

19 (71,9)

27 (102)

32 (121)

38 (144)

45 (170)

48 (182)

30 (2,1)

40

50

75

100

150

200

250

(2,8)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

2.3 (8,7)

3.2 (12,1)

4.3 (16,3)

4.8 (18,2)

4.8 (18,2)

4.8 (18,2)

4.8 (18,2)

3.0 (11,4)

4.0 (15,1)

5.7 (21,6)

6.3 (23,8)

6.3 (23,8)

6.3 (23,8)

6.3 (23,8)

5.3 (20,1)

6.5 (24,6)

6.7 (25,4)

6.7 (25,4)

6.7 (25,4)

6.7 (25,4)

6.7 (25,4)

7.3 (27,6)

8.3 (31,4)

9.2 (34,8)

9.2 (34,8)

9.2 (34,8)

9.2 (34,8)

9.2 (34,8)

10 (37,8)

13 (49,2)

20 (75,7)

24 (90,8)

32 (121)

37 (140)

40 (151)

12 (45,4)

15 (56,8)

22 (83,3)

27 (102)

33 (125)

40 (151)

43 (163)

12 (45,4)

16 (60,6)

23 (87,1)

28 (106)

37 (140)

43 (163)

47 (178)

14 (53,0)

18 (68,1)

25 (94,6)

32 (121)

40 (151)

47 (178)

50 (189)

1. To obtain capacities for regulators with metal diaphragms, multiply the table values by 0.8.

RECOMMENDED

OUTLET/

DIFFERENTIAL

PRESSURE

RANGE,

PSIG/PSI (bar)

PRESSURE REGULATOR BODY SIZE, NPS (DN)

Outlet/

Differential

Setting,

Psig/Psi (bar)

Inlet 1/4 1/2 (15)

Droop Droop

Psig (bar) 10% 20% 40% 10% 20% 40%

15 to 30

(1,0 to 2,1)

15 (1,0)

30

40

50

75

100

150

200

250

300

(2,1)

(2,8)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

1.0 (3,8)

1.5 (5,7)

2.0 (7,6)

3.0 (11,4)

3.2 (12,1)

3.2 (12,1)

3.2 (12,1)

3.2 (12,1)

3.2 (12,1)

1.8 (6,8)

2.0 (7,6)

2.2 (8,3)

4.2 (15,9)

4.2 (15,9)

4.2 (15,9)

4.2 (15,9)

4.2 (15,9)

4.2 (15,9)

3.2 (12,1)

3.6 (13,6)

3.8 (14,4)

5.2 (19,7)

5.2 (19,7)

5.2 (19,7)

5.2 (19,7)

5.5 (20,8)

5.5 (20,8)

2.0 (7,57)

3.0 (11,4)

4.0 (15,1)

5.0 (18,9)

5.0 (18,9)

5.0 (18,9)

5.1 (19,3)

5.1 (19,3)

5.2 (19,7)

3.2 (12,1)

5.0 (18,9)

5.5 (20,8)

6.5 (24,6)

6.5 (24,6)

6.5 (24,6)

6.5 (24,6)

6.6 (25,0)

6.6 (25,0)

6.8 (25,7)

7.0 (26,5)

7.2 (27,3)

7.4 (28,0)

7.6 (28,8)

7.8 (29,5)

8.0 (30,3)

8.5 (32,2)

9.0 (34,1)

30 (2,1)

40

50

75

100

150

200

250

300

(2,8)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

1.0 (3,8)

1.2 (4,5)

2.5 (9,5)

3.5 (13,2)

4.0 (15,1)

4.0 (15,1)

4.0 (15,1)

4.0 (15,1)

1.8 (6,8)

2.0 (7,6)

3.3 (12,5)

3.8 (14,4)

4.2 (15,9)

5.0 (18,9)

5.0 (18,9)

5.0 (18,9)

2.5 (9,5)

2.8 (10,6)

4.7 (17,8)

7.0 (26,5)

9.0 (34,1)

10 (37,8)

11 (41,6)

12 (45,4)

2.8 (10,6)

3.5 (13,2)

4.0 (15,1)

5.0 (18,9)

6.0 (22,7)

6.5 (24,6)

6.5 (24,6)

7.0 (26,5)

4.9 (18,5)

5.7 (21,6)

5.9 (22,3)

6.1 (23,1)

6.5 (24,6)

6.9 (26,1)

7.0 (26,5)

7.5 (28,4)

9.5 (36,0)

10 (37,8)

13 (49,2)

14 (53,0)

14 (53,0)

14 (53,0)

14 (53,0)

14 (53,0)

1. To obtain capacities for regulators with metal diaphragms, multiply the table values by 0.6.

Bulletin 71.1:95

31

Table 19. Water Capacities(1) in GPM (l/min) for NPS 1/4 through 1/2 (DN 15) Types 95H and 95HD Regulators

with Elastomer Diaphragm (continued)

Table 19. Water Capacities(1) in GPM (l/min) for NPS 3/4 through 1 (DN 20 through 25) Types 95H and 95HD Regulators

with Elastomer Diaphragm (continued)

- continued -

RECOMMENDED

OUTLET/

DIFFERENTIAL

PRESSURE

RANGE,

PSIG/PSI (bar)

PRESSURE REGULATOR BODY SIZE, NPS (DN)

Outlet/

Differential

Setting,

Psig/Psi

(bar)

Inlet 1/4 1/2 (15)

Droop Droop

Psig (bar) 10% 20% 40% 10% 20% 40%

25 to 75

(1,7 to 5,2)

50 (3,4)

60

75

100

150

200

250

300

(4,1)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

2.0 (7,6)

3.0 (11,4)

3.2 (12,1)

4.0 (15,1)

4.8 (18,2)

5.0 (18,9)

5.0 (18,9)

3.0 (11,4)

3.5 (13,2)

3.8 (14,4)

5.0 (18,9)

6.0 (22,7)

7.0 (26,5)

8.0 (30,3)

3.5 (13,2)

4.0 (15,1)

4.5 (17,0)

8.5 (32,2)

9.2 (34,8)

11 (41,6)

12 (45,4)

4.0 (15,1)

5.0 (18,9)

5.5 (20,8)

6.0 (22,7)

6.5 (24,6)

7.0 (26,5)

7.3 (27,6)

6.5 (24,6)

8.6 (32,6)

9.0 (34,1)

9.5 (36,0)

10 (37,8)

11 (41,6)

11 (41,6)

12 (45,4)

12 (45,4)

13 (49,2)

13 (49,2)

14 (53,0)

14 (53,0)

15 (56,8)

75 (5,2)

100

125

150

200

250

300

(6,9)

(8,6)

(10,3)

(13,8)

(17,2)

(20,7)

2.0 (7,6)

2.5 (9,5)

3.5 (13,2)

4.3 (16,3)

6.5 (24,6)

6.5 (24,6)

4.0 (15,1)

4.2 (15,9)

5.5 (20,8)

6.7 (25,4)

10 (37,8)

11 (41,6)

6.5 (24,6)

7.5 (28,4)

8.5 (32,2)

9.1 (34,4)

12 (45,4)

13 (49,2)

9.5 (36,0)

10 (37,8)

11 (41,6)

11 (41,6)

11 (41,6)

11 (41,6)

12 (45,4)

14 (53,0)

15 (56,8)

15 (56,8)

15 (56,8)

15 (56,8)

15 (56,8)

18 (68,1)

21 (79,5)

23 (87,1)

23 (87,1)

23 (87,1)

70 to 150

(4,8 to 10,3)

100 (6,9)

125

150

175

200

250

300

(8,6)

(10,3)

(12,1)

(13,8)

(17,2)

(20,7)

2.5 (9,5)

2.7 (10,2)

2.8 (10,6)

3.0 (11,4)

3.5 (13,2)

4.4 (16,7)

4.0 (15,1)

4.0 (15,1)

4.2 (15,9)

5.1 (19,3)

5.5 (20,8)

6.6 (25,0)

5.8 (22,0)

6.7 (25,4)

7.2 (27,3)

8.5 (32,2)

9.6 (36,3)

10 (37,8)

7.0 (26,5)

8.0 (30,3)

9.0 (34,1)

9.5 (36,0)

10 (37,8)

11 (41,6)

11 (41,6)

14 (53,0)

15 (56,8)

15 (56,8)

16 (60,6)

16 (60,6)

16 (60,6)

19 (71,9)

21 (79,5)

23 (87,1)

24 (90,8)

24 (90,8)

125 (8,6)

125

150

175

200

250

300

(8,6)

(10,3)

(12,1)

(13,8)

(17,2)

(20,7)

2.0 (7,6)

2.1 (8,0)

2.2 (8,3)

3.6 (13,6)

3.7 (14,0)

4.0 (15,1)

3.3 (12,5)

3.6 (13,6)

4.5 (17,0)

6.0 (22,7)

7.0 (26,5)

8.2 (31,0)

6.0 (22,7)

6.8 (25,7)

8.5 (32,2)

9.3 (35,2)

9.9 (37,5)

11 (41,6)

7.8 (29,5)

9.0 (34,1)

9.5 (36,0)

10 (37,8)

11 (41,6)

12 (45,4)

12 (45,4)

15 (56,8)

16 (60,6)

18 (68,1)

18 (68,1)

18 (68,1)

18 (68,1)

20 (75,7)

23 (87,1)

25 (94,6)

26 (98,4)

28 (106)

150 (10,3)

175

200

225

250

300

(12,1)

(13,8)

(15,5)

(17,2)

(20,7)

2.5 (9,5)

2.6 (9,8)

3.0 (11,4)

3.5 (13,2)

4.0 (15,1)

3.9 (14,8)

4.2 (15,9)

5.0 (18,9)

5.7 (21,6)

7.0 (26,5)

6.5 (24,6)

7.2 (27,3)

9.0 (34,1)

9.9 (37,5)

11 (41,6)

8.7 (32,9)

10 (37,8)

12 (45,4)

13 (49,2)

13 (49,2)

14 (53,0)

17 (64,3)

19 (71,9)

20 (75,7)

20 (75,7)

19 (71,9)

22 (83,3)

24 (90,8)

26 (98,4)

28 (106)

1. To obtain capacities for regulators with metal diaphragms, multiply the table values by 0.6.

RECOMMENDED

OUTLET/

DIFFERENTIAL

PRESSURE

RANGE,

PSIG/PSI (bar)

PRESSURE REGULATOR BODY SIZE, NPS (DN)

Outlet/

Differential

Setting,

Psig/Psi

(bar)

Inlet 3/4 (20) 1 (25)

Droop Droop

Psig (bar) 10% 20% 40% 10% 20% 40%

15 to 30

(1,0 to 2,1) 15 (1,0)

30

40

50

75

100

150

200

250

300

(2,1)

(2,8)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

7.0 (26,5)

8.0 (30,3)

9.0 (34,1)

12 (45,4)

13 (49,2)

15 (56,8)

19 (71,9)

20 (75,7)

20 (75,7)

10 (37,8)

12 (45,4)

14 (53,0)

18 (68,1)

19 (71,9)

22 (83,3)

25 (94,6)

27 (102)

28 (106)

15 (56,8)

18 (68,1)

20 (75,7)

26 (98,4)

28 (106)

31 (117)

35 (132)

37 (140)

40 (151)

8.0 (30,3)

8.0 (30,3)

8.5 (32,2)

13 (49,2)

19 (71,9)

25 (94,6)

32 (121)

33 (125)

34 (129)

11 (41,6)

13 (49,2)

15 (56,8)

21 (79,5)

26 (98,4)

36 (136)

37 (140)

37 (140)

38 (144)

16 (60,6)

20 (75,7)

23 (87,1)

29 (110)

34 (129)

42 (159)

44 (167)

46 (174)

48 (182)

1. To obtain capacities for regulators with metal diaphragms, multiply the table values by 0.6.

Bulletin 71.1:95

32

Table 19. Water Capacities(1) in GPM (l/min) for NPS 3/4 through 1 (DN 20 through 25) Types 95H and 95HD Regulators

with Elastomer Diaphragm (continued)

Table 20. Water Capacities in GPM (l/min) for NPS 1-1/2 through 2 (DN 40 through 50) Types 95H and 95HD Regulators

with Either Elastomer or Stainless Steel Diaphragm

- continued -

RECOMMENDED

OUTLET/

DIFFERENTIAL

PRESSURE

RANGE,

PSIG/PSI (bar)

PRESSURE REGULATOR BODY SIZE, NPS (DN)

Outlet/

Differential

Setting,

Psig/Psi

(bar)

Inlet 3/4 (20) 1 (25)

Droop Droop

Psig (bar) 10% 20% 40% 10% 20% 40%

15 to 30

(1,0 to 2,1) 30 (2,1)

40

50

75

100

150

200

250

300

(2,8)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

9.0 (34,1)

11 (41,6)

15 (56,8)

17 (64,3)

21 (79,5)

24 (90,8)

25 (94,6)

26 (98,4)

13 (49,2)

16 (60,6)

21 (79,5)

24 (90,8)

30 (114)

31 (117)

35 (132)

36 (136)

17 (64,3)

21 (79,5)

28 (106)

33 (125)

40 (151)

46 (174)

49 (185)

53 (201)

8.5 (32,2)

11 (41,6)

16 (60,6)

19 (71,9)

30 (114)

35 (132)

36 (136)

37 (140)

14 (53,0)

18 (68,1)

25 (94,6)

31 (117)

39 (148)

48 (182)

53 (201)

54 (204)

17 (64,3)

22 (83,3)

29 (110)

34 (129)

42 (159)

49 (185)

55 (208)

60 (227)

25 to 75

(1,7 to 5,2)

50 (3,4)

60

75

100

150

200

250

300

(4,1)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

9.0 (34,1)

12 (45,4)

15 (56,8)

23 (87,1)

24 (90,8)

26 (98,4)

25 (94,6)

14 (53,0)

20 (75,7)

24 (90,8)

32 (121)

34 (129)

39 (148)

40 (151)

20 (75,7)

25 (94,6)

31 (117)

40 (151)

47 (178)

51 (193)

55 (208)

12 (45,4)

14 (53,0)

16 (60,6)

20 (75,7)

30 (114)

33 (125)

40 (151)

17 (64,3)

21 (79,5)

26 (98,4)

36 (136)

42 (159)

49 (185)

55 (208)

23 (87,1)

27 (102)

34 (129)

42 (159)

49 (185)

55 (208)

60 (227)

75 (5,2)

100

125

150

200

250

300

(6,9)

(8,6)

(10,3)

(13,8)

(17,2)

(20,7)

16 (60,6)

20 (75,7)

23 (87,1)

28 (106)

32 (121)

33 (125)

23 (87,1)

29 (110)

33 (125)

41 (155)

43 (163)

49 (185)

28 (106)

33 (125)

39 (148)

47 (178)

52 (197)

56 (212)

16 (60,6)

21 (79,5)

24 (90,8)

29 (110)

37 (140)

39 (148)

24 (90,8)

31 (117)

37 (140)

46 (174)

50 (189)

56 (212)

30 (114)

36 (136)

42 (159)

49 (185)

55 (208)

60 (227)

70 to 150

(4,8 to 10,3)

100 (6,9)

125

150

175

200

250

300

(8,6)

(10,3)

(12,1)

(13,8)

(17,2)

(20,7)

15 (56,8)

17 (64,3)

24 (90,8)

25 (94,6)

29 (110)

33 (125)

24 (90,8)

27 (102)

28 (106)

37 (140)

42 (159)

48 (182)

30 (114)

35 (132)

40 (151)

45 (170)

52 (197)

57 (216)

16 (60,6)

21 (79,5)

24 (90,8)

27 (102)

30 (114)

36 (136)

24 (90,8)

30 (114)

33 (125)

41 (155)

42 (159)

43 (163)

32 (121)

38 (144)

43 (163)

48 (182)

54 (204)

58 (220)

125 (8,6)

125

150

175

200

250

300

(8,6)

(10,3)

(12,1)

(13,8)

(17,2)

(20,7)

19 (71,9)

23 (87,1)

27 (102)

32 (121)

34 (129)

36 (136)

25 (94,6)

32 (121)

36 (136)

40 (151)

44 (167)

47 (178)

32 (121)

37 (140)

42 (159)

47 (178)

51 (193)

57 (216)

17 (64,3)

22 (83,3)

24 (90,8)

29 (110)

32 (121)

38 (144)

27 (102)

33 (125)

35 (132)

38 (144)

42 (159)

44 (167)

35 (132)

40 (151)

47 (178)

49 (185)

53 (201)

59 (223)

150 (10,3)

175

200

225

250

300

(12,1)

(13,8)

(15,5)

(17,2)

(20,7)

21 (79,5)

24 (90,8)

29 (110)

30 (114)

35 (132)

28 (106)

33 (125)

37 (140)

41 (155)

49 (185)

34 (129)

40 (151)

45 (170)

50 (189)

55 (208)

20 (75,7)

24 (90,8)

29 (110)

34 (129)

41 (155)

26 (98,4)

34 (129)

39 (148)

45 (170)

53 (201)

37 (140)

42 (159)

48 (182)

52 (197)

59 (223)

1. To obtain capacities for regulators with metal diaphragms, multiply the table values by 0.6.

RECOMMENDED

OUTLET/

DIFFERENTIAL

PRESSURE

RANGE,

PSIG/PSI (bar)

PRESSURE REGULATOR BODY SIZE, NPS (DN)

Outlet/

Differential

Setting,

Psig/Psi

(bar)

Inlet 1-1/2 (40) 2 (50)

Droop Droop

Psig (bar) 10% 20% 40% 10% 20% 40%

5 to 80

(0,35 to 5,5) 5 (0,35)

10

20

30

50

75

100

150

200

250

300

(0,69)

(1,4)

(2,1)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

4.8 (18,2)

6.2 (23,5)

7.5 (28,4)

9.5 (36,0)

12 (45,4)

14 (53,0)

16 (60,6)

18 (68,1)

19 (71,9)

20 (75,7)

5.2 (19,7)

7.0 (26,5)

8.3 (31,4)

10 (37,8)

13 (49,2)

15 (56,8)

18 (68,1)

20 (75,7)

22 (83,3)

24 (90,8)

7.4 (28,0)

8.5 (32,2)

9.5 (36,0)

12 (45,4)

15 (56,8)

17 (64,3)

20 (75,7)

23 (87,1)

25 (94,6)

28 (106)

4.8 (18,2)

6.5 (24,6)

8.0 (30,3)

10 (37,8)

12 (45,4)

14 (53,0)

17 (64,3)

18 (68,1)

25 (94,6)

33 (125)

5.2 (19,7)

7.1 (26,9)

9.0 (34,1)

12 (45,4)

14 (53,0)

15 (56,8)

20 (75,7)

21 (79,5)

27 (102)

40 (151)

7.6 (28,8)

10 (37,8)

12 (45,4)

15 (56,8)

16 (60,6)

18 (68,1)

22 (83,3)

23 (87,1)

30 (114)

45 (170)

Bulletin 71.1:95

33

Table 20. Water Capacities in GPM (l/min) for NPS 1-1/2 through 2 (DN 40 through 50) Types 95H and 95HD Regulators with Either

Elastomer or Stainless Steel Diaphragm (continued)

RECOMMENDED

OUTLET/

DIFFERENTIAL

PRESSURE

RANGE,

PSIG/PSI (bar)

PRESSURE REGULATOR BODY SIZE, NPS (DN)

Outlet/

Differential

Setting,

Psig/Psi

(bar)

Inlet

1-1/2 (40) 2 (50)

Droop Droop

Psig (bar) 10% 20% 40% 10% 20% 40%

5 to 80

(0,35 to 5,5)

15 (1,0)

30

40

50

75

100

150

200

250

300

(2,1)

(2,8)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

8.0 (30,3)

10 (37,8)

12 (45,4)

14 (53,0)

17 (64,3)

21 (79,5)

23 (87,1)

24 (90,8)

25 (94,6)

9.0 (34,1)

11 (41,6)

13 (49,2)

18 (68,1)

21 (79,5)

27 (102)

32 (121)

34 (129)

35 (132)

11 (41,6)

14 (53,0)

18 (68,1)

25 (94,6)

32 (121)

43 (163)

52 (197)

54 (204)

55 (208)

7.0 (26,5)

9.5 (36,0)

11 (41,6)

15 (56,8)

18 (68,1)

21 (79,5)

24 (90,8)

27 (102)

32 (121)

10 (37,8)

13 (49,2)

15 (56,8)

19 (71,9)

22 (83,3)

28 (106)

31 (117)

40 (151)

50 (189)

14 (53,0)

17 (64,3)

20 (75,7)

26 (98,4)

32 (121)

40 (151)

43 (163)

50 (189)

65 (246)

30 (2,1)

40

50

75

100

150

200

250

300

(2,8)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

13 (49,2)

15 (56,8)

18 (68,1)

21 (79,5)

24 (90,8)

27 (102)

30 (114)

33 (125)

18 (68,1)

21 (79,5)

26 (98,4)

30 (114)

36 (136)

41 (155)

47 (178)

55 (208)

27 (102)

30 (114)

40 (151)

49 (185)

64 (242)

80 (303)

110 (416)

130 (492)

13 (49,2)

14 (53,0)

18 (68,1)

22 (83,3)

26 (98,4)

30 (114)

31 (117)

32 (121)

18 (68,1)

20 (75,7)

25 (94,6)

30 (114)

36 (136)

41 (155)

45 (170)

52 (197)

27 (102)

30 (114)

39 (148)

48 (182)

63 (238)

77 (291)

90 (341)

110 (416)

50 (3,4)

60

75

100

150

200

250

300

(4,1)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

17 (64,3)

20 (75,7)

25 (94,6)

34 (129)

42 (159)

50 (189)

56 (212)

29 (110)

33 (125)

40 (151)

50 (189)

61 (231)

71 (269)

82 (310)

51 (193)

58 (220)

68 (257)

87 (329)

110 (416)

130 (492)

160 (606)

16 (60,6)

19 (71,9)

24 (90,8)

32 (121)

42 (159)

50 (189)

55 (208)

29 (110)

32 (121)

38 (144)

49 (185)

62 (235)

73 (276)

83 (314)

51 (193)

56 (212)

65 (246)

84 (318)

110 (416)

140 (530)

160 (606)

75 (5,2)

100

125

150

200

250

300

(6,9)

(8,6)

(10,3)

(13,8)

(17,2)

(20,7)

19 (71,9)

31 (117)

38 (144)

52 (197)

57 (216)

65 (246)

30 (114)

56 (212)

65 (246)

74 (280)

85 (322)

95 (360)

60 (227)

85 (322)

110 (416)

120 (454)

140 (530)

160 (606)

20 (75,7)

27 (102)

34 (129)

45 (170)

56 (212)

68 (257)

30 (114)

49 (185)

60 (227)

71 (269)

85 (322)

100 (378)

60 (227)

85 (322)

110 (416)

120 (454)

140 (530)

160 (606)

60 to 120

(4,1 to 8,3) 100 (6,9)

125

150

175

225

250

300

(8,6)

(10,3)

(12,1)

(15,5)

(17,2)

(20,7)

23 (87,1)

41 (155)

40 (151)

52 (197)

62 (235)

70 (265)

30 (114)

44 (167)

55 (208)

83 (314)

96 (363)

100 (378)

75 (284)

87 (329)

100 (378)

130 (492)

140 (530)

180 (681)

24 (90,8)

33 (125)

41 (155)

54 (204)

65 (246)

100 (378)

32 (121)

45 (170)

57 (216)

84 (318)

100 (378)

130 (492)

76 (288)

89 (337)

110 (416)

130 (492)

140 (530)

160 (606)

100 to 140

(6,9 to 9,7) 125 (8,6)

150

175

200

225

250

300

(10,3)

(12,1)

(13,8)

(15,5)

(17,2)

(20,7)

28 (106)

29 (110)

30 (114)

36 (136)

38 (144)

39 (148)

51 (193)

60 (227)

64 (242)

70 (265)

76 (288)

82 (310)

80 (303)

90 (341)

110 (416)

110 (416)

120 (454)

140 (530)

29 (110)

31 (117)

33 (125)

36 (136)

45 (170)

69 (261)

52 (197)

61 (231)

71 (269)

82 (310)

95 (360)

120 (454)

83 (314)

95 (360)

110 (416)

120 (454)

130 (492)

150 (568)

120 to 150

(8,3 to 10,3) 150 (10,3)

175

200

225

250

300

(12,1)

(13,8)

(15,5)

(17,2)

(20,7)

29 (110)

32 (121)

35 (132)

40 (151)

55 (208)

52 (197)

55 (208)

63 (238)

70 (265)

94 (356)

90 (341)

100 (378)

110 (416)

120 (454)

140 (530)

33 (125)

34 (129)

37 (140)

43 (163)

55 (208)

54 (204)

58 (220)

64 (242)

73 (276)

95 (360)

92 (348)

100 (378)

110 (416)

130 (492)

150 (568)

Bulletin 71.1:95

34

Table 21. Water Capacities(1) in GPM (l/min) for NPS 1/4 through 1/2 (DN 15) Type 95HP Regulators with Elastomer Diaphragm

- continued -

RECOMMENDED

OUTLET

PRESSURE

RANGE,

PSIG (bar)

PRESSURE REGULATOR BODY SIZE, NPS (DN)

Outlet

Setting,

Psig (bar)

Inlet 1/4 1/2 (15)

Droop Droop

Psig (bar) 10% 20% 40% 10% 20% 40%

15 to 100

(1,0 to 6,9)

15 (1,0)

30

40

50

75

100

150

200

250

300

400

500

600

(2,1)

(2,8)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

0.6 (2,3)

0.9 (3,4)

1.2 (4,5)

1.4 (5,3)

1.8 (6,8)

2.4 (9,1)

2.8 (10,6)

2.9 (11,0)

3.0 (11,4)

3.0 (11,4)

3.0 (11,4)

3.0 (11,4)

1.3 (4,9)

1.5 (5,7)

1.8 (6,8)

2.6 (9,8)

3.0 (11,4)

4.0 (15,1)

4.8 (18,2)

5.0 (18,9)

5.2 (19,7)

5.5 (20,8)

5.5 (20,8)

5.5 (20,8)

2.9 (11,0)

3.1 (11,7)

3.2 (12,1)

4.5 (17,0)

5.0 (18,9)

6.4 (24,2)

7.0 (26,5)

8.0 (30,3)

9.0 (34,1)

10 (37,8)

11 (41,6)

12 (45,4)

2.6 (9,8)

2.7 (10,2)

2.8 (10,6)

3.0 (11,4)

3.5 (13,2)

4.0 (15,1)

4.8 (18,2)

4.8 (18,2)

4.5 (17,0)

5.4 (20,4)

5.6 (21,2)

6.2 (23,5)

3.2 (12,1)

3.5 (13,2)

3.8 (14,4)

4.6 (17,4)

5.0 (18,9)

5.5 (20,8)

6.0 (22,7)

6.2 (23,5)

6.2 (23,5)

6.5 (24,6)

6.7 (25,4)

7.0 (26,5)

5.2 (19,7)

5.5 (20,8)

6.2 (23,5)

6.6 (25,0)

7.0 (26,5)

7.0 (26,5)

7.7 (29,1)

7.8 (29,5)

7.5 (28,4)

7.8 (29,5)

8.0 (30,3)

8.5 (32,2)

30 (2,1)

40

50

75

100

150

200

250

300

400

500

600

(2,8)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

1.0 (3,8)

1.4 (5,3)

2.0 (7,6)

2.4 (9,1)

2.7 (10,2)

3.0 (11,4)

4.0 (15,1)

4.4 (16,7)

4.4 (16,7)

4.4 (16,7)

4.4 (16,7)

2.0 (7,6)

2.4 (9,1)

3.7 (14,0)

4.1 (15,5)

5.0 (18,9)

5.5 (20,8)

6.0 (22,7)

6.5 (24,6)

6.5 (24,6)

6.5 (24,6)

6.5 (24,6)

3.7 (14,0)

4.0 (15,1)

5.5 (20,8)

6.7 (25,4)

8.0 (30,3)

10 (37,8)

11 (41,6)

12 (45,4)

12 (45,4)

13 (49,2)

13 (49,2)

2.6 (9,8)

3.0 (11,4)

4.0 (15,1)

4.5 (17,0)

5.0 (18,9)

5.8 (22,0)

6.0 (22,7)

6.0 (22,7)

6.5 (24,6)

6.6 (25,0)

6.9 (26,1)

4.4 (16,6)

5.0 (18,9)

6.2 (23,5)

6.5 (24,6)

7.0 (26,5)

7.2 (27,3)

8.0 (30,3)

8.2 (31,0)

8.4 (31,8)

8.6 (32,6)

8.7 (32,9)

7.2 (27,3)

7.8 (29,5)

8.8 (33,3)

9.8 (37,1)

10 (37,8)

10 (37,8)

11 (41,6)

11 (41,6)

11 (41,6)

12 (45,4)

11 (41,6)

75 (5,2)

100

125

150

200

250

300

400

500

600

(6,9)

(8,6)

(10,3)

(13,8)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

2.8 (10,6)

3.3 (12,5)

4.3 (16,3)

4.8 (18,2)

5.6 (21,2)

5.8 (22,0)

6.0 (22,7)

6.1 (23,1)

6.2 (23,5)

4.5 (17,0)

5.8 (22,0)

6.7 (25,4)

8.2 (31,0)

10 (37,8)

11 (41,6)

11 (41,6)

11 (41,6)

11 (41,6)

5.9 (22,3)

7.2 (27,3)

8.3 (31,4)

10 (37,8)

12 (45,4)

13 (49,2)

15 (56,8)

15 (56,8)

16 (60,6)

5.5 (20,8)

6.2 (23,5)

6.5 (24,6)

8.0 (30,3)

8.2 (31,0)

8.7 (32,9)

8.8 (33,3)

8.7 (32,9)

9.0 (34,1)

9.0 (34,1)

10 (37,8)

12 (45,4)

12 (45,4)

12 (45,4)

12 (45,4)

12 (45,4)

13 (49,2)

13 (49,2)

13 (49,2)

16 (60,6)

18 (68,1)

19 (71,9)

19 (71,9)

19 (71,9)

19 (71,9)

19 (71,9)

20 (75,7)

100 (6,9)

125

150

175

200

250

300

400

500

600

(8,6)

(10,3)

(12,1)

(13,8)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

3.1 (11,7)

4.0 (15,1)

4.8 (18,2)

5.5 (20,8)

6.4 (24,2)

7.0 (26,5)

7.3 (27,6)

7.5 (28,4)

7.5 (28,4)

4.9 (18,5)

6.4 (24,2)

7.5 (28,4)

8.0 (30,3)

9.7 (36,7)

11 (41,6)

11 (41,6)

12 (45,4)

12 (45,4)

6.4 (24,2)

7.5 (28,4)

8.6 (32,6)

9.2 (34,8)

11 (41,6)

12 (45,4)

15 (56,8)

15 (56,8)

16 (60,6)

6.4 (24,2)

7.0 (26,5)

8.0 (30,3)

8.2 (31,0)

9.0 (34,1)

9.3 (35,2)

9.3 (35,2)

9.3 (35,2)

10 (37,8)

11 (41,6)

12 (45,4)

13 (49,2)

14 (53,0)

14 (53,0)

14 (53,0)

14 (53,0)

14 (53,0)

15 (56,8)

16 (60,6)

18 (68,1)

21 (79,5)

21 (79,5)

22 (83,3)

22 (83,3)

22 (83,3)

23 (87,1)

23 (87,1)

80 to 300

(5,5 to 20,7)

125 (8,6)

150

175

200

225

250

300

400

500

600

(10,3)

(12,1)

(13,8)

(15,5)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

1.5 (5,68)

2.0 (7,57)

2.4 (9,08)

2.4 (9,08)

3.0 (11,4)

3.6 (13,6)

3.6 (13,6)

3.7 (14,0)

4.6 (17,4)

2.8 (10,6)

3.4 (12,9)

3.8 (14,4)

4.2 (15,9)

4.8 (18,2)

5.3 (20,1)

6.0 (22,7)

6.1 (23,1)

7.0 (26,5)

5.6 (21,2)

6.6 (25,0)

6.8 (25,7)

7.0 (26,5)

8.2 (31,0)

9.0 (34,1)

9.5 (36,0)

10 (37,8)

12 (45,4)

5.5 (20,8)

5.7 (21,6)

6.0 (22,7)

6.2 (23,5)

6.4 (24,2)

6.5 (24,6)

8.0 (30,3)

7.8 (29,5)

9.1 (34,4)

7.5 (28,4)

8.5 (32,2)

9.0 (34,1)

9.5 (36,0)

10 (37,8)

10 (37,8)

12 (45,4)

12 (45,4)

13 (49,2)

14 (53,0)

15 (56,8)

16 (60,6)

17 (64,3)

17 (64,3)

17 (64,3)

18 (68,1)

20 (75,7)

22 (83,3)

200 (13,8)

225

250

300

400

500

600

(15,5)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

2.6 (9,84)

2.8 (10,6)

3.4 (12,9)

4.0 (15,1)

4.6 (17,4)

5.8 (22,0)

4.6 (17,4)

4.8 (18,2)

6.2 (23,5)

6.8 (25,7)

7.5 (28,4)

9.3 (35,2)

8.0 (30,3)

8.3 (31,4)

9.9 (37,5)

12 (45,4)

13 (49,2)

15 (56,8)

7.0 (26,5)

7.2 (27,3)

7.8 (29,5)

10 (37,8)

10 (37,8)

11 (41,6)

11 (41,6)

12 (45,4)

12 (45,4)

16 (60,6)

16 (60,6)

17 (64,3)

18 (68,1)

19 (71,9)

21 (79,5)

25 (94,6)

25 (94,6)

28 (106)

250 (17,2)

275

300

400

500

600

(19,0)

(20,7)

(27,6)

(34,5)

(41,4)

3.2 (12,1)

3.4 (12,9)

3.8 (14,4)

5.0 (18,9)

6.4 (24,2)

5.4 (20,4)

5.8 (22,0)

7.2 (27,3)

9.0 (34,1)

10 (37,8)

8.5 (32,2)

9.4 (35,6)

12 (45,4)

14 (53,0)

16 (60,6)

7.8 (29,5)

8.0 (30,3)

10 (37,8)

11 (41,6)

12 (45,4)

13 (49,2)

14 (53,0)

16 (60,6)

18 (68,1)

20 (75,7)

21 (79,5)

22 (83,3)

28 (106)

30 (114)

31 (117)

1. To obtain capacities for regulator with metal diaphragms or for Type 95HT, multiply the table values by 0.6.

Bulletin 71.1:95

35

Table 21. Water Capacities(1) in GPM (l/min) for NPS 1/4 through 1/2 (DN 15) Type 95HP Regulators

with Elastomer Diaphragm (continued)

RECOMMENDED

OUTLET

PRESSURE

RANGE,

PSIG (bar)

PRESSURE REGULATOR BODY SIZE, NPS (DN)

Outlet

Setting,

Psig (bar)

Inlet 1/4 1/2 (15)

Droop Droop

Psig (bar) 10% 20% 40% 10% 20% 40%

80 to 300

(5,5 to 20,7) 300 (20,7)

350

400

500

600

(24,1)

(27,6)

(34,5)

(41,4)

3.8 (14,4)

4.0 (15,1)

5.2 (19,7)

6.5 (24,6)

7.0 (26,5)

7.5 (28,4)

9.0 (34,1)

11 (41,6)

11 (41,6)

12 (45,4)

14 (53,0)

16 (60,6)

9.5 (36,0)

10 (37,8)

10 (37,8)

13 (49,2)

15 (56,8)

17 (64,3)

19 (71,9)

21 (79,5)

24 (90,8)

27 (102)

29 (110)

33 (125)

80 to 400

(5,5 to 27,6)

Type 95HP only

400 (27,6) 500

600

(34,5)

(41,4)

5.3 (20,1)

6.6 (25,0)

9.2 (34,8)

12 (45,4)

14 (53,0)

17 (64,3)

11 (41,6)

14 (53,0)

20 (75,7)

22 (83,3)

30 (114)

35 (132)

1. To obtain capacities for regulator with metal diaphragms or for Type 95HT, multiply the table values by 0.6.

Table 21. Water Capacities(1) in GPM (l/min) for NPS 3/4 through 1 (DN 20 through 25) Type 95HP Regulators

with Elastomer Diaphragm (continued)

- continued -

RECOMMENDED

OUTLET

PRESSURE

RANGE,

PSIG (bar)

PRESSURE REGULATOR BODY SIZE, NPS (DN)

Outlet

Setting,

Psig (bar)

Inlet 3/4 (20) 1 (25)

Droop Droop

Psig (bar) 10% 20% 40% 10% 20% 40%

15 to 100

(1,0 to 6,9)

15 (1,0)

30

40

50

75

100

150

200

250

300

400

500

600

(2,1)

(2,8)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

4.5 (17,0)

4.5 (17,0)

5.5 (20,8)

5.5 (20,8)

7.0 (26,5)

9.0 (34,1)

11 (41,6)

11 (41,6)

13 (49,2)

16 (60,6)

18 (68,1)

24 (90,8)

6.0 (22,7)

7.0 (26,5)

7.8 (29,5)

9.0 (34,1)

11 (41,6)

13 (49,2)

16 (60,6)

15 (56,8)

19 (71,9)

23 (87,1)

26 (98,4)

33 (125)

9.5 (36,0)

11 (41,6)

12 (45,4)

15 (56,8)

17 (64,3)

20 (75,7)

21 (79,5)

21 (79,5)

23 (87,1)

27 (102)

33 (125)

42 (159)

4.0 (15,1)

5.0 (18,9)

6.5 (24,6)

7.0 (26,5)

7.3 (27,6)

11 (41,6)

10 (37,8)

12 (45,4)

15 (56,8)

20 (75,7)

19 (71,9)

18 (68,1)

6.0 (22,7)

7.0 (26,5)

8.5 (32,2)

11 (41,6)

13 (49,2)

17 (64,3)

17 (64,3)

23 (87,1)

26 (98,4)

26 (98,4)

27 (102)

30 (114)

9.8 (37,1)

11 (41,6)

14 (53,0)

17 (64,3)

21 (79,5)

25 (94,6)

32 (121)

35 (132)

36 (136)

37 (140)

37 (140)

41 (155)

30 (2,1)

40

50

75

100

150

200

250

300

400

500

600

(2,8)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

5.2 (19,7)

6.0 (22,7)

7.0 (26,5)

9.0 (34,1)

12 (45,4)

14 (53,0)

16 (60,6)

17 (64,3)

16 (60,6)

23 (87,1)

30 (114)

7.3 (27,6)

10 (37,8)

13 (49,2)

16 (60,6)

19 (71,9)

21 (79,5)

24 (90,8)

22 (83,3)

25 (94,6)

33 (125)

38 (144)

15 (56,8)

17 (64,3)

20 (75,7)

24 (90,8)

28 (106)

30 (114)

31 (117)

32 (121)

34 (129)

44 (167)

51 (193)

5.5 (20,8)

7.0 (26,5)

9.0 (34,1)

11 (41,6)

13 (49,2)

14 (53,0)

18 (68,1)

21 (79,5)

24 (90,8)

25 (94,6)

30 (114)

8.0 (30,3)

11 (41,6)

15 (56,8)

19 (71,9)

24 (90,8)

26 (98,4)

33 (125)

34 (129)

39 (148)

40 (151)

42 (159)

14 (53,0)

17 (64,3)

23 (87,1)

30 (114)

35 (132)

44 (167)

47 (178)

52 (197)

54 (204)

56 (212)

58 (220)

75 (5,2)

100

125

150

200

250

300

400

500

600

(6,9)

(8,6)

(10,3)

(13,8)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

12 (45,4)

15 (56,8)

17 (64,3)

20 (75,7)

24 (90,8)

25 (94,6)

26 (98,4)

36 (136)

39 (148)

20 (75,7)

23 (87,1)

27 (102)

31 (117)

35 (132)

38 (144)

38 (144)

49 (185)

52 (197)

27 (102)

32 (121)

37 (140)

43 (163)

48 (182)

51 (193)

58 (220)

64 (242)

72 (273)

14 (53,0)

17 (64,3)

21 (79,5)

24 (90,8)

29 (110)

37 (140)

39 (148)

39 (148)

39 (148)

21 (79,5)

26 (98,4)

32 (121)

38 (144)

44 (167)

49 (185)

53 (201)

57 (216)

57 (216)

28 (106)

35 (132)

40 (151)

47 (178)

51 (193)

57 (216)

60 (227)

65 (246)

70 (265)

100 (6,9)

125

150

175

200

250

300

400

500

600

(8,6)

(10,3)

(12,1)

(13,8)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

15 (56,8)

18 (68,1)

20 (75,7)

23 (87,1)

29 (110)

32 (121)

32 (121)

33 (125)

44 (167)

23 (87,1)

28 (106)

31 (117)

34 (129)

38 (144)

44 (167)

48 (182)

49 (185)

61 (231)

29 (110)

35 (132)

39 (148)

43 (163)

49 (185)

54 (204)

63 (238)

64 (242)

77 (291)

17 (64,3)

21 (79,5)

24 (90,8)

28 (106)

36 (136)

39 (148)

41 (155)

41 (155)

41 (155)

24 (90,8)

30 (114)

36 (136)

38 (144)

47 (178)

53 (201)

61 (231)

61 (231)

61 (231)

32 (121)

37 (140)

42 (159)

45 (170)

51 (193)

57 (216)

65 (246)

66 (250)

70 (265)

1. To obtain capacities for regulators with metal diaphragms or for Type 95HT, multiply the table values by 0.6.

Bulletin 71.1:95

36

Table 21. Water Capacities(1) in GPM (l/min) for NPS 3/4 through 1 (DN 20 through 25) Type 95HP Regulators

with Elastomer Diaphragm (continued)

RECOMMENDED

OUTLET

PRESSURE

RANGE,

PSIG (bar)

PRESSURE REGULATOR BODY SIZE, NPS (DN)

Outlet

Setting,

Psig (bar)

Inlet 3/4 (20) 1 (25)

Droop Droop

Psig (bar) 10% 20% 40% 10% 20% 40%

80 to 300

(5,5 to 20,7)

125 (8,6)

150

175

200

225

250

300

400

500

600

(10,3)

(12,1)

(13,8)

(15,5)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

9.0 (34,1)

12 (45,4)

13 (49,2)

15 (56,8)

16 (60,6)

17 (64,3)

19 (71,9)

24 (90,8)

28 (106)

16 (60,6)

20 (75,7)

22 (83,3)

24 (90,8)

27 (102)

28 (106)

35 (132)

36 (136)

40 (151)

28 (106)

31 (117)

33 (125)

39 (148)

41 (155)

43 (163)

47 (178)

51 (193)

59 (223)

13 (49,2)

13 (49,2)

16 (60,6)

16 (60,6)

18 (68,1)

21 (79,5)

22 (83,3)

23 (87,1)

28 (106)

19 (71,9)

22 (83,3)

25 (94,6)

27 (102)

30 (114)

35 (132)

38 (144)

40 (151)

42 (159)

32 (121)

36 (136)

41 (155)

44 (167)

47 (178)

51 (193)

55 (208)

56 (212)

62 (235)

200 (13,8)

225

250

300

400

500

600

(15,5)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

16 (60,6)

17 (64,3)

19 (71,9)

24 (90,8)

25 (94,6)

30 (114)

25 (94,6)

28 (106)

31 (117)

38 (144)

40 (151)

45 (170)

37 (140)

42 (159)

47 (178)

56 (212)

61 (231)

70 (265)

17 (64,3)

20 (75,7)

22 (83,3)

28 (106)

29 (110)

30 (114)

25 (94,6)

30 (114)

35 (132)

44 (167)

45 (170)

46 (174)

40 (151)

41 (155)

51 (193)

65 (246)

67 (254)

72 (273)

250 (17,2)

275

300

400

500

600

(19,0)

(20,7)

(27,6)

(34,5)

(41,4)

19 (71,9)

19 (71,9)

23 (87,1)

27 (102)

31 (117)

29 (110)

31 (117)

37 (140)

42 (159)

48 (182)

41 (155)

44 (167)

56 (212)

64 (242)

74 (280)

20 (75,7)

23 (87,1)

29 (110)

30 (114)

32 (121)

31 (117)

34 (129)

45 (170)

48 (182)

50 (189)

44 (167)

48 (182)

62 (235)

70 (265)

74 (280)

300 (20,7)

350

400

500

600

(24,1)

(27,6)

(34,5)

(41,4)

21 (79,5)

24 (90,8)

27 (102)

32 (121)

35 (132)

39 (148)

43 (163)

51 (193)

47 (178)

53 (201)

60 (227)

75 (284)

24 (90,8)

27 (102)

31 (117)

35 (132)

38 (144)

44 (167)

50 (189)

55 (208)

50 (189)

58 (220)

70 (265)

74 (280)

80 to 400

(5,5 to 27,6)

Type 95HP only

400 (27,6) 500

600

(34,5)

(41,4)

27 (102)

33 (125)

44 (167)

53 (201)

64 (242)

77 (291)

32 (121)

38 (144)

51 (193)

58 (220)

70 (265)

76 (288)

1. To obtain capacities for regulators with metal diaphragms or for Type 95HT, multiply the table values by 0.6.

Table 22. Water Capacities in GPM (l/min) for NPS 1-1/2 through 2 (DN 40 through 50) Types 95HT (Metal Diaphragm) and 95HP

(Elastomer Diaphragm) Regulators

RECOMMENDED

OUTLET

PRESSURE

RANGE,

PSIG (bar)

PRESSURE REGULATOR BODY SIZE, NPS (DN)

Outlet

Setting,

Psig (bar)

Inlet 1-1/2 (40) 2 (50)

Droop Droop

Psig (bar) 10% 20% 40% 10% 20% 40%

15 to 100

(1,0 to 6,9)

15 (1,0)

30

40

50

75

100

150

200

250

300

400

500

600

(2,1)

(2,8)

(3,5)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

9.0 (34,1)

11 (41,6)

12 (45,4)

14 (53,0)

16 (60,6)

22 (83,3)

30 (114)

35 (132)

37 (140)

40 (151)

43 (163)

45 (170)

12 (45,4)

13 (49,2)

15 (56,8)

18 (68,1)

22 (83,3)

31 (117)

40 (151)

47 (178)

51 (193)

58 (220)

65 (246)

71 (269)

18 (68,1)

19 (71,9)

21 (79,5)

25 (94,6)

29 (110)

39 (148)

50 (189)

65 (246)

85 (322)

120 (454)

140 (530)

140 (530)

11 (41,6)

12 (45,4)

13 (49,2)

15 (56,8)

18 (68,1)

29 (110)

50 (189)

70 (265)

85 (322)

45(1) (170)(1)

47(1) (178)(1)

50(1) (189)(1)

14 (53,0)

16 (60,6)

17 (64,3)

21 (79,5)

26 (98,4)

50 (189)

92 (348)

95 (360)

100 (378)

63(1) (238)(1)

67(1) (254)(1)

70(1) (265)(1)

21 (79,5)

24 (90,8)

28 (106)

35 (132)

45 (170)

85 (322)

120 (454)

120 (454)

120 (454)

75(1) (284)(1)

77(1) (291)(1)

80(1) (303)(1)

50 (3,4)

60

75

100

150

200

250

300

400

500

600

(4,1)

(5,2)

(6,9)

(10,3)

(13,8)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

20 (75,7)

23 (87,1)

26 (98,4)

34 (129)

40 (151)

47 (178)

52 (197)

62 (235)

71 (269)

76 (288)

28 (106)

33 (125)

39 (148)

50 (189)

60 (227)

67 (254)

75 (284)

85 (322)

100 (378)

110 (416)

50 (189)

57 (216)

67 (254)

86 (326)

110 (416)

130 (492)

150 (568)

190 (719)

240 (908)

240 (908)

19 (71,9)

23 (87,1)

30 (114)

45 (170)

58 (220)

72 (273)

85 (322)

85(1) (322)(1)

92(1) (348)(1)

100(1) (378)(1)

31 (117)

38 (144)

52 (197)

80 (303)

100 (378)

120 (454)

130 (492)

110(1) (416)(1)

110(1) (416)(1)

120(1) (454)(1)

56 (212)

69 (261)

89 (337)

130 (492)

160 (606)

180 (681)

190 (719)

140(1) (530)(1)

140(1) (530)(1)

140(1) (530)(1)

Gray areas indicate limited capacities due to boost effects.

- continued -

Bulletin 71.1:95

37

Table 22. Water Capacities in GPM (l/min) for NPS 1-1/2 through 2 (DN 40 through 50) Types 95HT (Metal Diaphragm) and 95HP

(Elastomer Diaphragm) Regulators

RECOMMENDED

OUTLET

PRESSURE

RANGE,

PSIG (bar)

PRESSURE REGULATOR BODY SIZE, NPS (DN)

Outlet

Setting,

Psig (bar)

Inlet 1-1/2 (40) 2 (50)

Droop Droop

Psig (bar) 10% 20% 40% 10% 20% 40%

15 to 100

(1,0 to 6,9) 100 (6,9)

125

150

175

200

250

300

400

500

600

(8,6)

(10,3)

(12,1)

(13,8)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

37 (140)

45 (170)

49 (185)

54 (204)

63 (238)

70 (265)

85 (322)

90 (341)

100 (378)

57 (216)

65 (246)

70 (265)

80 (303)

95 (360)

110 (416)

130 (492)

140 (530)

160 (606)

95 (360)

110 (416)

120 (454)

130 (492)

160 (606)

180 (681)

220 (833)

240 (908)

260 (984)

45 (170)

55 (208)

65 (246)

73 (276)

90 (341)

110 (416)

93(1) (352)(1)

100(1) (378)(1)

110(1) (416)(1)

75 (284)

110 (416)

120 (454)

140 (530)

170 (643)

190 (719)

120(1) (454)(1)

130(1) (492)(1)

140(1) (530)(1)

100 (378)

120 (454)

130 (492)

150 (568)

170 (643)

190 (719)

170 (1) (643)(1)

170(1) (643)(1)

180(1) (681)(1)

60 to 260

(4,1 to 17,9)

125 (8,6)

150

175

200

225

250

300

400

500

600

(10,3)

(12,1)

(13,8)

(15,5)

(17,2)

(20,7)

(27,6)

(34,5)

(41,4)

28 (106)

29 (110)

31 (117)

34 (129)

38 (144)

45 (170)

58 (220)

65 (246)

71 (269)

42 (159)

45 (170)

50 (189)

55 (208)

61 (231)

71 (269)

90 (341)

100 (378)

110 (416)

68 (257)

71 (269)

77 (291)

84 (318)

95 (360)

120 (454)

150 (568)

170 (643)

180 (681)

24 (90,8)

31 (117)

36 (136)

42 (159)

47 (178)

55 (208)

62 (235)

70 (265)

200 (757)

49 (185)

55 (208)

63 (238)

70 (265)

80 (303)

95 (360)

230 (871)

240 (908)

270 (1022)

84 (318)

87 (329)

91 (344)

96 (363)

110 (416)

140 (530)

240 (908)

260 (984)

290 (1098)

200 (13,8)

225

250

300

350

400

450

500

600

(15,5)

(17,2)

(20,7)

(24,1)

(27,6)

(31,0)

(34,5)

(41,4)

40 (151)

45 (170)

52 (197)

54 (204)

60 (227)

75 (284)

83 (314)

91 (344)

60 (227)

75 (284)

88 (333)

90 (341)

100 (378)

120 (454)

130 (492)

140 (530)

110 (416)

120 (454)

130 (492)

150 (568)

180 (681)

190 (719)

200 (757)

210 (795)

46 (174)

50 (189)

58 (220)

72 (273)

74 (280)

95 (360)

110 (416)

150 (568)

72 (273)

80 (303)

96 (363)

110 (416)

160 (606)

180 (681)

200 (757)

280 (1060)

120 (454)

130 (492)

150 (568)

170 (643)

220 (833)

240 (908)

260 (984)

290 (1098)

250 (17,2)

275

300

350

400

450

500

550

600

(19,0)

(20,7)

(24,1)

(27,6)

(31,0)

(34,5)

(37,9)

(41,4)

46 (174)

50 (189)

60 (227)

65 (246)

70 (265)

81 (307)

82 (310)

85 (322)

77 (291)

85 (322)

96 (363)

100 (378)

120 (454)

130 (492)

140 (530)

150 (568)

130 (492)

140 (530)

150 (568)

180 (681)

200 (757)

220 (833)

230 (871)

240 (908)

50 (189)

55 (208)

65 (246)

70 (265)

90 (341)

100 (378)

120 (454)

130 (492)

86 (326)

89 (337)

100 (378)

130 (492)

160 (606)

170 (643)

190 (719)

250 (946)

140 (530)

150 (568)

170 (643)

190 (719)

210 (795)

230 (871)

250 (946)

260 (984)

60 to 300

(4,1 to 20,7)

Type 95HP only

300 (20,7)

350

400

450

500

550

600

(24,1)

(27,6)

(31,0)

(34,5)

(37,9)

(41,4)

55 (208)

60 (227)

70 (265)

80 (303)

88 (333)

90 (341)

94 (356)

110 (416)

120 (454)

140 (530)

150 (568)

150 (568)

140 (530)

180 (681)

200 (757)

220 (833)

230 (871)

250 (946)

60 (227)

75 (284)

97 (367)

110 (416)

120 (454)

140 (530)

110 (416)

120 (454)

150 (568)

180 (681)

210 (795)

240 (908)

160 (606)

180 (681)

200 (757)

220 (833)

240 (908)

250 (946)

Gray areas indicate limited capacities due to boost effects.

Ordering Information

When ordering, specify:

Application Information

1. Type of gas/liquid being controlled (air, ammonia,

water, process chemicals, etc.); list any factors

such as impurities in the gas/liquid that may affect

the compatibility with the regulator trim parts.

2. Specic gravity of the gas/liquid

3. Temperature of the gas/liquid

4. Range of owing inlet pressure to regulator

5. Outlet pressure setting or range

6. Flow rates

a. Minimum controlled ow

b. Normal ow

c. Maximum ow

7. Line size and end connection size of adjacent piping

Regulator Information

Refer to the Specications section on page 2 and

carefully review the description to the right of each

specication and in the referenced tables. Specify

the desired selection wherever there is a choice to be

made. Always specify the regulator type number.

Bulletin 71.1:95

38

TYPE 95L REGULATOR

BODY SIZE,

NPS (DN)

ABC D

Cast Iron Steel/SST

Inch mm Inch mm Inch mm Inch mm Inch mm

1/4 2.25 57 2.75 70 1.81 46 4.62 117 5.06 129

1/2 (15) 3.88 99 4.00 102 1.81 46 6.12 155 7.00 178

3/4,1

(20, 25) 4.88 124 5.00 127 2.25 57,2 9.12 232 10.19 259

TYPES 95H, 95HT, AND 95HP REGULATORS

1/4 2.25 57 2.75 70 1.81 46 4.50 114 3.19 81

1/2 (15) 3.88 99 4.00 102 1.81 46 6.00 152 4.25 108

3/4, 1

(20, 25) 4.88 124 5.00 127 2.25 57 9.12 232 6.06 154

1-1/2, 2

(40, 50) 7.25 184 7.38 187 2.79 71 14.69 373 8.19 208

TYPE 95LD REGULATOR

BODY SIZE,

NPS (DN)

ABC D E (NPT) J

Cast Iron Steel

Inch mm Inch mm Inch mm Inch mm Inch mm Inch Inch mm

1/4 2.25 57 2.75 70 1.81 46 7.94 202 5.06 129 1/8 2.75 70

1/2 (15) 3.88 99 4.00 102 1.81 46 10.12 257 7.00 178 1/4 4.00 102

3/4, 1

(20, 25) 4.88 124 5.00 127 2.25 57 15.31 389 10.19 259 1/4 4.00 102

TYPE 95HD REGULATOR

1/4 2.25 57 2.75 70 1.81 46 7.88 200 3.19 81 1/8 2.75 70

1/2 (15) 3.88 99 4.00 102 1.81 46 10.00 254 4.25 108 1/4 4.00 102

3/4, 1

(20, 25) 4.88 124 5.00 127 2.25 57 15.12 384 6.06 154 1/4 4.00 102

1-1/2, 2

(40, 50) 7.25 184 7.38 187 2.79 71 18.31 465 8.19 208 1/4 6.75 171

Figure 4. Dimensions

TYPE 95H REGULATOR

(DIMENSIONS ALSO APPLY TO

TYPES 95L, 95HT AND

95HP REGULATORS)

TYPE 95HD REGULATOR

(DIMENSIONS ALSO APPLY TO

TYPE 95LD REGULATOR)

C (MAXIMUM)

AE9236-F

A0811-2 / IL

D

J

A

E-NPT

BODY SIZE

FLANGED BODIES AVAILABLE IN

NPS 1/2 THROUGH 2 (DN 15 through 50)

BODY SIZES

INCHES

(mm)

D

C (MAXIMUM)

B

14

(356)

7

(178)

14A4040-D / IL

BODY SIZE

C (MAXIMUM)

B

D

AJ3324-H

A0810-2 / IL

A

B

Bulletin 71.1:95

39

Ordering Guide

Type (Select One)

95L (Low pressure)

95LD (Low pressure differential)

95H (High pressure)

95HD (High pressure differential, must be steel or

stainless steel construction)

95HP (High pressure, soft-seated)

95HT (High pressure/temperature, must be steel or

stainless steel construction)

Body Size (Select One)

1/4 NPT

NPS 1/2 (DN 15)

NPS 3/4 (DN 20)

NPS 1 (DN 25)

NPS 1-1/2 (DN 40) (not available for 95L Series)

NPS 2 (DN 50) (not available for 95L Series)

Body Material and End Connection Style(1)

(Select One)

Cast iron

NPT***

WCC Steel

NPT***

CL150 RF**

CL300 RF**

PN 16/25/40**

SWE**

CF8M Stainless steel

NPT***

CL150 RF**

CL300 RF**

PN 16/25/40**

SWE**

Hastelloy® C

NPT*

CL150 RF*

CL300 RF*

PN 16/25/40*

SWE*

Monel®

NPT*

CL150 RF*

CL300 RF*

PN 16/25/40*

SWE*

Spring Case Material (Select One)

Cast iron (standard for cast iron bodies)***

WCC Steel (standard for steel or stainless

steel bodies)***

CF8M Stainless steel (optional for stainless

steel bodies)**

Trim Material – See Table 6 (Select Metal or Elastomer)

Metal Seat (Select One)

416 Stainless steel (standard)***

316 Stainless steel**

Hastelloy® C*

Monel®*

Elastomer Seat (Select one from each column)

Disk Holder Disk

Brass*** Neoprene (CR) or Nitrile (NBR)***

416 SST*** Fluorocarbon (FKM)

316 SST** PTFE

Hastelloy® C* Ethylenepropylene (EPDM)*

Monel®* Peruoroelastomer (FFKM)*

Outlet or Differential Pressure Range (Select One)

Type 95L or 95LD

2 to 6 psig/psi (0,14 to 0,41 bar), Yellow***

5 to 15 psig/psi (0,35 to 1,0 bar), Green***

13 to 30 psig/psi (0,90 to 2,1 bar), Red***

Type 95H or 95HD

NPS 1/4 through 3/4 (DN 20) body sizes

15 to 30 psig/psi (1,0 to 2,1 bar), Yellow***

25 to 75 psig/psi (1,7 to 5,2 bar), Green***

70 to 150 psig/psi (4,8 to 10,3 bar), Red***

NPS 1-1/2 and 2 (DN 40 and 50) body sizes

5 to 80 psig/psi (0,35 to 5,5 bar), Light Blue***

60 to 120 psig/psi (4,1 to 8,3 bar), Light Gray***

100 to 140 psig/psi (6,9 to 9,7 bar), Yellow***

120 to 150 psig/psi (8,3 to 10,3 bar), Black***

Type 95HT

NPS 1/4 through 3/4 (DN 20) body sizes

15 to 100 psig (1,0 to 6,9 bar), Unpainted***

80 to 300 psig (5,5 to 20,7 bar), Unpainted***

NPS 1-1/2 and 2 (DN 40 and 50) body sizes

15 to 100 psig (1,0 to 6,9 bar), Unpainted***

60 to 260 psig (4,1 to 17,9 bar), Unpainted***

- continued -

1. SWE, CL150 RF, CL300RF, and PN 16/25/40 are not available in NPS 1/4 body size.

Bulletin 71.1:95

The Emerson logo is a trademark and service mark of Emerson Electric Co. All other marks are the property of their prospective owners. Fisher is a mark owned by Fisher Controls, Inc., a

business of Emerson Process Management.

The contents of this publication are presented for informational purposes only, and while every effort has been made to ensure their accuracy, they are not to be construed as warranties or

guarantees, express or implied, regarding the products or services described herein or their use or applicability. We reserve the right to modify or improve the designs or specications of such

products at any time without notice.

Emerson Process Management does not assume responsibility for the selection, use or maintenance of any product. Responsibility for proper selection, use and maintenance of any Emerson

Process Management product remains solely with the purchaser.

©Emerson Process Management Regulator Technologies, Inc., 1963, 2009; All Rights Reserved

Industrial Regulators

Emerson Process Management

Regulator Technologies, Inc.

USA - Headquarters

McKinney, Texas 75069-1872 USA

Tel: 1-800-558-5853

Outside U.S. 1-972-548-3574

Asia-Pacic

Shanghai, China 201206

Tel: +86 21 2892 9000

Europe

Bologna, Italy 40013

Tel: +39 051 4190611

Middle East and Africa

Dubai, United Arab Emirates

Tel: +971 4811 8100

Natural Gas Technologies

Emerson Process Management

Regulator Technologies, Inc.

USA - Headquarters

McKinney, Texas 75069-1872 USA

Tel: 1-800-558-5853

Outside U.S. 1-972-548-3574

Asia-Pacic

Singapore, Singapore 128461

Tel: +65 6777 8211

Europe

Bologna, Italy 40013

Tel: +39 051 4190611

Gallardon, France 28320

Tel: +33 (0)2 37 33 47 00

TESCOM

Emerson Process Management

Tescom Corporation

USA - Headquarters

Elk River, Minnesota 55330-2445 USA

Tel: 1-763-241-3238

Europe

Selmsdorf, Germany 23923

Tel: +49 (0) 38823 31 0

For further information visit www.sherregulators.com

Ordering Guide (Continued)

Type 95HP

NPS 1/4 through 1 (DN 15 through 25) body sizes

15 to 100 psig (1,0 to 6,9 bar), Unpainted***

80 to 400 psig (5,5 to 27,6 bar), Unpainted***

NPS 1-1/2 and 2 (DN 40 and 50) body sizes

15 to 100 psig (1,0 to 6,9 bar), Unpainted***

60 to 300 psig (4,1 to 20,7 bar), Unpainted***

Replacement Parts Kit (Optional)

Yes, send one replacement parts kit to match

this order.

Regulators Quick Order Guide

* * * Readily Available for Shipment

* * Allow Additional Time for Shipment

*Special Order, Constructed from Non-Stocked Parts.

Consult your local Sales Ofce for Availability.

Availability of the product being ordered is determined by the component with the

longest shipping time for the requested construction.

Specication Worksheet

Application:

Specic Use

Line Size

Gas Type and Specic Gravity

Gas Temperature

Does the Application Require Overpressure Protection?

Yes No If yes, which is preferred:

Relief Valve Monitor Regulator Shutoff Device

Is overpressure protection equipment selection

assistance desired?

Pressure:

Maximum Inlet Pressure (P1max)

Minimum Inlet Pressure (P1min)

Downstream Pressure Setting(s) (P2)

Maximum Flow (Qmax)

Performance Required:

Accuracy Requirements?

Need for Extremely Fast Response?

Other Requirements:
